Parahydrogen-Induced Hyperpolarization of Unsaturated Phosphoric Acid Derivatives

by
Veronika V. Zlobina
1,2,
Alexey S. Kiryutin
3,4,
Igor A. Nikovskiy
1,
Oleg I. Artyushin
1,
Vitaly P. Kozinenko
3,4,
Alexander S. Peregudov
1,
Alexandra V. Yurkovskaya
3,4 and
Valentin V. Novikov
2,5,*
1
Nesmeyanov Institute of Organoelement Compounds, Russian Academy of Sciences, Vavilova Str. 28, 119991 Moscow, Russia
2
Moscow Institute of Physics and Technology, National Research University, Institutskiy per. 9, 141700 Dolgoprudny, Russia
3
International Tomography Center, Siberian Branch of the Russian Academy of Sciences, Institutskaya Str. 3A, 630090 Novosibirsk, Russia
4
Department of Physics, Novosibirsk State University, Pirogova Str. 2, 30090 Novosibirsk, Russia
5
BMSTU Center of National Technological Initiative “Digital Material Science: New Material and Substances”, Bauman Moscow State Technical University, 2nd Baumanskaya Str. 5, 105005 Moscow, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(1), 557; https://doi.org/10.3390/ijms24010557
Submission received: 5 December 2022 / Revised: 21 December 2022 / Accepted: 27 December 2022 / Published: 29 December 2022
(This article belongs to the Section Molecular Biology)
Browse Figures
Versions Notes

Abstract

:
Parahydrogen-induced nuclear polarization offers a significant increase in the sensitivity of NMR spectroscopy to create new probes for medical diagnostics by magnetic resonance imaging. As precursors of the biocompatible hyperpolarized probes, unsaturated derivatives of phosphoric acid, propargyl and allyl phosphates, are proposed. The polarization transfer to 1H and 31P nuclei of the products of their hydrogenation by parahydrogen under the ALTADENA and PASADENA conditions, and by the PH-ECHO-INEPT+ pulse sequence of NMR spectroscopy, resulted in a very high signal amplification, which is among the largest for parahydrogen-induced nuclear polarization transfer to the 31P nucleus.

1. Introduction

Nuclear magnetic resonance (NMR) spectroscopy is one of the most powerful analytical methods in chemistry [1], biology [2] and medicine [3]. However, it often suffers from a low sensitivity owing to an extremely small difference in the populations of the nuclear spin states, which are as low as 10−5–10−4 in the magnetic fields of several Tesla at room temperature, the conditions typically employed in modern NMR spectrometers [4,5]. Overcoming this limitation [6,7] can revolutionize quantitative visualization of metabolic processes inside a living organism [8] and early diagnosis of associated pathologies by magnetic resonance imaging (MRI) [9]. To do so, a nonequilibrium polarization of the nuclei can be achieved by transferring the spin order from the parahydrogen to the investigated molecule—referred to as parahydrogen-induced nuclear polarization (PHIP) [10]. Unlike other ways of generating nuclear hyperpolarization, such as noble gas optical pumping [11,12,13] or dynamic nuclear polarization [14,15], PHIP produces a wide range of polarized molecules, including MRI contrast agents [16], with no need for expensive equipment. The transfer of the spin order from the protons of the substrate molecule to its other nuclei [17,18] further increases the sensitivity and resolution of MRI, as the signals in the heteronuclear NMR spectra are less prone to overlap.
Heteroatomic nuclei often feature longer relaxation times and, therefore, longer polarization lifetimes [19]. Among them, the 31P nucleus is highly promising for medical applications, as phosphorus compounds are involved in many biological reactions. Its large gyromagnetic ratio and the spin of ½ are behind the high sensitivity of PHIP-assisted NMR spectroscopy [20,21].
Inorganic phosphate, which is the most common phosphorous-containing compound in our bodies (from our DNA to the bones), is an attractive hyperpolarized probe for MRI [22] that can be created in three steps (Scheme 1). The first step is the hydrogenation of a suitable precursor compound, such as allyl or propargyl phosphate, by the parahydrogen. These phosphoric acid esters are chemically stable and contain an unsaturated fragment close to the phosphorus nuclei available for hydrogenation.
In the next step, the polarization is transferred from the hydrogenated fragment to the 31P nucleus. This could be carried out in several ways, including the spontaneous transfer in a strong magnetic field, caused by the nuclear Overhauser effect [23], or in a weak magnetic field, owing to spin–spin interactions between the protons and the heteroatomic nucleus (adiabatic longitudinal transport after dissociation engenders net alignment, ALTADENA) [24]. Experimentally, this is done by performing the hydrogenation of the precursor compound, either inside the NMR spectrometer (PASADENA, parahydrogen and synthesis allow dramatic enhancement of nuclear alignment), or in a weak field outside of it, with the following adiabatic transfer of the sample to the spectrometer’s probe for the spectra registration (ALTADENA). Another option is the stimulated transfer that is induced by radio-frequency pulse sequences, such as INEPT (insensitive nuclei enhancement by polarization transfer) [25]. The final step is the polarization transfer to the 31P nuclei and the hydrolysis of a phosphoric acid derivative that results in a hyperpolarized inorganic phosphate (Scheme 1).
Here, this three-step approach is applied to the unsaturated derivatives of phosphoric acid, allyl and propargyl phosphates, to produce biocompatible probes for MRI with very long relaxation times.

2. Results and Discussion

2.1. Parahydrogen Hydrogenation and Identification of the Products

Two unsaturated derivatives of phosphoric acid were chosen as precursor compounds for the PHIP-assisted NMR spectroscopy; these are propargyl and allyl phosphates of cyclohexylammonium that were synthesized by esterification of phosphoric acid by the corresponding alcohol in the presence of acetic anhydride (Scheme 2).
The obtained phosphates were then hydrogenated by bubbling parahydrogen through their solutions in deuterated methanol in the presence of the complex [Rh(dppb)(COD)]BF4 as a catalyst [26] inside and outside of the NMR spectrometer. The collected NMR spectra featured intensive signals of the hydrogenation products together with an expected [27,28] signal of orthohydrogen (chemical shift δ = 4.57 ppm) [29] (Figures S1 and S2). As follows from these spectra, the allyl phosphate 2 converts into the propyl-containing product upon hydrogenation (Figure 1a,b), which, in the case of propargyl phosphate 1, occurs stepwise via the formation of an intermediate allyl phosphate (Figure 1c,d).

2.2. Hydrogenation under the ALTADENA Conditions

In the ALTADENA [24] experiment, the hydrogenation of the phosphates 1 and 2 was performed in a weak field of 2 mT followed by the adiabatic transfer of the sample into the strong field of the NMR spectrometer for spectra acquisition. The field strength of 2 mT was chosen as the smallest available one outside the magnetic shield. Going to a smaller field, e.g., in a submicrotesla region, might have caused a polarization transfer to the 31P nuclei. The resulting ALTADENA spectra demonstrated an expected peculiar line shape of the signals with the phase inversion [30]. If the hydrogenation occurs in a weak magnetic field (e.g., Earth’s magnetic field), the difference in the chemical shifts of the two protons after their binding to the substrate is smaller than the spin–spin interaction between them (|γ∆δB0| < |2πJ|). Upon the adiabatic transfer of the hydrogenation product into a strong magnetic field, one of the states |αβ〉 or |βα〉, depending on the sign of the spin–spin interaction constant, becomes populated. As a result, the NMR spectrum features the signals with a phase shifted by 180 degrees (Figure 2).
For the phosphates 2 and 1, the PHIP-based signal amplification, which is the ratio of the relative integral intensity of the signals from the polarized hydrogenation products to the relative integral intensity of the same signals after the polarization relaxation, reaches as high as 10 and 3276, respectively.

2.3. Hydrogenation under the PASADENA Conditions

If the hydrogenation occurs in the strong field of the NMR spectrometer (the PASADENA conditions [23]), the affected signals in the NMR spectra show an antiphase behavior (Figure 3). The difference in the chemical shifts of the protons bonded to the substrate is much larger than the spin–spin coupling constant (|γ∆δB0| ≫ |2πJ|). As a result, the spin order of the parahydrogen molecule transforms into the population of the states |αβ〉 and |βα〉 of the hydrogenated product, thereby causing strongly enhanced antiphase multiplets to appear in the NMR spectra.
As in the ALTADENA experiment above, the signal amplification under the PASADENA conditions, which was estimated by comparing the signal intensity before and after the relaxation of the polarization, was much higher for propargyl phosphate 1 than for allyl phosphate 2 (1588 and 6, respectively). The higher values of this amplification under the ALTADENA conditions stem from the difference in the nuclear relaxation rates in low and high magnetic fields [31].

2.4. Spontaneous Polarization Transfer

The possibility of the spontaneous polarization transfer to the 31P nucleus was probed by hydrogenating the phosphates 1 and 2 in the magnetic field that varied from nearly 0 to 2000 nT. For both these phosphates, a line shape of the 31P signal was clearly field-dependent (Figure 4). The largest amplification of the signal in the 31P NMR spectrum for phosphates 2 and 1 of 5 and 1100, respectively, was observed at the magnetic fields of 500 and 1000 nT (Figure 4). The value for propargyl phosphate 1 is among the highest observed for PHIP-assisted 31P signal amplification [22,32]. To validate the coherent nature of polarization transfer in these experiments, we performed numerical simulation of the observed 31P PHIP field dependence as described in the Methods section.

2.5. Polarization Transfer with the INEPT Pulse Sequence

An alternative approach for transferring the polarization from parahydrogen to a heteroatomic nucleus [1] is to use a PH-INEPT pulse sequence [30] of conventional NMR spectroscopy. As the polarized allyl and propyl phosphates have no direct J-coupling between the polarized protons and 31P nuclei, we employed a PH-ECHO-INEPT+ [33,34] sequence which, in contrast to PH-INEPT+ [30,35], has an important additional step, an echo on a proton channel for the polarization transfer to the methylene protons of an intermediate. Three corresponding delays of the pulse sequence were optimized to maximize the efficiency of the polarization transfer. This technique was here applied to propargyl phosphate 1, as allyl phosphate 2 allowed only relatively low amplifications to be achieved under both the PASADENA and ALTADENA conditions. For propargyl phosphate 1, the PH-ECHO-INEPT+ polarization transfer resulted in the signal amplification of 1672 (Figure S3). The use of the PH-ECHO-INEPT+ sequence allowed additionally increasing the efficiency of the polarization transfer, owing to longer relaxation times of phosphorus nuclei in a high field as compared to low-field conditions, so that the hyperpolarization is not dissipated during the sample transfer between the field regions. Although the resulting amplification is much smaller than the value of 3588 obtained by polarization transfer under SABRE (signal amplification by reversible exchange) conditions to a deuterated pyridine-containing phosphonate ligand [20], the amplification of the 31P signal is among the largest achieved by PHIP [21,36].

2.6. Hydrolysis

The proposed pathway towards the hyperpolarized phosphate (Scheme 1) implied the hydrolytic cleavage of the formerly unsaturated fragment from the 31P nucleus. Unfortunately, both phosphates 1 and 2 resisted the hydrolysis at all the probed pH values, from 1 to 14. They showed no signs of degradations in water over two weeks, as judged by the NMR spectra collected before and after this time. The strategy to achieve improved hydrolytic activity of hydrogenated phosphates 1 and 2 by decorating them with hydrolysis-enhancing groups is now being explored in our group.

3. Materials and Methods

Synthesis. All synthetic manipulations were carried out in a nitrogen atmosphere unless stated otherwise. Solvents were purchased from commercial sources and purified by distilling from conventional drying agents under an argon atmosphere prior to use.
Cyclohexylammonium allyl phosphate (2). To a mixture of crystalline phosphoric acid (2.0 g, 20.4 mmol) and pyridine (8.5 mL, 104.5 mmol) under stirring, allyl alcohol (11.9 g, 205 mmol) and triethylamine (5.5 mL, 41 mmol) were added via a dropping funnel. After the complete dissolution of solids, acetic anhydride (4 mL, 42.3 mmol) was added dropwise. The reaction mixture was stirred for 2 h at 90 °C and then cooled to r.t. After addition of water (10 mL), the reaction mixture was stirred at 90 °C for 1 h and cooled to r.t. The solution was diluted with water (25 mL). The aqueous phase was washed 3 times with diethyl ether (50 mL) and concentrated; the oily liquid was dissolved in acetone/water (9:1), and then cyclohexylamine (4.2 mL, 61 mmol) was added. The mixture was cooled at 4 °C and left at this temperature for 12 h to produce a white crystalline solid, which was collected by filtration and dried. The solid was then heated in ethanol, the insoluble residue was filtered off and the filtrate was cooled for 12 h at 4 °C. The white solid was filtered, washed with ethanol and dried under vacuum [37]. Yield: 2.1 g (66%). Found (%): C 53.39; H 10.11; N 8.47. Calculated C15H33N2O4P (%): C 53.55; H 9.98; N 8.33. 1H NMR (CD3OD) before hydrogenation, δ (ppm) = 4.37 (m, 2H, 3H-allyl), 5.07 (dd, 1H, 1H-allyl, 3J = 10.5 Hz, 2J = 1.7 Hz), 5.29 (dd, 1H, 1H-allyl, 3J = 17.2 Hz, 2J = 1.7 Hz), 6.00 (m, 1H, 2H-allyl); after hydrogenation, δ (ppm) = 0.97 (t, 3H, 1H-propyl, 3J = 7.4 Hz), 1.54 (s, 2H-propyl), 1.82 (dd, 1H, 1H-allyl, 3J = 6.6 Hz). 31P NMR (DMSO) before hydrogenation, δ (ppm) = 2.55 (Figure S4).
Cyclohexylammonium propargyl phosphate (1). Phosphorous acid (1.6 g, 19.6 mmol) was dissolved in a mixture of propargyl alcohol (38.5 g, 686.7 mmol) and triethylamine (10 mL). The resulting mixture was stirred for 5 min while adding iodine (7.6 g, 30.0 mmol), and then it was added to a mixture of acetone (400 mL) and triethylamine (15 mL). After stirring for 2 h at r.t., cyclohexylamine (30 mL) was added. The colorless precipitate was filtered and recrystallized from ethanol with a few drops of cyclohexylamine [38]. Yield: 2.05 g. (64%). Found (%): C 53.69; H 9.24; N 8.48. Calculated C15H31N2O4P (%): C 53.88; H 9.34; N 8.38. 1H NMR (CD3OD) before hydrogenation, δ (ppm) = 2.72 (t, 1H-propargyl, 4J = 2.5 Hz), 4.46 (dd, 3H-allyl, 4J = 2.5 Hz, 3JH-P = 6.3 Hz); after hydrogenation, δ (ppm) = 4.37 (m, 2H, 3H-allyl), 5.07 (dd, 1H, 1H-allyl, 3J = 10.5 Hz, 2J = 1.7 Hz), 5.29 (dd, 1H, 1H-allyl, 3J = 17.2 Hz, 2J = 1.7 Hz), 6.00 (m, 1H, 2H-allyl).). 31P NMR (DMSO) before hydrogenation, δ (ppm) = 2.49 (Figure S5).
NMR spectroscopy. The 1H и 31P NMR spectra were collected with a Bruker Avance III HD 400 spectrometer (proton frequency 400 MHz, field strength 9.4 T) and a Bruker Avance 300 spectrometer (proton frequency 300 MHz, field strength 7.05 T).
Hydrogenation by parahydrogen. To produce parahydrogen for hydrogenation, the parahydrogen generator CFA-200-H2CELL (CryoPribor, Cryotrade Engineering, Russia), based on a Cryocooler Zephyr HC-4A (Sumitomo, Japan) that provides parahydrogen enrichment of more than 95%, was used. Parahydrogen was bubbled through the solutions of the precursor compounds with a home-built fully automated setup [39,40]; the bubbling pressure was 4 atm. NMR spectra were obtained by sequential recording of 16 spectra with a parahydrogen bubbling time of 10 s.
Hydrogenation under the ALTADENA conditions. NMR experiments with fast magnetic field cycling and PHIP were performed with a home-built setup based on a Bruker Avance HD 400 MHz NMR spectrometer [40,41]. The setup includes a magnetic shield placed on top of the bore of the spectrometer’s superconducting magnet that allows ultralow magnetic fields as low as 5 nT to be achieved. The desired value of the ultralow magnetic field is set by adjusting the current in the induction coils located inside the magnetic shield. The sample is mechanically transferred between the detection zone of the spectrometer and the magnetic shield via a plastic rail driven by a stepper motor. An additional Z coil was used, controlled through a relay to alternate between 50 μT (Earth’s magnetic field) and the ultralow field. This type of field variation, which is necessary to effectuate an abrupt field switch between several mT and nT, has a duration of 100 μs; shuttling the sample from the spectrometer field to the magnetic shield takes about 0.5 s [42]. Hydrogenation at an arbitrary magnetic field was performed using the above home-built automated gas-flow system [34] that allows controlling the timing of both the parahydrogen bubbling and the magnetic field switching from the spectrometer console. The parahydrogen bubbling pressure was set to 3 bar with a 0.1-bar differential between the inlet and outlet of the tube, thereby providing an optimal gas flow rate of about 20–40 cm3/min. Temperature of the sample was 25 °C.
Hydrogenation under the PASADENA conditions. PASADENA experiments were carried out in situ in an NMR magnet in the same way as described above, but without the magnetic field cycling.
Polarization transfer via field selection. Polarization of the 31P nuclei was performed using the above home-built automated field cycling setup, with addition of magnetic shield and electromagnets inside to vary the magnetic field from 50 nT to 2 mT. The details of the setup can be found elsewhere [40,41].
The numerical simulation of the field dependence was performed by using an approach described in [42]. In a nutshell, it assumes that the coherences arising due to spin mixing at a chosen magnetic field (Table S1 and Scheme S1) are averaged to zero over the hydrogenation period. To obtain the resulting density matrix, we transformed the initial density matrix of parahydrogen protons into the eigenbasis of the spin Hamiltonian at a chosen field and set all the off-diagonal elements to zero. The level of 31P polarization was obtained by calculating the expectation value of the I ^ z spin operator corresponding to the 31P nucleus.
PH-ECHO-INEPT+. A PH-ECHO-INEPT+ experiment was carried out with a Bruker 400 MHz spectrometer. Parahydrogen was bubbled through the sample inside the spectrometer for 10 s. Bubbling was followed by a delay—the waiting time required to get rid of bubbles and allow the sample to return to the coil volume inside the NMR sample tube. Following this delay, the frequency-selective PH-ECHO-INEPT+ polarization transfer pulse sequence was applied. For the optimal polarization transfer, the following delays in the pulse sequence were used: 1 = 26 ms, 2 = 42 ms, 3 = 20 ms. The physical meaning of these delays and the detailed description of the pulse sequence are provided in [33].

4. Conclusions

Two unsaturated derivatives of phosphoric acid, propargyl and allyl phosphates, were probed as the precursors of the biocompatible hyperpolarized probe for MRI. Their hydrogenation by parahydrogen, followed by the polarization transfer triggered by PASADENA and ALTADENA conditions and by a PH-ECHO-INEPT+ sequence of NMR spectroscopy, allowed a very high enhancement of the signals of the protons (up to 3000) and of the 31P nucleus (up to 1700) in the corresponding NMR spectra to be achieved. For propargyl phosphate, it is among the highest for the polarization transfer to the 31P nucleus induced by PHIP. Unfortunately, the hydrogenation products of both the phosphates were extremely stable towards hydrolysis, thereby preventing us from obtaining a hyperpolarized inorganic phosphate, a biocompatible probe for MRI with very long relaxation times [19,43]. Further efforts to obtain the derivatives of phosphoric acid that can be polarized by parahydrogen and hydrolyzed after the hydrogenation may pave the way towards using the available hyperpolarized inorganic phosphate as a routine tool in medical diagnostics by MRI.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24010557/s1. Reference [44] is cited in the supplementary materials.

Author Contributions

Conceptualization, V.V.N. and A.V.Y.; methodology, O.I.A., A.V.Y. and I.A.N.; validation, A.S.K.; formal analysis, V.V.Z., A.S.K., and V.P.K.; investigation, V.V.Z. and A.S.K.; resources, A.S.K., A.V.Y. and A.S.P.; writing—original draft preparation, V.V.Z.; writing—review and editing, V.V.N., A.V.Y. and A.S.K.; visualization, V.P.K. and V.V.Z.; supervision, V.V.N.; funding acquisition, A.S.P. and V.V.N. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Science Foundation (interdisciplinary projects 20-62-47038 and 20-63-47107). The authors also acknowledge the Russian Ministry of Science and Higher Education for providing access to NMR facilities at ITC SB RAS and to the equipment of the Center for molecule composition studies at INEOS RAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Atkinson, K.D.; Cowley, M.J.; Duckett, S.B.; Elliott, P.I.P.; Green, G.G.R.; López-Serrano, J.; Khazal, I.G.; Whitwood, A.C. Para-Hydrogen Induced Polarization without Incorporation of Para-Hydrogen into the Analyte. Inorg. Chem. 2009, 48, 663–670. [Google Scholar] [CrossRef] [PubMed]
  2. Terreno, E.; Castelli, D.D.; Viale, A.; Aime, S. Challenges for Molecular Magnetic Resonance Imaging. Chem. Rev. 2010, 110, 3019–3042. [Google Scholar] [CrossRef] [PubMed]
  3. Bhattacharya, P.; Ross, B.D.; Bünger, R. Cardiovascular Applications of Hyperpolarized Contrast Media and Metabolic Tracers. Exp. Biol. Med. 2009, 234, 1395–1416. [Google Scholar] [CrossRef] [PubMed]
  4. Carravetta, M.; Johannessen, O.G.; Levitt, M.H. Beyond the T 1 Limit: Singlet Nuclear Spin States in Low Magnetic Fields. Phys. Rev. Lett. 2004, 92, 153003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Natterer, J.; Bargon, J. Parahydrogen Induced Polarization. Prog. Nucl. Magn. Reson. Spectrosc. 1997, 31, 293–315. [Google Scholar] [CrossRef]
  6. Golman, K.; in ‘t Zandt, R.; Thaning, M. Real-Time Metabolic Imaging. Proc. Natl. Acad. Sci. USA 2006, 103, 11270–11275. [Google Scholar] [CrossRef] [Green Version]
  7. Koptyug, I.V. Spin Hyperpolarization in NMR to Address Enzymatic Processes in Vivo. Mendeleev Commun. 2013, 23, 299–312. [Google Scholar] [CrossRef]
  8. Golman, K.; Olsson, L.E.; Axelsson, O.; Månsson, S.; Karlsson, M.; Petersson, J.S. Molecular Imaging Using Hyperpolarized 13C. Br. J. Radiol. 2003, 76, S118–S127. [Google Scholar] [CrossRef]
  9. Schroeder, M.A.; Clarke, K.; Neubauer, S.; Tyler, D.J. Hyperpolarized Magnetic Resonance: A Novel Technique for the In Vivo Assessment of Cardiovascular Disease. Circulation 2011, 124, 1580–1594. [Google Scholar] [CrossRef] [Green Version]
  10. Buntkowsky, G.; Theiss, F.; Lins, J.; Miloslavina, Y.A.; Wienands, L.; Kiryutin, A.; Yurkovskaya, A. Recent Advances in the Application of Parahydrogen in Catalysis and Biochemistry. RSC Adv. 2022, 12, 12477–12506. [Google Scholar] [CrossRef]
  11. Becker, J.; Bermuth, J.; Ebert, M.; Grossmann, T.; Heil, W.; Hofmann, D.; Humblot, H.; Leduc, M.; Otten, E.W.; Rohe, D.; et al. Interdisciplinary Experiments with Polarized 3He. Nucl. Instrum. Methods Phys. Res. Sect. Accel. Spectrometers Detect. Assoc. Equip. 1998, 402, 327–336. [Google Scholar] [CrossRef]
  12. Frossati, G. Polarization of 3He, D2 (and Possibly 129Xe) Using Cryogenic Techniques. Nucl. Instrum. Methods Phys. Res. Sect. Accel. Spectrometers Detect. Assoc. Equip. 1998, 402, 479–483. [Google Scholar] [CrossRef]
  13. Bouchiat, M.A.; Carver, T.R.; Varnum, C.M. Nuclear Polarization in He 3 Gas Induced by Optical Pumping and Dipolar Exchange. Phys. Rev. Lett. 1960, 5, 373–375. [Google Scholar] [CrossRef]
  14. Ardenkjaer-Larsen, J.H.; Fridlund, B.; Gram, A.; Hansson, G.; Hansson, L.; Lerche, M.H.; Servin, R.; Thaning, M.; Golman, K. Increase in Signal-to-Noise Ratio of > 10,000 Times in Liquid-State NMR. Proc. Natl. Acad. Sci. USA 2003, 100, 10158–10163. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Kaptein, R.; Oosterhoff, L.J. Chemically Induced Dynamic Nuclear Polarization III (Anomalous Multiplets of Radical Coupling and Disproportionation Products). Chem. Phys. Lett. 1969, 4, 214–216. [Google Scholar] [CrossRef]
  16. Goldman, M.; Jóhannesson, H.; Axelsson, O.; Karlsson, M. Design and Implementation of 13C Hyper Polarization from Para-Hydrogen, for New MRI Contrast Agents. Comptes Rendus Chim. 2006, 9, 357–363. [Google Scholar] [CrossRef]
  17. Gabellieri, C.; Reynolds, S.; Lavie, A.; Payne, G.S.; Leach, M.O.; Eykyn, T.R. Therapeutic Target Metabolism Observed Using Hyperpolarized 15 N Choline. J. Am. Chem. Soc. 2008, 130, 4598–4599. [Google Scholar] [CrossRef]
  18. Lumata, L.; Jindal, A.K.; Merritt, M.E.; Malloy, C.R.; Sherry, A.D.; Kovacs, Z. DNP by Thermal Mixing under Optimized Conditions Yields >60 000-Fold Enhancement of 89 Y NMR Signal. J. Am. Chem. Soc. 2011, 133, 8673–8680. [Google Scholar] [CrossRef] [Green Version]
  19. Nardi-Schreiber, A.; Gamliel, A.; Harris, T.; Sapir, G.; Sosna, J.; Gomori, J.M.; Katz-Brull, R. Biochemical Phosphates Observed Using Hyperpolarized 31P in Physiological Aqueous Solutions. Nat. Commun. 2017, 8, 341. [Google Scholar] [CrossRef] [Green Version]
  20. Burns, M.J.; Rayner, P.J.; Green, G.G.R.; Highton, L.A.R.; Mewis, R.E.; Duckett, S.B. Improving the Hyperpolarization of 31 P Nuclei by Synthetic Design. J. Phys. Chem. B 2015, 119, 5020–5027. [Google Scholar] [CrossRef]
  21. Iali, W.; Rayner, P.J.; Duckett, S.B. Using Para Hydrogen to Hyperpolarize Amines, Amides, Carboxylic Acids, Alcohols, Phosphates, and Carbonates. Sci. Adv. 2018, 4, eaao6250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zhivonitko, V.V.; Skovpin, I.V.; Koptyug, I.V. Strong 31 P Nuclear Spin Hyperpolarization Produced via Reversible Chemical Interaction with Parahydrogen. Chem. Commun. 2015, 51, 2506–2509. [Google Scholar] [CrossRef] [PubMed]
  23. Bowers, C.R.; Weitekamp, D.P. Parahydrogen and Synthesis Allow Dramatically Enhanced Nuclear Alignment. J. Am. Chem. Soc. 1987, 109, 5541–5542. [Google Scholar] [CrossRef] [Green Version]
  24. Pravica, M.G.; Weitekamp, D.P. Net NMR Alignment by Adiabatic Transport of Parahydrogen Addition Products to High Magnetic Field. Chem. Phys. Lett. 1988, 145, 255–258. [Google Scholar] [CrossRef]
  25. Morris, G.A. Sensitivity Enhancement in Nitrogen-15 NMR: Polarization Transfer Using the INEPT Pulse Sequence. J. Am. Chem. Soc. 1980, 102, 428–429. [Google Scholar] [CrossRef]
  26. Anderson, M.P.; Pignolet, L.H. Rhodium Complexes of 1,4-Bis(Diphenylphosphino)Butane. Crystal and Molecular Structures of [Rh(Dppb)2]BF4.Cntdot.C4H10O and [Rh(Cod)(Dppb)]BF4. Inorg. Chem. 1981, 20, 4101–4107. [Google Scholar] [CrossRef]
  27. Kiryutin, A.S.; Sauer, G.; Yurkovskaya, A.V.; Limbach, H.-H.; Ivanov, K.L.; Buntkowsky, G. Parahydrogen Allows Ultrasensitive Indirect NMR Detection of Catalytic Hydrogen Complexes. J. Phys. Chem. C 2017, 121, 9879–9888. [Google Scholar] [CrossRef]
  28. Knecht, S.; Kiryutin, A.S.; Yurkovskaya, A.V.; Ivanov, K.L. Mechanism of Spontaneous Polarization Transfer in High-Field SABRE Experiments. J. Magn. Reson. 2018, 287, 74–81. [Google Scholar] [CrossRef]
  29. Matsumoto, M.; Espenson, J.H. Kinetics of the Interconversion of Parahydrogen and Orthohydrogen Catalyzed by Paramagnetic Complex Ions. J. Am. Chem. Soc. 2005, 127, 11447–11453. [Google Scholar] [CrossRef] [PubMed]
  30. Haake, M.; Natterer, J.; Bargon, J. Efficient NMR Pulse Sequences to Transfer the Parahydrogen-Induced Polarization to Hetero Nuclei. J. Am. Chem. Soc. 1996, 118, 8688–8691. [Google Scholar] [CrossRef]
  31. Skovpin, I.V.; Zhivonitko, V.V.; Kaptein, R.; Koptyug, I.V. Generating Parahydrogen-Induced Polarization Using Immobilized Iridium Complexes in the Gas-Phase Hydrogenation of Carbon–Carbon Double and Triple Bonds. Appl. Magn. Reson. 2013, 44, 289–300. [Google Scholar] [CrossRef]
  32. Fekete, M.; Bayfield, O.; Duckett, S.B.; Hart, S.; Mewis, R.E.; Pridmore, N.; Rayner, P.J.; Whitwood, A. Iridium(III) Hydrido N-Heterocyclic Carbene–Phosphine Complexes as Catalysts in Magnetization Transfer Reactions. Inorg. Chem. 2013, 52, 13453–13461. [Google Scholar] [CrossRef] [PubMed]
  33. Svyatova, A.; Kozinenko, V.P.; Chukanov, N.V.; Burueva, D.B.; Chekmenev, E.Y.; Chen, Y.-W.; Hwang, D.W.; Kovtunov, K.V.; Koptyug, I.V. PHIP Hyperpolarized [1-13C]Pyruvate and [1-13C]Acetate Esters via PH-INEPT Polarization Transfer Monitored by 13C NMR and MRI. Sci. Rep. 2021, 11, 5646. [Google Scholar] [CrossRef]
  34. Dagys, L.; Jagtap, A.P.; Korchak, S.; Mamone, S.; Saul, P.; Levitt, M.H.; Glöggler, S. Nuclear Hyperpolarization of (1-13 C)-Pyruvate in Aqueous Solution by Proton-Relayed Side-Arm Hydrogenation. Analyst 2021, 146, 1772–1778. [Google Scholar] [CrossRef] [PubMed]
  35. Pravdivtsev, A.N.; Yurkovskaya, A.V.; Zimmermann, H.; Vieth, H.-M.; Ivanov, K.L. Enhancing NMR of Insensitive Nuclei by Transfer of SABRE Spin Hyperpolarization. Chem. Phys. Lett. 2016, 661, 77–82. [Google Scholar] [CrossRef]
  36. Eisenschmid, T.C.; McDonald, J.; Eisenberg, R.; Lawler, R.G. INEPT in a Chemical Way. Polarization Transfer from Para Hydrogen to Phosphorus-31 by Oxidative Addition and Dipolar Relaxation. J. Am. Chem. Soc. 1989, 111, 7267–7269. [Google Scholar] [CrossRef]
  37. Dueymes, C.; Pirat, C.; Pascal, R. Facile Synthesis of Simple Mono-Alkyl Phosphates from Phosphoric Acid and Alcohols. Tetrahedron Lett. 2008, 49, 5300–5301. [Google Scholar] [CrossRef]
  38. Seelhorst, K.; Piernitzki, T.; Lunau, N.; Meier, C.; Hahn, U. Synthesis and Analysis of Potential A1,3-Fucosyltransferase Inhibitors. Bioorg. Med. Chem. 2014, 22, 6430–6437. [Google Scholar] [CrossRef]
  39. Kiryutin, A.S.; Sauer, G.; Hadjiali, S.; Yurkovskaya, A.V.; Breitzke, H.; Buntkowsky, G. A Highly Versatile Automatized Setup for Quantitative Measurements of PHIP Enhancements. J. Magn. Reson. 2017, 285, 26–36. [Google Scholar] [CrossRef]
  40. Kiryutin, A.S.; Yurkovskaya, A.V.; Zimmermann, H.; Vieth, H.-M.; Ivanov, K.L. Complete Magnetic Field Dependence of SABRE-Derived Polarization. Magn. Reson. Chem. 2018, 56, 651–662. [Google Scholar] [CrossRef]
  41. Zhukov, I.V.; Kiryutin, A.S.; Yurkovskaya, A.V.; Grishin, Y.A.; Vieth, H.-M.; Ivanov, K.L. Field-Cycling NMR Experiments in an Ultra-Wide Magnetic Field Range: Relaxation and Coherent Polarization Transfer. Phys. Chem. Chem. Phys. 2018, 20, 12396–12405. [Google Scholar] [CrossRef] [PubMed]
  42. Kozienko, V.P.; Kiryutin, A.S.; Yurkovskaya, A.V. Polarizing Insensitive Nuclei at Ultralow Magnetic Fields Using Parahydrogen: A Facile Route to Optimize Adiabatic Magnetic Field Sweeps. J. Chem. Phys. 2022, 157, 174201. [Google Scholar] [CrossRef] [PubMed]
  43. Dufourc, E.J.; Mayer, C.; Stohrer, J.; Althoff, G.; Kothe, G. Dynamics of Phosphate Head Groups in Biomembranes. Comprehensive Analysis Using Phosphorus-31 Nuclear Magnetic Resonance Lineshape and Relaxation Time Measurements. Biophys. J. 1992, 61, 42–57. [Google Scholar] [CrossRef] [PubMed]
  44. Cheshkov, D.A.; Sinitsyn, D.O. Total Line Shape Analysis of High-Resolution NMR Spectra. In Annual Reports on NMR Spectroscopy; Elsevier: Amsterdam, The Netherlands, 2020; Volume 100, pp. 61–96. [Google Scholar]
Ijms 24 00557 sch001 550
Scheme 1. A PHIP pathway towards hyperpolarized phosphate. Polarized spins indicated by symbol *.
Scheme 1. A PHIP pathway towards hyperpolarized phosphate. Polarized spins indicated by symbol *.
Ijms 24 00557 sch001
Ijms 24 00557 sch002 550
Scheme 2. Phosphate synthesis.
Scheme 2. Phosphate synthesis.
Ijms 24 00557 sch002
Ijms 24 00557 g001 550

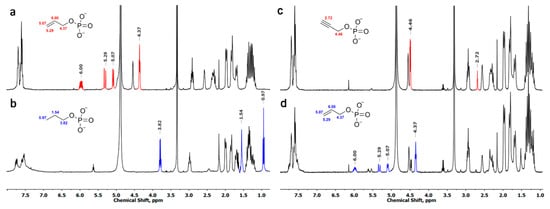

Figure 1. Shows 1H NMR spectra of cyclohexylamine allyl phosphate 2 before (a) and after (b) hydrogenation, and of cyclohexylamine propargyl phosphate 1 before (c) and after (d) hydrogenation. To avoid the phase distortion and to simplify the comparison of the signal intensities, the spectra were registered after the hyperpolarization relaxed to the thermal polarization levels.
Figure 1. Shows 1H NMR spectra of cyclohexylamine allyl phosphate 2 before (a) and after (b) hydrogenation, and of cyclohexylamine propargyl phosphate 1 before (c) and after (d) hydrogenation. To avoid the phase distortion and to simplify the comparison of the signal intensities, the spectra were registered after the hyperpolarization relaxed to the thermal polarization levels.
Ijms 24 00557 g001
Ijms 24 00557 g002 550
Figure 2. Shows 1H NMR ALTADENA spectra obtained by hydrogenation of cyclohexylamine allyl phosphate 2 (a) and cyclohexylamine propargyl phosphate 1 (b).
Figure 2. Shows 1H NMR ALTADENA spectra obtained by hydrogenation of cyclohexylamine allyl phosphate 2 (a) and cyclohexylamine propargyl phosphate 1 (b).
Ijms 24 00557 g002
Ijms 24 00557 g003 550

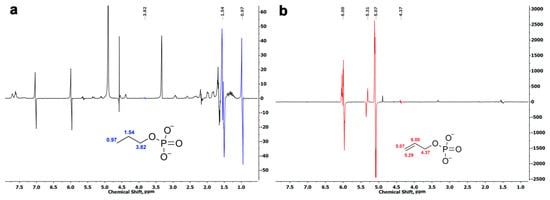

Figure 3. Shows 1H NMR PASADENA spectra of cyclohexylamine allyl phosphate 2 (a) and cyclohexylamine propargyl phosphate 1 (b). The strong antiphase signals at 6 and 7 ppm in the spectra of cyclohexylamine allyl phosphate (a) belong to the known non-reactive impurities in the bubbling system.
Figure 3. Shows 1H NMR PASADENA spectra of cyclohexylamine allyl phosphate 2 (a) and cyclohexylamine propargyl phosphate 1 (b). The strong antiphase signals at 6 and 7 ppm in the spectra of cyclohexylamine allyl phosphate (a) belong to the known non-reactive impurities in the bubbling system.
Ijms 24 00557 g003
Ijms 24 00557 g004 550
Figure 4. The signal amplification and polarization levels of the 31P nuclei upon the polarization transfer by magnetic field-dependent hydrogenation by parahydrogen. The blue and red circles are the experimental values of the 31P signal amplifications, and the solid lines show the best fits by the numerical model that employed spin–spin coupling and chemical shifts from high-field 1H and 31P NMR spectra (see SI) and neglected the relaxation effects. The polarization scale of the calculated curves is adjusted to guide the eye.
Figure 4. The signal amplification and polarization levels of the 31P nuclei upon the polarization transfer by magnetic field-dependent hydrogenation by parahydrogen. The blue and red circles are the experimental values of the 31P signal amplifications, and the solid lines show the best fits by the numerical model that employed spin–spin coupling and chemical shifts from high-field 1H and 31P NMR spectra (see SI) and neglected the relaxation effects. The polarization scale of the calculated curves is adjusted to guide the eye.
Ijms 24 00557 g004
