Article

Preparation of Symmetrical Capacitors from Lignin-Derived Phenol and PANI Composites with Good Electrical Conductivity

by
Penghui Li
1,2,
Jiangdong Yu
2,
Mingkang Wang
2,
Wanting Su
2,
Chi Yang
2,
Bo Jiang
1,2 and
Wenjuan Wu
1,2,*
1
Jiangsu Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, Nanjing Forestry University, Nanjing 210037, China
2
College of Light Industry and Food Engineering, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(10), 8661; https://doi.org/10.3390/ijms24108661
Submission received: 19 March 2023 / Revised: 3 May 2023 / Accepted: 4 May 2023 / Published: 12 May 2023
(This article belongs to the Special Issue Electrically/Thermally Conductive Polymers and Their Potential Applications)
Browse Figures
Versions Notes

Abstract

:
As a natural polymer, lignin is only less abundant in nature than cellulose. It has the form of an aromatic macromolecule, with benzene propane monomers connected by molecular bonds such as C-C and C-O-C. One method to accomplish high-value lignin conversion is degradation. The use of deep eutectic solvents (DESs) to degrade lignin is a simple, efficient and environmentally friendly degradation method. After degradation, the lignin is broken due to β-O-4 to produce phenolic aromatic monomers. In this work, lignin degradation products were evaluated as additives for the preparation of polyaniline conductive polymers, which not only avoids solvent waste but also achieves a high-value use of lignin. The morphological and structural characteristics of the LDP/PANI composites were investigated using 1H NMR, Fourier-transform infrared spectroscopy, scanning electron microscopy, transmission electron microscopy, thermogravimetric analysis and elemental analysis. The LDP/PANI nanocomposite provides a specific capacitance of 416.6 F/g at 1 A/g and can be used as a lignin-based supercapacitor with good conductivity. Assembled as a symmetrical supercapacitor device, it provides an energy density of 57.86 Wh/kg, an excellent power density of 952.43 W/kg and, better still, a sustained cycling stability. Thus, the combination of polyaniline and lignin degradate, which is environmentally friendly, amplifies the capacitive function on the basis of polyaniline.

1. Introduction

With the development of a low-carbon economy, the demand for biomass around the world is increasing. Lignocellulosic biomass has broad prospects for development as a sustainable material to reduce fossil resource use [1]. Unlike cellulose and hemicellulose, lignin is often disposed of as waste or fuel, and only 5–10% of lignin is used for high-quality and high-value production. As the most widely sourced renewable aromatic biomass, lignin is the most promising renewable raw material for the preparation of alternative petrochemicals [2]. The three main precursors of the lignin macromolecule are p-coumaryl alcohol, coniferyl alcohol and mustard alcohol. Different sources of lignin result in different levels of these precursors. Lignin from softwoods contains mainly p-coumaryl alcohol at about 90–95%, lignin from hardwoods usually contains coniferyl alcohol and mustard alcohol at about 25–50% and 50–75%, respectively, while lignin from grasses usually contains all three monomeric alcohols. Lignin polymers have carbon–carbon and ether bonds, the major bond being the ether bond, which accounts for 56% or more of the total bond. Upon depolymerization, lignin can yield a variety of fuels and low-molecular-weight chemicals, including phenol, which can alleviate the overuse of petroleum fuel resources [3]. In recent years, deep eutectic solvents (DESs) have been successfully used in the depolymerization and modification of lignin. Compared with other degradation methods, DES has mild reaction conditions and can achieve high-efficiency degradation of lignin. The degraded lignin has a high hydroxyl content [4].
A common solid electrode material in supercapacitors is polyaniline (PANI), a typical p-type conducting polymer [5] because it is simple to manufacture, has high pseudocapacitance (>800 F/g) and excellent multiplicative performance [6]. However, excessive oxidation and repeated volume changes during long charge/discharge cycles can lead to a gradual performance degradation [7]. As an electrochemically active additive, polyaniline needs to function in acidic media, requiring the resulting protonated polyaniline (emerald salt) to have high solubility properties in electrolyte solvents. In addition, the high theoretical capacity of PANI is limited by poor PANI usage due to PANI’s electrical conductivity and the doped ions’ transport channel [8]. Kikuchi et al. [9] synthesized polyaniline/lignin composites in various ratios through oxidative polymerization reactions, and the addition of lignin led to improved thermal resistance of PANI. Conductive polymer dopant substances can sufficiently alter the electronic, magnetic or structural properties of the polymer, and the electrical conductivity can be increased substantially. Secondary doping with lignin may turn dense coils into linearly expanded coils and increase conductivity [10]. In order to reduce the electrochemical flaws of PANI as an electrode material, numerous PANI-based composites have been designed and prepared. When redox-active biopolymers (e.g., lignin) are combined with conductive polymers, improvements in charge storage quality can be achieved [11]. As lignin is electrically insulating, it is the lignin and the conductive substrate that enable the storage and transfer of electrons [12]. The quinone structure of lignin and its derivatives will exhibit strong redox activity and contribute to charge-transfer reactions between electrode surfaces and soluble substances [13]. Industrial lignin is relatively common, and it is chemically and structurally heterogeneous, which is due to its plant-based origin and extraction methods. Therefore, the development of an effective method for lignin separation and degradation could address issues related to lignin heterogeneity and molecular weight distribution [14]. Lignin-derived pseudocapacitive materials are subject to rapid self-discharge, and high self-discharge rates can lead to a loss of energy and power density [12,15]. In order to control the cost of supercapacitors, it is crucial to design an inexpensive hybrid electrode of conductive materials interacting synergistically with lignin.
Gonçalves et al. [16] used pristine cardanol as the main additive to synthesize conductive polyaniline; the resulting material exhibited semiconducting behavior (achieving a conductivity of 9.7 × 10−1 S/cm), and some nanofibers were present in the resulting morphology. Aoyagi et al. [17] prepared lignin phenol products from lignocellulose, and the phenolized compounds were rich in phenolic hydroxyl groups, thereby demonstrating better electrical conductivity. It is worth mentioning that the lignin phenol conductivity of Tsuga heterophylla was 4.6 × 10−6 S/cm. Compounding it with PANI through polymeric structures, hydrophobic π–π stacking and intermolecular interactions produced excellent electrical conductivity (emerald-green imine conductivity of 1–5 S/cm). Inspired by this, the present work prepared highly cross-linked rod-like lignin degradation product/polyaniline (LDP/PANI) composites through the chemical oxidative polymerization of alkaline lignin DES degradates with aniline and investigated the electrochemical properties of the composites by cyclic voltammetry, galvanostatic charge/discharge tests and electrochemical impedance spectroscopy. It is worth mentioning that we have previously explored the capacitive properties of lignosulfonate with polyaniline composites (through the reaction of the sulfonic acid groups in them with polyaniline) [18]. There are many types of lignin, and alkaline lignin’s are also relatively common and inexpensive. This paper provides a quick and highly productive alkaline lignin treatment that allows alkaline lignin to be well compounded with polyaniline as well, broadening the range of lignin species that can be compounded with polyaniline. The incorporation of LDP mitigated to some extent the structural collapse of PANI induced during multiple charge–discharge processes. The capacity retention of the LDP/PANI was also much higher than that of PANI. Thus, it can be seen that the addition of LDP has a significant benefit on its stability.

2. Results and Discussion

Figure 1 shows the 1H NMR spectra before and after degradation by DES. The two peaks are located at 7.5–7.0 ppm, which are assigned to the ortho-, para- and meta- positions on the benzene ring, respectively. The broad peak at 7.0–6.3 ppm is attributed to the aromatic proton in the guaiacyl unit [19], 4.0–3.5 ppm to the methoxy proton signal, the sharp peak at 3.5–3.3 ppm to the proton signal of water in the solvent and the small peak at 3.4 ppm to the proton signal in choline chloride. During treatment, there may have been some interaction between the lignin and the solvent choline chloride, which may have caused this peak to form, or there may have been a small quantity of deep eutectic solvent left over [4]. The sharp peak at 2.5 ppm was attributed to the proton signal of undeuterated dimethyl sulfoxide in deuterated dimethyl sulfoxide. The peak at 2.5–2.2 ppm was caused by the proton signal of the aromatic ring acetate, and it can be shown that, after degradation, the strength of the acetate signal of lignin greatly increased. In addition, the 4.3–4.0 ppm peak was caused by the phenolic hydroxyl proton signal, and it can be seen that a stronger phenolic hydroxyl proton signal appeared after degradation, presumably resulting from the breakage of the β-O-4 bond.
Figure 2 shows the FTIR spectra of PANI with the lignin derivative/PANI; it can be seen that the complex also exhibits the characteristic peaks of PANI. The peak at 1563 cm−1 is owing to the quinone structure of PANI. The other strong signal at 1487 cm−1 is due to the benzene-type structure of PANI. The peaks at 1301 cm−1 and 1113 cm−1 are assigned to the CN deformation of the benzene ring unit and the CH bending vibration of the N=Q=N segment, respectively [16]. We were also surprised to find that the absorption of the N-H stretching pattern was observed at around 3500 cm−1, presumably in the free imine structure. This change in stretching is due to hydrogen bonding between LDP and PANI [17]. The phenolic oligomers degraded in lignin are likely to be involved in the main chain structure of polyaniline by polymerization; the molecular weight of the formed polymer is shown in Table S1. The intensity of the peak at 1728 cm−1 increased significantly with the increasing percentage of LDP in the composite. In addition, the strength of the aromatic ring deformation peak at 528 cm−1 significantly decreased with the addition of LDP. This shows that the polymer structure’s aromatic rings had become more stable [20].
The surface morphology of PANI and the composite is shown in Figure 3. The rod-like structure of the PANI and the LDP particles bonded to the PANI is easily discernible. As the LDP content of the composite rises, a noticeable shift in surface morphology is seen. When LDP is not present, the particulate nanorods are thicker and smoother. The composites show a mixture of nanorods and particles, with the LDP giving the morphology a stable cylindrical shape. The nanorod morphology has a high surface contact area and is the preferred factor in the preparation of conductive polymer composites. Figure 3 depicts PANI and LDP nanocomposites forming tightly bound nanocomposites rooted in a polymer matrix [21]. As can be seen in Figure 3e,f, the PANI nanorods are well defined and have a diameter of around 120 nm (spacing of red lines as in Figure 3h). In Figure 3g,h, we can see that the LDP/PANI composite is more likely to cross, and the addition of LDP “wraps” each nanorod, making each nanorod thicker. A closer look reveals that the radius of each nanorod is around 40 nm. Based on previous reports, it is assumed that this interwoven nanorod structure must be largely due to the heterogeneous nucleation of aniline polymerization [22]. In addition, the LDP/PANI composite is a “three-dimensional interweave”, a composite structure that solves the nanorod breakage of pure PANI during electrode charging and discharging and acts more like a protective layer. This structure also provides a structural basis for the transfer and storage of electrons [23].
The TGA curves for the PANI, LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI composites are shown in Figure 4. During the initial heating stage, the temperature was raised from 30 °C to 110 °C, at which point, the water molecules detached from the samples, and a small weight loss occurred in all four samples. The thermal degradation phase of the four curves for the PANI, LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI composites then started at around 190 °C, and at about 300 °C, the rate was the fastest, with PANI losing weight at the fastest rate. Comparing the LDP/PANI curves with the PANI curves, the LDP/PANI composite’s curves were consistently higher than the PANI ones, suggesting that the thermal stability of the LDP/PANI composites was superior to that of the PANI. This may be due to the reaction between the rigidity of the lignin chains and the PANI single chain, with some of the aniline monomer acting as a diffusion chain for the LDP/PANI composites [24]. A slight weight loss was also found at around 500 °C and 750 °C. This could be due to oxidative decomposition. Furthermore, it is readily apparent that LDP0.5 and PANI may form stronger bonds than LDP1.0- and LDP3.0-doped PANI, presumably due to hydrogen bonding [25].
Figure 5 shows the distribution of C, H and N elements analyzed for PANI, LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI. We can find that the C, H and N contents of PANI and doped LDP are essentially the same, but the addition of LDP makes the C/N ratio of the LDP/PANI composite somewhat larger. This is also in line with the different doping of LDP, which itself has a higher carbon content, and the different doping gives a gradient in the carbon content of the composite [18].
Figure 6a shows the full XPS spectra of LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI. It can be seen that the LDP/PANI composites contain mainly three elements, i.e., C, N and O. The LDP3.0/PANI contains 76.57% C, 5.89% N and 17.53% O, which is more similar to the elemental analysis. The C 1s spectra of the LDP3.0/PANI composites show peaks at 283.3 eV, 284.4 eV, 285.1 eV and 288.4 eV corresponding to the aromatic C-C/C=C, C-O, C-N and C=O/O-C=O, respectively (as shown in Figure 6b). As can be observed from Figure 6c, the N 1s spectrum of the LDP3.0/PANI composite is 398.9 eV for the undoped imine structure (-N=), 399.9 eV for the undoped amine structure (-NH-) and 402.5 eV for the protonated amine structure (N+). The presence of -N= and -NH- in the above peaks also reflects the fact that supercapacitors can have pseudocapacitance [26]. As seen in Figure 6d, the C=O and C-O in the O 1s spectrum appear at 532.7 eV and 531.3 eV. The above XPS spectra indicate that the aniline oxidation polymerization successfully doped the LDP. The non-protonated amine fraction is very close to the protonated amine and imine nitrogen fractions, and the LDP3.0/PANI composite is in the emerald oxide state with a more positively charged nitrogen fraction. The LDP steric structure in the PANI matrix will have more active sites [27]. In addition, the higher N+ amine content of the complexes and the relatively high N content is a result of the interaction between the lignin hydroxyl group and the PANI amine group through the formation of hydrogen bonds [28].
The electrical conductivity of polyaniline depends mainly on the doping rate and the degree of oxidation. The molecular structure of polyaniline is doped with oxidation and reduction units (see Figure S1), which reversibly changes the conductivity of polyaniline from the insulating form (undoped) to the conducting form (doped), with a conductive emerald-green imine conductivity of 1–5 S/cm. Table 1 displays the conductivity (σ) variation with varying amounts of LDP added to PANI as measured by the standard four probe method at room temperature. The conductivity of LDP/PANI compared to PANI ranged from 0.57 S/cm to 1.36 S/cm. The conductivity continued to increase further but at a slower rate as the amount of LDP doped in PANI increased (Table 1). LDP acts as the main additive in the polymerization process, which maximizes the number of carriers [29]. LDP acts as an additive to produce polymers with the properties of semiconductor materials [16].
Regarding the reasons why LDP incorporation affects the conductivity, i.e., the mechanisms of organic (semi)conductor doping, there should be two aspects: Firstly, LDP is a small and homogeneous polymer (Mw = 3.6 × 103 g/mol, PDI = 1.8, Table S1) and the breaking of the ether bond leads to an increase in phenolic hydroxyl groups, promoting the doping of PANI. It can be observed in Figure 2 that there is less carboxylic acid in LDP, indicating that most of the phenolic hydroxyl groups are involved in the acidic protonated doping. Secondly, the increased interaction between LDP and PANI also promotes electron mobility (Figure 7). It has been suggested that the doping of LDP may be due to the π–π stacking of phenolic hydroxyl groups and aromatic rings [17].
To further investigate the feasibility of PANI and LDP/PANI composites as electrode materials for supercapacitors, a symmetrical, liquid-double-electrode system made of PANI or LDP/PANI composites was tested using the CV and GCD methods. Two equal-mass electrode sheets of PANI or LDP/PANI composite material were assembled into a push-button symmetrical supercapacitor in the order of cell case, positive electrode, spacer, negative electrode and cell case [30]. Electrochemical measurements were carried out in a 1 M H2SO4 solution with a potential window of 0 to 1 V. Afterward, the following results were obtained from tests on the two-electrode system.
The presence of PANI, which inevitably leads to pseudocapacitance, is also evidenced by the CV curve results [31]. As can be seen in Figure 8a, the CV curves for the LDP3.0/PANI composites were measured at scan rates of 10–200 mV/s over a potential window of −0.5 to 1.0 V. There is a redox peak at around 0.6 V supposedly caused by the intermediate of hydroquinone/benzoquinone [32]. The CV curve measured at a scan rate of 200 mV/s reveals a more prominent redox peak and exhibits the desired capacitive behavior. As the scan rate rises, the CV curve area tends to increase and the CV curve shape changes regularly, with the reduction peak (trending toward negative) and the oxidation peak moving in opposite directions. High scan rates result in shorter electrolyte ion diffusion times, inadequate redox reactions and a small rise in the resistance of the electrode. To better investigate the electrode performance, charge and discharge measurements were carried out at a current density of 1–40 A/g, from −0.2 to 0.8 V, as shown in Figure 8b. The discharge curves of LDP3.0/PANI composites exhibit two different voltage levels, the first from 0.8 to 0.6 V and the second from 0.6 to −0.2 V, respectively [33,34]. The bilayer capacitance is the reason for the relatively short discharge duration in the first stage, while the combined effects of the bilayer and Faraday capacitances account for the longer discharge duration in the second stage. According to the charge and discharge curves in Figure 8b, the specific capacitance of LDP3.0/PANI composites at 1 A/g is 416.6 F/g, which corresponds to the CV curve. As demonstrated in Figure 8c, the specific capacitance of LDP3.0/PANI composites is approximately 304.5 F/g when the current density is at 40 A/g, indicating a capacity retention of 72.9% (compared to 1 A/g); a result that in a capacitive performance is equal to or even more stable than that of most PANI-based composites (Table 2). In order to evaluate the cycling performance of the material, cycling stability was evaluated at a current density of 5 A/g with a cycle count of 5000, and it can be found that, after 5000 cycles, LDP3.0/PANI composites reached 41.88% compared to 20.67% for PANI (Figure 8d). This is due to the potential for the deprotonation and volume expansion/contraction of PANI over long cycles. Another major indicator regarding the button double-electrode system is the energy and power density. As seen in Figure 8e, our electrodes show an energy density of 57.86 Wh/kg and a power density of 952.43 W/kg, reflecting the practicality and feasibility of the electrodes [31]. Furthermore, to assess the kinetic properties of the electrochemical processes in the LDP3.0/PANI composites, it is necessary to observe the EIS Nyquist diagram, and Figure 8f shows the data and the results of the fitting. It can be observed that the curve shape of the LDP3.0/PANI composites in the high-frequency region resembles a semicircle, exhibiting a combined behavior of double-layer capacitance and charge-transfer resistance (Rct). The intercept of the curve on the x-axis reflects the internal resistance of the whole system, while the diameter of the semicircle of the curve represents the electrochemical response at the electrolyte–electrode interface. LDP3.0/PANI composites show a small semicircle diameter (Rct 0.9 Ω, smaller compared to PANI) [18], probably because of the more dispersed nanorods in the structure and the high electrical conductivity. The high slope indicates that it has a faster capacitive response, which is due to the transfer in the ion interpenetrating framework structure [35].

3. Materials and Methods

3.1. Raw Materials and Reagents

Alkaline lignin (AL, Mw = 6483) was purchased from Aladdin Reagent Co. From Nanjing Maclean’s Reagent Company, conductive carbon black, polyvinylidene fluoride (PVDF), aniline (when used, twice distilled under reduced pressure), choline chloride, p-toluenesulfonic acid and ammonium persulfate were purchased. Concentrated hydrochloric acid was of domestic analytical purity, and the lab water was ultrapure water.

3.2. Preparation of Lignin Degradation Product/Polyaniline (LDP/PANI) Composites

Alkaline lignin degradation was carried out as stated in the literature [4]. At 130 °C, p-toluenesulfonic acid and choline chloride were mixed in a 1:1 molar ratio for about 30 min to form a colorless and clear solution, which was stored in a desiccator (the bottom of the desiccator held the desiccant, which was a color-changing silica gel, at room temperature). To the reaction flask, 1 g of lignin and 19 g of deep eutectic solvent were added to give a bulk fraction of 5% lignin. Next, 250 µL of water that was distilled and heated at 130 °C for 5 h was added. At the end of the reaction, the reaction flask was removed and quickly immersed in a cold-water bath to end the reaction. Subsequently, 50 mL of acidic water (HCl, pH = 2) was added to the reaction flask to precipitate the lignin, centrifuged to give a solid and then freeze-dried to give the degradation product, labeled lignin degradation product (LDP).
Based on our previous work, the lignin degradation product/polyaniline composite was prepared by chemical oxidative polymerization [18], as shown in Scheme 1. A 50 mL solution of 1.0 M HCl was used to disperse 1.0 g of LDP. The aforementioned suspension received 0.91 mL of aniline, which was then stirred magnetically at 0 °C for two hours. In addition, 2.30 g of ammonium persulfate (APS) was quantified and dissolved in 50 mL of a 1.0 M HCl solution as an oxidant. The aforementioned solution was blended in a 1:1 molar ratio of aniline to APS and oxidized chemically in situ at 0 °C for 24 h to polymerize. The reaction product was filtered, and the filtrate underwent a series of washings with distilled water until it reached a pH of 7 and was dried under vacuum to a constant mass to obtain the LDP1.0/PANI composite. The composites were produced by adding 0 g, 0.5 g and 3 g of LDP using the aforementioned procedure and were recorded as PANI, LDP0.5/PANI and LDP3.0/PANI, respectively.
The detailed characterization and the test methods for the electrochemical performance of the electrodes can be found in the Supporting Information.

4. Conclusions

In this work, the lignin degradation products were prepared in one step using DES and doped in PANI to achieve a high-value application of lignin; the prepared composites exhibited a semiconducting behavior (achieving a conductivity of 1.36 S/cm). The morphology of the obtained composites contains many nanorods that contribute to the enhancement of the electrical conductivity. These results indicate that LDP is a promising additive. Due to the addition of LDP, the rod-like structure of the compound is protected by a “protective film” and retains its three-dimensional network structure. The best LDP/PANI composite as an electrode material for supercapacitors has a large specific capacitance of 304.5 F/g at a large current density of 40 A/g. As the current density increased from 1 A/g to 40 A/g, the LDP/PANI composite with a higher proportion of LDP remained at 72.9% of the initial specific capacitance. Furthermore, at a current density of 5.0 A/g, the LDP/PANI assembled as a supercapacitor showed a capacity retention of 41.88% after 5000 cycles, far exceeding the 20.67% of PANI. This work provides a direction for value addition to lignin.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24108661/s1, Figure S1: Five oxidation states of polyaniline and digital photos of LDP3.0/PANI; Table S1: Molecular weight of AL, LDP, PANI, and LDP3.0/PANI complex.

Author Contributions

Conceptualization, P.L.; methodology, J.Y.; software, C.Y.; validation, M.W.; investigation, M.W.; resources, B.J.; data curation, P.L. and W.S.; writing—original draft preparation, P.L.; writing—review and editing, J.Y.; supervision, W.W.; project administration, W.W.; funding acquisition, B.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant numbers 32271797 and 32201500, and the Natural Science Foundation of Jiangsu Province, grant number BK20220431.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (32271797 and 32201500). In addition, Penghui Li would like to thank his supervisor, Wenjuan Wu, for her guidance through each stage of the process.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, D.W.; Jin, M.H.; Park, J.H.; Lee, Y.J.; Choi, Y.C. Flexible synthetic strategies for lignin-derived hierarchically porous carbon materials. ACS Sustain. Chem. Eng. 2018, 6, 10454–10462. [Google Scholar] [CrossRef]
  2. Wang, Z.; Hao, M.; Li, X.; Zhang, B.; Jiao, M.; Chen, B.Z. Promising and efficient lignin degradation versatile strategy based on DFT calculations. iScience 2022, 25, 103755. [Google Scholar] [CrossRef] [PubMed]
  3. Li, P.H.; Ren, J.P.; Jiang, Z.W.; Huang, L.J.; Wu, C.W.; Wu, W.J. Review on the preparation of fuels and chemicals based on lignin. RSC Adv. 2022, 12, 10289–10305. [Google Scholar] [CrossRef] [PubMed]
  4. Li, L.; Wu, Z.; Xi, X.; Liu, B.; Cao, Y.; Xu, H.; Hu, Y. A bifunctional brønsted acidic deep eutectic solvent to dissolve and catalyze the depolymerization of alkali lignin. J. Renew. Mater. 2021, 9, 219–235. [Google Scholar] [CrossRef]
  5. Jung, J.W.; Son, S.H.; Choi, J. Polyaniline/reduced graphene oxide composites for hole transporting layer of high-performance inverted perovskite solar cells. Polymers 2021, 13, 1281. [Google Scholar] [CrossRef]
  6. Wang, J.; Zheng, R.; Chen, Y.; Bai, H.; Zhang, T.Y. Superacid-doped polyaniline as a soluble polymeric active electrolyte for supercapacitors. Soft Matter. 2020, 16, 7305–7311. [Google Scholar] [CrossRef]
  7. Zhu, Z.Z.; Wang, G.C.; Sun, M.Q.; Li, X.W.; Li, C.Z. Fabrication and electrochemical characterization of polyaniline nanorods modified with sulfonated carbon nanotubes for supercapacitor applications. Electrochim. Acta 2011, 56, 1366–1372. [Google Scholar] [CrossRef]
  8. Wang, L.; Li, X.; Wang, G. Construction of an electrochemical stable conductive network to improve the pseudocapacitance of polyaniline. Electrochim. Acta 2020, 331, 135279. [Google Scholar] [CrossRef]
  9. Ryosuke, K.; Goto, H. Polyaniline/lignin composite prepared by oxidative polymerization. Mater. Sci. 2017, 1, 96427818. [Google Scholar]
  10. MacDiarmid, A.G.; Epstein, A.J. The concept of secondary doping as applied to polyaniline. Synth. Met. 1994, 65, 103–116. [Google Scholar] [CrossRef]
  11. Jyothibasu, J.P.; Wang, R.H.; Tien, Y.C.; Kuo, C.C.; Lee, R.H. Lignin-derived quinone redox moieties for bio-based supercapacitors. Polymers 2022, 14, 3106. [Google Scholar] [CrossRef]
  12. Zhou, B.; Li, Z.; Liu, W.; Shao, Y.; Ren, X.; Lv, C.; Liu, Q. Hierarchical porous carbon/Kraft lignin composite with significantly improved superior pseudocapacitive behavior. Electrochim. Acta 2021, 398, 139307. [Google Scholar] [CrossRef]
  13. Admassie, S.; Ajjan, F.N.; Elfwing, A.; Inganäs, O. Biopolymer hybrid electrodes for scalable electricity storage. Mater. Horiz. 2016, 3, 174–185. [Google Scholar] [CrossRef]
  14. Liu, H.; Xu, T.; Liu, K.; Zhang, M.; Liu, W.; Li, H.; Du, H.; Si, C. Lignin-based electrodes for energy storage application. Ind. Crop. Prod. 2021, 165, 113425. [Google Scholar] [CrossRef]
  15. Ehsani, A.; Moftakhar, M.K.; Karimi, F. Lignin-derived carbon as a high efficient active material for enhancing pseudocapacitance performance of p-type conductive polymer. J. Energy Storage 2021, 35, 102291. [Google Scholar] [CrossRef]
  16. Gonçalves, R.V.; Zanini, M.L.; Malmonge, J.A.; Bonnaud, L.; de Basso, N.R.S. Pristine cardanol as biobased dopant for polyaniline. Mater. Lett. 2016, 185, 327–330. [Google Scholar] [CrossRef]
  17. Aoyagi, M.; Funaoka, M. Conductive composites of lignophenol and polyaniline. Trans. Mater. Res. Soc. Jpn. 2007, 32, 1115–1118. [Google Scholar] [CrossRef]
  18. Li, P.H.; Wei, Y.M.; Wu, C.W.; Yang, C.; Jiang, B.; Wu, W.J. Lignin-based composites for high-performance supercapacitor electrode materials. RSC Adv. 2022, 12, 19485–19494. [Google Scholar] [CrossRef]
  19. Kazzaz, A.E.; Fatehi, P. Fabrication of amphoteric lignin and its hydrophilicity/oleophilicity at oil/water interface. J. Colloid. Interfaces Sci. 2022, 561, 231–243. [Google Scholar] [CrossRef]
  20. Zengin, H.; Kalaycı, G. Synthesis and characterization of polyaniline/activated carbon composites and preparation of conductive films. Mater. Chem. Phys. 2010, 120, 46–53. [Google Scholar] [CrossRef]
  21. Balakrishnan, D.; Pragathiswaran, C.; Thanikasalam, K.; Mohanta, Y.K.; Saravanan, M.; Abdellattif, M.H. Molecular docking and in vitro inhibitory effect of polyaniline (PANI)/ZnO nanocomposite on the growth of struvite crystal: A step towards control of UTI. Appl. Biochem. Biotech. 2022, 194, 4462–4476. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, L.; Li, X.W.; Xu, H.L.; Wang, G.C. Construction of polyaniline/lignin composite with interpenetrating fibrous networks and its improved electrochemical capacitance performances. Synth. Met. 2019, 248, 40–46. [Google Scholar] [CrossRef]
  23. Yin, Z.X.; Zhou, H.H.; Fu, C.P.; Zhang, N.S.; Liu, D.; Kuang, Y.F. Synthesis of curly graphene nanoribbon/polyaniline/MnO2 composite and its application in supercapacitor. RSC Adv. 2016, 6, 41142–41150. [Google Scholar] [CrossRef]
  24. He, Z.W.; Lu, Q.F.; Zhang, J.Y. Facile preparation of hierarchical polyaniline-lignin composite with a reactive silver-ion adsorbability. ACS Appl. Mater. Inter. 2012, 4, 369–374. [Google Scholar] [CrossRef]
  25. Dong, J.Q.; Shen, Q. Comparison of polyanilines doped by lignosulfonates with three different ions. J. Appl. Pharm. Sci. 2012, 126, E10–E16. [Google Scholar] [CrossRef]
  26. Altinisik, H.; Getiren, B.; Ciplak, Z.; Soysal, F.; Yildiz, N. Energy storage performance of nitrogen doped reduced graphene oxide/co-doped polyaniline nanocomposites. J. Inorg. Organomet. Polym. Mater. 2022, 33, 353–367. [Google Scholar] [CrossRef]
  27. Dianat, N.; Rahmanifar, M.S.; Noori, A.; El-Kady, M.F.; Chang, X.Y.; Kaner, R.B.; Mousavi, M.F. Polyaniline-lignin interpenetrating network for supercapacitive energy storage. Nano Lett. 2022, 21, 9485–9493. [Google Scholar] [CrossRef]
  28. Seo, J.H.; Choi, C.S.; Bae, J.H.; Jeong, H.; Lee, S.H.; Kim, Y.S. Preparation of a lignin/polyaniline composite and its application in Cr(VI) removal from aqueous solutions. Bioresources 2019, 14, 9169–9182. [Google Scholar] [CrossRef]
  29. Pawar, S.G.; Patil, S.L.; Chougule, M.A.; Raut, B.T.; Sen, S.; Patil, V.B. Camphor sulfonic acid doped polyaniline-titanium dioxide nanocomposite: Synthesis, structural, morphological, and electrical properties. Int. J. Polym. Mater. Polym. Biomater. 2011, 60, 979–987. [Google Scholar] [CrossRef]
  30. Li, P.H.; Yang, C.; Wu, C.W.; Wei, Y.M.; Jiang, B.; Wu, W.J. Bio-based carbon materials for high-performance supercapacitors. Nanomaterials 2022, 17, 2931. [Google Scholar] [CrossRef]
  31. Xiong, C.Y.; Li, M.R.; Nie, S.X.; Dang, W.H.; Zhao, W.; Dai, L.; Ni, Y.H. Non-carbonized porous lignin-free wood as an effective scaffold to fabricate lignin-free wood@polyaniline supercapacitor material for renewable energy storage application. J. Power Sources 2020, 471, 228448. [Google Scholar] [CrossRef]
  32. Gu, D.W.; Ding, C.; Qin, Y.L.; Jiang, H.Y.; Wang, L.; Shen, L.J. Behavior of electrical charge storage/release in polyaniline electrodes of symmetric supercapacitor. Electrochim. Acta 2017, 245, 138–147. [Google Scholar] [CrossRef]
  33. Xi, X.; Liu, R.L.; Huang, T.; Xu, Y.; Wu, D.Q. Strongly coupled polyaniline/graphene hybrids with much enhanced capacitance performance. J. Colloid Interfaces Sci. 2016, 483, 34–40. [Google Scholar] [CrossRef]
  34. Zhang, Q.Q.; Li, Y.; Feng, Y.Y.; Feng, W. Electropolymerization of graphene oxide/polyaniline composite for high-performance supercapacitor. Electrochim. Acta 2013, 90, 95–100. [Google Scholar] [CrossRef]
  35. Hong, X.D.; Lu, Y.G.; Li, S.L.; Wang, X.L.; Wang, X.W.; Liang, J. Carbon foam@reduced graphene oxide scaffold grown with polyaniline nanofibers for high performance symmetric supercapacitor. Electrochim. Acta 2018, 294, 376–382. [Google Scholar] [CrossRef]
  36. Trung, N.B.; Tam, T.V.; Kim, H.R.; Hur, S.H.; Kim, E.J.; Choi, W.M. Three-dimensional hollow balls of graphene-polyaniline hybrids for supercapacitor applications. Chem. Eng. J. 2014, 255, 89–96. [Google Scholar] [CrossRef]
  37. Devarayan, K.; Lei, D.; Kim, H.; Kim, B. Flexible transparent electrode based on PANi nanowire/nylon nanofiber reinforced cellulose acetate thin film as supercapacitor. Chem. Eng. J. 2015, 273, 603–609. [Google Scholar] [CrossRef]
  38. Cho, S.H.; Shin, K.H.; Jang, J. Enhanced electrochemical performance of highly porous supercapacitor electrodes based on solution processed polyaniline thin films. ACS Appl. Mater. Interfaces 2013, 5, 9186–9193. [Google Scholar] [CrossRef]
  39. Du, P.C.; Lin, L.; Wang, H.X.; Liu, D.; Wei, W.L.; Li, J.G.; Liu, P. Fabrication of porous polyaniline modified MWNTs core-shell structure for high performance supercapacitors with high rate capability. Mater. Des. 2017, 127, 76–83. [Google Scholar] [CrossRef]
  40. Luo, J.; Ma, Q.; Gu, H.H.; Zheng, Y.; Liu, X.Y. Three-dimensional graphene-polyaniline hybrid hollow spheres by layer-by-layer assembly for application in supercapacitor. Electrochim. Acta 2015, 173, 184–192. [Google Scholar] [CrossRef]
  41. Li, Z.F.; Zhang, H.Y.; Liu, Q.; Liu, Y.D.; Stanciu, L.; Xie, J. Covalently-grafted polyaniline on graphene oxide sheets for high performance electrochemical supercapacitors. Carbon 2014, 71, 257–267. [Google Scholar] [CrossRef]
  42. Du, P.C.; Wei, W.L.; Liu, D.; Kang, H.X.; Liu, P. Fabrication of hierarchical carbon layer encapsulated polyaniline core-shell structure nanotubes and application in supercapacitors. Chem. Eng. J. 2018, 335, 373–383. [Google Scholar] [CrossRef]
  43. Miao, Y.E.; Fan, W.; Chen, D.; Liu, T.X. High-performance supercapacitors based on hollow polyaniline nanofibers by electrospinning. ACS Appl. Mater. Interfaces 2013, 5, 4423–4428. [Google Scholar] [CrossRef] [PubMed]
  44. Fan, W.; Zhang, C.; Weei, T.W.; Pallathadka, P.K.; He, C.B.; Liu, T.X. Graphene-wrapped polyaniline hollow spheres as novel hybrid electrode materials for supercapacitor applications. ACS Appl. Mater. Interfaces 2013, 5, 3382–3391. [Google Scholar] [CrossRef]
  45. Liu, G.; Chen, X.; Liu, C.; Jiang, Q.; Jiang, F.; An, J.; Xu, J.; Liu, P. DMSO-treated flexible PEDOT:PSS/PANi fiber electrode for high performance supercapacitors. J. Mater. Sci. 2021, 56, 14632–14643. [Google Scholar] [CrossRef]
Ijms 24 08661 g001 550
Figure 1. 1H NMR spectra of AL and LDP obtained by using a 600 MHz spectrometer (24 mg/mL of DMSO-d6).
Figure 1. 1H NMR spectra of AL and LDP obtained by using a 600 MHz spectrometer (24 mg/mL of DMSO-d6).
Ijms 24 08661 g001
Ijms 24 08661 g002 550
Figure 2. FTIR spectra of lignin derivatives and PANI composite samples.
Figure 2. FTIR spectra of lignin derivatives and PANI composite samples.
Ijms 24 08661 g002
Ijms 24 08661 g003 550
Figure 3. SEM images of (a) PANI, (b) LDP0.5/PANI, (c) LDP1.0/PANI and (d) LDP3.0/PANI. TEM images of (e,f) PANI (the blue circular dotted line marks the distinctive features of the material) and (g,h) LDP3.0/PANI (the yellow circular dashed lines mark the features of the LDP and the red parallel lines mark the diameters of the rod-like structures).
Figure 3. SEM images of (a) PANI, (b) LDP0.5/PANI, (c) LDP1.0/PANI and (d) LDP3.0/PANI. TEM images of (e,f) PANI (the blue circular dotted line marks the distinctive features of the material) and (g,h) LDP3.0/PANI (the yellow circular dashed lines mark the features of the LDP and the red parallel lines mark the diameters of the rod-like structures).
Ijms 24 08661 g003
Ijms 24 08661 g004 550
Figure 4. TGA curves of PANI, LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI.
Figure 4. TGA curves of PANI, LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI.
Ijms 24 08661 g004
Ijms 24 08661 g005 550
Figure 5. Elemental analysis distribution diagram of PANI, LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI.
Figure 5. Elemental analysis distribution diagram of PANI, LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI.
Ijms 24 08661 g005
Ijms 24 08661 g006 550
Figure 6. (a) High-resolution XPS spectra of LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI; (b) C 1s XPS spectra of LDP3.0/PANI; (c) N 1s XPS spectra of LDP3.0/PANI; (d) O 1s XPS spectra of LDP3.0/PANI.
Figure 6. (a) High-resolution XPS spectra of LDP0.5/PANI, LDP1.0/PANI and LDP3.0/PANI; (b) C 1s XPS spectra of LDP3.0/PANI; (c) N 1s XPS spectra of LDP3.0/PANI; (d) O 1s XPS spectra of LDP3.0/PANI.
Ijms 24 08661 g006
Ijms 24 08661 g007 550

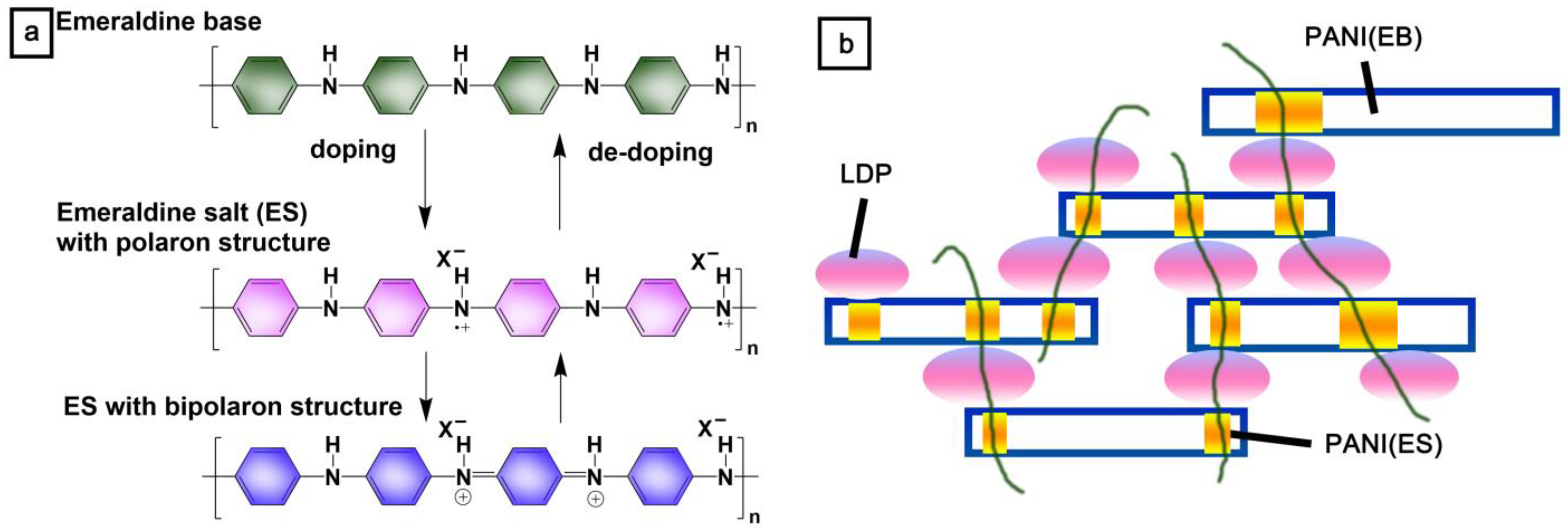

Figure 7. (a) Various structures of polyaniline groups; (b) schematic model of electrical conductivity of LDP/PANI composites, adapted with permission from Ref. [17].
Figure 7. (a) Various structures of polyaniline groups; (b) schematic model of electrical conductivity of LDP/PANI composites, adapted with permission from Ref. [17].
Ijms 24 08661 g007
Ijms 24 08661 g008 550
Figure 8. (a) CV curves of LDP3.0/PANI obtained at the scan rate of 10–200 mV/s; (b) charge–discharge curves of LDP3.0/PANI obtained at a current density of 1–40 A/g; (c) specific capacitance retention of LDP3.0/PANI with varied current densities from 1 to 40 A/g; (d) cycling stability of PANI and LDP3.0/PANI at 5 A/g for 5000 cycles; (e) ragone plot of the LDP3.0/PANI symmetric supercapacitor (the illustration shows a photo of a small light bulb being lit by an assembled supercapacitor); (f) electrochemical impedance spectra of LDP3.0/PANI at open-circuit voltage (illustration shows an analog circuit diagram, the green line is the fitted EIS curve).
Figure 8. (a) CV curves of LDP3.0/PANI obtained at the scan rate of 10–200 mV/s; (b) charge–discharge curves of LDP3.0/PANI obtained at a current density of 1–40 A/g; (c) specific capacitance retention of LDP3.0/PANI with varied current densities from 1 to 40 A/g; (d) cycling stability of PANI and LDP3.0/PANI at 5 A/g for 5000 cycles; (e) ragone plot of the LDP3.0/PANI symmetric supercapacitor (the illustration shows a photo of a small light bulb being lit by an assembled supercapacitor); (f) electrochemical impedance spectra of LDP3.0/PANI at open-circuit voltage (illustration shows an analog circuit diagram, the green line is the fitted EIS curve).
Ijms 24 08661 g008
Ijms 24 08661 sch001 550
Scheme 1. Synthesis mechanism diagram of LDP/PANI.
Scheme 1. Synthesis mechanism diagram of LDP/PANI.
Ijms 24 08661 sch001
Table
Table 1. Conductivity of samples before and after doping with lignin derivatives.
Table 1. Conductivity of samples before and after doping with lignin derivatives.
SamplesConductivity (S/cm)
Pure PANI0.18
LDP0.5/PANI0.57
LDP1.0/PANI1.10
LDP3.0/PANI1.36
Table
Table 2. Comparison of the performance of supercapacitors prepared from different polyaniline bases.
Table 2. Comparison of the performance of supercapacitors prepared from different polyaniline bases.
SamplesCurrent Density (A/g)Specific Capacitance (F/g)Cycle NumbersCapacitance Retention (%)Ref.
Ligninsulfonate/PANI1554500055[18]
3D hollow rGO/PANI ball133150086[36]
PANI nanowire/ NA/CA0.3402100061[37]
Porous PANI film0.2536150072.3[38]
Porous PANI-CNTs0.5407220055[39]
GR-PANI hollow sphere0.5456100083[40]
PANI-GO composite1442200083[41]
PANI-C nanotubes0.5483200063[42]
Hollow PANI nanofiber160150062[43]
Hollow PANI/rGO sphere161450090[44]
DMSO-PEDOT:PSS/PANI1340500069[45]
LDP3.0/PANI1417500042This work
