Defining the 3′Epigenetic Boundary of the FMR1 Promoter and Its Loss in Individuals with Fragile X Syndrome

Abstract

This study characterizes the DNA methylation patterns specific to fragile X syndrome (FXS) with a full mutation (FM > 200 CGGs), premutation (PM 55–199 CGGs), and X inactivation in blood and brain tissues at the 3′ boundary of the FMR1 promoter. Blood was analyzed from 95 controls and 462 individuals (32% males) with FM and PM alleles. Brain tissues (62% males) were analyzed from 12 controls and 4 with FXS. There was a significant increase in intron 1 methylation, extending to a newly defined 3′ epigenetic boundary in the FM compared with that in the control and PM groups (p < 0.0001), and this was consistent between the blood and brain tissues. A distinct intron 2 site showed a significant decrease in methylation for the FXS groups compared with the controls in both sexes (p < 0.01). In all female groups, most intron 1 (but not intron 2 sites) were sensitive to X inactivation. In all PM groups, methylation at the 3′ epigenetic boundary and the proximal sites was significantly decreased compared with that in the control and FM groups (p < 0.0001). In conclusion, abnormal FMR1 intron 1 and 2 methylation that was sensitive to X inactivation in the blood and brain tissues provided a novel avenue for the detection of PM and FM alleles through DNA methylation analysis.

1. Introduction

Fragile X syndrome (FXS) is the most common heritable form of intellectual disability and is the second-most common cause of comorbid autism (1 in 3600 males and 1 in 6000 females) [1]. FXS usually results from expansions of a trinucleotide CGG repeat in the 5′ untranslated region (UTR) of the FMR1 gene to ≥200 repeats, called full mutation (FM), with the normal range being <45 repeats [2]. The FM is associated with a decrease in the expression of FMR1 due to promoter methylation, with subsequent loss of its protein product (FMRP), which is important for normal neurodevelopment [3,4]. FM males with mosaicism for CGG size and methylation have been reported to have better intellectual function than those without mosaicism [5]. In addition, approximately 5% of males with an FM have been reported to have a completely unmethylated promoter (UFM), associated with the expression of FMR1 mRNA and FMRP, and an IQ within the normal range [6,7,8]. Smaller CGG expansions, defined as premutation (PM, 55–199 repeats), do not cause FXS but have been associated with elevated levels of FMR1 mRNA linked to RNA toxicity [9]. These PM alleles are more common, with frequencies reported between 1 in 400 and 1 in 800 in males and between 1 in 300 and 1 in 400 in females [10]. The RNA toxicity associated with PM alleles has been linked to late onset disorders, fragile X-associated tremor/ataxia syndrome (FXTAS), and fragile X-associated primary ovarian insufficiency (FXPOI) [10,11,12]. However, the CGG size and FMR1 mRNA levels have been shown to have limited utility as predictors of which individuals with PM alleles become symptomatic [11]. It has also been shown that CGG size-dependent toxicity may be related to elevated mRNA levels of the gene ASFMR1, which spans the CGG expansion in the antisense direction. ASFMR1 has several transcriptional start sites located at 5′ of the CpG island and in intron 2 of FMR1 [12]. While the role of CpG island methylation 5′ of the expansion in FMR1 silencing has been characterized, there is minimal understanding of the role of the epi-genotype beyond the CpG island in PM- and FM-related disorders.

Our previous findings suggest that the FMR1 promoter is much larger than originally thought [3,13,14,15,16], expanding on the 5′ side to an epigenetic boundary located ~800 bp upstream of the CGG expansion [3], which is consistent with the findings of Naumann et al. [17] reporting the location of this boundary to be 65–70 CpG pairs upstream of the CGG repeat expansion. This boundary is located within a region that we named Fragile X-Related Epigenetic Element 1 (FREE1) [3,18], which also contains one of the ASFMR1 transcription start sites [12,19]. By examining methylation within the FMR1 ‘minimal’ promoter [20] and the adjacent regions in transformed lymphoblast cell lines from FXS individuals, ‘high-functioning’ individuals with UFM alleles, and controls, we identified new regions differentially methylated in individuals with FMR1-related disorders [3,16], with Fragile X-Related Element 2 (FREE2) located largely within FMR1 intron 1 and Fragile X-Related Element 3 (FREE3) located within FMR1 intron 2. This study characterized the normal and pathological methylation of these regions in venous blood and brain tissues to: (1) determine the associations between differential methylation within these regions and the presence of FM and PM alleles and X-inactivation and (2) provide novel avenues for the detection of expanded FMR1 alleles through DNA methylation analyses.

2. Results

2.1. The FMR1 Methylation Map

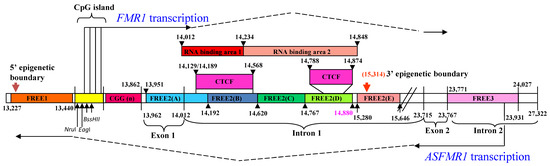

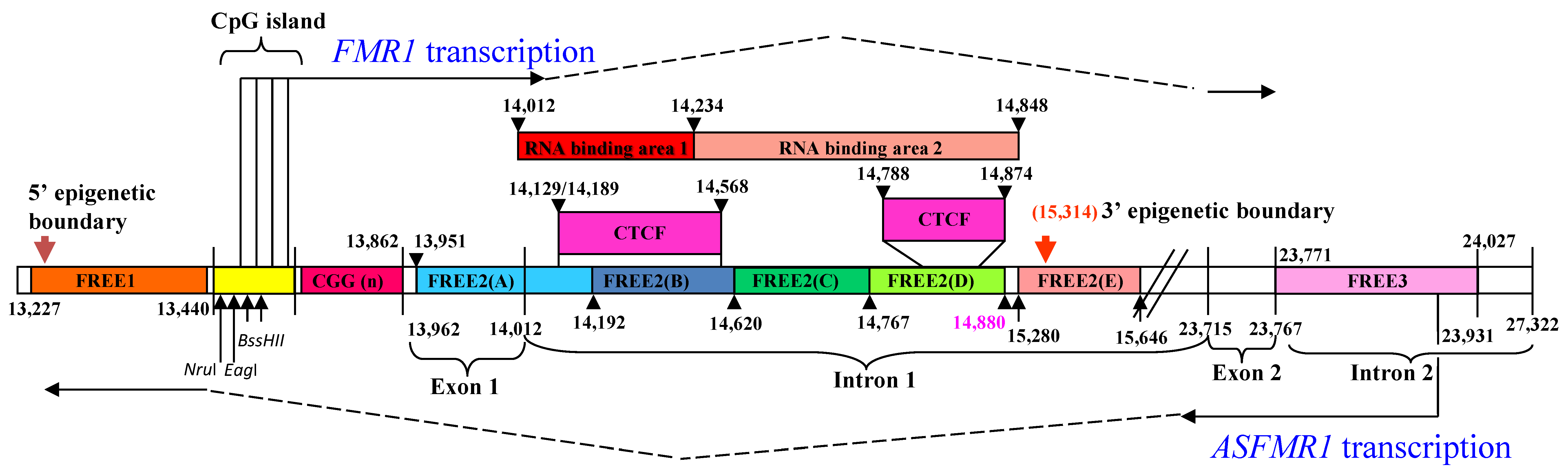

In this study, we define the amplicon of the previously described FREE2 region as FREE2(A) [3], with methylation presented in units as described in our earlier publications [15,16,17,18,19]. The amplicons extending 3′ from FREE2(A) were named FREE2(B), FREE2(C), FREE2(D), FREE2(E), and FREE3 (Figure 1). A more detailed genomic organization of the targeted regions, including the number of differentially methylated CpG sites examined, is described in the additional files (Note S1, Figures S1 and S2, and Tables S1 and S2).

2.2. Inter-Group Methylation Comparisons in the Venous Blood of Males

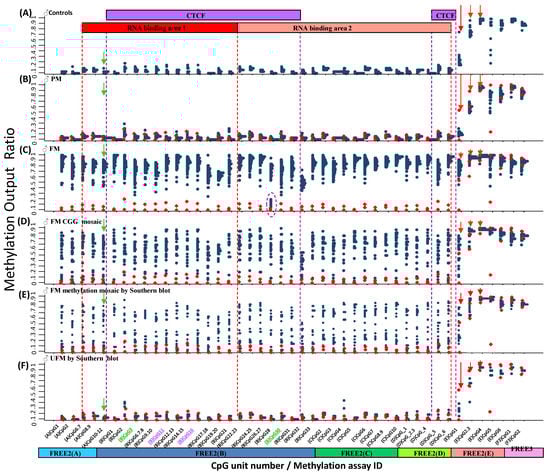

Inter-group comparisons of methylation were performed between 73 males with FXS and FM alleles, 27 males with mosaicism for FM and PM alleles, and 21 males with mosaicism for FM alleles and smaller expansions. Of the CGG size mosaics, 23 were mosaic for the PM and FM alleles, 4 were unusual mosaic cases for either normal-sized FM alleles (29/1300 CGG and 30/175 CGG) or intermediate-sized FM alleles (41/800 CGG and 50/763 CGG). There was a significant increase in intron 1 methylation extending ~1.5 kb 3′ from the CGG expansion to a novel epigenetic boundary in these FM groups, compared with that in 27 control males with normal-sized alleles, 39 males with PM, and 5 with unmethylated FM (UFM) alleles (p < 0.0001) (Figure 2 and Figure S3). At the 3′ boundary, three CpG units of FREE2(E) showed a progressive increase in methylation in the control, PM, and UFM groups. However, in all FM groups other than UFM, the difference in methylation between these three CpG units of FREE2(E) was not as large when compared with the control and PM groups. This suggests that there is a transfer of methylation from the adjacent 3′ regions that may be caused by the presence of FM expansions, contributing to loss of the 3′ epigenetic boundary in intron 1 in males with FXS.

This postulate was consistent with the ‘high-functioning’ males with UFM alleles expressing normal or elevated levels of FMR1 being completely unmethylated within the CpG island [6,7,8] and within intron 1 upstream of the 3′ boundary. Two out of five UFM males showed methylation of intron 1 units (B)CpG2 and (C)CpG4 marginally above the male control range. It is of note that one of the males with a UFM of 323–517 CGGs was the first ‘high-functioning’ male with an FM allele reported to develop FXTAS [8]. He also showed the highest methylation for (B)CpG2 and (C)CpG4 of all individuals with a UFM allele (Figure 2E).

2.3. Inter-Group Methylation Comparisons in the Venous Blood of Females

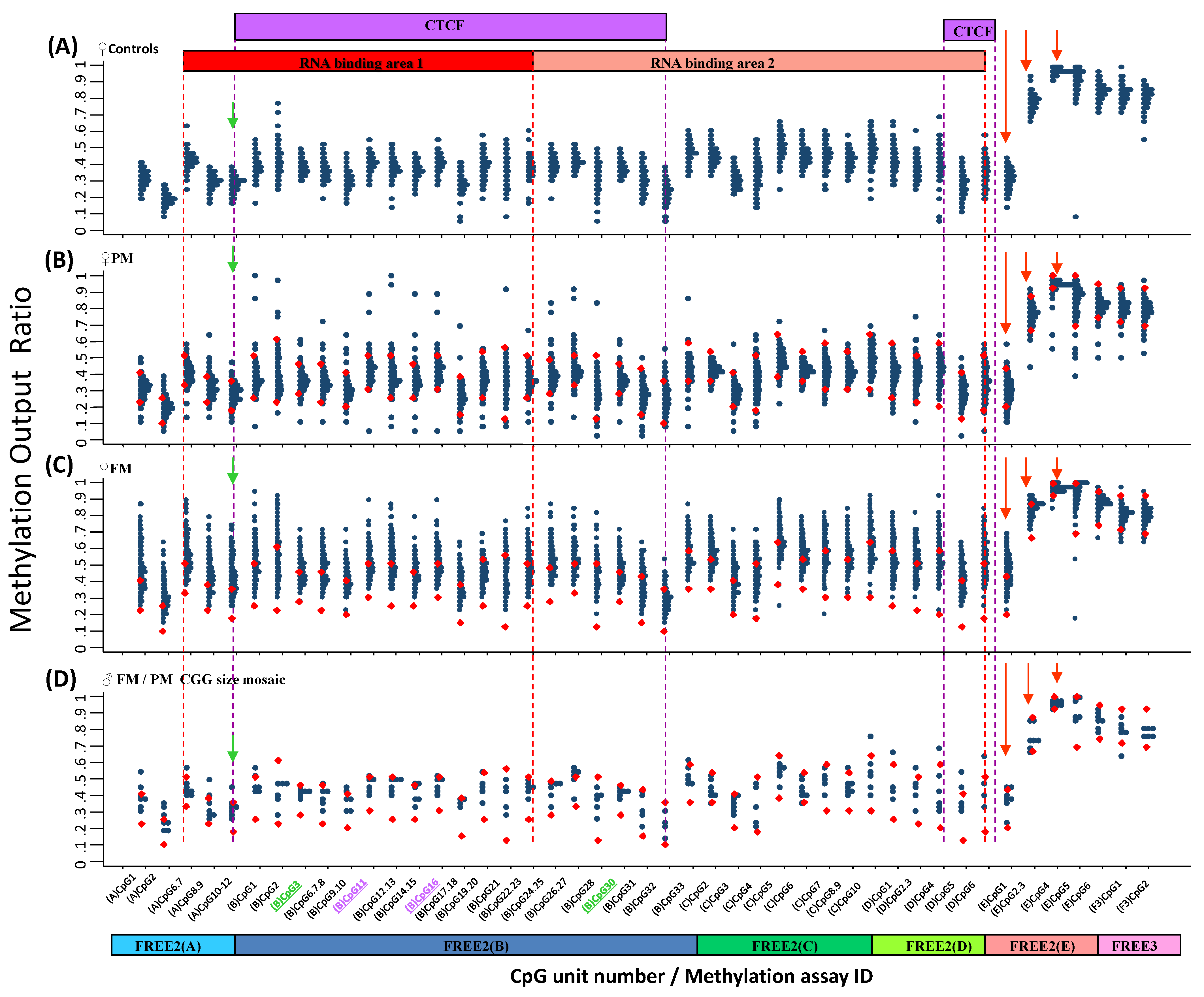

There was a significant increase in intron 1 methylation, extending ~1.5 kb 3′ from the CGG repeat to a novel epigenetic boundary for 132 females with an FM compared with 75 female controls and 157 females with a PM (p < 0.0001) (Figure 3 and Figure S4). In contrast to the males with FM alleles, for the females with FM alleles, methylation of this region for most CpG units was not significantly increased in the CGG size mosaic group compared with the female controls and females with a PM (Figure S4). The female control baseline levels of methylation within this intron 1 region were also different from the males, with the female control methylation output ratio (MOR) being between ~0.1 and ~0.5. This is in line with the previously reported levels of methylation resulting from X inactivation [21], also suggesting that X inactivation-sensitive CpG sites extend downstream from the expansion up to the 3′ epigenetic boundary. While methylation also increased above the control range at the 3′ epigenetic boundary for most of females with an FM (Figure 3C), for the females with a PM, methylation at €CpG4, (E)CpG5, a€(E)CpG6, methylation was significantly decreased compared with the controls (p < 0.0001). This suggests that methylation in this region is sensitive to X inactivation and presence of PM and FM alleles in females (Figure S4).

2.4. Abnormally Decreased Methylation of the Intron 1 3′ Boundary and Intron 2 Sites in Males with a PM Allele

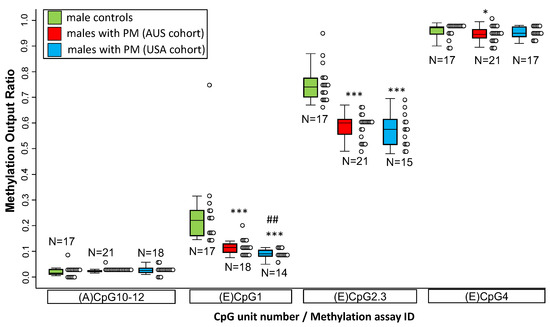

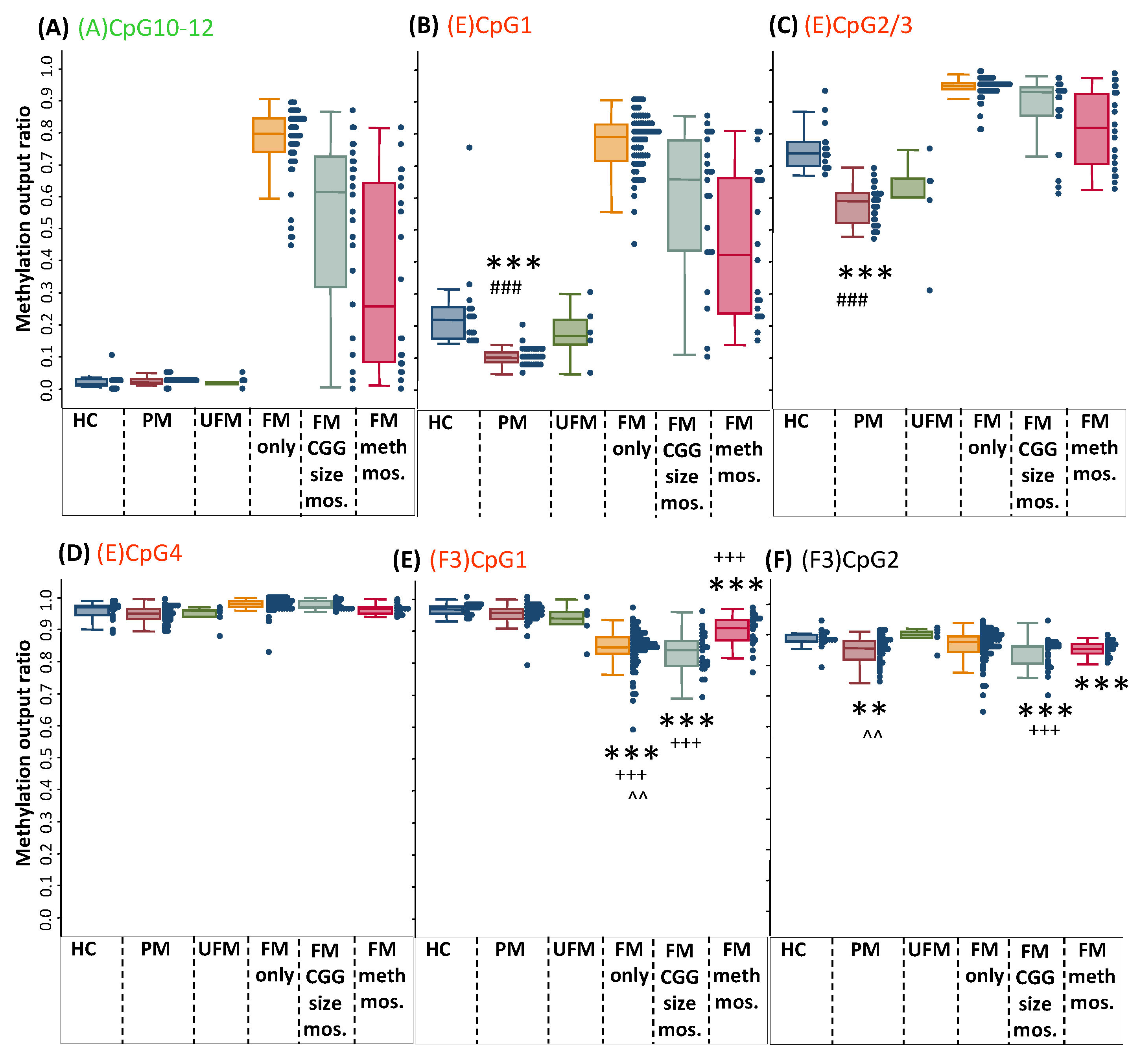

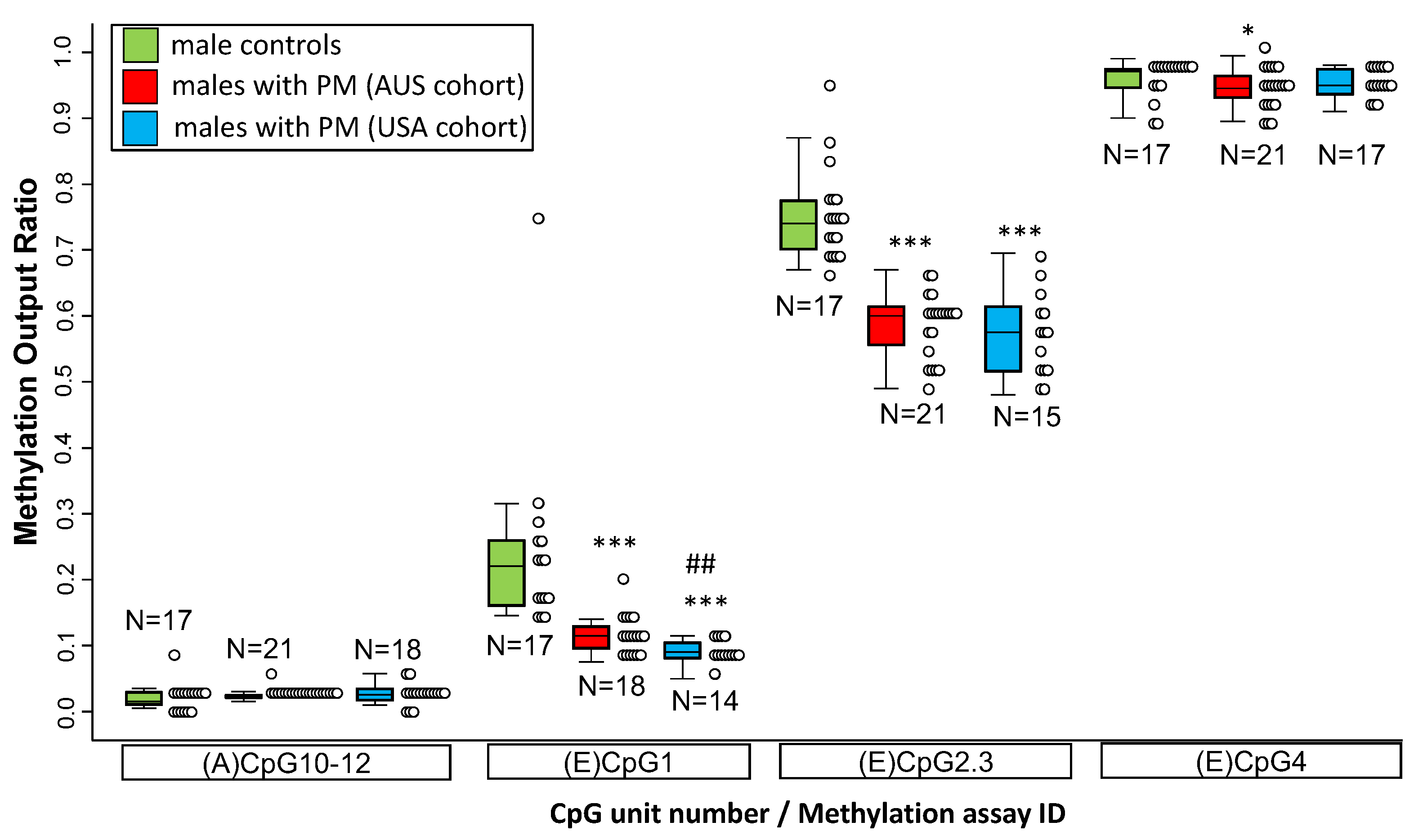

The males with a PM had significantly decreased methylation at the 3′ epigenetic boundary compared with the males with an FM and the male controls (p < 0.0001) (Figure 4). This PM-specific decrease was observed for the comparisons of the male controls to (1) all 39 males with a PM collapsed into one group (Figure 4) and (2) the male PM group split into two independent cohorts based on the site of participant recruitment (US cohort n = 21; Australian cohort n = 18) (Figure 5). Moreover, the (E)CpG4 unit 3′ of this epigenetic boundary showed the greatest overlap in methylation values between the controls and PM ranges in males, with intergroup comparison showing a decrease in methylation of marginal significance in the PM group compared with the male controls (p = 0.047).

The intron 2 (F3)CpG1 unit within FREE3 showed an inverse methylation pattern to that observed for most intron 1 sites within FREE2 and to the methylation status of the FMR1 minimal promoter within the CpG island 5′of the CGG expansion. This inverse pattern involved a significant decrease in methylation in FM only and the groups mosaic for the PM and FM alleles (p < 0.0001). The MOR for these ranged between 0.6 and 0.95, compared with the MOR range between 0.9 and 1 for the control, PM, and UFM male groups (Figure 4E). Interestingly, for intron 2 (F3)CpG2, the PM group showed a significant decrease in methylation compared with the male controls (p < 0.0001) and males with a UFM (p = 0.04). However, there was no significant change in methylation for intron 2 (F3)CpG2 for the PM group compared with the FM group (Figure 4F). Furthermore, (F3)CpG2 methylation was also significantly decreased in the males with a PM and FM mosaic groups compared with the male controls (p < 0.0001).

2.5. Inter-Group Methylation Comparisons in Brain Tissues and Blood

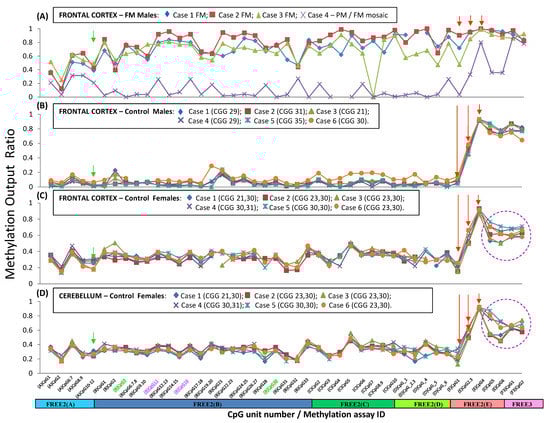

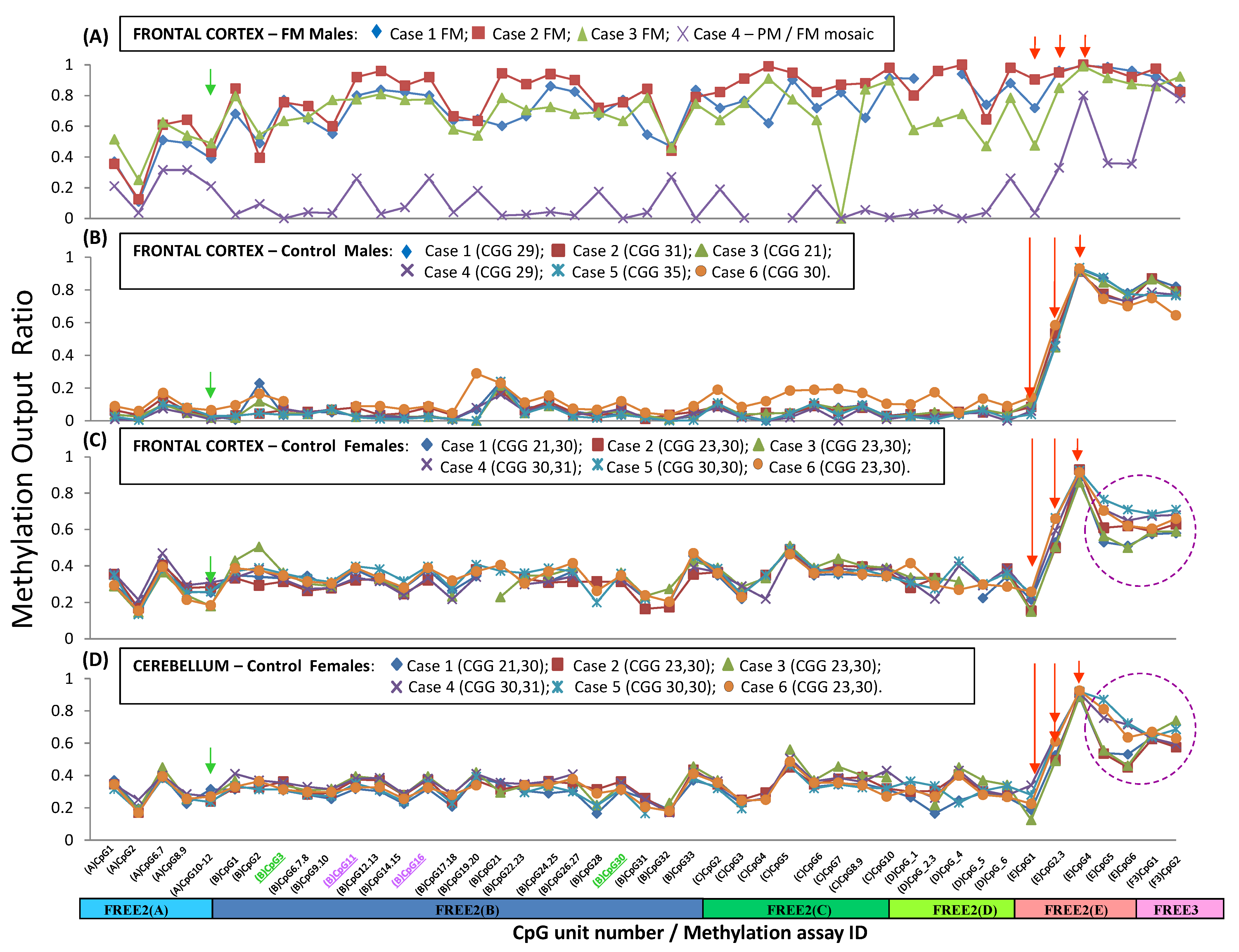

To determine if the presence of FM alleles is associated with abnormal methylation of the intron 1 and 2 regions in the prefrontal cortex (PFC), we compared the methylation in the brain tissues of males with FXS and male controls with normal-sized alleles. In the PFC, the 3′ epigenetic boundary was lost in the males with FXS, with the methylation output ratio elevated (MOR approaching one) compared with the male controls (MOR < 0.1) (Figure 6A,B). All CpG sites within the FREE2 region within FMR1 intron 1 5′ of the 3′ boundary were hypermethylated in the PFCs of the males with FXS compared with the controls. The male with FXS with the lowest level of methylation in the PFC across all of the intron 1 sites of all males with only FM alleles was the only mosaic for PM and FM alleles in this group.

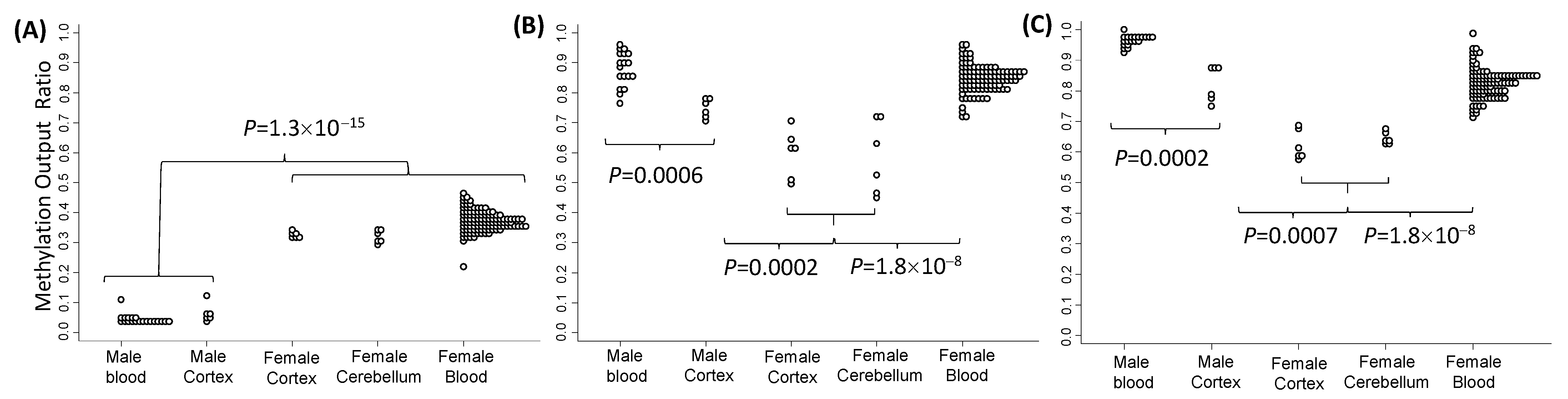

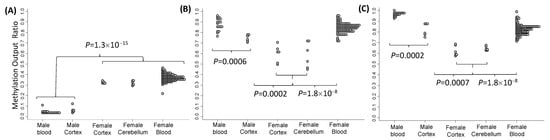

To determine if X inactivation is associated with increased methylation within these loci between different areas of the brain and the peripheral tissues, we compared the methylation in this region between male and female control groups in the venous blood, PFC, and cerebellum (Figure 6C,D and Figure 7). The mean methylation output ratio in the venous blood and all brain tissues of the female controls was significantly elevated for 40 CpG sites, snapping across a 1.5 kB region within FMR1 intron 1 in the female controls compared with the male controls. In contrast, the methylation of two CpG sites—(E)CpG4 and 5 5′of the 3′epigenetic boundary in intron 1 and the (F3)CpG1 site at the 5′ end of FMR1 intron 2 (FREE3: ASFMR1 promoter)—was significantly decreased in the PFCs and cerebella of the female controls compared with the corresponding brain tissues in the male controls. This difference, however, was not preserved in the venous blood comparisons (Figure 6C,D).

3. Discussion

This study used the EpiTYPER system on the DNA from venous blood and brain tissues to characterize, at the single CpG level, the methylation of FMR1 introns 1 and 2. The methylation patterns within these intragenic regions were compared between males and females to define the regions sensitive to X inactivation and between individuals with PM and FM alleles and controls to provide novel avenues for the detection of expanded FMR1 alleles through DNA methylation analysis. These regions are different from the FMR1 CpG island and the ‘minimal’ FMR1 promoter described by Kumari and Usdin [20]. Most recently, we have shown that the methylation of CpG sites 6 or 7 and 10–12 at the 5′ end of the FMR1 intron 1 were most informative in predicting the likelihood of adult females with a PM exhibiting dysexecutive and psychiatric symptoms [11]. This study defined additional regions differentially methylated within FMR1 introns 1 and 2 due to the presence of expanded FMR1 alleles in the blood and brain tissues to provide: (1) better understanding of the differentially methylated regions, which may be involved in the regulation of FMR1 and ASFMR1 expression, and (2) new targets for the development of biomarkers for DNA methylation-based screening for expanded FMR1 alleles, which may also have prognostic utility for FMR1-associated disorders.

3.1. Evidence Suggesting the FMR1 Promoter Is Larger Than the FMR1 CpG Island including FMR1 Intronic Sequences

The FMR1 promoter, which is sensitive to methylation changes, has been previously suggested to be primarily located within the CpG island upstream of the CGG expansion, as reviewed in [22]. This was based on limited studies showing that FMR1 regulatory regions which are functionally influenced by methylation changes are located within this region [20,23]. Kumari and Usdin [20] defined the 5′ end of the ‘minimal’ FMR1 promoter to be 355 bp upstream of the CGG expansion and its 3′ end to be 60 bp downstream of the CGG expansion. This ‘minimal’ promoter was suggested to encompass the FMR1 CpG island consisting of the 52 CpG sites 5′ of the CGG expansion and 4 FMR1 transcription start sites [23]. Moreover, Kumari and Usdin [20] suggested that this promoter encompasses the CGG expansion and a portion of FMR1 exon 1. There was no evidence presented by this group for differential methylation of the FMR1 intron 1 or 2 sequences in individuals with expanded FMR1 alleles nor any suggestion of it being included as part of the FMR1 promoter.

We demonstrated that increased methylation of the FMR1 intron 1 sites, specifically CpG10–12, located within FREE2(A) was associated with an increased CGG size within the FM range in males, with its analytical superiority to methylation-sensitive Southern blot (used in current FXS diagnostics) and FMRP immunostaining in the blood as a predictor of cognitive impairment in females with an FM [3,14,21] and the dysexecutive-psychiatric phenotype in adult females with PM alleles. Interestingly, a 5′ 380–400 base pair CTCF binding region within intron 1 (ChIP-seq K562 Sg1 and 2 from ENCODE/University of Washington; 2012) is located in ~100 base pairs 3′ of the intron 1/exon 1 boundary and overlaps with the CpG10–12 at the 5′ end of FREE2 that was clinically most informative in our earlier FM and PM studies (Figure 1). Furthermore, it has been recently shown that as few as one abnormally methylated CpG site strategically positioned at an exon/intron boundary can impact the methylation of the upstream promoter region, gene expression, and the severity of the phenotype at other disease-related loci [24]. Methylation of the FREE2 CpG sites proximal to the intron 1/exon 1 boundary in FM females could interfere with splicing of FMR1 intron 1 and result in intron retention.

Of potential functional relevance to our observations are also previous reports of abnormal methylation of exonic CpG sites at other loci inhibiting the binding of CTCF, with exon exclusion resulting from aberrant splicing [25]. Evidence showing the formation of RNA:DNA duplexes within this region and that disruption of these duplexes can reactivate the FMR1 gene in FXS cell lines also suggests that FMR1 intron 1 upstream of the 3′ boundary should be considered as part of the FMR1 promoter [26]. Together with our previous findings and those from this study, this evidence indicates that the boundaries of the FMR1 promoter and the model of epigenetic regulation of FMR1 should be redefined to include FMR1 intron 1 CpG sites expanding up to the 3′ epigenetic boundary targeted by the FREE2(E) assay (Figure 2 and Figure 3).

3.2. Hypomethylation of FMR1 Intron 2: Novel FXS Biomarkers

Earlier, we found that the CpG sites proximal to the ASFMR1 transcription start site within FMR1 intron 2, which we named FREE3 [16], were hypomethylated in FXS lymphoblast cell lines lacking FMRP, with reduced ASFMR1 expression compared with the controls and UFM cell lines [16]. Here, we showed that in the primary cells from the blood, the same CpG sites also had significantly decreased methylation in the FM, PM/FM CGG size and methylation mosaic males and females compared with the control, PM, and UFM groups. In addition, consistent with our previous and current observations of FXS-specific hypomethylation in intron 2, Alisch et al. [27] described the results for one CpG site within intron 2 that showed FXS-specific hypomethylation, which partially overlapped with the range of methylation values for the controls. In this study, we found that (F3)CpG1 showed the most significant decrease in methylation in the FM FXS groups in both males and females compared with the controls and compared with the ‘high-functioning’ males with UFM alleles (Figure S3). This suggests that decreased methylation of intron 2, specifically for the sites proximal to the ASFMR1 promoter, are novel epigenetic biomarkers hypomethylated in individuals with FM alleles.

3.3. Hypomethylation of the 3′ Epigenetic Boundary in Individuals with a PM

This is the first study to identify several epigenetic biomarkers at the novel 3′ epigenetic boundary that are differentially methylated in all males with a PM. We found that in males with a PM, methylation of the 3′ boundary was decreased compared with the control group, regardless of whether all 39 PM males were considered as one group or split into two independent cohorts based on the site of recruitment. Females with a PM also showed significantly decreased methylation at the 3′ boundary and several CpG sites downstream of the boundary compared with the controls ((E)CpG4, 5, and 6) (Figure S4). These markers therefore have the potential to be used to screen for the presence of PM alleles using DNA methylation testing.

3.4. Differentially Methylated Regions Associated with Expanded FMR1 Alleles and X Chromosome Inactivation Conserved between Tissues

This study has demonstrated the following: (1) The 3′ epigenetic boundary identified by the FREE2(E) assay is lost in the brain tissues (as in the venous blood) in males with FXS but not in the controls with normal-sized alleles. All CpG sites within the FREE2 region 5′ of the 3′ epigenetic boundary were hypermethylated in the examined brain tissues of males with FXS compared with the controls, as in the venous blood. (2) The mean methylation for 40 CpG sites spanning across a 1.5 kB region within FMR1 intron 1 at the 3′ epigenetic boundary in the venous blood and all brain tissues of the female controls with alleles in the normal range was significantly elevated compared with those tissues from the male controls. This strongly suggests that X inactivation causes an increase in DNA methylation across tissues, spanning from FREE2(A) to the 3′ epigenetic boundary identified by the FREE2(E) assay. (3) Differential methylation sensitive to X inactivation within FMR1 intron 1 up to the 3′ epigenetic boundary was conserved between different regions of the brain in the female controls (prefrontal cortex and cerebellum). This observation highlights the functional importance of the 3′ epigenetic boundary identified in this study.

Interestingly, the CpG sites downstream of the 3′ epigenetic boundary within FMR1 introns 1 and 2 showed hypomethylation in the females compared to the male controls. This, however, was not preserved in the blood, suggesting that this X inactivation-specific hypomethylation was restricted to the brain tissues. In the male controls, these CpG sites also showed significantly decreased methylation in the brain tissues compared with the venous blood of the male controls. Together, these fundings suggest that the 3′ epigenetic boundary defined in this study is of functional significance, playing a role as an ‘insulator’ to prevent a ‘methylation spillover’ from the gene bogy of FMR1 to the FMR1 promoter conserved across different tissues. This postulate is in line with the location of a CTCF binding site immediately at 5′ of this boundary (Figure 1), which has been described to act as such an insulator in other settings [17].

3.5. Limitations

While this study has several strengths, an important limitation is that no data were available on the level of FMR1 or ASFMR1 mRNA, FMRP, or the clinical status (other than for males with a UFM), especially in relation to the presence and severity of FMR1-associated disorders in the individuals with PM and FM alleles included in this study. Moreover, functional studies were not performed to examine how loss of the 3′ epigenetic boundary impacts the binding of CTCF and expression of FMR1, ASFMR1, and FMRP. Future studies should explore (1) the clinical significance of this PM-specific 3′ boundary hypomethylation and how it may be related to the levels of FMR1 and ASFMR1 RNA toxicity, as well as the levels of FMRP in different tissues, and (2) the functional significance of its loss and gain in different cell types.

Another limitation is the relatively small number of brain tissues included in this study. Because FXS is a rare disorder, the numbers (4 FXS for PFC and 12 controls for PFC and cerebella) are reasonable to support the main conclusions, with large-sized effects regarding: (1) conservation of the 3′ epigenetic boundary between tissues in the controls examined, (2) its complete loss due to the presence of an FM, and (3) its relationship with X-inactivation. The relatively small sample size for brain tissues included in this study should be also viewed in light of previous studies [28,29] examining molecular changes in brain tissues from individuals with FXS and the controls, which had a comparable number of brain samples used. Future studies should re-examine our observations in larger cohorts and in different brain regions than those examined in this study.

3.6. Conclusions

In summary, this study has characterized 45 novel epigenetic biomarker sites where differential methylation is associated with the presence of expanded FMR1 alleles (but not in high-functioning males with UFM alleles) and X inactivation. These patterns of methylation were also conserved between blood and brain tissues based on comparisons between individuals with FM alleles affected by FXS and neurotypical controls, as well as between the controls of different sexes. Importantly, almost all males with a PM were found to have methylation levels of the 3′ epigenetic boundary in their venous blood below the control range. Significantly decreased methylation of the CpG sites proximal to this boundary was also observed in females with a PM. Therefore, the methylation status of the 3′ boundary and proximal sites may provide a novel way to screen for PM alleles using DNA methylation testing and may have potential diagnostic and prognostic relevance to FMR1-associated disorders, which should be examined in future studies.

While FXTAS, FXPOI, and other comorbidities have been linked to PM alleles [30,31,32,33], these are of incomplete penetrance, with no avenues currently available to predict reliably who is most at risk. Unfortunately, this study did not have formal assessment or clinical status information available for individuals with PM alleles that would have allowed examination of the relationships between the phenotype(s) and the levels of hypomethylation of the 3′ epigenetic boundary. Future studies should explore the clinical significance of this PM-specific 3′ boundary hypomethylation and how or if it may be used as a prognostic biomarker to predict who is most at risk of developing PM-associated disorders.

4. Materials and Methods

4.1. Cohort Description

This study examined methylation in DNA samples from a total of 557 participants, which were collected as parts of previous studies [8,14,21,34]. The cohort consisted of 185 males (aged from birth to 82 years) and 372 females (aged from birth to 80 years). For the males, there were 20 controls (CGG < 40), 39 PM males, 5 UFM males (identified through cascade testing and determined to be unmethylated under Southern blot analysis), 73 FXS-affected FM males (identified through investigation of developmental delay or ASD and 100% methylated through Southern blot analysis), 21 FM methylation mosaics, and 27 PM/FM size mosaics under Southern blot analysis. Formal cognitive assessments were performed for three of the UFM males using the Wechsler Intelligence Test, which is appropriate for chronological age, with a Full-Scale IQ (FSIQ) between 71 and 81, as described previously [8,14,35]. For the females, there were 75 controls (CGG < 40), 157 PM females, 132 FM females (identified through investigation of developmental delay and cascade testing), and 8 were mosaics for PM and FM alleles under Southern blot analysis. For 527 individuals with expanded FMR1 alleles and controls, blood DNA was collected as part of FXS cascade testing and routine molecular microarray testing through VCGS and the Greenwood Genetic Center as described previously [21]. These samples were de-identified before use in this study and as such did not have information on formal assessments or clinical history to allow for accurate assessment of heterogeneity in the clinical picture of the presented groups. An additional 30 females with an FM were recruited through the VCGS. All control brain tissues were provided by the Victorian Brain Bank Network with brain tissues from 4 males affected by FXS from earlier studies [28,29] provided by Flora Tassone from the Department of Biochemistry and Molecular Medicine at the University of California’s Davis School of Medicine in Sacramento, California, USA. Details on the postmortem brain tissue processing, age, and the clinical phenotype are given in Table S6. This study received ethical approval by The Royal Children’s Hospital Human Research Ethics Committee (single site reference numbers HREC 34227 and HREC 33066 and multi-site HREC reference number HREC/13/RCHM/24, approved on 24 May 2013).

4.2. Molecular Analyses

Processing of the venous blood DNA samples and the CGG repeat sizing using PCR was conducted as previously described [36]. For samples with greater than 55 repeats, methylation-sensitive Southern blotting was performed as previously described [3]. Briefly, 7–9 µg of DNA was digested with EcoRI and NruI (located within FMR1 CpG island), and the StB12.3 probe was used to estimate the range of FMR1 allele CGG sizes and CpG island methylation. For the males, Southern blot methylation was used to classify the expanded alleles as either unmethylated, partially methylated, or fully methylated. For the alleles that were estimated to have greater than 150 CGGs and methylated by Southern blotting, the classification of FM was given. The PM allele classification was given to alleles estimated to be between 55 and 200 repeats that were unmethylated by Southern blotting. FMR1 intron 1 and intron 2 methylation was assessed in the same samples using the EpiTYPER system as previously described [3]. The primer sequences and the PCR conditions are listed in Table S5.

4.3. Data Analyses

Testing for normality distribution of MOR was conducted using the Shapiro–Wilk test at a significance level p = 0.05. For intergroup comparisons, depending on the results of this test, we used either a two-sample t test for the means if the data were normal or a nonparametric Mann–Whitney test for the median if the data were not normal. All analyses were conducted using the publicly available R statistical computing package [37].
