Article

Alternative Splicing of TaHsfA2-7 Is Involved in the Improvement of Thermotolerance in Wheat

by
Zhenyu Ma
1,†,
Mingyue Li
1,2,†,
Huaning Zhang
1,
Baihui Zhao
1,2,
Zihui Liu
1,
Shuonan Duan
1,
Xiangzhao Meng
1,*,
Guoliang Li
1,* and
Xiulin Guo
1
1
Institute of Biotechnology and Food Science, Hebei Academy of Agriculture and Forestry Sciences/Plant Genetic Engineering Center of Hebei Province, Shijiazhuang 050051, China
2
College of Life Sciences, Hebei Normal University, Shijiazhuang 050024, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(2), 1014; https://doi.org/10.3390/ijms24021014
Submission received: 11 November 2022 / Revised: 29 December 2022 / Accepted: 3 January 2023 / Published: 5 January 2023
(This article belongs to the Special Issue Omics Study to Uncover Signalling and Gene Regulation in Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
High temperature has severely affected plant growth and development, resulting in reduced production of crops worldwide, especially wheat. Alternative splicing (AS), a crucial post-transcriptional regulatory mechanism, is involved in the growth and development of eukaryotes and the adaptation to environmental changes. Previous transcriptome data suggested that heat shock transcription factor (Hsf) TaHsfA2-7 may form different transcripts by AS. However, it remains unclear whether this post-transcriptional regulatory mechanism of TaHsfA2-7 is related to thermotolerance in wheat (Triticum aestivum). Here, we identified a novel splice variant, TaHsfA2-7-AS, which was induced by high temperature and played a positive role in thermotolerance regulation in wheat. Moreover, TaHsfA2-7-AS is predicted to encode a small truncated TaHsfA2-7 isoform, retaining only part of the DNA-binding domain (DBD). TaHsfA2-7-AS is constitutively expressed in various tissues of wheat. Notably, the expression level of TaHsfA2-7-AS is significantly up-regulated by heat shock (HS) during flowering and grain-filling stages in wheat. Further studies showed that TaHsfA2-7-AS was localized in the nucleus but lacked transcriptional activation activity. Ectopic expression of TaHsfA2-7-AS in yeast exhibited improved thermotolerance. Compared to non-transgenic plants, overexpression of TaHsfA2-7-AS in Arabidopsis results in enhanced tolerance to heat stress. Simultaneously, we also found that TaHsfA1 is directly involved in the transcriptional regulation of TaHsfA2-7 and TaHsfA2-7-AS. In summary, our findings demonstrate the function of TaHsfA2-7-AS splicing variant in response to heat stress and establish a link between regulatory mechanisms of AS and the improvement of thermotolerance in wheat.

1. Introduction

High temperature caused by global warming has become one of the most significant stresses restricting crop yield and seriously threatening food security [1]. It is estimated that each degree-Celsius increase in global mean temperature would, on average, reduce global yields of wheat by 6.0%, rice by 3.2%, maize by 7.4% and soybean by 3.1% [2]. Wheat is a cold-season crop and its growth and development are often affected by high temperature, especially at flowering and grain-filling stages [3]. High temperature can induce protein misfolding and aggregation in cells, irreversible damage to membrane systems, massive destruction of microtubule organization and excessive accumulation of ROS [4]. Hsfs are critical regulators of plants in response to heat stress and their transcriptional regulation have been extensively studied [5,6,7,8,9,10]. Previous studies have shown that the plant Hsfs are strongly influenced by splicing regulation in response to heat stress [11]. However, studies on the function of Hsfs splice variants in wheat under heat stress conditions are limited.
Due to sessile growth habits, plants cannot escape adverse stresses and have to adopt complex and elaborate translational and post-translational regulatory mechanisms in response to the constantly changing environment. AS of eukaryotic transcripts is a post-transcriptional regulatory mechanism that enables cells to produce a large diversity of proteins from a limited number of genes, thus expanding the complexity of the proteome [12,13,14,15]. In plants, alternatively spliced genes are involved in a range of biological processes, including regulation of metabolic pathways, intracellular signal transduction, response to biotic and abiotic stresses and control of flowering time and circadian clocks [16,17,18,19,20,21,22]. With the development of high-throughput sequencing (HTS) technology, the number of AS events found in higher plants has increased far beyond expectation [23]. For example, AS events are estimated to account for at least 42% and 48% of intron-containing genes in Arabidopsis (Arabidopsis thaliana) and rice (Oryza sativa), respectively [24,25]. In fact, given that these data were obtained from plants growing under normal conditions, AS events may occur more frequently in plant response to various stresses [26]. AS is performed and controlled by a ribonucleoprotein complex called spliceosome, which is responsible for splice site selection by binding to cis-regulatory elements located in exons or introns [23,27]. Among the five basic types of AS observed in plants, intron retention (IR) is the predominant AS event [12]. In many AS events, such as IR, a premature translation termination codon (PTC) is found in the spliced transcript [12]. AS of pre-mRNA (precursor mRNA) directly affects gene expression or protein function [16]. On the one hand, AS forms frame shift mutations and PTC, resulting in nonsense mediated decay (NMD) and ultimately affecting mRNA stability. On the other hand, AS alters protein structure with effects on protein activity, localization, interactions with other proteins or substrates and post-translational modifications [28,29,30,31,32].
In the natural environment, plants are continuously exposed to changing temperatures. Recent studies have suggested that alternative pre-mRNA splicing may act as a “molecular thermometer” in plants, allowing them to appropriately adjust transcript abundance in response to extreme temperatures, including high temperature [12,33]. In tomato pollen, about 7500 genes were found to exhibit heat-dependent accumulation of IR and exon skipping, including 6 Hsfs and 29 heat shock proteins (Hsps) [34]. Additionally, genome-wide analysis of AS in response to HS in wheat revealed 3576 genes, with more AS events occurring on the B sub-genome than on the A and D genomes [11]. Interestingly, heat stress produces AS in different plant species, which in turn causes plants to adapt to higher temperatures. For example, in lily (Lilium spp.), LlHSFA3B is alternatively spliced under heat stress to generate splice variant LlHSFA3B-III, which encodes a protein localized to the cytoplasm and nucleus with no transcriptional activity and disturbs the protein interactions between LlHSFA3A-I and LlHSFA3B-I. More importantly, overexpression of LlHSFA3B-III in Arabidopsis and Nicotiana benthamiana showed enhanced tolerance to salinity stress and prolonged heat treatment at 40 °C, but decreased tolerance to acute HS at 45 °C [35]. In addition, the unfolded protein response (UPR) triggered by HS promotes AS of bZIP60, which is mediated by the endoplasmic reticulum (ER) localized RNA splicing factor inositol requirement enzyme 1 (IRE1). The truncated bZIP60 isoform, lacking the transmembrane domain, translocates to the nucleus and activates the expression of downstream stress-responsive genes, thereby improving thermotolerance in Arabidopsis [36]. Notably, HS induced AS occurred not only in transcripts of transcription factors, but also in transcripts of other HS inducible genes, such as Hsps [12]. Previous studies have shown that transcripts of Hsp genes such as Hsp21, Hsp101, Hsp70.10, Hsp70.6, Hsp90.5 and Hsp100.3 undergo constitutive splicing when subjected to heat priming, which would allow the plants to withstand the second stress [37]. Therefore, heat-induced AS may play an important role in the thermo-memory response of plants [12].
As so far, although the phenomenon of heat stress triggering AS events has been detected by high-throughput sequencing technology, there is little experimental evidence to show the regulatory mechanism and function of splice variants in response to high temperature and the relationship between thermotolerance and AS in wheat is also largely unknown. Based on our previous transcriptome data, we found that transcripts of TaHsfA2-7 may be spliced under heat stress. In this study, we further determined that TaHsfA2-7 formed two splice variants through AS, one of which, TaHsfA2-7-AS could be induced by high temperature and played an important role in the improvement of thermotolerance in plants.

2. Results

2.1. Characteristics of a New Splice Variant of TaHsfA2-7

In a search of our previous transcriptome data, an AS event was identified in the transcript of TaHsfA2-7 [38]. The results demonstrated that TaHsfA2-7 could indeed generate two isoforms through AS, one of which is a new splice variant, named TaHsfA2-7-AS here (Figure 1A). The splice variant TaHsfA2-7-AS containing a premature translation termination codon was generated through intron retention and it was speculated to encode a small truncated protein with 121 amino acids, containing an N-terminal region, a C-terminal truncated DBD and an additional sequence rich in hydrophobic amino acids. Based on analysis of the DBD structure of human HSF1 [39] and TaHsfA2-7-AS, the C-terminal truncated DBD of TaHsfA2-7-AS contained helixes α1, α2 and α3 and strands β1 and β2, but lacked strands β3 and β4 (Figure 1B). AS events induced by high temperature cause changes in the transcripts of many intron-containing genes, including transcription factors. Therefore, we examined the expression level of TaHsfA2-7-AS in wheat at 37 °C and 45 °C. Reverse transcription quantitative PCR (RT-qPCR) results showed that the expression of TaHsfA2-7-AS was induced by heat stress and reached the peak at 30 min at 37 °C and 45 °C (Figure 1C). These results indicate that TaHsfA2-7-AS is a new HS-induced splice variant of TaHsfA2-7.

2.2. Expression Patterns of TaHsfA2-7-AS

The expression pattern of TaHsfA2-7-AS in wheat is closely related to its function, so we investigated the expression profiles of TaHsfA2-7-AS in different tissues at seedling and reproductive stages in wheat. As shown in Figure 2A, TaHsfA2-7-AS was expressed differently in all examined tissues of wheat. The highest expression was found in mature leaf, followed by that in young leaf, mature shoot, young seed, stamen, mature root, pistil, young root and young shoot, whereas the transcript of TaHsfA2-7-AS was almost undetectable in mature seed under normal growth conditions. As a cool season crop, wheat is most vulnerable to heat stress during the reproductive stage, which has greatly adverse effects on carbon uptake and starch synthesis, resulting in the reduction of grain yield [40]. Based on this, we further explored the induction of TaHsfA2-7-AS under heat stress at flowering and grain-filling stages in wheat. At the two stages of reproductive development in wheat, the expression of TaHsfA2-7-AS was increased significantly with HS treatment at 37 °C and reached the peak at 20 min (Figure 2B), suggesting that TaHsfA2-7-AS may be involved in thermotolerance regulation of wheat.

2.3. TaHsfA2-7-AS Is Localized to Nucleus with No Transcriptional Activity

As shown in Figure 1B, TaHsfA2-7-AS is predicted to encode a small truncated TaHsfA2-7 isoform that retains only part of the DBD, so the true localization and transcriptional activity of its protein is worth considering. Firstly, the GFP sequence was fused to the TaHsfA2-7 splice variant and transiently expressed in tobacco leaf epidermal cells to determine protein subcellular localization. Compared to the whole cell distribution of free GFP, the fluorescence signal of TaHsfA2-7-AS-GFP was obviously accumulated in the nucleus (Figure 3A), indicating that TaHsfA2-7-AS is localized to nucleus. Next, we investigated the transcriptional activity of TaHsfA2-7-AS in yeast with the GAL4-based yeast system. The yeast harboring pGBKT7-P53 or pGBKT7-TaHsfA2-7 grew well on the yeast medium (SD/-Trp/-His/-Ade) and could catalyze 5-bromo-4-chloro-3-indolyl-α-D-galacto-pyranoside acid (X-α-Gal), which is consistent with our earlier report [41]. However, the yeast transformed with pGBKT7-TaHsfA2-7-AS barely grew at all on the yeast medium (SD/-Trp/-His/-Ade)-like negative control, only carrying pGBKT7 (Figure 3B). Considering that the C-terminal hydrophobic sequence of TaHsfA2-7-AS may be a negative regulatory region for its transactivation, we also constructed a deletion derivatives of TaHsfA2-7-AS (D-TaHsfA2-7-AS) and analyzed its transcriptional activity in yeast. Unexpectedly, deletion of the C-terminal hydrophobic sequence of TaHsfA2-7-AS did not allow the transformed yeast to grow on yeast synthetic drop-out medium (Figure S1).

2.4. Ectopic Expression of TaHsfA2-7-AS Improves Thermotolerance in Yeast

To confirm the role of TaHsfA2-7-AS in response to heat stress, a transient expression vector TaHsfA2-7-AS-pYES2 was constructed and transformed into INVSc1 yeast strain. Meanwhile, the yeast transformed with TaHsfA2-7-pYES2 was set as the positive control and the yeast transformed with empty vector was set as the negative control. Under normal conditions, all the transformed yeast strains showed similar growth status. However, after HS, the TaHsfA2-7-pYES2 and TaHsfA2-7-AS-pYES2 transgenic yeast showed improved viability compared to the pYES2 transgenic yeast (Figure 4). Although the TaHsfA2-7-AS-pYES2 transgenic yeast exhibited weaker viability compared to the TaHsfA2-7-pYES2 transgenic yeast, it could still prove that ectopic expression of TaHsfA2-7-AS improves thermotolerance in yeast.

2.5. The Overexpression of TaHsfA2-7-AS Enhanced the Tolerance of Transgenic Arabidopsis to Heat Stress

To further explore the biological functions of TaHsfA2-7-AS in response to heat stress, three transgenic lines overexpressing TaHsfA2-7-AS in Col-0 (3-14, 7-23 and 12-9) were obtained and the protein accumulations in transgenic lines were detected by western blotting (Figure S2). As shown in Figure 5A and Figure S3, under normal growth conditions, there was no significant difference in phenotype between transgenic lines and wild type (WT). However, under HS conditions, transgenic plants had fewer withered leaves and better growth status than WT. Consistent with this, the content of chlorophyll in transgenic plants was also significantly higher than that in WT, indicating a lesser degree of injury in transgenic lines after HS treatment (Figure 5B). Meanwhile, we also detected the activities of superoxide dismutase (SOD) and peroxidase (POD) in transgenic lines and WT under HS treatment or not. The results showed that under normal growth conditions, there was no remarkable difference between the transgenic lines and WT. But, when subjected to HS treatment, the activities of POD and SOD were significantly higher in transgenic lines (Figure 5C,D).

2.6. TaHsfA1 Acts as an Upstream Transcriptional Regulator of TaHsfA2-7 and TaHsfA2-7-AS

In plants, HsfA1s appear to be critical “master regulators” in response to HS, activating the expression of numerous genes, including HsfA2, HsfA7s, HsfBs, which in turn regulate the synthesis of molecular chaperones and functional enzymes [42,43,44,45]. To confirm whether the TaHsfA1 protein binds to the cis-acting heat shock element (HSE) sequence in the TaHsfA2-7 promoter and regulates the abundance of its pre-mRNA, the fragment of TaHsfA2-7 promoter was analyzed. Three putative cis-acting HSEs, named HSE1, HSE2 and HSE3, were identified in the fragment of TaHsfA2-7 promoter (Figure 6A). Subsequently, we performed an electrophoretic mobility shift assay (EMSA) and demonstrated that the TaHsfA1 protein could bind HSE1 and HSE2 in the TaHsfA2-7 promoter, but not HSE3 (Figure 6B). These results indicate that TaHsfA1 is directly involved in transcriptional regulation of TaHsfA2-7 and TaHsfA2-7-AS by binding to HSEs located in the TaHsfA2-7 promoter.

3. Discussion

3.1. TaHsfA2-7-AS Is a HS-Induced Splice Variant of TaHsfA2-7

The growth and development of plants are closely related to the temperature of the surrounding environment and extreme temperatures including high temperature will seriously threaten the survival of plants. To avoid or reduce the harmful effects of high temperature, plants rely on mechanisms established during evolution, such as AS, to cope effectively and ensure survival and reproductive growth [12]. In the present study, we identified a new splice variant of TaHsfA2-7, named TaHsfA2-7-AS, which was found to be induced by heat stress (Figure 1). Interestingly, Hsfs are strongly influenced by splicing regulation in responses to heat stress and the heat-induced AS regulation in plants may be an evolutionarily conserved phenomenon [46]. For example, under HS treatment, LlHSFA3B is alternatively spliced to produce the heat-inducible splice variant LlHSFA3B-III [35]. In Arabidopsis, various Hsfs including HsfA2, HsfA7b, HsfB1, HsfB2a and Hsf4c, generate intron-retained splice variants via AS in response to heat stress [47]. In addition, when rice suffers heat stress, OsHSFA2d is alternatively spliced into a transcriptionally active form, OsHSFA2dI, which participates in the heat stress response [48].
Like most splice variants, TaHsfA2-7-AS is also obtained through IR, which leads to the introduction of PTC (Figure 1). Although the small truncated protein encoded by TaHsfA2-7-AS lacks the C-terminal nuclear localization signal (NLS), it is still localized in the nucleus (Figure 3A). The small protein of TaHsfA2-7-AS may enter the nucleus through the help of other proteins containing the NLSs, but this requires further experimental validation. Coincidentally, HsfA2-III (also named S-HsfA2), a third splice variant of HsfA2 in Arabidopsis, was observed mainly in the nucleus [47]. This suggests that NLS is not the key factor for nuclear localization of Hsfs. However, there are some differences in transcriptional activation activity between TaHsfA2-7-AS and its ortholog from Arabidopsis. Compared with Leu-rich hydrophobic motif (LRM) in S-HsfA2, the C-terminal hydrophobic structure of TaHsfA2-7-AS had no such inhibitory effect on transcriptional activation (Figure S1).

3.2. TaHsfA2-7-AS Enhances Tolerance to Heat Stress

The mechanism of pre-mRNA splicing and the process of splice site selection are fairly well understood and recent efforts have been directed toward the regulatory mechanism and function of splice variants [12,13,17,23]. For example, LlHSFA3B-III, a heat-induced splice variant of LlHSFA3B, has shown considerable tolerance to both salinity stress and prolonged heat treatment at 40 °C in transgenic Arabidopsis and N. benthamiana plants [35]. Similarly, TaHsfA2-7-AS also improves thermotolerance of transgenic yeast and Arabidopsis in our study (Figure 4 and Figure 5). This suggested that TaHsfA2-7-AS can improve the thermotolerance of yeast and Arabidopsis. However, it is unclear whether TaHsfA2-7-AS regulates the expression of Hsp genes such as TaHsfA2-7. Indeed, when exposed to high temperature, transgenic yeast showed higher survival rates and transgenic plants exhibited better growth status, with fewer withered leaves (Figure 5A). Furthermore, the higher chlorophyll content and stronger activities of POD and SOD were observed in transgenic plants (Figure 5B–D), which also indicated that TaHsfA2-7-AS plays a positive regulatory role in response to heat stress. More importantly, the expression level of TaHsfA2-7-AS is dramatically induced by heat stress at flowering and grain-filling stages in wheat (Figure 2B). Therefore, it is very promising to improve the thermotolerance of wheat during the reproductive stage by overexpressing TaHsfA2-7-AS, so as to reduce the loss of yield.

3.3. The Transcription of TaHsfA2-7 and TaHSFA2-7-AS Is Regulated by TaHsfA1

To cope with heat stress, plants have developed large Hsf families, which can be roughly classified into three classes (A, B and C) based on the sequence length between DBD and HR-A/B regions and the number of amino acid residues inserted into HR-A/B region [6]. Among them, HsfA1s are the master regulators of the heat stress response in plants [42]. Transcriptomic analysis showed that more than 65% of heat-inducible genes were dependent on regulation of HsfA1s [45]. Upon heat stress, HsfA1s trigger a transcriptional cascade that is composed of many transcription factors, including HsfA2, HsfA7s, HsfBs. Although it has been reported that HsfA1s could induce expression of HsfA2 in response to heat stress, related studies in wheat are limited due to the complexity of wheat genome [38,49]. In our study, we found TaHsfA1 can specifically bind to the cis-acting HSEs (HSE1 and HSE2) in the promoter sequence of TaHsfA2-7, thereby increasing the abundance of its pre-mRNA (Figure 6). Of course, the above conclusions need to be further investigated in wheat to explore the regulatory network of TaHsfA1-TaHsfA2-7 in response to heat stress and the relationship between thermotolerance and mechanisms of AS.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

A semi-winter heat-tolerant wheat cultivar, Cang6005, used for gene cloning and expression analysis was cultivated in Hoagland nutrient solution or soil. In addition, Columbia-0 (Arabidopsis thaliana) used for genetic transformation and tobacco (Nicotiana benthamiana) used for transient transfection were cultivated in soil. All the plants mentioned above were grown in a greenhouse under day/night conditions of 16 h/8 h (70–100 μmol·m−2·S−1), 25 °C and 50–60% relative humidity.

4.2. Isolation of Total RNA and Identification of Splice Variants

Total RNA was extracted from leaves of wheat using the RNArose Reagent Systems Kit (Huashun Bioengineering Co., LTD., Shanghai, China), according to the manufacturer’s protocol. RNA was further purified by using the PrimeScriptTM RT Reagent Kit with gDNA Eraser (TaKaRa, Dalian, China) to remove genomic DNA contamination. Then, 2 µg of purified RNA was used as template to synthesize first-strand cDNA with an oligo (dT) primer. To detect splicing variants of TaHsfA2-7, semi-quantitative RT-PCR was performed with specific primers designed by DNAMAN 8.0 (www.lynnon.com, accessed on 20 October 2022) software. The information of primers is presented in Table S1.

4.3. Expression Analysis Using RT-qPCR

To study the expression patterns of TaHsfA2-7-AS in response to high temperature, seedlings of wheat at the three-leaf stage were treated with HS (37 °C and 45 °C) for different time. The second leaves were collected and then immediately frozen in liquid nitrogen for RNA extraction. To explore the tissue expression pattern of TaHsfA2-7-AS, the mature leaf, young leaf, mature shoot, young shoot, mature seed, young seed, mature root, young root, stamen and pistil of wheat were harvested at different growth and development stages. RT-qPCR was performed with SYBR Green Realtime PCR Master Mix (TaKaRa, Dalian, China) on a 7500realtime PCR detector (Applied Biosystems Incorporation, Foster City, CA, USA). Based on our previous methods [41], TaRP15 [50] was selected as internal reference gene in wheat. The average values of 2−△ct were used to calculate the relative expression of genes. The primers used are listed in Supplementary Table S1. Three biological replicates were performed for each qRT-PCR reaction and the results were reported as means and standard deviation. SPSS 19.0 software was used to analyze the significance.

4.4. Subcellular Localization

Transient expression assays were conducted as described previously [41]. The coding sequence of TaHsfA2-7-AS without a stop codon was inserted into the pJIT1-hGFP vector, which contains a CaMV 35S promoter and a C-terminal GFP. The reconstructed plasmid and empty plasmid were transformed into Agrobacterium strain GV3101 and injected into N. benthamiana leaves with a needleless 1 mL syringe. Before imaging, the nucleus was stained with 4′, 6-diamidino-2-phenylindole (DAPI, 1 mg·mL−1) dye. Fluorescence observation in the transformed N. benthamiana was performed with a confocal laser scanning microscope (META510, Zeiss, Jena, Germany).

4.5. Transactivation Analysis in Yeast

The yeast system was used for transcriptional activation activity assays. The coding sequences of TaHsfA2-7, TaHsfA2-7-AS and D-TaHsfA2-7-AS were cloned into pGBKT7 to fuse to GAL4 BD and then introduced into yeast strain AH109 by lithium acetate-polyethylene glycol-mediated transformation procedure, respectively. The transformants were grown on the yeast synthetic drop-out medium (SD/-Trp and SD/-Trp/-His/-Ade) for three days before observation. The transcriptional activation activities was evaluated according to their growth status and the activity of α-galactosidase. The experiment referred to the method of Titz et al. [51] and are slightly improved. The transcriptional activation was measured by His3 gene expression and activity of α-galactosidase. The expression of His3 was observed by growing yeast cells on selective media lacking tryptophane (Trp), histidine (His) and adenine (Ade). The activity of α-galactosidase was evaluated by the depth of the color display.

4.6. Thermotolerance Assay in Yeast

For thermotolerance assay in yeast, the coding sequences of TaHsfA2-7 and TaHsfA2-7-AS were inserted into yeast expression vector pYES2 driven by a galactose-inducible (GAL1) promoter, respectively. The reconstructed plasmids and empty plasmid were then transformed into yeast strain INVSc1 using lithium acetate-polyethylene glycol-mediated transformation procedure. The positive transgenic clones were screened and cultivated in yeast synthetic drop-out medium (SD/-Ura) with 2% (w/v) glucose at 30 °C for 12 h. Next, the yeast cells were resuspended and diluted to an OD600 value of 0.4 using yeast synthetic drop-out medium (SD/-Ura) with 2% (w/v) galactose. Before HS, the yeast cell densities were recalculated and unified in 100 µL of sterile water. Finally, after treatment for 30 min under normal conditions (30 °C) or HS conditions (50 °C), the serial dilutions were dotted on SD/-Ura plates supplemented with 2% (w/v) galactose to evaluate the growth status and relative survival rates. This experiment was repeated for three assays and the result of each assay was similar.

4.7. Generation of Transgenic Plants

To generate the overexpression construct, the coding region of TaHsfA2-7-AS was amplified by PCR and inserted into pCAMBIA1300 with a CaMV 35S promoter and a C-terminal GFP. The recombinant plasmid was transformed into Agrobacterium strain GV3101. Genetic transformation was performed using classical floral dip method at the stage of flower-budding in Arabidopsis [52]. The T-DNA insertion transgenic seeds were selected on MS-agar plates supplemented with 50 µg·µL−1 of hygromycin and confirmed by PCR. Homozygous T3 transgenic seeds were used for HS treatment.

4.8. Protein Extraction and Western Blotting

The seedlings were ground in liquid nitrogen and thawed in lysis buffer (50 mM Tris–HCl (pH 7.4), 150 mM NaCl, 2 mM MgCl2, 20% (v/v) glycerol, 5 mM DTT, 0.1% (v/v) Nonidet P-40 and 1 mM phenylmethyl-sulfonyl fluoride). The extract was centrifuged at 10,000× g for 5 min. The supernatant fraction was mixed with 5×SDS-PAGE loading buffer and boiled for 10 min. Protein extracts were then separated by sodium dodecyl sulphate–polyacrylamide gel electrophoresis (SDS-PAGE) and electroblotted onto polyvinylidene fluoride (PVDF) membranes (Millipore, Burlington, MA, USA). Protein detection was carried out by using anti-GFP antibody (1:5000, Sigma, Livonia, MI, USA).

4.9. HS Treatment in Arabidopsis

Sterilized wild-type and transgenic seeds were planted on MS agar plates. Seedlings five days old were subjected to basal thermotolerance (45 °C for 50 min, placed at 22 °C for 8 days) and acquired thermotolerance treatment (37 °C for 1 h, incubated at 22 °C for 2 days, 46 °C for 1 h, placed at 22 °C for 8 days) according to the previous methods [53]. After 8 days for recovery, photography was taken and the rosette leaves of different lines were collected to determine chlorophyll content and enzyme activity. In each experiment, about 30 seedlings of each line were treated at least and three independent experiments were conducted.

4.10. Measurements of Physiological Indexes

After basal thermotolerance or acquired thermotolerance treatment, the rosette leaves of Arabidopsis seedlings were harvested to measure the physiological indexes. Chlorophyll contents in the shoots of seedlings were measured photometrically [54]. The activities of superoxide dismutase (SOD) and peroxidase (POD) were analyzed using the nitro-tetrazolium blue chloride reduction and guaiacol colorimetric method, respectively [55].

4.11. EMSA

The coding sequences of TaHsfA1 was cloned into the pGEX-4T-1 vector to generate GST-TaHsfA1 fusion proteins. The expression of GST-TaHsfA1 proteins in Escherichia coli BL21 cells was induced by isopropyl β-D-1-thiogalactopyranoside (IPTG). The accumulation of GST-TaHsfA1 proteins purified by glutathione Sepharose 4B (GE Healthcare) was detected by SDS–PAGE. The concentrations of GST-TaHsfA1 proteins were determined using a Nano Drop 2000 spectrophotometer (Thermo Fisher, Waltham, MA, USA). The EMSA probes were labeled with biotin at the 5′-end and synthesized by Shanghai Shenggong Bioengineering Technology Co., LTD. A 10-, 100- and 1000-fold molar excess of an unlabeled DNA fragment was added to test the specificity of the GST-TaHsfA1 to the binding motif. Detection of the biotin-labeled DNA was performed using a LightShift Chemiluminescent EMSA Kit according to the manufacturer’s instructions (Thermo Scientific, Waltham, MA, USA).

5. Conclusions

In summary, we found that the pre-mRNA of TaHsfA2-7 underwent AS to generate a heat-induced new splice variant, TaHsfA2-7-AS. Further studies showed that overexpression of TaHsfA2-7-AS improved the thermotolerance in transgenic yeast and Arabidopsis. Meanwhile, our study also demonstrated the possibility that the transcription of TaHsfA2-7 and TaHSFA2-7-AS is regulated by TaHsfA1 in wheat. Therefore, our study not only elevates the understanding of the relationship between thermotolerance and AS, but also provides a new strategy for wheat breeding.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24021014/s1.

Author Contributions

This study was designed by X.M., X.G. and G.L. Z.M., M.L. and H.Z. performed bioinformatics analysis and wrote the manuscript. M.L., B.Z., Z.L. and S.D. performed the experiments. X.M., X.G. and G.L. edited this manuscript and contributed with valuable discussions. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Talents Construction Project of Science and Technology Innovation of HAAFs (No. C22R1301) and Natural Science Foundation of Hebei Province (No. C2021301024, No. C2022301018).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AS: alternative splicing; HS: heat shock; Hsf: heat shock transcription factor; ROS: reactive oxygen species; IR: intron retention; PTC: premature translation termination codon; pre-mRNA: precursor mRNA; NMD: nonsense mediated decay; Hsp: heat shock protein; UPR: unfolded protein response; ER: endoplasmic reticulum; IRE1: inositol requirement enzyme 1; RT-PCR: reverse transcription PCR; RT-qPCR: reverse transcription quantitative PCR; WT: wild type; SOD: superoxide dismutase; POD: peroxidase; HSE: heat shock element; NLS: nuclear localization signal; EMSA: electrophoretic mobility shift assay.

References

  1. Bita, C.E.; Gerats, T. Plant tolerance to high temperature in a changing environment: Scientifific fundamentals and production of heat stress-tolerant crops. Front. Plant Sci. 2013, 4, 273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Zhao, C.; Liu, B.; Piao, S.; Wang, X.; Lobell, D.B.; Huang, Y.; Huang, M.; Yao, Y.; Bassu, S.; Ciais, P.; et al. Temperature increase reduces global yields of majorcrops in four independent estimates. Proc. Natl. Acad. Sci. USA 2017, 114, 9326–9331. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Liu, B.; Liu, L.; Tian, L.; Cao, W.; Zhu, Y.; Asseng, S. Post-heading heat stress and yield impact in winter wheat of China. Glob. Chang. Biol. 2014, 20, 372–381. [Google Scholar] [CrossRef] [PubMed]
  4. Fragkostefanakis, S.; Roth, S.; Schleiff, E.; Scharf, K.D. Prospects of engineering thermotolerance in crops through modulation of heat stress transcription factor and heat shock protein networks. Plant Cell Environ. 2015, 38, 1881–1895. [Google Scholar] [CrossRef] [PubMed]
  5. Andrasi, N.; Pettko-Szandtner, A.; Szabados, L. Diversity of plant heat shock factors: Regulation, interactions, and functions. J. Exp. Bot. 2021, 72, 1558–1575. [Google Scholar] [CrossRef] [PubMed]
  6. Guo, M.; Liu, J.H.; Ma, X.; Luo, D.X.; Gong, Z.H.; Lu, M.H. The plant heat stress transcription factors (HSFs): Structure, regulation, and function in response to abiotic stresses. Front. Plant Sci. 2016, 7, 114. [Google Scholar] [CrossRef] [Green Version]
  7. Hahn, A.; Bublak, D.; Schleiff, E.; Scharf, K.D. Crosstalk between Hsp90 and Hsp70 chaperones and heat stress transcription factors in tomato. Plant Cell 2011, 23, 741–755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Ogawa, D.; Yamaguchi, K.; Nishiuchi, T. High-level overexpression of the Arabidopsis HsfA2 gene confers not only increased themotolerance but also salt/osmotic stress tolerance and enhanced callus growth. J. Exp. Bot. 2007, 58, 3373–3383. [Google Scholar] [CrossRef] [Green Version]
  9. Zhang, L.; Li, Y.; Xing, D.; Gao, C. Characterization of mitochondrial dynamics and subcellular localization of ROS reveal that HsfA2 alleviates oxidative damage caused by heat stress in Arabidopsis. J. Exp. Bot. 2009, 60, 2073–2091. [Google Scholar] [CrossRef] [Green Version]
  10. Ikeda, M.; Mitsuda, N.; Ohme-Takagi, M. Arabidopsis HsfB1 and HsfB2b act as repressors of the expression of heat-inducible Hsfs but positively regulate the acquired thermotolerance. Plant Physiol. 2011, 157, 1243–1254. [Google Scholar] [CrossRef]
  11. Liu, Z.; Qin, J.; Tian, X.; Xu, S.; Wang, Y.; Li, H.; Wang, X.; Peng, H.; Yao, Y.; Hu, Z.; et al. Global profifiling of alternative splicing landscape responsive to drought, heat and their combination in wheat (Triticum aestivum L.). Plant Biotechnol. J. 2018, 16, 714–726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. John, S.; Olas, J.J.; Mueller-Roeber, B. Regulation of alternative splicing in response to temperature variation in plants. J. Exp. Bot. 2021, 72, 6150–6163. [Google Scholar] [CrossRef] [PubMed]
  13. Kelemen, O.; Convertini, P.; Zhang, Z.; Wen, Y.; Shen, M.; Falaleeva, M.; Stamm, S. Function of alternative splicing. Gene 2013, 514, 1–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Barbazuk, W.B.; Fu, Y.; McGinnis, K.M. Genome-wide analyses of alternative splicing in plants: Opportunities and challenges. Genome Res. 2008, 18, 1381–1392. [Google Scholar] [CrossRef] [Green Version]
  15. Nilsen, T.W.; Graveley, B.R. Expansion of the eukaryotic proteome by alternative splicing. Nature 2010, 463, 457–463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Simpson, C.G.; Lewandowska, D.; Fuller, J.; Maronova, M.; Kalyna, M.; Davidson, D.; McNicol, J.; Raczynska, D.; Jarmolowski, A.; Barta, A.; et al. Alternative splicing in plants. Biochem. Soc. Trans. 2008, 36, 508–510. [Google Scholar] [CrossRef] [Green Version]
  17. Lam, P.Y.; Wang, L.; Lo, C.; Zhu, F.Y. Alternative splicing and its roles in plant metabolism. Int. J. Mol. Sci. 2022, 23, 7355. [Google Scholar] [CrossRef] [PubMed]
  18. Li, Y.; Yang, J.; Shang, X.; Lv, W.; Xia, C.; Wang, C.; Feng, J.; Cao, Y.; He, H.; Li, L.; et al. SKIP regulates environmental fitness and floral transition by forming two distinct complexes in Arabidopsis. New Phytol. 2019, 224, 321–335. [Google Scholar] [CrossRef]
  19. Jiang, J.; Liu, X.; Liu, C.; Liu, G.; Li, S.; Wang, L. Integrating omics and alternative splicing reveals insights into grape response to high temperature. Plant Physiol. 2017, 173, 1502–1518. [Google Scholar] [CrossRef] [Green Version]
  20. Gu, J.; Xia, Z.; Luo, Y.; Jiang, X.; Qian, B.; Xie, H.; Zhu, J.; Xiong, L.; Zhu, J.; Wang, Z. Spliceosomal protein U1A is involved in alternative splicing and salt stress tolerance in Arabidopsis thaliana. Nucleic Acids Res. 2018, 46, 1777–1792. [Google Scholar] [CrossRef]
  21. Calixto, C.P.G.; Guo, W.; James, A.B.; Tzioutziou, N.A.; Entizne, J.C.; Panter, P.E.; Knight, H.; Nimmo, H.G.; Zhang, R.; Brown, J.W.S. Rapid and dynamic alternative splicing impacts the Arabidopsis cold response transcriptome. Plant Cell 2018, 30, 1424–1444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Tian, L.; Zhao, X.; Liu, H.; Ku, L.; Wang, S.; Han, Z.; Wu, L.; Shi, Y.; Song, X.; Chen, Y. Alternative splicing of ZmCCA1 mediates drought response in tropical maize. PLoS ONE 2019, 14, e0211623. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Petrillo, E.; Kalyna, M.; Mandadi, K.K.; Tu, S.L.; Simpson, C.G. Editorial: Alternative splicing regulation in plants. Front. Plant Sci. 2020, 11, 913. [Google Scholar] [CrossRef] [PubMed]
  24. Filichkin, S.A.; Priest, H.D.; Givan, S.A.; Shen, R.; Bryant, D.W.; Fox, S.E.; Wong, W.-K.; Mockler, T.C. Genome-wide mapping of alternative splicing in Arabidopsis thaliana. Genome Res. 2010, 20, 45–58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Lu, T.; Lu, G.; Fan, D.; Zhu, C.; Li, W.; Zhao, Q.; Feng, Q.; Zhao, Y.; Guo, Y.; Li, W.; et al. Function annotation of the rice transcriptome at single-nucleotide resolution by RNA-seq. Genome Res. 2010, 20, 1238–1249. [Google Scholar] [CrossRef] [Green Version]
  26. Yang, S.; Tang, F.; Zhu, H. Alternative splicing in plant immunity. Int. J. Mol. Sci. 2014, 15, 10424–10445. [Google Scholar] [CrossRef] [Green Version]
  27. Reddy, A.S.N. Alternative splicing of pre-messenger RNAs in plants in the genomic era. Annu. Rev. Plant Biol. 2007, 58, 267–294. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, L.; Zhou, J. Splicing and alternative splicing in rice and humans. BMB Rep. 2013, 46, 439–447. [Google Scholar]
  29. Drechsel, G.; Kahles, A.; Kesarwani, A.K.; Stauffer, E.; Behr, J.; Drewe, P.; Rätsch, G.; Wachter, A. Nonsense-mediated decay of alternative precursor mRNA splicing variants is a major determinant of the Arabidopsis steady state transcriptome. Plant Cell 2013, 25, 3726–3742. [Google Scholar] [CrossRef] [Green Version]
  30. Kalyna, M.; Simpson, C.G.; Syed, N.H.; Lewandowska, D.; Marquez, Y.; Kusenda, B.; Marshall, J.; Fuller, J.; Cardle, L.; McNicol, J.; et al. Alternative splicing and nonsense-mediated decay modulate expression of important regulatory genes in Arabidopsis. Nucleic Acids Res. 2012, 40, 2454–2469. [Google Scholar] [CrossRef] [Green Version]
  31. Hamada, S.; Ito, H.; Hiraga, S.; Inagaki, K.; Nozaki, K.; Isono, N.; Yoshimoto, Y.; Takeda, Y.; Matsui, H. Differential characteristics and subcellular localization of two starch-branching enzyme isoforms encoded by a single gene in Phaseolus vulgaris L. J. Biol. Chem. 2002, 277, 16538–16546. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, J.; Chen, X.; Liang, X.; Zhou, X.; Yang, F.; Liu, J.; He, S.Y.; Guo, Z. Alternative splicing of rice WRKY62 and WRKY76 transcription factor genes in pathogen defense. Plant Physiol. 2016, 171, 1427–1442. [Google Scholar] [CrossRef] [Green Version]
  33. Capovilla, G.; Pajoro, A.; Immink, R.G.H.; Schmid, M. Role of alternative pre-mRNA splicing in temperature signaling. Curr. Opin. Plant Biol. 2015, 27, 97–103. [Google Scholar] [CrossRef] [PubMed]
  34. Keller, M.; Hu, Y.; Mesihovic, A.; Fragkostefanakis, S.; Schleiff, E.; Simm, S. Alternative splicing in tomato pollen in response to heat stress. Dna Res. 2017, 24, 205–217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Wu, Z.; Liang, J.; Wang, C.; Ding, L.; Zhao, X.; Cao, X.; Xu, S.; Teng, N.; Yi, M. Alternative splicing provides a mechanism to regulate LlHSFA3 function in response to heat stress in lily. Plant Physiol. 2019, 181, 1651–1667. [Google Scholar] [CrossRef]
  36. Deng, Y.; Humbert, S.; Liu, J.; Srivastava, R.; Rothstein, S.J.; Howell, S.H. Heat induces the splicing by IRE1 of a mRNA encoding a transcription factor involved in the unfolded protein response in Arabidopsis. Proc. Natl. Acad. Sci. USA 2011, 108, 7247–7252. [Google Scholar] [CrossRef] [Green Version]
  37. Ling, Y.; Serrano, N.; Gao, G.; Atia, M.; Mokhtar, M.; Woo, Y.H.; Bazin, J.; Veluchamy, A.; Benhamed, M.; Crespi, M.; et al. Thermopriming triggers splicing memory in Arabidopsis. J. Exp. Bot. 2018, 69, 2659–2675. [Google Scholar] [CrossRef] [Green Version]
  38. Duan, S.; Liu, B.; Zhang, Y.; Li, G.; Guo, X. Genome-wide identification and abiotic stress-responsive pattern of heat shock transcription factor family in Triticum aestivum L. BMC Genom. 2019, 20, 257. [Google Scholar] [CrossRef] [Green Version]
  39. Neudegger, T.; Verghese, J.; Hayer-Hartl, M.; Hartl, F.U.; Bracher, A. Structure of human heat-shock transcription factor 1 in complex with DNA. Nat. Struct. Mol. Biol. 2016, 23, 140–146. [Google Scholar] [CrossRef]
  40. Ni, Z.; Li, H.; Zhao, Y.; Peng, H.; Hu, Z.; Xin, M.; Sun, Q. Genetic improvement of heat tolerance in wheat: Recent progress in understanding the underlying molecular mechanisms. Crop J. 2018, 6, 32–41. [Google Scholar] [CrossRef]
  41. Zhang, Y.J.; Zhang, Y.Y.; Zhang, H.N.; Qin, N.; Li, G.L.; Guo, X.L. Characterization and regulatory roles in thermotolerance of wheat heat shock transcription factor gene TaHsfA2e. Acta Agron. Sin. 2018, 44, 1818–1828. [Google Scholar] [CrossRef]
  42. Yoshida, T.; Ohama, N.; Nakajima, J.; Kidokoro, S.; Mizoi, J.; Nakashima, K.; Maruyama, K.; Kim, J.M.; Seki, M.; Todaka, D.; et al. Arabidopsis HsfA1 transcription factors function as the main positive regulators in heat shock-responsive gene expression. Mol. Genet. Genom. 2011, 286, 321–332. [Google Scholar] [CrossRef] [PubMed]
  43. Ohama, N.; Sato, H.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Transcriptional regulatory network of plant heat stress response. Trends Plant Sci. 2017, 22, 53–65. [Google Scholar] [CrossRef]
  44. Gong, Z.; Xiong, L.; Shi, H.; Yang, S.; Herrera-Estrella, L.R.; Xu, G.; Chao, D.; Li, J.; Wang, P.; Qin, F.; et al. Plant abiotic stress response and nutrient use efficiency. Sci. China Life Sci. 2020, 63, 635–674. [Google Scholar] [CrossRef]
  45. Liu, H.C.; Liao, H.T.; Charng, Y.Y. The role of class A1 heat shock factors (HSFA1s) in response to heat and other stresses in Arabidopsis. Plant Cell Environ. 2011, 34, 738–751. [Google Scholar] [CrossRef]
  46. Chang, C.Y.; Lin, W.D.; Tu, S.L. Genome-wide analysis of heat-sensitive alternative splicing in Physcomitrella patens. Plant Physiol. 2014, 165, 826–840. [Google Scholar] [CrossRef] [Green Version]
  47. Liu, J.; Sun, N.; Liu, M.; Liu, J.; Du, B.; Wang, X.; Qi, X. An autoregulatory loop controlling Arabidopsis HsfA2 expression: Role of heat shock-induced alternative splicing. Plant Physiol. 2013, 162, 512–521. [Google Scholar] [CrossRef] [Green Version]
  48. Cheng, Q.; Zhou, Y.; Liu, Z.; Zhang, L.; Song, G.; Guo, Z.; Wang, W.; Qu, X.; Zhu, Y.; Yang, D. An alternatively spliced heat shock transcription factor, OsHSFA2dI, functions in the heat stress-induced unfolded protein response in rice. Plant Biol. 2015, 17, 419–429. [Google Scholar] [CrossRef]
  49. Nishizawa-Yokoi, A.; Nosaka, R.; Hayashi, H.; Tainaka, H.; Maruta, T.; Tamoi, M.; Ikeda, M.; Ohme-Takagi, M.; Yoshimura, K.; Yabuta, Y.; et al. HsfA1d and HsfA1e involved in the transcriptional regulation of HsfA2 function as key regulators for the Hsf signaling network in response to environmental stress. Plant Cell Physiol. 2011, 52, 933–945. [Google Scholar] [CrossRef] [Green Version]
  50. Xue, G.P.; Sadat, S.; Drenth, J.; Mclntyre, C.L. The heat shock factor family from Triticum aestivum in response to heat and other major abiotic stresses and their role in regulation of heat shock protein genes. J. Exp. Bot. 2014, 65, 539–557. [Google Scholar] [CrossRef] [Green Version]
  51. Titz, B.; Thomas, S.; Rajagopala, S.V.; Chiba, T.; Ito, T.; Uetz, P. Transcriptional activitors in yeast. Nucleic Acids Res. 2006, 34, 955–967. [Google Scholar] [CrossRef] [PubMed]
  52. Liu, Z.; Li, G.; Zhang, H.; Zhang, Y.; Zhang, Y.; Duan, S.; Sheteiwy, M.S.A.; Zhang, H.; Shao, H.; Guo, X. TaHsfA2-1, a new gene for thermotolerance in wheat seedlings: Characterization and functional roles. J Plant Physiol. 2020, 246–247, 153135. [Google Scholar] [CrossRef] [PubMed]
  53. Li, G.; Zhang, H.; Shao, H.; Wang, G.; Zhang, Y.; Zhang, Y.; Zhao, L.; Guo, X.; Sheteiwy, M.S.A. ZmHsf05, a new heat shock transcription factor from Zea mays L. improves thermotolerance in Arabidopsis thaliana and rescues thermotolerance defects of the athsfa2mutant. Plant Sci. 2019, 283, 375–384. [Google Scholar] [CrossRef] [PubMed]
  54. Porra, R.J.; Thompson, W.A.; Kriedemann, P.E. Determination of accurate extinction coefficients and simultaneous equations for assaying chlorophylls a and b extracted with four different solvents: Verification of the concentration of chlorophyll standards by atomic absorption spectroscopy. Biochim. Biophys. Acta 1989, 975, 384–394. [Google Scholar] [CrossRef]
  55. Li, H.; Zhang, H.; Li, G.; Liu, Z.; Zhang, Y.; Zhang, H.; Guo, X. Expression of maize heat shock transcription factor gene ZmHsf06 enhances the thermotolerance and drought-stress tolerance of transgenic Arabidopsis. Funct. Plant Biol. 2015, 42, 1080–1091. [Google Scholar] [CrossRef] [PubMed]
Ijms 24 01014 g001 550

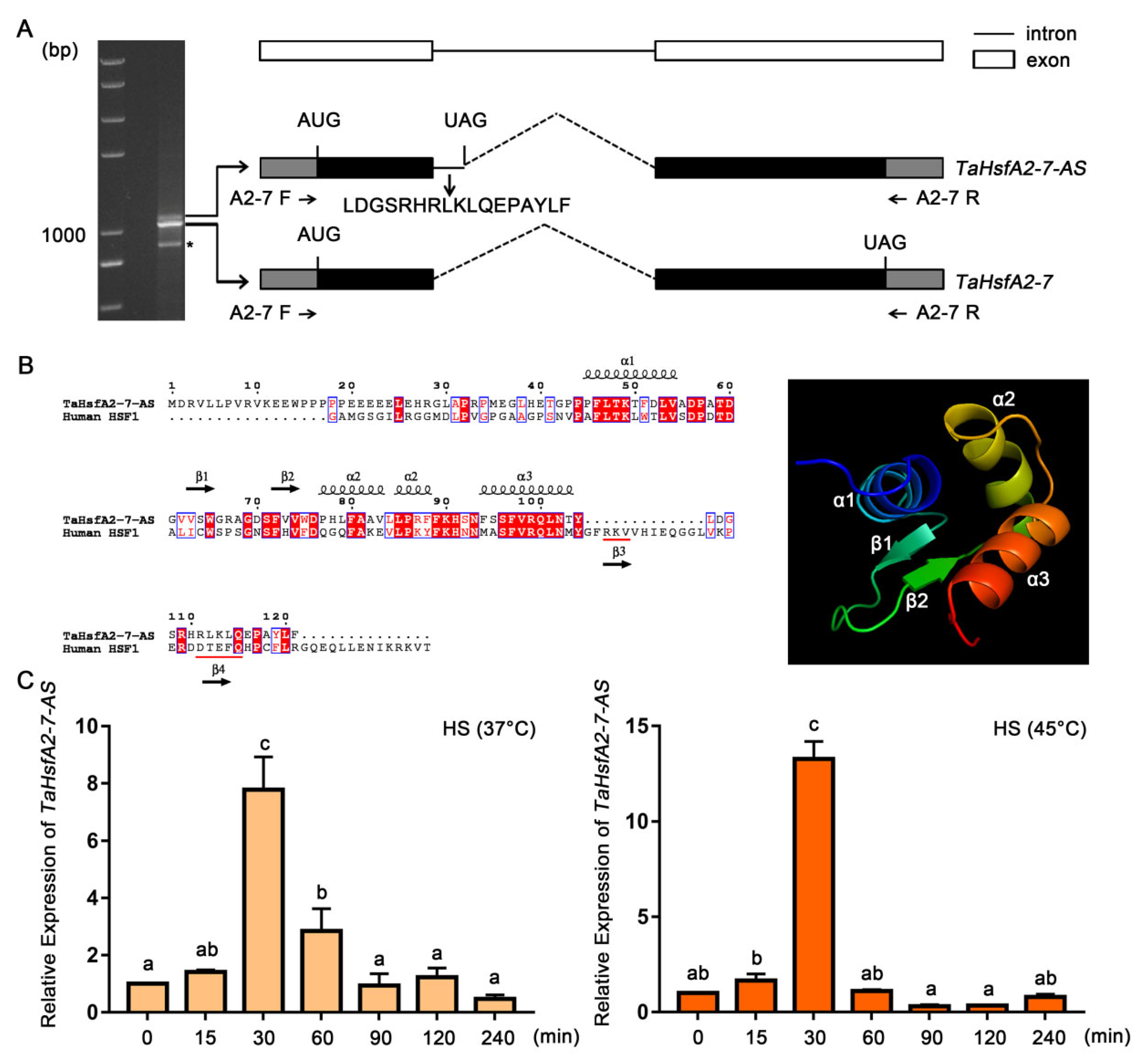

Figure 1. Analysis of splice variant TaHsfA2-7-AS. (A) Schematic diagram of the TaHsfA2-7 gene and its two splice variants. Total RNA was extracted from wheat seedlings treated with high temperature (37 °C). The RT-PCR assay was performed using specific primers (A2-7 F and A2-7 R). The asterisk represents a nonspecific band. The coding sequences of two splice variants are indicated between the start codon (AUG) and the stop codon (UAG). The amino acids encoded by the retained introns are indicated by arrows. The deleted introns in two transcripts were represented by dash lines. (B) Sequence alignment and structure prediction of TaHsfA2-7-AS. The DBD sequence of human HSF1 (NCBI ID: 5D5U_B) was used as a template for alignment and structure prediction of TaHsfA2-7-AS with SWISS-MODEL (https://swissmodel.expasy.org/, accessed on 20 October 2022). The secondary structure elements are indicated with arrows and boxes. The PyMOL software (https://pymol.org/2/, accessed on 20 October 2022) was used to describe the 3D structure of the C-terminal truncated DBD. (C) Expression levels of TaHsfA2-7-AS in different HS conditions. Total RNA was extracted from wheat seedlings treated at 37 °C or 45 °C for the indicated time points. The expression of untreated samples was set as control. The wheat TaRP15 gene was used as an internal control. All data represent means ± standard deviation (SD) of three biological replicates. Different lowercase letters above the bars denote significant differences at the p < 0.05 level.
Figure 1. Analysis of splice variant TaHsfA2-7-AS. (A) Schematic diagram of the TaHsfA2-7 gene and its two splice variants. Total RNA was extracted from wheat seedlings treated with high temperature (37 °C). The RT-PCR assay was performed using specific primers (A2-7 F and A2-7 R). The asterisk represents a nonspecific band. The coding sequences of two splice variants are indicated between the start codon (AUG) and the stop codon (UAG). The amino acids encoded by the retained introns are indicated by arrows. The deleted introns in two transcripts were represented by dash lines. (B) Sequence alignment and structure prediction of TaHsfA2-7-AS. The DBD sequence of human HSF1 (NCBI ID: 5D5U_B) was used as a template for alignment and structure prediction of TaHsfA2-7-AS with SWISS-MODEL (https://swissmodel.expasy.org/, accessed on 20 October 2022). The secondary structure elements are indicated with arrows and boxes. The PyMOL software (https://pymol.org/2/, accessed on 20 October 2022) was used to describe the 3D structure of the C-terminal truncated DBD. (C) Expression levels of TaHsfA2-7-AS in different HS conditions. Total RNA was extracted from wheat seedlings treated at 37 °C or 45 °C for the indicated time points. The expression of untreated samples was set as control. The wheat TaRP15 gene was used as an internal control. All data represent means ± standard deviation (SD) of three biological replicates. Different lowercase letters above the bars denote significant differences at the p < 0.05 level.
Ijms 24 01014 g001
Ijms 24 01014 g002 550
Figure 2. Expression analysis of TaHsfA2-7-AS. (A) Tissue-specific expression patterns of TaHsfA2-7-AS. RNA samples were from tissue of wheat at different growth and development stages. The expression level in young root was set as “1”. (B) Expression levels of TaHsfA2-7-AS under heat stress at flowering and grain-filling stages. Wheat at flowering and growth stages was subjected to HS treatment (37 °C), from which total RNA was extracted and analyzed by RT-qPCR. The control without HS was established in parallel. The wheat TaRP15 gene was used as an internal control. Bars are means ± standard deviation (SD) of three biological replicates. Different lowercase letters above the bars denote significant differences at the p < 0.05 level.
Figure 2. Expression analysis of TaHsfA2-7-AS. (A) Tissue-specific expression patterns of TaHsfA2-7-AS. RNA samples were from tissue of wheat at different growth and development stages. The expression level in young root was set as “1”. (B) Expression levels of TaHsfA2-7-AS under heat stress at flowering and grain-filling stages. Wheat at flowering and growth stages was subjected to HS treatment (37 °C), from which total RNA was extracted and analyzed by RT-qPCR. The control without HS was established in parallel. The wheat TaRP15 gene was used as an internal control. Bars are means ± standard deviation (SD) of three biological replicates. Different lowercase letters above the bars denote significant differences at the p < 0.05 level.
Ijms 24 01014 g002
Ijms 24 01014 g003 550
Figure 3. Subcellular localization and transcriptional activity analyses of TaHsfA2-7-AS. (A) Subcellular localization of TaHsfA2-7-AS in tobacco leaf epidermal cells. The 35S::GFP (control) and 35S::TaHsfA2-7-AS-GFP were transformed into tobacco leaf epidermal cells and visualized by DAPI staining. Bars = 10 μm. (B) Transcriptional activation analysis of TaHsfA2-7-AS in yeast. Fusion proteins of the GAL4 DNA-binding domain (BD) and TaHsfA2-7 or TaHsfA2-7-AS were expressed in the yeast strain AH109. The transformed yeast cells were spotted onto SD/-Trp and SD/-Trp/-His/-Ade media. The plates were incubated at 30 °C for 3 days. The pGBKT7 and pGBKT7-P53 vectors were used as negative and positive controls, respectively.
Figure 3. Subcellular localization and transcriptional activity analyses of TaHsfA2-7-AS. (A) Subcellular localization of TaHsfA2-7-AS in tobacco leaf epidermal cells. The 35S::GFP (control) and 35S::TaHsfA2-7-AS-GFP were transformed into tobacco leaf epidermal cells and visualized by DAPI staining. Bars = 10 μm. (B) Transcriptional activation analysis of TaHsfA2-7-AS in yeast. Fusion proteins of the GAL4 DNA-binding domain (BD) and TaHsfA2-7 or TaHsfA2-7-AS were expressed in the yeast strain AH109. The transformed yeast cells were spotted onto SD/-Trp and SD/-Trp/-His/-Ade media. The plates were incubated at 30 °C for 3 days. The pGBKT7 and pGBKT7-P53 vectors were used as negative and positive controls, respectively.
Ijms 24 01014 g003
Ijms 24 01014 g004 550
Figure 4. Thermotolerance assay of TaHsfA2-7-AS in yeast. Growth status of transgenic yeast are assessed in response to heat stress by spotting on SD/-Ura media. The control without HS was established in parallel. 0.1, 0.05, 0.01 represent the serial gradient dilutions.
Figure 4. Thermotolerance assay of TaHsfA2-7-AS in yeast. Growth status of transgenic yeast are assessed in response to heat stress by spotting on SD/-Ura media. The control without HS was established in parallel. 0.1, 0.05, 0.01 represent the serial gradient dilutions.
Ijms 24 01014 g004
Ijms 24 01014 g005 550

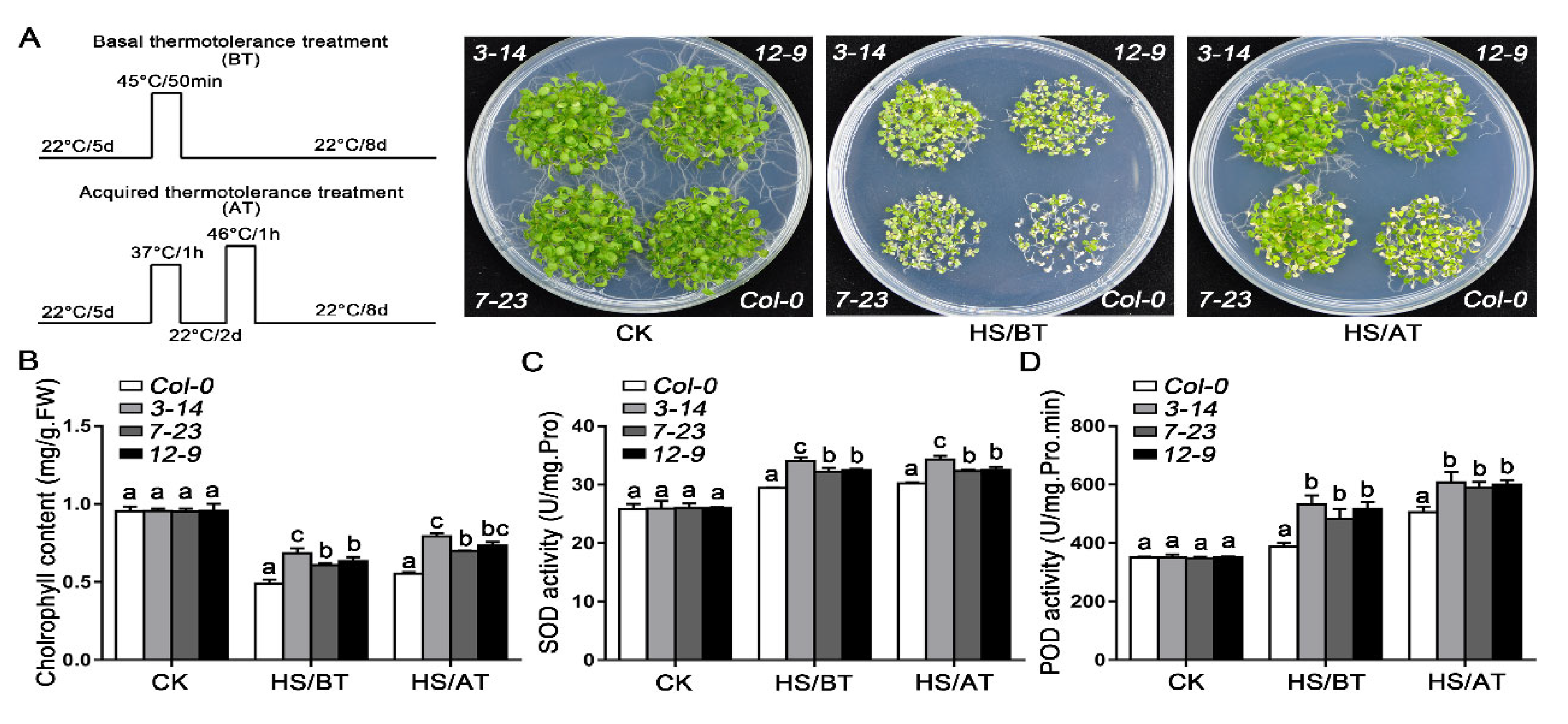

Figure 5. Thermotolerance assays of TaHsfA2-7-AS in Arabidopsis. (A) The phenotypes of WT and transgenic seedlings after basal thermotolerance (BT, 45 °C for 50 min, placed at 22 °C for 8 days) and acquired thermotolerance (AT, 37 °C for 1 h, incubated at 22 °C for 2 days, 46 °C for 1 h, placed at 22 °C for 8 days) treatment. The plants were photographed 8 d after different HS. (B) Chlorophyll content of WT and transgenic seedlings treated with different HS. (C,D) POD and SOD activities of WT and transgenic seedlings under HS treatment or not. For each experiment, at least 30 plants per line were used. Values are means ± SD from three independent measurements. Different lowercase letters above the bars denote significant differences at the p < 0.05 level.
Figure 5. Thermotolerance assays of TaHsfA2-7-AS in Arabidopsis. (A) The phenotypes of WT and transgenic seedlings after basal thermotolerance (BT, 45 °C for 50 min, placed at 22 °C for 8 days) and acquired thermotolerance (AT, 37 °C for 1 h, incubated at 22 °C for 2 days, 46 °C for 1 h, placed at 22 °C for 8 days) treatment. The plants were photographed 8 d after different HS. (B) Chlorophyll content of WT and transgenic seedlings treated with different HS. (C,D) POD and SOD activities of WT and transgenic seedlings under HS treatment or not. For each experiment, at least 30 plants per line were used. Values are means ± SD from three independent measurements. Different lowercase letters above the bars denote significant differences at the p < 0.05 level.
Ijms 24 01014 g005
Ijms 24 01014 g006 550

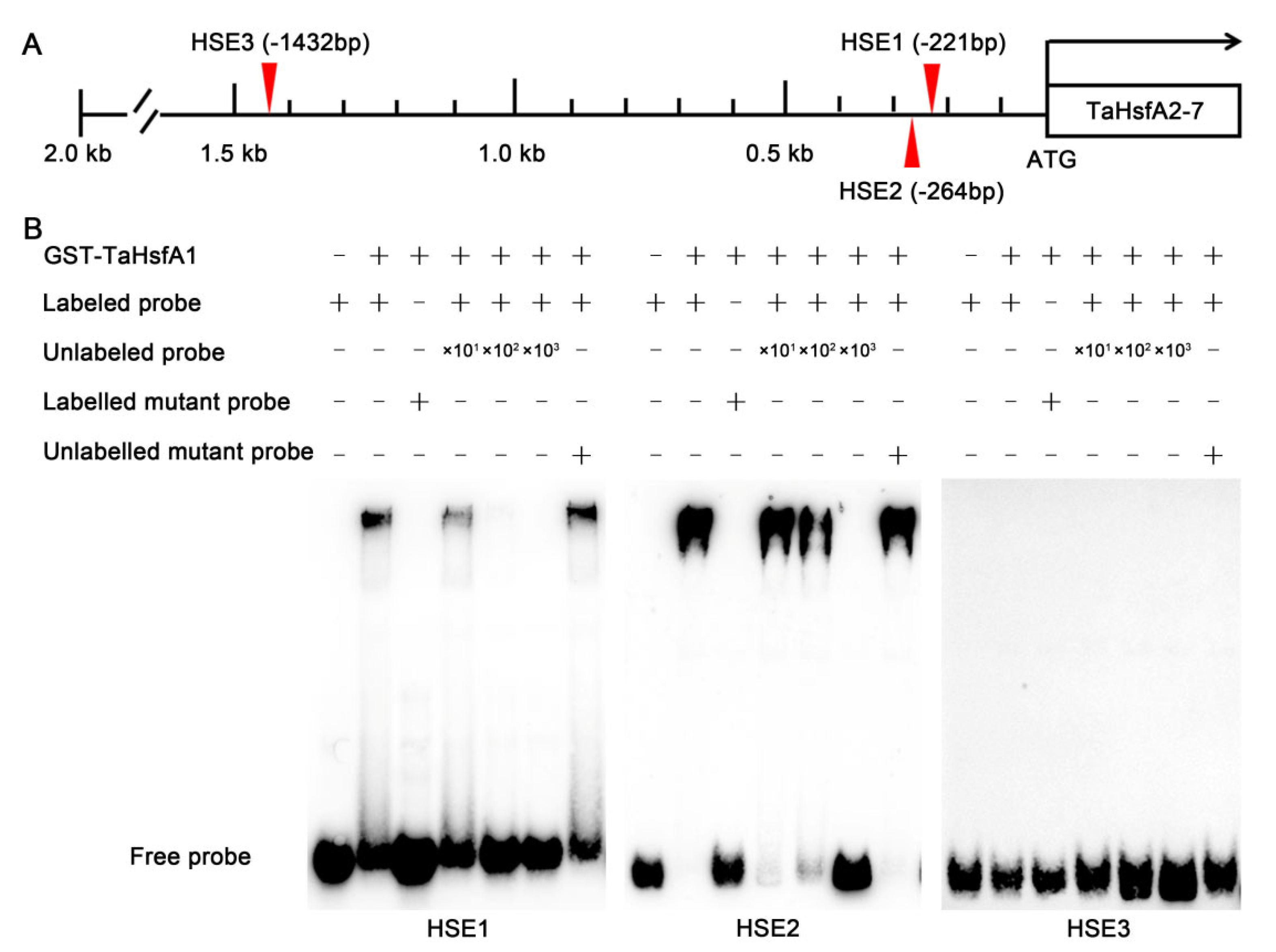

Figure 6. TaHsfA1 regulates the expression of TaHsfA2-7 and TaHSFA2-7-AS. (A) Diagram of the TaHsfA2-7 promoter. The cis-acting HSEs (HSE1, HSE2 and HSE3) in the promoter sequence of TaHsfA2-7 are marked with red triangles. (B) EMSA of TaHsfA1 binding to the cis-acting HSEs (HSE1, HSE2 and HSE3) in the TaHsfA2-7 promoter. Biotin-labeled probe containing the cis-acting HSEs (HSE1, HSE2 and HSE3) from TaHsfA2-7 promoter was incubated with GST-TaHsfA1 in vitro. An unlabeled probe or unlabeled mutated probe was used for competition and the biotin-labeled mutated probe was used as negative control.
Figure 6. TaHsfA1 regulates the expression of TaHsfA2-7 and TaHSFA2-7-AS. (A) Diagram of the TaHsfA2-7 promoter. The cis-acting HSEs (HSE1, HSE2 and HSE3) in the promoter sequence of TaHsfA2-7 are marked with red triangles. (B) EMSA of TaHsfA1 binding to the cis-acting HSEs (HSE1, HSE2 and HSE3) in the TaHsfA2-7 promoter. Biotin-labeled probe containing the cis-acting HSEs (HSE1, HSE2 and HSE3) from TaHsfA2-7 promoter was incubated with GST-TaHsfA1 in vitro. An unlabeled probe or unlabeled mutated probe was used for competition and the biotin-labeled mutated probe was used as negative control.
Ijms 24 01014 g006
