Article

Pharmacogenomic Landscape of Ivermectin and Selective Antioxidants: Exploring Gene Interplay in the Context of Long COVID

by
Ying-Fei Yang
1 and
Sher Singh
2,*
1
Department of Bioenvironmental Systems Engineering, National Taiwan University, Taipei 10617, Taiwan
2
Department of Life Science, School of Life Science, College of Science, National Taiwan Normal University, Taipei 11677, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(20), 15471; https://doi.org/10.3390/ijms242015471
Submission received: 23 September 2023 / Revised: 14 October 2023 / Accepted: 16 October 2023 / Published: 23 October 2023
(This article belongs to the Special Issue Focus on Antioxidants and COVID-19)
Browse Figures
Versions Notes

Abstract

:
COVID-19 pandemic has caused widespread panic and fear among the global population. As such, repurposing drugs are being used as viable therapeutic options due to the limited effective treatments for Long COVID symptoms. Ivermectin is one of the emerging repurposed drugs that has been shown effective to have antiviral effects in clinical trials. In addition, antioxidant compounds are also gaining attention due to their capabilities of reducing inflammation and severity of symptoms. Due to the absence of knowledge in pharmacogenomics and modes of actions in the human body for these compounds, this study aims to provide a pharmacogenomic profile for the combination of ivermectin and six selected antioxidants (epigallocatechin gallate (EGCG), curcumin, sesamin, anthocyanins, quercetin, and N-acetylcysteine (NAC)) as potentially effective regimens for long COVID symptoms. Results showed that there were 12 interacting genes found among the ivermectin, 6 antioxidants, and COVID-19. For network pharmacology, the 12 common interacting genes/proteins had the highest associations with Pertussis pathway, AGE-RAGE signaling pathway in diabetic complications, and colorectal cancer in the Kyoto Encyclopedia of Genes and Genomes (KEGG) analyses. Disease analyses also revealed that the top three relevant diseases with COVID-19 infections were diabetes mellitus, ischemia, reperfusion injury. We also identified 6 potential target microRNAs (miRNAs) of the 12 commonly curated genes used as molecular biomarkers for COVID-19 treatments. The established pharmacogenomic network, disease analyses, and identified miRNAs could facilitate developments of effective regimens for chronic sequelae of COVID-19 especially in this post-pandemic era. However, further studies and clinical trials are needed to substantiate the effectiveness and dosages for COVID-19 treatments.

1. Introduction

Exploration for preventive medications or effective regimens for sequelae post infections of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) with well-evidenced safety or efficacy has been a critical issue since the pandemic onset. Pharmacogenetic data for coronavirus disease 2019 (COVID-19) drugs could be essential in establishing personal profiles of bodily responses to medications and could be adopted as a strategy to prevent potential adverse drug reactions in different individuals [1]. Ivermectin, originally serving as an antiparasitic agent, has emerged as a repurposed medicine for long COVID resolutions because of the well-evidenced antiviral activities on various RNA viruses [2]. Numerous studies including clinical trials and meta-analyses have been showing the effectiveness of ivermectin on the symptom resolution of SARS-CoV-2 [3,4]. However, except for the increasing evidence from pre-clinical or clinical studies, there have been no thorough pharmacogenetic assessment to explore drug–gene, drug–protein, and drug–disease interactions to dissect antiviral mechanisms of ivermectin in human body. Pharmacogenetic analyses of ivermectin could provide clear modes of action for the repurposing of this drug in alleviating COVID-19 symptoms and more proper administration suggestions could be constructed.
On the other hand, several studies have connected the associations between the progression or severity of COVID-19 symptoms and the overproduction of reactive oxygen species (ROS) and disruptions of antioxidant systems [5,6]. One of the major complications of SARS-COV-2 is the acute respiratory distress syndrome (ARDS), which could be caused by the excessive production of pro-inflammatory cytokines (cytokine storm syndromes) such as interleukin (IL)-6 [5,6]. High levels of cytokines indicate poor prognosis in COVID-19, and increasing studies have demonstrated that a cytokine storm could contribute to mortality in COVID-19 patients. Also, interconnected pathways have suggested the relationship between oxidative damage and inflammation resulted from COVID-19 infections, leading to the application of antioxidants in attenuating oxidative stress or inflammation effects as a potentially preventive measure and medication for long COVID [5].
Therefore, this study aims to provide deep pharmacogenetic analyses of ivermectin and explore the common mechanisms of this repurposing drug and six selected antioxidants including the epigallocatechin gallate (EGCG), curcumin, sesamin, anthocyanins, quercetin, and N-Acetylcysteine (NAC) in attenuating COVID-19 symptoms. The six antioxidants were selected based on the scientific evidence of their antioxidant effects which are associated with antiviral properties, including the inhibition of SARS-CoV-2 replication and the alleviation of its symptoms [7,8,9,10,11,12].
In addition to the increasing clinical evidence, understanding the antiviral mechanisms of ivermectin and the anti-inflammatory effects of the investigated antioxidants before an overt cytokine storm could be crucial in designing effective administrative combinations of beneficial compounds to tackle Long COVID symptoms. Taken together, the objectives of this study are threefold: (i) screening the interacting genes among ivermectin, six selected antioxidants, and COVID-19, (ii) exploring the drug–gene, drug–proteins, and drug–disease associations with thorough pharmacogenomic analyses of the interacting genes, and (iii) establishing pharmacogenomic networks of the investigated compounds to imply the potential modes of action of their involvements in alleviating oxidative stress or antiviral effects in response to the long COVID.

2. Results

2.1. Structural Formulas of Ivermectin and the 6 Selected Antioxidants

The chemical structures of ivermectin and the six investigated antioxidants including epigallocatechin gallate (EGCG), curcumin, sesamin, anthocyanins, quercetin, and N-acetylcysteine (NAC) are presented (Figure 1).

2.2. Interacting Genes of Ivermectin and the Six Selected Antioxidants with COVID-19

To understand the relationship between genes and drug responses, we explored chemical–gene and COVID-19–gene interactions from the CTD database. Curated interacting genes of ivermectin or the six investigated antioxidants and COVID-19 were explored using InteractiVenn [14] and visualized with Venn diagrams (Figure 2). Results showed that there are 4623 interacting genes between the ivermectin and COVID-19 (Figure 2A; Supplementary Table S1). For the 6 investigated antioxidants, there are 2358, 978, 16, 167, 4151, and 1076 interacting genes for the epigallocatechin gallate (EGCG), curcumin, sesamin, anthocyanins, quercetin, and N-Acetylcysteine (NAC), respectively (Figure 2B; Supplementary Table S1). Finally, 12 interacting genes were found between ivermectin, the 6 antioxidants, and COVID-19 (Figure 2B; Table 1).

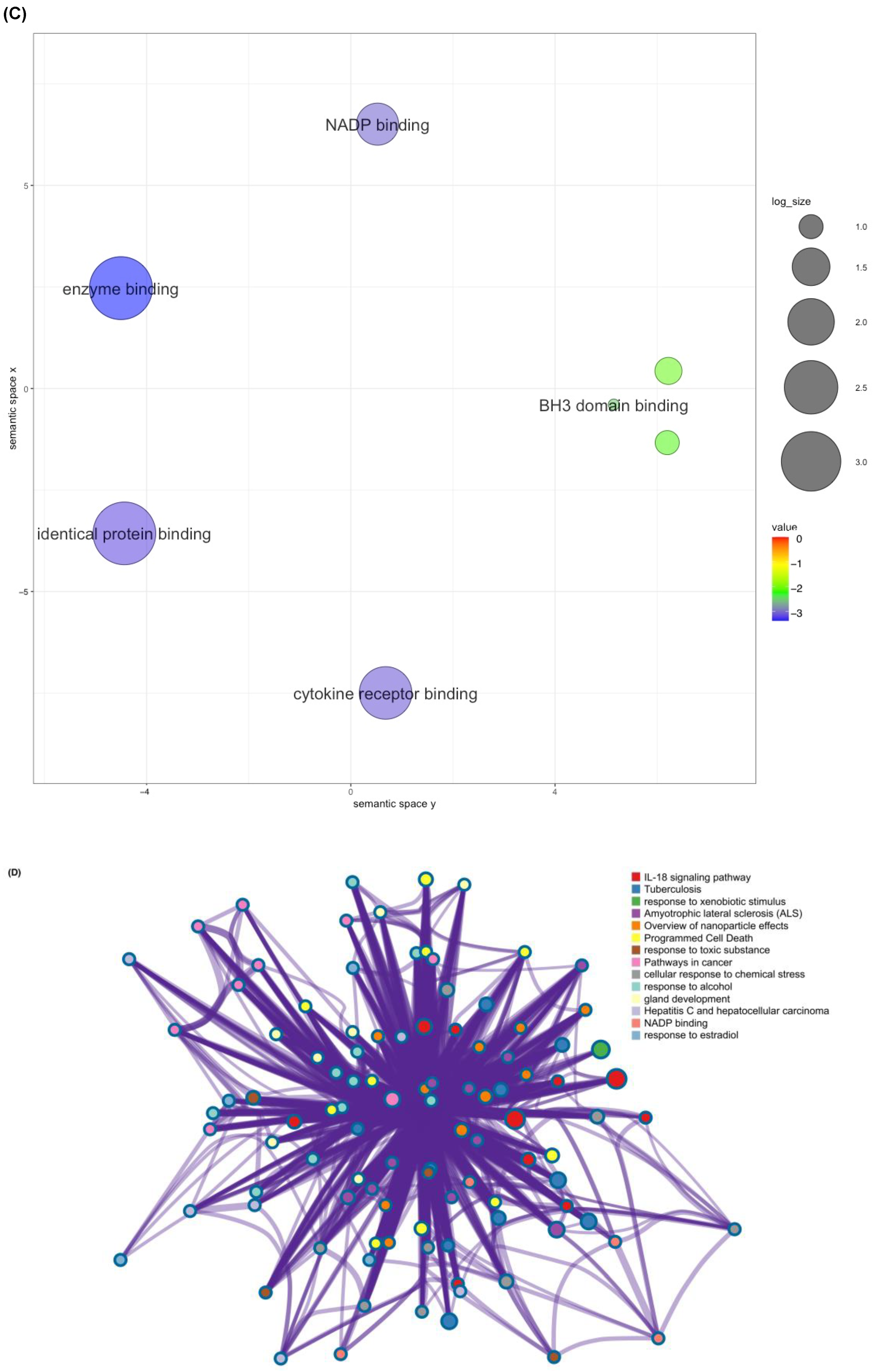

2.3. Gene Ontology Analyses

To identify the biological processes, cellular locations, and molecular functions of the 12 genes targeted by ivermectin and the 6 selected antioxidants interacting with COVID-19, and gene ontology analyses were conducted. Enriched terms were summarized by the GO terms’ semantic similarities in a two-dimensional scatterplot for the three gene ontology domains (CC, cellular component, MF, molecular function, and BP, biological process). For biological process, the final terms presented were screened and selected based on the adjusted p-values (Figure 3A). The scatterplot contains responses from the 12 interacting genes to the xenobiotic stimulus (GO:0009410), regulation of cellular localization (GO:0060341), regulation of cell death (GO:0010941), response to external stimulus (GO:0009605), cell death (GO:0008219), regulation of immune system process (GO:0002682), catabolic process (GO:0009056), negative regulation of apoptotic process (GO:0043066), biological process involved in interspecies interaction between organisms (GO:0044419), regulation of catabolic process (GO:0009894), neuron apoptotic process (GO:0051402), lymphocyte proliferation (GO:0046651), and tube development (GO:0035295) related Gene Ontologies (Figure 3A; Supplementary Table S2).
For the cellular component, it was revealed that cytoplasm (GO:0005737), intracellular membrane-bounded organelle (GO:0043231), organelle (GO:0043226), cytosol (GO:0005829), cell periphery (GO:0071944), intracellular anatomical structure (GO:0005622), membrane raft (GO:0045121), membrane microdomain (GO:0098857), catenin complex (GO:0016342), and endomembrane system (GO:0012505) related Gene Ontologies (Figure 3B; Supplementary Table S2). For molecular function, the GO terms scatterplot reveals a stronger occurrence of GO terms corresponding to enzyme binding (GO:0019899), identical protein binding (GO:0042802), cytokine receptor binding (GO:0005126), NADP binding (GO:0050661), and BH3 domain binding (GO:0051434) GO related (Figure 3C; Supplementary Table S2). In addition, the enrichment network visualization was shown with the intra- and inter-cluster similarities of the enriched terms based on the subset of representative terms from the full cluster (Figure 3D).

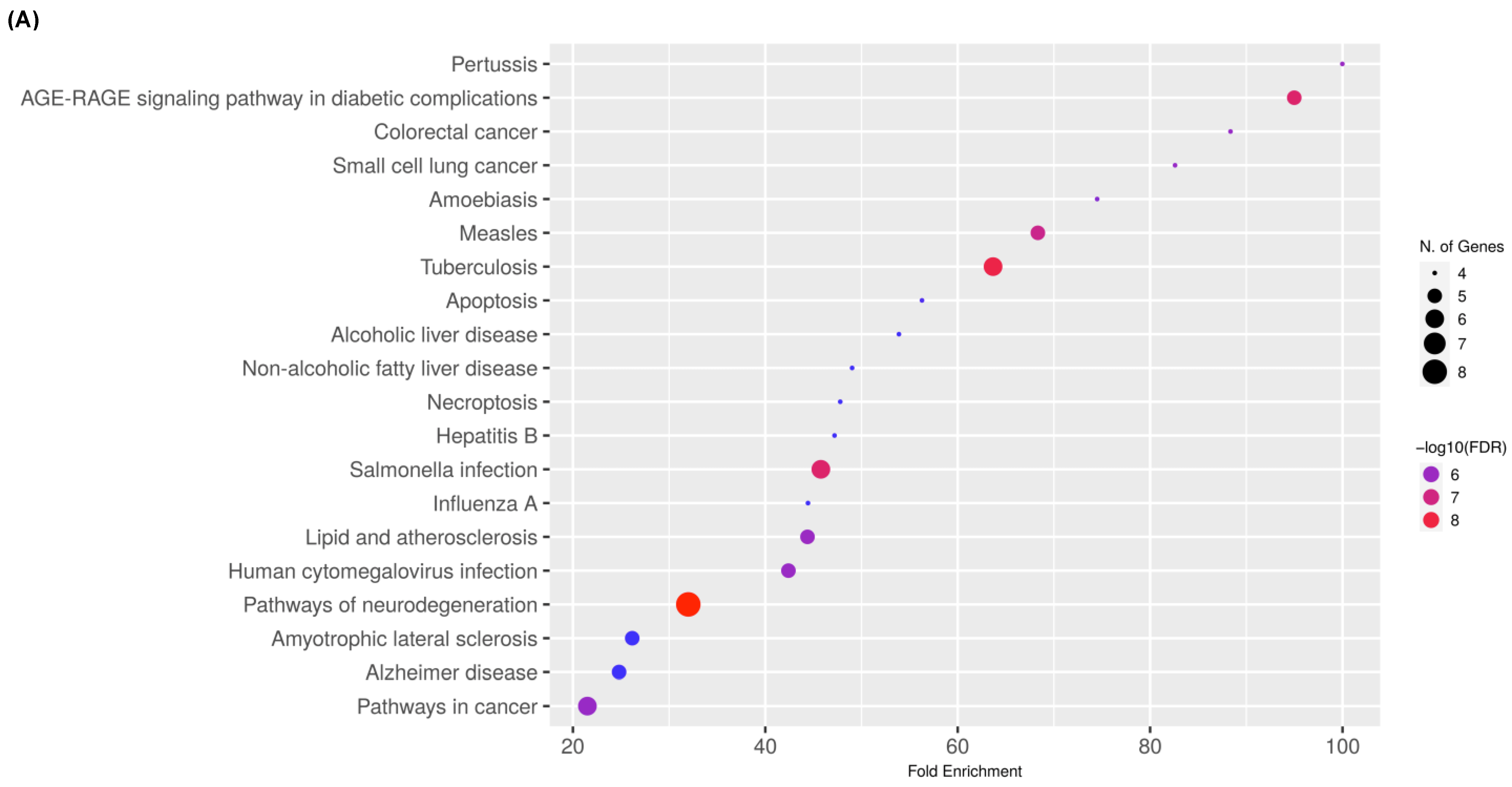

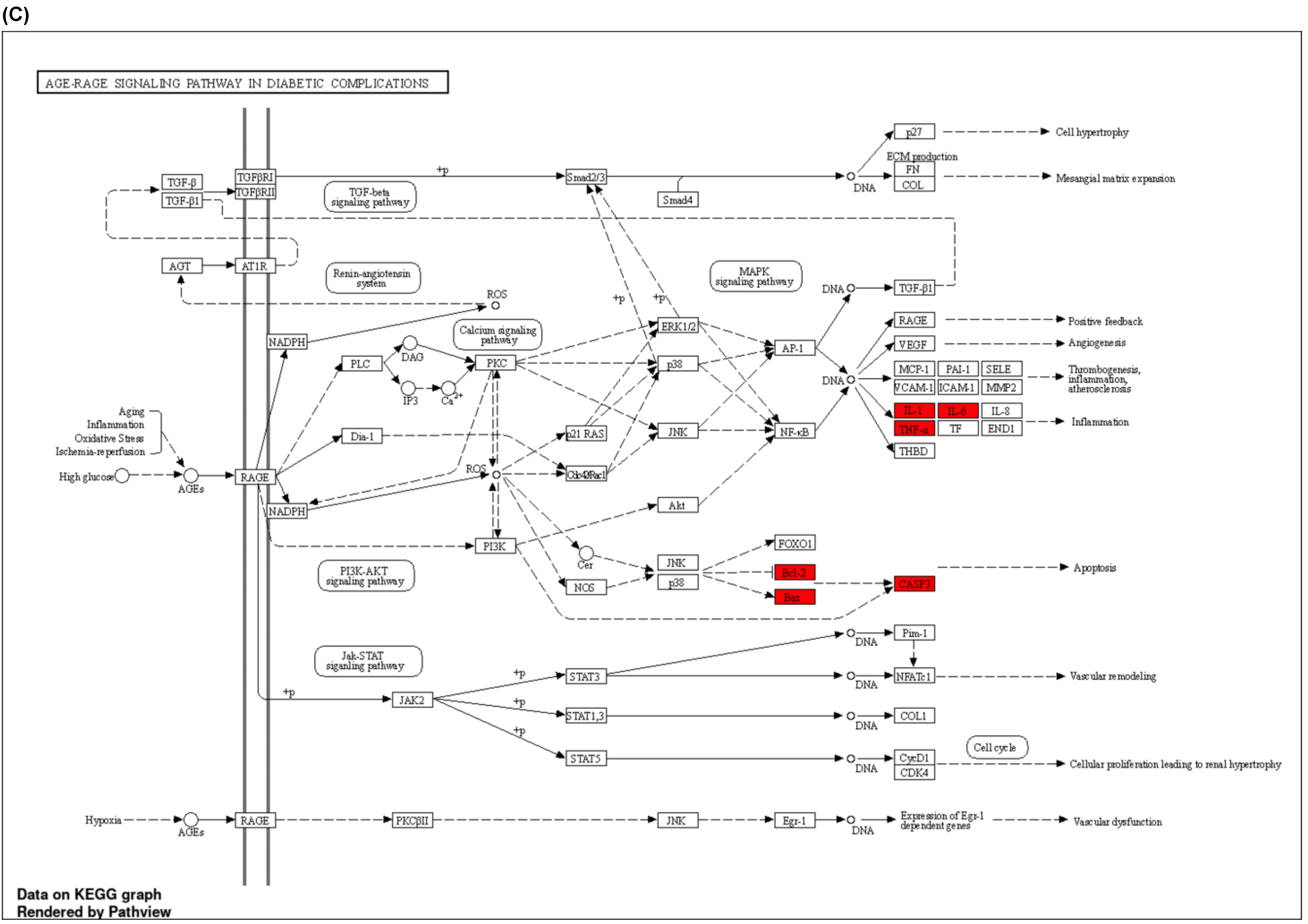

2.4. Target Gene–KEGG Pathway Network

To construct the target gene–KEGG pathway networking, the network was formed by the 12 hit genes targeted by the ivermectin and the 6 selected antioxidants interacting with COVID-19 by using the KEGG database. The top three KEGG pathways was the Pertussis pathway (hsa05133), AGE-RAGE signaling pathway in diabetic complications (hsa04933), and colorectal cancer (hsa05210) (Figure 4A; Supplementary Table S3). The pathway analyses were established with the KEGG diagram by focusing on the top three signaling pathways. For the Pertussis pathway, the main responsible genes for the pathways were CASP3, IL-1β, IL-1, IL-6, TNFα, and iNOS (Figure 4B). For the AGE-RAGE signaling pathway in diabetic complications, the main responsible genes for the pathways were IL-1, IL-6, TNFα, Bcl-2, Bax, and CASP3 (Figure 4C).

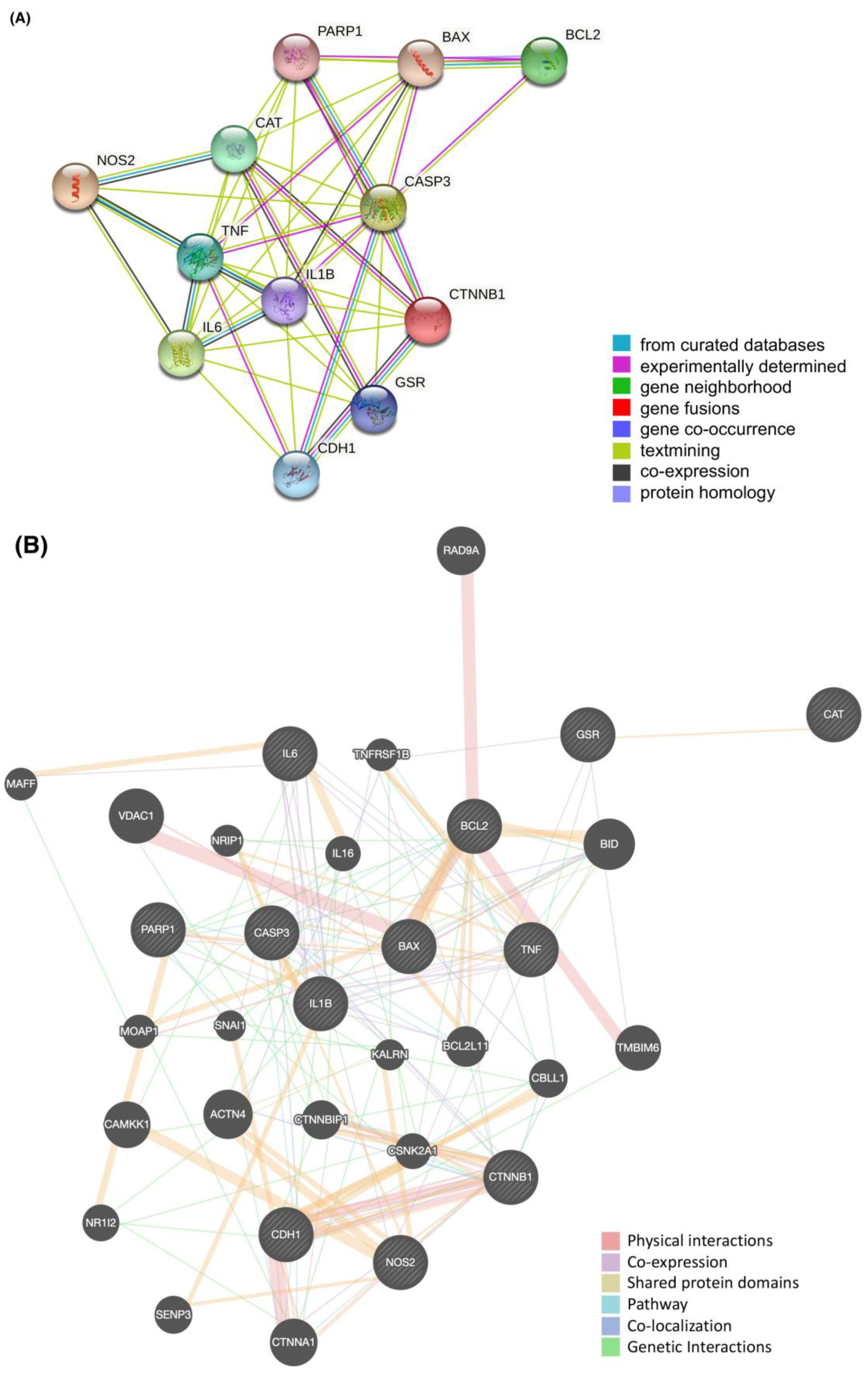

2.5. Network Analysis

The interactions among the 12 common genes/proteins were generated by applying the online complex protein database, STRING. The PPI network was adjusted with the medium confidence interaction score of 0.4 and built with 12 nodes and 45 edges with an average node degree of 7.5 and an average clustering coefficient of 0.836. The PPI enrichment was considered significant at p-value = 5.55 × 10−9 < 0.01 (Figure 5A). In addition, we used another database to explore protein–protein interactions among the 12 common genes/proteins in the GeneMANIA website by automatically selecting weighting method with 20 related genes, 32 total genes, and 179 total links. Results showed that the interconnections between proteins were physical interaction, co-expression, shared protein domains, pathway, co-localization, and genetic interaction (Figure 5B).

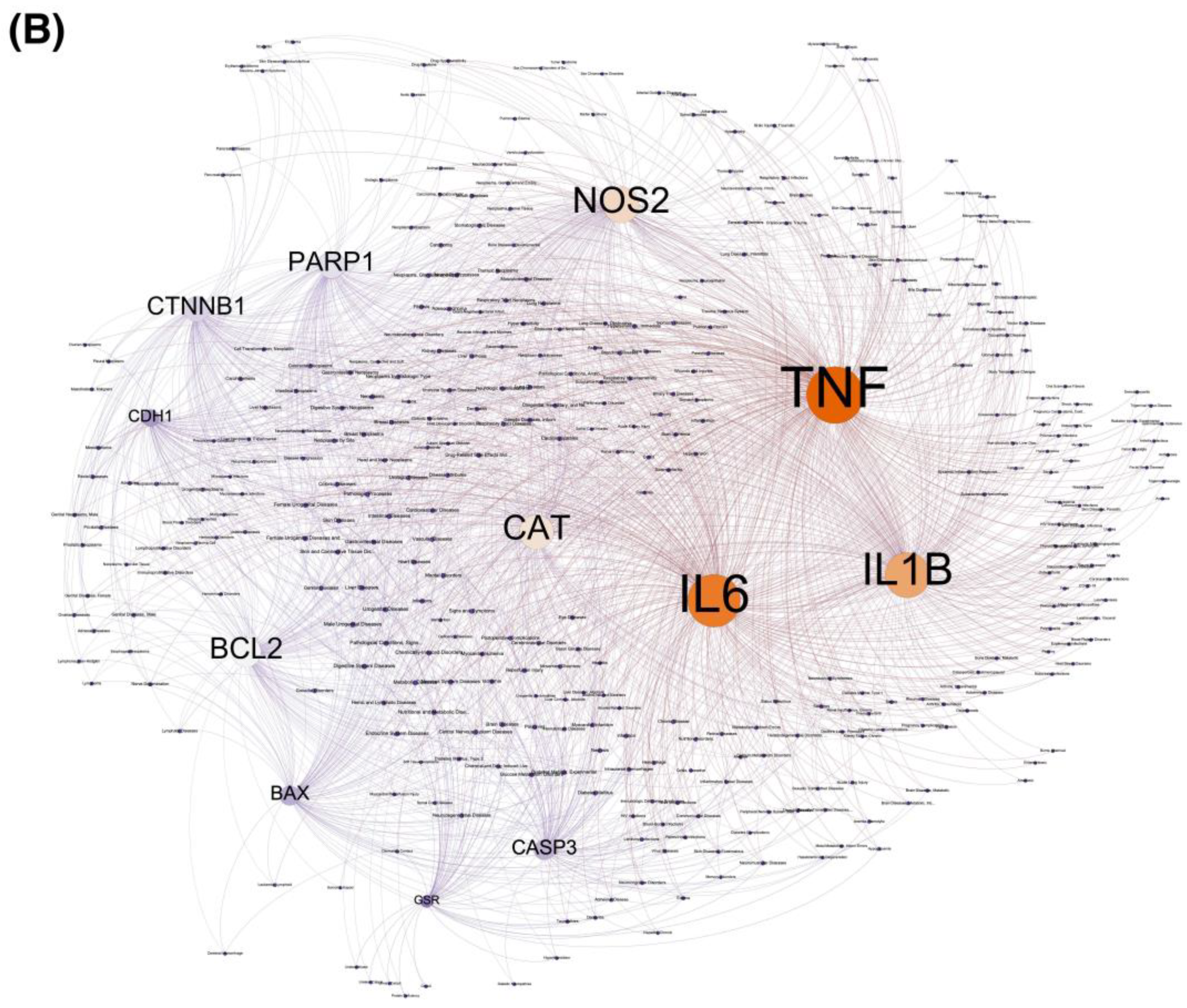

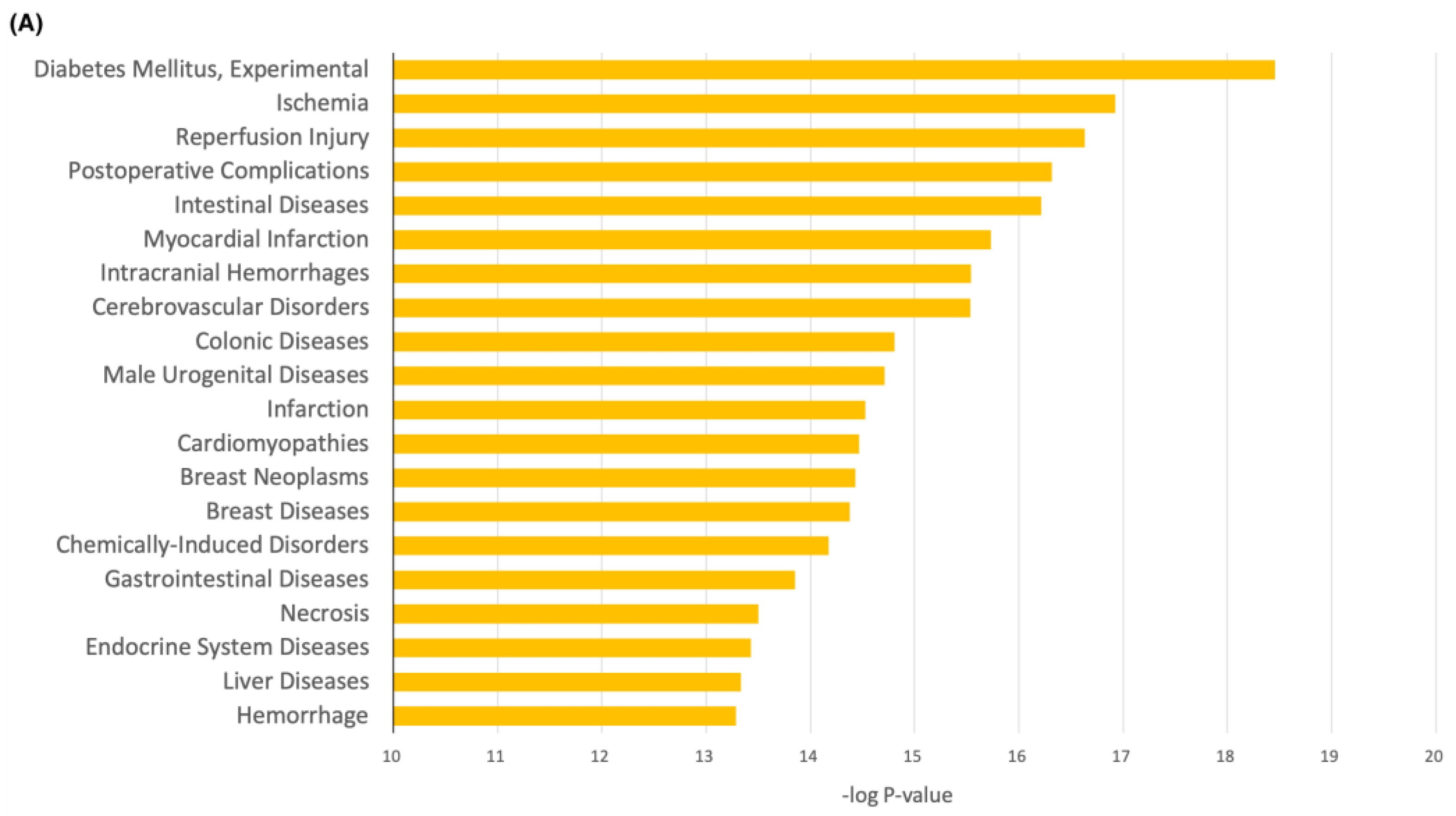

2.6. Disease Analysis

The 12 common genes/proteins from ivermectin and the 6 investigated antioxidants were fully analyzed for associated human diseases inferred by the CTD perform analyses (Figure 6A). Results showed that the top ten diseases respond to COVID-19 and ivermectin and the six investigated antioxidants were diabetes mellitus (experimental), ischemia, reperfusion injury, postoperative complications, intestinal diseases, myocardial infarction, intracranial hemorrhages, cerebrovascular disorders, colonic diseases, and male urogenital diseases (Figure 6A; Supplementary Table S4). The functional enrichment analyses for the disease–gene associations of the 12 most frequently curated ivermectin, the 6 investigated antioxidants and the COVID-19 related genes were also analyzed (Figure 6B; Supplementary Table S4). Results showed that the most curated genes were TNF, IL6, and IL1B.

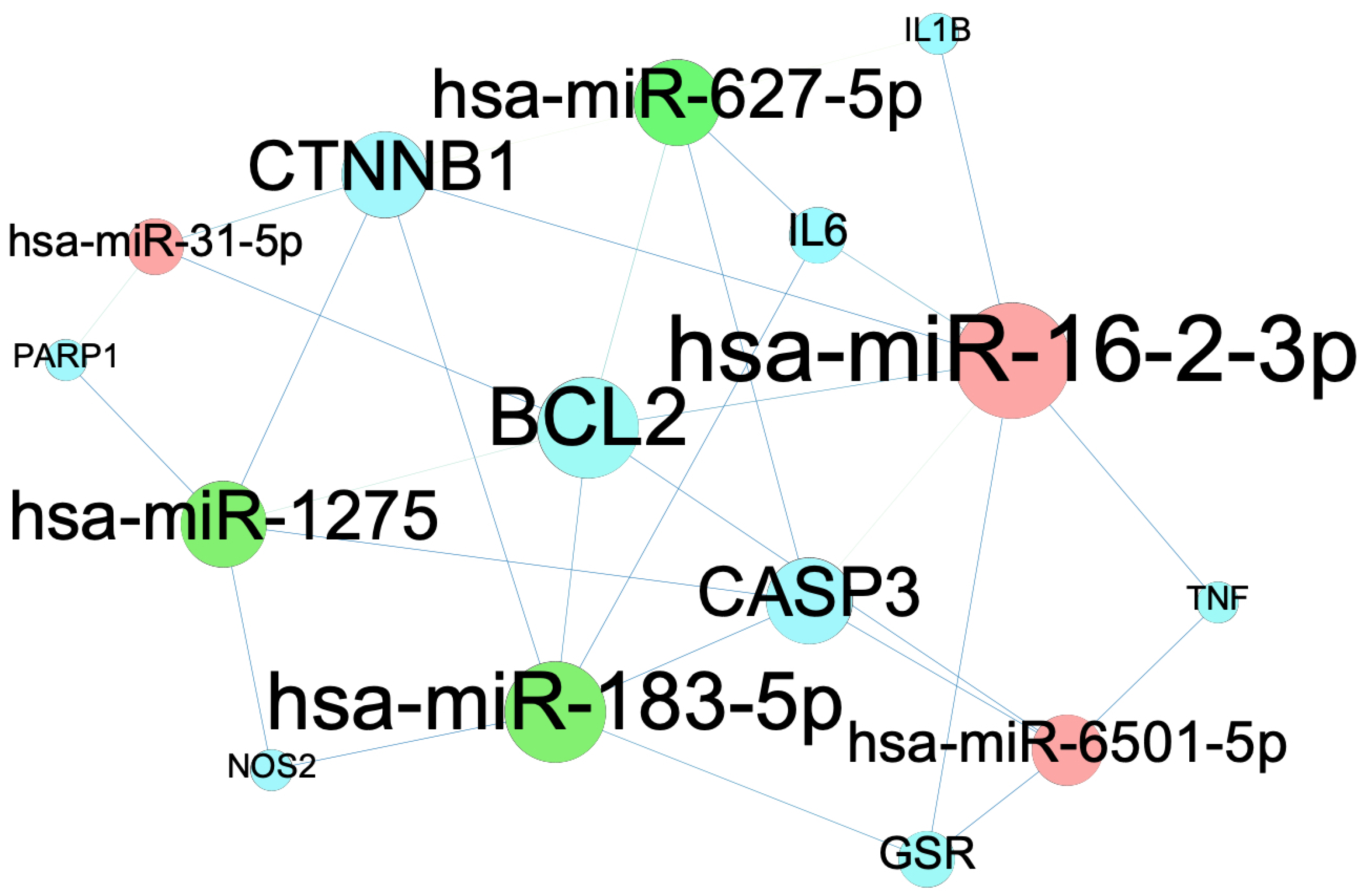

2.7. Target Identification of Genes

The target genes of the miRNAs are as follows: the 7 target genes (TNF, CASP3, IL1B, BCL2, IL6, GSR, and CTNNB1) of the hsa-miR-16-2-3p microRNA, the 6 target genes (CASP3, NOS2, BCL2, IL6, GSR, and CTNNB1) of the hsa-miR-183-5p, the 4 target genes (TNF, CASP3, BCL2, and GSR) of the hsa-miR-6501-5p microRNA, the 5 target genes (CASP3, IL1B, BCL2, IL6, and CTNNB1) of the hsa-miR-627-5p microRNA, the 3 target genes (BCL2, PARP1, and CTNNB1) of the hsa-miR-31-5p microRNA, and the 5 target genes (CASP3, NOS2, BCL2, PARP1, and CTNNB1) of hsa-miR-1275 microRNA were found from the 12 commonly curated genes set individually. The network was visualized using Gephi, with blue representing target genes, red representing up-regulated microRNAs, and green representing down-regulated microRNAs (Figure 7; Table 2).

3. Discussion

3.1. Ivermectin as a Repurposing COVID-19 Drug

Ivermectin is an FDA-approved anti-parasitic drug which was previously evidenced to have broad-spectrum anti-viral activity in vitro. It possesses many potential effects to treat various diseases with its antimicrobial, antiviral, and anti-cancer properties. It has been proven that ivermectin has high antiviral effects on RNA viruses such as Zika, dengue, yellow fever, West Nile, Hendra, Newcastle, Venezuelan equine encephalitis, chikungunya, Semliki Forest, Sindbis, Avian influenza A, Porcine Reproductive and Respiratory Syndrome, Human immunodeficiency virus type 1, and severe acute respiratory syndrome coronavirus. In addition to RNA viruses, several studies also found its antiviral effects on DNA viruses including Equine herpes type 1, BK polyomavirus, pseudorabies, porcine circovirus 2, and bovine herpesvirus [2].
Novel experimental evidence has also demonstrated that ivermectin is active and efficacious in vitro against Chagas disease, Leishmaniases, arboviruses, and SARS-CoV-2 [15]. Hariyanto et al. [3] also evidenced through a meta-analyses that ivermectin administration had an association with favorable outcomes of COVID-19, compromising of a higher rate of negative RT-PCR test results, shorter time to achieve negative RT-PCR test results, higher rate of symptom alleviation, shorter time to symptom alleviation, shorter time to hospital discharge, and a reduction in the severity and mortality rate from COVID-19. Moreover, the mixture of homologues called ivermectin (avermectin-B1a + avermectin-B1b) has been shown to be a Multi-Target Drug (MTD) with potential antiviral activity against SARS-CoV-2 in vitro. The homologues were found to be able to slightly modify the conformation and stability of the connection points between the Cα atoms of the residues that make up the structural network of proteins (nodes), compared to free proteins. Each homologue was able to differently modify the distribution of the quasi-rigid regions of the proteins, which could theoretically alter their biological activities. These results could provide a biophysical–computational view of the potential MTD mechanism that has been reported for ivermectin [16].
The effective antiviral effects of ivermectin have made it a potential candidate in the treatment of SARS-CoV-2 as well as other types of positive-sense single-strand RNA viruses. Although in vivo studies revealed a broad range of the antiviral effects of ivermectin, clinical trials are of great essentiality to appraise the efficacy of ivermectin in the human body [2]. More randomized clinical trial studies are suggested to be done for confirmation of safety and efficacy of the ivermectin. Also, ivermectin could be considered an essential drug for future COVID-19 therapy models [17]. Biswas et al. [1] also strongly suggested undertaking a pharmacogenetic assessment for the drug–gene pairs (ivermectin-ABCB1) in COVID-19 patients for advancing precision medicine. Molecular docking and computational studies are also promising tools to achieve new therapeutics against SARS-CoV-2 infection.
In addition, Ahmed et al. [18] identified 17 drug target proteins (SMAD4, GSK3B, SIRT1, ATM, RIPK1, PRKACB, MED17, CCT2, BIRC3, ETS1, TXN, FOXC1, GATA2, YY1, FOXL1, TP53, and SRF) from a large number of alternatives based on microarray gene-expression profiles of SARS-CoV-1 infected and control samples. The proposed target proteins guided the top-ranked 7 repurposing drugs (Rapamycin, Tacrolimus, Torin-2, Redotinib, Ivermectin, Danoprevir, and Daclatasvir) were identified for the treatment against SARS-CoV-1infections. As a matter of fact, it would be of great importance to explore more of the pharmacogenomic mechanism of ivermectin as one of the crucial emerging repurposing drugs.

3.2. Antioxidants in Attenuating COVID-19 Symptoms

The drug discovery and clinical development for COVID-19 have been mainly focused on monotherapies. Combination therapies have the advantages of increasing potency of individual compounds and combat the rapid evolution of resistance. It would be of interest to explore the combination effects of ivermectin along with the antioxidants with well-evidenced antiviral effects [19]. There have been many antioxidant compounds adopted for attenuations of long COVID symptoms. This study selected those that have been frequently discussed and applied since COVID-19 pandemic, including the Epigallocatechin Gallate (EGCG), curcumin, sesamin, anthocyanins, quercetin, and N-Acetylcysteine (NAC).
Epigallocatechin Gallate (EGCG) is a polyphenolic compound found in green tea that has recently been investigated as a potential antiviral agent. Studies have shown that EGCG has antiviral properties that could be used to inhibit infection of the novel SARS-CoV-2 virus [7]. Studies on EGCG have demonstrated that it can inhibit the replication and assembly of the SARS-CoV-2 virus. In particular, EGCG has been shown to inhibit the viral replication cycle by blocking the interaction between the viral RNA and the viral replication machinery [20,21]. This could help reduce the spread of the virus and potentially lead to new treatment strategies. In addition, EGCG has been shown to have anti-inflammatory properties and can help reduce the severity of symptoms associated with the virus [22]. This could be useful for those already infected with the virus, as it could reduce the severity of their symptoms and help them recover faster [22].
On the other hand, the potential of curcumin to inhibit infection of live SARS-CoV-2 has been the subject of much research in recent years. Curcumin, a natural compound derived from the spice turmeric, has been studied for its anti-inflammatory, antioxidant, and antiviral properties [8]. It has been found to possess the ability to inhibit the replication of a wide range of viruses, including SARS-CoV-2. Studies have suggested that curcumin can act on the different steps of the virus replication cycle, including inhibition of viral entry into the cell, inhibition of viral protein synthesis, and inhibition of viral assembly and release [8,23]. In addition, it is believed to possess immunomodulatory properties that can help to regulate the immune system and reduce inflammation [24]. In terms of its efficacy against SARS-CoV-2, research has shown that curcumin can significantly reduce the infectivity of the virus in cultured cells. It has also been shown to decrease the production of the virus in infected cells [25]. Furthermore, studies have demonstrated that curcumin-piperine co-supplementation in outpatients with COVID-19 could significantly reduce weakness in a randomized double-blind, placebo-controlled trial [26].
The potentiality of sesamin as a compound to inhibit the infection of live SARS-CoV-2 is an exciting development in the fight against the virus [9]. Sesamin, as a major compound in the Paulownia tomentosa, is a naturally occurring compound found in sesame seeds and has been recently reported to possess potent antiviral activity against SARS-CoV-2 in vitro [27,28]. Studies have shown that sesamin is able to bind to the spike protein of the virus, preventing it from entering the host cell. This creates a blockade which effectively stops the virus from replicating and ultimately reduces the chance of infection [24]. The antiviral activity of sesamin against SARS-CoV-2 has been tested in animal models and the results showed promising effects. The compound was able to reduce the viral load and decrease the severity of symptoms in infected animals [27]. This suggests that sesamin could be used as a treatment for SARS-CoV-2, either as a supplement or as part of a combination therapy.
Anthocyanins are a type of flavonoid compound that has been studied for its potential to inhibit the infection of live SARS-CoV-2 [10].
Anthocyanins have been found to have antiviral, anti-inflammatory, and antioxidant properties, which may be beneficial in preventing the spread of the virus. Studies have shown that anthocyanins can bind to the virus’ surface proteins and disrupt its ability to enter and infect host cells [29]. Additionally, it was found that anthocyanins could inhibit the nuclear factor-κB (NF-κB) pathway by regulating the miR-138-5p/sirtuin-1 (SIRT1) axis, thus inhibiting airway inflammation in asthmatic mice [30]. While there is promising research into the potential of anthocyanins in inhibiting the infection of live SARS-CoV-2, more studies are needed to determine the exact extent of their effectiveness and the most suitable dose for humans. In addition, more research is needed to determine if anthocyanins can be used in conjunction with other antiviral agents to enhance their effectiveness. Overall, anthocyanins may offer a promising potential for inhibiting the infection of live SARS-CoV-2. More research is needed to determine the safety and effectiveness of this compound and to understand the best way to use it to help prevent the spread of this virus.
Quercetin is a plant-based flavonoid that has been studied for its potential to inhibit infection of live SARS-CoV-2. Manjunath and Thimmulappa [11] found that quercetin may inhibit SARS-CoV-2 entry into cells by altering viral envelope proteins and inhibit SARS-CoV-2 replication by activating the NRF2 pathway. Attenuations of proinflammatory signals and cytokine release syndrome and reduction of coagulopathy by inhibiting protein disulphide isomerase were also observed. While quercetin has been studied in vitro, there is limited evidence of its effectiveness in vivo. It was found that quercetin as a compound with anti-inflammatory, antioxidant, and analgesic functions and could act as a NLRP3 inflammasome inhibitor can be a potential treatment for severe inflammation in patients with life-threatening conditions from COVID-19 infection [31]. Di Pierro et al. [32] also found quercetin could statistically shorten the timing of molecular test conversion from positive to negative and reduce symptoms severity and negative predictors of COVID-19 in a 2-week, randomized, open-label, and controlled clinical study. Quercetin is available over-the-counter in many forms, including capsules and powders. While it is generally considered to be safe, the public should always consult with their doctor before taking any supplements. It is also important to note that taking too much quercetin can cause side effects, so it is important to follow the instructions on the package carefully. Overall, it is clear that quercetin shows potential as an inhibitor of SARS-CoV-2 [11,31,32].
N-Acetylcysteine (NAC) is a compound that has recently been studied for its potential to inhibit infection of live SARS-CoV-2. It was found that a shorter length of hospital stay (LOS) was observed in patients receiving NAC with SARS-CoV-2 pneumonia when compared to those who did not receive NAC [12]. NAC is a naturally occurring compound that is able to boost the body’s ability to fight off infection and has been found to be effective in reducing symptoms in some patients with respiratory illnesses [33]. Poe and Corn [34] found that NAC could reduce the amount of SARS-CoV-2 that could attach to the ACE2 receptors on human cells, thus reducing the virus’ ability to infect the cells. Another study found that NAC was able to reduce the replication and spread of SARS-CoV-2 in cell cultures [35]. These results suggest that NAC may be an effective inhibitor of SARS-CoV-2 infection. However, more research is needed to fully understand the potential of NAC as an inhibitor of SARS-CoV-2 infection. Clinical trials are needed to determine the safety and efficacy of NAC in humans, as well as to understand the optimal dosage and duration of treatment [36]. It is also important to investigate potential side effects of NAC, as some studies have suggested that it may cause liver damage or other adverse reactions [37]. Overall, NAC appears to be a promising compound for inhibiting infection of live SARS-CoV-2. However, more research is necessary to fully understand the potential of NAC as an inhibitor of SARS-CoV-2 infection and to determine the safety and efficacy of NAC in humans [33].
Taken together, due to the fact that oxidation, inflammation, and immune response impairment are interconnected and play as key determinants in COVID-19, investigations of the modes of action of antioxidant effects of these compounds in the pharmacogenetic perspective would be of great interest for designing personalized medicines [5]. Moreover, higher levels of antioxidants in COVID-19 patients were found to be beneficial to prevent disease progression in a systematic research evaluating association between antioxidants and COVID-19 outcomes [38]. However, further research is needed to fully understand the effectiveness and appropriate dosages of antioxidants in the context of COVID-19 treatment.

3.3. Pharmacogenomic Analyses of Ivermectin and the Selected 6 Antioxidants

Pharmacogenomics is an important area of research that can significantly improve the efficacy of drug therapies [39]. Network analyses of pharmacogenomics of ivermectin and the selected antioxidants can be used to identify the genetic determinants of drug response [40]. Such analyses can provide insights into the molecular mechanisms underlying drug/compound responses and can help to identify individuals who are more likely to respond favorably to the drug.
To explore pharmacogenomics of ivermectin and the 6 selected antioxidants, gene expression profiling, gene network analysis, and gene-set enrichment analysis were obtained to identify gene–gene or protein–protein interactions among the 12 common genes/proteins targeted interacting with COVID-19. Gene network analysis can be used to identify pathways or networks that are associated with drug/compound response, while gene-set enrichment analysis can be used to identify sets of genes that are associated with responses of ivermectin and the selected antioxidants. For biological processes in gene ontology analyses, consistent with previous studies, processes including the regulation of cell death (GO:0010941) and regulation of immune system process (GO:0002682) were associated with COVID-19 [41,42]. For the KEGG pathway network, Pertussis pathway (hsa05133), AGE-RAGE signaling pathway in diabetic complications (hsa04933), and colorectal cancer (hsa05210) were also evidenced to be correlated with COVID-19 in several clinical studies [43,44,45]. For the protein–protein interactions, we identified that physical interaction, co-expression, shared protein domains, pathway, co-localization, and genetic interaction were all included among the12 common proteins targeted by the ivermectin and the 6 selected antioxidants interacting with COVID-19. The results are comparable with another research studying another COVID-19 drug (Bevacizumab) that there were 61.00% of co-expression, 16.37% physical interaction, 10.78% of the pathway, 8.87% of prediction, 6.09% genetic interactions, 3.07% co-localization, and 3.88% of shared protein domains based on the analyses of protein–protein interactions [46].
For disease analyses, it was found that the 12 common genes/proteins from ivermectin and the 6 investigated antioxidants are associated with the top three diseases including diabetes mellitus (experimental), ischemia, and reperfusion injury. In accordance with the results of disease analysis in this study, Lim et al. [47] found there are potential pathogenetic links between COVID-19 and diabetes mellitus include effects on glucose homeostasis, inflammation, altered immune status and activation of the renin-angiotensin-aldosterone system (RAAS). It was also suggested that SARS-CoV-2 infection is associated with a high risk for thrombotic complications, including the acute limb ischemia (ALI) [48]. Ashraf et al. [49] linked ischemia-reperfusion (IR) injury to multiple organ damage by SARS-CoV-2, suggesting COVID-19 may cause a reduction in oxygen towards an organ, which leads to IR injury.

3.4. microRNA Analyses for COVID-19 Medicines

We identified 6 microRNAs (miRNAs) based on the connections with the 12 common genes/proteins from ivermectin and the 6 investigated antioxidants [50,51]. The miRNAs are single-stranded noncoding RNAs which are capable of inhibiting gene translations and downregulating target gene expressions by binding to the 3′-untranslated regions (3′-UTRs) of mRNAs [52]. The miRNAs could play essential roles in a variety of biological processes including development, differentiation, regulation, and stress of inflammation in the host immune cells. It was also found that miRNAs are master regulators of the pathways involved in asthma [53].
Increasing evidence has demonstrated that microRNA serves as a crucial role in suppression of many COVID-19 related genes, among which the miR-223 plays as a key role in the process of COVID-19 immunopathogenesis. The miR-223 is a hematopoietic cell-derived miRNA which was revealed to be associated with regulating monocyte-macrophage differentiation, neutrophil recruitment, and pro-inflammatory responses. It controls inflammation by targeting a variety of factors, including TRAF6, IKKα, HSP-70, FOXO1, TLR4, PI3K/AKT, PARP-1, HDAC2, ITGB3, CXCL2, CCL3, IL-6, IFN-I, STMN1, IL-1β, IL-18, Caspase-1, NF-κB, and NLRP3. Numerous studies also reported the role of miR-223 in inhibiting inflammation to prevent tissue damage during infection and other inflammatory diseases. Important targets for miR-223 involved in infection and inflammation are NLRP3, IKKα, and NF-κB. The NF-κB and NLRP3 inflammasome. The miR-223 was also found to be capable of targeting viruses directly [54].

3.5. Essentiality and Limitation of Pharmacogenomic for COVID-19 Treatments

Although the virological features and genomic sequence of SARS-CoV-2 have been identified, the mechanisms associated with immunopathogenesis of COVID-19 still remain unclear. Increased application of repurposed drugs without established efficacy has been a concerning issue during or post COVID-19 pandemics for treating various long COVID symptoms. Advancements in drug development also seem to barely keep up with the mutation rates of SARS-CoV-2. Drug repurposing could be an essential and attractive approach during emergent clinical applications with its advantages in less time or budget needed [55]. However, pharmacogenetic approaches including drug–gene or drug–drug interactions, drug toxicity, and patient comorbidities should be re-considered for more effective treatments of repurposing drug in clinical studies/trials [1,55]. Biswas et al. [1] also strongly suggested pharmacogenetic assessments through molecular docking or computational approaches for drug–gene pairs of ivermectin-ABCB1 to achieve precision medicines in COVID-19 patients.
One of the implementation challenges of pharmacogenomics is to investigate how the genes influence individuals’ responses to pharmacological treatments (e.g., minimal dosage for efficacy, and adverse effects) since usually more than one gene is involved in the drug response pathway [38]. Recently, data of 132 pharmacogenomic dosing guidelines for 99 drugs are available from organizations such as the Clinical Pharmacogenetics Implementation Consortium (CPIC) and the Dutch Pharmacogenetics Working Group (DPWG) [38]. In clinical studies, the role of pharmacogenetic analysis is to design personalized medication to optimize drug therapy by ensuring maximum efficacy and minimal adverse effects based on a patient’s genotype [56,57]. Also, there are regulatory bases for the implementation of good pharmacogenomic practice [58]. Therefore, minimal dosage suggestions for specific drug in medication could be various among patients. The network/disease analysis based on the interplay of the 12 genes is also contributed from the ivermectin and 6 antioxidants. Further information of differentiating efficacy of specific compound on particular disease and the starting doses should be provided by pharmacokinetic/pharmacodynamic analysis.

4. Materials and Methods

4.1. Curated Interaction Analysis

The Comparative Toxicogenomics Database (CTD; Department of Bioinformatics, The Mount Desert Island Biological Laboratory, Salisbury Cove, ME, USA; http://ctd.mdibl.org (accessed on 12 June 2022)) was employed to analyze curated interactions of ivermectin and the six selected antioxidants, epigallocatechin gallate (EGCG), curcumin, sesamin, anthocyanins, quercetin, and N-Acetylcysteine (NAC), and COVID-19. The CTD is a powerful database that is capable of exploring interactions between chemical exposures and biological responses [59]. It can also provide information including chemical–gene/chemical–protein interaction, and chemical–disease/gene-=–disease relationships.

4.2. Gene Ontology (GO) Enrichment Analysis

For GO mapping, the GO terms for the 12 target genes based on homologies were extracted (http://www.geneontology.org (accessed on 27 August 2023)). The semantic similarities among the enriched Gene ontology (GO) terms (p value  <  1%) using Gene Set Analyzer were analyzed by CTD (http://ctdbase.org/) and visualized by REVIGO (version 1.8.1; http://revigo.irb.hr/), incorporated with the R software (version 3.3.3; https://www.r-project.org/ (accessed on 27 August 2023)). Gene Ontology scatterplots were constructed by using REVIGO [60] in R for all GO terms and genes within the 12 identified target genes. Settings used for REVIGO program were as follows, database: Homo sapiens, semantic similarity: 0.7 (medium), and semantic similarity measure: SimRel.
The scatter plots represent the summarized GO term analysis of the 12 target gene set genes. Semantically similar GO terms were plotted near to each other on the (unit-less) X-Y axes, such that functionally similar terms were located nearby, and more unrelated terms were further apart in space. The size of the individual bubbles indicates the frequency of the GO term in the database, in which larger bubbles reveal more general terms and smaller bubbles are more specific terms. The color indicates the p-value of the enrichment of each GO term.
Furthermore, we selected a subset of representative terms from the full cluster and converted them into a network layout. We used KEGG (http://www.kegg.jp/ or http://www.genome.jp/kegg/), an encyclopedia of functional genes and genomes, to explore the networks of molecular interactions, reactions and relations in the form/map of KEGG pathways [61].
Visualization was conducted using ShinyGO version 0.77 [62] and Metascape [63], and further rendered in Cytoscape version 3.9.1 [64] using a "force-directed" layout with edge bundling for clarity. Terms with a similarity score > 0.3 were linked by an edge (the thickness of the edge represents the similarity score). One term from each cluster was selected to have its term description shown in labels. The enrichment network visualization was shown with the intra-cluster and inter-cluster similarities of enriched terms. Cluster annotations are shown in color code. The Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) was also applied to predict protein interactions (https://string-db.org/) A complex clustering network was generated by the 12 target gene sets.

4.3. Disease Analysis

To explore the disease relationships of the 12 interacting genes found among ivermectin, the 6 antioxidants, and COVID-19 in the CTD, two kinds of resources were utilized which informed the curation of chemical–disease and gene–disease relationships based on explorations in the literature and the adoption of gene–disease relationships from the database of the Online Mendelian Inheritance in Man (OMIM; McKusick-Nathans Institute of Genetic Medicine, Johns Hopkins University School of Medicine, Baltimore, MD, USA; http://www.ncbi.nlm.nih.gov/omim (accessed on 12 June 2022)). The OMIM is a freely available, comprehensive, and authoritative compendium of human genes and genetic phenotypes that is updated daily. Subsequently, potential human diseases were identified from the ivermectin and 6 antioxidants-gene-disease relationships inferred from the analyses of the CTD and STRING databases. The gene–disease network was visualized by the Gephi software (version 0.10.1; https://gephi.org/ (accessed on 27 August 2023)) [65].

4.4. Identifications of Target microRNA

MicroRNA (miRNA) has been found to act as a therapeutic option or biomarker to distinguish COVID-19 infection from other influenza diseases [50,66]. It has also been suggested that miRNA is the interplay between host and SARS-CoV-2, and that it could serve as the primary cause of SARS-CoV-2 accessing host cells [67]. Thus, we identified the potential targets of miRNA in patients treated with ivermectin and 6 antioxidants to provide more information on the relationship among ivermectin, the 6 antioxidants, and gene–disease relationship in pharmacogenomic analyses.
Targets of microRNA (miRNA) were predicted by applying the miRabel database, which has aggregated all human results based on four important miRNA target prediction algorithms (miRanda, PITA, SVmicrO, and TargetScan) (LITIS lab, University of Rouen Normandy, Mont-Saint-Aignan, France; http://bioinfo.univ-rouen.fr/mirabel/ (accessed on 12 June 2022)) [68]. These algorithms also specified additional characteristics for potential miRNA targets in the platform.
Potential target miRNAs of the 12 commonly curated genes were predicted by using the miRabel database [68]. For patients infected with COVID-19, the most up-regulated miRNA was hsa-miR-31-5p, whereas the most strongly down-regulated miRNA was has-miR-1275 [50]. In addition, two miRNAs were upregulatehashsa-miR-16-2-3P, hsa-miR-6501-5P) and two miRNAs were downregulated (hsa-miR-183-5p, hsa-miR-627-5p) [51]. The six miRNAs were further selected to analyze the target genes of the 12 commonly curated genes found among ivermectin, 6 antioxidants, and COVID-19.

5. Conclusions

Currently, no direct data concerning pharmacogenetics of ivermectin and the potential antioxidants in patients with COVID-19 are available. We have performed a computational analysis to establish the pharmacogenetic profile of the 12 common genes/proteins from ivermectin and the 6 investigated antioxidants by using the pharmacogenomic approach. This study elucidates molecular mechanisms and potential modes of action of the co-responses of the 12 common genes/proteins from ivermectin and the 6 investigated antioxidants to COVID-19. Diseases most associated with COVID-19 were found to be diabetes mellitus, followed by ischemia, and reperfusion injury. Furthermore, the information provided in this study could facilitate personalized medications through thw understanding of the safety, efficacy, and modes of action of repurposing drugs against COVID-19 in individuals with different gene profiles.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms242015471/s1.

Author Contributions

Conceptualization, methodology, formal analyses, and visualization, S.S.; writing—original draft preparation, review and editing, Y.-F.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are provided in Supplementary Materials and are available on request.

Acknowledgments

This investigation was supported in part by National Taiwan Normal University, School of Science (BISBE Lab) to S. Singh.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Biswas, M.; Sawajan, N.; Rungrotmongkol, T.; Sanachai, K.; Ershadian, M.; Sukasem, C. Pharmacogenetics and Precision Medicine Approaches for the Improvement of COVID-19 Therapies. Front. Pharmacol. 2022, 13, 835136. [Google Scholar] [CrossRef] [PubMed]
  2. Heidary, F.; Gharebaghi, R. Ivermectin: A systematic review from antiviral effects to COVID-19 complementary regimen. J. Antibiot. 2020, 73, 593–602. [Google Scholar] [CrossRef] [PubMed]
  3. Hariyanto, T.I.; Halim, D.A.; Rosalind, J.; Gunawan, C.; Kurniawan, A. Ivermectin and outcomes from COVID-19 pneumonia: A systematic review and meta-analysis of randomized clinical trial studies. Rev. Med. Virol. 2022, 32, e2265. [Google Scholar] [CrossRef]
  4. López-Medina, E.; López, P.; Hurtado, I.C.; Dávalos, D.M.; Ramirez, O.; Martínez, E.; Díazgranados, J.A.; Oñate, J.M.; Chavarriaga, H.; Herrera, S.; et al. Effect of Ivermectin on Time to Resolution of Symptoms among Adults with Mild COVID-19: A Randomized Clinical Trial. JAMA 2021, 325, 1426–1435. [Google Scholar] [CrossRef] [PubMed]
  5. La Maestra, S.; De Flora, S.; Balansky, R. Antioxidants and COVID-19. J. Prev. Med. Hyg. 2021, 62 (Suppl. S3), E34–E45. [Google Scholar] [CrossRef]
  6. Mrityunjaya, M.; Pavithra, V.; Neelam, R.; Janhavi, P.; Halami, P.M.; Ravindra, P.V. Immune-Boosting, Antioxidant and Anti-inflammatory Food Supplements Targeting Pathogenesis of COVID-19. Front. Immunol. 2020, 11, 570122. [Google Scholar] [CrossRef]
  7. Liu, J.; Bodnar, B.H.; Meng, F.; Khan, A.I.; Wang, X.; Saribas, S.; Wang, T.; Lohani, S.C.; Wang, P.; Wei, Z.; et al. Epigallocatechin gallate from green tea effectively blocks infection of SARS-CoV-2 and new variants by inhibiting spike binding to ACE2 receptor. Cell Biosci. 2021, 11, 168. [Google Scholar] [CrossRef] [PubMed]
  8. Vahedian-Azimi, A.; Abbasifard, M.; Rahimi-Bashar, F.; Guest, P.C.; Majeed, M.; Mohammadi, A.; Banach, M.; Jamialahmadi, T.; Sahebkar, A. Effectiveness of Curcumin on Outcomes of Hospitalized COVID-19 Patients: A Systematic Review of Clinical Trials. Nutrients 2022, 14, 256. [Google Scholar] [CrossRef]
  9. Kumar, A.; Mishra, D.C.; Angadi, U.B.; Yadav, R.; Rai, A.; Kumar, D. Inhibition Potencies of Phytochemicals Derived from Sesame against SARS-CoV-2 Main Protease: A Molecular Docking and Simulation Study. Front. Chem. 2021, 9, 744376. [Google Scholar] [CrossRef] [PubMed]
  10. Messaoudi, O.; Gouzi, H.; El-Hoshoudy, A.N.; Benaceur, F.; Patel, C.; Goswami, D.; Boukerouis, D.; Bendahou, M. Berries anthocyanins as potential SARS-CoV–2 inhibitors targeting the viral attachment and replication; molecular docking simulation. Egypt. J. Pet. 2021, 30, 33–43. [Google Scholar] [CrossRef]
  11. Manjunath, S.H.; Thimmulappa, R.K. Antiviral, immunomodulatory, and anticoagulant effects of quercetin and its derivatives: Potential role in prevention and management of COVID-19. J. Pharm. Anal. 2022, 12, 29–34. [Google Scholar] [CrossRef] [PubMed]
  12. Faverio, P.; Rebora, P.; Rossi, E.; Del Giudice, S.; Montanelli, F.; Garzillo, L.; Busnelli, S.; Luppi, F.; Valsecchi, M.G.; Pesci, A. Impact of N-acetyl-l-cysteine on SARS-CoV-2 pneumonia and its sequelae: Results from a large cohort study. ERJ Open Res. 2022, 8. [Google Scholar] [CrossRef]
  13. Cuozzo, A.; Daina, A.; Perez, M.A.S.; Michielin, O.; Zoete, V. SwissBioisostere 2021: Updated structural, bioactivity and physicochemical data delivered by a reshaped web interface. Nucleic Acids Res. 2021, 50, D1382–D1390. [Google Scholar] [CrossRef]
  14. Heberle, H.; Meirelles, G.V.; da Silva, F.R.; Telles, G.P.; Minghim, R. InteractiVenn: A web-based tool for the analysis of sets through Venn diagrams. BMC Bioinform. 2015, 16, 169. [Google Scholar] [CrossRef]
  15. Perez-Garcia, L.A.; Mejias-Carpio, I.E.; Delgado-Noguera, L.A.; Manzanarez-Motezuma, J.P.; Escalona-Rodriguez, M.A.; Sordillo, E.M.; Mogollon-Rodriguez, E.A.; Hernandez-Pereira, C.E.; Marquez-Colmenarez, M.C.; Paniz-Mondolfi, A.E. Ivermectin: Repurposing a multipurpose drug for Venezuela’s humanitarian crisis. Int. J. Antimicrob. Agents 2020, 56, 106037. [Google Scholar] [CrossRef]
  16. González-Paz, L.; Hurtado-León, M.L.; Lossada, C.; Fernández-Materán, F.V.; Vera-Villalobos, J.; Loroño, M.; Paz, J.L.; Jeffreys, L.; Alvarado, Y.J. Structural deformability induced in proteins of potential interest associated with COVID-19 by binding of homologues present in ivermectin: Comparative study based in elastic networks models. J. Mol. Liq. 2021, 340, 117284. [Google Scholar] [CrossRef]
  17. Caly, L.; Druce, J.D.; Catton, M.G.; Jans, D.A.; Wagstaff, K.M. The FDA-approved drug ivermectin inhibits the replication of SARS-CoV-2 in vitro. Antivir. Res. 2020, 178, 104787. [Google Scholar] [CrossRef]
  18. Ahmed, F.F.; Reza, M.S.; Sarker, M.S.; Islam, M.S.; Mosharaf, M.P.; Hasan, S.; Mollah, M.N.H. Identification of host transcriptome-guided repurposable drugs for SARS-CoV-1 infections and their validation with SARS-CoV-2 infections by using the integrated bioinformatics approaches. PLoS ONE 2022, 17, e0266124. [Google Scholar] [CrossRef]
  19. Akinbolade, S.; Coughlan, D.; Fairbairn, R.; McConkey, G.; Powell, H.; Ogunbayo, D.; Craig, D. Combination therapies for COVID-19: An overview of the clinical trials landscape. Br. J. Clin. Pharmacol. 2022, 88, 1590–1597. [Google Scholar] [CrossRef] [PubMed]
  20. Henss, L.; Auste, A.; Schürmann, C.; Schmidt, C.; von Rhein, C.; Mühlebach, M.D.; Schnierle, B.S. The green tea catechin epigallocatechin gallate inhibits SARS-CoV-2 infection. J. Gen. Virol. 2021, 102. [Google Scholar] [CrossRef] [PubMed]
  21. Jackson, C.B.; Farzan, M.; Chen, B.; Choe, H. Mechanisms of SARS-CoV-2 entry into cells. Nat. Rev. Mol. Cell Biol. 2022, 23, 3–20. [Google Scholar] [CrossRef]
  22. Wang, Y.-Q.; Li, Q.-S.; Zheng, X.-Q.; Lu, J.-L.; Liang, Y.-R. Antiviral Effects of Green Tea EGCG and Its Potential Application against COVID-19. Molecules 2021, 26, 3962. [Google Scholar] [CrossRef] [PubMed]
  23. Pawar, K.S.; Mastud, R.N.; Pawar, S.K.; Pawar, S.S.; Bhoite, R.R.; Bhoite, R.R.; Kulkarni, M.V.; Deshpande, A.R. Oral Curcumin with Piperine as Adjuvant Therapy for the Treatment of COVID-19: A Randomized Clinical Trial. Front. Pharmacol. 2021, 12, 1056. [Google Scholar] [CrossRef] [PubMed]
  24. Thimmulappa, R.K.; Mudnakudu-Nagaraju, K.K.; Shivamallu, C.; Subramaniam, K.J.T.; Radhakrishnan, A.; Bhojraj, S.; Kuppusamy, G. Antiviral and immunomodulatory activity of curcumin: A case for prophylactic therapy for COVID-19. Heliyon 2021, 7, e06350. [Google Scholar] [CrossRef]
  25. Zupin, L.; Fontana, F.; Clemente, L.; Borelli, V.; Ricci, G.; Ruscio, M.; Crovella, S. Optimization of Anti-SARS-CoV-2 Treatments Based on Curcumin, Used Alone or Employed as a Photosensitizer. Viruses 2022, 14, 2132. [Google Scholar] [CrossRef] [PubMed]
  26. Askari, G.; Sahebkar, A.; Soleimani, D.; Mahdavi, A.; Rafiee, S.; Majeed, M.; Khorvash, F.; Iraj, B.; Elyasi, M.; Rouhani, M.H.; et al. The efficacy of curcumin-piperine co-supplementation on clinical symptoms, duration, severity, and inflammatory factors in COVID-19 outpatients: A randomized double-blind, placebo-controlled trial. Trials 2022, 23, 472. [Google Scholar] [CrossRef] [PubMed]
  27. Majdalawieh, A.F.; Yousef, S.M.; Abu-Yousef, I.A.; Nasrallah, G.K. Immunomodulatory and anti-inflammatory effects of sesamin: Mechanisms of action and future directions. Crit. Rev. Food Sci. Nutr. 2022, 62, 5081–5112. [Google Scholar] [CrossRef] [PubMed]
  28. Magurano, F.; Micucci, M.; Nuzzo, D.; Baggieri, M.; Picone, P.; Gioacchini, S.; Fioravanti, R.; Bucci, P.; Kojouri, M.; Mari, M.; et al. A potential host and virus targeting tool against COVID-19: Chemical characterization, antiviral, cytoprotective, antioxidant, respiratory smooth muscle relaxant effects of Paulownia tomentosa Steud. Biomed. Pharmacother. 2023, 158, 114083. [Google Scholar] [CrossRef] [PubMed]
  29. Akinnusi, P.A.; Olubode, S.O.; Salaudeen, W.A. Molecular binding studies of anthocyanins with multiple antiviral activities against SARS-CoV-2. Bull. Natl. Res. Cent. 2022, 46, 102. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, Y.; Zhang, M.; Zhang, H.; Qian, X.; Luo, L.; He, Z. Anthocyanins Inhibit Airway Inflammation by Downregulating the NF-κB Pathway via the miR-138-5p/SIRT1 Axis in Asthmatic Mice. Int. Arch. Allergy Immunol. 2022, 183, 539–551. [Google Scholar] [CrossRef] [PubMed]
  31. Saeedi-Boroujeni, A.; Mahmoudian-Sani, M.-R. Anti-inflammatory potential of Quercetin in COVID-19 treatment. J. Inflamm. 2021, 18, 3. [Google Scholar] [CrossRef] [PubMed]
  32. Di Pierro, F.; Iqtadar, S.; Khan, A.; Ullah Mumtaz, S.; Masud Chaudhry, M.; Bertuccioli, A.; Derosa, G.; Maffioli, P.; Togni, S.; Riva, A.; et al. Potential Clinical Benefits of Quercetin in the Early Stage of COVID-19: Results of a Second, Pilot, Randomized, Controlled and Open-Label Clinical Trial. Int. J. Gen. Med. 2021, 14, 2807–2816. [Google Scholar] [CrossRef] [PubMed]
  33. Shi, Z.; Puyo, C.A. N-Acetylcysteine to Combat COVID-19: An Evidence Review. Ther. Clin. Risk Manag. 2020, 16, 1047–1055. [Google Scholar] [CrossRef] [PubMed]
  34. Poe, F.L.; Corn, J. N-Acetylcysteine: A potential therapeutic agent for SARS-CoV-2. Med. Hypotheses 2020, 143, 109862. [Google Scholar] [CrossRef] [PubMed]
  35. Wong, K.K.; Lee, S.W.H.; Kua, K.P. N-Acetylcysteine as Adjuvant Therapy for COVID-19—A Perspective on the Current State of the Evidence. J. Inflamm. Res. 2021, 14, 2993–3013. [Google Scholar] [CrossRef] [PubMed]
  36. Atefi, N.; Behrangi, E.; Mozafarpoor, S.; Seirafianpour, F.; Peighambari, S.; Goodarzi, A. N-acetylcysteine and coronavirus disease 2019: May it work as a beneficial preventive and adjuvant therapy? A comprehensive review study. J. Res. Med. Sci. 2020, 25, 109. [Google Scholar] [CrossRef] [PubMed]
  37. Walayat, S.; Shoaib, H.; Asghar, M.; Kim, M.; Dhillon, S. Role of N-acetylcysteine in non-acetaminophen-related acute liver failure: An updated meta-analysis and systematic review. Ann. Gastroenterol. 2021, 34, 235–240. [Google Scholar] [CrossRef] [PubMed]
  38. Hosseinpour, A.; Daneshzad, E.; Dezfouli, R.A.; Zamani, S.; Qorbani, M. The Association Between Antioxidants and COVID-19 Outcomes: A Systematic Review on Observational Studies. Biol. Trace Elem. Res. 2023, 201, 5098–5114. [Google Scholar] [CrossRef]
  39. Fricke-Galindo, I.; Falfán-Valencia, R. Pharmacogenetics Approach for the Improvement of COVID-19 Treatment. Viruses 2021, 13, 413. [Google Scholar] [CrossRef] [PubMed]
  40. Takahashi, T.; Luzum, J.A.; Nicol, M.R.; Jacobson, P.A. Pharmacogenomics of COVID-19 therapies. NPJ Genom. Med. 2020, 5, 35. [Google Scholar] [CrossRef]
  41. Chowdhury, M.A.; Hossain, N.; Kashem, M.A.; Shahid, M.A.; Alam, A. Immune response in COVID-19: A review. J. Infect. Public Health 2020, 13, 1619–1629. [Google Scholar] [CrossRef] [PubMed]
  42. Li, X.; Zhang, Z.; Wang, Z.; Gutiérrez-Castrellón, P.; Shi, H. Cell deaths: Involvement in the pathogenesis and intervention therapy of COVID-19. Signal Transduct. Target. Ther. 2022, 7, 186. [Google Scholar] [CrossRef] [PubMed]
  43. De Francesco, E.M.; Vella, V.; Belfiore, A. COVID-19 and Diabetes: The Importance of Controlling RAGE. Front. Endocrinol. 2020, 11, 526. [Google Scholar] [CrossRef] [PubMed]
  44. Matczak, S.; Levy, C.; Fortas, C.; Cohen, J.F.; Béchet, S.; Aït El Belghiti, F.; Guillot, S.; Trombert-Paolantoni, S.; Jacomo, V.; Savitch, Y.; et al. Association between the COVID-19 pandemic and pertussis derived from multiple nationwide data sources, France, 2013 to 2020. Eurosurveillance 2022, 27, 2100933. [Google Scholar] [CrossRef] [PubMed]
  45. Rottoli, M.; Gori, A.; Pellino, G.; Flacco, M.E.; Martellucci, C.; Spinelli, A.; Poggioli, G.; COVID–Colorectal Cancer (CRC) Study Group. Colorectal Cancer Stage at Diagnosis before vs during the COVID-19 Pandemic in Italy. JAMA Netw. Open 2022, 5, e2243119. [Google Scholar] [CrossRef]
  46. Attique, Z.; Ali, A.; Hamza, M.; al-Ghanim, K.A.; Mehmood, A.; Khan, S.; Ahmed, Z.; Al-Mulhm, N.; Rizwan, M.; Munir, A.; et al. In-silico network-based analysis of drugs used against COVID-19: Human well-being study. Saudi J. Biol. Sci. 2021, 28, 2029–2039. [Google Scholar] [CrossRef] [PubMed]
  47. Lim, S.; Bae, J.H.; Kwon, H.-S.; Nauck, M.A. COVID-19 and diabetes mellitus: From pathophysiology to clinical management. Nat. Rev. Endocrinol. 2021, 17, 11–30. [Google Scholar] [CrossRef] [PubMed]
  48. Galyfos, G.; Sianou, A.; Frountzas, M.; Vasilios, K.; Vouros, D.; Theodoropoulos, C.; Michalopoulou, V.; Sigala, F.; Filis, K. Acute limb ischemia among patients with COVID-19 infection. J. Vasc. Surg. 2022, 75, 326–342. [Google Scholar] [CrossRef] [PubMed]
  49. Ashraf, A.; Liaquat, A.; Shabbir, S.; Bokhari, S.A.; Tariq, Z.; Furrukh, Z.; Raja, A.A.; Khan, M.J. High level of lactate dehydrogenase and ischaemia–reperfusion injury regulate the multiple organ dysfunction in patients with COVID-19. Postgrad. Med. J. 2022, 99, 576–581. [Google Scholar] [CrossRef] [PubMed]
  50. Farr, R.J.; Rootes, C.L.; Rowntree, L.C.; Nguyen, T.H.O.; Hensen, L.; Kedzierski, L.; Cheng, A.C.; Kedzierska, K.; Au, G.G.; Marsh, G.A.; et al. Altered microRNA expression in COVID-19 patients enables identification of SARS-CoV-2 infection. PLoS Pathog. 2021, 17, e1009759. [Google Scholar] [CrossRef] [PubMed]
  51. Li, C.; Hu, X.; Li, L.; Li, J.-H. Differential microRNA expression in the peripheral blood from human patients with COVID-19. J. Clin. Lab. Anal. 2020, 34, e23590. [Google Scholar] [CrossRef]
  52. Lou, L.; Tian, M.; Chang, J.; Li, F.; Zhang, G. MiRNA-192-5p attenuates airway remodeling and autophagy in asthma by targeting MMP-16 and ATG7. Biomed. Pharmacother. 2020, 122, 109692. [Google Scholar] [CrossRef]
  53. Bartel, S.; La Grutta, S.; Cilluffo, G.; Perconti, G.; Bongiovanni, A.; Giallongo, A.; Behrends, J.; Kruppa, J.; Hermann, S.; Chiang, D.; et al. Human airway epithelial extracellular vesicle miRNA signature is altered upon asthma development. Allergy 2020, 75, 346–356. [Google Scholar] [CrossRef] [PubMed]
  54. Houshmandfar, S.; Saeedi-Boroujeni, A.; Rashno, M.; Khodadadi, A.; Mahmoudian-Sani, M.-R. miRNA-223 as a regulator of inflammation and NLRP3 inflammasome, the main fragments in the puzzle of immunopathogenesis of different inflammatory diseases and COVID-19. Naunyn-Schmiedeberg’s Arch. Pharmacol. 2021, 394, 2187–2195. [Google Scholar] [CrossRef] [PubMed]
  55. Badary, O.A. Pharmacogenomics and COVID-19: Clinical implications of human genome interactions with repurposed drugs. Pharmacogenom. J. 2021, 21, 275–284. [Google Scholar] [CrossRef]
  56. Surendiran, A.; Pradhan, S.C.; Adithan, C. Role of pharmacogenomics in drug discovery and development. Indian J. Pharmacol. 2008, 40, 137–143. [Google Scholar] [CrossRef] [PubMed]
  57. Aneesh, T.P.; Sekhar, S.; Jose, A.; Chandran, L.; Zachariah, S.M. Pharmacogenomics: The right drug to the right person. J. Clin. Med. Res. 2009, 1, 191–194. [Google Scholar] [CrossRef]
  58. Abdullah-Koolmees, H.; van Keulen, A.M.; Nijenhuis, M.; Deneer, V.H.M. Pharmacogenetics Guidelines: Overview and Comparison of the DPWG, CPIC, CPNDS, and RNPGx Guidelines. Front. Pharmacol. 2021, 11, 595219. [Google Scholar] [CrossRef]
  59. Davis, A.P.; Wiegers, T.C.; Johnson, R.J.; Sciaky, D.; Wiegers, J.; Mattingly, C.J. Comparative Toxicogenomics Database (CTD): Update 2023. Nucleic Acids Res. 2022, 51, D1257–D1262. [Google Scholar] [CrossRef]
  60. Supek, F.; Bošnjak, M.; Škunca, N.; Šmuc, T. REVIGO Summarizes and Visualizes Long Lists of Gene Ontology Terms. PLoS ONE 2011, 6, e21800. [Google Scholar] [CrossRef]
  61. Kanehisa, M.; Furumichi, M.; Tanabe, M.; Sato, Y.; Morishima, K. KEGG: New perspectives on genomes, pathways, diseases and drugs. Nucleic Acids Res. 2016, 45, D353–D361. [Google Scholar] [CrossRef] [PubMed]
  62. Ge, S.X.; Jung, D.; Yao, R. ShinyGO: A graphical gene-set enrichment tool for animals and plants. Bioinformatics 2020, 36, 2628–2629. [Google Scholar] [CrossRef]
  63. Zhou, Y.; Zhou, B.; Pache, L.; Chang, M.; Khodabakhshi, A.H.; Tanaseichuk, O.; Benner, C.; Chanda, S.K. Metascape provides a biologist-oriented resource for the analysis of systems-level datasets. Nat. Commun. 2019, 10, 1523. [Google Scholar] [CrossRef] [PubMed]
  64. Shannon, P.; Markiel, A.; Ozier, O.; Baliga, N.S.; Wang, J.T.; Ramage, D.; Amin, N.; Schwikowski, B.; Ideker, T. Cytoscape: A software environment for integrated models of biomolecular interaction networks. Genome Res. 2003, 13, 2498–2504. [Google Scholar] [CrossRef] [PubMed]
  65. Bastian, M.; Heymann, S.; Jacomy, M. Gephi: An Open Source Software for Exploring and Manipulating Networks. In Proceedings of the International AAAI Conference on Web and Social Media, San Jose, CA, USA, 17–20 May 2009. [Google Scholar]
  66. Fani, M.; Zandi, M.; Ebrahimi, S.; Soltani, S.; Abbasi, S. The role of miRNAs in COVID-19 disease. Future Virol. 2021, 16, 301–306. [Google Scholar] [CrossRef]
  67. Zhang, S.; Amahong, K.; Sun, X.; Lian, X.; Liu, J.; Sun, H.; Lou, Y.; Zhu, F.; Qiu, Y. The miRNA: A small but powerful RNA for COVID-19. Brief. Bioinform. 2021, 22, 1137–1149. [Google Scholar] [CrossRef]
  68. Quillet, A.; Saad, C.; Ferry, G.; Anouar, Y.; Vergne, N.; Lecroq, T.; Dubessy, C. Improving Bioinformatics Prediction of microRNA Targets by Ranks Aggregation. Front. Genet. 2020, 10, 1330. [Google Scholar] [CrossRef]
Ijms 24 15471 g001

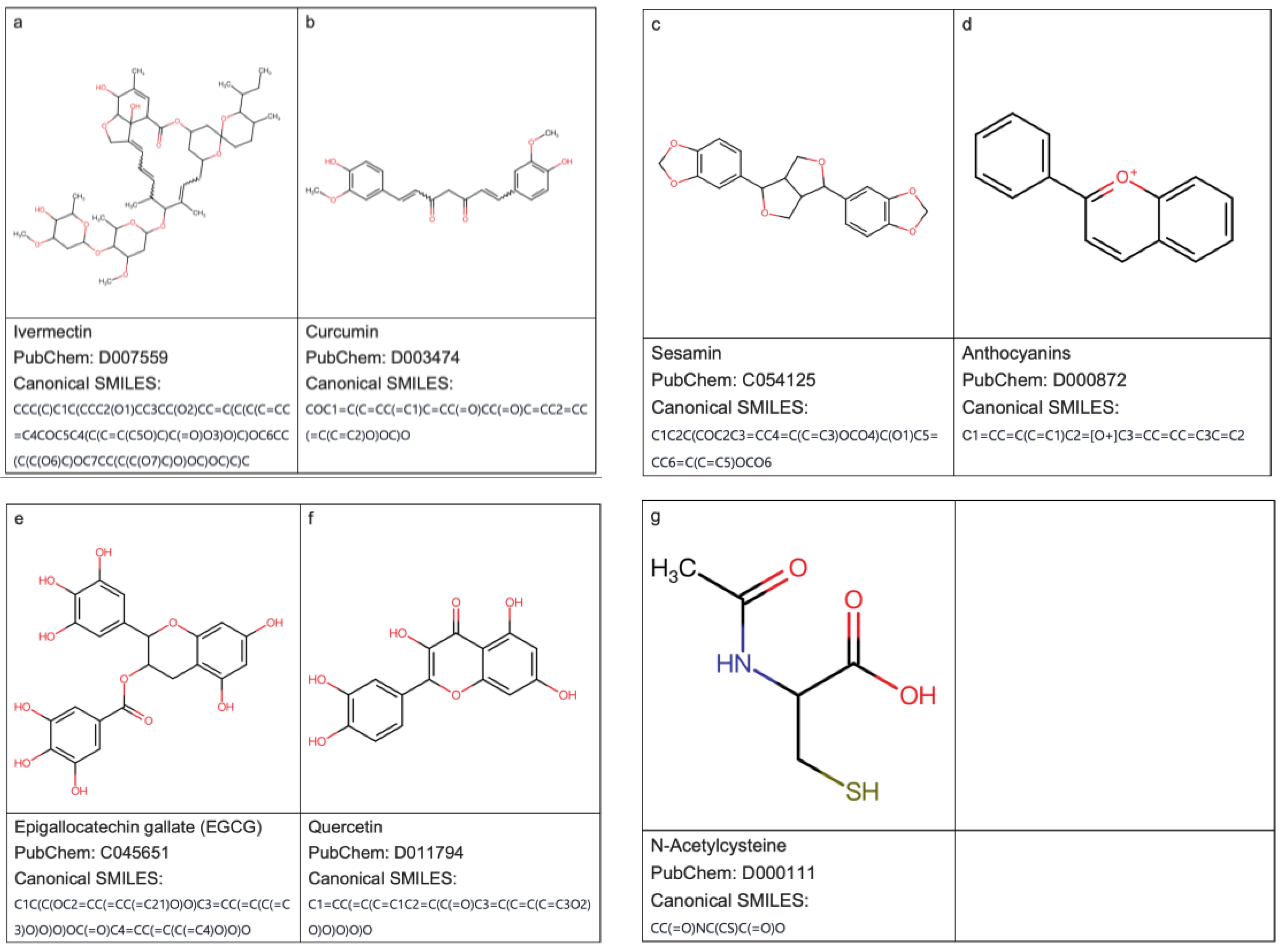

Figure 1. The chemical structures of (a) ivermectin and the six investigated antioxidants including (b) curcumin, (c) sesamin, (d) anthocyanins, (e) epigallocatechin gallate (EGCG), (f) quercetin, and (g) N-acetylcysteine (NAC). Chemical structures were visualized using SwissBioisostere (http://www.swissbioisostere.ch/ (accessed on 27 August 2023)) [13] from Canonical SMILES.
Figure 1. The chemical structures of (a) ivermectin and the six investigated antioxidants including (b) curcumin, (c) sesamin, (d) anthocyanins, (e) epigallocatechin gallate (EGCG), (f) quercetin, and (g) N-acetylcysteine (NAC). Chemical structures were visualized using SwissBioisostere (http://www.swissbioisostere.ch/ (accessed on 27 August 2023)) [13] from Canonical SMILES.
Ijms 24 15471 g001
Ijms 24 15471 g002
Figure 2. Venn diagram of the interacting genes between (A) ivermectin and COVID-19, or (B) the six investigated antioxidants and COVID-19.
Figure 2. Venn diagram of the interacting genes between (A) ivermectin and COVID-19, or (B) the six investigated antioxidants and COVID-19.
Ijms 24 15471 g002
Ijms 24 15471 g003aIjms 24 15471 g003b

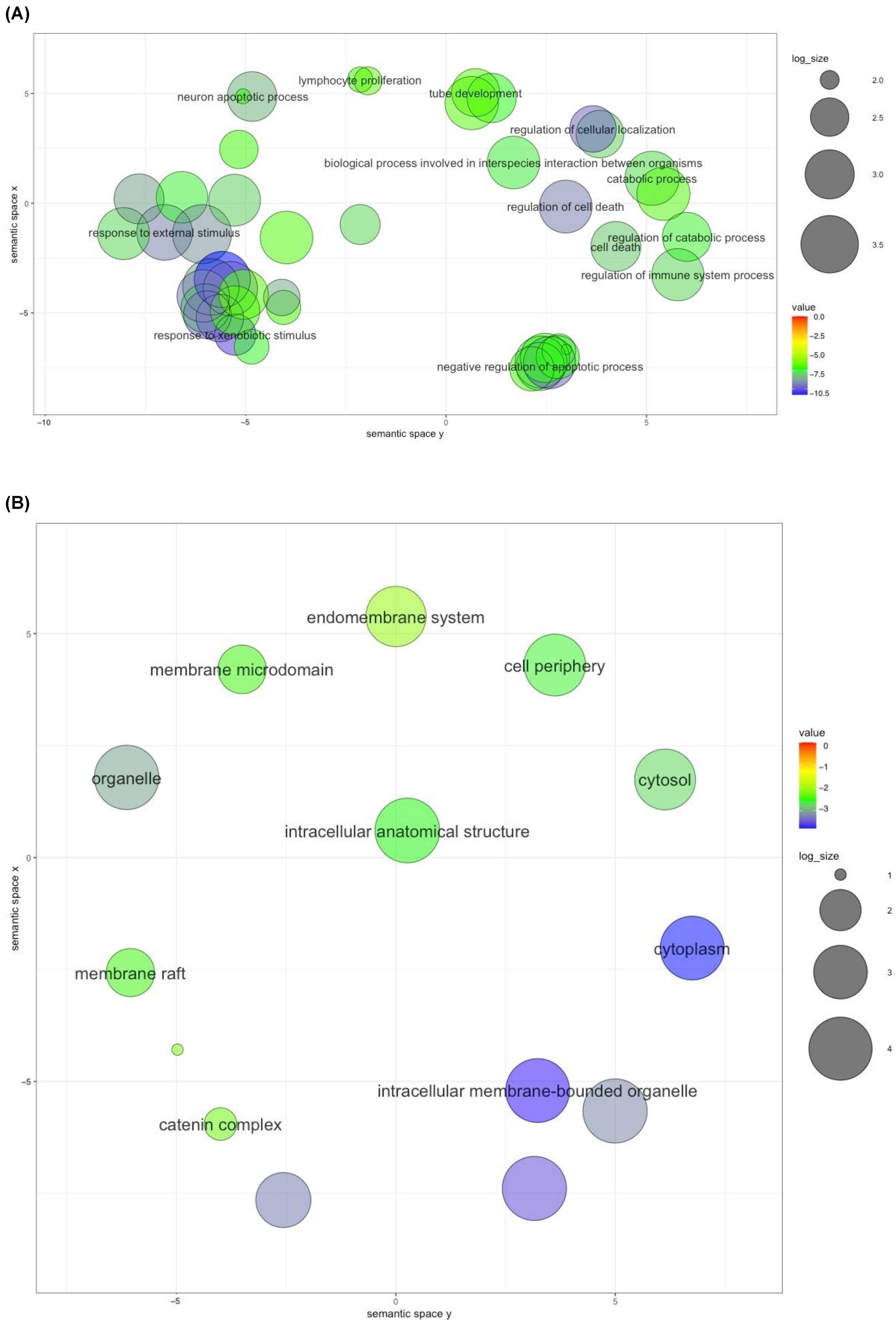

Figure 3. Gene ontology analyses of (A) biological process (BP), where circle size and color indicate the number of occurrences of GO terms in the secreted gene set annotation list, (B) cellular component (CC), and (C) molecular function (MF) scatterplot. (D) Ontology enrichment clustering network. Cluster annotations are shown in color code.
Figure 3. Gene ontology analyses of (A) biological process (BP), where circle size and color indicate the number of occurrences of GO terms in the secreted gene set annotation list, (B) cellular component (CC), and (C) molecular function (MF) scatterplot. (D) Ontology enrichment clustering network. Cluster annotations are shown in color code.
Ijms 24 15471 g003aIjms 24 15471 g003b
Ijms 24 15471 g004aIjms 24 15471 g004bIjms 24 15471 g004c
Figure 4. (A) KEGG pathway enrichment analysis for the target 12 genes. The gene ratios refer to the ratio of enriched genes to all target genes, and counts refer to the number of enriched genes. KEGG pathway analyses for the (B) Pertussis pathway (hsa05133) and (C) AGE-RAGE signaling pathway in diabetic complications (hsa04933).
Figure 4. (A) KEGG pathway enrichment analysis for the target 12 genes. The gene ratios refer to the ratio of enriched genes to all target genes, and counts refer to the number of enriched genes. KEGG pathway analyses for the (B) Pertussis pathway (hsa05133) and (C) AGE-RAGE signaling pathway in diabetic complications (hsa04933).
Ijms 24 15471 g004aIjms 24 15471 g004bIjms 24 15471 g004c
Ijms 24 15471 g005
Figure 5. The PPI networks of the 12 common curated genes/proteins generated from the databases of (A) STRING and (B) GeneMANIA.
Figure 5. The PPI networks of the 12 common curated genes/proteins generated from the databases of (A) STRING and (B) GeneMANIA.
Ijms 24 15471 g005
Ijms 24 15471 g006aIjms 24 15471 g006b
Figure 6. (A) Disease analysis and (B) the gene–disease network of ivermectin and the 6 investigated antioxidants and COVID-19.
Figure 6. (A) Disease analysis and (B) the gene–disease network of ivermectin and the 6 investigated antioxidants and COVID-19.
Ijms 24 15471 g006aIjms 24 15471 g006b
Ijms 24 15471 g007
Figure 7. Potential targets of miRNAs to the 12 common curated genes.
Figure 7. Potential targets of miRNAs to the 12 common curated genes.
Ijms 24 15471 g007
Table 1. The 12 common curated genes.
Table 1. The 12 common curated genes.
Gene SymbolsEnsembl IDGene NamesLocation
BAXENSG00000087088BCL2 Associated X, Apoptosis Regulator19q13.33
BCL2ENSG00000171791BCL2 Apoptosis Regulator18q21.33
CASP3ENSG00000164305Caspase 34q35.1
CATENSG00000121691Catalase11p13
CDH1ENSG00000039068Cadherin 116q22.1
CTNNB1ENSG00000168036Catenin Beta 13p22.1
GSRENSG00000104687Glutathione-Disulfide Reductase8p12
IL1BENSG00000125538Interleukin 1 Beta2q14.1
IL6ENSG00000136244Interleukin 67p15.3
NOS2ENSG00000007171Nitric Oxide Synthase 217q11.2
PARP1ENSG00000143799Poly(ADP-Ribose) Polymerase 11q42.12
TNFENSG00000232810Tumor Necrosis Factor6p21.33
Table 2. The potential target miRNAs of the 12 commonly curated genes were predicted using the miRabel database.
Table 2. The potential target miRNAs of the 12 commonly curated genes were predicted using the miRabel database.
hsa-miR-16-2-3p
GenemiRabel ScorePITAmiRandaSVMicrOTargetScanExpVal5′UTRCDS
TNF0.988286972-266815378-NONONO
CASP30.100207001-1271966105NONOYES
IL1B0.996285021-474315,246-NONOYES
BCL20.824105024-326310,9011647NONONO
IL60.752004027-16391959-NONONO
GSR0.962409019-513688723521NONONO
CTNNB10.994284987-41794578-NONONO
hsa-miR-183-5p
GenemiRabel ScorePITAmiRandaSVMicrOTargetScanExpVal5′UTRCDS
CASP30.9839159852398-8157-NONONO
NOS20.9940189724567---NONONO
BCL20.8943420052504510016,998-NONONO
IL60.994167984-490613,116-NONONO
GSR0.8793960214974-11,3441877YESNOYES
CTNNB10.984951973-25738458-NONONO
hsa-miR-6501-5p
GenemiRabel ScorePITAmiRandaSVMicrOTargetScanExpVal5′UTRCDS
TNF0.989279985---1104NONOYES
CASP30.968086004---235NONOYES
BCL20.988623023---1060NONOYES
GSR0.999303997---2847YESNOYES
hsa-miR-627-5p
GenemiRabel ScorePITAmiRandaSVMicrOTargetScanExpVal5′UTRCDS
CASP30.961603999399746064334-NONONO
IL1B0.01088831981449550509NONOYES
BCL20.526557028200046302157-NONONO
IL60.970826983-85314,610-NONONO
CTNNB10.016702199117925321986697NONONO
hsa-miR-31-5p
GenemiRabel ScorePITAmiRandaSVMicrOTargetScanExpVal5′UTRCDS
BCL20.992295983762---NONONO
PARP10.2118140013328424-1367YESNOYES
CTNNB10.729439022940432--NONONO
hsa-miR-1275
GenemiRabel ScorePITAmiRandaSVMicrOTargetScanExpVal5′UTRCDS
CASP30.9905059933998-5005-NOYESNO
NOS20.968831003858---NONONO
BCL20.2336180064952601447092540NONOYES
PARP10.9968289736499-10,247-NONOYES
CTNNB10.996882021-680814,157-NOYESNO
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, Y.-F.; Singh, S. Pharmacogenomic Landscape of Ivermectin and Selective Antioxidants: Exploring Gene Interplay in the Context of Long COVID. Int. J. Mol. Sci. 2023, 24, 15471. https://doi.org/10.3390/ijms242015471

AMA Style

Yang Y-F, Singh S. Pharmacogenomic Landscape of Ivermectin and Selective Antioxidants: Exploring Gene Interplay in the Context of Long COVID. International Journal of Molecular Sciences. 2023; 24(20):15471. https://doi.org/10.3390/ijms242015471

Chicago/Turabian Style

Yang, Ying-Fei, and Sher Singh. 2023. "Pharmacogenomic Landscape of Ivermectin and Selective Antioxidants: Exploring Gene Interplay in the Context of Long COVID" International Journal of Molecular Sciences 24, no. 20: 15471. https://doi.org/10.3390/ijms242015471

APA Style

Yang, Y. -F., & Singh, S. (2023). Pharmacogenomic Landscape of Ivermectin and Selective Antioxidants: Exploring Gene Interplay in the Context of Long COVID. International Journal of Molecular Sciences, 24(20), 15471. https://doi.org/10.3390/ijms242015471

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
