First Report of aac(6′)-Ib and aac(6′)-Ib-cr Variant Genes Associated with Mutations in gyrA Encoded Fluoroquinolone Resistance in Avian Campylobacter coli Strains Collected in Tunisia

by
Manel Gharbi
1,*,
Mohammed Abdo Saghir Abbas
2,3,
Safa Hamrouni
1 and
Abderrazak Maaroufi
1
1
Group of Bacteriology and Biotechnology Development, Laboratory of Epidemiology and Veterinary Microbiology, Institut Pasteur de Tunis, University of Tunis El Manar (UTM), Tunis 1002, Tunisia
2
Unit of Vector Ecology, Pasteur Institute of Tunis, Tunis 1002, Tunisia
3
University of Tunis El Manar (UTM), Tunis 1002, Tunisia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(22), 16116; https://doi.org/10.3390/ijms242216116
Submission received: 27 September 2023 / Revised: 21 October 2023 / Accepted: 27 October 2023 / Published: 9 November 2023
(This article belongs to the Special Issue Antimicrobial Resistance, Molecular Mechanisms and Fight Strategies 3.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
The aac(6′)-Ib gene is the most widespread gene encoding aminoglycoside-modifying enzyme and conferring resistance to tobramycin, streptomycin and kanamycin. The variant aac(6′)-Ib-cr gene confers resistance to both aminoglycosides and fluoroquinolones (FQ). A total of 132 Campylobacter isolates, including 91 C. jejuni and 41 C. coli, were selected from broiler hens isolates. The aac(6′)-Ib gene was amplified using PCR and was subsequently digested with the BtsCI restriction enzyme to identify aac(6′)-Ib-cr. Among these isolates, 31 out of 41 C. coli (75.6%) and 1 (0.98%) C. jejuni were positive for the aac(6′)-Ib gene, which was identified as the aac(6′)-Ib-cr variant in 10 (32.25%) C. coli isolates. This variant was correlated with mutations in gyrA (Thr-86-Ile), as well as resistance to FQs. This study is the first report in Tunisia on Campylobacter coli strains harboring both the aac(6′)-Ib and aac(6′)-Ib-cr variants. These genes were present in Campylobacter isolates exhibiting resistance to multiple antibiotics, which restricts the range of available treatments.

1. Introduction

Campylobacter is an important zoonotic pathogen, and campylobacteriosis constitutes a public health problem worldwide. Fluoroquinolones are one of the alternative treatments for invasive infections caused by Campylobacter in adult patients. The emergence of antimicrobial resistance involves some therapeutic failures or restrictions in the use of antimicrobial agents. However, high-level fluoroquinolone resistance is relatively uncommon in Campylobacter, probably due to the prohibitive fitness cost of the bacteria [1,2]. Quinolone/fluoroquinolone resistance is mainly caused by chromosomal mutations in the genes that control the production of efflux pumps or bacterial topoisomerases (DNA gyrase and topoisomerase IV), or both [3]. However, transferable mechanisms known as plasmid-mediated quinolone resistance (PMQR) have emerged during recent decades especially in Gram-negative bacteria [4]. PMQR determinants are commonly reported in fluoroquinolone-resistant Enterobacteriaceae and include qnr (qnrA, qnrB, qnrC, qnrD, qnrS and qnrVC), qep, oqxAB or aac(6′)-Ib-cr genes [5]. The aminoglycoside acetyltransferase AAC(6′)-Ib enzyme, which confers resistance to tobramycin, kanamycin, and amikacin, was first identified in Klebsiella pneumoniae isolates in 1986. Since then, several variants of this enzyme have been described [6,7]. The aac(6′)-Ib-cr variant of aac(6′)-Ib encodes an aminoglycoside acetyltransferase that contributes reduced susceptibility to ciprofloxacin via N-acetylation of its piperazinyl amine [8]. Thus, AAC(6′)-Ib-cr is a bifunctional acetyltransferase, capable of modifying both aminoglycosides and quinolones. The AAC(6′)-Ib-cr enzyme contains two amino acid modifications, Asp179Tyr and Trp102Arg [9]. Globally, this enzyme is widely reported, either plasmid or chromosomally encoded, from Gram-negative bacteria, especially in Enterobacteriaceae of human, farm animal and environmental origins, showing its great potential to be disseminated [10]. In general, in bacteria, the spread of genes encoding antimicrobial-resistance is mediated by mobile genetic elements such as plasmids, transposons and insertion sequences as well as integrons, and rarely by phages, which enhance their rapid and large-scale spread [11].
Fluoroquinolones are among the three most widely used antimicrobials (macrolides and tetracyclines) used to treat systemic infection caused by Campylobacter; in addition, gentamicin (an aminoglycoside) is also used in some cases [1,2]. Taken together, it is crucial to identify the strains harboring the aac(6′)-Ib-cr variant in order to employ fluoroquinolone antimicrobials appropriately in human therapy. The aim of this study is to present the characteristics of campylobacter isolates from poultry origin harboring the aac(6′)-Ib-cr variant. This study, the first of its kind in Tunisia, will be useful for the future studies of emerging genes conferring antibiotic resistance.

2. Results

2.1. Antimicrobial Susceptibility Testing

A total of 132 isolates was recovered from cloacal swabs from poultry, including 91 C. jejuni and 41 C. coli characterized as multi-drug-resistant, of which (99.2%) were resistant to ciprofloxacin and 46.2% to nalidixic acid. To a lesser extent, the resistance rates of aminoglycoside were about 12.9% to gentamicin, 49% to tobramycin, 51.4% to streptomycin, and 52% to kanamycin. The resistance rates of C. jejuni and C. coli isolates to kanamycin (n = 19.78% vs. 46, 34%), tobramycin (19.78% vs. 60, 97%), and NA (57.1% versus 22%) differ significantly (p < 0.05). For the other aminoglycosides (gentamicin and streptomycin), there were no significant differences between both species (Table 1).

2.2. Detection of Mutations in GyrA

Nearly 90% of C. jejuni and 80% of C. coli isolates that were resistant to ciprofloxacin and/or nalidixic acid had the Thr-86-Ile amino acid substitution in their GyrA, as determined using MAMA-PCR. The Thr-86-Ile alteration was not found in one C. jejuni isolate that was susceptible to both ciprofloxacin and/or nalidixic acid.

2.3. Prevalence of the aac(6′)-Ib and aac(6′)-Ib-cr Genes

PCR of the aac(6′)-Ib gene showed that 31/41 (75.60%) C. coli isolates and 1/91 (0.98%) C. jejuni isolates were positive for the aac(6′)-Ib gene. Following digestion of the amplified amplicons with BtsCI, wild-type aac(6′)-Ib revealed two DNA fragments (272 and 210 bp) on gel electrophoresis (Figure 1). Interestingly, 10 C. coli isolates showed three fragments (482 bp, 272 bp, 210 bp) of DNA on gel electrophoresis when treated with the restriction enzyme BtsCI, indicating the occurrence of both the wild-type aac(6′)-Ib gene and the aac(6′)-Ib-cr variant (Figure 1).

2.4. aac(6′)-Ib Sequencing and Phylogenetic Analysis

Among the isolates harboring the aac(6′)-Ib gene based on their antibiotic resistance profiles and BtsCI digestion results, the aac(6′)-Ib of one C. jejuni isolate and four C. coli isolates (one harboring the aac(6′)-Ib-cr) was sequenced. The sequences of the aac(6′)-Ib gene were deposited in GenBank under accession numbers OR124788, OR125068, OR125070, OR125069, and OR192836.
A phylogenetic analysis was performed to observe the phylogenetic relationships of aac(6′)-Ib gene among other bacterial species. The sequence analysis showed that Tunisian aac(6′)-Ib sequences found in this study (OR124788, OR125068, OR125070, OR125069, and OR192836) were closely related to other sequences from various species, such as Enterobacter cloacae, Citrobacter freundii, and Pseudomonadaceae, and the phylogenetic branch was supported by a high bootstrap value of 99% (Figure 2). Moreover, clustering using the maximum likelihood method defined four sequence clusters and one singleton corresponding to C. jejuni AF4339785 (aacA4) (Figure 2). Different clusters can exhibit similar properties, while others show substantial differences in their characteristics.

3. Discussion

In order to counter the selection pressure brought on by the use of antibiotics in both veterinary and human medicine, Campylobacter has developed a variety of molecular mechanisms of antibiotic resistance, such as modification or mutation of antimicrobial targets, modification or inactivation of antibiotics, and decreased drug accumulation by drug efflux pumps.
According to our findings, the rate of ciprofloxacin resistance (99.2%) in Campylobacter isolates is quite high. The fact that the same antimicrobials are frequently used as first-line treatments in broiler flocks to combat bacterial illnesses can be blamed for the high rate of resistance to ciprofloxacin, which is equivalent to that found in Italy [12,13,14]. Several studies have unequivocally demonstrated a link between the use of fuoroquinolones in chicken production and a rise in the resistance of Campylobacter isolates of avian and human origins [15]. When considered together, the excessive and unreasonable use of antimicrobial medications is clearly related to the high rates of antibiotic resistance. There are two different mechanisms that contribute to ciprofloxacin resistance. The first is the presence of the cmeABC operon, the most common Campylobacter multidrug efflux pump, which contributes to fluoroquinolone resistance by reducing the amount of drug in cells [16,17]. Amino acid substitutions in the quinolone resistance-determining region (QRDR) of the gyrA gene, particularly the Thr-86-Ile mutation, common in fluoroquinolone-resistant isolates, is the second mechanism of resistance [18,19]. This mutation was found in 90% and 80% of quinolone-resistant C. jejuni and C. coli isolates, respectively. Since the remaining resistant isolates have the cmeB gene and do not have the Thr-86-Ile substitution, as reported in our previous work on these isolates [20], the observed resistance may be due to the action of an efflux pump or to the presence of additional alterations in the ParC subunit of topoisomerase IV.
On the other hand, we showed high rates of resistance to kanamycin (28.03%), tobramycin (58.33%), and streptomycin (48.48%), which are comparable to rates reported in the USA and China [20]. In fact, high levels of aminoglycoside resistance are due to the use of these antimicrobial drugs in recent years in humans and their administration to treat occasional systemic infections caused by Campylobacter; the emergence and spread of these resistance markers represent a potential concern for public health, especially concerning gentamicin resistance, which is an antibiotic occasionally used in systemic infection caused by Campylobacter isolates [21].
Notably, new antibiotic resistance mechanisms continuously emerge in Campylobacter. Aminoglycoside phosphotransferases constitute the majority of aminoglycoside-modifying enzymes identified in Campylobacter spp. They mediate kanamycin and neomycin resistance. The AAC(6′)-Ib is a clinically significant enzyme commonly present in a number of Gram-negative bacteria. It confers resistance to tobramycin, kanamycin, and amikacin. The AAC(6′)-Ib enzyme is interesting not only because of its widespread distribution, but also because the aac(6)-Ib gene is frequently located on integrons, transposons, plasmids, genomic islands, and other genetic structures. In addition, the aac(6′)-Ib-cr mutant gene encodes resistance to both fluoroquinolones and aminoglycosides. The frequency of aac(6′)-Ib-cr found in this study exceeds those found in previous studies in Brazil (up to 4%) in clinical Pseudomonas aeruginosa and Providencia stuartii isolates [22,23] and from samples obtained in different countries, which ranged from 12% to 23.3% [24,25]. Notably, the use of broad-spectrum bactericidal aminoglycosides routinely in children, primarily for infections caused by Gram-negative fluoroquinolone-resistant pathogens, has increased worldwide [26]. Therefore, this use of aminoglycosides would have increased the likelihood occurrence of various transferable genes encoding resistance against them including wild-type aac(6′)-Ib. Consequently, the emergence of the aac(6′)-Ib-cr variant could be the result of an enormous number of silent mutations in this wild gene, of which one has acquired the advantage of being a bi-functional enzyme, the ‘cr” variant. In addition, the worry for this variant is that it substantially enhanced the frequency of selection of chromosomal mutations in DNA gyrase and topoisomerase IV upon exposure to ciprofloxacin [27,28].
In our isolates, the aac(6′)-Ib-cr variant among those harboring aac(6′)-Ib was extremely high (31.25%), and only identified among C. coli isolates. This rate was much higher than those reported E. coli and other Enterobactereaceae isolates in other countries (4–15.6%) [29,30,31]. However, among clinical E. coli isolates collected in Shanghai, China, in 2000 to 2001, 51% had the ‘cr’ variant of aac(6′)-Ib [30]. As discussed above, all studies dealing with aac(6′)-Ib-cr were performed on isolates belonging to Gram-negative bacteria; however, to the best of our knowledge, only one study has reported the occurrence of an aacA4 allele (an aminoglycoside 6′-N-acetyltransferase) from a C. jejuni strain isolated from a broiler chicken house environment, which demonstrated 100% homology to the AAC(6′)-Ib7 enzymes that confer characteristics resulting in higher kanamycin and tobramycin MICs, but only slightly increased resistance to gentamicin [32]. Therefore, we report for the first time the occurrence of aac(6′)-Ib-cr in Campylobacter isolates.
Furthermore, clustering using a maximum likelihood method based on the Kimura 2-parameter model was performed. Different clusters can exhibit similar properties, while others show substantial differences in their characteristics such as those cases in which there are significant specificity variations. The tree with the highest log likelihood (−1721.35) is shown. The percentage of trees in which the associated taxa clustered together is shown next to the branches. Initial tree(s) for the heuristic search were obtained automatically by applying Neighbor-Join and BioNJ algorithms to a matrix of pairwise distances estimated using the maximum composite likelihood (MCL) approach, and then selecting the topology with a superior log likelihood value. The analysis involved 34 nucleotide sequences. Phylogenetic analyses showed four sequence clusters and one singleton corresponding to C. jejuni AF4339785 (aacA4). The aac(6′)-Ib sequences of our five isolates (accession no: OR124788, OR125068, OR125070, OR125069, and OR192836) clustered with sequences derived from different species and countries. Using the information available, it is still not clear whether all aac(6′) enzymes evolved from a single origin, or whether the four groups are less related and the 6′acetylating activity has evolved independently at least three times [33]. According to the phylogenetic analyses reported by Salipante and Hall [33], the aac(6′)-Ib is most closely related to aac(6′)-IIa, aac(6′)-IIb, aac(6′)-IIc, and aac(6′)-IId.

4. Materials and Methods

4.1. Ethics Statement

Biomedical Ethics Committee of the ‘Institut Pasteur de Tunis’ approved this work, and the sample technique was carried out in accordance with the widely accepted ISO 10272-1:2006 Appendix 2 standards for the identification of Campylobacter spp.

4.2. Campylobacter Isolates Collection and Phenotypic Susceptibility

Herein, we tested 132 Campylobacter isolates, including 91 C. jejuni and 41 C. coli. These isolates were previously recovered from layer chickens [33] and tested against gentamicin (GEN, 10 μg), kanamycin (K, 30 μg), tobramycin, (TOB, 10 μg), streptomycin (SMN, 10 μg), nalidixic acid (NAL, 30 μg), and ciprofloxacin (CIP, 5 μg) (Bio-Rad, Marnes-la-Coquette, France) [34,35], using the disk diffusion method on Mueller–Hinton medium (Bio Life, Milan, Italy). Interpretation of antimicrobial susceptibility against each antibiotic was determined following the breakpoint values of the European Committee on Antimicrobial Susceptibility Testing (EUCAST) [35,36].

4.3. Extraction of Bacterial DNA

The genomic DNA of collected isolates was extracted using the boiling method [32]. Briefly, Campylobacter isolates were grown in 2 mL Bolton broth (Oxoid, United Kingdom) and plated on Karmali agar (SIGMA-Aldrich, Germany). Campylobacter colonies were then harvested and suspended in 100 μL TE buffer (10 mM Tris, 1 mM EDTA, pH 8.0). Cell suspensions were heated at 100 °C for 10 min and then cooled at −20 °C. Thereafter, cell suspensions were centrifuged at 8000 rpm for 5 min [32]. The supernatant containing DNA was collected, transferred into a new tube, and then stored at −20 °C until use.

4.4. Detection of Mutation in the QRDR of gyrA via Mismatch Amplification Mutation Assay (MAMA-PCR)

The quinolone region determining resistance (QRDR) of the GyrA subunit of the ADN gyrase enzyme is where the fluoroquinolone resistance is often codified by a point mutation (Thr-86-Ile) [37]. A single-point mutation Thr-86-Ile in the quinolone resistance-determining region (QRDR) of the gyrA gene was defined as the main mechanism of high-level resistance to fluoroquinolones. Campylobacter isolates were subjected to analysis via MAMA-PCR, as previously described for C. jejuni and C. coli isolates [37,38].

4.5. Détection and Sequencing of aac(6′)-Ib in Selected Isolates

aac(6)-Ib was amplified by PCR using primers 5′-TTGCGATGCTCTATGAGTGGCTA-3′ and 5′-CTCGAATGCCTGGCGTGTTT-3′ to produce a 482-bp amplicon. PCR conditions were 94 °C for 45 s, 55 °C for 45 s, and 72 °C for 45 s for 34 cycles. Positive and negative strains for aac(6)-Ib were included as controls. All PCR products positive for aac(6’)-Ib were further analyzed via digestion with BtsCI (New England Biolabs, England, UK).
Positive PCR products in selected five isolates were directly sequenced to identify the aac(6)-Ib gene. Nucleotide sequencing was carried out with an Applied Biosystems™ 3500 sequencer calibrated with BigDye® Terminator V3.1. DNA sequences were assembled and edited using BioEdit Sequence Alignment Editor software version 7.0.5.3. The consensus sequences obtained were compared to sequences in the Basic Local Alignment Search tool (BLAST). The sequences generated in this study were deposited in GenBank under the following accession numbers: OR124788, OR125068, OR125070, OR125069, and OR192836.

4.6. Molecular Phylogenetic Analysis via the Maximum Likelihood Method

The evolutionary history was inferred using the maximum likelihood method based on the Kimura two-parameter model [39]. The tree with the highest log likelihood (−1721.35) is shown. The percentage of trees in which the associated taxa clustered together is shown next to the branches. Initial tree(s) for the heuristic search were obtained automatically by applying Neighbor-Join and BioNJ algorithms to a matrix of pairwise distances estimated using the maximum composite likelihood (MCL) approach, and then selecting the topology with a superior log likelihood value. A discrete Gamma distribution was used to model evolutionary rate differences among sites (five categories (+G, parameter = 200.0000)). The rate variation model allowed for some sites to be evolutionarily invariable ([+I], 8.19% sites). The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. The analysis involved 34 nucleotide sequences. All positions containing gaps and missing data were eliminated. There were a total of 421 positions in the final dataset. Evolutionary analyses were conducted in MEGA7 [40].

4.7. Data Analysis

All collected data were analyzed using R software (www.infostat.com.ar/ accessed 24 July 2023). The antimicrobial resistance analyses were performed by means of a Chi-square statistic (p < 0.05) [41]. This test is a nonparametric tool designed to compare frequency counts between two groups of different sample sizes; the selection criterion for significantly prevalent variance was a stringent p-value of 0.001 or less. The phylogenetic tree was generated using iTOL version 6 (https://itol.embl.de/ accessed 5 September 2023). The strains of our study are reported using their accession number code displayed in bold.

5. Conclusions

The results of this study showed a significant prevalence of aac(6′)-Ib and aac(6′)-Ib-cr, as well as a high rate of co-carriage of these two genes among Campylobacter isolates in Tunisia. It seems that quinolone/fluoroquinolone resistance is established, mainly in C. coli, by chromosomal mutations the gyrA gene, and evolves to acquire aac(6′)-Ib-cr against a genetic background already rich in wild-type aac(6′)-Ib gene.

Author Contributions

Conceptualization, M.G. and A.M. methodology, M.G., S.H. and M.A.S.A.; validation, M.G. and A.M.; formal analysis, M.G.; investigation, M.G., S.H. and M.A.S.A.; data curation, M.G.; writing—original draft preparation, M.G.; writing—review and editing, M.G.; visualization, M.G. and A.M.; supervision, A.M.; project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financed by funding provided to the Laboratory of Epidemiology and Veterinary Microbiology (LR16IPT03) by the Tunisian Ministry of Higher Education and Scientific Research.

Institutional Review Board Statement

The study was approved by the Biomedical Ethics Committee of the Pasteur Institute of Tunis, with reference number: 2018/12/I/LR16IPT.

Informed Consent Statement

Not applicable.

Data Availability Statement

The statistical data used to support the findings of this study are available from the corresponding author upon request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Isada, M.J.; Reist, M.; MacKinnon, M.C.; Uhland, F.C.; Young, K.M.; Gibbens, K.; Parmley, E.J.; Carson, C.A. Characterisation of burden of illness measures associated with human (Fluoro)quinolone-resistant Campylobacter spp. infections—A scoping review. Epidemiol. Infect. 2022, 150, e205. [Google Scholar] [CrossRef]
  2. Xia, J.; Pang, J.; Tang, Y.; Wu, Z.; Dai, L.; Singh, K.; Xu, C.; Ruddell, B.; Kreuder, A.; Xia, L.; et al. High prevalence of fluoroquinolone-resistant Campylobacter bacteria in sheep and increased Campylobacter counts in the bile and gallbladders of sheep medicated with tetracycline in feed. Appl. Environ. Microbiol. 2019, 85, e06406. [Google Scholar] [CrossRef] [PubMed]
  3. European Food Safety European Centre for Disease Prevention and Control. The European Union One Health 2019 Zoonoses Report. EFSA J. 2021, 19, e06406. [Google Scholar] [CrossRef]
  4. Hooper, D.C.; Jacoby, G.A. Mechanisms of drug resistance: Quinolone resistance. Ann. N. Y. Acad. Sci. 2015, 1354, 12–31. [Google Scholar] [CrossRef]
  5. Yang, H.Y.; Nam, Y.S.; Lee, H.J. Prevalence of plasmid-mediated quinolone resistance genes among ciprofloxacin-non susceptible Escherichia coli and Klebsiella pneumoniae isolated from blood cultures in Korea. Can. J. Infect. Dis. Med. Microbiol. 2014, 25, 163–169. [Google Scholar] [CrossRef]
  6. Vakulenko, S.B.; Mobashery, S. Versatility of aminoglycosides and prospects for their future. Clin. Microbiol. Rev. 2003, 16, 430–450. [Google Scholar] [CrossRef]
  7. Tolmansky, M.E.; Roberts, M.; Woloj, M.; Crosa, J.H. Molecular cloning of amikacin resistance determinants from a Klebsiella pneumoniae plasmid. Antimicrob. Agents Chemother. 1986, 30, 315–320. [Google Scholar] [CrossRef]
  8. Hidalgo-Grass, C.; Strahilevitz, J. High-resolution melt curve analysis for identification of single nucleotide mutations in the quinolone resistance gene aac(6′)-Ib-cr. Antimicrob. Agents Chemother. 2010, 54, 3509–3511. [Google Scholar] [CrossRef]
  9. Wang, P.; Hu, L.; Hao, Z. Palmatine is a plasmid-mediated quinolone resistance (PMQR) inhibitor that restores the activity of ciprofloxacin against qnrS and aac(6ʹ)-Ib-cr-producing Escherichia coli. Infect. Drug Resist. 2020, 13, 749–759. [Google Scholar] [CrossRef]
  10. Martínez-Martínez, L.; Cano, M.E.; Rodríguez-Martínez, J.M.; Calvo, J.; Pascual, Á. Plasmid-mediated quinolone resistance. Expert Rev. Anti-Infect. Ther. 2008, 6, 685–711. [Google Scholar] [CrossRef]
  11. Ramamurthy, T.; Ghosh, A.; Chowdhury, G.; Mukhopadhyay, A.K.; Dutta, S.; Miyoshi, S.I. Deciphering the genetic network and programmed regulation of antimicrobial resistance in bacterial pathogens. Front. Cell. Infect. Microbiol. 2022, 12, 952491. [Google Scholar] [CrossRef]
  12. Cody, A.J.; Clarke, L.; Bowler, I.C.; Dingle, K.E. Ciprofloxacin-resistant Campylobacteriosis in the UK. Lancet 2010, 376, 1987. [Google Scholar] [CrossRef]
  13. Kurekci, C.; Pehlivanlar Önen, S. Characteristics of ciprofloxacin resistant Campylobacter spp. isolated from chicken meat in Turkey. J. Food Meas. Charact. 2017, 11, 586–591. [Google Scholar] [CrossRef]
  14. Portes, A.B.; Panzenhagen, P.; Pereira dos Santos, A.M.; Junior, C.A.C. Antibiotic resistance in Campylobacter: A systematic review of South American isolates. Antibiotics 2023, 12, 548. [Google Scholar] [CrossRef]
  15. Sproston, E.L.; Wimalarathna, H.M.L.; Sheppard, S.K. Trends in fluoroquinolone resistance in Campylobacter. Microb. Genom. 2018, 4, e000198. [Google Scholar] [CrossRef]
  16. Sierra-Arguello, Y.M.; Furian, T.Q.; Perdoncini, G.; Moraes, H.L.S.; Salle, C.T.P.; Rodrigues, L.B.; Dos Santos, L.R.; Pereira Gomes, M.J.; Do Nascimento, V.P. Fluoroquinolone resistance in Campylobacter jejuni and Campylobacter coli from poultry and human samples assessed by PCR-Restriction Fragment Length Polymorphism Assay. PLoS ONE 2018, 13, e0199974. [Google Scholar] [CrossRef]
  17. Sasaki, Y.; Iwata, T.; Uema, M.; Yonemitsu, K.; Igimi, S.; Asakura, H. Campylobacter spp. prevalence and fluoroquinolone resistance in chicken layer farms. J. Vet. Med. Sci. 2022, 84, 743–746. [Google Scholar] [CrossRef]
  18. Luo, Y.; Zhang, W.; Cheng, Y.; Lu, Q.; Guo, Y.; Wen, G.; Shao, H.; Cheng, Z.; Luo, Q.; Zhang, T. Droplet Digital PCR-based detection and quantification of GyrA Thr-86-Ile mutation based fluoroquinolone-resistant Campylobacter jejuni. Microbiol. Spectr. 2022, 10, e0276921. [Google Scholar] [CrossRef]
  19. Han, J.; Wang, Y.; Sahin, O.; Shen, Z.; Guo, B.; Shen, J.; Zhang, Q. A Fluoroquinolone resistance associated mutation in GyrA affects DNA supercoiling in Campylobacter jejuni. Front. Cell. Infect. Microbiol. 2012, 2, 21. [Google Scholar] [CrossRef]
  20. Gharbi, M.; Béjaoui, A.; Ben Hamda, C.; Ghedira, K.; Ghram, A.; Maaroufi, A. Distribution of virulence and antibiotic resistance genes in Campylobacter jejuni and Campylobacter coli isolated from broiler chickens in Tunisia. J. Microbiol. Immunol. Infect. 2022, 55 Pt 2, 1273–1282. [Google Scholar] [CrossRef]
  21. Tenover, F.C.; Elvrum, P.M. Detection of two different kanamycin resistance genes in naturally occurring isolates of Campylobacter jejuni and Campylobacter coli. Antimicrob. Agents Chemother. 1988, 32, 1170–1173. [Google Scholar] [CrossRef]
  22. Zhang, X.; Zhou, Q.; Tang, M.; Pu, J.; Zhang, J.; Lu, J.; Zhang, Y.; Gao, Y. Aminoglycoside resistance and possible mechanisms in Campylobacter spp. isolated from chicken and swine in Jiangsu, China. Front. Microbiol. 2021, 12, 716185. [Google Scholar] [CrossRef]
  23. Silva, S.M.D.; Ramos, B.A.; Lima, A.V.A.; Sá, R.A.C.Q.; Lima, J.L.D.C.; Maciel, M.A.V.; Paiva, P.M.G.; Silva, M.V.D.; Correia, M.T.D.S.; Oliveira, M.B.M. First report of the aac(6’)-Ib-cr gene in Providencia stuartii isolates in Brazil. Rev. Soc. Bras. Med. Trop. 2020, 54, e20190524. [Google Scholar] [CrossRef]
  24. Araujo, B.F.; Ferreira, M.L.; De Campos, P.A.; Royer, S.; Batistão, D.W.D.F.; Dantas, R.C.C.; Gonçalves, I.R.; Faria, A.L.S.; De Brito, C.S.; Yokosawa, J.; et al. Clinical and molecular epidemiology of multidrug-resistant P. aeruginosa carrying aac(6′)-Ib-cr, qnrS1 and blaSPM genes in Brazil. PLoS ONE 2016, 11, e0155914. [Google Scholar] [CrossRef]
  25. Raherison, S.; Jove, T.; Gaschet, M.; Pinault, E.; Tabesse, A.; Torres, C.; Ploy, M.C. Expression of the aac(6’)-Ib-cr gene in class 1 integrons. Antimicrob. Agents Chemother. 2017, 61, e02704-16. [Google Scholar] [CrossRef]
  26. Miller, J.J. Gentamicin and tobramycin. In Handbook of Ototoxicity; CRC Press: Boca Raton, FL, USA, 2019; pp. 187–232. [Google Scholar]
  27. McMullan, B.J.; Haeusler, G.M.; Hall, L.; Cooley, L.; Stewardson, A.J.; Blyth, C.C.; Jones, C.A.; Konecny, P.; Babl, F.E.; Mechinaud, F.; et al. Aminoglycoside use in paediatric febrile neutropenia—Outcomes from a nationwide prospective cohort study. PLoS ONE 2020, 15, e0238787. [Google Scholar] [CrossRef]
  28. Volcão, L.M.; Lacava, J.P.; Gewehr, M.F.; Leal, V.L.; Ramis, I.B.; Ramos, D.F.; Gonçalves, C.V.; Possuelo, L.G.; Minarini, L.A.R.; da Silva, P.E.A.; et al. High frequency of aac(6′)-Ib-cr gene associated with double mutations in GyrA and ParC in Escherichia coli isolates from patients with urinary tract infections. J. Glob. Antimicrob. Resist. 2018, 13, 180–183. [Google Scholar] [CrossRef]
  29. Machuca, J.; Ortiz, M.; Recacha, E.; Díaz-De-Alba, P.; Docobo-Perez, F.; Rodríguez-Martínez, J.M.; Pascual, A. Impact of aac(6′)-Ib-cr in combination with chromosomal-mediated mechanisms on clinical quinolone resistance in Escherichia coli. J. Antimicrob. Chemother. 2016, 71, 3066–3071. [Google Scholar] [CrossRef]
  30. Frasson, I.; Cavallaro, A.; Bergo, C.; Richter, S.N.; Palù, G. Prevalence of aac(6′)-Ib-cr plasmid-mediated and chromosome-encoded fluoroquinolone resistance in Enterobacteriaceae in Italy. Gut Pathog. 2011, 3, 3–7. [Google Scholar] [CrossRef]
  31. Lee, M.D.; Sanchez, S.; Zimmer, M.; Idris, U.; Berrang, M.E.; McDermott, P.F. Class 1 integron-associated tobramycin-gentamicin resistance in Campylobacter jejuni isolated from the broiler chicken house environment. Antimicrob. Agents Chemother. 2002, 46, 3660–3664. [Google Scholar] [CrossRef]
  32. Salipante, S.J.; Hall, B.G. Determining the limits of the evolutionary potential of an antibiotic resistance gene. Mol. Biol. Evol. 2003, 20, 653–659. [Google Scholar] [CrossRef] [PubMed]
  33. Gharbi, M.; Béjaoui, A.; Ben Hamda, C.; Alaya, N.; Hamrouni, S.; Bessoussa, G.; Ghram, A.; Maaroufi, A. Campylobacter spp. in eggs and laying hens in the North-East of Tunisia: High prevalence and multidrug-resistance phenotypes. Vet. Sci. 2022, 9, 108. [Google Scholar] [CrossRef] [PubMed]
  34. Gharbi, M.; Kamoun, S.; Hkimi, C.; Ghedira, K.; Béjaoui, A.; Maaroufi, A. Relationships between virulence genes and antibiotic resistance phenotypes/genotypes in Campylobacter spp. isolated from layer hens and eggs in the north of Tunisia: Statistical and computational insights. Foods 2022, 11, 3554. [Google Scholar] [CrossRef] [PubMed]
  35. EUCAST. The European Committee on Antimicrobial Susceptibility Testing; EUCAST: Växjö, Sweden, 2015; pp. 1–77. [Google Scholar]
  36. Sifré, E.; Salha, B.A.; Ducournau, A.; Floch, P.; Chardon, H.; Mégraud, F.; Lehours, P. EUCAST recommendations for antimicrobial susceptibility testing applied to the three main Campylobacter species isolated in humans. J. Microbiol. Methods 2015, 119, 206–213. [Google Scholar] [CrossRef]
  37. Zirnstein, G.; Li, Y.; Swaminathan, B.; Angulo, F. Ciprofloxacin resistance in Campylobacter jejuni isolates: Detection of GyrA resistance mutations by Mismatch Amplification Mutation Assay PCR and DNA sequence analysis. J. Clin. Microbiol. 1999, 37, 3276–3280. [Google Scholar] [CrossRef]
  38. Zirnstein, G.; Helsel, L.; Li, Y.; Swaminathan, B.; Besser, J. Characterization of GyrA mutations associated with fluoroquinolone resistance in Campylobacter coli by DNA sequence analysis and MAMA PCR. FEMS Microbiol. Lett. 2000, 190, 1–7. [Google Scholar] [CrossRef]
  39. Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef]
  40. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis Version 7.0 for bigger data sets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef]
  41. Mchugh, M.L. The Chi-Square test of independence lessons in biostatistics. Biochem. Medica 2013, 23, 143–149. [Google Scholar] [CrossRef]
Ijms 24 16116 g001

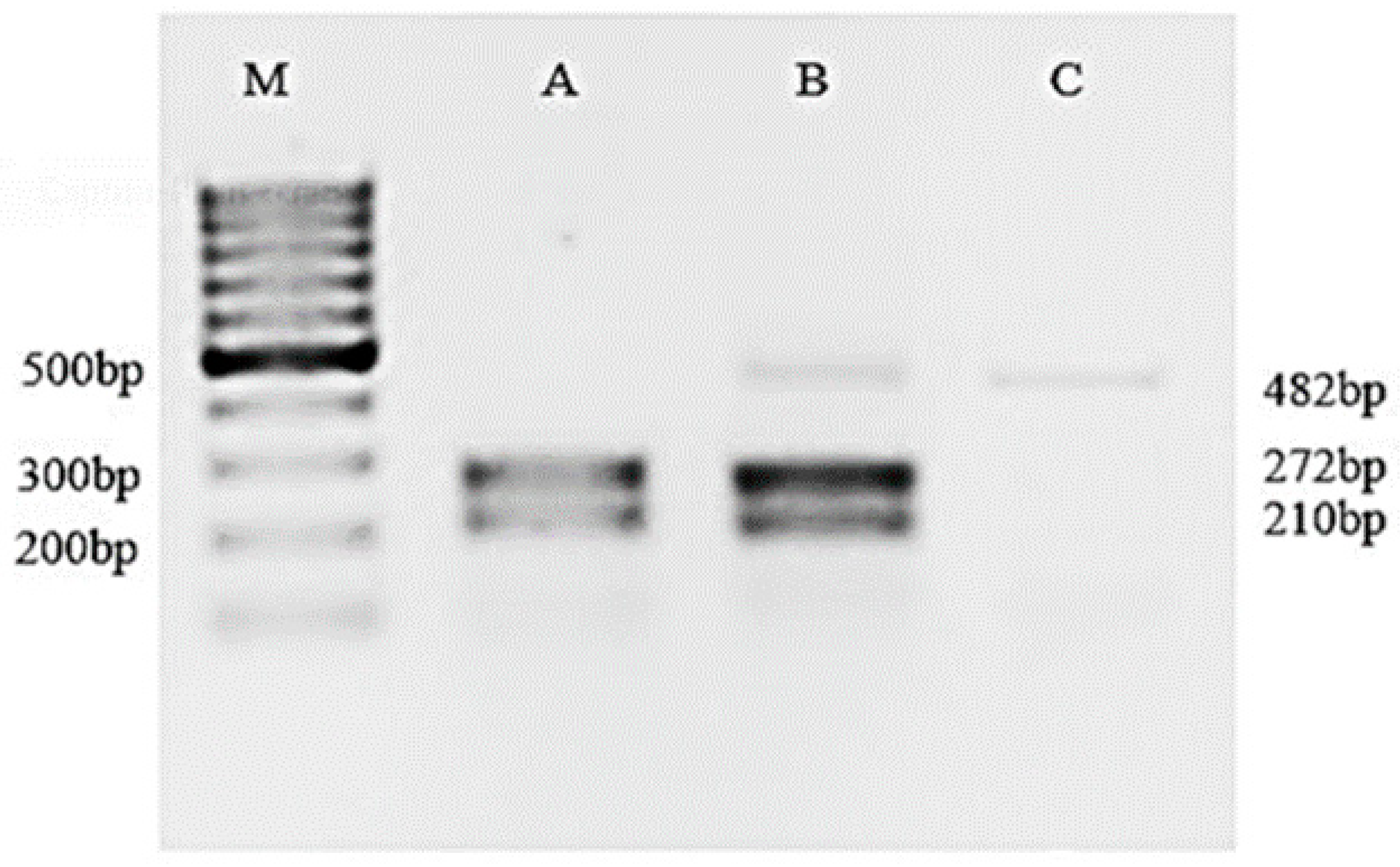

Figure 1. BtsCI digestion of purified aac(6′)-Ib PCR products. Lane M: 100 bp DNA ladder. Lane A: PCR products cut via BtsCI digestion (wild aac(6′)-Ib gene); lane B: a PCR product showing three fragments by BtsCI digestion (wild aac(6′)-Ib+aac(6′)-Ib-cr gene); lane C: undigested PCR product.
Figure 1. BtsCI digestion of purified aac(6′)-Ib PCR products. Lane M: 100 bp DNA ladder. Lane A: PCR products cut via BtsCI digestion (wild aac(6′)-Ib gene); lane B: a PCR product showing three fragments by BtsCI digestion (wild aac(6′)-Ib+aac(6′)-Ib-cr gene); lane C: undigested PCR product.
Ijms 24 16116 g001
Ijms 24 16116 g002

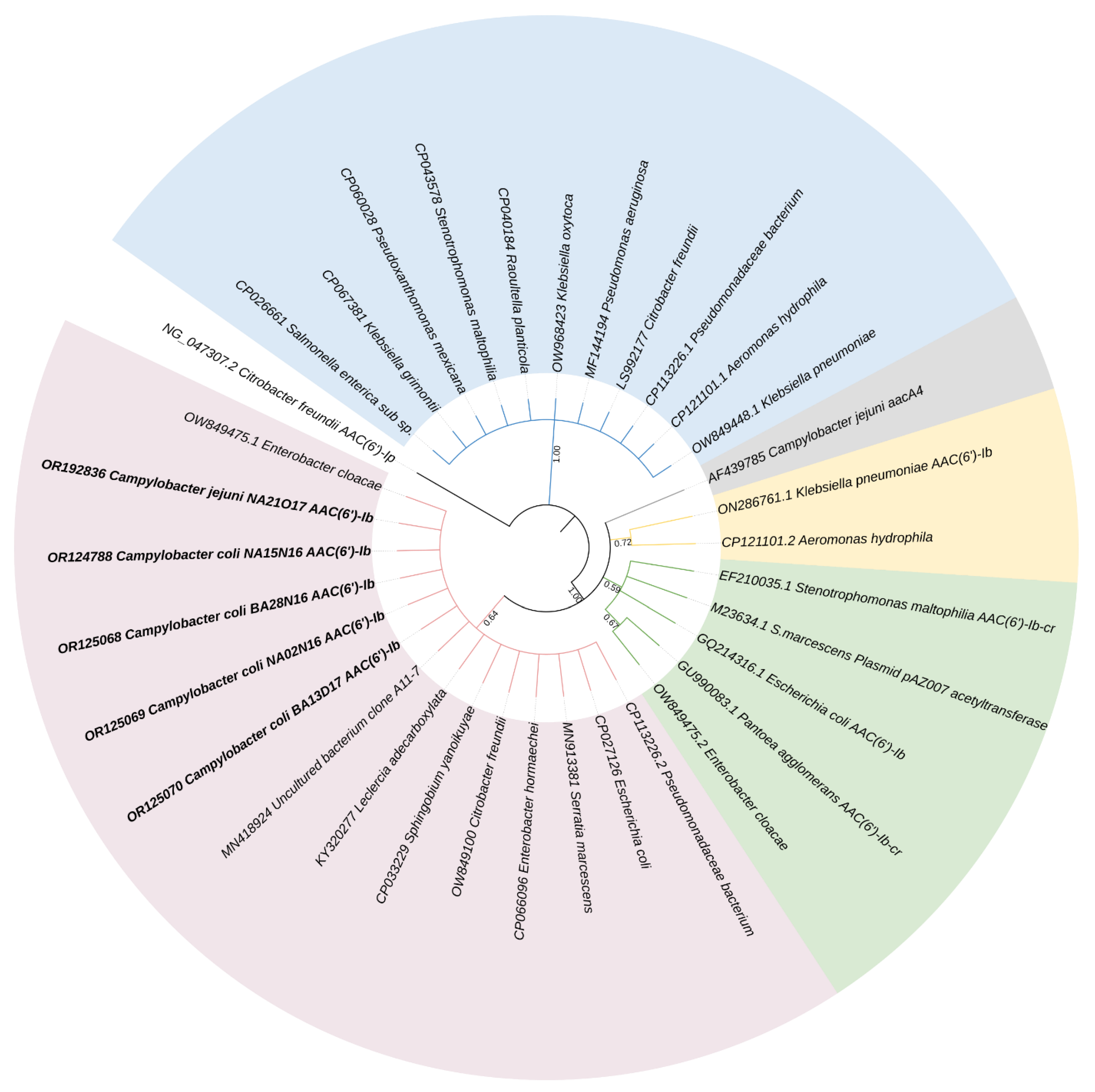

Figure 2. Molecular phylogenetic analysis by maximum likelihood method. The evolutionary history was inferred by using the maximum likelihood method based on the Kimura two-parameter model. The tree with the highest log likelihood (−1721.35) is shown. The percentage of trees in which the associated taxa clustered together is shown next to the branches. Initial tree(s) for the heuristic search were obtained automatically by applying Neighbor-Join and BioNJ algorithms to a matrix of pairwise distances estimated using the maximum composite likelihood (MCL) approach, and then selecting the topology with superior log likelihood value. A discrete Gamma distribution was used to model evolutionary rate differences among sites (five5 categories (+G, parameter = 200.0000)). The rate variation model allowed for some sites to be evolutionarily invariable ([+I], 8.19% sites). The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. The analysis involved 34 nucleotide sequences. All positions containing gaps and missing data were eliminated. There were a total of 421 positions in the final dataset. Evolutionary analyses were conducted in MEGA7. ITOL version 6 was used to create the phylogenetic tree. The strains in our investigation are described using their bolded accession number code.
Figure 2. Molecular phylogenetic analysis by maximum likelihood method. The evolutionary history was inferred by using the maximum likelihood method based on the Kimura two-parameter model. The tree with the highest log likelihood (−1721.35) is shown. The percentage of trees in which the associated taxa clustered together is shown next to the branches. Initial tree(s) for the heuristic search were obtained automatically by applying Neighbor-Join and BioNJ algorithms to a matrix of pairwise distances estimated using the maximum composite likelihood (MCL) approach, and then selecting the topology with superior log likelihood value. A discrete Gamma distribution was used to model evolutionary rate differences among sites (five5 categories (+G, parameter = 200.0000)). The rate variation model allowed for some sites to be evolutionarily invariable ([+I], 8.19% sites). The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. The analysis involved 34 nucleotide sequences. All positions containing gaps and missing data were eliminated. There were a total of 421 positions in the final dataset. Evolutionary analyses were conducted in MEGA7. ITOL version 6 was used to create the phylogenetic tree. The strains in our investigation are described using their bolded accession number code.
Ijms 24 16116 g002
Table 1. Percentage of resistant Campylobacter isolates.
Table 1. Percentage of resistant Campylobacter isolates.
AntibioticsC. jejuni (n = 91)
% (n)		C. coli (n = 41)
% (n)		Total (n = 132)
% (n)
Gentamicin14.3 (13)9.8 (4)12.9 (17)
Kanamycin19.78 (18)46.34 * (19)28.03 (37)
Tobramycin19.78 (18)60.97 * (25)58.33 (77)
Streptomycin34.06 (31)80.48 (33)48.48 (64)
Ciprofloxacin98.9 (90)100 (41)99.2 (131)
Nalidixic Acid57.1 * (52)22 (9)46.2 (61)
* Significantly higher resistance (p < 0.05) of C. jejuni compared with C. coli.
