Communication

Synthesis of 1,4-Dialkoxynaphthalene-Based Imidazolium Salts and Their Cytotoxicity in Cancer Cell Lines

by
Haena Lee
1,†,
Yejin Jeon
2,†,
Hyejin Moon
1,
Eunjoo H. Lee
2,
Tae Hoon Lee
1,* and
Hakwon Kim
1,*
1
Department of Applied Chemistry, Global Center for Pharmaceutical Ingredient Materials, Kyung Hee University, Yongin 1732, Republic of Korea
2
Department of Gerontology, Graduate School of East-West Medicinal Science, Kyung Hee University, Yongin 17104, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(3), 2713; https://doi.org/10.3390/ijms24032713
Submission received: 30 December 2022 / Revised: 19 January 2023 / Accepted: 27 January 2023 / Published: 1 February 2023
(This article belongs to the Special Issue New Anticancer Agents: Design, Synthesis and Evaluation)
Browse Figures
Versions Notes

Abstract

:
In this study, we designed and synthesized novel 1,4-dialkoxynaphthalene-2-alkyl imidazolium salt (IMS) derivatives containing both 1,4-dialkoxynaphthalene and imidazole, which are well known as pharmacophores. The cytotoxicities of these newly synthesized IMS derivatives were investigated in order to explore the possibility of using them to develop anticancer drugs. It was found that some of the new IMS derivatives showed good cytotoxic activities. In addition, an initial, qualitative structure–activity relationship is presented on the basis of observations of activity changes corresponding to structural changes.

1. Introduction

Cancer is one of the leading causes of death worldwide. In 2020, there were approximately 10 million cancer deaths and approximately 19.3 million new types of cancer reported [1]. Uncontrolled cell proliferation is the hallmark of cancer; tumor cells typically acquire damage to genes that directly regulate their cell cycles [2,3]. In addition, cancer is known to develop due to genetic and environmental factors [4]. Among the various known cancer cells, HepG2, a human liver carcinoma hepatocellular cell, has a mutation in the CTNNB1 gene [5], and HT-29, a human colon adenocarcinoma colorectal cell, has a mutation in the BRAF (V600E) gene [6]. The use of such established cell culture lines is known to be beneficial when conducting cytotoxicity evaluation studies [7]. In this respect, the HepG2, HT-29, and CCD-18Co cell lines used in this study are well-differentiated, transformed cell lines that meet the biochemical requirements. Since the HepG2 cell line is one of the experimental models similar to human hepatocytes, it is widely used in liver cancer research, e.g., for cytotoxicity evaluation [8]. In addition, the HT-29 and the CCD-18Co cell lines are widely used in colon cancer research as models for comparing the difference in activity between cancer cells and normal cells [9]. Various methods are used to treat these cancers. In the past, radiation therapy or chemotherapy was often combined with surgery. However, since radiation and chemotherapy affect both normal cells and cancer cells, they cause serious side-effects, such as vomiting and hair loss. Therefore, in recent years, the development of targeted cancer treatment that interferes with a specific protein involved in cancer cell growth has emerged [10,11].
Imidazole is a five-membered heterocyclic compound containing two nitrogen atoms and is known to have a number of advantageous physical and biological properties. Imidazole exhibits various pharmacological activities, such as anticancer, antifungal, anticoagulant, and antimalarial, and it has been developed as a chemotherapeutic agent in various fields as a function of these activities [12,13]. Its anticancer efficacy was proven with the development of dacarbazine, and several other imidazole-based anticancer drugs have since been synthesized [14]. Studies aim to develop anticancer drugs that can increase anticancer effects and reduce side-effects [15].
In our previous study [Figure 1], various naphthalene-2-acyl thiazolium salts combining the structures of 1,4-dialkoxynaphthalene and thiazole were synthesized, and their activities as AGE (advanced glycation end product) breakers were tested [16]. In this work, the 1,4-dialkoxynaphthalene moiety was found to be of pharmacological significance. Subsequently, an imidazole ring was introduced instead of thiazole to produce 1,4-dialkoxynaphthalene-2-acyl imidazolium salt derivatives, which were confirmed to exhibit antifungal activity [17]. Here, it was confirmed that the combination of the 1,4-dialkoxynaphthalene moiety and imidazolium moiety shows a good pharmacophore. However, there were several problems in the synthesis process of previous studies. The yield in this synthesis was highly dependent on the type of alkoxy group on the naphthalene ring and on the bromination step to produce monobromide, as well as dibromide and tribromide. Therefore, to find a compound that is easy to synthesize and can exhibit various activities, a new target compound was designed and synthesized in which the acyl moiety connecting the naphthalene ring and the imidazole ring was substituted with an alkyl moiety.
In this study, the synthesis of a novel 1,4-dialkoxynaphthalene-2-alkyl imidazolium salt (IMS) is described. The synthesis of the target compound IMS, 1, can be initiated from 1,4-dihydroxy-2-naphthoic acid via alkylation, reduction, bromination, and imidazole substitution [Figure 2]. The synthetic approach to new IMS derivatives is divided into three parts. In Part A, compound synthesis is carried out by changing the alkoxy group of the naphthalene ring. In Part B, derivatives are synthesized by modifying the alkyl moiety connecting the naphthalene ring and imidazole ring. Lastly, in Part C, the synthesis of various derivatives is attempted by changing the position and type of substituent attached to imidazole ring. To investigate the potential of theses derivatives as anticancer agents, their cytotoxicities against HepG2, HT-29, and CCD-18Co cells were evaluated. On the basis of the cytotoxicity results of the newly synthesized IMS compounds, we report the possibility of developing one such compound as a new anticancer agent.

2. Results and Discussion

2.1. Chemistry: Synthesis

2.1.1. Part A: Modification of Alkoxy Groups in the Naphthalene Ring

The activity of acyl imidazolium salt is best when the isoamyloxy group is substituted [17]. To confirm that the same result can be obtained in an alkyl imidazolium salt, derivatives substituted with various alkoxy groups in the naphthalene ring were synthesized. After synthesizing the corresponding bromide intermediates in three steps from 1-hydroxy-2-naphthoic acid, methyl 4-hydroxy-2-naphthoate, or 1,4-dihydroxy-2-naphthoic acid (see Scheme S1, Figures S1–S24), IMS-01 to IMS-09 (see Figures S43–S51) were obtained through a subsequent substitution reaction with 1-benzylimidazole [Figure 3].

2.1.2. Part B: Modification of Alkyl Chain between Naphthalene Ring and Imidazole Ring

In Part B, the difference in activity as a function of the length of the carbon chain connecting the naphthalene ring and the imidazole ring was investigated. For comparison with IMS-07, IMS-10 and IMS-11, each having an ethylene and propylene moiety between the naphthalene ring and the imidazole ring, were synthesized [Scheme 1]. First, to synthesize IMS-10, synthesis of key aldehyde intermediate 7, in which the number of carbon atoms is increased by one, was attempted through a reduction reaction using DIBAL-H after synthesizing the corresponding cyanide intermediate from 12g [18]. However, this approach did not proceed well. Therefore, we attempted to synthesize intermediate 7 via another method. Aldehyde intermediate 6 was synthesized through PCC oxidation of compound 5g, and the subsequent Wittig reaction of 6 followed by acidic workup yielded key aldehyde intermediate 7 [19]. Intermediate 7 was reduced with NaBH4 and brominated with PBr3 to obtain bromide intermediate 8. However, it was observed that this reaction is inefficient due to its long reaction time and low yield. To overcome this problem, a bromination reaction based on Xiao’s method using Ph3P, TBAI (tetrabutylammonium iodide), and 1,2-dibromoethane was adopted to obtain compound 8 in higher yield [20]. Even for bromide intermediates with low yields in Part A, the yield could be increased by using this method instead of PBr3. Finally, a substitution reaction between bromide 8 and 1-benzylimidazole gave the desired final product, IMS-10 (see Figures S25–S27 and S52). Next, for the synthesis of IMS-11, ester intermediate 9, which had its number of carbons increased by two compared to IMS-07, was prepared through an HWE (Horner–Wadsworth–Emmons) reaction of aldehyde 6 [21]. Then, from intermediate 9, alcohol intermediate 10 was obtained by Pd-catalyzed hydrogenation followed by LiAlH4 reduction. Halogenation of intermediate 10 provided the corresponding bromide in poor yield, which also did not react well with 1-benzylmidazole. Therefore, we made another attempt at synthesizing imidazolium salt. In order to change the hydroxy group to a better leaving group, mesylation was performed to obtain a mesylate [22]. Then, imidazole was attached to synthesize imidazole intermediate 11. Intermediate 11 was then reacted with iodomethane to give the N-methylimidazolium salt, IMS-11 (see Figures S28–S30 and S53) [23].

2.1.3. Part C: Modification of Imidazole Ring

We synthesized IMS derivatives in which various substituents were substituted on the imidazole ring [Scheme 2]. First, derivatives were synthesized with substituents other than a benzyl group attached at the nitrogen position. The substituted imidazoles used were commercially or readily available, such as 1-methyl-1H-imidazole (13a) and 1-phenyl-1H-imidazole (13c), or other synthesized N-substituted imidazoles (13b, 13d, and 13e) (see Scheme S2, Figures S31–S33). Subsequently, IMS-12, IMS-13, IMS-14, IMS-15, and IMS-16 (see Figures S54–S58) were obtained through a substitution reaction with bromide intermediate 12g. Second, we tried to synthesize derivatives with a substituent attached to the position 2 of imidazole. N-Alkylation was performed using 2-methylimidazole and 2-imidazolecarboxaldehyde (see Scheme S2, Figures S34–S39). However, the derivatives synthesized using 2-imidazolecarboxaldehyde (14c and 14d) easily decomposed during the purification process. Therefore, a change was made to synthesize the salt derivatives using 2-imidazolomethanols, 14e and 14f, through a reduction reaction (see Figures S59–S62). Lastly, we tried to introduce benzimidazole to synthesize derivatives substituted at both positions 4 and 5 on the imidazole ring. After N-alkylation (see Scheme S2, Figures S40–S42), the synthesis of the derivatives (IMS-21—IMS-23) was completed through a subsequent substitution reaction with the bromide intermediate 12g (see Figures S63–S65).

2.2. Cytotoxicity of HepG2, HT-29, and CCD-18Co Cells

As shown in the cytotoxicity results (Table 1), IMS-01 to IMS-06, IMS-08, and IMS-09 were not cytotoxic to HepG2, HT-29, and CCD-18Co cells when the maximum concentration of the compound was 10 μM. Therefore, compounds without an alkoxy group on the naphthalene ring (IMS-09) or compounds with a short or overly long alkoxy group (IMS-01, IMS-03, IMS-05, IMS-06, and IMS-08) did not show cytotoxicity. Even compounds with only one isoamyloxy group, which are considered optimal alkyl groups at positions 1 or 4 of the naphthalene ring, such as IMS-02 and IMS-04, showed no activity. As a first conclusion, it was found that the isoamyloxy group is most suitable as an alkyl group substituted on the naphthalene ring, but it must be present at both positions 1 and 4 of the naphthalene ring.
In the remaining compounds, LD50 values were generally higher than 5 μM in HepG2 and HT-29 cells, and especially in CCD-18Co cells. All compounds, except for IMS-11, IMS-13, IMS-15, and IMS-16, exhibited LD50 values at low concentrations of 5 μM or less. Looking at the cytotoxicity results for HepG2, HT-29, and CCD-18Co of three compounds (IMS-07, IMS-10, and IMS-11) with different numbers of bridged carbon atoms between the naphthalene ring and the imidazole ring, it can be seen that there was no significant dependence on the length of alkyl chain. However, considering the ease of synthesis, the methylene-containing backbone in IMS-07 was selected as the basic structure. When comparing the activities of IMS-12, IMS-13, IMS-14, IMS-15, and IMS-16 with those of IMS-07, it was confirmed that all these compounds showed good activity. The results from IMS-17, IMS-18, IMS-19, and IMS-20 demonstrate that derivatives with a substituent attached to position 2 of the imidazole ring also exhibited similar cytotoxicities to that of IMS-07. As shown in the results from IMS-21, IMS-22, and IMS-23, benzimidazolium salts substituted at positions 4 and 5 of the imidazole ring showed good activity without significant differences. It was confirmed that a similar activity was exhibited even when the type of alkyl group attached to the N-position was changed (see Figures S66–S68).

3. Materials and Methods

3.1. Chemicals and Instruments

All glassware was thoroughly dried in a convection oven. Reactions were monitored using thin-layer chromatography (TLC). Commercial TLC plates (silica gel 60 F254, Merck, Darmstadt, Germany) were developed, and the spots were visualized under UV light at 254 or 365 nm. Some products were purified by flash column chromatography using 230–400 mesh ASTM (Merck KGaA) silica gel or recrystallization using a combination of various solvents. Extra pure-grade solvents for column chromatography were purchased through Samchun Chemicals (Seoul, Korea) and Duksan Chemicals (Incheon, Korea). 1H- and 13C-NMR spectra were collected with a JEOL JNM-ECZ400S (at 400 MHz for 1H-NMR and 100 MHz for 13C-NMR). In 1H-NMR spectra, chemical shifts were expressed in parts per million (ppm) downfield from tetramethylsilane, and coupling constants were reported in hertz (Hz). Splitting patterns are indicated as follows: s, singlet; d, doublet; t, triplet; m, multiplet. 13C-NMR spectra were reported in ppm, referenced to chloroform-d and DMSO-d6. Melting points (m.p.) were determined on a Barnstead Electrothermal 9100 instrument and were uncorrected. High-resolution mass spectra were obtained with a JEOL JMS-700 mass spectrometer. All chemical reagents were acquired from Acros Organics (Brookline, MA, USA), Aldrich (St. Louis, MO, USA), or TCI (Tokyo, Japan) and were used as received. 1-Methylimidazole and 1-benzylimidazole from Sigma-Aldrich (St. Louis, MO, USA), and 1-phenylimidazole from TCI (Tokyo, Japan) are commercially available.

3.2. Intermediate Synthesis Process for the Synthesis of IMS-10 and IMS-11

1,4-Bis(isoamyloxy)-2-naphthaldehyde (6)
To 5g (0.88 g, 2.68 mmol) in anhydrous dichloromethane (27 mL), celite (1.76 g) and PCC (0.87 g, 4.02 mmol) were added. It was stirred at room temperature until the starting material disappeared. When the completion of the reaction as monitored by TLC, the mixture was filtered through celite, and then washed with water, 1.0 M NaHCO3, and brine. It was dried over Na2SO4, filtered, and concentrated under reduced pressure. The concentrate was purified by column chromatography to give compound 6 as a yellow oil (85%). Rf = 0.71 (5% EtOAc/hexane); 1H-NMR (400 MHz, chloroform-d) δ (ppm): 1.01 (d, J = 6.8 Hz, 12H), 1.80–1.89 (m, 4H), 1.91–1.98 (m, 2H), 4.15 (t, J = 6.8 Hz, 2H), 4.19 (t, J = 6.6 Hz, 2H), 7.11 (s, 1H), 7.58–7.66 (m, 2H), 8.16–8.19 (m, 1H), 8.29–8.31 (m, 1H), 10.56 (s, 1H); 13C-NMR (100 MHz, chloroform-d) δ (ppm): 22.63, 22.69, 25.00, 25.28, 37.90, 39.00, 66.83, 77.66, 98.86, 122.96, 123.06, 124.91, 127.15, 128.74, 128.87, 130.48, 151.56, 156.14, 189.92.
2-(1,4-Bis(isoamyloxy)naphthalen-2-yl)acetaldehyde (7)
(Methoxymethyl)triphenyl-phosphonium chloride (1.54 g, 4.5 mmol) was dissolved in anhydrous THF (5 mL), and potassium tert-butoxide (1.0 M solution in THF, 6 mL, 6.0 mmol) was slowly dropwise at 0 °C. After 1 or 2 h, the solution of 6 (0.99 g, 3.0 mmol) in THF (5 mL) was added dropwise, followed by stirring at 0 °C until the starting material disappeared. The reaction was quenched with water and extracted with ethyl acetate three times. The combined organic layer was washed with brine, dried over Na2SO4, filtered, and then concentrated under reduced pressure. The concentrate was purified by column chromatography to give a yellow oily methoxyvinyl compound as an E/Z mixture (72%). Crude methoxyvinyl compound (0.73 g, 2.1 mmol) was dissolved in THF (14 mL), and then 3.0 M HCl (1.4 mL, 4.3 mmol) was slowly added dropwise. It was stirred at 60 °C until the starting material disappeared. The reaction was quenched with saturated aqueous solutions of NaHCO3 (10.5 mL). After evaporating THF solvent, water was added to the concentrate, followed by extraction with ethyl acetate three times. The combined organic layer was washed with brine, dried over Na2SO4, filtered, and then concentrated under reduced pressure. The concentrate was purified by column chromatography to give compound 7 as a brown oil (73%). Rf = 0.24 (5% EtOAc/hexane); 1H-NMR (400 MHz, chloroform-d) δ (ppm): 0.99–1.02 (m, 12H), 1.77–1.84 (m, 4H), 1.86–1.99 (m, 2H), 3.83 (d, J = 2.4 Hz, 2H), 3.91 (t, J = 6.8 Hz, 2H), 4.12 (t, J = 6.6 Hz, 2H), 6.53 (s, 1H), 7.46–7.56 (m, 2H), 8.00–8.03 (m, 1H), 8.25–8.27 (m, 1H), 9.79 (t, J = 2.4 Hz, 1H); 13C-NMR (100 MHz, chloroform-d) δ (ppm): 22.65, 22.72, 25.03, 25.25, 38.02, 39.08, 45.66, 66.71, 73.34, 106.12, 120.29, 121.76, 122.57, 125.41, 126.38, 126.74, 128.80, 147.04, 151.58, 199.85.
2-(2-Bromoethyl)-1,4-bis(isoamyloxy)naphthalene (8)
Compound 7 (0.53 g, 1.55 mmol) was dissolved in anhydrous MeOH (15 mL) and cooled to 0 °C. After adding NaBH4 (88 mg, 2.32 mmol) slowly, it was stirred at 0 °C until the starting material disappeared. After the reaction was completed, the solution was concentrated under reduced pressure and was poured into water, followed by extraction with ethyl acetate three times. The combined organic layer was washed with brine, dried over Na2SO4, filtered, and then concentrated under reduced pressure. The concentrate was purified by column chromatography to give an ethanol intermediate. Ethanol intermediate (0.18 g, 0.51 mmol), PPh3 (0.16 g, 0.61 mmol), and TBAI (0.23 g, 0.61 mmol) in 1,2-dibromoethane (4.2 mL) were reacted as described in method A in the Supplementary Materials to give a bromo compound 8 as a yellow oil (56%). Rf = 0.64 (20% EtOAc/hexane); 1H-NMR (400 MHz, chloroform-d) δ (ppm): 1.01–1.03 (m, 12H), 1.79–1.86 (m, 4H), 1.90–2.00 (m, 2H), 3.32 (t, J = 8.0 Hz, 2H), 3.65 (t, J = 8.0 Hz, 2H), 3.96 (t, J = 6.8 Hz, 2H), 4.13 (t, J = 6.4 Hz, 2H), 6.60 (s, 1H), 7.43–7.47 (m, 1H), 7.50–7.54 (m, 1H), 7.98–8.00 (m, 1H), 8.22–8.24 (m, 1H); 13C-NMR (100 MHz, chloroform-d) δ (ppm): 22.67, 22.76, 25.08, 25.25, 31.93, 34.72, 38.07, 39.33, 66.68, 73.47, 105.92, 121.82, 122.46, 125.10, 126.06, 126.52, 126.73, 128.88, 146.45, 151.29.
Ethyl 3-(1,4-bis(isoamyloxy)naphthalen-2-yl)acrylate (9)
A suspension of NaH (60% dispersion in oil, 0.11 g, 4.4 mmol) in hexane was stirred for 10 min, and the solvent was syringed out. The oil-free NaH was then suspended in anhydrous THF (2 mL) and cooled in an ice bath. Triethyl phosphonoacetate (0.87 mL, 4.4 mmol) was added dropwise, and the reaction mixture was stirred for 30 min at room temperature. To the reaction mixture, a solution of 6 (0.72 g, 2.2 mmol) in anhydrous THF (3 mL) was added dropwise and it was stirred at room temperature until starting material disappeared. The reaction was then quenched by carefully adding saturated aqueous NH4Cl solution and extracted with ether three times. The combined organic layer was washed with brine, dried over Na2SO4, filtered, and then concentrated under reduced pressure. The concentrate was purified by column chromatography to give compound 9 as a yellow solid (85%). Rf = 0.50 (5% EtOAc/hexane); 1H-NMR (400 MHz, chloroform-d) δ (ppm): 1.02–1.04 (m, 12H), 1.37 (t, J = 7.2 Hz, 3H), 1.81–1.87 (m, 4H), 1.94–2.04 (m, 2H), 3.99 (t, J = 6.8 Hz, 2H), 4.16 (t, J = 6.4 Hz, 2H), 4.30 (q, J = 7.2 Hz, 2H), 6.47 (d, J = 16 Hz, 1H), 6.87 (s, 1H), 7.49–7.57 (m, 2H), 8.07–8.09 (m, 1H), 8.21–8.25 (m, 2H); 13C-NMR (100 MHz, chloroform-d) δ (ppm): 14.35, 22.66, 22.70, 24.95, 25.26, 38.00, 39.15, 60.43, 66.65, 75.16, 100.34, 118.06, 122.58, 122.80, 126.77, 126.98, 128.21, 129.00, 139.49, 149.58, 151.41, 167.19.
3-(1,4-Bis(isoamyloxy)naphthalen-2-yl)propan-1-ol (10)
To a solution of 9 (0.4 g, 1.0 mmol) in anhydrous THF (10 mL), Pd/C (10 wt.% in activated charcoal, 0.1 g, 0.1 mmol) was added. It was stirred at room temperature under atmospheric hydrogen gas until the starting material disappeared. After the reaction was completed, the solvent was evaporated after filtering through a celite. Water was added to the concentrate, followed by extraction with dichloromethane three times. The combined organic layer was washed with brine, dried over Na2SO4, filtered, and then concentrated under reduced pressure. Without further purification, crude compound (0.4 g, 1.0 mmol) in anhydrous THF (10 mL) was reacted with LiAlH4 (1.0 M in THF, 1.5 mL, 1.5 mmol) to give compound 10 as a light-yellow oil (98%). Rf = 0.38 (20% EtOAc/hexane); 1H-NMR (400 MHz, chloroform-d) δ (ppm): 1.00–1.03 (m, 12H), 1.79–2.00 (m, 8H), 2.90 (t, J = 7.0 Hz, 2H), 3.54 (t, J = 5.6 Hz, 2H), 3.97 (t, J = 6.8 Hz, 2H), 4.12 (t, J = 6.4 Hz, 2H), 6.59 (s, 1H), 7.41–7.45 (m, 1H), 7.49–7.53 (m, 1H), 7.97–7.99 (m, 1H), 8.22–8.24 (m, 1H); 13C-NMR (100 MHz, chloroform-d) δ (ppm): 22.68, 22.75, 25.11, 25.26, 25.91, 33.04, 38.10, 39.21, 60.90, 66.60, 73.65, 106.12, 121.63, 122.39, 124.69, 125.62, 126.46, 128.56, 128.95, 145.80, 151.56.
1-(3-(1,4-Bis(isoamyloxy)naphthalen-2-yl)propyl)-1H-imidazole (11)
To a solution of 10 (0.16 g, 0.45 mmol) in anhydrous dichloromethane (4 mL), triethylamine (0.19 mL, 1.34 mmol) was added. After cooling to 0 °C, methane sulfonyl chloride (0.07 mL, 0.9 mmol) was added dropwise, and the mixture was slowly warmed to room temperature and stirred until the starting material disappeared. The reaction was then quenched with saturated aqueous NaHCO3 solution and extracted with dichloromethane three times. The combined organic layer was washed with brine, dried over Na2SO4, filtered and then concentrated under reduced pressure. The concentrate was purified by column chromatography to give a mesylate intermediate. Mesylate (0.29 g, 0.66 mmol) was dissolved in acetonitrile (6 mL), followed by adding imidazole (0.18 g, 2.64 mmol). It was stirred under reflux until the starting material disappeared. After the reaction was completed, the solvent was evaporated, and the concentrate was purified by column chromatography to give compound 11 as a brown oil (63%). Rf = 0.45 (6% MeOH/DCM); 1H-NMR (400 MHz, chloroform-d) δ (ppm): 1.00–1.03 (m, 12H), 1.76–1.84 (m, 4H), 1.87–1.99 (m, 2H), 2.15–2.22 (m, 2H), 2.78 (t, J = 7.4 Hz, 2H), 3.89 (t, J = 7.0 Hz, 2H), 3.96 (t, J = 7.0 Hz, 2H), 4.11 (t, J = 6.4 Hz, 2H), 6.52 (s, 1H), 6.97 (s, 1H), 7.08 (s, 1H), 7.42–7.46 (m, 1H), 7.50–7.55 (m, 2H), 7.98–8.00 (m, 1H), 8.22–8.24 (m, 1H); 13C-NMR (100 MHz, chloroform-d) δ (ppm): 22.65, 22.74, 25.10, 25.23, 27.39, 31.90, 38.08, 39.23, 46.48, 66.66, 73.29, 105.78, 118.91, 121.69, 122.38, 124.88, 125.75, 126.52, 128.06, 128.87, 129.10, 137.10, 146.06, 151.39.

3.3. General Procedure for the Synthesis of IMS Derivatives

Method A: The bromide intermediate was dissolved in the solvent and reacted with various substituted imidazoles. It was refluxed until the starting material disappeared. Upon the completion of the reaction, it was concentrated, and the residue was purified by the recrystallization or column chromatography to give the corresponding IMS derivatives.
Method B: The imidazole-containing naphthalene intermediate was dissolved in the solvent and reacted with various alkyl halides. It was refluxed until the starting material disappeared. When the completion of the reaction, it was concentrated, and the residue was purified by the recrystallization or column chromatography to give the corresponding IMS derivatives.
1-Benzyl-3-((1-methoxynaphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-01)
Compound 12a (80 mg, 0.32 mmol) and 1-benzylimidazole (0.1 g, 0.64 mmol) in acetonitrile (3 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-01 as a yellow oil (34%). Rf = 0.15 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 3.92 (s, 3H), 5.42 (s, 2H), 5.60 (s, 2H), 7.37–7.42 (m, 5H), 7.47–7.50 (m, 1H), 7.57–7.64 (m, 2H), 7.78–7.83 (m, 3H), 7.97–7.99 (m, 1H), 8.07–8.09 (m, 1H), 9.41 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 47.72, 51.97, 62.73, 122.10, 122.76, 122.80, 123.19, 124.77, 126.81, 126.91, 127.11, 127.16, 128.28, 128.76, 129.01, 134.91, 134.94, 136.47, 154.48; HRMS (FAB+) m/z calculated for C22H21N2O [M − Br]+ 329.1648, found 329.1646.
1-Benzyl-3-((1-(isoamyloxy)naphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-02)
Compound 12b (0.16 g, 0.52 mmol) and 1-benzylimidazole (0.1 g, 0.62 mmol) in acetonitrile (3 mL) were reacted according to method A, and the residue was recrystallized from ethyl acetate to give IMS-02 as a white solid (94%). Rf = 0.26 (6% MeOH/DCM); m.p. 158.4–160.3 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.95 (d, J = 6.4 Hz, 6H), 1.77–1.83 (m, 3H), 4.01 (t, J = 6.8 Hz, 2H), 5.43 (s, 2H), 5.61 (s, 2H), 7.37–7.44 (m, 6H), 7.59–7.63 (m, 2H), 7.77–7.79 (m, 2H), 7.84-7.85 (m, 1H), 7.97–8.00 (m, 1H), 8.05–8.07 (m, 1H), 9.34 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.59, 24.59, 38.54, 47.85, 51.96, 73.95, 121.99, 122.69, 122.84, 123.19, 124.68, 126.73, 126.80, 127.13, 127.38, 128.24, 128.75, 128.99, 134.87, 136.35, 153.47; HRMS (FAB+) m/z calculated for C26H29N2O [M − Br]+ 385.2274, found 385.2275.
1-Benzyl-3-((4-methoxynaphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-03)
Compound 12c (0.1 g, 0.4 mmol) and 1-benzylimidazole (76 mg, 0.48 mmol) in acetonitrile (3 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-03 as a clear oil (87%). Rf = 0.17 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 3.96 (s, 3H), 5.47 (s, 2H), 5.58 (s, 2H), 7.08 (s, 1H), 7.37–7.46 (m, 5H), 7.52–7.57 (m, 3H), 7.85–7.88 (m, 2H), 7.94–7.95 (m, 1H), 8.11–8.13 (m, 1H), 9.60 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 51.94, 52.53, 55.93, 104.43, 119.90, 121.46, 122.77, 123.00, 124.63, 126.15, 127.22, 127.72, 128.35, 128.73, 128.96, 132.67, 133.61, 134.95, 136.39, 155.41; HRMS (FAB+) m/z calculated for C22H21N2O [M − Br]+ 329.1648, found 329.1644.
1-Benzyl-3-((4-(isoamyloxy)naphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-04)
Compound 12d (0.1 g, 0.33 mmol) and 1-benzylimidazole (62 mg, 0.39 mmol) in acetonitrile (3 mL) were reacted according to method A, and the crude was purified by recrystallization from ethyl acetate to give IMS-04 as a white solid (98%). Rf = 0.20 (6% MeOH/DCM); m.p. 174.7–175.8 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.97 (d, J = 6.4 Hz, 6H), 1.73–1.78 (m, 2H), 1.86–1.92 (m, 1H), 4.15 (t, J = 6.4 Hz, 2H), 5.44 (s, 2H), 5.54 (s, 2H), 7.04 (s, 1H), 7.36–7.42 (m, 5H), 7.49 (s, 1H), 7.52–7.58 (m, 2H), 7.84–7.85 (m, 2H), 7.91 (s, 1H), 8.11–8.13 (m, 1H), 9.49 (s, 1H); 13C-NMR (100MHz, DMSO-d6) δ (ppm): 22.44, 24.82, 37.31, 52.02, 52.64, 66.43, 104.88, 119.65, 121.49, 122.81, 123.06, 124.79, 126.13, 127.21, 127.67, 128.23, 128.73, 128.96, 132.55, 133.62, 134.86, 136.35, 154.77; HRMS (FAB+) m/z calculated for C26H29N2O [M − Br]+ 385.2274, found 385.2275.
1-Benzyl-3-((1,4-dimethoxynaphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-05)
Compound 12e (0.1 g, 0.36 mmol) and 1-benzylimidazole (0.11 g, 0.72 mmol) in acetonitrile (3 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-05 as a brown oil (70%). Rf = 0.17 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 3.85 (s, 3H), 3.94 (s, 3H), 5.44 (s, 2H), 5.57 (s, 2H), 7.02 (s, 1H), 7.36–7.43 (m, 5H), 7.56–7.66 (m, 2H), 7.83–7.85 (m, 2H), 8.01–8.03 (m, 1H), 8.14–8.17 (m, 1H), 9.50 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 48.01, 51.96, 55.97, 62.74, 105.13, 122.12, 122.16, 122.38, 122.71, 123.19, 126.22, 126.63, 127.35, 127.74, 128.27, 128.78, 129.02, 135.01, 136.40, 147.97, 151.62; HRMS (FAB+) m/z calculated for C23H23N2O2 [M − Br]+ 359.1754, found 359.1749.
1-Benzyl-3-((1,4-diisopropoxynaphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-06)
Compound 12f (0.14 g, 0.42 mmol) and 1-benzylimidazole (79 mg, 0.5 mmol) in acetonitrile (4 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-06 as a yellow oil (62%). Rf = 0.33 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 1.31–1.33 (m, 12H), 4.32–4.37 (m, 1H), 4.63–4.69 (m, 1H), 5.43 (s, 2H), 5.57 (s, 2H), 6.87 (s, 1H), 7.38–7.41 (m, 5H), 7.52–7.62 (m, 2H), 7.77 (t, J = 1.8 Hz, 1H), 7.82 (t, J = 1.8 Hz, 1H), 7.98–8.01 (m, 1H), 8.12–8.14 (m, 1H), 9.37 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 21.78, 22.15, 48.40, 51.92, 70.18, 77.02, 106.69, 122.28, 122.75, 122.99, 123.16, 126.26, 126.89, 127.06, 128.00, 128.20, 128.75, 128.92, 128.98, 135.03, 136.33, 144.71, 149.38; HRMS (FAB+) m/z calculated for C27H31N2O2 [M − Br]+ 415.2380, found 415.2378.
1-Benzyl-3-((1,4-bis(isoamyloxy)naphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-07)
Compound 12g (0.12 g, 0.3 mmol) and 1-benzylimidazole (52 mg, 0.33 mmol) in acetonitrile (3 mL) were reacted according to method A, and the crude was recrystallized from ether to give IMS-07 as a white solid (84%). Rf = 0.21 (6% MeOH/DCM); m.p. 124.7–126.1 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.92–0.98 (m, 12H), 1.72–1.90 (m, 6H), 3.92 (t, J = 6.6 Hz, 2H), 4.10 (t, J = 6.4 Hz, 2H), 5.42 (s, 2H), 5.54 (s, 2H), 6.93 (s, 1H), 7.39 (s, 5H), 7.57–7.66 (m, 2H), 7.80 (s, 1H), 7.83 (s, 1H), 7.98–8.00 (m, 1H), 8.15–8.17 (m, 1H), 9.33 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.44, 22.57, 24.58, 24.82, 37.34, 38.51, 48.12, 51.93, 66.50, 73.87, 105.55, 121.99, 122.09, 122.76, 123.16, 126.35, 126.53, 127.25, 128.01, 128.14, 128.72, 128.94, 134.93, 136.20, 146.80, 150.90; HRMS (FAB+) m/z calculated for C31H39N2O2 [M − Br]+ 471.3006, found 471.3007.
1-Benzyl-3-((1,4-bis(octyloxy)naphthalen-2-yl)methyl)-1H-imidazol-3-ium bromide (IMS-08)
Compound 12h (0.13 g, 0.27 mmol) and 1-benzylimidazole (85 mg, 0.54 mmol) in acetonitrile (3 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-08 as a brown oil (85%). Rf = 0.26 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.83–0.86 (m, 6H), 1.26–1.34 (m, 20H), 1.80–1.86 (m, 4H), 3.88 (t, J = 6.6 Hz, 2H), 4.06 (t, J = 6.2 Hz, 2H), 5.42 (s, 2H), 5.53 (s, 2H), 6.90 (s, 1H), 7.39 (s, 5H), 7.56–7.65 (m, 2H), 7.79 (t, J =1.6 Hz, 1H), 7.83 (t, J = 1.8 Hz, 1H), 7.98–8.00 (m, 1H), 8.15–8.17 (m, 1H), 9.33 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 13.99, 22.11, 25.50, 25.76, 28.60, 28.70, 28.76, 28.94, 29.77, 31.28, 48.10, 51.94, 68.08, 75.30, 105.60, 122.07, 122.25, 122.77, 123.18, 126.36, 126.53, 127.25, 127.89, 128.03, 128.17, 128.73, 128.96, 134.99, 136.24, 146.71, 150.91; HRMS (FAB+) m/z calculated for C37H51N2O2 [M − Br]+ 555.3945, found 555.3947.
1-Benzyl-3-(naphthalen-2-ylmethyl)-1H-imidazol-3-ium bromide (IMS-09)
2-(Bromomethyl)naphthalene (0.22 g, 1.0 mmol) and 1-benzylimidazole (0.19 g, 1.2 mmol) in acetonitrile (3 mL) were reacted according to method A, and the residue was recrystallized from ethyl acetate to give IMS-09 as a white solid (55%). Rf = 0.26 (6% MeOH/DCM); m.p. 169.5–171.3 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 5.46 (s, 2H), 5.63 (s, 2H), 7.38–7.46 (m, 5H), 7.53–7.58 (m, 3H), 7.87–7.88 (m, 1H), 7.91–7.99 (m, 5H), 9.54 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 52.01, 52.21, 122.87, 122.99, 125.74, 126.74, 126.77, 127.67, 127.87, 128.33, 128.74, 128.8, 128.98, 132.14, 132.68, 132.72, 134.79, 136.40; HRMS (FAB+) m/z calculated for C21H19N2 [M – Br]+ 299.1543, found 299.1547.
1-Benzyl-3-(2-(1,4-bis(isoamyloxy)naphthalen-2-yl)ethyl)-1H-imidazol-3-ium bromide (IMS-10)
Compound 8 (0.12 g, 0.3 mmol) and 1-benzylimidazole (0.14 g, 0.9 mmol) in toluene (3 mL) were reacted according to method A, and the residue was recrystallized from ethyl acetate to give IMS-10 as a white solid (75%). Rf = 0.27 (6% MeOH/DCM); m.p. 126.7–128.8 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.92 (d, J = 6.4 Hz, 6H), 0.97 (d, J = 6.4 Hz, 6H), 1.64–1.90 (m, 6H), 3.25 (t, J = 6.4 Hz, 2H), 3.72 (t, J = 6.8 Hz, 2H), 4.07 (t, J = 6.4 Hz, 2H), 4.57 (t, J = 6.6 Hz, 2H), 5.32 (s, 2H), 6.82 (s, 1H), 7.13–7.15 (m, 2H), 7.25–7.33 (m, 3H), 7.49–7.52 (m, 1H), 7.55–7.58 (m, 1H), 7.73 (t, J = 1.6 Hz, 1H), 7.77 (t, J = 1.8 Hz, 1H), 7.85–7.87 (m, 1H), 8.10–8.12 (m, 1H), 9.08 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.52, 22.60, 24.45, 24.87, 30.35, 37.51, 38.65, 49.43, 51.64, 66.34, 72.90, 106.22, 121.63, 121.98, 122.45, 123.15, 124.93, 125.27, 125.39, 126.72, 127.75, 128.07, 128.53, 128.82, 134.75, 136.07, 146.15, 150.60; HRMS (FAB+) m/z calculated for C32H41N2O2 [M − Br]+ 485.3162, found 485.3157.
1-(3-(1,4-Bis(isoamyloxy)naphthalen-2-yl)propyl)-3-methyl-1H-imidazol-3-ium iodide (IMS-11)
Compound 11 (0.1 g, 0.24 mmol) and iodomethane (0.023 mL, 0.37 mmol) in tetrahydrofuran (2 mL) were reacted according to method B. The crude was purified by column chromatography to give IMS-11 as a brown oil (52%). Rf = 0.27 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.95–0.99 (m, 12H), 1.66–1.77 (m, 4H), 1.80–1.94 (m, 2H), 2.16–2.23 (m, 2H), 2.73 (t, J = 7.8 Hz, 2H), 3.79–7.83 (m, 5H), 4.14 (t, J = 6.4 Hz, 2H), 4.20 (t, J = 7.2 Hz, 2H), 6.82 (s, 1H), 7.44–7.48 (m, 1H), 7.53–7.57 (m, 1H), 7.71 (t, J = 1.6 Hz, 1H), 7.81 (t, J = 1.6 Hz, 1H), 7.90–7.92 (m, 1H), 8.08–8.10 (m, 1H), 9.12 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.52, 22.62, 24.57, 24.86, 26.10, 30.17, 35.74, 37.56, 38.72, 48.70, 66.31, 72.78, 106.45, 121.47, 121.86, 122.31, 123.55, 124.87, 125.00, 126.62, 128.21, 128.55, 136.70, 145.20, 150.48; HRMS (FAB+) m/z calculated for C27H39N2O2 [M – I]+ 423.3006, found 423.3004.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-methyl-1H-imidazol-3-ium bromide (IMS-12)
Compound 12g (0.1 g, 0.25 mmol) and 1-methylimidazole (30 mg, 0.37 mmol) in acetonitrile (3 mL) were reacted according to method A, and the residue was purified by column chromatography to give IMS-12 as an opaque oil (61%). Rf = 0.15 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.95–0.98 (m, 12H), 1.72–1.91 (m, 6H), 3.84 (s, 3H), 3.94 (t, J = 6.6 Hz, 2H), 4.14 (t, J = 6.4 Hz, 2H), 5.51 (s, 2H), 7.00 (s, 1H), 7.56–7.65 (m, 2H), 7.72 (t, J = 1.6 Hz, 1H), 7.78 (t, J = 1.8 Hz, 1H), 7.98–8.00 (m, 1H), 8.14–8.17 (m, 1H), 9.13 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.51, 22.63, 24.65, 24.86, 35.88, 37.41, 38.56, 47.84, 66.57, 74.02, 105.80, 122.04, 122.12, 122.39, 122.53, 123.86, 126.37, 126.54, 127.26, 128.01, 136.54, 146.78, 150.91; HRMS (FAB+) m/z calculated for C25H35N2O2 [M – Br]+ 395.2693, found 395.2693.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-isoamyl-1H-imidazol-3-ium bromide (IMS-13)
Compound 12g (0.2 g, 0.5 mmol) and 13b (0.1 g, 0.75 mmol) in acetonitrile (5 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-13 as a brown oil (76%). Rf = 0.32 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.87 (d, J = 6.8 Hz, 6H), 0.94–0.97 (m, 12H), 1.44–1.48 (m, 1H), 1.64–1.90 (m, 8H), 3.93 (t, J = 6.6 Hz, 2H), 4.12 (t, J = 6.4 Hz, 2H), 4.19 (t, J = 7.6 Hz, 2H), 5.52 (s, 2H), 6.94 (s, 1H), 7.56–7.66 (m, 2H), 7.80 (t, J = 1.8 Hz, 1H), 7.84 (t, J = 1.8 Hz, 1H), 7.98–8.00 (m, 1H), 8.15–8.17 (m, 1H), 9.25 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.02, 22.48, 22.63, 24.64, 24.85, 37.38, 38.16, 38.57, 47.34, 47.97, 66.52, 73.91, 105.61, 122.02, 122.12, 122.27, 122.66, 122.81, 126.35, 126.55, 127.28, 128.04, 136.08, 146.78, 150.91; HRMS (FAB+) m/z calculated for C29H43N2O2 [M – Br]+ 415.3319, found 415.3314.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-phenyl-1H-imidazol-3-ium bromide (IMS-14)
Compound 12g (0.15 g, 0.38 mmol) and 1-phenyimidazole (63 mg, 0.44 mmol) in acetonitrile (3.8 mL) were reacted according to method A, and the crude was recrystallized from ethyl acetate to give IMS-14 as a white solid (72%). Rf = 0.18 (6% MeOH/DCM); m.p. 140.3–142.1 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.94–0.97 (m, 12H), 1.71–1.76 (m, 2H), 1.78–1.92 (m, 4H), 3.98 (t, J = 6.6 Hz, 2H), 4.16 (t, J = 6.4 Hz, 2H), 5.62 (s, 2H), 7.03 (s, 1H), 7.56–7.67 (m, 5H), 7.78–7.81 (m, 2H), 7.97 (t, J = 1.8 Hz, 1H), 8.00–8.02 (m, 1H), 8.16–8.18 (m, 1H), 8.35 (t, J = 1.8 Hz, 1H), 9.96 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.49, 22.63, 24.65, 24.84, 37.38, 38.56, 48.35, 66.55, 74.00, 105.74, 121.60, 121.96, 122.05, 122.14, 123.43, 126.43, 126.56, 127.26, 128.01, 129.85, 130.15, 134.71, 135.57, 146.87, 150.92; HRMS (FAB+) m/z calculated for C30H37N2O2 [M − Br]+ 457.2849, found 457.2849.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-(4-nitrobenzyl)-1H-imidazol-3-ium bromide (IMS-15)
Compound 12g (0.2 g, 0.51 mmol) and 13d (0.12 g, 0.61 mmol) in acetonitrile (1.02 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-15 as a yellow oil (82%). Rf = 0.23 (6% MeOH/DCM); 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.91–0.96 (m, 12H), 1.70–1.91 (m, 6H), 3.92 (t, J = 6.6 Hz, 2H), 4.11 (t, J = 6.4 Hz, 2H), 5.57 (s, 2H), 5.64 (s, 2H), 6.99 (s, 1H), 7.56–7.65 (m, 2H), 7.68–7.70 (m, 2H), 7.87–7.88 (m, 1H), 7.91–7.92 (m, 1H), 7.98–8.00 (m, 1H), 8.15–8.17 (m, 1H), 8.24–8.26 (m, 2H), 9.45 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.47, 22.60, 24.62, 24.86, 37.39, 38.54, 48.17, 51.02, 66.57, 73.96, 105.67, 122.04, 122.14, 122.18, 122.94, 123.35, 123.98, 126.38, 126.57, 127.29, 128.03, 129.53, 136.71, 142.29, 146.83, 147.55, 150.94; HRMS (FAB+) m/z calculated for C31H38N3O4 [M − Br]+ 516.2857, found 516.2858.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-(4-methoxybenzyl)-1H-imidazol-3-ium bromide (IMS-16)
Compound 12g (0.2 g, 0.51 mmol) and 13e (0.11 g, 0.61 mmol) in acetonitrile (2.04 mL) were reacted according to method A, and the crude was purified by column chromatography to give IMS-16 as a brown solid (79%). Rf = 0.23 (6% MeOH/DCM); m.p. 105.4–106.8 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.92–0.97 (m, 12H), 1.71–1.90 (m, 6H), 3.73 (s, 3H), 3.90 (t, J = 6.6 Hz, 2H), 4.09 (t, J = 6.4 Hz, 2H), 5.32 (s, 2H), 5.51 (s, 2H), 6.91 (s, 1H), 6.93–6.96 (m, 2H), 7.37–7.39 (m, 2H), 7.56–7.66 (m, 2H), 7.76–7.77 (m, 1H), 7.79–7.80 (m, 1H), 7.98–7.99 (m, 1H), 8.14–8.17 (m, 1H), 9.28 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.51, 22.63, 24.65, 24.88, 37.40, 38.56, 48.11, 51.56, 55.24, 66.55, 73.93, 105.61, 114.34, 122.05, 122.16, 122.30, 122.59, 123.10, 126.38, 126.60, 126.83, 127.33, 128.05, 130.09, 135.94, 146.81, 150.95, 159.60; HRMS (FAB+) m/z calculated for C32H41N2O3 [M − Br]+ 501.3112, found 501.3112.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-isoamyl-2-methyl-1H-imidazol-3-ium bromide (IMS-17)
Compound 12g (0.1 g, 0.25 mmol) and 14a (58 mg, 0.38 mmol) in acetonitrile (3 mL) were reacted according to method A, and the crude was recrystallized from ether and hexane to give IMS-17 as a brown solid (86%). Rf = 0.12 (6% MeOH/DCM); m.p. 115.3–117.4 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.90 (d, J = 6.4 Hz, 6H), 0.95–0.98 (m, 12H), 1.53–1.63 (m, 3H), 1.69–1.74 (m, 2H), 1.78–1.91 (m, 4H), 2.68 (s, 3H), 3.96 (t, J = 6.8 Hz, 2H), 4.08–4.14 (m, 4H), 5.49 (s, 2H), 6.79 (s, 1H), 7.55–7.66 (m, 2H), 7.73–7.74 (m, 2H), 7.98–8.00 (m, 1H), 8.13–8.15 (m, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 9.52, 22.10, 22.47, 22.63, 24.65, 24.81, 25.03, 37.32, 37.72, 38.57, 46.14, 46.52, 66.47, 74.01, 104.90, 121.39, 121.68, 121.96, 122.09, 122.20, 126.19, 126.49, 127.33, 127.98, 144.09, 146.29, 150.93; HRMS (FAB+) m/z calculated for C30H45N2O2 [M − Br]+ 465.3475, found 465.3472.
1-Benzyl-3-((1,4-bis(isoamyloxy)naphthalen-2-yl)methyl)-2-methyl-1H-imidazol-3-ium bromide (IMS-18)
Compound 12g (0.2 g, 0.5 mmol) and 14b (0.18 g, 1.02 mmol) in acetonitrile (5 mL) were reacted according to method A, and the crude was recrystallized from ether to give IMS-18 as a white solid (93%). Rf = 0.13 (6% MeOH/DCM); m.p. 218.1–219.6 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.94–0.96 (m, 12H), 1.69–1.89 (m, 6H), 2.69 (s, 3H), 3.94 (t, J = 6.6 Hz, 2H), 4.07 (t, J = 6.4 Hz, 2H), 5.43 (s, 2H), 5.51 (s, 2H), 6.77 (s, 1H), 7.32–7.42 (m, 5H), 7.56–7.65 (m, 2H), 7.74 (d, J = 2.0 Hz, 1H), 7.79 (d, J = 2.0 Hz, 1H), 7.98–8.00 (m, 1H), 8.13–8.15 (m, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 9.88, 22.50, 22.65, 24.65, 24.83, 37.34, 38.57, 46.75, 50.73, 66.48, 74.02, 104.87, 121.89, 121.99, 122.11, 126.22, 126.55, 127.38, 127.81, 128.01, 128.58, 129.05, 134.53, 144.56, 146.37, 150.98; HRMS (FAB+) m/z calculated for C32H41N2O2 [M − Br]+ 485.3162, found 485.3163.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-2-(hydroxymethyl)-1-isoamyl-1H-imidazol-3-ium bromide (IMS-19)
Compound 12g (0.1 g, 0.25 mmol) and 14e (64 mg, 0.38 mmol) in acetonitrile (3 mL) were reacted according to method A and the crude was recrystallized from ether and hexane to give IMS-19 as a light brown solid (83%). Rf = 0.36 (6% MeOH/DCM); m.p. 127.6–129.2 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.90–0.97 (m, 18H), 1.55–1.62 (m, 1H), 1.66–1.73 (m, 4H), 1.78–1.90 (m, 4H), 3.98 (t, J = 6.8 Hz, 2H), 4.08 (t, J = 6.4 Hz, 2H), 4.25 (t, J = 7.8 Hz, 2H), 4.93 (d, J = 3.69 Hz, 2H), 5.61 (s, 2H), 6.19 (s, 1H), 6.82 (s, 1H), 7.55–7.66 (m, 2H), 7.73 (d, J = 2.0 Hz, 1H), 7.84 (d, J = 2.0 Hz, 1H), 8.00–8.02 (m, 1H), 8.13–8.15 (m, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.13, 22.45, 22.63, 24.62, 24.81, 25.15, 37.29, 38.44, 38.57, 46.52, 50.46, 66.46, 74.04, 104.88, 121.99, 122.07, 122.14, 122.33, 126.19, 126.47, 127.28, 127.98, 144.92, 146.30, 150.88; HRMS (FAB+) m/z calculated for C30H45N2O3 [M − Br]+ 481.3425, found 481.3420.
1-Benzyl-3-((1,4-bis(isoamyloxy)naphthalen-2-yl)methyl)-2-(hydroxymethyl)-1H-imidazol-3-ium bromide (IMS-20)
Compound 12g (0.1 g, 0.25 mmol) and 14f (72 mg, 0.38 mmol) in acetonitrile (2.5 mL) were reacted according to method A, and the crude was recrystallized from ethyl acetate to give IMS-20 as a white solid (37%). Rf = 0.28 (6% MeOH/DCM); m.p. 128.4–130.3 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.94–0.96 (m, 12H), 1.68–1.73 (m, 2H), 1.76–1.89 (m, 4H), 3.97 (t, J = 6.8 Hz, 2H), 4.05 (t, J = 6.2 Hz, 2H), 4.99 (d, J = 4.8 Hz, 2H), 5.53 (s, 2H), 5.63 (s, 2H), 6.28 (t, J = 5.2 Hz, 1H), 6.79 (s, 1H), 7.36–7.41 (m, 5H), 7.55–7.66 (m, 2H), 7.71 (d, J = 2.0 Hz, 1H), 7.77 (d, J = 2.0 Hz, 1H), 7.99–8.01 (m, 1H), 8.13–8.15 (m, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.46, 22.63, 24.61, 24.80, 37.29, 38.56, 46.71, 50.66, 50.88, 66.42, 74.02, 104.83, 122.00, 122.08, 122.20, 122.52, 126.21, 126.50, 127.31, 128.06, 128.60, 128.91, 134.66, 145.27, 146.36, 150.90; HRMS (FAB+) m/z calculated for C32H41N2O3 [M − Br]+ 501.3112, found 501.3110.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-methyl-1H-benzo[d]imidazol-3-ium bromide (IMS-21)
Compound 12g (0.1 g, 0.25 mmol) and 15a (34 mg, 0.25 mmol) in acetonitrile (2.5 mL) were reacted according to method A, and the crude was recrystallized from ethyl acetate to give IMS-21 as a white solid (82%). Rf = 0.48 (10% MeOH/DCM); m.p. 175.8–177.6 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.91–0.95 (m, 12H), 1.68–1.73 (m, 2H), 1.76–1.88 (m, 4H), 4.00 (t, J = 6.6 Hz, 2H), 4.08 (s, 3H), 4.12 (t, J = 6.4 Hz, 2H), 5.82 (s, 2H), 7.05 (s, 1H), 7.56–7.70 (m, 4H), 8.02–8.06 (m, 3H), 8.14–8.16 (m, 1H), 9.73 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.46, 22.58, 24.62, 24.80, 33.36, 37.33, 38.52, 45.67, 66.54, 74.26, 105.72, 113.45, 113.76, 121.40, 122.09, 126.44, 126.61, 126.67, 127.30, 128.02, 131.01, 131.93, 142.65, 146.82, 150.95; HRMS (FAB+) m/z calculated for C29H37N2O2 [M – Br]+ 445.2849, found 445.2844.
3-((1,4-Bis(isoamyloxy)naphthalen-2-yl)methyl)-1-isoamyl-1H-benzo[d]14midazole-3-ium bromide (IMS-22)
Compound 12g (0.1 g, 0.25 mmol) and 15b (49 mg, 0.25 mmol) in acetonitrile (2.5 mL) were reacted according to method A, and the crude was recrystallized from ethyl acetate to give IMS-22 as a white solid (65%). Rf = 0.24 (6% MeOH/DCM); m.p. 229.9–231.7 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.90–0.94 (m, 18H), 1.56–1.60 (m, 1H), 1.68–0.87 (m, 8H), 4.00 (t, J = 6.6 Hz, 2H), 4.10 (t, J = 6.4 Hz, 2H), 4.52 (t, J = 7.6 Hz, 2H), 5.82 (s, 2H), 7.04 (s, 1H), 7.56–7.69 (m, 4H), 8.00–8.05 (m, 2H), 8.09–8.12 (m, 1H), 8.14–8.16 (m, 1H), 9.87 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.09, 22.43, 22.56, 24.61, 24.80, 24.99, 37.22, 37.31, 38.54, 45.21, 45.85, 66.54, 74.19, 105.52, 113.66, 113.89, 121.36, 122.07, 122.12, 126.42, 126.62, 126.74, 127.34, 128.04, 131.10, 131.21, 142.12, 146.81, 150.97; HRMS (FAB+) m/z calculated for C33H45N2O2 [M − Br]+ 501.3475, found 501.3470.
1-Benzyl-3-((1,4-bis(isoamyloxy)naphthalen-2-yl)methyl)-1H-benzo[d]imidazol-3-ium bromide (IMS-23)
Compound 12g (0.1 g, 0.25 mmol) and 15c (53 mg, 0.25 mmol) in acetonitrile (2.5 mL) were reacted according to method A, and the crude was recrystallized from hexane to give IMS-23 as a white solid (73%). Rf = 0.31 (10% MeOH/DCM); m.p. 159.5–160.7 °C; 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 0.88 (d, J = 6.0 Hz, 6H), 0.94 (d, J = 6.4 Hz, 6H), 1.69–1.89 (m, 6H), 4.00 (t, J = 6.6 Hz, 2H), 4.10 (t, J = 6.4 Hz, 2H), 5.78 (s, 2H), 5.85 (s, 2H), 7.05 (s, 1H), 7.35–7.41 (m, 3H), 7.47–7.49 (m, 2H), 7.57–7.68 (m, 4H), 7.96–7.98 (m, 1H), 8.01–8.06 (m, 2H), 8.15–8.17 (m, 1H), 9.95 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 22.44, 22.54, 24.57, 24.81, 37.32, 38.50, 46.05, 49.84, 66.53, 74.19, 105.55, 113.81, 114.03, 121.30, 122.07, 122.13, 126.44, 126.65, 126.85, 127.35, 128.07, 128.71, 128.92, 130.91, 131.42, 134.12, 142.42, 146.90, 150.99; HRMS (FAB+) m/z calculated for C35H41N2O2 [M − Br]+ 521.3162, found 521.3160.

3.4. Cell Culture and Viability Assay

3.4.1. Cell Culture

The human colon adenocarcinoma colorectal (HT-29) and human liver carcinoma hepatocellular (HepG2) [Korean cell line bank (KCLB), Korea] cell lines were cultured in Dulbecco’s modified Eagle’s medium (DMEM) containing 10% fetal bovine serum (FBS) and 1% penicillin/streptomycin. The CCD-18Co human colon normal cell line [Korean cell line bank (KCLB), Korea] was cultured in minimum essential medium (MEM) containing 10% fetal bovine serum (FBS) and 1% penicillin/streptomycin. The cells were incubated under a humidified atmosphere of 95% and 5% CO2 at 37 °C. The cells were serially sub-cultured three times per week.

3.4.2. Cell Viability Assay

The HT-29 and HepG2 cells were seeded in 96-well plates at a density of 1.5 × 105 cells/well, and CCD-18Co cells with a passage between 7 and 12 were seeded in 96-well plates at a density of 1 × 104 cells/well, followed by incubation for 24 h. Five concentrations of IMS-01 to IMS-23 (0.5–10 μM) in serum-free medium were added, and the cells were further incubated for 24 h. After incubation, cells were treated with WST (water-soluble tetrazolium salt, Catalog no. EZ-3000, DoGenBio, Korea) in each well and incubated for 30 min at room temperature while avoiding light. The absorbance was determined by the optical density at 450 nm, measured using a LUX Multimode microplate reader (Thermo scientific, Waltham, MA, USA).

3.4.3. Statistical Analysis

All experiments were performed at least three times, and each dataset is presented as the average of three replicates (mean ± standard deviation).

4. Conclusions

In this study, novel 1,4-dialkoxynaphthanelen-2-alkyl imidazolium salts (IMS) were synthesized in a manner that addressed the synthesis problems of previous studies. To evaluate the potential of the IMSs as anticancer agent, various derivatives were synthesized with modification of naphthalene rings with various alkoxy groups, the alkyl connector between the naphthalene and imidazole rings, and the imidazole ring with various substituents, and the toxicity of these compounds were evaluated using HepG2, HT-29, and CCD-18Co cells.
Cytotoxic activity was not observed when an alkoxy group was absent, short, or too long. In addition, cytotoxicity was only shown when the alkoxy group was an isoamyloxy group located at both positions 1 and 4 of the naphthalene ring. There was no significant difference in the activity of the compounds with the number of carbons in the alkyl connectors; however, considering its ease of synthesis, IMS-07, with a one-carbon alkyl group, was proposed to be the best. In the case of derivatives with substituents attached at various positions on the imidazole ring, all showed good activity without significant differences.
We expected differences in cytotoxic outcomes between cancer cells (HepG2 and HT-29) and normal cells (CCD-18Co). Unfortunately, as shown in our results, we could not identify a difference in the activity of IMS compounds according to cell characteristics. However, the difference in cytotoxicity as a function of the structure of the IMS compound was clearly confirmed. In a further study, we will investigate the exact mode of action (MOA) of how our compound is active in cancer cells and the differences in activity between each cell type. Furthermore, the synthesis of new IMS compounds showing better activity must be carried out on the basis of the identified MOA.

Supplementary Materials

The supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms24032713/s1. References [24,25,26,27] are cited in supplementary materials.

Author Contributions

Conceptualization, T.H.L. and H.K.; methodology, H.K., T.H.L., and Y.J.; validation, T.H.L. and H.K.; formal analysis, T.H.L. and H.K.; investigation, H.L., H.M., and Y.J.; resources, H.L., Y.J., T.H.L., E.H.L., and H.K.; data curation, T.H.L. and H.K.; writing—original draft preparation, H.L. and Y.J.; writing—review and editing, T.H.L., H.K., H.L., and Y.J.; supervision, T.H.L. and H.K.; project administration, T.H.L. and H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the GRRC Program of Gyeonggi province (GRRC-KyungHee 2017(B01)), Republic of Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  2. Sherr, C.J. Cancer Cell Cycles. Science 1996, 274, 1672–1677. [Google Scholar] [CrossRef]
  3. Pardee, A.B. G1 Events and Regulation of Cell Proliferation. Science 1989, 246, 603–608. [Google Scholar] [CrossRef]
  4. Bacac, M.; Stamenkovic, I. Metastatic Cancer Cell. Annu. Rev. Pathol. Mech. Dis. 2008, 3, 221–247. [Google Scholar] [CrossRef]
  5. Arzumanian, V.A. The Curious Case of the HepG2 Cell Line: 40 Years of Expertise. Int. J. Mol. Sci. 2021, 22, 13135. [Google Scholar] [CrossRef]
  6. Ahmed, D.; Eide, P.E.; Eilertsen, I.A.; Danielsen, S.A.; Eknaes, M.; Hektoen, M.; Lind, G.E. Epigenetic and genetic features of 24 colon cancer cell lines. Oncogenesis 2013, 2, e71. [Google Scholar] [CrossRef]
  7. Ramos, S.; Alía, M.; Bravo, L.; Luis, G. Comparative Effects of Food-Derived Polyphenols on the Viability and Apoptosis of a Human Hepatoma Cell Line (HepG2). J. Agric. Food Chem. 2005, 53, 1271–1280. [Google Scholar] [CrossRef]
  8. Feng, Q.; Torii, Y.; Uchida, K.; Nakamura, Y.; Hara, Y.; Osawa, T. Black Tea Polyphenols, Theaflavins, Prevent Cellular DNA Damage by Inhibiting Oxidative Stress and Suppressing Cytochrome P450 1A1 in Cell Cultures. J. Agric. Food Chem. 2002, 50, 213–220. [Google Scholar] [CrossRef]
  9. Kan, W.L.T.; Cho, C.H.; Rudd, J.A.; Lin, G. Study of the anti-proliferative effects and synergy of phthalides from Angelica sinensis on colon cancer cells. J. Ethnopharmacol. 2008, 120, 36–48. [Google Scholar] [CrossRef]
  10. Urruticoechea, A.; Alemany, R.; Balart, J.; Villanueva, A.; Viñals, F.; Capellá, G. Recent advances in cancer therapy: An overview. Curr. Pharm. Des. 2010, 16, 3–10. [Google Scholar] [CrossRef]
  11. Baudino, T.A. Targeted Cancer Therapy: The Next Generation of Cancer Treatment. Curr. Drug Discov. Technol. 2015, 12, 3–20. [Google Scholar] [CrossRef] [PubMed]
  12. Verma, A.; Joshi, S.; Singh, D. Imidazole: Having Versatile Biological Activities. J. Chem. 2013, 2013, 329412. [Google Scholar] [CrossRef]
  13. Shalin, K.; Sharma, P.K.; Kumar, N. Imidazole and its biological activities: A review. Der Chem. Sin. 2010, 1, 36–47. [Google Scholar]
  14. Sharma, P.; LaRosa, C.; Antwi, J.; Govindarajan, R.; Werbovetz, K.A. Imidazoles as Potential Anticancer Agents: An Update on Recent Studies. Molucules 2021, 26, 4213. [Google Scholar] [CrossRef] [PubMed]
  15. Ali, I.; Lone, M.N.; Aboul-Eneinb, H.Y. Imidazoles as potential anticancer agents. Med. Chem. Commun. 2017, 8, 1742–1773. [Google Scholar] [CrossRef] [PubMed]
  16. Samsuzzaman, M.; Lee, J.H.; Moon, H.; Lee, J.; Lee, H.; Lim, Y.; Park, M.G.; Kim, H.; Kim, S.Y. Identification of a potent NAFLD drug candidate for controlling T2DM-mediated inflammation and secondary damage in vitro and in vivo. Front. Pharmacol. 2022, 13, 943879. [Google Scholar] [CrossRef]
  17. Lee, J.; Kim, J.-G.; Lee, H.; Lee, T.H.; Kim, K.-y.; Kim, H. Antifungal Activity of 1,4-Dialkoxynaphthalen-2-Acyl Imidazolium Salts by Inducing Apoptosis of Pathogenic Candida spp. Pharmaceutics 2021, 13, 312. [Google Scholar] [CrossRef]
  18. Jiménez-Moreno, E.; Gómez, A.M.; Bastida, A.; Corzana, F.; Jiménez-Oses, G.; Jiménez-Barbero, J.; Asensio, J.L. Modulating Weak Interactions for Molecular Recognition: A Dynamic Combinatorial Analysis for Assessing the Contribution of Electrostatics to the Stability of CH–π Bonds in Water. Angew. Chem. Int. Ed. 2015, 54, 4344–4348. [Google Scholar] [CrossRef]
  19. Zheng, J.; Meng, S.; Wang, Q. Cascade intramolecular Prins/Friedel–Crafts cyclization for the synthesis of 4-aryltetralin-2-ols and 5-aryltetrahydro-5H-benzo [7]annulen-7-ols. Beilstein J. Org. Chem. 2021, 17, 1481–1489. [Google Scholar] [CrossRef] [PubMed]
  20. Chen, J.; Lin, J.-H.; Xiao, J.-C. Halogenation through Deoxygenation of Alcohols and Aldehydes. Org. Lett. 2018, 20, 3061–3064. [Google Scholar] [CrossRef]
  21. Srikrishna, A.; Satyanarayana, G.; Desai, U.V. Efficient Approach to 4-Benzyl-5,5-dimethyldihydrofuranones: Total Synthesis of (±_bold;)-Solafuranone. Synth. Commun. 2007, 37, 965–976. [Google Scholar] [CrossRef]
  22. Duveau, D.Y.; Arce, P.M.; Schoenfeld, R.A.; Raghav, N.; Cortopassi, G.A.; Hecht, S.M. Synthesis and characterization of mitoQ and idebenone analogues as mediators of oxygen consumption in mitochondria. Bioorg. Med. Chem. 2010, 18, 6429–6441. [Google Scholar] [CrossRef] [PubMed]
  23. Berben, L.A.; Craig, D.C.; Gimbert-Suriñach, C.; Robinson, A.; Sugiyarto, K.H.; Colbran, S.B. Palladium(II) complexes of imidazolin-2-ylidene N-heterocyclic carbene ligands with redox-active dimethoxyphenyl or (hydro)quinonyl substituents. Inorg. Chim. Acta 2011, 370, 374–381. [Google Scholar] [CrossRef]
  24. Helmbrecht, S.L.; Schlüter, J.; Blazejak, M.; Hintermann, L. Axially Chiral 1,1’-Binaphthyl-2-Carboxylic Acid (BINA-Cox) as Ligands for Titanium-Catalyzed Asymmetric Hydroalkoxylation. Eur. J. Organ. Chem. 2020, 14, 2062–2076. [Google Scholar] [CrossRef]
  25. Wang, Y.; Mowla, R.; Ji, S.; Guo, L.; De Barros Lopes, M.A.; Jin, C.; Song, D.; Ma, S.; Venter, H. Design, synthesis and biological activity evaluation of novel 4-subtituted 2-naphthamide derivatives as AcrB inhibitors. Eur. J. Med. Chem. 2018, 143, 699–709. [Google Scholar] [CrossRef]
  26. Haque, R.A.; Iqbal, M.A.; Khadeer Ahamed, M.B.; Majid, A.A.; Abdul Hameed, Z.A. Design, synthesis and structural studies of meta-xylyl linked bis-benzimidazolium salts: Potential anticancer agents against ‘human colon cancer’. Chem. Centr. J. 2012, 6, 68. [Google Scholar] [CrossRef] [PubMed]
  27. Zhao, S.-Y.; Zhang, H.-Q.; Zhang, D.-Q.; Shao, Z.-Y. N-Methylation of NH-Containing Heterocycles with Dimethyl Carbonate Catalyzed by TMEDA. Synth. Commun. 2012, 42, 128–135. [Google Scholar] [CrossRef]
Ijms 24 02713 g001 550

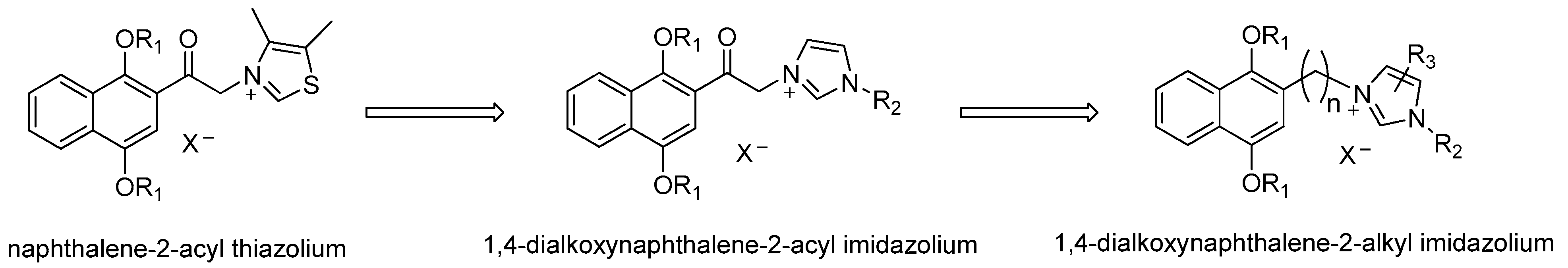

Figure 1. Design of new 1,4-dialkoxynaphthalene-2-alkyl imidazolium salt (IMS).
Figure 1. Design of new 1,4-dialkoxynaphthalene-2-alkyl imidazolium salt (IMS).
Ijms 24 02713 g001
Ijms 24 02713 g002 550

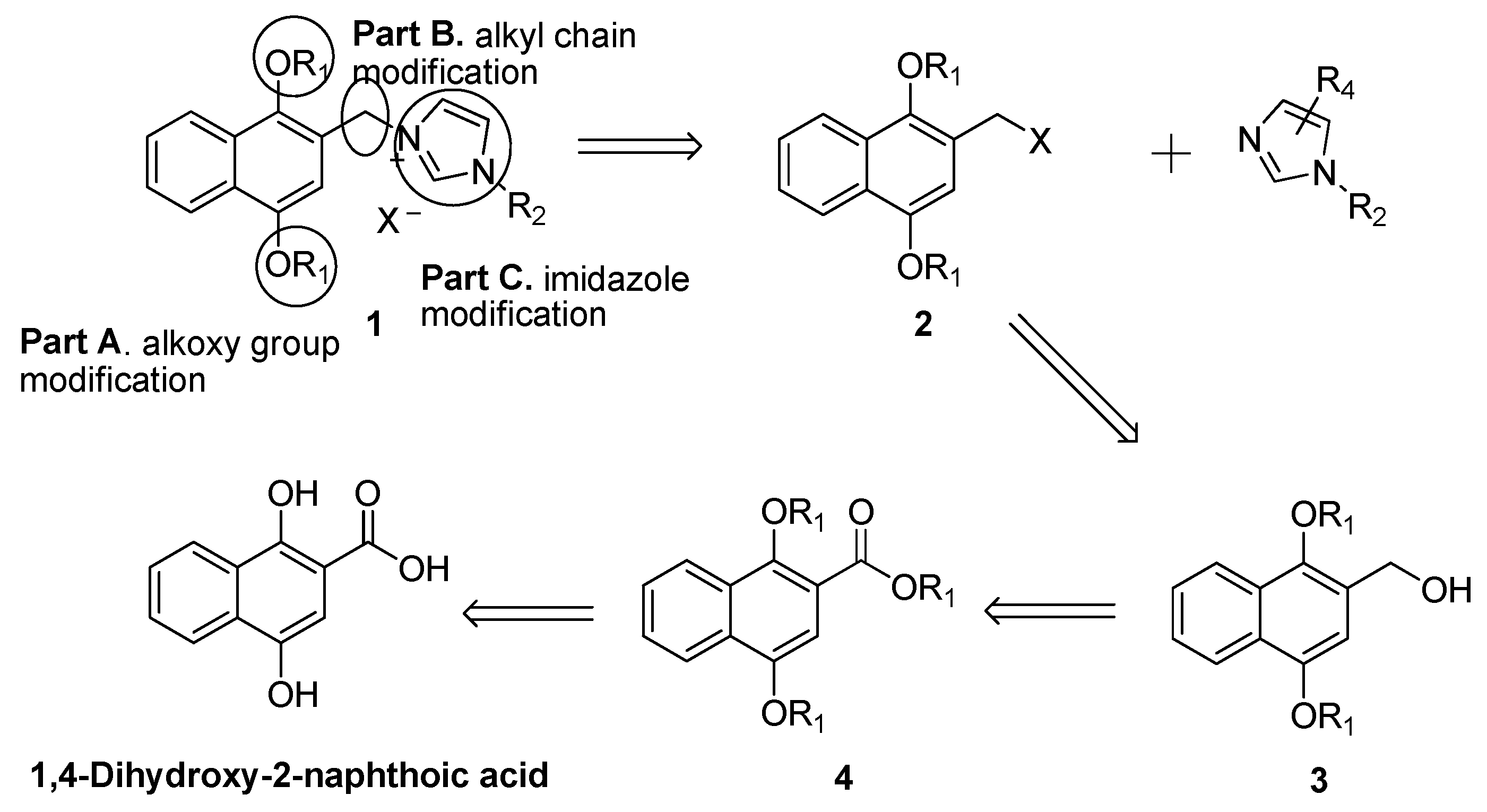

Figure 2. Retrosynthesis of 1,4-dialkoxylnaphthalene-2-alkyl imidazolium salt (IMS).
Figure 2. Retrosynthesis of 1,4-dialkoxylnaphthalene-2-alkyl imidazolium salt (IMS).
Ijms 24 02713 g002
Ijms 24 02713 g003 550

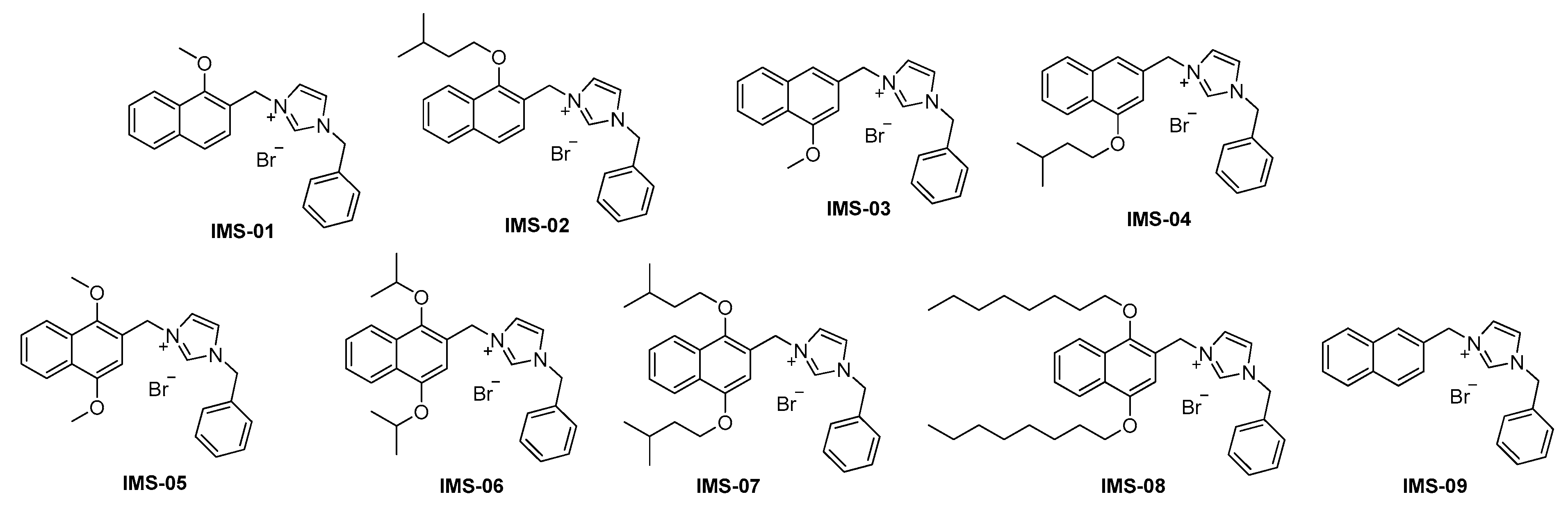

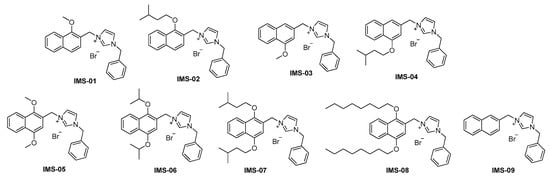

Figure 3. Structures of newly synthesized IMS-01 to IMS-09.
Figure 3. Structures of newly synthesized IMS-01 to IMS-09.
Ijms 24 02713 g003
Ijms 24 02713 sch001 550

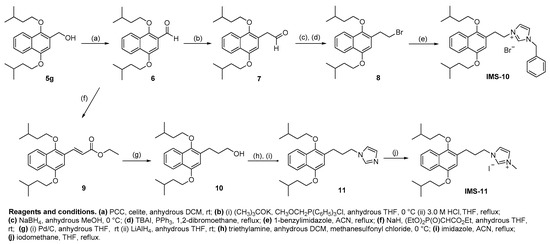

Scheme 1. Synthesis of IMS-10 and IMS-11.
Scheme 1. Synthesis of IMS-10 and IMS-11.
Ijms 24 02713 sch001
Ijms 24 02713 sch002 550

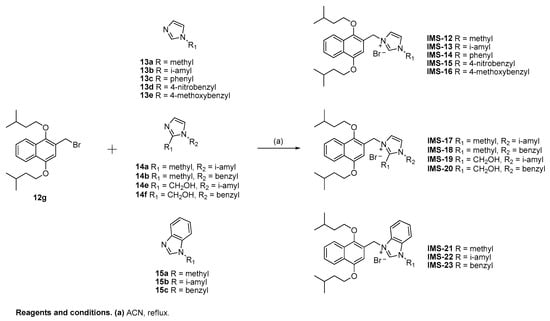

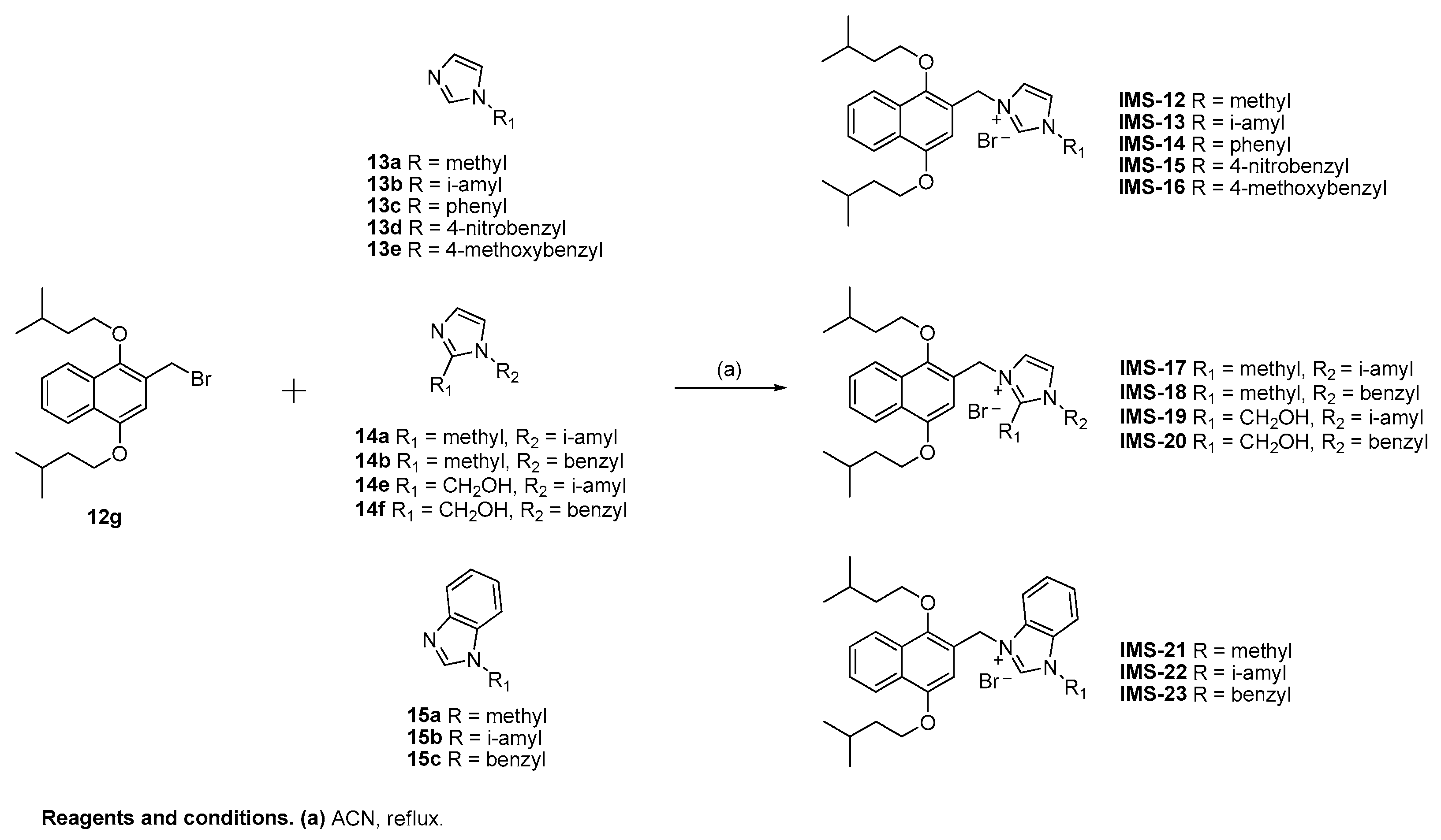

Scheme 2. Synthesis of IMS-12 to IMS-23.
Scheme 2. Synthesis of IMS-12 to IMS-23.
Ijms 24 02713 sch002
Table
Table 1. Lethal dose 50 (LD50) values (μM) of IMS-01 to IMS-23 against HepG2, HT-29, and CCD-18Co cells.
Table 1. Lethal dose 50 (LD50) values (μM) of IMS-01 to IMS-23 against HepG2, HT-29, and CCD-18Co cells.
CompoundHepG2HT-29CCD-18Co
1IMS-01N.D.N.D.N.D.
2IMS-02N.D.N.D.N.D.
3IMS-03N.D.N.D.N.D.
4IMS-04N.D.N.D.N.D.
5IMS-05N.D.N.D.N.D.
6IMS-06N.D.N.D.N.D.
7IMS-077.44 ± 0.959.64 ± 0.084.13 ± 0.05
8IMS-08N.D.N.D.N.D.
9IMS-09N.D.N.D.N.D.
10IMS-106.20 ± 0.407.36 ± 0.033.58 ± 0.00
11IMS-118.33 ± 0.078.20 ± 0.055.60 ± 0.11
12IMS-129.38 ± 0.096.50 ± 0.124.39 ± 0.03
13IMS-139.6 ± 0.168.33 ± 0.075.42 ± 0.12
14IMS-148.06 ± 0.186.09 ± 0.693.56 ± 0.02
15IMS-157.12 ± 0.079.75 ± 0.089.63 ± 0.09
16IMS-167.95 ± 0.148.02 ± 0.426.69 ± 0.05
17IMS-177.17 ± 0.166.64 ± 0.033.64 ± 0.05
18IMS-187.64 ± 0.028.10 ± 0.093.00 ± 0.06
19IMS-197.91 ± 0.147.81 ± 0.043.63 ± 0.03
20IMS-207.56 ± 0.017.78 ± 0.013.49 ± 0.07
21IMS-218.4 ± 0.118.75 ± 0.343.57 ± 0.08
22IMS-228.11 ± 0.026.86 ± 0.053.45 ± 0.09
23IMS-239.51 ± 0.427.41 ± 0.013.34 ± 0.10
N.D.: not determined.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lee, H.; Jeon, Y.; Moon, H.; Lee, E.H.; Lee, T.H.; Kim, H. Synthesis of 1,4-Dialkoxynaphthalene-Based Imidazolium Salts and Their Cytotoxicity in Cancer Cell Lines. Int. J. Mol. Sci. 2023, 24, 2713. https://doi.org/10.3390/ijms24032713

AMA Style

Lee H, Jeon Y, Moon H, Lee EH, Lee TH, Kim H. Synthesis of 1,4-Dialkoxynaphthalene-Based Imidazolium Salts and Their Cytotoxicity in Cancer Cell Lines. International Journal of Molecular Sciences. 2023; 24(3):2713. https://doi.org/10.3390/ijms24032713

Chicago/Turabian Style

Lee, Haena, Yejin Jeon, Hyejin Moon, Eunjoo H. Lee, Tae Hoon Lee, and Hakwon Kim. 2023. "Synthesis of 1,4-Dialkoxynaphthalene-Based Imidazolium Salts and Their Cytotoxicity in Cancer Cell Lines" International Journal of Molecular Sciences 24, no. 3: 2713. https://doi.org/10.3390/ijms24032713

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
