Sorption of Salts of Various Metals by Polyelectrolyte Microcapsules

by
Aleksandr L. Kim
,
Alexey V. Dubrovskii
,
Egor V. Musin
and
Sergey A. Tikhonenko
*
Institute of Theoretical and Experimental Biophysics Russian Academy of Science, Institutskaya St., 3, 142290 Puschino, Moscow Region, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(3), 2834; https://doi.org/10.3390/ijms24032834
Submission received: 19 January 2023 / Accepted: 29 January 2023 / Published: 1 February 2023
(This article belongs to the Collection State-of-the-Art Macromolecules in Russia)
Browse Figures
Versions Notes

Abstract

:
Anthropogenic activity negatively affects the environment by polluting it with the salts of various metals. One of the ways to reduce this influence is to use water purification methods for the salts of various metals. Water purification methods based on nanomaterials are promising. In this regard, we proposed to study polyelectrolyte microcapsules (PMC) as a promising sorption agent for the salts of various metals. It was found that the polystyrene sulfonate-polyallylamine (PSS-PAH) polyelectrolyte complex and polyelectrolyte microcapsules of different compositions are not able to adsorb salts CuSO4, Pb(NO)3, FeCl3, and CuCl2. At the same time, it was found that all types of capsules, except for (PSS/PAH)2/PSS, are capable of sorbing about 420 µg of K3[Fe(CN)6] and about 500 µg of K4[Fe(CN)6] from solution. The adsorption of polyelectrolyte microcapsules has an electrostatic nature which is confirmed by increases in the sorption capacity of PMC of K3[Fe(CN)6] and K4[Fe(CN)6] with decreases in the pH of the solution. Also, It was confirmed that the sorption process of PMC of K3[Fe(CN)6] and K4[Fe(CN)6] is concentration dependent and has the limitation of the number of binding sites.

1. Introduction

The sharp growth in urbanization and industrialization has led to the excessive use of water resources, e.g., rivers, lakes, etc. In particular, such activities lead to water pollution and deterioration of the sanitary state of the environment [1]. One of these pollutants is the compounds of inorganic salts, the presence of which can be associated with both natural and anthropogenic activities [2]. Anthropogenic activity associated with industrial (e.g., fossil fuel combustion, metal processing), agricultural (pesticides), and household activities (e.g., garbage, detergents) [3,4] is a key factor in the increase in the concentration of different metal salts, especially in recent decades [5].
Compounds of various metal salts tend to seep into groundwater and reduce crop yields due to ionic imbalances and cause serious health problems in animals and local communities [6]. In particular, the increased content of ferrocyanide compounds in water leads to an increase in the level of methemoglobin in the blood [7], kidney damage [8], destruction of plant root systems [9], etc. Moreover, compounds of ferricyanides, salts of copper, iron, lead, etc., can lead to the development of muscular and neurological degenerative processes [10], damage to vital organs [11], and a decrease in species diversity and population density of organisms in various ecological niches [12,13]. Therefore, purifying these kinds of pollutants from surface water is necessary.
Wastewater treatment technologies can be divided into traditional and non-traditional methods [14]. Traditional methods include methods such as chemical precipitation, membrane filtration, ion exchange, and electrochemical methods. Each technology has its own advantages and disadvantages. Chemical precipitation is easy to use and low-cost, but the resulting precipitate may be more toxic than the original compound [15,16,17]. Membrane filtration has high pollutant removal efficiency with no need for chemical additives, etc., but is characterized by high costs and labor-intensive manufacturing [15,18,19,20]. The ion exchange method can be used repeatedly and has low costs and high purification efficiency, but at the same time, it is low selective and is not capable of removing low concentrations of substances from the solution [16,17,20,21]. Electrochemical methods are easy to use and eco-friendly but are capital-intensive and inefficient at low contaminant concentrations [15,18]. Due to the shortcomings of the systems described above, research is constantly being conducted to create new ways to purify water of the salts of various metals (non-traditional methods).
Among the non-traditional methods, adsorption methods and methods based on nanomaterials are widely used [22]. Adsorption is one of the best methods for removing a wide range of contaminants from water, including salts of various metals. Among its advantages are high cleaning power, relatively low energy consumption and technical requirements for operation, as well as the ability to avoid large secondary pollution [23]. Adsorbents that can be used include activated carbon [24,25], polymer materials [26], agricultural waste [27,28], magnetic [29], and composite adsorbents [30,31]. Depending on the adsorbent used, this method can have its drawbacks; for example, commercial activated carbon is expensive, quickly contaminated with non-target contaminants, and efficiency decreases significantly after reuse, and in the case of polymeric materials, there is a high temperature and pH dependence.
Nanomaterial-based techniques have received particular attention in recent decades due to their high surface-to-volume ratio and unique electronic, optical, and magnetic properties [32,33]. Low-dimensional structures such as nanocarbon compounds, oxides of one or more metals, oxides of non-metals, magnetic nanoparticles, and nanoclays are most commonly used for cleaning, disinfection, and removal of salts of various metals from water [34,35,36]. All these nanostructures are highly reactive and have a high surface area, and many of them are widely distributed in nature or have inexpensive synthetic processes. In the same way, nanocomplexes, nanoplates, and microspheres with hierarchical nanostructures have been used for wastewater treatment. However, the lack of information on the toxicity, environmental, and health effects of nanomaterials hinders their full use [37].
Thus, the use of water purification methods based on nanomaterials is a promising direction, but it requires more study of the system components. Therefore, we proposed to study polyelectrolyte microcapsules (PMC) as a promising sorption agent for salts of various metals since polyelectrolyte microcapsules and the nanostructural components of their shell have been studied in detail in many works. Particularly, the following properties have been studied: migration of polyelectrolyte layers while CaCO3 core dissolving [38]; SEM of PMC at normal conditions [39] and at different ionic strengths and temperatures [40]; destruction of PMC formed on CaCO3 microparticles and the release of a protein encapsulated by adsorption [41] and coprecipitation methods [42]; the cytotoxic effect of on macrophages and tumor cells [43]; the mechanical properties of PMC filled with a neutral polymer [44] or protein [45], etc.

2. Results and Discussion

As known, polyelectrolyte complexes may be used in the sorption of toxic pollutants [46,47], such as K4[Fe(CN)6], K3[Fe(CN)6], CuSO4, Pb(NO)3, FeCl3, and CuCl2, which are widely used or are by-products in the mining extraction and processing industries and in the production of polymeric materials, paints, and varnishes [2]. Therefore, the first step in creating a sorption system was to study the possibility of sorption of those substances using a PSS-PAH polyelectrolyte complex. For that purpose, a PSS-PAH polyelectrolyte complex was formed by mixing two polyelectrolytes in a ratio of 1:1 with constant stirring at 300 rpm. The obtained results are shown in Figure 1.
The size distribution demonstrates the morphological heterogeneity of the PSS-PAH particles in a range of 100–10,000 nm. The hydrodynamic diameter of obtained particles is 904.6 nm with a 34.4% polydispersity index and a 0.54 diffusion coefficient.
The obtained particles were added to a solution of the required salt and incubated with salt for 10 min. The results obtained are presented in Table 1.
Table 1 shows a significant decrease in the concentrations of solutions of salts of K4[Fe(CN)6] (at 319 nm) and K3[Fe(CN)6] (at 422 nm). This effect may be associated with the formation of ionic bridges between FCIV/FCIII ([Fe-(CN)6]4−/[Fe(CN)6]3−) and several molecules of polyallylamine [48,49]. In addition, upon incubation of a PAH solution in a solution with salts K4[Fe(CN)6] and K3[Fe(CN)6], turbidity of the solution and precipitation was observed, which is also associated with the formation of a complex between PAH and [Fe-(CN)6]4−/[Fe(CN)6]3− ions. Upon incubation of the PSS-PAH polyelectrolyte complex with other salts, no similar effect was observed.
As shown above, the PSS-PAH polyelectrolyte complex was able to bind with salt compounds effectively, but the extraction of the complex requires additional labor costs, or these complexes must be fixed on the surface, which will result in a significant decrease in their efficiency due to a surface area reduction. Polyelectrolyte microcapsules based on these polyelectrolytes are a more suitable sorption agent because they are easier to remove from the medium [50]. Therefore, we prepared polyelectrolyte microcapsules by layer-by-layer adsorption of polyelectrolytes polystyrene sulfonate (PSS) and polyallylamine (PAH) on the CaCO3 particle with the later dissolution of it. A main scheme of the preparation of the polyelectrolyte microcapsules containing peroxidase is shown in Figure 2A.
The optical microscopy images of PMC (Figure 2B) demonstrate the morphological homogeneity of microcapsules. The average diameter of microcapsules containing peroxidase was 5.1 μm with a 22.6% polydispersity index (Figure 2C), and the microcapsule’s ζ-potential is +25 ± 2 mV.
The next step was to determine the sorption capacity of polyelectrolyte microcapsules, the shell of which consisted of PSS and PAH polyelectrolytes, but with a different number and sequence of layering of polyelectrolyte layers. The polyelectrolyte microcapsules with different compositions may have different sorption capacities due to the different physicochemical properties, for example, buffer capacity, dissociation level, protonation level, etc. [41,51]. The obtained microcapsules had the compositions (PSS/PAH)3, (PAH/PSS)3, (PSS/PAH)3PSS, or (PAH/PSS)3PAH. The PMC composition, for example (PSS/PAH)3, means that polystyrene was used as the first layer in the preparation of the microcapsules’ shell, further layers were applied alternately up to the sixth layer, and the polyallylamine layer was the last one. The results obtained are presented in Table 2.
As can be seen from Table 2, in the case of CuSO4, Pb(NO)3, and CuCl2, the sorption of PMC of any composition does not exceed 3–4%, which is an unreliable result and is within the statistical error, so the amount of sorbed substance in Table 2 is 0. In the case of incubation of capsules in FeCl3 solution, we observe an increase in optical density, which is associated with precipitation. Presumably, this is due to the formation of iron hydroxide as a result of the reaction between ferric chloride and calcium carbonate that was not completely removed from the PMC core.
Subsequently, the polyelectrolyte microcapsules described above were incubated for 24 h in the appropriate salt solutions to confirm the absence of sorption over time. The results obtained are presented in Figure 3.
As can be seen from Figure 3, the amount of sorbed substance does not exceed 1% even after 24 h of incubation. Thus, we can conclude that polyelectrolyte microcapsules consisting of PSS and PAH are not suitable for the sorption of CuSO4, Pb(NO)3, FeCl3, and CuCl2 salts.
At the same time, as can be seen from Table 2, all types of capsules, except for (PSS/PAH)2/PSS, are capable of sorbing about 420 µg of K3[Fe(CN)6] from the solution. As in the case of PSS-PAH complexes, this can be related to the formation of ionic bridges between FCIV/FCIII ([Fe-(CN)6]4−/[Fe(CN)6]3−) and amino groups of polyallylamine molecules. PMC of composition (PSS/PAH)2/PSS adsorbs only about 209 µg K3[Fe(CN)6]. Perhaps this is due to the fact that most of the positively charged amino groups of PAH are compensated by oppositely charged groups of polystyrene sulfonate [51,52,53,54]. This results in the formation of weak ionic bridges between [Fe(CN)6]3− and PAH, which are not enough to retain the salt in the capsule. In the case of K4[Fe(CN)6] sorption by capsules of various compositions, it can be seen that the sorption capacity is about 500 µg. This is slightly higher than in the case of K3[Fe(CN)6] and corresponds to the data obtained above for PSS-PAH complexes.
To confirm the electrostatic nature of the adsorption of FCIV/FCIII salts ([Fe-(CN)6]4−/[Fe(CN)6]3−), the effect of a more acidic environment on the sorption capacity of capsules was studied. According to the hypothesis, a decrease in the pH of the solution will lead to an increase in the number of amino groups of PAH with a positive charge (it is a weak polyelectrolyte) [55,56]. This, in turn, will increase the number of bound K3[Fe(CN)6] and K4[Fe(CN)6] molecules. For that purpose, we incubated (PSS/PAH)3 microcapsules in the K3[Fe(CN)6] and K4[Fe(CN)6] solutions with pH 3 or 7 for 10 min and determined the concentration of the substance after sedimentation of the capsule. The results obtained are shown in Figure 4.
As can be seen from the figure, as the pH of the solution decreases, the sorption capacity of PMC of K3[Fe(CN)6] and K4[Fe(CN)6] salts increases. This confirms the hypothesis described above about the electrostatic nature of the adsorption of polyelectrolyte microcapsules.
The adsorption of PMC salts of K3[Fe(CN)6] and K4[Fe(CN)6] has the same nature; for that reason, the dynamics of sorption of only K3[Fe(CN)6] by polyelectrolyte microcapsules was further studied. For that purpose, the PMCs were obtained with polyelectrolyte layers PSS and PAH but with a different number and order of that layers. The choice is based on the fact that the spectrophotometric method for determining the concentration of K3[Fe(CN)6] in a solution is more sensitive than for determining the K4[Fe(CN)6]. The results obtained are shown in Figure 5.
As can be seen from the figure, the amount of the sorbed substance does not change with increasing incubation time. Perhaps this is due to the fact that the adsorption of K3[Fe(CN)6] by polyelectrolyte microcapsules is a concentration-dependent process.
To test this hypothesis, we incubated PMC of the composition (PSS/PAH)3 in 1 mM K3[Fe(CN)6] solution for 10 min, centrifuged the capsules, discarded the supernatant and filled in a new solution with a concentration of 1 mM, and re-incubated for 10 min with the same PMC. The results obtained are shown in Figure 6.
As can be seen from Figure 6, with repeated use of PMC, the amount of adsorbed K3[Fe(CN)6] decreased by 20% compared with the first application. Moreover, at the third use, the adsorption of K3[Fe(CN)6] by capsules was absent. This result allows us to conclude that this sorption process is concentration-dependent, but at the same time, it has the limitation of the number of PMC shell binding sites with K3[Fe(CN)6]. This corresponds to the literature data on the formation of an ionic bond between the PAH/Polyglutamic acid polyelectrolyte complex and [Fe-(CN)6]4−/[Fe(CN)6]3− [48,49] because a local increase in the concentration of K3[Fe(CN)6] inside PMC leads to the substitution of the counterion of the amino group of PAH.
As a result of this study, it was determined that polyelectrolyte microcapsules of the composition (PAH/PSS)3, (PSS/PAH)3, and (PAH/PSS)2/PAH are capable of sorbing more than 420 µg K3[Fe(CN)6] and K4[Fe(CN)6] from solution, while the sorption process is concentration-dependent and has the limitation of the number of binding sites. This is due to the formation of ionic bonds between [Fe(CN)6]4−/[Fe(CN)6]3− and PAH amino groups.

3. Materials and Methods

3.1. Materials

Polyelectrolytes polystyrenesulfonate sodium (PSS) and polyallylamine hydrochloride (PAH) with a molecular mass of 70 kDa and ethylenediaminetetraacetic acid disodium salt dihydrate (EDTA) were purchased from Sigma (St. Louis, MO, USA). Sodium chloride, sodium sulfate, sodium carbonate, calcium chloride, potassium ferricyanide, potassium ferrocyanide, copper chloride, copper sulfate, iron(III) chloride, and lead(II) nitrate were purchased from “Reahim”(Moscow, Russia).

3.2. Preparation of CaCO3 Microspherulites

A total of 0.33 M Na2CO3 was added to 0.33 M CaCl2 and stirred for 30 s. The suspension was maintained until complete precipitation of the formed particles. The process of “ripening” the microspherolites was controlled with the help of a light microscope. Then, the supernatant was decanted, and the precipitate was washed with water and used to prepare PMC. The microparticles obtained had an average diameter of 5 ± 2 μm.

3.3. Preparation of Polyelectrolyte Microcapsules

The polyelectrolyte microcapsules were obtained by layer-by-layer adsorbing the negatively or positively charged polyelectrolytes onto CaCO3 microspherulites, followed by the dissolution of CaCO3. At the moment of dissolution of the CaCO3 core, the inner space of PMC is filled by an interpolyelectrolyte complex [57]. Layer-by-layer adsorption of PAH and PSS on the CaCO3 microspherulites surface was carried out in polyelectrolytes solutions (concentration 2 mg/mL + 0.5 M NaCl). After each adsorption, the CaCO3 particles with adsorbed polyelectrolytes were triple-washed with a 0.5 M NaCl solution, which was necessary to remove unadsorbed polymer molecules. The particles were separated from the supernatant with centrifugation. After applying the required number of layers, the carbonate kernels were dissolved in a 0.2 M EDTA solution for 12 h. The resulting capsules were washed three times with water to remove core decay products. The microcapsules obtained had an average diameter of 5.1 ± 2 μm. The size and number of microcapsules were measured using the dynamic light scattering method on a Zetasizer nano ZS device (Malvern, UK).

3.4. Measurement of Sorption Capacity of PMC

Polyelectrolyte microcapsules were added to 2 mL of salt solution in the amount of 8 × 108 pieces and incubated on a shaker for 10 min. After that, the PMC suspension was precipitated in a centrifuge at 10,000× g. Subsequently, the supernatant was transferred to a quartz cuvette, and the optical density of the solution was measured at a certain wavelength according to the salt used.

3.5. Statistical Processing

Each sample was measured five times and was calculated as average and standard deviation.

4. Conclusions

As a result of this study, it was found that the PSS-PAH polyelectrolyte complex and polyelectrolyte microcapsules of different compositions are not able to adsorb salts CuSO4, Pb(NO)3, FeCl3, and CuCl2.
At the same time, it was found that all types of capsules, except for (PAH/PSS)3, (PSS/PAH)3, and (PAH/PSS)2/PAH are capable of sorbing about 420 µg of K3[Fe(CN)6] from the solution. PMC of composition (PSS/PAH)2/PSS adsorbs only about 209 µg K3[Fe(CN)6]. This can be related to the formation of ionic bridges between FCIV/FCIII ([Fe-(CN)6]4−/[Fe(CN)6]3−) and amino groups of polyallylamine molecules. That hypothesis was confirmed by increases in the sorption capacity of PMC of K3[Fe(CN)6] and K4[Fe(CN)6] in the solution with a low pH since at low pH, the weak polyelectrolyte PAH has more protonated sites.
Moreover, the electrostatic nature of PMC’s sorption is confirmed by the concentration-dependent sorption by PMC of K3[Fe(CN)6] and K4[Fe(CN)6] and by the limitation of the number of binding sites.

Author Contributions

Conceptualization, S.A.T., E.V.M., A.V.D. and A.L.K.; Data curation, A.L.K. and S.A.T.; Formal analysis, A.L.K.; Investigation, A.V.D., A.L.K. and E.V.M.; Methodology, A.L.K., S.A.T., A.V.D. and E.V.M.; Project administration, S.A.T.; Supervision, S.A.T.; Visualization, A.L.K.; Writing—original draft, A.L.K.; Writing—review and editing, A.V.D., A.L.K. and S.A.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the State Assignment of the Russian Federation No. 075-01025-23-00.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Giri, S.S.A. Risk assessment, statistical source identification and seasonal fluctuation of dissolved metals in the Subarnarekha River, India. J. Hazard. Mater. 2014, 265, 305–314. [Google Scholar] [CrossRef] [PubMed]
  2. Ali, H.; Khan, E.; Ilahi, I. Environmental Chemistry and Ecotoxicology of Hazardous Heavy Metals: Environmental Persistence, Toxicity, and Bioaccumulation. J. Chem. 2019, 2019, 1–14. [Google Scholar] [CrossRef]
  3. Gautam, R.K.; Sharma, S.K.; Mahiya, S.; Chattopadhyaya, M.C. CHAPTER 1. Contamination of Heavy Metals in Aquatic Media: Transport, Toxicity and Technologies for Remediation. In Heavy Metals in Water; Royal Society of Chemistry: Cambridge, UK, 2014; pp. 1–24. [Google Scholar]
  4. Vareda, J.P.; Valente, A.J.M.; Durães, L. Assessment of heavy metal pollution from anthropogenic activities and remediation strategies: A review. J. Environ. Manag. 2019, 246, 101–118. [Google Scholar] [CrossRef] [PubMed]
  5. Wu, B.; Zhao, D.Y.; Jia, H.Y.; Zhang, Y.; Zhang, X.X.; Cheng, S.P. Preliminary risk assessment of trace metal pollution in surface water from Yangtze River in Nanjing Section, China. Bull. Environ. Contam. Toxicol. 2009, 82, 405–409. [Google Scholar] [CrossRef]
  6. Birn, A.-E.; Shipton, L.; Schrecker, T. Canadian mining and ill health in Latin America: A call to action. Can. J. Public Health 2018, 109, 786–790. [Google Scholar] [CrossRef]
  7. Ohmori, T.; Ogata, M. Methemoglobin formation by potassium ferrocyanide in the hemolysate of acatalasemic mice. Acta Med. Okayama 1991, 45, 209–215. [Google Scholar]
  8. Younes, M.; Aggett, P.; Aguilar, F.; Crebelli, R.; Dusemund, B.; Filipič, M.; Frutos, M.J.; Galtier, P.; Gott, D.; Gundert-Remy, U.; et al. Re-evaluation of sodium ferrocyanide (E 535), potassium ferrocyanide (E 536) and calcium ferrocyanide (E 538) as food additives. EFSA J. 2018, 16, e05374. [Google Scholar]
  9. Kang, D.H.; Qian, X. Fate and toxicity of ferric ferrocyanide with cyanogenic and non-cyanogenic plant species. Environ. Eng. Res. 2021, 27, 210308. [Google Scholar] [CrossRef]
  10. Azeh Engwa, G.; Udoka Ferdinand, P.; Nweke Nwalo, F.; Unachukwu, M.N. Mechanism and Health Effects of Heavy Metal Toxicity in Humans. In Poisoning in the Modern World—New Tricks for an Old Dog? IntechOpen: London, UK, 2019. [Google Scholar]
  11. Tan, M.; Astuti, S. RohmanValidation and quantitative analysis of cadmium, chromium, copper, nickel, and lead in snake fruit by Inductively Coupled Plasma-Atomic Emission Spectroscopy. J. Appl. Pharm. Sci. 2018, 8, 44–48. [Google Scholar]
  12. Pratush, A.; Kumar, A.; Hu, Z. Adverse effect of heavy metals (As, Pb, Hg, and Cr) on health and their bioremediation strategies: A review. Int. Microbiol. 2018, 21, 97–106. [Google Scholar] [CrossRef]
  13. Ullah, A.K.M.A.; Maksud, M.A.; Khan, S.R.; Lutfa, L.N.; Quraishi, S.B. Dietary intake of heavy metals from eight highly consumed species of cultured fish and possible human health risk implications in Bangladesh. Toxicol. Rep. 2017, 4, 574–579. [Google Scholar] [CrossRef] [PubMed]
  14. Yenkie, K.M.; Burnham, S.; Dailey, J.; Cabezas, H.; Friedler, F. Generating Efficient Wastewater Treatment Networks: An integrated approach comprising of contaminant properties, technology suitability, plant design, and process optimization. Comput. Aided Chem. Eng. 2019, 46, 1603–1608. [Google Scholar]
  15. Azimi, A.; Azari, A.; Rezakazemi, M.; Ansarpour, M. Removal of Heavy Metals from Industrial Wastewaters: A Review. ChemBioEng Rev. 2017, 4, 37–59. [Google Scholar] [CrossRef]
  16. Barakat, M.A. New trends in removing heavy metals from industrial wastewater. Arab. J. Chem. 2011, 4, 361–377. [Google Scholar] [CrossRef] [Green Version]
  17. Kurniawan, T.A.; Chan, G.Y.S.; Lo, W.-H.; Babel, S. Physico–chemical treatment techniques for wastewater laden with heavy metals. Chem. Eng. J. 2006, 118, 83–98. [Google Scholar] [CrossRef]
  18. Bolisetty, S.; Peydayesh, M.; Mezzenga, R. Sustainable technologies for water purification from heavy metals: Review and analysis. Chem. Soc. Rev. 2019, 48, 463–487. [Google Scholar] [CrossRef]
  19. Vardhan, K.H.; Kumar, P.S.; Panda, R.C. A review on heavy metal pollution, toxicity and remedial measures: Current trends and future perspectives. J. Mol. Liq. 2019, 290, 111197. [Google Scholar] [CrossRef]
  20. Abdullah, N.; Yusof, N.; Lau, W.J.; Jaafar, J.; Ismail, A.F. Recent trends of heavy metal removal from water/wastewater by membrane technologies. J. Ind. Eng. Chem. 2019, 76, 17–38. [Google Scholar] [CrossRef]
  21. Fu, F.; Wang, Q. Removal of heavy metal ions from wastewaters: A review. J. Environ. Manag. 2011, 92, 407–418. [Google Scholar] [CrossRef]
  22. Ince, M.; Kaplan Ince, O. Heavy Metal Removal Techniques Using Response Surface Methodology: Water/Wastewater Treatment. In Biochemical Toxicology—Heavy Metals and Nanomaterials; IntechOpen: London, UK, 2020. [Google Scholar]
  23. Burakov, A.E.; Galunin, E.V.; Burakova, I.V.; Kucherova, A.E.; Agarwal, S.; Tkachev, A.G.; Gupta, V.K. Adsorption of heavy metals on conventional and nanostructured materials for wastewater treatment purposes: A review. Ecotoxicol. Environ. Saf. 2018, 148, 702–712. [Google Scholar] [CrossRef]
  24. Crini, G.; Lichtfouse, E.; Wilson, L.D.; Morin-Crini, N. Conventional and non-conventional adsorbents for wastewater treatment. Environ. Chem. Lett. 2019, 17, 195–213. [Google Scholar] [CrossRef]
  25. Dias, J.M.; Alvim-Ferraz, M.C.M.; Almeida, M.F.; Rivera-Utrilla, J.; Sánchez-Polo, M. Waste materials for activated carbon preparation and its use in aqueous-phase treatment: A review. J. Environ. Manag. 2007, 85, 833–846. [Google Scholar] [CrossRef] [PubMed]
  26. Alaba, P.A.; Oladoja, N.A.; Sani, Y.M.; Ayodele, O.B.; Mohammed, I.Y.; Olupinla, S.F.; Daud, W.M.W. Insight into wastewater decontamination using polymeric adsorbents. J. Environ. Chem. Eng. 2018, 6, 1651–1672. [Google Scholar] [CrossRef]
  27. Goyal, P.; Sharma, P.; Srivastava, S.; Srivastava, M.M. Saraca indica leaf powder for decontamination of Pb: Removal, recovery, adsorbent characterization and equilibrium modeling. Int. J. Environ. Sci. Technol. 2008, 5, 27–34. [Google Scholar] [CrossRef] [Green Version]
  28. Nguyen, T.A.H.; Ngo, H.H.; Guo, W.S.; Zhang, J.; Liang, S.; Yue, Q.Y.; Li, Q.; Nguyen, T.V. Applicability of agricultural waste and by-products for adsorptive removal of heavy metals from wastewater. Bioresour. Technol. 2013, 148, 574–585. [Google Scholar] [CrossRef]
  29. Mehta, D.; Mazumdar, S.; Singh, S.K. Magnetic adsorbents for the treatment of water/wastewater—A review. J. Water Process Eng. 2015, 7, 244–265. [Google Scholar] [CrossRef]
  30. Hassan, M.; Naidu, R.; Du, J.; Liu, Y.; Qi, F. Critical review of magnetic biosorbents: Their preparation, application, and regeneration for wastewater treatment. Sci. Total Environ. 2020, 702, 134893. [Google Scholar] [CrossRef]
  31. Peralta, M.E.; Nisticò, R.; Franzoso, F.; Magnacca, G.; Fernandez, L.; Parolo, M.E.; León, E.G.; Carlos, L. Highly efficient removal of heavy metals from waters by magnetic chitosan-based composite. Adsorption 2019, 25, 1337–1347. [Google Scholar] [CrossRef]
  32. Gehrke, I.; Geiser, A.; Somborn-Schulz, A. Innovations in nanotechnology for water treatment. Nanotechnol. Sci. Appl. 2015, 8, 1–17. [Google Scholar] [CrossRef]
  33. Upadhyay, A.K.; Singh, R.; Singh, D.P. (Eds.) Restoration of Wetland Ecosystem: A Trajectory towards a Sustainable Environment; Springer: Singapore, 2020; ISBN 978-981-13-7664-1. [Google Scholar]
  34. Borji, H.; Ayoub, G.M.; Bilbeisi, R.; Nassar, N.; Malaeb, L. How Effective Are Nanomaterials for the Removal of Heavy Metals from Water and Wastewater? Water Air Soil Pollut. 2020, 231, 330. [Google Scholar] [CrossRef]
  35. Kang, M.-H.; Lee, D.; Sung, J.; Kim, J.; Kim, B.H.; Park, J. Structure and Chemistry of 2D Materials. In Comprehensive Nanoscience and Nanotechnology; Elsevier: Amasterdam, The Netherlands, 2019; pp. 55–90. [Google Scholar]
  36. Vázquez-Núñez, E.; Molina-Guerrero, C.E.; Peña-Castro, J.M.; Fernández-Luqueño, F.; de la Rosa-Álvarez, M.G. Use of Nanotechnology for the Bioremediation of Contaminants: A Review. Processes 2020, 8, 826. [Google Scholar] [CrossRef]
  37. Wołowiec, M.; Komorowska-Kaufman, M.; Pruss, A.; Rzepa, G.; Bajda, T. Removal of Heavy Metals and Metalloids from Water Using Drinking Water Treatment Residuals as Adsorbents: A Review. Minerals 2019, 9, 487. [Google Scholar] [CrossRef]
  38. Musin, E.V.; Kim, A.L.; Dubrovskii, A.V.; Tikhonenko, S.A. New sight at the organization of layers of multilayer polyelectrolyte microcapsules. Sci. Rep. 2021, 11, 14040. [Google Scholar] [CrossRef] [PubMed]
  39. Volodkin, D.V.; Petrov, A.I.; Prevot, M.; Sukhorukov, G.B. Matrix Polyelectrolyte Microcapsules: New System for Macromolecule Encapsulation. Langmuir 2004, 20, 3398–3406. [Google Scholar] [CrossRef] [PubMed]
  40. Gao, C.; Leporatti, S.; Moya, S.; Donath, E.; Möhwald, H. Swelling and Shrinking of Polyelectrolyte Microcapsules in Response to Changes in Temperature and Ionic Strength. Chem. Eur. J. 2003, 9, 915–920. [Google Scholar] [CrossRef]
  41. Dubrovskii, A.V.; Kochetkova, O.Y.; Kim, A.L.; Musin, E.V.; Seraya, O.Y.; Tikhonenko, S.A. Destruction of shells and release of a protein from microcapsules consisting of non-biodegradable polyelectrolytes. Int. J. Polym. Mater. Polym. Biomater. 2019, 68, 1–5. [Google Scholar] [CrossRef]
  42. Musin, E.V.; Kim, A.L.; Tikhonenko, S.A. Destruction of polyelectrolyte microcapsules formed on CaCO3 microparticles and the release of a protein included by the adsorption method. Polymers 2020, 12, 520. [Google Scholar] [CrossRef]
  43. Naumov, A.A.; Dubrovskii, A.V.; Musin, E.V.; Kim, A.L.; Potselueva, M.M.; Tikhonenko, S.A. A Study of the Cytotoxic Effect of Microcapsules and Their Constituent Polymers on Macrophages and Tumor Cells. Bull. Exp. Biol. Med. 2018, 166, 69–74. [Google Scholar] [CrossRef]
  44. Lulevich, V.V.; Radtchenko, I.L.; Sukhorukov, G.B.; Vinogradova, O.I. Mechanical Properties of Polyelectrolyte Microcapsules Filled with a Neutral Polymer. Macromolecules 2003, 36, 2832–2837. [Google Scholar] [CrossRef]
  45. Kochetkova, O.Y.; Kazakova, L.I.; Moshkov, D.A.; Vinokurov, M.G.; Shabarchina, L.I. Incorporation of proteins into polyelectrolyte microcapsules by coprecipitation and adsorption. Russ. J. Bioorganic Chem. 2013, 39, 504–509. [Google Scholar] [CrossRef]
  46. Bucatariu, F.; Teodosiu, C.; Morosanu, I.; Fighir, D.; Ciobanu, R.; Petrila, L.-M.; Mihai, M. An Overview on Composite Sorbents Based on Polyelectrolytes Used in Advanced Wastewater Treatment. Polymers 2021, 13, 3963. [Google Scholar] [CrossRef] [PubMed]
  47. Slyusarenko, N.V.; Vasilyeva, N.Y.; Kazachenko, A.S.; Gerasimova, M.A.; Romanchenko, A.S.; Slyusareva, E.A. Synthesis and Properties of Interpolymer Complexes Based on Chitosan and Sulfated Arabinogalactan. Polym. Sci. Ser. B 2020, 62, 272–278. [Google Scholar] [CrossRef]
  48. Mergel, O.; Kühn, P.T.; Schneider, S.; Simon, U.; Plamper, F.A. Influence of Polymer Architecture on the Electrochemical Deposition of Polyelectrolytes. Electrochim. Acta 2017, 232, 98–105. [Google Scholar] [CrossRef]
  49. Wang, B.; Anzai, J. Redox Reactions of Ferricyanide Ions in Layer-by-Layer Deposited Polysaccharide Films: A Significant Effect of the Type of Polycation in the Films. Langmuir 2007, 23, 7378–7384. [Google Scholar] [CrossRef] [PubMed]
  50. Kim, A.L.; Musin, E.V.; Dubrovskii, A.V.; Tikhonenko, S.A. Determination of urea concentration using urease-containing polyelectrolyte microcapsules. Anal. Methods 2019, 11, 1585–1590. [Google Scholar] [CrossRef]
  51. Musin, E.V.; Dubrovskii, A.V.; Kim, A.L.; Tikhonenko, S.A. A Study of the Buffer Capacity of Polyelectrolyte Microcapsules Depending on Their Concentration and the Number of Layers of the Polyelectrolyte Shell. Int. J. Mol. Sci. 2022, 23, 9917. [Google Scholar] [CrossRef]
  52. Dubrovskii, A.V.; Kim, A.L.; Musin, E.V.; Ramazanov, B.R.; Tikhonenko, S.A. The Discovery of the Buffer Capacity of Various Types of Polyelectrolyte Microcapsules. Polymers 2021, 13, 4026. [Google Scholar] [CrossRef]
  53. Dubrovskii, A.V.; Kim, A.L.; Musin, E.V.; Tikhonenko, S.A. A Study of the Buffer Capacity of Polyelectrolyte Microcapsules Depending on Their Ionic Environment and Incubation Temperature. Int. J. Mol. Sci. 2022, 23, 6608. [Google Scholar] [CrossRef]
  54. Tang, Q.; Denton, A.R. Ion density deviations in polyelectrolyte microcapsules: Influence on biosensors. Phys. Chem. Chem. Phys. 2014, 16, 20924–20931. [Google Scholar] [CrossRef]
  55. Haložan, D.; Déjugnat, C.; Brumen, M.; Sukhorukov, G.B. Entrapment of a Weak Polyanion and H + /Na + Exchange in Confined Polyelectrolyte Microcapsules. J. Chem. Inf. Model. 2005, 45, 1589–1592. [Google Scholar] [CrossRef]
  56. Aggregation Processes of a Weak Polyelectrolyte, Poly(allylamine) Hydrochloride. Bull. Korean Chem. Soc. 2008, 29, 104–110. [CrossRef]
  57. Kazakova, L.I.; Dubrovskiĭ, A.V.; Moshkov, D.A.; Shabarchina, L.I.; Sukhorukov, B.I. An electron microscopy study of the structure of polyelectrolyte microcapsules containing protein and containing no protein. Biofizika 2007, 52, 850–854. [Google Scholar] [PubMed]
Ijms 24 02834 g001 550
Figure 1. Size distribution of PSS-PAH particles.
Figure 1. Size distribution of PSS-PAH particles.
Ijms 24 02834 g001
Ijms 24 02834 g002 550

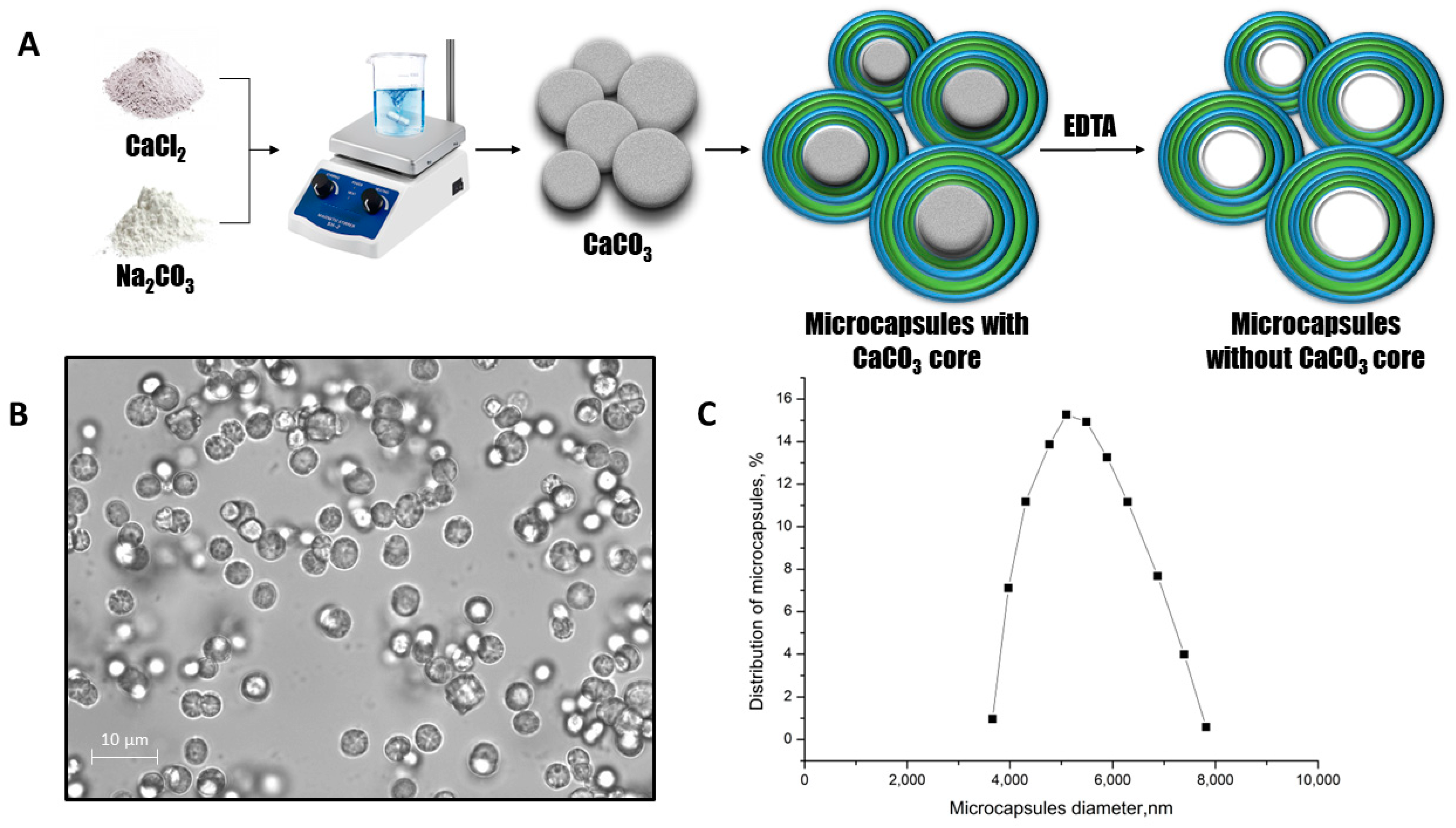

Figure 2. The scheme of the polyelectrolyte microcapsules preparation (A). The optical microscopy images of PMC (B). The PMC diameter distribution function (C).
Figure 2. The scheme of the polyelectrolyte microcapsules preparation (A). The optical microscopy images of PMC (B). The PMC diameter distribution function (C).
Ijms 24 02834 g002
Ijms 24 02834 g003 550

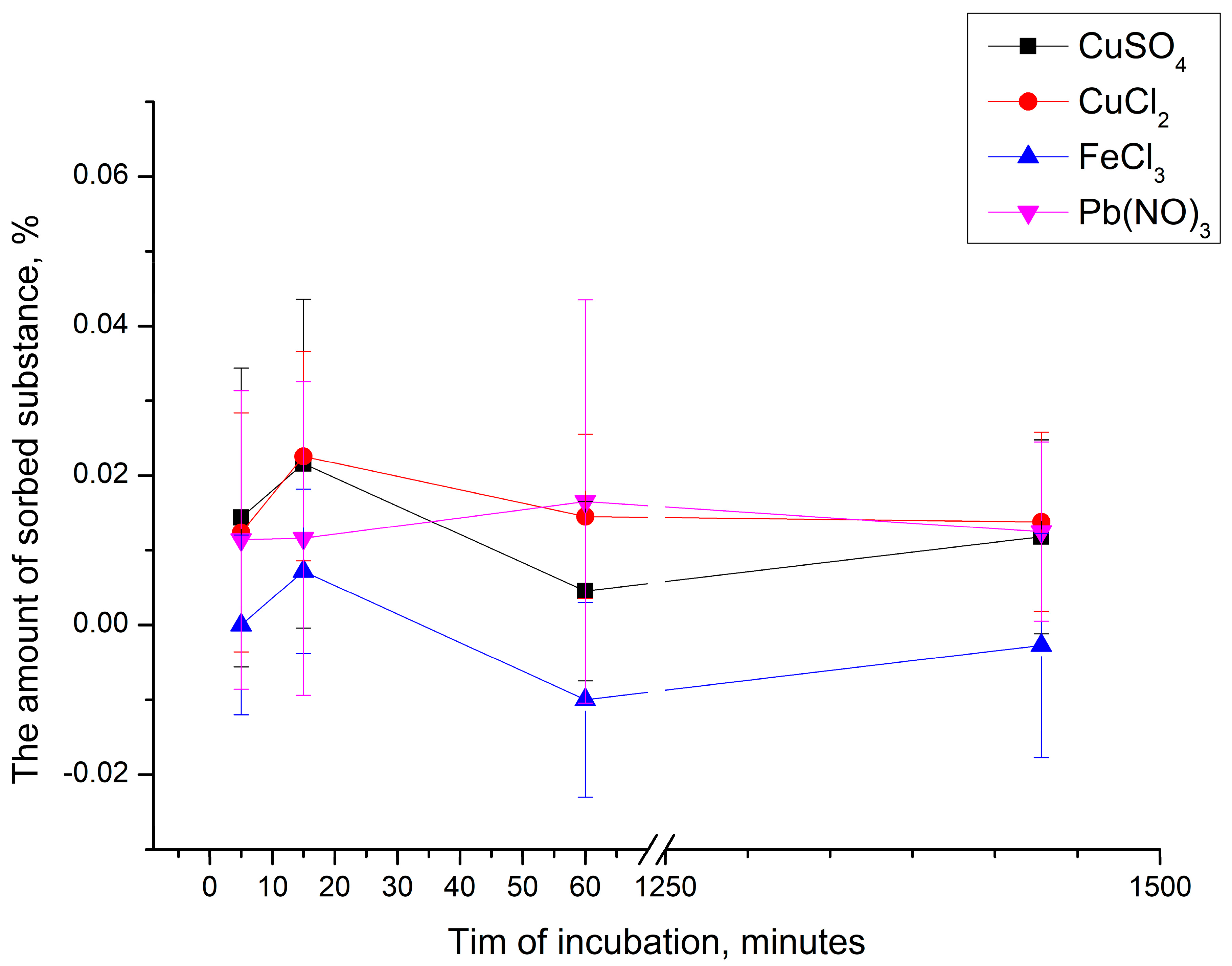

Figure 3. Change in the amount of sorbed of CuSO4, Pb(NO)3, FeCl3, and CuCl2 by PMC depending on the time of incubation.
Figure 3. Change in the amount of sorbed of CuSO4, Pb(NO)3, FeCl3, and CuCl2 by PMC depending on the time of incubation.
Ijms 24 02834 g003
Ijms 24 02834 g004 550
Figure 4. PMC’s (PSS/PAH)3 sorption capacity of solutions of K3[Fe(CN)6] and K4[Fe(CN)6] at pH 7 and 3.
Figure 4. PMC’s (PSS/PAH)3 sorption capacity of solutions of K3[Fe(CN)6] and K4[Fe(CN)6] at pH 7 and 3.
Ijms 24 02834 g004
Ijms 24 02834 g005 550

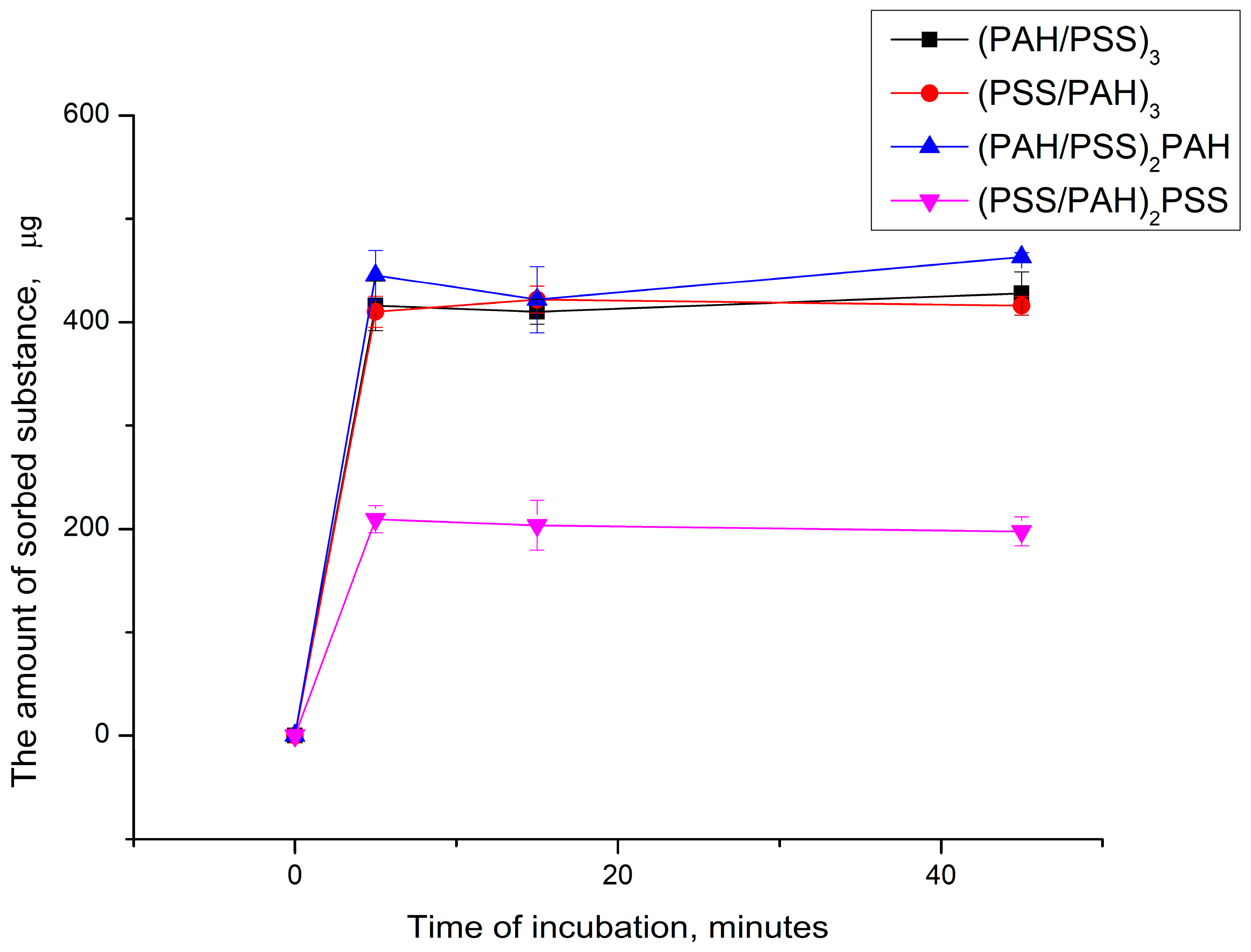

Figure 5. Change in the amount of sorbed potassium ferricyanide by PMC depending on the time of incubation.
Figure 5. Change in the amount of sorbed potassium ferricyanide by PMC depending on the time of incubation.
Ijms 24 02834 g005
Ijms 24 02834 g006 550

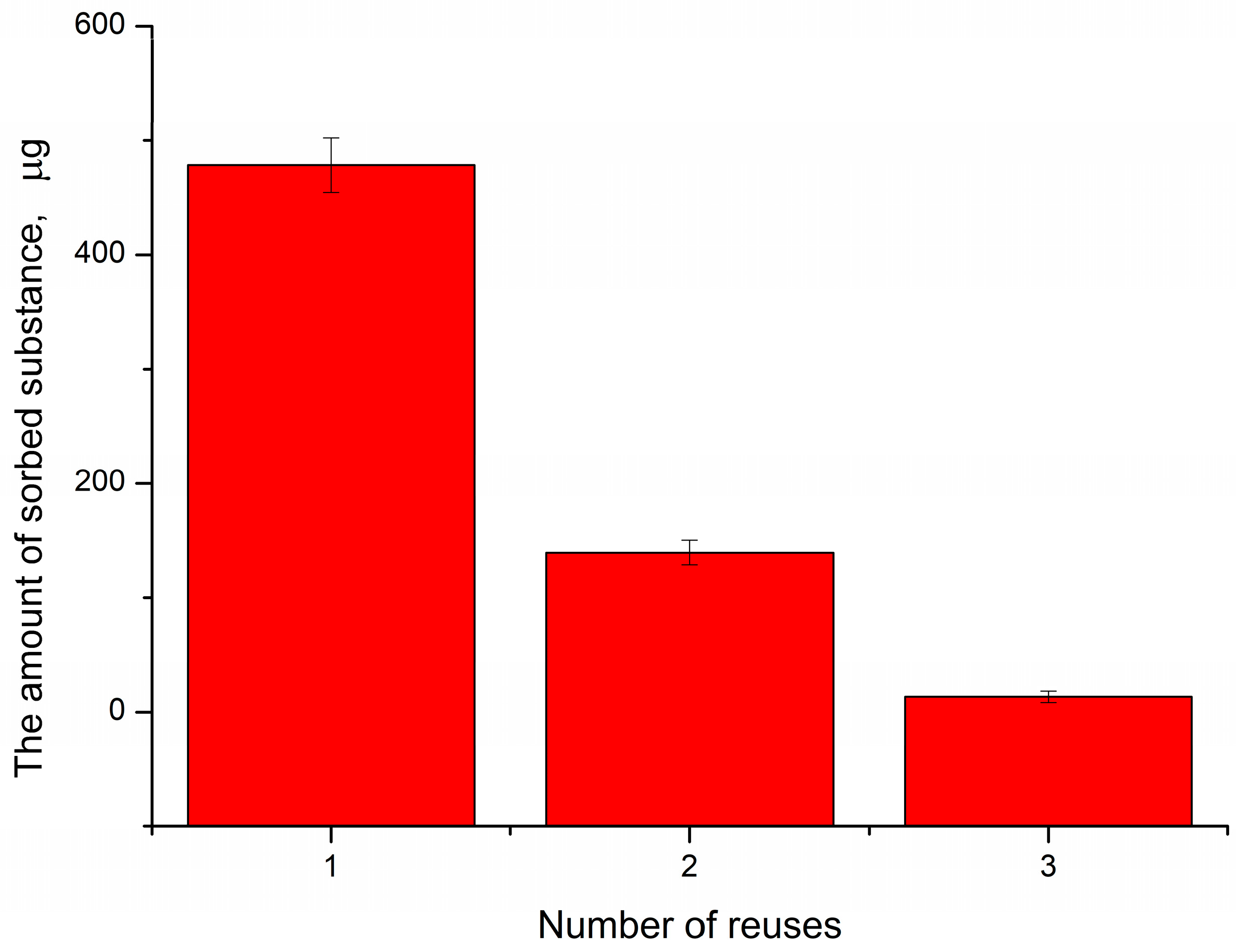

Figure 6. Change in the amount of adsorbed K3[Fe(CN)6], depending on the number of repeated incubations with PMC.
Figure 6. Change in the amount of adsorbed K3[Fe(CN)6], depending on the number of repeated incubations with PMC.
Ijms 24 02834 g006
Table
Table 1. Concentration of salts of various metals before and after incubation of the polyelectrolyte complex PSS-PAH in solution.
Table 1. Concentration of salts of various metals before and after incubation of the polyelectrolyte complex PSS-PAH in solution.
K3[Fe(CN)6]K4[Fe(CN)6]CuSO4Pb(NO)3FeCl3CuCl2
Concentration before incubation1 mM5 mM100 mM143 mM0.625 mM100 mM
Concentration after incubation0.356 mM0.22 mM100 mM143 mM0.625 mM100 mM
Table
Table 2. The amount of adsorbate (salts of various metals) taken up by the various type of PMC.
Table 2. The amount of adsorbate (salts of various metals) taken up by the various type of PMC.
PMC’s TypeK3[Fe(CN)6], µgK4[Fe(CN)6], µgCuSO4, µgPb(NO)3, µgFeCl3, µgCuCl2, µg
(PAH/PSS)3428.1726459.516600−31.19230
(PSS/PAH)3422.2668568.471200−48.52140
(PAH/PSS)2/PAH445.8901515.119100−51.98720
(PSS/PAH)2/PSS209.657382.439900−41.58970
