Optimization of Sperm Cryopreservation Formulation in Portunus trituberculatus

by
Le Chang
†,
Chengpeng Lu
†,
Junquan Zhu
,
Yiner Chen
,
Chunlin Wang
,
Changkao Mu
and
Congcong Hou
*
Key Laboratory of Applied Marine Biotechnology by the Ministry of Education and Key Laboratory of Marine Biotechnology of Zhejiang Province, School of Marine Sciences, Ningbo University, Ningbo 315822, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(5), 4358; https://doi.org/10.3390/ijms24054358
Submission received: 31 December 2022 / Revised: 5 February 2023 / Accepted: 13 February 2023 / Published: 22 February 2023
(This article belongs to the Special Issue Cryopreservation of Gametes and Embryos)
Browse Figures
Versions Notes

Abstract

:
Portunus trituberculatus is a very important marine economic species, and its aquaculture industry has been developing rapidly. However, the phenomenon of marine wild capture of P. trituberculatus and germplasm degradation has become increasingly serious. It is necessary to develop the artificial farming industry and carry out germplasm resource protection, for which sperm cryopreservation technology is an effective method. This research compared three methods (mesh-rubbing, trypsin digestion, and mechanical grinding) for acquiring free sperm, and the best method was mesh-rubbing. Then, the optimal cryopreservation conditions were selected, and the optimal formulation was sterile calcium-free artificial seawater, the optimal cryoprotectant was 20% glycerol, and the best equilibrium time was 15 min at 4 °C. The optimal cooling program was suspending the straws at 3.5 cm on the liquid nitrogen surface for 5 min and then storing them in liquid nitrogen. Finally, the sperm were thawed at 42 °C. However, the expression of sperm-related genes and the total enzymatic activities of frozen sperm were significantly decreased (p < 0.05), which showed that sperm cryopreservation damaged the sperm. Our study improves the sperm cryopreservation technology and the yield of aquaculture in P. trituberculatus. Additionally, the study provides a certain technical basis for the establishment of a sperm cryopreservation library of crustaceans.

1. Introduction

Portunus trituberculatus belongs to Arthropoda, Crustacea, Decapoda, Portunidae, and Portunus, which is a famous large marine economic crab [1]. They have high nutritional value and medicinal value [2]. The main distribution of P. trituberculatus is in Japan, Korea, the Malay Archipelago, and many coastal areas in China [3,4]. However, with the rapid development of the marine aquaculture industry, the aquaculture environment is deteriorating dramatically, natural germplasm resources are severely degraded, and disease outbreaks are frequent, which not only cause huge economic losses but also strongly restrict the sustainable and healthy development of the aquatic animal husbandry industry [5,6]. Therefore, the conservation of germplasm resources has been a major problem to be solved urgently in the aquaculture industry of P. trituberculatus, and the most mature solution to this problem is the cryopreservation technology of sperm and egg [7].
Sperm cryopreservation can preserve sperm for a long time, maintain some excellent traits of sperm, and can avoid various problems for in vivo conservation due to gene loss, generation interval, and genetic drift [8,9]. Second, it can greatly save the cost of breeding and provide sperm or embryos for scientific research or production anytime and anywhere without the limitations of time and space, which can protect genetic diversity to a certain extent [10]. Third, cryopreservation technology can minimize the interference of external environmental factors on experimental animal germplasm resources and prevent the spread of animal-derived diseases. In addition, cryopreservation technology can provide high-quality materials for artificial breeding and cultivating new varieties, thus constantly expanding the breeding of a good trait population [11,12]. Without cryopreservation preservation, good breeds can only be bred for several generations. Finally, cryopreservation technology has opened up a new way of establishing a germplasm resource bank [13].
Cryopreservation has applications in animal husbandry, aquaculture, biotechnology, and the conservation of threatened species [14,15]. Cryopreservation of mammalian sperm and embryos has brought great convenience to the livestock industry; for example, frozen semen of cattle has been commercialized and can be routinely used in breeding programs [16,17,18]. In aquatic animals, to break through geographical isolation and developmental asynchrony, researchers have conducted studies on the cryopreservation of sperm for some aquatic economic species. More than 200 species of fish semen have been successfully preserved [19,20], which is of great value to the conservation of fish germplasm resources and the study of fish genetic breeding. Additionally, corresponding cryopreservation studies have been conducted on the sperm of aquatic species such as crustaceans [13,21,22], echinoderms [23,24], and mollusks [25,26]. This is increasingly important to the germplasm conservation of aquatic animals. However, research on the cryopreservation of crustacean sperm is relatively underdeveloped, unsystematic, and insufficient and significantly lags behind that of vertebrates. Additionally, there are no studies on the cryopreservation of P. trituberculatus sperm.
The cryopreservation process mainly includes sperm collection and quality evaluation, preparation of diluent, selection and preparation of cryoprotectants, freezing, liquid nitrogen storage, thawing, and evaluation of sperm quality after thawing [23,27]. In particular, the types and concentrations of cryoprotectants, diluents, cooling procedures and thawing procedures will have a great impact on sperm quality [13]. Due to the great differences in sperm’s physiological characteristics between different types of crabs, there are no universal diluents and cryoprotectants at present [13,21,22]. In different studies, researchers have selected diluents and cryoprotectants based on information from the literature combined with their own experience. Currently, studies on the cryopreservation of P. trituberculatus sperm are lacking. The purpose of this study was to select the optimal cryopreservation method for P. trituberculatus by screening various sperm-acquisition methods and cryoprotectant combinations and to provide a scientific basis for the reproductive regulation and breeding of P. trituberculatus. This study is important for improving the germplasm, selecting and breeding excellent species, and improving the aquaculture production of P. trituberculatus. It has wide research significance and application prospects in the conservation of species diversity.

2. Results

2.1. Sperm Collection

More than 90% free sperm of P. trituberculatus were obtained by 0.2% trypsin digestion and underwent an acrosome reaction; the sperm survival rate was 8.2%. More than 60% of the free sperm obtained by the mesh-rubbing method were normal, and the sperm survival rate was 64.3%. However, the sperm obtained using the mechanical grinding method was seriously damaged, and the sperm survival rate was 10.7%. Almost all sperm died after freezing.

2.2. The Morphological Evaluation of Sperm

We observed that the type Ⅰ live sperm did not undergo an acrosome reaction and was not colored after eosin B staining. The spherical sperm lacks flagellum but has radical arms, and their main functional internal organizations are an acrosome (inner circle in Figure 1a) and a nucleus (external circle in Figure 1a). The acrosome of type II sperm was inversed, and only the acrosome part was colored red (Figure 1b). The acrosome of type III sperm was inverted, and the whole sperm was colored red (Figure 1c). The acrosome morphology of type Ⅳ sperm remained normal, but the whole sperm was colored red (Figure 1d).

2.3. Cryopreservation of Sperm in P. trituberculatus

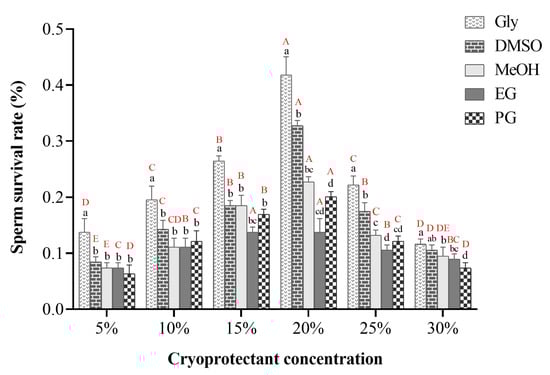

2.3.1. Effects of Different Kinds and Concentrations of Cryoprotectants

The sperm survival rate was significantly different among different types and concentrations of cryoprotectants for sperm of P. trituberculatus. Glycerol was better than the other cryoprotectants in each of the six different concentration groups. Among them, 20% glycerol was the most effective cryoprotectant, with a sperm survival rate of 41.79%, which was significantly better than other concentrations of glycerol (p < 0.05) (Figure 2). The worst was 5% propylene glycol, with a sperm survival rate of only 6.35% (Figure 2). In conclusion, glycerol was the most suitable cryoprotectant for cryopreservation of sperm in P. trituberculatus, and DMSO was the second most effective.

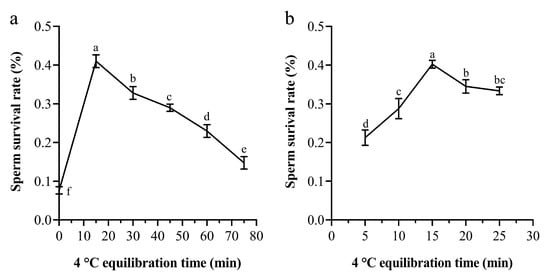

2.3.2. Effects of Different Equilibrium Times at 4 °C

The survival rates of frozen sperm of P. trituberculatus after cryopreservation at different equilibrium times were significantly different. The results in Figure 3a show that the freezing effect at 4 °C for 15 min was the best, which was significantly higher than that in the other groups (p < 0.05), and the sperm survival rate was 40.98%. The experimental group without balanced direct input of liquid nitrogen had the worst effect, and the sperm survival rate was only 7.65% (Figure 3a). After narrowing the time gradient, 15 min was still the best equilibrium time when other cryopreservation conditions remain unchanged (Figure 3b). More or less than 15 min will reduce the survival rate of sperm, and the longer the time was, and the more or less time than 15 min, the lower the survival rate of sperm.

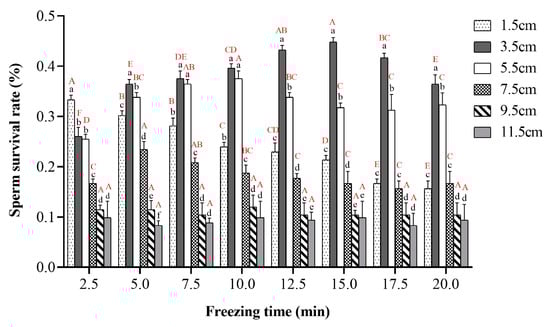

2.3.3. Effects of Different Cooling Procedures on Cryopreservation

The results showed that the most suitable cooling height was 3.5 cm above the liquid nitrogen surface for the horizontal position of the straw. The best effect was staying for 15 min at 3.5 cm above the liquid nitrogen surface, where the sperm survival rate was 44.79% (Figure 4). The sperm survival rate was 43.22% when the straw was kept at 3.5 cm on the liquid nitrogen surface for 12.5 min, which was not significantly different from the former (p > 0.05). The sperm survival rate was 36.46% when the straw was kept at 3.5 cm on the liquid nitrogen surface after 5 min, which was significantly different from that at 3.5 cm for 15 min (p < 0.05) (Figure 4).

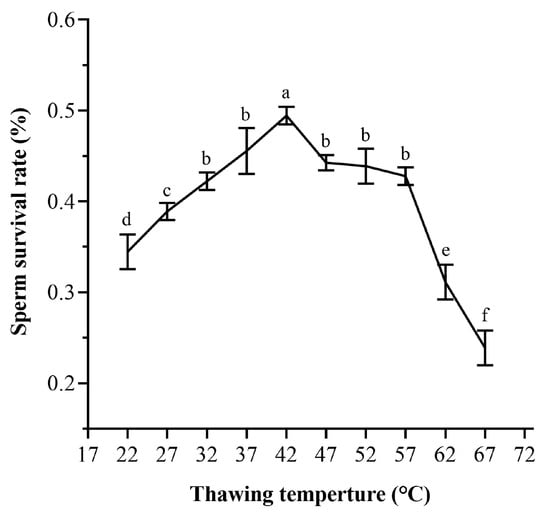

2.3.4. Effects of Different Thawing Temperatures

As shown in Figure 5, under different thawing temperatures, the best survival rate of frozen sperm was the water bath at 42 °C, where the sperm survival rate can reach 49.44%, followed by the water bath at 37 °C, where the survival rate of sperm was 45.56%. There was no significant difference in the effect of the water bath at 47, 52, and 57 °C (p > 0.05), which were 44.26, 43.89, and 42.78%, respectively (Figure 5). The worst effect was thawing at 67 °C, where the survival rate was only 23.89% (p < 0.05) (Figure 5).

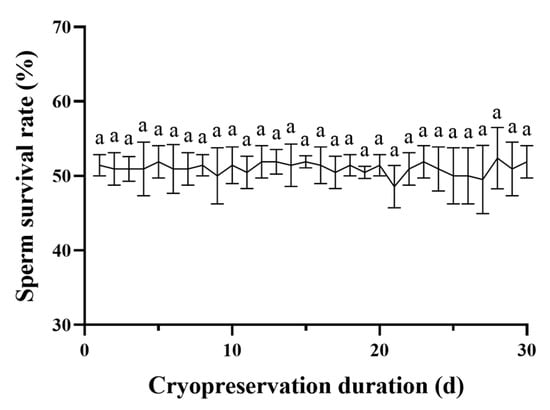

2.3.5. Effects of Different Freezing Times on Cryopreservation

Under the same other freezing conditions, the survival rate of sperm stored at cryopreservation was detected within 1–30 days, and the sperm survival rate was basically stable at 50%, without a significant difference (p > 0.05) (Figure 6).

2.4. Gene Expression and Enzyme Activity Analysis of Fresh and Frozen Sperm

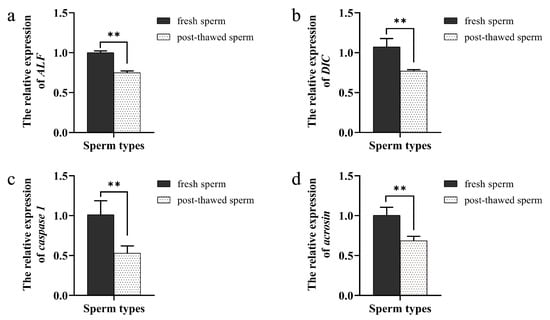

2.4.1. Sperm-Related Gene Expression of Fresh and Frozen Sperm

The qPCR results showed that the expression of the sperm-related genes ALF, DIC, caspase 1 and acrosin in frozen sperm was significantly decreased (p < 0.05) (Figure 7). ALF is a spermatogenesis-related gene, and its abnormal expression contributes to our molecular understanding of male infertility [28]. Caspase 1 indicates the sperm’s ability to protect themselves [29]. DIC is an important subunit of dynein, and it plays an important role in spermatogenesis in P. trituberculatus [30,31]. Acrosin, located in the acrosome of crustaceans, plays an important role in the sperm acrosome reaction [32]. Therefore, ALF, DIC, caspase 1, and acrosin can be markers to react sperm viability.

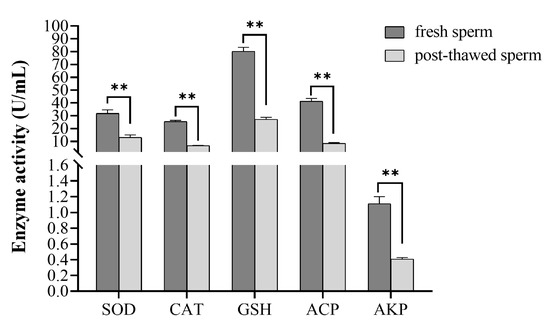

2.4.2. Enzyme Activity Analysis of Fresh and Frozen Sperm

Compared with fresh sperm of P. trituberculatus, the enzyme activities of total SOD, catalase (CAT), reduced glutathione (GSH), acid phosphatase (ACP), and alkaline phosphatase (AKP) in frozen sperm were significantly decreased (p < 0.05) (Figure 8). The activities of total SOD, CAT, GSH, ACP, and AKP in fresh sperm were 31.81 ± 2.82, 25.51 ± 0.81, 80.21 ± 3.09, and 41.32 ± 2.07 U/mL, respectively, and the activities of total SOD, CAT, GSH, ACP, and AKP in frozen sperm were 13.13 ± 1.89, 6.60 ± 0.23, 27.10 ± 1.63, 8.41 ± 0.66, and 0.41 ± 0.20 U/mL, respectively.

3. Discussion

3.1. Comparison of Different Methods of Acquiring Free Sperm of P. trituberculatus

The reproductive system of crustaceans is special. Sperms mature in the male reproductive system in the form of spermatophores [33]. Post-mating female crabs also have a large number of free sperm in the spermatheca and constantly exist in dense blocky form. Different techniques are used to collect spermatophores of crustaceans, including electrical extrusion and simple pressure [34,35,36]. If we need to obtain free sperm, we must destroy the spermatophores, which is bound to cause damage to the sperm [37,38]. Currently, the common methods for obtaining free sperm include the mesh-rubbing method, the trypsin digestion method, and the mechanical grinding method. The mechanical grinding method is simple and has been used in sperm acquisition of C. japonica [39] and E. sinensis [40], but the effect was not good. We found that the number of sperm of P. trituberculatus obtained by the mechanical grinding method was small, the damage to the sperm was serious, and almost all of the sperm died after cryopreservation. Trypsin is a hydrolase that specifically hydrolyses peptide bonds formed by the amino group of lysine and the hydroxyl group of arginine. The main component of spermatophores in crustaceans is mucopolysaccharide. Trypsin can effectively digest the wall of spermatophores to obtain free sperm [41]. In this study, we referred to the optimal trypsin digestion conditions for acquiring sperm of E. sinensis [42] and found that more than 90% of the sperm had acrosome reactions, which may be due to the significant difference in the size of sperm between P. trituberculatus and E. sinensis. The sperm of P. trituberculatus are relatively small, which is not suitable for 0.2% trypsin. Compared with the other two methods, the mesh-rubbing method is simple, the damage to sperm was minimal, and the sperm deformity rate was low. We found that more than 60% of the total sperm obtained by the mesh-rubbing method were normal. This is consistent with the view that the mesh-rubbing method is the best method for acquiring sperm of L. vannamei [43].
The decapod sperm lacks a true flagellum and is immobile, so to date, sperm motility has not been considered to determine sperm quality in decapods [44]. At present, sperm motility evaluation methods used in decapods include morphological observation [45], osmotic pressure method [13], sperm acrosome reaction [46], biological staining [47], and so on. In this study, we referred to the method of Guan et al., and we used the eosin B staining method to evaluate the sperm mortality of P. trituberculatus [48]. It is a relative biological indicator that is mainly based on the metabolism of organisms, thus quickly discharging the pigment into the extracellular space.

3.2. The Most Suitable Cryopreservation Conditions of Sperm in P. trituberculatus

3.2.1. The Most Suitable Cryoprotectants

In this study, sperm cryopreservation solution was mainly composed of a basic diluent and a cryoprotectant. The diluent can provide a suitable physiological environment and certain nutrition for sperm. It can also reduce the toxic effect of cryoprotectants on sperm and make sperm more vital [20]. Therefore, the diluent should be nontoxic or minimally toxic, and the composition should be as simple as possible. Currently, there is no uniform standard for sperm cryopreservation diluents of mammals, birds, fish, shellfish, and crabs, but there are some references for the diluents between similar species. Studies have shown that artificial seawater has been widely used in sperm cryopreservation in crustaceans [13,46]. In this experiment, because Ca2+ can cause sperm aggregation and decrease sperm viability [49], we used sterile Ca2+-free artificial seawater as the diluent for sperm cryopreservation, which could ensure the osmotic pressure requirements of the sperm and avoid spontaneous acrosome reactions of sperm [50].
Cryoprotectants can freely penetrate the cell membrane, reduce cell permeability damage during freezing and thawing, and prevent the formation of ice crystals to protect sperm [49]. Currently, the commonly used cryoprotectants are DMSO, glycerol, methanol, EG, PG, and so on [20]. Glycerol, as one of the natural components in lipid metabolism, is the earliest cryoprotectant used. Glycerol can quickly enter the sperm and accelerate the process of dehydration, thereby reducing the formation of ice crystals in sperm [51]. DMSO has also been widely used in cryopreservation of sperm in marine fish and invertebrates, which is related to its good cryoprotective effect on sperm and suitability for most species [19]. The optimal concentration range of DMSO is 5–20%. A high concentration of DMSO easily penetrated the cells, and the cytotoxicity was very obvious. DMSO at the same concentration caused greater damage to sperm than glycerol. In addition, different concentrations of EG, PG, and methanol were also used for the study of sperm cryopreservation of invertebrates, but their effects were not as good as those of DMSO and glycerol. Therefore, a reasonable selected concentration and types of cryoprotectants are crucial for the cryopreservation of sperm. Our study found that 20% glycerol was the optimal cryoprotectant for P. trituberculatus sperm (Figure 2). This is consistent with the findings of Bhavanishankar, who suggested that sperm in glycerol have a higher survival rate than those in DMSO [13]. However, the optimal glycerol concentration of Scylla serrata sperm was 12.5%, which may be determined by species specificity. Anchordoguy et al. considered 5% DMSO to be the most suitable cryoprotectant for sperm of Sicyonia ingentis [46]. Liu et al. suggested that 5% DMSO is the best cryoprotectant for C. japonica [35]. Ke and Cai considered the cryoprotectant composed of 10% DMSO and 5–10% glycerol was to be most effective cryoprotectant for cryopreservation of P. chinensis sperm, and the sperm survival rate was more than 60%, which was better than a single cryoprotectant [51]. This indicated that different animal sperm had different adaptability and sensitivity to cryoprotectants, and sometimes the combined use of cryoprotectants would produce better results.

3.2.2. The Most Suitable Equilibrium Times at 4 °C

The mixture of cryoprotectant and semen after a certain period of time is conducive to the role of cryoprotectant. With the decrease in temperature, the metabolic activity of sperm is also reduced. The sperm can gradually adapt to the low-temperature environment with a 4 °C balance and will not make the sperm suddenly enter the ultralow temperature environment and cause sperm death. However, different scholars hold different views on how long sperm need to be balanced at 4 °C before cryopreservation. Liao et al. thought it is necessary to balance M. nipponense shrimp sperm at 4 °C for 30 min [52]. Xu et al. believed that the effect of balancing the sperm of Charybdis japonica at 4 °C for 30 min was better [33]. Ke and Cai believed that it was necessary for the sperm of P. chinensis to balance at 0–4 °C for 20–30 min before cryopreservation, and sperm would not undergo an acrosome reaction [51]. Chen believed that the sperm of E. sinensis should be balanced at 4 °C for more than 30 min after adding cryoprotectant. If the balance time was less than 30 min, the DNA damage to sperm was obvious. If the sperm were put directly into liquid nitrogen under imbalance, the sperm could not survive after thawing [34]. Our results showed that the time of sperm balance before cryopreservation is different, and the effect is also different. From 0 to 75 min, with the decrease in balance time, the sperm survival rate increased. However, when the equilibrium time was less than 15 min, the sperm survival rate decreased with increasing time (Figure 3). The optimal balance time of P. trituberculatus sperm is 15 min, and too long or too short will reduce the survival rate of sperm. Therefore, a balance time at 4 °C had a significant effect on the quality of sperm cryopreservation of P. trituberculatus. Therefore, in the process of sperm cryopreservation, it was necessary to balance for 15 min to avoid the damage caused by insufficient balance time.

3.2.3. The Most Suitable Cooling Procedures and Thawing Temperatures

The cooling rate will directly affect the freezing effect of sperm. If the cooling rate is too fast or too slow, it will cause sperm damage. The step-by-step cooling method is more conducive to the adaptation of sperm to the environment to maintain a complete structure [53]. In our study, we used the straw-freezing method. A total of 0.25 mL of the straw containing the sperm of P. trituberculatus in a liquid nitrogen surface 3.5 cm was incubated for 15 min and then placed in liquid nitrogen, and the effect of cryopreservation was best (Figure 4). This was different from the results of Zhouˊs previous studies. Zhou believes that the best effect is to put the sperm of P. trituberculatus in 0.5 mL straw, drop it slowly in liquid nitrogen vapor (within 10 min), and finally put the straw into liquid nitrogen [54]. This may be due to the continuous solidification of liquid in the process of ultra-low-temperature freezing to form the amorphous and highly viscous state of glass crystallization. The main characteristics of vitrification were a high concentration of cryoprotectants and instantaneous cooling. However, the range of 0–40 °C brings a risk of irreversible mechanical damage to cells, and appropriate cooling options enable cells to move across this range [55] so that they can be put into liquid nitrogen for long-term preservation. Therefore, two-step or three-step cooling methods are generally used in ultra-low-temperature cryopreservation of sperm.
Whether the resuscitation method is appropriate or not affects the cryopreservation effect of sperm to a large extent, different resuscitation methods should be selected for different cooling processes. The effect of resuscitation speed is related to the type of cells, the protective liquid used in cryopreservation, the cooling speed, and the temperature control. Common resuscitation methods are 30–40 °C water-bath thawing and room-temperature water thawing. The thawing effect of Penaeus chinensis sperm at 35–40 °C is the best [51]. The sperm survival rate of Penaeus monodon was highest after thawing in a 30 °C water bath [36]. The sperm survival rate of L. vannamei was the highest after thawing in a 37 °C water bath [56]. The most suitable thawing temperature of Scylla serrata sperm was 55 °C [11]. In the thawing process of E. sinensis sperm, Chen used the same temperature as for Scylla serrata and achieved good results [34]. In this study, we found that there was no significant difference in thawing P. trituberculatus sperm in a water bath at 32–57 °C (except 42 °C) (p > 0.05), and the survival rate of sperm was the highest after thawing in a 42 °C water bath (Figure 5). This was close to the thawing temperature selected by most previous studies. This suggests that water bath thawing was suitable for sperm recovery in most animals.

3.3. Sperm Cryopreservation Damages the Sperm of P. trituberculatus

Sperm cryopreservation can generate cellular damage that compromises the integrity of the plasma membrane, the viability, and the fertilization capacity of sperm [57]. mRNA molecules are crucial molecules that could be directly related to sperm quality. Methods based on qPCR analysis were recently developed for the detection and quantification of sperm mRNA transcripts in fish, which are important in fertilization and offspring development [58,59]. Cryopreservation induces a decrease in the levels of certain RNAs in sperm and is a useful biomarker of post-thaw quality [58]. Cryopreservation can alter the chromatin structure in sperm, and this process might also affect mRNA stability by altering their association with certain proteins. In our study, the expression of the sperm-related genes ALF, DIC, caspase 1, and acrosin in frozen sperm was significantly decreased (p < 0.05) (Figure 7). The results showed that cryopreservation can cause some damage to the sperm of P. trituberculatus. ALF regulates spermatogenesis as a testis-specific transcription factor, and the abnormal expression of ALF is related to abnormal human spermatogenesis [28]. Additionally, the decreased expression of ALF mRNA may indicate that cryopreservation decreases sperm fertilization ability. Caspase 1 plays a pivotal role in the immune defense mechanisms against infections by the innate immune system [29]. In our results, the decreased expression of caspase 1 mRNA may indicate that cryopreservation impairs sperm’s ability to protect themselves and decreases sperm’s fertilization ability. DIC is an important submit of dynein, and the decrease in DIC mRNA expression indicates that the function of dynein would be affected [30,31]. Acrosin, a serine protease present in the sperm acrosome, plays an important role in the fertilization process [32]. In our results, the reduction in acrosin mRNA expression may predict a decrease in sperm’s fertilization ability. Therefore, sperm cryopreservation can cause some damage to the sperm of P. trituberculatus. Additionally, the decrease in gene expression may be the molecular mechanism of sperm vitality decrease in P. trituberculatus.
Spermatogenesis in the testis is composed of a series of biochemical reactions, which are regulated by a variety of enzymes [60]. The activity of related enzymes in the testis reflects the overall physiological activity of the testis, and the enzyme as a catalyst for metabolism in the organism is a necessary factor for tissue cells to exert their physiological functions. Therefore, the activity of the enzyme can be used as a basis for determining the physiological activity of the testis [61]. SOD, CAT, ACP, AKP, and GSH have usually been used as the activity markers of testis [62,63,64,65,66,67,68,69,70,71,72,73]. SOD, CAT, and GSH play an important role in the oxidation and antioxidant balance of the body. They can effectively reduce the formation of reactive oxygen species (ROS), such as hydroxyl radicals (•OH) and hydrogen peroxide (H2O2) [62,63]. If excessive free radicals could not be cleared by the body in a timely manner, they will attack a variety of biological macromolecules, causing DNA damage, enzyme inactivation and lipid peroxidation, and a series of oxidative damage, leading to sperm damage and decreased vitality. They therefore play a vital role in protecting cells from damage and protecting sperm [64,65]. Additionally, GSH activity was correlated with motility, vitality, the mitochondrial state, the oocyte binding capacity, and fertilization of sperm cells [66]. Liu et al. indicated that the enzyme activity in goat semen had a significant effect on sperm motility. Liu et al. also found a SOD and GSH-PX plays an important antioxidant role in goat sperm and they have significant correlation with sperm viability [67,68]. Our results showed that the activities of SOD, CAT, and GSH in P. trituberculatus sperm were significantly decreased after cryopreservation (Figure 8), indicating that sperm cryopreservation resulted in a reduction in antioxidant capacity, so many free radicals could not be cleared by antioxidant enzymes, sperm in P. trituberculatus was bound to be damaged by oxidation, and sperm viability was decreased. Some studies have shown that •OH and ROS have a greater damaging effect on cells [69,70]. Therefore, sperm cryopreservation has some degree of damage to the sperm of P. trituberculatus. Therefore, the activity of antioxidant enzymes (SOD, CAT, GSH) can reflect the physiological status of sperm to a certain extent and can be used as an important physiological index to measure the preservation effect of cryoprotectants.
ACP and AKP are directly involved in the transfer and metabolism of phosphate groups in the defense mechanism of crustaceans [71], which can accelerate the uptake and transport of substances, form a hydrolytic enzyme system, destroy and eliminate foreign bodies, and achieve the defense function of the body [72,73]. They can directly affect the metabolism and vitality of sperm. In addition, ACP can also participate in the synthesis of related proteins under the induction of sex hormones [61]. Thereby, they can be used as the basis for evaluating sperm viability. In our study, we found that the activities of ACP and AKP in frozen sperm were decreased (Figure 8), indicating that sperm cryopreservation influenced the metabolism and vitality of P. trituberculatus sperm. Additionally, sperm cryopreservation damages the sperm of P. trituberculatus. In sum, the decrease in enzyme activity (SOD, CAT, ACP, AKP, and GSH) may be the mechanism of sperm vitality decrease in P. trituberculatus.

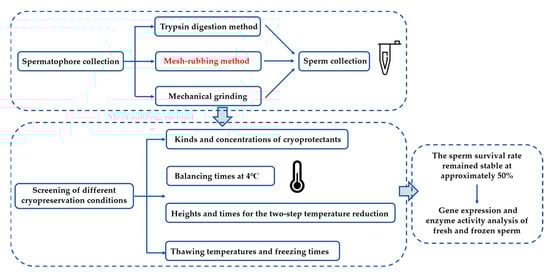

3.4. Optimal Sperm Cryopreservation Formulation and Its Application

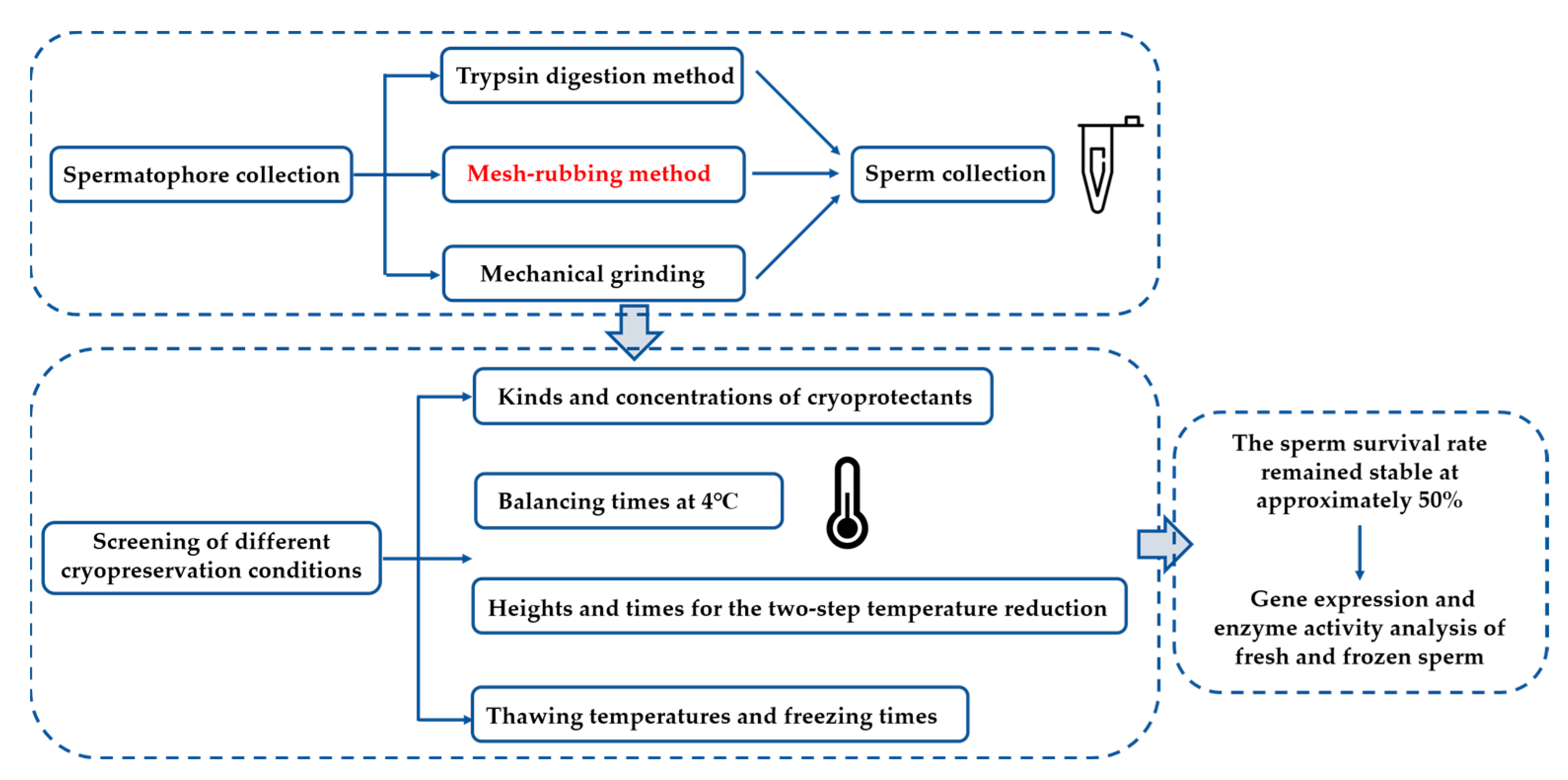

Based on the results of the study, we obtained the optimal sperm cryopreservation formulation of P. trituberculatus, which is shown in Table 1. We used this formulation for the 30 d freezing and thawing experiment and found that sperm viability was good and that the sperm survival rate remained stable at approximately 50% during the experiment (Figure 6). The effect was better than that in the study by Zhou et al., in which the sperm survival rate of P. trituberculatus sperm was only 25% after freezing for 236 h [49]. However, the sperm survival rate after cryopreservation in our study was less than the sperm survival rate of Scylla serrata sperm cryopreservation in the study of Guan et al., which was 58.7% [42]. Additionally, the sperm survival rate in our study was lower than the sperm survival rate of Macrobrachium nipponense sperm cryopreservation in the study of Liao et al., which was 60% [47]. This may be caused by species differences and different cryopreservation formulations; later, we will use different cryoprotectants in combination to optimize the cryopreservation formulation and further improve the sperm survival rate.

4. Materials and Methods

4.1. Spermatophore Collection

The P. trituberculatus crabs used in our experiments were selected from the ChouPijiang farm of Ningbo Zhejiang, China. Healthy and post-mating female P. trituberculatus subjects with similar growth conditions were selected for the experiment, with a mean weight of 200 ± 15 g. The crabs were immersed in 1% potassium permanganate solution for 20 min, and then the spermathecas were isolated with a sterilized dissecting knife and immediately placed in sterile calcium (Ca2+)-free artificial seawater. After that, the spermathecas were punctured to squeeze out the spermatophores and then stored at 4 °C for subsequent experiments.

4.2. Sperm Collection

4.2.1. Trypsin Digestion Method

The fresh spermatophores were placed on clean filter paper to absorb the water, weighed, and then transferred to centrifuge tubes (Jet Biofil, Guangzhou, China). Then, 3 mL of 0.2% trypsin solution was added, and the samples were placed in a water bath at 37 °C for 5 min (the mixture was reversed twice to fully react). The suspension was centrifuged at 500× g for 10 min at 4 °C, and the supernatant was then centrifuged at 2000× g for 8 min at 4 °C. The precipitate was washed three times with Ca2+-free artificial seawater, and then sterile Ca2+-free artificial seawater was added to obtain the pure sperm cells. The sperm survival rate in suspension was detected (n = 20).

4.2.2. Mesh-Rubbing Method

The fresh spermatophores were placed on clean filter paper to absorb water, weighed, placed into 250 mesh silk screens, placed into a container with (4 °C) sterile Ca2+-free artificial seawater, and gently scrubbed to release sperm. Then, the homogenate was transferred into a centrifuge tube and centrifuged at 500× g for 10 min at 4 °C, and the supernatant was then centrifuged at 2000× g for 8 min at 4 °C. The precipitate was washed three times with Ca2+-free artificial seawater, and then sterile Ca2+-free artificial seawater was added to obtain the pure sperm cells. The sperm survival rate in suspension was detected (n = 60).

4.2.3. Mechanical Grinding Method

The fresh spermatophores were drained and weighed, placed in (4 °C) sterile Ca2+-free artificial seawater. After 10 min of settlement at 4 °C, the supernatant was discarded, and the precipitate of spermatophores was resuspended with the same buffer and then gently ground and triturated using glass homogenizer in an ice bath (4 °C) to create a spermatophore homogenate, which was later settled for a further 10 min. Then, the supernatant was transferred to a centrifuge tube and later centrifuged at 500× g for 10 min at 4 °C to separate the spermatozoal suspension and the precipitable fragments of spermatophores. The spermatozoal suspension was then centrifuged at 2000× g for 8 min at 4 °C. The spermatozoal pellet was washed three times with Ca2+-free artificial seawater, and then sterile Ca2+-free artificial seawater was added to obtain the pure sperm cells. The sperm survival rate in suspension was detected (n = 20). The percentage of sperm viability between the three collect methods was analyzed using a t-test. The level of significance for all analyses was set at p < 0.05.

4.3. Sperm Viability Assessment

The sperm suspension was diluted to 107 sperm ml−1 with the aid of a hemocytometer plate (16 × 25 cells in the counting area, total volume of 0.1 mm3). The 2% eosin B (MACKLIN, Shanghai, China) staining solution was prepared with sterile Ca2+-free artificial seawater. The sperm solution and eosin B staining solution were added to the carrier glass and mixed, and then the glass coverslip was slowly covered. Microscopic examination (Nikon NI-U light microscope, Nikon Corporation, Tokyo, Japan) of 200 sperm was randomly performed (repeated 3 times), and the sperm malformation rate was determined. The sperm was divided into four categories, including (Ⅰ) live sperm without acrosome reaction, (Ⅱ) live sperm with acrosome reaction, (Ⅲ) dead sperm without acrosome reaction, and (Ⅳ) dead sperm with acrosome reaction. We observed that type Ⅰ sperm without acrosome reactions were not colored. The acrosome of type II sperm was inversed, and only the acrosome part was colored red. The acrosome of type III sperm is inversed, and the whole sperm is colored red. The acrosome morphology of type Ⅳ sperm remained normal, but the whole sperm was colored red. Since live sperm with acrosome reactions are no longer capable of insemination, they are not included in the later viability calculations.

4.4. Screening of Cryopreservation Conditions for Sperm of P. trituberculatus

4.4.1. Different Kinds and Concentrations of Cryoprotectants

We selected five cryoprotectants, dimethyl sulfoxide (DMSO), glycerol, methanol, ethylene glycol (EG), and propylene glycol (PG) (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), based on their extensive use for cryopreservation of fish, shrimp, and crab sperm. Each cryoprotectant solution was prepared to final concentrations of 5, 10, 15, 20, 25, and 30% (v/v) using sterile Ca2+-free artificial seawater as the diluent. The sperm solution and the cryoprotectant solution were mixed at a ratio of 1:1 and equilibrated at 4 °C for 30 min. Then, the sperm were stored in liquid nitrogen for 1 h after the two-step temperature-reduction method (plastic straws were placed horizontally at 3.5 cm on the liquid nitrogen surface of a homemade simple cooling device for 5 min). The sperm were thawed in a water bath at 42 °C, and the sperm survival rate was detected; three replicates were conducted for each treatment. We applied one-way ANOVA to compare differences between the sperm survival rate at different kinds of cryoprotectants or different concentrations of cryoprotectants. Significant differences between treatments were identified using Tukey’s HSD and Tukey s-b post hoc tests for post hoc multiple comparisons.

4.4.2. Different Balancing Times at 4 °C

The sperm solution and the cryoprotectant of 20% glycerol were mixed at a ratio of 1:1, and the samples were aspirated into 0.25 mL straws and equilibrated at 4 °C for 0, 15, 30, 45, 60, or 75 min. Then, the sperm were stored in liquid nitrogen for 1 h after the two-step temperature reduction method (method the same as 4.4.1). The sperm were thawed in a water bath at 42 °C, and the survival rate was detected (repeated 3 times). After the optimal equilibration time was obtained, we reduced the equilibrium time gradient. The samples were aspirated into 0.25 mL straws and equilibrated at 4 °C for 5, 10, 15, 20, or 25 min. The other conditions and operation methods were the same as above, and the sperm survival rate was detected. Three replicates were conducted for each treatment. We applied one-way ANOVA to compare differences between the sperm survival rate at different balancing times at 4 °C. Significant differences between treatments were identified using Tukey’s HSD and Tukey s-b post hoc tests for post hoc multiple comparisons.

4.4.3. Different Heights and Times for the Two-Step Temperature-Reduction Method

The sperm solution and the cryoprotectant of 20% glycerol were mixed at a ratio of 1:1, and the samples were aspirated into 0.25 mL straws and equilibrated at 4 °C for 15 min. After that, the sperm were cooled at the liquid nitrogen surface (1.5, 3.5, 5.5, 7.5, 9.5, or 11.5 cm) for 0, 2.5, 5, 7.5, 10, 12.5, 15, 17.5, or 20 min, respectively. The sperm were stored in liquid nitrogen for 1 h and then thawed in a water bath at 42 °C, and the survival rate of the sperm was detected. Three replicates were conducted for each treatment. We applied one-way ANOVA to compare differences between the sperm survival rate at different heights or times for the two-step temperature-reduction method. Significant differences between treatments were identified using Tukey’s HSD and Tukey s-b post hoc tests for post hoc multiple comparisons.

4.4.4. Different Thawing Temperatures and Freezing Times

The sperm solution and the cryoprotectant of 20% glycerol were mixed at a ratio of 1:1, and the samples were aspirated into 0.25 mL straws and equilibrated at 4 °C for 15 min. Then, the sperm was stored in liquid nitrogen for 1 h after the two-step temperature reduction method (method the same as 4.4.1). The sperm was stored in liquid nitrogen for 1 h and then thawed in a water bath at 22, 27, 32, 37, 42, 47, 52, 57, 62, or 67 °C, and the survival rate of the sperm was detected. Three replicates were conducted for each treatment.
The sperm solution and the cryoprotectant of 20% glycerol were mixed at a ratio of 1:1, and the samples were aspirated into 0.25 mL straws and equilibrated at 4 °C for 15 min. Then, the sperm was stored in liquid nitrogen for 1 h after the two-step temperature reduction method (method the same as 4.4.1). The sperm was stored in liquid nitrogen and then thawed in a water bath at 42 °C, and the survival rate of the sperm was detected within 30 days. Three replicates were conducted for each treatment. The flow chart of the sperm cryopreservation procedure was as follows (Figure 9). We applied one-way ANOVA to compare differences between the sperm survival rate at different thawing temperatures or freezing times. Significant differences between treatments were identified using Tukey’s HSD and Tukey s-b post hoc tests for post hoc multiple comparisons.

4.5. Gene Expression and Enzyme Activity Analysis of Fresh and Frozen Sperm

4.5.1. Sperm-Related Gene Expression of Sperm in P. trituberculatus

Total RNA was extracted from fresh and frozen sperm of P. trituberculatus by RNA solv Reagent (OMEGA, Norcross, GA, USA). The PrimeScript™ RT reagent Kit (Takara, Dalian, China) was used for normal reverse transcription. All reverse transcription products (cDNA) were stored at −20 °C. Real-time quantitative PCR (qPCR) was used to analyse the expression of ALF (Aalpha/beta-like factor), caspase 1, DIC (dynein intermediate chain), and acrosin in fresh and frozen sperm in P. trituberculatus. The primers used for qPCR were designed using Primer Premier 5 software (Premier Biosoft International, Palo Alto, CA, USA) on the cDNA sequences of ALF, caspase 1, DIC, and acrosin of P. trituberculatus downloaded from the National Center for Biotechnology Information website (https://www.ncbi.nlm.nih.gov/ (accessed on 1 December 2021), NCBI). The GenBank numbers are XM_045276087.1, XM_045248050.1, XM_045252879.1, and OL840042. The primers used for qPCR are listed in Table 2. The gapdh gene was used as a positive active control, and the primers were designed based on the gapdh cDNA sequence (CenBank Number: EU919707.1).
The Rotor-Gene 6000 System was used for the qPCR assay. A 20 μL reaction volume was set up to carry out the amplification process, containing 5 μL of 1:25 diluted cDNA, 10 μL Master Mix (GenStar, Beijing, China), 1 μL of each primer (10 μM), and 3 μL PCR-grade water. qPCR was carried out at 95 °C for 2 min, followed by 40 amplification cycles (denaturation at 95 °C for 15 s, annealing at 60 °C for 15 s, and extension at 72 °C for 30 s). The comparative delta–delta Ct method was used to analyze the gene expression of ALF, caspase 1, DIC, and acrosin in fresh and frozen sperm. The gene expression between the fresh and frozen sperm was analyzed using a t-test. The level of significance for all analyses was set at p < 0.05.

4.5.2. Enzyme Activity Analysis of Fresh and Frozen Sperm

The same batch of fresh semen and frozen semen solutions were centrifuged at 4 °C for 8 min at 2000× g, and 9 times the volume of physiological saline was added to the suspension. The supernatant was centrifuged at 2500× g for 10 min, and the supernatant was obtained. A BCA reagent kit (Beyotime, Shanghai, China) was used to measure the protein concentration.
The glutathione (GSH) content assay kit, catalase assay kit, total SOD activity assay kit, acid phosphatase assay kit, and alkaline phosphatase assay kit (Nanjing Jiancheng Bioengineering Institute, Nanjing, China) were used to detect the enzymatic activities of SOD, CAT, GSH, ACP, and AKP in the same batch of fresh and frozen sperm (repeated three times). All the above operations were carried out according to the instructions provided by the manufacturer. The enzyme activity between the fresh and frozen sperm was analyzed using a t-test. The level of significance for all analyses was set at p < 0.05.

4.6. Statistical Analysis

The results are presented as the mean ± standard deviation (SD). All analyses and graphs were performed at a significance level of p < 0.05 using IBM SPSS Statistics 25.0 (SPSS Software, Chicago, IL, USA) and GraphPad Prism software 8.0.2 (GraphPad Software Inc., San Diego, CA, USA).

5. Conclusions

In the process of cryopreservation and thawing, sperm damage mainly includes supercooling shock, ice crystal damage, hypertonic shock, and cryoprotectant toxicity. The current research primarily aimed to improve the survival rate of sperm by adjusting the parameters in the cryopreservation process to reduce the damage caused by these factors. In our study, different sperm acquisition methods and cryoprotectant combinations were screened to select the most suitable method for cryopreservation of P. trituberculatus to improve the breeding basis of P. trituberculatus, ensuring that sperm supply was not limited by time and space, and to provide basic knowledge for artificial in vitro fertilization. This study has extensive research significance and application prospects in protecting species diversity. It is of great significance to improve the germplasm of P. trituberculatus, select and cultivate excellent varieties of P. trituberculatus, and improve the yield of aquaculture. At the same time, it provides a certain technical basis for the establishment of the sperm cryopreservation library of crustaceans. In the later stage, different cryoprotectants can be combined to optimize the quality of frozen sperm.

Author Contributions

L.C., data curation, writing—original draft preparation, formal analysis, software, visualization; C.L., data curation, conceptualization, investigation, validation, methodology; J.Z., investigation, resources; Y.C., investigation, methodology; C.W., conceptualization, visualization, funding acquisition; C.M., data curation, methodology; C.H., conceptualization, funding acquisition, project administration, supervision, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Key Project of Ningbo Natural Science Foundation (Project ID: 2022J071), the Natural Science Foundation of Zhejiang Province (grant number LY20C190003), National Natural Science Foundation of China (grant number 31602140), the K.C. Wong Magna Fund in Ningbo University, and the Collaborative Innovation Center for Zhejiang Marine High-efficiency and Healthy Aquaculture.

Institutional Review Board Statement

The experimental animal of this study was P. trituberculatus, a kind of crab, which is an invertebrate. In China, crabs do not require ethical approval for experiments. All our crabs were purchased from edible-crab farms. Before dissection, we anesthetized the crabs on ice. All experiments comply with the requirements of the governing regulation for the use of experimental animals in Zhejiang Province (Zhejiang provincial government order No. 263, released in 17 August 2009, effective from 1 October 2010) and the Animal Care and Use Committee of Ningbo University.

Informed Consent Statement

Not applicable.

Data Availability Statement

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Thanks to the schoolmates in the Laboratory of Reproduction and Development of Ningbo University for their help in this project.

Conflicts of Interest

The authors declare no conflict of interest.
