Ruthenium Complexes with Protic Ligands: Influence of the Position of OH Groups and π Expansion on Luminescence and Photocytotoxicity

Abstract

Protic ruthenium complexes using the dihydroxybipyridine (dhbp) ligand combined with a spectator ligand (N,N = bpy, phen, dop, Bphen) have been studied for their potential activity vs. cancer cells and their photophysical luminescent properties. These complexes vary in the extent of π expansion and the use of proximal (6,6′-dhbp) or distal (4,4′-dhbp) hydroxy groups. Eight complexes are studied herein as the acidic (OH bearing) form, [(N,N)₂Ru(n,n′-dhbp)]Cl₂, or as the doubly deprotonated (O⁻ bearing) form. Thus, the presence of these two protonation states gives 16 complexes that have been isolated and studied. Complex 7_A, [(dop)₂Ru(4,4′-dhbp)]Cl₂, has been recently synthesized and characterized spectroscopically and by X-ray crystallography. The deprotonated forms of three complexes are also reported herein for the first time. The other complexes studied have been synthesized previously. Three complexes are light-activated and exhibit photocytotoxicity. The log(D_o/w) values of the complexes are used herein to correlate photocytotoxicity with improved cellular uptake. For Ru complexes 1–4 bearing the 6,6′-dhbp ligand, photoluminescence studies (all in deaerated acetonitrile) have revealed that steric strain leads to photodissociation which tends to reduce photoluminescent lifetimes and quantum yields in both protonation states. For Ru complexes 5–8 bearing the 4,4′-dhbp ligand, the deprotonated Ru complexes (5_B–8_B) have low photoluminescent lifetimes and quantum yields due to quenching that is proposed to involve the ³LLCT excited state and charge transfer from the [O₂-bpy]²⁻ ligand to the N,N spectator ligand. The protonated OH bearing 4,4′-dhbp Ru complexes (5_A–8_A) have long luminescence lifetimes which increase with increasing π expansion on the N,N spectator ligand. The Bphen complex, 8_A, has the longest lifetime of the series at 3.45 μs and a photoluminescence quantum yield of 18.7%. This Ru complex also exhibits the best photocytotoxicity of the series. A long luminescence lifetime is correlated with greater singlet oxygen quantum yields because the triplet excited state is presumably long-lived enough to interact with ³O₂ to yield ¹O₂.

1. Introduction

Light-activated ruthenium complexes show great promise in their ability to target cancer cells [1] via singlet oxygen generation in photodynamic therapy (PDT) [2,3,4] or via generation of toxic species via photoactivated chemotherapy (PACT) [5,6,7,8,9]. This paper focuses primarily on PDT and correlating singlet oxygen production with other photophysical properties, including photoluminescence quantum yield and the photoluminescence lifetime.

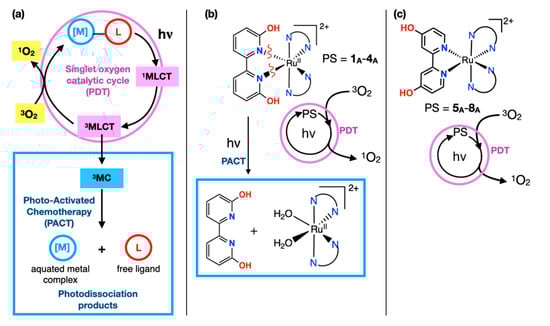

PDT represents a catalytic cycle that does not consume the photosensitizer (PS, e.g., the Ru complex as used herein), as shown in Figure 1a. Typically, a metal complex is excited to a ¹MLCT (metal to ligand charge transfer) state, and then intersystem crossing to the ³MLCT is usually fast and occurs with high efficiency for Ru tris diimine complexes [10]. The ³MLCT state is shown here (Figure 1a) for the sake of simplicity, but some metal complexes with extended π systems on the ligands also involve other low-lying excited states, including ³LLCT (ligand to ligand charge transfer) and ³ILCT (intra-ligand charge transfer) [11,12,13,14]. These triplet excited states can all transfer energy to ³O₂ and generate ¹O₂ as a toxic species [15,16]. The lifetime of these triplet excited states can, in some cases, be measured by photoluminescence spectroscopy, and a longer-lived triplet excited state (in the absence of a quencher) corresponds to a greater probability of singlet oxygen formation if other non-radiative decay processes are negligible. This cycle is shown in the purple circle in Figure 1a.

Alternatively, for certain complexes, the ³MLCT (or other triplet excited states) can relax to a ³MC (metal-centered) state, as shown in the blue square in Figure 1a. This pathway typically becomes important for complexes with steric strain near the metal center [5,17,18,19]. The ³MC state is typically antibonding between the Ru center and the ligand with steric strain or weaker bonds [11]. This state can lead to photodissociation of the organic ligand, which produces a solvated metal complex and free ligand (Figure 1a, blue box). These species can be toxic by either generating a labile Ru center that can bind to biomolecules or by liberating toxic organic ligands [20,21,22,23,24].

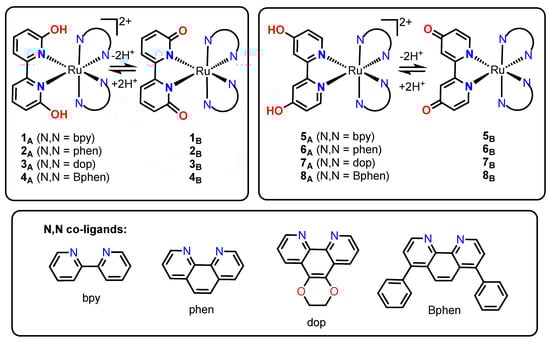

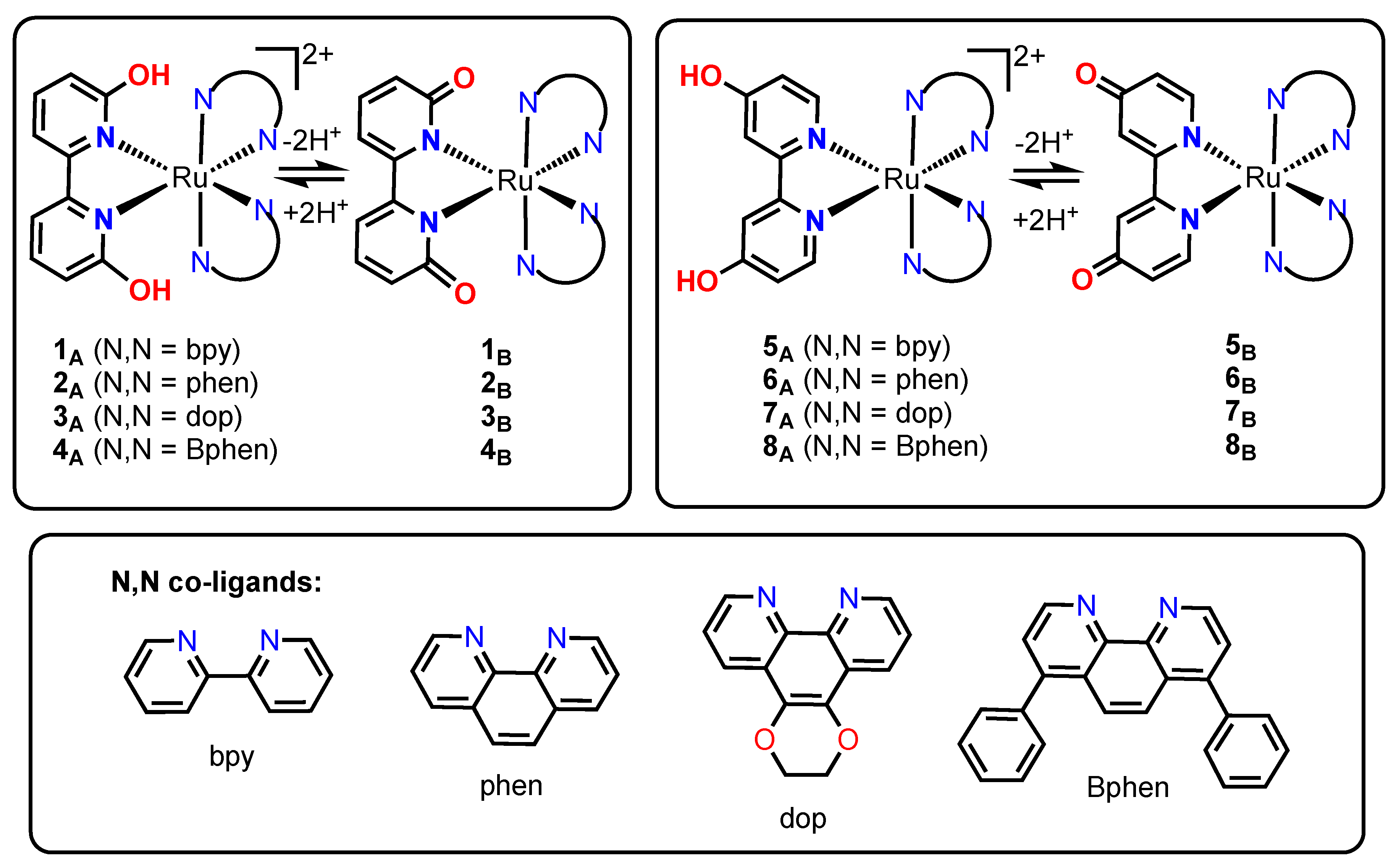

Complexes 1_A–4_A (Figure 1b and Figure 2) utilize the 6,6′-dhbp (dhbp = dihydroxybipyridine) ligand with hydroxy groups near the metal center, whereas complexes 5_A–8_A (Figure 1c and Figure 2) utilize the 4,4′-dhbp ligand with distal hydroxy groups [11,25,26,27,28,29]. We chose the N,N spectator ligands as bpy, phen, dop, and Bphen (as shown in Figure 2) to gradually increase π expansion to improve singlet oxygen generation and cellular uptake (vide infra) [11,26]. Both dhbp ligands are diprotic, and the use of protic Ru anticancer compounds has been rare [30]. Double deprotonation of the A form (e.g., 1_A which is dicationic, Figure 2) produces the neutral B form (e.g., 1_B). The terminology X_A is used for the isolated dications (1_A–8_A), X_B is used for the isolated neutral species (1_B–8_B), and a lack of subscript indicates an equilibrium mixture of A and B forms as dictated by the solution pH and the pK_a values. The measured pK_a values are given in the sixth column of

Table 1. A comparison of the cellular studies performed for light activated toxicity as correlated with photophysical properties (quantum yields). Here we include a select number of cellular phototoxicity studies. Log(D_o/w) values are provided as a measure of relative hydrophilicity vs. lipophilicity of the compounds. N.d. = not determined.

Compound	Cell Line a	EC50_light (μM)	EC50_dark (μM)	PI	pKa avg	log(Do/w) at pH 7.4	ΦPS (%) d	ΦΔ (%)	Ref.
1A	MCF7	>500 b	>500	~1	6.3	1.4(1)	0.58	4.1 g	[11,25], [28,29]
1B							0.12	18 g
2A	MCF7	180 b	490	2.8	6.0(1)	1.6(1)	0.20	4.8 g	[11,28,29]
2B							3.6 × 10−3	87 g
3A	MCF7	4.1 b	490	120	5.9(1)	1.8(1)	0.1	4.8 g	[11,28,29]
3B							2.2 × 10−2	48 g
4A	MCF7	2.0 c	18	8.9	5(1)	>3	e	5 h	[26]
4B								<1 h
5A	HeLa	>100 b	>100	~1	n.d.	−1.2(2)	f	57 h	This work, [25]
5B								4 h
6A	MCF7	194 b	>300	1.5	6.01(8)	−0.1(2)	f	62 h	This work, [28]
6B								16, 19 h,i
7A	MCF7	>100 b	>100	~1	n.d.	0.8(2)	f	76 h	This work
7B								15 h,j
8A	MCF7	0.5 c	>100	>200	5.9(3)	>3	f	68 h	[26]
8B								19 h

^a The cell studies for these compounds are performed in media at pH 7.4 to 7.5. Thus, based upon published pK_a values, mostly the B form is present in the cell studies, although the compound is initially given to cells in the A form. The form listed here (A or B) corresponds to which form was used to measure singlet oxygen formation or photosubstitution in columns 8 and 9. ^b Light fluence and illumination area not reported. Irradiated for 60 min with blue light at λ = 450 nm. ^c Irradiated with white LED light with significant amounts of blue frequencies (λ = 450 nm). Dosage of light = 40 mWcm⁻² for 120 min, 288 Jcm⁻². ^d For 1_A, 2_A, and 3_A, the Φ_PS was measured in aqueous buffer at pH 5.0 because this gives mostly the OH bearing A form based on the pK_a values. For 1_B, 2_B, and 3_B, the Φ_PS was measured in aqueous buffer at pH 7.5 because this gives mostly the O⁻ bearing B form based on the pK_a values. ^e Not reported but photosubstitution is observed. ^f Not reported and photosubstitution has not been observed for this system. ^g Measured in CD₃OD. ^h Measured in CH₃CN. ⁱ Values of Φ_Δ = 16% and 19% were measured with excitation at 510 nm and 471 nm, respectively. ^j Values of Φ_Δ = 15% and 14% were measured with excitation at 465 nm and 517 nm, respectively.

, and they are typically ~5–6 [25,26,28]. This indicates that complexes 1–8 are predominantly doubly deprotonated at physiological pH, but there can still be a significant amount of the OH bearing A form and the mono-deprotonated cationic species at physiological pH [29]. Herein, luminescence studies are carried out in rigorously dried acetonitrile, and thus the isolated A and B forms should stay as such. Thus, this allows for a fundamental study of how protonation state influences the photophysics.

The presence or absence of sterically demanding groups near the metal center influences whether photodissociation occurs. The 6,6′-dhbp (dhbp = dihydroxybipyridine) ligand in 1_A–4_A induces steric strain near the metal center. These complexes photodissociate (blue box in Figure 1b) but the quantum yields (Φ_PS) are low (Table 1) [28]. These complexes produce higher quantum yields of singlet oxygen (Φ_Δ) (purple circle in Figure 1b and Table 1) vs. photodissociation (Φ_PS), and singlet oxygen generation appears to be responsible for the observed photocytotoxicity (only 3_A and 4_A show significant photocytotoxicity based on PI values, PI = phototoxicity index = EC_{50_dark}/EC_{50_light}, Table 1 and vide infra) [11,26]. This difference in toxicity across this series is proposed to be due primarily to uptake. It has been measured in our past work and estimated by log(D_o/w) values (Table 1) [29]. Complexes 3_A and 4_A are the most lipophilic of the 1_A–4_A series, and lipophilic compounds are predicted to pass most readily through the phospholipid cell membrane by passive diffusion. An ideal range for log(D_o/w) is typically given as 2–6, so long as they have sufficient water solubility for drug delivery [31,32,33,34]. The distribution coefficient (D_o/w) is used for ionizable metal complexes, whereas P (partition coefficient) is used for aprotic, nonionizable metal complexes.

Complexes 5_A–8_A lack steric strain near the metal center and, therefore, do not undergo photodissociation under the conditions used herein [25,26,28,35]. Thus, Figure 1c shows only the singlet oxygen generation pathway for these compounds. While the protonation state of complexes (1_A–8_A vs. 1_B–8_B in Figure 2 and Table 1) has an influence on these pathways, this has been described in our past work and further discussion is best deferred to the main text. In our past work, the reasons for the lack of toxicity observed for complexes 5_A and 6_A were elusive. Herein, we report log(D_o/w) values and singlet oxygen quantum yields (Φ_Δ) to better explain these trends. Likewise, complex 7_A is new, and here we report its synthesis, characterization data, log(D_o/w) values, singlet oxygen quantum yields (Φ_Δ), and photocytotoxicity data. Complexes 5_A–7_A are contrasted with 8_A, which is our most photocytotoxic compound (PI > 200). This work aims to explain these trends in terms of log(D_o/w) values to estimate cellular uptake. Furthermore, for all sixteen complexes (1_A–8_A, 1_B–8_B), we have performed photoluminescence studies to understand the photophysics and to correlate photoluminescence parameters with singlet oxygen quantum yields.

2. Results and Discussion

2.1. Synthesis

The protic 6,6′-dhbp ligand was combined with four spectator ligands (N,N = bpy, phen, dop, BPhen) to produce [(N,N)₂Ru(6,6′-dhbp)]Cl₂ complexes (1_A, 2_A, 3_A, and 4_A, respectively) using previously reported synthesis procedures (see Figure 2 for structures) [25,26,28]. These complexes with OH groups near the metal center are contrasted herein with the 4,4′-dhbp complexes: [(N,N)₂Ru(4,4′-dhbp)]Cl₂ complexes (5_A, 6_A, 7_A, and 8_A, using N,N = bpy, phen, dop, and BPhen, respectively, Figure 2). Complexes 5_A, 6_A and 8_A were reported previously [25,26,28], whereas complex 7_A is new [35]. Complex 7_A was prepared by refluxing (dop)₂RuCl₂ (1.0 equiv.) with 4,4′-dhbp (1.2 equiv.) in either water or 50/50 ethanol/H₂O. Following purification by filtration to remove unreacted 4,4′-dhbp and washing with water, the dark orange-red solid was recrystallized by vapor diffusion of diethyl ether into a saturated ethanol solution to produce dark red X-ray quality crystals (60% yield). Single crystal X-ray diffraction data are presented below.

The deprotonated basic forms of these complexes (see Table 1 for pK_a values) were prepared and isolated as described previously for 1_B–4_B and 8_B [11,26]. Typically, the acidic forms of the complexes are treated with NaOH_(aq) in methanol or ethanol to generate the basic forms which are then isolated and purified. A similar procedure was employed for 5_A–7_A which were treated with NaOH_(aq) with the pH adjusted to 8.2. A dark purple suspension resulted which was filtered (to remove NaCl_(aq) as the byproduct in aqueous solution) and then the dark purple solid was washed with diethyl ether and hexanes. After drying under vacuum, complexes 5_B–7_B were isolated and characterized. These samples were used to measure singlet oxygen quantum yields (vide infra).

2.2. Characterization of the Compounds

The purity and identity of the new (5_B–7_B and 7_A) and previously reported (1_A–6_A, 8_A, 1_B–4_B, and 8_B) samples were confirmed using ¹H NMR, IR, UV-Vis spectroscopy and HRMS. Spectra for the new complexes are shown in the Supporting Information.

2.3. Crystallography

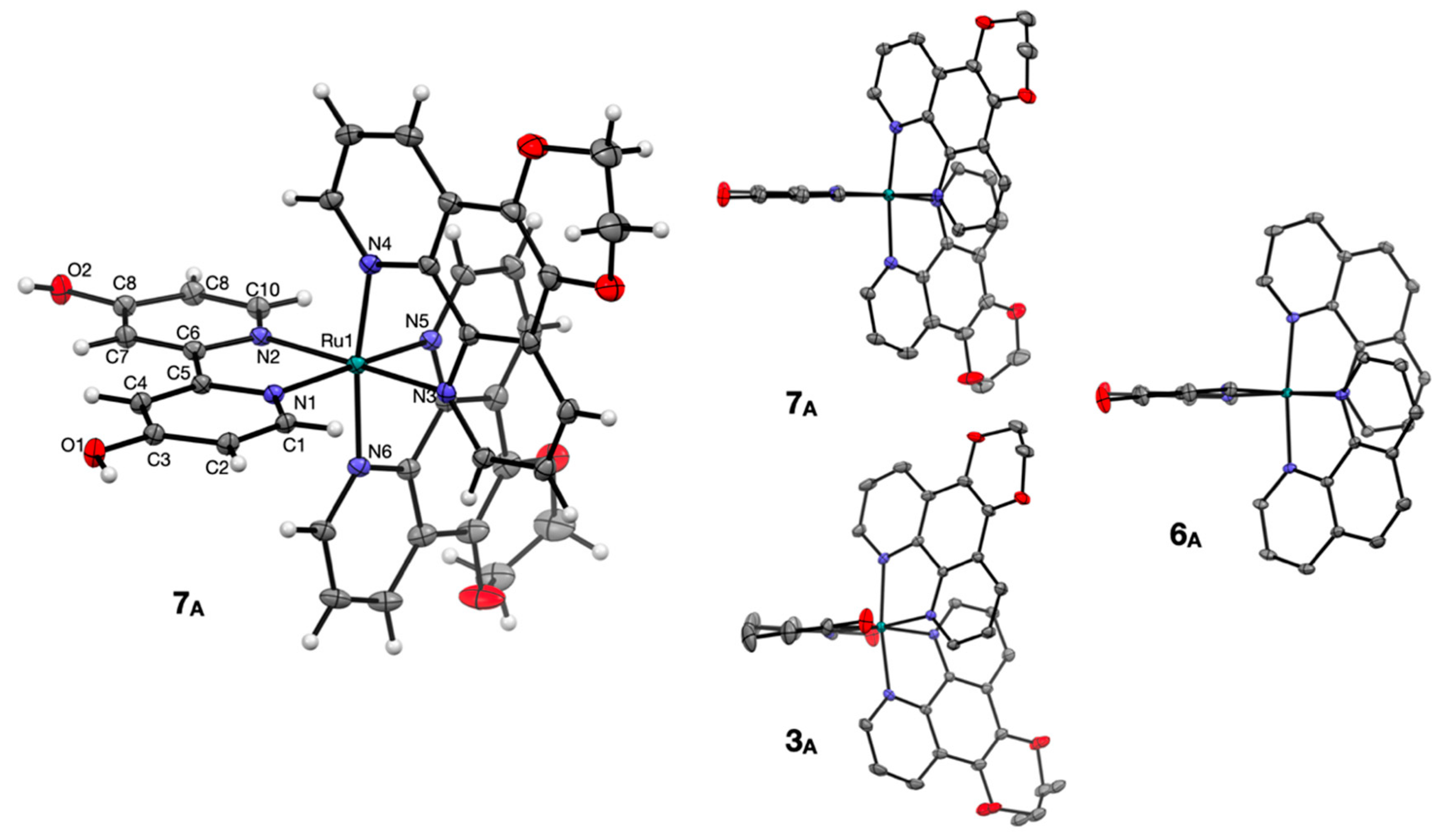

Complex 7_A was recrystallized as dark red blocks suitable for single crystal X-ray diffraction (SC XRD) by vapor diffusion of diethyl ether into a saturated ethanol solution of 7_A. The molecular diagram for complex 7_A is shown in Figure 3 and is compared with complexes 3_A and 6_A which were previously published [28]. The molecular packing diagram shows that the complex 7_A has OH to Cl^- hydrogen bonds (O1 to Cl1 = 2.959(2) Å and O2 to Cl1 = 3.008(2) Å) as well as Cl⁻ to H₂O (solvate) hydrogen bonds. Thus, each chloride ion has three hydrogen bonding interactions in total. The interactions between OH (of 4,4′-dhbp) and chloride are indicative of a strong hydrogen bonding interaction [28,36,37].

The ruthenium center in 7_A displays a distorted octahedral geometry as shown by the bond lengths and angles in

Table 2. Selected bond lengths and angles for 7_A from single crystal X-ray diffraction.

Bond Lengths (Å)		Bond Angles (°)
Ru1-N1	2.053(2)	N1-Ru1-N2	78.38(8)
Ru1-N2	2.060(2)	N1-Ru1-N3	96.24(8)
Ru1-N3	2.060(2)	N1-Ru1-N4	89.49(9)
Ru1-N4	2.061(2)	N1-Ru1-N5	172.40(9)
Ru1-N5	2.071(2)	N2-Ru1-N4	97.68(9)
Ru1-N6	2.051(2)	N2-Ru1-N5	95.68(9)
C3-O1	1.336(3)	N3-Ru1-N2	174.24(9)
C8-O2	1.341(3)	N3-Ru1-N4	80.09(9)
		N3-Ru1-N5	89.86(9)
		N4-Ru1-N5	96.06(9)
		N6-Ru1-N1	95.05(9)
		N6-Ru1-N2	89.96(9)
		N6-Ru1-N3	92.58(9)
		N6-Ru1-N4	171.78(9)
		N6-Ru1-N5	80.09(9)

. Slight distortions away from ideal 90° bond angles are due to chelation which leads to N-Ru-N angles of 78–80° within the chelate rings. Outside of the chelate rings, the N-Ru-N cis angles are ~89–98° and the trans N-Ru-N angles are 172–174°. The Ru-N bond distances (~2.05–2.07 Å) and the above angles are quite similar to the closely related compound 6_A [28]. The C-O distances (Table 2) indicate that π donation via resonance from the pyridinol oxygen to carbon results in a partial C=O double bond character (C-O = ~1.34 Å lies between a single and double bond, see Table 2). This C-O distance is quite similar to other pyridinol containing compounds [25,26,28,36,38,39]. When both 6_A and 7_A are viewed side on with the 4,4′-dhbp ligand lined up (Figure 3, right hand side) it is clear that they both show relatively little twisting of the 4,4′-dhbp ligand, in contrast to the 6,6′-dhbp ligand in 3_A which is twisted such that both pyridinol rings are not coplanar [28]. Furthermore, the steric congestion in 3_A results in N donor groups of the dop ligand being forced away from ideal octahedral symmetry. Since such steric distortion correlates with photodissociation by lowering the energy of the dissociative ³MC state, it is not surprising that 3_A photodissociates but 6_A and 7_A (and 5_A and 8_A, which lack crystal structures) are photostable (as shown in Figure 1) [25,26,28]. Our past work has described photodissociation of 3_A involving visible light (λ_max = 450 nm) triggered dissociation of 6,6′-dhbp to yield an aqua complex (Figure 1a,b).

2.4. UV-Vis Spectroscopy

The UV-Vis spectrum of each diprotic compound (1_A–8_A) in acetonitrile displays a singlet metal-to-ligand charge transfer (¹MLCT) band (λ_abs = 455–483 nm) (Table S1, Figures S7–S9). A bathochromic shift and peak broadening of the absorption band was observed for the doubly deprotonated forms (1_B–8_B) (Table S1, Figures S7–S9). This shift is attributed to the population of a ¹LLCT band (λ_abs = 515–548 nm) as confirmed computationally for compounds 2_B, 3_B, 4_B and 8_B [11,26]. The ¹LLCT results from electron transfer from a molecular orbital (MO) centered on the deprotonated n,n′-dhbp (n = 4 or 6) to the N,N spectator ligand.

2.5. Singlet Oxygen Quantum Yields

Singlet oxygen quantum yields were reported previously for compounds 1–4 and 8 (Table 1) [11,26]. With the 6,6′-dhbp co-ligand, these values increase with increasing π expansion from 1 (bpy coligand) to 2 (phen) and 3 (dop) (Figure 2, Table 1) [11]. Compounds 1–3 were measured in CD₃OD and are, therefore, not directly comparable with compounds 4–8 measured in CH₃CN. In our continuing work, CH₃CN is preferred due to a lack of H/D exchange or protonation/deprotonation events. Comparing 4 and 8 (Bphen and either 6,6′-dhbp or 4,4′-dhbp, respectively, as coligands), we observed that the Φ_Δ values are higher for 8 (Φ_Δ = 68% for 8_A) vs. 4 (Φ_Δ = 5% for 4_A) due to moving the OH groups to the periphery which relieves steric congestion near the metal and prevents photodissociation of a ligand [26]. With the 4,4′-dhbp co-ligand, compounds 5–7 were measured for this work, and show that the Φ_Δ values again increase with π expansion from 5_A (bpy coligand, Φ_Δ = 57%) to 6_A (phen, Φ_Δ = 62%) and finally to 7_A (dop, Φ_Δ = 76%) (Figure 2, Table 1). For compounds 5–8, reduced Φ_Δ values are observed for the B forms relative to the A forms in Table 1. These values are discussed further below in the context of photoluminescence and light-induced cytotoxicity trends.

2.6. Photoluminescence, Photoluminescence Quantum Yield, and Luminescence Lifetime Studies

To gain insights into the observed variation of Φ_Δ, we measured the steady-state and time-resolved PL of all 16 compounds (Table S1). The PL spectra of compounds 1_A–8_A in acetonitrile displayed a band centered at 610–650 nm (e.g., Figure 4a and Figure 5a, Figures S10–S13) due to ³MLCT emission. Doubly deprotonated forms 5_B–8_B demonstrated a red shift (λ_em = 704–775 nm) and broadening of their PL bands compared with the protonated forms (Figure 4a and Figure 5a, Figures S10–S13). This red shift is proposed to be due to the generation of the triplet ligand-to-ligand charge transfer excited state (³LLCT) by the mixing of the n,n′-dhbp (n = 4 or 6) with the N,N ligands (bpy, phen, dop, or BPhen), as suggested by computations on the excited states of 2_, 3, 4, and 8 [11,26]. The electron donation from the deprotonated n,n′-dhbp (namely [O₂-bpy]²⁻) to the ancillary (N,N) ligands leads to the generation of an electron density capable of quenching the emission of the doubly deprotonated compounds by a photoinduced electron transfer mechanism (PET) followed by nonradiative decay via back electron transfer [12,40].

The PLQY (Φ_PL) of compounds 5_A–8_A ranged from 5.3% to 18.7% (

Table 3. Photoluminescence quantum yields, measured monoexponential lifetimes and calculated radiative lifetimes of the acidic forms of [(bpy)₃Ru]Cl₂ and 5_A–8_A. These were measured in dry acetonitrile from a solvent purification system and prepared under nitrogen.

Compound	ΦPL	Measured Monoexponential Lifetime, τmeas (μs)	Calculated Radiative Lifetime, τrad (µs)
[(bpy)3Ru]Cl2	9.4%	0.882	9.4
5A	5.3%	0.538	10.2
6A	12.8%	1.81	14.1
7A	15.3%	1.682	11.0
8A	18.7%	3.45	18.5

). The Φ_PL of compounds 5_A–8_A increases with greater π-expansion of the ancillary ligands in the order 5_A (bpy) < 6_A (phen) ≅ 7_A (dop) < 8_A (BPhen). These values, when compared with values near zero for compounds 1_A–4_A (see Table S1), show that π-expansion coupled with a lack of Ru-N strain is essential for improved Φ_PL. In time-resolved PL measurements, these compounds (5_A–8_A) were unique as they showed monoexponential PL dynamics, with lifetimes ranging from 0.538 to 3.45 μs (Figure 4b,c, Figures S22, S24, S26, S28, Table S1). A monoexponential PL decay suggests a homogeneous ensemble of emitters with parallel radiative and non-radiative (decay to the non-emissive ³MC) processes. The radiative recombination rate of compounds 5_A–8_A can be calculated as τ_rad = τ_meas/Φ_PL. The calculated radiative lifetimes are more coherent, ranging from 10.2 to 18.5 μs (Table 3), which is comparable with the radiative lifetime of [(bpy)₃Ru]Cl₂ (9.4 μs). The long radiative lifetimes are in accord with the high singlet-oxygen quantum yields (Φ_Δ = 57–76%) of 5_A–8_A: the slow radiative recombination cannot compete with energy transfer from ³MLCT to ³O₂ in these compounds.

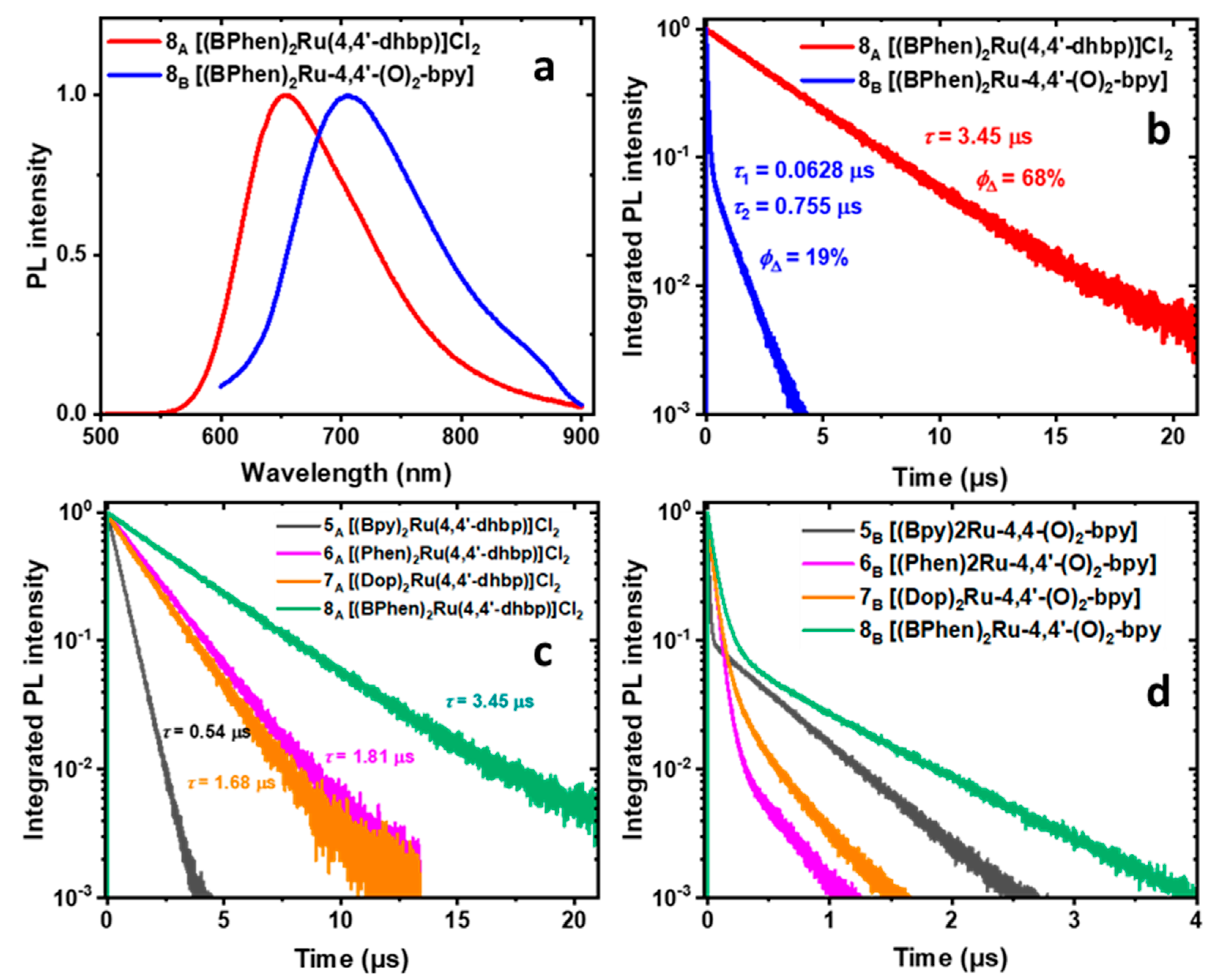

In contrast to 5_A–8_A, deprotonated compounds 5_B–8_B show a biexponential PL decay with the fast component in the range from 0.010 µs to 0.063 µs (Figure 4b,d, Figures S23, S25, S27, S29, see Table S1). The PLQY (Φ_PL) of these compounds is lower than 1%, which suggests that the fast component in the PL decay is dominated by a non-radiative process. This observation is in accord with the lower singlet-oxygen QYs measured for these compounds: the fast sub-0.1 µs depopulation of the ³MLCT state competes with energy transfer to ³O₂. The biexponential PL dynamics indicate the presence of two emission channels. In the literature, it has been attributed to the presence of the low-emitting ³LLCT state [5,11,26]. Our observed fast times of the order of 10¹ ns are too long to be ³MLCT to ³LLCT transfer (30–200 ps) [12]. The biexponential decay likely comes from depopulation of the ³MLCT and ³LLCT states produced independently of one another in different photoexcitation events. The PL spectra of deprotonated compounds 5_B–8_B show a weak peak on their red shoulder (e.g., at 850 nm for 5_B), which could have different PL dynamics. To examine the contribution from this peak, we collected the PL dynamics with a 715 nm long-pass filter but did not see a difference in the lifetimes or their amplitudes from the PL dynamics collected with a 645 nm long-pass filter. This suggests that the collected PL dynamics are uniform over the entire PL spectrum.

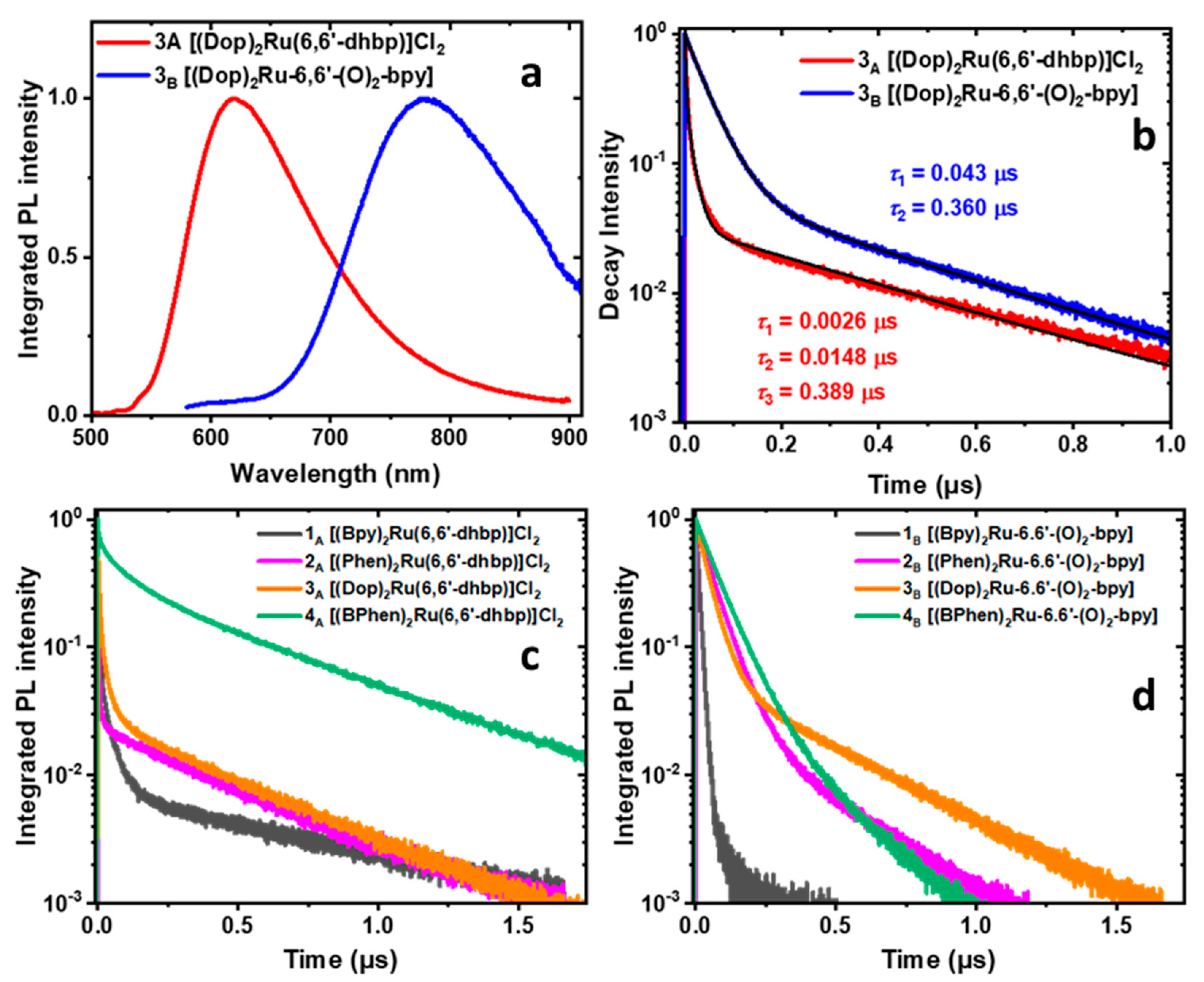

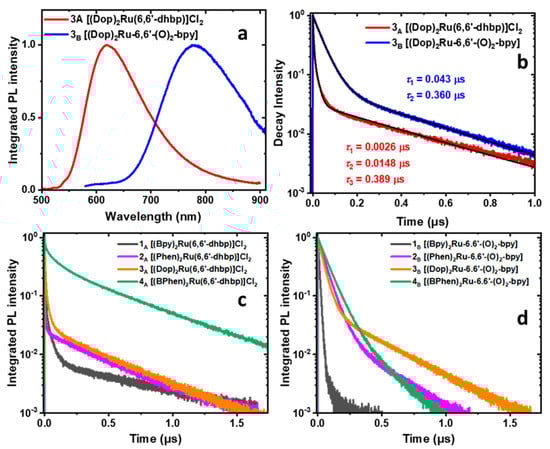

In contrast to 5_A–8_A, compounds 1_A–4_A show a biexponential PL decay with the fast component in the single-nanosecond range (Figure 5b,c, Figures S14, S16, S18, S20, Table S1). The PLQY of these compounds is lower than 1%, which suggests that the fast component in the PL decay is dominated by a non-radiative process, likely an intersystem crossing from ³MLCT to the non-emissive ³MC state [11,41]. Again, this observation is in accord with the lower singlet-oxygen QYs (Φ_Δ) measured for these compounds: the fast ns-scale depopulation of the ³MLCT state competes with energy transfer to ³O₂. Interestingly, unlike compounds 4–8 the fast PL decay component of the basic forms 1_B–3_B ranges from 11 to 57 ns, which is an order of magnitude longer than the fast component of the acidic forms 1_A–3_A (Figure 5c,d, Figures S15, S17, S19, Table S1). This observation agrees with the measured order-of-magnitude higher singlet-oxygen QYs of compounds 1_B–3_B (measured in CD₃OD, Table 1) [11].

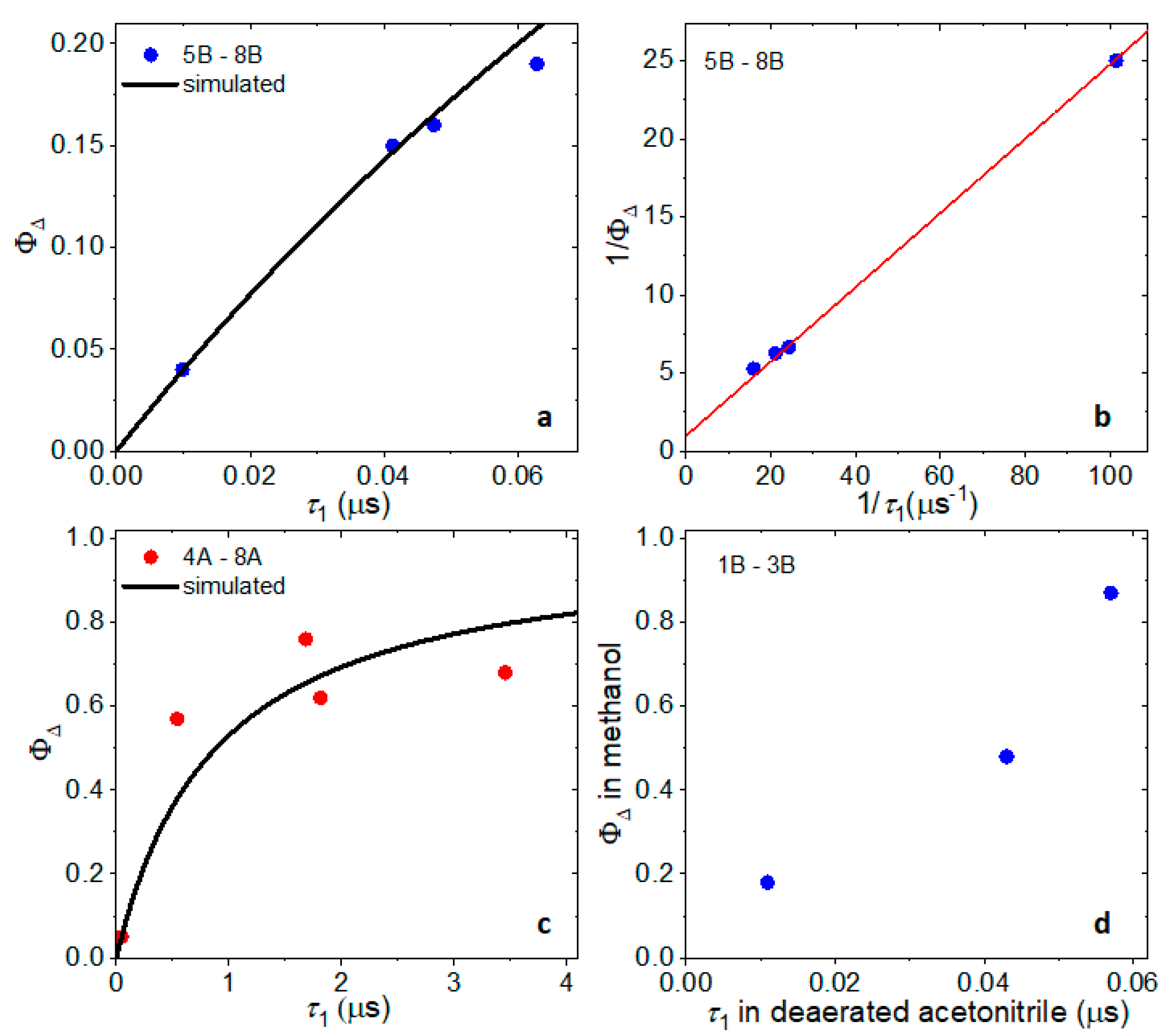

For all compounds, we observed a strong correlation between the singlet-oxygen QY (Φ_Δ) and their PL dynamics: compounds with high Φ_Δ do not show fast (sub-10 ns) components in their PL dynamics. Can we quantify this observation? The Φ_Δ measured in aerated solvent is the ratio of the ³MLCT to ³O₂ transfer rate (γ_O2) to the sum of all ³MLCT depopulation rates which includes γ_O2 and depopulation by other means (γ_other) (Equation (1)):

$${\mathsf{\Phi }}_{\Delta }=\frac{{\gamma }_{\mathrm{O}2}}{{\gamma }_{\mathrm{O}2}+{\gamma }_{other}}$$

(1)

The depopulation rate of ³MLCT through channels other than energy transfer to ³O₂ is determined from the fast component of the PL dynamics in deaerated solvent. Taking the reciprocal of both sides, we obtain Equation (2), where τ_O2 = 1/γ_O2 and τ₁ = 1/γ_other (τ₁ is the lifetime for the fast component which best captures the decay due to processes other than transfer to ³O₂):

$$1/{\mathsf{\Phi }}_{\Delta }=1+{\mathsf{\tau }}_{\mathrm{O}2}/{\mathsf{\tau }}_1$$

(2)

The energy transfer time to ³O₂ is different for all compounds and depends on the concentration of dissolved O₂, so it cannot be determined from a dataset for different compounds. In Figure 6b, we estimate the “average” ³MLCT to ³O₂ transfer time under the measurement conditions to be 0.240 µs for compounds 5_B–8_B (τ_O2 is estimated from the slope in Figure 6b as follows from Equation (2)). Similarly, the “average” ³MLCT to ³O₂ transfer time equals 0.884 µs in compounds 5_A–8_A. Using these estimated values, we can estimate the ³O₂ QY from the fast component in the PL dynamics (solids lines in Figure 6a,c). Finally, even though ³O₂ QY of 1_B–3_B was measured in methanol and PL dynamics in acetonitrile, we observe the same trend: the slower the fast component in the PL decay, the higher the ³O₂ QY in compounds 1_B–3_B (Figure 6d).

2.7. Cellular Cytotoxicity and Photocytotoxicity Data as Related to the Log(D_o/w) Values and Photophysical Properties of These Compounds

The ruthenium complexes were studied as potential anticancer agents in breast (MCF7) and cervical cancer (HeLa) cell lines (Table 1). For all the ruthenium complexes except 7, the cell studies and mode of action studies were reported in previous papers [5,11,25,26,27,28]. Selected data are shown in Table 1, including the cell line studied, the EC_{50_light} (studied with white or blue light, see Table 1 footnotes), the EC_{50_dark}, and the phototoxicity index (PI = EC_{50_dark}/EC_{50_light}). These values for complex 7 are also reported herein in recent studies [35]. All these complexes 1–8 are given to cells as the acidic form, 1_A–8_A, but in cellular media they deprotonate and form a mixture of different protonation states consisting of mostly the deprotonated forms (1_B–8_B) at pH 7.4–7.5. The average pK_a values are typically 5.9–6.3, as reported previously and shown in the sixth column of Table 1 [25,26,28].

With the 6,6′-dhbp ligand, compounds 1 and 2 are effectively non-toxic both in the dark and upon light irradiation. While these compounds are not very effective at photosubstitution (Φ_PS is 10⁻³ to 10⁻¹% as shown in the eighth column of Table 1), they do produce singlet oxygen to a significant extent (Φ_Δ as high as 87% for 2_B) [11,25,28]. Thus, their lack of toxicity was attributed to low uptake as measured by ICP-MS and flow cytometry and consistent with the lower log(D_o/w) values of 1.4 and 1.6 at pH 7.4 [11,28,29]. Compounds 3 and 4 both exhibit light activated toxicity with PI values of 120 and 9 vs. MCF-7 breast cancer cells [26,28]. Both compounds have comparable EC_{50_light} values of 2–4 μM, but 4 has greater dark toxicity (via an unknown mode of action), which reduces the PI value. For compound 3, the toxicity is primarily attributed to singlet oxygen formation (Φ_Δ = 48% for 3_B), whereas the cause of toxicity for 4 is less clear but may include singlet oxygen formation (Φ_Δ = 5% for 4_A, <1% for 4_B) [11,26]. The Φ_Δ values are not directly comparable for 1–3 vs. 4 because of a difference in solvent used, with quantum yields for 1–3 measured in CD₃OD and 4 measured in CH₃CN due to solubility constraints. Overall, the improved PI values of 3 and 4 (relative to 1 and 2) are attributed to improved uptake (as measured by log(D_o/w) of 1.8 and >3 for 3 and 4, respectively) and localization in certain organelles. Fluorescence microscopy studies have shown that 3 localizes in the nucleus and 4 localizes in the mitochondria of cells [26,28,29].

Examining the Ru complexes with the 4,4′-dhbp ligand (5–8), we can determine the impact of moving the OH groups to the periphery. The values of log(D_o/w) and Φ_Δ are reported in Table 1 for the first time for 5–7, and furthermore, all synthesis, characterization, and toxicity data for 7 are new. Complexes 5–7 are all effectively non-toxic in the dark and upon light irradiation with PI values near 1 [25,28,35]. This is despite efficient singlet oxygen production in acetonitrile for both the A and B forms (5_A–7_A have Φ_Δ ranging from 57–76% and 5_B–7_B have Φ_Δ ranging from 4–19%). Moving the OH groups to the 4-position on the pyridinol rings results in negligible photodissociation under irradiation with visible light using the same light dosage as for our cell studies (footnotes b and c in Table 1). Thus, for 5–7, the lack of toxicity can be attributed to poor uptake as is consistent with log(D_o/w) values of 0.8 and lower. These are relatively hydrophilic compounds with poor uptake predicted. It appears that moving the OH groups to the periphery (more solvent accessible) has the impact of reducing the log(D_o/w) value by 1–2 units (cf. 5 vs. 1, 6 vs. 2, 7 vs. 3, in Table 1, seventh column). A difference is solvent precludes a comparison between Φ_Δ values for 1–3 vs. 5–7. However, CH₃CN was used as the solvent for 4 and 8, and we can see that moving OH group to the periphery improved Φ_Δ values by 14-fold from 4_A to 8_A by removing the photodissociation pathway, as shown in Figure 1.

Complex 8 represents the first complex of 4,4′-dhbp to have good light activated toxicity and a PI value of >200 vs. MCF-7. In this compound, effective singlet oxygen formation (Φ_Δ = 68% for 8_A) is combined with good uptake (log(D_o/w) > 3) and localization in the mitochondria of the cells, as shown by fluorescence microscopy [26]. Each factor can be thought of as necessary but not sufficient for toxicity. Singlet oxygen production is necessary, but complexes 5–7 lack favorable uptake, and typically, singlet oxygen production outside the cell does not lead to toxicity.

3. Materials and Methods

3.1. Synthesis and Characterization Data

3.1.1. General

The chemicals 2,2′-Bipyridine (bpy), 1,10-phenanthroline (phen), and magnesium sulfate were purchased from Sigma-Aldrich (St. Louis, MI, USA). Bathophenanthroline and 6,6-dihydroxy-2,2′-bipyridine were purchased from Tokyo Chemical Industry (Tokyo, Japan), Ruthenium trichloride hydrate was purchased from Pressure chemical (Pittsburgh, PA, USA), 4,4′-dihydroxy-2,2′-bipyridine was purchased from Combi-Blocks (San Diego, CA, USA). All ligands and metal sources purchased from commercial sources were used as received. The dop ligand was synthesized as previously reported [42]. Sodium hydroxide pellets were purchased from VWR Chemicals (Solon, OH, USA). Solvents were purchased from VWR. NMR spectra were recorded on a Bruker AVANCE 360 (360 MHz, ¹H frequency) or AVANCE 500 (500 MHz, ¹H frequency) (Bruker is in Billerica, MA, USA). UV-Vis spectra were recorded on a Jasco V-780 spectrophotometer (Jasco Corporation, Tokyo, Japan) using a quartz cuvette (Venier Software, ON, USA) of 1 cm path length under ambient atmosphere. Infrared spectra were taken using a Bruker Alpha FT-IR spectrometer (Germany). Compounds 1_A, 1_B, 2_A, 2_B, 3_B, 4_A, 4_B, 5_A, 6_A, 8_A, and 8_B have been synthesized and characterized as reported previously [11,25,26,28]. Thus, here we focus on the synthesis and isolation of compounds 5_B, 6_B, 7_A, and 7_B.

3.1.2. Synthesis and Characterization of 7_A = [(dop)₂Ru(4,4′-dhbp)]Cl₂

The starting material (dop)₂RuCl₂ was prepared as previously reported [28,43]. The complex (dop)₂RuCl₂ (0.0949 g, 0.1458 mmol) was treated with 1.2 mole equivalent 4,4′-dhbp (0.0329 g, 0.1749 mmol) and 12 mL of degassed deionized water under air-free conditions. Light was excluded as a precaution, although later studies have shown that the products of this reaction are light-stable. The dark purple solution was refluxed at 110 °C for 18 h. A drop of 5M HCl was added to the red solution after the reaction was cooled to room temperature. The solution was filtered to remove excess ligand as a solid, washed with cold water, and the water from the filtrate was removed by evaporation to give a red solid. This red solid was then washed with hexane and diethyl ether and dried in vacuum to produce 0.0264 g (0.0315 mmol) of 7_A at 22% yield. The product was recrystallized for further purification. The above procedure was used for all photoluminescence experiments and other spectroscopy studies on 7_A. The sample of 7_A used for single crystal X-ray diffraction was prepared similarly, but the reaction was run in 1:1 EtOH to water to give a 60% yield. Dark red X-ray quality crystals were grown by vapor diffusion of Et₂O into a saturated ethanol solution.

¹H-NMR on 7_A (360 MHz, DMSO-d₆) δ: 12.16 (s, 2H), 8.69 (d, 2H, 8.4 Hz), 8.57 (d, 2H, 5.5 Hz), 8.22 (d, 2H, 5.2 Hz), 8.08 (d, 2H, 2.7 Hz), 7.92 (q, 2H, 3.2 Hz, 5.2 Hz), 7.83 (d, 2H, 5.2 Hz), 7.64 (q, 2H, 13.7 Hz, 5.3 Hz, 3.1 Hz, 5.3 Hz), 7.24 (d, 2H, 6.4 Hz), 6.89 (dd, 2H, 6.3 Hz, 2.5 Hz, 2.7 HZ), 4.69 (s, 8H). MALDI-ToF MS (low res): [C₃₈H₂₆N₆O₆RuH]⁺ m/z = 765.3 (Calculated m/z = 765.1). High res. MS: 765.1031 (calculated: 765.1036) corresponds to C₃₈H₂₇N₆O₆Ru [M-H]⁺. IR (ν, cm⁻¹): 3069, 2643, 1617, 1570, 1486, 1464, 1434. Spectra are shown in the supporting information (Figures S4–S6).

3.1.3. Synthesis and Characterization of the Deprotonated Complexes 5_B, 6_B, and 7_B

In a typical procedure, 10 mg of 5_A, 6_A, or 7_A was treated with ~15 mL of distilled, deionized water which was adjusted to pH 8.2 with concentrated NaOH_(aq). A dark purple suspension resulted which was filtered to remove the aqueous solution. The dark purple solid was rinsed with diethyl ether and hexanes. The solid was dried under vacuum for 6 h. Before use in luminescence experiments or for measuring singlet oxygen quantum yields, the solid was dissolved in dry acetonitrile, filtered, and the solution was dried with MgSO₄. The solvent was removed, and the solid (5_B, 6_B, or 7_B) was left under vacuum for a few hours. The identity of these compounds was confirmed by ¹H NMR (Figures S1–S3) and IR.

¹H-NMR on 5_B (360 MHz, DMSO-d₆) δ: 8.75 (d, 2H, 5.8 Hz), 8.72 (d, 2H, 5.9 Hz), 8.06 (t, 2H, 5.6 Hz), 8.03 (d, 2H, 4.0 Hz), 7.99 (d, 2H, 4.0 Hz), 7.68 (d, 2H, 4.0 Hz), 7.65 (t, 2H, 4.8 Hz, 9.5 Hz), 7.40 (t, 2H, 4.8 Hz, 9.4 Hz), 6.61 (d, 2H, 1.9 Hz), 6.31 (d, 2H, 4.9 Hz), 5.79 (dd, 2H, 1.9 Hz, 2.9 Hz, 6.8 Hz)

¹H-NMR on 6_B (360 MHz, DMSO-d₆) δ: 8.72 (d, 2H, 5.9 Hz), 8.57 (d, 2H, 6.0 Hz), 8.46 (d, 2H, 3.8 Hz), 8.34 (d, 2H, 6.4 Hz), 8.28 (d, 6.4 Hz), 8.06 (q, 2H, 2.1 Hz, 3.8 Hz), 7.93 (d, 2H, 3.8 Hz), 7.60 (q, 2H, 2.1 Hz, 3.8 Hz), 6.70 (d, 2H, 1.8 Hz), 6.33 (d, 2H, 4.9 Hz), 5.76 (dd, 2H, 1.8 Hz, 4.8 Hz).

¹H-NMR on 7_B (360 MHz, DMSO-d₆) δ: 8.59 (d, 2H, 6.1 Hz), 8.45 (d, 2H, 5.9 Hz), 8.33 (d, 2H, 3.7 Hz), 7.99 (q, 2H, 2.2 Hz, 3.9 Hz), 7.56 (d, 2H, 3.9 Hz), 6.66 (d, 2H, 1.9 Hz), 6.21 (d, 2H, 4.9 Hz), 5.73 (dd, 2H, 1.8 Hz, 1.9 Hz, 5.1 Hz). 4.66 (s, 8H).

3.2. Single Crystal X-ray Diffraction

Single dark red block-shaped crystals of 7_A were obtained by vapor diffusion of Et₂O into a saturated ethanol solution. A suitable crystal 0.15 × 0.10 × 0.07 mm³ was selected and mounted on a suitable support on an XtaLAB Synergy R, DW system, HyPix diffractometer. The crystal was kept at a steady T = 100.01(10) K during data collection. The structure was solved with the ShelXT [44] structure solution program using the Intrinsic Phasing solution method and by using Olex2 [45] as the graphical interface. The model was refined with version 2018/3 of ShelXL [44,46] using Least Squares minimization. All non-hydrogen atoms were refined anisotropically. H atoms were positioned geometrically and constrained to ride on their parent atoms.

The diffraction pattern was indexed, and the unit cell was refined on 27050 reflections, 45% of the observed reflections. Data reduction, scaling and absorption corrections were performed. The final completeness is 99.90% out to 30.508° in Θ. A gaussian absorption correction was performed using CrysAlisPro 1.171.40.49a (Rigaku Oxford Diffraction, 2019). The numerical absorption correction was based on gaussian integration over a multifaceted crystal model. Empirical absorption correction was performed using spherical harmonics as implemented in SCALE3 ABSPACK. The absorption coefficient μ of this material is 0.634 mm⁻¹ at this wavelength (λ = 0.711 Å), and the minimum and maximum transmissions are 0.936 and 1.000, respectively Further crystal data are in the supporting information (Table S2).

CCDC deposition number: 2238882.

3.3. Spectroscopy

3.3.1. Photoluminescence Measurements

The photoluminescence (PL) of the compounds was measured using a Horiba Fluoromax+ spectrofluorometer (Horiba Scientific, Glasgow, UK).

3.3.2. Photoluminescence Quantum Yield Measurement

The compounds’ photoluminescence quantum yield (PLQY, Φ_PL) was measured using a Horiba Fluoromax+ spectrofluorometer. The sample solutions were prepared in the glovebox (MBraun Unilab, Stratham, NH, USA) using acetonitrile dispensed from the solvent purification system (SPS) (Pure Process Technology, Nashua, NH, USA). About 2.5 mL of the solution was dispensed into a fluorescence cuvette equipped with a septum (Starna Cells Inc. Atascadero, CA, USA). The cuvettes were wrapped with parafilm to prevent air and moisture contamination, after which the absorbance and absorption wavelength were measured. The sample solutions were prepared such that the maximum absorbance of the samples was below 0.4 to avoid reabsorption of the PL. The PLQY measurements were performed using the comparative method. The relative process compared the absorbance and emission of the standard, [(Bpy)₃Ru]Cl₂, (Φ_PL = 9.4% in deaerated acetonitrile) with that of the sample under the same irradiance condition and was calculated using Equation (3) [47]. Equation (1) calculates the photoluminescence quantum yield of the unknown as a product of the luminescence quantum yield of the standard (Φ_s) and the integrated emission areas (I), the fractions of absorbed light (F), and the refractive indices of the solvents (n) of the unknown (X) and the standard [48]. Here, n_x/n_s = 1 since the standard and the sample were measured in acetonitrile. The PLQY values are generally reproducible with a 5% error.

$$\begin{array}{c}{\mathsf{\Phi }}_X={\mathsf{\Phi }}_S\times \left(\frac{I_X}{I_S}\right)\times \left(\frac{F_S}{F_X}\right)\times {\left(\frac{n_X}{n_S}\right)}^2\end{array}$$

(3)

3.3.3. Luminescence Lifetime Measurements

Luminescence lifetime measurements were carried out on a Horiba DeltaPro system using the time-correlated single-photon counting method (TCSPC) (Horiba Scientific, Glasgow, UK). This method measures fluorescence lifetimes from picoseconds to microseconds. The samples were excited with a violet (404 nm) pulsed laser diode (Horiba Scientic, Glasgow, UK). On the detector side, a 550 nm long-pass (LP) filter was used with compounds 1_A–8_A and a 715 nm LP filter (Thorlabs, Newton, NJ, USA) with compounds 1_B–8_B.

3.3.4. Singlet Oxygen Quantum Yields

Singlet oxygen sensitization was determined from the relative intensity of the ¹O₂ emission band, which is centered around 1276 nm, using [Ru(bpy)₃]²⁺ as the standard (Φ_Δ = 0.56 in aerated MeCN) [49]. Quantum yields (Φ_Δ) were calculated in accordance with the actinometric method described by Equation (4), where I denotes the integration of the emission band, A is the solution UV-Vis absorption at the excitation wavelength, and n is the solvent’s refractive index (n²/n_s² = 1 here, as MeCN was used in both). The [Ru(bpy)₃]²⁺ standard is denoted by the subscript S. It is generally desirable to run such measurements in MeCN because this solvent does not quench the ¹O₂ state (unlike water), and its common use in the literature facilitates comparisons.

$$\begin{array}{c}{\mathsf{\Phi }}_{\Delta }={\mathsf{\Phi }}_{\Delta ,S}\left(\frac{I}{I_S}\right)\left(\frac{A_S}{A}\right)\left(\frac{n^2}{n_S^2}\right)\end{array}$$

(4)

Emission spectra were measured on a PTI Quantamaster emission spectrometer equipped with a Hamamatsu R550942 near-infrared photomultiplier tube behind a 1000 nm long pass filter. Emission and excitation spectra were corrected for nonlinearities in lamp output and detector response. The longest wavelength in the excitation spectrum that maximized emission at 1276 nm was selected for the excitation wavelength. The emission spectra were collected over 1200–1350 nm and integrated with baseline correction. The values were generally reproducible within ±5%.

3.4. Log(D_o/w) Measurements

Complexes 5, 6, and 7 were measured in the current study, whereas other compounds were measured in past work. Solutions of 1-octanol and buffer at pH 7.4 were mixed in a 1:1 ratio and stirred for 24 h before use to ensure the solutions were saturated with the corresponding solution. The procedure used to measure Log(D_o/w) as a function of pH was a modified “shake flask” method that was deemed acceptable for use by measuring the Log(D_o/w) at pH 7.4 of 5-fluorouracil and comparing those results with reported literature values [50]. As a general procedure, the ruthenium compound of interest (200 μM) was first dissolved in n-octanol saturated with buffer. A portion of this solution (5 mL) was then mixed with an equal volume of buffer saturated with n-octanol and gently stirred for 24 h at ambient temperature. Afterwards, an aliquot was removed from the aqueous phase, filtered, and the absorbance was measured via UV-Vis spectroscopy to determine the concentration in the aqueous phase. Similarly, an aliquot was removed from the organic phase, filtered, and the absorbance was measured via UV-Vis spectroscopy to determine the concentration in the organic phase. This allowed the calculation of a Log(D_o/w) value (Equation (5)). All measurements were performed in at least quadruplicate with the average Log(D_o/w) reported.

Log(D_o/w) = Log ([Ru]_Org/[Ru]_Aq)

(5)

3.5. Cellular Viability Assays

The current work used MCF7 with complex 7_A, and all other cell studies in Table 1 are previously published. Breast epithelial adenocarcinoma MCF7 cells (purchased from ATCC) were seeded at a density of 20,000 cells per well in 100 µL of Dulbecco’s modified Eagle medium supplemented with 10% fetal bovine serum in 96-well plates and incubated for 48 h to allow the cells to adhere to the plate. Complex 7_A was dissolved in DMSO and diluted in media to avoid a cytotoxic effect from DMSO on the cells. The final concentration of DMSO was set to less than 1% (v/v). The cells were treated with 100 µL of serially diluted compounds and incubated for 48 h in the dark. The cells were then washed with phosphate-buffered saline (200 µL × 3) and irradiated for two hours with white light (STASUN 200W LED Flood Light, 100–256 V, 20,000 lm, 40,000 lux, irradiance: 40 mW cm⁻², total fluence: 288 J cm⁻²). The cells were then provided with 100 µL of fresh media per well and incubated in the dark for 24 h. The cytotoxic effects of the compounds were measured using a Cell Counting Kit-8 according to the manufacturer’s protocol (Enzo Life Sciences). The EC₅₀ of each cell line was determined using a nonlinear regression fit of the dose-response curve (using GraphPad (GraphPad Software, Boston, MA, USA) and Minitab 19 (Minitab, LLC, Chicago IL, USA) using Equation (6):

$$A_{obs}=A_{min}+\frac{A_{max}-A_{min}}{1+{10}^{\left(logEC50-\log \left[Ru\right]\right)}}$$

(6)

In the above formula, “A_min” and “A_max” are the minimum and maximum absorbances where the curve reaches a plateau and [Ru] is the concentration of 7_A.

4. Conclusions

Eight protic ruthenium complexes have been studied as potential light activated anticancer agents, and three complexes (3, 4, and 8) exhibited significant phototoxicity indices (Table 1). Past work has suggested that singlet oxygen formation rather than photodissociation correlates with the observed photocytotoxicity [11,26]. The singlet oxygen quantum yields for these complexes have also been studied and have revealed that several complexes are competent at singlet oxygen formation (1, 2, 5, 6, and 7) yet are not photocytotoxic due to poor cellular uptake. The newly synthesized and crystallized complex 7_A follows the trend exhibited by 5_A and 6_A, namely that all of these complexes produce singlet oxygen efficiently but poor uptake is predicted by log(D_o/w) values of 0.8 and lower. Only with the lipophilic BPhen ligand (log(D_o/w) > 3) does the 4,4′-dhbp ligand lead to significant photocytotoxicity in [(BPhen)₂Ru(4,4′-dhbp)]Cl₂, 8_A. Photoluminescence studies including photoluminescence quantum yields and lifetimes were measured for all sixteen complexes (1_A–8_A, 1_B–8_B) in deaerated acetonitrile. This reveals several trends that correlate with the singlet oxygen quantum yields. In complexes 1–4, both the OH bearing (A forms) and O⁻ bearing (B forms) variants undergo multiexponential decay processes with τ values less than 1 μs (Figures S14–S21). The thermally accessible ³MC state may provide a pathway for decay which can lead to photodissociation, as shown in our past work (Figure 1a,b) [11,26]. Complexes 5_B–8_B all exhibit biexponential decay with τ values less than 1 μs, but in this case, electron density on the O⁻ groups is transferred to a spectator ligand via the ³LLCT state which serves to quench luminescence. Complexes 5_A–8_A undergo monoexponential decay with exceptionally long lifetimes that increase with π expansion (as high as 3.45 μs with an 18.7% PLQY for 8_A). This work has correlated the high singlet oxygen quantum yields for 5_A–8_A with a long lifetime for the excited state. Together, this explains the unique photocytotoxicity for 8, which likely involves 8 (in multiple protonation states) entering the cells, and while both 8_A and 8_B can generate singlet oxygen, our work suggests that 8_A is much more efficient at this process due to a long-lived excited state.
