Distinct Inflammatory and Oxidative Effects of Diabetes Mellitus and Hypothyroidism in the Lacrimal Functional Unit

by
Jacqueline Ferreira Faustino-Barros
,
Ariane Mirela Saranzo Sant’Ana
,
Lara Cristina Dias
,
Adriana de Andrade Batista Murashima
,
Lilian Eslaine Costa Mendes da Silva
,
Marina Zílio Fantucci
,
Denny Marcos Garcia
and
Eduardo Melani Rocha
*
Department of Ophthalmology, Otorhinolaryngology and Head and Neck Surgery, Ribeirão Preto Medical School, University of São Paulo, Ribeirao Preto 14049-900, Brazil
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(8), 6974; https://doi.org/10.3390/ijms24086974
Submission received: 31 January 2023 / Revised: 28 February 2023 / Accepted: 4 March 2023 / Published: 10 April 2023
(This article belongs to the Special Issue Dry Eye: Molecular Mechanisms, Inflammation Biology and Novel Molecular Targets)
Browse Figures
Review Reports Versions Notes

Abstract

:
Diabetes mellitus (DM) and hypothyroidism (HT) are prevalent diseases associated with dry eye (DE). Their impact on the lacrimal functional unit (LFU) is poorly known. This work evaluates the changes in the LFU in DM and HT. Adult male Wistar rats had the disease induced as follows: (a) DM: streptozotocin and (b) HT: methimazole. The tear film (TF) and blood osmolarity were measured. Cytokine mRNA was compared in the lacrimal gland (LG), trigeminal ganglion (TG), and cornea (CO). Oxidative enzymes were evaluated in the LG. The DM group showed lower tear secretion (p = 0.02) and higher blood osmolarity (p < 0.001). The DM group presented lower mRNA expression of TRPV1 in the cornea (p = 0.03), higher Il1b mRNA expression (p = 0.03), and higher catalase activity in the LG (p < 0.001). The DM group presented higher Il6 mRNA expression in the TG (p = 0.02). The HT group showed higher TF osmolarity (p < 0.001), lower expression of Mmp9 mRNA in the CO (p < 0.001), higher catalase activity in the LG (p = 0.002), and higher expression of Il1b mRNA in the TG (p = 0.004). The findings revealed that DM and HT induce distinct compromises to the LG and the entire LFU.

1. Introduction

Several diseases with distinct pathophysiological mechanisms and epidemiological features lead to dry eye (DE), turning DE into one of the most common health problems worldwide [1,2]. The variability in causes and time length of manifestations may explain why no particular element presents a high predictive value in the diagnosis, and the clinical profile of DE is distinct in different diseases [3,4,5]. It is worthwhile to investigate each disease’s particular characteristics that cause DE, including those associated with a hormone deficiency, to allow better-customized therapies.
The lacrimal functional unit (LFU) system includes the LG, the cornea (CO), the conjunctiva (therefore, the ocular surface), the Meibomian glands, the eyelids, and the sensory nerves. These sensory nerves converge to the trigeminal ganglion (TG) and efferent nerves that bring autonomic inputs, integrating tear secretion into the central nervous system [6]. The LFU keeps the eye surface healthy through tear secretion in terms of volume and content, ensuring protection, lubrication, and renewal of corneal epithelial cells, responding to environmental, neural, and hormonal influences [6]. The damage or disease of any component of the LFU can destabilize the tear film and lead to DE [6].
DM is a common growing condition that causes DE with disease progression [7]. Previous works with streptozotocin-induced DM in rats reveal that these models develop DE around the 8th week of the disease and present markers of oxidative stress, advanced glycated end products, and inflammatory markers in the LG of DM [8]. The tear flow, secretory elements, and LG weight are also reduced in DM [9,10].
HT is common, where hormone deprivation and inflammatory events induce DE [3,6,9,11,12,13]. The mechanisms observed in rat models where HT was induced with methimazole also involve oxidative damage, diminished tear flow, and changes in the CO epithelia by the 5th week of disease induction. Moreover, LG shrinking was reported [14].
In our group’s recent works, we observed the low predictive value of tests for DE diagnosis and their weight in the distinction among different diseases [4,7]. This study hypothesizes that early phases of systemic diseases induced by different hormone deprivation induce DE through distinct mechanisms, affecting the ocular surface, the LG, and the whole LFU. These different triggers lead to differences in the expression of inflammatory and tissue repair mediators and oxidative stress modulators responsible for the different clinical manifestations of DE.
Therefore, this study aims to evaluate the functional and molecular inflammatory aspects of the LG, CO, and TG in the following two rat models of DE: DM and HT.

2. Results

2.1. Functional and Laboratory In Vivo Findings

Three functional tests were used for the DE functional evaluation of the animal models compared to the control group (CG) at their respective evaluation periods. The eye wipe test measured corneal sensitivity in response to capsaicin. The groups did not show a significant difference from the CG; the DM group showed a tendency of hyperalgesia, and the HT group showed a tendency of hypoalgesia or to be normal (Table 1). The phenol red thread presented lower tear flow in the DM group (n = 10/group, p = 0.02), (Table 1). Corneal fluorescein staining did not show differences between the DM, HT, and control groups.
The blood and tears osmolarity revealed significant blood hyperosmolarity in the DM group and tear hyperosmolarity in the HT group, with a trend of higher osmolarity in the DM group, but this was not significant (n = 10/group; p < 0.001 and p < 0.001, respectively) (Table 1).

2.2. Histological Findings

The histological sections revealed that the LG structure was similar in the three groups (data not shown). However, the corneal epithelium was significantly thicker in the DM group compared to the CG (p = 0.003) (n = 10/group) (Table 1).

2.3. Oxidative Stress and Antioxidant Enzymes

Oxidative stress imposed by the metabolic challenge of DM and HT in the LG was compared using glutathione disulfide (oxidated glutathione) and catalase activity. Catalase, but not glutathione disulfide, was significantly higher in the DM and HT groups compared to the CG (n = 10/group; DM: p < 0.001 and HT: p = 0.002) (Table 1).

2.4. qPCR of Pro-Inflammatory and Pro-Mitotic Cytokines

The qPCR in the CO revealed a reduction of Mmp9 in the HT group (n = 10/group, p < 0.001) and no changes in Il1b, Il6, and Tnfa in both groups compared to the CG group (Figure 1).
The qPCR in the CO measured the mRNA expression of TRPV1, which is the calcium channel sensitive to capsaicin and other sensory inputs. This showed lower expression in the DM group (n = 10/group, p = 0.03) and was lower but not significant in the HT group (Figure 1E).
In the LG, the only pro-inflammatory cytokine that increased mRNA levels was Il1b in the DM group compared to the CG (n = 10/group, p = 0.03). The other cytokines did not present a significant difference from the CG (Figure 2).
The pro-mitotic elements with higher mRNA expression in the LG were Runx3 in the HT group (n = 10/group, p = 0.01). On the other hand, Runx1 presented significantly lower expression in the DM group (n = 10/group, p = 0.02) (Figure 3). The other pro-mitotic elements’ mRNA expression (Bmp7, Fgf10, and Smad1) was similar among the DM, HT, and control groups.
In the TG, among the four cytokines tested, Il6 mRNA was higher in the DM group, and Il1b mRNA was higher in the HT group (n = 10/group; p = 0.02 and p = 0.004, respectively) (Figure 4).

3. Discussion

The present work confirmed that DM induced by streptozotocin and HT induced by methimazole are rat models for DE caused by hormone deficiency as a lower tear flow in DM and a higher tear osmolarity in HT were observed [8,9,11]. Moreover, we have shown that both models show distinct manifestations and that DE associated with those diseases involves not just the LG but also the whole LFU, including pro-inflammatory cytokine mRNA rise in the TG, oxidative stress enzymes, and pro-mitotic mediators mRNA changes in the LG.
The DM model presented lower tear flow and high blood osmolarity, and a trend in increasing the mean tear film osmolarity was also observed in clinical reports of DE in DM [3,9,15,16,17,18].
One interesting point was the trend in hyperesthesia observed using the eye wipe test in the DM group, which was associated with lower levels of the TRPV1 receptors sensitive to CAP in the cornea. The complex mechanism of hyperesthesia in DM may involve higher levels of Il6 in the TG of the DM group. These observations indicate a mechanism of neuropathic pain in DM involving inflammation of the TG and the central nervous system, which may reflect corneal neuropathy and thicker corneal epithelia [14,19,20,21,22].
The oxidative damage of the LG observed in the DM group was revealed by higher levels of catalase activity in this gland as a response to high oxidative stress in various tissues and organs, including exocrine glands, observed in previous clinical and experimental works in DM [8,9,15,23,24,25]. Oxidative damage may take part in the compromising function, inflammation, and, therefore, in the mechanisms of DE. These observations would prove helpful in addressing the therapeutic strategy for DE in DM.
The HT group presented a trend of hypoesthesia and higher TF osmolarity in the early phase of the disease at 5 weeks of HT. The tear flow showed large variability in the group, confirming the low predictive value of the PRT test [26]. The functional manifestations of DE in the HT and DM groups revealed distinct clinical profiles, confirming the large spectrum of DE manifestations associated with different human diseases and the challenge of a gold-standard diagnostic tool [3,27].
The significantly lower levels of MMP9 mRNA in the corneas of the HT group and the lack of changes of other cytokines compared to the control group suggest that inflammation is not a critical early event in the cornea tissue in DE. Interestingly, inflammation is relevant in the TG of the same group, as discussed below. The expression of the TRPV1 receptor in the CO tissue was not significantly different from the CG, which disagrees with a recent in vitro study, in which short-term hyperosmolarity induced higher levels of pro-inflammatory cytokines, suggesting compensatory mechanisms in vivo [28]. A trend but not significant change in the pro-inflammatory cytokines in the LG, different from DM, suggests that inflammation of this exocrine gland is not a key factor in the early phase of the disease in the LG in response to HT. However, the higher level of pro-inflammatory cytokine mRNA Il1b in the TG indicates the impact of HT in the whole LFU, including the neural pathways. Moreover, the trend of CO hypoesthesia in the eye wipe test induced by capsaicin in the HT group, as a consequence of thyroid hormone deprivation, may be explained by decreased peripheral nerve conduction in HT, as recently observed in humans [29]. Further studies in advanced phases of the disease will be able to clarify the details of this association.
Oxidative stress, as part of the mechanism of the disease in the LG, was confirmed in both groups by higher catalase activity compared to the CG [11,30].
In the HT group, the expression of mRNA of regenerative or pro-mitotic markers tested in the LG, Runx3 was significantly higher than in the CG. In the DM group, the mRNA of Runx1 was lower in the LG. It may indicate an attempt to induce recovery of the LG tissue weight, structure, and functional activity in the early phase of both diseases, which seems inefficient as DE persists with the progression of those chronic diseases when untreated [11,31,32,33].
This study’s weaknesses are the lack of long-term DE and the response to DM and HT therapy. Moreover, considering the higher prevalence of DE in the female sex in several species, the present analysis with male rats is limited in identifying the mechanisms of DE in both sexes.
In summary, the present work identified elements of the inflammatory, anti-oxidant, and neural pathways on the mechanisms and the targets of the effects of insulin and thyroid hormone deprivation on the LFU, including functional and organ changes. We also observed that several aspects of DE are distinct among DM and HT diseases and variable inside the groups studied, despite the intended homogeneity achieved by the experimental animal assays. It was not our primary intention to confront HT versus DM in terms of the severity of manifestations; that is why all comparisons were made in paired analysis with the CG, and both conditions were analyzed at different time points (i.e., 5 weeks for HT and 8 weeks for DM) [9,11]. Although some parallels can be inferred, the study design limits direct comparisons.
The present data show no difference in the eye wipe test between the DM, HT, and control groups, a high standard deviation on tear flow values (phenol red thread) in the HT group, and the tear film osmolarity results in the DM group. They reveal that clinical or functional tests are limited in characterizing DE once applied as a single test. This variability of results in distinct groups, even in experimental studies where we can homogenize the genetic background, the time course to measure the parameters in the initial phase of the DE disease, and the environmental conditions, is challenging in studies addressing DE mechanisms [3,9,26,27,34].

4. Material and Methods

4.1. Animals and Study Design

In all groups, we used Wistar male rats, at 7–8 weeks of life, weighing 220–250 g. They were obtained from the Animal Breeding Center of the Ribeirao Preto Medical School, University of Sao Paulo (Ribeirao Preto, Sao Paulo, Brazil). The animal experiments were approved by the Committee for Animal Use of the Ribeirao Preto Medical School, University of Sao Paulo (Protocol 018/2012).
Diabetes mellitus (DM) (n = 10) was induced using a single intravenous injection in the tail vein of 60 mg/kg streptozotocin (Sigma, St. Louis, MO, USA) in 0.01 M sodium citrate buffer to achieve the final concentration after a 12 h fast. The time between induction and the experimental procedure and tissue harvesting was eight weeks to achieve the early phase of DE in the model [15].
Hypothyroidism (HT) (n = 10): The animals received methimazole (Biolab Sanus farmacêutica Ltda., Taboão da Serra, SP, Brazil) in drinking water at 500 mg/l continuously for five weeks. The experimental period was chosen to obtain evidence of the early phase of DE in HT [11].
Animals in the CG received an injection of citrate buffer in the tail vein and tap water.
The rats were housed in cages at controlled temperatures (23 °C ± 2 °C) on a light–dark cycle of 12 h. Animals had access to standard rodent chow ad libitum. All water sources for the HT group contained the anti-thyroid hormone medication. The DM group and CG received tap drinking water ad libitum.
The sample size was estimated based on previous studies where 5–10 animal assays could demonstrate distinct functional and molecular characteristics in the LG of groups DM and HT compared to healthy male adult rats. The reason for different time lengths of experimental period for each group, after they complete eight weeks of life, is based on observations from previously published works and pilot studies indicating the minimum period to develop ocular manifestations (i.e., 8 weeks for DM and 5 weeks for HT) [9,11]. More extended periods of hormone deprivation induce excessive systemic impairment and impact several organic functions [15].

4.2. Behavioral Studies

To investigate whether DE is caused by hormonal deprivation, an eye wipe test was performed. After setting the animals, the room, and the acrylic chambers for an hour, the right eyes of all groups (n = 10 animals/group) were treated with the instillation of 20 µL of capsaicin at 10 μM diluted in PBS at pH 7.2 and 25 °C (Sigma Aldrich Brasil Ltda, Cotia, SP, Brazil). A drop of capsaicin was instilled with each eye opened by hand, using a micropipette. The behavioral response to pain was evaluated based on the number of times the right paw wiped the eye, which was recorded with a digital camera (DSC-W5, Sony, Tokyo, Japan) for 3 min after capsaicin installation. Eye wipe movements were counted from digital films by a masked observer using an iMac computer and compared between groups (Apple Inc., Cupertino, CA, USA).

4.3. Clinical Evaluation

The functional impact of DM and HT on the TF and OS was evaluated as previously described [26]. At the determined endpoint (i.e., eight weeks for DM group, five weeks for HT group, and six weeks for CG), the animals were evaluated after anesthesia with an intraperitoneal injection of ketamine (5 mg/100 g b.w.) (União Química Farmacêutica S.A, Embu-Guaçu, SP, Brazil) and xylazine (2 mg/100 g b.w.) (Laboratorio Callier S.A., Barcelona, Spain) to collect the following data:
  • Tear film Osmolarity: tear samples were harvested from the animals without stimulation or need for eye drops, with the approximation of a delicate collector, and the measurements were made using Osmometer Tearlab® osmolarity system (San Diego, CA, USA).
  • Corneal fluorescein staining: an eye drop of 1% sodium fluorescein (Allergan Produtos farmacêuticos LTDA, Guarulhos, Sao Paulo, Brazil) was applied in the right eye to identify the areas and categorize the intensity of the keratitis, with grades from 0 to 15.
  • Phenol red thread test was applied to measure the tear flow (TF) in millimeters for 30 s, as previously described (Showa Yakuhin Kako Co., Ltd., Tokyo, Japan and Menicon USA Inc., Clovis, CA, USA) [35].
  • Blood Osmolarity was determined by measuring the freezing point of the blood plasma solution (Advanced instruments—Two Technology Way, Norwood, MA, USA).

4.4. Histological Evaluation

The effects of DM and HT on the LFU structures were also investigated using histology. After euthanasia with an excess of thiopental sodic (1000 mg/kg; Laboratório Cristalia, Sao Paulo, SP, Brazil), LG and CO tissues were harvested. The LG was collected, fixed in 17% formaldehyde (Merck KGaA, Darmstadt, Germany) for 24 h, dehydrated in an increasing series of ethanol (Merck KGaA, Darmstadt, Germany), diaphanized in xylol (Merck KGaA, Darmstadt, Germany), and soaked in paraffin (Merck KGaA, Darmstadt, Germany) baths at 60 °C for inclusion in blocks.
The six μm thick slices were cut on the Leica Jung RM2065 microtome (Leica Microsystems GmbH, Wetzlar, Germany). The sections were dewaxed in xylol, rehydrated in a decreasing ethanol series, and washed in distilled water. They were then stained with hematoxylin solution for 2 min, washed in running water, immersed in eosin for 2 min, and washed again in running water. Subsequently, the slides were dehydrated in increasing ethanol series, diaphanized in xylol, and mounted on tissue mount (Tissue Tek® Glas ™ Mounting Media, Sakura, Finetek, Nagano, Japan). They were compared with CG. The slides of CO and LG were compared using descriptive analysis. The mean thickness of central cornea epithelia was compared among the samples of the three groups (n = 10 animals per group).

4.5. Anti-Oxidant Enzymes and Oxidative Stress Products

To investigate its role and repercussions of oxidative stress in the LFU, we compared oxidative enzyme activity in the LG of the DM, HT, and control groups at their endpoints mentioned above.
Glutathione disulfide (oxidized glutathione): LGs from the three groups (n = 10/group) were homogenized in a standard buffer provided by the producer of the analysis Glutathione Fluorometric Assay Kit (BioVision Incorporated, Milpitas, CA, USA). Each sample was normalized to provide 40 mg of LG tissue. The reactions were processed as indicated in the producer protocol. The sample and control fluorescence was read at the following excitation/emission wavelength 340/420 nm using a spectrophotometer (SpectroMax M3, Molecular Devices, Sunnyvale, CA, USA).
Catalase: again, LGs of DM, HT, and control groups (n = 10/group) were homogenized, and 100 mg of tissue sample was submitted to the analysis according to the producer protocol (Catalase Assay Kit, BioVision Incorporated, Milpitas, CA, USA). The colorimetric measurement was performed at the wavelength of 570 nm in a plate reader using the spectrophotometer, as mentioned above. The concentrations of H2O2 were obtained and compared to a standard curve provided by the manufacturer and among the groups.

4.6. Quantitative Real-Time PCR

The rats were euthanized using ketamine (União Química Farmacêutica S.A, Embu-Guaçu, SP, Brazil) (5 mg/100 g body weight), xylazine (Laboratorio Callier S.A., Barcelona, Spain) (2 mg/100 g b.w.), and thiopental sodic (Laboratório Cristália, São Paulo, SP, Brazil) (1000 mg/kg). The right CO, LG, and TG tissues from the rats of the 3 groups were harvested and embedded in RNAlater Solution (Ambion, Waltham, MA, USA) and stored at −80 °C until we proceeded to RNA extraction protocol for real-time quantitative PCR (qPCR) analysis. The relative expression of the mRNA of pro-inflammatory cytokines Il1b, Il6, Tnfa, and Mmp9 was compared in LG, CO, and TG samples from control, DM, and HT groups. In addition, the relative expression of the mRNA of the tissue repair elements in LG Bmp7, Runx1, Runx3, Fgf10, and Smad1 was compared to those groups.
qPCR used hydrolysis probes (Applied Biosystems, Carlsbad, CA, USA). The RNA samples were extracted using RNeasy Mini Kit (Qiagen, Germantown, MD, USA) and quantified using a spectrophotometer NanoDrop 2000 c (Thermo Scientific, Wilmington, DE, USA).
Samples containing 500 ng of total RNA of CO tissue, 1000 ng of total RNA of LG tissue, and 150 ng of total RNA of TG tissue were used to produce the cDNA with the QuantiTect Reverse Transcription Kit (Qiagen, Germantown, MD, USA) in the ProFlex PCR System (Applied Biosystems, Carlsbad, CA, USA).
qPCR was conducted using ViiA7 Real-time PCR System (Applied Biosystems, Carlsbad, CA, USA). The hydrolysis probes in this study were the following: Rn.PT 5838028824 (Il1b), Rn.PT 5813840513 (Il6), Rn.PT 5811142874 (Tnf), Rn.PT 587383134 (Mmp9), Rn.PT 5810180444 (Bmp7), Rn.PT 5810814634 (Fgf10), Rn.PT 589220704.g (β-actin) (all these from IDT); Rn00565555_m1 (Smad1), Rn00569082_m1 (Runx1), Rn00590466_m1 (Runx3) (Applied Biosystems, Carlsbad, CA, USA). The amplification was performed in duplicate with 5.5 uL of QuantiNova Probe PCR Kit (Qiagen, Germantown, MD, USA), 0.5 μL of hydrolysis probe, and 4.5 μL of 1:4 dilution of the cDNA in a total volume of 10 μL. The cycles for qPCR were as follows: one cycle of 95 °C for 2 min, 50 cycles of 5 s at 95 °C, and 19 s at 60 °C.
The Thermo Fisher Cloud Software, RQ version 3.7, determined the relative quantification (Life Technologies Corporation, Carlsbad, CA, USA). The results were compared in each tissue sample of three groups.

4.7. Statistical Analysis

Prism 8.0 (GraphPad Software, San Diego, CA, USA) was used for descriptive statistics and to compare the response of DM and HT groups with CG using one-tailed, Mann–Whitney U statistical tests. The level of significance was set at p < 0.05.

5. Conclusions

In conclusion, our study shows that HT and DM induce changes in the LFU, compatible with the DE mechanism, but not limited to the CO or LG. It also confirms the difficulties presented in the clinical studies intended to characterize the standards of DE changes induced by chronic hormone disturbance where other influences, such as disparity in genetics, disease time course, and treatment adherence, and environmental influences in the natural history of the disease take place and create more heterogeneity in the manifestations of DE. We hope the present observations will contribute to future studies on more specific and sensitive diagnostic tools and customized therapeutic approaches for DE.

Author Contributions

Conceptualization: E.M.R. and A.d.A.B.M.; methodology: E.M.R., L.E.C.M.d.S. and A.d.A.B.M.; formal analysis: J.F.F.-B., A.M.S.S., M.Z.F. and E.M.R.; investigation: J.F.F.-B., A.M.S.S., M.Z.F., L.C.D. and D.M.G.; resources: E.M.R.; data curation: M.Z.F., A.M.S.S., J.F.F.-B., A.d.A.B.M., L.C.D. and D.M.G.; writing—original draft preparation: J.F.F.-B. and E.M.R.; writing—review and editing, E.M.R., J.F.F.-B., M.Z.F., A.d.A.B.M., A.M.S.S., L.E.C.M.d.S., L.C.D. and D.M.G.; supervision: A.d.A.B.M. and E.M.R.; project administration: A.d.A.B.M. and E.M.R.; Funding Acquisition: E.M.R. All authors have approved the submitted version and agree to be personally accountable for their own contributions and for ensuring that questions related to the accuracy or integrity of any part of the work, even ones in which the author was not personally involved, are appropriately investigated, resolved, and documented in the literature. All authors have read and agreed to the published version of the manuscript.

Funding

São Paulo State Research Support Foundation (FAPESP) 2015/20580-7, 2014/22451-7 e 2014/23211-0; CNPq Research Productivity Scholarship (CNPq): 1C 302355/2017-0, 3033226/2021-8; Research Core of Ocular Physiopathology and Therapeutics from University of São Paulo (NAP-FTO) 12.1.25431.01.7; Higher Education Personnel Improvement Coordination, financial code 001.

Institutional Review Board Statement

The experimental procedures adhered to the Statement for the Use of Animals in Ophthalmic and Vision Research from the Association of Research in Vision and Ophthalmology and were approved by the Committee for Animal use of the Ribeirao Preto Medical School, University of Sao Paulo (Protocol 018/2012).

Informed Consent Statement

Not applicable.

Data Availability Statement

Links to publicly archived datasets analyzed or generated during the study: https://uspdigital.usp.br/repositorio/solicitar-repositorio.jsp?codmnu=9975, accessed on 30 January 2023.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dana, R.; Bradley, J.L.; Guerin, A.; Pivneva, I.; Stillman, I.Ö.; Evans, A.M.; Schaumberg, D.A. Estimated Prevalence and Incidence of Dry Eye Disease Based on Coding Analysis of a Large, All-age United States Health Care System. Am. J. Ophthalmol. 2019, 202, 47–54. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Stapleton, F.; Alves, M.; Bunya, V.Y.; Jalbert, I.; Lekhanont, K.; Malet, F.; Na, K.-S.; Schaumberg, D.; Uchino, M.; Vehof, J.; et al. TFOS DEWS II Epidemiology Report. Ocul. Surf. 2017, 15, 334–365. [Google Scholar] [CrossRef]
  3. Alves, M.; Reinach, P.S.; Paula, J.S.; e Cruz, A.A.V.; Bachette, L.; Faustino, J.; Aranha, F.P.; Vigorito, A.; De Souza, C.A.; Rocha, E.M. Comparison of diagnostic tests in distinct well-defined conditions related to dry eye disease. PLoS ONE 2014, 9, e97921. [Google Scholar]
  4. Bron, A.J.; Tomlinson, A.; Foulks, G.N.; Pepose, J.S.; Baudouin, C.; Geerling, G.; Nichols, K.K.; Lemp, M.A. Rethinking dry eye disease: A perspective on clinical implications. Ocul. Surf. 2014, 12, S1–S31. [Google Scholar] [CrossRef] [PubMed]
  5. Qian, L.; Wei, W. Identified risk factors for dry eye syndrome: A systematic review and meta-analysis. PLoS ONE 2022, 17, e0271267. [Google Scholar]
  6. Stern, M.E.; Gao, J.; Siemasko, K.F.; Beuerman, R.W.; Pflugfelder, S.C. The role of the lacrimal functional unit in the pathophysiology of dry eye. Exp. Eye Res. 2004, 78, 409–416. [Google Scholar] [CrossRef]
  7. Chen, L.; Magliano, D.J.; Zimmet, P.Z. The worldwide epidemiology of type 2 diabetes mellitus—Present and future perspectives. Nat. Rev. Endocrinol. 2011, 8, 228–236. [Google Scholar] [CrossRef]
  8. Alves, M.; Calegari, V.C.; Cunha, D.A.; Saad, M.J.A.; Velloso, L.A.; Rocha, E.M. Increased expression of advanced glycation end-products and their receptor, and activation of nuclear factor kappa-B in lacrimal glands of diabetic rats. Diabetologia 2005, 48, 2675–2681. [Google Scholar] [CrossRef] [Green Version]
  9. Módulo, C.M.; Jorge, A.G.; Dias, A.C.; Braz, A.M.; Bertazolli-Filho, R.; Jordão, A.A., Jr.; Marchini, J.S.; Rocha, E.M. Influence of insulin treatment on the lacrimal gland and ocular surface of diabetic rats. Endocrine 2009, 36, 161–168. [Google Scholar] [CrossRef]
  10. Dias, A.C.; Batista, T.M.; Roma, L.P.; Módulo, C.M.; Malki, L.T.; Dias, L.C.; Alves, M.; Reinach, P.S.; Carneiro, E.M.; Rocha, E.M. Insulin replacement restores the vesicular secretory apparatus in the diabetic rat lacrimal gland. Arq. Bras. Oftalmol. 2015, 78, 158–163. [Google Scholar] [CrossRef] [Green Version]
  11. Dias, A.C.; Módulo, C.M.; Jorge, A.G.; Braz, A.M.; Jordão, A.A.; Filho, R.B.; de Paula, J.S.; Rocha, E.M. Influence of Thyroid Hormone on Thyroid Hormone Receptor β-1 Expression and Lacrimal Gland and Ocular Surface Morphology. Investig. Ophthalmol. Vis. Sci. 2007, 48, 3038–3042. [Google Scholar] [CrossRef]
  12. Rocha, E.M.; Mantelli, F.; Nominato, L.F.; Bonini, S. Hormones and dry eye syndrome: An update on what we do and don’t know. Curr. Opin. Ophthalmol. 2013, 24, 348–355. [Google Scholar] [CrossRef]
  13. Sullivan, D.A.; Rocha, E.M.; Aragona, P.; Clayton, J.A.; Ding, J.; Golebiowski, B.; Hampel, U.; McDermott, A.M.; Schaumberg, D.A.; Srinivasan, S.; et al. TFOS DEWS II Sex, Gender, and Hormones Report. Ocul. Surf. 2017, 15, 284–333. [Google Scholar] [CrossRef]
  14. Nielsen, N.V.; Lund, F.S. Diabetic polyneuropathy. Corneal sensitivity, vibratory perception and Achilles tendon reflex in diabetics. Acta Neurol. Scand. 1979, 59, 15–22. [Google Scholar] [CrossRef]
  15. Jorge, A.G.; Módulo, C.M.; Dias, A.C.; Braz, A.M.; Filho, R.B.; Jordão, A.A., Jr.; de Paula, J.S.; Rocha, E.M. Aspirin prevents diabetic oxidative changes in rat lacrimal gland structure and function. Endocrine 2009, 35, 189–197. [Google Scholar] [CrossRef]
  16. Cousen, P.; Cackett, P.; Bennett, H.; Swa, K.; Dhillon, B. Tear production and corneal sensitivity in diabetes. J. Diabetes Complicat. 2007, 21, 371–373. [Google Scholar] [CrossRef]
  17. Chen, D.K.; Frizzi, K.E.; Guernsey, L.S.; Ladt, K.; Mizisin, A.P.; Calcutt, N.A. Repeated monitoring of corneal nerves by confocal microscopy as an index of peripheral neuropathy in type-1 diabetic rodents and the effects of topical insulin. J. Peripher. Nerv. Syst. 2013, 18, 306–315. [Google Scholar] [CrossRef] [Green Version]
  18. Lv, H.; Li, A.; Zhang, X.; Xu, M.; Qiao, Y.; Zhang, J.; Yu, L. Meta-analysis and review on the changes of tear function and corneal sensitivity in diabetic patients. Acta Ophthalmol. 2014, 92, e96–e104. [Google Scholar] [CrossRef] [Green Version]
  19. Leppin, K.; Behrendt, A.-K.; Reichard, M.; Stachs, O.; Guthoff, R.F.; Baltrusch, S.; Eule, J.C.; Vollmar, B. Diabetes mellitus leads to accumulation of dendritic cells and nerve fiber damage of the subbasal nerve plexus in the cornea. Investig. Ophthalmol. Vis. Sci. 2014, 55, 3603–3615. [Google Scholar] [CrossRef]
  20. Ramos-Remus, C.; Suarez-Almazor, M.; Russell, A.S. Low tear production in patients with diabetes mellitus is not due to Sjögren’s syndrome. Clin. Exp. Rheumatol. 1994, 12, 375–380. [Google Scholar]
  21. Davidson, E.P.; Coppey, L.J.; Yorek, M.A. Early loss of innervation of cornea epithelium in streptozotocin-induced type 1 diabetic rats: Improvement with ilepatril treatment. Investig. Ophthalmol. Vis. Sci. 2012, 53, 8067–8074. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Davidson, E.P.; Coppey, L.J.; Kardon, R.H.; Yorek, M.A. Differences and similarities in development of corneal nerve damage and peripheral neuropathy and in diet-induced obesity and type 2 diabetic rats. Investig. Ophthalmol. Vis. Sci. 2014, 55, 1222–1230. [Google Scholar] [CrossRef] [PubMed]
  23. Atli, T.; Keven, K.; Avci, A.; Kutlay, S.; Turkcapar, N.; Varli, M.; Aras, S.; Ertug, E.; Canbolat, O. Oxidative stress and antioxidant status in elderly diabetes mellitus and glucose intolerance patients. Arch. Gerontol. Geriatr. 2004, 39, 269–275. [Google Scholar] [CrossRef] [PubMed]
  24. Deconte, S.R.; Oliveira, R.J.d.S.; Calábria, L.K.; de Oliveira, V.N.; de Gouveia, N.M.; Moraes, A.d.S.; Espindola, F.S. Alterations of antioxidant biomarkers and type I collagen deposition in the parotid gland of streptozotocin-induced diabetic rats. Arch. Oral. Biol. 2011, 56, 744–751. [Google Scholar] [CrossRef]
  25. Knaś, M.; Maciejczyk, M.; Daniszewska, I.; Klimiuk, A.; Matczuk, J.; Kołodziej, U.; Waszkiel, D.; Ładny, J.R.; Żendzian-Piotrowska, M.; Zalewska, A. Oxidative Damage to the Salivary Glands of Rats with Streptozotocin-Induced Diabetes-Temporal Study: Oxidative Stress and Diabetic Salivary Glands. J. Diabetes Res. 2016, 2016, 4583742. [Google Scholar] [CrossRef] [Green Version]
  26. Barabino, S.; Dana, M.R. Animal models of dry eye: A critical assessment of opportunities and limitations. Investig. Ophthalmol. Vis. Sci. 2004, 45, 1641–1646. [Google Scholar] [CrossRef]
  27. Garcia, D.M.; de Oliveira, F.R.; Módulo, C.M.; Faustino, J.; Barbosa, A.P.; Alves, M.; Rocha, E.M. Is Sjögren’s syndrome dry eye similar to dry eye caused by other etiologies? Discriminating different diseases by dry eye tests. PLoS ONE 2018, 13, e0208420. [Google Scholar] [CrossRef] [Green Version]
  28. Igarashi, T.; Fujimoto, C.; Suzuki, H.; Ono, M.; Iijima, O.; Takahashi, H.; Takahashi, H. Short-time exposure of hyperosmolarity triggers interleukin-6 expression in corneal epithelial cells. Cornea 2014, 33, 1342–1347. [Google Scholar] [CrossRef]
  29. Gupta, N.; Arora, M.; Sharma, R.; Arora, K.S. Peripheral and Central Nervous System Involvement in Recently Diagnosed Cases of Hypothyroidism: An Electrophysiological Study. Ann. Med. Health Sci. Res. 2016, 6, 261–266. [Google Scholar] [CrossRef]
  30. Sarandöl, E.; Taş, S.; Dirican, M.; Serdar, Z. Oxidative stress and serum paraoxonase activity in experimental hypothyroidism: Effect of vitamin E supplementation. Cell Biochem. Funct. 2005, 23, 1–8. [Google Scholar] [CrossRef]
  31. Voronov, D.; Gromova, A.; Liu, D.; Zoukhri, D.; Medvinsky, A.; Meech, R.; Makarenkova, H.P. Transcription factors Runx1 to 3 are expressed in the lacrimal gland epithelium and are involved in regulation of gland morphogenesis and regeneration. Investig. Ophthalmol. Vis. Sci. 2013, 54, 3115–3125. [Google Scholar] [CrossRef] [Green Version]
  32. Zoukhri, D.; Fix, A.; Alroy, J.; Kublin, C.L. Mechanisms of murine lacrimal gland repair after experimentally induced inflammation. Investig. Ophthalmol. Vis. Sci. 2008, 49, 4399–4406. [Google Scholar] [CrossRef]
  33. Zoukhri, D. Mechanisms involved in injury and repair of the murine lacrimal gland: Role of programmed cell death and mesenchymal stem cells. Ocul. Surf. 2010, 8, 60–69. [Google Scholar] [CrossRef] [Green Version]
  34. Barabino, S.; Chen, W.; Dana, M.R. Tear film and ocular surface tests in animal models of dry eye: Uses and limitations. Exp. Eye Res. 2004, 79, 613–621. [Google Scholar] [CrossRef]
  35. Marques, D.L.; Alves, M.; Modulo, C.M.; da Silva, L.E.C.M.; Reinach, P. Lacrimal osmolarity and ocular surface in experimental model of dry eye caused by toxicity. Rev. Bras. Oftalmol. 2015, 74, 68–72. [Google Scholar] [CrossRef] [Green Version]
Ijms 24 06974 g001 550

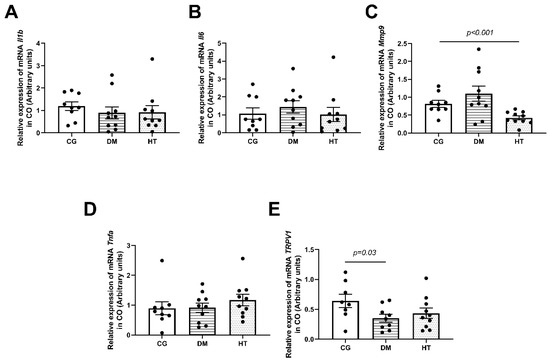

Figure 1. The relative mRNA expression of pro-inflammatory cytokines in CO of the DM, HT, and control groups. The data revealed lower expression of Mmp9 mRNA in HT group (p < 0.001) (C), and no changes in the Il1b (A), Il6 (B), and Tnf (D) compared to the CG. (E) TRPV1 relative mRNA expression in the CO. The data revealed a lower expression of TRPV1 mRNA in the DM group (p = 0.03). In all tests, n = 10/animals per group. The comparisons were made between DM or HT groups and CG using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Figure 1. The relative mRNA expression of pro-inflammatory cytokines in CO of the DM, HT, and control groups. The data revealed lower expression of Mmp9 mRNA in HT group (p < 0.001) (C), and no changes in the Il1b (A), Il6 (B), and Tnf (D) compared to the CG. (E) TRPV1 relative mRNA expression in the CO. The data revealed a lower expression of TRPV1 mRNA in the DM group (p = 0.03). In all tests, n = 10/animals per group. The comparisons were made between DM or HT groups and CG using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Ijms 24 06974 g001
Ijms 24 06974 g002 550

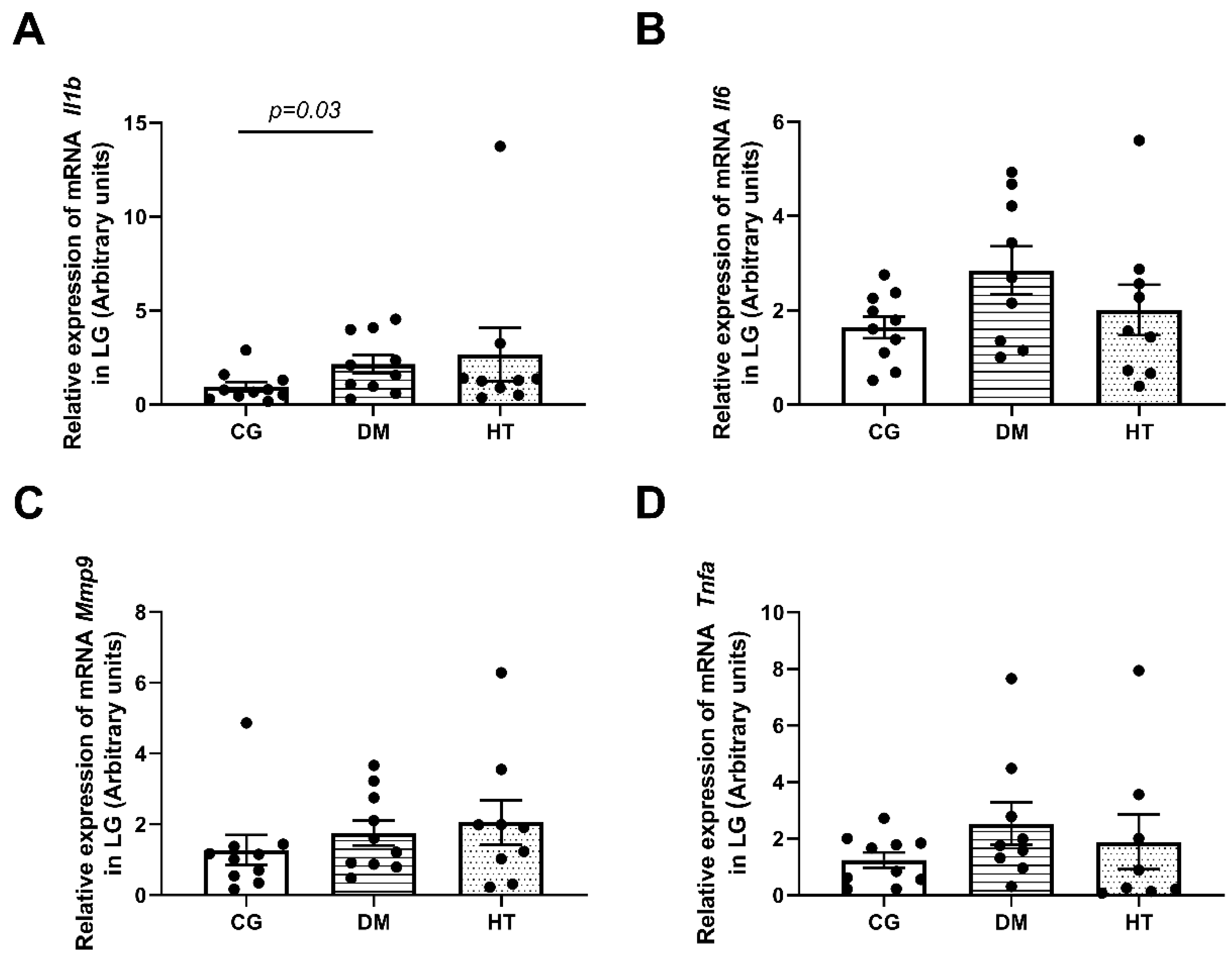

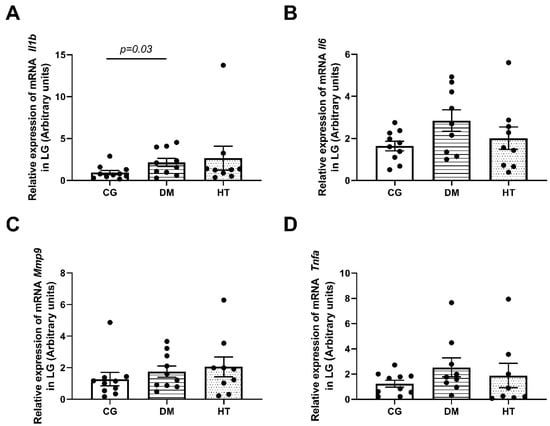

Figure 2. Pro-inflammatory cytokines relative mRNA in the LG. DM group shows a higher expression of Il1b mRNA (p = 0.03) (A). The other cytokines did not present a significant difference from CG (B–D). In all tests, n = 10/animals per group. The comparisons were made between DM or HT groups and CG using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Figure 2. Pro-inflammatory cytokines relative mRNA in the LG. DM group shows a higher expression of Il1b mRNA (p = 0.03) (A). The other cytokines did not present a significant difference from CG (B–D). In all tests, n = 10/animals per group. The comparisons were made between DM or HT groups and CG using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Ijms 24 06974 g002
Ijms 24 06974 g003 550

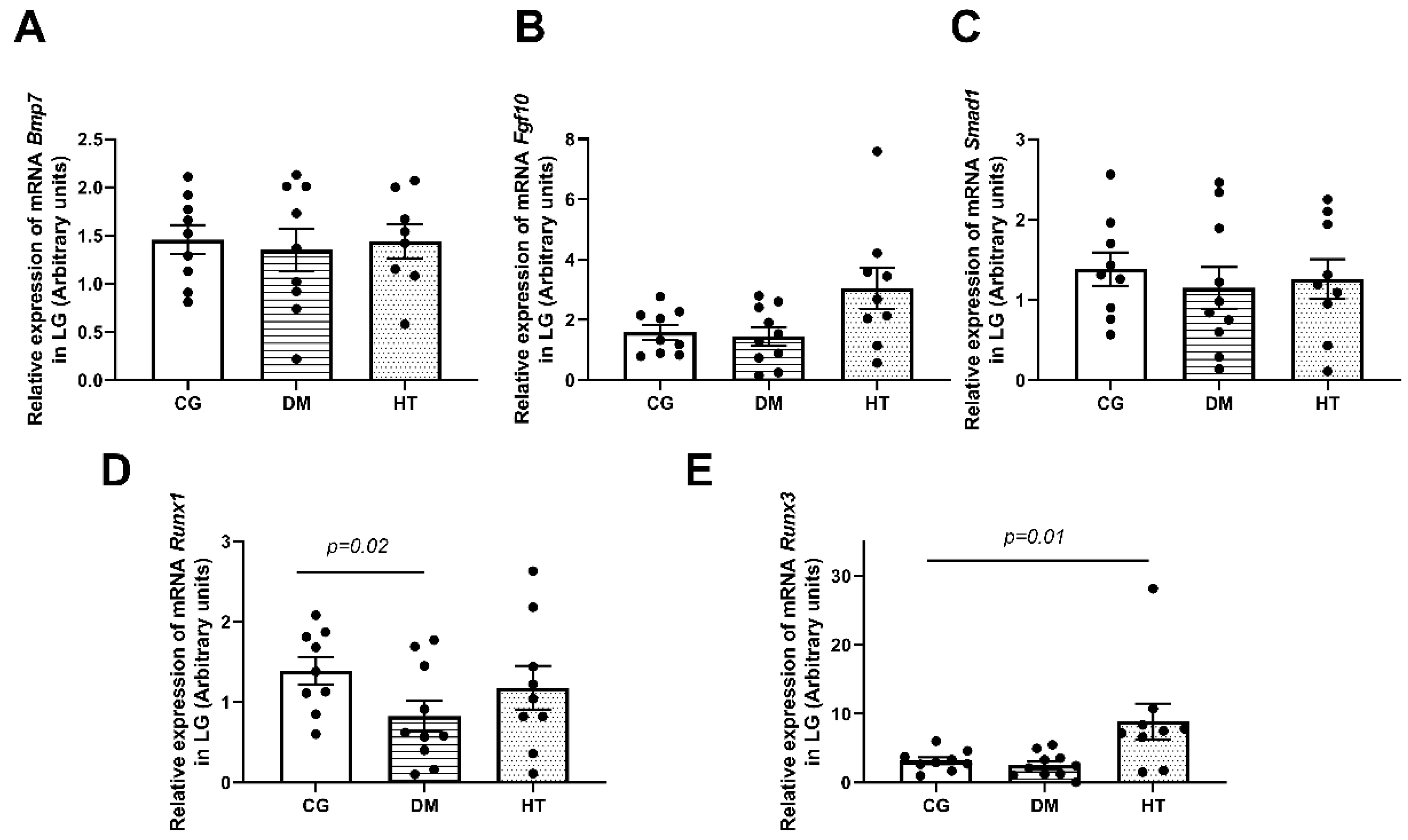

Figure 3. Relative mRNA expression of pro-mitotic elements in the LG of the DM, HT, and control groups at their final experimental period (A–E). The results show a lower expression of Runx1 mRNA in DM group (p = 0.02) (D), and a higher expression of Runx3 in HT group (p = 0.01) compared to the CG (E). No changes were observed in other pro-mitotic elements (A–C). The n = 10/group and the comparisons between DM or HT groups and the CG were made using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Figure 3. Relative mRNA expression of pro-mitotic elements in the LG of the DM, HT, and control groups at their final experimental period (A–E). The results show a lower expression of Runx1 mRNA in DM group (p = 0.02) (D), and a higher expression of Runx3 in HT group (p = 0.01) compared to the CG (E). No changes were observed in other pro-mitotic elements (A–C). The n = 10/group and the comparisons between DM or HT groups and the CG were made using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Ijms 24 06974 g003
Ijms 24 06974 g004 550

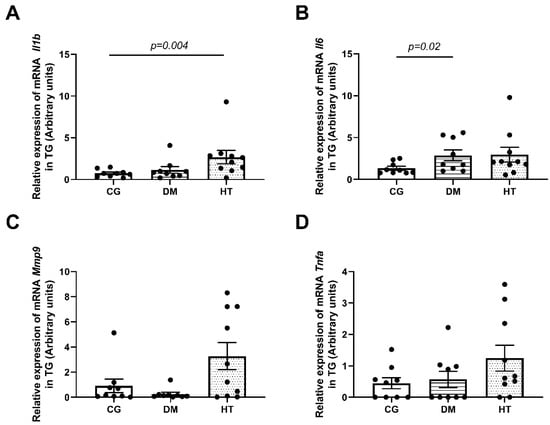

Figure 4. Relative mRNA expression of pro-inflammatory cytokines in the TG. The data revealed a higher expression of Il1b mRNA in HT group (p = 0.004) (A) and a higher expression of Il6 mRNA in DM group (p = 0.02) (B). The expression of Mmp9 and Tnfa mRNA was not different in the groups (C,D). In all tests, n = 10/animals per group. The comparisons were made using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Figure 4. Relative mRNA expression of pro-inflammatory cytokines in the TG. The data revealed a higher expression of Il1b mRNA in HT group (p = 0.004) (A) and a higher expression of Il6 mRNA in DM group (p = 0.02) (B). The expression of Mmp9 and Tnfa mRNA was not different in the groups (C,D). In all tests, n = 10/animals per group. The comparisons were made using the Mann–Whitney U test. Each animal value is represented by a black dot in the figure.
Ijms 24 06974 g004
Table
Table 1. Comparative functional and laboratory paired analysis between DM or HT groups and the control group. The comparisons were made between experimental groups and the control group at their final experimental period using the Mann–Whitney U test. In all tests, n = 10/animals per group. Significant values were written in bold.
Table 1. Comparative functional and laboratory paired analysis between DM or HT groups and the control group. The comparisons were made between experimental groups and the control group at their final experimental period using the Mann–Whitney U test. In all tests, n = 10/animals per group. Significant values were written in bold.
Experimental GroupsControlDMHT* Values of p
Eye wipe test (movement/s)4.2 ± 3.36.4 ± 2.74.0 ± 3.0p > 0.05
Phenol red thread (mm/30 s)8.3 ± 4.14.7 ± 3.5 *6.4 ± 4.4p = 0.02
Tear osmolarity (mOsm/L)298.4 ± 17.3321.8 ± 33.5338.1 ± 13.5 *p < 0.001
Blood osmolarity (mOsm/L)302.2 ± 5.8341.2 ± 16.4 *321.5 ± 27.4p < 0.001
Epithelial thickness of cornea (μm)26.1 ± 1.927.3 ± 2.4 *24.7 ± 2.6p = 0.003
Catalase activity (mU/mL)63.8 ± 2.568.7 ± 2.0 *66.3 ± 1.9 *** p < 0.001
** p = 0.02
* p-value on comparison between DM and control group and ** p-value on comparison between the control group and HT.
