Article

Systematic Analysis of NRAMP Family Genes in Areca catechu and Its Response to Zn/Fe Deficiency Stress

by
Guangzhen Zhou
1,
Qiyuan An
1,†,
Zheng Liu
2,
Yinglang Wan
1 and
Wenlong Bao
2,3,*
1
Hainan Key Laboratory for Sustainable Utilization of Tropical Bioresources, College of Tropical Crops, Hainan University, Haikou 570228, China
2
Key Laboratory for Quality Regulation of Tropical Horticultural Crops of Hainan Province, School of Horticulture, Hainan University, Haikou 570228, China
3
Hainan Yazhou Bay Seed Laboratory, Sanya Nanfan Research Institute, Hainan University, Sanya 572025, China
*
Author to whom correspondence should be addressed.
†
Current address: Liaoning Provincial Institute of Economic Crops, Liaoyang 111000, China.
Int. J. Mol. Sci. 2023, 24(8), 7383; https://doi.org/10.3390/ijms24087383
Submission received: 15 March 2023 / Revised: 12 April 2023 / Accepted: 15 April 2023 / Published: 17 April 2023
(This article belongs to the Special Issue Research on Plant Genomics and Breeding)
Browse Figures
Versions Notes

Abstract

:
Areca catechu is a commercially important medicinal plant widely cultivated in tropical regions. The natural resistance-associated macrophage protein (NRAMP) is widespread in plants and plays critical roles in transporting metal ions, plant growth, and development. However, the information on NRAMPs in A. catechu is quite limited. In this study, we identified 12 NRAMPs genes in the areca genome, which were classified into five groups by phylogenetic analysis. Subcellular localization analysis reveals that, except for NRAMP2, NRAMP3, and NRAMP11, which are localized in chloroplasts, all other NRAMPs are localized on the plasma membrane. Genomic distribution analysis shows that 12 NRAMPs genes are unevenly spread on seven chromosomes. Sequence analysis shows that motif 1 and motif 6 are highly conserved motifs in 12 NRAMPs. Synteny analysis provided deep insight into the evolutionary characteristics of AcNRAMP genes. Among the A. catechu and the other three representative species, we identified a total of 19 syntenic gene pairs. Analysis of Ka/Ks values indicates that AcNRAMP genes are subjected to purifying selection in the evolutionary process. Analysis of cis-acting elements reveals that AcNRAMP genes promoter sequences contain light-responsive elements, defense- and stress-responsive elements, and plant growth/development-responsive elements. Expression profiling confirms distinct expression patterns of AcNRAMP genes in different organs and responses to Zn/Fe deficiency stress in leaves and roots. Taken together, our results lay a foundation for further exploration of the AcNRAMPs regulatory function in areca response to Fe and Zn deficiency.

1. Introduction

Metal ions play a key role in maintaining the stability of plant physiological and biochemical functions. For example, Fe is an essential element involved in cell respiration, photosynthesis, and the catalytic reaction of metalloproteins, while Zn is a structural cofactor of a variety of enzymes and proteins [1,2]. The balance of metal ions in the plant is also necessary for plant development. A high concentration of free iron (Fe3+/Fe2+) generates oxygen and hydroxyl radicals through the Fenton reaction, which causes a redox reaction and accumulation of superoxide compounds, resulting in intracellular damage to DNA and lipids [3]. Meanwhile, Fe deficiency can also affect plant growth and development. Similarly, excess zinc binds to sulfur, nitrogen, and oxygen-containing functional groups in biological molecules due to its upregulated high affinity, which, in turn, interferes with their biological activities. Zn deficiency leads to the oxidative destruction of chlorophyll, lipids, and proteins [4].
The maintenance of metal ion balance in plants is mainly achieved through the synergies of various metal transporters, including zinc-regulated transporters iron-regulated transporter-like proteins (ZIP), NRAMP, cation diffusion facilitator proteins (CDF), heavy metal ATPase (HMA), yellow stripe-like (YSL), and ATP-binding cassette (ABC) transporters [5,6]. Of these, the NRAMP proteins are a vital membrane transporter family that exist widely in plants, which are mainly involved in the transport of divalent metal cations such as Zn, Fe, and Cu. Moreover, the NRAMP proteins play a principal role in regulating and maintaining the homeostasis of Mn/Fe in plants [7,8]. NRAMP was first found in mice. Subsequently, NRAMP was verified as a metal transporter in diverse organisms including fungi, animals, and plants [9,10]. In the previous study, the roles of NRAMP proteins have been explored in some plant species, including model plants, forest trees, and horticultural plants [10,11,12,13,14,15]. Different NRAMPs enable the trafficking of different essential or toxic metal ions. For instance, Arabidopsis AtNRAMP6 is considered a transporter of cadmium [16], while AtNRAMP1 is a Mn transporter. AtNRAMP3 and AtNRAMP4 are responsible for the transportation of Fe and Mn [17]. Rice OsNRAMP3 is identified as a Mn transporter, while OsNRAMP5 is identified as a Mn/Cd transporter [18,19]. In addition, OsNRAMP4 plays a key role in the trafficking of trivalent Al ions [20]. In summary, NRAMP proteins are critical members of the membrane transporter family involved in metal ion transport, absorption, intracellular transport, and detoxification.
Areca catechu (areca palm) is an evergreen tree of the genus Areca in the palm family, which is native to Malaysia and widely cultivated in tropical Asia. In our previous studies, we treated areca seedlings with Fe and Zn deficiency and found a significant decrease in iron and zinc content in the roots [21]. In this study, 12 NRAMP genes were identified from the whole genome of A. catechu, and their sequence characteristics, gene structure, phylogeny, promoter sequence, and collinearity were analyzed. Furthermore, the expression levels of these genes in different tissues and under the condition of Fe and Zn deficiency were studied. This work provides a basis for further investigating NRAMP function and areca response to Fe and Zn deficiency.

2. Results

2.1. Identification and Characterization of AcNRAMPs

Twelve AcNRAMP candidates were identified in the A. catechu genome (Figure 1A, Table S2). The amino acid lengths of 12 AcNRAMP proteins altered from 120 (AcNRAMP5) to 971 (AcNRAMP2), while the molecular weight changed from 13.86–106.01 KDa. The theoretical isoelectric point (pI) of AcNRAMP proteins varied from 4.5 (AcNRAMP10)–9.14 (AcNRAMP5). The instability index (Ii) ranged from 25.75 (AcNRAMP10) to 47.77 (AcNRAMP2). Only two AcNRAMP proteins had Ii larger than 40. The aliphatic index (Ai) analysis shows that AcNRAMP2 has the maximum Ai at 82.84, while AcNRAMP12 has the minimum Ai at 132.44. In addition, the grand average of hydropathicity (GRAVY) of all AcNRAMP proteins was positive except for AcNRAMP2. Prediction of subcellular localization reveals that all AcNRAMP proteins are localized to the plasma membrane except for AcNRAMP2, AcNRAMP3, and AcNRAMP11 (Figure 1B).

2.2. Duplication Analysis and Phylogenetic Analysis of AcNRAMPs

To understand the genomic distribution of 12 AcNRAMPs, their chromosomal location was analyzed. The twelve genes were located on seven chromosomes, of which chromosome two had a maximum of three genes (Figure 2A). To reveal the AcNRAMP collinear gene pairs, the syntenic gene analysis was carried out. The results show that only one collinear AcNRAMP (AcNRAMP3–AcNRAMP4) is identified in the areca genome (Figure 2A). To shed light on the possible evolutionary process of AcNRAMPs, the syntenic relationships of AcNRAMP genes with the other plant species were investigated, including dicot A. thaliana (belongs to the Brassicaceae), monocot O. sativa (belongs to the Poaceae), and C. nucifera (belongs to the Palmae). Three AcNRAMP homologous genes pairs are detected between A. catechu and A. thaliana (AcNRAMP1–AT5G67330.1; AcNRAMP4–AT2G23150.1; AcNRAMP4–AT5G67330.1) (Figure 2B, Table S3). Five AcNRAMP homologous gene pairs are identified between A. catechu and O. sativa (AcNRAMP1–Os12t0581600-01; AcNRAMP1–Os03t0208500-01; AcNRAMP2–Os07t0155600-01; AcNRAMP4–Os03t0208500-01; AcNRAMP6–Os06t0676000-01) (Figure 2C, Table S3). A total of 11 AcNRAMP homologous gene pairs are identified between A. catechu and C. nucifera (AcNRAMP1–GZ08G0188430.1; AcNRAMP1–GZ09G0194900.1; AcNRAMP1–GZ15G0285060.1; AcNRAMP2–GZ03G0077500.1; AcNRAMP4–GZ08G0188430.1; AcNRAMP4–GZ09G0194900.1; AcNRAMP4–GZ15G0285060.1; AcNRAMP6–GZ01G0002400.1; AcNRAMP7–GZ07G0166110.1; AcNRAMP12–GZ02G0049210.1; AcNRAMP14–GZ08G0185160.1) (Figure 2D, Table S3).
To uncover the selection pressure on NRAMP genes during evolution, we calculated the non-synonymous substitution rate (Ka), the synonymous substitution rate (Ks), and their ratio (Ka/Ks) of homologous NRAMP genes in A. catechu, A. thaliana, O. sativa, and C. nucifera (Figure 3; Table S4). The results show that the Ka/Ks values vary greatly (from 0.0797 to 0.6172) but are less than 1, suggesting purifying selection on these genes. Generally, the Ka/Ks ratios of AcNRAMPs and OsNRAMPs gene pairs are larger than those of AcNRAMPs and CnNRAMPs gene pairs, implying faster evolutionary rates of AcNRAMP genes on O. sativa than on C. nucifera (Table S4).
To clarify the phylogenetic relationships among NRAMP homologs in different plant species, a total of 25 NRAMP proteins from A. thaliana (6), O. sativa (7), and A. catechu (12) were used to establish a phylogenetic tree (Figure 4). According to the topology of the phylogenetic tree, 25 NRAMP were subdivided into five subgroups (group 1–group 5). AcNRAMP genes are distributed in all five subgroups, among which group 2 has the largest number (Figure 4).

2.3. Sequence Features of AcNRAMPs

To illustrate the sequence features of the AcNRAMPs, the MEME program was used to analyze their conserved motifs. In total, six conserved motifs (motif 1–6) are found in 12 AcNRAMP protein sequences. AcNRAMP proteins within the identical subgroup have similar motifs (Figure 5A,B). Motif 1 and motif 6 are present in all proteins. Most of the AcNRAMP proteins have motifs 2 and 3. Only AcNRAMP5 proteins contain two motifs, including motif 1 and motif 6. The analysis of gene structures reveals a great change in introns number within 12 AcNRAMP genes (from 3 to 14), while the number distribution of UTR varies from 1 to 3 (Figure 5C). Furthermore, the frequencies of amino acids on the respective position within the sequences of six motifs in the AcNRAMPs are highly different, which are worthy of further elucidation (Figure 5D).

2.4. Cis-Acting Elements of AcNRAMPs

To gain more insight into the possible regulatory factors of 12 AcNRAMP genes, the Plant CARE online program was employed to analyze their cis-acting elements. We identified 25 types of cis-acting elements and classified them into three categories, namely, phytohormone-responsive elements (PREs), defense- and stress-responsive elements (DSREs), and plant growth/development-responsive elements (GDREs) (Figure 6). Of these, the PREs are the most abundant with eight types, containing the ABA-responsive elements such as ABRE, the MeJA-responsive elements such as CGTCA motif and TGACG motif, the auxin-responsive elements such as AuxRR-core, the gibberellin-responsive elements such as P-box and TATC-box, and the other elements such as TCA element and TGA element. The DSREs have 12 types, containing ATC motif, Box 4, GA motif, GARE motif, GATA motif, G-box, I-box, MRE, Sp1, TCCC motif, and TCT motif. However, only five types of GDREs are identified, containing ARE, LTR, MBS, GCN4 motif, and RY element. Moreover, AcNRAMP9 and AcNRAMP10 have almost identical cis-acting elements. Box 4 is present in all AcNRAMPs as the light-responsive element (Figure 6).

2.5. Expression Analysis of AcNRAMPs in Different Tissues and under Fe and Zn Deficiency

To elucidate the role of AcNRAMP genes in different tissue and their response to Fe and Zn deficiency, the expression profiles of AcNRAMP genes were analyzed by calculating gene FPKM values (Table S5). Tissue-specific expression analysis reveals that AcNRAMP2, AcNRAMP8, and AcNRAMP11 are highly expressed in underground roots, and AcNRAMP4 and AcNRAMP6 are highly expressed in aerial roots. The expression levels of AcNRAMP3 are higher in the endosperm than that in the other tissues. AcNRAMP4 is generally highly expressed in most tissues of areca, especially in aerial roots. AcNRAMP5 is highly expressed in flowers and pericarp. AcNRAMP7 is absent from flowers, while the high expression level of AcNRAMP7 is found in leaves and veins. AcNRAMP8 is specifically up-regulated in underground roots. AcNRAMP9 and AcNRAMP10 are up-regulated in female flowers compared to other tissues. Furthermore, AcNRAMP11 is only up-regulated in flowers and underground roots, while AcNRAMP12 shows a higher expression level in leaves and veins (Figure 7A, Table S5). These results suggest that AcNRAMP proteins play vital roles in metal transportation in different areca tissues. Furthermore, the relative expression of six randomly selected AcNRAMP genes in female and male flower samples was detected by qRT-PCR. The results show that the gene expression trends determined by qRT-PCR and RNA-seq are highly consistent, which indicates that transcriptome data are reliable and reproducible (Figure 7B).
To further explore the response of AcNRAMPs to Fe and Zn, the expression of AcNRAMP in leaves and roots of areca seedlings under Fe and Zn deficiency conditions was analyzed (Table S6). In roots, AcNRAMP1 and AcNRAMP4 are up-regulated under Zn/Fe deficiency stress, while AcNRAMP7 is down-regulated. AcNRAMP3 is up-regulated in Fe-deficient roots, while AcNRAMP10 is up-regulated in Zn-deficient roots (Figure 8). In leaves, we find that AcNRAMP1, AcNRAMP9, and AcNRAMP10 are highly expressed in the first leaf (L1) treated with iron deficiency. Under the condition of zinc deficiency, AcNRAMP1, AcNRAMP2, AcNRAMP3, AcNRAMP6, AcNRAMP8, AcNRAMP11, and AcNRAMP12 also show a high expression pattern in L1 (Figure 8). In addition, compared with the third leaf (L3), Zn/Fe deficiency treatment greatly affects the expression level of the AcNRAMPs gene in L1 (Figure 8). Furthermore, our previous study also suggests that the transcriptome data are reliable and reproducible [21]. These results suggest that the AcNRAMPs family plays an important role in coping with Zn/Fe deficiency stress in Areca.

3. Discussion

The plant NRAMP gene family belongs to the conserved metal transport family in natural evolution, which is mainly responsible for the absorption, transport, and intracellular stability of Fe, Mn, and other metal ions [7,22]. In addition, the NRAMP gene family also plays a critical regulatory role in photosynthesis, protein activity maintenance, and abiotic stress response [23]. In previous studies, the members of the NRAMP gene family have been identified in diverse plant genomes, including A. thaliana [11], O. sativa [12], P. alba [10], P. vulgaris [13], T. cacao [14], and B. napus [15]. In this study, we identified 12 NRAMP genes in the A. catechu genome. Notably, the NRAMP genes in Arabidopsis were classified into two subfamilies. However, we identified five subfamilies of NRAMP genes in areca, suggesting that AcNRAMPs in areca may evolve a series of new functions.
The analysis of physicochemical properties helps decipher the potential functional natures of proteins. For instance, analysis of the protein pI value provides us with an important reference index for protein purification. Similar to other gene family members, 12 AcNRAMP proteins include both basic and acidic proteins [24,25,26]. All AcNRAMPs are considered thermostable proteins due to their Ai value being higher than 71. In contrast, most of AcNRAMP (10/12) are considered unstable proteins in a test tube due to their Ii values being higher than 40. In addition, except for AcNRAMP2, all AcNRAMP proteins have GRAVY values lower than zero, suggesting their soluble nature. Different organelle localization of NRAMP proteins shows different functions in plants. For example, a previous study shows that AtNRAMP6 is localized in the Golgi/trans-Golgi network and contributes to maintaining intracellular Fe homeostasis [27]. Additionally, AtNRAMP1 is localized on the plasma membrane and participates in Fe/Mn transportation [28]. In rice, most of the NRAMP protein members are also localized on the plasma membrane and are associated with the transport of various intracellular metal ions [17,29]. In the present study, subcellular localization predicts that most AcNRAMP genes are localized on the plasma membrane, indicating that most AcNRAMP genes transport ions on the membrane, and some AcNRAMP genes are located in chloroplast, indicating that they transport ions between organelles.
Numerous studies have found that plant NRAMP family genes are associated with the uptake and transport of various divalent metal ions [30]. In A. thaliana, AtNRAMP1 expression can be induced under iron deficiency in the root system, and overexpression lines show high tolerance to iron. These results indicate that AtNRAMP1 can regulate iron metabolism balance in roots [31]. In addition, AtNRAMP1 also has the function of absorbing and transporting manganese and iron. Similar to AtNRAMP1, AtNRAMP2 is mainly expressed in the root tip and is involved in manganese ion transport [32]. AtNRAMP3 and AtNRAMP4 expression is induced under iron deficiency stress and can regulate the homeostasis of iron and manganese ions in cells [33,34]. Furthermore, the Atnramp6 mutant shows higher cadmium tolerance than the wild type [27]. Recently, in other plants, an increasing number of NRAMP genes have been proven to play a pivotal role in maintaining the balance of iron, manganese, and zinc in cells [35,36,37]. In our study, we also analyzed the expression profiles of AcNRAMPs in different tissues of areca. We found that AcNRAMP1, AcNRAMP4, AcNRAMP6, AcNRAMP7, and AcNRAMP12 are up-regulated in leaves and veins, indicating that they may be involved in the transfer of metal elements. AcNRAMP3, AcNRAMP4, AcNRAMP11, and AcNRAMP12 are up-regulated in the underground roots, indicating that these four genes may be involved in the accumulation of metal elements in the underground roots. Overall, the expression profile of AcNRAMP family genes varies between different organs, suggesting that these genes may exert their functions in specific areca tissues.
Studies have shown that seven NRAMP genes are present in O. sativa. Of these, OsNRAMP1 is primarily located on the plasma membrane and is significantly up-regulated in response to Fe deficiency [38]. Aside from transporting Fe, OsNRAMP1 also facilitates the movement of Cd across the membrane [39]. Moreover, OsNRMAP5 plays a crucial role in the transportation of Fe, Mn, and Cd in O. sativa, thereby significantly contributing to the overall growth and development of the plant [40,41]. In this study, we further analyzed the expression profiles of AcNRAMP family genes in areca seedlings under the Zn/Fe deficiency stress. We observe that iron deficiency stress can induce the high expression of AcNRAMP1, AcNRAMP9, and AcNRAMP10 in areca L1, suggesting that these genes might be the main iron transporter in areca during the iron deficiency stress. Meanwhile, the expression level of AcNRAMP12 is higher in iron-deficient roots than in normal areca seedlings, indicating a vital role in iron uptake and transport in roots. Furthermore, the expression levels of AcNRAMP1, AcNRAMP2, AcNRAMP3, AcNRAMP6, AcNRAMP8, AcNRAMP11, and AcNRAMP12 are significantly higher in the zinc-deficient group than those in the control group, suggesting that these genes may be involved in zinc ion transport. Additionally, we identified three AcNRAMP genes (AcNRAMP2, AcNRAMP4, and AcNRAMP12) that are closely related to areca roots’ tolerance to zinc deficiency stress.

4. Materials and Methods

4.1. Plant Material and Growth Conditions

An A. catechu cultivar “Reyan NO.1”, was selected as experimental material in this study. The six-month-old areca seedlings were cultured in Hoagland solution for adaptive cultivation. After two weeks, the seed bulbs of areca seedlings were removed from the base of the stem. Subsequently, the seedlings were cultured in whole nutrient solution (CK), Fe-deficient medium (CK without Fe-(Na)2EDTA), and Zn-deficient medium (CK without Zn2+), respectively.

4.2. Identification of AcNRAMP Genes in A. catechu

The conserved domain of NRAMP protein (PF01566) was obtained from the Pfam database. The AcNRAMP candidates were preliminarily retrieved from the A. catechu genome using hidden Markov model (HMM) search with an E-value lower than 10−5 based on the methods by Krogh et al. [42]. Pfam Database (http://pfam.xfam.org/) (accessed on 10 January 2023) and SMART (http://smart.embl-heidelberg.de/) (accessed on 10 January 2023) were used to determine the predicted protein as a member of the transporter gene family.

4.3. Analysis of Physicochemical Properties of AcNRAMPs

The physicochemical properties of AcNRAMP proteins were analyzed by using ExPASy6 (https://web.expasy.org/protparam/) (accessed on 12 January 2023) [43], and their subcellular localization was predicted using Plant-mPLoc (http://www.csbio.sjtu.edu.cn/bioinf/plant-multi/) (accessed on 12 January 2023) [44].

4.4. Analysis of Evolutional Relationships of NRAMP Genes in A. catechu, O. sativa, and A. thaliana

The sequences of AtNRAMPs and OsNRAMPs were obtained from TAIR (https://www.arabidopsis.org/) (accessed on 12 January 2023) and the Rice Annotation Project Database, (https://rapdb.dna.affrc.go.jp/download/irgsp1.html) (accessed on 12 January 2023), respectively. ClustalW was performed to align all sequences with default parameters, and then a phylogenetic tree was constructed using a neighbor-joining (NJ) method of MEGA-X [45]. The bootstrap replications were set as 1000 to test the NJ tree reliability. The Evolview8 program was employed to visualize the phylogenetic tree [46].

4.5. Analysis of Sequence Features, Chromosome Distribution, and Syntenic Relationships of AcNRAMPs

The MEME online (https://meme-suite.org/meme/tools/meme) (accessed on 12 January 2023) was performed to analyze conserved motifs shared among AcNRAMP genes [47,48]. The TBtools software (version. x64_1_0987657) was used to visualize the AcNRAMP gene structure according to the CDS and genomic DNA sequences of AcNRAMP genes [49]. Furthermore, the TBtools software was performed to visualize the information of genome-wide chromosomal density and the distribution of AcNRAMPs across all chromosomes of A. catechu based on the genome annotation files. The genes distributed on scaffolds were excluded. The TBtools were employed to analyze the syntenic relationships of AcNRAMPs genes in interspecies (A. catechu vs. A. thaliana, A. catechu vs. C. nucifera, and A. catechu vs. O. sativa) and intraspecies.

4.6. Analysis of Cis-Acting Elements

Upstream 2,000 bases from the first ATG of CDS of AcNRAMP genes were regarded as promoter sequences, which were acquired from the A. catechu genome. The cis-acting elements of these sequences were identified using PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) (accessed on 18 January 2023).

4.7. Transcriptomic Data Analysis of AcNRAMPs

In this experiment, three individual areca seedlings from each group were separately collected as three biological replicates. RNA from a total of 27 samples was extracted and subjected to high-throughput sequencing on the Illumina Hiseq 4000 platform at Biomarker Technologies Co. (Beijing, China). After filtering out low-quality reads, clean reads were aligned to the areca reference genome. Gene expression analysis was performed using BMKCloud (www.biocloud.net) (accessed on 18 January 2023). The expression profiles of AcNRAMPs under Fe and Zn deficiency conditions were analyzed by calculating the fragments per kilobase per million mapped reads (FPKM) of AcNRAMPs based on the RNA-seq data. The genes with expression levels that met the standards (|log2FC| > 1, FDR < 0.05, and p-value < 0.05) were considered differentially expressed genes (DEGs). The heatmap representing the expression levels of AcNRAMP genes was plotted using TBtools. The RNA-seq raw data were deposited at NCBI (accession number: PRJNA767949).

4.8. qRT-PCR Analysis

The RNA quick isolation kit (Tiangen, Beijing, China) was used to extract the high-quality total RNA from the areca samples, and the One-Step gDNA Removal and cDNA Synthesis SuperMix (Tiangen, Beijing, China) was used to synthesize cDNA. The qRT-PCR was conducted to analyze the relative expression of AcNRAMPs. Primer Premier 5.0 was used to design the qRT-PCR primers of the AcNRAMP genes (Table S1). The qRT-PCR used β-actin as an internal reference gene. The 20 μL qRT-PCR reaction mixture contained 10 μL of 2 × SYBR Green Master Mix (Tiangen, Beijing, China), 1 μL of forward and reverse primers, 1 μL of forward and reverse primers, 1 μL cDNA template, and 7 μL ddH2O. The qRT-PCR program follows 94 ℃ hold for 30 s, 40 cycles at 94 °C, hold for 30 s, and 60 °C hold for 30 s. The final results were analyzed by using the 2−ΔΔCt method. All experiments were repeated with three biological and technical replicates.

5. Conclusions

NRAMP proteins play pivotal roles in plant biological processes, including the trafficking of metal ions, plant growth, and development. However, the information on NRAMPs in A. catechu, a commercially important medicinal plant of the palm family, is still unclear. In this study, the total members of the NRAMP gene family in the areca genome were identified. Subsequently, the sequence characteristics, gene structure, phylogeny, promoter sequence, and collinearity of all AcNRAMP genes were comprehensively analyzed. Furthermore, the expression levels of these genes in different tissues and under the condition of Fe and Zn deficiency were studied. The results reveal that AcNRAMP genes exert their functions in specific areca tissues and play key roles in areca response to Fe and Zn deficiency. This work provides a valuable reference for the in-depth study of the function of the AcNRAMP gene in coping with Fe and Zn deficiency stress in areca.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24087383/s1.

Author Contributions

W.B., Y.W. and G.Z.: conceptualization. W.B., Y.W. and G.Z.: methodology. G.Z., Z.L. and Q.A.: software, validation, and writing—original draft preparation. Z.L., G.Z. and Q.A.: investigation. W.B. and Y.W.: funding acquisition, writing—review and editing, and supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Hainan Province Science and Technology Special Fund (ZDYF2021XDNY121), the Hainan Provincial Natural Science Foundation of China (320MS008), and the Initial Funds for the High-level Talents of Hainan University (KYQD(ZR)1935).

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/supplementary material.

Acknowledgments

Special thanks to the reviewers for their precious time and valuable suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cakmak, I. Possible roles of zinc in protecting plant cells from damage by reactive oxygen species. New Phytol. 2000, 146, 185–205. [Google Scholar] [CrossRef]
  2. Suganya, A.; Saravanan, A.; Manivannan, N. Role of zinc nutrition for increasing zinc availability, uptake, yield, and quality of maize (Zea mays L.) grains: An overview. Commun. Soil Sci. Plant 2020, 51, 2001–2021. [Google Scholar]
  3. Eroglu, S.; Meier, B.; Wirén, N.V.; Peiter, E. The vacuolar manganese transporter MTP8 determines tolerance to iron deficiency-induced chlorosis in Arabidopsis. Plant Physiol. 2016, 170, 1030–1045. [Google Scholar] [CrossRef]
  4. Briat, J.F.; Lebrun, M. Plant responses to metal toxicity. Comptes Rendus Acad. Sci. III 1999, 322, 43–54. [Google Scholar] [CrossRef]
  5. Yan, A.; Wang, Y.M.; Tan, S.N.; Yusof, M.L.M.; Ghosh, S.; Chen, Z. Phytoremediation: A promising approach for revegetation of heavy metal-polluted land. Front. Plant Sci. 2020, 11, 359. [Google Scholar] [CrossRef] [PubMed]
  6. Colangelo, E.P.; Guerinot, M.L. Put the metal to the petal: Metal uptake and transport throughout plants. Curr. Opin. Plant Biol. 2006, 9, 322–330. [Google Scholar] [CrossRef] [PubMed]
  7. Vatansever, R.; Filiz, E.; Ozyigit, I.I. In silico analysis of Mn transporters (NRAMP1) in various plant species. Mol. Biol. Rep. 2016, 43, 151–163. [Google Scholar] [CrossRef]
  8. Bressler, J.P.; Olivi, L.; Cheong, J.H.; Kim, Y.; Bannona, D. Divalent Metal Transporter 1 in lead and cadmium transport. Ann. N. Y. Acad. Sci. USA 2004, 1012, 142–152. [Google Scholar] [CrossRef]
  9. Pinner, E.; Gruenheid, S.; Raymond, M.; Gros, P. Functional complementation of the yeast divalent cation transporter family SMF by NRAMP2, a member of the mammalian natural resistance-associated macrophage protein family. J. Biol. Chem. 1997, 272, 28933–28938. [Google Scholar] [CrossRef]
  10. Gunshin, H.; MacKenzie, B.; Berger, U.V.; Gunshin, Y.; Romero, M.F.; Boron, W.F.; Nussberger, S.; Gollan, J.L.; Hediger, M.A. Cloning and characterization of a mammalian proton-coupled metal-ion transporter. Nat. Cell Biol. 1997, 388, 482–488. [Google Scholar] [CrossRef]
  11. Mäser, P.; Thomine, S.; Schroeder, J.I.; Ward, J.M.; Hirschi, K.; Sze, H.; Talke, I.N.; Amtmann, A.; Maathuis, F.J.; Sanders, D.; et al. Phylogenetic relationships within cation transporter families of Arabidopsis. Plant Physiol. 2001, 126, 1646–1667. [Google Scholar] [CrossRef]
  12. Chang, J.; Huang, S.; Yamaji, N.; Zhang, W.; Ma, J.F.; Zhao, F. OsNRAMP1 transporter contributes to cadmium and manganese uptake in rice. Plant Cell Environ. 2020, 43, 2476–2491. [Google Scholar] [CrossRef]
  13. Chen, H.M.; Wang, Y.M.; Yang, H.L.; Zeng, Q.Y.; Liu, Y.J. NRAMP1 promotes iron uptake at the late stage of iron deficiency in poplars. Tree Physiol. 2019, 39, 1235–1250. [Google Scholar] [CrossRef]
  14. Ishida, J.K.; Caldas, D.G.; Oliveira, L.R.; Frederici, G.C.; Leite, L.M.P.; Mui, T.S. Genome-wide characterization of the NRAMP gene family in Phaseolus vulgaris provides insights into functional implications during common bean development. Genet. Mol. Biol. 2018, 41, 820–833. [Google Scholar] [CrossRef] [PubMed]
  15. Ullah, I.; Wang, Y.; Eide, D.J.; Dunwell, J.M. Evolution, and functional analysis of natural resistance-associated macrophage proteins (NRAMPs) from Theobroma cacao and their role in cadmium accumulation. Sci. Rep. 2018, 8, 14412. [Google Scholar] [CrossRef]
  16. Zhang, X.D.; Meng, J.G.; Zhao, K.X.; Chen, X.; Yang, Z.M. Annotation and characterization of Cd-responsive metal transporter genes in rapeseed (Brassica napus). BioMetals 2017, 31, 107–121. [Google Scholar] [CrossRef] [PubMed]
  17. Cailliatte, R.; Lapeyre, B.; Briat, J.; Mari, S.; Curie, C. The NRAMP6 metal transporter contributes to cadmium toxicity. Biochem. J. 2009, 422, 217–228. [Google Scholar] [CrossRef] [PubMed]
  18. Yang, M.; Zhang, W.; Dong, H.X.; Zhang, Y.Y.; Lv, K.; Wang, D.J.; Lian, X.M. OsNRAMP3 Is a vascular bundles-specific manganese transporter that is responsible for manganese distribution in rice. PLoS ONE 2013, 8, e83990. [Google Scholar] [CrossRef]
  19. Sasaki, A.; Yamaj, N.; Yokosho, K.; Ma, J.F. Nramp5 is a major transporter responsible for manganese and cdmium uptake in rice. Plant Cell 2012, 24, 2155–2167. [Google Scholar] [CrossRef]
  20. Li, J.Y.; Liu, J.P.; Dong, D.K.; Jia, X.M.; McCouch, S.R.; Kochian, L.V. Natural variation underlies alterations in Nramp aluminum transporter (NRAT1) expression and function that play a key role in rice aluminum tolerance. Proc. Natl. Acad. Sci. 2014, 111, 6503–6508. [Google Scholar] [CrossRef]
  21. An, Q.Y.; Cui, C.; Muhammad, K.N.; Zhou, G.Z.; Wan, Y.L. Genome-wide investigation of ZINC-IRON PERMEASE (ZIP) genes in Areca catechu and potential roles of ZIPs in Fe and Zn uptake and transport. Plant Signal. Behav. 2021, 16, 1995647. [Google Scholar] [CrossRef]
  22. Pottier, M.; Oomen, R.; Picco, C.; Giraudat, J.; Scholz-starke, J.; Richaud, P.; Carpaneto, A.; Thomine, S. Identification of mutations allowing natural resistance associated macrophage proteins (NRAMP) to discriminate against cadmium. Plant J. 2015, 83, 625–637. [Google Scholar] [CrossRef] [PubMed]
  23. Ihnatowicz, A.; Siwinska, J.; Meharg, A.A.; Carey, M.; Koorneef, M.; Reymond, M. Conserved histidine of metal transporter AtNRAMP1 is crucial for optimal plant growth under manganese deficiency at chilling temperatures. New Phytol. 2014, 202, 1173–1183. [Google Scholar] [CrossRef]
  24. Halligan, B.D. ProMoST: A tool for calculating the pI and molecular mass of phosphorylated and modified proteins on two-dimensional gels. Methods Mol. Biol. 2009, 527, 283–298. [Google Scholar] [PubMed]
  25. Mohanta, T.K.; Khan, A.; Hashem, A.; Abd-Allah, E.F.; Al-Harrasi, A. The molecular mass and isoelectric point of plant proteomes. BMC Genom. 2019, 20, 631. [Google Scholar] [CrossRef]
  26. Qing, J.; Dawei, W.; Zhou, J.; Yulan, X.; Bingqi, S.; Fan, Z. Genomewide characterization and expression analyses of the MYB superfamily genes during developmental stages in Chinese jujube. PeerJ 2019, 7, e6353. [Google Scholar] [CrossRef]
  27. Li, J.; Wang, Y.; Zheng, L.; Li, Y.; Zhou, X.; Li, J.; Gu, D.; Xu, E.; Lu, Y.; Chen, X.; et al. The Intracellular Transporter AtNRAMP6 Is Involved in Fe Homeostasis in Arabidopsis. Front. Plant Sci. 2019, 10, 1124. [Google Scholar] [CrossRef] [PubMed]
  28. Castaings, L.; Caquot, A.; Loubet, S.; Curie, C. The high-affinity metal transporters NRAMP1 and IRT1 team up to take up iron under sufficient metal provision. Sci. Rep. 2016, 6, 37222. [Google Scholar] [CrossRef] [PubMed]
  29. Yamaji, N.; Sasaki, A.; Xia, J.X.; Yokosho, K.; Ma, J.F. A node-based switch for preferential distribution of manganese in rice. Nat. Commun. 2013, 4, 2442. [Google Scholar] [CrossRef] [PubMed]
  30. Tiwari, M.; Sharma, D.; Dwivedi, S.; Singh, M.; Tripathi, R.D.; Trivedi, P.K. Expression in Arabidopsis and cellular localization reveal involvement of rice NRAMP, OsNRAMP1, in arsenic transport and tolerance. Plant Cell Environ. 2014, 37, 140–152. [Google Scholar] [CrossRef] [PubMed]
  31. Zha, Q.; Xiao, Z.; Zhang, X.; Han, Z.; Wang, Y. Cloning and functional analysis of MxNRAMP1 and MxNRAMP3, two gens related to high metal tolerance of Malus xiaojinensis. S Afr. J. Bot. 2016, 102, 75–80. [Google Scholar] [CrossRef]
  32. Alejandro, S.; Cailliatte, R.; Alcon, C.; Dirick, L.; Domergue, F.; Correia, D.; Castaings, L.; Briat, J.F.; Mari, S.; Curie, C. Intracellular distribution of manganese by the Trans-Golgi network transporter NRAMP2 is critical for photosynthesis and cellular redox homeostasis. Plant Cell 2017, 29, 3068–3084. [Google Scholar] [CrossRef] [PubMed]
  33. Lanquar, V.; Lelièvre, F.; Bolte, S.; Hamès, C.; Alcon, C.; Neumann, D.; Vansuyt, G.; Curie, C.; Schröder, A.; Krämer, U.; et al. Mobilization of vacuolar iron by AtNRAMP3 and AtNRAMP4 is essential for seed germination on low iron. EMBO J. 2005, 24, 4041–4051. [Google Scholar] [CrossRef] [PubMed]
  34. Mary, V.; Ramos, M.S.; Gillet, C.; Socha, A.L.; Giraudat, J.; Agorio, A.; Merlot, S.; Clairet, C.; Kim, S.A.; Punshon, T.; et al. Bypassing iron storage in endodermal vacuoles rescues the iron mobilization defect in the natural resistance associated-macrophage protein3natural resistance associated-macrophage protein4 double mutant. Plant Physiol. 2015, 169, 748–759. [Google Scholar] [CrossRef]
  35. Mani, A.; Sankaranarayanan, K. In silico analysis of natural resistance-associated macrophage protein1 (NRAMP) family of transporters in rice. Protein J. 2018, 37, 237–247. [Google Scholar] [CrossRef]
  36. Zhang, J.; Zhang, M.; Song, H.; Zhao, J.; Shabala, S.; Tian, S.; Yang, X. A novel plasma membrane-based NRAMP transporter contributes to Cd and Zn hyperaccumulation in Sedum alfredii Hance. Environ. Exp. Bot. 2020, 176, 104121. [Google Scholar] [CrossRef]
  37. Qin, L.; Han, P.P.; Chen, L.Y.; Walk, T.C.; Li, Y.S.; Hu, X.J.; Xie, L.H.; Liao, H.; Liao, X. Genome-Wide identification and expression analysis of NRAMP family genes in soybean (Glycine max L.). Front. Plant Sci. 2017, 8, 1436. [Google Scholar] [CrossRef]
  38. Takahashi, R.; Ishimaru, Y.; Nakanishi, H.; Nishizawa, N.K. Role of the iron transporter OsNRAMP1 in cadmium uptake and accumulation in rice. Plant Signal. Behav. 2011, 6, 1813–1816. [Google Scholar] [CrossRef]
  39. Takahashi, R.; Ishimaru, Y.; Senoura, T.; Shimo, H.; Ishikawa, S.; Arao, T.; Nakanishi, H.; Nishizawa, N.K. The OsNRAMP1 iron transporter is involved in Cd accumulation in rice. J. Exp. Bot. 2011, 62, 4843–4850. [Google Scholar] [CrossRef]
  40. Ishimaru, Y.; Bashir, K.; Nakanishi, H.; Nishizawa, N.K. OsNRAMP5, a major player for constitutive iron and manganese uptake in rice. Plant Signal. Behav. 2012, 7, 763–766. [Google Scholar] [CrossRef]
  41. Yang, M.; Zhang, Y.Y.; Zhang, L.J.; Hu, J.T.; Zhang, X.; Lu, K.; Dong, H.X.; Wang, D.J.; Zhao, F.J.; Huang, C.F.; et al. OsNRAMP5 contributes to manganese translocation and distribution in rice shoots. J. Exp. Bot. 2014, 65, 4849–4861. [Google Scholar] [CrossRef]
  42. Krogh, A.; Larsson, B.; von Heijne, G.; Sonnhammer, E.L. Predicting transmembrane protein topology with a hidden markov model: Application to complete genomes. J. Mol. Biol. 2001, 305, 567–580. [Google Scholar] [CrossRef]
  43. Wilkins, M.R.; Gasteiger, E.; Bairoch, A.; Sanchez, J.C.; Williams, K.L.; Appel, R.D.; Hochstrasser, D.F. Protein identification and analysis tools in the ExPASy server. Methods Mol. Biol. 1999, 112, 531–552. [Google Scholar]
  44. Xiong, E.H.; Zheng, C.Y.; Wu, X.L.; Wang, W. Protein subcellular location: The gap between prediction and experimentation. Plant Mol. Biol. Rep. 2016, 34, 52–61. [Google Scholar] [CrossRef]
  45. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K.; Mega, X. Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef] [PubMed]
  46. He, Z.; Zhang, H.; Gao, S.; Lercher, M.J.; Chen, W.H.; Hu, S. Evolview v2: An online visualization and management tool for customized and annotated phylogenetic trees. Nucleic Acids Res. 2016, 44, W236–W241. [Google Scholar] [CrossRef] [PubMed]
  47. Bailey, T.L.; Boden, M.; Busker, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.Y.; Li, W.W.; Noble, W.S. MEME SUITE: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [CrossRef]
  48. Lu, S.N.; Wang, J.Y.; Chitsaz, F.; Derbyshire, M.K.; Geer, R.C.; Gonzales, N.R.; Geadz, M.; Hurwitz, D.I.; Marchler, G.H.; Song, J.S.; et al. CDD/SPARCLE: The conserved domain database in 2020. Nucleic Acids Res. 2020, 48, D265–D268. [Google Scholar] [CrossRef] [PubMed]
  49. Chen, C.J.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.H.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
Ijms 24 07383 g001 550

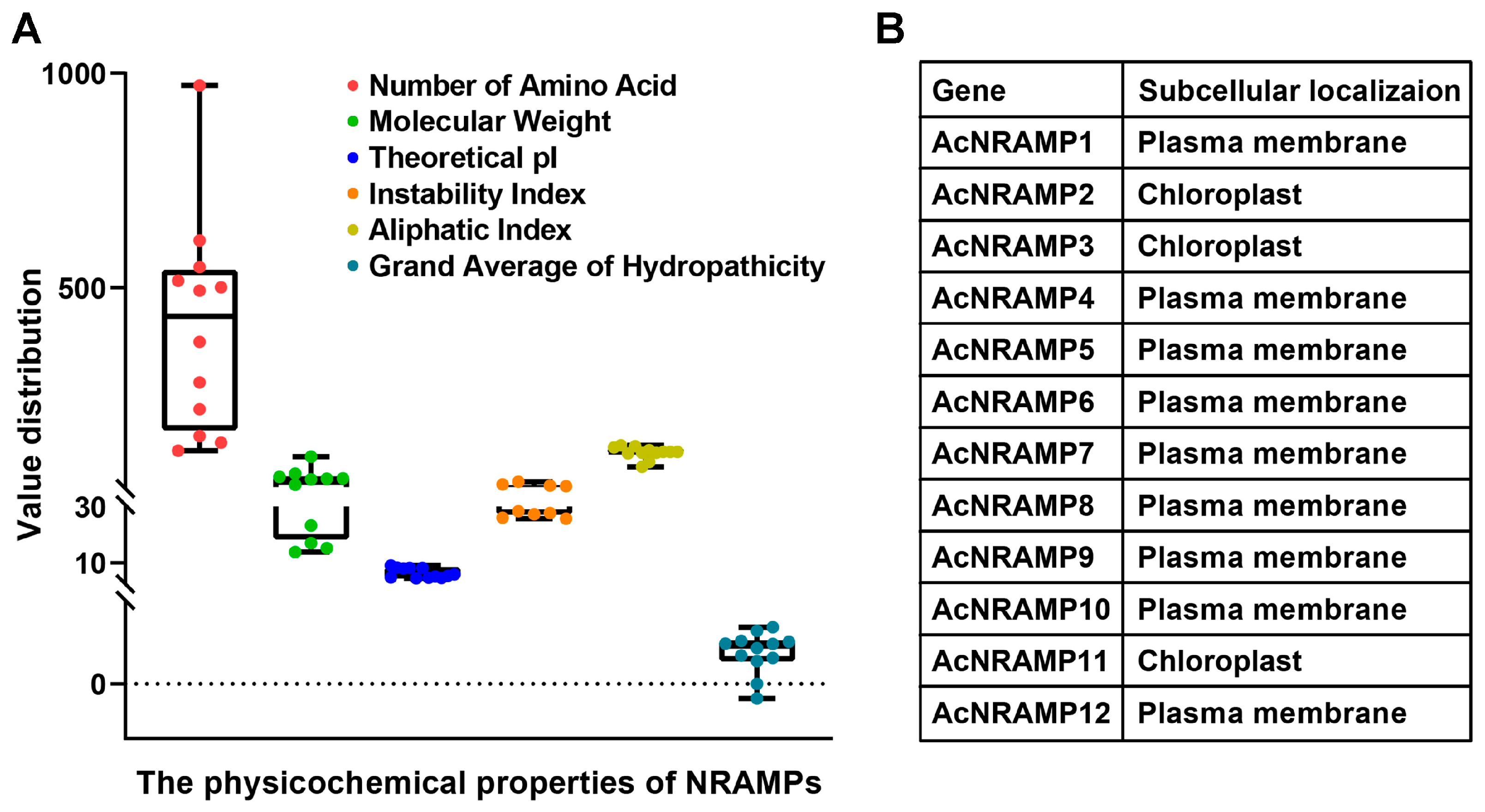

Figure 1. Physicochemical properties of AcNRAMPs (A) and prediction of subcellular localization (B).
Figure 1. Physicochemical properties of AcNRAMPs (A) and prediction of subcellular localization (B).
Ijms 24 07383 g001
Ijms 24 07383 g002 550

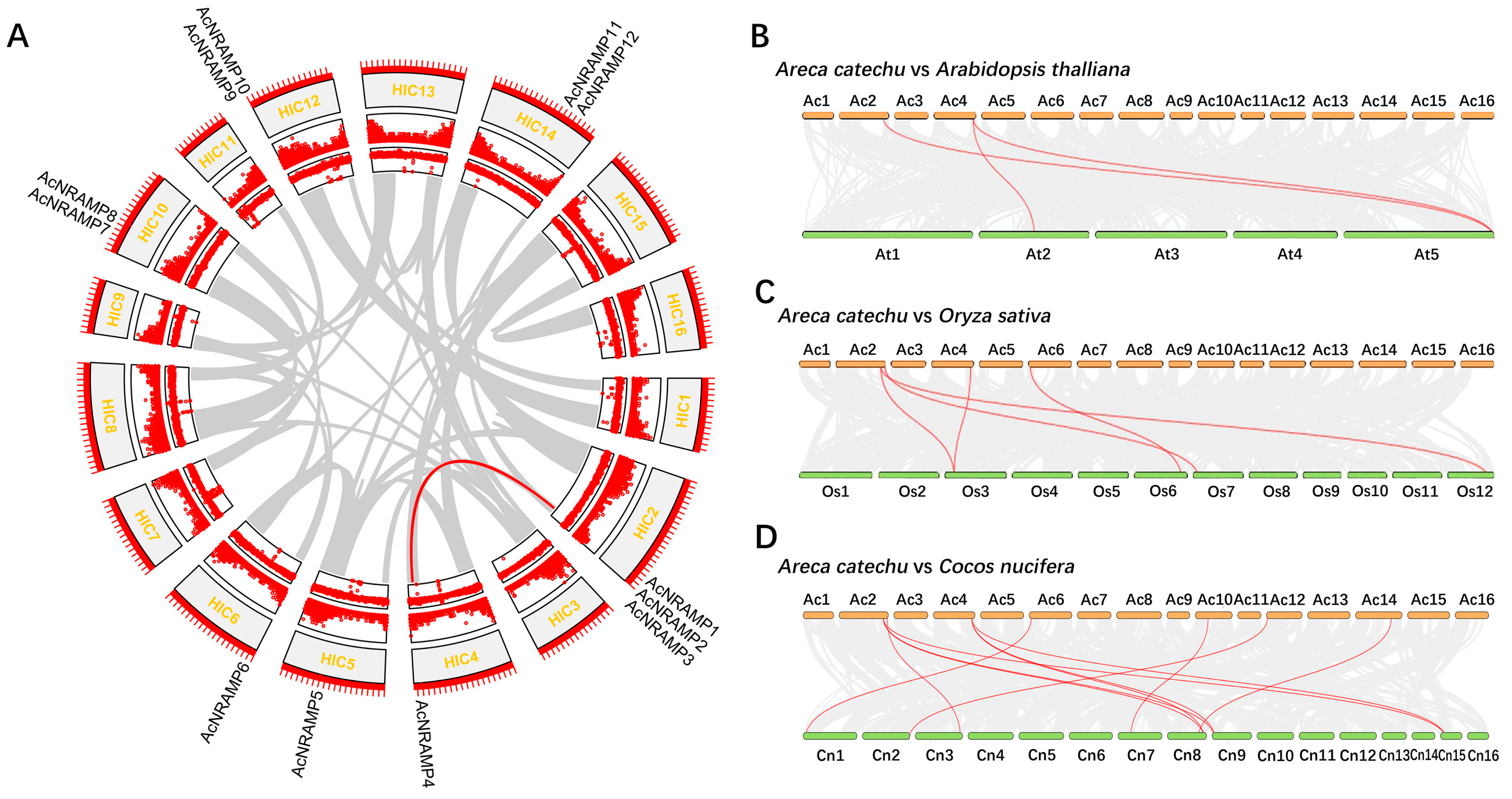

Figure 2. Chromosomal location of AcNRAMP genes. (A) Chromosomal location of AcNRAMPs and their collinear gene pairs in A. catechu genome. The outer ring to the inner ring represents 16 chromosomes, gene density, and GC contents, respectively. (B–D) Syntenic analysis of AcNRAMPs between A. catechu and A. thaliana, A. catechu and O. sativa, and A. catechu and C. nucifera, respectively. The gray lines among each chromosome represent all gene pairs between A. catechu and other plant species, while the red lines represent the gene pairs associated with AcNRAMP genes.
Figure 2. Chromosomal location of AcNRAMP genes. (A) Chromosomal location of AcNRAMPs and their collinear gene pairs in A. catechu genome. The outer ring to the inner ring represents 16 chromosomes, gene density, and GC contents, respectively. (B–D) Syntenic analysis of AcNRAMPs between A. catechu and A. thaliana, A. catechu and O. sativa, and A. catechu and C. nucifera, respectively. The gray lines among each chromosome represent all gene pairs between A. catechu and other plant species, while the red lines represent the gene pairs associated with AcNRAMP genes.
Ijms 24 07383 g002
Ijms 24 07383 g003 550

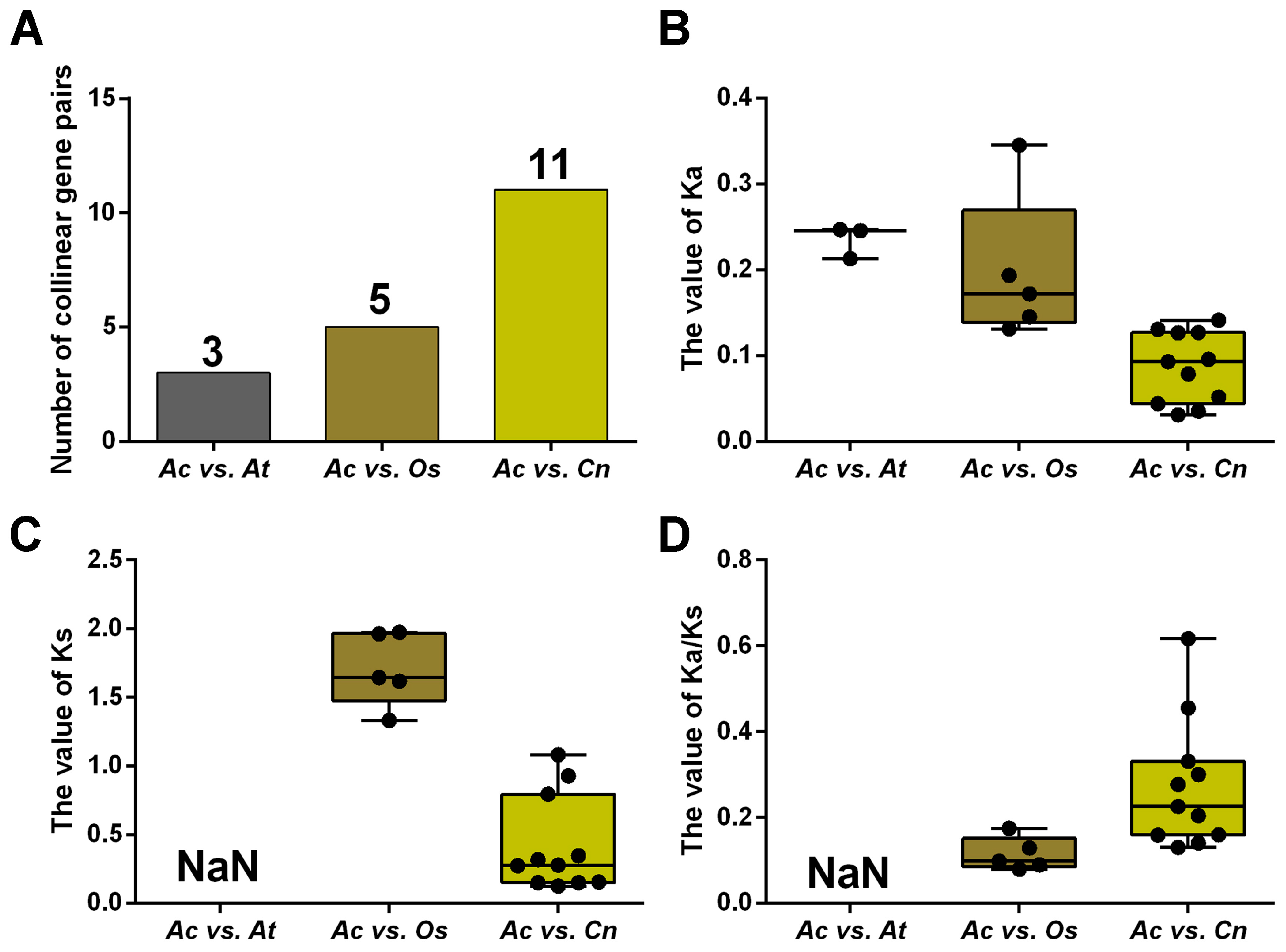

Figure 3. Comparison of NRAMP homologous genes substitution rate. (A) The number distribution of the collinear gene pairs in three species. Ac: A. catechu; At: A. thaliana; Os: O. sativa; Cn: C. nucifera. (B–D) The Ka, Ks, and Ka/Ks distribution of the NRAMP duplicated genes.
Figure 3. Comparison of NRAMP homologous genes substitution rate. (A) The number distribution of the collinear gene pairs in three species. Ac: A. catechu; At: A. thaliana; Os: O. sativa; Cn: C. nucifera. (B–D) The Ka, Ks, and Ka/Ks distribution of the NRAMP duplicated genes.
Ijms 24 07383 g003
Ijms 24 07383 g004 550

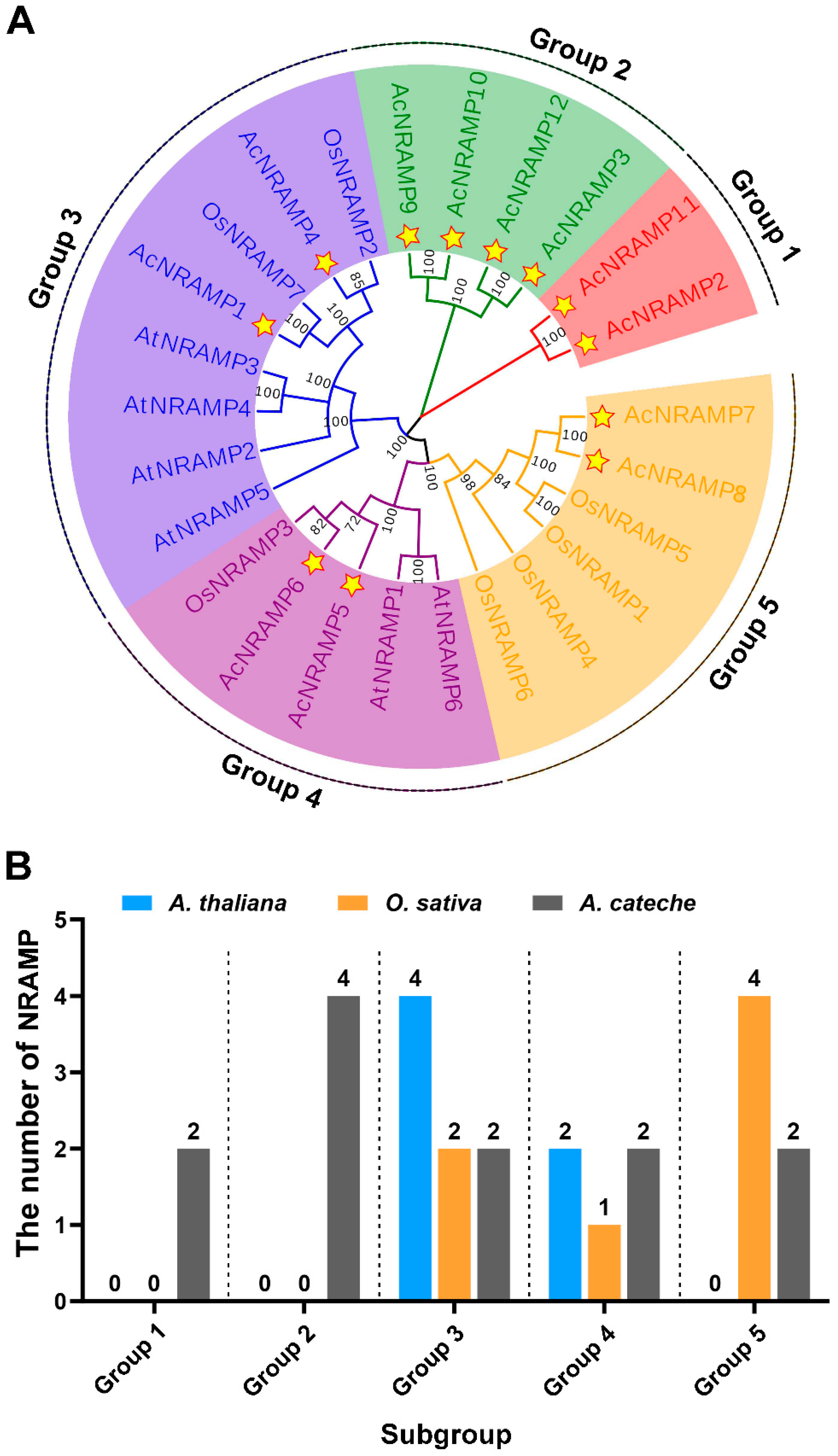

Figure 4. Phylogenetic relationships of NRAMP proteins in A. catechu, O. sativa, and A. thaliana. (A) The phylogenetic tree has 25 NRAMP proteins, including 12 AcNRAMP, 7 OsNRAMP, and 6 AtNRAMP). Star-marked 12 NRAMP genes of A. catechu. (B) The number of AcNRAMPs, OsNRAMP, and AtNRAMP in the different subgroups.
Figure 4. Phylogenetic relationships of NRAMP proteins in A. catechu, O. sativa, and A. thaliana. (A) The phylogenetic tree has 25 NRAMP proteins, including 12 AcNRAMP, 7 OsNRAMP, and 6 AtNRAMP). Star-marked 12 NRAMP genes of A. catechu. (B) The number of AcNRAMPs, OsNRAMP, and AtNRAMP in the different subgroups.
Ijms 24 07383 g004
Ijms 24 07383 g005 550

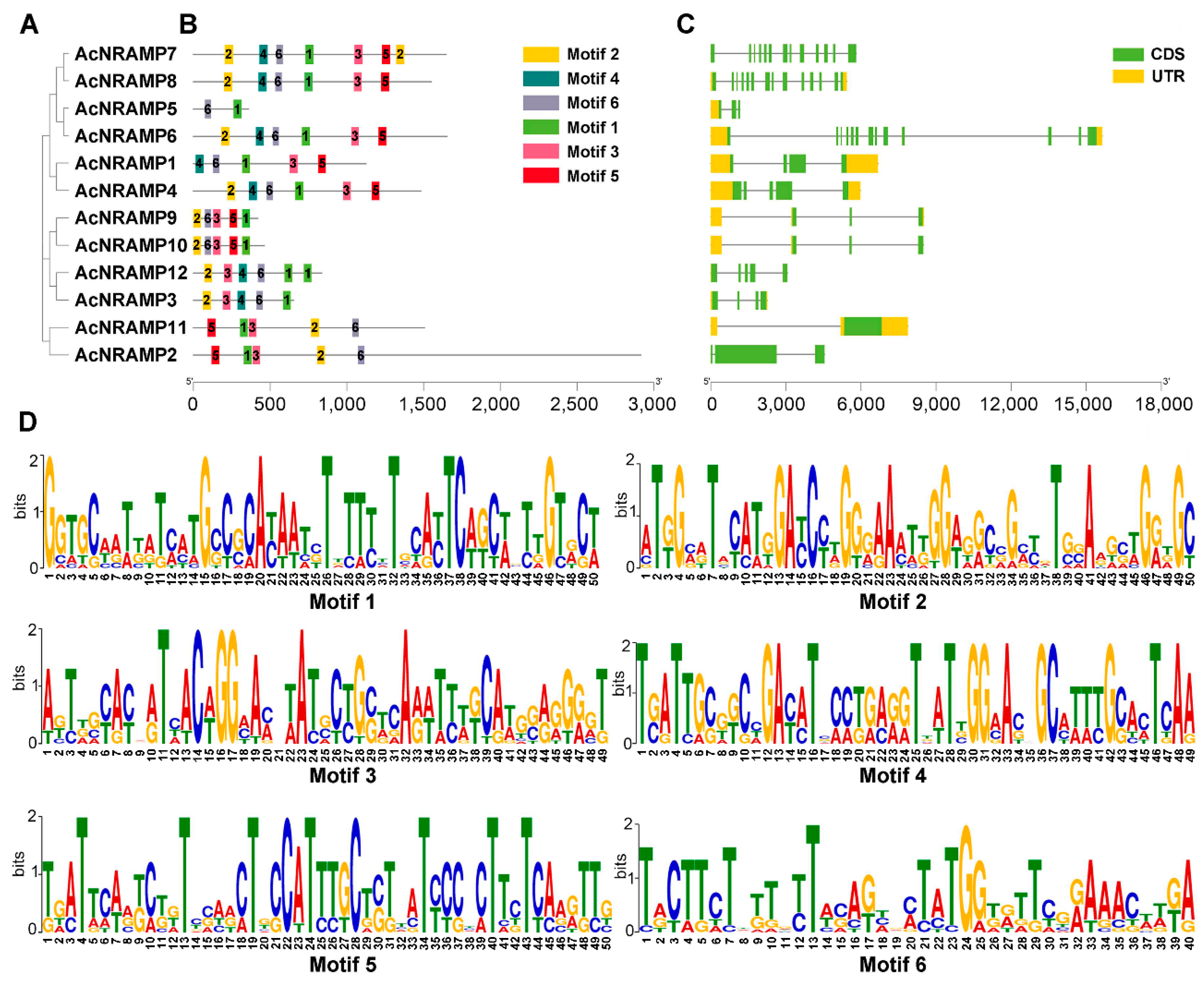

Figure 5. The sequence features of the AcNRAMP genes. (A) The phylogenetic tree has 12 AcNRAMPs. (B) The motif distribution in the 12 AcNRAMPs. The various colored rectangles represent motifs 1 to 6; the black solid lines indicate the sequences outside motifs; the bar scale below represents the number of amino acids. (C) The gene structures of the 12 AcNRAMPs. The green ellipses and orange ellipses represent exons and untranslated regions (UTR), respectively; the black solid lines linked with the ellipse indicate the introns; the bar scale below represents the gene length. (D) Sequence logos of conserved amino acid residues sequences. The X-axis represents the position of the different amino acids in each motif, while the Y-axis represents the bit value of each amino acid.
Figure 5. The sequence features of the AcNRAMP genes. (A) The phylogenetic tree has 12 AcNRAMPs. (B) The motif distribution in the 12 AcNRAMPs. The various colored rectangles represent motifs 1 to 6; the black solid lines indicate the sequences outside motifs; the bar scale below represents the number of amino acids. (C) The gene structures of the 12 AcNRAMPs. The green ellipses and orange ellipses represent exons and untranslated regions (UTR), respectively; the black solid lines linked with the ellipse indicate the introns; the bar scale below represents the gene length. (D) Sequence logos of conserved amino acid residues sequences. The X-axis represents the position of the different amino acids in each motif, while the Y-axis represents the bit value of each amino acid.
Ijms 24 07383 g005
Ijms 24 07383 g006 550

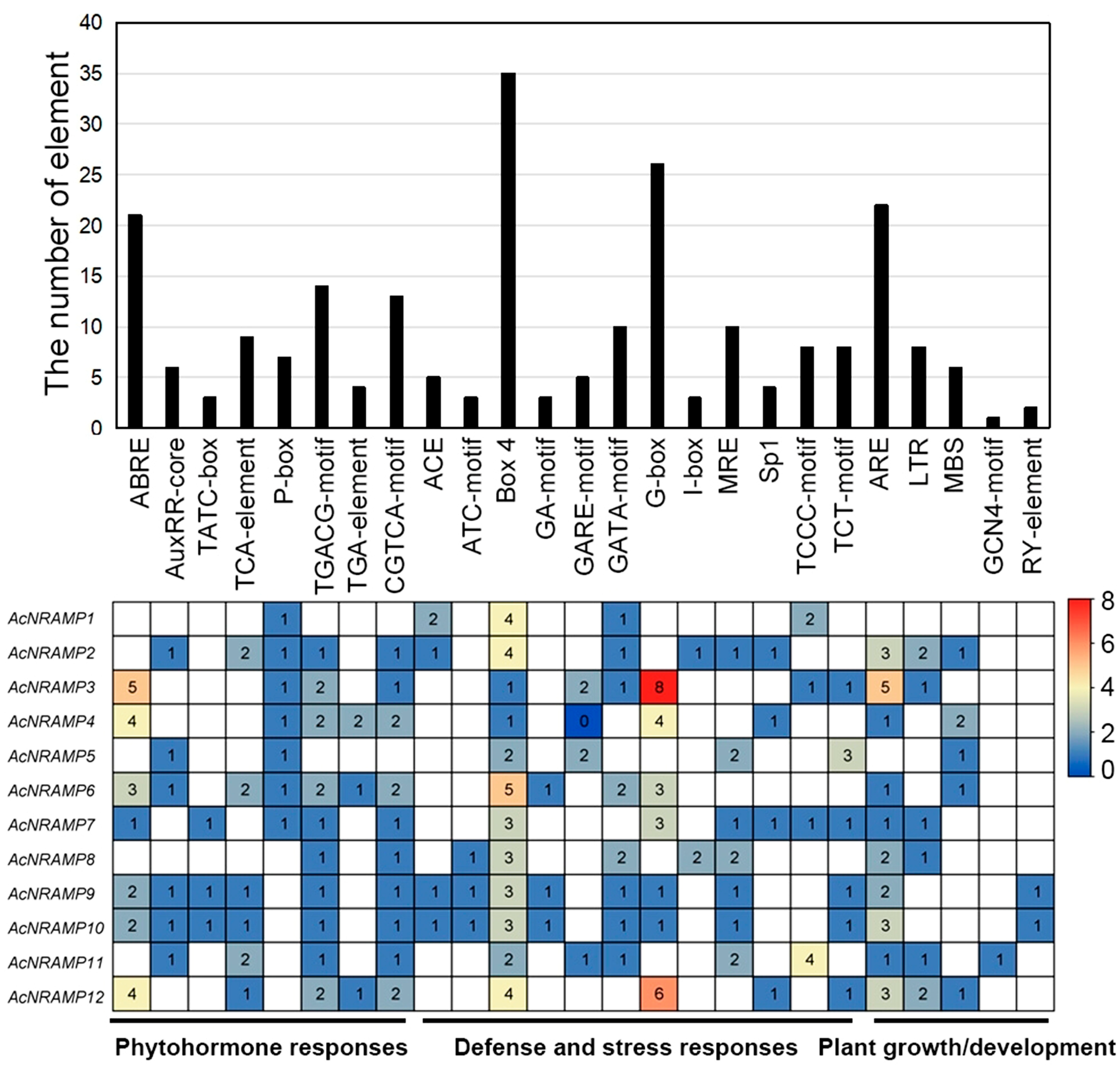

Figure 6. Cis-acting elements of AcNRAMPs. The bar chart represents the total number of cis-acting elements within each AcNRAMP. The heatmap shows the number distribution of different cis-acting elements within each AcNRAMP.
Figure 6. Cis-acting elements of AcNRAMPs. The bar chart represents the total number of cis-acting elements within each AcNRAMP. The heatmap shows the number distribution of different cis-acting elements within each AcNRAMP.
Ijms 24 07383 g006
Ijms 24 07383 g007 550

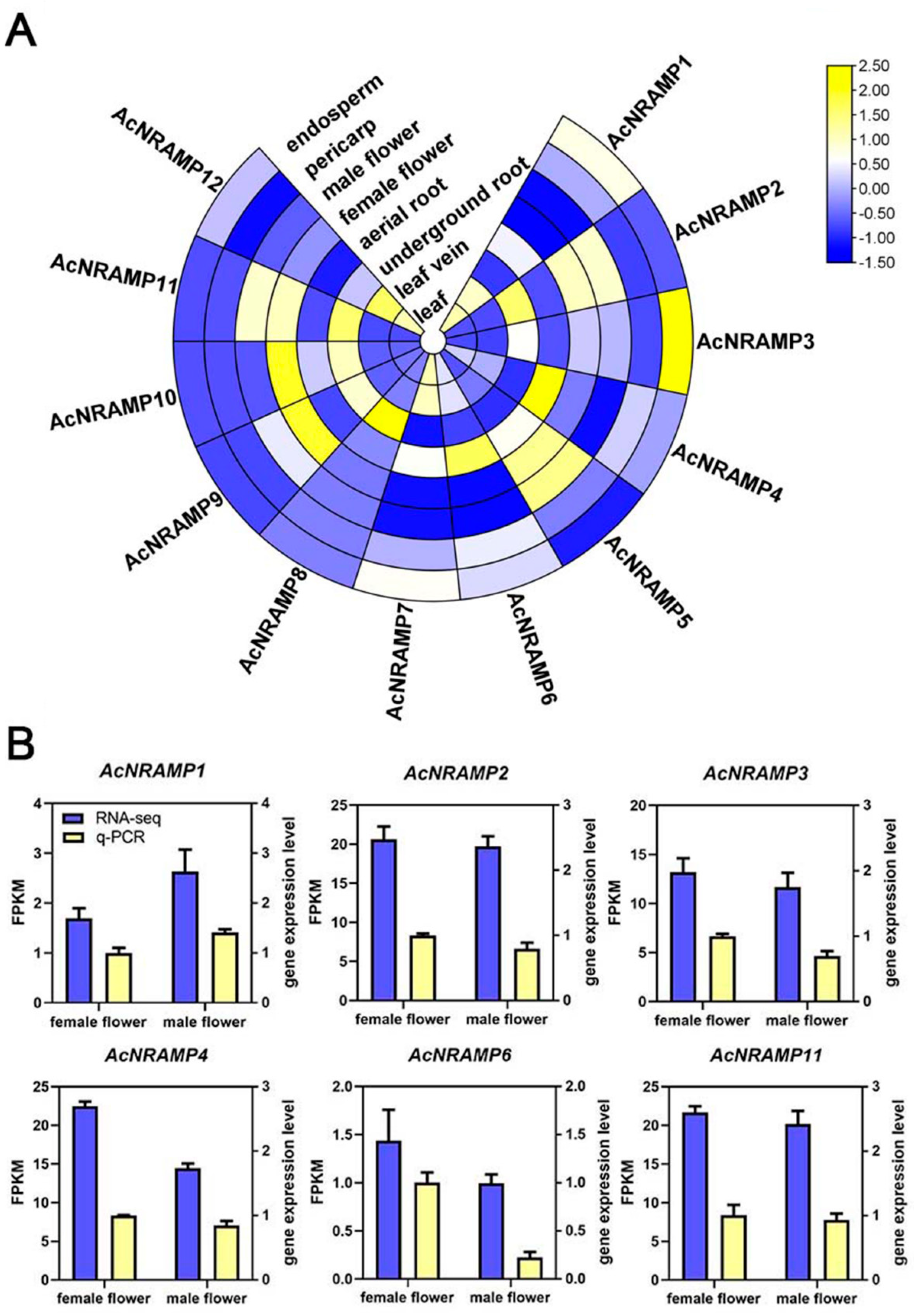

Figure 7. The expression patterns of 12 AcNRAMP genes of A. catechu in different tissue (A) and qRT-PCR validation of RNA-seq (B).
Figure 7. The expression patterns of 12 AcNRAMP genes of A. catechu in different tissue (A) and qRT-PCR validation of RNA-seq (B).
Ijms 24 07383 g007
Ijms 24 07383 g008 550

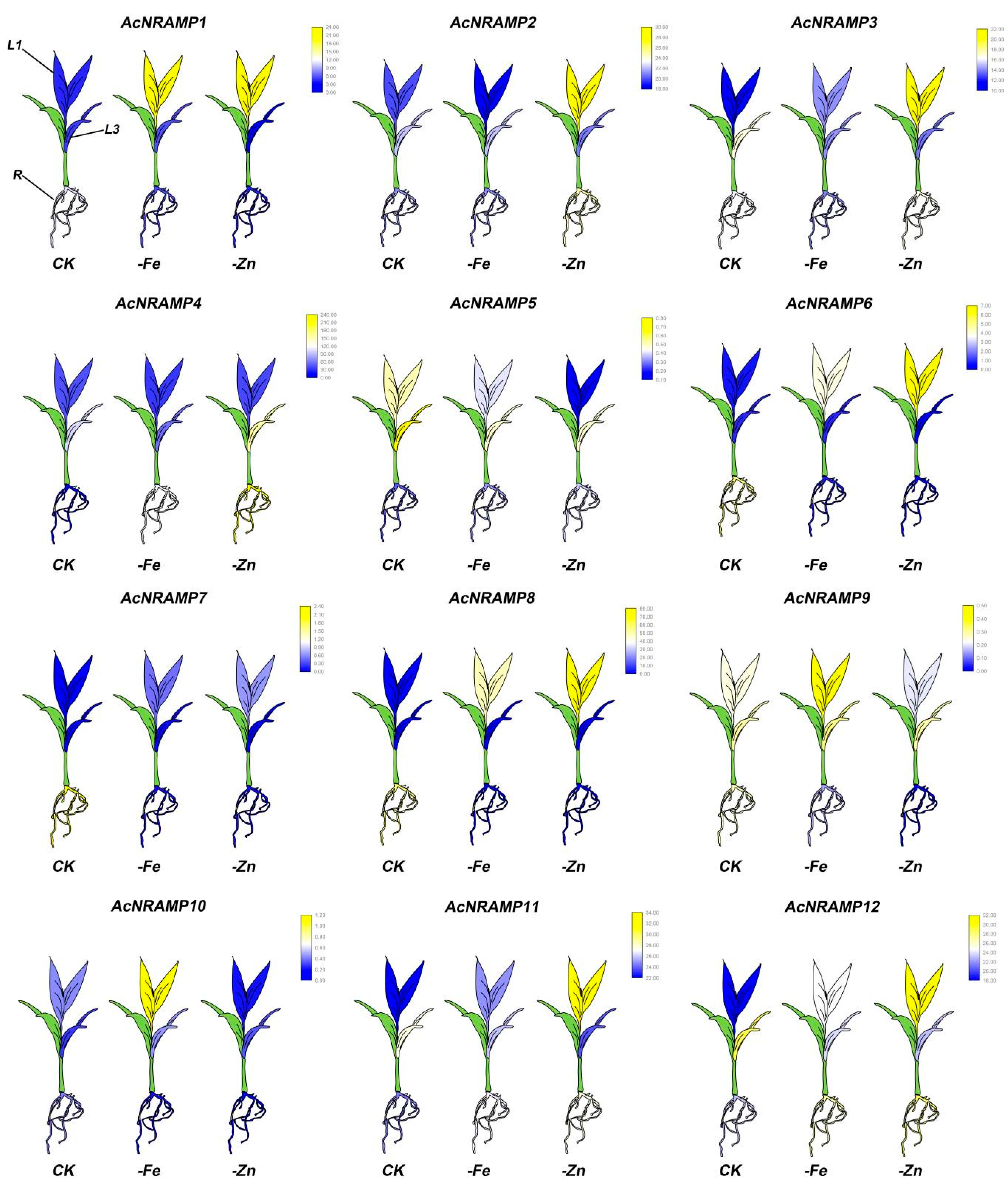

Figure 8. The expression patterns of 12 AcNRAMP genes of A. catechu in Fe and Zn deficiency. FPKM values were obtained by RNA-seq. Each gene has three cartoon heatmaps that represent areca seedlings in normal, Fe-deficient, and Zn-deficient conditions. The sampling mainly targeted the first leaf (L1), third leaf (L3), and root (R) of areca seedlings.
Figure 8. The expression patterns of 12 AcNRAMP genes of A. catechu in Fe and Zn deficiency. FPKM values were obtained by RNA-seq. Each gene has three cartoon heatmaps that represent areca seedlings in normal, Fe-deficient, and Zn-deficient conditions. The sampling mainly targeted the first leaf (L1), third leaf (L3), and root (R) of areca seedlings.
Ijms 24 07383 g008
