Unveiling the Nature and Strength of Selenium-Centered Chalcogen Bonds in Binary Complexes of SeO2 with Oxygen-/Sulfur-Containing Lewis Bases: Insights from Theoretical Calculations

by
Tao Lu
,
Renhua Chen
,
Qingyu Liu
,
Yeshuang Zhong
,
Fengying Lei
* and
Zhu Zeng
*
School of Basic Medical Sciences/School of Biology and Engineering, Guizhou Medical University, Guiyang 550025, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(11), 5609; https://doi.org/10.3390/ijms25115609
Submission received: 3 April 2024 / Revised: 11 May 2024 / Accepted: 17 May 2024 / Published: 21 May 2024
(This article belongs to the Special Issue Chemical Bond and Bonding: Fundamental Aspects and Recent Developments)
Browse Figures
Versions Notes

Abstract

:
Among various non-covalent interactions, selenium-centered chalcogen bonds (SeChBs) have garnered considerable attention in recent years as a result of their important contributions to crystal engineering, organocatalysis, molecular recognition, materials science, and biological systems. Herein, we systematically investigated π–hole-type Se∙∙∙O/S ChBs in the binary complexes of SeO2 with a series of O-/S-containing Lewis bases by means of high-level ab initio computations. The results demonstrate that there exists an attractive interaction between the Se atom of SeO2 and the O/S atom of Lewis bases. The interaction energies computed at the MP2/aug-cc-pVTZ level range from −4.68 kcal/mol to −10.83 kcal/mol for the Se∙∙∙O chalcogen-bonded complexes and vary between −3.53 kcal/mol and −13.77 kcal/mol for the Se∙∙∙S chalcogen-bonded complexes. The Se∙∙∙O/S ChBs exhibit a relatively short binding distance in comparison to the sum of the van der Waals radii of two chalcogen atoms. The Se∙∙∙O/S ChBs in all of the studied complexes show significant strength and a closed-shell nature, with a partially covalent character in most cases. Furthermore, the strength of these Se∙∙∙O/S ChBs generally surpasses that of the C/O–H∙∙∙O hydrogen bonds within the same complex. It should be noted that additional C/O–H∙∙∙O interactions have a large effect on the geometric structures and strength of Se∙∙∙O/S ChBs. Two subunits are connected together mainly via the orbital interaction between the lone pair of O/S atoms in the Lewis bases and the BD*(OSe) anti-bonding orbital of SeO2, except for the SeO2∙∙∙HCSOH complex. The electrostatic component emerges as the largest attractive contributor for stabilizing the examined complexes, with significant contributions from induction and dispersion components as well.

1. Introduction

Selenium (Se) is the third stable element in group VI of the periodic table, and its abundance in the Earth’s crust is about 5 × 10−6%. Selenium is an important nutrient for humans and other animals, playing a crucial role in various physiological functions [1,2], and its deficiency in living organisms can cause various serious diseases [2]. Despite its importance, selenium is also a toxic element for humans even in small doses, which can cause selenosis [2]. Selenium exists in a variety of inorganic and organic selenium-containing compounds, including selenocysteine and selenomethionine found in biological molecules [3]. These selenium-containing compounds show great potential applications in medicinal chemistry [3], organic synthesis [4,5], materials science [6,7], and biochemistry [8,9]. It has been observed that the selenium in these selenium-containing compounds can engage in different non-covalent interactions (NCIs) with partner molecules, in analogy to the behavior of sulfur. These NCIs are crucial for the stability, structure, and function of compounds and proteins containing selenium, as well as for molecular recognition [10,11,12,13,14,15,16,17]. Theoretical and experimental studies have demonstrated that selenium can serve as a proton acceptor to engage in D–H∙∙∙Se (D = C, N, O, S) hydrogen bonds (HBs) [18,19,20,21,22,23] and also act as a proton donor to form Se–H∙∙∙A (A = N, O, S, Se, π) HBs [24,25,26,27,28]. These selenium-centered hydrogen bonds (SeCHBs) are a significant class of selenium-containing NCIs.
In addition to SeCHBs, selenium also exhibits the ability to form chalcogen bonds (ChBs) with electron-rich sites. Chalcogen bonds have been defined as the attractive NCIs between an electrophilic region related to a covalent-bonded group VI atom (O, S, Se, Te) and a nucleophilic region within the same or another molecular entity [29]. In recent years, ChBs have garnered considerable attention from theoreticians and experimentalists owing to their important contributions to crystal engineering [30,31], molecular recognition [17,32], organocatalysis [33,34], drug design [6,35], materials science [36,37], and biological systems [13,38,39]. ChBs belong not only to a subclass of σ–hole interactions but also to a subclass of π–hole interactions [40,41]. The former pertains to the σ–hole region of a chalcogen atom situated on the extension of the R-Ch covalent bond (where Ch denotes a chalcogen atom), and the latter is concerned with the π–hole region of a chalcogen atom positioned orthogonal to the planar skeleton of the molecular entity [40,41]. Chalcogen atoms can act as electron acceptors (ChB donors), electron donors (ChB acceptors), or fulfill both roles in ChBs [15]. It has been found that ChBs are similar to HBs [42] and, in certain instances, even stronger than HBs in terms of strength, especially for chalcogen atoms with larger radii. The strength of these ChBs depends on both the chalcogen atom involved in the bonding and the groups covalently bonded to it [15,43,44]. Concretely, a ChB’s strength increases with increases in the radius of the electron-poor chalcogen atom, but gradually decreases as the radius of the electron-rich chalcogen atom grows [45]. Furthermore, the existence of an electron-withdrawing group covalently attached to the electron-deficient chalcogen atom and an electron-donating group connected to the Lewis base can enhance the ChB strength. Additionally, it is also reported that the attractive nature of these ChBs is mainly determined by the dominant contributions of electrostatic, dispersion, and charge-transfer components [46].
Currently, quantum chemical calculations and several spectroscopic techniques such as X-ray diffraction and NMR spectroscopy have been mainly used to investigate selenium-centered chalcogen bonds (SeChBs). These SeChBs mainly include Se∙∙∙N [47,48,49,50,51,52], Se∙∙∙O [10,13,47,51,53,54], Se∙∙∙S [47,55], Se∙∙∙Se [28,56,57], and Se∙∙∙π [58,59,60] contacts. Zhang [48], Mugesh [61], and Panda [11] and colleagues theoretically investigated the impacts of the substituents covalently bonded to the Se atom, hybridization of the nitrogen atom, the chelate ring, and rigidity on Se∙∙∙N ChBs. Wang and coworkers [51] performed an X-ray crystallographic study and disclosed that intermolecular and extremely strong intramolecular Se∙∙∙N/O ChBs play a dominant role in stabilizing the crystal structures of the polymorphs of ortho- and para-nitrophenyl selenocyanate. Carugo and coworkers [13] conducted a statistical analysis of crystal structures obtained from the Protein Data Bank (PDB) and revealed that there exists a significant abundance of Se∙∙∙O ChBs, which play a pivotal role in the stability, structure, and function of proteins and peptides. Thomas et al. [53] observed a very short Se∙∙∙O ChB with a binding distance of 2.522 Å in the polymorphs of the organoselenium antioxidant ebselen. Bauzá and colleagues [55] also demonstrated the significance of intermolecular Se∙∙∙O/S ChBs in the stabilization of protein–ligand complexes involving Se–pyranose through PDB surveys. Veljković et al. [57] conducted a statistical analysis of crystallographic data from the Cambridge Structural Database (CSD), revealing the cooperative roles of Se∙∙∙Se ChBs and C/Se–H∙∙∙Se HBs in stabilizing crystal structures of organoselenium compounds. Tskhovrebov and coworkers [59] reported that symmetrical dimers of benzylic-substituted 1,2,4-selenodiazolium salts are stabilized through Se∙∙∙N and Se∙∙∙π ChBs, where the former are weaker than the latter. It is important to acknowledge that the above-mentioned SeChBs mainly belong to the group of σ–hole interactions, with a focus on the divalent selenium atom in the existing literature. However, studies on the π–hole interactions of the hypervalent selenium atom as the ChB donor remain limited to date [45,62].
Similar to sulfur, selenium can also participate in tetravalent bonding in compounds such as SeO2, which serves as a ChB donor. SeO2 is a good prototypical molecule for studying π–hole-type ChBs, as it can interact with various Lewis bases. For instance, Esrafili and coworkers [62] computationally investigated the cooperativity between π–hole-type Se∙∙∙N ChBs and σ–hole-type halogen bonds in CH3∙∙∙XCN∙∙∙SeO2 complexes (X = F, Cl, Br, and I). Recently, we conducted a systematic examination of the π–hole-type chalcogen∙∙∙chalcogen interactions in XO2∙∙∙CH3YCH3 complexes (X = S, Se, Te; Y = O, S, Se, Te) [45]. The results indicated that these X∙∙∙Y ChBs are strong in strength and have some degree of covalent character. Energy decomposition analysis data revealed that the electrostatic component provides the largest contribution to the stabilization of these complexes, while the dispersive component is comparable to the induction component in terms of its contribution. It is well known that oxygen and sulfur, as the first two stable elements of group VI, are ubiquitous in various inorganic and organic compounds, including CH3OCH3 and CH3SCH3. These oxygen- and sulfur-containing compounds can serve as different types of Lewis bases and participate in the formation of a range of σ– and π–hole interactions. Herein, we systematically studied the π–hole-type Se∙∙∙O/S ChBs in binary complexes of SeO2 with a series of O-/S-containing Lewis bases employing high-level ab initio computations. Simultaneously, the strength and nature of such Se∙∙∙O/S ChBs were comprehensively evaluated and characterized by means of the molecular electrostatic potential (MEP), quantum theory of atoms in molecules (QTAIM), non-covalent interaction plot (NCIplot), natural bond orbital (NBO), and symmetry-adapted perturbation theory (SAPT) methods. Additionally, it has been shown that the substitution and hybridization effects of nitrogen bases significantly affect the strength of σ–hole-type Se∙∙∙N chalcogen bonds [49]. Therefore, we also explored the effects of electron-donating methyl and hydroxyl groups and additional hydrogen bonds on the geometric structures and strength of the π–hole-type Se∙∙∙O/S ChBs in this study.

2. Results and Discussion

2.1. MEP Analysis of Monomers

MEP is a valuable analytical tool for the prediction and assessment of various non-covalent interactions [63]. We conducted an MEP analysis for each monomer to pinpoint the interaction sites. Figure 1 displays the MEP maps of all monomers, where the red and blue regions denote the positive and negative electrostatic potentials, respectively. One can see that the SeO2 molecule has a π–hole region around the Se atom, characterized by the positive-electrostatic-potential areas that are perpendicular to its molecular plane. In addition, there exists one blue region around each O atom, corresponding to the negative electrostatic potentials. The computed most positive and most negative MEP values (VS,max and VS,min) for the SeO2 molecule are 52.05 kcal/mol and −29.82 kcal/mol, respectively. The VS,max value of the SeO2 molecule is significantly larger than that of the SO2 molecule (43.74 kcal/mol, calculated at the same level) [45]. This is consistent with the fact that the electronegativity of the S atom is larger than that of the Se atom. The negative-electrostatic-potential regions of water (H2O), methanol (CH3OH), dimethyl ether (CH3OCH3), ethylene oxide (C2H4O), formaldehyde (HCHO), acetaldehyde (CH3CHO), acetone (CH3COCH3), and formic acid (HCOOH) molecules and their corresponding S analogs are related to the lone pairs of the O and S atoms. All of the O- and S-containing Lewis bases possess positive-electrostatic-potential regions surrounding the H atoms. The calculated VS,min values of these O-containing molecules range from −34.39 kcal/mol to −42.02 kcal/mol, which are clearly more negative than those of the corresponding S-containing molecules, varying from −17.85 kcal/mol to −26.20 kcal/mol. This difference can be attributed to the smaller electronegativity and bigger polarizability of the S atom compared to those of the O atom. It is interesting to note that the VS,min value becomes more negative as the H atoms of the H2O, H2S, HCHO, and HCHS molecules are gradually replaced by the electron-donating methyl group. For example, the VS,min value becomes more negative from −34.97 kcal/mol for the HCHO molecule to −39.32 kcal/mol for the CH3CHO molecule and −42.02 kcal/mol for the CH3COCH3 molecule, and a similar trend was observed for the corresponding S analogs. In addition, it should also be mentioned that the negative MEP values on the O atom of the hydroxyl groups in both HCOOH and HCSOH molecules are −14.93 and −13.04 kcal/mol, respectively. Accordingly, it is predicted that the Se atom within the SeO2 molecule can engage in forming Se∙∙∙O/S ChBs with the O/S atoms of all Lewis bases, and the O atoms of the SeO2 molecule can interact with the H atoms of Lewis bases to form C/O–H∙∙∙O hydrogen bonds.

2.2. Geometrical Structures and Binding Energies of the Binary Complexes

Because the MEP analysis results reveal that there are relatively few interaction sites in all of the monomers, we directly constructed the initial structures of all of the investigated complexes using chemical intuition. The resulting optimized geometrical structures of the global minima for all 16 studied complexes are displayed in Figure 2. The Cartesian coordinates of these structures are summarized in Table S1 in the Supplementary Materials (SMs). Table 1 also collects the binding energies and several important geometrical parameters related to the Se∙∙∙O/S ChBs and C/O–H∙∙∙O HBs in all of the investigated complexes. It is observed that the SeO2∙∙∙H2O and SeO2∙∙∙C2H4O complexes, along with their S analogs, have Cs symmetry. Interestingly, the structure of the SeO2∙∙∙CH3OCH3 complex possesses C1 symmetry, whilst its S analog has Cs symmetry. The remaining complexes exhibit C1 symmetry.
We also computed the interaction energies (Eint), binding energies (EB), and deformation energies (Edef) for the studied complexes. All of these data are also summarized in Table 1. It should be pointed out that the Edef value can be utilized as a measure for assessing the degree of deformation of each component within the complexes. For the Se∙∙∙O chalcogen-bonded complexes, the Eint values range from −4.68 kcal/mol to −10.83 kcal/mol. There exists a fairly wide range of Eint values between −3.53 kcal/mol and −13.77 kcal/mol for the Se∙∙∙S chalcogen-bonded complexes. The Eint value of each chalcogen-bonded complex is significantly more negative than its EB value, varying from −2.42 kcal/mol to −9.64 kcal/mol. This discrepancy is attributed to the distortion of the monomeric structures resulting from the dimerization, with the Edef value falling within the range of 1.11–6.19 kcal/mol. In the case of the SeO2∙∙∙HCSOH complex, its Edef value is the largest, reaching 6.19 kcal/mol. It is found that both the interaction energy and binding energy are greatly affected by the introduction of the methyl and hydroxyl groups. For example, when the H atoms of H2O are successively substituted by the methyl groups, the Eint values exhibit a rapid increase, from −4.68 kcal/mol for the SeO2∙∙∙H2O complex to −7.86 kcal/mol for the SeO2∙∙∙CH3OH complex and −10.12 kcal/mol for the SeO2∙∙∙CH3OCH3 complex. Similarly, replacing a H atom of HCHO with a hydroxyl group results in an increase in the Eint value from −6.81 kcal/mol for the SeO2∙∙∙HCHO complex to −9.88 kcal/mol for the SeO2∙∙∙HCOOH complex. The corresponding S analogs also show a similar trend, but with more pronounced changes. This is due to the fact that the methyl and hydroxyl groups serve as electron donors, which can facilitate the transfer of electrons from the O/S atom into the Se atom of SeO2. Additionally, it is interesting to note that the EB value for the SeO2∙∙∙CH3COCH3 complex with the presence of two methyl groups is slightly smaller than that for the SeO2∙∙∙CH3CHO complex, which contains one methyl group. However, the substitution of two H atoms of HCHS with the methyl groups leads to a decrease in EB values for the SeO2∙∙∙CH3CSCH3 complex compared to those of the SeO2∙∙∙HCHS complex. This phenomenon is most likely due to the formation of these two complexes causing a noticeable distortion in the acetone and thioacetone structures compared to their isolated gas-phase structures. Furthermore, we found the lack of a strong linear correlation between the Se∙∙∙O/S distance and the Eint or EB value (see Figure S1), which can be attributed to the presence of additional C/O–H∙∙∙O hydrogen bonds in most of the studied complexes, in addition to the Se∙∙∙O/S ChBs.
As can also be seen from Table 1, the Se∙∙∙O distances in the Se∙∙∙O chalcogen-bonded complexes range from 2.512 Å to 2.765 Å, and the Se∙∙∙S distances in the Se∙∙∙S chalcogen-bonded complexes vary between 2.818 Å and 3.309 Å. All of the ChB distances (RChB) are significantly shorter than the sum (Rsum,1) of the van der Waals radii of two interacting atoms, by 19.2% to 26.5% in the Se∙∙∙O chalcogen-bonded complexes and by 10.6% to 23.8% in the Se∙∙∙S chalcogen-bonded complexes [64], thus indicating that a strong Se∙∙∙O/S ChB is formed in each studied complex. It is noteworthy that the Se∙∙∙O distance shortens from 2.765 Å in the SeO2∙∙∙H2O complex to 2.598 Å in the SeO2∙∙∙CH3OH complex and 2.535 Å in the SeO2∙∙∙CH3OCH3 complex when the H atoms of H2O are gradually replaced by the electron-donating methyl group. A similar trend concerning the Se∙∙∙S distance is also observed for the corresponding S analogs. However, this observed trend in the Se∙∙∙O/S distance is not evident in the SeO2∙∙∙HCHO, SeO2∙∙∙CH3CHO, and SeO2∙∙∙CH3COCH3 complexes and their S analogs as the methyl group progressively replaces the H atoms of both HCHO and HCHS molecules. Furthermore, the replacement of one H atom with a hydroxyl group in both the HCHO and HCHS molecules results in a shortening of the Se∙∙∙O and Se∙∙∙S distances in the SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes by 0.030 Å and 0.203 Å, respectively, compared to the SeO2∙∙∙HCHO and SeO2∙∙∙HCHS complexes. It is important to note that the π–hole-type Se∙∙∙O/S ChBs observed in this work exhibit significantly shorter distances than the σ–hole-type Se∙∙∙O/S ChBs found in proteins [13], molecular complexes [65], and protein–ligand complexes [47,55]. Table 1 also illustrates that the O–H∙∙∙O HB lengths in the SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes are 1.787 Å and 1.534 Å, respectively, indicating that the strength of the O–H∙∙∙O HB in the former is clearly weaker than that in the latter. The C–H∙∙∙O HB lengths in the remaining complexes range from 2.181 Å to 2.884 Å. It is noteworthy that the majority of the O∙∙∙H HB lengths within all of the investigated complexes are clearly shorter than the sum of the van der Waals radii of the two interacting atoms (2.62 Å) [64]. The computed ∠O–H∙∙∙O angle is in the range of 166.2–174.6° and the computed ∠C–H∙∙∙O angle varies between 101.0° and 150.6° (see Table 1).

2.3. QTAIM Analysis

Based on the optimized geometries at the MP2/aug-cc-pVTZ computational level, we performed a QTAIM analysis to estimate and understand the strength and nature of the intermolecular interactions occurring in the examined complexes. The QTAIM analysis results are graphically shown in Figure 3. It is seen that there exists one (3, −1) critical point, which is referred to as the bond critical point (BCP), and one bond path (BP) between the Se atom of SeO2 and the chalcogen atom of the Lewis bases in each of the studied complexes, indicating the formation of π–hole-type Se∙∙∙O/S ChBs in all of the complexes under investigation. It should be noted that the BCPs and BPs associated with the O/S–H∙∙∙O HBs in both the SeO2∙∙∙H2O and SeO2∙∙∙H2S complexes are not identified, likely due to these H∙∙∙O binding distances being significantly longer (about 3.03 Å in the former and 2.98 Å in the latter) compared to the sum of the van der Waals radii of two interacting atoms (2.62 Å). Nevertheless, one or two BCPs and BPs related to the C/O–H∙∙∙O HBs are found in all of the remaining complexes.
The topological parameters, including the electron density ρ, Laplacian of the electron density ∇2ρ, the local kinetic energy density G, the local potential energy density V, and the total energy density H, at the BCPs associated with the Se∙∙∙O/S ChBs and C/O–H∙∙∙O HBs were calculated and are provided in Table 2. It is found that the ρ value at the Se∙∙∙O BCP varies between 0.0223 a.u for the SeO2∙∙∙H2O complex and 0.0390 a.u for the SeO2∙∙∙C2H4O complex, and the ρ value at the Se∙∙∙S BCP ranges from 0.0151 a.u for the SeO2∙∙∙H2S complex to 0.0410 a.u for the SeO2∙∙∙HCSOH complex. It should be mentioned that the ρ value is linearly correlated with the Se∙∙∙O/S binding distance (Figure S2). However, the absence of a good linear relationship between the ρ value at the Se∙∙∙O/S BCP and the Eint or EB value is observed in Figure S3, which can also be attributed to the existence of additional C/O–H∙∙∙O hydrogen bonds. The ∇2ρ value at the Se∙∙∙O BCP in each complex formed by an O-containing Lewis base is significantly larger than that at the Se∙∙∙S BCP in the corresponding S-bearing analogs, but all are smaller than 0.1 a.u. The findings suggest that these Se∙∙∙O/S ChBs exhibit relatively strong closed-shell interactions due to the presence of positive ∇2ρ values. Additionally, the Se∙∙∙O/S ChBs in the complexes formed by H2O, H2S, HCHO, CH3COCH3, and HCOOH are non-covalent in nature, as evidenced by their positive H values. Conversely, the Se∙∙∙O/S ChBs in all of the other complexes have a partially covalent character, as reflected by their negative H values. The ρ values at the C/O–H∙∙∙O BCP vary from 0.0071 a.u to 0.0670 a.u and the corresponding ∇2ρ values fall within the range of 0.0275–0.1100 a.u. It is interesting to note that the H values are negative in both the SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes, indicating that these O–H∙∙∙O HBs are very strong, whilst the H values are positive in the remaining complexes, suggesting that these C–H∙∙∙O HBs are relatively weak. Furthermore, we also estimated the energy (ENCI) of each Se∙∙∙O/S ChB and C/O–H∙∙∙O HB using the following two equations [66,67]:
ENCI = 0.375 × V − 0.5655 (for the Se∙∙∙O/S ChBs)
ENCI = −223.08 × ρ + 0.7423 (for the C/O–H∙∙∙O HBs)
As shown in Table 2, the ENCI values of the Se∙∙∙O and Se∙∙∙S ChBs range from −4.01 kcal/mol to −7.26 kcal/mol and from −2.40 kcal/mol to −6.34 kcal/mol, respectively. It should be pointed out that the ENCI value of the Se∙∙∙O ChB is significantly larger than that of the Se∙∙∙S ChB. The ENCI values of the C–H∙∙∙O HBs fall within the range of −0.84 kcal/mol to −4.21 kcal/mol. In the SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes, the ENCI values of the O–H∙∙∙O HB are −7.00 and −14.20 kcal/mol, respectively, which are notably larger than those of the Se∙∙∙O/S ChBs within the same complexes. Moreover, the strength of the O–H∙∙∙O HB in the SeO2∙∙∙HCSOH complex is much larger than those of the Se∙∙∙O/S ChBs in all of the studied complexes. However, the ENCI values of the C–H∙∙∙O HBs are smaller than those of the Se∙∙∙O/S ChBs in all of the other complexes. It should also be pointed out that the sum of the energies of all identified NCIs varies between −4.01 kcal/mol and −12.15 kcal/mol in each Se∙∙∙O chalcogen-bonded complex and between −2.40 kcal/mol and −20.54 kcal/mol in each Se∙∙∙S chalcogen-bonded complex. For most of the studied complexes, the sum of these energies is in agreement with the Eint values.
Finally, the results in Table 2 also disclose that the addition of the electron-donating methyl and hydroxyl groups had a relatively large impact on the topological properties and strength of the Se∙∙∙O/S ChBs. For instance, the ENCI value of the Se∙∙∙O/S ChB successively increases with the order of H2O/H2S < CH3OH/CH3SH < CH3OCH3/CH3SCH3. Similar trends can also be observed for the ρ, ∇2ρ, G, and V values associated with the Se∙∙∙O/S ChBs. When one H atom of both HCHO and HCHS was replaced by one hydroxyl group, the ENCI value of the Se∙∙∙O ChB increased from −4.94 kcal/mol in the SeO2∙∙∙HCHO complex to −5.15 kcal/mol in the SeO2∙∙∙HCOOH complex, and the ENCI value of the Se∙∙∙S ChB clearly increased from −4.16 kcal/mol in the SeO2∙∙∙HCHS complex to −6.34 kcal/mol in the SeO2∙∙∙HCSOH complex.

2.4. NCIplot Analysis

The NCIplot method, which is based on the electron density and its reduced density gradient (RGD), was also utilized for characterizing and visualizing the intermolecular interactions in the examined complexes. The NCIplot analysis results are shown in Figure 4, where the blue and green isosurfaces represent the strongly and weakly attractive interactions, respectively, and the red isosurfaces denote the repulsive interactions. It is observed that one green or blue isosurface is present between two chalcogen atoms within the sixteen investigated complexes, providing further evidence of the formation of an attractive ChB. In the case of SeO2∙∙∙HCSOH, the Se∙∙∙S ChB is characterized by one dark-blue isosurface surrounded by one red region, suggesting that this ChB is exceedingly strong. Moreover, the absence of green isosurfaces between the O atoms of SeO2 and the H atoms of H2O/H2S is noted in both the SeO2∙∙∙H2O and SeO2∙∙∙H2S complexes. There is one HB between an O atom of the ChB donor and a H atom of the ChB acceptor, characterized by a green isosurface in the complexes formed by CH3OH, CH3SH, HCHO, HCHS, CH3CHO, and CH3CHS, and characterized by a blue isosurface in both the SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes. Two green isosurfaces are observed between two O atoms of SeO2 and two H atoms of the Lewis bases in the SeO2∙∙∙CH3OCH3, SeO2∙∙∙C2H4O, and SeO2∙∙∙CH3COCH3 complexes, as well as their S-containing analogs. Interestingly, one C–H∙∙∙O BCP unidentified in the QTAIM analysis has a corresponding green isosurface for both the SeO2∙∙∙CH3OCH3 and SeO2∙∙∙CH3COCH3 complexes in the NCIplot diagrams. These results indicate the existence of weakly/strongly attractive C/O–H∙∙∙O HBs within the sixteen studied complexes with the exception of the SeO2∙∙∙H2O and SeO2∙∙∙H2S complexes, which is consistent with the QTAIM analysis outcomes.
The scatter diagrams in Figure 4 depict the relationship between the RDG and the sign of the second eigenvalue λ2 multiplied by the electron density for each of the sixteen investigated complexes. It should be mentioned that a negative sign(λ2)ρ value represents an attractive interaction, while a positive sign(λ2)ρ value is indicative of a repulsive interaction. Generally, the more negative the sign(λ2)ρ value, the stronger the corresponding interaction strength. One can see that all of the Se∙∙∙O/S ChBs and the C/O–H∙∙∙O HBs correspond to negative sign(λ2)ρ values, thus corroborating that there are attractive intermolecular interactions in all of these complexes. It is also clearly observed that the sign(λ2)ρ values related to the O–H∙∙∙O HBs are more negative than those of the Se∙∙∙O/S ChB in both the SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes, suggesting that the strength of the O–H∙∙∙O HBs is stronger than that of the Se∙∙∙O/S ChBs. Conversely, the C–H∙∙∙O HBs are weaker than the Se∙∙∙O/S ChBs in all other complexes except for both the SeO2∙∙∙H2O and SeO2∙∙∙H2S complexes as a result of the sign(λ2)ρ values associated with the Se∙∙∙O/S ChBs being more negative. It should also be pointed out that the sign(λ2)ρ value of the Se∙∙∙S ChB in the SeO2∙∙∙HCSOH complex is obviously more negative than that of the Se∙∙∙O ChB in the SeO2∙∙∙HCOOH complex, further indicating the Se∙∙∙O ChB is weaker than the Se∙∙∙S ChB. However, in all of the remaining complexes, the Se∙∙∙O ChBs are stronger than the Se∙∙∙S ChBs due to the spikes related to the Se∙∙∙O ChBs being located at more negative sign(λ2)ρ values. This agrees well with the outcomes of the MEP and QTAIM analyses. Moreover, it is evident that the sign(λ2)ρ value associated with the Se∙∙∙O/S ChBs becomes more negative as the number of methyl groups and the number of C–H∙∙∙O HBs increase in the complexes of SeO2 with R1OR2 and R1CHO (R1 = H, CH3; R2 = H, CH3). Substituting a H atom of HCHO and HCHS with a hydroxyl group results in a more negative sign(λ2)ρ value for the Se∙∙∙O/S ChBs in both SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes. These results further demonstrate that the introduction of electron-donating methyl and hydroxyl groups and the presence of additional C/O–H∙∙∙O HBs have a significant impact on the strength of Se∙∙∙O/S ChBs, which is in agreement with the QTAIM analysis results.

2.5. NBO Analysis

We performed an NBO analysis to gain a deeper understanding of the nature of the Se∙∙∙O/S ChBs in all of the studied complexes by examining the donor–acceptor interactions and the associated second-order perturbation energy (E(2)), which can be used to qualitatively determine a Se∙∙∙O/S ChB’s strength. Table 3 collects the NBO analysis findings. It is found that there exists one donor–acceptor interaction between the O/S lone pair of the ChB acceptors and an anti-bonding BD*(OSe) orbital of SeO2 in each studied complex. It is evidenced that the E(2) values associated with the LP(O)→BD*(OSe) orbital interactions in the Se∙∙∙O chalcogen-bonded complexes vary between 5.95 kcal/mol and 15.76 kcal/mol, and the E(2) values for the LP(S)→BD*(OSe) orbital interactions range from 7.99 kcal/mol to 56.02 kcal/mol in the Se∙∙∙S chalcogen-bonded complexes. Remarkably, in the case of SeO2∙∙∙HCSOH, the E(2) value related to the Se∙∙∙S ChB is the largest in magnitude, further demonstrating that this ChB possesses some degree of covalent character. Comparing the results between the complexes of SeO2 with the R1OR2, R1SR2, R1COR2, and R1CSR2 (R1 = H, CH3, R2 = H, CH3) indicates that the introduction of the electron-donating methyl group also has a large influence on the E(2) value. Furthermore, replacing a H atom of HCHO and HCHS with a hydroxyl group notably increases the E(2) value associated with the LP(O/S)→BD*(OSe) orbital interaction in both SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes. These NBO outcomes are highly consistent with the above-mentioned QTAIM and NCIplot findings. Finally, the NBO plots related to the LP(O/S)→BD*(OSe) orbital interactions in the eight selected complexes are displayed in Figure 5. It is observed that the LP(O/S) orbital of the ChB acceptors and the BD*(OSe) anti-bonding orbital of SeO2 have a significant overlap, evidencing the formation of strong Se∙∙∙O/S ChBs.

2.6. SAPT Analysis

The SAPT approach was also employed to decompose the total interaction energies (Etotal) of the investigated complexes into electrostatic (Eelec), induction (Eind), dispersion (Edisp), and exchange–repulsion (Eex-re) components for a quantitative understanding of the physical nature of intermolecular interactions. Table 4 demonstrates that the electrostatic component is primarily responsible for the stabilization of the complexes under investigation. This component accounts for 51–62% of the total attractive interaction energy in the Se∙∙∙O chalcogen-bonded complexes, which is slightly higher than the levels observed in the Se∙∙∙S chalcogen-bonded complexes, where it accounts for 47–53% of the total attractive interaction energy. However, the contribution of the induction and dispersion components is also relatively large and unneglectable. The sum of these two components accounts for about 38–59% of the total attractive interaction energy in the Se∙∙∙O chalcogen-bonded complexes and about 47–53% of the total attractive interaction energy in the Se∙∙∙S chalcogen-bonded complexes. It is interesting to note that the induction component slightly increases its contributions to the total attractive interaction energy in the Se∙∙∙S chalcogen-bonded complexes compared with that in the Se∙∙∙O chalcogen-bonded complexes. Furthermore, the contribution of the electrostatic component gradually decreases as the number of methyl groups increases in the SeO2∙∙∙R1OR2 and SeO2∙∙∙R1SR2 complexes (R1 = H, CH3, R2 = H, CH3), while the introduction of methyl groups has minimal effects on the electrostatic contribution in the SeO2∙∙∙R1COR2 and SeO2∙∙∙R1CSR2 complexes (R1 = H, CH3, R2 = H, CH3). Compared to the SeO2∙∙∙HCHO and SeO2∙∙∙HCHS complexes, the introduction of hydroxyl groups in the SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes has little effect on the electrostatic contribution but does affect the dispersion and induction contributions. One can also see from Table 4 that the total interaction energies vary between −5.32 kcal/mol and −10.06 kcal/mol in the Se∙∙∙O chalcogen-bonded complexes and between −3.56 kcal/mol and −12.54 kcal/mol in the Se∙∙∙S chalcogen-bonded complexes. Moreover, Figure S4 shows that the Etotal values estimated from the SAPT method exhibit a good correlation with the Eint values reported in Table 1 for all of the investigated complexes.

3. Computational Methods

The geometrical structures of all of the monomers and complexes were optimized by means of the MP2/aug-cc-pVTZ level of theory [68,69]. This approach has been demonstrated to have high accuracy and reliability in the investigation of various chalcogen-bonded complexes [45,49,58,62,70,71]. All of the obtained structures were verified to be true minima without imaginary frequencies by implementing the harmonic vibrational frequency calculations at the same level. The interaction energy (Eint) was computed as the difference in energy between each complex and the sum of energies of the monomers frozen within the complex. This quantity then corresponds to the binding energy (EB) by utilizing the optimized monomeric geometries. Both the Eint and EB values were also corrected by considering the basis set superposition error (BSSE), employing the counterpoise method [72]. All computations were executed using the Gaussian 16 software [73].
The MEP of each of the monomers on the 0.001 electron/Bohr3 isosurface were computed at the MP2/aug-cc-pVTZ level utilizing the Multiwfn program [74], and the VMD software (version 1.9.3) [75] was employed to visualize the MEP maps. The QTAIM approach [76] at the MP2/aug-cc-pVTZ level implemented in the Multiwfn program was utilized to identify the bond paths (BPs) and bond critical points (BCPs) within the studied complexes and estimate the topological properties at each BCP. For the sake of characterizing the Se∙∙∙O/S ChB within each studied complex, the NCIplot analysis [77] was conducted with the Multiwfn program and the results of the corresponding NCIplot analysis were visualized by means of both VMD and Gnuplot [78] programs. The E(2) values associated with the orbital interactions between the SeO2 and various Lewis bases in the studied complexes was evaluated at the B3LYP-D3(BJ)/aug-cc-pVTZ level by conducting an NBO analysis [79] with the NBO 3.1 module incorporated into the Gaussian16 program. The SAPT analysis [80] was performed at the SAPT2 + (CCD)δMP2/aug-cc-pVTZ level to estimate the contributions of different attractive and repulsive components to the total binding energies of all of the studied complexes by employing the PSI4 software (version 1.3.2) [81].

4. Conclusions

In this work, the selenium-centered chalcogen bonds between SeO2 and a series of O/S-containing Lewis bases were computationally investigated at the MP2/aug-cc-pVTZ level of theory. Various computational methods, including the MEP, QTAIM, NCIplot, NBO, and SAPT methods, were also utilized to characterize and understand the strength and nature of such ChBs. The MEP analysis results reveal that the positive-electrostatic-potential regions around the Se atom of SeO2 exhibit attractive interactions with the negative-electrostatic-potential regions around the O/S atom of various Lewis bases, resulting in the formation of Se∙∙∙O/S ChBs. The Se∙∙∙O binding distances vary between 2.512 Å and 2.765 Å and the Se∙∙∙S binding distances range from 2.818 Å to 3.309 Å, both of which are significantly shorter than the sum of the van der Waals radii of the two interacting atoms. The interaction energy varies between −4.68 kcal/mol and −10.83 kcal/mol for the Se∙∙∙O chalcogen-bonded complexes and ranges from −3.53 kcal/mol to −13.77 kcal/mol for the Se∙∙∙S chalcogen-bonded complexes. The closed-shell nature of all of these Se∙∙∙O/S ChBs was corroborated by conducting a QTAIM analysis, showing that the Se∙∙∙O/S ChBs have a partially covalent character in most chalcogen-bonded complexes. Both the QTAIM and NCIplot analyses demonstrate that the Se∙∙∙O ChB in the SeO2∙∙∙HCOOH complex is weaker than the Se∙∙∙S ChB in the SeO2∙∙∙HCSOH complex, whilst the former is stronger than the latter in all of the remaining complexes. Furthermore, our findings also disclose that the O–H∙∙∙O HBs are stronger than the Se∙∙∙O/S ChBs in both SeO2∙∙∙HCOOH and SeO2∙∙∙HCSOH complexes, while the C–H∙∙∙O HBs are weaker than the Se∙∙∙O/S ChBs in all other complexes. The NBO analysis demonstrates that the interaction between the LP at the O/S atoms of Lewis bases and the BD*(OSe) anti-bonding orbital of SeO2 is the primary stabilizing factor for all of the investigated complexes except for SeO2∙∙∙HCSOH. Conversely, the greatest contributor to the stabilization of the latter complex is the interaction between the LP(O) orbital of SeO2 and the BD*(OH) anti-bonding orbital of HCSOH. The SAPT calculations also uncover that the electrostatic component makes the most significant contribution to the stabilization of the examined complexes, while the induction and dispersion contributions are also relatively large and unneglectable. It is worth highlighting that the introduction of electron-donating methyl and hydroxyl groups has a significant impact on the strength of both Se∙∙∙O and Se∙∙∙S ChBs. Furthermore, the existence of additional C/O–H∙∙∙O interactions can also affect the geometric structures and strength of Se∙∙∙O/S ChBs. We hope that the results of this study will provide significant value in the fields of organocatalysis, crystal engineering, molecular recognition, and materials science.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25115609/s1.

Author Contributions

Conceptualization, T.L.; methodology, T.L., R.C., Q.L. and Y.Z.; software, T.L.; validation, T.L, R.C., Q.L., Y.Z. and F.L.; formal analysis, T.L., R.C., Q.L. and Y.Z.; investigation, T.L., R.C., Q.L., Y.Z. and F.L.; resources, T.L.; data curation, T.L., R.C., Q.L., Y.Z. and F.L.; writing—original draft preparation, T.L., R.C., Q.L. and Y.Z.; writing—review and editing, T.L., F.L. and Z.Z.; visualization, T.L., R.C., Q.L. and Y.Z.; supervision, T.L. and Z.Z.; project administration, T.L.; funding acquisition, T.L., Q.L. and Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (Grant No. 22263003), the Natural Science Foundation of Guizhou Province (ZK2024-145, ZK2022-369, ZK2022-406), the Scientific Research Project (Youth Project) of Guizhou Colleges and Universities (2022-188), the Youth Science and Technology Talents Growth Project of Guizhou Ordinary Colleges and Universities (KY2022-222), the Science and Technology Fund Project of Guizhou Provincial Health Commission (gzwkj2022-513), and the High-Level Talent Initiation Project of Guizhou Medical University (J[2021]005, J[2021]006, J[2021]039).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available within the article and its Supplementary Materials.

Acknowledgments

We gratefully acknowledge G. Feng of Chongqing University for providing technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moroder, L. Isosteric replacement of sulfur with other chalcogens in peptides and proteins. J. Pep. Sci. 2005, 11, 187–214. [Google Scholar] [CrossRef] [PubMed]
  2. Reich, H.J.; Hondal, R.J. Why nature chose selenium. ACS Chem. Biol. 2016, 11, 821–841. [Google Scholar] [CrossRef]
  3. Chuai, H.; Zhang, S.Q.; Bai, H.; Li, J.; Wang, Y.; Sun, J.; Wen, E.; Zhang, J.; Xin, M. Small molecule selenium-containing compounds: Recent development and therapeutic applications. Eur. J. Med. Chem. 2021, 223, 113621. [Google Scholar] [CrossRef] [PubMed]
  4. Mukherjee, A.J.; Zade, S.S.; Singh, H.B.; Sunoj, R.B. Organoselenium chemistry: Role of intramolecular interactions. Chem. Rev. 2010, 110, 4357–4416. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, Z.; Pang, Y.; Zhao, Z.; Zhou, P.P.; Wang, Y. Supramolecular catalysis with ethers enabled by dual chalcogen bonding activation. Nat. Commun. 2023, 14, 6347. [Google Scholar] [CrossRef] [PubMed]
  6. Fourmigué, M.; Dhaka, A. Chalcogen bonding in crystalline diselenides and selenocyanates: From molecules of pharmaceutical interest to conducting materials. Coordin. Chem. Rev. 2020, 403, 213084. [Google Scholar] [CrossRef]
  7. Fan, B.; Lin, F.; Wu, X.; Zhu, Z.; Jen, A.K.Y. Selenium-containing organic photovoltaic materials. Acc. Chem. Res. 2021, 54, 3906–3916. [Google Scholar] [CrossRef]
  8. Birringer, M.; Pilawa, S.; Flohé, L. Trends in selenium biochemistry. Nat. Prod. Rep. 2002, 19, 693–718. [Google Scholar] [CrossRef] [PubMed]
  9. Wessjohann, L.A.; Schneider, A.; Abbas, M.; Brandt, W. Selenium in chemistry and biochemistry in comparison to sulfur. Biol. Chem. 2007, 388, 997–1006. [Google Scholar] [CrossRef]
  10. Iwaoka, M.; Komatsu, H.; Katsuda, T.; Tomada, S. Nature of nonbonded Se∙∙∙O interactions characterized by 17O NMR spectroscopy and NBO and AIM analyses. J. Am. Chem. Soc. 2004, 126, 5309–5317. [Google Scholar] [CrossRef]
  11. Behera, R.N.; Panda, A. Effect of chelate ring and rigidity on Se∙∙∙N interactions: A computational study. RSC Adv. 2012, 2, 6948–6956. [Google Scholar] [CrossRef]
  12. Tripathi, A.; Daolio, A.; Pizzi, A.; Guo, Z.; Turner, D.R.; Baggioli, A.; Famulari, A.; Deacon, G.B.; Resnati, G.; Singh, H.B. Chalcogen bonds in selenocysteine seleninic acid, a functional GPx constituent, and in other seleninic or sulfinic acid derivatives. Chem. Asian J. 2021, 16, 2351–2360. [Google Scholar] [CrossRef]
  13. Carugo, O.; Resnati, G.; Metrangolo, P. Chalcogen bonds involving selenium in protein structures. ACS Chem. Biol. 2021, 16, 1622–1627. [Google Scholar] [CrossRef] [PubMed]
  14. Biswal, H.S.; Sahu, A.K.; Galmés, B.; Frontera, A.; Chopra, D. Se∙∙∙O/S and S∙∙∙O chalcogen bonds in small molecules and proteins: A combined CSD and PDB study. ChemBioChem 2022, 23, e202100498. [Google Scholar] [CrossRef]
  15. Scheiner, S. Participation of S and Se in hydrogen and chalcogen bonds. CrystEngComm 2021, 23, 6821–6837. [Google Scholar] [CrossRef]
  16. Chand, A.; Biswal, H.S. Hydrogen bonds with chalcogens: Looking beyond the second row of the periodic table. J. Indian Inst. Sci. 2020, 100, 77–100. [Google Scholar] [CrossRef]
  17. Biot, N.; Bonifazi, D. Chalcogen-bond driven molecular recognition at work. Coordin. Chem. Rev. 2020, 413, 213243. [Google Scholar] [CrossRef]
  18. Mundlapati, V.R.; Sahoo, D.K.; Ghosh, S.; Purame, U.K.; Pandey, S.; Acharya, R.; Pal, N.; Tiwari, P.; Biswal, H.S. Spectroscopic evidences for strong hydrogen bonds with selenomethionine in proteins. J. Phys. Chem. Lett. 2017, 8, 794–800. [Google Scholar] [CrossRef]
  19. Mishra, K.K.; Singh, S.K.; Ghosh, P.; Ghosh, D.; Das, A. The nature of selenium hydrogen bonding: Gas phase spectroscopy and quantum chemistry calculations. Phys. Chem. Chem. Phys. 2017, 19, 24179–24187. [Google Scholar] [CrossRef]
  20. Mishra, K.K.; Singh, S.K.; Kumar, S.; Singh, G.; Sarkar, B.; Madhusudhan, M.S.; Das, A. Water-mediated selenium hydrogen-bonding in proteins: PDB analysis and gas-phase spectroscopy of model complexes. J. Phys. Chem. A 2019, 123, 5995–6002. [Google Scholar] [CrossRef]
  21. Chand, A.; Sahoo, D.K.; Rana, A.; Jena, S.; Biswal, H.S. The prodigious hydrogen bonds with sulfur and selenium in molecular assemblies, structural biology, and functional materials. Acc. Chem. Res. 2020, 53, 1580–1592. [Google Scholar] [CrossRef] [PubMed]
  22. Pal, D.; Charaya, H.; Chakraborty, S. An experimental exploration of C−H∙∙∙X hydrogen bond in [CHCl3−X(CH3)2] complexes (X = O, S, and Se). ChemPhysChem 2023, 24, e202300124. [Google Scholar] [CrossRef] [PubMed]
  23. Pal, D.; Agrawal, S.K.; Chakraborty, A.; Chakraborty, S. Hydrogen bond properties of Se in [ROH–Se (CH3)2] complexes (R = H, CH3, C2H5): Matrix-isolation infrared spectroscopy and theoretical calculations. Phys. Chem. Chem. Phys. 2023, 25, 11286–11300. [Google Scholar] [CrossRef] [PubMed]
  24. Jaju, K.; Pal, D.; Chakraborty, A.; Chakraborty, S. Electronic substituent effect on Se−H∙∙∙N hydrogen bond: A computational study of para-substituted pyridine-SeH2 complexes. Chem. Phys. Lett. 2019, 737, 100031. [Google Scholar] [CrossRef]
  25. Rafat, R.; Nowroozi, A. A comprehensive theoretical study of conformational analysis, intramolecular hydrogen bond, π-electron delocalization, and tautomeric preferences in 2-selenoformyl-3-thioxo-propionaldehyde. Struct. Chem. 2018, 29, 1057–1065. [Google Scholar] [CrossRef]
  26. Gómez Castaño, J.A.; Romano, R.M.; Beckers, H.; Willner, H.; Boese, R.; Della Védova, C.O. Selenoacetic acid, CH3C(O)SeH: Preparation, characterization, and conformational properties. Angew. Chem. Int. Ed. 2008, 47, 10114–10118. [Google Scholar] [CrossRef] [PubMed]
  27. Senćanski, M.; Djordjević, I.; Grubišić, S. Assessing the dispersive and electrostatic components of the selenium–aromatic interaction energy by DFT. J. Mol. Model. 2017, 23, 162. [Google Scholar] [CrossRef] [PubMed]
  28. Thomas, S.P.; Sathishkumar, R.; Row, T.N.G. Organic alloys of room temperature liquids thiophenol and selenophenol. Chem. Commun. 2015, 51, 14255–14258. [Google Scholar] [CrossRef]
  29. Aakeroy, C.B.; Bryce, D.I.; Desiraju, G.R.; Frontera, A.; Legon, A.C.; Nicotra, F.; Rissanen, K.K.; Scheiner, S.; Terraneo, G.; Metrangolo, P.; et al. Definition of the chalcogen bond (IUPAC Recommendations 2019). Pure Appl. Chem. 2019, 91, 1889–1892. [Google Scholar] [CrossRef]
  30. Dhaka, A.; Jeon, I.R.; Fourmigué, M. Selective activation of chalcogen bonding: An efficient structuring tool toward crystal engineering strategies. Acc. Chem. Res. 2024, 57, 362–374. [Google Scholar] [CrossRef]
  31. Scilabra, P.; Terraneo, G.; Resnati, G. The chalcogen bond in crystalline solids: A world parallel to halogen bond. Acc. Chem. Res. 2019, 52, 1313–1324. [Google Scholar] [CrossRef] [PubMed]
  32. Taylor, M.S. Anion recognition based on halogen, chalcogen, pnictogen and tetrel bonding. Coordin. Chem. Rev. 2020, 413, 213270. [Google Scholar] [CrossRef]
  33. Sekar, G.; Nair, V.V.; Zhu, J. Chalcogen bonding catalysis. Chem. Soc. Rev. 2024, 53, 586–605. [Google Scholar] [CrossRef] [PubMed]
  34. Zhao, Z.; Wang, Y. Chalcogen bonding catalysis with phosphonium chalcogenide (PCH). Acc. Chem. Res. 2023, 56, 608–621. [Google Scholar] [CrossRef] [PubMed]
  35. Beno, B.R.; Yeung, K.-S.; Bartberger, M.D.; Pennington, L.D.; Meanwell, N.A. A Survey of the role of noncovalent sulfur interactions in drug design. J. Med. Chem. 2015, 58, 4383–4438. [Google Scholar] [CrossRef] [PubMed]
  36. Ho, P.C.; Wang, J.Z.; Meloni, F.; Vargas-Baca, I. Chalcogen bonding in materials chemistry. Coordin. Chem. Rev. 2020, 422, 213464. [Google Scholar] [CrossRef]
  37. Eckstein, B.J.; Brown, L.C.; Noll, B.C.; Moghadasnia, M.P.; Balaich, G.J.; McGuirk, C.M. A porous chalcogen-bonded organic framework. J. Am. Chem. Soc. 2021, 143, 20207–20215. [Google Scholar] [CrossRef] [PubMed]
  38. Tupikina, E.Y. Non-covalent interactions in the glutathione peroxidase active center and their influence on the enzyme activity. Org. Biomol. Chem. 2022, 20, 5551–5557. [Google Scholar] [CrossRef]
  39. Piña, M.N.; Bauzá, A. On the importance of halogen and chalcogen bonds in the solid state of nucleic acids: A combined crystallographic and theoretical perspective. Int. J. Mol. Sci. 2023, 24, 13035. [Google Scholar] [CrossRef]
  40. Wang, H.; Wang, W.; Jin, W.J. σ-Hole bond vs π-hole bond: A comparison based on halogen bond. Chem. Rev. 2016, 116, 5072–5104. [Google Scholar] [CrossRef]
  41. Bauzá, A.; Mooibroek, T.J.; Frontera, A. The bright future of unconventional σ/π-hole interactions. ChemPhysChem 2015, 16, 2496–2517. [Google Scholar] [CrossRef] [PubMed]
  42. Gilli, G.; Gilli, P. The Nature of the Hydrogen Bond; Oxford University Press: Oxford, UK, 2009. [Google Scholar]
  43. Gleiter, R.; Haberhauer, G.; Werz, D.B.; Rominger, F.; Bleiholder, C. From noncovalent chalcogen–chalcogen interactions to supramolecular aggregates: Experiments and calculations. Chem. Rev. 2018, 118, 2010–2041. [Google Scholar] [CrossRef] [PubMed]
  44. Frontera, A.; Bauza, A. Metal Coordination enhances chalcogen bonds: CSD survey and theoretical calculations. Int. J. Mol. Sci. 2022, 23, 4188. [Google Scholar] [CrossRef] [PubMed]
  45. Lei, F.; Liu, Q.; Zhong, Y.; Cui, X.; Yu, J.; Hu, Z.; Feng, G.; Zeng, Z.; Lu, T. Computational insight into the nature and strength of the π-hole type chalcogen∙∙∙chalcogen interactions in the XO2∙∙∙CH3YCH3 Complexes (X = S, Se, Te; Y = O, S, Se, Te). Int. J. Mol. Sci. 2023, 24, 16193. [Google Scholar] [CrossRef] [PubMed]
  46. Pascoe, D.J.; Ling, K.B.; Cockroft, S.L. The origin of chalcogen-bonding interactions. J. Am. Chem. Soc. 2017, 139, 15160–15167. [Google Scholar] [CrossRef] [PubMed]
  47. Kříž, K.; Fanfrlík, J.; Lepšík, M. Chalcogen bonding in protein−ligand complexes: PDB survey and quantum mechanical calculation. ChemPhysChem 2018, 19, 2540–2548. [Google Scholar] [CrossRef] [PubMed]
  48. Zhou, F.; Liu, R.; Tang, J.; Li, P.; Cui, Y.; Zhang, H. On the properties of Se∙∙∙N interaction: The analysis of substituent effects by energy decomposition and orbital interaction. J. Mol. Model. 2016, 22, 29. [Google Scholar] [CrossRef] [PubMed]
  49. Guo, X.; An, X.; Li, Q. Se∙∙∙N chalcogen bond and Se∙∙∙X halogen bond Involving F2C=Se: Influence of hybridization, substitution, and cooperativity. J. Phys. Chem. A 2015, 119, 3518–3527. [Google Scholar] [CrossRef] [PubMed]
  50. Afonin, A.V.; Pavlov, D.V.; Albanov, A.I.; Levanova, E.P.; Levkovskaya, G.G. Study of stereospecificity of 1H, 13C, 15N and 77Se shielding constants in the configurational isomers of the selenophene-2-carbaldehyde azine by NMR spectroscopy and MP2-GIAO calculations. Magn. Reson. Chem. 2011, 49, 740–748. [Google Scholar] [CrossRef]
  51. Wang, H.; Liu, J.; Wang, W. Intermolecular and very strong intramolecular C–Se∙∙∙O/N chalcogen bonds in nitrophenyl selenocyanate crystals. Phys. Chem. Chem. Phys. 2018, 20, 5227–5234. [Google Scholar] [CrossRef]
  52. Aliyeva, V.A.; Gurbanov, A.V.; Guedes da Silva, M.F.C.; Gomila, R.M.; Frontera, A.; Mahmudov, K.T.; Pombeiro, A.J.L. Substituent effect on chalcogen bonding in 5-Substituted Benzo[c][1,2,5]selenadiazoles and their copper (II) complexes: Experimental and theoretical study. Cryst. Growth Des. 2024, 24, 781–791. [Google Scholar] [CrossRef]
  53. Thomas, S.P.; Satheeshkumar, K.; Mugesh, G.; Guru Row, T.N. Unusually short chalcogen bonds involving organoselenium: Insights into the Se–N bond cleavage mechanism of the antioxidant ebselen and analogues. Chem. Eur. J. 2015, 21, 6793–6800. [Google Scholar] [CrossRef] [PubMed]
  54. Rusakov, Y.Y.; Krivdin, L.B.; Istomina, N.V.; Levanova, E.P.; Levkovskaya, G.G. Conformational analysis of 2-formylselenophene by means of 13C–1H, 13C–13C, and 77Se–1H spin–spin coupling constants. Aust. J. Chem. 2009, 62, 734–738. [Google Scholar] [CrossRef]
  55. Riveras, J.A.F.; Frontera, A.; Bauzá, A. Selenium chalcogen bonds are involved in protein–carbohydrate recognition: A combined PDB and theoretical study. Phys. Chem. Chem. Phys. 2021, 23, 17656–17662. [Google Scholar] [CrossRef] [PubMed]
  56. Bauzá, A.; Frontera, A. Chalcogen ‘like-like’interactions involving trisulphide and triselenide compounds: A combined CSD and ab initio study. Molecules 2018, 23, 699. [Google Scholar] [CrossRef] [PubMed]
  57. Veljković, I.S.; Kretić, D.S.; Veljković, D.Ž. Geometrical and energetic characteristics of Se∙∙∙Se interactions in crystal structures of organoselenium molecules. CrystEngComm 2021, 23, 3383–3390. [Google Scholar] [CrossRef]
  58. Esrafili, M.D.; Mohammadian-Sabet, F. Prediction and characterisation of a chalcogen∙∙∙π interaction with acetylene as a potential electron donor in XHS∙∙∙HCCH and XHSe∙∙∙HCCH (X= F, Cl, Br, CN, OH, OCH3, NH2, CH3) σ-hole complexes. Mol. Phys. 2015, 113, 3559–3566. [Google Scholar] [CrossRef]
  59. Sapronov, A.A.; Artemjev, A.A.; Burkin, G.M.; Khrustalev, V.N.; Kubasov, A.S.; Nenajdenko, V.G.; Gomila, R.M.; Frontera, A.; Kritchenkov, A.S.; Tskhovrebov, A.G. Robust supramolecular dimers derived from benzylic-substituted 1,2,4-selenodiazolium salts featuring selenium∙∙∙π chalcogen bonding. Int. J. Mol. Sci. 2022, 23, 14973. [Google Scholar] [CrossRef] [PubMed]
  60. Sapronov, A.A.; Kubasov, A.S.; Khrustalev, V.N.; Artemjev, A.A.; Burkin, G.M.; Dukhnovsky, E.A.; Chizhov, A.O.; Kritchenkov, A.S.; Gomila, R.M.; Frontera, A.; et al. Se∙∙∙chalcogen bonding in 1,2,4-selenodiazolium tetraphenylborate complexes. Symmetry 2023, 15, 212. [Google Scholar] [CrossRef]
  61. Sarma, B.K.; Mugesh, G. Theoretical investigation on the effect of different nitrogen donors on intramolecular Se∙∙∙N interactions. ChemPhysChem 2009, 10, 3013–3020. [Google Scholar] [CrossRef]
  62. Esrafili, M.D.; Vakili, M.; Solimannejad, M. Cooperative interaction between π-hole and single-electron σ-hole interactions in O2S∙∙∙NCX∙∙∙CH3 and O2Se∙∙∙NCX∙∙∙CH3 complexes (X = F, Cl, Br and I). Mol. Phys. 2014, 112, 2078–2084. [Google Scholar] [CrossRef]
  63. Politzer, P.; Murray, J.S.; Concha, M.C. σ-hole bonding between like atoms; a fallacy of atomic charges. J. Mol. Model. 2008, 14, 659–665. [Google Scholar] [CrossRef] [PubMed]
  64. Mantina, M.; Chamberlin, A.C.; Valero, R.; Cramer, C.J.; Truhlar, D.G. Consistent van der Waals radii for the whole main group. J. Phys. Chem. A 2009, 113, 5806–5812. [Google Scholar] [CrossRef] [PubMed]
  65. Bleiholder, C.; Gleiter, R.; Werz, D.B.; Köppel, H. Theoretical investigations on heteronuclear chalcogen—Chalcogen interactions: On the nature of weak bonds between chalcogen centers. Inorg. Chem. 2007, 46, 2249–2260. [Google Scholar] [CrossRef] [PubMed]
  66. Bauzá, A.; Frontera, A. Halogen and chalcogen bond energies evaluated using electron density properties. ChemPhysChem 2020, 21, 26–31. [Google Scholar] [CrossRef] [PubMed]
  67. Emamian, S.; Lu, T.; Kruse, H.; Emamian, H. Exploring nature and predicting strength of hydrogen bonds: A correlation analysis between atoms-in-molecules descriptors, binding energies, and energy components of symmetry-adapted perturbation theory. J. Comput. Chem. 2019, 40, 2868–2881. [Google Scholar] [CrossRef] [PubMed]
  68. Møller, C.; Plesset, M.S. Note on an approximation treatment for many-electron systems. Phys. Rev. B 1934, 46, 618–622. [Google Scholar] [CrossRef]
  69. Woon, D.E.; Dunning, T.H., Jr. Gaussian basis sets for use in correlated molecular calculations. III. The atoms aluminum through argon. J. Chem. Phys. 1993, 98, 1358–1371. [Google Scholar] [CrossRef]
  70. Yan, N.; Huo, S.; Li, X.; Zeng, Y.; Meng, L. The chalcogen bond in F2P(S)N∙∙∙SX2, F2PNS∙∙∙SX2, F2PSN∙∙∙SX2 (X = F, Cl, Br, OH, CH3, NH2) complexes. J. Mol. Model. 2019, 25, 19. [Google Scholar] [CrossRef]
  71. Ibrahim, M.A.A.; Saeed, R.R.A.; Shehata, M.N.I.; Moussa, N.A.M.; Tawfeek, A.M.; Ahmed, M.N.; El-Rahman, M.K.A.; Shoeib, T. Sigma-hole and lone-pair-hole site-based interactions of seesaw tetravalent chalcogen-bearing molecules with Lewis bases. ACS Omega 2023, 8, 32828–32837. [Google Scholar] [CrossRef]
  72. Boys, S.F.; Bernardi, F.D. The Calculation of small molecular interactions by the differences of separate total energies. Some procedures with reduced errors. Mol. Phys. 1970, 19, 553–566. [Google Scholar] [CrossRef]
  73. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision A.03; Gaussian, Inc.: Wallingford, CT, USA, 2016.
  74. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
  75. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  76. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  77. Johnson, E.R.; Keinan, S.; Mori-Sánchez, P.; Contreras-García, J.; Cohen, A.J.; Yang, W. Revealing Noncovalent Interactions. J. Am. Chem. Soc. 2010, 132, 6498–6506. [Google Scholar] [CrossRef] [PubMed]
  78. Williams, T.; Kelley, C. Gnuplot 5.2.2: An interactive Plotting Program. 2017. Available online: http://www.gnuplot.info (accessed on 30 December 2023).
  79. Glendening, E.D.; Landis, C.R.; Weinhold, F. Natural bond orbital methods. WIREs Comput. Mol. Sci. 2011, 2, 1–42. [Google Scholar] [CrossRef]
  80. Parker, T.M.; Burns, L.A.; Parrish, R.M.; Ryno, A.G.; Sherrill, C.D. Levels of symmetry adapted perturbation theory (SAPT). I. Efficiency and performance for interaction energies. J. Chem. Phys. 2014, 140, 094106. [Google Scholar] [CrossRef]
  81. Parrish, R.M.; Burns, L.A.; Smith, D.G.A.; Simmonett, A.C.; DePrince, A.E., III; Hohenstein, E.G.; Bozkaya, U.; Sokolov, A.Y.; Di Remigio, R.; Richard, R.M.; et al. Psi4 1.1: An open-source electronic structure program emphasizing automation, advanced libraries, and interoperability. J. Chem. Theory Comput. 2017, 13, 3185–3197. [Google Scholar] [CrossRef]
Ijms 25 05609 g001

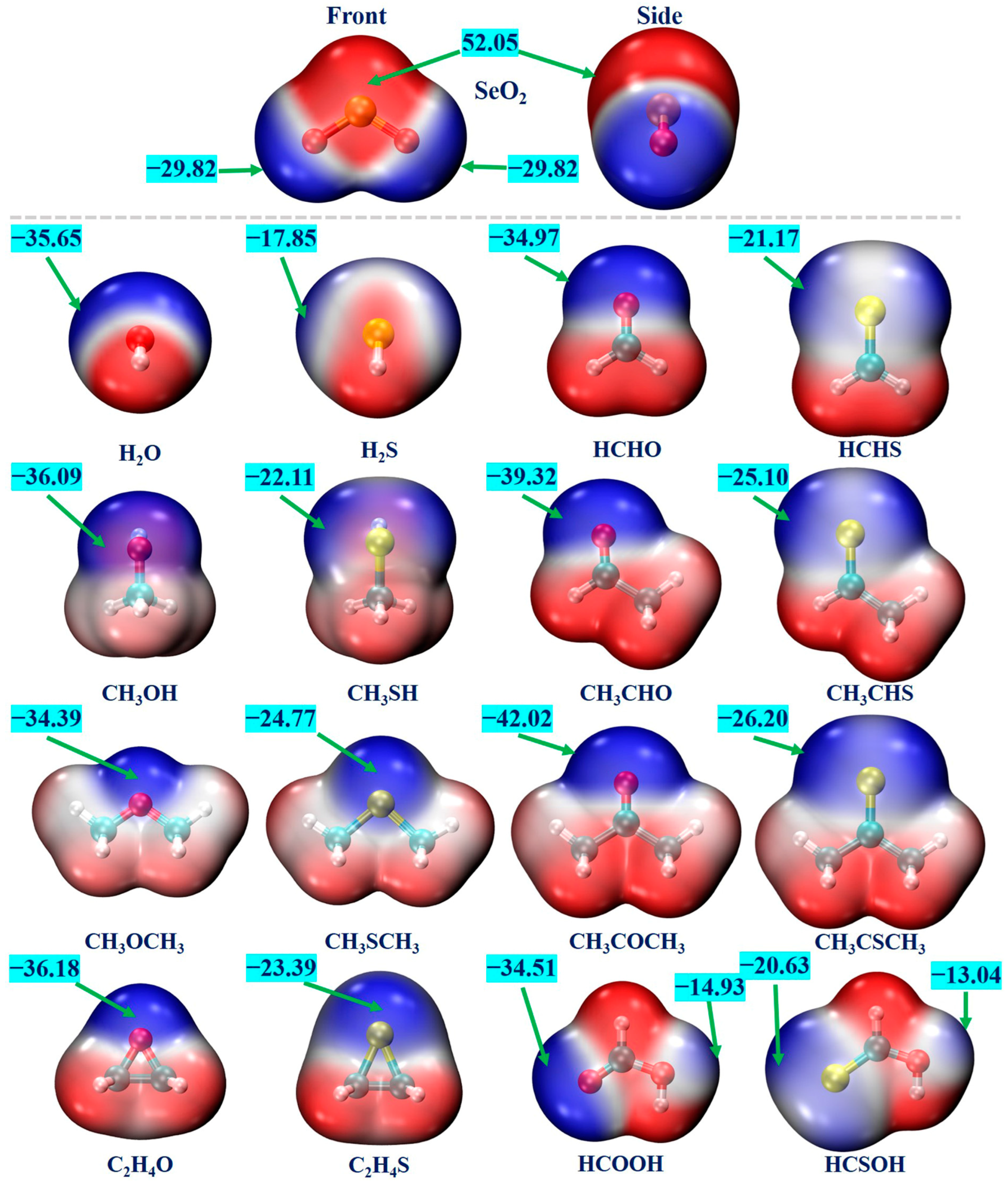

Figure 1. The MEP diagrams of the SeO2 and O-/S-containing Lewis bases. The positive and negative electrostatic potentials are represented by the red and blue regions, respectively. The maximum electrostatic potential (VS,max) and the minimum electrostatic potential (VS,min) are given in kcal/mol.
Figure 1. The MEP diagrams of the SeO2 and O-/S-containing Lewis bases. The positive and negative electrostatic potentials are represented by the red and blue regions, respectively. The maximum electrostatic potential (VS,max) and the minimum electrostatic potential (VS,min) are given in kcal/mol.
Ijms 25 05609 g001
Ijms 25 05609 g002

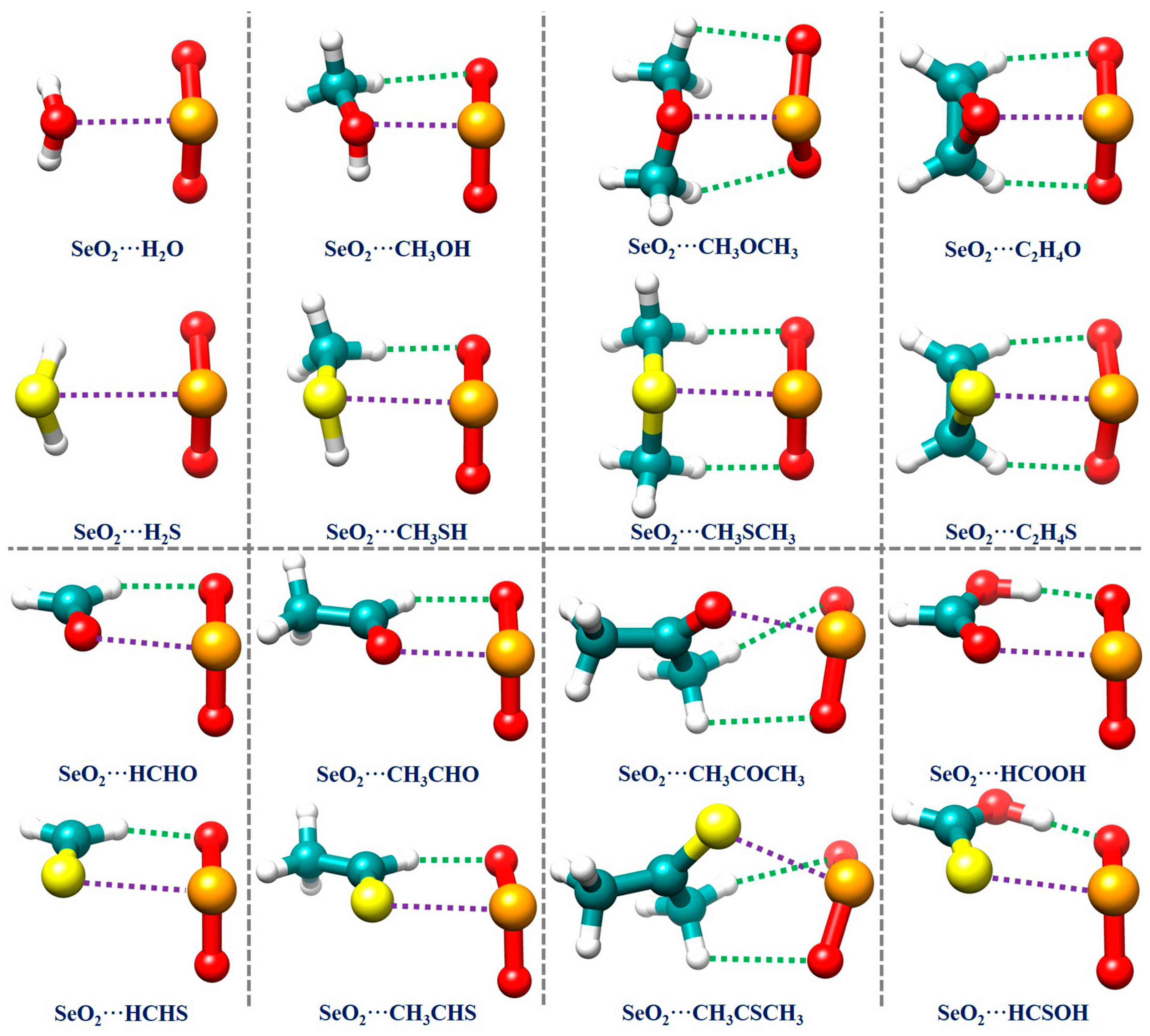

Figure 2. The optimized geometries of the global minima of the studied chalcogen-bonded complexes. The purple and green dotted lines denote the chalcogen bonds and hydrogen bonds, respectively, revealed by conducting an NCIplot analysis.
Figure 2. The optimized geometries of the global minima of the studied chalcogen-bonded complexes. The purple and green dotted lines denote the chalcogen bonds and hydrogen bonds, respectively, revealed by conducting an NCIplot analysis.
Ijms 25 05609 g002
Ijms 25 05609 g003

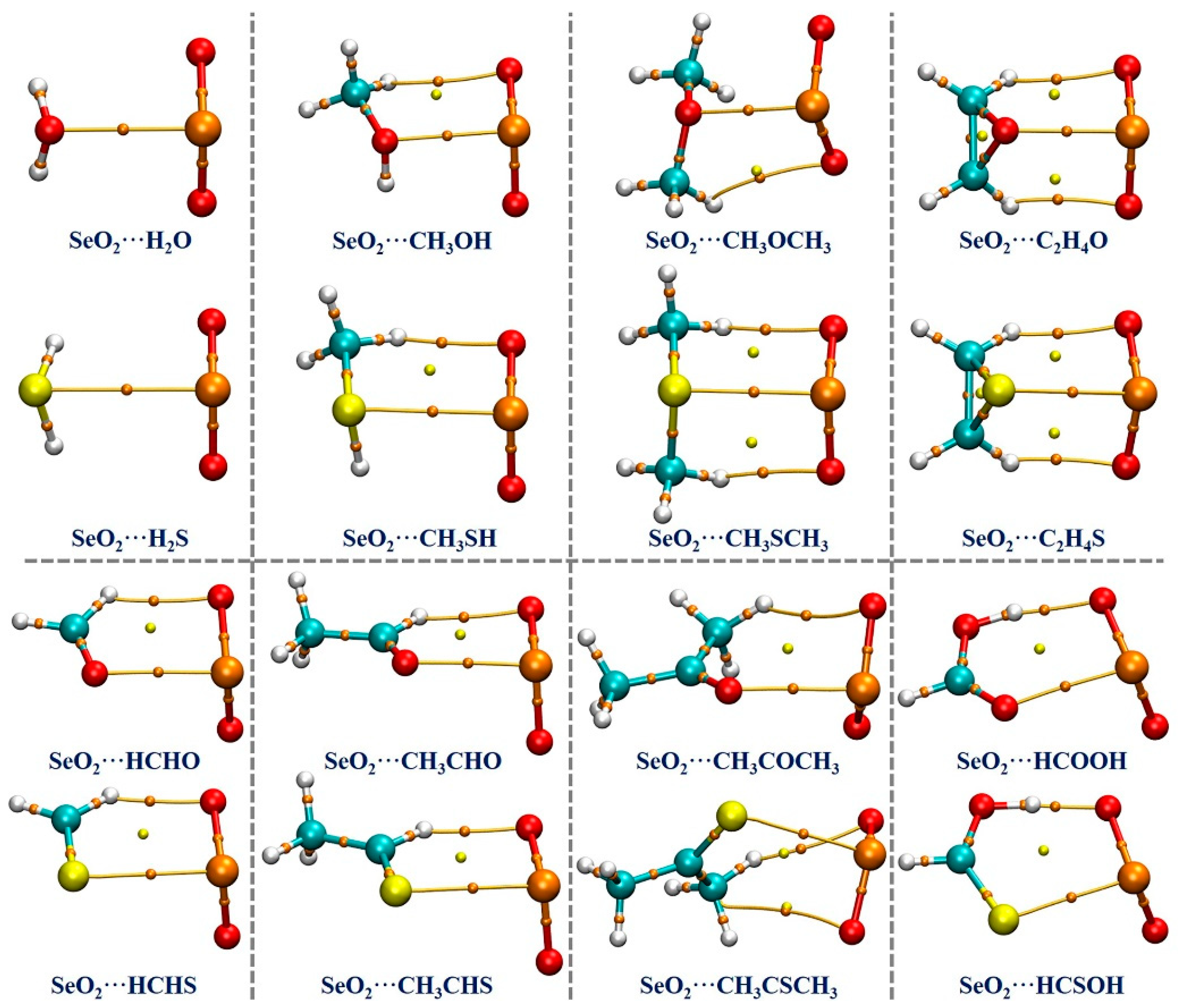

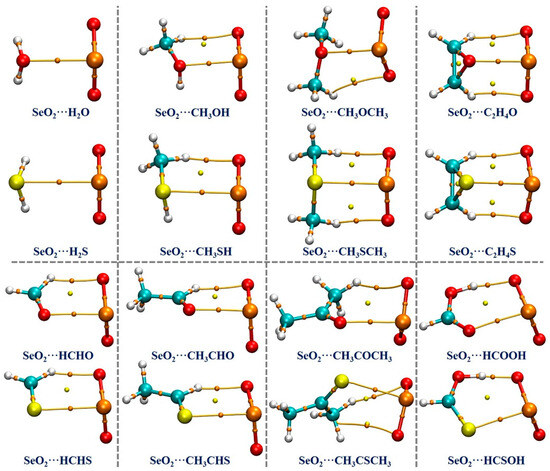

Figure 3. The QTAIM diagrams for the studied complexes. The orange dots indicate (3, −1) critical points, which are called bond critical points (BCPs), and the yellow dots indicate (3, +1) critical points, which are called ring critical points (RCPs). The bond paths (BPs) are indicated by the brown lines.
Figure 3. The QTAIM diagrams for the studied complexes. The orange dots indicate (3, −1) critical points, which are called bond critical points (BCPs), and the yellow dots indicate (3, +1) critical points, which are called ring critical points (RCPs). The bond paths (BPs) are indicated by the brown lines.
Ijms 25 05609 g003
Ijms 25 05609 g004

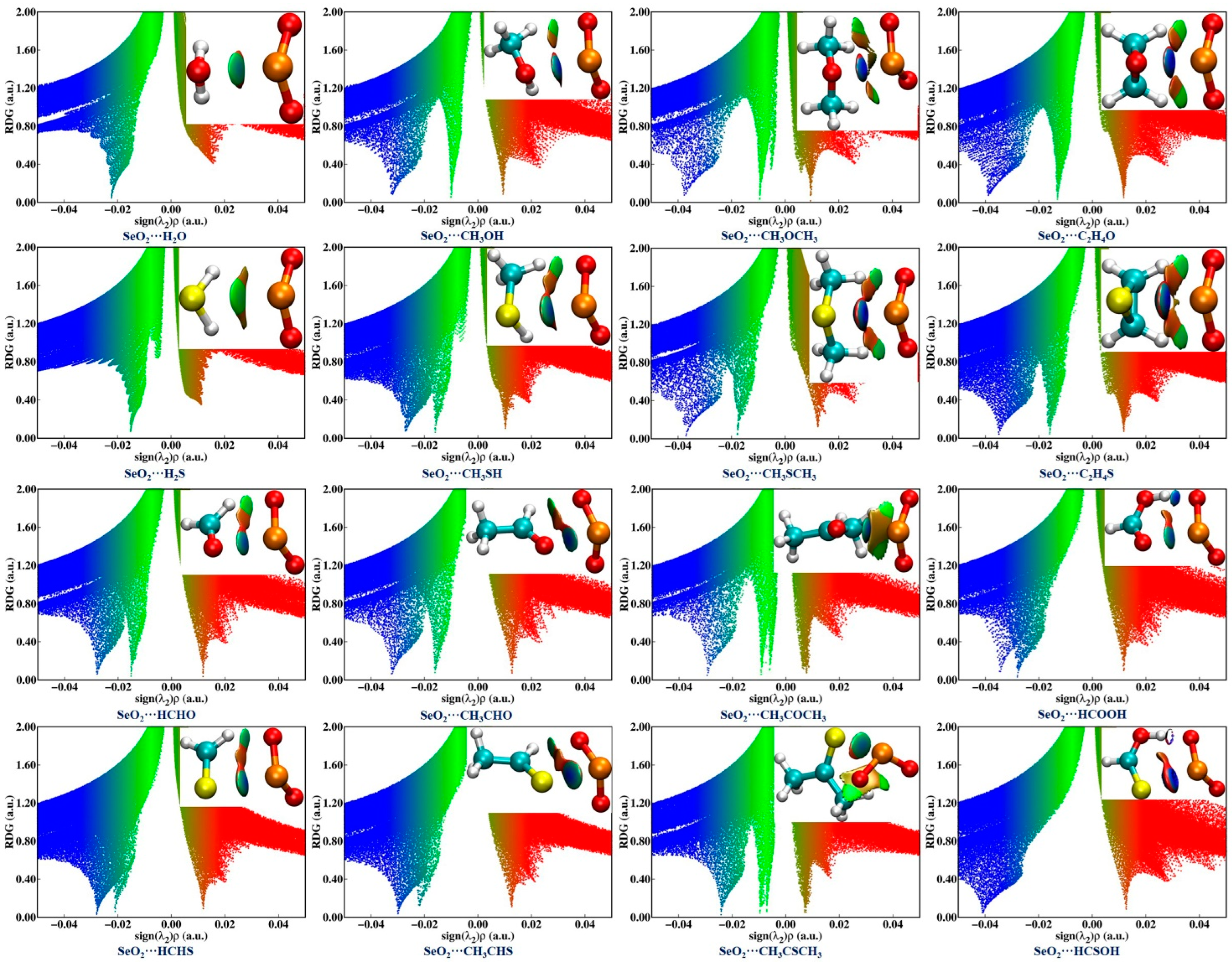

Figure 4. NCI isosurfaces and scatter diagrams of the RDG versus sign(λ2)ρ associated with chalcogen bonds and hydrogen bonds within the sixteen investigated complexes. A 0.55 a.u value was used to create the NCI isosurfaces. The blue and green isosurfaces represent the strongly and weakly attractive interactions, respectively, and red isosurface denotes the repulsive interactions.
Figure 4. NCI isosurfaces and scatter diagrams of the RDG versus sign(λ2)ρ associated with chalcogen bonds and hydrogen bonds within the sixteen investigated complexes. A 0.55 a.u value was used to create the NCI isosurfaces. The blue and green isosurfaces represent the strongly and weakly attractive interactions, respectively, and red isosurface denotes the repulsive interactions.
Ijms 25 05609 g004
Ijms 25 05609 g005

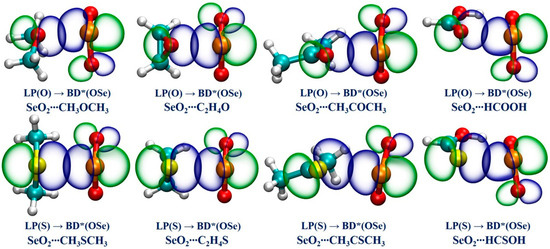

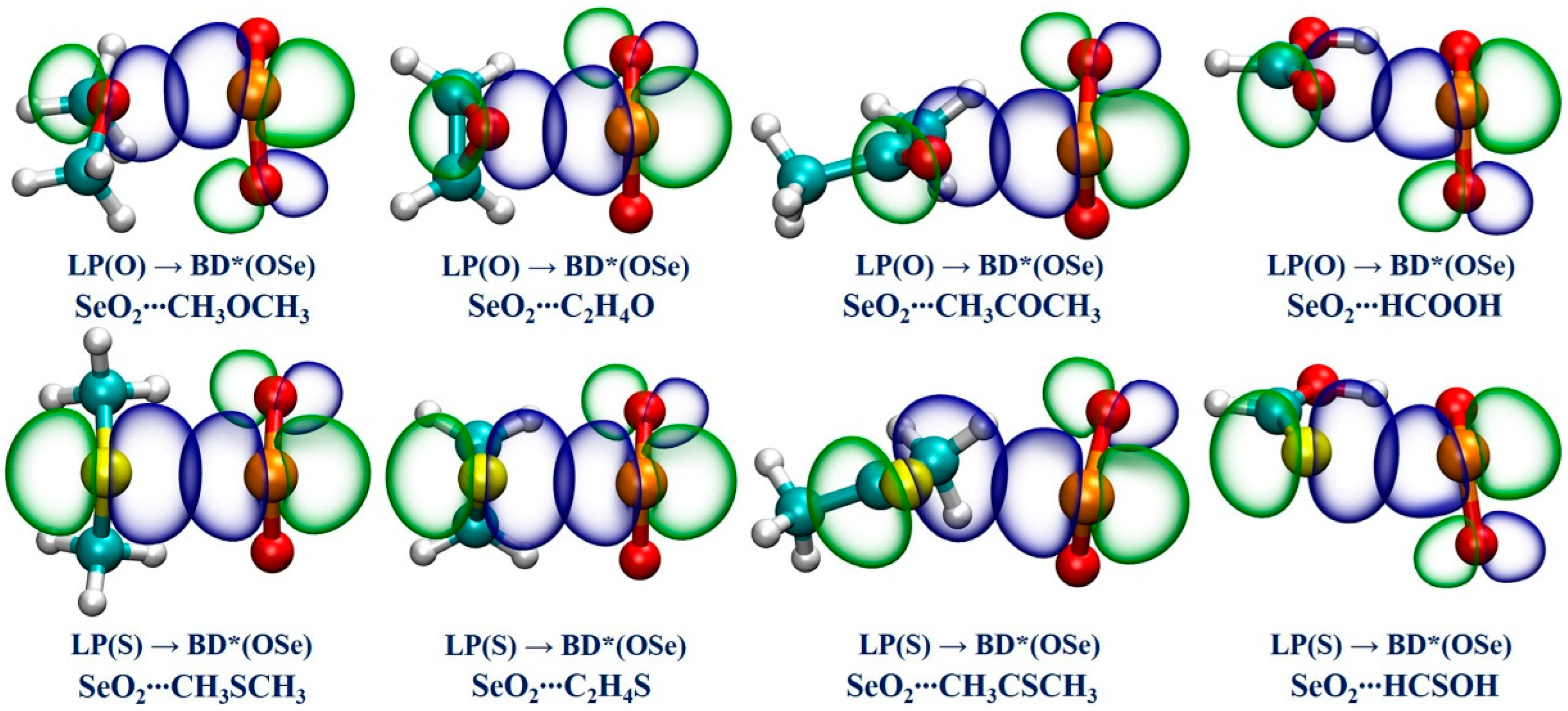

Figure 5. The diagrams of the NBOs associated with the LP(O/S) → BD*(OSe) orbital interactions for the eight selected complexes.
Figure 5. The diagrams of the NBOs associated with the LP(O/S) → BD*(OSe) orbital interactions for the eight selected complexes.
Ijms 25 05609 g005
Table 1. The interaction energies (Eint), binding energies (EB), and deformation energies (Edef) together with geometrical data related to the Se∙∙∙O/S ChBs and C/O–H∙∙∙O HBs within the investigated complexes.
Table 1. The interaction energies (Eint), binding energies (EB), and deformation energies (Edef) together with geometrical data related to the Se∙∙∙O/S ChBs and C/O–H∙∙∙O HBs within the investigated complexes.
ComplexSymmetryEint a
(kcal/mol)		EB b
(kcal/mol)		Edef
(kcal/mol)		NCIs
RNCI c
(Å)		Rsum,1 d
(Å)
SeO2∙∙∙H2OCs−4.68−3.391.28Se∙∙∙O2.7653.42 (19.2%) e
SeO2∙∙∙CH3OHC1−7.86−5.372.49Se∙∙∙O2.5983.42 (24.0%)
C–H∙∙∙O2.490 (116.9°) f2.62 (5.0%)
SeO2∙∙∙CH3OCH3C1−10.12−6.733.39Se∙∙∙O2.5353.42 (25.9%)
C–H∙∙∙OU g2.598 (106.0°)2.62 (0.8%)
C–H∙∙∙OL g2.550 (114.3°)2.62 (2.7%)
SeO2∙∙∙C2H4OCs−10.83−7.723.11Se∙∙∙O2.5123.42 (26.5%)
C–H∙∙∙O h2.340 (124.7°)2.62 (10.7%)
SeO2∙∙∙HCHOC1−6.81−4.702.11Se∙∙∙O2.6723.42 (21.9%)
C–H∙∙∙O2.261 (123.0°)2.62 (13.7%)
SeO2∙∙∙CH3CHOC1−8.50−6.002.50Se∙∙∙O2.6023.42 (23.9%)
C–H∙∙∙O2.237 (124.3°)2.62 (14.6%)
SeO2∙∙∙CH3COCH3C1−9.08−5.833.25Se∙∙∙O2.6313.42 (23.1%)
C–H∙∙∙OU2.512 (144.4°)2.62 (4.1%)
C–H∙∙∙OL2.884 (101.0°)2.62 (10.1%)
SeO2∙∙∙HCOOHC1−9.88−6.573.31Se∙∙∙O2.6423.42 (22.7%)
O–H∙∙∙O1.787 (166.2°)2.62 (31.8%)
SeO2∙∙∙H2SCs−3.53−2.421.11Se∙∙∙S3.3093.70 (10.6%)
SeO2∙∙∙CH3SHC1−7.80−5.472.33Se∙∙∙S3.0293.70 (18.1%)
C–H∙∙∙O2.206 (139.2°)2.62 (15.8%)
SeO2∙∙∙CH3SCH3Cs−13.42−9.643.78Se∙∙∙S2.8843.70 (22.1%)
C–H∙∙∙O2.182 (131.1°)2.62 (16.7%)
SeO2∙∙∙C2H4SCs−12.21−8.903.31Se∙∙∙S2.9063.70 (21.5%)
C–H∙∙∙O2.211 (136.9°)2.62 (15.6%)
SeO2∙∙∙HCHSC1−7.67−5.552.12Se∙∙∙S3.0213.70 (18.4%)
C–H∙∙∙O2.076 (137.1°)2.62 (20.8%)
SeO2∙∙∙CH3CHSC1−9.14−6.712.43Se∙∙∙S2.9823.70 (19.4%)
C–H∙∙∙O2.059 (140.1°)2.62 (21.4%)
SeO2∙∙∙CH3CSCH3C1−7.92−5.012.91Se∙∙∙S3.0903.70 (16.5%)
C–H∙∙∙OU2.502 (150.6°)2.62 (4.5%)
C–H∙∙∙OL2.738 (106.2°)2.62 (4.5%)
SeO2∙∙∙HCSOHC1−13.77−7.576.20Se∙∙∙S2.8183.70 (23.8%)
O–H∙∙∙O1.534 (174.6°)2.62 (41.5%)
a Eint indicates the interaction energy including the zero-point energy (ZPE) and BSSE corrections. b EB indicates the binding energy including the zero-point energy (ZPE) and BSSE corrections. c RNCI denotes the distances of the chalcogen bonds and hydrogen bonds. d Rsum,1 represents the sum of the van der Waals radii of the two interacting atoms. e The parenthesized values indicate the percent difference computed by using the following equation: (|RNCI − Rsum,1|/Rsum,1) × 100%. f The parenthesized values represent the ∠C/O–H∙∙∙O angle. g OU and OL represent the upper and lower O atoms of SeO2 in Figure 2, respectively. h Both the lengths and angles of the two C–H∙∙∙O hydrogen bonds in these complexes are identical due to them having Cs symmetry.
Table 2. The energies (ENCI) of chalcogen bonds and hydrogen bonds, as well as the electron density ρ and its Laplacian ∇2ρ, the local kinetic energy density G, the local potential energy density V, and the total energy density H at the Se∙∙∙O/S and C/O–H∙∙∙O (3, −1) critical points, which are called bond critical points (BCPs), in each studied complex.
Table 2. The energies (ENCI) of chalcogen bonds and hydrogen bonds, as well as the electron density ρ and its Laplacian ∇2ρ, the local kinetic energy density G, the local potential energy density V, and the total energy density H at the Se∙∙∙O/S and C/O–H∙∙∙O (3, −1) critical points, which are called bond critical points (BCPs), in each studied complex.
ComplexBCPsENCI
(kcal/mol)		ρ
(a.u)		∇2ρ
(a.u)		G
(a.u)		V
(a.u)		H
(a.u)
SeO2∙∙∙H2OSe∙∙∙O−4.01 b0.02230.0666 0.0156−0.01460.0010
SeO2∙∙∙CH3OHSe∙∙∙O−5.95 b0.0324 0.0852 0.0221−0.0229−0.0008
C–H∙∙∙O−1.51 c0.01010.03840.0080−0.00630.0016
SeO2∙∙∙CH3OCH3Se∙∙∙O−6.99 b0.0377 0.0911 0.0250−0.0273−0.0023
C–H∙∙∙O−1.38 c0.00950.03650.0077−0.00620.0015
SeO2∙∙∙C2H4OSe∙∙∙O−7.26 b0.0390 0.0945 0.0260−0.0285−0.0024
C–H∙∙∙OU a−2.20 c0.01320.05010.0105−0.00840.0021
C–H∙∙∙OL a−2.20 c0.01320.05010.0105−0.00840.0021
SeO2∙∙∙HCHOSe∙∙∙O−4.94 b0.0280 0.0761 0.0188−0.01860.0002
C–H∙∙∙O−2.65 c0.01520.05830.0123−0.00990.0023
SeO2∙∙∙CH3CHOSe∙∙∙O−5.79 b0.03230.08390.0216−0.0222−0.0006
C–H∙∙∙O−2.87 c0.01620.06130.0130−0.01070.0023
SeO2∙∙∙CH3COCH3Se∙∙∙O−5.34 b0.02940.08220.0204−0.02030.0001
C–H∙∙∙O−1.33 c0.00930.03210.0068−0.00550.0012
SeO2∙∙∙HCOOHSe∙∙∙O−5.15 b0.0281 0.0807 0.0198−0.01950.0003
O–H∙∙∙O−7.00 c0.03470.09750.0292−0.0339−0.0048
SeO2∙∙∙H2SSe∙∙∙S−2.40 b0.0151 0.0322 0.0079−0.00780.0001
SeO2∙∙∙CH3SHSe∙∙∙S−4.10 b0.0271 0.0415 0.0127−0.0150−0.0023
C–H∙∙∙O−2.85 c0.01610.06030.0128−0.01050.0023
SeO2∙∙∙CH3SCH3Se∙∙∙S−5.55 b0.0371 0.0420 0.0159−0.0212−0.0053
C–H∙∙∙OU a−3.25 c0.01790.06680.0143−0.01190.0024
C–H∙∙∙OL a−3.25 c0.01790.06680.0143−0.01190.0024
SeO2∙∙∙C2H4SSe∙∙∙S−5.30 b0.0351 0.04350.0155−0.0201−0.0046
C–H∙∙∙OU a−2.89 c0.01630.06080.0130−0.01070.0022
C–H∙∙∙OL a−2.89 c0.01630.06080.0130−0.01070.0022
SeO2∙∙∙HCHSSe∙∙∙S−4.16 b0.0279 0.04180.0129−0.0153−0.0024
C–H∙∙∙O−3.99 c0.02120.07880.0173−0.01500.0023
SeO2∙∙∙CH3CHSSe∙∙∙S−4.49 b0.03000.04270.0137−0.0167−0.0030
C–H∙∙∙O−4.21 c0.02220.08080.0181−0.01600.0021
SeO2∙∙∙CH3CSCH3Se∙∙∙S−3.63 b0.02420.04000.0115−0.0130−0.0015
C–H∙∙∙O−1.42 c0.00970.03280.0070−0.00580.0012
C–H∙∙∙O−0.84 c0.00710.02750.0056−0.00430.0013
SeO2∙∙∙HCSOHSe∙∙∙S−6.34 b0.0410 0.0440 0.0178−0.0245−0.0068
O–H∙∙∙O−14.20 c0.06700.11000.0532−0.0790−0.0257
a Two C–H∙∙∙O hydrogen bonds in these complexes are identical and share the same energy and topological parameters due to them having Cs symmetry. OU and OL represent the upper and lower O atoms of SeO2 in Figure 3, respectively. b Energetic values obtained employing the equation ENCI = 0.375 × V − 0.5655 from reference [66]. c Energetic values obtained employing the equation ENCI = −223.08 × ρ + 0.7423 from reference [67].
Table 3. The estimated E(2) values (kcal/mol) associated with the Se∙∙∙O/S ChBs for all of the investigated complexes according to the NBO scheme at the B3LYP-D3(BJ)/aug-cc-pVTZ level a.
Table 3. The estimated E(2) values (kcal/mol) associated with the Se∙∙∙O/S ChBs for all of the investigated complexes according to the NBO scheme at the B3LYP-D3(BJ)/aug-cc-pVTZ level a.
ComplexDonorAcceptorE(2)ComplexDonorAcceptorE(2)
SeO2∙∙∙H2OLP(O)BD*(OSe)5.95SeO2∙∙∙H2SLP(S)BD*(OSe)7.99
SeO2∙∙∙CH3OHLP(O)BD*(OSe)11.02SeO2∙∙∙CH3SHLP(S)BD*(OSe)17.83
SeO2∙∙∙CH3OCH3LP(O)BD*(OSe)14.87SeO2∙∙∙CH3SCH3LP(S)BD*(OSe)29.00
SeO2∙∙∙C2H4OLP(O)BD*(OSe)15.76SeO2∙∙∙C2H4SLP(S)BD*(OSe)26.00
SeO2∙∙∙HCHOLP(O)BD*(OSe)9.35SeO2∙∙∙HCHSLP(S)BD*(OSe)16.38
SeO2∙∙∙CH3CHOLP(O)BD*(OSe)12.46SeO2∙∙∙CH3CHSLP(S)BD*(OSe)19.27
SeO2∙∙∙CH3COCH3LP(O)BD*(OSe)13.09SeO2∙∙∙CH3CSCH3LP(S)BD*(OSe)16.01
SeO2∙∙∙HCOOHLP(O)BD*(OSe)15.53SeO2∙∙∙HCSOHLP(S)BD*(OSe)56.02
a LP and BD* indicate lone pair and anti-bonding orbital, respectively.
Table 4. The decomposition results (kcal/mol) of the total interaction energies for the investigated complexes calculated at the SAPT2 + (CCD)δMP2/aug-cc-pVTZ level of theory.
Table 4. The decomposition results (kcal/mol) of the total interaction energies for the investigated complexes calculated at the SAPT2 + (CCD)δMP2/aug-cc-pVTZ level of theory.
ComplexEelecEindEdispEex-reEtotal
SeO2∙∙∙H2O−12.86 (62%) a−3.34 (16%)−4.66 (22%)15.53−5.32
SeO2∙∙∙CH3OH−20.39 (56%)−7.52 (21%)−8.45 (23%)28.83−7.54
SeO2∙∙∙CH3OCH3−23.56 (53%)−9.88 (22%)−11.41 (25%)35.29−9.56
SeO2∙∙∙C2H4O−25.02 (52%)−11.75 (24%)−11.65 (24%)38.55−9.86
SeO2∙∙∙HCHO−15.56 (52%)−6.90 (23%)−7.55 (25%)23.15−6.85
SeO2∙∙∙CH3CHO−19.12 (52%)−8.96 (24%)−8.71 (24%)28.76−8.02
SeO2∙∙∙CH3COCH3−18.83 (54%)−6.97 (20%)−9.01 (26%)26.52−8.29
SeO2∙∙∙HCOOH−22.80 (51%)−12.06 (27%)−9.93 (22%)35.51−9.28
SeO2∙∙∙H2S−8.41 (53%)−2.56 (16%)−4.88 (31%)12.28−3.56
SeO2∙∙∙CH3SH−18.40 (49%)−9.27 (25%)−9.76 (26%)30.54−6.90
SeO2∙∙∙CH3SCH3−28.43 (47%)−17.59 (29%)−14.63 (24%)48.28−12.38
SeO2∙∙∙C2H4S−26.48 (47%)−15.55 (28%)−13.78 (25%)44.24−11.56
SeO2∙∙∙HCHS−18.45 (47%)−11.03 (28%)−9.92 (25%)32.38−7.02
SeO2∙∙∙CH3CHS−20.99 (47%)−12.71 (29%)−10.79 (24%)36.28−8.21
SeO2∙∙∙CH3CSCH3−16.43 (48%)−7.75 (23%)−9.79 (29%)26.28−7.70
SeO2∙∙∙HCSOH−43.82 (47%)−32.00 (35%)−16.96 (18%)80.24−12.54
a The values enclosed within parentheses represent the contribution of individual attractive component to the total attractive interaction energy.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lu, T.; Chen, R.; Liu, Q.; Zhong, Y.; Lei, F.; Zeng, Z. Unveiling the Nature and Strength of Selenium-Centered Chalcogen Bonds in Binary Complexes of SeO2 with Oxygen-/Sulfur-Containing Lewis Bases: Insights from Theoretical Calculations. Int. J. Mol. Sci. 2024, 25, 5609. https://doi.org/10.3390/ijms25115609

AMA Style

Lu T, Chen R, Liu Q, Zhong Y, Lei F, Zeng Z. Unveiling the Nature and Strength of Selenium-Centered Chalcogen Bonds in Binary Complexes of SeO2 with Oxygen-/Sulfur-Containing Lewis Bases: Insights from Theoretical Calculations. International Journal of Molecular Sciences. 2024; 25(11):5609. https://doi.org/10.3390/ijms25115609

Chicago/Turabian Style

Lu, Tao, Renhua Chen, Qingyu Liu, Yeshuang Zhong, Fengying Lei, and Zhu Zeng. 2024. "Unveiling the Nature and Strength of Selenium-Centered Chalcogen Bonds in Binary Complexes of SeO2 with Oxygen-/Sulfur-Containing Lewis Bases: Insights from Theoretical Calculations" International Journal of Molecular Sciences 25, no. 11: 5609. https://doi.org/10.3390/ijms25115609

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
