Combined Pituitary Hormone Deficiency in lhx4-Knockout Zebrafish

Abstract

LIM homeobox 4 (LHX4) is a transcription factor crucial for anterior pituitary (AP) development. Patients with LHX4 mutation suffer from combined pituitary hormone deficiency (CPHD), short statures, reproductive and metabolic disorders and lethality in some cases. Lhx4-knockout (KO) mice fail to develop a normal AP and die shortly after birth. Here, we characterize a zebrafish lhx4-KO model to further investigate the importance of LHX4 in pituitary gland development and regulation. At the embryonic and larval stages, these fish express lower levels of tshb mRNA compared with their wildtype siblings. In adult lhx4-KO fish, the expressions of pituitary hormone-encoding transcripts, including growth hormone (gh), thyroid stimulating hormone (tshb), proopiomelanocortin (pomca) and follicle stimulating hormone (fshb), are reduced, the pomca promoter-driven expression in corticotrophs is dampened and luteinizing hormone (lhb)-producing gonadotrophs are severely depleted. In contrast to Lhx4-KO mice, Lhx4-deficient fish survive to adulthood, but with a reduced body size. Importantly, lhx4-KO males reach sexual maturity and are reproductively competent, whereas the females remain infertile with undeveloped ovaries. These phenotypes, which are reminiscent of those observed in CPHD patients, along with the advantages of the zebrafish for developmental genetics research, make this lhx4-KO fish an ideal vertebrate model to study the outcomes of LHX4 mutation.

1. Introduction

Located underneath and regulated by the hypothalamus, the pituitary (hypophysis) functions as a master endocrine gland, relaying information from the brain to the body, thereby regulating various physiological processes, such as metabolism, growth, the stress response and reproduction. Five main types of hormone-secreting cells are present in the anterior pituitary (AP): corticotrophs that secrete the adrenocorticotrophic hormone (ACTH), which, by inducing glucocorticosteroid production in the adrenal cortex, plays a crucial role in the stress response and carbohydrate metabolism [1]; thyrotrophs that secrete the thyroid-stimulating hormone (TSH), which stimulates the synthesis and release of the thyroid hormones (THs) triiodothyronine (T3) and thyroxine (T4), thereby affecting development, growth and metabolism [2]; somatotrophs that secrete the growth hormone (GH), which stimulates growth and affects glucose metabolism [3]; lactotrophs that secrete prolactin (PRL), which stimulates milk production in mammals and controls osmoregulation in fish [4]; and gonadotrophs that secrete the gonadotropin follicle-stimulating hormone (FSH) and luteinizing hormone (LH), the key regulators of reproduction [5].

The fates of these various endocrine cell types are determined by several secreted developmental factors that create an opposing gradient along the forming AP, leading to the particular spatial expressions of a series of transcription factors, which, in turn, control the cells’ identities [6]. Mutations in such transcription factors affect the AP development, pituitary cell differentiation and pituitary hormone levels and consequently lead to broad systemic effects [7,8].

LIM homeobox 4 (LHX4) is a member of the LIM-homeodomain protein family, which bind to DNA through their characteristic helix–turn–helix motive and act as master transcription factors that regulate the gene expression involved in cell differentiation, affecting the body pattern formation during embryonic development, including the development of the endocrine and nervous system structures. LHX4 has gained much attention, as it has been found to be crucial for pituitary development [6]. In mice, Lhx4 is expressed in the cerebral cortex, spinal cord, developing hindbrain [9] and pineal gland [10], and it plays an important role in the differentiation of ventral motor neurons [11]. In the developing pituitary gland, Lhx4 is necessary for the regular differentiation of the pituitary cell types [7]. Eventually, as the AP develops, the expression of Lhx4 in the gland declines and is completely absent in differentiated cells. However, its expression has also been documented in cells featuring stem/progenitor cell characteristics among the developed pituitary [12].

Human patients heterozygous for a mutation in LHX4 protein suffer from combined pituitary hormone deficiency (CPHD), short statures, reproductive and metabolic disorders and abnormalities of the sella turcica [6,8,9,13]. Unlike human patients, heterozygous Lhx4-mutant mice display no abnormalities [8]. However, in homozygous Lhx4-mutant mice, the pituitary begins to develop but later the AP cells undergo massive apoptosis, leading to AP hypocellularity. Homozygous Lhx4-mutant mice die shortly after birth due to severe lung defects [14], limiting research on the role of Lhx4 in mice.

An alternative animal model to study pituitary development and AP cell determination is the zebrafish. This species is particularly attractive owing to the large number of accessible transparent progeny produced in each cross and their amenability to genetic manipulation and superb real-time imaging. Moreover, the rapid development of the zebrafish AP has been extensively studied. As in mammals, the zebrafish AP originates in the anterior neural ridge (ANR). At 18 h post-fertilization (hpf), the ANR thickens, and the developing AP begins invagination. Throughout the early stages of zebrafish development, the AP migrates posteriorly from the ANR, and it reaches its final position at 60 hpf [15]. As early as 24 hpf, prl and gh mRNAs can already be detected in the AP. The expression of glycoprotein hormone alpha-subunit (αgsu) starts at 32 hpf, and the expressions of tshb and fshb initiate at 42 hpf and 4 days post-fertilization (dpf), respectively [15]; lhb expression begins only later, at 25 dpf [16]. Gh is fully expressed by somatotrophs at 48 hpf [15]. The expression of lhx4 in the adenohypophyseal placode, as well as in the pineal gland and trigeminal ganglion, is detected prior to those of most pituitary hormones [17,18]. Thus, utilization of the zebrafish model may further contribute to understanding the role of LHX4 in AP development and the outcomes of LHX4 deficiency [19].

Here, we generated and characterized a zebrafish lhx4-knockout (KO) line to investigate the role of lhx4 in pituitary gland development and functioning. Importantly, unlike mice, lhx4-KO fish survive and reach maturity. We discovered that at the embryonic and larval stages, lhx4 mutants produce lower levels of tshb mRNA. At later stages, lhx4 mutants also display decreased gh, tshb, pomca and fshb mRNA levels, undeveloped lhb-producing gonadotrophs and a reduced pomca promoter-driven expression in corticotrophs, along with smaller bodies and reproductive deficiencies, phenotypes that are reminiscent of human CPHD.

2. Results

2.1. Generation of Lhx4-Deficienct Zebrafish

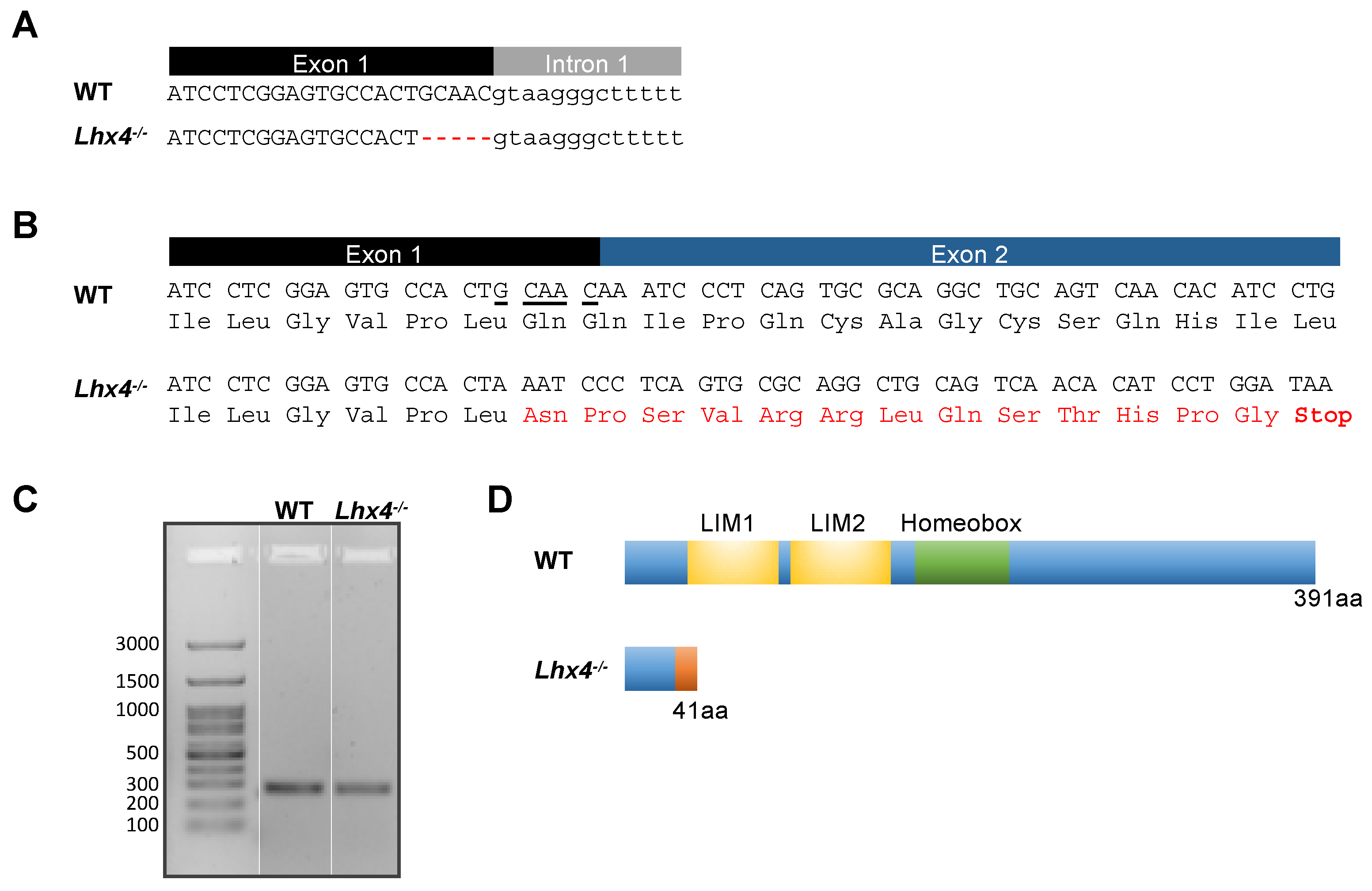

Zebrafish lhx4 is located in chromosome 8 and consists of six exons [20]. Using the CRISPR-Cas9 system, we generated an allele of lhx4 with a five-base-pair (bp) deletion at the 3′ end of the first exon (Figure 1A). The deletion resulted in a frameshift, leading to the integration of an early stop codon in exon 2 (Figure 1B). A sequence analysis of mRNA extracted from the mutants’ brains reveals that even though the deletion is positioned at the end of exon 1, the splicing of exons 1 and 2 was not altered by the mutation (Figure 1C). Hence, the mutation results in a predicted truncated Lhx4 protein, lacking the LIM and homeobox domains (Figure 1D).

2.2. Pituitary Tshb Expression Is Affected by Lhx4 Deficiency at the Embryonic and Larval Stages

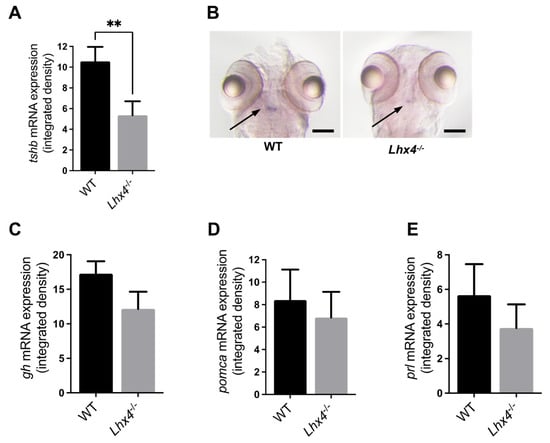

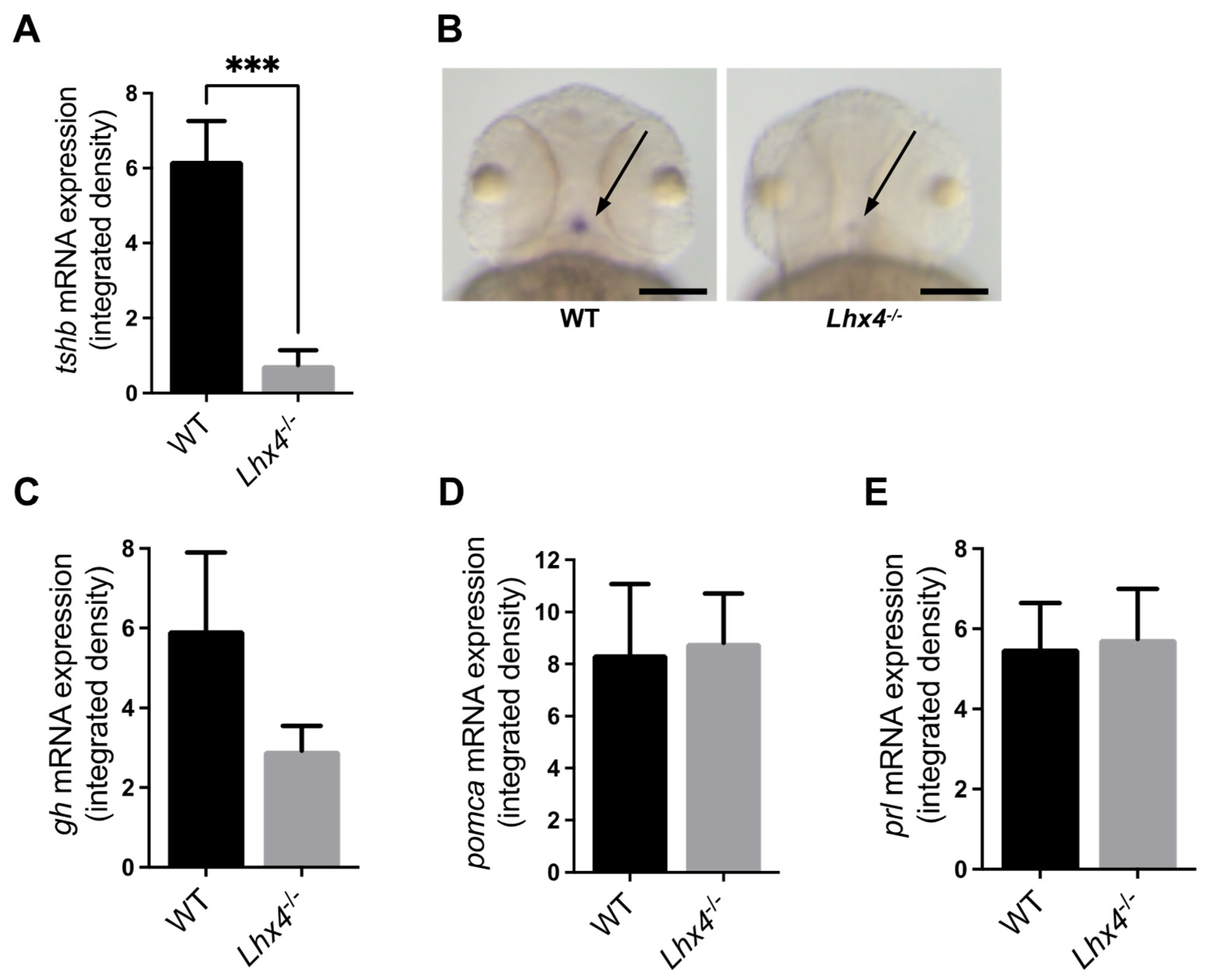

Since lhx4 is expressed in the AP [17,18] (Figure S1), we sought to explore the effect of Lhx4 deficiency on the expressions of various hormones secreted by the AP cells. For this purpose, we examined the expression levels of tshb, gh, pomca (proopiomelanocortin, the ACTH precursor) and prl mRNAs in 48 hpf lhx4 mutants and their wildtype (WT) siblings by whole-mount in situ hybridization (ISH) analysis. The expression of tshb was found to be considerably lower in the pituitary of the homozygous lhx4 mutants in comparison with that of their WT siblings (Figure 2A,B). Nevertheless, no significant differences in the expressions of gh, pomca and prl were observed at this stage (Figure 2C–E).

Tshb expression in zebrafish can be detected starting from 42 hpf [19]. However, T3—the active molecule produced from T4 which is secreted by the thyroid gland as a result of tshb stimulation—is maternally transferred into the egg yolk [21]. This maternal T3 can exert a negative feedback on the hypothalamus and the AP, hence affecting the expression of tshb [22]. Therefore, we repeated the analysis in 7 dpf larvae, minimizing the potential effect of maternal T3 on the expressions of AP hormone-coding genes. Again, we found that of all the tested pituitary hormone-coding genes, only the tshb expression was altered by Lhx4 deficiency at the larval stage (Figure 3).

Since the hypothalamus–pituitary–thyroid (HPT) axis affects the metabolic rate, we examined the locomotor activity of the lhx4 mutants, as a proximal index of metabolism [23]. For this purpose, lhx4-mutant larvae and their WT siblings were tested for their basal locomotor activity throughout 4 h of monitoring at 9 dpf. We found that the homozygous lhx4 mutants were less active than their WT siblings (Figure S2A), and that their maximal speed was reduced (Figure S2B), supporting our assumption that the HPT axis, and, accordingly, metabolism, are interrupted by Lhx4 deficiency.

2.3. Thyroid Hormone Production at the Larval Stage Is Not Affected by Lhx4 Deficiency

The results presented above suggest a disruption of the HPT axis in the lhx4 mutants. Since THs are directly regulated by TSHs, we aimed to examine the effect of lhx4 KO on the TH production. To achieve this, we measured the T3 and T4 levels in 7 dpf lhx4-mutant larvae and their WT siblings by whole-mount immunohistochemistry. No significant differences in the TH production were detected between the homozygous lhx4 mutants and their WT siblings at this age (Figure S3). This observation is consistent with an earlier study showing that an effect of tshb KO on the T4 and T3 levels in zebrafish becomes evident only after 20 and 25 dpf, respectively [22].

2.4. Impaired Growth of lhx4 Mutants

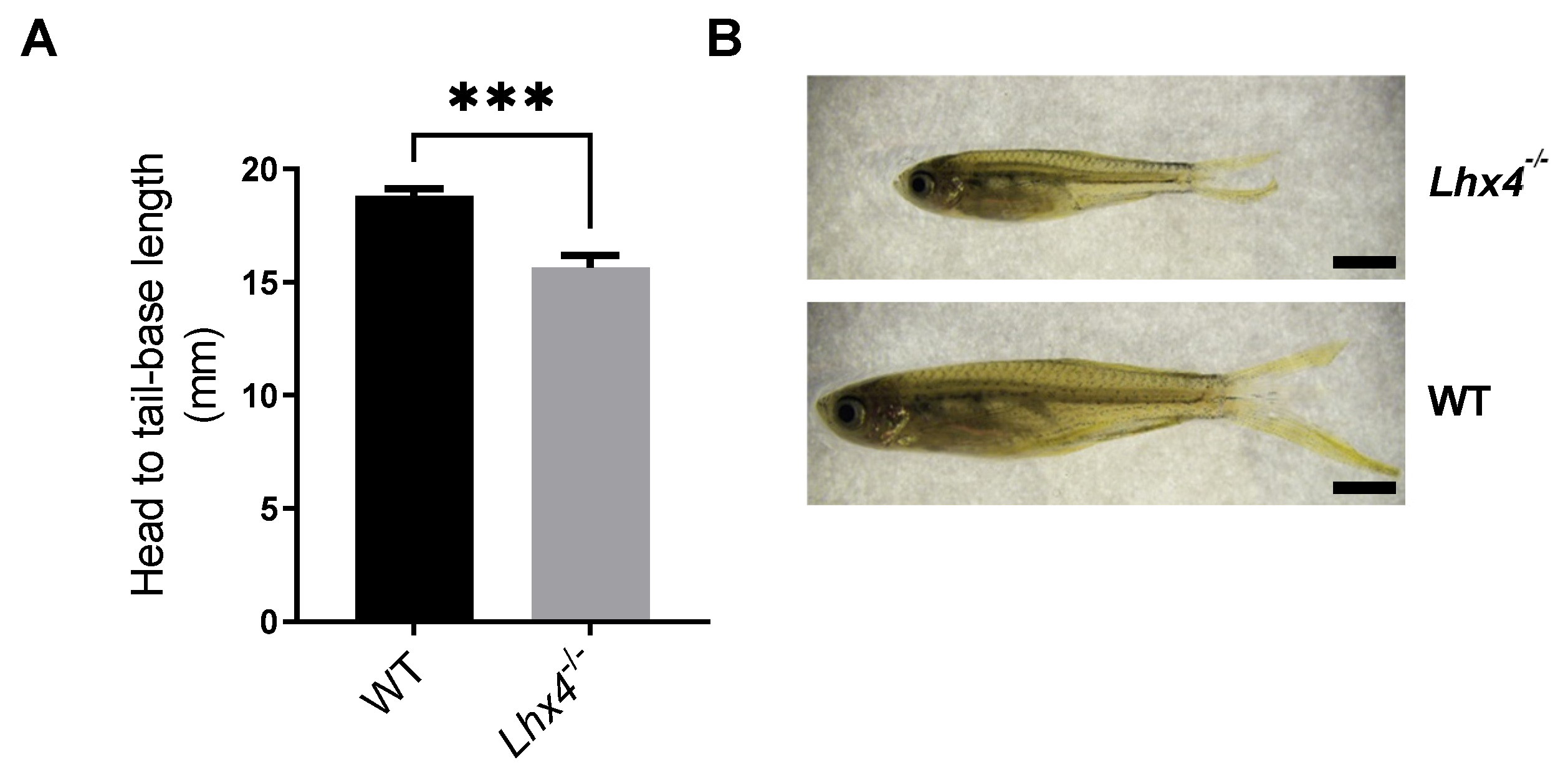

As previously described, LHX4 deficiency affects the development and functioning of the mammalian pituitary, leading to a short stature in humans [6,8,9,13]. Based on our findings that lhx4-KO embryos and larvae express reduced tshb levels, and that their general locomotor activity is dampened, we set out to explore the effects of the lhx4 mutation on their growth. To this end, lhx4 mutants and their WT siblings were mutually raised under controlled conditions, and their growth was measured at 5 months of age. We found that the homozygous lhx4 mutants were significantly smaller than their WT siblings (Figure 4), reproducing the mammalian phenotype.

2.5. Pituitary Hormone Deficiency in lhx4 Mutants

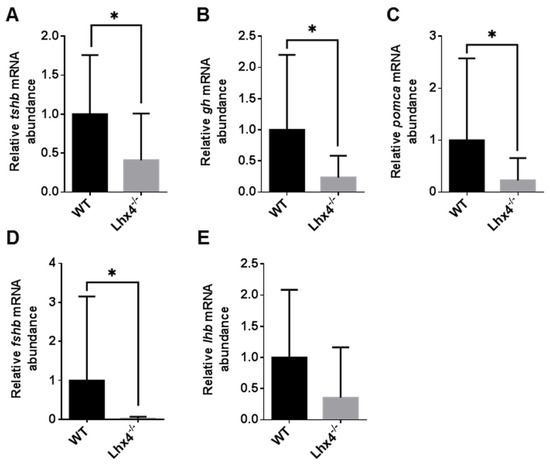

In view of the reduced growth of lhx4-mutant fish and the reduced expression of tshb during the embryonic and larval stages, we aimed to measure the expression levels of genes encoding AP hormones also at the adult stage. We utilized the Tg(pomca:GFP) reporter line [24] to facilitate the isolation of the small pituitary gland without the contamination of the surrounding tissue. Tg(pomca:GFP);lhx4-KO fish and control Tg(pomca:GFP) siblings were obtained by crossings and raised to adulthood. At 4 months of age, their pituitaries were dissected, and the transcript levels were evaluated by quantitative real-time PCR (qRT-PCR) analysis. Consistent with our observations at the embryonic and larval stages, the adult lhx4 mutants expressed significantly lower levels of tshb mRNA compared with their WT siblings (Figure 5A). Furthermore, the gh and pomca mRNA levels were also reduced in the adult lhx4 mutants (Figure 5B,C), in contrast to our observations at the younger stages. As for gonadotropins, the fshb expression was reduced in the pituitaries of the adult lhx4 mutants (Figure 5D), while the lhb mRNA levels were considerably, yet insignificantly, lowered (Figure 5E). The reduced expressions of most of the pituitary gland hormones in the lhx4-KO fish recapitulate the phenotype of human CPHD.

2.6. Corticotroph Abnormality in Lhx4-Deficient Fish

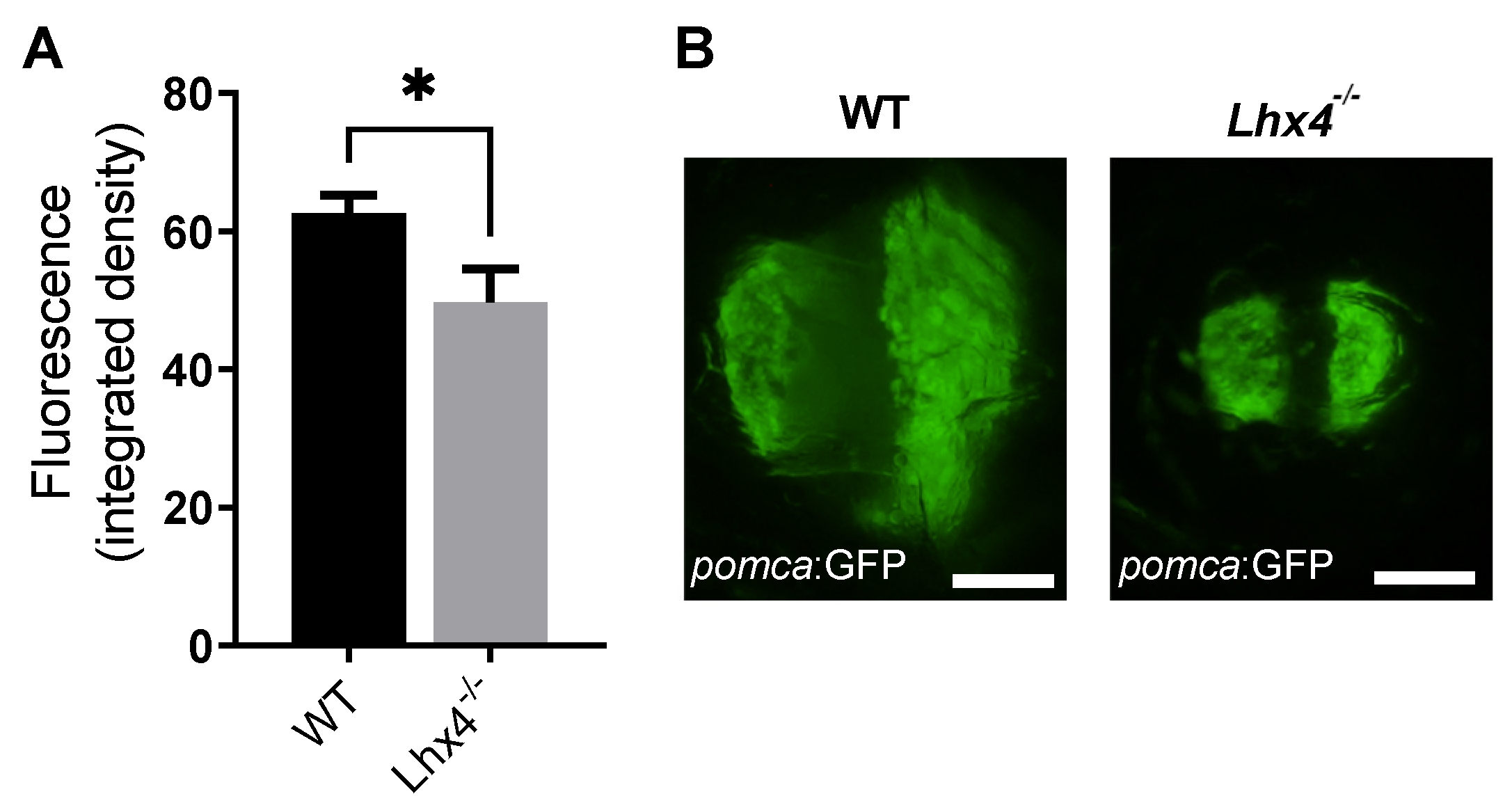

To assess the effect of Lhx4 deficiency on the corticotroph development, we monitored the GFP expression under the pomca promotor in the pituitaries of mutually raised Tg(pomca:GFP);lhx4-KO fish and their control Tg(pomca:GFP) siblings at the age of 4 months. The extent of the GFP fluorescence in the pituitaries of the lhx4 mutants was decreased compared with that of their control siblings (Figure 6), corresponding to our finding of reduced pomca mRNA levels in adult lhx4 mutants, and implying that corticotroph development is impaired by the lhx4 mutation.

2.7. Reproductive Failure and Impaired Gonadotroph Development in Lhx4-Deficient Females

Tshb mutant zebrafish have been shown to be infertile [22]. Infertility has also been reported in lhb-mutant zebrafish females [25]. Since lhx4 mutants express lower tshb mRNA levels at both the early and adult stages, and reduced levels, albeit insignificant, of lhb mRNA at the adult stage, we set out to examine the reproductive success of lhx4 mutants. Throughout the study, we observed that while the homozygous lhx4-mutant males were able to reproduce when crossed with WT females, the homozygous lhx4-mutant females did not produce eggs in any type of cross.

To evaluate the oocyte development, we examined the ovaries of adult WT and homozygous lhx4-mutant females by hematoxylin and eosin (H&E) histology. As expected, the ovary and follicle sizes of the lhx4-mutant females were reduced compared with those of their WT siblings (Figure 7A).

Accordingly, we further evaluated the effects of Lhx4 deficiency on lhb-expressing gonadotrophs. For this purpose, we utilized the Tg(lhb:RFP) reporter line [5], which expresses RFP under the tilapia (Oreochromis niloticus) lhb promoter, and which generated Tg(lhb:RFP);lhx4-KO fish and control WT Tg(lhb:RFP) siblings, which were mutually raised under controlled conditions. In accordance with the observed female infertility, the RFP intensity in the lhb-expressing gonadotrophs of the homozygous lhx4-mutant females was nearly undetectable (Figure 7B).

3. Discussion

Various dominant LHX4 mutations have been discovered in humans, which has led to a variety of phenotypes in heterozygous carriers, such as a short stature due to GH deficiency, CPHD, abnormalities of the central skull base and cerebellar defects [8,26]. A recessive mutation in LHX4 has also been reported. The heterozygous parents were unaffected by the mutation; however, their three homozygous children were born underweight, suffered from poor muscle tone, had severe lung abnormalities, and died within the first week after birth. ACTH, TSH and GH deficiencies were diagnosed in these infants [26]. Similar to heterozygous humans carrying a recessive LHX4 mutation, heterozygous Lhx4-mutant mice exhibit no apparent phenotype [9,26]. Homozygous Lhx4-mutant mice successfully develop the Rathke-pouch ectoderm structure but have a severely hypoplastic AP [27]. They die shortly after birth due to lung defects, hindering studies on the role of Lhx4 in the pituitary function at later stages [14].

The lhx4-KO zebrafish generated in this study (Figure 1) expressed lower levels of tshb mRNA at 48 hpf, 7 dpf and 4 months of age (Figure 2A,B, Figure 3A,B and Figure 5A, respectively). Although no differences were found in the expressions of gh, pomca and prl at the early stages (Figure 2C–E and Figure 3C–E), the expressions of gh and pomca were significantly reduced in the adult lhx4 mutants (Figure 5B,C). The development of corticotrophs was also affected by Lhx4 deficiency, as indicated by the reduced pomca promoter-driven GFP expression in the pituitaries of adult mutants (Figure 6). Decreased fshb expression was observed in the adult homozygous lhx4 mutants (Figure 5D). Moreover, utilizing a transgenic reporter line in which the expression of RFP is driven by the tilapia lhb promoter, we have shown that lhb-expressing gonadotrophs are severely depleted in the pituitaries of adult lhx4 mutants (Figure 7B).

Owing to the survival of lhx4-KO zebrafish and the fact that they reach the adult stage, the phenomenon of the sequential loss of the pituitary hormone-producing cells could be observed. This phenomenon could be explained by the effect of LHX4 deficiency on pituitary precursor cells: In lhx4-mutant mouse embryos, increased levels of apoptotic pituitary precursor cells have been documented, indicating that Lhx4 is necessary for the survival of precursor cells and thereby controls the number of differentiated pituitary hormone-secreting cells [28]. Likewise, it is possible that a population of stem cells within the adult zebrafish AP, as is the case with mouse embryos [12], is depleted in Lhx4-deffienct fish, resulting in the reduced proliferation of hormone-secreting cells in the AP. Alternatively, the sequential decreased expressions of pituitary hormone-encoding genes may be an indirect outcome of Lhx4 deficiency. The finding that the tshb expression is reduced in lhx4 mutants at the embryo and larval stages (Figure 2A,B and Figure 3A,B), prior to the observed decrease in other pituitary hormone-encoding genes, implies that at least part of the adult phenotype may be caused by TH deficiency, which is expected to occur only at later life stages, 20 dpf [22]. Since THs are known to regulate growth, in addition to metabolism and reproduction [2,22,23], the substantially lower expression of tshb in the homozygous lhx4 mutants may account for their small size (Figure 4) and immature gonads (Figure 7A). Notably, the levels of the mediators of these effects, THs, were not altered by the mutation at 7 dpf (Figure S3). However, as indicated above, the effect of TSH deficiency on TH signaling is not expected at this stage [22], and the maternal TH deposited in the yolk, in both WT and lhx4 mutants, is sufficient for the initiation of the normal development of the nervous system [21].

An additional explanation for the reduction in the pituitary cell types in adult Lhx4-deficient zebrafish could be reduced innervation or decreased blood flow to the gland. This assumption is based on the fact that LHX4 mutations in humans lead to a reduction in the size of the pituitary stalk [29]. Furthermore, lhx4 is also expressed outside the AP [8,11,17,30] and (Figure S1), the phenotypes described here may be induced by pathways that are unrelated to the pituitary function. For example, the reduced locomotor activity of the lhx4-mutant larvae (Figure S2) could have stemmed from poor muscle tone, as is the case in human patients [26]. Thus, the poor mobilization of the lhx4 mutants may have led to a failure in the competition over food when raised with their WT siblings, which may account for their malnutrition and reduced body size [31], a possibility that warrants further inquiry.

The reproductive impairments of the homozygous lhx4-mutant females could also be explained by malnutrition and a reduced body size, although our findings of lower fshb mRNA levels and depleted lhb-expressing gonadotrophs in adult homozygous lhx4 mutants would be a more reasonable explanation [25,32]. Thus, we conclude that gonadotropin deficiency, or the combination of gonadotropin and Tshb deficiencies, is the source for the female infertility of homozygous lhx4-mutant females. As opposed to the females, the lhx4-mutant males were fertile, indicating that the reduced pituitary hormone levels have a stronger effect on ovarian development in comparison with testicular development. This implies that the combined hormonal profile required for ovarian development and vitellogenesis, absent in the lhx4 mutant, is different from that required for testicular development. An alternative explanation could be a direct effect of Lhx4 on gonadal development: In mice, an RNAseq analysis of developing gonads revealed a significantly higher expression of Lhx4 mRNA in the developing ovary compared to that in the developing testes [33], possibly explaining the sex-specific effect of LHX4 deficiency in zebrafish. This could be an interesting avenue to investigate despite the apparent differences between the development of mammalian and fish reproductive systems.

In summary, our lhx4-KO model exhibits phenotypes that resemble those observed in human patients carrying a LHX4 mutation, such as CPHD, impaired growth and fertility abnormalities. Unlike other models, lhx4-mutant zebrafish survive the larval stage and reach adulthood. We found that although lhx4 is mainly expressed in the developing AP, it exerts its function throughout all the zebrafish life stages. Hence, the characterized lhx4-mutant line constitutes a valuable model to further investigate the consequence of lhx4 mutation on pituitary development, pituitary functioning and beyond. Further research is required to define the cellular, temporal and spatial expression of lhx4 in the zebrafish AP, and to understand how this expression pattern affects the various AP cell types and the physiological processes they regulate.

4. Materials and Methods

4.1. Fish and Embryos

Zebrafish (Danio rerio) were grown and maintained in a recirculating-water system at 28 °C under 12:12 h LD cycles and fed twice a day. The fish were naturally mated in an appropriate tank, and the embryos were collected and kept in a Petri dish with embryo water containing methylene blue (0.3 ppm) in an incubator at 28 °C under 12:12 h LD cycles. On the 7th day, larvae were transferred to 10 L tanks in the recirculating-water system. Once the fish reached adulthood, they were genotyped and transferred accordingly into 3 L tanks.

4.2. Generation of lhx4-Mutant Zebrafish and Genotyping

The CRISPR-Cas9 system was used to establish the lhx4-KO zebrafish line, registered in the Zebrafish Information Network (ZFIN) database as lhx4^tlv12. Oligos 5′-taggagtgccactgcaacgtaa-3′ and 5′-aaacttacgttgcagtggcact-3′ were designed to target a sequence at the end of exon 1 (5′-GGAGTGCCACTGCAACgtaa-3′), which contains the BtsI-v2 restriction site (underlined). The oligos were ligated into a pT7-gRNA zebrafish-optimized vector (plasmid #46759, Addgene, Watertown, MA, USA), followed by linearization with BamHI (R3136, New England Biolabs, Ipswich, MA, USA), and the synthesis of gRNA was performed with a MAXIscript T7 Transcription Kit (AM1312, Invitrogen, Waltham, MA, USA). An injection mix was prepared by mixing gRNA (60 ng μL⁻¹) and TrueCut Cas9 Protein V2 (1 μg μL⁻¹; A36498, Invitrogen), followed by 5 min incubation in 37 °C prior to co-injection into one-cell-stage WT zebrafish embryos. Injected embryos (F0 generation) were raised to maturity and crossed with WT fish to identify carriers of an indel within the lhx4 gene at the F1 generation.

For genotyping, whole larvae or fin samples from mature fish were lysed in lysis buffer [10 mM Tris (pH 8), 2 mM EDTA (pH 8), 0.2% Triton X-100 and 0.1 mg mL⁻¹ protein kinase]. Fixated post-whole-mount ISH and immunostained samples were lysed using the Extract-N-Amp™ FFPE Tissue PCR kit (XNAT2-1KT, Sigma, St. Louis, MO, USA), according to the manufacturer’s protocol. Lysis was performed overnight at 52 °C, followed by 10 min inactivation at 95 °C. The isolated genomic DNA served as the template to amplify a 490 bp fragment of the lhx4 gene using forward 5′-atgaaaatgatgcaaagtgcg-3′ and reverse 5′-tgcccagctatgcgatctaac-3′ primers. Identification of the lhx4-mutant allele was based on the incomplete digestion of the PCR product by BtsI-v2 (R0667, New England Biolabs, Ipswich, MA, USA), in contrast to the full digestion of the WT allele into two fragments (of 76 bp and 414 bp). Sequence analysis of the selected F1 founder genomic DNA indicated a 5 bp deletion at the end of lhx4 exon 1, and the lhx4^tlv12 line was propagated by further crossings to produce homozygous mutants and WT siblings at future generations.

4.3. Reverse Transcription PCR

RNA was purified from brain samples dissected from adult homozygous lhx4 mutants and WT siblings using the RNeasy Lipid Tissue Mini kit (74804, Qiagen, Hilden, Germany). An amount of 1 µg of the purified RNA served as the template for the cDNA synthesis using the qScript cDNA Synthesis Kit (95047, Quantabio, Beverly, MA, USA). PCR was performed on cDNA templates using forward primer 5′-atgaaaatgatgcaaagtgcg-3′ targeting the beginning of exon 1, and reverse primer 5′-cgaaacgcttgaagaagtcc-3′ spanning the exon 2–3 junction, yielding a 265 bp product.

4.4. Whole-Mount In Situ Hybridization

An 815 bp fragment of the zebrafish lhx4 (RefSeq NM_001122973.1) coding sequence (CDS) was amplified using forward 5′-ggacttcttcaagcgtttcg-3′ and reverse 5′-tcagagcttgacccacactg-3′ primers and cloned into pGEM-T Easy (A1360, Promega, Madison, WI, USA). In addition, plasmids containing CDS fragments of zebrafish gh1 (RefSeq NM_001020492.2), tshba (RefSeq NM_181494.2), prl (RefSeq NM_181437.3) and pomca (RefSeq NM_181438.3) were kindly provided by The Hammerschmidt Plasmid Stocks (Spemann Labs, Freiburg, Germany). Plasmids were linearized, and digoxigenin (DIG)-labeled anti-sense riboprobes were synthesized using the Dig RNA Labeling Kit (SP6/T7; 11175025910, Roche, Basel, Switzerland), according to the manufacturer’s instructions.

The embryos/larvae were fixed at 24 and 48 hpf and 7 dpf, and whole-mount ISH was performed as previously described [34], with the following modification: the 24 and 27 hpf sampled embryos were not treated with proteinase K. Images were acquired (see Section 4.11), and the staining signal was quantified using ImageJ software 2.1.0. (National Institute of Health, Bethesda, MD, USA). The staining signal, presented as the integrated (optical) density, was computed by multiplying the area (pixels) by the mean intensity value. After image quantification, each embryo/larva was genotyped (see ‘Generation of lhx4-Mutant Zebrafish and Genotyping’). Statistical differences between genotypes were determined by Mann–Whitney test.

4.5. Whole-Mount Immunostaining

The immunostaining protocol was carried out as published in [35], with minor adjustments. In short, 7 dpf fixed larvae were incubated in 10% H₂O₂ at room temperature for 4 h and then washed 3 times with PBT solution (0.25% Triton X-100 in PBS). The samples were blocked for 2 h at room temperature with 4% blocking solution (containing donkey serum), followed by overnight incubation at 4 °C with primary antibodies: anti-mouse triiodothyronine (T3) (1:100; ME-124, sc-57481, Santa Cruz Biotechnology, Dallas, TX, USA) or anti-rabbit thyroxine (T4) (1:100; 8658501, MP bio, Irvine, CA, USA).

After 6 washes with PBT, larvae were incubated for 4 h with secondary antibodies: donkey anti-mouse Alexa Fluor 488 (1:500; 715-545-150, Jackson ImmunoResearch, West Grove, PA, USA) or donkey anti-rabbit Cy3 (1:500; 711-165-152, Jackson ImmunoResearch, West Grove, PA, USA) for T3 and T4, respectively. Afterwards, the fluorescent signal was captured (see Section 4.11) and quantified as described for the whole-mount ISH signal (see Section 4.4). Subsequently, larvae were genotyped as described in ‘Generation of lhx4 mutant zebrafish and genotyping’. Statistical differences between groups were evaluated by Mann–Whitney test.

4.6. Histology

Homozygous lhx4-mutant females (N = 2) and their WT siblings (N = 6) at the age of 4 months were fixed in 4% PFA. After decalcification and paraffin embedding, longitude sections (4 µm) were prepared and stained with H&E by Gavish Research Services. Ovary slide images were acquired (see Section 4.11).

4.7. Larval Locomotor Activity Assay

Progeny of heterozygous lhx4-mutant intercross were raised in an incubator under 12:12 h LD cycles. At 9 dpf, the larvae were individually placed in wells of a 24-well plate in the observation chamber of the DanioVision tracking system (Noldus Information Technology, Wageningen, The Netherlands). The activity of each larva was tracked for 4 h under constant light and analyzed by Ethovision 15.0 software (Noldus Information Technology, Wageningen, The Netherlands) for the total activity (log_cm) and top speed (cm s⁻¹). Following activity monitoring, larvae were lysed and genotyped as described (see ‘Generation of lhx4-Mutant Zebrafish and Genotyping’). Statistical differences between genotypes were determined by t-test with Benjamini–Hochberg correction for multiple comparisons to maintain a false discovery rate of 0.05.

4.8. Body Size Measurement

To quantify the body size, adult homozygous lhx4 mutants and their siblings at the age of 5 months were anesthetized with 0.16 mg mL⁻¹ tricaine (A-5040, Sigma), laterally placed on a Petri dish plate and photographed (see Section 4.11). The body size was evaluated as the distance from the head to the tail-base, using an in-house custom RStudio version 2023.09.1+494 script. Statistical differences between genotypes were determined by Mann–Whitney test.

4.9. Quantitative Real-Time RT-PCR Analysis

Pituitary glands were dissected from homozygous lhx4 mutants (N = 10) and their WT siblings (N = 13), and RNA was extracted using the RNeasy Micro Kit (74004, Qiagen, Hilden, Germany), according to the manufacturer’s instructions. cDNA was synthesized with the qScript cDNA Synthesis Kit (95047, QuantaBio, Beverly, MA, USA). qRT-PCR was carried out using the following primer sets: tshba (RefSeq NM_181494.2): forward 5′-cccccactgactacaccatctac-3′ and reverse 5′-gcatcccctctgaacaataaaacgag-3′ primers yielding a 149 bp product; gh1 (RefSeq NM_001020492.2): forward 5′-gctgcttcgtatctctttccgcc-3′ and reverse 5′-ggctgtccatcgagacatccc-3′ primers yielding a 174 bp product; pomca (RefSeq NM_181438.3): forward 5′-cgagcaaacgcaaagacaac-3′ and reverse 5′-gccaagcaggacacaacatc-3′ primers yielding a 121 bp product; fshb (RefSeq NM_205624.1): forward 5′-ggactatgctggacaatggatcg-3′ and reverse 5′-tcagagccacggggtac-3′ primers yielding a 154 bp product; lhb (RefSeq NM_205622.2): forward 5′-acggtatcggtggaaaaagagg-3′ and reverse 5′-tacgtgcacactgtctggtg-3′ primers yielding a 134 bp product. The reference gene used for calculating the relative expression was actb2 (RefSeq NM_181601.5), using forward 5′-ccccaaacccaagttcagcc-3′ and reverse 5′-acccacgatggatgggaaga-3′ primers that yielded a 128 bp product.

The qRT-PCR was performed using PerfeCTa SYBR green FastMix (95074-250-2, QuantaBio, Beverly, MA, USA) in a QuantStudio 1 instrument (Thermo Fisher Scientific, Waltham, MA, USA) and analyzed by QuantStudio^TM Design & Analysis Software v1.5.1. The qRT-PCR amplification protocol consisted of 20 s of initial denaturation at 95 °C, followed by 40 cycles of 1 s denaturation at 95 °C, annealing and extension at 60 °C for 20 s and a final melting-curve stage. The reactions were performed in triplicates and the relative gene expression was calculated by the comparative-threshold-cycle method (2^−∆∆Ct). The WT expression was set to 1, and the gene expression of the lhx4 mutant compared to that of the WT was calculated. Statistical differences in gene expression between genotypes were determined by Mann–Whitney test.

4.10. Transgenic Reporter Lines

Tg(−1.0pomca:GFP)^zf44 [24] and Tg(Oni.lhb:TagRFP,myl7:TagRFP) [5] reporter lines were utilized; the latter also expresses RFP in heart cells for the detection of positive transgenic larvae, as lhb expression initiates only at a later stage. For accurate fluorescence-level comparisons, only reporter fish harboring a single transgenic insertion of GFP/RFP were used. The transgenic reporter lines and homozygous lhx4 mutants were crossed, yielding heterozygous lhx4 mutants. GFP/RFP-positive progeny were raised to adulthood and crossed with heterozygous lhx4 mutants to produce homozygous lhx4 mutants and WT siblings with a single transgenic allele.

When reaching maturity, fish were sacrificed, the pituitary was exposed by removing the jaws and the fluorescence was documented (see Section 4.11). Subsequently, fish were genotyped as previously described (see ‘Generation of lhx4-Mutant Zebrafish and Genotyping’). The mean intensity and area (pixels) of the GFP fluorescence were computed using ImageJ software 2.1.0. (National Institute of Health, Bethesda, MD, USA) and multiplied to produce the integrated density, and differences between genotypes were analyzed by t-test.

4.11. Imaging

Images were taken with an SZX16 Research Stereo Microscope (Olympus, Waltham, MA, USA) equipped with a camera (DP74) and cellSens Entry 2.1 software, using an Oblique high-contrast cartridge (SZX2-COBH). The X-Cite Xylis Broad Spectrum LED Illumination System (Excelitas technologies, Waltham, MA, USA) was used for fluorescence excitation.

The immunostaining signal was captured with an AX10 fluorescence microscope (Zeiss, Oberkochen, Germany) equipped with a camera and Zen 2.3 lite software.
