Rv0687 a Putative Short-Chain Dehydrogenase Is Required for In Vitro and In Vivo Survival of Mycobacterium tuberculosis

by
Gunapati Bhargavi
,
Mohan Krishna Mallakuntla
,
Deepa Kale
and
Sangeeta Tiwari
*
Department of Biological Sciences, Border Biomedical Research Centre, University of Texas at El Paso, El Paso, TX 79968, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(14), 7862; https://doi.org/10.3390/ijms25147862
Submission received: 12 June 2024 / Revised: 12 July 2024 / Accepted: 16 July 2024 / Published: 18 July 2024
(This article belongs to the Special Issue Cellular and Molecular Mechanisms of Pathogenesis and Drug Effects in Tuberculosis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mycobacterium tuberculosis (Mtb), a successful human pathogen, resides in host sentinel cells and combats the stressful intracellular environment induced by reactive oxygen and nitrogen species during infection. Mtb employs several evasion mechanisms in the face of the host as a survival strategy, including detoxifying enzymes as short-chain dehydrogenases/reductases (SDRs) to withstand host-generated insults. In this study, using specialized transduction, we have generated a Rv0687 deletion mutant and its complemented strain and investigated the functional role of Rv0687, a member of SDRs family genes in Mtb pathogenesis. A wildtype (WT) and a mutant Mtb strain lacking Rv0687 (RvΔ0687) were tested for the in vitro stress response and in vivo survival in macrophages and mice models of infection. The study demonstrates that the deletion of Rv0687 elevated the sensitivity of Mtb to oxidative and nitrosative stress-inducing agents. Furthermore, the lack of Rv0687 compromised the survival of Mtb in primary bone marrow macrophages and led to an increase in the levels of the secreted proinflammatory cytokines TNF-α and MIP-1α. Interestingly, the growth of WT and RvΔ0687 was similar in the lungs of infected immunocompromised mice; however, a significant reduction in RvΔ0687 growth was observed in the spleen of immunocompromised Rag−/− mice at 4 weeks post-infection. Moreover, Rag−/− mice infected with RvΔ0687 survived longer compared to those infected with the WT Mtb strain. Additionally, we observed a significant reduction in the bacterial burden in the spleens and lungs of immunocompetent C57BL/6 mice infected with RvΔ0687 compared to those infected with complemented and WT Mtb strains. Collectively, this study reveals that Rv0687 plays a role in Mtb pathogenesis.

1. Introduction

Mycobacterium tuberculosis (Mtb) is the causative agent of tuberculosis (TB), a bacterial disease that claimed about 1.5 million lives worldwide in 2022 [1]. On infection, Mtb is phagocytosed by the sentinel cells of the host, macrophages. These cells are equipped with cell autonomous innate immune responses, which act as front-line defenders against Mtb infection [2,3]. Activated macrophages upregulate various antimicrobial pathways including the expression of inducible nitric oxide synthase (INOS), phagocyte NADPH oxidase (NOX2/gp91phox) and xanthine oxidase system that becomes recruited to the Mtb phagosome and generates antimicrobial reactive nitrogen and oxygen species (ROS and RNS) via a respiratory burst to kill Mtb [3,4,5,6]. Mice deficient in both phox and iNOS are highly susceptible to Mtb infection, which shows that RNS and ROS generation is required by the host for protection against Mtb [7]. These molecules alter the intracellular signaling events, triggering the host antimicrobial responses that primarily aim to eliminate Mtb [2,8]. The host cell ROS and RNS interacts directly with its bacterial targets and during the process, becomes converted into chemically district oxidants such as hydrogen peroxide (H2O2), hypochlorites (HClO), peroxynitrite (ONOO−) and hydroxy radicals [9,10]. These reactive species damage Mtb DNA, oxidize lipids and proteins, including highly sensitive proteins such as iron–sulfur (4Fe-4S) cluster proteins [9]. Thus, Mtb infection prompts macrophages to generate ROS and RNS as a mechanism to kill intracellular bacteria [10,11]. The ROS and RNS production by Mtb-infected macrophages, as part of host cell-autonomous innate immune response, not only play a role in direct host defense against the bacteria, but also trigger signaling pathways that contribute to the overall antimicrobial responses of these immune cells [12].
The survival of Mtb in the host not only depends on the manipulation of the host but also on its ability to encounter stresses imposed by immunologically active macrophages. Mtb employs several detoxifying antioxidant thiols and enzyme systems, such as superoxide dismutase (SOD), catalase-peroxidase, alkylhydroperoxidase (AhpC), and thioredoxin reductase [9,13]. However, the gene encoding global stress regulator oxyR, commonly found in several other bacteria, is absent in Mtb. The absence of oxyR in Mtb is suggested to be compensated by the presence of several AhpC, which help the bacteria tolerate ROS and RNS induced by the infected host cells [14,15]. In addition to AhpC, recent research has revealed that Mtb possesses a category of enzymes known as short-chain dehydrogenase/reductases (SDRs), which aid in managing peroxidase stress, in vitro detoxification as well as in vivo survival of Mtb, drug resistance and overall homeostasis [16,17]. The SDRs are one of the largest protein families, distributed widely in several organisms and classified into seven families such as classical, atypical, extended, intermediate, divergent, complex and unassigned [18,19]. SDRs can utilize a range of diverse substrates, such as alcohols, sugars and aromatic compounds [19]. SDRs represent various enzyme classes such as isomerases, lyases and oxidoreductases, although the majority of the SDRs are oxidoreductases [20,21]. These SDRs share an NAD(P)+ Rossmann-fold domain for substrate binding and use NADH or NADPH as its electron donors [21]. Moreover, SDRs are involved in metabolic pathways such as detoxification, drug resistance, steroid metabolism, and biosynthetic pathways of bacteria [17,22]. In the context of Mtb infection, specific SDRs have been implicated in modulating the activation or inactivation of certain drugs used in TB treatment, highlighting the involvement of SDRs in bacterial physiology and survival [23,24]. The genome of Mtb possess 23 SDRs, namely Rv0148, Rv0484c, Rv0687, Rv0851c, Rv0927c, Rv0945, Rv1144, Rv1245c, Rv1865c, Rv1882c, Rv1928c, Rv1941, Rv2214c, Rv2509, Rv2766c, Rv2857c, Rv3085, Rv3174, Rv3224, Rv3485c, Rv3502c, Rv3548c and Rv3549c (as listed in Mycobrowser) and only a few of these are characterized [25,26].
Strikingly, a transposon mutant of Rv0687, SDR has also shown to be attenuated for growth in both mice and primate models using the DeADMAn approach (designer arrays for defined mutant analysis) [26,27]. Though, the DeADMAn approach has limitations such as the polar effect due to the inactivation of downstream genes in operon. Therefore, we investigated the role of Rv0687 in Mtb pathogenesis and survival. To avoid any polar effects that leads to inactivation of downstream genes, this study involves generating precise knockout in-frame deletions using the strategy described by Jain et al. 2014 [28,29]. Rv0687 has homologs in other mycobacteria that are characterized as mycofactocin-associated dehydrogenases with non-exchangeable NAD-cofactors and as a putative carveol dehydrogenase [30]. Notably, Rv0687 is a non-essential in the Mtb genome, with a gene length of 828 base pairs, encoding a 275 amino acid protein with a molecular mass of 28 kDa. In the current study, we generated a knockout mutant of Rv0687 (RvΔ0687) using specialized transduction and characterized the phenotype of the mutant in comparison with the wildtype (WT) and complemented Mtb strains (C-Rv0687). Our results demonstrate that Mtb requires Rv0687 in vitro to cope up with the oxidative stress, nitrosative stress and for survival as well as growth in the mouse bone marrow-derived macrophage (BMDM) infection assays. Moreover, it is required by Mtb for survival and proliferation in vivo in immunocompetent and immunocompromised mice models of infection.

2. Results

2.1. Growth Kinetics of RvΔ0687 in Broth Media

RvΔ0687 deletion strain and its complemented strains were generated and confirmed (Figure S1) as mentioned in the Section 4. To assess the role of Rv0687 in Mtb survival WT, RvΔ0687 and C-Rv0687 strains were grown in both 7H9 complete and 7H9 dextrose media lacking OADC, and their survival was monitored via CFU assay for 12 days. In 7H9 complete media, the survival of RvΔ0687 showed no significant differences compared to the WT and C-Rv0687 at any of the tested time points (Figure 1A). Whereas in 7H9-dextrose media, all the strains were able to sustain without any change in survival until day 4, followed by a gradual decline in CFUs, which is not statistically significant at day 8. However, no CFUs were obtained for the RvΔ0687 at day 12, whereas WT and C-Rv0687 were able to persist in the 7H9 dextrose media and form CFUs (Figure 1B). The 7H9 dextrose media showed the difference in growth response among the Mtb strains.

2.2. RvΔ0687 Is Sensitive to ROS and Nitrite Stress Generating Agents

As we have seen differences in growth response among the Mtb strains in 7H9 dextrose media, we evaluated the response of WT, RvΔ0687 and C-Rv0687 to in vitro ROS using H2O2 and tBooth. In our pilot experiment (Figure S2), we used 7H9 complete media supplemented with glycerol, tyloxapol and OADC, treated with 5 mM H2O2 to perform the stress response studies, and we did not observe significant growth defect between the WT, RvΔ0687 and C-Rv0687 strains. However, the RvΔ0687 showed sensitivity to exposure of 5 mM and 10 mM H2O2 as determined by the reduction in CFUs, compared to the WT and C-Rv0687 in 7H9 dextrose media lacking catalase. At 5 mM H2O2 exposure, a significant reduction in RvΔ0687 CFUs was observed only at 96 h, whereas at 10 mM H2O2 exposure, at 24 h, a decrease in CFUs was observed, but at 48 h, the CFUs of RvΔ0687 dropped by 2 logs compared to WT and C-Rv0687 strains. Furthermore, RvΔ0687 was so susceptible to H2O2 stress that we recovered no CFUs at 96 h post-treatment compared to the WT and C-Rv0687 (Figure 2A,B). In addition, the RvΔ0687 was sensitive to 2 mM tBOOH at 24 h, with significantly declined CFUs compared to WT and the C-Rv0687 strains. However, none of the strains were able to sustain their growth after 48 h, as observed by the lack of CFUs in the presence of 2 mM tBOOH (Figure 2C). The nitrite stress response was assessed using 2 mM SNAP and 2 or 10 mM SN. At 72 and 96 h post-treatment, we observed a log decrease in the RvΔ0687 compared to WT and the C-Rv0687 strains in response to 2 mM SNAP treatment (Figure 2D). However, neither of the tested bacterial strains (WT, RvΔ0687 and C-Rv0687) showed any difference in CFUs on treatment with 2 or 10 mM SN (Figure S3) or in response to metal ions (copper, zinc, and iron) stress at any of the tested time points after post-treatment (Figure S4).

2.3. Deletion of Rv0687 Gene Does Not Impact the Mtb NADH, and NAD+ and NADH/NAD+ Ratio In Vitro

The NADH and NAD+ ratios have a crucial role in the redox homeostasis of a bacterial cell. Consequently, we measured the concentrations of NADH (Figure 3A) and NAD+ (Figure 3B) as well as the NADH/NAD+ ratio (Figure 3C) for the WT, RvΔ0687 and C-Rv0687 strains. Based on our observations, it is evident that the deletion of Rv0687 has no significant impact on modulating the NADH or NAD+ levels and redox homeostasis of Mtb in aerobic conditions.
The WT, RvΔ0687 and C-Rv0687 were grown to 107 bacteria and the cells were pelleted and lysed using NADH extraction buffer. NAD/NADH were extracted using 10 kD spin column and the resulting concentrations (pmol) were estimated at 1, 2, 3 and 4 h by measuring the absorbance at 450 nm after addition of NADH developer. The change in the spectral readings at various timepoints probably represents reactivity of proteins formation of measurable product due to interaction between NADH, NAD+ and NADH developer. Based on the readings, the concentration of NADH and NAD+ were estimated. Concentration of NAD+ was calculated by subtracting NADH from NAD+ (represents total conc of NAD+ and NADH). In addition, ratio of NADH/NAD+ is calculated using the formula NADH/NAD+. The experiment was performed in triplicates with biological samples.

2.4. Deletion of Rv0687 Enhances Susceptibility of Mtb to Antimycobacterial Drugs Delamanid and NMR711

To assess the sensitivity of WT, RvΔ0687 mutant and C-Rv0687 strains to Isoniazid (INH), Delamanid (DEL), Rifampicin (RIF), Bedaquiline (BDA) and NMR711, an Alamar Blue assay was performed. The RvΔ0687 displayed increased susceptibility to DEL at concentrations of 0.062–1 mg/L, which is lower than the survival rates observed for the WT and the C-Rv0687 strains (Figure 4A). In our previously published studies, we discovered that small compound NMR711 has anti-mycobacterial activity against Mtb at a concentration of 50 mg/L [31]. Interestingly, we observed that RvΔ0687 also displayed reduced survival for NMR711 at tested concentrations of 0.39–50 mg/L compared to WT and the C-Rv0687 strains (Figure 4B). Conversely, RvΔ0687 exhibited similar susceptibility to antimycobacterial drugs BDA and RIF as the WT and C-Rv0687 strains (Figure 4C–E).

2.5. RvΔ0687 Is Required for Intracellular Replication and Suppression of Early Inflammatory Immune Response in Macrophages

The in vitro survival of WT, RvΔ0687 and C-Rv0687 strains were tested using mouse BMDMs. As shown in (Figure 5A), no significant difference was observed in the uptake of the WT, RvΔ0687 and C-Rv0687 strains by BMDMs at day 0. Interestingly at day 1, though, we observed small differences in the CFUs between WT and RvΔ0687 strains, but the differences were significant at later stages at day 3, 5 and 7 post infections (Figure 5A). We found that Rv0687 is required for the intracellular survival of Mtb, as the deletion mutant of Rv0687 is attenuated for survival in the macrophages. It was noted that there was a slight change in the survival of C-Rv0687 compared to WT at 5 and 7 days post-infection, which is not statistically significant. We further assessed the production of RNS (Griess assay) and ROS (NBT assay) by BMDMs in response to infection with WT, RvΔ0687, and C-Rv0687 strains. Though there was a significant change in RNS and ROS production by WT-infected vs. uninfected BMDMs, we did not observe any significant change in the production of ROS or RNS by BMDMs during infection with either WT, RvΔ0687, and C-Rv0687 strains (Figure S5).
Furthermore, we measured the cytokines to determine the activation status of the macrophages. The expression levels of TNF-α, IL-1β, IP-10 and MIP-1α cytokines were analyzed in the WT, RvΔ0687 and C-Rv0687 strains in the cell-free post-infected supernatants of infected BMDMs at 1–5 days post-infection. Within 3 h of infection, compared to uninfected, WT-infected BMDMs showed 5-fold increased secretion of TNF-a, IL-1β and ~10-fold increase in MIP-1a and IP-10. Interestingly, RvΔ0687-infected BMDMs showed a significantly higher expression of TNF-α and MIP-1α at d1 and d5 days compared to WT- and C-Rv0687-infected BMDMs (Figure 5B,C). We have not observed any significant change in the secretion of IL-1β and IP-10 by RvΔ0687-infected BMDMs compared to that of WT- and C-Rv0687-infected BMDMs (Figure 5D,E).

2.6. RvΔ0687 Is Attenuated In Vivo in Immunocompromised and Immunocompetent Mice

The in vivo survival of WT, RvΔ0687 and C-Rv0687 strains were analyzed in immunocompromised (Rag−/−) and immunocompetent (C57BL/6) mice (Figure 6A). Rag−/− mice were infected via aerosol with a dose of 200–250 CFU/mice. Mice were sacrificed at day 0, W4 and W8 to determine the CFU burden in the lungs and spleen. A group of mice infected with each strain were kept for survival studies. At W4 and W8 post-infection, WT, RvΔ0687 and C-Rv0687 showed similar bacterial burden in the lungs of Rag−/− mice (Figure 6B), but in spleen at W4 the growth of RvΔ0687 was 8-fold lower than WT and C-Rv0687 strains (Figure 6C). Furthermore, we compared the survival of Rag−/− mice after infection with WT, C-Rv0687 or RvΔ0687 strains. Interestingly, the WT or C-Rv0687 infected group started to die between 60 and 70 days post-infection, while the RvΔ0687 infected animals survived until 125 days post-infection (Figure 6D). This suggests that RvΔ0687 is impaired in virulence and plays a significant role in the in vivo survival of Mtb in Rag−/− mice.
To further evaluate the role of Rv0687 in Mtb pathogenesis in vivo, we infected C57BL/6 mice and euthanized them at 4 and 8 weeks post-infection. Lungs and spleen were harvested, plated and CFUs were enumerated. In lungs, though at W4 CFUs were similar for WT, RvΔ0687 and C-Rv0687 strains, differences were observed during late infection at W8 and enumerated CFUs for RvΔ0687 were 3-fold lower than WT or C-Rv0687 (Figure 6E). Furthermore, in spleen, compared to WT or C-Rv0687 infected mice at W4 and W8, RvΔ0687-infected mice displayed ~4-fold or 2.5-fold lower CFU’s, respectively (Figure 6F).

3. Discussion

In this study, we investigated the functional role of Mtb Rv0687 that codes for a putative short-chain dehydrogenase. In bacteria including Mtb, it is reported that short-chain dehydrogenase/reductases (SDRs) aid in managing peroxidase stress, detoxification, in vitro, in vivo survival, drug resistance and overall homeostasis [16,17]. Better understanding of role of these SDR’s in Mtb pathogenesis will lead to the development of drugs and therapeutics in future to combat tuberculosis (TB). To understand the functional role of Mtb Rv0687, we created a gene knockout mutant of Rv0687 (RvΔ0687), its complemented strain (C-Rv0687) and characterized the role of Rv0687 in Mtb survival under various stress conditions including, oxidative, nitrite and drug-mediated stress. We also investigated the function of Rv0687 in Mtb infection in BMDMs and mice models. Overall, our study suggests that Rv0687 has a substantial role in Mtb pathogenesis in combating oxidative and nitrite stress, drug tolerance and host immunity and is indispensable for pathogenicity of Mtb in macrophages and mice models of infection.
Bacterial growth and survival are influenced by the composition of the growth media [32]. The OADC supplement is commonly added to Mtb growth media. Since Mtb growth can produce toxic by-products, such as ROS through metabolic processes, the presence of OADC (catalase) aids in neutralizing these toxic compounds by catalyzing the decomposition of hydrogen peroxide. This enzymatic activity supports better bacterial growth in OADC-containing media [33]. While performing survival kinetics, we observed that in nutrient-rich conditions and in the presence of catalase, the growth of RvΔ0687 was indistinguishable from that of WT and C-Rv0687 under in vitro conditions. We further used 7H9 media supplemented with glycerol, tyloxapol and 0.2% dextrose (7H9-dextrose) and found that WT, RvΔ0687 and C-Rv0687 strains were able to survive normally until day 8 and declined gradually until day 12, suggesting the susceptibility of the strain to media lacking the catalase and BSA [34,35,36]. Taken together, our findings highlight the contribution of the Rv0687 gene in the adaptation of Mtb to grow under stress conditions.
Since tolerance to ROS and nitrite stress plays an essential role in bacterial pathogenesis, we further investigated the response of Mtb strains against stress-generating agents [37]. In our pilot experiment (Figure S4), we used 7H9 complete media supplemented with glycerol, tyloxapol and OADC, treated with 5 mM H2O2 to perform the stress response studies, and we did not observe significant growth defect between the WT, RvΔ0687 and C-Rv0687 strains. In contrast, when we tested the phenotype of the Mtb strains in 7H9 dextrose media lacking OADC, we found that the RvΔ0687 was more sensitive to ROS-generating agents, as evidenced by a decline in its growth compared to WT and C-Rv0687 [38]. To conclude, the failure of RvΔ0687 growth might be due to enhanced oxidative stress mediated due to the absence of catalase for bacterial survival. Our results showed that RvΔ0687 is more sensitive to ROS (H2O2 and tBOOH). Our results are further supported by previous microarray studies that shows that Rv0687 is upregulated on Mtb treatment with H2O2 [39]. Like Mtb sigJ, mel2 and sod that are known to play a role in providing resistance against ROS and Mtb pathogenesis [38,40,41], Rv0687 might also help Mtb in coping up the ROS and is required for Mtb pathogenesis.
In addition, we investigated the response of RvΔ0687 to nitrite stress by treating bacterial cultures with SNAP and SN. The increased sensitivity of RvΔ0687 to SNAP treatment suggests that the Rv0687 gene may play a role in Mtb defense against nitrosative stress induced by SNAP, which is a nitric oxide donor, as has been shown for the gene knockout mutant of Rv2617c of Mtb involved in virulence [42]. Our findings also suggest that RvΔ0687 can tolerate exposure to SN up to 10 mM concentrations; this was like the findings of a study by Suwarna et al., which showed that Mtb can resist and survive in the presence of a nitrite concentration up to 10 mM in broth media [43]. Furthermore, other possible explanation is that we have not observed any effect of sodium nitrite on the viability of the bacterial strains as we used sodium nitrite at physiological pH, as a donor of reactive nitrogen species (RNS), and it dissociates into reactive nitrogen species at acidic pH [44,45]; therefore, the acidification of growth media prior to NaNO2 addition would have been better for RNS studies. Additionally, we tested the response of RvΔ0687 to exposure to transitional metals such as copper, zinc and iron, which can induce oxidation reactions. However, we could not find a significant difference in the survival between the RvΔ0687 and WT or complemented strains. The Mtb, being an intracellular pathogen, grows inside the phagosomes of macrophages, where oxygen and nitrogen intermediates are produced; having such evasion mechanisms would enable Mtb to survive under stress conditions. SDRs in Mtb are involved in regulating peroxidase stress and detoxification. Interestingly, a homolog of Rv0687 in other mycobacterial species is characterized as a mycofactocin-associated dehydrogenase with non-exchangeable NAD-cofactors [46]. The homolog of Rv0687 in M. paratuberculosis is a putative carveol dehydrogenase, and its molecular structure has been reported. Accordingly, carveol has been shown to have an antioxidant role [47]. This suggests that Rv0687 might also be involved in redox reactions or synthesis of cellular metabolites that can play an important role in the detoxification of ROS or RNS in Mtb and can be further explored in the future. Therefore, understanding the specific mechanisms by which the Rv0687 gene confers protection against ROS and RNS could provide valuable insights into the bacterial stress response relating to the pathogenesis of Mtb.
We also investigated the impact of Rv0687 on the redox homeostasis of Mtb. In general, redox homeostasis, involving the balance between reduced NADH and oxidized NAD+, plays a key role in maintaining cellular redox equilibrium, which is crucial for bacterial survival and adaptation to various environmental stresses, including oxidative and nitrosative stresses. [48,49,50,51]. Hence, any disruption in redox homeostasis can have a significant impact on bacterial physiology and survival [52,53]. We found that the NADH and NAD+ concentrations, as well as the NADH/NAD+ ratio, were comparable between RvΔ0687 and the WT and C-Rv0687 strains. These results were consistent with the phenotype of the DosR regulon mutant of Mtb known to assist Mtb in metabolic homeostasis and recovery from dormancy, but the DosR mutant of Mtb exhibited similar NADH and NAD+ levels as the WT during aerobic growth conditions at early time points. There is a possibility of plasticity in SDRs that can compensate for the function of Rv0687, as it has been shown that deletion of a single succinate dehydrogenase (sdhA) gene, which is an SDR, does not have major redox potential in Mtb [48,52]. These observations suggest that Rv0687 might not be directly involved in regulating the balance between NADH and NAD+ in Mtb under the conditions tested. This could be due to the presence of redundant or alternative SDR enzymes that ensure the stability of the NADH/NAD+ ratio in the absence of RvΔ0687 under the tested conditions. Further research is required to elucidate the precise conditions in which Rv0687 might play direct or indirect role in balancing NADH/NAD+ ratio by interacting with other redox-related components of Mtb.
Rv0148 is an SDR of Mtb and the deletion mutant of Rv0148 has been associated with the sensitivity to antibiotics [16]. Therefore, we assessed the sensitivity of WT, RvΔ0687 and C-Rv0687 strains against anti-Mtb antibiotics, using a Alamar Blue assay. The results demonstrated distinct drug susceptibility patterns for the RvΔ0687 mutant. Notably, compared to the WT and C-Rv0687 strains, the RvΔ0687 showed increased susceptibility to two drugs: NMR711 and DEL. Conversely, the RvΔ0687 strain exhibited no significantly different sensitivity than the WT and C-Rv0687 strains against INH probably due to interference of Alamar Blue with INH [54]. We also did not observe significant differences in bacterial survival between WT and C-Rv0687 strains against BDA and RIF. This indicates that the Rv0687 plays a role in bacterial susceptibility towards antibiotics, particularly to DEL and NMR711 [55]. It correlates with our unpublished data that Rv0687 was upregulated in Mtb samples treated with NMR711. There is possibility that it might work synergistically with delamanid, a recently approved TB drug but for which additional studies are required. Further studies are also needed to elucidate the underlying mechanisms by which Rv0687 influences the bacterial susceptibility to these drugs.
During Mtb infection, the recognition of the pathogen by macrophages induces changes in the expression of cytokines that impact the elimination or progression of infection [56]. To assess the infection and in vivo survival of WT, RvΔ0687 and C-Rv0687 strains, we used a mouse BMDMs infection model and monitored the intracellular bacterial survival after infection. We observed that RvΔ0687 was defective for intracellular survival compared to WT and C-Rv0687 strains in BMDMs. The current results were consistent with the findings in another SDR and Rv2159c alkylhydroperoxidase of Mtb. The Rv0148 and Rv2159 mutants were defective for intracellular survival, although it induced proinflammatory cytokines in a macrophage model [15,16]. Differential survival of C-Rv0687 strain might be attributed to increased hypoxia conditions and the use of mycobacterial vector pMV361 for complementing the Rv0687 gene. Compared to the uninfected, we have observed significant changes in the production of ROS and RNS by infected BMDMs though there were no significant changes among WT vs. RvΔ0687 strains.
Further, Mtb-infected phagocytes generate ROS and RNS, which is required to control or kill Mtb in infected macrophages. Other than its antimicrobial effect, ROS and RNS generated by macrophages have been shown to influence the activation of T cell responses, production of proinflammatory cytokines, induce autophagy, and apoptosis [10]. Due to the change in the ROS and RNS production during BMDMs infection with Mtb and RvΔ0687, we further hypothesized this could impact the secretion of cytokines or chemokines and analyzed the levels of IL-1β, TNF-α, MIP-1α and IP-10 cytokines in the supernatants of BMDMs infected with Mtb strains. Strikingly, we observed that RvΔ0687-infected BMDMs showed significantly higher TNF-α and MIP-1α levels compared to both WT and C-Rv0687 strains. MIP-1α/CCL3 is a chemotactic chemokine secreted by macrophages to recruit inflammatory cells and maintain effector immune response [57]. This suggests that the Rv0687 gene might influence the host immune response during Mtb infection in macrophages.
To investigate the in vivo survival and virulence of RvΔ0687, in comparison to the WT and C-Rv0687 strains, we used two mice models of pulmonary infection. Rag−/− mice, which lack functional T and B cells, is considered to be an ideal model to screen the mutant survival as they will be more vulnerable to infection compared to C57BL/6 mice. In Rag−/− mice, all the tested Mtb strains exhibited similar bacterial burden in the lungs at 4 weeks. However, in the spleen, RvΔ0687 displayed a significantly lower bacterial growth compared to WT and C-Rv0687 at this time. This suggests that Rv0687 may play a role in the dissemination of Mtb primary infection from lung to spleen and early establishment of Mtb infection in the spleen of immunocompromised mice. But at 8 weeks post-infection, all the strains showed a comparable bacterial burden in both the lungs and spleen, indicating that the RvΔ0687 mutant was able to overcome the initial difficulty in spleen colonization. In addition, RvΔ0687 mutant-infected Rag−/− mice survived for a longer duration than the WT-infected mice. There is a possibility that RvΔ0687 might induce lesser lung inflammation and pathology compared to WT, leading to prolonged survival. Furthermore, there is a possibility that there is difference in the natural killer (NK)-mediated response generated by WT vs. RvΔ0687. Interestingly, a study by Feng et al. showed the contribution of interferon-gamma secreting natural killer (NK) in the survival of Rag−/− mice after Mtb infection in the absence of T and B cells compared to p40−/−Rag−/− mice [58]. However, additional detailed studies are needed to test this hypothesis.
Interestingly, in C57BL/6 mice, a similar bacterial load was observed in the lungs of WT, RvΔ0687 and C-Rv0687 strains after 4 weeks of infection. However, at 8 weeks post-infection, RvΔ0687 displayed a 3-fold lower bacterial burden in the lungs and ~3–4 fold reduced bacterial load in the spleen at both 4 and 8 weeks post-infection. As the CFU of WT and RvΔ0687 were similar in the lungs at 4 weeks (an initial time point) we do not expect tremendous differences in pathology of lungs by H&E staining; however, these can be analyzed in our future studies. The observed phenotype for RvΔ0687 at 8 W post infection but not earlier, suggests that possibly Rv0687 gene is required by Mtb to counteract the host adaptive immunity during the chronic stages of infection (i.e., 8 W post infection). Another possibility is the differential adaptive response generated by host in response to infection with RvΔ0687 KO mutant compared to WT Mtb to counteract the host response. Together, these findings shed light on the complex interplay between Mtb and the host immune system, emphasizing the significance of the Rv0687 in modulating Mtb survival in mouse lungs and spleen. Further studies involving biochemical characterization of the SDRs reported in this study and its interaction with other regulatory networks will shed light on its role in bacterial adaptation to the host environment, tolerance to antibiotics and in Mtb pathogenesis.

4. Materials and Methods

4.1. Bacterial Strains

Wildtype Mtb bacterial strains and vector plasmids (p004s, phAE159, pMV361) used in this study were gifted by Dr. William R Jacob Jr (Albert Einstein College of Medicine) and are listed in Supplementary Materials. All the Mtb strains were grown at 37 °C in Middlebrook 7H9 (Difco, Burlington, MA, USA) media, supplemented with 10% OADC (oleic acid-albumin-dextrose-catalase), 0.5% glycerol and 0.05% tyloxapol designated in the text as 7H9 complete media. Wherever required, Mtb strains were grown in 7H9 media supplemented with dextrose (0.2%), 0.5% glycerol and 0.05% tyloxapol (referred as 7H9 dextrose media) for in vitro ROS and RNS sensitivity studies. To grow Mtb strains carrying antibiotic markers, hygromycin (75 mg/mL) or kanamycin (20 mg/mL) were supplemented to the media wherever needed.

4.2. Gene Knockout Construction and Confirmation

The Mtb genomic DNA was extracted using CTAB-NaCl method [59]. Gene knockout of Mtb (CDC1551) was performed by specialized transduction as described previously [28]. Briefly, the flanking regions of the Rv0687 gene sequence were obtained from Tuberculist and cloned into the p0004-SacB vector, carrying the HygR resistance gene for homologous recombination. The recombinant construct was further cloned into phAE159 temperature-sensitive phasmid and a knockout mutant of Rv0687 was generated using specialized transduction. Deletion of Rv0687 was confirmed using 3-primer strategy [29] (Figure S1A,B), and whole genome sequencing was performed on a MiSeq instrument (Illumina, San Diego, CA, USA) following the protocol provided by Illumina [60]. Further, the mutant strain was complemented by integrating the wildtype copy of the gene into the genome of the RvΔ0687 mutant using a pMV361 mycobacterial integrative vector and complementation was confirmed using gene-specific primers (Figure S1C) and kanamycin primers [29]. The details of the strains, plasmids, phasmids and primers used in the study are provided in Supplementary Tables (Tables S1–S3).

4.3. Assessing Mtb Response to ROS and Nitrite Stress Generating Agents

The wildtype, RvΔ0687 and C-Rv0687 Mtb strains were grown in 7H9 complete media to OD600 nm ≈ 0.8–1. Bacterial strains were centrifuged and pellet was washed with PBST to remove the catalase and diluted to 0.05 × 107 cells/mL with 7H9 dextrose media to a final volume of 5 mL. Diluted bacterial cultures were treated with ROS; 5 or 10 mM hydrogen peroxide (H2O2) and 2 mM tert-butyl hydroperoxide (tBOOH) or nitrite stress; 2 mM S-nitroso-N-acetyl-D, L-penicillamine (SNAP) and 2 and 10 mM sodium nitrite (SN) generating agents; and the cultures were incubated for 24, 48, 72 and 96 h after post-treatment and the colony forming units (CFUs) were determined by plating the serially diluted bacterial culture onto 7H10 plates and incubating the plates at 37 °C for 4–6 weeks.

4.4. Quantification of Mtb NADH and NAD+ Levels

To quantify the NADH and NAD+ levels, we used the calorimetric kit from abcam (Cat no. ab65348) and protocol was followed as recommended by manufacturer. The wildtype, RvΔ0687 and C-Rv0687 bacterial strains were grown in 7H9 complete media to OD600 ≈ 0.5–0.8 and the cultures were centrifuged at 4000 rpm for 5 min. Pellets were washed with PBST. Pellet was suspended in NADH/NAD extraction buffer (Abcam, Cambridge, UK) with addition of protein inhibitor cocktail (Sigma, St. Louis, MO, USA) and lysed using silica beads in bead-beater for 10 cycles (<60 s) with 1 min intervals. Crude lysates were centrifuged at 10,000 rpm for 10 min at 4 °C and supernatants were collected and filtered using 10 kD spin column to eliminate proteins that can temper with NADH. Filtrates containing NADH as well as NAD+ were divided into two reaction sets (1) to measure NAD+ (contains both NAD+ and NADH) (2) to measure NADH from which NAD+ is removed by heating at 60 °C for 30 min to decompose NAD+ while NADH remained intact. Afterwards, sample (1) containing NAD+ + NADH, sample (2) containing NADH and the standards were transferred to a 96-well plate, this was followed by addition of reaction mix (NAD cycling buffer and NAD cycling enzyme mix, proprietary but just enhances the sensitivity of assay and converts free NAD to NADH). In the end, NADH developer was added and the colorimetric signals was measured at 450 nm using spectrophotometer (Spectramax, Waltham, MA, USA) at 1 h, 2 h, 3 h and 4 h. Individual concentrations of NADH/NAD+ were estimated by considering the standard values as reference. Concentation of NAD+ was calculated by subtracting concentrations of NAD+-NADH that allowed the calculation of the NADH/NAD+ ratio [48].

4.5. Response of Mtb to Mycobacterial Drugs

The wildtype, RvΔ0687 and C-Rv0687 bacterial strains were grown in 7H9 complete media to an OD600 ≈ 0.5–0.8. Final OD600 was adjusted to 0.1 (~1 × 107 CFU/mL). To determine the survival of Mtb, the bacterial strains were exposed to Isoniazid (4–0.007 mg/L), Delamanid (4–0.007 mg/L), NMR711 (50–0.390 mg/L), Rifampicin (8–0.062 mg/L) and Bedaquiline (4–0.015 mg/L). The drugs were serially diluted 2-fold in 7H9 media to reach the least concentration gradient. A total of 100 mL of bacteria (~1 × 106 CFU) was added into the wells containing 80 mL of the drug followed by the addition of 20 mL of Alamar Blue to bring the final volume to 200 uL. The plates were incubated at 37 °C for 1–7 days and at the indicated time points, the plates were assessed for bacterial growth and read in a plate reader at OD 590 nm. The survival of bacteria is assessed by plotting the OD 590 nm values on day 7 against drug concentration using GraphPad prism 10 software.

4.6. Infection of Bone Marrow Derived Macrophages (BMDMs)

The C57BL6 mice were euthanized, and the femurs and tibias were separated and flushed thoroughly with Dulbecco’s Modified Eagle Medium (DMEM; Invitrogen) to obtain cells. After lysing of red blood cells, the cells were maintained in DMEM, containing 10% FBS and 30% L929 supernatant (complete media) [61]. Cells were cultured in tissue culture flasks for 7 days and seeded at 0.25 × 106 cells per well into 24-well plates. The bacterial strains were grown at 37 °C to OD600 nm ≈ 0.8–1. After washing with phosphate-buffered saline with tyloxapol (PBST), the bacterial suspensions were diluted in DMEM and used to infect BMDMs cells for 3 h at 37 °C in 5% CO2 at a multiplicity of infection of 5 (MOI 1:5). Following infection at 3 h, the media were removed, and the wells were washed with PBST before treating with gentamycin for 1 h. Subsequently, the antibiotic media was removed, and the wells were washed with PBST and replenished with fresh DMEM media (complete media). At every time point tested, the infected BMDMs were lysed with 0.01% Triton X-100, and the lysates were serially diluted in PBST and plated on 7H10 agar media to determine the number of colony-forming units (CFUs). The post-infected cell free supernatants were collected before lysis of the cells and analyzed for TNF-α, MIP-1α, IL-1β and IP-10 cytokines.

4.7. Measurement of ROS and RNS in BMDMs during Infection

To assess the levels of ROS generated during BMDM infection, 0.1% Nitroblue Tetrazolium Chloride (NBT; Sigma) is added to wildtype, RvΔ0687 and C-Rv0687 infected BMDMs in the 96-well plate and incubated at 37 °C for 30 min. After incubation, the NBT solution was removed, and the cells were suspended in 2 M potassium hydroxide to stabilize the color. Dimethyl Sulfoxide (DMSO) was then added to solubilize the formazan. The amount of formazan, which represents the ROS levels, was quantified by measuring the optical density at 570 nm against DMSO as the reference.
To assess the levels of RNS, post-infected supernatants from wildtype-, RvΔ0687- and C-Rv0687-infected BMDMs were collected, and the assay was performed using the Griess Reagent Kit (Biotium, Fremont, CA, USA) following the guidelines as provided in the kit. Various concentrations of sodium nitrite references were prepared to create a standard curve, which was used to measure the absorbance at 570 nm. Post-infected supernatants were mixed with deionized water and Griess reagent, and the reaction mixture was incubated for ≥30 min at room temperature. The absorbance was then measured at 570 nm, and the optical density reading represented the nitrite concentration in the samples. These values were normalized to the reference values.

4.8. Mouse Infection Experiments

The wildtype, RvΔ0687 and C-Rv0687 strains were cultured to an OD600nm ≈ 0.8–1. The bacteria were washed twice with PBST. Subsequently, the samples were sonicated in a Branson cup-horn sonicator, twice for 10 s each time, and then diluted to achieve the desired cell densities of ~1 × 106 CFUs/mL. Female C57BL/6 mice (6–8 weeks old) were obtained from the Jackson Laboratory, and female Rag−/− mice (6–8 weeks old) were obtained from the in-house breeding facility. The mice were infected with a dose of Mtb strains (200–250 CFUs per lung) using a Glass-Col chamber as described previously [62] and were euthanized at indicated time points. Lung and spleen were harvested and homogenized with PBST. The CFUs were performed by serially diluting the lysate and plated onto 7H10 plates and colonies were enumerated after 4–6 weeks of incubation at 37 °C and CFUs were estimated per lung and spleen. The animal protocol was approved by the University of Texas at El Paso Institutional Animal Care and Use Committee (IACUC) protocol, A-202004-3 as per NIH principles for animal usage. All the animals were maintained according to the guidelines of IACUC.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25147862/s1.

Author Contributions

S.T. initiated the study. G.B. and S.T. designed the experiments. G.B. performed all the experiments and G.B. and M.K.M. performed the animal experiments. G.B. and S.T. analyzed and interpreted the data. G.B. and S.T. drafted the manuscript. D.K. aligned the references. G.B., M.K.M., D.K. and S.T. edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

S.T. acknowledges grant awards from National Institute of Health NIH/NIGMS (SC1GM140968) to support this work.

Institutional Review Board Statement

IRB is not required as no human subjects are involved.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

G.B.’s current address is Public Health Research Institute, Rutgers University, Newark, NJ, USA.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Health Organization (Global Tuberculosis Programme). Global Tuberculosis Report 2022; World Health Organization: Geneva, Switzerland, 2022. [Google Scholar]
  2. Dunn, J.D.; Aj Alvarez, L.; Zhang, X.; Soldati, T. Reactive Oxygen Species and Mitochondria: A Nexus of Cellular Homeostasis. Redox Biol. 2015, 6, 472–485. [Google Scholar] [CrossRef] [PubMed]
  3. Ehrt, S.; Schnappinger, D. Mycobacterial Survival Strategies in the Phagosome: Defence against Host Stresses. Cell Microbiol. 2009, 11, 1170–1178. [Google Scholar] [CrossRef] [PubMed]
  4. Babior, B.M. The Respiratory Burst of Phagocytes. J. Clin. Investig. 1984, 73, 599–601. [Google Scholar] [CrossRef] [PubMed]
  5. Tiwari, S.; Choi, H.-P.; Matsuzawa, T.; Pypaert, M.; MacMicking, J.D. Targeting of the GTPase Irgm1 to the Phagosomal Membrane via PtdIns(3,4)P2 and PtdIns(3,4,5)P3 Promotes Immunity to Mycobacteria. Nat. Immunol. 2009, 10, 907–917. [Google Scholar] [CrossRef] [PubMed]
  6. Halliwell, B.; Gutteridge, J.M.C. Free Radicals in Biology and Medicine; Oxford University Press: Cambridge, MA, USA, 2015; ISBN 0198717482. [Google Scholar]
  7. Shiloh, M.U.; Nathan, C.F. Reactive Nitrogen Intermediates and the Pathogenesis of Salmonella and Mycobacteria. Curr. Opin. Microbiol. 2000, 3, 35–42. [Google Scholar] [CrossRef] [PubMed]
  8. Shastri, M.D.; Shukla, S.D.; Chong, W.C.; Dua, K.; Peterson, G.M.; Patel, R.P.; Hansbro, P.M.; Eri, R.; O’Toole, R.F. Role of Oxidative Stress in the Pathology and Management of Human Tuberculosis. Oxid. Med. Cell Longev. 2018, 2018, 695364. [Google Scholar] [CrossRef]
  9. Nambi, S.; Long, J.E.; Mishra, B.B.; Baker, R.; Murphy, K.C.; Olive, A.J.; Nguyen, H.P.; Shaffer, S.A.; Sassetti, C.M. The Oxidative Stress Network of Mycobacterium tuberculosis Reveals Coordination between Radical Detoxification Systems. Cell Host Microbe 2015, 17, 829–837. [Google Scholar] [CrossRef] [PubMed]
  10. Belikov, A.V.; Schraven, B.; Simeoni, L. T Cells and Reactive Oxygen Species. J. Biomed. Sci. 2015, 22, 85. [Google Scholar] [CrossRef]
  11. Deretic, V.; Philipp, W.; Dhandayuthapani, S.; Mudd, M.H.; Curcic, R.; Garbe, T.; Heym, B.; Via, L.E.; Cole, S.T. Mycobacterium tuberculosis Is a Natural Mutant with an Inactivated Oxidative-Stress Regulatory Gene: Implications for Sensitivity to Isoniazid. Mol. Microbiol. 1995, 17, 889–900. [Google Scholar] [CrossRef]
  12. Zahrt, T.C.; Deretic, V. Reactive Nitrogen and Oxygen Intermediates and Bacterial Defenses: Unusual Adaptations in Mycobacterium tuberculosis. Antioxid. Redox Signal 2002, 4, 141–159. [Google Scholar] [CrossRef]
  13. Ng, V.H.; Cox, J.S.; Sousa, A.O.; MacMicking, J.D.; McKinney, J.D. Role of KatG Catalase-Peroxidase in Mycobacterial Pathogenisis: Countering the Phagocyte Oxidative Burst. Mol. Microbiol. 2004, 52, 1291–1302. [Google Scholar] [CrossRef] [PubMed]
  14. Nunn, C.M.; Djordjevic, S.; Hillas, P.J.; Nishida, C.; Ortiz De Montellano, P.R. The Mechanism of Mycobacterium tuberculosis Alkylhydroperoxidase AhpD as Defined by Mutagenesis, Crystallography, and Kinetics. Enzym. Catal. Regul. 2003, 278, 29502–29508. [Google Scholar] [CrossRef]
  15. Bhargavi, G.; Singh, A.K.; Deenadayalan, A.; Ponnuraja, C.; Patil, S.A.; Palaniyandi, K. Role of a Putative Alkylhydroperoxidase Rv2159c in the Oxidative Stress Response and Virulence of Mycobacterium tuberculosis. Pathogens 2022, 11, 684. [Google Scholar] [CrossRef] [PubMed]
  16. Bhargavi, G.; Hassan, S.; Balaji, S.; Tripathy, S.P.; Palaniyandi, K. Protein-Protein Interaction of Rv0148 with Htdy and Its Predicted Role towards Drug Resistance in Mycobacterium tuberculosis. BMC Microbiol. 2020, 20, 93. [Google Scholar] [CrossRef]
  17. Ahmed Laskar, A.; Younus, H. Aldehyde Toxicity and Metabolism: The Role of Aldehyde Dehydrogenases in Detoxification, Drug Resistance and Carcinogenesis. Drug Metab. Rev. 2019, 51, 42–64. [Google Scholar] [CrossRef] [PubMed]
  18. Gräff, M.; Buchholz, P.C.F.; Stockinger, P.; Bommarius, B.; Bommarius, A.S.; Pleiss, J. The Short-Chain Dehydrogenase/Reductase Engineering Database (SDRED): A Classification and Analysis System for a Highly Diverse Enzyme Family. Proteins 2019, 87, 443–451. [Google Scholar] [CrossRef] [PubMed]
  19. Persson, B.; Kallberg, Y. Classification and Nomenclature of the Superfamily of Short-Chain Dehydrogenases/Reductases (SDRs). Chem. Biol. Interact. 2013, 202, 111–115. [Google Scholar] [CrossRef] [PubMed]
  20. Shi, R.; Lin, S.X. Cofactor Hydrogen Bonding onto the Protein Main Chain Is Conserved in the Short Chain Dehydrogenase/Reductase Family and Contributes to Nicotinamide Orientation. J. Biol. Chem. 2004, 279, 16778–16785. [Google Scholar] [CrossRef]
  21. Kavanagh, K.L.; Jörnvall, H.; Persson, B.; Oppermann, U. Medium- and Short-Chain Dehydrogenase/Reductase Gene and Protein Families: The SDR Superfamily: Functional and Structural Diversity within a Family of Metabolic and Regulatory Enzymes. Cell Mol. Life Sci. 2008, 65, 3895–3906. [Google Scholar] [CrossRef]
  22. Savino, S.; Borg, A.J.E.; Dennig, A.; Pfeiffer, M.; De Giorgi, F.; Weber, H.; Dubey, K.D.; Rovira, C.; Mattevi, A.; Nidetzky, B. Deciphering the Enzymatic Mechanism of Sugar Ring Contraction in UDP-Apiose Biosynthesis. Nat. Catal. 2019, 2, 1115–1123. [Google Scholar] [CrossRef]
  23. Javid, A.; Cooper, C.; Singh, A.; Schindler, S.; Hänisch, M.; Marshall, R.L.; Kalscheuer, R.; Bavro, V.N.; Bhatt, A. The Mycolic Acid Reductase Rv2509 Has Distinct Structural Motifs and Is Essential for Growth in Slow-Growing Mycobacteria. Mol. Microbiol. 2020, 113, 521–533. [Google Scholar] [CrossRef] [PubMed]
  24. Chamchoy, K.; Pumirat, P.; Reamtong, O.; Pakotiprapha, D.; Leartsakulpanich, U.; Boonyuen, U. Functional Analysis of BPSS2242 Reveals Its Detoxification Role in Burkholderia Pseudomallei under Salt Stress. Sci. Rep. 2020, 10, 10453. [Google Scholar] [CrossRef] [PubMed]
  25. Cole, S.T.; Brosch, R.; Parkhill, J.; Garnier, T.; Churcher, C.; Harris, D.; Gordon, S.V.; Eiglmeier, K.; Gas, S.; Barry, C.E.; et al. Deciphering the Biology of Mycobacterium tuberculosis from the Complete Genome Sequence. Nature 1998, 393, 537–544. [Google Scholar] [CrossRef] [PubMed]
  26. Sassetti, C.M.; Rubin, E.J. Genetic Requirements for Mycobacterial Survival during Infection. Proc. Natl. Acad. Sci. USA 2003, 100, 12989–12994. [Google Scholar] [CrossRef] [PubMed]
  27. Dutta, N.K.; Mehra, S.; Didier, P.J.; Roy, C.J.; Doyle, L.A.; Alvarez, X.; Ratterree, M.; Be, N.A.; Lamichhane, G.; Jain, S.K.; et al. Genetic Requirements for the Survival of Tubercle Bacilli in Primates. J. Infect. Dis. 2010, 201, 1743–1752. [Google Scholar] [CrossRef] [PubMed]
  28. Jain, P.; Hsu, T.; Arai, M.; Biermann, K.; Thaler, D.S.; Nguyen, A.; González, P.A.; Tufariello, J.M.; Kriakov, J.; Chen, B.; et al. Specialized Transduction Designed for Precise High-Throughput Unmarked Deletions in Mycobacterium tuberculosis. mBio 2014, 5. [Google Scholar] [CrossRef] [PubMed]
  29. Tiwari, S.; Van Tonder, A.J.; Vilchèze, C.; Mendes, V.; Thomas, S.E.; Malek, A.; Chen, B.; Chen, M.; Kim, J.; Blundell, T.L.; et al. Arginine-Deprivation-Induced Oxidative Damage Sterilizes Mycobacterium tuberculosis. Proc. Natl. Acad. Sci. USA 2018, 115, 9779–9784. [Google Scholar] [CrossRef]
  30. Haft, D.H.; Pierce, P.G.; Mayclin, S.J.; Sullivan, A.; Gardberg, A.S.; Abendroth, J.; Begley, D.W.; Phan, I.Q.; Staker, B.L.; Myler, P.J.; et al. Mycofactocin-Associated Mycobacterial Dehydrogenases with Non-Exchangeable NAD Cofactors. Sci. Rep. 2017, 7, 41074. [Google Scholar] [CrossRef]
  31. Gupta, P.; Thomas, S.E.; Zaidan, S.A.; Pasillas, M.A.; Cory-Wright, J.; Sebastián-Pérez, V.; Burgess, A.; Cattermole, E.; Meghir, C.; Abell, C.; et al. A Fragment-Based Approach to Assess the Ligandability of ArgB, ArgC, ArgD and ArgF in the L-Arginine Biosynthetic Pathway of Mycobacterium tuberculosis. Comput. Struct. Biotechnol. J. 2021, 19, 3491–3506. [Google Scholar] [CrossRef]
  32. Krieger, I.V.; Freundlich, J.S.; Gawandi, V.B.; Roberts, J.P.; Gawandi, V.B.; Sun, Q.; Owen, J.L.; Fraile, M.T.; Huss, S.I.; Lavandera, J.L.; et al. Structure-Guided Discovery of Phenyl-Diketo Acids as Potent Inhibitors of M. Tuberculosis Malate Synthase. Chem. Biol. 2012, 19, 1556–1567. [Google Scholar] [CrossRef]
  33. Brittle, W.; Marais, B.J.; Hesseling, A.C.; Schaaf, H.S.; Kidd, M.S.; Botha, T. Improvement in Mycobacterial Yield and Reduced Time to Detection in Pediatric Samples by Use of a Nutrient Broth Growth Supplement. J. Clin. Microbiol. 2009, 47, 1287–1289. [Google Scholar] [CrossRef] [PubMed]
  34. Kaur, K.; Kumari, P.; Sharma, S.; Sehgal, S.; Tyagi, J.S. DevS/DosS Sensor Is Bifunctional and Its Phosphatase Activity Precludes Aerobic DevR/DosR Regulon Expression in Mycobacterium tuberculosis. FEBS J. 2016, 283, 2949–2962. [Google Scholar] [CrossRef] [PubMed]
  35. Theriault, M.E.; Pisu, D.; Wilburn, K.M.; Lê-Bury, G.; MacNamara, C.W.; Michael Petrassi, H.; Love, M.; Rock, J.M.; VanderVen, B.C.; Russell, D.G. Iron Limitation in M. Tuberculosis Has Broad Impact on Central Carbon Metabolism. Commun. Biol. 2022, 5, 685. [Google Scholar] [CrossRef] [PubMed]
  36. De Carvalho, L.P.S.; Fischer, S.M.; Marrero, J.; Nathan, C.; Ehrt, S.; Rhee, K.Y. Metabolomics of Mycobacterium tuberculosis Reveals Compartmentalized Co-Catabolism of Carbon Substrates. Chem. Biol. 2010, 17, 1122–1131. [Google Scholar] [CrossRef] [PubMed]
  37. Willemse, D.; Baatjies, L.; Dippenaar, A.; Warren, R.M.; Williams, M.J. The Impact of Genotype on the Phenotype of Mycobacterium tuberculosis ΔsufR Mutants. Tuberculosis 2023, 141, 102360. [Google Scholar] [CrossRef] [PubMed]
  38. Edwards, K.M.; Cynamon, M.H.; Voladri, R.K.R.; Hager, C.C.; Destefano, M.S.; Tham, K.T.; Lakey, D.L.; Bochan, M.R.; Kernodle, D.S. Iron-Cofactored Superoxide Dismutase Inhibits Host Responses to Mycobacterium tuberculosis. Am. J. Respir. Crit. Care Med. 2012, 164, 2213–2219. [Google Scholar] [CrossRef] [PubMed]
  39. Voskuil, M.I.; Bartek, I.L.; Visconti, K.; Schoolnik, G.K. The Response of Mycobacterium tuberculosis to Reactive Oxygen and Nitrogen Species. Front. Microbiol. 2011, 2, 105. [Google Scholar] [CrossRef] [PubMed]
  40. Hu, Y.; Kendall, S.; Stoker, N.G.; Coates, A.R.M. The Mycobacterium tuberculosis SigJ Gene Controls Sensitivity of the Bacterium to Hydrogen Peroxide. FEMS Microbiol. Lett. 2004, 237, 415–423. [Google Scholar] [CrossRef]
  41. Cirillo, S.L.G.; Subbian, S.; Chen, B.; Weisbrod, T.R.; Jacobs, W.R.; Cirillo, J.D. Protection of Mycobacterium tuberculosis from Reactive Oxygen Species Conferred by the Mel2 Locus Impacts Persistence and Dissemination. Infect. Immun. 2009, 77, 2557–2567. [Google Scholar] [CrossRef]
  42. Forrellad, M.A.; Vázquez, C.L.; Blanco, F.C.; Klepp, L.I.; García, E.A.; Rocha, R.V.; Luciana, V.; Bigi, M.M.; Gutierrez, M.G.; Bigi, F. Rv2617c and P36 Are Virulence Factors of Pathogenic Mycobacteria Involved in Resistance to Oxidative Stress. Virulence 2019, 10, 1026–1033. [Google Scholar] [CrossRef]
  43. Gample, S.P.; Agrawal, S.; Sarkar, D. Evidence of Nitrite Acting as a Stable and Robust Inducer of Non-Cultivability in Mycobacterium tuberculosis with Physiological Relevance. Sci. Rep. 2019, 9, 9261. [Google Scholar] [CrossRef] [PubMed]
  44. Mehta, M.; Singh, A. Mycobacterium tuberculosis WhiB3 Maintains Redox Homeostasis and Survival in Response to Reactive Oxygen and Nitrogen Species. Free Radic. Biol. Med. 2019, 131, 50–58. [Google Scholar] [CrossRef] [PubMed]
  45. Darwin, K.H.; Ehrt, S.; Gutierrez-Ramos, J.-C.; Weich, N.; Nathan, C.F. The Proteasome of Mycobacterium tuberculosis Is Required for Resistance to Nitric Oxide. Science 2003, 302, 1963–1966. [Google Scholar] [CrossRef]
  46. Rufai, S.B.; McIntosh, F.; Poojary, I.; Chothe, S.; Sebastian, A.; Albert, I.; Praul, C.; Venkatesan, M.; Mahata, G.; Maity, H.; et al. Complete Genome Sequence of Mycobacterium orygis Strain 51145. Microbiol. Resour. Announc. 2021, 10. [Google Scholar] [CrossRef] [PubMed]
  47. Rahman, Z.U.; Al Kury, L.T.; Alattar, A.; Tan, Z.; Alshaman, R.; Malik, I.; Badshah, H.; Uddin, Z.; Khan Khalil, A.A.; Muhammad, N.; et al. Carveol a Naturally-Derived Potent and Emerging Nrf2 Activator Protects Against Acetaminophen-Induced Hepatotoxicity. Front. Pharmacol. 2021, 11, 621538. [Google Scholar] [CrossRef] [PubMed]
  48. Vilchèze, C.; Weinrick, B.; Leung, L.W.; Jacobs, W.R. Plasticity of Mycobacterium tuberculosis NADH Dehydrogenases and Their Role in Virulence. Proc. Natl. Acad. Sci. USA 2018, 115, 1599–1604. [Google Scholar] [CrossRef] [PubMed]
  49. Yano, T.; Rahimian, M.; Aneja, K.K.; Schechter, N.M.; Rubin, H.; Scott, C.P. Mycobacterium tuberculosis Type II NADH-Menaquinone Oxidoreductase Catalyzes Electron Transfer through a Two-Site Ping-Pong Mechanism and Has Two Quinone-Binding Sites. Biochemistry 2014, 53, 1179–1190. [Google Scholar] [CrossRef] [PubMed]
  50. Sun, F.; Dai, C.; Xie, J.; Hu, X. Biochemical Issues in Estimation of Cytosolic Free NAD/NADH Ratio. PLoS ONE 2012, 7, e34525. [Google Scholar] [CrossRef] [PubMed]
  51. Eisenreich, W.; Dhandayuthapani, S.; Datta, S.; Kumar, A.; Bhat, S.A.; Iqbal, I.K. Imaging the NADH:NAD+ Homeostasis for Understanding the Metabolic Response of Mycobacterium to Physiologically Relevant Stresses. Front. Cell. Infect. Microbiol. 2016, 1, 145. [Google Scholar] [CrossRef]
  52. Leistikow, R.L.; Morton, R.A.; Bartek, I.L.; Frimpong, I.; Wagner, K.; Voskuil, M.I. The Mycobacterium tuberculosis DosR Regulon Assists in Metabolic Homeostasis and Enables Rapid Recovery from Nonrespiring Dormancy. J. Bacteriol. 2010, 192, 1662–1670. [Google Scholar] [CrossRef]
  53. Beites, T.; O’Brien, K.; Tiwari, D.; Engelhart, C.A.; Walters, S.; Andrews, J.; Yang, H.J.; Sutphen, M.L.; Weiner, D.M.; Dayao, E.K.; et al. Plasticity of the Mycobacterium tuberculosis Respiratory Chain and Its Impact on Tuberculosis Drug Development. Nat. Commun. 2019, 10, 4970. [Google Scholar] [CrossRef] [PubMed]
  54. Hassan, H.M.; Guo, H.; Yousef, B.A.; Ping-Ping, D.; Zhang, L.; Jiang, Z. Dexamethasone Pretreatment Alleviates Isoniazid/Lipopolysaccharide Hepatotoxicity: Inhibition of Inflammatory and Oxidative Stress. Front. Pharmacol. 2017, 8, 247934. [Google Scholar] [CrossRef] [PubMed]
  55. Dong, Y.; Ou, X.; Liu, C.; Fan, W.; Zhao, Y.; Zhou, X. Diversity of GlpK Gene and Its Effect on Drug Sensitivity in Mycobacterium Bovis. Infect. Drug Resist. 2022, 15, 1467–1475. [Google Scholar] [CrossRef] [PubMed]
  56. Lee, J.; Song, C.H. Effect of Reactive Oxygen Species on the Endoplasmic Reticulum and Mitochondria during Intracellular Pathogen Infection of Mammalian Cells. Antioxidants 2021, 10, 872. [Google Scholar] [CrossRef] [PubMed]
  57. Bhavsar, I.; Miller, C.S.; Al-Sabbagh, M. Macrophage Inflammatory Protein-1 Alpha (MIP-1 Alpha)/CCL3: As a Biomarker. In General Methods in Biomarker Research and Their Applications; Preedy, V.R., Patel, V.B., Eds.; Springer: Dordrecht, The Netherlands, 2015; pp. 223–249. ISBN 978-94-007-7696-8. [Google Scholar]
  58. Feng, C.G.; Kaviratne, M.; Rothfuchs, A.G.; Cheever, A.; Hieny, S.; Young, H.A.; Wynn, T.A.; Sher, A. Cell-Derived IFN-Gamma Differentially Regulates Innate Resistance and Neutrophil Response in T Cell-Deficient Hosts Infected with Mycobacterium tuberculosis. Comp. Study J. Immunol. 2006, 177, 7086–7093. [Google Scholar]
  59. Somerville, W.; Thibert, L.; Schwartzman, K.; Behr, M.A. Extraction of Mycobacterium tuberculosis DNA: A Question of Containment. J. Clin. Microbiol. 2005, 43, 2996. [Google Scholar] [CrossRef] [PubMed]
  60. Tiwari, S.; Dutt, T.S.; Chen, B.; Chen, M.; Kim, J.; Dai, A.Z.; Lukose, R.; Shanley, C.; Fox, A.; Karger, B.R.; et al. BCG-Prime and Boost with Esx-5 Secretion System Deletion Mutant Leads to Better Protection against Clinical Strains of Mycobacterium tuberculosis. Vaccine 2020, 38, 7156–7165. [Google Scholar] [CrossRef] [PubMed]
  61. Flesch, I.E.A.; Kaufmann, S.H.E. Mechanisms Involved in Mycobacterial Growth Inhibition by Gamma Interferon-Activated Bone Marrow Macrophages: Role of Reactive Nitrogen Intermediates. Infect. Immun. 1991, 59, 3213. [Google Scholar] [CrossRef]
  62. Mueller, A.-K.; Behrends, J.; Blank, J.; Schaible, U.E.; Schneider, B.E.; Mueller, C.; Schneider, U.E.; An, B.E. An Experimental Model to Study Tuberculosis-Malaria Coinfection upon Natural Transmission of Mycobacterium tuberculosis and Plasmodium Berghei. J. Vis. Exp. 2014, 84, 50829. [Google Scholar] [CrossRef]
Ijms 25 07862 g001

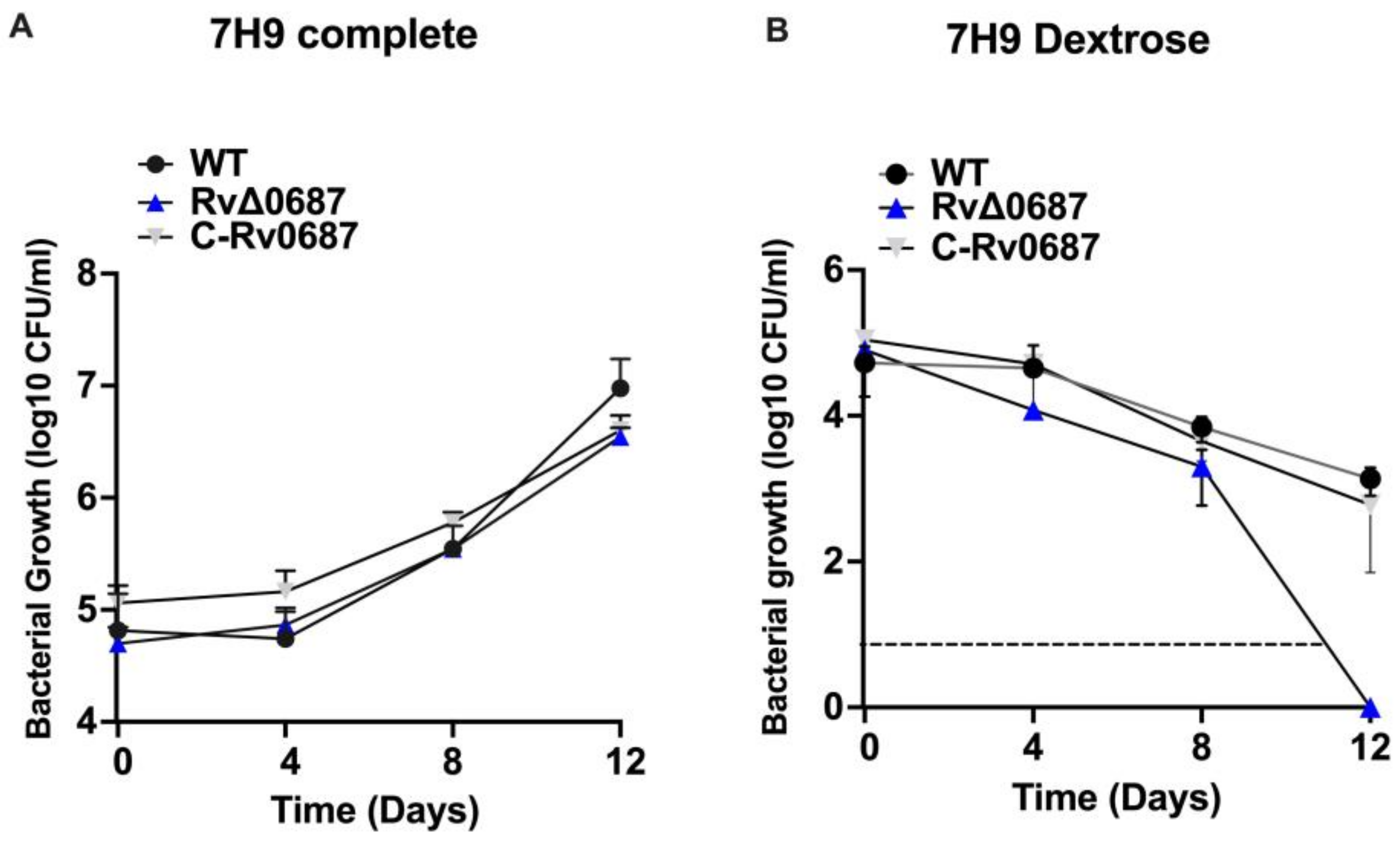

Figure 1. Growth kinetics of RvΔ0687. (A) Growth kinetics RvΔ0687 in 7H9 complete media with OADC. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 complete media, and the growth kinetics were measured at day 0, 4, 8 and 12. Aliquots of bacterial cultures were serially diluted and spotted onto 7H10 complete media and colony forming units (CFUs) were calculated per ml of bacterial culture and graphs were plotted. Experiment was performed in duplicates with biological samples and observed that there was no significance between the Mtb strains tested for survival. (B) Growth kinetics RvΔ0687 in 7H9 media with dextrose. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media without OADC until day 12, and the growth was observed by serially diluting the bacterial strains and plating onto 7H10-OADC media. The observed colonies were enumerated to calculate CFUs/mL and graphs were plotted. Experiments were repeated with three biological samples (triplicates), mean ± SD was plotted, and significance was calculated using Two-way ANOVA between the bacterial strains at tested time points.
Figure 1. Growth kinetics of RvΔ0687. (A) Growth kinetics RvΔ0687 in 7H9 complete media with OADC. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 complete media, and the growth kinetics were measured at day 0, 4, 8 and 12. Aliquots of bacterial cultures were serially diluted and spotted onto 7H10 complete media and colony forming units (CFUs) were calculated per ml of bacterial culture and graphs were plotted. Experiment was performed in duplicates with biological samples and observed that there was no significance between the Mtb strains tested for survival. (B) Growth kinetics RvΔ0687 in 7H9 media with dextrose. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media without OADC until day 12, and the growth was observed by serially diluting the bacterial strains and plating onto 7H10-OADC media. The observed colonies were enumerated to calculate CFUs/mL and graphs were plotted. Experiments were repeated with three biological samples (triplicates), mean ± SD was plotted, and significance was calculated using Two-way ANOVA between the bacterial strains at tested time points.
Ijms 25 07862 g001
Ijms 25 07862 g002
Figure 2. RvΔ0687 is susceptible to oxidative (ROS) and nitrite stress. (A–E) Susceptibility of RvΔ0687 to oxidative (ROS stress). (A). Untreated Strains. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 complete media, pelleted, washed with PBST, and added to 7H9 dextrose media and the growth was monitored at 0, 6, 24, 48 and 96 h and the CFUs were enumerated by plating onto 7H10 OADC plates. (B) Effect of 5 mM H2O2 stress. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media and exposed to 5 mM H2O2 and the growth of all the strains were monitored at 0, 24, 48 and 96 h post-treatment. The cultures were serially diluted at each time point after post-treatment and spotted onto 7H10 OADC plates and CFUs were calculated for 1 mL of bacterial culture. (C) Effect of 10 mM H2O2 stress. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media and exposed to 10 mM H2O2 and the growth of all the bacterial strains was monitored. The experiment was carried out in triplicates and significance was calculated using Two-way ANOVA, the error bars indicate the standard deviation (* p < 0.1, ** p < 0.01, *** p < 0.001). Dotted lines represent the limit of detection. (D) Effect of 2 mM tert-butyl hydroxide (tBOOH). The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 complete media. The pellet was washed twice with PBST and suspended in 7H9 dextrose media, and treated with 2 mM tBOOH and monitored at 0, 24, 48, 72 and 96 h after post-treatment. The sensitivity was analyzed by plating the serially diluted cultures in PBST and spotted onto 7H10. CFUs were enumerated per mL of bacteria and graphs were plotted. The experiment was carried out in triplicates and significance was calculated using Two-way ANOVA and T-test between bacterial strains (* p < 0.1) and “n.d” considered as bacteria not detected. (E) Effect of nitrite stress (2 mM SNAP). The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media and treated with 2 mM SNAP, and the bacterial strains were spotted onto 7H10 OADC by serially diluting the cultures. The CFUs were estimated after 3 weeks of incubation and CFUs were calculated per ml of bacterial culture. The experiment was carried out in triplicates and, using Two-way ANOVA, significance was calculated between the bacterial strains (** p < 0.01).
Figure 2. RvΔ0687 is susceptible to oxidative (ROS) and nitrite stress. (A–E) Susceptibility of RvΔ0687 to oxidative (ROS stress). (A). Untreated Strains. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 complete media, pelleted, washed with PBST, and added to 7H9 dextrose media and the growth was monitored at 0, 6, 24, 48 and 96 h and the CFUs were enumerated by plating onto 7H10 OADC plates. (B) Effect of 5 mM H2O2 stress. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media and exposed to 5 mM H2O2 and the growth of all the strains were monitored at 0, 24, 48 and 96 h post-treatment. The cultures were serially diluted at each time point after post-treatment and spotted onto 7H10 OADC plates and CFUs were calculated for 1 mL of bacterial culture. (C) Effect of 10 mM H2O2 stress. The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media and exposed to 10 mM H2O2 and the growth of all the bacterial strains was monitored. The experiment was carried out in triplicates and significance was calculated using Two-way ANOVA, the error bars indicate the standard deviation (* p < 0.1, ** p < 0.01, *** p < 0.001). Dotted lines represent the limit of detection. (D) Effect of 2 mM tert-butyl hydroxide (tBOOH). The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 complete media. The pellet was washed twice with PBST and suspended in 7H9 dextrose media, and treated with 2 mM tBOOH and monitored at 0, 24, 48, 72 and 96 h after post-treatment. The sensitivity was analyzed by plating the serially diluted cultures in PBST and spotted onto 7H10. CFUs were enumerated per mL of bacteria and graphs were plotted. The experiment was carried out in triplicates and significance was calculated using Two-way ANOVA and T-test between bacterial strains (* p < 0.1) and “n.d” considered as bacteria not detected. (E) Effect of nitrite stress (2 mM SNAP). The WT, RvΔ0687 and C-Rv0687 strains were grown in 7H9 dextrose media and treated with 2 mM SNAP, and the bacterial strains were spotted onto 7H10 OADC by serially diluting the cultures. The CFUs were estimated after 3 weeks of incubation and CFUs were calculated per ml of bacterial culture. The experiment was carried out in triplicates and, using Two-way ANOVA, significance was calculated between the bacterial strains (** p < 0.01).
Ijms 25 07862 g002
Ijms 25 07862 g003
Figure 3. (A–C) Rv0687 deletion in Mtb does not impact intracellular NADH/NAD+ concentrations.
Figure 3. (A–C) Rv0687 deletion in Mtb does not impact intracellular NADH/NAD+ concentrations.
Ijms 25 07862 g003
Ijms 25 07862 g004

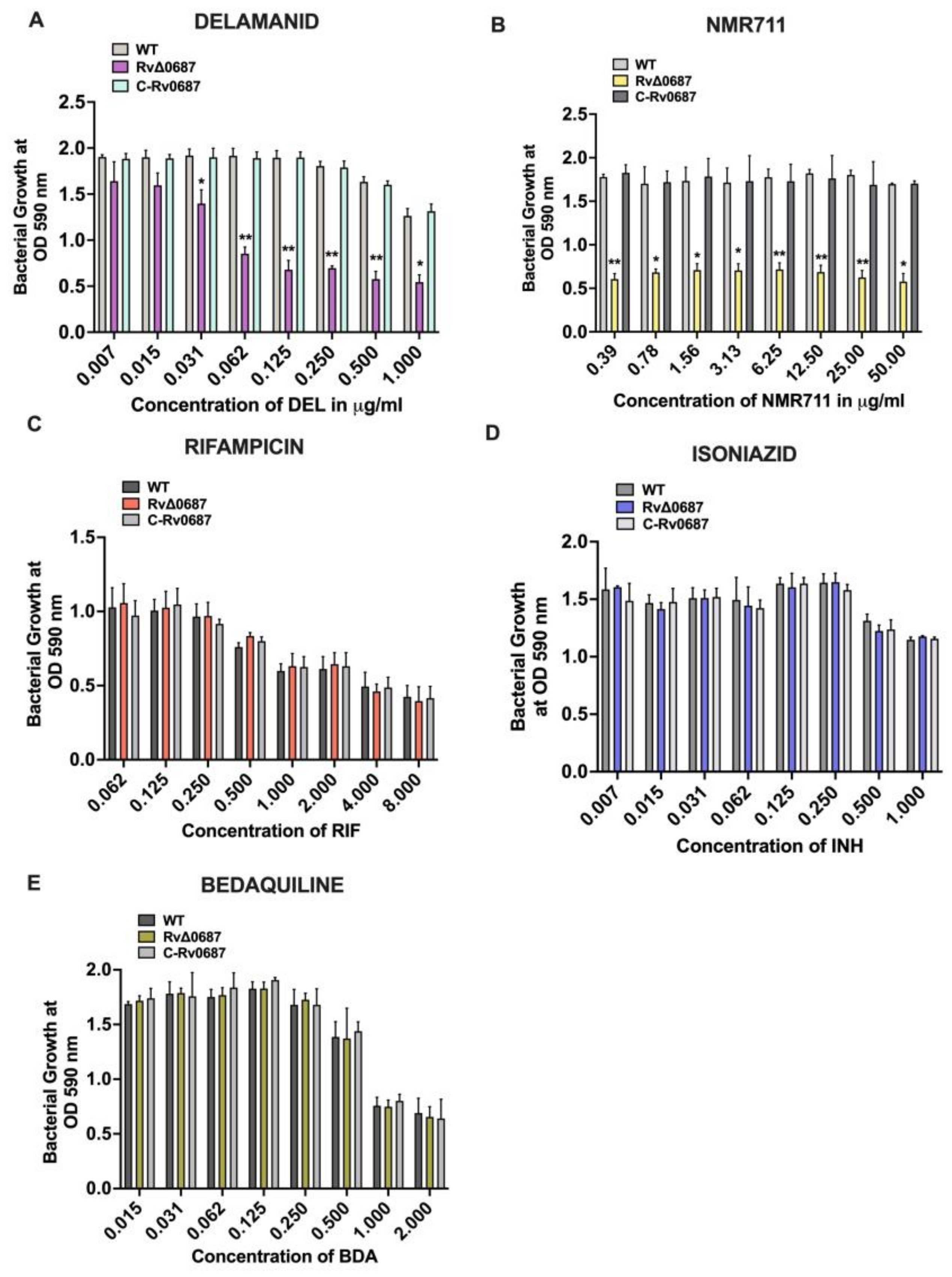

Figure 4. RvΔ0687 is sensitive to Delamanid and NMR711 treatment. The WT, RvΔ0687 and C-Rv0687 strains of ~1 × 106 CFU of bacteria were incubated with serially diluted (A) Delamanid, (B) NMR711, (C) Rifampicin, (D) Isoniazid, (E) Bedaquiline. Alamar Blue was added and plates were incubated at 37 °C. The absorbance was measured at 590 nm using plate reader from day 1 to day 7 to monitor the bacterial survival and growth. Blank wells containing drugs and Alamar Blue were maintained as controls. Graphs were plotted using OD590 nm values at day 7 and Two-way ANOVA with Tukey’s correction method was used to calculate the significance between WT, RvΔ0687 and C-Rv0687 strains (* p < 0.1 and ** p < 0.01). This experiment was performed in duplicates using appropriate controls.
Figure 4. RvΔ0687 is sensitive to Delamanid and NMR711 treatment. The WT, RvΔ0687 and C-Rv0687 strains of ~1 × 106 CFU of bacteria were incubated with serially diluted (A) Delamanid, (B) NMR711, (C) Rifampicin, (D) Isoniazid, (E) Bedaquiline. Alamar Blue was added and plates were incubated at 37 °C. The absorbance was measured at 590 nm using plate reader from day 1 to day 7 to monitor the bacterial survival and growth. Blank wells containing drugs and Alamar Blue were maintained as controls. Graphs were plotted using OD590 nm values at day 7 and Two-way ANOVA with Tukey’s correction method was used to calculate the significance between WT, RvΔ0687 and C-Rv0687 strains (* p < 0.1 and ** p < 0.01). This experiment was performed in duplicates using appropriate controls.
Ijms 25 07862 g004
Ijms 25 07862 g005

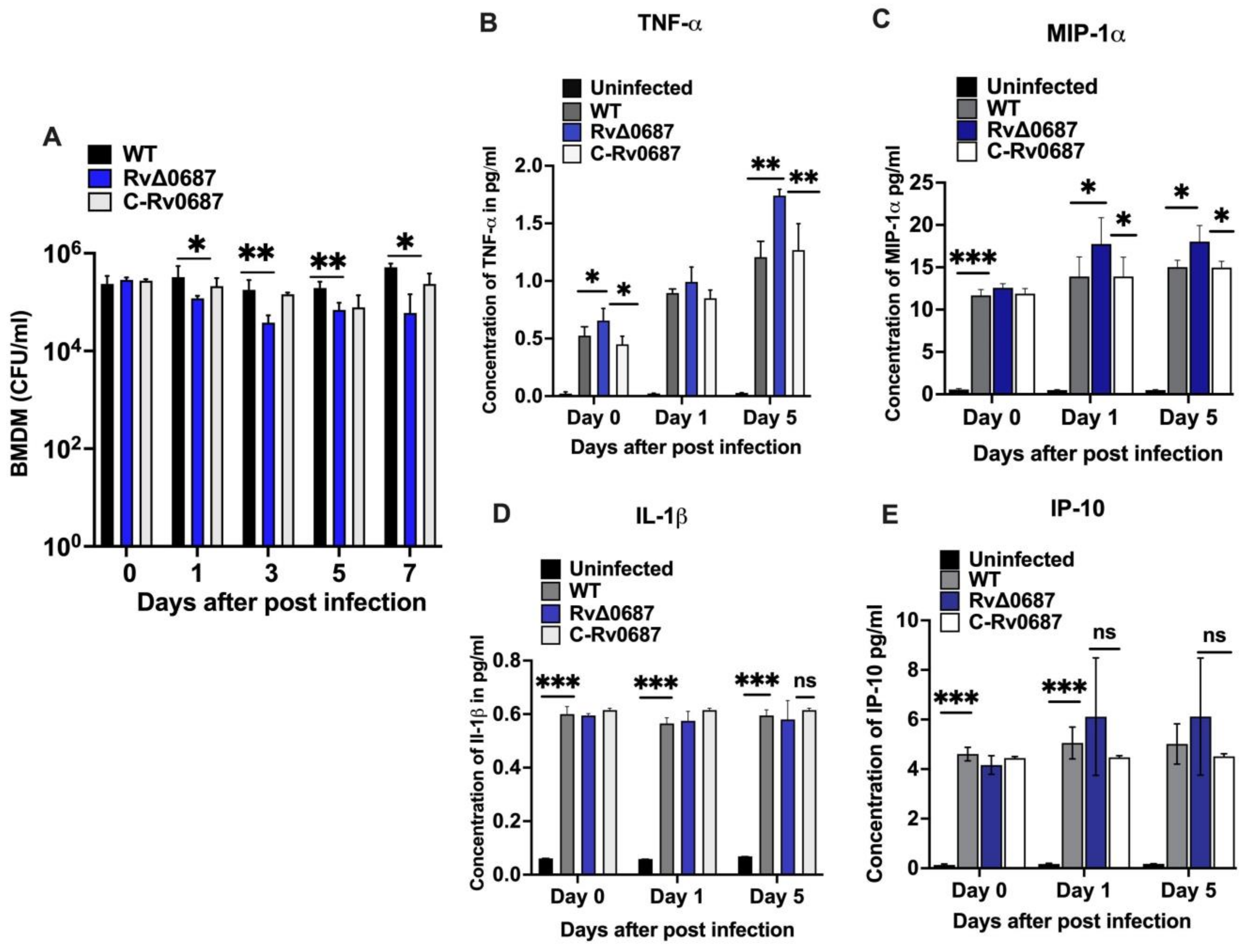

Figure 5. (A) Rv0687 is required for Mtb growth and suppression of inflammatory immune response in BMDMs. The WT, RvΔ0687 and C-Rv0687 strains were used for BMDMs infection at an MOI 1: 5. The in vitro survival was assessed after days 0, 1, 3, 5 and 7 post-infection and bacterial growth was assessed by serially diluting the infected lysate and plated on 7H10 agar and the plates were incubated for 4–6 weeks to calculate the CFUs. The experiment was performed in triplicates and Two-way ANOVA was used to calculate the significance between the bacterial strains. (B–E) Cytokine expression during BMDMs infection. The WT, RvΔ0687 and C-Rv0687 strains infected with BMDMs were analyzed for the expression of TNF-α, IL-1β, MIP-1α and IP-10 cytokines using lysates at day 0, 1 and 5 post-infection. (B) TNF-α, (C) MIP-1α, (D) IL-1β, (E) IP-10. The experiment was performed in triplicates and Two-way ANOVA with Tukey’s correction method was used to calculate the significance between uninfected control and infected bacterial strains (*** p < 0.001, ** p < 0.01 and * p < 0.1). “ns” stands for not significant.
Figure 5. (A) Rv0687 is required for Mtb growth and suppression of inflammatory immune response in BMDMs. The WT, RvΔ0687 and C-Rv0687 strains were used for BMDMs infection at an MOI 1: 5. The in vitro survival was assessed after days 0, 1, 3, 5 and 7 post-infection and bacterial growth was assessed by serially diluting the infected lysate and plated on 7H10 agar and the plates were incubated for 4–6 weeks to calculate the CFUs. The experiment was performed in triplicates and Two-way ANOVA was used to calculate the significance between the bacterial strains. (B–E) Cytokine expression during BMDMs infection. The WT, RvΔ0687 and C-Rv0687 strains infected with BMDMs were analyzed for the expression of TNF-α, IL-1β, MIP-1α and IP-10 cytokines using lysates at day 0, 1 and 5 post-infection. (B) TNF-α, (C) MIP-1α, (D) IL-1β, (E) IP-10. The experiment was performed in triplicates and Two-way ANOVA with Tukey’s correction method was used to calculate the significance between uninfected control and infected bacterial strains (*** p < 0.001, ** p < 0.01 and * p < 0.1). “ns” stands for not significant.
Ijms 25 07862 g005
Ijms 25 07862 g006
Figure 6. (A–F) RvΔ0687 is attenuated for survival in the immunocompromised (Rag−/−) and immunocompetent (C57BL/6) mice model. (A) Infection strategy. (B,C) Bacterial load in Rag−/− lungs and spleen. The WT, RvΔ0687 and C-Rv0687 strains were used to infect the Rag−/− mice (n = 4 animals per group) and euthanized at W0, W4 and W8. Lungs and spleen were harvested, homogenized, and used to enumerate bacterial load via CFU assay. The experiment was performed with n = 5/group and significance was calculated using Two-way ANOVA ** p < 0.01. (D) Survival analysis of WT and RvΔ0687 in Rag−/−. The survival of mice post infection with WT, C-Rv0687 and RvΔ0687 was performed with n = 4 animals per group, and the survival was monitored for 125 days and plotted using the Log rank test. (E,F) Bacterial load in C57BL/6 lungs and spleen. The WT, RvΔ0687 and C-Rv0687 strains were used to infect C57BL/6 mice (n = 4 animals per group) and were euthanized at W0, W4 and W8. Lungs and spleen were processed for bacterial enumeration and CFUs were enumerated per lung and spleen. Dotted line in (C,F) represents the limit of detection. The experiment was performed with appropriate statistical numbers and significance was calculated using Two-way ANOVA (** p < 0.01 and * p < 0.1).
Figure 6. (A–F) RvΔ0687 is attenuated for survival in the immunocompromised (Rag−/−) and immunocompetent (C57BL/6) mice model. (A) Infection strategy. (B,C) Bacterial load in Rag−/− lungs and spleen. The WT, RvΔ0687 and C-Rv0687 strains were used to infect the Rag−/− mice (n = 4 animals per group) and euthanized at W0, W4 and W8. Lungs and spleen were harvested, homogenized, and used to enumerate bacterial load via CFU assay. The experiment was performed with n = 5/group and significance was calculated using Two-way ANOVA ** p < 0.01. (D) Survival analysis of WT and RvΔ0687 in Rag−/−. The survival of mice post infection with WT, C-Rv0687 and RvΔ0687 was performed with n = 4 animals per group, and the survival was monitored for 125 days and plotted using the Log rank test. (E,F) Bacterial load in C57BL/6 lungs and spleen. The WT, RvΔ0687 and C-Rv0687 strains were used to infect C57BL/6 mice (n = 4 animals per group) and were euthanized at W0, W4 and W8. Lungs and spleen were processed for bacterial enumeration and CFUs were enumerated per lung and spleen. Dotted line in (C,F) represents the limit of detection. The experiment was performed with appropriate statistical numbers and significance was calculated using Two-way ANOVA (** p < 0.01 and * p < 0.1).
Ijms 25 07862 g006
