Effects of Modulating BMP9, BMPR2, and AQP1 on BMP Signaling in Human Pulmonary Microvascular Endothelial Cells

by
Nikolaos S. Lotsios
1,†,
Chrysi Keskinidou
1,†,
Ioanna Dimopoulou
1,
Anastasia Kotanidou
1,
David Langleben
2,‡,
Stylianos E. Orfanos
1,*,‡ and
Alice G. Vassiliou
1,*
1
First Department of Critical Care Medicine & Pulmonary Services, School of Medicine, National and Kapodistrian University of Athens, Evangelismos Hospital, 106 76 Athens, Greece
2
Center for Pulmonary Vascular Disease, Azrieli Heart Center and Lady Davis Institute, Jewish General Hospital, McGill University, Montreal, QC H3T 1E2, Canada
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
These authors contributed equally to this work.
Int. J. Mol. Sci. 2024, 25(15), 8043; https://doi.org/10.3390/ijms25158043
Submission received: 27 June 2024 / Revised: 19 July 2024 / Accepted: 22 July 2024 / Published: 24 July 2024
(This article belongs to the Section Molecular Pathology, Diagnostics, and Therapeutics)
Browse Figures
Versions Notes

Abstract

:
Pulmonary arterial hypertension (PAH) is a chronic disease characterized by a progressive increase in mean pulmonary arterial pressure. Mutations in the BMPR2 and AQP1 genes have been described in familial PAH. The bone morphogenetic proteins BMP9 and BMP10 bind with high affinity to BMPR2. Administration of BMP9 has been proposed as a potential therapeutic strategy against PAH, although recent conflicting evidence dispute the effect of such a practice. Considering the involvement of the above molecules in PAH onset, progression, and therapeutic value, we examined the effects of modulation of BMP9, BMPR2, and AQP1 on BMP9, BMP10, BMPR2, AQP1, and TGFB1 expression in human pulmonary microvascular endothelial cells in vitro. Our results demonstrated that silencing the BMPR2 gene resulted in increased expression of its two main ligands, namely BMP9 and BMP10. Exogenous administration of BMP9 caused the return of BMP10 to basal levels, while it restored the decreased AQP1 protein levels and the decreased TGFB1 mRNA and protein expression levels caused by BMPR2 silencing. Moreover, AQP1 gene silencing also resulted in increased expression of BMP9 and BMP10. Our results might possibly imply that the effect of exogenously administered BMP9 on molecules participating in the BMP signaling pathway could depend on the expression levels of BMPR2. Taken together, these results may provide insight into the highly complex interactions of the BMP signaling pathway.
Keywords:
PAH; BMP9; BMPR2; AQP1

1. Introduction

Pulmonary hypertension (PH) is characterized as a chronic and progressive disorder [1]. Pulmonary arterial hypertension (PAH), one of the five subgroups of PH, mainly affects the distal pulmonary arteries and occurs in both idiopathic and hereditary forms. Loss and obstructive remodeling of the pulmonary vascular bed are responsible for the progressive increase in pulmonary arterial pressure and pulmonary vascular resistance, leading to right heart failure and eventually death [2,3,4]. PAH onset and development are highly affected by alterations in the signaling pathways governed by members of the transforming growth factor-β (TGF-β) family. Hereditary cases of PAH commonly present a variety of mutations in the gene encoding for the bone morphogenetic protein receptor type II (BMPR2), leading to the protein’s loss of function [5,6,7]. In addition to hereditary PAH, ~10–40% of idiopathic PAH cases carry BMPR2 mutations [8]. BMPR2 contributes significantly to blood vessel formation and function; disrupted signaling due to decreased BMPR2 expression is also predominant even in PAH cases lacking BMPR2 mutations [9].
In the canonical BMP signaling pathway, BMPR2 acts as a regulator of gene expression through BMP ligand binding, type I receptor activation, and phosphorylation of specific members of the mothers against decapentaplegic (SMAD) family. BMP9 and BMP10 are the primary ligands of the receptor complex, playing a significant role in homeostasis and vascular development [10]. BMP9 is thought to be the principal ligand for BMPR2. As such, it leads to enhanced BMPR2 signaling which is antiproliferative, and would inhibit the formation of PAH pathology. BMP10 is thought to have similar actions [11]. Heterozygous mutations in the genes encoding for BMP9 and BMP10 have been identified in several PAH cases [5,12,13,14].
Current PAH therapies have improved symptoms and functional capacity, and have reduced the incidence of deteriorations. These include orally active phosphodiesterase-5 inhibitors and soluble guanylate cyclase stimulators to raise abnormally low cyclic guanosine monophosphate (GMP) levels, intravenous, subcutaneous, inhaled, and oral prostanoid analogs or mimetics to raise abnormally low cyclic adenosine monophosphate (AMP) levels, and orally active endothelin receptor blockers to reduce the detrimental effects of increased endothelin-1 levels [15]. Recently, sotatercept, an activin-binding molecule, has also shown significant efficacy and has been approved for clinical use. It addresses pulmonary microvascular cell proliferation rather than vascular tone, and it offers the potential to at least partially correct the BMPR2/TGFB signaling imbalance seen in PAH [16]. Although the administration of recombinant BMP9 has been proposed as a novel therapeutic strategy, few experimental studies have explored the important role of BMP9 in the pathogenesis of PAH [11,17,18,19].
Alongside BMP signaling, disrupted TGF-β signaling is central to the development and progression of PAH. TGF-β ligands bind with high affinity to the TβRII/TβRI receptor complex, thus activating the canonical and non-canonical signaling pathways [20]. The TGF-β family has pleiotropic and redundant functions, and it can regulate cellular processes, including cell proliferation, differentiation, and migration [21]. Among the members of the family, growth factor TGF-β1 is of great interest. Specifically, TGF-β1 has a significant role in the synthesis and increased deposition of the extracellular matrix during vascular wall remodeling [22]. Furthermore, it is evident that TGF-β family dysregulation is an important component in PAH, contributing to pulmonary vascular remodeling and inflammation [20].
As stated above, mutations in the BMPR2 gene and downstream targets of canonical BMP signaling drive PAH development. Recent genetic evidence has identified novel genes with mutations among PAH patients. Mutations in the gene encoding for aquaporin 1 (AQP1) have been described in several cases of hereditary PAH, resulting in the characterization of AQP1 as a PAH-related gene [5,23]. Aquaporins (AQPs) are membrane channel proteins with a significant role in water transport regulation across the cell membrane [24]. Along with their role in water homeostasis, AQPs contribute to several biological processes, among which are cell proliferation, cell migration, and edema formation [25]. Recently, our group has described a link between AQP1 and members of the BMP signaling pathway, including BMPR2 and TGF-β1 [26,27].
Based on the above, in the present study, we aimed to examine the mRNA and protein expression patterns of BMP9 and BMP10 in human pulmonary microvascular endothelial cells (HPMECs) where we silenced the expression of AQP1 and BMPR2. Considering the therapeutic role of BMP9, we investigated the effect of exogenous BMP9 administration on AQP1, BMPR2, BMP10, and TGFB1 mRNA and protein expression in BMPR2-silenced HPMECs, a commonly used in vitro PAH model.

2. Results

2.1. Effects of Modulating BMPR2 and BMP9 on BMP Signaling Molecules in Human Pulmonary Microvascular Endothelial Cells

Considering the proposed role of BMP9 as a potential therapeutic in PAH, we decided to explore the effect of modulating BMPR2 and BMP9 on molecules implicated in BMP signaling. Initially, we silenced the HPMECs for BMPR2. At first, we tested transfection specificity by transfecting the cells with a universal scrambled negative control siRNA duplex (siRNA controls). The resultant BMPR2 expression levels in the siRNA controls were 0.71 (0.52–1.15) vs. 0.96 (0.75–1.39) in the non-transfected control cells (p > 0.05). We then proceeded with the transfection with the BMPR2-specific siRNA, which resulted in silencing the BMPR2 gene by 50% compared to the non-transfected control cells (0.48 (0.39–0.55) vs. 0.96 (0.75–1.39), respectively, p < 0.01; Figure 1a). The same effect was observed regarding BMPR2 protein levels compared to the non-transfected control cells (0.45 ± 0.17, p < 0.05; Figure 1b). The effect of BMPR2 silencing was subsequently studied on BMP9 and BMP10 mRNA expression. BMP9 mRNA expression was increased nearly 13-fold compared to the non-transfected control cells (12.69 (12.14–23.67) vs. 1.20 (0.77–1.67), respectively, p < 0.05; Figure 1c) and protein expression increased by 22% in the BMPR2-silenced cells compared to the non-transfected control cells (1.22 ± 0.09, p < 0.01; Figure 1d). BMP10 mRNA expression increased four-fold compared to the non-transfected control cells (4.03 (3.03–8.68) vs. 1.01 (0.72–1.44), respectively, p < 0.05; Figure 1e), whereas BMP10 protein levels remained unaltered compared to the non-transfected control cells (1.69 ± 0.51, p > 0.05; Figure 1f).
Exogenous administration of BMP9 to the BMPR2-silenced cells did not have any effect on the BMPR2 mRNA and protein expression levels, which remained reduced compared to the non-transfected control cells. The BMPR2 mRNA levels remained lower than the non-transfected control cells (0.52 (0.43–0.66) vs. 0.96 (0.75–1.39), respectively, p < 0.01; Figure 1a), and the same applied to its protein levels (0.26 ± 0.07, p < 0.01; Figure 1b). On the other hand, following BMP9 exogenous administration, the expression levels of BMP10 mRNA returned to its levels prior to treatment and did not differ from the non-transfected control cells (1.07 (0.66–2.62) vs. 1.01 (0.72–1.44), respectively, p > 0.05; Figure 1e). BMP10 protein levels, however, were not affected (0.73 ± 0.13, p > 0.05; Figure 1f).
Given our previous published results on the effect of BMPR2 silencing on AQP1 and TGFB1 expression [26,27], we then proceeded to examine the effect of BMP9 exogenous administration on AQP1 and TGFB1 mRNA and protein expression in BMPR2-silenced HPMECs. After reconfirming our previous findings that BMPR2 silencing results in decreased AQP1 expression compared to the non-transfected control cells (0.31 (0.11–0.47) vs. 0.95 (0.87–1.21), respectively, p < 0.01; Figure 1g), we examined the effect of BMP9 exogenous administration. No effect of BMP9 on the mRNA expression of AQP1 was observed, which remained decreased compared to the non-transfected control cells (0.48 (0.29–0.76) vs. 0.95 (0.87–1.21), respectively, p < 0.05; Figure 1g). Of most interest, however, exogenous administration of BMP9 could restore the decreased AQP1 protein levels resulting from BMPR2 silencing. Prior to BMP9 treatment, AQP1 levels decreased to 0.75 ± 0.08 compared to the non-transfected control cells (p < 0.01; Figure 1h), whereas after treatment, the lowered levels were restored (1.09 ± 0.10, p > 0.05; Figure 1h). Finally, after reconfirming our formerly published results that silencing of BMPR2 expression results in decreased TGFB1 mRNA expression compared to the non-transfected control cells (0.78 (0.60–0.92) vs. 1.02 (0.89–1.13), respectively, p < 0.05; Figure 1i), we demonstrated that the exogenous administration of BMP9 could restore the TGFB1 mRNA levels in BMPR2-silenced HPEMCs, returning them to levels comparable with the non-transfected control cells (0.86 (0.71–0.99) vs. 1.02 (0.89–1.13), respectively, p > 0.05; Figure 1i). We finally examined TGFB1 protein levels in the BMPR2-silenced HPMECs. TGFB1 protein levels decreased in the BMPR2-silenced cells compared to the non-transfected control cells (0.61 ± 0.18, p < 0.05; Figure 1j). The exogenous administration of BMP9 reversed the effect of BMPR2 silencing on TGFB1 protein levels (0.80 ± 0.24, p > 0.05; Figure 1j).

2.2. Effects of Modulating AQP1 on BMP Signaling Molecules in Human Pulmonary Microvascular Endothelial Cells

Our group has previously described the interplay between AQP1 and BMPR2 [26,27]. Considering our previously published data, the finding presented above that BMP9 restores AQP1 protein levels in BMPR2-silenced cells, and the fact that BMP9 and BMP10 are the two most important ligands of BMPR2, we next aimed to examine the mRNA and protein expression of these molecules in AQP1-silenced HPMECs (Figure 2). As in BMPR2, transfection specificity was initially tested by transfecting the cells with a universal scrambled negative control siRNA duplex. The resultant AQP1 levels in the siRNA controls were 0.90 (0.63–1.77) vs. 1.03 (0.72–1.40) in the non-transfected control cells (p > 0.05). Transfection with the AQP1-specific siRNA resulted in silencing the AQP1 gene by 70% compared to the non-transfected control cells (0.30 (0.13–0.53) vs. 1.03 (0.72–1.40), respectively, p < 0.05). The AQP1-silenced cells showed an increase in both mRNA and protein levels of BMP9 (Figure 2a,b). Specifically, BMP9 mRNA expression increased 18-fold compared to the non-transfected control cells (18.04 (5.30–47.14) vs. 1.03 (0.71–1.41), respectively, p < 0.05; Figure 2a). BMP9 protein levels increased by 17% following AQP1-silencing compared to the non-transfected control cells (1.17 ± 0.01, p < 0.05; Figure 2b). On the other hand, only the mRNA levels of BMP10 were found to be significantly altered in AQP1-silenced cells compared to the non-transfected control cells (15.23 (8.61–53.42) vs. 0.92 (0.44–3.05), respectively, p < 0.05; Figure 2c). BMP10 protein levels remained unaltered (0.91 ± 0.14, p > 0.05; Figure 2d).
In Figure 3, the findings of our study are depicted schematically.

3. Discussion

It is well established that dysregulation of the BMP signaling pathway contributes to PAH onset. In this study, we aimed to explore the interplay between the main ligands of BMPR2 and several molecules with a central role in PAH development and progression. We demonstrated that silencing of AQP1 and BMPR2 in HPMECs positively affects the expression of both BMP9 and BMP10. We also examined the effect of exogenous BMP9 administration on AQP1, TGFB1, and BMP10 mRNA and protein expression in BMPR2-silenced HPEMCs. We observed that the exogenous administration of BMP9 could restore the decreased AQP1 protein levels and the decreased TGFB1 mRNA and protein expression levels caused by BMPR2 silencing. Finally, our results may possibly imply that in pulmonary endothelial cells, the effect of exogenous BMP9 administration on BMPR2, BMP10, AQP1, and TGFB1 expression might be dependent on the expression levels of BMPR2. The mechanism, however, is unclear. BMP9 acts mainly as the ligand for BMPR2, so BMPR2 levels might be critical to BMP9 signaling.
Acknowledging the importance of endothelial cells in PAH, our group has demonstrated a possible interplay between AQP1 and several members of the BMP signaling pathway in HPMECs. More specifically, silencing of AQP1 resulted in decreased BMPR2 mRNA, whereas BMPR2-silenced HPMECs presented downregulation of AQP1 mRNA, protein expression, and function [26,27]. Aiming to further explore this interaction, we chose to examine the expression patterns of the BMPR2 ligands, BMP9 and BMP10, in AQP1- and BMPR2-silenced HPMECs. In both cases, silencing of either AQP1 or BMPR2 resulted in the mRNA upregulation of both ligands and the increase in BMP9 protein expression. These results further confirm the complex interplay between AQP1 and BMPR2, although they raise novel questions regarding the order in which these changes in expression levels take place.
BMP9 is regarded as the main ligand of BMPR2, and its pro- and anti-angiogenic properties have been at the epicenter of a discourse most relevant in PAH. Most importantly, findings regarding the role of BMP9 in PAH have been conflicting. In several studies, BMP9 has been proposed to promote pulmonary arterial remodeling. Tu and colleagues showed that BMP9-knock-out mice exposed to chronic hypoxia demonstrate decreased endothelin-1 and increased apelin and adrenomedullin mRNA levels compared to wild-type BMP9 mice, thus proposing that selective inhibition of BMP9 in mice could prevent the development of experimental pulmonary hypertension [19]. Furthermore, the increase in wall thickness and muscularization of distal pulmonary arteries under hypoxic conditions was shown to be repressed by single BMP9 or double BMP9/BMP10 deletions [28]. Pathologic variants in GDF2, the gene for BMP9 are known to cause typical PAH [29,30,31]. In a recent publication, Theilmann and colleagues showed that BMP9 administration increased proliferation in blood outgrowth endothelial cells (BOECs) derived from PAH patients bearing BMPR2 mutations, as well as in BMPR2-silenced human pulmonary artery endothelial cells. Most importantly, using conditional knockout mice, the authors correlated BMPR2 expression and endothelial proliferation. A reduction greater than 50% was needed for proliferation to be induced [11].
In our HPMECs, BMPR2 silencing resulted in a greater than 50% reduction in BMPR2 mRNA expression. This reduction in BMPR2 gene expression was accompanied by enhanced BMP signaling, evident by the mRNA increase in both BMP9 and BMP10, and the protein increase in BMP9. Administration of BMP9 returned BMP10 mRNA to control levels, depicting the presence of a possible equilibrium between BMP9 and BMP10 levels. Furthermore, we observed that the downregulation of ΤGFΒ1 mRNA and protein caused by BMPR2 silencing was seemingly reversed by BMP9 administration. This could possibly lead to enhanced TGFβ-signaling, a known hallmark of PAH [32]. On a functional level, it has been accepted that reprogramming of endothelial cells through endothelial-to-mesenchymal transition (EndMT) retains a role in the progression of PAH. Interestingly, BMP9 administration to pulmonary microvascular endothelial cells (MVECs) derived from PAH patients impaired the endothelial barrier function [18,33].
On the other hand, compromised BMP9 expression is reported in clinical PAH cases. As previously noted, BMP9 gene mutations have been associated with PAH. Plasma BMP9 levels were reportedly reduced in female PAH patients carrying mutations in the BMP9 gene. The presence of BMP9 mutations hampered BMP10 plasma levels as well [34]. Circulating BMP9 has been reported to be undetectable in several studies focusing on pediatric PAH patients carrying mutations in the BMP9 gene. In some cases, BMP10 levels were found to be reduced as well [30,31,35]. Of note, circulating BMP9 levels were found markedly reduced in patients with portopulmonary hypertension (PoPH), in comparison to healthy controls. A decrease in circulating BMP9 was also confirmed in CCl4 mice. Most importantly, low BMP9 levels were shown to dispose a significant ability in predicting the development of PoPH in patients with liver disease [36].
Recently, BMP9 treatment has been reported to affect BMPR2 expression. In HPAECs silenced for ALK1, the BMPR2 gene and protein expression has been shown to increase following BMP9 treatment [37]. Similarly, Long et al. demonstrated an increase in BMPR2 mRNA and protein expression in PAECs post-BMP9 administration [17]. In our series of experiments, BMP9 failed to return BMPR2 mRNA to baseline levels in BMPR2-silenced HPMECs. A similar finding to ours was described by Upton and colleagues in HPAECs, demonstrating that the effect of BMP9 administration on BMPR2 expression is affected by the underlying BMPR2 expression levels [37]. Long and colleagues further examined the therapeutic value of BMP9 use in PAH demonstrating its ability to reverse PAH pathology in both genetic and non-genetic animal models. The effect of BMP9 administration on PAH pathophysiology could possibly be correlated to existing BMPR2 expression levels. Administration of BMP9 proves to be successful in attenuating apoptosis in BOECs from both healthy controls and PAH patients carrying BMPR2 mutations. Interestingly, its anti-apoptotic effect was ameliorated in PAECs previously silenced for BMPR2 expression [17].
As previously stated, AQP1 has been suggested to have a potentially causative role in PAH, with rare missense variants being overrepresented in patients with familial PAH [5]. AQPs’ diverse roles range from cell proliferation and migration, angiogenesis, inflammatory responses, and signaling transduction [38,39]. Regarding AQP1 expression, Li and colleagues have demonstrated that treatment with pro-BMP9 resulted in a significant decrease in AQP1 mRNA expression in HPEMCs [40]. Interestingly, in our series of experiments performed in BMPR2-silenced HPMECs, even though BMP9 treatment had no effect on the decreased AQP1 mRNA expression, it did cause AQP1 protein expression to return to pre-treatment levels.
Our results, in combination with existing evidence in the published literature, could propose that the effects of exogenous BMP9 administration are closely dependent on BMPR2 expression levels and could grant a greater perspective on the interaction between BMP signaling and AQP1 expression. Our results offer a glimpse at the complexity of receptor-ligand signaling in PAH, and suggest that further studies are warranted.
Among the limitations of our study is the fact that we only utilized a single in vitro cell model in our experiments. Further investigation on animal models as well as cell samples derived from PAH patients could prove to be beneficial. In addition, our study focused on the genetic and protein expression patterns of the studied molecules. In the present study, we focused on the pathophysiology of PAH and mainly on the genetic and protein expression patterns of studied molecules. The precapillary pulmonary microvasculature, where PAH develops, is a unique circulation in the body, with different embryologic origin and different vasodilator/constrictor responses as compared to the systemic circulation. Future studies could focus on revealing the functional and mechanistic effects of BMP9 administration on BMPR2-silenced cells. Finally, the therapeutic implications of BMP9 administration should be further investigated in clinical studies, which provide concrete data on clinical benefit. On the other hand, a strong aspect of our study is that it explores in greater depths the interplay between AQP1 and BMPR2, two known mediators in PAH onset. To the best of our knowledge, this is the first study to demonstrate the effect of BMP9 administration on AQP1 expression in the setting of reduced BMPR2 expression, thus shedding light onto the complex interplay between BMP signaling and AQP1 expression.

4. Materials and Methods

4.1. Cell Culture

The designed experiments were performed using the HPMEC-ST1.6R cell line, which was generated from human pulmonary microvascular endothelial cells isolated from an adult donor (male, 63 years old, malignant tumor, passage 24). In our case, the cell line was a kind gift from Dr. Donald E. Unger of the Johannes Gutenberg-Universität in Mainz [41]. Cells were incubated at 37 °C with stable 5% CO2 levels. M199 medium (Biosera, Cholet, France) supplemented with 20% fetal bovine serum (PAN-Biotech, Aidenbach, Germany), 1% L-glutamine, 1% antibiotics (Biowest, Nuaille, France), 25 μg/mL heparin (LEO Pharmaceutical Hellas S.A., Chalandri, Greece), and 50 μg/mL endothelial cell growth serum (MilliporeSigma, Burlington, MA, USA) was used for cell culture.

4.2. Transfection in Human Pulmonary Microvascular Endothelial Cells

The transfection assay was performed according to the manufacturer’s instructions using the SiTran2.0 transfection reagent supplied by OriGene (OriGene, Rockville, MD, USA). The day prior to transfection, the cells were plated to achieve 50–70% confluency on transfection day. On the day of transfection, 5.5 nM of the siRNA (OriGene) were added to the cells in serum-free medium (Opti-MEM, Thermo Fisher Scientific, Waltham, MA, USA). Subsequently, 5 h post-transfection, the serum-free medium containing the siTran/siRNA mixture was replaced with fully supplemented M199 medium (Biosera, Cholet, France).

4.3. BMP9 Treatment of Human Pulmonary Microvascular Endothelial Cells

Cells were treated with BMP9 (OriGene, Rockville, MD, USA) 24 h post-transfection. BMP9 was added to fully supplemented M199 medium to a final concentration of 5 ng/mL. The cells were incubated at 37 °C and 5% CO2 for 24 h, and were subsequently harvested for total RNA and protein extraction.

4.4. RNA Extraction

Total RNA was extracted using the TRI reagent (Thermo Fisher Scientific, Waltham, MA, USA) according to the manufacturer’s instructions. A spectrophotometer was used to assess the concentration and quality of isolated total RNA at 260/280 nm, and RNA integrity was evaluated with formaldehyde agarose gel electrophoresis.

4.5. Reverse Transcription and Quantitative Real-Time PCR

From each sample, 100 ng of total RNA were used to synthesize cDNA (Nippon Genetics, Duren, Germany) following the manufacturer’s instructions. Subsequently, the quantitative real-time polymerase chain reaction (qPCR) method (Kapa SYBR® Green PCR Master Mix, Sigma-Aldrich, St Louis, MO, USA) was performed to measure AQP1, BMP9, BMP10, BMPR2, TGFB1, and GAPDH mRNA expression. The analysis was performed on a CFX Connect thermocycler (Bio-Rad Laboratories, Inc., Hercules, CA, USA). In Table 1, the specific primer set used for each gene is listed.
The comparative CT method 2−ΔΔCT was used for the calculation of relative gene expression levels of treated cells versus untreated control cells [42]. GAPDH mRNA expression levels were used for normalization purposes.

4.6. Protein Determination

Cells were homogenized on ice using a handheld homogenizer, following the addition of lysis buffer consisting of 250 mM sucrose, 10 mM Tris-HCl, 10 mM NaCl, 1 mM EDTA, 0.1 mM PMSF, and 1% v/v Triton-X 100, with a pH 7.4. The homogenate was centrifuged at 1000× g at 4 °C for 5 min. Following centrifugation, the supernatant containing the extracted proteins was collected and stored at −80 °C until used. The bicinchoninic acid (BCA, Thermo Fisher Scientific, Waltham, MA, USA) method was used for the determination of total protein concentration [43]. Bovine serum albumin was used as the standard.

4.7. SDS-Polyacrylamide Gel Electrophoresis (PAGE) and Immunoblotting of Human Pulmonary Microvascular Endothelial Cells’ Homogenates

A “Biorad Mini Protean II” electrophoresis apparatus (Bio-Rad Laboratories, Inc., Hercules, CA, USA) and 12% or 15% polyacrylamide slab gels were utilized to perform SDS-PAGE, as previously described [44]. A wet transfer apparatus (Bio-Rad Laboratories, Inc., Hercules, CA, USA) allowed for the western transfer onto an Immobilon-P PVDF membrane (0.45 L pore size, MilliporeSigma, Burlington, MA, USA) [45]. Immunological detection followed using specific antibodies for AQP1 (MilliporeSigma, Burlington, MA, USA), BMP9 (Elabscience, Houston, TX, USA), BMP10 (Affinity Biosciences, Cincinnati, OH, USA), BMPR2 (Affinity Biosciences, Cincinnati, OH, USA), and TGFB1 (Affinity Biosciences, Cincinnati, OH, USA). Actin (MilliporeSigma, Burlington, MA, USA) was used as loading controls. Enhanced chemiluminescence (ECL) was performed to detect proteins (MilliporeSigma, Burlington, MA, USA). Densitometry was applied to estimate relative protein expression using the Thermo Fisher iBright CL1500 Imaging System (Thermo Fisher Scientific, Waltham, MA, USA).

4.8. Statistical Analysis

Data are depicted as box plots or bar plots, presenting median values with interquartile range (IQR) (skewed distribution) or mean + SEM (normal distribution). Statistical analysis was performed using the non-parametric Mann–Whitney test, or Student’s t-test, as appropriate. All tests were performed using the GraphPad Prism 9 software (GraphPad Software, San Diego, CA, USA). All p-values are two-sided; statistical significance was set at p < 0.05.

5. Conclusions

We have previously shown the interaction between the BMPR2 and AQP1 genes. Herein, we further explored this relationship and were able to expand this knowledge by demonstrating the effect of AQP1 expression levels on the expression of the ligands of BMPR2, namely BMP9 and BMP10. Furthermore, we demonstrated that silencing the BMPR2 gene resulted in increased expression of BMP9 and BMP10. Exogenous administration of BMP9 caused a return in BMP10 to basal levels, while it restored the decreased AQP1 protein levels and the decreased TGFB1 mRNA and protein expression levels caused by BMPR2 silencing. Our results might possibly imply that the effect of exogenously administered BMP9 on molecules participating in the BMP signaling pathway could depend on the expression levels of BMPR2. In conclusion, our results provide a new perspective into the complex interactions of BMP signaling. Further experiments in animal models and the clinical setting could provide a better understanding of the underlying mechanisms that govern PAH and its therapeutic interventions.

Author Contributions

Conceptualization, S.E.O. and A.G.V.; methodology, N.S.L., C.K. and A.G.V.; validation, I.D., A.K. and A.G.V.; formal analysis, N.S.L., C.K. and A.G.V.; investigation, N.S.L., C.K., and A.G.V.; resources, S.E.O.; data curation, N.S.L. and C.K.; writing—original draft preparation, N.S.L. and C.K.; writing—review and editing, I.D., A.K., D.L., S.E.O. and A.G.V.; visualization, D.L., S.E.O. and A.G.V.; supervision, D.L., S.E.O. and A.G.V.; project administration, I.D., A.K., D.L., S.E.O. and A.G.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

This work was supported by the nonprofit institute “THORAX” Research Center for Intensive and Emergency Medicine Athens, Greece.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Simonneau, G.; Montani, D.; Celermajer, D.S.; Denton, C.P.; Gatzoulis, M.A.; Krowka, M.; Williams, P.G.; Souza, R. Haemodynamic definitions and updated clinical classification of pulmonary hypertension. Eur. Respir. J. 2019, 53, 1801913. [Google Scholar] [CrossRef] [PubMed]
  2. Dunmore, B.J.; Jones, R.J.; Toshner, M.R.; Upton, P.D.; Morrell, N.W. Approaches to treat pulmonary arterial hypertension by targeting BMPR2: From cell membrane to nucleus. Cardiovasc. Res. 2021, 117, 2309–2325. [Google Scholar] [CrossRef] [PubMed]
  3. Anderson, J.J.; Lau, E.M. Pulmonary Hypertension Definition, Classification, and Epidemiology in Asia. JACC Asia 2022, 2, 538–546. [Google Scholar] [CrossRef] [PubMed]
  4. Humbert, M.; Guignabert, C.; Bonnet, S.; Dorfmuller, P.; Klinger, J.R.; Nicolls, M.R.; Olschewski, A.J.; Pullamsetti, S.S.; Schermuly, R.T.; Stenmark, K.R.; et al. Pathology and pathobiology of pulmonary hypertension: State of the art and research perspectives. Eur. Respir. J. 2019, 53, 1801887. [Google Scholar] [CrossRef]
  5. Graf, S.; Haimel, M.; Bleda, M.; Hadinnapola, C.; Southgate, L.; Li, W.; Hodgson, J.; Liu, B.; Salmon, R.M.; Southwood, M.; et al. Identification of rare sequence variation underlying heritable pulmonary arterial hypertension. Nat. Commun. 2018, 9, 1416. [Google Scholar] [CrossRef]
  6. Hara, H.; Takeda, N.; Morita, H.; Hatano, M.; Amiya, E.; Maki, H.; Minatsuki, S.; Taki, M.; Shiraishi, Y.; Fujiwara, T.; et al. Three novel BMPR2 mutations associated with advanced pulmonary arterial hypertension. Hum. Genome Var. 2017, 4, 17010. [Google Scholar] [CrossRef]
  7. Wang, J.; Zhang, C.; Liu, C.; Wang, W.; Zhang, N.; Hadadi, C.; Huang, J.; Zhong, N.; Lu, W. Functional mutations in 5′UTR of the BMPR2 gene identified in Chinese families with pulmonary arterial hypertension. Pulm. Circ. 2016, 6, 103–108. [Google Scholar] [CrossRef]
  8. Evans, J.D.; Girerd, B.; Montani, D.; Wang, X.J.; Galie, N.; Austin, E.D.; Elliott, G.; Asano, K.; Grunig, E.; Yan, Y.; et al. BMPR2 mutations and survival in pulmonary arterial hypertension: An individual participant data meta-analysis. Lancet Respir. Med. 2016, 4, 129–137. [Google Scholar] [CrossRef]
  9. Atkinson, C.; Stewart, S.; Upton, P.D.; Machado, R.; Thomson, J.R.; Trembath, R.C.; Morrell, N.W. Primary pulmonary hypertension is associated with reduced pulmonary vascular expression of type II bone morphogenetic protein receptor. Circulation 2002, 105, 1672–1678. [Google Scholar] [CrossRef]
  10. David, L.; Mallet, C.; Mazerbourg, S.; Feige, J.J.; Bailly, S. Identification of BMP9 and BMP10 as functional activators of the orphan activin receptor-like kinase 1 (ALK1) in endothelial cells. Blood 2007, 109, 1953–1961. [Google Scholar] [CrossRef]
  11. Theilmann, A.L.; Hawke, L.G.; Hilton, L.R.; Whitford, M.K.M.; Cole, D.V.; Mackeil, J.L.; Dunham-Snary, K.J.; Mewburn, J.; James, P.D.; Maurice, D.H.; et al. Endothelial BMPR2 Loss Drives a Proliferative Response to BMP (Bone Morphogenetic Protein) 9 via Prolonged Canonical Signaling. Arterioscler. Thromb. Vasc. Biol. 2020, 40, 2605–2618. [Google Scholar] [CrossRef] [PubMed]
  12. Eyries, M.; Montani, D.; Nadaud, S.; Girerd, B.; Levy, M.; Bourdin, A.; Tresorier, R.; Chaouat, A.; Cottin, V.; Sanfiorenzo, C.; et al. Widening the landscape of heritable pulmonary hypertension mutations in paediatric and adult cases. Eur. Respir. J. 2019, 53, 1801371. [Google Scholar] [CrossRef]
  13. Wang, G.; Fan, R.; Ji, R.; Zou, W.; Penny, D.J.; Varghese, N.P.; Fan, Y. Novel homozygous BMP9 nonsense mutation causes pulmonary arterial hypertension: A case report. BMC Pulm. Med. 2016, 16, 17. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, X.J.; Lian, T.Y.; Jiang, X.; Liu, S.F.; Li, S.Q.; Jiang, R.; Wu, W.H.; Ye, J.; Cheng, C.Y.; Du, Y.; et al. Germline BMP9 mutation causes idiopathic pulmonary arterial hypertension. Eur. Respir. J. 2019, 53, 1801609. [Google Scholar] [CrossRef] [PubMed]
  15. Humbert, M.; Kovacs, G.; Hoeper, M.M.; Badagliacca, R.; Berger, R.M.F.; Brida, M.; Carlsen, J.; Coats, A.J.S.; Escribano-Subias, P.; Ferrari, P.; et al. 2022 ESC/ERS Guidelines for the diagnosis and treatment of pulmonary hypertension. Eur. Heart J. 2022, 43, 3618–3731. [Google Scholar] [CrossRef] [PubMed]
  16. Preston, I.R.; Lewis, D.; Gomberg-Maitland, M. How We Do It: Using Sotatercept in the Care of Patients with Pulmonary Arterial Hypertension. Chest 2024. [Google Scholar] [CrossRef] [PubMed]
  17. Long, L.; Ormiston, M.L.; Yang, X.; Southwood, M.; Graf, S.; Machado, R.D.; Mueller, M.; Kinzel, B.; Yung, L.M.; Wilkinson, J.M.; et al. Selective enhancement of endothelial BMPR-II with BMP9 reverses pulmonary arterial hypertension. Nat. Med. 2015, 21, 777–785. [Google Scholar] [CrossRef] [PubMed]
  18. Szulcek, R.; Sanchez-Duffhues, G.; Rol, N.; Pan, X.; Tsonaka, R.; Dickhoff, C.; Yung, L.M.; Manz, X.D.; Kurakula, K.; Kielbasa, S.M.; et al. Exacerbated inflammatory signaling underlies aberrant response to BMP9 in pulmonary arterial hypertension lung endothelial cells. Angiogenesis 2020, 23, 699–714. [Google Scholar] [CrossRef] [PubMed]
  19. Tu, L.; Desroches-Castan, A.; Mallet, C.; Guyon, L.; Cumont, A.; Phan, C.; Robert, F.; Thuillet, R.; Bordenave, J.; Sekine, A.; et al. Selective BMP-9 Inhibition Partially Protects Against Experimental Pulmonary Hypertension. Circ. Res. 2019, 124, 846–855. [Google Scholar] [CrossRef]
  20. Rol, N.; Kurakula, K.B.; Happe, C.; Bogaard, H.J.; Goumans, M.J. TGF-beta and BMPR2 Signaling in PAH: Two Black Sheep in One Family. Int. J. Mol. Sci. 2018, 19, 2585. [Google Scholar] [CrossRef]
  21. Poniatowski, L.A.; Wojdasiewicz, P.; Gasik, R.; Szukiewicz, D. Transforming growth factor Beta family: Insight into the role of growth factors in regulation of fracture healing biology and potential clinical applications. Mediat. Inflamm. 2015, 2015, 137823. [Google Scholar] [CrossRef] [PubMed]
  22. Sakao, S.; Tatsumi, K.; Voelkel, N.F. Endothelial cells and pulmonary arterial hypertension: Apoptosis, proliferation, interaction and transdifferentiation. Respir. Res. 2009, 10, 95. [Google Scholar] [CrossRef] [PubMed]
  23. Liang, K.W.; Chang, S.K.; Chen, Y.W.; Tsai, W.J.; Wang, K.Y. A cluster of heritable pulmonary arterial hypertension cases in a family with all three siblings carrying the same novel AQP1 c.273C>G variant-a case report. Pulm. Circ. 2023, 13, e12211. [Google Scholar] [CrossRef] [PubMed]
  24. Kreida, S.; Tornroth-Horsefield, S. Structural insights into aquaporin selectivity and regulation. Curr. Opin. Struct. Biol. 2015, 33, 126–134. [Google Scholar] [CrossRef] [PubMed]
  25. Verkman, A.S.; Anderson, M.O.; Papadopoulos, M.C. Aquaporins: Important but elusive drug targets. Nat. Rev. Drug Discov. 2014, 13, 259–277. [Google Scholar] [CrossRef] [PubMed]
  26. Vassiliou, A.G.; Keskinidou, C.; Kotanidou, A.; Frantzeskaki, F.; Dimopoulou, I.; Langleben, D.; Orfanos, S.E. Decreased bone morphogenetic protein type II receptor and BMP-related signalling molecules’ expression in aquaporin 1-silenced human pulmonary microvascular endothelial cells. Hell. J. Cardiol. 2021, 62, 84–86. [Google Scholar] [CrossRef] [PubMed]
  27. Vassiliou, A.G.; Keskinidou, C.; Kotanidou, A.; Frantzeskaki, F.; Dimopoulou, I.; Langleben, D.; Orfanos, S.E. Knockdown of bone morphogenetic protein type II receptor leads to decreased aquaporin 1 expression and function in human pulmonary microvascular endothelial cells. Can. J. Physiol. Pharmacol. 2020, 98, 834–839. [Google Scholar] [CrossRef] [PubMed]
  28. Bouvard, C.; Tu, L.; Rossi, M.; Desroches-Castan, A.; Berrebeh, N.; Helfer, E.; Roelants, C.; Liu, H.; Ouarne, M.; Chaumontel, N.; et al. Different cardiovascular and pulmonary phenotypes for single- and double-knock-out mice deficient in BMP9 and BMP10. Cardiovasc. Res. 2022, 118, 1805–1820. [Google Scholar] [CrossRef]
  29. Aldred, M.A.; Morrell, N.W.; Guignabert, C. New Mutations and Pathogenesis of Pulmonary Hypertension: Progress and Puzzles in Disease Pathogenesis. Circ. Res. 2022, 130, 1365–1381. [Google Scholar] [CrossRef]
  30. Hodgson, J.; Ruiz-Llorente, L.; McDonald, J.; Quarrell, O.; Ugonna, K.; Bentham, J.; Mason, R.; Martin, J.; Moore, D.; Bergstrom, K.; et al. Homozygous GDF2 nonsense mutations result in a loss of circulating BMP9 and BMP10 and are associated with either PAH or an “HHT-like” syndrome in children. Mol. Genet. Genom. Med. 2021, 9, e1685. [Google Scholar] [CrossRef]
  31. Upton, P.; Richards, S.; Bates, A.; Niederhoffer, K.Y.; Morrell, N.W.; Christian, S. A rare homozygous missense GDF2 (BMP9) mutation causing PAH in siblings: Does BMP10 status contribute? Am. J. Med. Genet. A 2023, 191, 228–233. [Google Scholar] [CrossRef] [PubMed]
  32. Tielemans, B.; Delcroix, M.; Belge, C.; Quarck, R. TGFbeta and BMPRII signalling pathways in the pathogenesis of pulmonary arterial hypertension. Drug Discov. Today 2019, 24, 703–716. [Google Scholar] [CrossRef] [PubMed]
  33. Gorelova, A.; Berman, M.; Al Ghouleh, I. Endothelial-to-Mesenchymal Transition in Pulmonary Arterial Hypertension. Antioxid. Redox Signal. 2021, 34, 891–914. [Google Scholar] [CrossRef] [PubMed]
  34. Hodgson, J.; Swietlik, E.M.; Salmon, R.M.; Hadinnapola, C.; Nikolic, I.; Wharton, J.; Guo, J.; Liley, J.; Haimel, M.; Bleda, M.; et al. Characterization of GDF2 Mutations and Levels of BMP9 and BMP10 in Pulmonary Arterial Hypertension. Am. J. Respir. Crit. Care Med. 2020, 201, 575–585. [Google Scholar] [CrossRef] [PubMed]
  35. Chomette, L.; Hupkens, E.; Romitti, M.; Dewachter, L.; Vachiery, J.L.; Bailly, S.; Costagliola, S.; Smits, G.; Tillet, E.; Bondue, A. Pediatric pulmonary arterial hypertension due to a novel homozygous GDF2 missense variant affecting BMP9 processing and activity. Am. J. Med. Genet. A 2023, 191, 2064–2073. [Google Scholar] [CrossRef]
  36. Nikolic, I.; Yung, L.M.; Yang, P.; Malhotra, R.; Paskin-Flerlage, S.D.; Dinter, T.; Bocobo, G.A.; Tumelty, K.E.; Faugno, A.J.; Troncone, L.; et al. Bone Morphogenetic Protein 9 Is a Mechanistic Biomarker of Portopulmonary Hypertension. Am. J. Respir. Crit. Care Med. 2019, 199, 891–902. [Google Scholar] [CrossRef] [PubMed]
  37. Upton, P.D.; Davies, R.J.; Trembath, R.C.; Morrell, N.W. Bone morphogenetic protein (BMP) and activin type II receptors balance BMP9 signals mediated by activin receptor-like kinase-1 in human pulmonary artery endothelial cells. J. Biol. Chem. 2009, 284, 15794–15804. [Google Scholar] [CrossRef]
  38. Verkman, A.S. More than just water channels: Unexpected cellular roles of aquaporins. J. Cell Sci. 2005, 118, 3225–3232. [Google Scholar] [CrossRef] [PubMed]
  39. Wagner, K.; Unger, L.; Salman, M.M.; Kitchen, P.; Bill, R.M.; Yool, A.J. Signaling Mechanisms and Pharmacological Modulators Governing Diverse Aquaporin Functions in Human Health and Disease. Int. J. Mol. Sci. 2022, 23, 1388. [Google Scholar] [CrossRef]
  40. Li, W.; Long, L.; Yang, X.; Tong, Z.; Southwood, M.; King, R.; Caruso, P.; Upton, P.D.; Yang, P.; Bocobo, G.A.; et al. Circulating BMP9 Protects the Pulmonary Endothelium during Inflammation-induced Lung Injury in Mice. Am. J. Respir. Crit. Care Med. 2021, 203, 1419–1430. [Google Scholar] [CrossRef]
  41. Krump-Konvalinkova, V.; Bittinger, F.; Unger, R.E.; Peters, K.; Lehr, H.A.; Kirkpatrick, C.J. Generation of human pulmonary microvascular endothelial cell lines. Lab. Investig. 2001, 81, 1717–1727. [Google Scholar] [CrossRef] [PubMed]
  42. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  43. Lleu, P.L.; Rebel, G. Interference of Good’s buffers and other biological buffers with protein determination. Anal. Biochem. 1991, 192, 215–218. [Google Scholar] [CrossRef] [PubMed]
  44. Laemmli, U.K. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 1970, 227, 680–685. [Google Scholar] [CrossRef]
  45. Batteiger, B.; Newhall, W.J.t.; Jones, R.B. The use of Tween 20 as a blocking agent in the immunological detection of proteins transferred to nitrocellulose membranes. J. Immunol. Methods 1982, 55, 297–307. [Google Scholar] [CrossRef]
Ijms 25 08043 g001

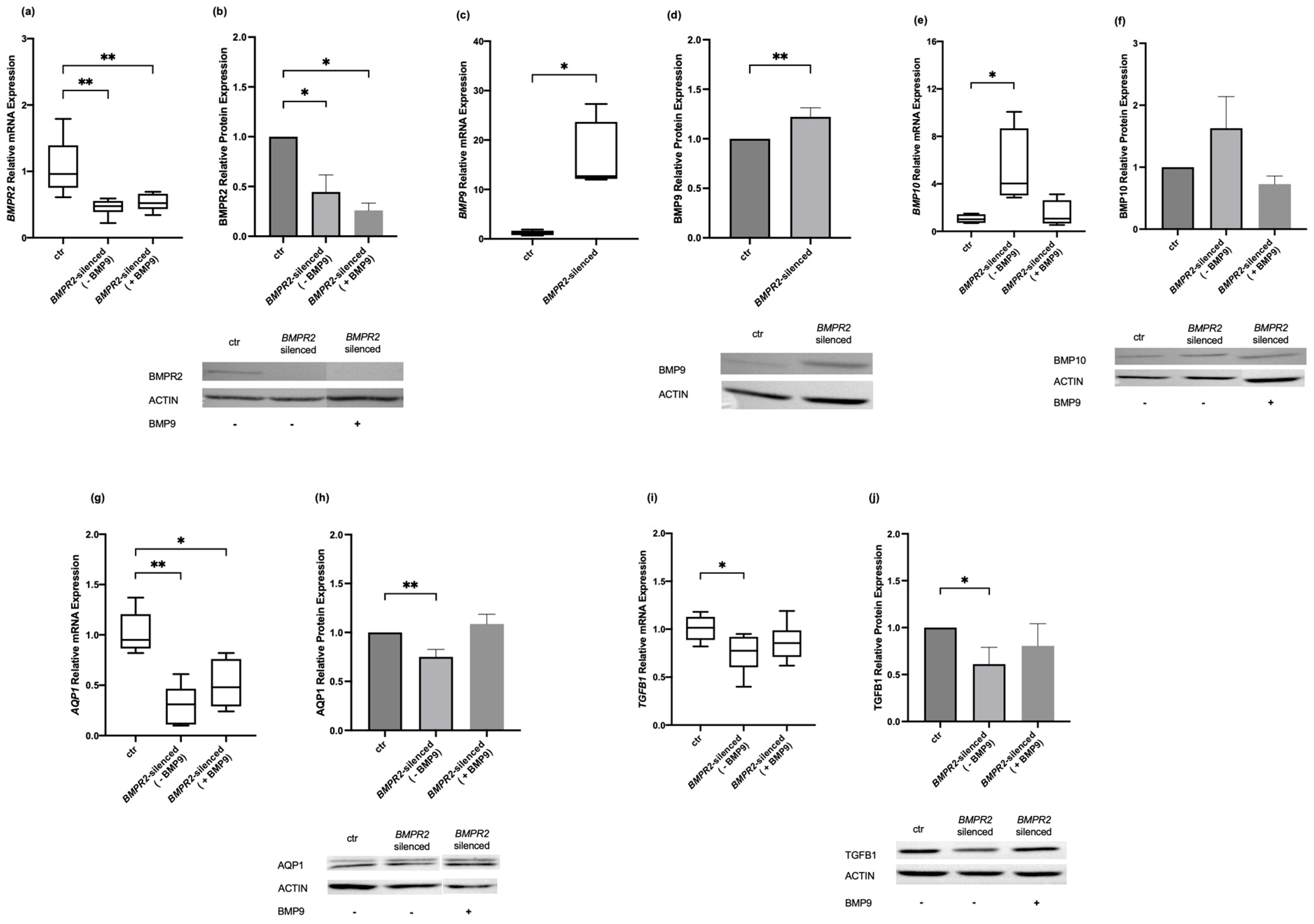

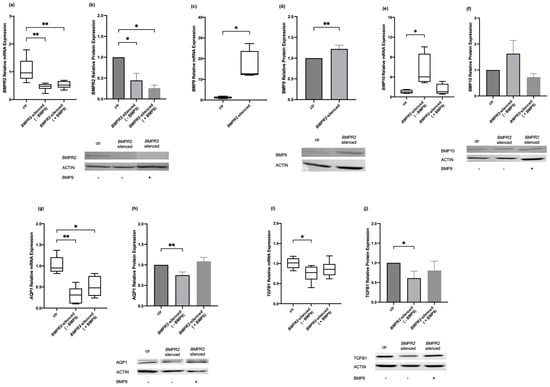

Figure 1. Effects of modulating BMPR2 and BMP9 on BMP signaling molecules in human pulmonary microvascular endothelial cells. HPMECs were silenced for the BMPR2 gene, and the relative mRNA and protein expression of BMPR2 (a,b), BMP9 (c,d), BMP10 (e,f), AQP1 (g,h), and TGFB1 (i,j) were estimated before and after the exogenous administration of BMP9. Relative mRNA expression is depicted with box plots (line in the middle, median values; box edges, 25th and 75th percentiles; whiskers, range of values). Relative protein expression is depicted with bar plots (mean + SEM). Results from at least three independent experiments are presented. To ensure consistency and reproducibility across the independent experiments, specificity (siRNA negative control), efficiency (BMPR2 siRNA), and the effect of BMP9 exogenous administration on the non-transfected controls were tested each time. Statistical analysis was performed using the Mann–Whitney test or Student’s t-test, as appropriate. *, p < 0.05; **, p < 0.01 compared to non-transfected control cells.
Figure 1. Effects of modulating BMPR2 and BMP9 on BMP signaling molecules in human pulmonary microvascular endothelial cells. HPMECs were silenced for the BMPR2 gene, and the relative mRNA and protein expression of BMPR2 (a,b), BMP9 (c,d), BMP10 (e,f), AQP1 (g,h), and TGFB1 (i,j) were estimated before and after the exogenous administration of BMP9. Relative mRNA expression is depicted with box plots (line in the middle, median values; box edges, 25th and 75th percentiles; whiskers, range of values). Relative protein expression is depicted with bar plots (mean + SEM). Results from at least three independent experiments are presented. To ensure consistency and reproducibility across the independent experiments, specificity (siRNA negative control), efficiency (BMPR2 siRNA), and the effect of BMP9 exogenous administration on the non-transfected controls were tested each time. Statistical analysis was performed using the Mann–Whitney test or Student’s t-test, as appropriate. *, p < 0.05; **, p < 0.01 compared to non-transfected control cells.
Ijms 25 08043 g001
Ijms 25 08043 g002

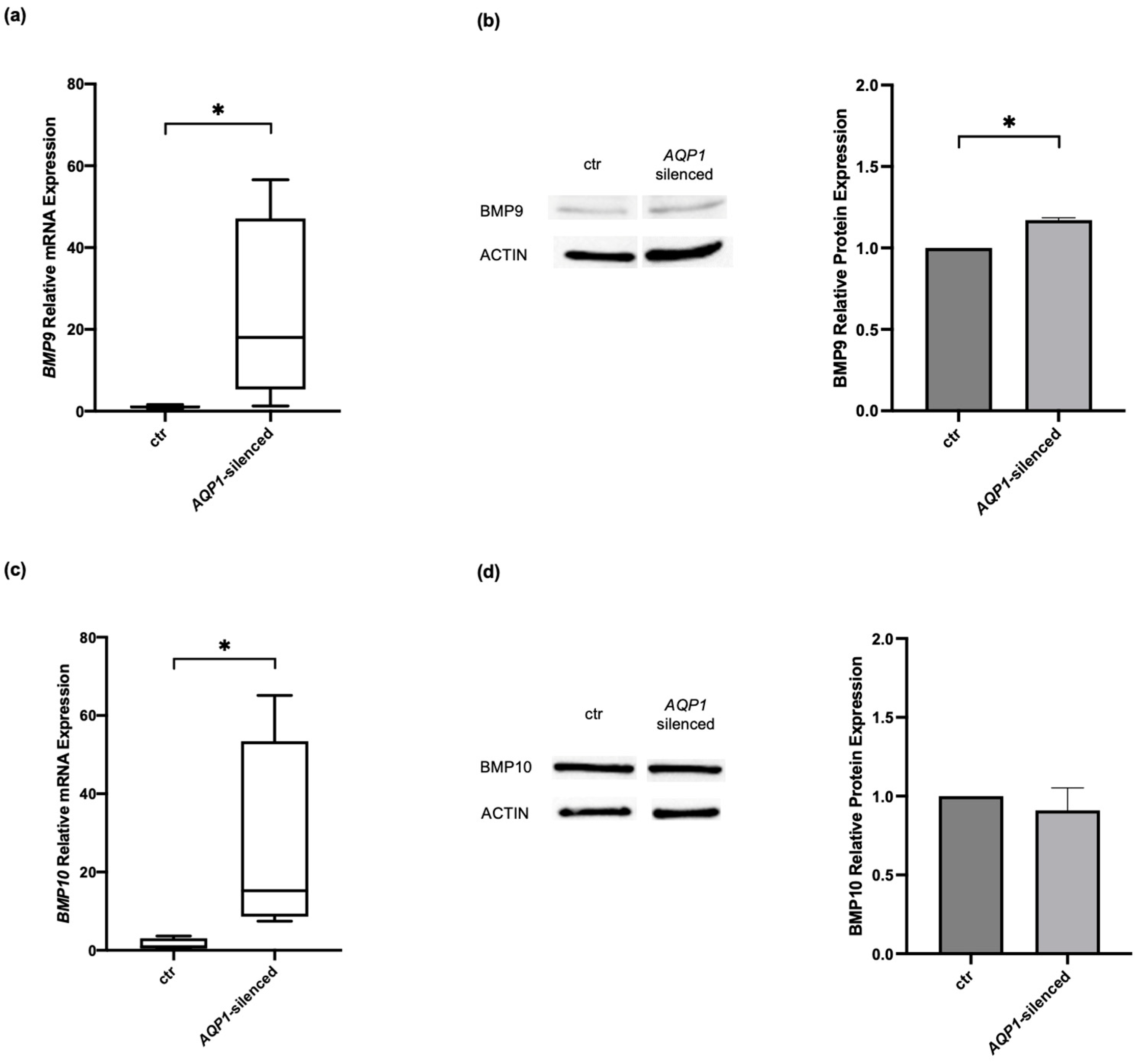

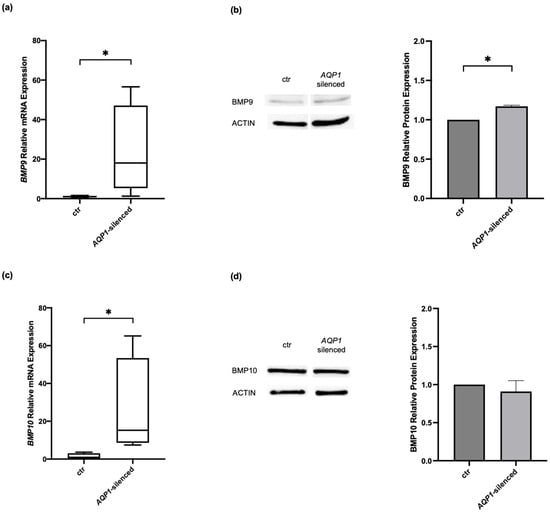

Figure 2. Effects of modulating AQP1 on BMP signaling molecules in human pulmonary microvascular endothelial cells. HPMECs were silenced for the AQP1 gene, and the relative mRNA and protein expression of BMP9 (a,b) and BMP10 (c,d) were estimated. Relative mRNA expression is depicted with box plots (line in the middle, median values; box edges, 25th and 75th percentiles; whiskers, range of values). Relative protein expression is depicted with bar plots (mean + SEM). Results from at least three independent experiments are presented. To ensure consistency and reproducibility across the independent experiments, specificity (siRNA negative control) and efficiency (AQP1 siRNA) were tested each time. Statistical analysis was performed using the Mann–Whitney test or Student’s t-test, as appropriate. *, p < 0.05 compared to the non-transfected control cells.
Figure 2. Effects of modulating AQP1 on BMP signaling molecules in human pulmonary microvascular endothelial cells. HPMECs were silenced for the AQP1 gene, and the relative mRNA and protein expression of BMP9 (a,b) and BMP10 (c,d) were estimated. Relative mRNA expression is depicted with box plots (line in the middle, median values; box edges, 25th and 75th percentiles; whiskers, range of values). Relative protein expression is depicted with bar plots (mean + SEM). Results from at least three independent experiments are presented. To ensure consistency and reproducibility across the independent experiments, specificity (siRNA negative control) and efficiency (AQP1 siRNA) were tested each time. Statistical analysis was performed using the Mann–Whitney test or Student’s t-test, as appropriate. *, p < 0.05 compared to the non-transfected control cells.
Ijms 25 08043 g002
Ijms 25 08043 g003

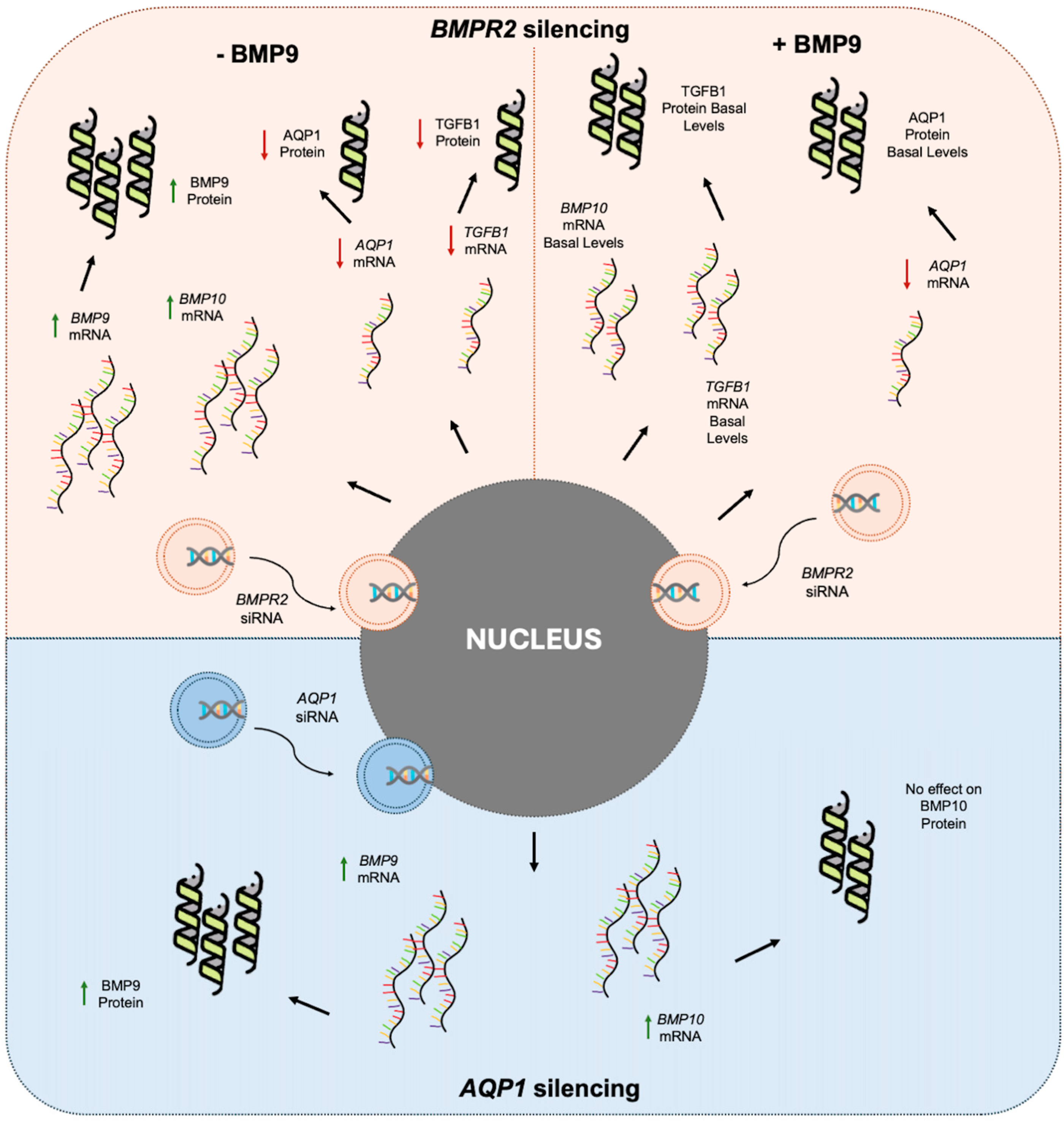

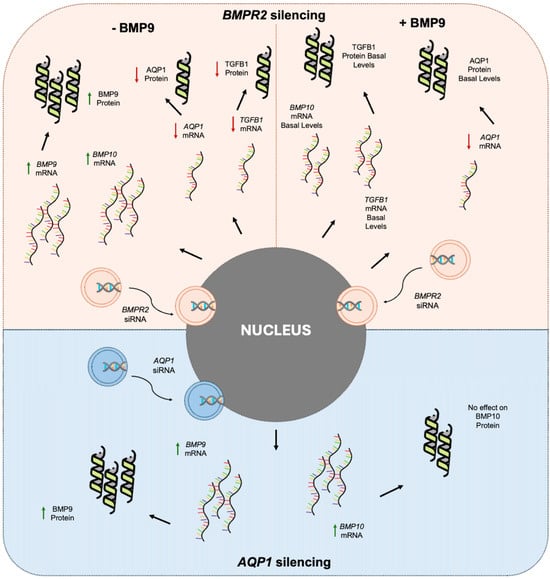

Figure 3. Main findings of the study. In the upper panel (Pink), the mRNA and protein levels of BMP signaling molecules are depicted in human pulmonary microvascular endothelial cells (HPMECs) silenced for BMPR2 before and after exogenous BMP9 administration. As depicted in the left upper panel, BMP9 and BMP10 mRNA levels increased, while AQP1 and TGFB1 mRNA levels decreased in the BMPR2-silenced HPEMCs prior to BMP9 administration. Protein levels of BMP9 increased, while AQP1 and TGFB1 protein levels decreased. As shown in the upper right panel, following exogenous BMP9 administration, BMP10 and TGFB1 mRNA returned to basal levels, while AQP1 remained downregulated. The AQP1 and TGFB1 proteins returned to basal levels. In the lower panel (Blue), the mRNA and protein levels of BMP9 and BMP10 are depicted following AQP1 silencing in HPMECs. BMP9 increased at both mRNA and protein levels, while only mRNA levels of BMP10 were increased. AQP1, aquaporin 1; BMP9, bone morphogenetic protein 9; BMP10, bone morphogenetic protein 10; BMPR2, bone morphogenetic protein receptor type 2; TGFB1, transforming growth factor beta 1. Green arrows represent increased levels and red arrows represent decreased levels. Created with icons by https://www.freepik.com (accessed on 18 July 2024) (dna_268497 and protein_1951419).
Figure 3. Main findings of the study. In the upper panel (Pink), the mRNA and protein levels of BMP signaling molecules are depicted in human pulmonary microvascular endothelial cells (HPMECs) silenced for BMPR2 before and after exogenous BMP9 administration. As depicted in the left upper panel, BMP9 and BMP10 mRNA levels increased, while AQP1 and TGFB1 mRNA levels decreased in the BMPR2-silenced HPEMCs prior to BMP9 administration. Protein levels of BMP9 increased, while AQP1 and TGFB1 protein levels decreased. As shown in the upper right panel, following exogenous BMP9 administration, BMP10 and TGFB1 mRNA returned to basal levels, while AQP1 remained downregulated. The AQP1 and TGFB1 proteins returned to basal levels. In the lower panel (Blue), the mRNA and protein levels of BMP9 and BMP10 are depicted following AQP1 silencing in HPMECs. BMP9 increased at both mRNA and protein levels, while only mRNA levels of BMP10 were increased. AQP1, aquaporin 1; BMP9, bone morphogenetic protein 9; BMP10, bone morphogenetic protein 10; BMPR2, bone morphogenetic protein receptor type 2; TGFB1, transforming growth factor beta 1. Green arrows represent increased levels and red arrows represent decreased levels. Created with icons by https://www.freepik.com (accessed on 18 July 2024) (dna_268497 and protein_1951419).
Ijms 25 08043 g003
Table 1. Gene-specific primer pairs used in quantitative real-time PCR experiments.
Table 1. Gene-specific primer pairs used in quantitative real-time PCR experiments.
Gene Sequence (5′-3′)nt
AQP1F5′-TATGCGTGCTGGCTACTACCGA-3′22
R5′-GGTTAATCCCACAGCCAGTGTAG-3′23
BMP9F5′-CCTGCCCTTCTTTGTTGTCTTCTC-3′24
R5′-TGACTGCTCTCACCTGCCTCTGTG-3′24
BMP10F5′-AAGCCTATGAATGCCGTGGTG-3′21
R5′-AGGCCTGGATAATTGCATGCTT-3′20
BMPR2F5′-CCACCTCCTGACACAACACC-3′20
R5′-TGTGAAGACCTTGTTTACGGT-3′21
GAPDHF5′-ATGGGGAAGGTGAAGGTCG-3′19
R5′-GGGGTCATTGATGGCAACAATA-3′22
TGFB1F5′-GCGTGCTAATGGTGGAAAC-3′19
R5′-CGGTGACATCAAAAGATAACCAC-3′23
AQP1, aquaporin 1; BMP9, bone morphogenetic protein 9; BMP10, bone morphogenetic protein 10; BMPR2, bone morphogenetic protein receptor type 2; GAPDH, glyceraldehyde-3-phosphate dehydrogenase; TGFB1; transforming growth factor beta 1.
