Total Synthesis of the Sex Pheromone of Clania variegata Snellen and Its Stereoisomers

by
Xueyang Wang
†,
Jianwei Wu
†,
Jianan Wang
,
Dan Liu
,
Qinghua Bian
and
Jiangchun Zhong
*
Department of Applied Chemistry, China Agricultural University, 2 West Yuanmingyuan Road, Beijing 100193, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2024, 25(9), 4893; https://doi.org/10.3390/ijms25094893
Submission received: 12 March 2024 / Revised: 18 April 2024 / Accepted: 29 April 2024 / Published: 30 April 2024
(This article belongs to the Section Molecular Biology)
Browse Figures
Versions Notes

Abstract

:
The paulownia bagworm, Clania variegata Snell, is an economically important pest of agriculture and forests. The sex pheromone of this pest and its stereoisomers were synthesized, and two of the stereoisomers were prepared for the first time. Our strategy was efficient and mainly included the ring-opening reaction of (S)-2-methyloxirane, the coupling of chiral sulfonate, the oxidative cleavage of olefin, and Yamaguchi esterification. Moreover, the overall yields of our synthesis were 23–29%, with eight steps in the longest route.

1. Introduction

The paulownia bagworm, Clania variegata Snell (synonyms for Eumeta japonica and Eumeta variegata), has become an economically important pest of agriculture and forests [1,2]. This pest is distributed in Australia, Korea [3], China, Indonesia [4], and Japan [5]. The larvae mainly defoliate various trees including apple, pear, peach, walnut, empress tree, gingko, and mulberry, and they also damage many agricultural crops, such as tea, citrus, coffee, loquat, maize, cotton, and soybean [6,7]. Due to it living within a self-enclosing bag coated with silk throughout all life stages [8,9], it is difficult to control the paulownia bagworm.
Sex pheromones have become an important component for the integrated pest management of agricultural pests, which has the advantages of being environmentally benign, highly efficient, and showing a lack of toxicity to mammals [10,11]. In 2006, Gries identified (S)-2-methylpentan-3-yl 3,13-dimethylpentadecanoate as a major component of the sex pheromone of Clania variegata Snellen by gas chromatographic electroantennographic detection (GC-EAD) analyses and field trapping experiments [7]. Later, Mori prepared four stereoisomers of (S)-2-methylpentan-3-yl 3,13-dimethylpentadecanoate via olefin cross metathesis, and their bioassay revealed the (3R,13R,3′S)-isomer (1a) as the bioactive one [12,13]. Other total syntheses of the sex pheromone are based on the SN2 reactions of secondary sulfonates and Evans template inductions [14,15]. To search for a more efficient synthesis method for the sex pheromone of Clania vartegata Snel, and provide stereoisomers for further biological research, herein, a new and concise synthesis of the sex pheromone of Clania variegata Snellen and its stereoisomers using Chiral Pool (Figure 1) has been developed.

2. Results and Discussion

2.1. Retrosynthetic Analysis of Sex Pheromone of Clania vartegata Snell 1a

Figure 2 shows a retrosynthetic analysis of the sex pheromone of Clania vartegata Snell 1a. Obviously, the target sex pheromone 1a could be prepared through the Yamaguchi esterification of (3R,13R)-3,13-dimethylpentadecanoic acid ((3R,13R)-16) with (S)-2-methylpentan-3-ol ((S)-13). Chiral dimethyl acid (3R,13R)-16 was envisaged to be obtained from the oxidative cleavage of olefin (4R,14R)-15, which could be easily synthesized by the coupling of chiral sulfonate (R)-8 with Grignard reagent derived from chiral bromide (R)-14 and Mg. The chiral methyl of (R)-8 would come from the ring-opening reaction of chiral-source (S)-2-methyloxirane ((S)-2). The key chiral subunit (S)-13 could be generated from the addition of MeLi to (R)-2-isopropyloxirane ((R)-12). It was envisaged that the cyclization of chlorohydrin (S)-11, and diazotization and chlorination from (S)-valine ((S)-9) could provide epoxide (R)-12. Following a similar procedure as for 1a, its stereoisomers 1c–1d could be synthesized.

2.2. Synthesis of Chiral Tosylate (R)-8

Based on the retrosynthetic analysis, our synthesis commenced with the preparation of chiral tosylate (R)-8 (Scheme 1). In the presence of CuI, the ring-opening reaction of (S)-2-methyloxirane ((S)-2) with Grignard reagent derived from 2-((7-bromoheptyl)oxy)tetrahydro-2H-pyran (3) and Mg afforded (S)-10-((tetrahydro-2H-pyran-2-yl)oxy)decan-2-ol ((S)-4) (72% yield, 97% ee, determined by 1H NMR spectrum of its Mosher ester) [16]. The subsequent tosylation of chiral alcohol (S)-4 with p-TsCl gave (S)-10-((tetrahydro-2H-pyran-2-yl)oxy)decan-2-yl 4-methylbenzenesulfonate ((S)-5) in an excellent yield [17]. LiCuCl4 catalyzed coupling with allyl magnesium bromide and then converted the second tosylate (S)-5 to 2-(((R)-9-methyldodec-11-en-1-yl)oxy)tetrahydro-2H-pyran ((R)-6) via SN2 nucleophilic substitution [18]. Finally, the deprotection of the primary hydroxy of (R)-6 with p-TsOH and tosylation with p-TsCl provided the key chiral building block (R)-8 [19].

2.3. Synthesis of Chiral Alcohols (R)-13 and (S)-13

Having achieved the preparation of chiral sulfonate (R)-8, we next investigated the synthesis of another two key chiral subunits (R)-13 and (S)-13 (Scheme 2). Treating (R)-valine ((R)-9) with hydrochloric acid and NaNO2 resulted in the formation of (R)-2-chloro-3-methylbutanoic acid ((R)-10) [20], which was converted to (R)-2-chloro-3-methylbutan-1-ol ((R)-11) via reduction with LiAlH4 [21]. Chlorohydrin (R)-11 was then converted into (S)-2-isopropyloxirane ((S)-12) by base-promoted cyclization [22]. The final CuCN- catalyzed the addition of MeLi to epoxide (S)-12, which afforded (R)-2-methylpentan-3-ol ((R)-13) with 93% ee, as determined by chiral HPLC of its 3,5-dinitrobenzoate [23]. Following a similar procedure as for chiral alcohol (R)-13, (S)-2-methylpentan-3-ol ((S)-13) (>99% ee) was prepared from (S)-valine ((S)-9).

2.4. Synthesis of Chiral Acids (3R,13R)-16 and (3R,13S)-16

Scheme 3 shows the synthesis of the two key chiral acids (3R,13R)-16 and (3R,13S)-16. (R)-1-Bromo-2-methylbutane ((R)-14) was reacted with Mg to yield Grignard reagent, which was coupled to chiral sulfonate (R)-8 and afforded (4R,14R)-4,14-dimethylhexadec-1-ene ((4R,14R)-15) in 91% yield [24]. Then, RuCl3 catalyzed the oxidative cleavage of olefin (4R,14R)-15 with NaIO4 to (3R,13R)-3,13-dimethylpentadecanoic acid ((3R,13R)-16), and this was conducted smoothly [25]. Similarly, the coupling of chiral sulfonate (R)-8 with Grignard reagent, derived from (S)-1-bromo-2-methylbutane ((S)-14) and Mg, provided olefin (4R,14S)-15, followed by oxidation with NaIO4 which gave chiral acid (3R,13S)-16.

2.5. Synthesis of Sex Pheromone of Clania vartegata Snell 1a and Its Stereoisomers 1c–1d

With four key chiral subunits in hand, we prepared the target sex pheromone 1a and its stereoisomers 1c–1d (Scheme 4). According to the Yamaguchi reaction (2,4,6-trichlorobenzoyl chloride, Et3N, DMAP) [26], the esterification of chiral dimethyl acid (3R,13R)-16 with chiral alcohol (S)-13 delivered (S)-2-methylpentan-3-yl (3R,13R)-3,13-dimethylpentadecanoate (1a), whereas the Yamaguchi esterification of chiral dimethyl acid (3R,13S)-16 with chiral alcohol (S)-13 provided (S)-2-methylpentan-3-yl (3R,13S)-3,13-dimethylpentadecanoate (1b). The specific rotation, NMR spectra, and HRMS of the target sex pheromone 1a and its stereoisomer 1b were consistent with the literature values [13,14]. Moreover, another two stereoisomers 1c and 1d were prepared, respectively, through Yamaguchi esterification of the chiral dimethyl acids (3R,13R)-16 and (3R,13S)-16 with chiral alcohol (R)-13, which were characterized with specific rotation, NMR spectra, and HRMS. The overall yields of 1a–1d were 29%, 25%, 29%, and 23%, respectively, which were higher than those in the literature [12,13,14,15].

3. Materials and Methods

3.1. Synthesis of Chiral Acid (3R,13R)-16

3.1.1. Synthesis of (4R,14R)-4,14-dimethylhexadec-1-ene ((4R,14R)-15)

Under an argon atmosphere, Mg (0.26 g, 10.70 mmol) was added to a 50 mL three-neck flask equipped with a condenser at room temperature. Dry THF (7 mL) and a few pellets of I2 were then added, followed by the addition of (R)-1-bromo-2-methylbutane ((R)-14) (0.20 g, 1.32 mmol). The resulting mixture was heated cautiously to initiate the reaction, and additional chiral bromide (R)-14 (0.86 g, 5.70 mmol) was then added dropwise via a syringe. The reaction mixture was refluxed for 1 h while the continuous bubbles were formed. After being cooled to room temperature, a solution of (R)-(2-methylbutyl)magnesium bromide in THF (7 mL) was prepared.
Under an argon atmosphere, previously prepared (R)-(2-methylbutyl)magnesium bromide in THF (7 mL) was added to a separate 100 mL Schlenk flask at room temperature. After being cooled to −60 °C, Li2CuCl4 (0.7 mL, 0.1 M in THF, 0.07 mmol) and chiral tosylate (R)-8 (0.49 g, 1.39 mmol) in THF (4 mL) were then added slowly. The reaction mixture was allowed to warm to room temperature and stirred for 8 h, and it was then quenched with saturated NH4Cl solution (5 mL). The aqueous phase was separated and extracted with EtOAc (3 × 10 mL). The extracts were combined with the organic phase and washed with saturated brine (15 mL), and then dried over anhydrous Na2SO4. The solvent was evaporated under reduced pressure and the residue was purified by column chromatography on silica gel (petroleum ether) to afford (4R,14R)-4,14-dimethylhexadec-1-ene ((4R,14R)-15) (0.32 g, 91% yield) as a colorless oil. [α]D22 = −3.98 (c = 1.41, CHCl3). 1H NMR (500 MHz, CDCl3) δ 5.77 (ddt, J = 17.2, 10.1, 7.1 Hz, 1H), 5.01–4.95 (m, 2H), 2.08–2.03 (m, 1H), 1.90–1.85 (m, 1H), 1.49–1.47 (m, 1H), 1.33–1.24 (m, 17H), 1.15–1.07 (m, 4H), 0.87 (d, J = 3.0 Hz, 3H), 0.85 (d, J = 3.0 Hz, 3H), 0.84 (t, J = 3.0 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 137.98, 115.50, 41.62, 36.82, 36.75, 34.57, 32.95, 30.21, 30.11, 29.90, 29.88, 29.87, 29.67, 27.29, 27.26, 19.61, 19.38, 11.57. HRMS (ESI) m/z: calcd for C18H37 [M+H]+ 253.2890, found 253.2882.

3.1.2. Synthesis of (3R,13R)-3,13-dimethylpentadecanoic Acid ((3R,13R)-16)

NaIO4 (0.88 g, 4.11 mmol), H2O (3 mL), EtOAc (2 mL), and MeCN (2 mL) were added sequentially to a 50 mL three-neck flask and stirred for 10 min at room temperature. Chiral olefin (3R,13R)-15 (0.25 g, 1.00 mmol) and RuCl3 (4.0 mg, 0.02 mmol) were then added. The reaction mixture was maintained for 1 h at room temperature and was diluted with H2O (10 mL). The aqueous phase was separated and extracted with EtOAc (3 × 10 mL). The extracts were combined with the organic phase and washed with saturated brine (30 mL), and then dried over anhydrous Na2SO4. The solvent was evaporated under reduced pressure to afford (3R,13R)-3,13-dimethylpentadecanoic acid ((3R,13R)-16) (0.26 g, 96% yield) as a colorless oil. [α]D25 = −7.18 (c = 1.73, CHCl3). Lit. [14] [α]D25 = −4.91 (c = 0.63, CHCl3). 1H NMR (500 MHz, CDCl3) δ 8.43 (br s, 1H), 2.31 (dd, J = 14.7, 5.7 Hz, 1H), 2.07 (dd, J = 14.6, 8.3 Hz, 1H), 1.93–1.89 (m, 1H), 1.33–1.26 (m, 18H), 1.15–1.06 (m, 3H), 0.93 (d, J = 6.7 Hz, 3H), 0.86 (d, J = 7.0 Hz, 3H), 0.84 (t, J = 3.0 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 179.78, 42.44, 36.99, 36.81, 34.56, 30.45, 30.21, 29.99, 29.91, 29.87, 29.65, 27.29, 27.13, 19.82, 19.37, 11.56. HRMS (ESI) m/z: calcd for C17H35O2 [M+H]+ 271.2632, found 271.2634.

3.2. Synthesis of Chiral Acid (3R,13S)-16

3.2.1. Synthesis of (4R,14S)-4,14-dimethylhexadec-1-ene ((4R,14S)-15)

Following a similar procedure as for olefin (3R,13R)-15, the coupling of chiral tosylate (R)-8 (0.49 g, 1.39 mmol) with Grignard reagent derived from (S)-1-bromo-2-methylbutane ((S)-14) (1.06 g, 7.01 mmol), catalyzed by Li2CuCl4 (0.7 mL, 0.1 M THF solution, 0.07 mmol), provided (4R,14S)-4,14-dimethylhexadec-1-ene ((4R,14S)-15) (0.29 g, 83% yield) as a colorless oil. [α]D22 = +8.02 (c =1.75, CHCl3). 1H NMR (500 MHz, CDCl3) δ 5.78 (ddt, J = 17.2, 10.1, 7.1 Hz, 1H), 5.00–4.96 (m, 2H), 2.08–2.03 (m, 1H), 1.90–1.84 (m, 1H), 1.49–1.46 (m, 1H), 1.31–1.24 (m, 17H), 1.16–1.06 (m, 4H), 0.87 (d, J = 3.0 Hz, 3H), 0.85 (d, J = 2.5 Hz, 3H), 0.84 (t, J = 3.0 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 136.99, 114.50, 40.61, 35.81, 35.74, 33.56, 31.94, 29.20, 29.10, 28.90, 28.87, 28.86, 28.66, 26.28, 26.25, 18.61, 18.38, 10.57. HRMS (ESI) m/z: calcd for C18H37 [M+H]+ 253.2890, found 253.2883.

3.2.2. Synthesis of (3R,13S)-3,13-dimethylpentadecanoic Acid ((3R,13S)-16)

Following a similar procedure as for chiral dimethyl acid (3R,13R)-16, the oxidation of (4R,14S)-4,14-dimethylhexadec-1-ene ((4R,14S)-15) (252 mg, 1.00 mmol) with NaIO4 (0.88 g, 4.11 mmol) and RuCl3 (4.0 mg, 0.02 mmol) provided (3R,13S)-3,13-dimethylpentadecanoic acid ((3R,13S)-16) (0.26 g, 96% yield) as a colorless oil. [α]D25 = +8.63 (c = 1.07, CHCl3). Lit. [13] [α]D24 = +9.46 (c = 1.36, CHCl3). 1H NMR (500 MHz, CDCl3) δ 11.31 (br s, 1H), 2.35 (dd, J = 15.0, 5.5 Hz, 1H), 2.14 (dd, J = 15.0, 8.2 Hz, 1H), 1.98–1.92 (m, 1H), 1.27 (d, J = 14.3 Hz, 18H), 1.17–1.03 (m, 3H), 0.96 (d, J = 6.6 Hz, 3H), 0.86 (d, J = 7.0 Hz, 3H), 0.84 (t, J = 3.5 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 179.64, 41.70, 36.82, 36.79, 34.55, 30.30, 30.17, 29.86, 29.80, 29.78, 29.65, 27.26, 27.04, 19.83, 19.37, 11.56. HRMS (ESI) m/z: calcd for C17H35O2 [M+H]+ 271.2632, found 271.2634.

3.3. Synthesis of Sex Pheromone of Clania vartegata Snell 1a and Its Stereoisomers 1c–1d

3.3.1. Synthesis of (S)-2-methylpentan-3-yl (3R,13R)-3,13-dimethylpentadecanoate (1a)

Under an argon atmosphere, chiral dimethyl acid (3R,13R)-16 (30.0 mg, 0.11 mmol), Et3N (33.0 mg, 0.33 mmol), and toluene (0.5 mL) were added sequentially to a 10 mL Schlenk tube at 0 °C. The resulting mixture was stirred at the same temperature for 30 min, and 2,4,6-trichlorobenzoyl chloride (54.0 mg, 0.22 mmol) was then added via a syringe. The reaction mixture was allowed to warm to room temperature and stirred for 1 h. After being cooled t to 0 °C, DMAP (40.0 mg, 0.33 mmol) in toluene (0.5 mL) and chiral alcohol (S)-13 (7.0 mg, 0.07 mmol) were added slowly via a syringe. The reaction solution was allowed to warm to room temperature and maintained for 2.5 h. Saturated NH4Cl solution (2 mL) was added to quench the reaction. The aqueous phase was separated and extracted with Et2O (3 × 210 mL). The extracts were combined with the organic phase and washed with saturated brine (30 mL), and then dried over anhydrous Na2SO4. The solvent was evaporated under reduced pressure and the residue was purified by column chromatography on silica gel (petroleum ether/EtOAc 20:1) to afford (S)-2-methylpentan-3-yl (3R,13R)-3,13-dimethylpentadecanoate (1a) (18.0 mg, 72% yield) as a colorless oil. [α]D25 = −1.59 (c = 1.01, CHCl3). Lit. [13] [α]D25 = −4.61 (c = 2.52, CHCl3). 1H NMR (500 MHz, CDCl3) δ 4.68 (ddd, J = 8.0, 5.5, 4.5 Hz, 1H), 2.31 (dd, J = 14.5, 6.0 Hz, 1H), 2.11 (dd, J = 14.5, 8.1 Hz, 1H), 1.99–1.94 (m, 1H), 1.85–1.80 (m, 1H), 1.59–1.52 (m, 3H), 1.35–1.26 (m, 18H), 1.16–1.12 (m, 1H), 1.10–1.07 (m, 1H), 0.94 (d, J = 6.6 Hz, 3H), 0.89 (d, J = 6.7 Hz, 6H), 0.88–0.84 (m, 6H), 0.83 (d, J = 3.5 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 173.51, 79.59, 42.42, 36.90, 36.80, 34.56, 31.01, 30.55, 30.18, 29.95, 29.86, 29.80, 29.65, 27.26, 27.08, 24.14, 19.90, 19.38, 18.76, 17.79, 11.56, 10.04. The spectroscopic data of 1H and 13C NMR are consistent with the literature values [13]. HRMS (ESI) m/z: calcd for C23H46O2K [M+K]+ 393.3129, found 393.3142.

3.3.2. Synthesis of (S)-2-methylpentan-3-yl (3R,13S)-3,13-dimethylpentadecanoate (1b)

Following a similar procedure as for the sex pheromone 1a, the Yamaguchi esterification of chiral dimethyl acid (3R,13S)-16 (30.0 mg, 0.11 mmol) with chiral alcohol (S)-13 (7.0 mg, 0.07 mmol) provided (S)-2-methylpentan-3-yl (3R,13S)-3,13-dimethylpentadecanoate (1b) (17.0 mg, 68% yield) as a pale yellow oil. [α]D25 = +3.08 (c = 0.78, CHCl3). Lit. [14] [α]D25 = +2.06 (c = 1.96, CHCl3). 1H NMR (500 MHz, CDCl3) δ 4.68 (dt, J = 8.0, 5.0, 5.0 Hz, 1H), 2.32–2.29 (m, 1H), 2.13–2.07 (m, 1H), 1.96–1.95 (m, 1H), 1.85–1.80 (m, 1H), 1.58–1.55 (m, 3H), 1.30–1.26 (m, 18H), 1.13–1.10 (m, 1H), 1.09–1.06 (m, 1H), 0.94 (d, J = 6.7 Hz, 3H), 0.89 (d, J = 6.6 Hz, 6H), 0.87–0.84 (m, 6H), 0.84 (d, J = 3.4 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 173.51, 79.58, 42.42, 36.92, 36.80, 34.55, 31.02, 30.59, 30.55, 30.18, 29.94, 29.86, 29.80, 29.65, 27.26, 27.07, 24.13,19.90, 19.38, 18.76, 17.79, 11.56, 10.04. The spectroscopic data of 1H and 13C NMR are consistent with the literature values [14]. HRMS (ESI) m/z: calcd for C23H46O2K [M+K]+ 393.3129, found 393.3139.

3.3.3. Synthesis of (R)-2-methylpentan-3-yl (3R,13R)-3,13-dimethylpentadecanoate (1c)

Following a similar procedure as for the sex pheromone 1a, the Yamaguchi esterification of chiral dimethyl acid (3R,13R)-16 (30.0 mg, 0.11 mmol) with chiral alcohol (R)-13 (7.0 mg, 0.07 mmol) provided (R)-2-methylpentan-3-yl (3R,13R)-3,13-dimethylpentadecanoate (1c) (18.0 mg, 72% yield) as a colorless oil. [α]D25 = +0.85 (c =0.47, CHCl3). Lit. [13] The enantiomer of 1c, [α]D23 = −3.42 (c =1.20, CHCl3). 1H NMR (500 MHz, CDCl3) δ 4.70–4.66 (m, 1H), 2.33–2.28 (m, 1H), 2.13–2.09 (m, 1H), 1.97–1.93 (m, 1H), 1.85–1.80 (m, 1H), 1.57–1.54 (m, 3H), 1.34–1.25 (m, 18H), 1.13–1.11 (m, 1H), 1.09–1.06 (m, 1H), 0.94 (d, J = 6.5 Hz, 3H), 0.89 (d, J = 5.6 Hz, 6H), 0.87–0.84 (m, 6H), 0.84 (d, J = 3.4 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 173.51, 79.59, 42.42, 36.90, 36.79, 34.55, 31.00, 30.54, 30.17, 29.95, 29.86, 29.80, 29.65, 27.26, 27.08, 24.13, 19.92, 19.38, 18.75, 17.79, 11.56, 10.03. HRMS (ESI) m/z: calcd for C23H46O2K [M+K]+ 393.3129, found 393.3146.

3.3.4. Synthesis of (R)-2-methylpentan-3-yl (3R,13S)-3,13-dimethylpentadecanoate (1d)

Following a similar procedure as for the sex pheromone 1a, the Yamaguchi esterification of chiral dimethyl acid (3R,13S)-16 (30.0 mg, 0.11 mmol) with chiral alcohol (R)-13 (7.0 mg, 0.07 mmol) provided (R)-2-methylpentan-3-yl (3R,13S)-3,13-dimethylpentadecanoate (1d) (16.0 mg, 64% yield) as a colorless oil. [α]D25 = +10.68 (c = 0.49, CHCl3). Lit. [13] The enantiomer of 1d, [α]D23 = −10.8 (c =1.31, CHCl3). 1H NMR (500 MHz, CDCl3) δ 4.68 (dt, J = 8.0, 5.0 Hz, 1H), 2.32–2.28 (m, 1H), 2.13–2.09 (m, 1H), 1.96–1.95 (s, 1H), 1.86–1.80 (m, 1H), 1.58–1.54 (m, 3H), 1.29–1.25 (m, 18H), 1.13–1.10 (m, 1H), 1.09–1.06 (m, 1H), 0.94 (d, J = 6.7 Hz, 3H), 0.89 (d, J = 6.6 Hz, 6H), 0.87–0.84 (m, 6H), 0.83 (d, J = 3.4 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 173.51, 79.58, 42.42, 36.89, 36.80, 34.55, 31.02, 30.55, 30.18, 29.94, 29.86, 29.80, 29.65, 27.26, 27.07, 24.13, 19.90, 19.38, 18.76, 17.79, 11.56, 10.04. HRMS (ESI) m/z: calcd for C23H46O2K [M+K]+ 393.3129, found 393.3147.

4. Conclusions

In summary, we have achieved a novel and efficient total synthesis method for the sex pheromone of Clania variegata Snellen and its stereoisomers. Furthermore, (R)-2-methylpentan-3-yl (3R,13R)-3,13-dimethylpentadecanoate (1c) and (R)-2-methylpentan-3-yl (3R,13S)-3,13-dimethylpentadecanoate (1d) were prepared for the first time. The core synthetic strategy involved the ring-opening reaction of (S)-2-methyloxirane, the coupling of chiral sulfonate, the oxidative cleavage of olefin, and Yamaguchi esterification. Compared with previous approaches, our synthesis method has the advantages of being more concise (eight steps in the longest route) and resulting in a higher overall yield (23–29%). Moreover, this synthetic sex pheromone and its stereoisomers would be valuable for control of the paulownia bagworm.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25094893/s1. The syntheses of compounds 4–13, the research on the enantiomeric purity of chiral alcohols 4 and 13, the copies of 1H, 13C and 19F NMR spectra, and HPLC chromatograms.

Author Contributions

Conceptualization, J.Z.; methodology, X.W. and J.W. (Jianwei Wu); investigation, X.W. and J.W. (Jianan Wang); writing—original draft preparation, X.W. and J.W. (Jianwei Wu); writing—review and editing, Q.B. and D.L.; funding acquisition, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Technology Research and Development Program of China (No. 2023YFD1800900).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this article are available in the Supplementary Materials.

Acknowledgments

We thank Yiyi Li for the analysis of Nuclear Magnetic Resonance (NMR).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yoshioka, T.; Tsubota, T.; Tashiro, K.; Jouraku, A.; Kameda, T. A study of the extraordinarily strong and tough silk produced by bagworms. Nat. Commun. 2019, 10, 1469. [Google Scholar] [CrossRef]
  2. Chen, S.-C.; Zhao, F.-H.; Jiang, H.-Y.; Hu, X.; Wang, X.-Q. The complete mitochondrial genome of the bagworm from a tea plantation in China, Eumeta variegata (Lepidoptera: Psychidae). Mitochondrial DNA. Part B Resour. 2021, 6, 875–877. [Google Scholar] [CrossRef] [PubMed]
  3. Jeong, J.S.; Kim, M.J.; Kim, S.S.; Kim, I. Complete mitochondrial genome of the female-wingless bagworm moth, Eumeta variegata Snellen, 1879 (Lepidoptera: Psychidae). Mitochondrial DNA. Part B Resour. 2018, 3, 1037–1039. [Google Scholar] [CrossRef] [PubMed]
  4. Lelana, N.E.; Utami, S.; Ujang Wawan, D.; Hani Sitti, N.; Darwo; Asmaliyah; Haneda, N.F.; Arinana; Wida, D.; Illa, A. Bagworms in Indonesian plantation forests: Species composition, pest status, and factors that contribute to outbreaks. Diversity 2022, 14, 471. [Google Scholar] [CrossRef]
  5. Arakawa, K.; Kono, N.; Ohtoshi, R.; Nakamura, H.; Tomita, M. The complete mitochondrial genome of Eumeta variegata (Lepidoptera: Psychidae). Mitochondrial DNA. Part B Resour. 2018, 3, 812–813. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, L.H. Study on the identification and occurrence of Clania variegata Snellen. J. Anhui Agric. Sci. 2010, 38, 8499–8500. [Google Scholar]
  7. Gries, R.; Khaskin, G.; Tan, Z.-X.; Zhao, B.-G.; King, G.G.S.; Miroshnychenko, A.; Lin, G.-Q.; Rhainds, M.; Gries, G. (1S)-1-ethyl-2-methylpropyl 3,13-dimethylpentadecanoate: Major sex pheromone component of paulownia bagworm, Clania variegata. J. Chem. Ecol. 2006, 32, 1673–1685. [Google Scholar] [CrossRef] [PubMed]
  8. Kono, N.; Nakamura, H.; Tateishi, A.; Numata, K.; Arakawa, K. The balance of crystalline and amorphous regions in the fibroin structure underpins the tensile strength of bagworm silk. Zool. Lett. 2021, 7, 11. [Google Scholar] [CrossRef] [PubMed]
  9. Kono, N.; Nakamura, H.; Ohtoshi, R.; Tomita, M.; Numata, K.; Arakawa, K. The bagworm genome reveals a unique fibroin gene that provides high tensile strength. Commun. Biol. 2019, 2, 148. [Google Scholar] [CrossRef]
  10. Rizvi, S.A.H.; George, J.; Reddy, G.V.P.; Zeng, X.; Guerrero, A. Latest developments in insect sex pheromone research and its application in agricultural pest management. Insects 2021, 12, 484. [Google Scholar] [CrossRef]
  11. Souza, J.P.A.; Bandeira, P.T.; Bergmann, J.; Zarbin, P.H.G. Recent advances in the synthesis of insect pheromones: An overview from 2013 to 2022. Nat. Prod. Rep. 2023, 40, 866–889. [Google Scholar] [CrossRef] [PubMed]
  12. Mori, K.; Tashiro, T. Synthesis of all the four stereoisomers of (1’S)-1-ethyl-2-methylpropyl 3,13-dimethylpentadecanoate, the major component of the sex pheromone of paulownia bagworm, Clania variegata. Tetrahedron Lett. 2009, 50, 3266–3269. [Google Scholar] [CrossRef]
  13. Mori, K.; Tashiro, T.; Zhao, B.; Suckling, D.M.; El-Sayed, A.M. Pheromone synthesis. Part 243: Synthesis and biological evaluation of (3R,13R,1’S)-1’-ethyl-2’-methylpropyl 3,13-dimethylpentadecanoate, the major component of the sex pheromone of paulownia bagworm, Clania variegata, and its stereoisomers. Tetrahedron 2010, 66, 2642–2653. [Google Scholar] [CrossRef]
  14. Taguri, T.; Yamamoto, M.; Fujii, T.; Muraki, Y.; Ando, T. Synthesis of four stereoisomers of (S)-2-methylpent-3-yl 3,13-dimethylpentadecanoate, a sex pheromone of the bagworm moth Clania variegata, using stereospecific inversion of secondary sulfonates as a key step. Eur. J. Org. Chem. 2013, 2013, 6924–6933. [Google Scholar] [CrossRef]
  15. Sun, Z.-F.; Zhou, L.-N.; Zhang, T.; Du, Z.-T. Stereoselective synthesis of the paulownia bagworm sex pheromone. Chin. Chem. Lett. 2017, 28, 558–562. [Google Scholar] [CrossRef]
  16. Allu, S.R.; Banne, S.; Jiang, J.; Qi, N.; Guo, J.; He, Y. A unified synthetic approach to optically pure curvularin-type metabolites. J. Org. Chem. 2019, 84, 7227–7237. [Google Scholar] [CrossRef] [PubMed]
  17. Sargent, B.T.; Alexanian, E.J. Cobalt-catalyzed aminocarbonylation of alkyl tosylates: Stereospecific synthesis of amides. Angew. Chem. Int. Ed. 2019, 58, 9533–9536. [Google Scholar] [CrossRef]
  18. Mori, K.; Akasaka, K. Pheromone synthesis. Part 256: Synthesis of the four stereoisomers of 5,11-dimethylpentacosane, a new sex pheromone component of the male Galleria mellonella (L.), with high stereochemical purities as determined by the derivatization-HPLC analysis of the eight stereoisomers of 5,11-dimethyl-8-pentacosanol. Tetrahedron 2015, 71, 4102–4115. [Google Scholar]
  19. Horner, J.H.; Newcomb, M. (ω-2,ω-2,ω-3,ω-3)-Tetradeuterio-fatty acids for mechanistic studies of enzyme-catalyzed hydroxylation reactions. J. Label. Compd. Radiopharm. 2012, 55, 406–410. [Google Scholar] [CrossRef]
  20. Koppenhoefer, B.; Schurig, V. (S)-2-Chloroalkanoic acids of high enantiomeric purity from (S)-2-amino acids: (S)-2-chloropropanoic acid. Org. Synth. 1988, 66, 151–156. [Google Scholar]
  21. Hattori, H.; Roesslein, J.; Caspers, P.; Zerbe, K.; Miyatake-Ondozabal, H.; Ritz, D.; Rueedi, G.; Gademann, K. Total synthesis and biological evaluation of the glycosylated macrocyclic antibiotic mangrolide A. Angew. Chem. Int. Ed. 2018, 57, 11020–11024. [Google Scholar] [CrossRef] [PubMed]
  22. Koppenhoefer, B.; Schurig, V. (R)-Alkyloxiranes of high enantiomeric purity from (S)-2-chloroalkanoic acids via (S)-chloro-1-alkanols: (R)-methyloxirane. Org. Synth. 1988, 66, 160–172. [Google Scholar]
  23. Sunagawa, S.; Yamada, H.; Naito, M.; Yasui, E.; Mizukami, M.; Miyashita, M.; Nagumo, S. Synthetic study of arenicolide C: Stereoselective synthesis of the C19-C36 segment. Tetrahedron Lett. 2015, 56, 6693–6695. [Google Scholar] [CrossRef]
  24. Montes Vidal, D.; von Rymon-Lipinski, A.-L.; Ravella, S.; Groenhagen, U.; Herrmann, J.; Zaburannyi, N.; Zarbin, P.H.G.; Varadarajan, A.R.; Ahrens, C.H.; Weisskopf, L.; et al. Long-chain alkyl cyanides: Unprecedented volatile compounds released by pseudomonas and micromonospora bacteria. Angew. Chem. Int. Ed. 2017, 56, 4342–4346. [Google Scholar] [CrossRef] [PubMed]
  25. Yang, D.; Zhang, C. Ruthenium-catalyzed oxidative cleavage of olefins to aldehydes. J. Org. Chem. 2001, 66, 4814–4818. [Google Scholar] [CrossRef]
  26. Nicolaou, K.C.; Sun, Y.-P.; Guduru, R.; Banerji, B.; Chen, D.Y.K. Total synthesis of the originally proposed and revised structures of palmerolide A and isomers thereof. J. Am. Chem. Soc. 2008, 130, 3633–3644. [Google Scholar] [CrossRef]
Ijms 25 04893 g001

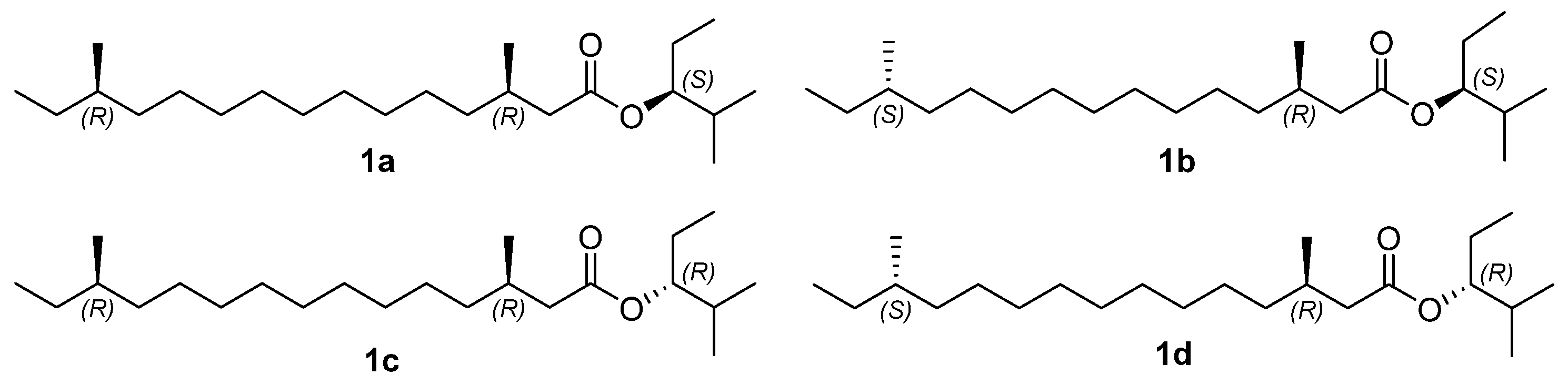

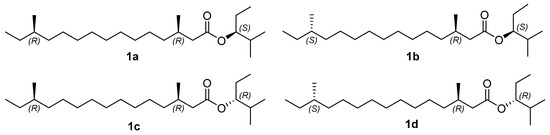

Figure 1. The sex pheromone of Clania vartegata Snell and its stereoisomers.
Figure 1. The sex pheromone of Clania vartegata Snell and its stereoisomers.
Ijms 25 04893 g001
Ijms 25 04893 g002

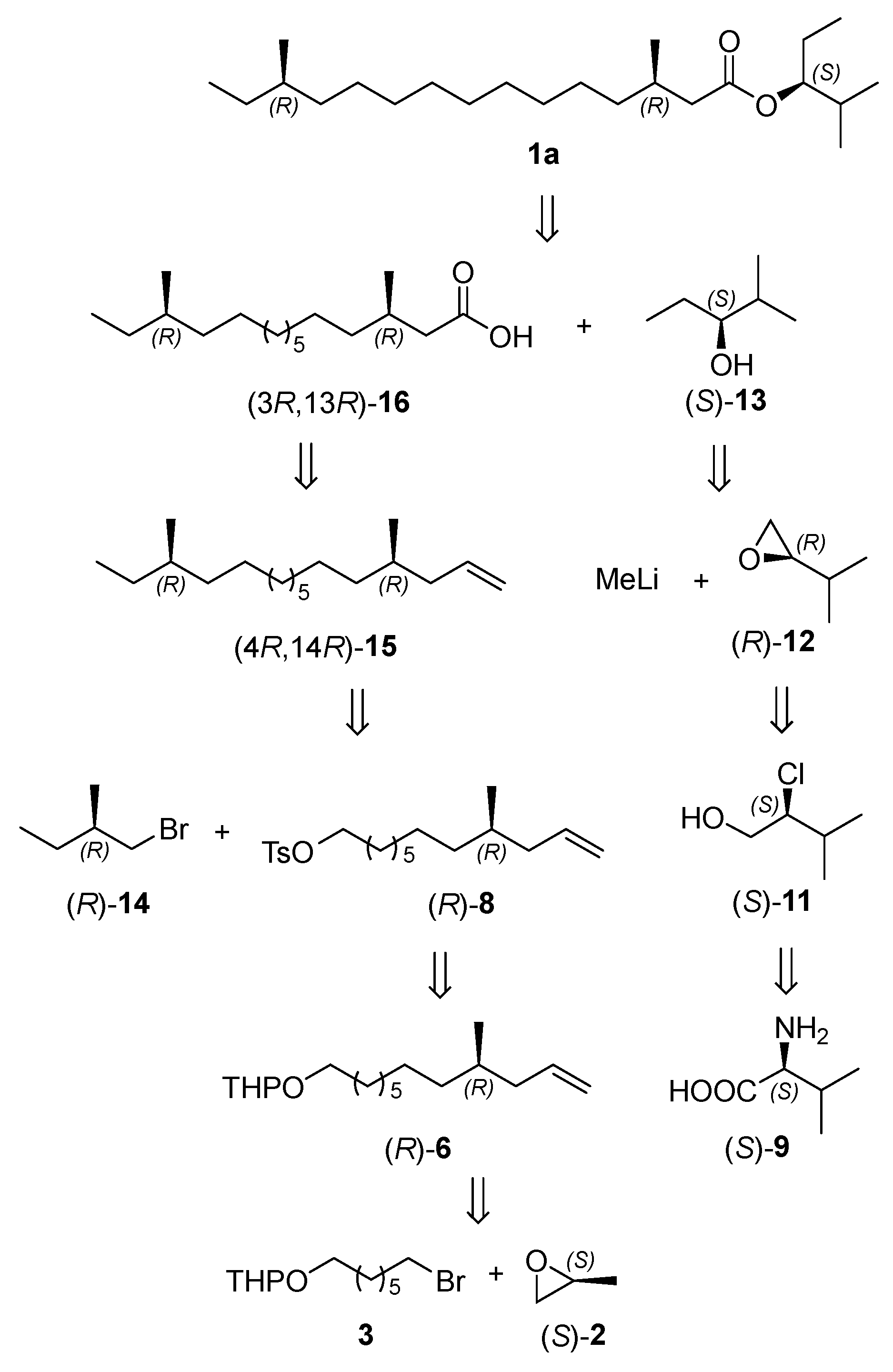

Figure 2. Retrosynthetic analysis of sex pheromone of Clania vartegata Snell 1a.
Figure 2. Retrosynthetic analysis of sex pheromone of Clania vartegata Snell 1a.
Ijms 25 04893 g002
Ijms 25 04893 sch001

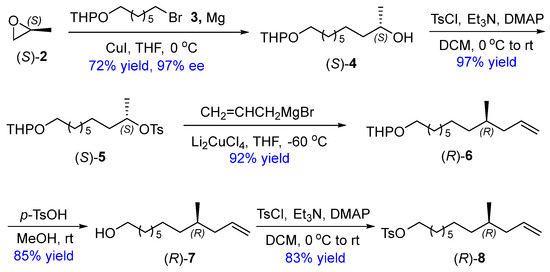

Scheme 1. Synthesis of chiral sulfonate (R)-8.
Scheme 1. Synthesis of chiral sulfonate (R)-8.
Ijms 25 04893 sch001
Ijms 25 04893 sch002

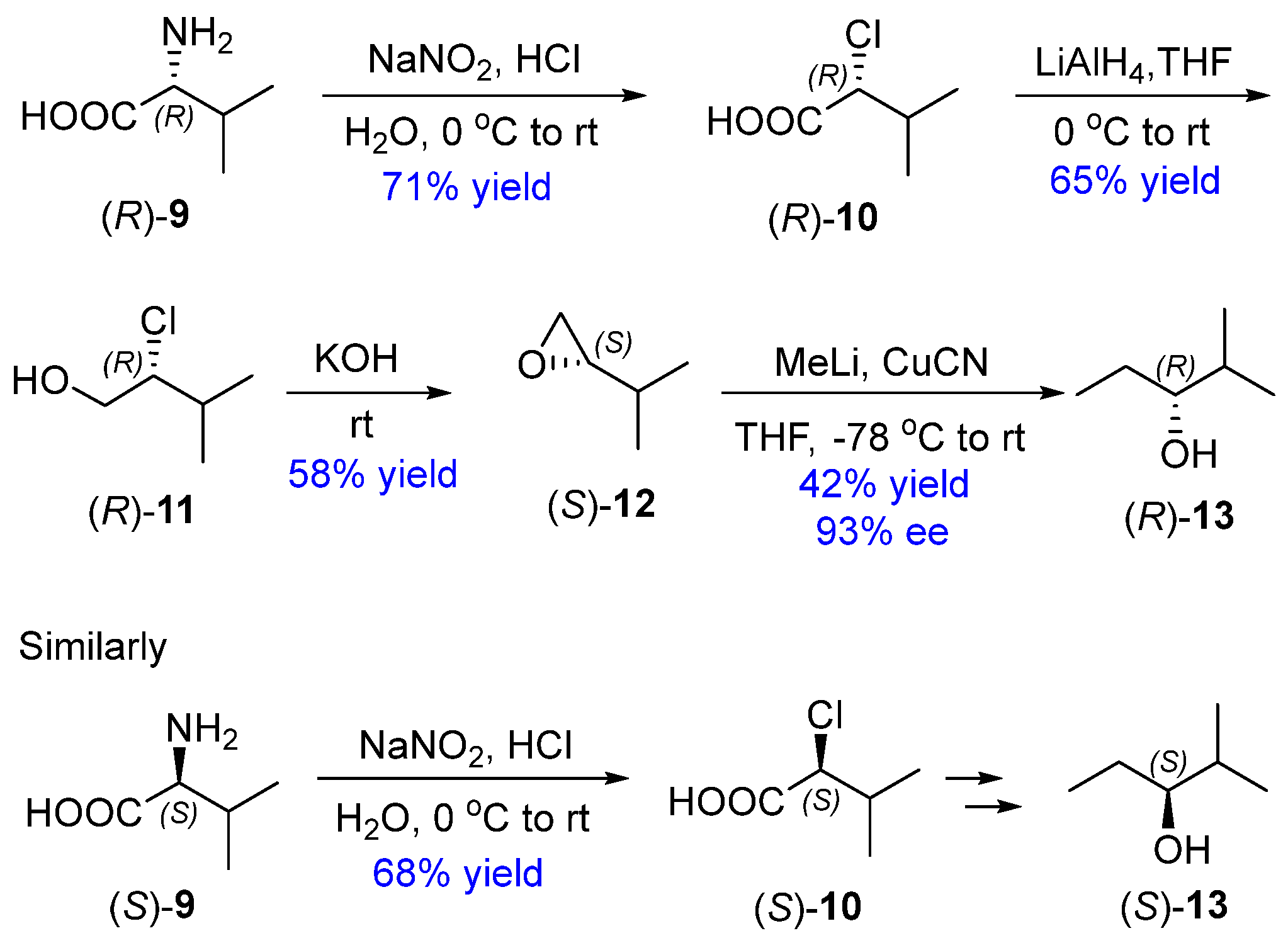

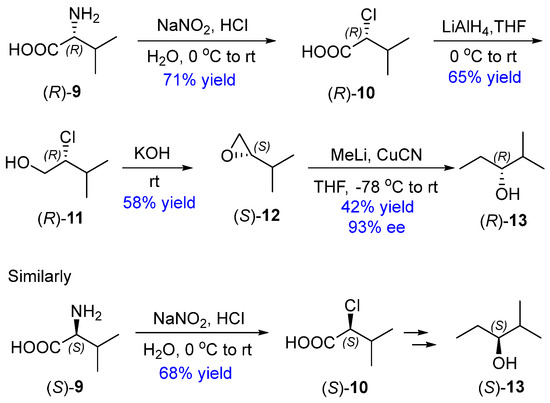

Scheme 2. Synthesis of chiral alcohols (R)-13 and (S)-13.
Scheme 2. Synthesis of chiral alcohols (R)-13 and (S)-13.
Ijms 25 04893 sch002
Ijms 25 04893 sch003

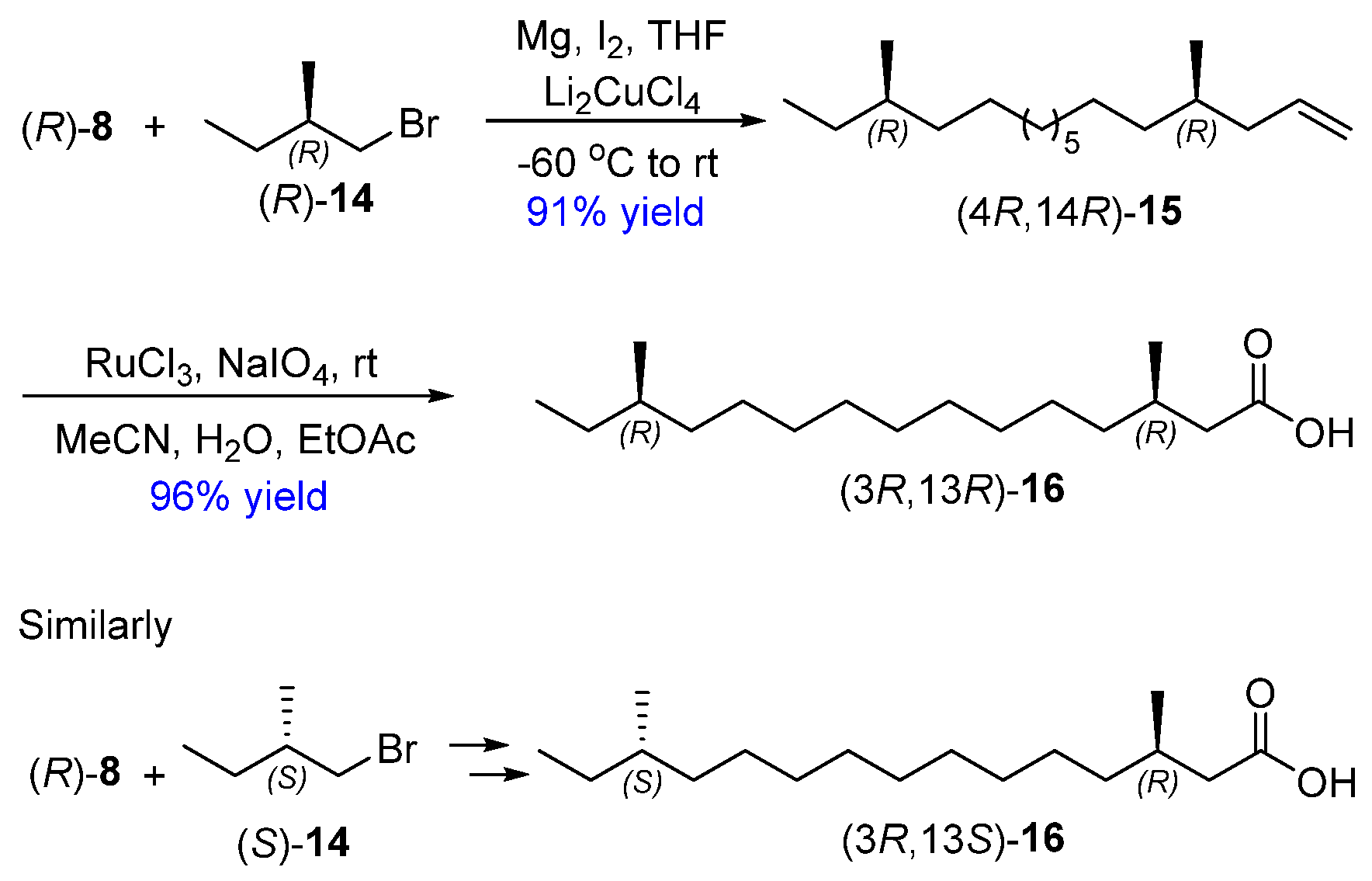

Scheme 3. Synthesis of chiral acids (3R,13R)-16 and (3R,13S)-16.
Scheme 3. Synthesis of chiral acids (3R,13R)-16 and (3R,13S)-16.
Ijms 25 04893 sch003
Ijms 25 04893 sch004

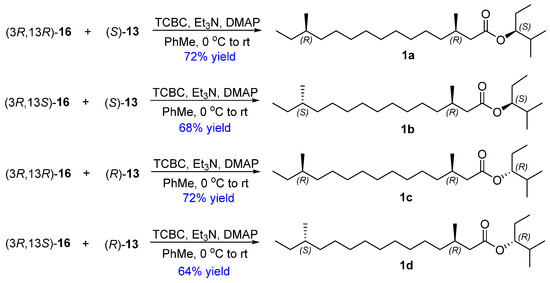

Scheme 4. Synthesis of sex pheromone of Clania vartegata Snell 1a and its stereoisomers 1b–1d.
Scheme 4. Synthesis of sex pheromone of Clania vartegata Snell 1a and its stereoisomers 1b–1d.
Ijms 25 04893 sch004
