Article

Analysis of CNGC Family Members in Citrus clementina (Hort. ex Tan.) by a Genome-Wide Approach

by
Yuanda Lv
1,2,3,
Shumei Liu
1,
Yanyan Ma
1,
Lina Hu
1 and
Huaxue Yan
1,2,3,*
1
Institute of Fruit Tree Research, Guangdong Academy of Agricultural Sciences, Guangzhou 510640, China
2
Key Laboratory of South Subtropical Fruit Biology and Genetic Resource Utilization, Ministry of Agriculture and Rural Affairs, Guangzhou 510640, China
3
Guangdong Provincial Key Laboratory of Science and Technology Research on Fruit Tree, Guangzhou 510640, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2025, 26(3), 960; https://doi.org/10.3390/ijms26030960
Submission received: 4 December 2024 / Revised: 22 January 2025 / Accepted: 22 January 2025 / Published: 23 January 2025
(This article belongs to the Section Molecular Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
The study focuses on the Cyclic nucleotide-gated ion channels (CNGCs) proteins in citrus, aiming to investigate their potential roles. A total of 33 CcCNGC proteins were identified and characterized in Citrus clementina using a genome-wide method. The study revealed that these proteins share a conserved CNGC domain structurally but exhibit significant differences in their primary sequence and motif composition. Phylogenetic analysis classified the CcCNGC proteins into 13 subgroups. The cis-elements present in all CcCNGCs promoters were identified and classified, and the number of elements was determined. The results suggested that these genes play important roles in citrus growth and development, as well as in response to biotic and abiotic stresses. Gene expression analysis further supported these findings, demonstrating that CNGC genes were responsive to various plant hormones and Phytophthora nicotianae infection, which causes citrus foot rot. Overall, the study indicated that members of the CcCNGC gene family exhibit structural and functional diversity. Further research is needed to validate the specific functions of individual family members and their roles in citrus physiology and response to stress conditions.

1. Introduction

It has been reported that calcium ions (Ca2+) play a central and crucial role as a second messenger in all eukaryotes, participating in a wide range of biological processes [1]. In plants, Ca2+ is vital in various physiological, biochemical, and metabolic processes. It is involved in regulating plant growth, development, and biological functions and in responding to both biotic and abiotic stresses, as well as in the immunity triggered by pathogen-associated molecular patterns (PAMPs) [2,3]. Upon detecting stress, plants rapidly mobilize Ca2+ as a specific signal. Several Ca2+ channels have been identified in plants, such as cyclic nucleotide-gated channels (CNGCs), glutamate receptor-like proteins (GLRs), reduced hyperosmolality-induced [Ca2+]cyt increase channels (OSCAs), two-pore channels (TPCs), and others [4,5,6]. Among these channels, members of the CNGC family have been demonstrated to be crucial in plant development and stress resistance.
Cyclic nucleotide-gated ion channels (CNGCs) are a family of evolutionarily conserved genes found in animals, plants, and some prokaryotes, playing essential biological roles in vivo. Plant CNGCs were initially identified in barley [7,8]. The core structure of the CNGC protein comprises six transmembrane domains (S1–S6) [9], with the S4 transmembrane region serving as a positively charged voltage receptor [10]. A porous structure known as the P-ring is located between S5 and S6, containing an ion conduction pore region of 20 to 30 amino acids that is crucial for ion selectivity and serves as a distinguishing feature of CNGC proteins [11]. The cyclic nucleotide-binding domain (CNBD) and calmodulin-binding domain (CaMBD) in plant CNGC protein are both situated at the C-terminal, with the two domains partially overlapping [12,13]. In contrast, the CaMBD domain of animal CNGC protein is located at the N-terminal, while the CNBD domain is positioned at the C-terminal, providing a distinctive characteristic of animal CNGC proteins compared to plant CNGC proteins [13]. It has been observed that the binding of cyclic nucleotides to the CNBD results in the regulation of protein conformation, leading to the activation of CNGCs, the opening of ion channels, and the inflow of extracellular Ca2+. To avoid excessive intracellular Ca2+ levels, calmodulin (CaM) binds to the CaMBD domain, preventing cNMPs from binding to CNBD and, subsequently, closing channel gating [14]. Moreover, studies have shown that CaM can also bind to isoleucine glutamine (IQ) motifs, adding complexity to the ligand regulation of plant CNGCs [15,16]. CNGCs have been identified in numerous plant species, including dicots and monocots [17,18].
Previous studies have demonstrated the significant role of CNGCs in regulating various physiological processes in plants, such as growth and development, cell death, immune response, and responses to both biotic and abiotic stress. Specifically, CNGCs play a crucial role in plant growth and development, particularly in the growth and development of pollen tubes. Studies have shown that the expression of AtCNGC7, AtCNGC8, AtCNGC16, and AtCNGC18 is limited to pollen development and the gametophyte [19]. Furthermore, the function of AtCNGC18 in Arabidopsis thaliana has been confirmed to be specifically expressed in pollen grains [9,16]. In Pyrus bretschneideri, the PbrCNGC14-18, PbrCNGC2, PbrCNGC7-9, and PbrCNGC12-13 are specifically expressed in pollen [20]. In Arabidopsis, proteins CNGC18, CNGC7, and CNGC8 are involved in pollen tube growth, with their functions being redundant; additionally, CNGC14, CNGC5, CNGC6, and CNGC9 are essential for regulating root hair growth [21]. In rice, CNGC13, which is homologous to AtCNGC19, has been shown to play a similar role in pollen tube growth [22,23].
The CNGCs play a crucial role in responding to abiotic stress. In Arabidopsis, AtCNGC10 was shown to negatively regulate salt stress [9,24,25], while both AtCNGC19 and AtCNGC20 genes were found to be involved in responding to salt stress [26]. In Amaranthus hypochondriacus, the expression of AhCNGC5 and AhCNGC17 significantly changed under salt stress conditions, aligning with the roles of AtCNGC5 and AtCNGC17 in A. thaliana [27,28,29]. In Nicotiana tabacum, NtabCNGC6 and NtabCNGC7 are involved in Cd stress and cold stress, with an upregulation of expression [25,30]. In Arabidopsis, CNGCs were found to be involved in the uptake and transport of Pb2+ or Cd2+ ions, with AtCNGC1, AtCNGC10, AtCNGC13, and AtCNGC19 functioning in Pb2+ toxicity, and AtCNGC11, AtCNGC13, AtCNGC16, and AtCNGC20 playing roles in Cd2+ toxicity [31]. In N. tabacum, NtabCNGCs were found to be involved in drought stress in the late stage [30]. As reported, AtCNGC16 was found to be involved in pollen fertility under heat and drought stress [9,32]. In Arabidopsis and moss, AtCNGC2 and CNGCb have been identified as regulators of the heat shock response (HSR) and acquired thermotolerance in plants [30]. Additionally, AtCNGC6 has also been shown to play a role in HSR. In rice, OsCNGC14 and OsCNGC16 have been found to regulate cytosolic Ca2+ signals in response to temperature stress [30,33]. In the Brassica oleracea genome, there are 26 CNGC genes, with 13 BoCNGC genes identified as responding to cold stress [34]. In Mangifera indica fruit peel, after two days of cold stress, there was an upregulated expression of MiCNGC15, indicating a role for CNGC in responding to decreases in temperature [35].
CNGCs regulate Ca2+ influx and the resulting Ca2+ signaling. Recent research has shown that CNGC proteins are involved in plant immunity, particularly in the HR triggered by pathogens. In Arabidopsis, certain CNGCs have been identified as key regulators of SA or resistance gene (R gene) mediating responses to pathogen infections [36,37,38,39], such as AtCNGC2 [14], AtCNGC4 [40], AtCNGC11, and AtCNGC12 [38,41]. Studies have demonstrated that mutants of AtCNGC2 and AtCNGC4 (dnd1 and dnd2) exhibit enhanced broad-spectrum resistance to bacterial pathogens and are essential for effector-triggered immunity (ETI) via Ca2+ signaling [36,40,42]. In potato and tomato, downregulation of the AtCNGC2 ortholog has been linked to increased resistance to late blight and powdery mildew. However, this resulted in dwarfed and necrosis in tomato, while no such effects were observed in potato [43]. These results emphasize the unique interactions between AtCNGC2 homologous genes and pathogens in various plant species. Furthermore, AtCNGC2 is known to play a role in DAMP perception, as well as in the production of reactive oxygen species (ROS) and/or nitric oxide (NO), and the activation of ET/JA pathways in the absence of SA signaling [39,44,45]. The double mutation of AtCNGC11 and AtCNC12 (cpr22) has been shown to increase resistance to Peronospora parasitica Emco5 [38]. In rice, CNGCs have been demonstrated to play a significant role in stress resistance [46]. Additionally, AtCNGC19 has been shown to be important for defense against the fungal pathogen Botrytis cinerea [23,47]. In the apple, gene editing of the homolog of AtCNGC2, named MdCNGC2 in apple “orin” callus, was conducted. The results showed that editing the MdCNGC2 gene enhanced immune responses and improved resistance to Botryosphaeria dothidea in apple callus [7]. Analysis of the CNGC family in apple (Malus domestica) and pear (Pyrus bretschneideri and Pyrus communis) in response to threats of Valsa canker revealed the presence of many cis-acting regulatory elements responsive to various stresses and hormones in the promoters of CNGCs. Subsequent overexpression of MdCN11 and MdCN19 in apple fruits and ‘Duli’ (Pyrus betulifolia) suspension cells resulted in decreased resistance to Valsa canker. This suggested that MdCN11 and MdCN19 play a negative role in response to Valsa canker by inducing HR [39]. Together, these studies demonstrated the importance of CNGCs in plant disease resistance.
As a non-selective cation channel essential for regulating plant growth, development, and stress resistance, the role of CNGCs in response to abiotic stress remains largely unexplored in citrus. In this study, bioinformatics tools were employed to comprehensively analyze the citrus CNGC gene family, examining gene structure, protein-conserved domains, cis-acting elements within promoter segments, and their expression profiles under different abiotic stress conditions. The findings aim to provide valuable insights for future research on the role of CNGCs in citrus.

2. Results

2.1. Identification of CcCNGC Gene Family Members

Using the protein sequences of CNGC family members in A. thaliana as a reference, potential CNGC members in citrus were identified through bidirectional homology blastp comparison. Further screening based on conserved domains resulted in the identification of a total of 33 CNGC genes in the C. clementina genome, temporarily named CcCNGC1-33. To better understand the structure and function of C. clementina CcCNGC genes, the sequence features of citrus CcCNGCs were analyzed using the Expasy website. The physicochemical properties of the 33 CcCNGC proteins, including gene ID, amino acid number, molecular weight, isoelectric point, and total average hydrophobicity, were also analyzed. The length of these CcCNGC genes ranged from 1335 to 2664 amino acids (Table 1), with an average length of approximately 2038 amino acids. The amino acid number of CcCNGC protein was between 445 and 888, with an average of 680. The theoretical isoelectric point was between 6.42 and 9.51. The instability index ranged from 35.55 to 48.11, with only CcCNGC1, CcCNGC15, CcCNGC23, CcCNGC27, CcCNGC30, and CcCNGC31 proteins having an instability index of less than 40, while the remaining 27 CcCNGC proteins had an instability index greater than 40, indicating that these proteins are unstable. The aliphatic index was between 24.51 and 32.06, indicating an average level of thermal stability. The average hydropathy score was between 0.616 and 0.805, which means that all CcCNGCs are hydrophobic proteins. Subcellular localization prediction of citrus CcCNGC proteins indicated that, with the exception of CcCNGC15, which lacks a predicted localization, all other CcCNGCs are localized on the plasma membrane.

2.2. Phylogenetic Analysis of the CNGC Gene Family

To understand the evolutionary relationship between the CNGC gene family in citrus and model plants, a phylogenetic tree was constructed between citrus C. clementina (33), C. sinensis (25), P. trifoliata (25), and A. thaliana (20) CNGC gene family members using conservative amino acid sequences with MEGA 6.0 software. The CNGC members in Arabidopsis and citrus were divided into 13 subgroups, with the largest subgroup having 22 members and the smallest subgroup having only 1 (Figure 1). Many of these subgroups contained CNGC genes from C. clementina, C. sinensis, P. trifoliata, and Arabidopsis. In the analysis of the 33 CNGC genes in C. clementina, CcCNGC20 was identified as a separate branch, suggesting a possibly lower homology with other members. The results of the phylogenetic analysis indicated a potential correlation between the subfamily classification of citrus CNGC genes and their functional similarity.

2.3. Gene Structure, Conserved Motifs, and Domain Analysis of the CcCNGC Gene Family Members

To obtain the gene structure and conserved domains of CNGC, analysis was performed on 33 CcCNGC members. By aligning the CDS of CcCNGC to the corresponding genome sequences, the distribution of introns, exons, and UTRs of these 33 genes was analyzed. The number of introns in citrus CcCNGC gene family members ranged from 4 to 12, while the number of exons ranged from 5 to 13. Among them, CcCNGC2, CcCNGC3, and CcCNGC29 had the highest number of CDS, and some members did not have UTR, possibly due to incomplete genome annotation. An interesting observation was that members with close phylogenetic relationships show greater similarity in gene structure, as shown in Figure 2. Conserved motif analysis using the online software MEME revealed 10 motifs in the CcCNGC gene family, with similar motifs and arrangement order among most genes within the family. Motif 2, motif 3, and motif 8 were present in all CcCNGC genes, indicating that these motifs are characteristic conserved motif sequences in the evolution of CcCNGCs. Predictions of conserved domains in CNGC family members showed that all CNGC members contain the CAP-ED superfamily conserved domain, and most family members contain the PLN03192 superfamily conserved domain (Figure 2).

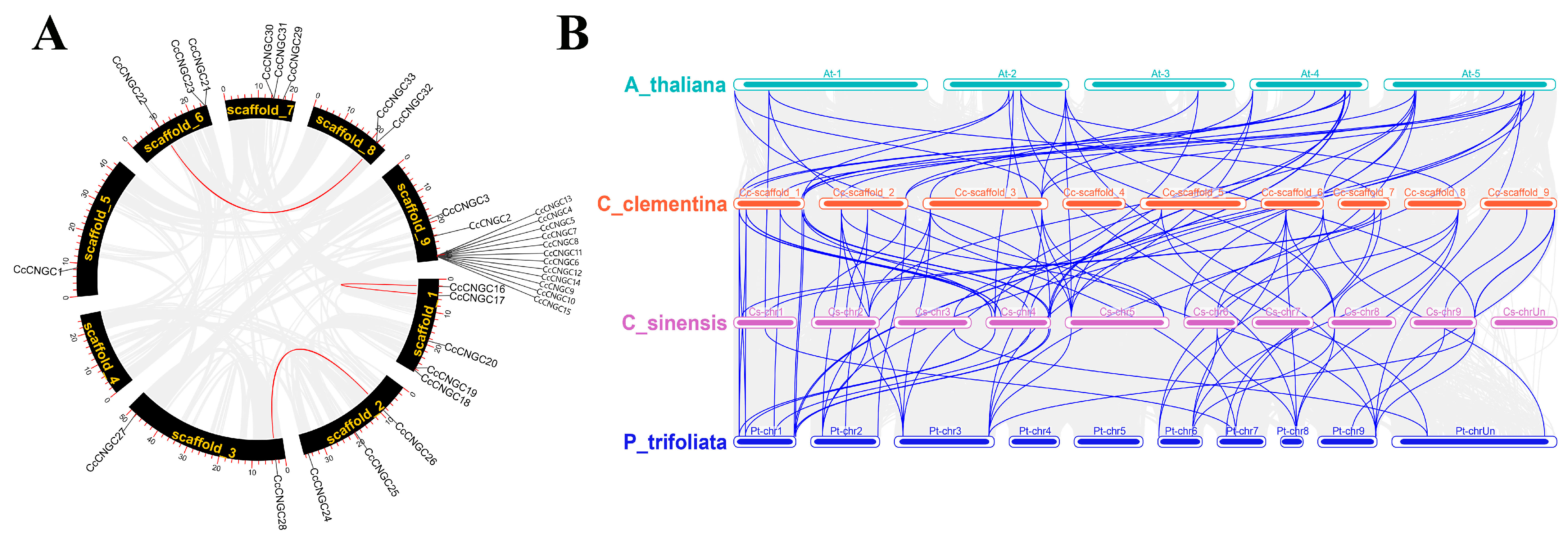

2.4. Chromosomal Localization and Synteny Analysis of CNGC Gene Family Members

The results revealed that, with the exception of chromosome 4, genes were spread across the remaining 8 chromosomes, displaying an uneven distribution among them (Figure 3). Among the members of the CcCNGC gene family, chromosome 9 had the highest abundance, with 15 members. Conversely, chromosome 5 had the lowest number of members, with only one, while chromosome 4 did not contain any CNGC gene family members. This indicated that the distribution of CNGC gene family members on each chromosome is not correlated with the chromosome’s length. We conducted intra-species synteny analysis of the CcCNGC gene family, which showed that CcCNGC22 was in the same syntenic region as CcCNGC33 and CcCNGC32; CcCNGC16 was in the same syntenic region as CcCNGC17; and CcCNGC28 was in the same syntenic region as CcCNGC26 (Figure 4). Furthermore, inter-species synteny analysis was performed on C. clementina, C. sinensis, P. trifoliata, and A. thaliana CNGC gene families. The results showed that there were more synteny modules among several species, with more synteny between C. clementina, C. sinensis, and A. thaliana compared to P. trifoliata.

2.5. Analysis of Cis-Acting Elements in the Promoter Regions of the CcCNGCs

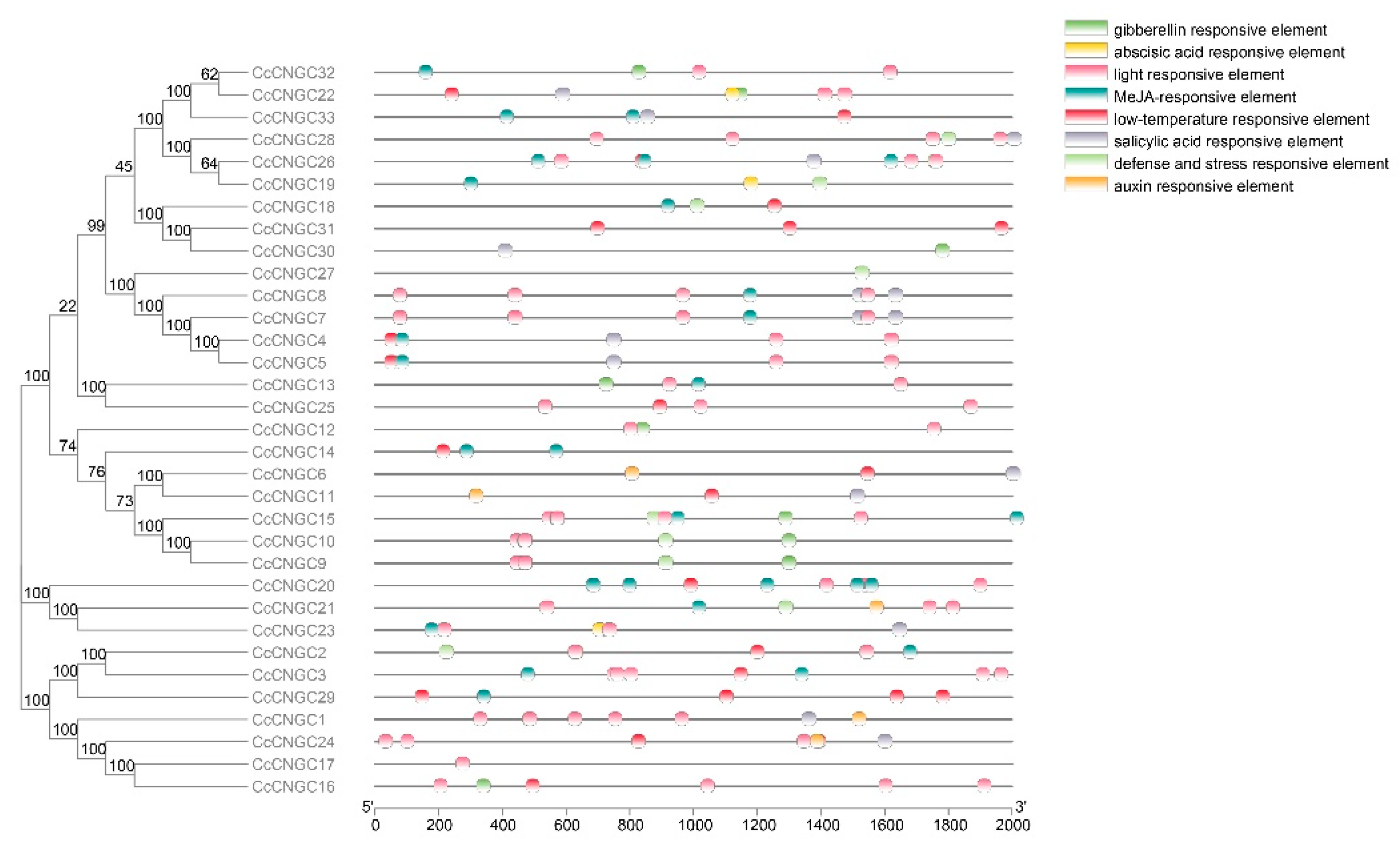

To further understand the potential regulatory mechanism of CNGCs in C. clementina, we conducted cis-acting element analysis on the 2000 bp upstream promoter region. The predicted results revealed that out of 33 CcCNGC promoters, 8 elements were identified (Figure 5), including abscisic acid response elements (ABRE), methyl jasmonate response elements (TGACG-motif), auxin response elements (TGA-element), salicylic acid response elements (TCA), and gibberellin response elements. The promoter region also included elements related to biological rhythms control, such as light response elements, low-temperature response elements, as well as defense and stress response elements. The specific number of elements is shown in Supplemental Figure S1. There were different types and quantities of cis-acting elements among CcCNGC members, indicating that CcCNGC members have different biological functions and are closely related to hormone signal transduction pathways and stress responses.

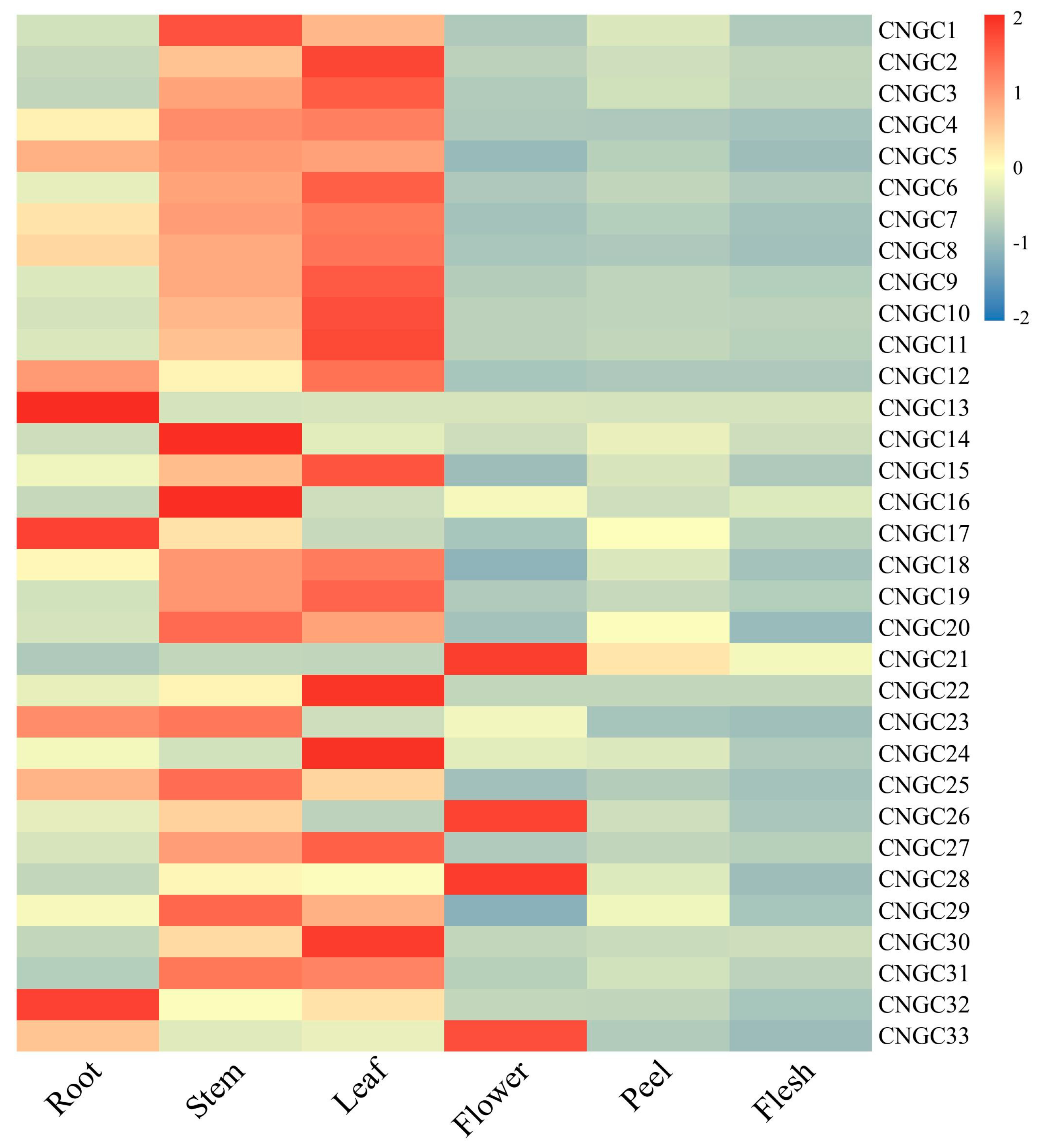

2.6. Expression Analysis of the CcCNGCs in Citrus Tissues

The expression of CNGC gene family members in different tissues of clementina, including roots, stems, leaves, flowers, peel, and pulp, was detected. It was observed that the expression levels of CNGC family members in the peel and flesh were significantly lower compared to other tissues, while the stems and flowers showed lower expression levels compared to roots and leaves. Thirteen members, including CcCNGC5, CcCNGC13, CcCNGC25, and CcCNGC32, exhibited the highest expression in roots (Figure 6). Four members, including CcCNGC14 and CcCNGC16, had the highest expression in stems. Over 20 members, including CcCNGC2 and CcCNGC5, exhibited relatively high expression in leaves. Five members, including CcCNGC10, showed relatively high expression in leaves. CcCNGC16 and CcCNGC21 exhibited higher expression in the flesh compared to other members.

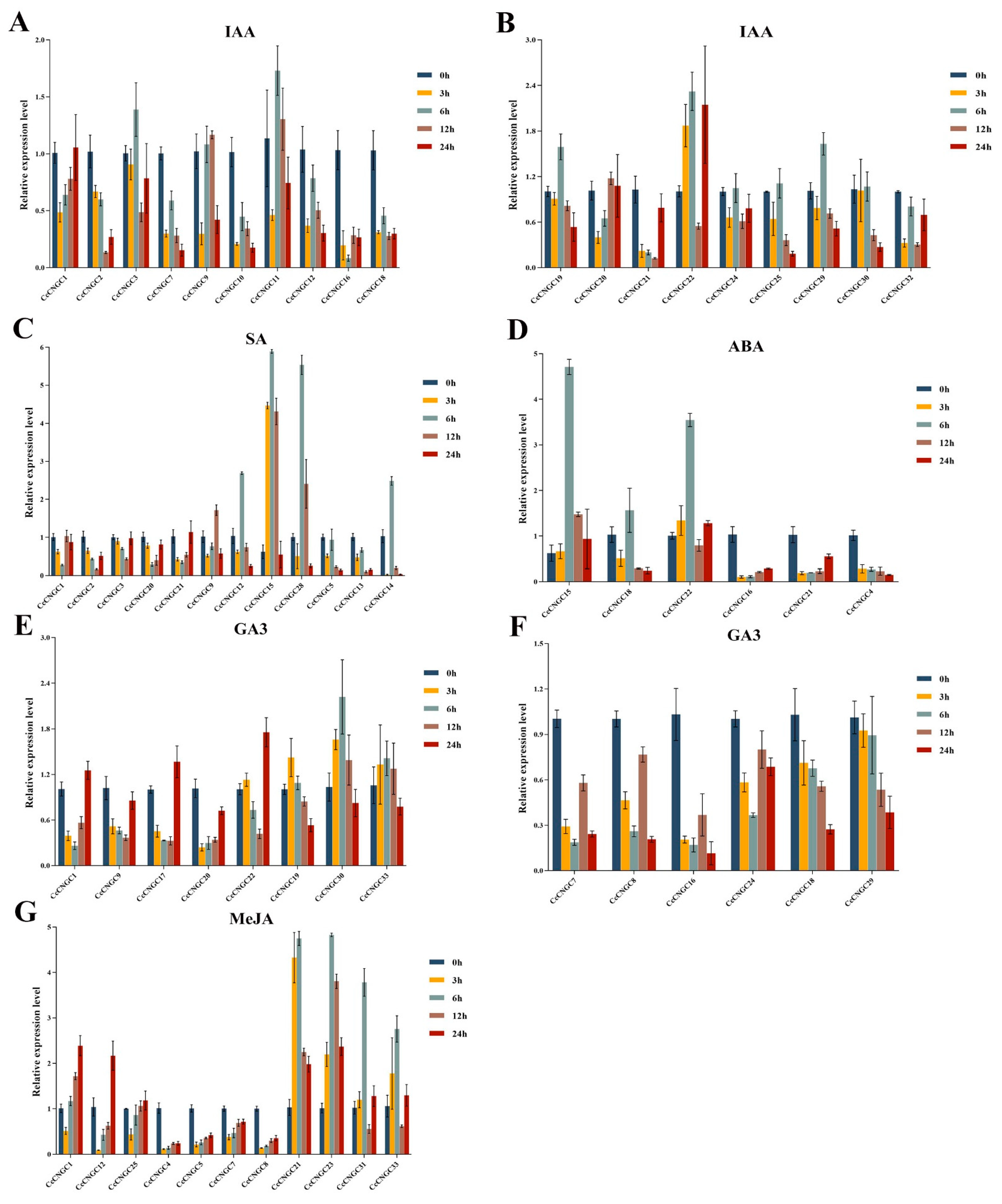

2.7. Expression of CcCNGCs Under Plant Hormone Treatment

The expression of CcCNGCs was found to be modulated by plant hormone treatments (Figure 7 and Supplemental Figure S2). Results indicated that CcCNGC15, CcCNGC17, CcCNGC23, CcCNGC26, CcCNGC28, CcCNGC31, and CcCNGC33 were significantly upregulated under IAA treatment. CcCNGC15 demonstrated 5 with a nearly 5-fold upregulation. CcCNGC4, CcCNGC5, CcCNGC6, CcCNGC8, CcCNGC13, CcCNGC14, and CcCNGC27 were significantly downregulated by IAA induction, with CcCNGC27 showing the highest downregulation. Under SA treatment, the expression of CcCNGC1, CcCNGC2, CcCNGC3, CcCNGC20, and CcCNGC21 followed an inverted V-shape, while CcCNGC9, CcCNGC12, CcCNGC15, and CcCNGC28 followed a parabolic pattern, and CcCNGC5, CcCNGC13, and CcCNGC14 were significantly downregulated at 3 h. Under GA3 treatment, the expression of CcCNGC1, CcCNGC9, CcCNGC17, CcCNGC20, and CcCNGC21 followed an inverted V-shape, while CcCNGC19, CcCNGC28, CcCNGC30, and CcCNGC33 followed a parabolic pattern. CcCNGC7, CcCNGC8, CcCNGC16, and CcCNGC24 showed a decrease in expression at 3 h and 6 h after treatment but an increase at 12 h; however, the expression levels were always lower than 0 h. Notably, under GA3 treatment, CcCNGC18 and CcCNGC29 always showed downregulation. Under ABA treatment, the expression of CcCNGC15, CcCNGC18, and CcCNGC22 showed a parabolic pattern, with the expression of CcCNGC16 and CcCNGC21 decreasing at the beginning of treatment, then increasing continuously but lower than 0 h. The gene CcCNGC4 was consistently downregulated. Under MeJA treatment, the expression of CcCNGC1, CcCNGC12, and CcCNGC25 significantly decreased at 3 h, then gradually increased at 6 h, 12 h, and 24 h, with expression levels at 24 h higher than at 0 h. The expression of CcCNGC4, CcCNGC5, CcCNGC7, and CcCNGC8 gradually increased at 6 h, 12 h, and 24 h, but the expression levels at 24 h were significantly lower than at 0 h. The expression levels of CcCNGC21, CcCNGC23, CcCNGC31, and CcCNGC33 exhibited a parabolic pattern, with peak levels observed at 6 h.

2.8. Expression of CcCNGCs Under Low-Temperature and Light Stress

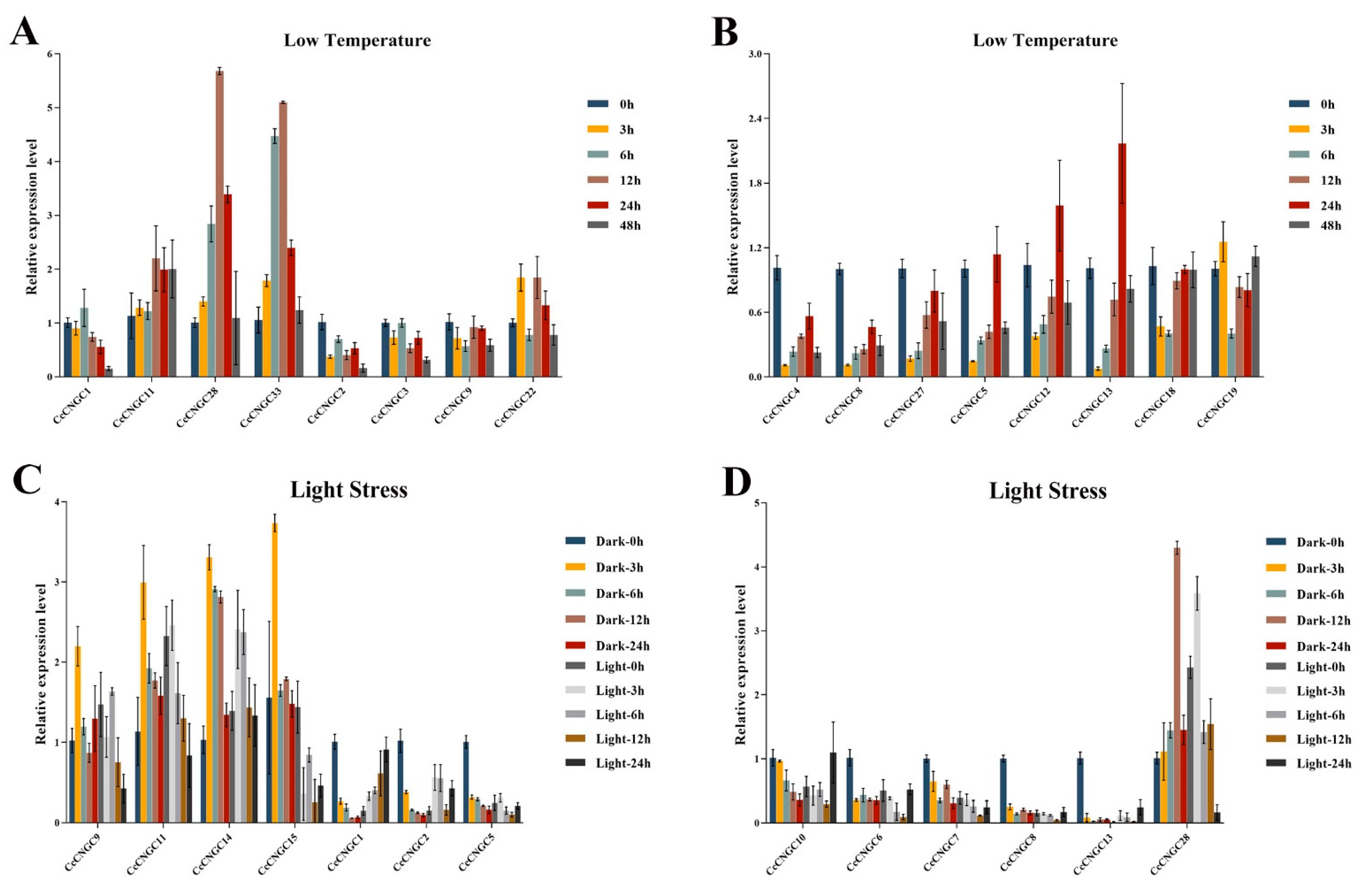

Under low-temperature stress, the expression of CcCNGC showed varying degrees of change. The expression of CcCNGC1, CcCNGC11, CcCNGC28, and CcCNGC33 followed a parabolic pattern, but the vertex of the parabola occurred at different time points such as 6 h, 12 h, or 24 h. Some members of the CcCNGC family, such as CcCNGC2, CcCNGC3, CcCNGC9, and CcCNGC22, displayed a wave-like expression pattern. Additionally, there were some members whose expression decreased continuously at 3 h, 6 h, and 12 h but increased at 24 h. In this type of variation, the expression of CcCNGC4, CcCNGC8, and CcCNGC27 at 24 h was significantly lower than at 0 h, while the expression of CcCNGC5, CcCNGC12, and CcCNGC13 was noticeably lower than at 0 h. After 48 h of low-temperature stress treatment, except for CcCNGC11, CcCNGC18, and CcCNGC19, the expression of the rest of the CNGC family members decreased (Figure 8 and Supplemental Figure S3).
The expression levels of CNGC family members show distinct responses when exposed to dark or light treatments (Figure 8 and Supplemental Figure S3). Apart from CcCNGC9, CcCNGC11, CcCNGC14, and CcCNGC15, all other CNGC members showed upregulation in expression after 3 h of dark treatment. CcCNGC1 exhibited a perfect parabolic shape, with expression decreasing gradually under dark treatment and gradually recovering to the 0-h level after light exposure. CcCNGC2, CcCNGC5, and CcCNGC10 showed a gradual decrease in expression under dark treatment and a sudden increase after light exposure, but with less regularity after light exposure. CcCNGC6, CcCNGC7, and CcCNGC8 showed more regular changes after light exposure. CcCNGC13, CcCNGC14, and CcCNGC28 displayed significant changes in expression after dark treatment and recovery from light treatment. Notably, CcCNGC28 showed a 5-fold increase in expression at 0 h after recovery from light treatment.

2.9. Expression and Validation of CcCNGCs Under Phytophthora Treatment

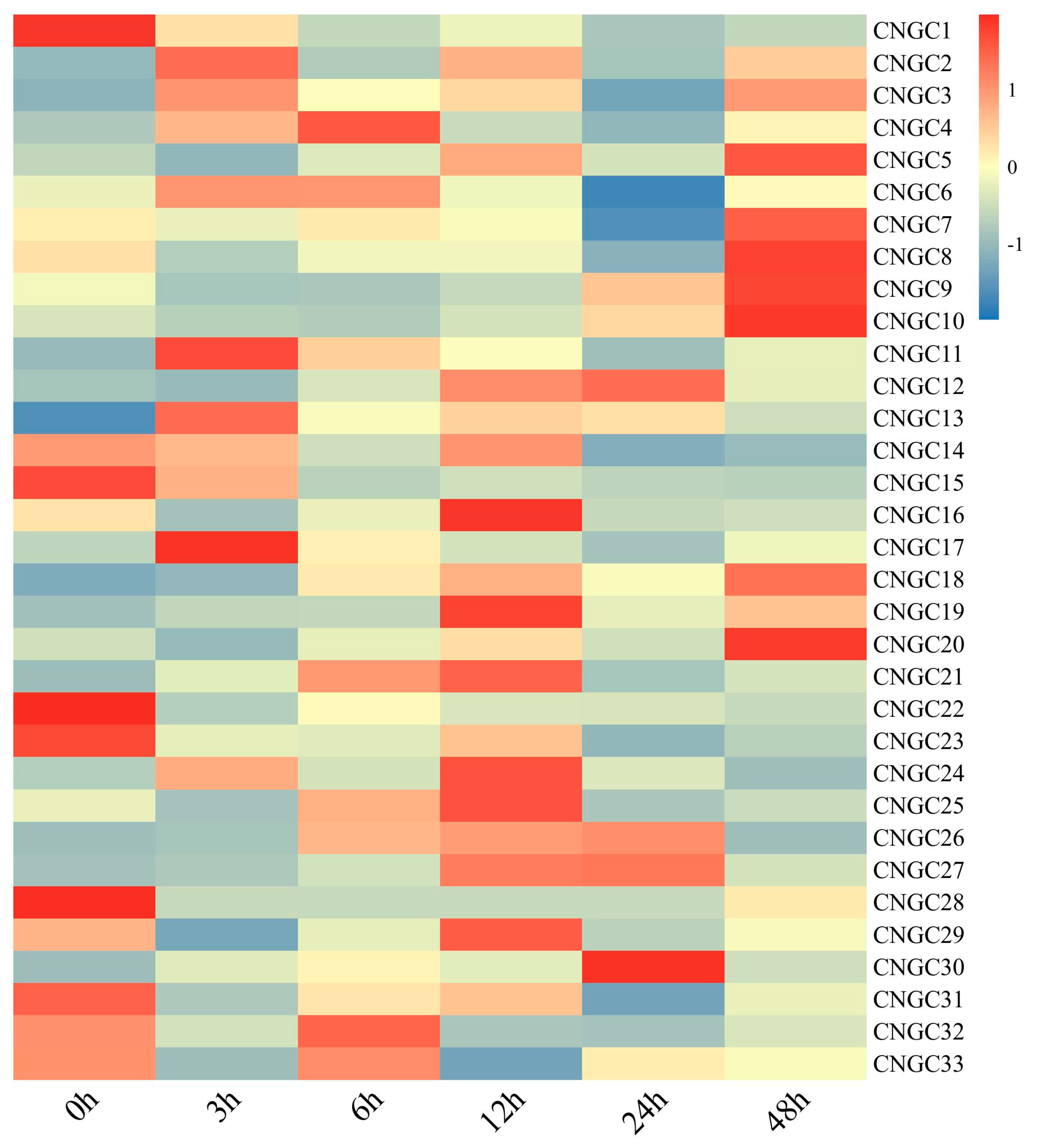

Changes in the expression levels of CNGC genes were shown induced by P. nicotianae within 48 h after being infected with the pathogen (Figure 9). Eight genes, including CcCNGC9, CcCNGC10, CcCNGC12, CcCNGC20, CcCNGC21, CcCNGC24, CcCNGC27, and CcCNGC30, were highly induced by P. nicotianae, with peak inductions exceeding 4-fold for CNGC30 and 6-fold for CNGC27. Four distinct patterns were observed, namely gradual induction, early induction, late induction, and mid-term induction. Specifically, CcCNGC3, CcCNGC5, CcCNGC27, and CcCNGC30 exhibited gradual induction, while CcCNGC11 and CcCNGC17 displayed early induction. The genes CcCNGC9, CcCNGC10, CcCNGC12, and CcCNGC20 showed late induction with peak expression levels at 48 h, while CcCNGC16, CcCNGC21, and 24 peaked in mid-term induction. In contrast, CcCNGC1, CcCNGC15, and CcCNGC28 were found to be moderately inhibited or not induced by Phytophthora infection (Figure 9).

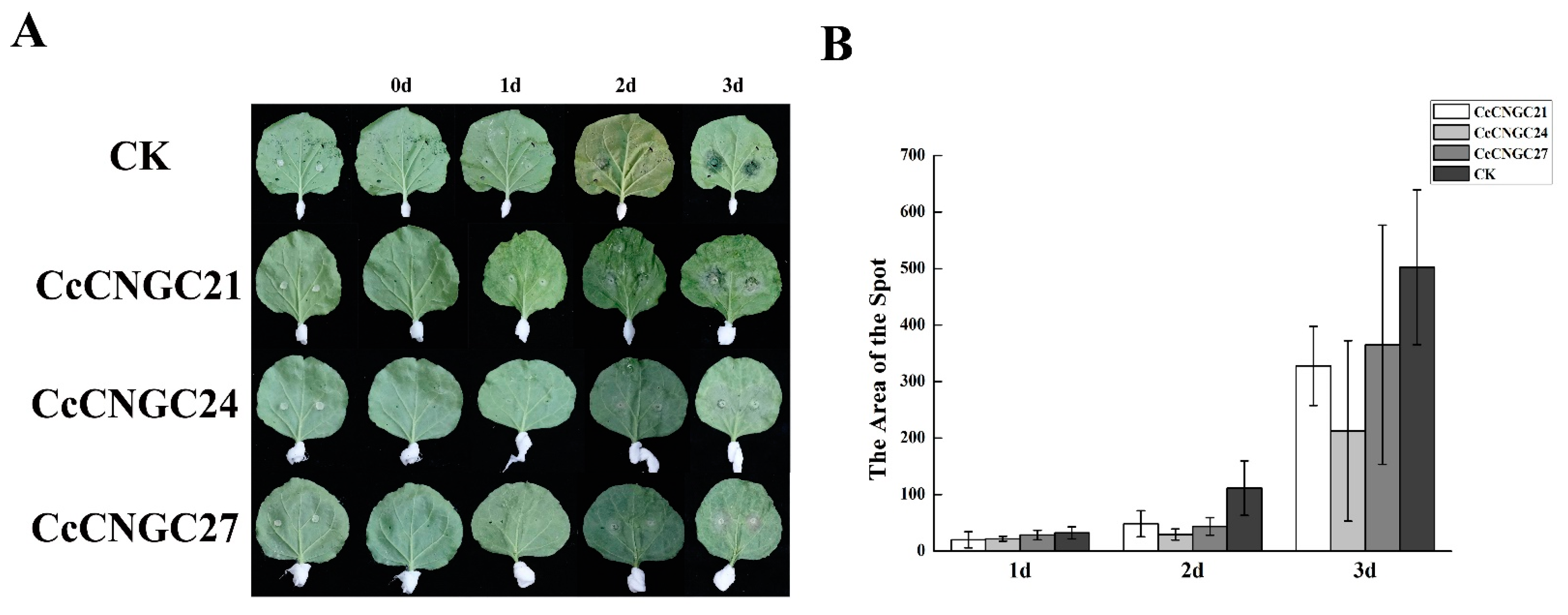

Based on the quantitative results, CcCNGC21, CcCNGC24, and CcCNGC27 exhibited significant responses to Phytophthora stress and then overexpressed in the tobacco leaves by the transient transformation. It was found that all infected leaves showed disease symptoms after tobacco plants were infected with Phytophthora, with a disease incidence rate of 100%. It was observed that the disease spots gradually expanded after inoculation. The disease spot on CcCNGC27 showed the greatest change on day 3 post-inoculation, but the spot area was smaller than that of the control group. This indicated that overexpression of the CcCNGC21, CcCNGC24, and CcCNGC27 genes negatively affected the disease development spots, which were smaller than in the control group (Figure 10).

3. Discussion

CNGC proteins are channels located on the plasma membrane and have been discovered in various plant species. Numerous functional studies have demonstrated their crucial role in regulating plant growth and development, as well as in defending against pathogens [9,48,49,50]. While the CNGC gene family has been extensively studied in various citrus and their closely related species, including C. sinensis, Citrus reticulata, Citrus grandis, Atalantia buxifolia, and P. trifoliata, particularly in relation to their response to drought stress as observed in a recent study by Komal Zia et al. (2022), their role in disease resistance within the Citrus genus remains relatively unexplored [48]. Therefore, the primary aim of this research is to conduct a thorough investigation into the CNGC gene family within C. clementina and explore its potential role in combating P. nicotianae infections and responses to hormone treatments.
According to bioinformatics analysis, 33 CcCNGC members were identified in C. clementina, 25 in C. sinensis, 25 in P. trifoliata, and 20 in Arabidopsis. This suggested that the CNGC gene family is conserved across different species, with some functional differences. Analysis of the evolutionary tree of CNGC families in various species revealed that CNGC proteins in citrus and certain members in Arabidopsis show high conservation. However, AtCNGC19 and AtCNGC20 formed separate evolutionary clades, indicating species-specific differences. The grouping of other CNGC family members suggested structural conservation but varying functions across species.
The gene structure of CcCNGCs includes exons and introns. Xu suggested that the introns and exons evolved through acquisition, loss, insertion, or deletion. Gene structure plays a crucial role in determining gene function and serves as a fundamental basis for understanding the evolution of gene families [51]. This study revealed that the intron numbers of CcCNGCs vary from 4 to 12, while the exon numbers range from 5 to 13. It was hypothesized that the structure and function of CcCNGCs undergo changes as different introns/exons are inserted or deleted during the evolutionary process. Most genes in CcCNGCs possess 6–8 exons, indicating conservation within this gene family. Guo proposed that changes in intron/exon numbers during genome evolution could lead to chromosome fusion or recombination in organisms, thereby altering gene function [52]. In this study, the number of introns or exons in CcCNGCs genes was found to impact their biological function in C. clementina. A total of 10 motifs were identified in CcCNGC proteins, with motif 2, motif 3, and motif 8 primarily associated with encoding the CcCNGC domain. These motifs vary among different CcCNGCs, enhancing the functional diversity of CcCNGC proteins. Additionally, specific conserved motifs play a crucial role in determining their functions.
Based on the chromosome location analysis, it was found that 33 CcCNGC genes were unevenly distributed on 8 chromosomes in C. clementina, with the exception of chromosome 4. This indicates that CcCNGC genes are widespread in C. clementina. There were 3 members each on chromosomes 2, 6, and 7, while chromosomes 3 and 8 each had two CcCNGCs. Further exploration is needed to understand the distribution of genes on these chromosomes. By conducting collinearity analysis of the CcCNGC gene family among different species, the evolutionary relationship of the CcCNGCs can be better understood. The results of the collinearity analysis revealed that CcCNGC22, CcCNGC33, and CcCNGC32; CcCNGC16 and CcCNGC17; as well as CcCNGC28 and CcCNGC26 were located in the same collinear regions, suggesting that these genes may have arisen from large-scale gene duplication during evolution. This indicates that the CNGCs in C. clementina underwent amplification during genome evolution. The collinearity analysis provides a theoretical basis for understanding the shared gene control loci between different species. Further collinearity analysis of CNGC genes among the C. clementina, C. sinensis, P. trifoliata, and A. thaliana genome revealed that CNGC genes exhibiting higher collinearity modules between C. clementina and the other two species are more closely related. Conversely, these displayed lower collinearity with P. trifoliata.
Based on our investigation of the tissue-specific expression patterns of the CcCNGC gene in C. clementina, we observed that CcCNGCs showed higher expression levels in stems and leaves compared to fruit peel and flesh. This finding is consistent with the analysis of elements in the gene promoters, which revealed a large number of light-responsive elements. This suggests that CcCNGC may be involved in photosynthesis in green tissues. Therefore, it is likely that CcCNGCs play a key role in green tissues and contribute to the process of photosynthesis. The functions of other elements in the promoter were found to be unrelated to fruit tissues. Our tissue-specific expression analysis indicated that the expression levels of the promoter were notably low in fruit peel and flesh. Only a select few members of the CcCNGCs family, such as CcCNGC21, CcCNGC26, CcCNGC28, and CcCNGC33, exhibited high expression levels in flowers, while genes like CcCNGC13, CcCNGC16, and CcCNGC32 showed high expression levels in roots. However, the majority of CcCNGCs genes showed lower expression levels in roots and flowers, similar to what was observed in fruit peel and flesh.
The promoters may influence the function of the genes, so in this study, we analyzed the elements in the promoters. The results showed that CcCNGCs could play a role in the plant defense process. Firstly, the proteins were predicted to be localized in the plasma membrane, with main functions including control functions, energy conversion, material transport, information recognition, and transmission. These functions suggest that they may be involved in plant responses to stress. Secondly, the elements enriched in the promoters of the CcCNGC family were found to be similar and simple. It was observed that only defense and stress response elements, as well as some hormone response elements, exist in their promoters. This indicates that they are involved in stress regulation, particularly in osmotic stress regulated by ABA, salicylic acid, gibberellin, IAA, and MeJA. Additionally, light response and low-temperature response elements were also identified. Thirdly, CcCNGC expression can be induced by stress-related hormones and treatment with P. nicotianae.
The quantitative heat map reveals that the majority of elements in the CcCNGC promoters are associated with ABA, low temperature, light, and MeJA responses, indicating that the functions of CcCNGC are closely linked to these factors. ABA has a strong relationship with the CNGC family, as it has been shown that ABA-induced stomatal closure is crucial for cytoplasmic Ca2+ signaling in most plant stomata [53]. Studies have demonstrated that the Arabidopsis CNGC quadruple mutant cngc5-1 cngc6-2 cngc9-1 cngc12-1 (c5/6/9/12) displays a significant ABA-insensitive stomatal closure phenotype [54]. In this study, CcCNGC15 contains 7 ABA-responsive elements, with its expression levels significantly changing after ABA treatment. The expression at 6 h is more than four times higher than at 0 h. Other members of the CcCNGC family, such as CcCNGC7, CcCNGC10, CcCNGC17, CcCNGC22, and CcCNGC28, also show significant changes in expression levels and contain ABA-responsive elements. This aligns with the prediction that 24 members of the CcCNGC family have ABA-responsive elements, highlighting their active response to ABA hormone signaling. MeJA also influences leaf aging through calcium ions. The quantitative heat map shows that the promoter of CcCNGC20 contains 12 MeJA response elements, while CcCNGC26 contains 6 MeJA response elements, with expression changes observed after MeJA application. These findings suggest that the CcCNGC family plays a crucial role in plant hormone responses.
Similarly, low-temperature and light-responsive elements were found to be the predominant elements in the promoters of CcCNGC genes. The predicted results indicated that several members of the CcCNGC family, including CcCNGC28, CcCNGC33, and CcCNGC13, were particularly sensitive to low-temperature stress. Studies in A. thaliana have shown that CNGC20 plays a positive role in regulating low-temperature stress by facilitating calcium influx [55]. Likewise, in rice, OsCNGC14 and OsCNGC16 have been shown to enhance Ca2+ influx under conditions of low temperature or heat stress [56]. Furthermore, the CcCNGC in C. clementina was also found to contain a significant number of light-responsive elements. This suggests that members of the CcCNGC family exhibit altered responses to light-induced stress. For instance, the expression of CcCNGC9 and CcCNGC15 was significantly altered in response to changes in light exposure, likely due to the presence of light-responsive elements. These findings are consistent with previous observations indicating that CcCNGCs are highly expressed in leaves.
As a result of the defense and stress-responsive elements in the promoter, we infected clementina with P. nicotianae and observed changes in the expression levels of almost all family members under pathogen stress. Upon transient transformation with overexpressed CcCNGC21, CcCNGC24, and CcCNGC27, the size of the lesions gradually increased but remained smaller than the control, indicating the response of these CcCNGCs to P. nicotianae. However, further verification and analysis are required to determine whether these genes confer disease resistance or susceptibility. While only a few family members showed this response in the heat map, it is clear that the CNGC family plays a role in plant immunity. In A. thaliana, AtCNGC2 and AtCNGC4 were well-studied members of the CNGC family, with mutant strains dnd1 and dnd2/hlm1 exhibiting defects in HR induction but still capable of ETI against non-toxic pathogens [57]. Another member, AtCNGC6, has been shown to mediate EATP-induced [Ca2+] cell signaling and contribute to plant immunity in response to Pseudomonas syringae mutants [58]. Additionally, in Arabidopsis bak1/serk4 mutants, transcripts of CNGC20 and CNGC19 were elevated compared to wild-type plants, highlighting the important role of CNGC20 and CNGC19 in cell death regulation [59]. In rice, OsCNGC9, a homolog of Arabidopsis CNGC18, has been found to positively regulate resistance against rice blast [46].

4. Materials and Methods

4.1. Plant Materials

The materials used in this study are C. clementina (Hort. ex Tan.) from the greenhouse of the Fruit Research Institute of Guangdong Academy of Agricultural Sciences. Flowers, leaves, roots, peels, and flesh of C. clementina were collected in triplicate. These samples were rapidly frozen in liquid nitrogen and stored in a −80 °C freezer for further research.

4.2. Identification and Physicochemical Property Analysis of Citrus CNGC Genes

Genomic and gene annotation files of C. clementina, Citrus sinensis, and Poncirus trifoliata were downloaded from the citrus genome website (http://citrus.hzau.edu.cn/index.php, accessed on 15 March 2024), while the Arabidopsis CNGC protein sequences were obtained from the TAIR website (https://www.arabidopsis.org/). Using TBtools [60] for alignment, potential CNGC family genes in the citrus genome were screened out. The candidate genes were then submitted to NCBI-CD-Search (https://www.NCBI.nlm.nih.gov) and Pfam (http://Pfam.xfam.org/search, accessed on 16 March 2024) websites to validate if the selected genes contain the conserved domains of CNGC genes in C. clementina. After filtering and removing duplicate sequences, CNGC genes in the genomes of C. clementina, C. sinensis, and P. trifoliata were identified. Subsequently, the lengths, isoelectric points, hydrophobicity, and instability of the clementina CNGC proteins were analyzed using the ExPASy website (https://web.expasy.org/cgi-bin/protparam/protparam, accessed on 17 March 2024), and their subcellular localization was predicted using the Plant-mPLoc (http://www.csbio.sjtu.edu.cn) website.

4.3. Systematic Phylogenetic Characteristics of CNGC Family Members

To study the evolutionary relationship between the CNGC gene families of C. clementina, C. sinensis, P. trifoliata, and Arabidopsis, multiple sequence alignment analysis was conducted using DNAMAN software version 9.0, followed by manual correction. The MEGA software version 11.0 was then used to construct phylogenetic trees for these CNGC families and categorize them into respective groups.

4.4. Analysis of Conserved Motifs, Conserved Domains, and Gene Structure of CcCNGC Genes

Based on the genomic sequences and annotation information in the citrus genome database, gene structure visualization analysis of CcCNGC genes was performed, including intron/exon and untranslated region (UTR) information, using the GSDS 2.0 online website (http://gsds.gao-lab.org/). Conserved domain analysis of citrus CNGC protein sequences was performed using the CDD search tool on the NCBI website. Finally, conserved motif analysis of citrus CNGC protein sequences was conducted using the MEME online tool (https://meme-suite.org/meme/tools/meme, accessed on 20 March 2024).

4.5. Chromosomal Location and Collinearity Analysis of CcCNGC Genes

Gene density analysis was performed on the citrus genome using TBtools software version 2.0, and the chromosome position information of CcCNGC genes was plotted for visualization analysis [60]. Subsequently, MCScanX version 1.0.0 was used for collinearity analysis, and the results were plotted for collinearity analysis.

4.6. Cis-Acting Element Analysis of CcCNGC Gene Family

The sequence of the upstream 2000 bp region of the start codon of CcCNGC genes was used as the promoter, and the PlantCARE website (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 25 March 2024) was used to predict cis-acting elements in the sequence. The predicted results were visualized using TBtools software, and the number of elements in each promoter was plotted as a heat map.

4.7. Expression Analysis of CcCNGC Genes in Different Tissues

RNA was extracted from roots, stems, leaves, flowers, fruit peel, and fruit pulp of C. clementina using the TAKARA Mini BEST Plant RNA Extraction Kit (Thermo Fisher Scientific, Waltham, MA, USA). RNA quality was analyzed by agarose gel (1.5%) electrophoresis and spectrophotometer measurements (NanoDrop 2000, Thermo Fisher Scientific, Waltham, MA, USA). The RNA was then reverse transcribed into cDNA using PrimeScript TMRT Reagent Kit with gDNA Eraser (TaKaRa Dalian, China). Quantitative primers were designed for the citrus CNGC family genes using Primer Premier 5 software version 5.0. The sequence of primers used in this study is listed in Supplementary Table S1. CsActin was used as an internal reference gene for expression analysis [61]. The quantitative real-time PCR (qPCR) for CcCNGCs was performed on a QuantStudio 5 real-time PCR system (Thermo Fisher Scientific, Waltham, MA, USA) using the SYBR Green mix (Bio-rad, Hercules, CA, USA), with 3 replicates. A PCR mixture totaling 20 μL was prepared, containing cDNA, SYBR Green PCR mix from Applied Biosystems, and specific primer pairs for either the target or reference gene. The thermocycler was programmed as follows: pre-incubation at 95 °C for 10 min followed by 40 cycles of denaturation at 95 °C for 5 s and annealing at 60 °C for 20 s. This was followed by the melt curve stage at 95 °C for 15 s, 60 °C for 1 min, and 95 °C for 15 s. The raw qPCR data were acquired by the QuantStudioTM Design & Analysis Software v1.4.3. The relative gene expression levels of CcCNGCs were calculated using the 2−ΔΔCt method to analyze their expression levels in different citrus tissues [62].

4.8. Analysis of Expression Levels of CcCNGC Genes Under Different Treatments

Three-month-old C. clementina tissue culture seedlings were taken out, wounds were made on the stems, and they were inoculated with P. nicotianae, then placed in a sealed box lined with sterilized water-soaked filter paper. Sampling was conducted at time intervals of 0 h, 3 h, 6 h, 12 h, 24 h and 48 h. The samples were immediately frozen in liquid nitrogen and stored in a −80 °C freezer.
Using 2-year-old C. clementina as materials, 100 μm GA3, 2 μm SA, 100 μm Indole-3-acetic acid (IAA), 200 μm ABA, and 20 μm methyl jasmonate were sprayed on the C. clementina. Leaves were collected at 0 h, 3 h, 6 h, 12 h and 24 h after treatment, quickly frozen in liquid nitrogen, and stored at −80 °C.
The 2-year-old C. clementina was subjected to low-temperature stress treatment at 4 °C. Leaf samples were collected at 0 h, 3 h, 6 h, 12 h, 24 h, and 48 h intervals, rapidly frozen in liquid nitrogen, and stored at −80 °C for further analysis.
After 24 h of dark treatment, the 2-year-old C. clementina was immediately subjected to light treatment. Samples were taken at 0 h, 3 h, 6 h, 12 h, and 24 h after dark or light treatment, quickly frozen in liquid nitrogen, and stored at −80 °C. Three biological replicates were used for all treatments in this study.
After collecting all the processed samples, the cDNA of the samples extracted as described above was used as a template to detect the relative expression levels of CcCNGCs through qRT-PCR by using the 2−ΔΔCt method [62].

4.9. Overexpression of CcCNGC Genes in Response to Phytophthora Infection

Based on the results of Experiment 2.8, three family members, namely CcCNGC21, CcCNGC24, and CcCNGC27, exhibited significant responses to P. nicotianae stress. The full-length sequences of these genes were amplified using cDNA from C. clementina leaves as a template and then cloned into the Super1300 vector by the Seamless Cloning and Assembly Kit (Accurate Biology, Changsha, China). The constructs were then transformed into Agrobacterium strain GV3101 using the freeze/thaw method and transient transformation into tobacco leaves. Twenty-four hours later, P. nicotianae blocks that had been cultured for 4–5 days were inoculated onto the transiently injected tobacco leaves. Phenotypes were observed, and changes in lesion size were quantified using ImageJ software version 1.8.0.

5. Conclusions

In this study, a total of 33 CcCNGC proteins were identified and analyzed from the genome of C. clementina, with a focus on their potential roles in citrus defense mechanisms and stress responses. Comprehensive bioinformatics analysis revealed varying levels of structural and functional differentiation among the members of this gene family, consequently resulting in distinct roles played by individual family members in citrus physiology.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26030960/s1.

Author Contributions

H.Y. conceived and designed the research. Y.L. conducted the experiments. Y.M. and S.L. contributed reagents and analytical tools. Y.L. and L.H. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the Guangzhou Basic and Applied Basic Research Project [2023A04J0139], the National Natural Science Foundation of China [32072535], and the Natural Science Foundation of Guangdong Province, China [2024A1515010921].

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The original contributions presented in this study are included in the article and Supplementary Materials. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

C. clementinaCitrus clementina
C. sinensisCitrus sinensis
P. trifoliataPoncirus trifoliata
P. infestansPhytophthora infestans
A. thalianaArabidopsis thaliana
N. tabacumNicotiana tabacum
IAAIndole-3-acetic acid
MeJAMethyl Jasmonate
SASalicylic acid
ABAAbscisic acid
GAGibberellins

References

  1. Luan, S.; Wang, C. Calcium signaling mechanisms across kingdoms. Annu. Rev. Cell Dev. Biol. 2021, 37, 311–340. [Google Scholar] [CrossRef]
  2. Ranf, S.; Eschen-Lippold, L.; Pecher, P.; Lee, J.; Scheel, D. Interplay between calcium signalling and early signalling elements during defence responses to microbe-or damage-associated molecular patterns. Plant J. 2011, 68, 100–113. [Google Scholar] [CrossRef] [PubMed]
  3. Li, Y.; Liu, Y.; Jin, L.; Peng, R. Crosstalk between Ca2+ and other regulators assists plants in responding to abiotic stress. Plants 2022, 11, 1351. [Google Scholar] [CrossRef] [PubMed]
  4. Moeder, W.; Phan, V.; Wang, K. Ca2+ to the rescue–Ca2+ channels and signaling in plant immunity. Plant Sci. 2019, 279, 19–26. [Google Scholar] [CrossRef] [PubMed]
  5. Kleiner, F.H. Mechanisms of Ca2+ Signalling in Diatoms. Ph.D. Thesis, University of Southampton, Southampton, UK, 2021. [Google Scholar]
  6. Xu, G.; Moeder, W.; Yoshioka, K.; Shan, L. A tale of many families: Calcium channels in plant immunity. Plant Cell 2022, 34, 1551–1567. [Google Scholar] [CrossRef] [PubMed]
  7. Zhou, H.; Bai, S.; Wang, N.; Sun, X.; Zhang, Y.; Zhu, J.; Dong, C. CRISPR/Cas9-mediated mutagenesis of MdCNGC2 in apple callus and VIGS-mediated silencing of MdCNGC2 in fruits improve resistance to Botryosphaeria dothidea. Front. Plant Sci. 2020, 11, 575477. [Google Scholar] [CrossRef] [PubMed]
  8. Schuurink, R.C.; Shartzer, S.F.; Fath, A.; Jones, R.L. Characterization of a calmodulin-binding transporter from the plasma membrane of barley aleurone. Proc. Natl. Acad. Sci. USA 1998, 95, 1944–1949. [Google Scholar] [CrossRef] [PubMed]
  9. Duszyn, M.; Świeżawska, B.; Szmidt-Jaworska, A.; Jaworski, K. Cyclic nucleotide gated channels (CNGCs) in plant signalling—Current knowledge and perspectives. J. Plant Physiol. 2019, 241, 153035. [Google Scholar] [CrossRef] [PubMed]
  10. Hua, B.G.; Mercier, R.W.; Leng, Q.; Berkowitz, G.A. Plants do itdifferently. A new basis for potassium/sodium selectivity in the pore of an ion channel. Plant Physiol. 2003, 132, 1353–1361. [Google Scholar] [CrossRef] [PubMed]
  11. Zelman, A.K.; Dawe, A.; Berkowitz, G.A.; Gehring, C. Evolutionary and structural perspectives of plant cyclic nucleotide-gated cation channels. Front. Plant Sci. 2012, 29, 95. [Google Scholar] [CrossRef]
  12. Chin, K.; Moeder, W.; Yoshioka, K. Biological roles of cyclic nucleotide-gated ion channels in plants—What we know and don’t know about this 20 member ion channel family. Botany 2009, 87, 668–677. [Google Scholar] [CrossRef]
  13. Abdel-Hamid, H. Structural-Functional Analysis of Plant Cyclic Nucleotide Gated Ion Channels. Ph.D. Thesis, University of Toronto, Toronto, ON, Canada, 2013. [Google Scholar]
  14. Ali, R.; Ma, W.; Lemtiri-Chlieh, F.; Tsaltas, D.; Leng, Q.; von Bodman, S.; Berkowitz, G.A. Death don’t have no mercy and neither does calcium: Arabidopsis CYCLIC NUCLEOTIDE GATED CHANNEL2 and innate immunity. Plant Cell 2007, 19, 1081–1095. [Google Scholar] [CrossRef]
  15. Fischer, C.; Kugler, A.; Hoth, S.; Dietrich, P. An IQ domain mediates the interaction with calmodulin in a plant cyclic nucleotide-gated channel. Plant Cell Physiol. 2013, 54, 573–584. [Google Scholar] [CrossRef] [PubMed]
  16. Fischer, C.; DeFalco, T.A.; Karia, P.; Snedden, W.A.; Moeder, W.; Yoshioka, K.; Dietrich, P. Calmodulin as a Ca2+-sensing subunit of Arabidopsis cyclic nucleotide-gated channel complexes. Plant Cell Physiol. 2017, 58, 1208–1221. [Google Scholar] [CrossRef]
  17. Talke, I.N.; Blaudez, D.; Maathuis, F.J.; Sanders, D. CNGCs: Prime targets of plant cyclic nucleotide signalling? Trends Plant Sci. 2003, 8, 286–293. [Google Scholar] [CrossRef]
  18. Zhang, N.; Lin, H.; Zeng, Q.; Fu, D.; Gao, X.; Wu, J.; Wu, Z. Genome-wide identification and expression analysis of the cyclic nucleotide-gated ion channel (CNGC) gene family in Saccharum spontaneum. BMC Genom. 2023, 24, 281. [Google Scholar] [CrossRef]
  19. Bock, K.; Hanys, D.; Ward, J.M.; Padmanaban, S.; Nawrocki, E.P.; Hirschi, K.D.; Twell, D.; Sze, H. Integrating membrane transport with male gametophyte development and function through transcriptomics. Plant Physiol. 2006, 140, 1151–1168. [Google Scholar] [CrossRef] [PubMed]
  20. Chen, J.; Yin, H.; Gu, J.; Li, L.; Liu, Z.; Jiang, X.; Zhou, H.; Wei, S.; Zhang, S.; Wu, J. Genomic characterization, phylogenetic comparison and differential expression of the cyclic nucleotide- gated channels gene family in pear (Pyrus bretchneideri Rehd.). Genomics 2015, 105, 39–52. [Google Scholar] [CrossRef] [PubMed]
  21. Tian, W.; Wang, C.; Gao, Q.; Li, L.; Luan, S. Calcium spikes, waves and oscillations in plant development and biotic interactions. Nat. Plants 2020, 6, 750–759. [Google Scholar] [CrossRef] [PubMed]
  22. Xu, Y.; Yang, J.; Wang, Y.; Wang, J.; Yu, Y.; Long, Y.; Wang, Y.; Zhang, H.; Ren, Y.; Chen, J.; et al. OsCNGC13 promotes seed-setting rate by facilitating pollen tube growth in stylar tissues. PLoS Genet. 2017, 13, e1006906. [Google Scholar] [CrossRef] [PubMed]
  23. Jogawat, A. CNGCs: Emerging key channels in perception of stimuli in plant kingdom. Res. Rep. 2019, 3. [Google Scholar]
  24. Jin, Y.; Jing, W.; Zhang, Q.; Zhang, W. Cyclic nucleotide gated channel 10 negatively regulates salt tolerance by mediating Na+ transport in Arabidopsis. Plant Res. 2015, 128, 211–220. [Google Scholar] [CrossRef] [PubMed]
  25. Ghosh, S.; Bheri, M.; Bisht, D.; Pandey, G.K. Calcium signaling and transport machinery: Potential for development of stress tolerance in plants. Curr. Plant Biol. 2022, 29, 100235. [Google Scholar] [CrossRef]
  26. Kugler, A.; Köhler, B.; Palme, K.; Wolff, P.; Dietrich, P. Salt-dependent regulation of a CNG channel subfamily in Arabidopsis. BMC Plant Biol. 2009, 9, 140. [Google Scholar] [CrossRef] [PubMed]
  27. Guo, K.M.; Babourina, O.; Christopher, D.A.; Borsics, T.; Rengel, Z. The cyclic nucleotide-gated channel, AtCNGC10, influences salt tolerance in Arabidopsis. Physiol. Plant 2008, 134, 499–507. [Google Scholar] [CrossRef]
  28. Ladwig, F.; Dahlke, R.I.; Stuhrwohldt, N.; Hartmann, J.; Harter, K.; Sauter, M. Phytosulfokine regulates growth in Arabidopsis through a response module at the plasma membrane that includes CYCLIC NUCLEOTIDE-GATED CHANNEL17, H+-ATPase, and BAK1. Plant Cell 2015, 27, 1718–1729. [Google Scholar] [CrossRef]
  29. Massange-Sánchez, J.A.; Palmeros-Suárez, P.A.; Espitia-Rangel, E.; Rodríguez-Arévalo, I.; Sanchez-Segura, L.; Martinez-Gallardo, N.A.; Delano-Frier, J.P. Overexpression of grain amaranth (Amaranthus hypochondriacus) AhERF or AhDOF transcription factors in Arabidopsis thaliana increases water deficit- and salt-stress tolerance, respectively, via contrasting stress-amelioration mechanisms. PLoS ONE 2016, 11, e0164280. [Google Scholar] [CrossRef] [PubMed]
  30. Nawaz, Z.; Kakar, K.U.; Ullah, R.; Yu, S.; Zhang, J.; Shu, Q.Y.; Ren, X.L. Genome-wide identification, evolution and expression analysis of cyclic nucleotide-gated channels in tobacco (Nicotiana tabacum L.). Genomics 2019, 111, 142–158. [Google Scholar] [CrossRef]
  31. Moon, J.Y.; Belloeil, C.; Ianna, M.L.; Shin, R. Arabidopsis CNGC family members contribute to heavy metal ion uptake in plants. Int. J. Mol. Sci. 2019, 20, 413. [Google Scholar] [CrossRef] [PubMed]
  32. Tunc-Ozdemir, M.; Tang, C.; Ishka, M.R.; Brown, E.; Groves, N.R.; Myers, C.T.; Harper, J.F. A cyclic nucleotide-gated channel (CNGC16) in pollen is critical for stress tolerance in pollen reproductive development. Plant Physiol. 2013, 161, 1010–1020. [Google Scholar] [CrossRef] [PubMed]
  33. Nawaz, Z.; Kakar, K.U.; Saand, M.A.; Shu, Q.Y. Cyclic nucleotide-gated ion channel gene family in rice, identification, characterization and experimental analysis of expression response to plant hormones, biotic and abiotic stresses. BMC Genom. 2014, 15, 853. [Google Scholar] [CrossRef] [PubMed]
  34. Kakar, K.U.; Nawaz, Z.; Kakar, K.; Ali, E.; Almoneafy, A.A.; Ullah, R.; Ren, X.L.; Shu, Q.Y. Comprehensive genomic analysis of the CNGC gene family in Brassica oleracea: Novel insights into synteny, structures, and transcript profiles. BMC Genom. 2017, 18, 869. [Google Scholar] [CrossRef] [PubMed]
  35. Sivankalyani, V.; Sela, N.; Feygenberg, O.; Zemach, H.; Maurer, D.; Alkan, N. Transcriptome dynamics in mango fruit peel reveals mechanisms of chilling stress. Front. Plant Sci. 2016, 7, 1579. [Google Scholar] [CrossRef] [PubMed]
  36. Clough, S.J.; Fengler, K.A.; Yu, I.C.; Lippok, B.; Smith, R.K.; Bent, A.F. The Arabidopsis dnd1 “defense, no death” gene encodes a mutated cyclic nucleotide-gated ion channel. Proc. Natl. Acad. Sci. USA 2000, 97, 9323–9328. [Google Scholar] [CrossRef]
  37. Balagué, C.; Lin, B.; Alcon, C.; Flottes, G.; Malmström, S.; Köhler, C.; Roby, D. HLM1, an essential signaling component in the hypersensitive response, is a member of the cyclic nucleotide–gated channel ion channel family. Plant Cell 2003, 15, 365–379. [Google Scholar] [CrossRef] [PubMed]
  38. Yoshioka, K.; Moeder, W.; Kang, H.G.; Kachroo, P.; Masmoudi, K.; Berkowitz, G.; Klessig, D.F. The chimeric Arabidopsis cyclic nucleotide-gated ion channel 11/12 activates multiple pathogen resistance responses. Plant Cell 2006, 18, 747–763. [Google Scholar] [CrossRef] [PubMed]
  39. Mao, X.; Wang, C.; Lv, Q.; Tian, Y.; Wang, D.; Chen, B.; Zuo, C. Cyclic nucleotide gated channel genes (CNGCs) in Rosaceae: Genome-wide annotation, evolution and the roles on Valsa canker resistance. Plant Cell Rep. 2021, 40, 2369–2382. [Google Scholar] [CrossRef]
  40. Chin, K.; DeFalco, T.A.; Moeder, W.; Yoshioka, K. The Arabidopsis cyclic nucleotide-gated ion channels AtCNGC2 and AtCNGC4 work in the same signaling pathway to regulate pathogen defense and floral transition. Plant Physiol. 2013, 163, 611–624. [Google Scholar] [CrossRef] [PubMed]
  41. Yoshioka, K.; Kachroo, P.; Tsui, F.; Sharma, S.B.; Shah, J.; Klessig, D.F. Environmentally-sensitive, SA-dependent defense response in the cpr22 mutant of Arabidopsis. Plant J. 2001, 26, 447–459. [Google Scholar] [CrossRef]
  42. Jurkowski, G.I.; Smith, R.K., Jr.; Yu, I.C.; Ham, J.H.; Sharma, S.B.; Klessig, D.F.; Bent, A.F. Arabidopsis DND2, a second cyclic nucleotide-gated ion channel gene for which mutation causes the “defense, no death” phenotype. Mol. Plant-Microbe Interact. 2004, 17, 511–520. [Google Scholar] [CrossRef] [PubMed]
  43. Sun, K.; Wolters, A.M.; Loonen, A.E.; Huibers, R.P.; van der Vlugt, R.; Goverse, A.; Bai, Y. Down-regulation of Arabidopsis DND1 orthologs in potato and tomato leads to broad-spectrum resistance to late blight and powdery mildew. Transgenic Res. 2016, 25, 123–138. [Google Scholar] [CrossRef] [PubMed]
  44. Ali, R.; Zielinski, R.E.; Berkowitz, G.A. Expression of plant cyclic nucleotide-gated cation channels in yeast. J. Exp. Bot. 2005, 57, 125–138. [Google Scholar] [CrossRef]
  45. Genger, R.K.; Jurkowski, G.I.; McDowell, J.M.; Lu, H.; Jung, H.W.; Greenberg, J.T.; Bent, A.F. Signaling pathways that regulate the enhanced disease resistance of Arabidopsis “defense, no death” mutants. Mol. Plant-Microbe Interact. 2008, 21, 1285–1296. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, J.; Liu, X.I.; Zhang, A.N.; Ren, Y.; Wu, F.; Wang, G.; Xu, Y.; Lei, C.; Zhu, S.; Pan, T.; et al. A cyclic nucleotide-gated channel mediates cytoplasmic calcium elevation and disease resistance in rice. Cell Res. 2019, 29, 820–831. [Google Scholar] [CrossRef]
  47. Moeder, W.; Urquhart, W.; Ung, H.; Yoshioka, K. The role of cyclic nucleotide-gated ion channels in plant immunity. Mol. Plant 2011, 4, 442–452. [Google Scholar] [CrossRef] [PubMed]
  48. Zia, K.; Rao, M.J.; Sadaqat, M.; Azeem, F.; Fatima, K.; Tahir ul Qamar, M.; Alshammari, A.; Alharbi, M. Pangenome-wide analysis of cyclic nucleotide-gated channel (CNGC) gene family in citrus spp. Revealed their intraspecies diversity and potential roles in abiotic stress tolerance. Front. Genet. 2022, 13, 1034921. [Google Scholar] [CrossRef]
  49. Zhao, J.; Peng, S.; Cui, H.; Li, P.; Li, T.; Liu, L.; Xu, R. Dynamic expression, differential regulation and functional diversity of the CNGC family genes in cotton. Int. J. Mol. Sci. 2022, 23, 2041. [Google Scholar] [CrossRef] [PubMed]
  50. Jha, S.K.; Sharma, M.; Pandey, G.K. Role of cyclic nucleotide gated channels in stress management in plants. Curr. Genom. 2016, 17, 315–329. [Google Scholar] [CrossRef]
  51. Xu, G.; Guo, C.; Shan, H.; Kong, H. Divergence of duplicate genes in exon–intron structure. Proc. Natl. Acad. Sci. USA 2012, 109, 1187–1192. [Google Scholar] [CrossRef] [PubMed]
  52. Guo, R.; Xu, X.; Carole, B.; Li, X.; Gao, M.; Zheng, Y.; Wang, X. Genome-wide identification, evolutionary and expression analysis of the aspartic protease gene superfamily in grape. BMC Genom. 2013, 14, 1–18. [Google Scholar] [CrossRef] [PubMed]
  53. Yang, Y.; Tan, Y.; Wang, X.; Li, J.; Du, B.; Zhu, M.; Wang, P.; Wang, Y. OPEN STOMATA 1 phosphorylates CYCLIC NUCLEOTIDE-GATED CHANNELs to trigger Ca2+ signaling for abscisic acid-induced stomatal closure in Arabidopsis. Plant Cell 2024, 36, 2328–2358. [Google Scholar] [CrossRef] [PubMed]
  54. Tan, Y.; Yang, Y.; Shen, X.; Zhu, M.; Shen, J.; Zhang, W.; Hu, H.; Wang, Y. Multiple cyclic nucleotide-gated channels function as ABA-activated Ca2+ channels required for ABA-induced stomatal closure in Arabidopsis. Plant Cell 2023, 35, 239–259. [Google Scholar] [CrossRef] [PubMed]
  55. Peng, Y.; Ming, Y.; Jiang, B.; Zhang, X.; Fu, D.; Lin, Q.; Yang, S. Differential phosphorylation of Ca2+-permeable channel CYCLIC NUCLEOTIDE–GATED CHANNEL20 modulates calcium-mediated freezing tolerance in Arabidopsis. Plant Cell 2024, 36, 4356–4371. [Google Scholar] [CrossRef] [PubMed]
  56. Cui, Y.; Lu, S.; Li, Z.; Cheng, J.; Hu, P.; Zhu, T.; Hua, J. CYCLIC NUCLEOTIDE-GATED ION CHANNELs 14 and 16 promote tolerance to heat and chilling in rice. Plant Physiol. 2020, 183, 1794–1808. [Google Scholar] [CrossRef]
  57. Tian, W.; Hou, C.; Ren, Z.; Wang, C.; Zhao, F.; Dahlbeck, D.; Luan, S. A calmodulin-gated calcium channel links pathogen patterns to plant immunity. Nature 2019, 572, 131–135. [Google Scholar] [CrossRef] [PubMed]
  58. Duong, H.N.; Cho, S.-H.; Wang, L.; Pham, A.Q.; Davies, J.M.; Stacey, G. Cyclic nucleotide-gated ion channel 6 is involved in extracellular ATP signaling and plant immunity. Plant J. 2022, 109, 1386–1396. [Google Scholar] [CrossRef] [PubMed]
  59. Yu, X.; Xu, G.; Li, B.; de Souza Vespoli, L.; Liu, H.; Moeder, W.; Shan, L. The receptor kinases BAK1/SERK4 regulate Ca2+ channel-mediated cellular homeostasis for cell death containment. Curr. Biol. 2019, 29, 3778–3790. [Google Scholar] [CrossRef]
  60. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  61. Liu, Q.; Xu, J.; Liu, Y.; Zhao, X.; Deng, X.; Guo, L.; Gu, J. A novel bud mutation that confers abnormal patterns of lycopene accumulation in sweet orange fruit (Citrus sinensis L. Osbeck). J. Exp. Bot. 2007, 58, 4161–4171. [Google Scholar] [CrossRef] [PubMed]
  62. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Ijms 26 00960 g001

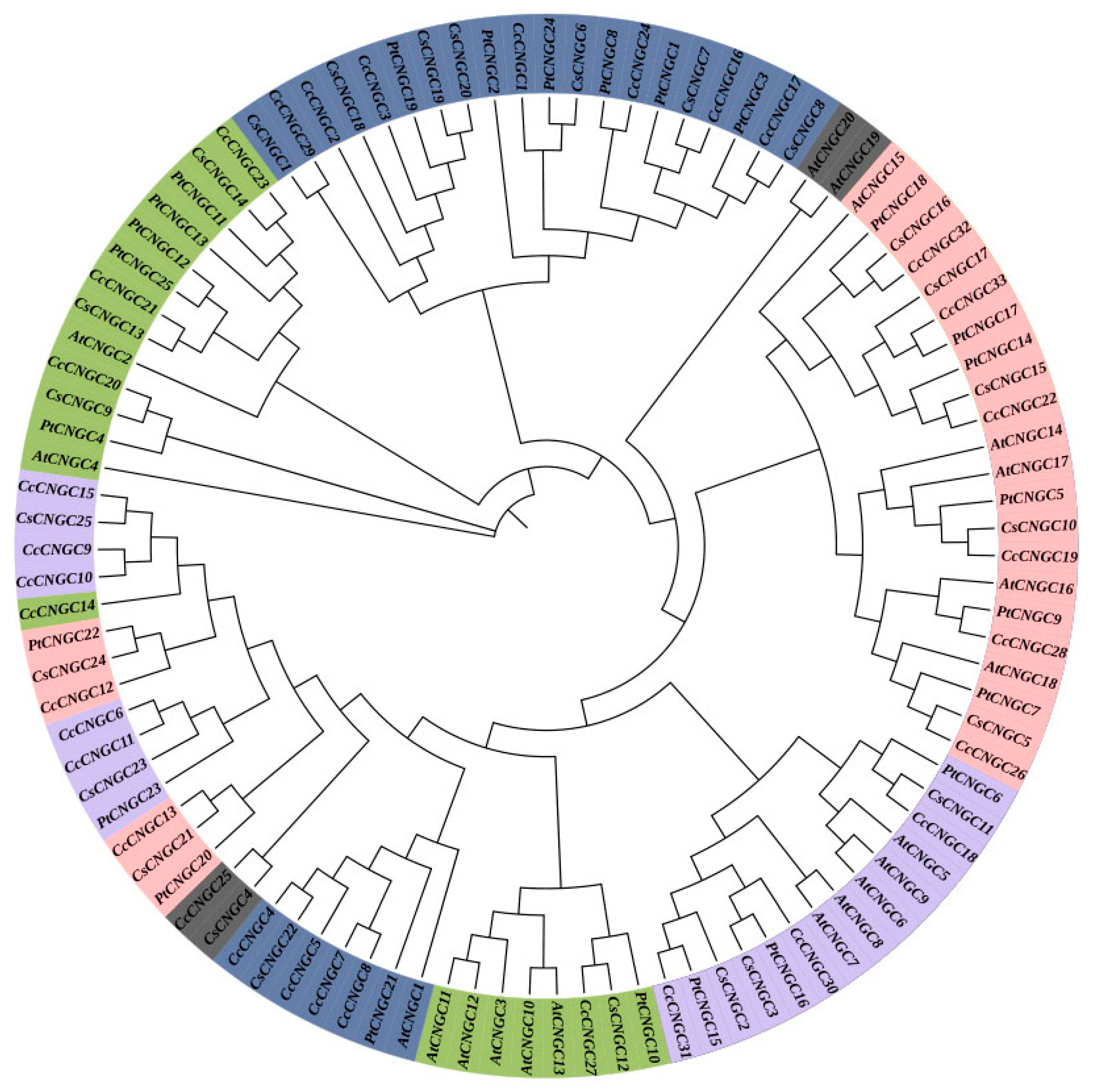

Figure 1. Phylogenetic tree of citrus CNGC protein and Arabidopsis CNGC Protein. Protein name: C. clementina CcCNGC proteins, C. sinensis CsCNGC proteins, P. trifoliata PtCNGCs, A. thaliana AtCNGCs. Different color blocks represent different subgroups.
Figure 1. Phylogenetic tree of citrus CNGC protein and Arabidopsis CNGC Protein. Protein name: C. clementina CcCNGC proteins, C. sinensis CsCNGC proteins, P. trifoliata PtCNGCs, A. thaliana AtCNGCs. Different color blocks represent different subgroups.
Ijms 26 00960 g001
Ijms 26 00960 g002

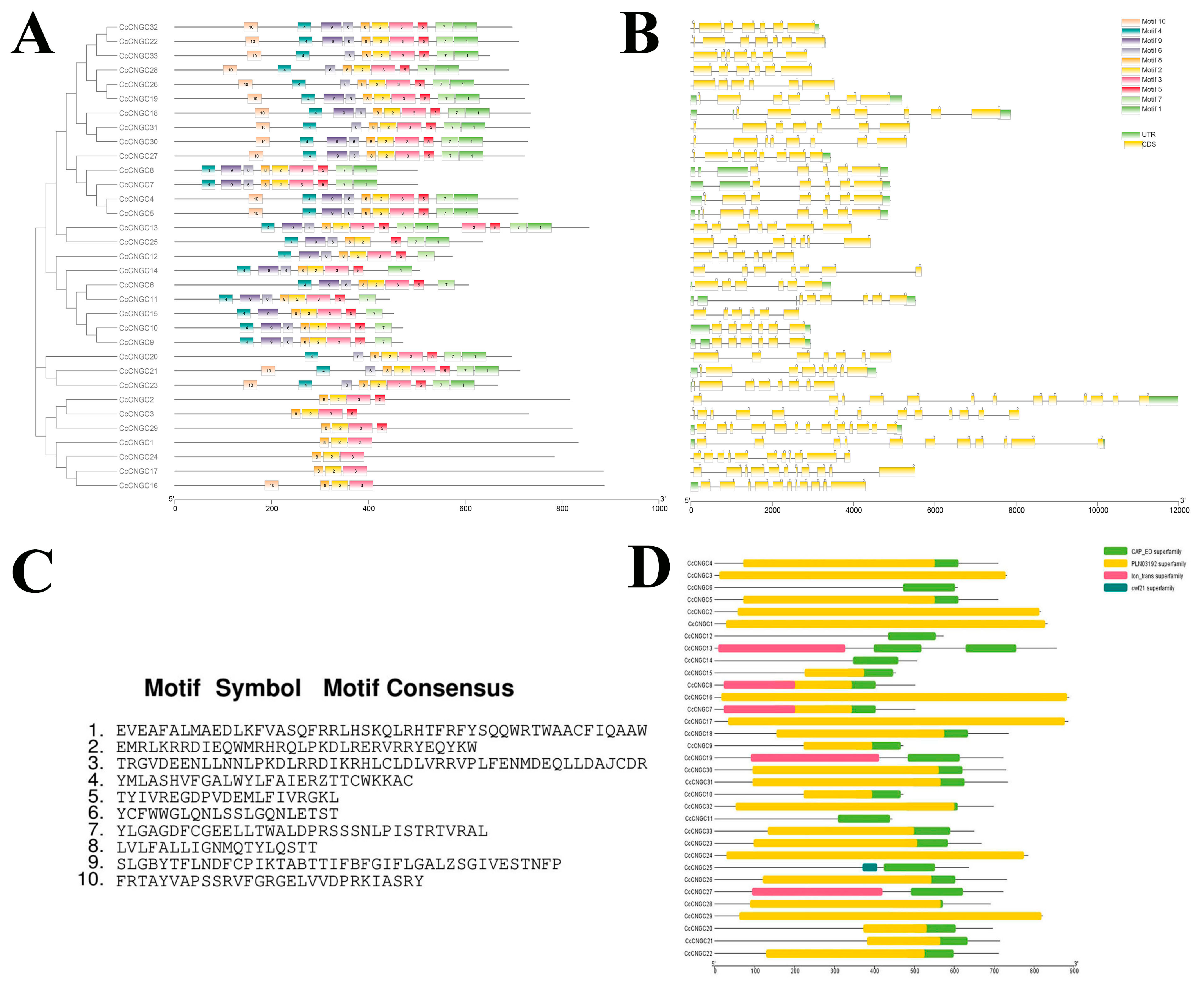

Figure 2. Phylogenetic relationship, gene structure analysis, conserved domain, and conserved motifs analysis of CNGC gene family of C. clementina. (A) Conserved motifs analysis of CcCNGCs; (B) Gene structure analysis of CcCNGCs; (C) The motif symbol; (D) Conserved domain of CcCNGCs.
Figure 2. Phylogenetic relationship, gene structure analysis, conserved domain, and conserved motifs analysis of CNGC gene family of C. clementina. (A) Conserved motifs analysis of CcCNGCs; (B) Gene structure analysis of CcCNGCs; (C) The motif symbol; (D) Conserved domain of CcCNGCs.
Ijms 26 00960 g002
Ijms 26 00960 g003

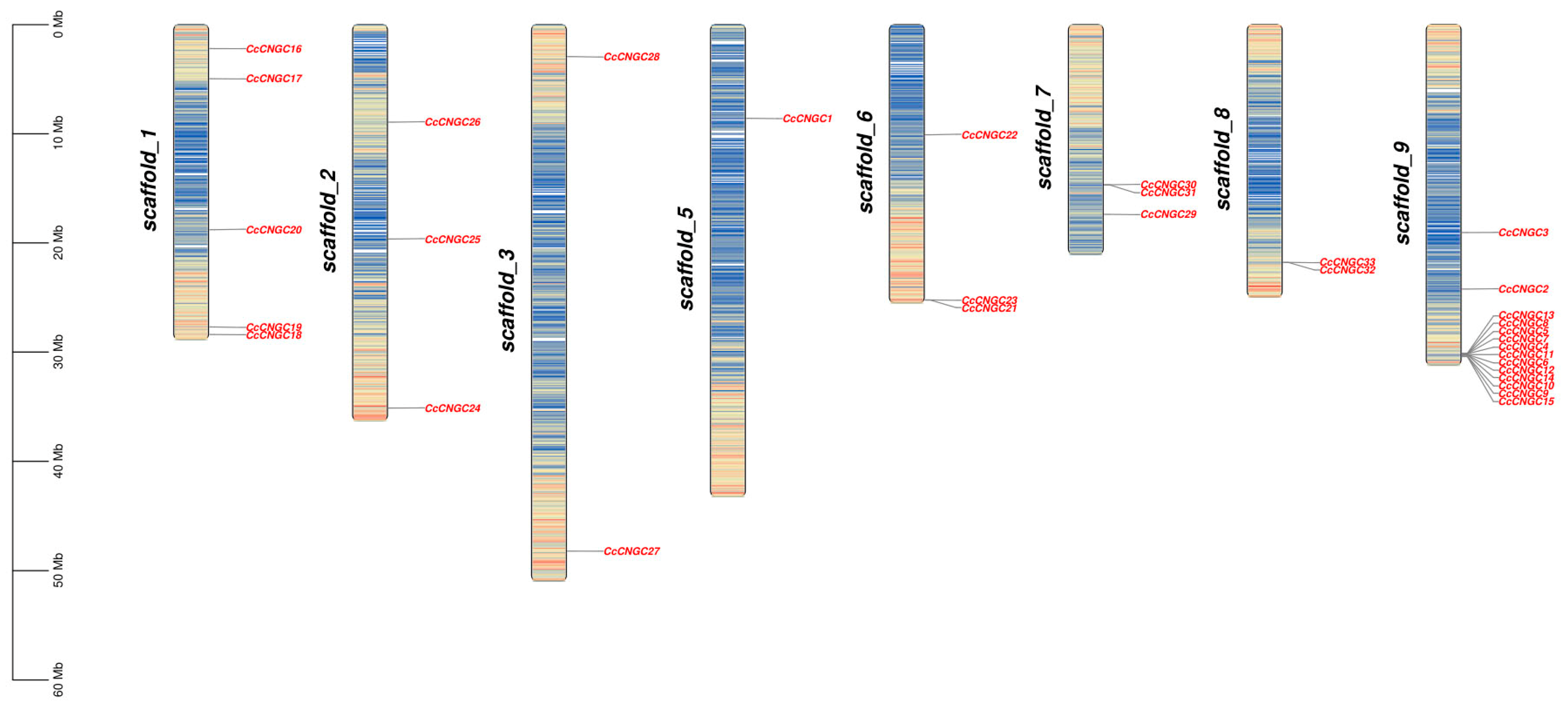

Figure 3. Location analysis of C. clementina CNGC gene family on chromosome.
Figure 3. Location analysis of C. clementina CNGC gene family on chromosome.
Ijms 26 00960 g003
Ijms 26 00960 g004
Figure 4. Colinearity analyses of CNGC genes. (A) Colinearity analyses in C. clementina; (B) Colinearity analyses in C. clementina, C. sinensis, P. trifoliata, and A. thaliana.
Figure 4. Colinearity analyses of CNGC genes. (A) Colinearity analyses in C. clementina; (B) Colinearity analyses in C. clementina, C. sinensis, P. trifoliata, and A. thaliana.
Ijms 26 00960 g004
Ijms 26 00960 g005
Figure 5. Cis-acting element distribution in CcCNGCs promoters.
Figure 5. Cis-acting element distribution in CcCNGCs promoters.
Ijms 26 00960 g005
Ijms 26 00960 g006
Figure 6. The expression level of CcCNGC genes in different parts of C. clementina.
Figure 6. The expression level of CcCNGC genes in different parts of C. clementina.
Ijms 26 00960 g006
Ijms 26 00960 g007
Figure 7. The expression level of CcCNGC genes under plant hormone treatment. (A,B) The expression level of CcCNGC genes under IAA treatment; (C) The expression level of CcCNGC genes under SA treatment; (D) The expression level of CcCNGC genes under ABA treatment; (E,F) The expression level of CcCNGC genes under GA3 treatment; (G) The expression level of CcCNGC genes under MeJA treatment.
Figure 7. The expression level of CcCNGC genes under plant hormone treatment. (A,B) The expression level of CcCNGC genes under IAA treatment; (C) The expression level of CcCNGC genes under SA treatment; (D) The expression level of CcCNGC genes under ABA treatment; (E,F) The expression level of CcCNGC genes under GA3 treatment; (G) The expression level of CcCNGC genes under MeJA treatment.
Ijms 26 00960 g007
Ijms 26 00960 g008
Figure 8. The expression level of CcCNGC genes under low-temperature and light stress. (A,B) The expression level of CcCNGC genes under low-temperature treatment; (C,D) The expression level of CcCNGC genes under light stress.
Figure 8. The expression level of CcCNGC genes under low-temperature and light stress. (A,B) The expression level of CcCNGC genes under low-temperature treatment; (C,D) The expression level of CcCNGC genes under light stress.
Ijms 26 00960 g008
Ijms 26 00960 g009
Figure 9. The expression level of CcCNGCs at different times after infection with P. nicotianae in C. clementina.
Figure 9. The expression level of CcCNGCs at different times after infection with P. nicotianae in C. clementina.
Ijms 26 00960 g009
Ijms 26 00960 g010
Figure 10. The symptoms of the tobacco leaves after infection with P. nicotianae in transient transformation CcCNGC21, CcCNGC24, and CcCNGC27. (A) Phenotypic changes of tobacco leaves; (B) The area of the spot used ImageJ.
Figure 10. The symptoms of the tobacco leaves after infection with P. nicotianae in transient transformation CcCNGC21, CcCNGC24, and CcCNGC27. (A) Phenotypic changes of tobacco leaves; (B) The area of the spot used ImageJ.
Ijms 26 00960 g010
Table 1. Analysis of physicochemical properties of CcCNGCs.
Table 1. Analysis of physicochemical properties of CcCNGCs.
Protein NameMWpIProtein LengthInstability IndexAliphatic IndexGRAVYLocalization Predicted
CcCNGC195109.317.33834 37.15 31.53 0.755 Plasma Membrane
CcCNGC293371.576.43817 40.23 29.82 0.656 Plasma Membrane
CcCNGC384175.397.04732 40.36 29.37 0.664 Plasma Membrane
CcCNGC481613.479.14710 41.92 27 0.638 Plasma Membrane
CcCNGC581613.479.14710 41.92 27 0.638 Plasma Membrane
CcCNGC670096.168.53608 43.35 30.54 0.729 Plasma Membrane
CcCNGC757963.788.79502 43.65 27.16 0.666 Plasma Membrane
CcCNGC857963.788.79502 43.65 27.16 0.666 Plasma Membrane
CcCNGC954232.648.54472 44.46 29.03 0.7 Plasma Membrane
CcCNGC1054232.648.54472 44.46 29.03 0.7 Plasma Membrane
CcCNGC1151910.018.54445 44.99 32.06 0.756 Plasma Membrane
CcCNGC1266225.868.38573 44.7 26.88 0.689 Plasma Membrane
CcCNGC1398268.669.24857 45.57 26.84 0.685 Plasma Membrane
CcCNGC1459415.259.31507 45.04 30.83 0.712 Plasma Membrane
CcCNGC1552188.969.00453 39.51 30.02 0.695 NONE
CcCNGC1699703.547.92888 45.3 27.59 0.757 Plasma Membrane
CcCNGC1799881.446.79886 44.96 27.24 0.707 Plasma Membrane
CcCNGC1884197.869.00736 42.66 26.99 0.665 Plasma Membrane
CcCNGC1983201.189.38723 42.24 26.92 0.677 Plasma Membrane
CcCNGC2080863.768.80696 40.87 27.44 0.719 Plasma Membrane
CcCNGC2181978.699.51714 42.44 24.51 0.743 Plasma Membrane
CcCNGC2281754.899.33711 43.06 27.19 0.717 Plasma Membrane
CcCNGC2376781.889.47668 39.74 25.35 0.685 Plasma Membrane
CcCNGC2489800.616.53785 45.84 31.04 0.805 Plasma Membrane
CcCNGC2573690.319.41637 45.59 28.99 0.721 Plasma Membrane
CcCNGC2683295.608.24732 45.73 25 0.723 Plasma Membrane
CcCNGC2783314.549.17732 37.06 27.34 0.671 Plasma Membrane
CcCNGC2879175.287.87691 48.11 27.21 0.738 Plasma Membrane
CcCNGC2994303.406.42822 40.07 29.68 0.706 Plasma Membrane
CcCNGC3083937.679.23730 35.55 27.12 0.616 Plasma Membrane
CcCNGC3184393.419.26734 39.98 26.66 0.64 Plasma Membrane
CcCNGC3280206.909.30698 40.41 27.98 0.72 Plasma Membrane
CcCNGC3375034.259.34650 45.23 28.82 0.739 Plasma Membrane
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lv, Y.; Liu, S.; Ma, Y.; Hu, L.; Yan, H. Analysis of CNGC Family Members in Citrus clementina (Hort. ex Tan.) by a Genome-Wide Approach. Int. J. Mol. Sci. 2025, 26, 960. https://doi.org/10.3390/ijms26030960

AMA Style

Lv Y, Liu S, Ma Y, Hu L, Yan H. Analysis of CNGC Family Members in Citrus clementina (Hort. ex Tan.) by a Genome-Wide Approach. International Journal of Molecular Sciences. 2025; 26(3):960. https://doi.org/10.3390/ijms26030960

Chicago/Turabian Style

Lv, Yuanda, Shumei Liu, Yanyan Ma, Lina Hu, and Huaxue Yan. 2025. "Analysis of CNGC Family Members in Citrus clementina (Hort. ex Tan.) by a Genome-Wide Approach" International Journal of Molecular Sciences 26, no. 3: 960. https://doi.org/10.3390/ijms26030960

APA Style

Lv, Y., Liu, S., Ma, Y., Hu, L., & Yan, H. (2025). Analysis of CNGC Family Members in Citrus clementina (Hort. ex Tan.) by a Genome-Wide Approach. International Journal of Molecular Sciences, 26(3), 960. https://doi.org/10.3390/ijms26030960

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
