Juvenile Hormone and Ecdysteroids Facilitate the Adult Reproduction Through the Methoprene-Tolerant Gene and Ecdysone Receptor Gene in the Female Spodoptera frugiperda

Abstract

Insects, as the most diverse and numerous group in the animal kingdom, are at least partly dependent on the reproduction process, which is strictly regulated by the ‘classic’ insect hormones: juvenile hormone (JH), and 20-hydroxyecdysone (20E). However, the regulatory mechanism governing the reproduction of JH and 20E in Spodoptera frugiperda remains unclear. In this study, ovarian development and ovulation in female S. frugiperda were assessed through dissection of the ovaries following treatment with JH analog (JHA) and 20E. Moreover, the expression patterns of the JH-signal and 20E-signal-related genes were determined by quantitative PCR (qPCR), and RNA interference (RNAi) was used to investigate the role of JH and 20E-induced genes. Ovarian development was observed by microdissection, and JH and 20E titers were determined by ELISA. Kr-h1, Vg, and USP expression were determined by qPCR. Dissection and qPCR results showed that JHA and 20E promoted ovarian development, egg maturation, and egg laying by upregulating Methoprene-Tolerant (Met) and Ecdysone Receptor (EcR)expression. Additionally, the RNAi results showed that the injection of dsMet and dsEcR markedly delayed ovarian development, inhibited egg maturation, and halted egg production. Knockdown of Met and EcR significantly reduced JH and 20E content and inhibited the transcription of Kr-h1 and USP. These results indicate that JH and 20E facilitate adult reproduction through the methoprene-tolerant gene and ecdysone receptor gene in female S. frugiperda.

1. Introduction

Sexual reproduction requires the involvement of sexual endocrine hormones. Endocrinology of insect reproduction has traditionally focused on juvenile hormones (JHs) and ecdysteroids, which regulate development and reproduction and are well studied in most important insect groups, such as Lepidoptera, Coleoptera, and Diptera [1,2]. The proper synthesis and functioning of JHs and ecdysteroids are crucial for regulating vitellogenesis and oogenesis, from embryo development to the production and laying of fertile eggs [3,4].

JHs are lipophilic sesquiterpenoid molecules secreted by the corpora allata (CA), a pair of endocrine glands located just behind the brain [5]. Eight distinct types of JH have been discovered in various insects, with JH III being predominant. Vitellogenesis is regulated by the release of JHs, which travel through the hemolymph and target tissues with specific receptors. This triggers the biosynthesis of vitellogenin in the female fat body and follicle cells, along with the absorption of yolk protein precursors by oocytes in developing follicles [4,6]. In addition to its role as a regulator of reproduction, ecdysteroids, as multifunctional hormones, also play a significant role in the adult stage of many insects [7]. Ecdysteroids are polyhydroxylated sterolic hormones [8]. Generally, the prothoracic glands produce ecdysteroids in response to stimulation by prothoracicotropic hormone (PTTH) and release them into the hemolymph [9]. Ecdysteroids produced in the ovaries are stored in oocytes for use during ovary development, oocyte maturation, and embryogenesis [2,10].

Recent years have witnessed an explosion of studies on JHs and ecdysteroid signal pathways [6,7,11]. Although the regulation of vitellogenin expression and ovarian development by JH has been reported for many years, the molecular mechanisms gained attention with the discovery that the JH-resistance gene, Methoprene-tolerant (Met), a basic helix-loop-helix Per/Arnt/Sim (bHLH-PAS) domain protein, acts as the JH receptor, binding JH at physiological levels, and playing a key role in insect metamorphosis [1,12,13]. However, the pathway of action on ecdysone depends on 20-hydroxyecdysone (20E), the active form of ecdysteroids. The transcriptional activation of target genes is triggered by 20E, as it forms a nuclear receptor complex with the Ecdysone receptor (EcR) and its partner, the orphan nuclear receptor Ultraspiracle (USP). The 20E regulatory pathway is essential for vitellogenesis and oogenesis in dipterans [1].

The fall armyworm (FAW), Spodoptera frugiperda (Lepidoptera: Noctuidae), is a major invasive pest affecting a range of crops, especially maize and other cereals in its invasion area, such as North and South America [14]. By early December 2018, it had also spread from Myanmar into Yunnan Province in southern China [15].

Given the high fecundity, migration capabilities, and population resistance to insecticides (e.g., pyrethroids, carbamates, and organophosphates) of FAW, pest control strategies are limited [16]. In the polyandric moth, oogenesis is completed only after adult emergence, and oviposition closely depends on endocrine hormones (JH and 20E) [17]. However, as far as we know, the roles endocrine hormones play in FAW’s reproduction, and whether JH-Met signaling and 20-EcR regulate the reproductive process, are still unknown. To address these questions, we use two important hormones secreted by glandular secretory organs as a model to study how JH and 20E function to promote high fertility in S. frugiperda. Specifically, we focus on two key receptors of the JH and 20E signal pathways and set out to clarify whether egg maturation and oviposition are modulated by the receptors and cascade of genes. We employ anatomical analysis, ELISA, qPCR, and RNAi to examine, characterize, and identify the mechanisms through which the hormones regulate reproductive processes in female adults. We show that exogenous administration of juvenile hormone analog (JHA) and an ecdysteroid (20E) can promote egg maturation and oviposition, in which Met and EcR play key roles as hormone receptors. Furthermore, the results show that Met and EcR regulate hormone synthesis and cascade gene expression. Our results highlight the crucial role of JH and ecdysteroids in facilitating adult reproduction through the Methoprene-tolerant gene and ecdysone receptor gene in female S. frugiperda.

2. Results

2.1. JHA and 20E Induce Ovarian Development and Egg Laying

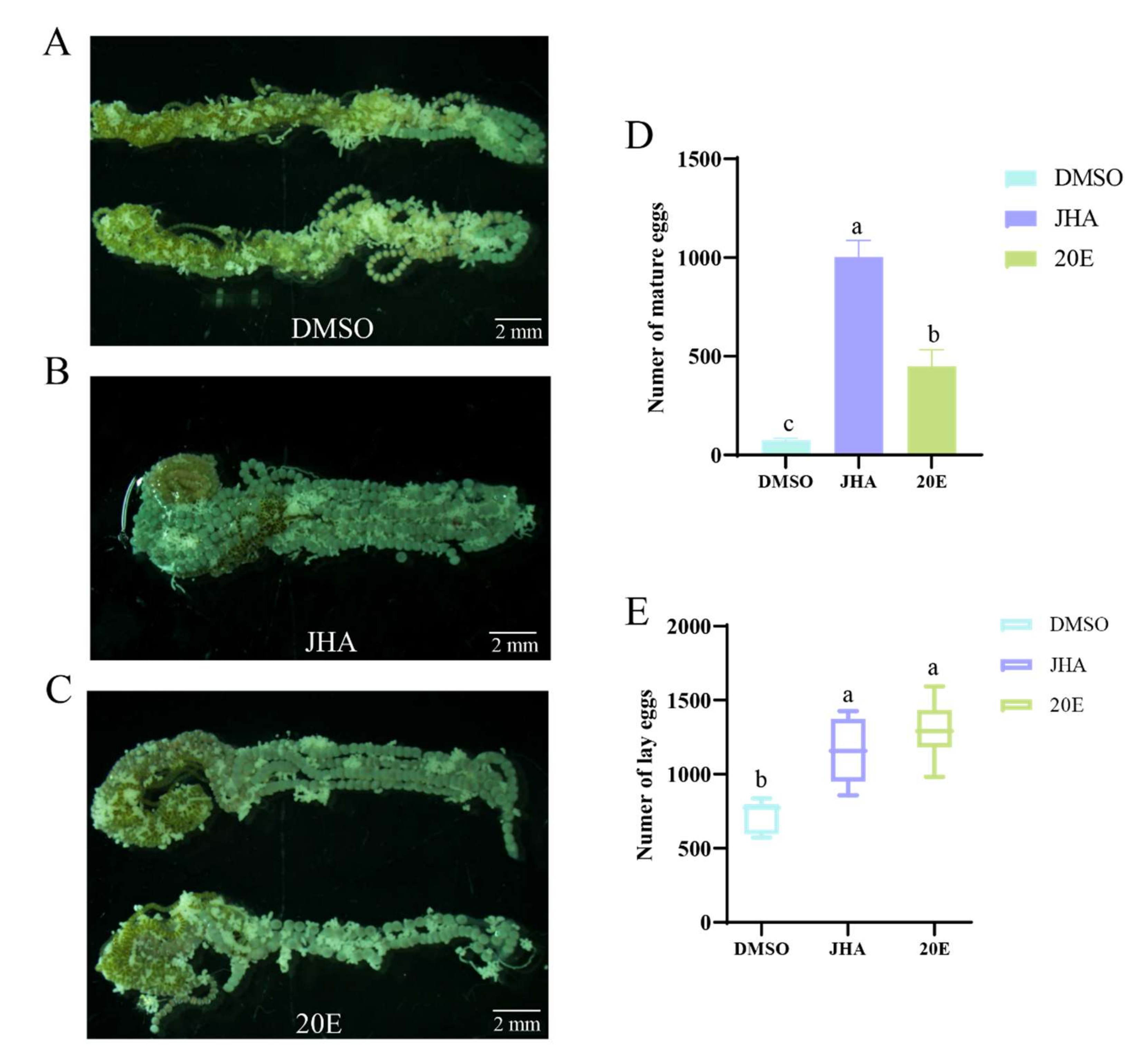

To explore the effects of a juvenile hormone (JH) and 20-hydroxyecdysoen (20E) on ovarian development and egg production, we initially assessed the potential of exogenous JHA and 20E to promote ovarian development in S. frugiperda. We treated newly emerged females (without feeding) with JHA and 20E, and dissected the ovaries at 24 h post-injection. Compared with the DMSO control, both 2.5 µg JHA and 5 µg 20E promoted ovarian growth (Figure 1A–C). Moreover, the number of mature eggs in ovaries was 3010 for JHA-treated females and 1347 for 20E-treated females (Figure 1D), whereas in the DMSO-treated females, it was 222 (Figure 1D). Therefore, JHA and 20E induce the maturation of eggs in the ovaries (Figure 1D). Furthermore, we investigated egg laying in females. The results showed that DMSO-treated control females laid 7209 eggs, while JHA-treated females and 20E-treated females laid 11,496 and 13,002 eggs, respectively (Figure 1E). Therefore, JHA and 20E induced ovarian development, accelerated the rate of oocyte maturation, and increased egg laying. These results suggest that JH and 20E signaling contribute to the facilitation of reproduction in S. frugiperda.

2.2. JHA and 20E Upregulate the Levels of the JH and 20E Pathway-Related Gene Transcripts

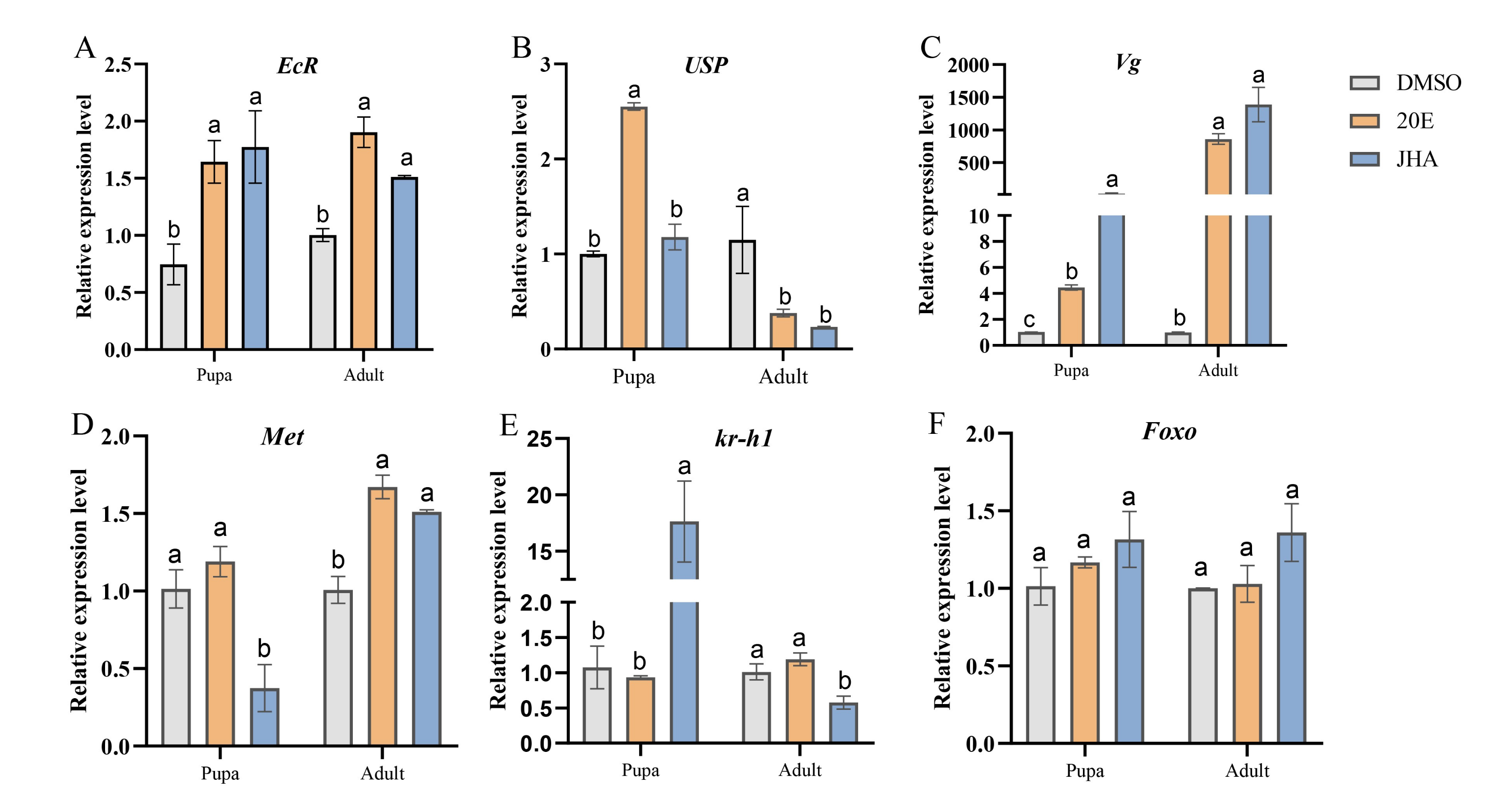

In insects, ecdysteroid signaling is mediated by the heterodimer of EcR and USP nuclear receptors, while JH exerts its effects through the Met receptor, initiating the transcription of downstream targets such as Kruppel homolog 1 (Kr-h1) and Foxo. To verify the relationship between reproduction and JH and 20E pathway-related gene expression, we tested the mRNA expression levels of EcR, USP, Met, Vg, Kr-h1, and Foxo in pupae and females after JHA and 20E treatment using qRT-PCR. Clearly, compared to the DMSO treatment group, after a 24-h induction with JHA or 20E, the expression of these genes was upregulated in response to JHA and 20E in pupae and reproductive females (Figure 2A–F), but Foxo exhibited no significant change for JH or 20E (Figure 2F). EcR mRNA levels increased by 1.51-fold in response to JH signaling and 1.90-fold in response to 20E signaling in female adults (Figure 2A). In the same situation, Met mRNA levels increased 1.50-fold and 1.70-fold, respectively (Figure 2D). Especially, after JHA and 20E treatment, Vg expression increased over 1387-fold and 859-fold, respectively (Figure 2C). The findings indicated that the expression of EcR, Met, and Vg genes is enhanced in response to JH and 20E signaling during adult reproduction.

2.3. EcR and Met Expression in Different Stages of Development and in Various Tissues

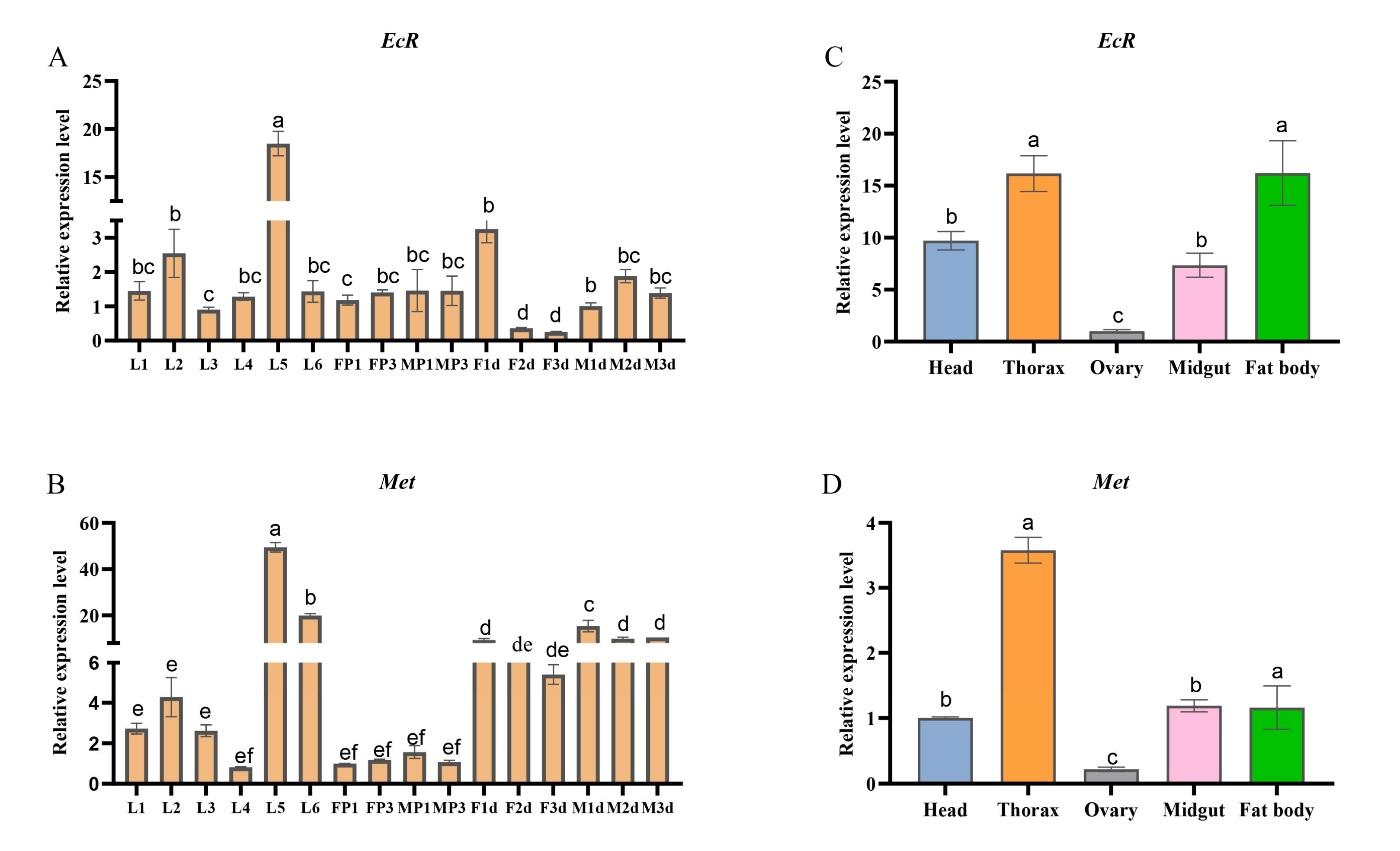

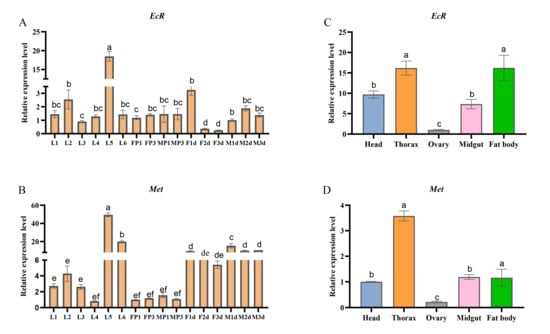

To characterize the EcR and Met expression profiles in different stages of development and in various tissues, qRT-PCR was used to detect the expression levels of EcR and Met for larvae (L1–L6), pupae (FP, MP), and adults (F, M). During the S. frugiperda developmental process, EcR gene expression was 18-fold higher at the end of the larval stage (L5) than at the pre-larval stage (L3), and there was no difference between the expression at the pupal stage and the adult stage (Figure 3A). Similarly, a higher expression level of Met genes was observed in the fifth larval stage, while the expression levels in the L1–L4 stages and the pupal stages were not very different, and in the adult stage, Met was significantly higher than that in the larval stage and pupal stage (Figure 3B). For the different tissues, the results showed that EcR was more highly expressed in the thorax and fat body than in the head, ovary, and midgut (Figure 3C), whereas Met levels were highest in the thorax (Figure 3D). These results imply that EcR and Met are likely involved in key roles in specific developmental processes and endocrine activity.

2.4. Knockdown of Met and EcR Results in Ovarian Development Retardation and Decreased Egg Laying

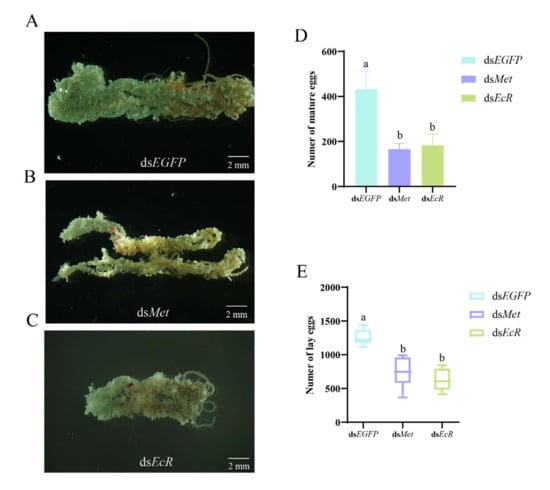

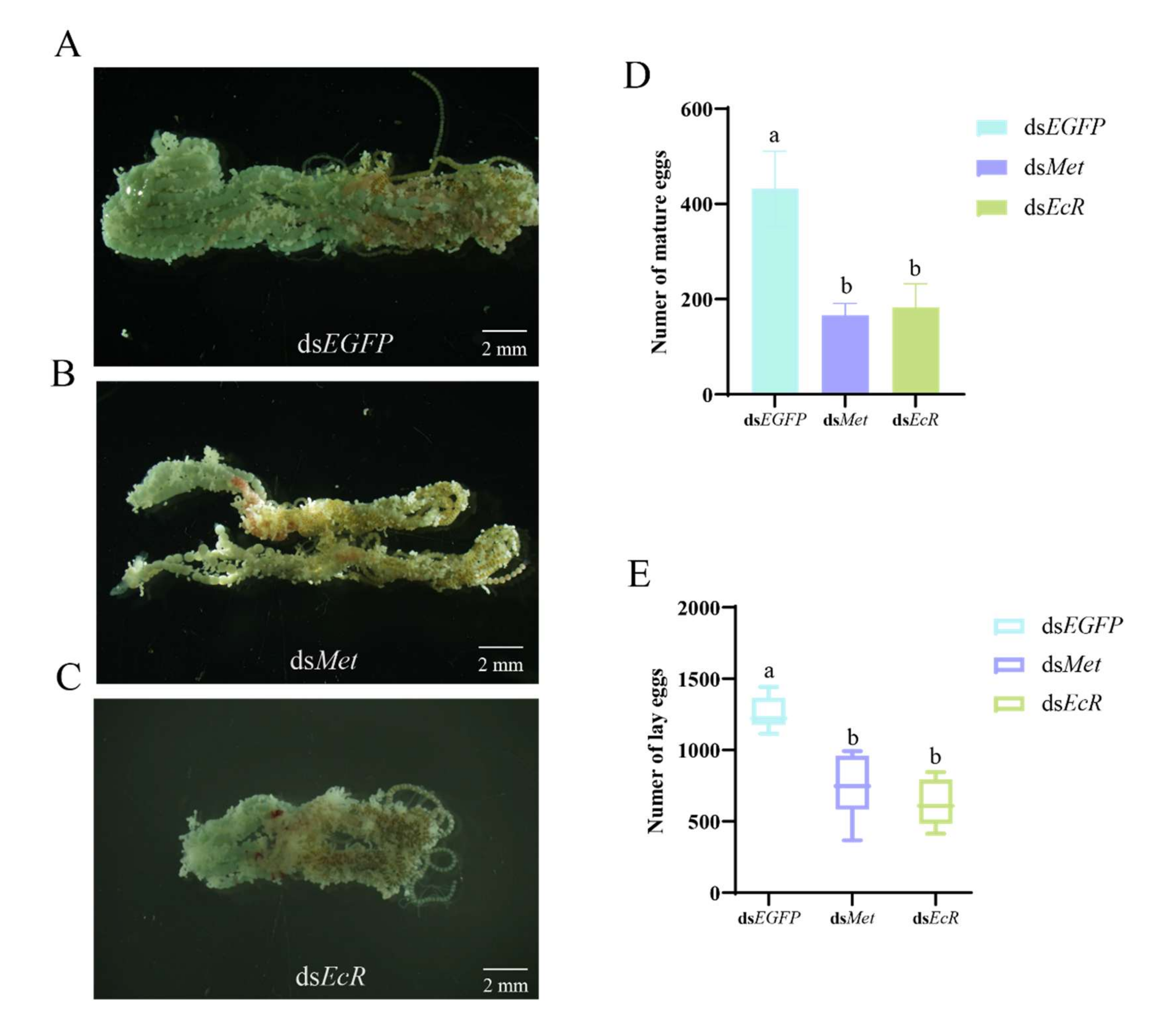

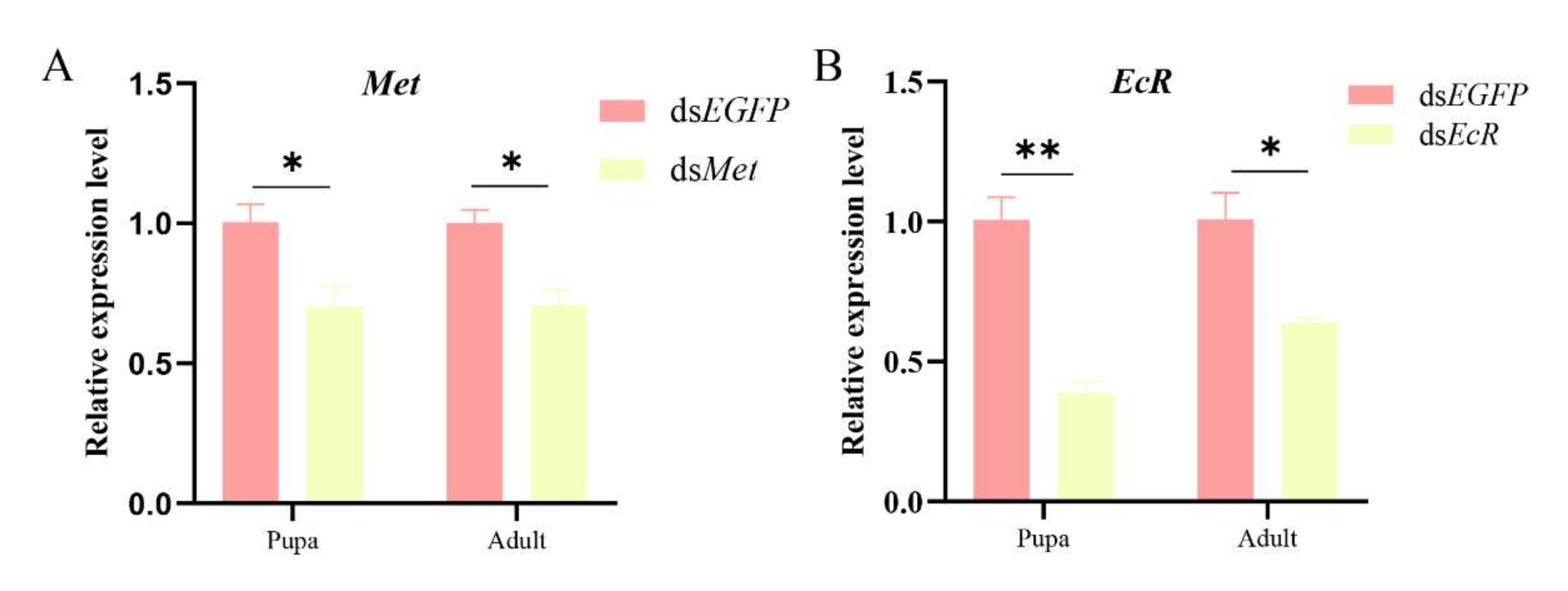

To clarify the functions of Met and EcR of S. frugiperda, two key receptor genes of the JH and 20E hormone pathway, we performed RNAi to investigate the effect of Met and EcR on JH-/20E-induced ovarian development. One-day-old female pupae and female adults were injected with dsEcR and dsMet. Compared with the dsEGFP control, dsMet injection caused a 29% reduction in expression in female pupae and adults (Figure 4A), while dsEcR injection reduced expression in pupae and adults by 61% and 36%, respectively (Figure 4B). By dissecting the ovaries of females, compared with the dsEGFP group (Figure 5A), significantly less yolk protein was deposited in the ovaries of the dsMet-RNAi (Figure 5B) and dsEcR- RNAi groups (Figure 5C). Furthermore, it was found that the number of mature eggs in the ovaries of Met -RNAi females was reduced by 41% (Figure 5D), and the number of laid eggs by females was reduced by 42% (Figure 5E). Similarly, EcR-RNAi females had a significant 42% reduction in mature eggs in the ovaries and a 49% reduction in female egg production (Figure 5D,E). These results strongly demonstrate that silencing Met and EcR affects yolk deposition, egg maturation, and oviposition in S. frugiperda.

2.5. Knockdown of Met and EcR Results in Decreased JH, 20E Titer and Vg, Kr-h1 and USP Expression Levels

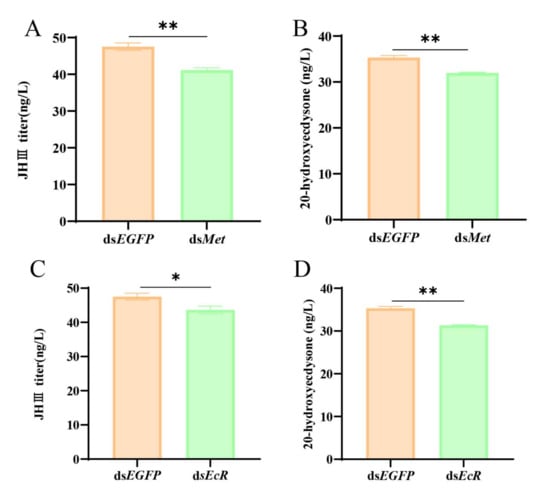

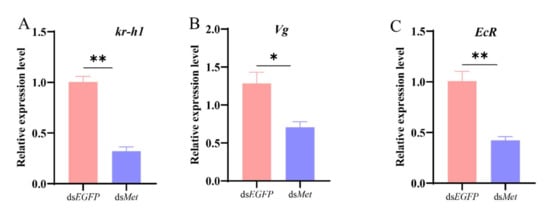

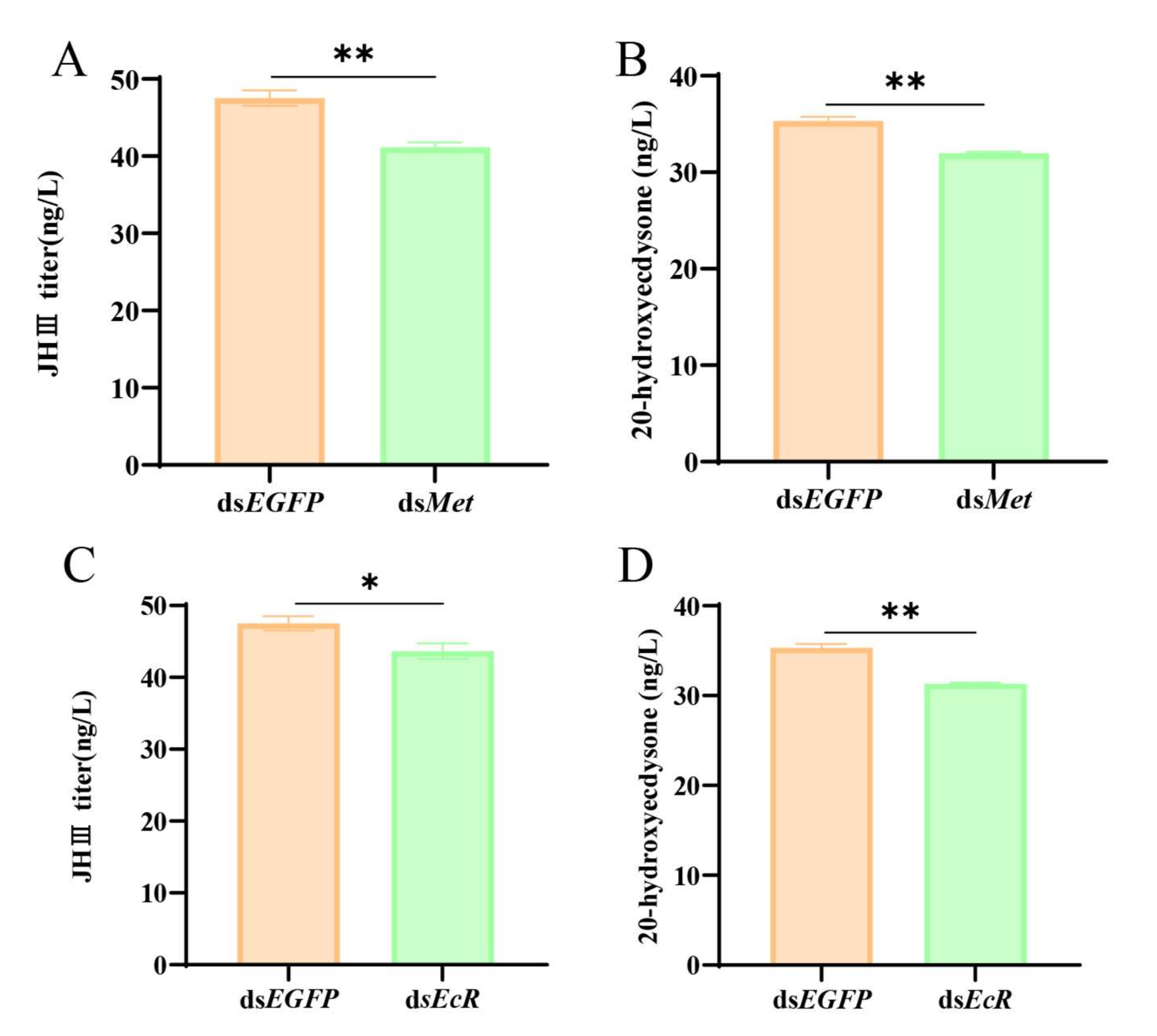

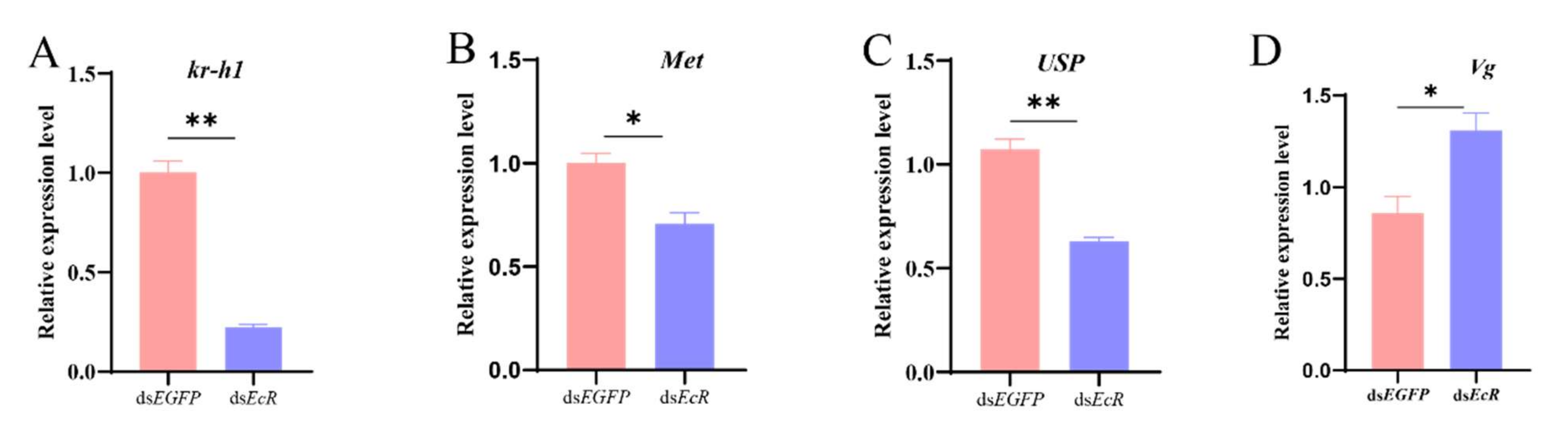

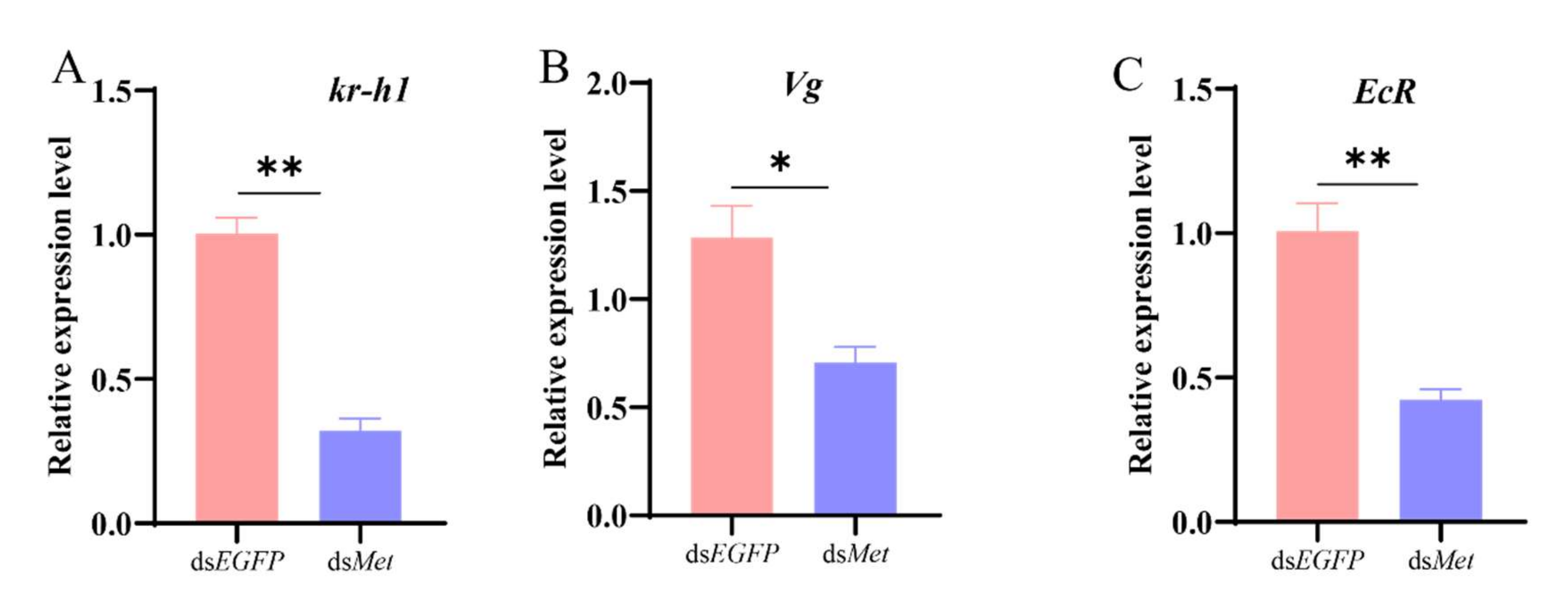

Met and EcR, as the vital receptors, are closely related to JH and 20E synthesis. To further confirm the direct relationship of Met and EcR with the hormones, after silencing the Met expression and EcR in female adults, the JH and 20E titers were determined. Significant JH and 20E titer decreases were observed in the experimental groups, the dsMet -RNAi group (Figure 6A,B), and the dsEcR- RNAi group (Figure 6C,D), relative to the control group. Furthermore, the previous results also proved that Vg [18] and Kr-h1 [19] are crucial for the reproduction of S. frugiperda. Therefore, after dsMet injection, the data indicated a 68%, 45%, and 58% decrease in the transcription levels of kr-h1, Vg, and EcR, respectively, relative to the control group (Figure 7A–C). Meanwhile, after dsEcR injection, the relative expression level of kr-h1 and Met transcript levels were reduced by 88% and 29%, respectively, and the EcR heterodimerization partner (the USP expression level) was also reduced by 41% (Figure 8A–C). However, knocking down the EcR resulted in a 1.5-fold increase in the expression level of Vg (Figure 8D). Met and EcR affect the hormones via the mRNA expression level of pathway-associated genes.

3. Discussion

Reproduction in insects is regulated by the hormones ecdysone and juvenile hormones and the availability of nutrients [20,21]. Understanding insect reproduction processes can support the development of new strategies for pest control [22]. Native to America, S. frugiperda is a destructive pest that has recently invaded China, with its prolific reproduction being a key driver of its devastating impact [16]. However, the mechanisms of JHs and ecdysone in controlling its reproductive processes are not yet well understood. In the current research, we analyzed the roles of JHA and 20E in the reproductive processes of S. frugiperda, cloned and analyzed key genes (EcR, USP, Vg, Met, Kr-h1, and Foxo) of the JH and 20E signaling pathways, and analyzed the induction of JHA and 20E on their mRNA expression levels. Then, we identified two key receptor genes, Met and EcR, of the JH and 20E signaling pathways induced by JHA and 20E, and assessed their role in female adult reproduction through RNA interference.

The development and reproduction of different insect taxa may be regulated by a single or multiple factors [23]. JH- and 20E-mediated larval development models have been commonly reported in many insects [6,7,24]. Furthermore, JH levels seem to be pivotal in regulating reproductive diapause, aging, migration of butterflies, and caste differentiation processes [25]. Recently, more studies have paid attention to JH- and 20E-mediated regulation of reproduction. For S. frugiperda, there is no stagnation of fertilization, and both females and males can mate several times and are extremely fertile. Therefore, it is a good model to study JH- and 20E-mediated regulation of reproduction. Similar to previous reports in Colaphellus bowringi [24], after injecting 2.5 µg JHA into females of S. frugiperda, ovarian development was induced, resulting in egg maturation and increased egg laying. As for the multifunctional ecdysteroids produced in the ovaries, Lanot et al. [26] proved that ecdysone is involved in regulating meiotic reinitiation in the oocytes of Locusta migratoria; mosquito ecdysone is also important in development and reproduction [27]. Recently, a study by Wang et al. [28] found that 20E influences many cellular processes in S. frugiperda. Similarly, when we applied 5 µg of 20E to S. frugiperda female adults, yolk accumulation in the ovaries increased, oocyte maturation was induced, and the number of laid eggs increased.

JHA methoprene and 20E achieve reproductive regulation depending on the related gene expression [29,30]. Typically, JHA induces Vg expression in C. bowringi [24], and Kr-h1 gene expression is significantly increased by both JH analog (JHA) and 20E in Helicoverpa armigera [31]. Our study revealed that Met and EcR, key receptors in the JH and 20E signaling pathways, showed elevated expression following JHA and 20E treatment, suggesting their crucial role in hormone response, particularly in the thorax and fat body. Moreover, to further demonstrate whether JHA and 20E functionally involve the regulation of reproduction via Met and EcR. RNAi-based approaches have been effectively utilized to study gene function in different insect species, including Lepidoptera. In the present study, the Met and EcR genes of S. frugiperda were silenced, and Met and EcR expression was markedly downregulated in female pupae and adults after injection of dsRNA. Suppression of Met and EcR in S. frugiperda females impaired ovarian development and oogenesis, leading to an inhibition of egg maturation and reduced oviposition, and reduced the JH and 20E level. In addition, silencing the Met gene markedly downregulated kr-h1, Vg, and EcR expression levels. Additionally, knocking down EcR resulted in a significant reduction of kr-h1, Met, and USP expression, while Vg levels were higher than in the control dsEGFP group. Similarly, the Vg expression level also decreased after EcR expression increased in Diploptera punctata [32], which may be due to other genes of the 20E-signal pathway compensating for the Vg gene expression.

In line with previous research, our data suggest that Met and EcR affect reproduction in S. frugiperda. Earlier studies have reported that silencing Met expression through dsRNA injection in Grapholita molesta resulted in prolonged pupal duration, hindered adult emergence, prolonged the preoviposition period, and decreased fecundity [33]. Lenaerts et al. [34] discovered that silencing EcR in Schistocerca gregaria resulted in impaired ovulation and oviposition. Choi et al. [35] found that the development and reproductive capacity of S. frugiperda populations from the USA and China were influenced by ecdysone-related genes. Moreover, Guo et al. [36] proved that 20E controls photoperiodic reproductive arrest by modulating JH production, which is related to the gene cascade of JH-signal and 20E-signal pathways, such as kr-h1, USP, and Vg [21,37]. Importantly, the cross-talk between 20E and JH signaling pathways is mediated by the participation of calponin [29] and unknown key proteins. In summary, this study presents the possibility of preventing the developmental and reproductive cycles of S. frugiperda by inhibiting two critical receptor genes, providing a means to eliminate the damaging effect.

4. Materials and Methods

4.1. Insect Rearing

Spodoptera frugiperda specimens were collected in Nanning, Guangxi province. Colonies were established in the laboratory at the Institute of Plant Protection, Chinese Academy of Agricultural Science under controlled conditions of 25 ± 2 °C, 55 ± 5% RH, and a 14:10 h light: dark photoperiod for more than 10 generations. Larvae were raised in cylindrical feeding boxes (top cover length 4.0 cm, height 3.0 cm, bottom length 3.0 cm) using artificial feed (Corn flour-60%, Wheat germ powder-15%, Soybean flour-15%, Yeast powder-5%, Fish meal-3%, Agar-2%), while adults were raised in cuboid feeding cages (55 cm × 55 cm × 55 cm) with 20% honey water.

4.2. Collection of Sample for Developmental Stages and Tissue Expression Analysis

Samples from various developmental stages and sexes were collected to analyze the expression levels of candidate genes, including the first to sixth instar (L1, L2, L3, L4, L5, L6), first-day female pupa (FP1), third-day female pupa (FP3), first-day male pupa (MP1), third-day male pupa (MP1), 1-day-old female (F1d), 2-day-old female (F2d), 3-day-old female (F3d), 1-day-old male (M1d), 2-day-old male (M2d), and 3-day-old male (M3d). For tissue-specific analysis, the head, thorax, ovary, midgut, and fat body were dissected from female adults using a SZX16 microscope (Olympus Microsystems, Tokyo, Japan) and washed in a 1 × PBS buffer. Each sample collection was performed with three biological replicates.

4.3. RNA Isolation, cDNA Synthesis

Total RNA was extracted from the samples using the TRIzol method (Invitrogen, Carlsbad, CA, USA), and its integrity was evaluated through 1% agarose gel electrophoresis. Next, RNA was reverse transcribed into cDNA using the TransScript^® First-Strand cDNA Synthesis SuperMix kit (Transgen, Beijing, China), according to the manufacturer’s guidelines. Total RNA (1 μg) was isolated, stored at −80 °C, and used as a template for cDNA synthesis. The cDNA obtained was subsequently utilized in gene cloning and quantitative PCR (qPCR) experiments. The primers for gene cloning are provided in Table S1 (Supplementary Materials).

4.4. qPCR Analysis

Gene expression analysis was performed using the TransStart Green qPCR SuperMix Kit (TransGen Biotech, Beijing, China) on the ABI Prism 7500 Real-Time PCR System (Applied Biosystems, New York City, NY, USA), in line with the manufacturer’s guidelines. Each 20-μL reaction included 10 μL of 2× TransStart^® Tip Green qPCR SuperMix, 0.4 μL of passive reference dye II, 0.4 μL forward and reverse primers, 1.0 μL cDNA, and 7.8 μL of double-distilled water. The amplification protocol included an initial denaturation at 94 °C for 30 s, followed by 40 cycles of denaturation at 94 °C for 5 s, and annealing at 60 °C for 34 s, with melt curve stages at 95 °C for 15 s, 60 °C for 1 min, and 95 °C for 15 s. The ribosomal protein L13 (RPL13) gene was chosen as the reference gene for normalization [38]. Each sample had three biological replicates. Data were analyzed using the 2^−ΔΔCT method [39]. The primers for qPCR assay are provided in Table S2 (Supplementary Materials).

4.5. Juvenile Hormone Analog (JHA) and 20E Treatment

To study how JHA and 20E influence ovarian development in S. frugiperda, methoprene (JHA, Sigma-Aldrich, St. Louis, MO, USA) was diluted to 2.5 μg/100 nL using DMSO, and 20E (Aladdin, Shanghai, China) was separately diluted to 5 μg/100 nL using the same solvent. Using a microinjector (Nano inject III, Drummond, PA, USA), 100 nL of each JHA dilution and 20E dilution were separately injected into the internode membrane of the third and fourth ventral segments of newly emerged female, unfed female S. frugiperda on day 0. This resulted in a final JHA concentration of 2.5 μg and a final 20E concentration of 5 μg, with an equal volume of DMSO injected as the control.

4.6. Determination of JH III Titer and 20E Content

The JH III titer and 20E content were determined using an enzyme-linked immunosorbent assay (ELISA) kit (Gelatins, Shanghai, China) following the product guidelines [40]. For determining JH III and 20E levels, females of S. frugiperda were collected on ice after RNA interference (RNAi) treatment. For each RNAi sample, three biological replicates and three technical replicates were conducted independently. Females (0.1 g) injected with RNAi were homogenized in phosphate-buffered saline (PBS, 9 mL, pH 7.2–7.4), then centrifuged (5000× g), and the supernatant was used for ELISA. Antibodies in microplates were captured with purified insect hormones and prepared as solid-phase antibodies. Then, the sample, standard, and HRP labeled detection antibodies were added into the microplates. After thorough washing, 3,3′, 5,5′-tetramethylbenzidine (TMB) was used for color development. Absorbance (OD value) was determined using a microplate reader at 450 nm to calculate the sample JH III titer and 20E content using the standard curve.

4.7. Synthesis of Double-Stranded RNA and RNA Interference

Amplification of the Met and EcR genes was performed individually, followed by cloning into the P-easy-T3 vector (Transgen, Beijing, China). Double-stranded RNAs (dsRNA) were generated using plasmid templates with a T7 high yield RNA Transcription Kit (NEB, Ipswich, New England). The specific primers used for dsRNA synthesis are shown in Table S3 (Supplementary Materials). A green fluorescent protein (GFP) was employed as the control dsRNA (dsGFP). The dsRNA concentrations were determined using a NanoPhotometer P330 spectrophotometer (Implen, München, Germany) and 1% agarose gel electrophoresis. The final concentration of the synthesized dsRNA was adjusted to 10 µg/µL.

Microinjection was used as an effective method for dsRNA delivery in insects. After being anaesthetized in ice, 1 μg dsRNA solution was administered by injection into the abdomen of newly emerging female adults (within 12 h of eclosion). The injected insects were then reared under the above conditions.

4.8. Monitoring of Ovarian Development and Reproductive Capacity After the Injection of dsMet and dsEcR

For the observation of ovary development, after RNAi treatment for 24 h, the ovaries were dissected and their development was observed. For fecundity assessment, all RNAi knockdown and control females were paired with a mate in a feeding cup, and daily egg counts were performed for the females until they died. For the RNAi experiment, more than 15 adult replicates were tested for each treatment.

4.9. Data Analysis

Statistical analysis was conducted with SPSS 22.0 and GraphPad Prism 8.0. One-way ANOVA with Tukey’s LSD test (α = 0.05) was used to assess the significance of the data. A p-value of less than 0.05 was considered significant (* p < 0.05, ** p < 0.01, and *** p < 0.001). Data are expressed as Means ± SE.

5. Conclusions

We utilized ELISA, qPCR, RNAi, and microdissection technologies to evaluate the impact of Met and EcR genes by JHA and 20E on the induction of ovarian development and fecundity in S. frugiperda females, and determined the transcription levels of JH- and 20E-related signals. Our results showed that ovary development and fecundity were promoted by JHA and 20E induction in S. frugiperda. Furthermore, the transcription levels of two key receptor genes of JH and 20E were markedly increased by JHA and 20E induction. In addition, the Met and EcR knockdown hindered yolk formation and egg maturation and decreased adult fecundity. Meanwhile, the gene expression of Vg, kr-h1, and USP was reduced after Met and EcR RNAi. Therefore, we propose that the Met and EcR genes play important roles in the reproduction of S. frugiperda by affecting its ovary development and egg maturation.
