Review

Molecular Epidemiology of Streptococcus pneumoniae Serotype 1: A Systematic Review of Circulating Clones and Clonal Clusters

by
Onyansaniba K. Ntim
and
Eric S. Donkor
*
Department of Medical Microbiology, University of Ghana Medical School, Korle Bu, Accra P.O. Box KB 4236, Ghana
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2025, 26(5), 2266; https://doi.org/10.3390/ijms26052266
Submission received: 10 December 2024 / Revised: 23 January 2025 / Accepted: 29 January 2025 / Published: 4 March 2025
(This article belongs to the Section Molecular Pathology, Diagnostics, and Therapeutics)
Browse Figures
Versions Notes

Abstract

:
Streptococcus pneumoniae serotype 1 is one of the most prevalent serotypes commonly associated with invasive pneumococcal disease cases and outbreaks worldwide. Several sequence types of this serotype have been identified globally, including those exhibiting both high virulence potential and antimicrobial resistance profiles. This systematic review presents the global distribution of clones of pneumococcal serotype 1, describing their circulating patterns in various regions in the world. A database search was conducted in Google Scholar, PubMed, Scopus, ScienceDirect, and Web of Science using keywords related to Streptococcus pneumoniae serotype 1. The inclusion criteria entailed peer-reviewed studies published in English describing the utilization of at least one molecular genotyping tool to identify S. pneumoniae serotype 1 clones based on their sequence types. Data extracted were managed and analyzed using Microsoft Excel 365 (Version 2108). Forty-three studies were finally included in the systematic review. A total of 103 MLST serotype 1 sequence types were identified in 48 countries. These clones were widely reported to be associated with invasive pneumococcal diseases. Globally, ST217 and ST306 clonal complexes (CC217 and CC306) were the predominant lineages of serotype 1 sequence types, exhibiting distinct continental distribution patterns. CC217, characterized by ST217, ST303, ST612, ST618, and ST3081, was predominant in Africa and Asia. ST306 clonal complex, which is grouped into ST306, ST304, and ST227 were mostly found in Europe, Oceania, North America, and some countries in South America. ST615 was predominant in Chile, Peru, and Argentina. The hypervirulence nature of serotype 1, coupled with its complex genetic diversity, poses a significant public health threat. Our findings emphasize the need for enhanced surveillance and targeted interventions to mitigate the spread of these hypervirulent clones, ultimately informing evidence-based strategies for disease prevention and control.

1. Introduction

Streptococcus pneumoniae, also known as pneumococcus, is a Gram-positive bacterium that colonizes the nasopharynx as part of the commensal flora of the upper respiratory tract in humans [1,2]. Nasopharyngeal colonization is asymptomatic [3,4], but plays an important role in the horizontal transmission of pneumococcus via close contact [2]. Young children [5,6], smokers [5,7,8,9], asthmatics [5,7], and those with acute upper respiratory tract infections [5,6,7], are particularly at risk of pneumococcal colonization. Children are the major carriers of pneumococcus [10,11]. S. pneumoniae is highly capable of evading the host’s immune response and spreading from the site of colonization to other sterile sites to cause invasive pneumococcal disease (IPD) [1,2,5]. Pneumococcal carriage is a major risk factor for the development of IPD [1,2,12]. As a leading cause of invasive diseases, S. pneumoniae is responsible for significant morbidity and mortality manifesting as meningitis, pneumonia, bacteremia, and sepsis [13,14]. Risk groups, including young children (6 years old), elderly people, and immunocompromized patients (e.g., individuals with HIV or cancer), are mostly affected by IPD [5,15,16,17]. Since pneumococcal colonization is highest in children, they tend to+ face the highest burden of these diseases. According to the World Health Organization (WHO), IPD-associated deaths in children < 5 years old account for approximately one million out of 1.6 million cases annually, with the majority of these casualties occurring in low- and middle-income countries [16,18].
Currently, one hundred different serotypes of S. pneumoniae have been characterized based on the differences in the structure of pneumococcal capsular polysaccharides [19,20]. However, only a few of these serotypes cause the most invasive pneumococcal infections (IPD) [21,22]. Among them is pneumococcal serotype 1, one of the first discovered serotypes in the 20th century [19,23,24]. It is rarely recovered from healthy individuals but is highly prevalent in IPD cases reported in various regions worldwide [23,25]. The low serotype 1 colonization rate in healthy people suggests a rapid progression to invasive disease upon carriage [25]. Pneumococcal serotype 1 mainly causes pneumonia, bacteremia, and meningitis but has also been found to be associated with empyema [26,27,28,29]. This level of invasiveness poses a major risk to public health. Molecular genotyping techniques, such as multilocus sequence typing (MLST) [19,30,31], pulsed-field gel electrophoresis (PFGE) [31,32], and a multilocus variable number of tandem repeat analysis (MLVA) [33,34], have revealed the complex genetic diversity within S. pneumoniae population. Several studies utilizing MLST tools have identified specific sequence types (STs) of serotype 1 associated with IPD cases globally, with varying geographical distributions [23,35,36]. Furthermore, serotype 1 IPD incidence may increase within countries as a result of clonal spread facilitated by these genetic variations. Despite the growing research on S. pneumoniae serotype 1, a comprehensive analysis of its clonal distribution is lacking. Knowledge of the clonal distribution of serotype 1 in the various continents will inform evidence-based strategies for pneumococcal disease surveillance and targeted vaccine development. To fill this gap, we consolidated currently available data globally to describe the circulation of serotype 1 clones and their clonal complexes.

2. Results

2.1. Search Results and Selection Process

A total of 1234 records were identified from all the five electronic databases (Google Scholar, PubMed, Scopus, Web of Science, and Science Direct) that were searched. Two hundred and nine (209) duplicate records were removed, leaving 1025 unique records to be screened. Of the 1025 unique records, 813 were excluded based on their title, abstract, and language, and the remaining 212 records were sought for full-text retrieval. After full-text retrieval, 157 articles were excluded following the full-text eligibility assessment. Finally, 43 studies were included in the systematic review (Figure 1).

2.2. Description of Included Studies

Most of the data analyzed in this study were obtained from single-center studies conducted mainly in 19 countries (n = 38 studies). The majority of the studies were found in the United Kingdom (n = 5), Spain (n = 5), the United States (n = 5), and Gambia (n = 5). Five articles were multicenter studies, including two intra-continental surveys that grouped data from countries in sub-Saharan Africa and West Africa, respectively, one intra-continental survey that described data from the individual countries, and two inter-continental multicenter studies that also reported data from the individual countries. Of the 43 studies, 19 studies (44.2%) focused on participants of all ages (children to adults), 16 studies (37.2) on children only, and two studies (4.7%) on adults only. Six studies did not specify the age group of the included participants. Most studies (n = 29, 63%) described IPD among participants, while four described pneumococcal carriage. Ten studies reported on two or more isolate types (IPD and NIPD, n = 6; IPD and carriage, n = 3; IPD, NIPD and carriage n = 1). The PCVs evaluated includes PCV7, PCV9, PCV10, PCV13, PPV23, and PPV24. Studies employed polymerase chain reaction (PCR), whole genome sequencing (WGS), or a combination thereof, alongside multilocus sequence typing (MLST) analysis for S. pneumoniae to determine their sequence types. Table 1 summarizes the characteristics of the included studies.

2.3. Pneumococcal Serotype 1 Clones Reported Worldwide

Table 2 summarizes the geographical distribution of studies and sequence types (ST) identified in the various continents. The BURST analysis identified three main clonal complexes (CCs): CC217, CC306, and CC615 (Figure 2). The molecular characteristics of 103 pneumococcal serotype 1 clones identified in this study have been described in the Supplementary Materials (Table S1).

2.3.1. Africa

Our search identified seventeen (17) studies describing pneumococcal serotype 1 STs from African countries (Table 2). BURST analysis revealed that clonal complex 217 (CC217) is the largest group, comprising five main clusters: CC217-ST217, ST303, ST612, ST618, and ST3081. This group was predominantly reported in Africa. The ancestral clone, ST217, was predominantly associated with pneumococcal meningitis in Niger [66], Ghana [49,50], Burkina Faso [64], and Egypt [74]. Additionally, ST217 was widely responsible for several IPD cases described in South Africa [44,54], Kenya [44,55], Ethiopia [35], Mozambique [74], Malawi [70], and Gambia [42,63,74]. Carriage of serotype 1 ST217 was reported in Gambia [42], Kenya [55], Ethiopia [74], and Nigeria [74]. Single locus variants (SLV) of ST217, such as ST613 and ST614, were identified in Kenya as associated with IPD cases and carriage to a lesser extent [44,55]. Other SLVs including ST1316, ST1325, ST2034, ST2206, ST2839, ST3575, ST5012, ST5632, ST8158, ST8314, ST9067, and ST9529, as well as double locus variants (DLVs) like ST12150 and ST12739 were identified in countries in sub-Saharan Africa [37,42,50,54,74].
ST303, a triple locus variant (TLV) of 217, was recovered from IPD cases in Gambia [52,71,74], Ghana [49,50,74], Malawi [74], Niger [74], and Togo [72]. Its SLVs, ST1322, ST1323, and ST4755 were reported in Ghana [50,74] while others including ST11104, ST11736, ST12305, and ST12803 were identified in sub-Saharan African countries [37]. ST3081 (TLV of 217) and its SLVs, ST11779, and ST12197 were identified in Gambia [42,52,74], Senegal [74], and other countries in sub-Saharan Africa [37]. ST612 (TLV of 217) was described in studies from Ghana [50], Gambia [42], and South Africa [44,54,74], while its SLVs, including ST1327, ST1328, and ST3570, were found in Ghana [50] and Gambia [42]. Another TLV of 217, ST618, was reported in Burkina Faso [64], Egypt [74], Gambia [42,52,63,71,74], South Africa [54], and Togo [72]. SLV of ST618, such as ST1331, was only reported in Ghana [50], ST2084 in Ghana and Gambia [42,74], and ST3336, ST3573, ST3574, ST3577, and ST3581 in Gambia [42]. Some studies from South Africa reported ST304, ST306, and ST611 [44,54]. The distribution of clones reported in this region has been summarized in Figure 3. CC217 clones dominant in this region were ST217, ST303, ST618, and ST3081 (Figure 4).

2.3.2. Europe

A total of 16 studies from the European region were identified (Table 2). Clonal complex 306 was the second largest group based on the BURST analysis. It was divided into three main clusters: CC306-ST306, ST304, and ST227. This group was widespread and diverse across Europe, with a significant presence in cases of IPD reported in the 16 studies. The ancestral clone, ST306 was the predominant clone in the region and frequently associated with IPD cases in the United Kingdom (UK) [22,59,60,69], Spain [28,40,41,58,61], Sweden [74], Portugal [46,73], Poland [44], Norway [44], Netherland [44], Germany [44], France [44], Czech Republic [44,57], and Croatia [74]. Alongside ST306, its double locus variant (DLV), ST304 was notably reported in France [44], Netherlands [44], Norway [44], Portugal [73], Slovenia [74], Spain [28,40,41,58,61,74], and the UK [22,59,60,69]. ST227 was reported in Denmark [44] and the UK [22,44,60,67,69], while ST228 was described in Portugal [73], France [44], and Croatia [74]. Both ST227 and ST228 were identified in Spain [40,41,58,61,74] and the Netherlands [44]. Other STs with CC306, including ST1247 (DLV of 306), ST1310 (SLV of 306), and ST2376 (SLV of 306), were reported in the UK [22] and Spain [40,61]. Additionally, ST617 (SLV of 306), ST1239 (SLV of 227), and ST3861 (SLV of 304) were reported in Norway [44], UK [22] and Spain [41], respectively. Clonal complex 217 (CC217) was also identified in European countries, with ST217 widely documented in studies reporting IPD cases in the UK [22], Denmark [44], France [44], Germany [44], and Spain [40,41]. ST618 was only reported in the Netherlands [44] but was identified along with ST614 (SLV of 217) in Spain [58]. To a lesser extent, ST300 (DLV), ST616 (SLV), and ST3860 (DLV) of ST615 were documented in reports from the UK [44,69], Poland [44], and Spain [41], respectively. Regarding serotype 1 carriage, ST306, ST304, ST350, ST228, and ST217 were identified in nasopharyngeal samples from healthy children attending nursery schools in Belgium [45] and Portugal [39]. Figure 5 represents the proportions of clones identified in European countries. ST306 was dominant in almost all countries in Europe except Slovenia, where ST304 was found to be dominant (Figure 4 and Figure 5).

2.3.3. Asia

Pneumococcal serotype 1 clones reported in five studies conducted in Asia revealed a predominant clustering of member clones of CC217 (Table 2). This group encompasses subgroups such as CC303, CC618, and CC3081. In India, clones belonging to this group, including ST217 and its variants ST2839 and ST5002, were identified along with ST5044 related to ST618 and ST5672 (SLV of 303) [74]. Following the introduction of PCV7 in Singapore, serotype 1 strains causing meningitis and sepsis were primarily ST217, ST303, ST5044, and ST5254 [48]. In other Asian countries, such as the Philippines, Bangladesh, Nepal, and Thailand, STs belonging to CC217, including ST217, ST303, and ST3081, were detected [74]. Notably, ST615, part of the CC615 group, was also identified in clinical isolates in Thailand [74]. In Qatar, clinical isolates from blood specimens were represented by ST217, ST303, and ST3081, as well as ST306 (CC306) [74] (Figure 5). Porat et al. found that serotype 1 ST217 was the predominant clone in the southern region of Israel, accounting for cases of acute otitis media (AOM) and IPD in children under five years old [68]. Notably, ST304 was also identified in children with IPD in that study. In China, ST2296 was predominant along with singletons such as ST81, ST242, ST342, ST1263, ST3397, and ST13362 identified in isolates from invasive and non-invasive pneumococcal disease [36]. ST217 and ST303 were the dominant clones reported in Asia (Figure 4 and Figure 6).

2.3.4. Americas

Six studies reported pneumococcal serotype 1 clones circulating in North American countries (Table 2). Related clones of clonal complex 306 were widely reported in this region. Studies conducted in the United States from 1990 to 2002 consistently reported ST227 (DLV of 306) as the dominant ST (Figure 7). For instance, a study assessing the clonal compositions of invasive pneumococcal serotypes in the United States in 1999, 2001, and 2002 found that ST227 was the prevalent serotype 1 isolates [62]. This was consistent with the findings of Brueggemann and Spratt [44] and Gonzalez et al. [43], confirming ST227 as the most prevalent serotype 1 clone associated with cases of IPD. However, from 2003 onwards, multiple STs closely related to ST227, including ST304, 306, 2126, 4290 (SLV 306), 4288, and 4289, were reported in cases of Pediatric Pneumococcal Empyema (PPE) in Utah [27] (Figure 7). Like in the United States, ST227 was the predominant ST in Canada [44]. In contrast, in Mexico, cases of serotype 1 IPD were predominantly associated with ST304 [57].
Three studies reported pneumococcal serotype 1 clones in six countries from South America (Table 2). These studies documented the widespread of member clones of CC306 and CC615. In Argentina and Uruguay [57,74], the dominant clones identified in isolates of IPD cases were ST615 and ST304, respectively. ST615 clone was reported in isolates from blood and pleural fluid in Chile [44] and Peru [74]. According to Zemlicková et al. [57], serotype 1 IPD in Brazil and Colombia was caused by ST304 and ST306, respectively. The percentages of STs circulating in the American region are illustrated in Figure 7. We found ST227, ST304, ST306, and ST615 to be dominant in countries in this region (Figure 4).

2.3.5. Oceania

Our search identified six studies from Oceania that reported clones of pneumococcal serotype 1 (Table 2). In this region, most reported STs belonged to clonal complex 306. In Australia, ST304 and ST227 were widely reported in serotype 1 IPD cases and carriage in the north, according to Smith-Vaughan et al. [47]. An outbreak of serotype 1 IPD in Australia between 2008 and 2012 was predominantly caused by ST306 clones [51,53]. The proportion of ST304 isolates reported in Australia significantly decreased during this period, attributed to the clonal expansion of CC306, characterized by an increase in ST306 isolates (Figure 8). In New Caledonia (NC), ST306 emerged as the most predominant serotype 1 clone responsible for outbreaks reported [38]. Genomic characterization of serotype 1 isolates from outbreaks in NC discovered ST306 strains (62/67, 92.53%) and their single locus variants, ST3717 (5/67, 7.46%) (Figure 8) [38]. Additionally, ST306 serotype 1 isolates were reported in cases of IPD in New Zealand. Figure 4 highlights the dominant clones found in this region.

3. Discussion

Streptococcus pneumonaie serotype 1 has been a leading cause of severe pneumococcal disease worldwide, affecting both children and adults. Notably, this serotype is seldom found in healthy individuals, suggesting that while it may not be easily transmitted, it has a high tendency to progress to invasive disease once carried. This implies that serotype 1 is remarkably hypervirulent, corroborating its frequent association with outbreaks of severe pneumococcal infection. Furthermore, several clones, including ST217 and ST306, have been linked to outbreaks of IPD globally. In light of these findings, we conducted a systematic review to elucidate the molecular epidemiology of S. pneumoniae serotype 1 clones circulating worldwide. This comprehensive analysis seeks to identify high-risk clones with the potential to trigger outbreaks in various countries or continents, ultimately informing targeted evidence-based strategies for disease prevention and control.
The multilocus sequence typing (MLST) technique is a widely accepted method for bacterial genotyping, leveraging seven housekeeping genes (aroE, gdh, gki, recP, spi, xpt, and ddl) to characterize S. pneumoniae isolates. As the golden standard for S. pneumoniae genotyping, MLST was mainly used in most studies to elucidate the genetic diversity of this pathogen. We identified one hundred and three (103) different MLST sequence types associated with serotype 1. Most of these STs shared genetic relationships with ST217, followed by ST306.
The S. pneumoniae ST217 clonal complex is a hypervirulent lineage of significant public health concern. In our study, this lineage was mostly reported in studies from Africa and Asia. The ancestral clone, ST217, was predominantly associated with pneumococcal meningitis across several countries, including Nigeria, Niger, Israel, India, Thailand, Singapore, and the Philippines. ST217 was also linked to numerous IPD cases in Kenya, South Africa, Ethiopia, Mozambique, and Malawi. Although not the most common clone, ST217 was associated with a serotype 1 pneumococcal meningitis outbreak in northern Ghana [50]. This finding is not surprising since the predominance of ST217 in sub-Saharan African countries has been previously reported in several studies [23]. This widespread presence of ST217 may be attributed to intra and intercontinental movements of people between countries, leading to the transfer of clones. Other clones within CC217, such as ST618, were prevalent among serotype 1 isolates from both invasive and carriage isolates in Gambia. Also, ST618 was responsible for pneumococcal meningitis in patients from Burkina Faso [64] and Egypt [74]. Additionally, studies from neighboring countries like Ghana and Togo, as well as Nepal and Bangladesh, mostly described ST303 as associated with bacterial meningitis. Several other STs within CC217 were also identified in Africa and Asia indicating an extensive clonal expansion and diversity of the ST217 clonal complex, particularly in Africa. The propensity of ST217 and its clonal complex 217 to cause pneumococcal meningitis poses a significant threat to these regions, emphasizing the importance of implementing mitigation strategies to curb their spread. Fortunately, many isolates of CC217 are sensitive to antibiotics, making their treatment easy and effective [50]. While the ST217 clonal complex is predominantly reported in Africa and Asia, its presence has also been noted in other parts of the world. For example, studies have reported STs from the clonal complex in regions like Australia, the US, and specific countries in Europe.
ST306 clonal complex is another lineage of serotype 1 of public health importance. This group emerged as the prominent group in Europe, Oceania, North America, and some countries in South America characterized by its division into three main subgroups: ST306, ST304, and ST227. ST306 (ancestral clone) was the most predominant ST among this group widely dispersed in most European countries. ST304 was common in Mexico, Brazil, Uruguay, and Slovenia. STs of CC306 were more associated with bacteremia than other pneumococcal diseases. Our analysis revealed that ST227 was the predominant clone in Canada and the US, supporting the findings of Brueggemann & Spratt [44]. However, our results diverged from theirs regarding the UK, where they reported ST227 as the dominant clone. This discrepancy suggests that a clonal shift may have occurred in the UK over time, potentially replacing ST227 with ST306, as discovered in our study. This aligns with findings reported by Pinchon et al. [75] in 2013, revealing a reduced proportion of ST227 and an increased prevalence of ST306, representing 83% of serotype 1 meningitis cases in the UK. Although all serotype 1 clones are hypervirulent, a modification in one’s genetic material may enhance its invasiveness, possibly explaining the observed clonal shift [75]. Like CC217, the genetic variation of ST306 clonal complex is also illustrated by the identification of several other related STs.
One key finding of our study is the geographic structure among major serotype 1 lineages, revealing distinctive regional differences in circulating clones. This observation may be attributed to the rarity of serotype 1 carriage. Unlike other serotypes that can easily be carried and transferred between populations via human movement, the rarity of serotype 1 carriage restricts its geographic spread and may contribute to unique clonal distributions. Also, this unique clonal distribution may be attributed to geographic weather conditions in the various regions. For instance, it might be that the ST217 clonal complex thrives in humid and tropical areas, which may explain why they are widely found in Africa and Asia. This possibly applies to ST306 and ST615 clonal complexes that are common in temperate climate areas.
While our study provides valuable insight into the global circulation of serotype 1 S. pneumoniae, it is not without limitations. One notable constraint is the geographical representation of the included studies, predominantly clustered in forty-eight (48) countries. The uneven distribution leaves a significant knowledge gap in many countries, highlighting the need for further research to understand better the epidemiological landscape of pneumococcal serotype 1 clones in these underrepresented regions.

4. Materials and Methods

This systematic review adhered to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [76].

4.1. Literature Search Strategy and Selection Process

An extensive literature search was conducted in Google Scholar, PubMed, Scopus, ScienceDirect, and Web of Science using keywords related to Streptococcus pneumoniae serotype 1. The search was conducted until October 2024 and restricted to free full-text or open-access research articles published in English (Table 3). Retrieved records were exported in RIS and CSV formats.
Citations of the retrieved records were imported to the Rayyan application [77] (a web-based tool for systematic reviews) for screening. Duplicate records were first detected and removed, followed by title and abstract screening of the remaining unique records, where all unrelated records were excluded. After title and abstract screening, the remaining articles were assessed for full-text eligibility based on the abovementioned inclusion criteria. Included studies were imported to Zotero 7.0.8 for data extraction. O.K.N. and E.S.D. assessed the eligibility of the retrieved records.

4.2. Eligibility Criteria

This study included English-published peer-reviewed reports that utilized at least one molecular genotyping tool to describe S. pneumoniae serotype 1 clones based on their sequence types (STs). Multicenter studies describing serotype 1 clones in specific geographic regions (e.g., West Africa, sub-Saharan Africa) or those reporting clone data for individual countries were eligible for inclusion. Exclusions included non-peer-reviewed sources (Theses, dissertations, editorials, comments, preprints, etc.), studies not reporting serotype 1 clones, studies that selected specific serotype 1 clones for genetic analysis, and studies that focused or reported on other serotypes or their clones.

4.3. Data Extraction and Analysis

The relevant data were extracted from each included study as described in Table 2 by O.K.N. and E.S.D. The sequence types (STs) of S. pneumoniae serotype 1 clones were extracted and stratified by country/region. Microsoft Excel 365 (Version 2108) was used to extract and manage the extracted data.

4.4. BURST Cluster Analysis

The allelic profiles of identified STs were downloaded from the Streptococcus pneumoniae database on the MLST website https://pubmlst.org/organisms/streptococcus-pneumoniae (accessed on 15 November 2024). STs were grouped into clonal complexes according to their allelic profiles using the BURST algorithm [78]. Furthermore, the geoBURST algorithm in the Phyloviz online application (https://online.phyloviz.net/index, accessed on 15 November 2024) was used to construct the minimum spanning tree, providing a visual representation of the genetic relationship among the STs.

4.5. Risk of Bias Assessment

Two investigators (O.K.N. and E.S.D.) assessed the risk of bias of the included studies using the STROBE checklist for reporting observational studies [79], as adapted according to Sanderson et al. [80]. The assessment tool comprised five key domains: method of selecting study participants, method of measuring exposure and outcome variables, method of control confounding, design-specific source of bias, and statistical methods (Supplementary Table S2). Studies were graded into three categories: High risk of bias (≥1 of any criteria classified as H, or ≥2 major criteria as M or U); Moderate risk of bias (≥2 of any criteria classified as M or U [<2 major criteria]); Low risk of bias (all major criteria classified as L and <2 minor criteria as M or U).

5. Conclusions

This systematic review highlights the complex genetic diversity of S. pneumoniae serotype 1, characterized by distinct geographic structures among major lineages. A striking continental distribution emerged, with the ST217 clonal complex predominantly clustered in Africa and Asia, whereas the ST306 clonal complex was widespread across Europe, the Americas, and Oceania. Notably, IPD was primarily linked to clones from these clonal complexes, with few instances of carriage. The findings of this study emphasize the need for enhanced surveillance and targeted interventions to mitigate the spread of hypervirulent clones, ultimately informing evidence-based strategies for disease prevention and control. To address existing knowledge gaps, further research is warranted, particularly in countries with limited or no data on serotype 1 S. pneumoniae clones.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26052266/s1. References [81,82] are cited in the supplementary materials.

Author Contributions

Conceptualization: E.S.D. and O.K.N.; Data curation: E.S.D. and O.K.N.; Formal analysis: E.S.D. and O.K.N.; Investigation: E.S.D. and O.K.N.; Methodology: E.S.D. and O.K.N.; Software: E.S.D. and O.K.N.; Resource: E.S.D. and O.K.N.; Project administration: O.K.N. and E.S.D.; Supervision: E.S.D.; Validation: E.S.D. and O.K.N.; Funding acquisition: E.S.D.; Writing—original draft: O.K.N.; Writing—review and editing: O.K.N. and E.S.D. All authors have read and agreed to the published version of the manuscript.

Funding

This review paper was supported by the National Institute of Allergy and Infectious Diseases of the National Institutes of Health through the PneumoSIC Study (Invasive Pneumococcal Disease and Carriage among Children with Sickle Cell Disease in Ghana: A Post-Vaccination Study) hosted at the Department of Medical Microbiology, University of Ghana Medical School (Award Number: R01AI169674). The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data and materials used for the analysis are available upon request. Tables S1 and S2 are available as Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bogaert, D.; de Groot, R.; Hermans, P.W.M. Streptococcus pneumoniae colonisation: The key to pneumococcal disease. Lancet Infect. Dis. 2004, 4, 144–154. [Google Scholar] [CrossRef] [PubMed]
  2. Weiser, J.N.; Ferreira, D.M.; Paton, J.C. Streptococcus pneumoniae: Transmission, colonization and invasion. Nat. Rev. Microbiol. 2018, 16, 355–367. [Google Scholar] [CrossRef] [PubMed]
  3. Dommaschk, A.; Ding, N.; Tort Tarres, M.; Bittersohl, L.F.; Maus, R.; Stolper, J.; Jonigk, D.; Braubach, P.; Lippmann, T.; Welte, T.; et al. Nasopharyngeal colonization with Streptococcus pneumoniae triggers dendritic cell dependent antibody responses against invasive disease in mice. Eur. J. Immunol. 2017, 47, 540–551. [Google Scholar] [CrossRef] [PubMed]
  4. Richards, L.; Ferreira, D.M.; Miyaji, E.N.; Andrew, P.W.; Kadioglu, A. The immunising effect of pneumococcal nasopharyngeal colonisation; protection against future colonisation and fatal invasive disease. Immunobiology 2010, 215, 251–263. [Google Scholar] [CrossRef] [PubMed]
  5. Lynch, J.P.; Zhanel, G.G. Streptococcus pneumoniae: Epidemiology and risk factors, evolution of antimicrobial resistance, and impact of vaccines. Curr. Opin. Pulm. Med. 2010, 16, 217–225. [Google Scholar] [CrossRef]
  6. Regev-Yochay, G.; Raz, M.; Dagan, R.; Porat, N.; Shainberg, B.; Pinco, E.; Keller, N.; Rubinstein, E. Nasopharyngeal carriage of Streptococcus pneumoniae by adults and children in community and family settings. Clin. Infect. Dis. Off. Publ. Infect. Dis. Soc. Am. 2004, 38, 632–639. [Google Scholar] [CrossRef]
  7. Cardozo, D.M.; Nascimento-Carvalho, C.M.; Andrade, A.-L.S.S.; Silvany-Neto, A.M.; Daltro, C.H.C.; Brandão, M.-A.S.; Brandão, A.P.; Brandileone, M.-C.C. Prevalence and risk factors for nasopharyngeal carriage of Streptococcus pneumoniae among adolescents. J. Med. Microbiol. 2008, 57, 185–189. [Google Scholar] [CrossRef]
  8. Greenberg, D.; Givon-Lavi, N.; Broides, A.; Blancovich, I.; Peled, N.; Dagan, R. The Contribution of Smoking and Exposure to Tobacco Smoke to Streptococcus pneumoniae and Haemophilus influenzae Carriage in Children and Their Mothers. Clin. Infect. Dis. 2006, 42, 897–903. [Google Scholar] [CrossRef]
  9. Smith, E.L.; Wheeler, I.; Adler, H.; Ferreira, D.M.; Sá-Leão, R.; Abdullahi, O.; Adetifa, I.; Becker-Dreps, S.; Esposito, S.; Farida, H.; et al. Upper airways colonisation of Streptococcus pneumoniae in adults aged 60 years and older: A systematic review of prevalence and individual participant data meta-analysis of risk factors. J. Infect. 2020, 81, 540–548. [Google Scholar] [CrossRef]
  10. Adegbola, R.A.; DeAntonio, R.; Hill, P.C.; Roca, A.; Usuf, E.; Hoet, B.; Greenwood, B.M. Carriage of Streptococcus pneumoniae and Other Respiratory Bacterial Pathogens in Low and Lower-Middle Income Countries: A Systematic Review and Meta-Analysis. PLoS ONE 2014, 9, e103293. [Google Scholar] [CrossRef]
  11. Mackenzie, G.A.; Leach, A.J.; Carapetis, J.R.; Fisher, J.; Morris, P.S. Epidemiology of nasopharyngeal carriage of respiratory bacterial pathogens in children and adults: Cross-sectional surveys in a population with high rates of pneumococcal disease. BMC Infect. Dis. 2010, 10, 304. [Google Scholar] [CrossRef] [PubMed]
  12. Weinberger, D.M.; Dagan, R.; Givon-Lavi, N.; Regev-Yochay, G.; Malley, R.; Lipsitch, M. Epidemiologic Evidence for Serotype-Specific Acquired Immunity to Pneumococcal Carriage. J. Infect. Dis. 2008, 197, 1511–1518. [Google Scholar] [CrossRef] [PubMed]
  13. Narciso, A.R.; Dookie, R.; Nannapaneni, P.; Normark, S.; Henriques-Normark, B. Streptococcus pneumoniae epidemiology, pathogenesis and control. Nat. Rev. Microbiol. 2024. [Google Scholar] [CrossRef] [PubMed]
  14. Shah, S.S.; Ratner, A.J. Trends in Invasive Pneumococcal Disease—Associated Hospitalizations. Clin. Infect. Dis. 2006, 42, e1–e5. [Google Scholar] [CrossRef]
  15. Løchen, A.; Croucher, N.J.; Anderson, R.M. Divergent serotype replacement trends and increasing diversity in pneumococcal disease in high income settings reduce the benefit of expanding vaccine valency. Sci. Rep. 2020, 10, 18977. [Google Scholar] [CrossRef]
  16. O’Brien, K.L.; Wolfson, L.J.; Watt, J.P.; Henkle, E.; Deloria-Knoll, M.; McCall, N.; Lee, E.; Mulholland, K.; Levine, O.S.; Cherian, T.; et al. Burden of disease caused by Streptococcus pneumoniae in children younger than 5 years: Global estimates. Lancet 2009, 374, 893–902. [Google Scholar] [CrossRef]
  17. von Mollendorf, C.; von Gottberg, A.; Tempia, S.; Meiring, S.; de Gouveia, L.; Quan, V.; Lengana, S.; Avenant, T.; du Plessis, N.; Eley, B.; et al. Increased Risk for and Mortality From Invasive Pneumococcal Disease in HIV-Exposed but Uninfected Infants Aged <1 Year in South Africa, 2009–2013. Clin. Infect. Dis. 2015, 60, 1346–1356. [Google Scholar] [CrossRef]
  18. Johnson, H.L.; Deloria-Knoll, M.; Levine, O.S.; Stoszek, S.K.; Freimanis Hance, L.; Reithinger, R.; Muenz, L.R.; O’Brien, K.L. Systematic Evaluation of Serotypes Causing Invasive Pneumococcal Disease among Children Under Five: The Pneumococcal Global Serotype Project. PLoS Med. 2010, 7, e1000348. [Google Scholar] [CrossRef]
  19. Chaguza, C.; Yang, M.; Jacques, L.C.; Bentley, S.D.; Kadioglu, A. Serotype 1 pneumococcus: Epidemiology, genomics, and disease mechanisms. Trends Microbiol. 2021, 30, 581–592. [Google Scholar] [CrossRef]
  20. Ganaie, F.; Saad, J.S.; McGee, L.; van Tonder, A.J.; Bentley, S.D.; Lo, S.W.; Gladstone, R.A.; Turner, P.; Keenan, J.D.; Breiman, R.F.; et al. A New Pneumococcal Capsule Type, 10D, is the 100th Serotype and Has a Large cps Fragment from an Oral Streptococcus. mBio 2020, 11, e00937-20. [Google Scholar] [CrossRef]
  21. Hausdorff, W.P.; Bryant, J.; Paradiso, P.R.; Siber, G.R. Which Pneumococcal Serogroups Cause the Most Invasive Disease: Implications for Conjugate Vaccine Formulation and Use, Part I. Clin. Infect. Dis. 2000, 30, 100–121. [Google Scholar] [CrossRef] [PubMed]
  22. Kirkham, L.-A.S.; Jefferies, J.M.C.; Kerr, A.R.; Jing, Y.; Clarke, S.C.; Smith, A.; Mitchell, T.J. Identification of Invasive Serotype 1 Pneumococcal Isolates That Express Nonhemolytic Pneumolysin. J. Clin. Microbiol. 2006, 44, 151–159. [Google Scholar] [CrossRef] [PubMed]
  23. Chaguza, C.; Cornick, J.E.; Harris, S.R.; Andam, C.P.; Bricio-Moreno, L.; Yang, M.; Yalcin, F.; Ousmane, S.; Govindpersad, S.; Senghore, M.; et al. Understanding pneumococcal serotype 1 biology through population genomic analysis. BMC Infect. Dis. 2016, 16, 649. [Google Scholar] [CrossRef] [PubMed]
  24. Scott, J.R.; Millar, E.V.; Lipsitch, M.; Moulton, L.H.; Weatherholtz, R.; Perilla, M.J.; Jackson, D.M.; Beall, B.; Craig, M.J.; Reid, R.; et al. Impact of More Than a Decade of Pneumococcal Conjugate Vaccine Use on Carriage and Invasive Potential in Native American Communities. J. Infect. Dis. 2012, 205, 280–288. [Google Scholar] [CrossRef]
  25. Brueggemann, A.B.; Griffiths, D.T.; Meats, E.; Peto, T.; Crook, D.W.; Spratt, B.G. Clonal relationships between invasive and carriage Streptococcus pneumoniae and serotype- and clone-specific differences in invasive disease potential. J. Infect. Dis. 2003, 187, 1424–1432. [Google Scholar] [CrossRef]
  26. Burgos, J.; Lujan, M.; Falcó, V.; Sánchez, A.; Puig, M.; Borrego, A.; Fontanals, D.; Planes, A.M.; Pahissa, A.; Rello, J. The Spectrum of Pneumococcal Empyema in Adults in the Early 21st Century. Clin. Infect. Dis. 2011, 53, 254–261. [Google Scholar] [CrossRef]
  27. Byington, C.L.; Hulten, K.G.; Ampofo, K.; Sheng, X.; Pavia, A.T.; Blaschke, A.J.; Pettigrew, M.; Korgenski, K.; Daly, J.; Mason, E.O. Molecular epidemiology of pediatric pneumococcal empyema from 2001 to 2007 in Utah. J. Clin. Microbiol. 2010, 48, 520–525. [Google Scholar] [CrossRef]
  28. Grau, I.; Ardanuy, C.; Calatayud, L.; Rolo, D.; Domenech, A.; Liñares, J.; Pallares, R. Invasive Pneumococcal Disease in Healthy Adults: Increase of Empyema Associated with the Clonal-Type Sweden1-ST306. PLoS ONE 2012, 7, e42595. [Google Scholar] [CrossRef]
  29. Osborne, E.; Blaschke, A.J.; Ampofo, K.; Crandall, H.; Killpack, J.; Stockmann, C.R.; Farrell, A.P.; Fischer, K.F.; Pavia, A.; Eilbeck, K.; et al. Shared Genetic Variants Among Streptococcus pneumoniae Isolates Causing Complicated Pneumonia and Empyema in Children. Open Forum Infect. Dis. 2015, 2, 100. [Google Scholar] [CrossRef]
  30. Enright, M.C.; Spratt, B.G. A multilocus sequence typing scheme for Streptococcus pneumoniae: Identification of clones associated with serious invasive disease. Microbiology 1998, 144, 3049–3060. [Google Scholar] [CrossRef]
  31. Rayner, R.E.; Savill, J.; Hafner, L.M.; Huygens, F. Genotyping Streptococcus pneumoniae. Futur. Microbiol. 2015, 10, 653–664. [Google Scholar] [CrossRef] [PubMed]
  32. Donkor, E.S. Molecular typing of the pneumococcus and its application in epidemiology in sub-Saharan Africa. Front. Cell. Infect. Microbiol. 2013, 3, 12. [Google Scholar] [CrossRef] [PubMed]
  33. Koeck, J.-L.; Njanpop-Lafourcade, B.-M.; Cade, S.; Varon, E.; Sangare, L.; Valjevac, S.; Vergnaud, G.; Pourcel, C. Evaluation and selection of tandem repeat loci for Streptococcus pneumoniae MLVA strain typing. BMC Microbiol. 2005, 5, 66–69. [Google Scholar] [CrossRef] [PubMed]
  34. van Cuyck, H.; Pichon, B.; Leroy, P.; Granger-Farbos, A.; Underwood, A.; Soullié, B.; Koeck, J.-L. Multiple-locus variable-number tandem-repeat analysis of Streptococcus pneumoniae and comparison with multiple loci sequence typing. BMC Microbiol. 2012, 12, 241. [Google Scholar] [CrossRef]
  35. Sharew, B.; Moges, F.; Yismaw, G.; Mihret, A.; Lobie, T.A.; Abebe, W.; Fentaw, S.; Frye, S.; Vestrheim, D.; Tessema, B.; et al. Molecular epidemiology of Streptococcus pneumoniae isolates causing invasive and noninvasive infection in Ethiopia. Sci. Rep. 2024, 14, 21409. [Google Scholar] [CrossRef]
  36. Zhou, H.; Guo, J.; Qin, T.; Ren, H.; Xu, Y.; Wang, C.; Xu, X. Serotype and MLST-based inference of population structure of clinical Streptococcus pneumonia e from invasive and noninvasive pneumococcal disease. Infect. Genet. Evol. 2017, 55, 104–111. [Google Scholar] [CrossRef]
  37. Chaguza, C.; Yang, M.; Cornick, J.E.; du Plessis, M.; Gladstone, R.A.; Kwambana-Adams, B.A.; Lo, S.W.; Ebruke, C.; Tonkin-Hill, G.; Peno, C.; et al. Bacterial genome-wide association study of hyper-virulent pneumococcal serotype 1 identifies genetic variation associated with neurotropism. Commun. Biol. 2020, 3, 559. [Google Scholar] [CrossRef]
  38. Hanachi, M.; Kiran, A.; Cornick, J.; Harigua-Souiai, E.; Everett, D.; Benkahla, A.; Souiai, O. Genomic Characteristics of Invasive Streptococcus pneumoniae Serotype 1 in New Caledonia Prior to the Introduction of PCV13. Bioinform. Biol. Insights 2020, 14, 1177932220962106. [Google Scholar] [CrossRef]
  39. Almeida, S.T.; de Lencastre, H.; Sá-Leão, R. Epidemiology and Population Structure of Serotypes 1, 5 and 7F Carried by Children in Portugal from 1996-2010 before Introduction of the 10-Valent and 13-Valent Pneumococcal Conjugate Vaccines. PLoS ONE 2013, 8, e75442. [Google Scholar] [CrossRef]
  40. Esteva, C.; Selva, L.; de Sevilla, M.; Garcia-Garcia, J.; Pallares, R.; Muñoz-Almagro, C. Streptococcus pneumoniae serotype 1 causing invasive disease among children in Barcelona over a 20-year period (1989–2008). Clin. Microbiol. Infect. 2011, 17, 1441–1444. [Google Scholar] [CrossRef]
  41. Marimon, J.; Ercibengoa, M.; Alonso, M.; Zubizarreta, M.; Pérez-Trallero, E. Clonal structure and 21-year evolution of Streptococcus pneumoniae serotype 1 isolates in northern Spain. Clin. Microbiol. Infect. 2009, 15, 875–877. [Google Scholar] [CrossRef] [PubMed]
  42. Antonio, M.; Hakeem, I.; Awine, T.; Secka, O.; Sankareh, K.; Nsekpong, D.; Lahai, G.; Akisanya, A.; Egere, U.; Enwere, G.; et al. Seasonality and outbreak of a predominant Streptococcus pneumoniae serotype 1 clone from The Gambia: Expansion of ST217 hypervirulent clonal complex in West Africa. BMC Microbiol. 2008, 8, 198. [Google Scholar] [CrossRef] [PubMed]
  43. Gonzalez, B.E.; Hulten, K.G.; Kaplan, S.L.; Mason, E.O. Clonality of Streptococcus pneumoniae Serotype 1 Isolates from Pediatric Patients in the United States. J. Clin. Microbiol. 2004, 42, 2810–2812. [Google Scholar] [CrossRef] [PubMed]
  44. Brueggemann, A.B.; Spratt, B.G. Geographic Distribution and Clonal Diversity of Streptococcus pneumoniae Serotype 1 Isolates. J. Clin. Microbiol. 2003, 41, 4966–4970. [Google Scholar] [CrossRef] [PubMed]
  45. Jourdain, S.; Drèze, P.-A.B.; Verhaegen, J.; Van Melderen, L.; Smeesters, P.R. Carriage-Associated Streptocccus pneumoniae Serotype 1 in Brussels, Belgium. Pediatr. Infect. Dis. J. 2013, 32, 86–87. [Google Scholar] [CrossRef]
  46. Horácio, A.N.; Silva-Costa, C.; Diamantino-Miranda, J.; Lopes, J.P.; Ramirez, M.; Melo-Cristino, J.; Portuguese Group for the Study of Streptococcal Infections. Population Structure of Streptococcus pneumoniae Causing Invasive Disease in Adults in Portugal before PCV13 Availability for Adults: 2008–2011. PLoS ONE 2016, 11, e0153602. [Google Scholar] [CrossRef]
  47. Smith-Vaughan, H.; Marsh, R.; Mackenzie, G.; Fisher, J.; Morris, P.S.; Hare, K.; McCallum, G.; Binks, M.; Murphy, D.; Lum, G.; et al. Age-Specific Cluster of Cases of Serotype 1 Streptococcus pneumoniae Carriage in Remote Indigenous Communities in Australia. Clin. Vaccine Immunol. 2009, 16, 218–221. [Google Scholar] [CrossRef]
  48. Jauneikaite, E.; Jefferies, J.M.C.; Churton, N.W.V.; Lin, R.T.P.; Hibberd, M.L.; Clarke, S.C. Genetic diversity of Streptococcus pneumoniae causing meningitis and sepsis in Singapore during the first year of PCV7 implementation. Emerg. Microbes Infect. 2014, 3, e39. [Google Scholar] [CrossRef]
  49. Kwambana-Adams, B.A.; Asiedu-Bekoe, F.; Sarkodie, B.; Afreh, O.K.; Kuma, G.K.; Owusu-Okyere, G.; Foster-Nyarko, E.; Ohene, S.-A.; Okot, C.; Worwui, A.K.; et al. An outbreak of pneumococcal meningitis among older children (≥5 years) and adults after the implementation of an infant vaccination programme with the 13-valent pneumococcal conjugate vaccine in Ghana. BMC Infect. Dis. 2016, 16, 575. [Google Scholar] [CrossRef]
  50. Leimkugel, J.; Forgor, A.A.; Gagneux, S.; Pflüger, V.; Flierl, C.; Awine, E.; Naegeli, M.; Dangy, J.; Smith, T.; Hodgson, A.; et al. An Outbreak of Serotype 1 Streptococcus pneumoniae Meningitis in Northern Ghana with Features That Are Characteristic of Neisseria meningitidis Meningitis Epidemics. J. Infect. Dis. 2005, 192, 192–199. [Google Scholar] [CrossRef]
  51. Lai, J.Y.; Cook, H.; Yip, T.-W.; Berthelsen, J.; Gourley, S.; Krause, V.; Smith, H.; Leach, A.J.; Smith-Vaughan, H. Surveillance of pneumococcal serotype 1 carriage during an outbreak of serotype 1 invasive pneumococcal disease in central Australia 2010–2012. BMC Infect. Dis. 2013, 13, 409. [Google Scholar] [CrossRef] [PubMed]
  52. Ebruke, C.; Roca, A.; Egere, U.; Darboe, O.; Hill, P.C.; Greenwood, B.; Wren, B.W.; Adegbola, R.A.; Antonio, M. Temporal changes in nasopharyngeal carriage of Streptococcus pneumoniae serotype 1 genotypes in healthy Gambians before and after the 7-valent pneumococcal conjugate vaccine. PeerJ 2015, 3, e903. [Google Scholar] [CrossRef] [PubMed]
  53. Staples, M.; Graham, R.M.; Jennison, A.V.; Ariotti, L.; Hicks, V.; Cook, H.; Krause, V.; Giele, C.; Smith, H.V. Molecular characterization of an Australian serotype 1 Streptococcus pneumoniae outbreak. Epidemiol. Infect. 2015, 143, 325–333. [Google Scholar] [CrossRef]
  54. du Plessis, M.; Allam, M.; Tempia, S.; Wolter, N.; de Gouveia, L.; von Mollendorf, C.; Jolley, K.A.; Mbelle, N.; Wadula, J.; Cornick, J.E.; et al. Phylogenetic Analysis of Invasive Serotype 1 Pneumococcus in South Africa, 1989 to 2013. J. Clin. Microbiol. 2016, 54, 1326–1334. [Google Scholar] [CrossRef]
  55. Brueggemann, A.B.; Muroki, B.M.; Kulohoma, B.W.; Karani, A.; Wanjiru, E.; Morpeth, S.; Kamau, T.; Sharif, S.; Scott, J.A.G. Population Genetic Structure of Streptococcus pneumoniae in Kilifi, Kenya, Prior to the Introduction of Pneumococcal Conjugate Vaccine. PLoS ONE 2013, 8, e81539. [Google Scholar] [CrossRef]
  56. Donkor, E.S.; Adegbola, R.A.; Wren, B.W.; Antonio, M. Population Biology of Streptococcus pneumoniae in West Africa: Multilocus Sequence Typing of Serotypes That Exhibit Different Predisposition to Invasive Disease and Carriage. PLoS ONE 2013, 8, e53925. [Google Scholar] [CrossRef]
  57. Žemličková, H.; Crisóstomo, M.I.; Brandileone, M.C.; Camou, T.; Castañeda, E.; Corso, A.; Echániz-Aviles, G.; Pásztor, M.; Tomasz, A. Serotypes and Clonal Types of Penicillin-Susceptible Streptococcus pneumoniae Causing Invasive Disease in Children in Five Latin American Countries. Microb. Drug Resist. 2005, 11, 195–204. [Google Scholar] [CrossRef]
  58. Muñoz-Almagro, C.; Ciruela, P.; Esteva, C.; Marco, F.; Navarro, M.; Bartolome, R.; Sauca, G.; Gallés, C.; Morta, M.; Ballester, F.; et al. Serotypes and clones causing invasive pneumococcal disease before the use of new conjugate vaccines in Catalonia, Spain. J. Infect. 2011, 63, 151–162. [Google Scholar] [CrossRef]
  59. Cooke, B.; Smith, A.; Diggle, M.; Lamb, K.; Robertson, C.; Inverarity, D.; Jefferies, J.; Edwards, G.; Mitchell, T.; Clarke, S.; et al. Antibiotic resistance in invasive Streptococcus pneumoniae isolates identified in Scotland between 1999 and 2007. J. Med. Microbiol. 2010, 59, 1212–1218. [Google Scholar] [CrossRef] [PubMed]
  60. Clarke, S.C.; Jefferies, J.M.C.; Smith, A.J.; McMenamin, J.; Mitchell, T.J.; Edwards, G.F.S. Pneumococci causing invasive disease in children prior to the introduction of pneumococcal conjugate vaccine in Scotland. J. Med. Microbiol. 2006, 55, 1079–1084. [Google Scholar] [CrossRef]
  61. Muñoz-Almagro, C.; Jordan, I.; Gene, A.; Latorre, C.; Garcia-Garcia, J.J.; Pallares, R. Emergence of Invasive Pneumococcal Disease Caused by Nonvaccine Serotypes in the Era of 7-Valent Conjugate Vaccine. Clin. Infect. Dis. 2008, 46, 174–182. [Google Scholar] [CrossRef] [PubMed]
  62. Beall, B.; McEllistrem, M.C.; Gertz, R.E.; Wedel, S.; Boxrud, D.J.; Gonzalez, A.L.; Medina, M.-J.; Pai, R.; Thompson, T.A.; Harrison, L.H.; et al. Pre- and Postvaccination Clonal Compositions of Invasive Pneumococcal Serotypes for Isolates Collected in the United States in 1999, 2001, and 2002. J. Clin. Microbiol. 2006, 44, 999–1017. [Google Scholar] [CrossRef] [PubMed]
  63. Antonio, M.; Dada-Adegbola, H.; Biney, E.; Awine, T.; O’Callaghan, J.; Pfluger, V.; Enwere, G.; Okoko, B.; Oluwalana, C.; Vaughan, A.; et al. Molecular epidemiology of pneumococci obtained from Gambian children aged 2–29 months with invasive pneumococcal disease during a trial of a 9-valent pneumococcal conjugate vaccine. BMC Infect. Dis. 2008, 8, 81. [Google Scholar] [CrossRef] [PubMed]
  64. Yaro, S.; Lourd, M.; Traoré, Y.; Njanpop-Lafourcade, B.-M.; Sawadogo, A.; Sangare, L.; Hien, A.; Ouedraogo, M.S.; Sanou, O.; Chatelet, I.P.D.; et al. Epidemiological and Molecular Characteristics of a Highly Lethal Pneumococcal Meningitis Epidemic in Burkina Faso. Clin. Infect. Dis. 2006, 43, 693–700. [Google Scholar] [CrossRef]
  65. Zähner, D.; Gudlavalleti, A.; Stephens, D.S. Increase in Pilus Islet 2–encoded Pili among Streptococcus pneumoniae Isolates, Atlanta, Georgia, USA. Emerg. Infect. Dis. 2010, 16, 955. [Google Scholar] [CrossRef]
  66. Hama, M.K.; Khan, D.; Laouali, B.; Okoi, C.; Yam, A.; Haladou, M.; Worwui, A.; Ndow, P.S.; Obama, R.N.; Mwenda, J.M.; et al. Pediatric Bacterial Meningitis Surveillance in Niger: Increased Importance of Neisseria meningitidis Serogroup C, and a Decrease in Streptococcus pneumoniae Following 13-Valent Pneumococcal Conjugate Vaccine Introduction. Clin. Infect. Dis. Off. Publ. Infect. Dis. Soc. Am. 2019, 69 (Suppl. S2), S133–S139. [Google Scholar] [CrossRef]
  67. Jefferies, J.M.; Smith, A.J.; Edwards, G.F.S.; McMenamin, J.; Mitchell, T.J.; Clarke, S.C. Temporal analysis of invasive pneumococcal clones from Scotland illustrates fluctuations in diversity of serotype and genotype in the absence of pneumococcal conjugate vaccine. J. Clin. Microbiol. 2010, 48, 87–96. [Google Scholar] [CrossRef]
  68. Porat, N.; Benisty, R.; Trefler, R.; Givon-Lavi, N.; Dagan, R. Clonal Distribution of Common Pneumococcal Serotypes Not Included in the 7-Valent Conjugate Vaccine (PCV7): Marked Differences between Two Ethnic Populations in Southern Israel. J. Clin. Microbiol. 2012, 50, 3472–3477. [Google Scholar] [CrossRef]
  69. Foster, D.; Knox, K.; Walker, A.S.; Griffiths, D.T.; Moore, H.; Haworth, E.; Peto, T.; Brueggemann, A.B.; Crook, D.W.; on behalf of the Oxford Invasive Pneumococcal Surveillance Group. Invasive pneumococcal disease: Epidemiology in children and adults prior to implementation of the conjugate vaccine in the Oxfordshire region, England. J. Med. Microbiol. 2008, 57, 480–487. [Google Scholar] [CrossRef]
  70. Chaguza, C.; Cornick, J.E.; Andam, C.P.; Gladstone, R.A.; Alaerts, M.; Musicha, P.; Peno, C.; Bar-Zeev, N.; Kamng’Ona, A.W.; Kiran, A.M.; et al. Population genetic structure, antibiotic resistance, capsule switching and evolution of invasive pneumococci before conjugate vaccination in Malawi. Vaccine 2017, 35, 4594–4602. [Google Scholar] [CrossRef]
  71. Sanneh, B.; Okoi, C.; Grey-Johnson, M.; Bah-Camara, H.; Fofana, B.K.; Baldeh, I.; Sey, A.P.; Bah, M.L.; Cham, M.; Samateh, A.; et al. Declining Trends of Pneumococcal Meningitis in Gambian Children After the Introduction of Pneumococcal Conjugate Vaccines. Clin. Infect. Dis. 2019, 69, S126–S132. [Google Scholar] [CrossRef] [PubMed]
  72. Tsolenyanu, E.; E Bancroft, R.; Sesay, A.K.; Senghore, M.; Fiawoo, M.; Akolly, D.; A Godonou, M.; Tsogbale, N.; Tigossou, S.D.; Tientcheu, L.; et al. Etiology of Pediatric Bacterial Meningitis Pre- and Post-PCV13 Introduction Among Children Under 5 Years Old in Lomé, Togo. Clin. Infect. Dis. 2019, 69, S97–S104. [Google Scholar] [CrossRef] [PubMed]
  73. Serrano, I.; Melo-Cristino, J.; Carriço, J.A.; Ramirez, M. Characterization of the Genetic Lineages Responsible for Pneumococcal Invasive Disease in Portugal. J. Clin. Microbiol. 2005, 43, 1538–1545. [Google Scholar] [CrossRef] [PubMed]
  74. Cornick, J.E.; Chaguza, C.; Harris, S.R.; Yalcin, F.; Senghore, M.; Kiran, A.M.; Govindpershad, S.; Ousmane, S.; Du Plessis, M.; Pluschke, G.; et al. Region-specific diversification of the highly virulent serotype 1 Streptococcus pneumoniae. Microb. Genom. 2015, 1, e000027. [Google Scholar] [CrossRef] [PubMed]
  75. Pichon, B.; Ladhani, S.N.; Slack, M.P.E.; Segonds-Pichon, A.; Andrews, N.J.; Waight, P.A.; Miller, E.; George, R. Changes in Molecular Epidemiology of Streptococcus pneumoniae Causing Meningitis following Introduction of Pneumococcal Conjugate Vaccination in England and Wales. J. Clin. Microbiol. 2013, 51, 820–827. [Google Scholar] [CrossRef]
  76. Page, M.J.; Moher, D.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. PRISMA 2020 explanation and elaboration: Updated guidance and exemplars for reporting systematic reviews. BMJ 2021, 372, n160. [Google Scholar] [CrossRef]
  77. Ouzzani, M.; Hammady, H.; Fedorowicz, Z.; Elmagarmid, A. Rayyan—A web and mobile app for systematic reviews. Syst. Rev. 2016, 5, 210. [Google Scholar] [CrossRef]
  78. Jolley, K.A.; Bray, J.E.; Maiden, M.C.J. Open-access bacterial population genomics: BIGSdb software, the PubMLST.org website and their applications. Wellcome Open Res. 2018, 3, 124. [Google Scholar] [CrossRef]
  79. Von Elm, E.; Altman, D.G.; Egger, M.; Pocock, S.J.; Gøtzsche, P.C.; Vandenbroucke, J.P. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement: Guidelines for reporting observational studies. J. Clin. Epidemiol. 2008, 61, 344–349. [Google Scholar] [CrossRef]
  80. Sanderson, S.; Tatt, I.D.; Higgins, J.P.T. Tools for assessing quality and susceptibility to bias in observational studies in epidemiology: A systematic review and annotated bibliography. Int. J. Epidemiol. 2007, 36, 666–676. [Google Scholar] [CrossRef]
  81. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 2021, 372, 71. [Google Scholar] [CrossRef]
  82. Horácio, A.N.; Diamantino-Miranda, J.; Aguiar, S.I.; Ramirez, M.; Melo-Cristino, J. Serotype changes in adult invasive pneumococcal infections in Portugal did not reduce the high fraction of potentially vaccine preventable infections. Vaccine 2012, 30, 218–224. [Google Scholar] [CrossRef]
Ijms 26 02266 g001

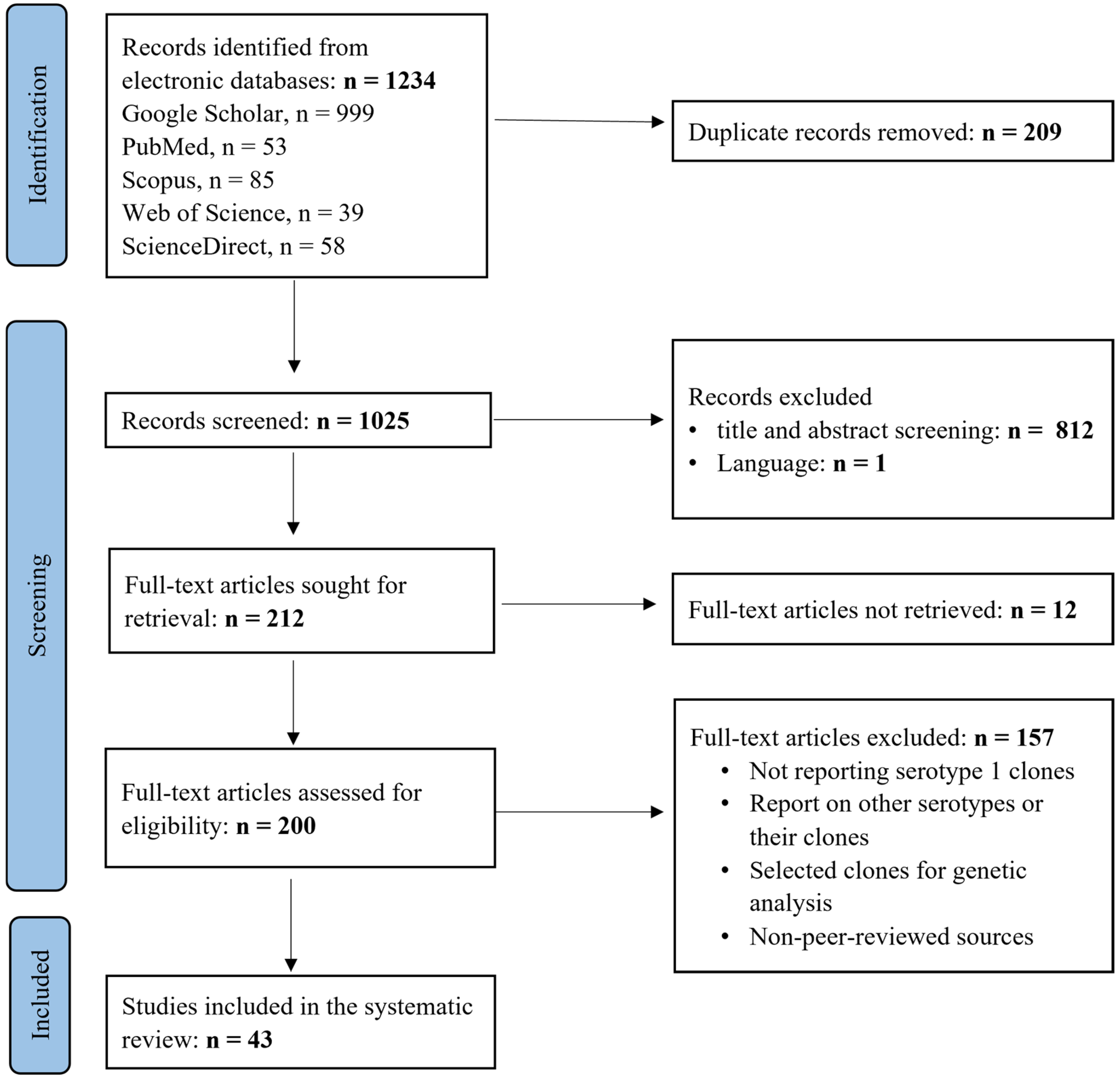

Figure 1. PRISMA flow diagram of the study selection process.
Figure 1. PRISMA flow diagram of the study selection process.
Ijms 26 02266 g001
Ijms 26 02266 g002

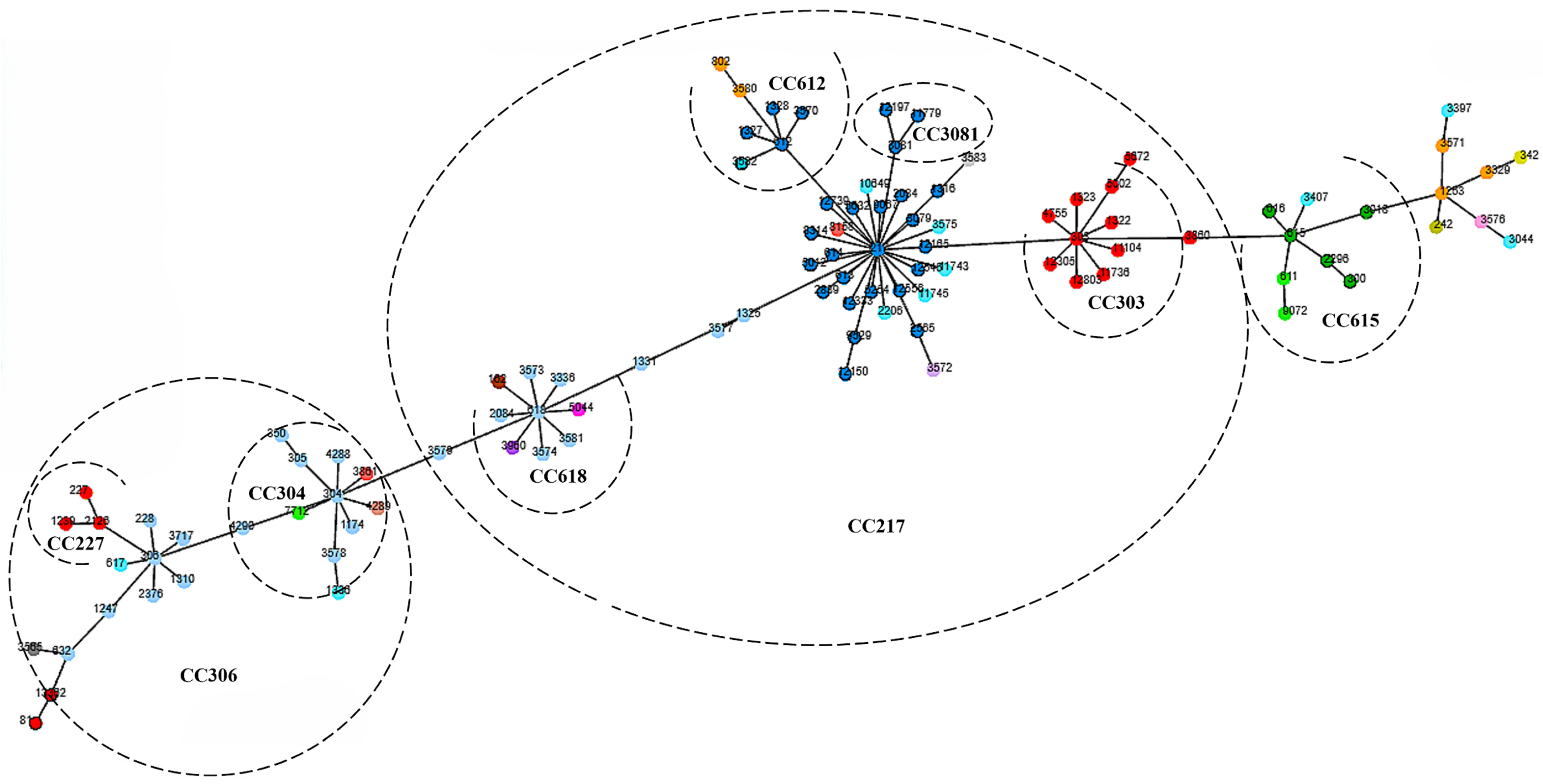

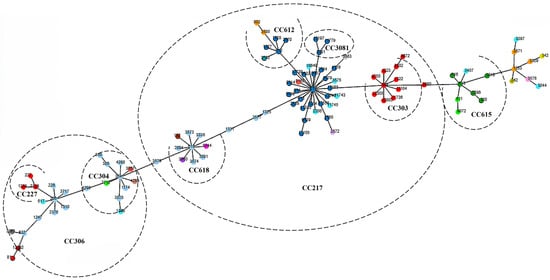

Figure 2. Minimum spanning tree describing the relationships between the various clones identified in this review.
Figure 2. Minimum spanning tree describing the relationships between the various clones identified in this review.
Ijms 26 02266 g002
Ijms 26 02266 g003

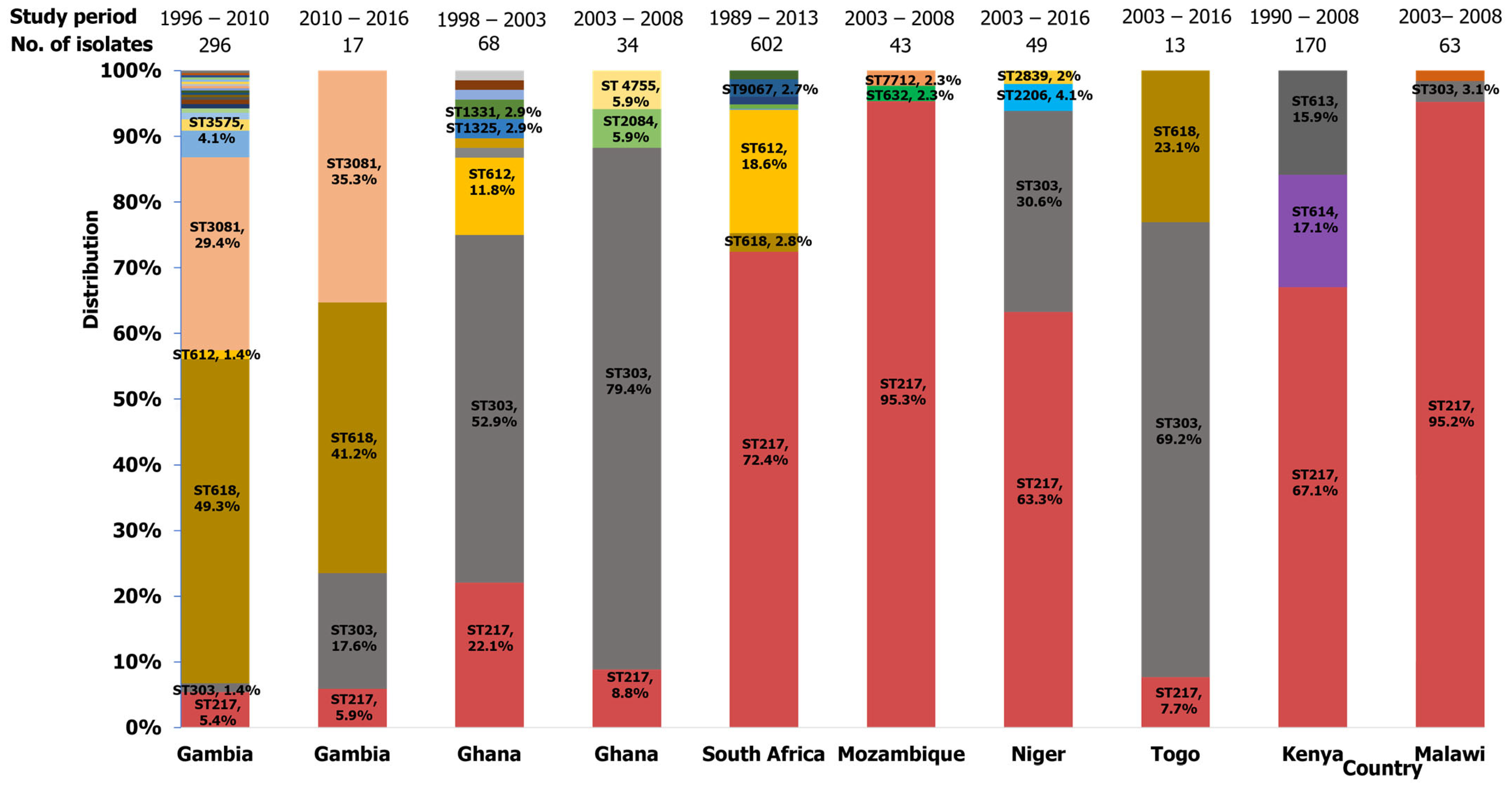

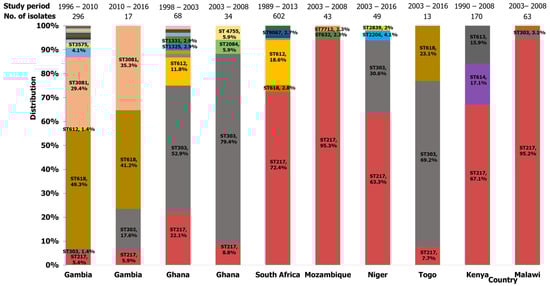

Figure 3. Distribution of serotype 1 isolates identified in Africa.
Figure 3. Distribution of serotype 1 isolates identified in Africa.
Ijms 26 02266 g003
Ijms 26 02266 g004

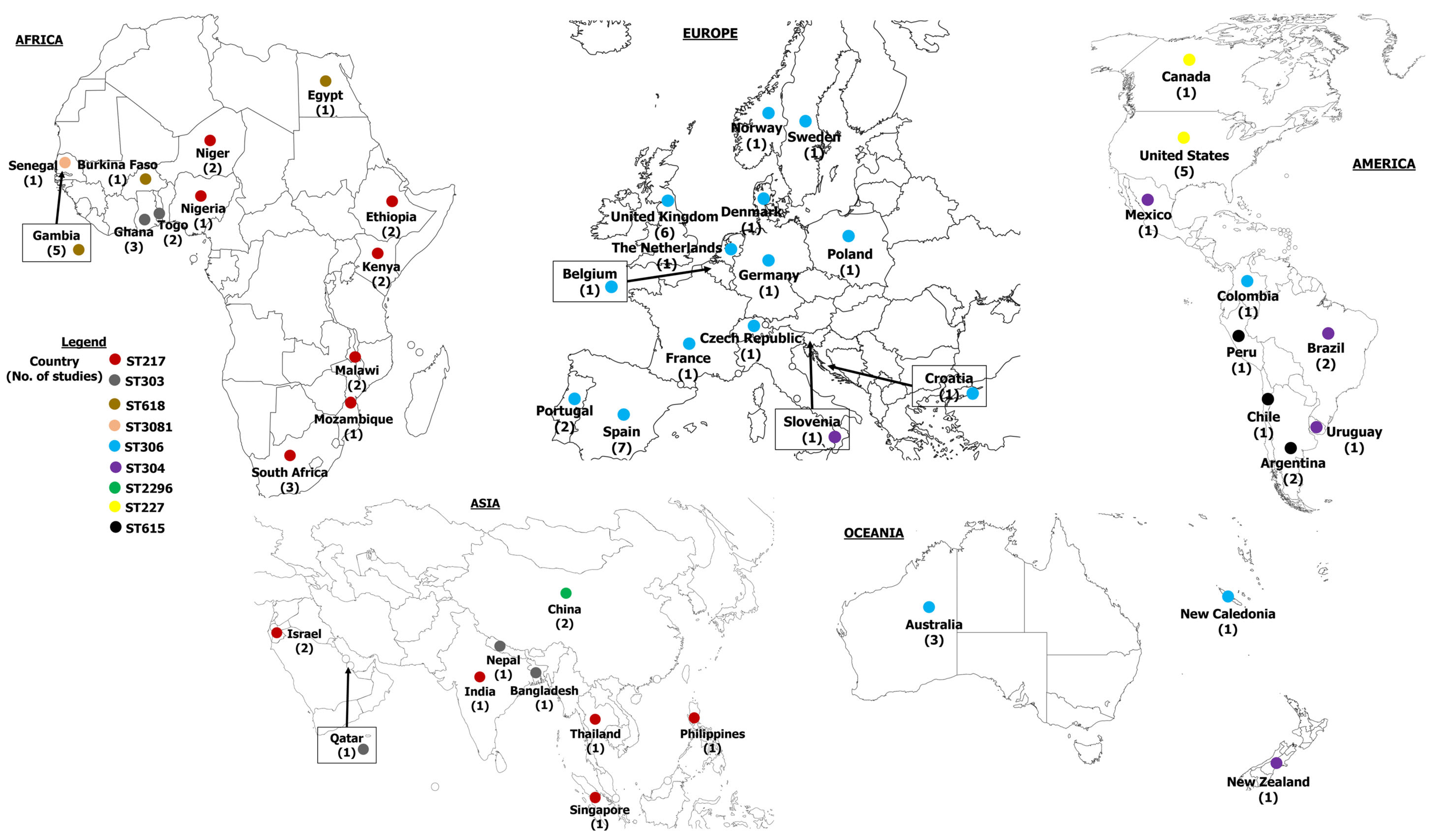

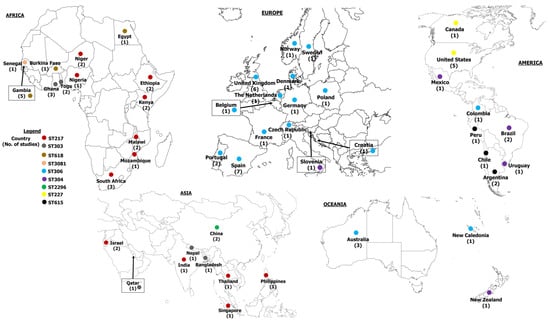

Figure 4. The global circulation of dominant clones of S. pneumoniae serotype 1.
Figure 4. The global circulation of dominant clones of S. pneumoniae serotype 1.
Ijms 26 02266 g004
Ijms 26 02266 g005

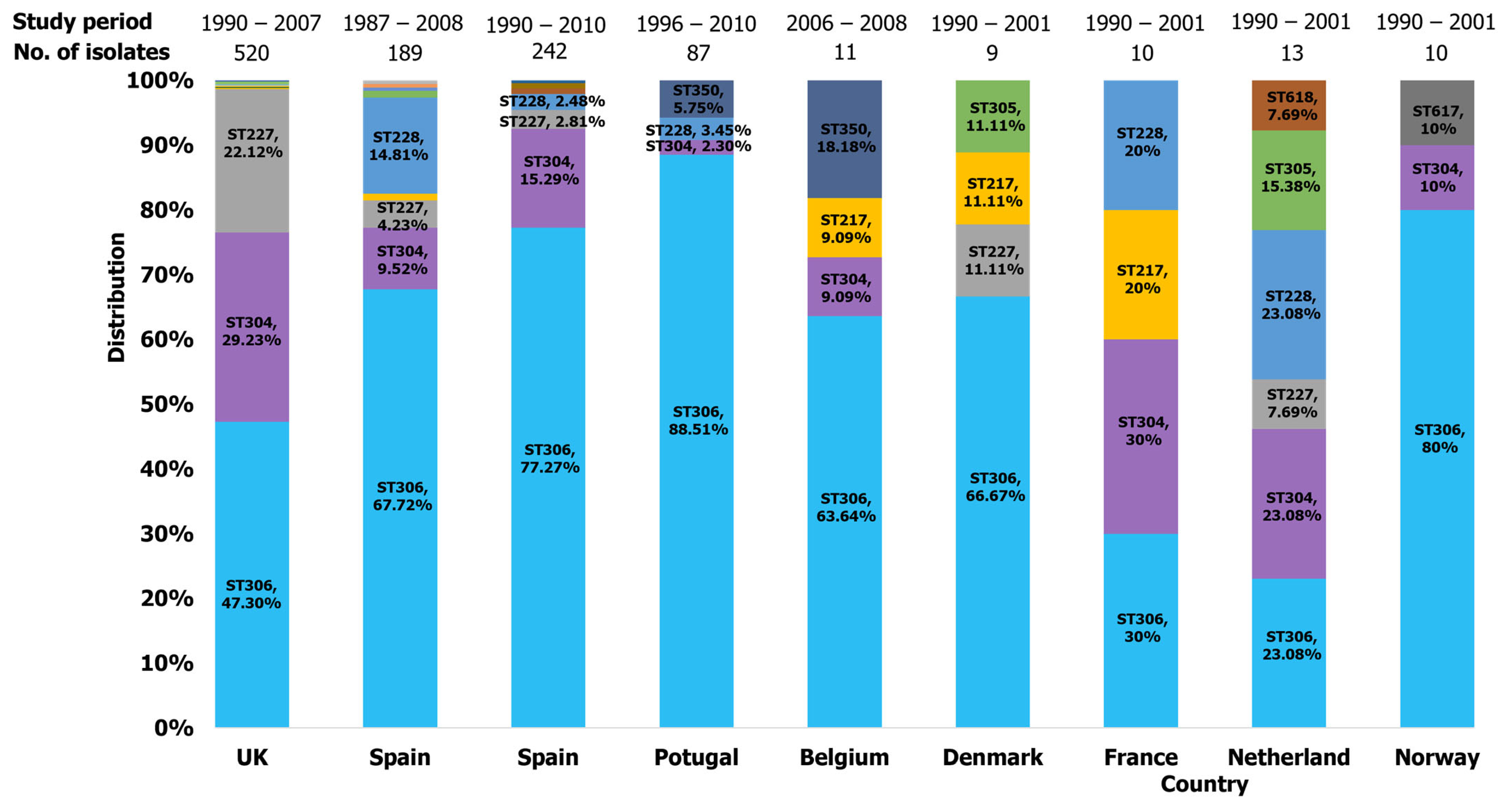

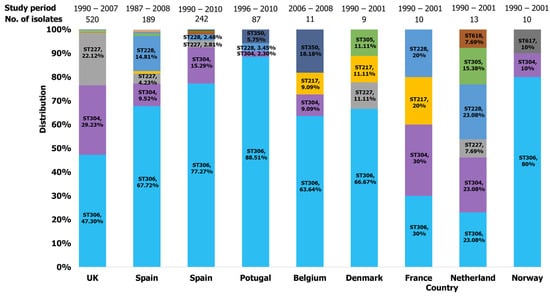

Figure 5. Distribution of serotype 1 isolates identified in Europe.
Figure 5. Distribution of serotype 1 isolates identified in Europe.
Ijms 26 02266 g005
Ijms 26 02266 g006

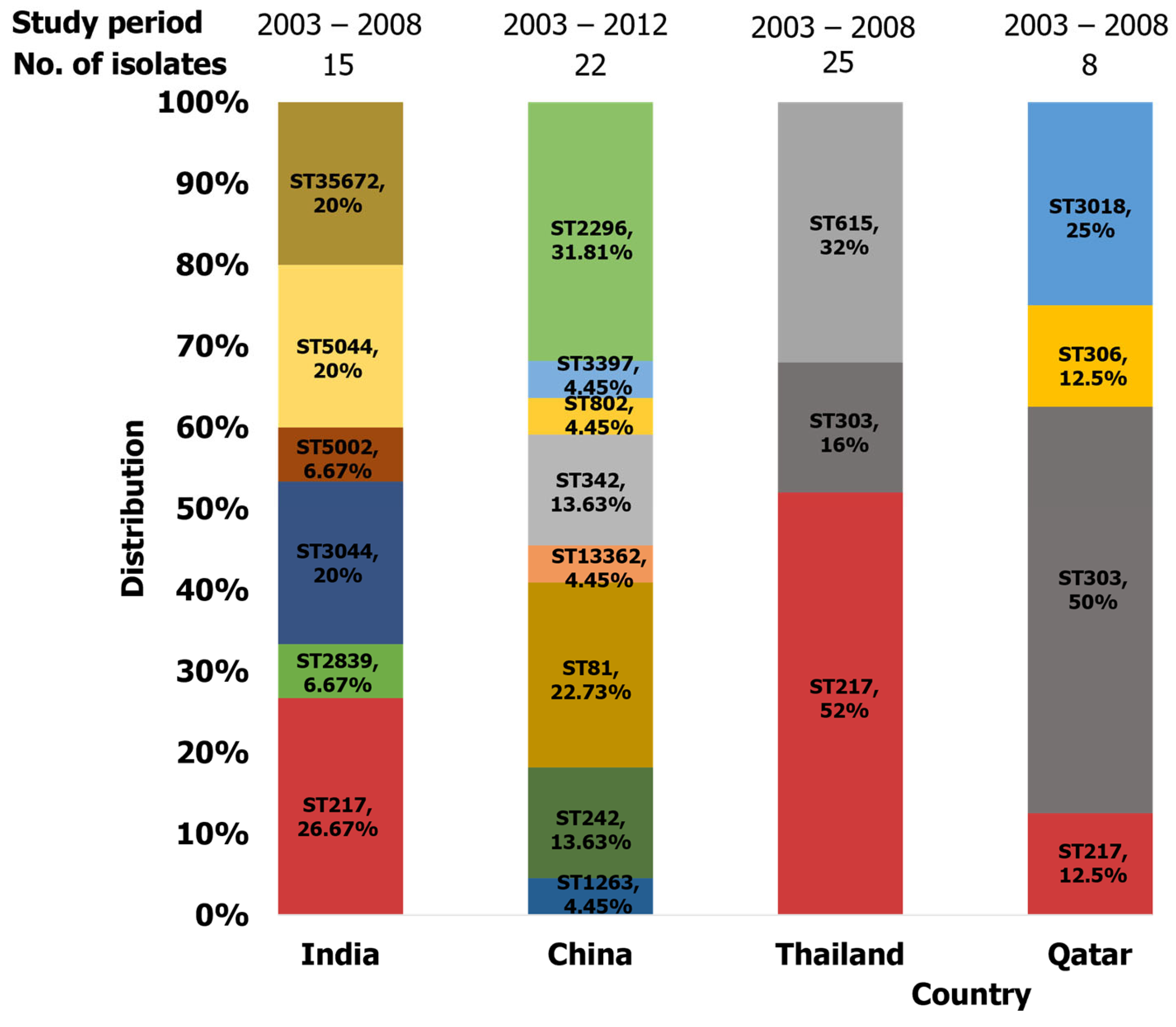

Figure 6. Distribution of serotype 1 isolates identified in Asia.
Figure 6. Distribution of serotype 1 isolates identified in Asia.
Ijms 26 02266 g006
Ijms 26 02266 g007

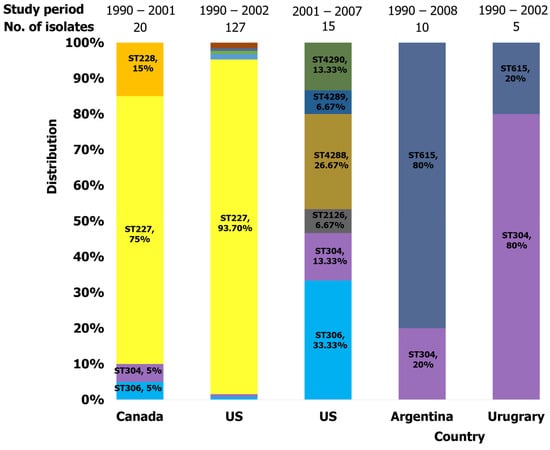

Figure 7. Distribution of serotype 1 isolates identified in the Americas.
Figure 7. Distribution of serotype 1 isolates identified in the Americas.
Ijms 26 02266 g007
Ijms 26 02266 g008

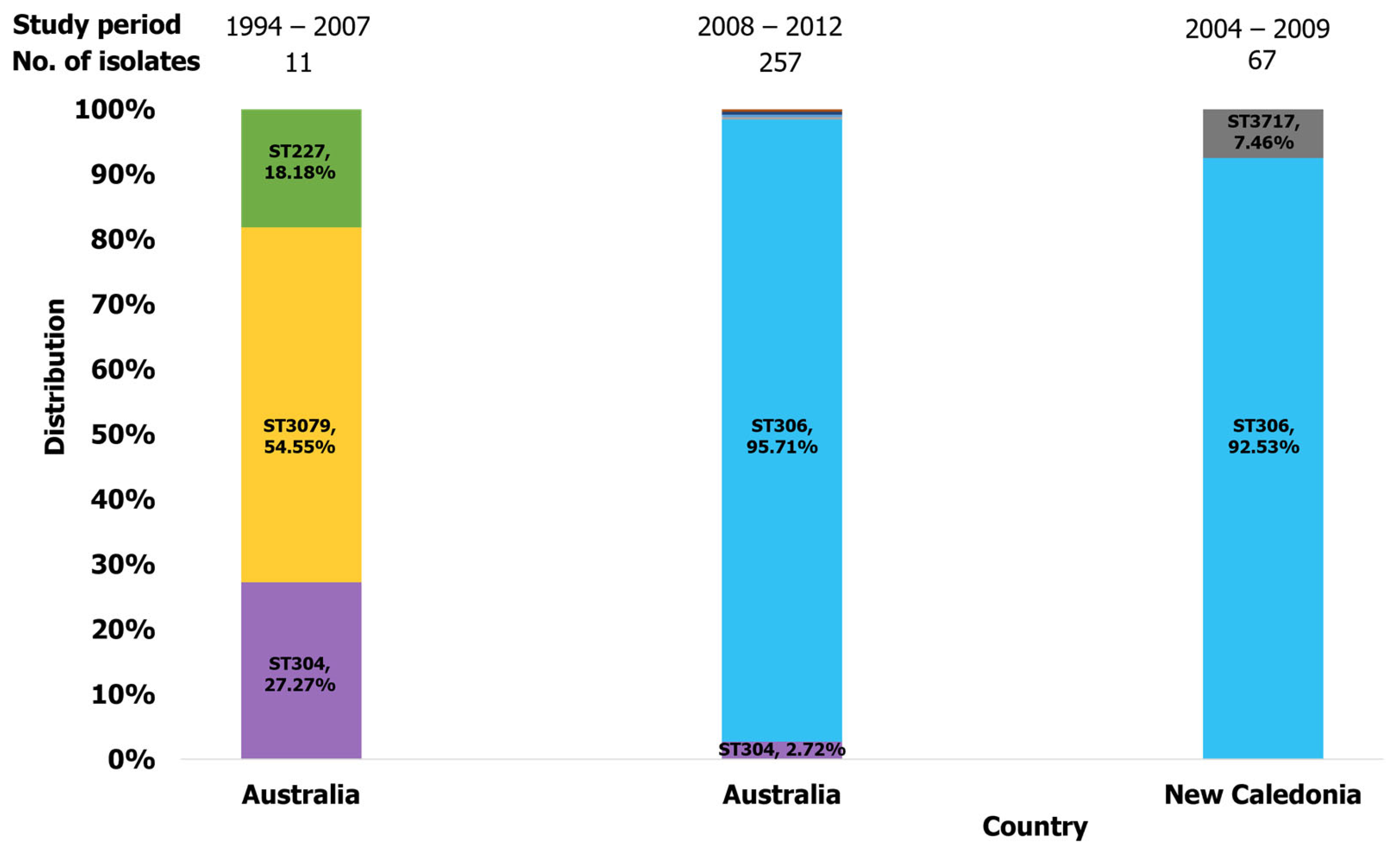

Figure 8. Distribution of serotype 1 isolates identified in Oceania.
Figure 8. Distribution of serotype 1 isolates identified in Oceania.
Ijms 26 02266 g008
Table 1. Characteristics of forty-three included studies.
Table 1. Characteristics of forty-three included studies.
Author, Year [Ref]CountryYear of StudyStudy PopulationStudy GroupIsolate TypeNo. of S. Pneumoniae Serotype 1Molecular Identification MethodGenotyping Tools
MLSTWGS
Byington et al., 2010 [27]United States2001–2007Children with Pediatric pneumococcal empyemaChildrenIPD17Unspecified√-
Chaguza et al., 2020 [37]sub-Saharan Africa1996–2016Invasive pneumococcal serotype 1 isolates from sub-Saharan AfricaAll agesIPD909Whole genome sequencing√√
Hanachi et al., 2020 [38]New Caledonia2004–2009Pneumococcal serotype 1 samples UnspecifiedIPD & NIPD67Whole genome sequencing√√
Almeida et al., 2013 [39]Portugal1996–2010Healthy children attending daycareChildrenCarriage21PCR√-
Esteva et al., 2011 [40]Spain1989–2008Children with IPDChildrenIPD56Unspecified√-
Marimon et al., 2009 [41]Spain1987–2007Pneumococcal serotype 1 samples All agesIPD & NIPD135Unspecified√-
Antonio et al., 2008 [42]Gambia1996–2006Healthy Gambians and IPD casesAll agesIPD & Carriage163PCR√-
Gonzalez et al., 2004 [43]United States1993–2002Pediatric patientsChildrenIPD & NIPD55Rep-PCR√-
Brueggemann & Spratt, 2003 [44]Multicenter1990–2001Serotype 1 IPD isolatesAll agesIPD166PCR√-
Jourdian et al., 2013 [45]Belgium2006–2008Nursery school childrenChildren, 3–6 yearsCarriage11PCR√-
Horacia et al., 2016 [46]Portugal2008–2011Adult patients with IPDAdults, 18 years and aboveIPD66Unspecified√-
Smith-Vaughan et al., 2009 [47]Australia1992–2007Individuals in remote Indigenous communities in AustraliaAll agesIPD & Carriage26PCR√-
Jauneikaite et al., 2014 [48]Singapore 2009–2010IPD casesUnspecifiedIPD4PCR√-
Kwambana-Adams et al., 2016 [49]Ghana Cases of suspected meningitisAll agesIPD38Triplex qPCR√-
Leimkugel et al., 2005 [50]Ghana1998–2003Patients with suspected meningitisAll agesIPD58PCR√-
Lai et al., 2013 [51]Australia2010–2012participants presenting to or visiting the Alice Springs Hospital Emergency DepartmentAll ages, 1–77 yearsCarriage4multiplex PCR√-
Ebruke et al., 2015 [52]Gambia2003–2004Healthy GambiansAll agesCarriage81multiplex PCR√-
Kirkham et al., 2006 [22]United Kingdom2000–2004Serotype 1 IPD isolatesAll agesIPD34PCR√-
Staples et al., 2014 [53]Australia2008–2012Serotype 1 IPD isolatesUnspecifiedIPD253PCR√-
Zhou et al., 2017 [36]China2006–2012Patients in a hospital in Shanghai, China Children, <10 yearsIPD & NIPD15PCR√-
du Plessis et al., 2016 [54]South Africa1989–2013IPD casesAll agesIPD534Whole genome sequencing√√
Brueggemann et al., 2013 [55]Kenya1994–2008Healthy persons and ill childrenChildren, <15 yearsIPD & Carriage161PCR√-
Donkor et al., 2013 [56]West Africa1996–2007Pneumococcal carriage and IPD isolatesChildren, <15 yearsIPD & Carriage7PCR√-
Zemlicková et al., 2005 [57]Multicenter1990–2002Children with IPDChildren, <5 yearsIPD26PCR√-
Muñoz-Almagro et al., 2011 [58]Spain2009Patients with IPDAll agesIPD137multiplex PCR√-
Cooke et al., 2010 [59]United Kingdom1999–2007IPD casesUnspecifiedIPD225Unspecified√-
Clarke et al., 2006 [60]United Kingdom2000–2004Children with IPDChildren, <5 yearsIPD7Unspecified√-
Muñoz-Almagro et al., 2008 [61]Spain1997–2006Patients with IPDAll agesIPD34Unspecified√-
Beall et al., 2006 [62]United States1999–2002IPD casesUnspecifiedIPD63Unspecified√-
Antonio, Dada-Adegbola, et al., 2008 [63]Gambia2000–2004Children investigated for possible IPDChildren, 2–29 monthsIPD8Box PCR√-
Yaro et al., 2006 [64] Burkina Faso2002–2005Persons with suspected acute bacterial meningitisAll ages, 2–29 yearsIPD21PCR√-
Zahner et al., 2010 [65]United States1994–2006IPD casesUnspecifiedIPD5Unspecified√-
Grau et al., 2012 [28]Spain1996–2010Patients with IPDAdults, 18–64 yearsIPD76PCR√-
Kourna Hama et al., 2019 [66]Niger2010–2016Children with suspected meningitis Children, <5 yearsIPD10qPCR, Whole genome sequencing-√
Jefferies et al., 2010 [67]United Kingdom2001–2006IPD casesAll agesIPD261PCR√-
Porat et al., 2012 [68]Israel1999–2008Cases of AOM & IPDChildrenIPD & NIPD92Unspecified√-
Foster et al., 2008 [69]United Kingdom1996–2005IPD casesAll agesIPD203Unspecified√-
Chaguza et al., 2017 [70]Malawi2004–2010IPD casesAll agesIPD113PCR, whole genome sequencing√√
Sanneh et al., 2019 [71]Gambia2010–2016Suspected cases of meningitisChildren, <5 yearsIPD17qPCR, multiplex PCR, Whole genome sequencing-√
Tsolenyanu et al., 2019 [72]Togo2010–2016Suspected cases of meningitisChildren, <5 yearsIPD7RT-PCR, whole genome sequencing-√
Sharew et al., 2024 [35]Ethiopia2018–2019Patients with IPD and NIPDAll agesIPD & NIPD1Whole genome sequencing√√
Serrano et al., 2005 [73]Portugal1999–2002IPD casesChildrenIPD470Unspecified√-
Cornick et al., 2015 [74]Multicenter2003–2008serotype 1 pneumococci recovered from hospital, surveillance, and carriage studiesAll agesIPD, NIPD & Carriage448Whole genome sequencing√√
IPD: invasive pneumococcal disease; NIPD: non-invasive pneumococcal disease; PCR: polymerase chain reaction; qPCR: real-time polymerase chain reaction; AOM: acute otitis media.
Table 2. Number of studies and sequence types reported in the various continents.
Table 2. Number of studies and sequence types reported in the various continents.
ContinentCountriesNo. StudiesNo. STs
CC217CC306CC615SingletonsOthers
AfricaGambia, Ghana, Burkina Faso, Egypt, Ethiopia, Kenya, Malawi, Mozambique, Niger, Nigeria, South Africa, Senegal, Togo174821131
EuropeBelgium, Croatia, Czech Republic, Denmark, France, Germany, Netherlands, Norway, Slovenia, Sweden, United Kingdom, Poland, Portugal, Spain1631231-
Asia Bangladesh, China, India, Israel, Nepal, Philippines, Qatar, Singapore, Thailand592371
North AmericaCanada, Mexico, United State62811-
South AmericaArgentina, Brazil, Chile, Colombia, Peru, Uruguay3-21--
OceaniaAustralia, New Caledonia, New Zealand63411-
CC: clonal complex; ST: sequence type.
Table 3. Detailed search keywords and filters used in each database.
Table 3. Detailed search keywords and filters used in each database.
DatabaseKeywordsFilters
LanguageDocument TypeOpen Access
PubMed“Streptococcus pneumoniae serotype 1” OR “serotype 1 Streptococcus pneumoniae” OR “pneumococcal serotype 1”English-Free full-text
ScopusEnglishArticleAll Open Access
Web of ScienceEnglishArticleOpen Access
ScienceDirectEnglishResearch articleOpen Access & Open archives
Google Scholar English--
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ntim, O.K.; Donkor, E.S. Molecular Epidemiology of Streptococcus pneumoniae Serotype 1: A Systematic Review of Circulating Clones and Clonal Clusters. Int. J. Mol. Sci. 2025, 26, 2266. https://doi.org/10.3390/ijms26052266

AMA Style

Ntim OK, Donkor ES. Molecular Epidemiology of Streptococcus pneumoniae Serotype 1: A Systematic Review of Circulating Clones and Clonal Clusters. International Journal of Molecular Sciences. 2025; 26(5):2266. https://doi.org/10.3390/ijms26052266

Chicago/Turabian Style

Ntim, Onyansaniba K., and Eric S. Donkor. 2025. "Molecular Epidemiology of Streptococcus pneumoniae Serotype 1: A Systematic Review of Circulating Clones and Clonal Clusters" International Journal of Molecular Sciences 26, no. 5: 2266. https://doi.org/10.3390/ijms26052266

APA Style

Ntim, O. K., & Donkor, E. S. (2025). Molecular Epidemiology of Streptococcus pneumoniae Serotype 1: A Systematic Review of Circulating Clones and Clonal Clusters. International Journal of Molecular Sciences, 26(5), 2266. https://doi.org/10.3390/ijms26052266

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
