Genome-Wide Identification of the Cation/Proton Antiporter (CPA) Gene Family and Expression Pattern Analysis Under Salt Stress in Winter Rapeseed (Brassica rapa L.)

by
Chunyang Han
1,2,
Li Ma
1,*,
Xiaolei Tao
1,2,
Yintao Lian
1,2,
Junyan Wu
1,2,
Abbas Muhammad Fahim
1,2,
Yanxia Xu
1,2,
Xianliang Zhang
1,2,
Lijun Liu
1,2,
Gang Yang
1,2,
Yuanyuan Pu
1,2,
Tingting Fan
1,2,
Wangtian Wang
1,2 and
Wancang Sun
1,2
1
State Key Laboratory of Aridland Crop Science, Gansu Agricultural University, Lanzhou 730070, China
2
College of Agronomy, Gansu Agricultural University, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2025, 26(7), 3099; https://doi.org/10.3390/ijms26073099
Submission received: 15 February 2025 / Revised: 21 March 2025 / Accepted: 25 March 2025 / Published: 27 March 2025
(This article belongs to the Special Issue Crop Biotic and Abiotic Stress Tolerance: 4th Edition)
Browse Figures
Versions Notes

Abstract

:
The CPA gene family regulates ionic balance and pH homeostasis in cells, significantly contributing to plant stress tolerance. In this study, a total of 63 BrCPA gene family members were identified in the whole genome of Brassica rapa L. (B. rapa), and the three subfamily members were BrNHX (9), BrKEA (15), and BrCHX (39), respectively. The members of the BrCPA gene family encoded 303-1259 amino acids, with molecular weights in the range of 32,860.39~139,884.73 kDa, distributed on 10 chromosomes, and contained 17 conserved motifs, BrNHX and BraKEA, and the BrCPA gene family members had the same molecular weights on 10 chromosomes and contain 17 conserved motifs. The BrNHX and BraKEA subfamilies have more exons than the BrCHX subfamily. An analysis of promoter cis-acting elements in the BrCPA gene showed that members of this gene family contain TC-rich, LTR, MBS, and ARE stress response elements. In addition, transcriptome analysis revealed the expression of CPA genes in B. rapa under salt stress. The selected genes were verified by RT-qPCR. By detecting the Na+ and K+ flow rates in the root and chloroplast cells of salt-tolerant and salt-sensitive varieties after salt treatment, it was found that the rate of Na+ and K+ efflux from the root and chloroplast cells of salt-sensitive varieties was significantly higher than that of salt-tolerant varieties. This investigation marks the first systematic identification of the CPA gene family in B. rapa. This study further explores its expression patterns and the efflux rates of Na+ and K+ across salt-tolerant varieties, providing a theoretical basis for understanding the role of the CPA gene family in the salt stress response of B. rapa.

1. Introduction

Soil salinization represents one of the most critical challenges to agricultural productivity [1]. Salt ion concentrations in soil above normal levels can interfere with the normal functioning of plant cells, leading to abnormalities in basic metabolic processes such as seed germination and photosynthesis and serious damage to plant tissues, which in severe cases can lead to crop death and consequent crop yield loss [2,3]. In China, salinized land is mainly concentrated in arid and semi-arid areas as well as coastal areas [4,5,6]. Brassica napus and B. rapa are the main types of B. rapa cultivated in the northern region of China, while B. rapa is widely cultivated in the northwestern region of China because of its excellent cold and salt tolerance [7]. Because of its potential adaptive ability shown in saline and alkaline environments, in-depth investigation of the molecular mechanism of salt tolerance in B. rapa is the key to solving the current problem of the lack of B. rapa salt-tolerant varieties and also providing new ideas and methods for the efficient use of saline and alkaline land.
In order to resist the hazards caused by soil salinity, plants have evolved a variety of physiological mechanisms, such as ion uptake or efflux as well as ion homeostasis, in addition to morphological adaptations to maintain their normal growth [8]. The ability of plants to maintain ion homeostasis in the body under salt stress is crucial for their adaptation to high-salt environments, and many scholars have conducted studies on ion uptake under salt stress. For example, under high salt-stress conditions, plants can activate the Na+/H+ antiporter-mediated Na+ efflux mechanism on the plasma membrane to expel excess Na+ from the cytoplasm to the extracellular space, thereby maintaining intracellular ion homeostasis and enhancing their salt tolerance [9]. The overall superior salt tolerance of Brassica napus was achieved by matching higher osmotic tolerance with moderate tissue tolerance and superior K+ retention in the leaf pulp [10]. Siberian white spurge, on the other hand, resists ionic stress by increasing root K+ content and limiting Na+ efflux in the vesicles [11]. The above studies suggest that the ability of plants to maintain ion homeostasis after salt stress may be an important feature in measuring plant salt tolerance.
Plants have evolved the ability to regulate ion balance and pH homeostasis in the body throughout evolution, and these abilities are largely dependent on transmembrane ion channels and transporters on cells [12,13]. The CPA gene family maintains cytoplasmic ion homeostasis and enhances salt tolerance through Na+ efflux and compartmentalization [14]. The identification of CPA gene family members has been reported in a variety of plants, including Arabidopsis thaliana (A. thaliana) [15,16], potato [14], and soybean [17]. In plants, the CPA family of genes can be categorized into three subfamilies, namely the NHX, KEA, and CHX gene families [18]. Plants utilize Na+/H+ antiporters (Na+/H+ exchangers, NHX) to prevent the excessive accumulation of Na+ within their tissues [19]. In rice, salt stress upregulates the expression of OsNHX1-5 and OsNHX7/OsSOS1, which can mitigate the sensitivity of rice to high Na+ and K+ concentrations [20,21]. In grapevines, VvNHX1 also plays a crucial role in development and adaptation, influencing seed dormancy, growth, maturation, and stress responses [22]. KEA proteins in plants are K+ efflux reverse transporter proteins that are mainly responsible for K+ transport [23]. Aranda Sicilia et al. [24] demonstrated that KEA1 and KEA2 mediate K+ uptake/H+ loss to regulate stromal pH. CHX proteins play a crucial role in maintaining potassium and sodium ion homeostasis as well as regulating pH stability in plants [25]. The wild soybean CHX19.3 gene enhances K+ uptake in overexpressing A. thaliana and positively regulates tolerance to high salinity and carbonate stress [26].
In this study, bioinformatics approaches were employed to comprehensively identify and analyze the CPA gene family in B. rapa, encompassing genome-wide identification, chromosomal localization, collinearity relationships, and expression patterns. Furthermore, real-time quantitative PCR (RT-qPCR) was utilized to validate the expression profiles of CPA family genes under salt-stress conditions. It provides a reference basis for further research on the mechanism of the response of BrCPA family genes to salt stress in B. rapa. The use of ion flow rate can be used as a physiological marker for evaluating the strength of salt tolerance in B. rapa varieties, providing technical support for the study of salt tolerance in B. rapa and the non-destructive identification of salt tolerance in important varietal resources, and thus accelerating the process of salt tolerance breeding in B. rapa.

2. Results

2.1. Analysis of Na+ and K+ Flow Rate Among Different Tissues Under Salt Treatment

In the present study, without salt treatment, the Na+ and K+ flow rates in the roots and leaf pulp cells of salt-tolerant B. rapa (SCKY-6-27) and salt-sensitive B. rapa (197-2018 Qin-10-45) were not significant. After 24 h of the 100 mM NaCl treatment, salt-sensitive B. rapa showed higher Na+, K+ flow rate in roots and chloroplasts compared with salt-tolerant B. rapa (Figure 1, Table S2). The instantaneous flow rates of Na+, K+ efflux in salt-sensitive B. rapa were higher than those in salt-tolerant B. rapa at all time points. The highest Na+ efflux rates were 1577.80 pmol cm−2s−1 for roots of salt-sensitive varieties and 313.15 pmol cm−2s−1 for roots of salt-tolerant varieties, respectively (Figure 1A,B). The highest K+ efflux rates were 1037.36 pmol cm−2s−1 for roots of salt-sensitive varieties and 139.23 pmol cm−2s−1 for roots of salt-tolerant varieties, respectively (Figure 1C,D). The highest Na+ efflux rate was 1436.12 pmol cm−2s−1 in the roots of salt-sensitive varieties and 246.50 pmol cm−2s−1 in the roots of salt-tolerant varieties (Figure 1E,F). The highest K+ efflux rate was 519.66 pmol cm−2s−1 in the roots of salt-sensitive varieties, 519.66 pmol cm−2s−1 in the roots of salt-tolerant varieties, and 246.50 pmol cm−2s−1 in the roots of salt-tolerant varieties (Figure 1G,H). The highest value of exocytosis rate of salt-tolerant variety roots was 304.61 pmol cm−2s−1. Comparing the exocytosis amplitude of the two varieties after salt treatment, the overall Na+ and K+ ions exocytosis amplitude of 197-2018 Qin-10-45 was significantly higher than that of SCKY-6-27. Suggesting that salt-tolerant materials exhibited reduced loss of Na+ and K+ under salt stress.

2.2. Identification of CPA Family Members in B. rapa

By comparing genomic databases of three generations of genes from B. rapa, a total of 63 BrCPA family members with complete conserved structural domains were screened (Table S3) and divided into three subfamilies: BrNHX, BrKAE, and BrCHX. These genes were named BrNHX1-BrNHX9, BrKEA1-BrKEA15, and BrCHX1-BrCHX39 based on their homology to other species. These gene names, protein length (aa), molecular weight (MV), theoretical isoelectric point (pI), hydrophilicity index (GRAVY), and subcellular localization were determined. These genes vary in length and range in amino acid number from 303 (BrKEA7) to 1259 (BrNHX5). There are also differences in their molecular weights from 32,860.39 kDa (BrKEA7) to 139,884.73 kDa (BrNHX5), and the estimated isoelectric points were found to range from 5.14 (BrKEA8) to 9.23 (BrCHX3), of which, 37 proteins were acidic, and 26 were basic. Among the BrCPA proteins, a vast majority of proteins belonged to hydrophobic proteins, and only BrKEA11, BrKEA12, BrKEA13, and BrKEA14 belonged to hydrophilic proteins, ranging from −0.018 (BrKEA12) to 0.677 (BrKEA5/BrKEA6). Subcellular localization predictions tell us that most genes are present in the cytoplasm, consistent with functioning as transporters to maintain ion homeostasis; in addition, a few of the gene members were located in the nucleus and chloroplasts.

2.3. Phylogenetic Tree and Chromosome Localization Analysis

To investigate the evolutionary links among all BrCPA members, we retrieved the complete sequences of CPA proteins from the genomes of B. rapa and A. thaliana and compared them to construct a phylogenetic tree of CPA members. A total of 105 CPA proteins were screened from B. rapa and A. thaliana, and all CPA members were categorized into three subfamilies, NHX, KEA, and CHX, with BrCPA members distributed in each subfamily (Figure 2A). The CHX subfamily has the highest number of gene members, and the NHX subfamily has the lowest number of gene members. The phylogenetic tree shows that the CPA gene family exhibits a very high degree of conservation across species. The BrCPA family members were unevenly distributed on all chromosomes of B. rapa (Figure 2B). Among them, chromosome 9 (A09) had the highest number of genes, with 11 genes, respectively. In contrast, the distributions of genes on chromosome 1 (A01), chromosome 5 (A05), and chromosome 8 (A08) were the lowest, with only three genes. In addition, we found five tandem duplicate gene pairs in the BrCPA genes, suggesting a similar function.

2.4. Characterization of Cis-Acting Elements in the BrCPA Gene Promoter

Promoter cis-acting elements are crucial binding sites for transcription initiation proteins and significantly influence gene expression regulation. To investigate the types of cis-acting regulatory elements in the BrCPA promoter, we searched and analyzed 2000 bp sequences upstream of the initiation codon (ATG) of all BrCPAs. A total of 35 common elements were identified in the promoter region of BrCPA to investigate their potential biological functions. From Figure 3, it is clear that most CPA gene family members are co-regulated by a variety of elements. They are closely linked to plant growth and development processes and also play a role in plant response to hormone regulation as well as in coping with abiotic stresses. In addition to containing a large number of basic promoter elements, there are light-responsive elements (ACE, G-box, and GT1-motif), stress-responsive elements (TC-rich, LTR, MBS, and ARE), and hormone-responsive elements (ABRE, TCA-element, TATC-box, and P-box). These results suggest that CPA genes are not only regulated by light signaling and phytohormones but may also participate in the signaling pathway of plant response to stress through these action elements and play a role in plant responses to stress.

2.5. Motif Composition and Gene Structure of the BrCPA Gene Family

Based on the pfam structural domains of the three subfamilies of the CPA gene family, we categorized the 63 identified BrCPA proteins into three subfamilies (Figure 4). Each gene has between one and eight motifs, and motif5 is distributed in the CHX and NHX families, suggesting an evolutionary correlation between these two subfamilies. While most motifs were distributed in only one family, such as motif1, motif2, motif3, and motif4 in the CHX family, motif6, motif7, motif8, motif9, motif10, motif12, and motif13 in the NHX family, and motif14, motif15, motif16, and motif17 are distributed in the KEA family. Most BrCPA members have similar motif composition in the same subfamily, suggesting that these proteins are relatively conserved among themselves. In addition, the number of motifs exhibited variation among different subfamilies suggests that distinct subfamilies may exhibit diverse functional roles. The gene structure of BrCPAs was then analyzed, and the results showed that the sequence lengths, as well as the number of introns and exons, were significantly different among the BrCPA members, with shorter exons in the CHX family members and longer exons in the NHX and KEA family members, and all of the members were free of UTR regions.

2.6. Analysis of Intra and Inter-Species Covariance in BrCPA Genes

By covariance analysis of the BrCPA gene within the B. rapa species (Figure 5A), a total of 25 pairs of co-linear BrCPA genes were identified. Co-linearity of BrCPA genes was observed on all chromosomes, with tandem duplicates accounting for 39.7% of the gene family. Furthermore, the CPA genes of B. rapa and Arabidopsis were compared and analyzed by the synteny block method to explore the evolutionary mechanism of BrCPA members. (Figure 5B). Upon exploring the evolutionary relationship between BrCPA proteins and different species, the B. rapa CPA gene family was found to have strong covariance with the A. thaliana CPA gene family, suggesting that highly homologous duplicative relationships may have arisen from the same gene duplication events.

2.7. Transcriptional Profiling of BrCPA Family Members in Response to Salt Stress

Transcriptome data of two B. rapa varieties, ‘SCKY-6-27’ and ‘197-2018 Qin-10-45’, which differ in salt tolerance, were utilized to compare the transcriptional Profiling of CPA family members in B. rapa under different salt concentrations (Figure 6, Table S4). The results revealed that the expression of CPA family members in B. rapa showed significant differences between SCKY-6-27 and 197-2018 Qin-10-45 at different salt concentrations, but most of the family members had low or no expression. The salt-tolerant variety SCKY-6-27 had the highest expression of BrCHX29 at 194 mmol/L salt concentration treatment and BrCHX17 at 582 mmol/L salt concentration treatment. The highest expression of BrCHX34 under 582 mmol/L salt treatment was observed in salt-sensitive variety 197-2018 Qin-10-45. The expression of BrNHX4 in salt-tolerant variety SCKY-6-27 and salt-sensitive variety 197-2018 Qin-10-45 showed a trend of decreasing, then increasing, and then decreasing with an increase in salt concentration.

2.8. Expression Analysis of BrCPA Family Members Under Salt Stress

Screening of genes from transcriptome data was conducted for the initial RT-qPCR detection (Figure 7, Table S5). To study the expression pattern of CPA genes under salt stress, the expression of BrNHX4, BrCHX13, and BrCHX17 in “SCKY-6-27” was significantly higher than that in “197-2018QIN-10-45”, and the expression of BrCHX7 in “197-2018QIN-10-45” was significantly higher than that in “197-2018QIN-10-45”. The expression of BrCHX7 in “197-2018 Qin-10-45” was significantly higher than that of “SCKY-6-27” by 1.72, 28.2, 14, and 13.3 times. The expression of BrCHX7 in “197-2018Qin-10-45” was 10.8-fold higher than that of “SCKY-6-27” in “197-2018Qin-10-45” under 582 mmol/L treatment.

3. Discussion

Salt stress causes ion imbalance and ionic toxicity in plants, as well as osmotic and oxidative stress, directly interfering with normal growth and developmental processes in plants [27]. Plants under salt stress mitigate the damage by regulating ion homeostasis and osmotic balance [28]. CPA family members have key roles in salt stress response, cell proliferation, ion homeostasis, and vesicle transport [29].
Na+ and K+ play crucial roles for all organisms. Previous studies have revealed that the Na+ efflux rate in salt-tolerant cultivars of Brassica napus is significantly higher than that in salt-sensitive cultivars under salt-stress conditions [30]. Our findings demonstrated that non-injury microtomography detection indicated a significant increase in Na+ and K+ efflux from the roots and leaf pulp of salt-sensitive varieties under salt stress compared to normal conditions. Furthermore, the efflux capacity of Na+ and K+ in the roots and leaf pulp of salt-sensitive varieties was markedly greater than that of salt-resistant varieties following salt stress. These findings suggest that salt-resistant varieties exhibit salt tolerance due to their enhanced capacity for Na+ and K+ retention. Dong et al. [31] investigated the Na+ and K+ flux rates in wheat under salt stress and found that salt stress increased the K+ efflux rate in seedlings of salt-sensitive wheat cultivars. Due to the salt exclusion mechanism, salt-tolerant cultivars exhibited stronger Na+ exclusion and Na+ compartmentalization, resulting in a lower Na+ efflux rate in salt-tolerant cultivars compared to salt-sensitive ones. The results show that although salt-tolerant B. rapa varieties did not show the ability of Na+ efflux than salt-sensitive varieties, they possessed strong Na+ rejection and Na+ compartmentalization because of salt rejection. The robust Na+ compartmentalization and K+ retention capabilities of salt-tolerant B. rapa variants are the primary factors contributing to their significant salt tolerance.
The CPA gene family has been identified in a wide range of plant species, including maize [32] and allotetraploid rapeseed [29]. However, the distribution and biological functions of the CPA gene family in B. rapa have not been reported to date. In this study, a total of 63 BrCPA genes were identified. Phylogenetic analysis revealed that the CPA proteins in B. rapa are divided into three subfamilies, with the majority of these genes belonging to the CHX subfamily, which is largely consistent with findings in A. thaliana [15,16]. This indicates that the evolution and classification of CPA proteins are highly conserved across different species. The analysis of the physicochemical properties of BrCPA proteins revealed that the majority of the CPA family proteins exhibit strong hydrophobicity, while a minority show hydrophilicity. Additionally, there are significant differences in the molecular weights and isoelectric points of these proteins (Table S2). In studies on the physicochemical properties of proteins in crops such as Amaranthus tricolor [33] and radish [34], it was found that all proteins exhibit hydrophobicity. Studies have shown that the dynamic changes in the physicochemical properties of proteins may be closely related to their regulatory roles in the development of different plant tissues and organs, as well as their functions in hormone signal transduction [35]. It was found that CPA proteins are mainly localized to the plasma membrane, vesicle membrane, and organelle membrane of plant cells [18]. In this study, subcellular localization predictions revealed that most of the BrCPA gene family members were localized in cytoplasm, and a few family members were localized in the nucleus and chloroplasts.
Cis-acting elements, functioning as genetic switches for gene transcription, play a crucial regulatory role in biological processes, including responses to environmental stress and developmental stress [36,37]. Our results demonstrate that the cis-regulatory elements within the BrCPA promoter primarily include light-responsive, development-related, stress-responsive, and hormone-responsive elements. Light-responsive elements represent the largest category of cis-elements in BrCPA, which is consistent with the findings from studies on the CPA gene family in soybeans [17]. Additionally, the BrCPA promoter region also contains hormone-responsive and stress-responsive elements.
During plant evolution, gene duplication facilitates functional innovation or diversification through neofunctionalization or subfunctionalization mechanisms, providing a genetic basis for plants to adapt to environmental changes. This process enhances their survival advantages under environmental stress and improves adaptability through functional specialization [38]. According to the intra-species collinearity analysis of B. rapa, the members of the CPA family in B. rapa are associated with segmental or tandem duplications, indicating that gene duplication plays a significant role in the expansion of the CPA gene family in the B. rapa genome. Tandemly repeated genes play a significant role in plant responses to environmental stress by regulating gene expression levels [39]. For example, the NAC transcription factor family in rice has expanded through whole-genome duplication events, and the duplicated gene members exhibit divergent expression patterns under drought stress, thereby enhancing the plant’s stress resistance [40].
Extensive studies have robustly demonstrated that members of the CPA gene family play a pivotal role in mediating responses to diverse abiotic stresses, including heavy metals, temperature fluctuations, and salt stress [41,42,43,44]. In these transcriptome data, it was found that some members of the BrCPA gene family were not expressed or had low expression levels under salt stress, with the majority belonging to the CHX subfamily. Among the three subfamilies of BnaCPAs, the BnaKEA and BnaNHX subfamilies exhibited a higher proportion of responses to nutrient stress, while the BnaCHX subfamily showed fewer members with differential expression between the control and stress conditions [29]. Therefore, we conclude that the BrNHX and BrKEA subfamilies are of significant importance to the abiotic stress resistance of the BrCPA family. Previous studies have found that overexpression of soybean GmSOS1 in A. thaliana enhances salt tolerance by improving seed germination and plant growth under salt stress, accompanied by reduced Na+ accumulation, suggesting GmSOS1 may limit Na+ uptake or enhance Na+ exclusion [45]. Real-time fluorescent quantitative PCR assay analysis clarified that the expression of BrCHX14 was down-regulated in both ‘SCKY-6-27’ and ‘197-2018 Qin-10-45’, and the expression of BrNHX6 was significantly higher than that of ‘SCKY-6-27’ in ‘197-2018 Qin-10-45. Through phylogenetic analysis, it was found that AtCHX20 and BrCHX14 are homologous genes, and AtNHX5 and AtNHX6 are homologous genes of BrNHX6, indicating that there is a certain similarity in the functions of these genes. The gene functions of AtCHX20, AtNHX5, and AtNHX6 have been identified in A. thaliana. Research has shown that AtNHX5 and AtNHX6 play a role in promoting K⁺ transport in cells and are of great significance for K⁺ and pH homeostasis in A. thaliana [46]. AtCHX20 plays a crucial role in osmotic regulation through K⁺ flux and the pH regulation of the active endomembrane system in guard cells [47]. These findings suggest that the CPA family genes may enhance the salt stress tolerance in B. rapa. This study also provides genetic resources for subsequent research on ion flux in B. rapa.

4. Materials and Methods

4.1. Experimental Materials and Salt Stress Treatments

In this experiment, two B. rapa germplasm with different salinity tolerances, i.e., the salt-tolerant material SCKY-6-27 (LC = 479 mmol/L) and the salt-sensitive material 197-2018 Qin-10-45 (LC = 315 mmol/L), were selected, which were provided by the B. rapa Research Group of Gansu Agricultural University. Seedlings, after 5–7 days of germination, were transferred to a new Petri dish to let their roots and cotyledons continue to grow, continued to cultivate for 7 days, and then transplanted to a hydroponic box containing Hoagland’s nutrient solution and the nutrient solution was added to the hydroponic box every 5 days to fill up the hydroponic box. B. rapa seedlings were placed in a greenhouse at a constant day/night temperature of 25 °C, light intensity of 6400 LX, and humidity of 30% (16 h of light, 8 h of dark). At the five-leaf stage of B. rapa seedlings, treatments were applied using mixed salt solutions of different concentrations. After three hours of salt and alkali stress treatment, the leaves of B. rapa were quickly collected, the samples were flash-frozen in liquid nitrogen and then transferred to an ultra-low temperature refrigerator at −80 °C for subsequent RNA extraction and reverse transcription experiments. The salt solution composition for salt stress was selected as NaCl, CaCl2, MgSO4, NaSO4, and NaHCO3, and the five salt NaCl: CaCl2: MgSO4: NaSO4: NaHCO3 = 40:2:4:16:1 molar ratio was mixed, and set to 0 (CK), 194 mmol/L, 388 mmol/L, and 582 mmol/L (Table 1).

4.2. Na+ and K+ Flow Rate Analysis

Changes in Na+/K+ efflux from the root elongation zone and chloroplasts of B. rapa under salt stress were measured using a non-invasive microtesting technique [48] to measure Na+ and K+ fluxes. The intact B. rapa root system and 1 cm × 0.2 cm-sized chloroplastic tissues under normal growth conditions were fixed at the bottom of Petri dishes, and then the roots and chloroplastic tissues were placed in test solution 1 (1.0 mM NaCl, 0.1 mM KCl, 0.2 mM MES, pH 5.8) and test solution 2 (1.0 mM NaCl, 1.0 mM KCl, 0.2 mM MES, pH 5.8) In the control test solution 1, B. rapa roots were left to stand for 0.5 h and leaf pulp tissues were left to stand for 4 h in the control test solution 2 in order to detect the sodium and potassium ion mobility rates in the elongation zone of the root system and the leaf pulp cells. As for detecting sodium and potassium ion flow rates under salt stress, the B. rapa materials were treated with 100 mM NaCl for 24 h, and then the intact B. rapa roots and 1 cm × 0.2 cm-sized chloroplastic tissues were fixed at the bottom of Petri dishes. To detect the sodium ion flow rate of the root system, the roots need to be placed in test solution 1 for 0.5 h and in test solution 3 (100 mM NaCl, 1.0 mM KCl, 0.2 mM MES, pH 5.8) for 0.5 h in order to detect the sodium and potassium ion flow rates in the roots, respectively. To detect the sodium ion flow rate of the leaf pulp cells, the leaf pulp tissues need to be placed in test solution 3 for 4 h and then transferred to test solution 1 to continue to be placed in the test solution for 0.5 h. The site to be measured was found under the microscope (root: the point on the root surface 900 μm from the apex of the root tip, which is the elongation zone; chloroplast: the surface of the chloroplast tissue), the Na+ or K+ flow rate microsensor was placed at the site to be measured, and detection was started. Instantaneous ion fluxes were recorded for 5 min for each sample, and eight biological replicates were tested for each group.

4.3. Genome-Wide Identification and Evolutionary Analysis of the CPA Gene Family in B. rapa

Genomic information of B. rapa (version 3.0) was downloaded from the Cruciferae database, and A. thaliana genomic information from the A. thaliana database TAIR. The Hidden Markov Model (HMM) of the CPA structural domain was downloaded from Pfam (http://pfam-legacy.xfam.org/, accessed on 10 November 2024) [33] and used Blast to screen for CPA family members in B. rapa. Further validation was carried out using Pfam and CDD [49] online analysis tools to eliminate the sequences to be selected that did not contain or had incomplete structural domains of the CPA gene family, resulting in 63 CPA members of B. rapa. The CPA protein sequences of Brassica napus and A. thaliana were compared and phylogenetically analyzed using ClustalW (https://www.genome.jp/tools-bin/clustalw, accessed on 10 November 2024) software. Phylogenetic trees were constructed using MEGA 7.0 [50] software with bootstrap set to 1000, and the Evolview (https://evolgenius.info/helpsite/qst1.html, accessed on 22 November 2024) [51], an online platform, was utilized to enhance the visualization of the phylogenetic trees.

4.4. Sequence Composition, Physicochemical Characteristics of Proteins, Chromosomal Distribution, Cis-Regulatory Elements, and Evolutionary Collinearity Analysis of CPA Gene Family Members

The conserved motifs within the CPA protein sequences were examined utilizing the MEME (http://meme-suite.org/tools/meme, accessed on 2 December 2024) tool [52]. The physicochemical characteristics of proteins encoded by the CPA gene family were predicted for all members utilizing the ExPASy (http://web.expasy.org/protparam/, accessed on 2 December2024) platform [53]. Subfine localization prediction was performed using the online software WOLF PSORT (https://wolfpsort.hgc.jp/, accessed on 15 December 2024) [54]. Intron–exon structure mapping of the CPA gene family members was performed using GSDS (http://gsds.cbi.pku.edu.cn, accessed on 22 December 2024). The location of CPA gene family members on the B. rapa chromosome was determined using TBtools V2.110 [55] software, and a feasibility analysis was performed. The 2000 bp sequence upstream of the gene start codon was selected by TBtools, and cis-acting element analysis was performed using PlantCare (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 25 November 2024) [56]. The CPA gene family members in Brassica napus were analyzed using TBtools, and the covariance between Winter B. rapa and A. thaliana was analyzed using TBtools.

4.5. Expression Analysis of BrCPA Family Members

BrCPA gene family members were screened based on their gene IDs from transcriptome data measured in the laboratory (NCBI accession number: PRJNA1158557). Total RNA from treated leaves of ‘SCKY-6-27’ and ‘197-2018 Qin 10-45’ was extracted using an RNA extraction kit (TIANGEN Biotech Co., Ltd., DP419, Beijing, China). Total RNA from treated leaves of ‘SCKY-6-27’ and ‘197-2018 Qin 10-45’ was extracted according to the manufacturer’s instructions, and the integrity and concentration of RNA were detected using 1% agarose gel electrophoresis and ultra-microspectrophotometer Nanodrop ND-2000 (Nanodrop Technologies, Wilmington, NC, USA). Subsequently, cDNA was obtained by reverse transcription using a reverse transcription kit (TIANGEN Biotech Co., Ltd., KR118-02, Beijing, China). cDNA was subjected to real-time fluorescence quantitative PCR under salt stress using the TIANGEN Fast Real Rapid Fluorescence PCR Premix Reagent Kit (TIANGEN Biotech Co., Ltd., FP217-02, Beijing, China) for RT-qPCR analysis. The relative expression of the gene was calculated using the 2−ΔΔCt method. The primer sequences used were shown in Table S1, and each sample was repeated three times.

4.6. Data Analysis

Data were organized using Microsoft Excel 2019 software, analyzed by ANOVA using SPSS 25.0 software, multiple comparisons using the Duncan method, and graphing was completed using Origin 2021 and GraphPad Prism 10 software.

5. Conclusions

In this study, a total of 63 BrCPA genes were identified in the genome of B. rapa, which were classified into three subfamilies, and the characteristics exhibited by the members of the BrCPA gene family were systematically analyzed. The physicochemical properties of the BrCPA families were found to vary significantly, while the conserved sequences of gene results and proteins were highly conserved. Chromosomal distribution showed that BrCPA gene family members were unevenly distributed on all chromosomes of B. rapa. Comprehensive analysis of gene structure and conserved structural domains revealed that the exons of CHX family members were shorter, while those of NHX and KEA family members were longer, and all the members did not contain UTR regions, and it was found by subcellular localization that most of the members of the BrCPA gene family were located in the cytoplasm, and that most of the BrCPA gene members from the same subfamily showed the same motifs and cis-regulatory The expression levels of BrCPA genes were different under different salt concentrations, and most members of the CHX subfamily had low or no expression, suggesting that their members may not be involved in regulation under salt stress, and the genes with higher expression were verified and analyzed by RT-qPCR. Under salt stress, salt-sensitive varieties exhibit higher Na+ and K+ efflux rates in roots and mesophyll tissues, which are significantly greater than those observed in salt-tolerant varieties. Non-invasive microtesting techniques can be applied as a new technique for screening salt-tolerant varieties of B. rapa and breeding for salt tolerance. This research lays the theoretical groundwork for future investigations into the function and action mechanism of the CPA gene in B. rapa plant growth and development.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26073099/s1.

Author Contributions

Conceptualization, L.M., W.S. and J.W., methodology, C.H.; software, C.H., Y.X. and X.Z.; validation, C.H., X.T., Y.L. and T.F.; formal analysis, L.M., G.Y. and W.W.; data curation, Y.P. and L.L., writing—original draft preparation, C.H. and L.M.; writing—review and editing, C.H., L.M. and A.M.F.; funding acquisition, L.M., J.W. and W.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Gansu Provincial Joint Research Fund (24JRRA837), the National Natural Science Foundation of China (32260519), the Gansu University Youth Doctoral Support Project (2024QB-065), Gansu Provincial Technical Innovation Guidance Plan (23CXNA0041), the Fuxi talent project of Gansu Agricultural University (Gaufx-05Y01), Gansu Provincial Seed Industry Research Project (GYGG2024-5), Science and Technology Program of Gansu Province (24ZDNA007 & 22ZD6NA009), Gansu Province college industry support plan project (2023CYZC-51), and the China Agriculture Research System of MOF and MARA (CARS-12-09).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data from this study can be found in the article and Supplementary Materials.

Acknowledgments

We are very grateful to the editors and reviewers for their valuable suggestions for improving this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Tarolli, P.; Luo, J.; Park, E.; Barcaccia, G.; Masin, R. Soil salinization in agriculture: Mitigation and adaptation strategies combining nature-based solutions and bioengineering. iScience 2024, 27, 108830. [Google Scholar] [PubMed]
  2. Sun, T.J.; Fan, L.; Yang, J.; Cao, R.Z.; Yang, C.Y.; Zhang, J.; Wang, D.M. A Glycine max sodium/hydrogen exchanger enhances salt tolerance through maintaining higher Na(+) efflux rate and K(+)/Na(+) ratio in Arabidopsis. BMC Plant Biol. 2019, 19, 469. [Google Scholar]
  3. Balasubramaniam, T.; Shen, G.; Esmaeili, N.; Zhang, H. Plants’ Response Mechanisms to Salinity Stress. Plants 2023, 12, 2253. [Google Scholar] [CrossRef]
  4. Nawar, S.; Buddenbaum, H.; Hill, J.; Kozak, J. Modeling and Mapping of Soil Salinity with Reflectance Spectroscopy and Landsat Data Using Two Quantitative Methods (PLSR and MARS). Remote Sens. 2014, 6, 10813–10834. [Google Scholar] [CrossRef]
  5. Zhang, Y.; Hu, K.; Li, B.; Zhou, L.; Luo, Y.; Zhu, J. Spatial distribution pattern of soil salinity and saline soil in Yinchuan plain of China. Chin. Soc. Agric. Eng. 2009, 25, 19–24. [Google Scholar]
  6. Wen, W.; Timmermans, J.; Chen, Q.; van Bodegom, P.M. A Review of Remote Sensing Challenges for Food Security with Respect to Salinity and Drought Threats. Remote Sens. 2021, 13, 6. [Google Scholar]
  7. Wancang, S.; Junyan, W.; Yan, F.; Qin, L.; Renyi, Y.; Weiguo, M.; Xuecai, L.; Junjie, Z.; Pengfei, Z.; Jianming, L.; et al. Growth and development characteristics of winter rapeseed northern-extended from the cold and arid regions in China. Acta Agron. Sin. 2011, 36, 2124–2134. [Google Scholar]
  8. Munns, R.; Tester, M. Mechanisms of salinity tolerance. Annu. Rev. Plant Biol. 2008, 59, 651–681. [Google Scholar]
  9. Shi, H.; Quintero, F.J.; Pardo, J.M.; Zhu, J.K. The putative plasma membrane Na(+)/H(+) antiporter SOS1 controls long-distance Na(+) transport in plants. Plant Cell 2002, 14, 465–477. [Google Scholar]
  10. Chakraborty, K.; Bose, J.; Shabala, L.; Eyles, A.; Shabala, S. Evaluating relative contribution of osmotolerance and tissue tolerance mechanisms toward salinity stress tolerance in three Brassica species. Physiol. Plant 2016, 158, 135–151. [Google Scholar]
  11. Tang, X.; Zhang, H.; Shabala, S.; Li, H.; Yang, X.; Zhang, H. Tissue tolerance mechanisms conferring salinity tolerance in a halophytic perennial species Nitraria sibirica Pall. Tree Physiol. 2021, 41, 1264–1277. [Google Scholar] [PubMed]
  12. Gong, Z.; Xiong, L.; Shi, H.; Yang, S.; Herrera-Estrella, L.R.; Xu, G.; Chao, D.Y.; Li, J.; Wang, P.Y.; Qin, F.; et al. Plant abiotic stress response and nutrient use efficiency. Sci. China Life Sci. 2020, 63, 635–674. [Google Scholar] [PubMed]
  13. Sze, H.; Chanroj, S. Plant Endomembrane Dynamics: Studies of K(+)/H(+) Antiporters Provide Insights on the Effects of pH and Ion Homeostasis. Plant Physiol. 2018, 177, 875–895. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, J.; Li, D.; Wang, J.; Wang, Q.; Guo, X.; Fu, Q.; Kear, P.; Zhu, G.; Yang, X. Genome-wide characterization of the CPA gene family in potato and a preliminary functional analysis of its role in NaCl tolerance. BMC Genom. 2024, 25, 144. [Google Scholar]
  15. Qiu, Q.S.; Guo, Y.; Dietrich, M.A.; Schumaker, K.S.; Zhu, J.K. Regulation of SOS1, a plasma membrane Na+/H+ exchanger in Arabidopsis thaliana, by SOS2 and SOS3. Proc. Natl. Acad. Sci. USA 2002, 99, 8436–8441. [Google Scholar]
  16. Cellier, F.; Conéjéro, G.; Ricaud, L.; Luu, D.T.; Lepetit, M.; Gosti, F.; Casse, F. Characterization of AtCHX17, a member of the cation/H+ exchangers, CHX family, from Arabidopsis thaliana suggests a role in K+ homeostasis. Plant J. 2004, 39, 834–846. [Google Scholar]
  17. Jia, Q.; Song, J.; Zheng, C.; Fu, J.; Qin, B.; Zhang, Y.; Liu, Z.; Jia, K.; Liang, K.; Lin, W.; et al. Genome-Wide Analysis of Cation/Proton Antiporter Family in Soybean (Glycine max) and Functional Analysis of GmCHX20a on Salt Response. Int. J. Mol. Sci. 2023, 24, 16560. [Google Scholar] [CrossRef]
  18. Brett, C.L.; Donowitz, M.; Rao, R. Evolutionary origins of eukaryotic sodium/proton exchangers. Am. J. Physiol. Cell Physiol. 2005, 288, C223–C239. [Google Scholar]
  19. Karim, R.; Bouchra, B.; Fatima, G.; Abdelkarim, F.M.; Laila, S. Plant NHX Antiporters: From Function to Biotechnological Application, with Case Study. Curr. Protein Pept. Sci. 2021, 22, 60–73. [Google Scholar]
  20. Tian, F.; Chang, E.; Li, Y.; Sun, P.; Hu, J.; Zhang, J. Expression and integrated network analyses revealed functional divergence of NHX-type Na(+)/H(+) exchanger genes in poplar. Sci. Rep. 2017, 7, 2607. [Google Scholar]
  21. Fukuda, A.; Nakamura, A.; Hara, N.; Toki, S.; Tanaka, Y. Molecular and functional analyses of rice NHX-type Na+/H+ antiporter genes. Planta 2011, 233, 175–188. [Google Scholar] [CrossRef] [PubMed]
  22. Ayadi, M.; Ben Ayed, R.; Mzid, R.; Aifa, S.; Hanana, M. Computational Approach for Structural Feature Determination of Grapevine NHX Antiporters. Biomed. Res. Int. 2019, 2019, 1031839. [Google Scholar] [CrossRef] [PubMed]
  23. Zhu, X.; Pan, T.; Zhang, X.; Fan, L.; Quintero, F.J.; Zhao, H.; Su, X.; Li, X.; Villalta, I.; Mendoza, I.; et al. K(+) Efflux Antiporters 4, 5, and 6 Mediate pH and K(+) Homeostasis in Endomembrane Compartments. Plant Physiol. 2018, 178, 1657–1678. [Google Scholar] [CrossRef] [PubMed]
  24. Aranda Sicilia, M.N.; Sánchez Romero, M.E.; Rodríguez Rosales, M.P.; Venema, K. Plastidial transporters KEA1 and KEA2 at the inner envelope membrane adjust stromal pH in the dark. New Phytol. 2021, 229, 2080–2090. [Google Scholar] [CrossRef]
  25. Chanroj, S.; Lu, Y.; Padmanaban, S.; Nanatani, K.; Uozumi, N.; Rao, R.; Sze, H. Plant-Specific Cation/H+ Exchanger 17 and Its Homologs Are Endomembrane K+ Transporters with Roles in Protein Sorting. J. Biol. Chem. 2011, 286, 33931–33941. [Google Scholar] [CrossRef]
  26. Jia, B.; Sun, M.; DuanMu, H.; Ding, X.; Liu, B.; Zhu, Y.; Sun, X. GsCHX19.3, a member of cation/H(+) exchanger superfamily from wild soybean contributes to high salinity and carbonate alkaline tolerance. Sci. Rep. 2017, 7, 9423. [Google Scholar] [CrossRef]
  27. Colin, L.; Ruhnow, F.; Zhu, J.K.; Zhao, C.; Zhao, Y.; Persson, S. The cell biology of primary cell walls during salt stress. Plant Cell 2023, 35, 201–217. [Google Scholar] [CrossRef]
  28. Shabala, S.; Shabala, L. Ion transport and osmotic adjustment in plants and bacteria. Biomol. Concepts 2011, 2, 407–419. [Google Scholar] [CrossRef]
  29. Yue, C.P.; Han, L.; Sun, S.S.; Chen, J.F.; Feng, Y.N.; Huang, J.Y.; Zhou, T.; Hua, Y.P. Genome-wide identification of the cation/proton antiporter (CPA) gene family and functional characterization of the key member BnaA05.NHX2 in allotetraploid rapeseed. Gene 2024, 894, 148025. [Google Scholar] [CrossRef]
  30. Cao, X.; Sun, L.; Wang, W.; Zhang, F. Exogenous calcium application mediates K+ and Na+ homeostasis of different salt-tolerant rapeseed varieties under NaHCO3 stress. Plant Growth Regul. 2024, 102, 367–378. [Google Scholar] [CrossRef]
  31. Dong, H.; Xie, C.; Hou, P.; Li, A.; Wang, X. Dynamic of ionic absorption and salt tolerance screening in wheat seedling under salt stress. Chin. J. Eco-Agric. 2021, 29, 762–770. [Google Scholar]
  32. Kong, M.; Luo, M.; Li, J.; Feng, Z.; Zhang, Y.; Song, W.; Zhang, R.; Wang, R.; Wang, Y.; Zhao, J.; et al. Genome-wide identification, characterization, and expression analysis of the monovalent cation-proton antiporter superfamily in maize, and functional analysis of its role in salt tolerance. Genomics 2021, 113, 1940–1951. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, S.; An, Z.; Li, Y.; Yang, R.; Lai, Z. Genome-Wide Identification of the Cation/Proton Antiporter (CPA) Gene Family and Functional Analysis of AtrNHX8 under Salt Stress. Plants 2024, 13, 1701. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, Y.; Ying, J.; Zhang, Y.; Xu, L.; Zhang, W.; Ni, M.; Zhu, Y.; Liu, L. Genome-Wide Identification and Functional Characterization of the Cation Proton Antiporter (CPA) Family Related to Salt Stress Response in Radish (Raphanus sativus L.). Int. J. Mol. Sci. 2020, 21, 8262. [Google Scholar] [CrossRef]
  35. Perez, M.; Guerringue, Y.; Ranty, B.; Pouzet, C.; Jauneau, A.; Robe, E.; Mazars, C.; Galaud, J.P.; Aldon, D. Specific TCP transcription factors interact with and stabilize PRR2 within different nuclear sub-domains. Plant Sci. 2019, 287, 110197. [Google Scholar]
  36. Zhang, Y.; Feng, X.; Wang, L.; Su, Y.; Chu, Z.; Sun, Y. The structure, functional evolution, and evolutionary trajectories of the H(+)-PPase gene family in plants. BMC Genom. 2020, 21, 195. [Google Scholar]
  37. Ren, Z.; Yu, D.; Yang, Z.; Li, C.; Qanmber, G.; Li, Y.; Li, J.; Liu, Z.; Lu, L.; Wang, L.; et al. Genome-Wide Identification of the MIKC-Type MADS-Box Gene Family in Gossypium hirsutum L. Unravels Their Roles in Flowering. Front. Plant Sci. 2017, 8, 384. [Google Scholar]
  38. Wang, M.; Manzoor, M.A.; Wang, X.; Feng, X.; Zhao, Y.; He, J.; Cai, Y. Comparative Genomic Analysis of SAUR Gene Family, Cloning and Functional Characterization of Two Genes (PbrSAUR13 and PbrSAUR52) in Pyrus bretschneideri. Int. J. Mol. Sci. 2022, 23, 7054. [Google Scholar] [CrossRef]
  39. Hu, H.; Dai, M.; Yao, J.; Xiao, B.; Li, X.; Zhang, Q.; Xiong, L. Overexpressing a NAM, ATAF, and CUC (NAC) transcription factor enhances drought resistance and salt tolerance in rice. Proc. Natl. Acad. Sci. USA 2006, 103, 12987–12992. [Google Scholar]
  40. Parenicová, L.; de Folter, S.; Kieffer, M.; Horner, D.S.; Favalli, C.; Busscher, J.; Cook, H.E.; Ingram, R.M.; Kater, M.M.; Davies, B.; et al. Molecular and phylogenetic analyses of the complete MADS-box transcription factor family in Arabidopsis: New openings to the MADS world. Plant Cell 2003, 15, 1538–1551. [Google Scholar]
  41. Sharma, H.; Taneja, M.; Upadhyay, S.K. Identification, characterization and expression profiling of cation-proton antiporter superfamily in Triticum aestivum L. and functional analysis of TaNHX4-B. Genomics 2020, 112, 356–370. [Google Scholar] [CrossRef] [PubMed]
  42. Huatao, C.; Xin, C.; Wu, B.; Xingxing, Y.; Hongmei, Z.; Xiaoyan, C.; Xiaoqing, L. Whole-genome identification and expression analysis of K+ efflux antiporter (KEA) and Na+/H+ antiporter (NHX) families under abiotic stress in soybean. J. Integr. Agric. 2015, 14, 1171–1183. [Google Scholar]
  43. Jha, A.; Joshi, M.; Yadav, N.S.; Agarwal, P.K.; Jha, B. Cloning and characterization of the Salicornia brachiata Na(+)/H(+) antiporter gene SbNHX1 and its expression by abiotic stress. Mol. Biol. Rep. 2011, 38, 1965–1973. [Google Scholar] [CrossRef] [PubMed]
  44. Adabnejad, H.; Kavousi, H.R.; Hamidi, H.; Tavassolian, I. Assessment of the vacuolar Na+/H+ antiporter (NHX1) transcriptional changes in Leptochloa fusca L. in response to salt and cadmium stresses. Mol. Biol. Res. Commun. 2015, 4, 133–142. [Google Scholar]
  45. Nie, W.X.; Xu, L.; Yu, B.J. A putative soybean GmsSOS1 confers enhanced salt tolerance to transgenic Arabidopsis sos1-1 mutant. Protoplasma 2015, 252, 127–134. [Google Scholar] [CrossRef]
  46. Wang, L.; Wu, X.; Liu, Y.; Qiu, Q.S. AtNHX5 and AtNHX6 Control Cellular K+ and pH Homeostasis in Arabidopsis: Three Conserved Acidic Residues Are Essential for K+ Transport. PLoS ONE 2015, 10, e0144716. [Google Scholar] [CrossRef]
  47. Padmanaban, S.; Chanroj, S.; Kwak, J.M.; Li, X.; Ward, J.M.; Sze, H. Participation of endomembrane cation/H+ exchanger AtCHX20 in osmoregulation of guard cells. Plant Physiol. 2007, 144, 82–93. [Google Scholar] [CrossRef]
  48. Li, Y.; Tang, Z.; Pan, Z.; Wang, R.; Wang, X.; Zhao, P.; Liu, M.; Zhu, Y.; Liu, C.; Wang, W.; et al. Calcium-Mobilizing Properties of Salvia miltiorrhiza-Derived Carbon Dots Confer Enhanced Environmental Adaptability in Plants. ACS Nano 2022, 16, 4357–4370. [Google Scholar] [CrossRef]
  49. Ma, L.; Xu, J.; Tao, X.; Wu, J.; Wang, W.; Pu, Y.; Yang, G.; Fang, Y.; Liu, L.; Li, X.; et al. Genome-Wide Identification of C2H2 ZFPs and Functional Analysis of BRZAT12 under Low-Temperature Stress in Winter Rapeseed (Brassica rapa). Int. J. Mol. Sci. 2022, 23, 12218. [Google Scholar] [CrossRef]
  50. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef]
  51. Subramanian, B.; Gao, S.; Lercher, M.J.; Hu, S.; Chen, W.H. Evolview v3: A webserver for visualization, annotation, and management of phylogenetic trees. Nucleic Acids Res. 2019, 47, W270–W275. [Google Scholar] [PubMed]
  52. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. MEME SUITE: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [PubMed]
  53. Wilkins, M.R.; Gasteiger, E.; Bairoch, A.; Sanchez, J.C.; Williams, K.L.; Appel, R.D.; Hochstrasser, D.F. Protein identification and analysis tools in the ExPASy server. Methods Mol. Biol. 1999, 112, 531–552. [Google Scholar] [PubMed]
  54. Horton, P.; Park, K.J.; Obayashi, T.; Fujita, N.; Harada, H.; Adams-Collier, C.J.; Nakai, K. WoLF PSORT: Protein localization predictor. Nucleic Acids Res. 2007, 35, W585–W587. [Google Scholar]
  55. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar]
  56. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar]
Ijms 26 03099 g001

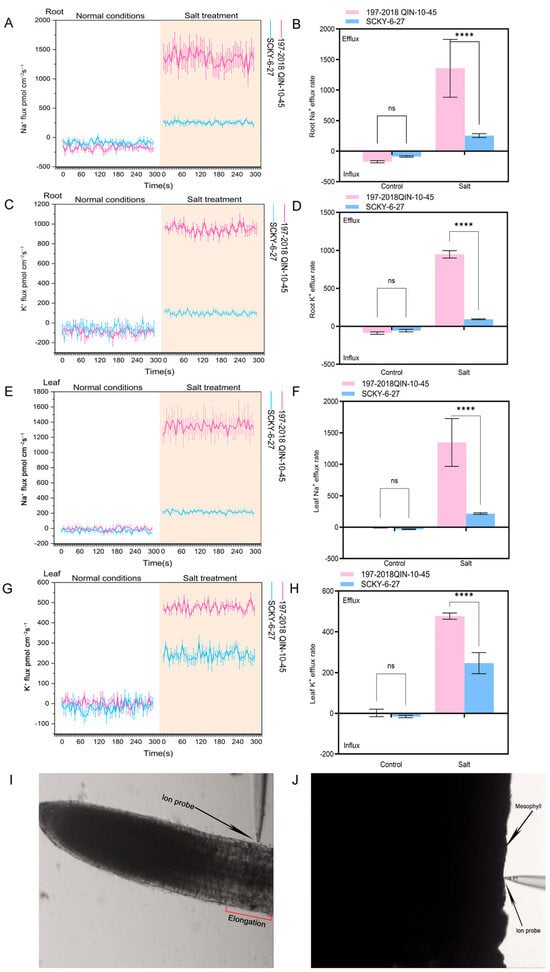

Figure 1. Non-invasive microtests were used to determine ion fluxes in roots and leaves under salt stress. (A,B) Net Na+ ion fluxes and mean Na+ ion fluxes in the extended region of B. rapa roots under control (no salt) versus salt-stress conditions; (C,D) Net K+ ion fluxes and mean K+ ion fluxes in the extended region of B. rapa roots under control versus salt-stress conditions; (E,F) Net Na+ ion fluxes and mean Na+ ion fluxes in the extended region of B. rapa leaves under control (no salt) versus salt-stress conditions; (G,H) Net K+ ion fluxes and mean K+ ion fluxes in the extended region of B. rapa leaves under control versus salt-stress conditions; (I) Representative measurement graph of Na+/K+ fluxes in the elongation zones of B. rapa roots; (J) Representative measurement graph of Na+/K+ fluxes of B. rapa leaves. Significant differences (****, p < 0.0001) were determined by unpaired two-tailed Student’s t tests between two groups using the SPSS 25.0 toolkit. ns, not significant.
Figure 1. Non-invasive microtests were used to determine ion fluxes in roots and leaves under salt stress. (A,B) Net Na+ ion fluxes and mean Na+ ion fluxes in the extended region of B. rapa roots under control (no salt) versus salt-stress conditions; (C,D) Net K+ ion fluxes and mean K+ ion fluxes in the extended region of B. rapa roots under control versus salt-stress conditions; (E,F) Net Na+ ion fluxes and mean Na+ ion fluxes in the extended region of B. rapa leaves under control (no salt) versus salt-stress conditions; (G,H) Net K+ ion fluxes and mean K+ ion fluxes in the extended region of B. rapa leaves under control versus salt-stress conditions; (I) Representative measurement graph of Na+/K+ fluxes in the elongation zones of B. rapa roots; (J) Representative measurement graph of Na+/K+ fluxes of B. rapa leaves. Significant differences (****, p < 0.0001) were determined by unpaired two-tailed Student’s t tests between two groups using the SPSS 25.0 toolkit. ns, not significant.
Ijms 26 03099 g001
Ijms 26 03099 g002

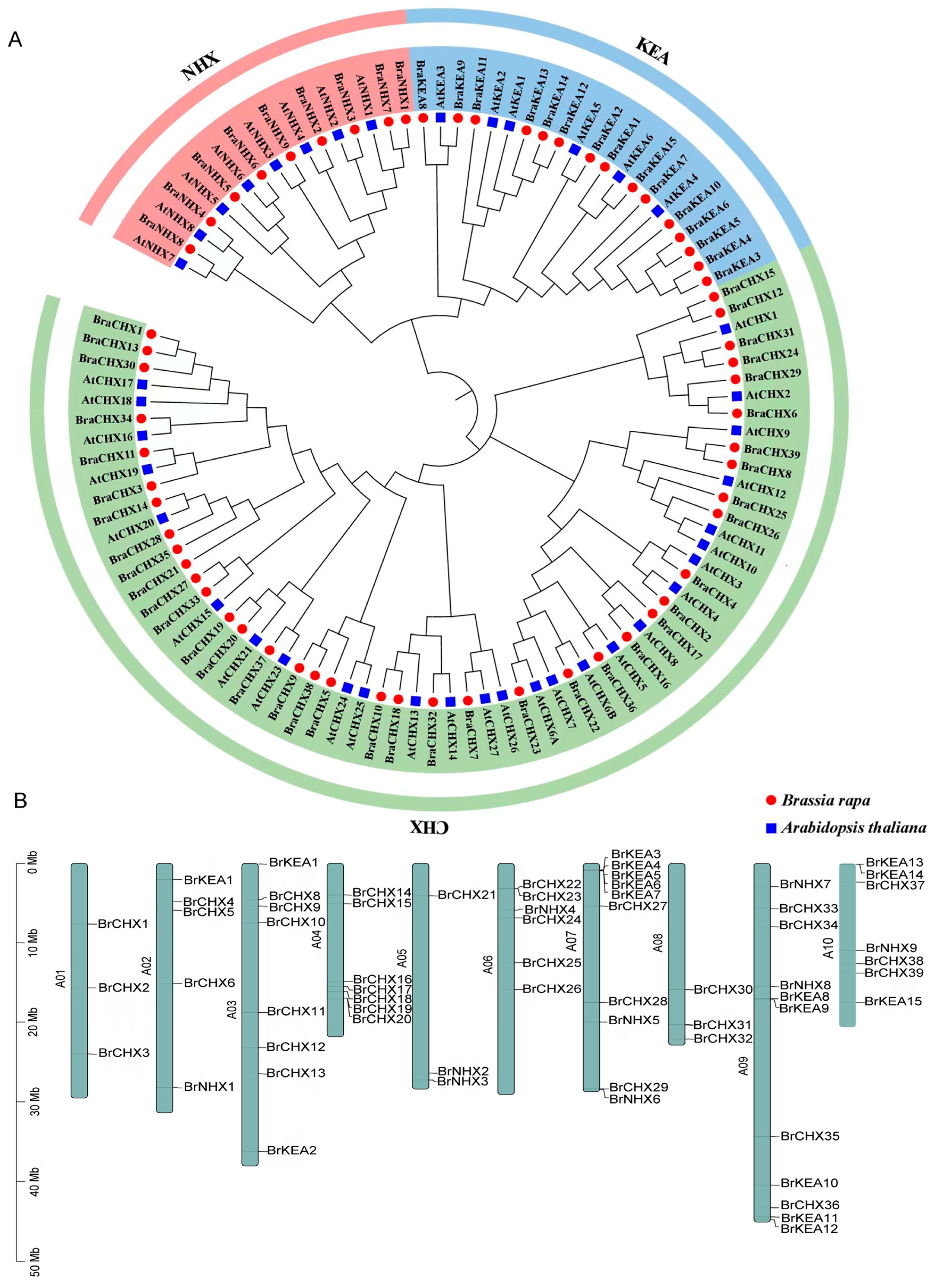

Figure 2. (A). Phylogenetic tree of CPA family members in A. thaliana and B. rapa red circles represent B. rapa, blue squares represent A. thaliana. (B). Chromosomal localization of BrCPA gene family members.
Figure 2. (A). Phylogenetic tree of CPA family members in A. thaliana and B. rapa red circles represent B. rapa, blue squares represent A. thaliana. (B). Chromosomal localization of BrCPA gene family members.
Ijms 26 03099 g002
Ijms 26 03099 g003

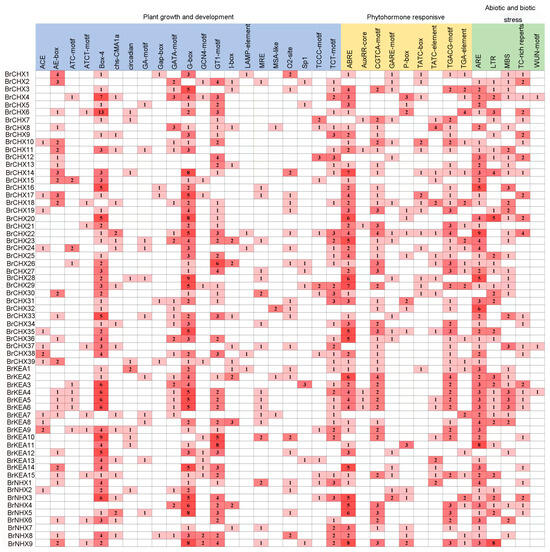

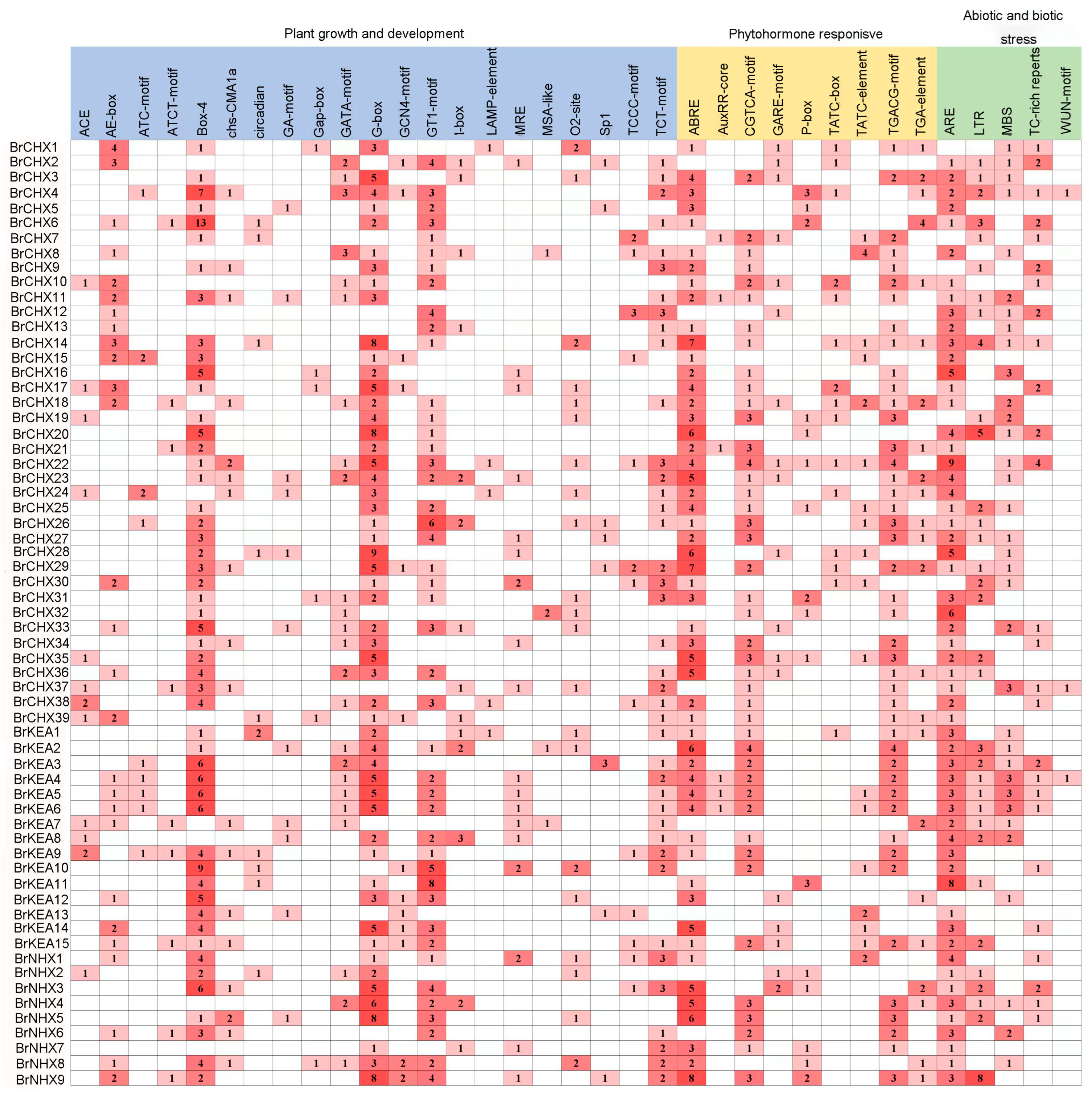

Figure 3. The CPA gene family promoter cis-acting elements. The color intensity and numerical values in the figure represent the quantity of cis-acting elements corresponding to each gene.
Figure 3. The CPA gene family promoter cis-acting elements. The color intensity and numerical values in the figure represent the quantity of cis-acting elements corresponding to each gene.
Ijms 26 03099 g003
Ijms 26 03099 g004

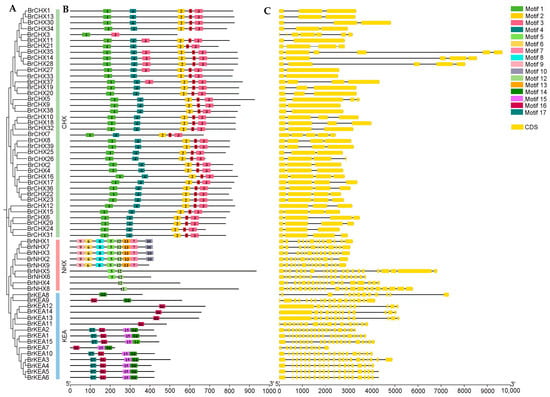

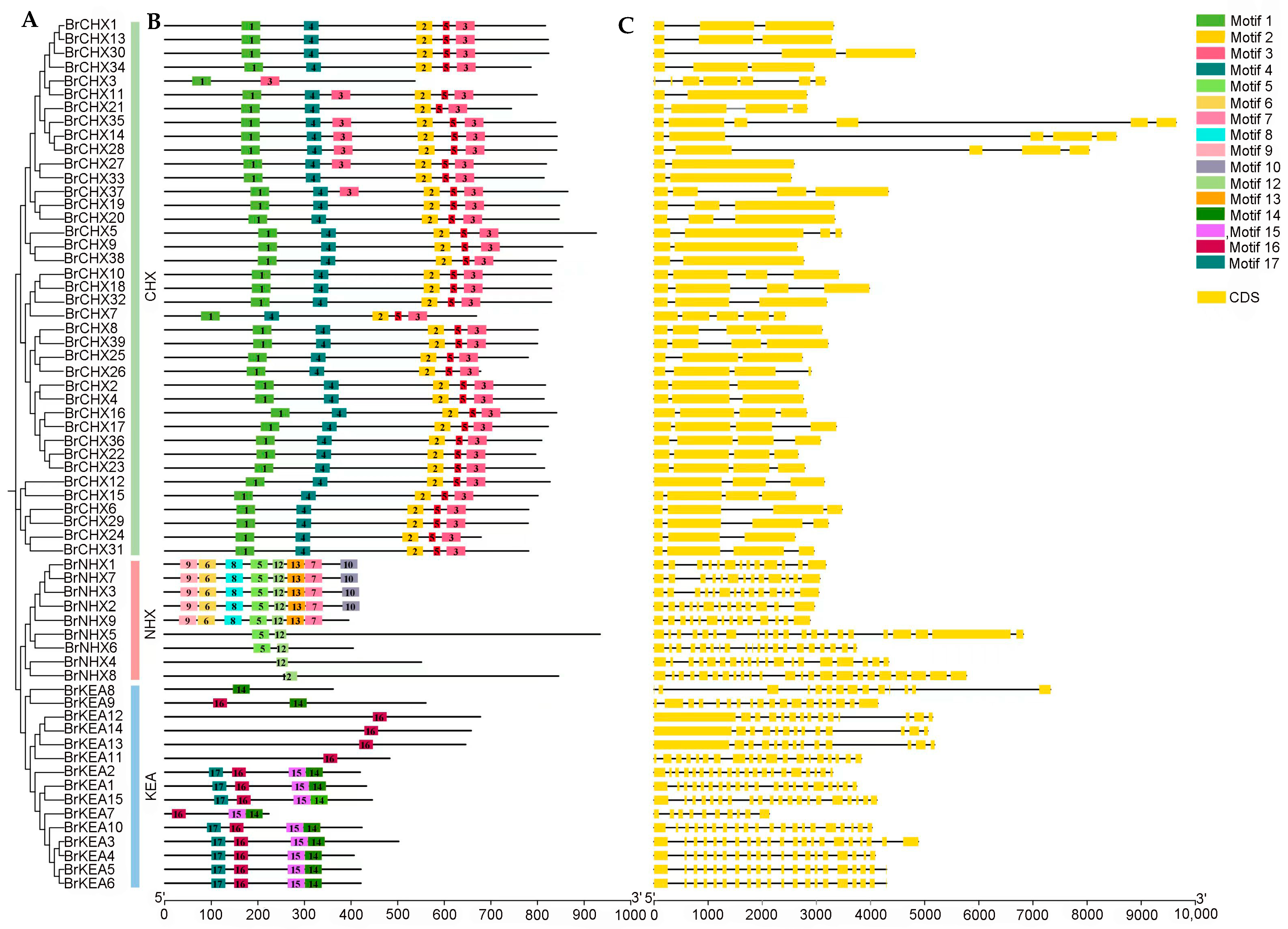

Figure 4. Gene structure analysis. (A). Phylogenetic tree of CPA family members in B. rapa. (B). Conserved motif distribution of BrCPA. (C). Gene structure map of BrCPA.
Figure 4. Gene structure analysis. (A). Phylogenetic tree of CPA family members in B. rapa. (B). Conserved motif distribution of BrCPA. (C). Gene structure map of BrCPA.
Ijms 26 03099 g004
Ijms 26 03099 g005

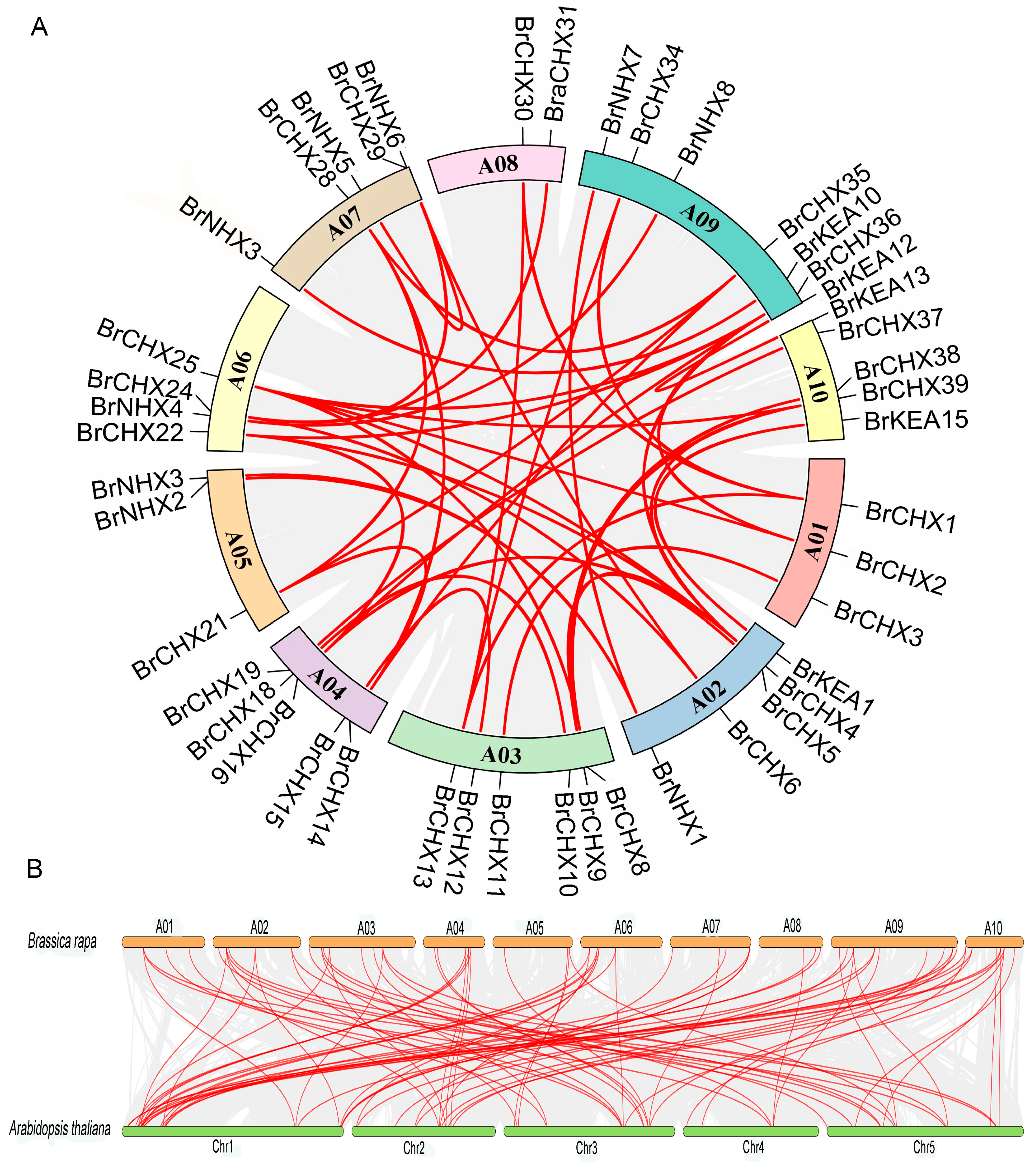

Figure 5. Replication relationships among BrCPA gene family fragments. (A). Analysis of BrCPA gene intraspecific replication events. (B). BrCPA genes and A. thaliana genomic duplication events.
Figure 5. Replication relationships among BrCPA gene family fragments. (A). Analysis of BrCPA gene intraspecific replication events. (B). BrCPA genes and A. thaliana genomic duplication events.
Ijms 26 03099 g005
Ijms 26 03099 g006

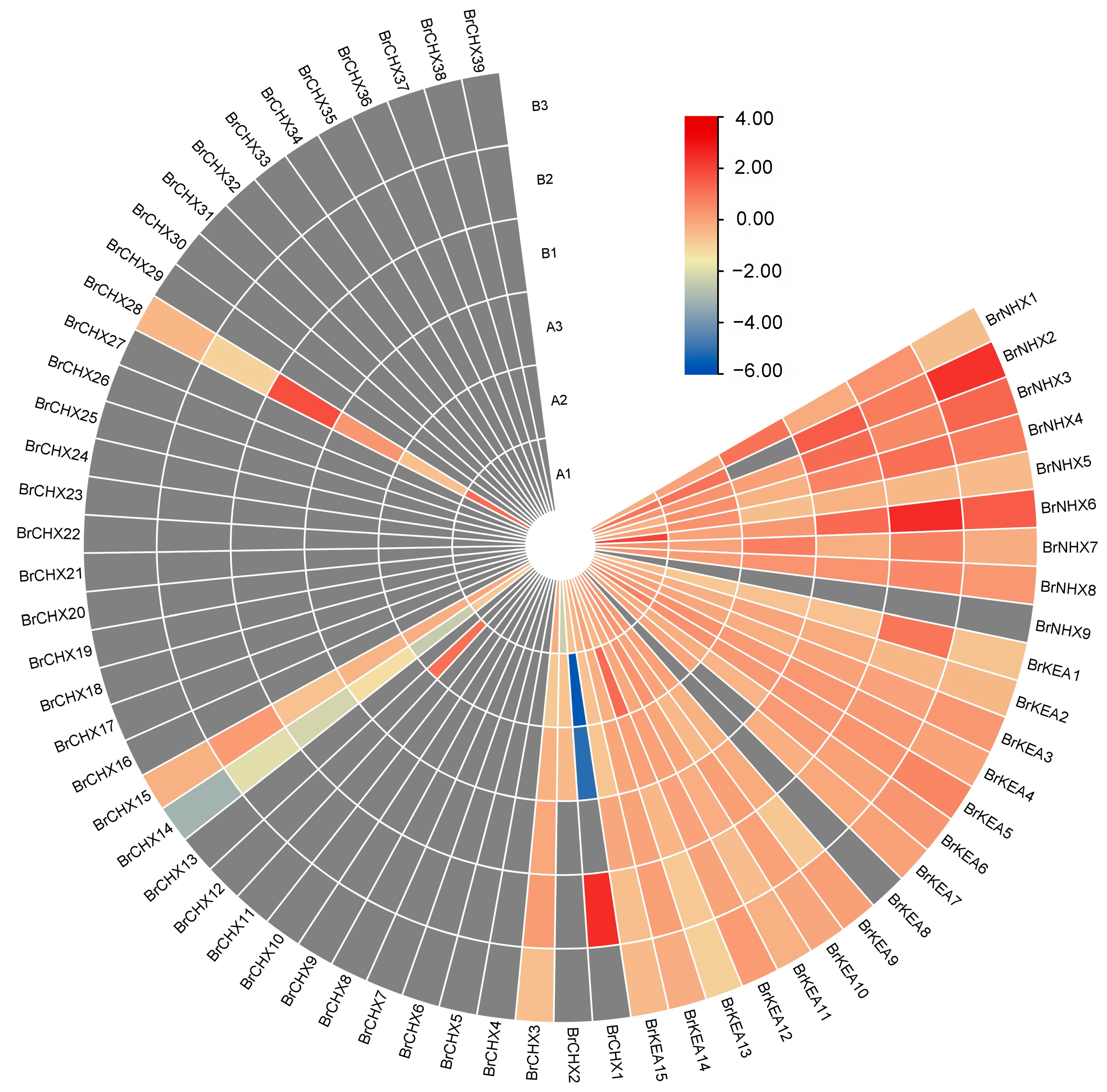

Figure 6. The expression of CPA family genes in B. rapa under salt stress in different varieties. Heatmaps are represented using log2 values for each gene. The color scale indicates the relative expression level from low (blue) to high (red).
Figure 6. The expression of CPA family genes in B. rapa under salt stress in different varieties. Heatmaps are represented using log2 values for each gene. The color scale indicates the relative expression level from low (blue) to high (red).
Ijms 26 03099 g006
Ijms 26 03099 g007

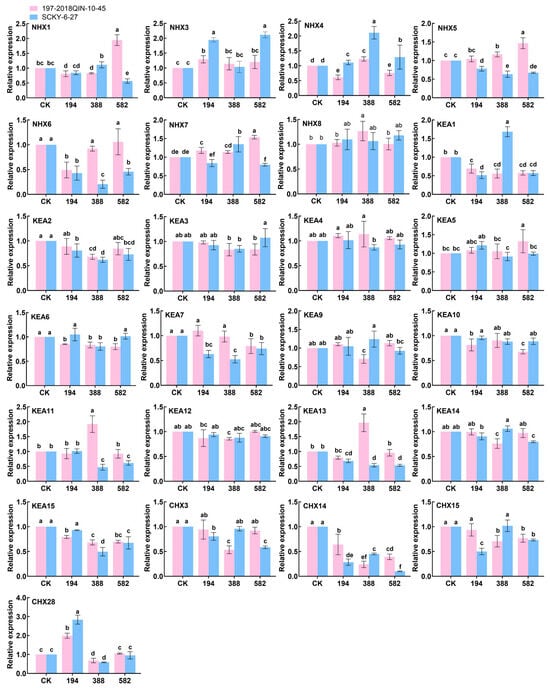

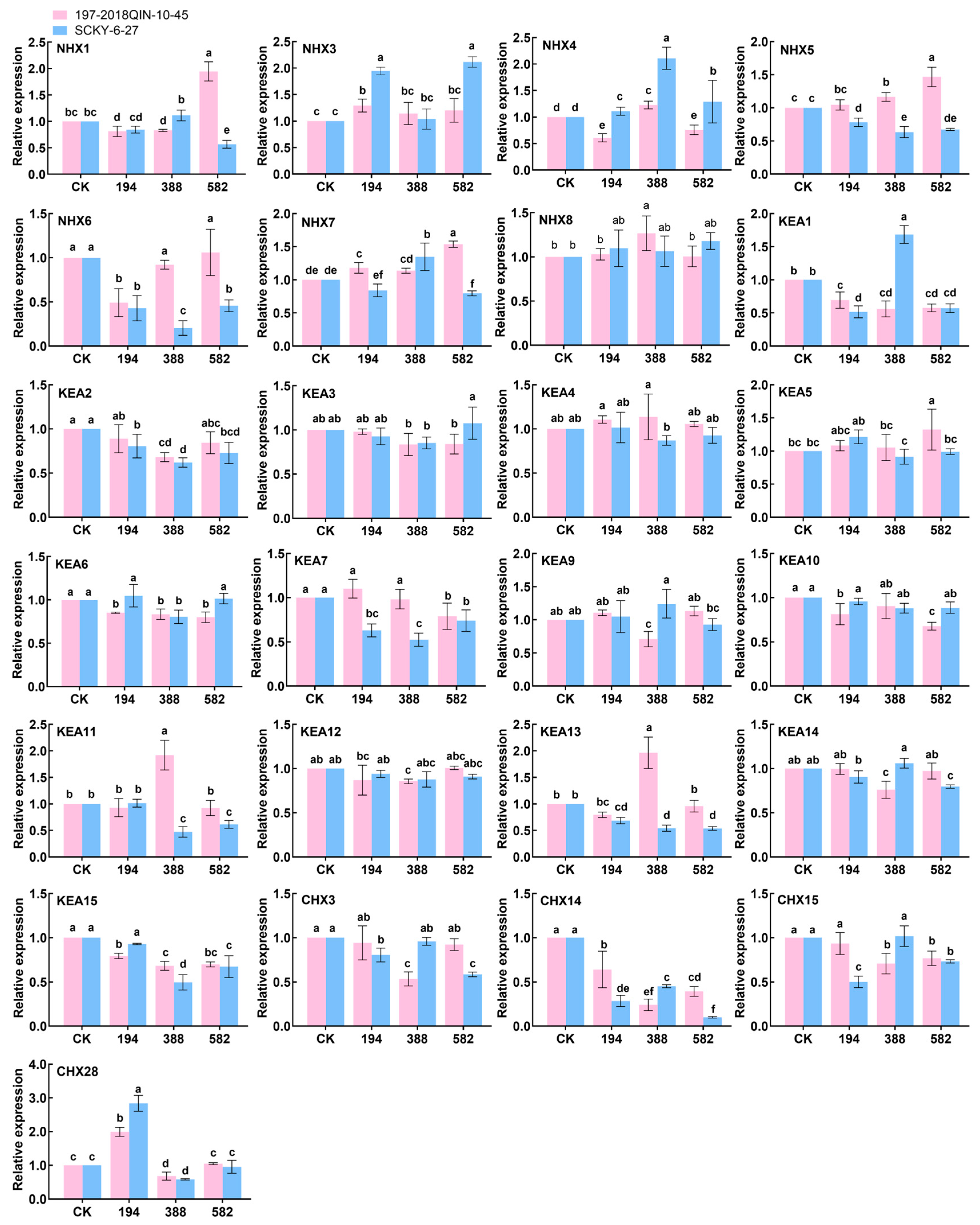

Figure 7. Expression profiles of CPA family genes in B. rapa under salt-stress conditions were investigated. The selected gene’s expression was assessed at salt concentrations of 0, 194 mmol/L, 388 mmol/L, and 582 mmol/L. Results, expressed as mean ± standard error from three biological replicates, are illustrated with error bars. Statistical significance (p ≤ 0.05) is indicated by lowercase letters.
Figure 7. Expression profiles of CPA family genes in B. rapa under salt-stress conditions were investigated. The selected gene’s expression was assessed at salt concentrations of 0, 194 mmol/L, 388 mmol/L, and 582 mmol/L. Results, expressed as mean ± standard error from three biological replicates, are illustrated with error bars. Statistical significance (p ≤ 0.05) is indicated by lowercase letters.
Ijms 26 03099 g007
Table 1. Names corresponding to the transcriptome.
Table 1. Names corresponding to the transcriptome.
Breed NameTreatment Concentration (mmol/L)Analysis Name
197-2018 QIN 10-450A4
197-2018 QIN 10-45194A3
197-2018 QIN 10-45388A2
197-2018 QIN 10-45582A1
SCKY-6-270B4
SCKY-6-27194B3
SCKY-6-27388B2
SCKY-6-27582B1
