Density Functional Studies of the Dipole Polarizabilities of Substituted Stilbene, Azoarene and Related Push-Pull Molecules

Abstract

We report high quality B3LYP Ab Initio studies of the electric dipole polarizability of three related series of molecules: para-XC₆H₄Y, XC₆H₄CH=CHC₆H₄Y and XC₆H₄N=NC₆H₄Y, where X and Y represent H together with the six various activating through deactivating groups NH₂, OH, OCH_3, CHO, CN and NO₂. Molecules for which X is activating and Y deactivating all show an enhancement to the mean polarizability compared to the unsubstituted molecule, in accord with the order given above. A number of representative Ab Initio calculations at different levels of theory are discussed for azoarene; all subsequent Ab Initio polarizability calculations were done at the B3LYP/6-311G(2d,1p)//B3LYP/6-311++G(2d,1p) level of theory.

We also consider semi-empirical polarizability and molecular volume calculations at the AM1 level of theory together with QSAR-quality empirical polarizability calculations using Miller’s scheme. Least-squares correlations between the various sets of results show that these less costly procedures are reliable predictors of <α> for the first series of molecules, but less reliable for the larger molecules.

Introduction

The electric dipole moment p_e of a molecule is a quantity of fundamental importance in structural chemistry. When a molecule is subject to an external electric field E, the molecular charge density may rearrange and hence the dipole moment may change [1]. This change can be described by the tensor equation (1):

$$p_e=p_{e,0}+\alpha :E+\frac{1}{2}\beta :EE+...$$

(1)

Here α is a second rank tensor property called the dipole polarizability, and β is the first of an infinite series of dipole hyperpolarizabilities and p_e,0, the permanent electric dipole moment, is the electric dipole moment in the absence of a field. Because the electric dipole moment may change when an external field is applied, the molecular potential energy U may also change according to the tensor equation (2):

$$U=U_0-p_e.E-\frac{1}{2}\alpha :EE-\frac{1}{6}\beta :EEE-$$

(2)

Hyperpolarizabilities are known to be small in magnitude, and their effect is minimal for weak electric fields. They are however important quantities when the electric field is large, and molecules that exhibit large β values are of current interest because of their applications in electro optical devices [2,3] and in the general field of non-linear optics (NLO). Many such molecules can be represented by the idealized structure shown in Figure 1.

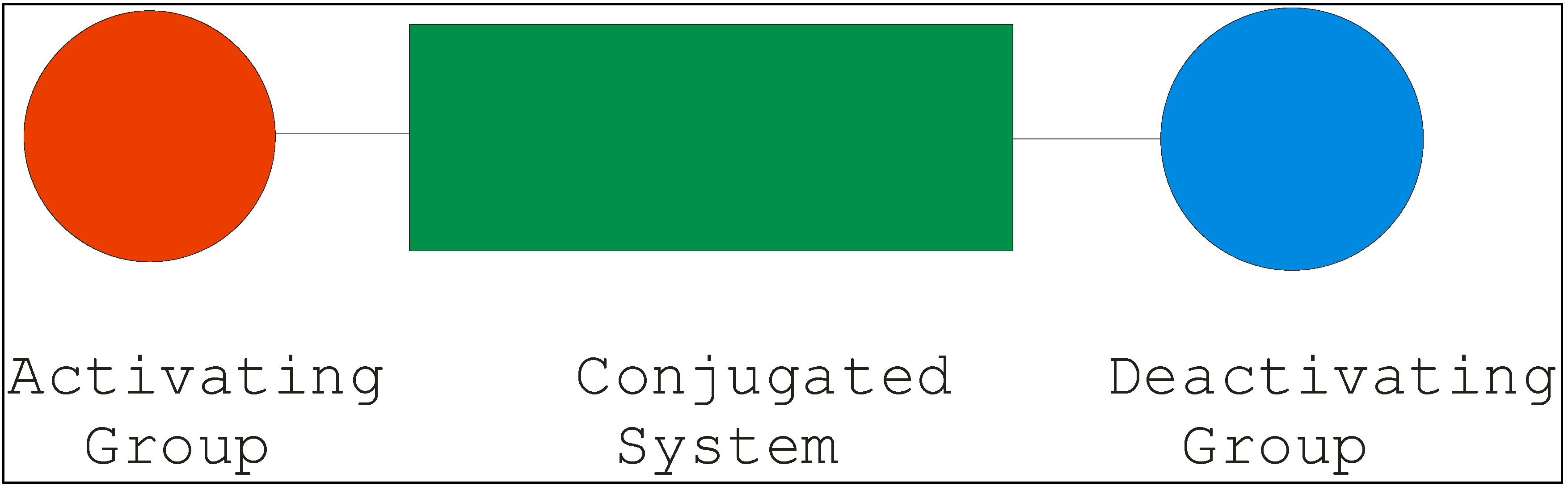

Figure 1. Schematic NLO conjugated molecule

Figure 1. Schematic NLO conjugated molecule

It is thought that better materials can be made by modifying the strength of the activating group, the size and complexity of the conjugated system and the strength of the deactivating group. It is also thought that the presence of an activating group together with a deactivating group in a suitable ring position can enhance some electronic properties. The well-known phrase ‘push-pull mechanism’ is used to describe such phenomena.

A large number of such push-pull systems have been studied in recent years. Azoarene and stilbene derivatives are known to exhibit large nonlinear optical properties, which imply that they have large hyperpolarizabilities. There have been a number of theoretical studies of these quantities [4,5,6]. The aim of this paper is to report a theoretical study of the dipole polarizabilities for the three series of molecules shown in Figure 2. X and Y are a selection of simple activating and deactivating groups, as discussed below.

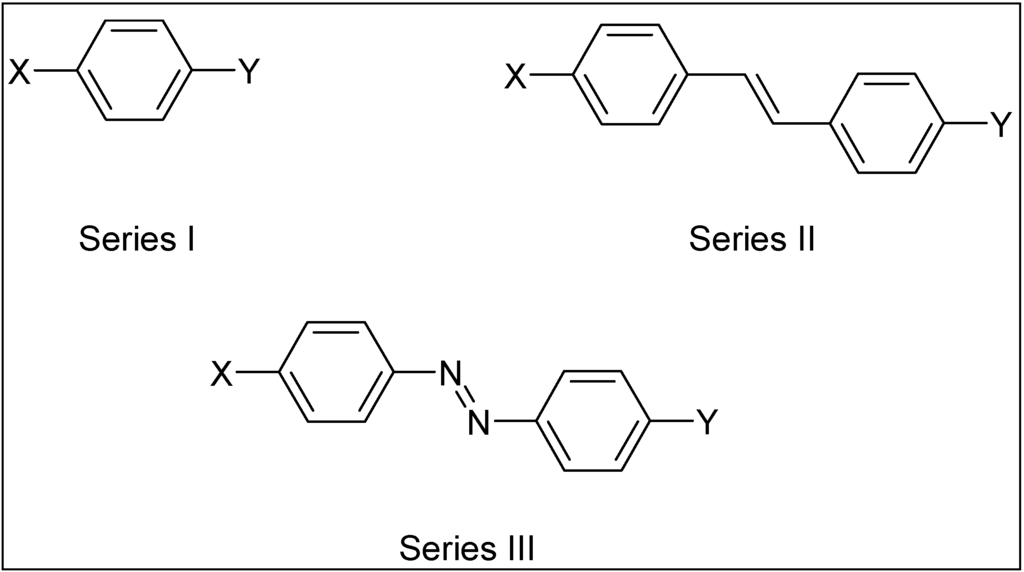

Figure 2. Molecules studied.

Figure 2. Molecules studied.

Choice of Ab Initio level of theory.

The experimental determination of a molecular polarizability is far from straightforward, especially if the molecule has little or no symmetry. The principal routes are studies of refractive index and relative permittivities, through Rayleigh and Raman scattering and through the quadratic Stark effect. These have been well reviewed elsewhere [7], but a few words of background are in order.

For a molecule with symmetry, the principal axes of the polarizability tensor correspond to the symmetry axes; for molecules such as those discussed here workers often refer to the principal axes as L (long), M (medium) and N (normal to the molecular plane) and so the principal values of the tensor are written α_LL, α_MM and α_NN . The mean value

$$<\alpha >=\frac{1}{3}\left({\alpha }_{LL}+{\alpha }_{MM}+{\alpha }_{NN}\right)$$

(3)

(which is invariant to rotation of coordinate axes) can be determined from the refractive index n of a gas of non-interacting particles according to the equation

$$n=1+\frac{\langle \alpha \rangle p}{2{\in }_0{k}_{B}T}$$

(4)

where p is the pressure, k_B the Boltzmann constant, T the thermodynamic temperature and ∈₀ the permittivity of free space [1].

In a condensed phase, the problem is more complicated because the separation between molecules is of the order of molecular dimensions and their interactions can no longer be ignored. As a result both the external field and the field due to the surrounding molecules polarize each molecule. The Lorenz-Lorentz equation:

$$\frac{n^2-1}{n^2+2}=\frac{N\langle \alpha \rangle }{3{\in }_{0}V}$$

(5)

applies to non-polar molecules in condensed phases and it can be derived from a detailed consideration of these ideas [1]. Here, N is the number of molecules in volume V. In the case of molecules with a permanent dipole moment, it is necessary to take account of the orientation polarization. The Debye equation:

$$\frac{M}{\rho }\frac{{\in }_r-1}{{\in }_r+2}=\frac{N_A}{3{\in }_0}\left(\langle \alpha \rangle +\frac{p_e^2}{3k_{B}T}\right)$$

(6)

permits polarizabilities and dipole moments to be determined from measurements of the relative permittivity ∈_r and the density ρ as a function of temperature.

The anisotropy κ, usually defined as:

$$\kappa =\frac{{\alpha }_{LL}^2+{\alpha }_{MM}^2+{\alpha }_{NN}^2-3{<\alpha >}^2}{6{<\alpha >}^2}$$

(7)

gives a measure of deviations from spherical symmetry since it would be zero for a spherically symmetric charge distribution.

An alternative route to polarizability is direct calculation, and there is a large literature on this topic [8]. The general idea is to find a level of theory that gives highly accurate values for the polarizability tensor, but naturally this aim has to moderated with the cost of such calculations.

The principles involved in Ab Initio polarizability calculations are well understood and can be illustrated by our results for azoarene (Series III with X = Y = H), shown in Table 1.

Table 1. Ab Initio calculations on azoarene.

Level of Theory	αLL/au	αMM/au	αNN/au	<α>/au	κ
HF/6-311G(2d,1p)	244.52	140.57	62.25	149.31	0.124
HF/6-311++G(2d,1p)	252.42	147.57	83.89	161.29	0.093
B3LYP/6-311G(2d,1p)	300.78	148.22	62.85	170.62	0.166
B3LYP/6-311++G(2d,1p)	311.19	156.10	84.35	183.88	0.133
B3LYP/6-311++G(3d,2p)	314.44	158.00	86.75	186.40	0.130
B3LYP/6-311++G(2df,pd)	311.02	155.95	84.39	183.79	0.132
‘Standard’	311.25	155.93	84.29	183.82	0.133

Table 1. Ab Initio calculations on azoarene.

Level of Theory	αLL/au	αMM/au	αNN/au	<α>/au	κ
HF/6-311G(2d,1p)	244.52	140.57	62.25	149.31	0.124
HF/6-311++G(2d,1p)	252.42	147.57	83.89	161.29	0.093
B3LYP/6-311G(2d,1p)	300.78	148.22	62.85	170.62	0.166
B3LYP/6-311++G(2d,1p)	311.19	156.10	84.35	183.88	0.133
B3LYP/6-311++G(3d,2p)	314.44	158.00	86.75	186.40	0.130
B3LYP/6-311++G(2df,pd)	311.02	155.95	84.39	183.79	0.132
‘Standard’	311.25	155.93	84.29	183.82	0.133

The atomic unit (au) of dipole polarizability is e² a₀² E_h^-1 so that 1 atomic unit = 1.6488 × 10^-41 C² m² J^-1. The calculations here refer to an isolated gas-phase molecule at 0 K. Naturally, such a molecule has zero-point energy and there is a small but finite contribution to the polarizability from this effect [8]. No attempt was made to estimate the vibrational contributions in this paper.

All calculations were done using Gaussian 03W [9], with standard basis sets, integration points, cutoffs, etc. With the exception of the final row labelled ‘Standard’, all calculations were begun by optimizing the molecular geometry at the level of theory specified; polarizabilities were then calculated at the same level of theory using the standard Gaussian 03W keyword ‘Polar’. This keyword means that the polarizabilities were obtained analytically rather than by numerical differentiation.

The true experimental value for an isolated molecule of azoarene in the gas phase is unknown, but the Table 1 entries suggest values of about 186 au for <α>, and 0.13 for the anisotropy. The first Table 1 entry shows why HF-LCAO calculations with standard basis sets are no longer thought adequate for accurate polarizability calculations; the mean value of 149.31 is poor and the perpendicular component is particularly badly represented. Addition of diffuse functions (second entry) gives a pleasing increase in the perpendicular component, but the mean value is still poor.

The third entry is the KS-LCAO equivalent to the first entry, and illustrates the importance of electron correlation for these calculations. The fourth entry shows once again the importance of diffuse functions. The fifth and sixth entries suggest that there is no real advantage to be gained by trying to improve the polarization functions beyond the usual (2d,1p) set.

The rows of Table 1 are arranged in order of computer resource (measured as time taken to run the calculation using Gaussian03 W on a standard AMD Athlon XP2600+ PC). On detailed comparison, it turns out that the geometries predicted by the very sophisticated basis sets including ++ and extended polarization functions are almost identical to those given by B3LYP/6-311G(2d,1p), so a compromise was chosen in order to save computer resources. Ab Initio geometries reported from now on are at the B3LYP/6-311G(2d,1p) optimized level of theory, whilst the dipole polarizabilities are at the B3LYP/6-311++G(2d,1p) level of theory but with the same geometry. This is the meaning of the term ‘Standard’ in Table 1. In a commonly used notation [9], the polarizabilities are therefore calculated at the B3LYP/6-311G(2d,1p)// B3LYP/6-311++G(2d,1p) level of theory. The anisotropy κ does not appear to be a very sensitive descriptor, and will not be mentioned again.

Calculations on monosubstituted benzenes

The first step is to consider the monosubstituted benzenes, which correspond to Series I with X = H. We will report only the mean polarizabilities for this series, but draw attention to any interesting behaviour in the tensor components. Table 2 shows various data for the molecules studied.

Table 2. Various quantities for Series I with X = H

Y	Ab Initio <α>/ au	Increment/ au	Volume/ Å3	Miller/ Å3	AM1 <α> /au
H	67.307	0.00	332.58	10.43	48.83
OH	72.800	5.49	353.40	11.07	53.27
NH2	79.425	12.12	367.69	11.78	61.99
CHO	84.772	17.47	386.41	12.36	63.43
CN	84.923	17.62	389.57	12.29	64.31
OCH3	85.665	18.36	407.96	12.91	63.80
NO2	85.676	18.37	393.30	12.15	66.05

Table 2. Various quantities for Series I with X = H

Y	Ab Initio <α>/ au	Increment/ au	Volume/ Å3	Miller/ Å3	AM1 <α> /au
H	67.307	0.00	332.58	10.43	48.83
OH	72.800	5.49	353.40	11.07	53.27
NH2	79.425	12.12	367.69	11.78	61.99
CHO	84.772	17.47	386.41	12.36	63.43
CN	84.923	17.62	389.57	12.29	64.31
OCH3	85.665	18.36	407.96	12.91	63.80
NO2	85.676	18.37	393.30	12.15	66.05

The second column of Table 2 shows the mean polarizability, and the third column is the polarizability difference on substitution of Y into benzene. These values give us an ’increment’ for use when discussing possible additivities in the polarizability mean values for later series of molecules. The table values are arranged in order of increasing increment. The largest increment is seen to be due to NO₂, and the two smallest increments are due to OH and NH₂.

According to a recent undergraduate organic chemistry textbook [10], the order of our chosen groups from highest activating to highest deactivating is as follows: NH₂ > OH > OCH₃ > (zero) -C(=O)H > CN > NO₂, with the point on the scale where groups are neither activating or deactivating denoted ‘zero’. There is no particular reason why our increments should correlate exactly with Loudon’s scheme; the latter is to do with the chemical reactivity of a given substituted molecule C₆H₅X compared to benzene, ours to do with the response of the ground state molecule C₆H₅X to an applied electric field. We will see later that the scheme gives a good indication of increments for disubstituted species.

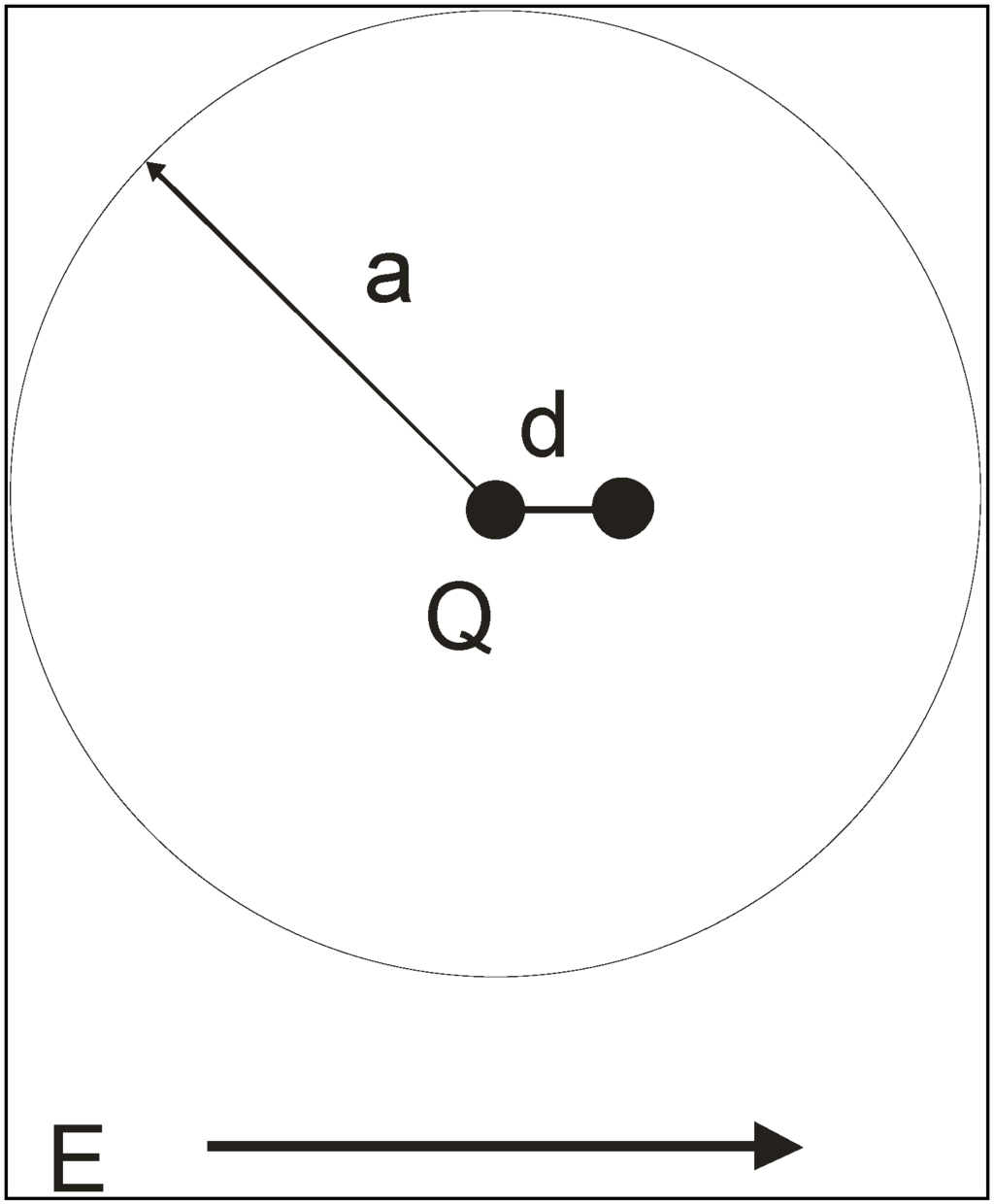

Figure 3. Atom in an external electric field

Figure 3. Atom in an external electric field

Dipole polarizabilities are often used in QSAR studies, where the aim is to give a reliable but quick estimate of <α>, as part of the process of high-throughput screening. Ab Initio polarizability calculations are prohibitively expensive in a QSAR context, even for such simple molecules. One therefore looks to less rigorous but reliable procedures. Consider therefore a typical neutral atom modelled as the sphere of charge shown in Figure 3. The radius is a and the nuclear charge is Q. We switch on the electric field E which displaces the nucleus by a relative distance d from the original atomic centre. At this point there is a force on the nucleus QE due to the applied field and one due to the electron density. According to Gauss’ electrostatic theorem [1], the latter force is

$$\frac{Q^{2}d}{4\pi {\epsilon }_0{a}^3}$$

(8)

At equilibrium these two forces must be equal and so the displacement d satisfies

$$\frac{Q^{2}d}{4\pi {\epsilon }_0{a}^3}=QE$$

(9)

The induced electric dipole moment is Qd and the polarizability is Qd / E hence

$$\alpha =4\pi {\epsilon }_0{a}^3$$

(10)

The derivation can be easily extended to a closed volume of arbitrary shape, not necessarily a sphere, and apart from the factor 4πε₀ the polarizability of an atom is determined in this model by its volume. For this reason, workers in the field speak about ‘polarizability volumes’ and quote their results in volume units.

Molecular volumes are routinely determined in QSAR studies, and typical values are shown in column 4. The numerical conversion factor between ų and atomic units of polarizability is

$$\frac{4\pi {\epsilon }_0\times {10}^{-30}}{1.6488\times {10}^{-41}}=6.748$$

and so the prediction from this simple model would be <α> = 6.748 / × 332.58 au = 2244 au for benzene. Whilst the quantitative agreement with experiment is clearly nonexistent, our molecular volumes do give a good least square fit to the Ab Initio mean polarizability values, with a correlation coefficient of 0.94.

Rewriting equation (5) in terms of molar quantities defines the molar refractivity

$$R_M=\frac{M}{\rho }\frac{n^2-1}{n^2+2}=\frac{N_A<\alpha >}{3{\in }_0}$$

(11)

Here M is the molar mass, N_A the Avogadro constant and ρ the density. It is an experimental fact that molar refractivities are additive properties at the molecular level, and a view has long prevailed that the molar refractivity of a molecule is a sum of the molar refractivities of the constituent parts (atoms/ groups). Extensive tables of additive atom and group molar refractivities are available [11]. These tables have been extended to molecular polarizabilities with the compilations of Denbigh [12] and others. Such values are thought to be unreliable for molecular polarizability calculations.

The definitive reference in this field appears to be that due to K. J. Miller [13]. Miller pointed out the need to take account of the atomic environment in molecular calculations, and this is usually done by assigning parameters in which each atom is characterized by its state of atomic hybridization. Miller and Savchik [14] proposed a functional form

$$<\alpha >=4\pi {\epsilon }_0\frac{4}{N}{\left({\displaystyle \sum _A{\tau }_A}\right)}^2$$

(12)

where τ_A is an atomic hybrid component for each atom A in a given state of hybridization. N is the total number of electrons. In fact, Miller and Savchik omitted the factor 4πε₀ and so most computer packages quote the results as polarizability volumes (typically ų). These are shown in column 5 of Table 2. The Miller method gives a mean polarizability of 70.38 au for benzene, in much better agreement with the Ab Initio value than the crude molecular volume. It is clear that polarization volumes are not to be interpreted as molecular volumes. A linear regression between the Miller and the Ab Initio <α> values as shown in Table 2 gives a regression coefficient of 0.93.

Finally we should consider the use of semiempirical HF-LCAO techniques such as CNDO/2, MINDO3, PM3 and AM1 for calculations of dipole polarizabilities. The final column of Table 2 shows AM1 calculations of <α>. All geometries were optimized before calculation of <α>. There is a good least squares correlation between the AM1 and the Ab Initio results, with a correlation coefficient of 0.96, but semiempirical calculations of the tensor α (rather than the mean value) tend to give extremely poor values for the normal component α_NN. For benzene we find

$${\alpha }_{B3LYP}/au=\left(\begin{array}{ccc}79.43& 0& 0\\ 0& 79.43& 0\\ 0& 0& 43.00\end{array}\right) {\alpha }_{AM1}/au=\left(\begin{array}{ccc}68.60& 0& 0\\ 0& 68.60& 0\\ 0& 0& 9.03\end{array}\right)$$

Calculations on disubstituted benzenes (Series I)

Table 3 records values of Ab Initio calculations on Series I C₆H₄X with a further X substituted in the para position (giving X-C₄H₄-X).

Table 3. Various quantities for the X-C₆H₄-X series

X	Ab Initio <α> /au	Increment /au	Additive increments from Table 2 /au
H	67.31	0.00	0.00
OH	77.81	10.50	10.99
NH2	90.87	23.56	24.24
CHO	103.86	36.56	34.93
CN	105.40	38.10	35.23
OCH3	106.19	38.88	36.72
NO2	104.60	37.29	37.74

Table 3. Various quantities for the X-C₆H₄-X series

X	Ab Initio <α> /au	Increment /au	Additive increments from Table 2 /au
H	67.31	0.00	0.00
OH	77.81	10.50	10.99
NH2	90.87	23.56	24.24
CHO	103.86	36.56	34.93
CN	105.40	38.10	35.23
OCH3	106.19	38.88	36.72
NO2	104.60	37.29	37.74

The second column gives the mean polarizability, the third column the difference between the disubstituted molecule and benzene, whilst the final column shows the sum of increments that would be expected for a purely additive model (with results taken from Table 2). The values in columns 3 and 4 are little different, but there is no obvious trend. We now consider the selection of para-substituted X-C₆H₄-Y molecules shown in Table 4, where X and Y are activating/deactivating groups.

Table 4. Various quantities for the X-C₆H₄-Y series

X, Y	Ab Initio <α> /au	Increment /au	Additive increment from Table 2. /au	Volume / Å3	Miller / Å3
H,H	67.31	0.00	0.00	332.58	10.43
OH, CN	91.72	24.41	23.11	410.18	12.92
NH2, CN	99.82	32.52	29.73	424.43	13.64
OH, CHO	92.24	24.93	22.96	408.53	12.99
NH2, CHO	101.20	33.89	29.58	421.21	13.71
OCH3, NO2	108.86	41.55	36.73	470.44	14.75
OCH3, CN	106.44	39.13	35.97	465.75	14.76
OCH3, CHO	107.25	39.94	35.82	464.6	14.83
NH2, NO2	104.93	37.62	30.49	428.06	13.63
OH, NO2	93.83	26.52	23.86	413.44	12.91

Table 4. Various quantities for the X-C₆H₄-Y series

X, Y	Ab Initio <α> /au	Increment /au	Additive increment from Table 2. /au	Volume / Å3	Miller / Å3
H,H	67.31	0.00	0.00	332.58	10.43
OH, CN	91.72	24.41	23.11	410.18	12.92
NH2, CN	99.82	32.52	29.73	424.43	13.64
OH, CHO	92.24	24.93	22.96	408.53	12.99
NH2, CHO	101.20	33.89	29.58	421.21	13.71
OCH3, NO2	108.86	41.55	36.73	470.44	14.75
OCH3, CN	106.44	39.13	35.97	465.75	14.76
OCH3, CHO	107.25	39.94	35.82	464.6	14.83
NH2, NO2	104.93	37.62	30.49	428.06	13.63
OH, NO2	93.83	26.52	23.86	413.44	12.91

Again, column 2 shows the Ab Initio mean polarizabilities, column 3 the difference between the molecule and benzene and column 4 the value that this increment would have in a purely additive model using the values given in Table 2. In every case, disubstitution produces a larger enhancement of <α> than we would have expected from pure additivity of the two functional groups. This behaviour is consistent with the push-pull mechanism. The largest push-pull enhancement is for the pair X = NH₂, Y = NO₂ (7.14 au), which is entirely consistent with the order of activating/ deactivating groups mentioned above. For clarity, the enhancements are shown in Table 5, arranged in order of increasing value.

Table 5. Push-pull enhancements to <α>

X,Y	Enhancement / au
H,H	0
OH, CN	1.30
OH, CHO	1.97
OH, NO2	2.66
NH2, CN	2.78
OCH3, CN	3.16
OCH3, CHO	4.12
NH2, CHO	4.30
OCH3, NO2	4.83
NH2, NO2	7.14

Table 5. Push-pull enhancements to <α>

X,Y	Enhancement / au
H,H	0
OH, CN	1.30
OH, CHO	1.97
OH, NO2	2.66
NH2, CN	2.78
OCH3, CN	3.16
OCH3, CHO	4.12
NH2, CHO	4.30
OCH3, NO2	4.83
NH2, NO2	7.14

A linear regression between the molecular volumes and the Ab Initio mean polarizabilities gives a correlation coefficient of 0.93, with a corresponding correlation coefficient of 0.95. Although not shown here, AM1 calculations of the mean polarizability give values that correlate well with the Ab Initio values (with a correlation coefficient of 0.99), but the AM1 α_NN absolute values are as usual extremely low.

Calculations on disubstituted stilbene and azoarene (Series II and III)

In Table 6, we record the polarizability principal components for the 10 disubstituted stilbenes.

Table 6. Principal values of α for the X-C₆H₄-CH=CH-C₆H₄-Y series

X, Y	αLL /au	αMM /au	αNN. /au
H,H	324.33	162.65	89.41
OH, CN	439.91	170.63	96.22
NH2, CN	487.65	173.53	100.14
OH, CHO	439.67	178.54	95.66
NH2, CHO	480.89	181.99	99.84
OCH3, NO2	488.91	191.94	105.34
OCH3, CN	473.32	181.61	106.52
OCH3, CHO	474.03	189.23	106.00
NH2, NO2	502.82	184.35	99.27
OH, NO2	452.91	180.76	95.08

Table 6. Principal values of α for the X-C₆H₄-CH=CH-C₆H₄-Y series

X, Y	αLL /au	αMM /au	αNN. /au
H,H	324.33	162.65	89.41
OH, CN	439.91	170.63	96.22
NH2, CN	487.65	173.53	100.14
OH, CHO	439.67	178.54	95.66
NH2, CHO	480.89	181.99	99.84
OCH3, NO2	488.91	191.94	105.34
OCH3, CN	473.32	181.61	106.52
OCH3, CHO	474.03	189.23	106.00
NH2, NO2	502.82	184.35	99.27
OH, NO2	452.91	180.76	95.08

These are given primarily for reference, given the compute-intensive nature of the calculations and the sensitivity of the normal component to level of theory. In Table 7, we record a number of quantities for discussion.

Table 7. Various quantities for the X-C₆H₄-CH=CH-C₆H₄-Y series

X, Y	Ab Initio <α> /au	Increment /au	Additive increment from Table 2. /au	Volume / Å3	Miller / Å3
H,H	192.13	0.00	0.00	633.02	23.57
OH, CN	235.59	43.46	23.11	710.36	26.06
NH2, CN	253.78	61.65	29.73	724.06	26.77
OH, CHO	237.95	45.83	22.96	710.34	26.13
NH2, CHO	254.24	62.11	29.58	721.72	26.84
OCH3, NO2	262.06	69.93	36.73	770.34	27.88
OCH3, CN	253.82	61.69	35.97	767.00	27.90
OCH3, CHO	256.42	64.29	35.82	764.80	27.96
NH2, NO2	262.15	70.02	30.49	726.86	26.76
OH, NO2	242.92	50.79	23.86	713.67	26.05

Table 7. Various quantities for the X-C₆H₄-CH=CH-C₆H₄-Y series

X, Y	Ab Initio <α> /au	Increment /au	Additive increment from Table 2. /au	Volume / Å3	Miller / Å3
H,H	192.13	0.00	0.00	633.02	23.57
OH, CN	235.59	43.46	23.11	710.36	26.06
NH2, CN	253.78	61.65	29.73	724.06	26.77
OH, CHO	237.95	45.83	22.96	710.34	26.13
NH2, CHO	254.24	62.11	29.58	721.72	26.84
OCH3, NO2	262.06	69.93	36.73	770.34	27.88
OCH3, CN	253.82	61.69	35.97	767.00	27.90
OCH3, CHO	256.42	64.29	35.82	764.80	27.96
NH2, NO2	262.15	70.02	30.49	726.86	26.76
OH, NO2	242.92	50.79	23.86	713.67	26.05

Table 8 and Table 9 are the corresponding Tables for the disubstituted azobenzenes.

Table 8. Principal values of α for the X-C₆H₄-N=N-C₆H₄-Y series

X, Y	αLL /au	αMM /au	αNN /au
H,H	311.25	155.93	84.29
OH, CN	429.06	163.58	91.29
NH2, CN	481.94	166.36	95.07
OH, CHO	422.02	171.40	90.78
NH2, CHO	469.15	174.80	94.84
OCH3, NO2	464.36	184.83	100.40
OCH3, CN	464.67	174.40	101.57
OCH3, CHO	458.10	181.92	101.06
NH2, NO2	497.59	177.74	94.17
OH, NO2	427.04	173.85	90.16

Table 8. Principal values of α for the X-C₆H₄-N=N-C₆H₄-Y series

X, Y	αLL /au	αMM /au	αNN /au
H,H	311.25	155.93	84.29
OH, CN	429.06	163.58	91.29
NH2, CN	481.94	166.36	95.07
OH, CHO	422.02	171.40	90.78
NH2, CHO	469.15	174.80	94.84
OCH3, NO2	464.36	184.83	100.40
OCH3, CN	464.67	174.40	101.57
OCH3, CHO	458.10	181.92	101.06
NH2, NO2	497.59	177.74	94.17
OH, NO2	427.04	173.85	90.16

Table 9. Various quantities for the X-C₆H₄-N=N-C₆H₄-Y series

X, Y	Ab Initio <α> /au	Increment /au	Additive increment from Table 2. /au	Volume / Å3	Miller / Å3
H,H	183.82	0.00	0.00	618.29	22.15
OH, CN	227.98	44.16	23.11	698.05	24.64
NH2, CN	247.79	63.97	29.73	711.11	25.36
OH, CHO	228.07	44.24	22.96	694.77	24.71
NH2, CHO	246.26	62.44	29.58	708.53	25.43
OCH3, NO2	249.86	66.04	36.73	757.75	26.47
OCH3, CN	246.88	63.06	35.97	754.4	26.48
OCH3, CHO	247.03	63.20	35.82	752.9	26.55
NH2, NO2	256.50	72.68	30.49	714.32	25.35
OH, NO2	230.35	46.53	23.86	702.9	24.63

Table 9. Various quantities for the X-C₆H₄-N=N-C₆H₄-Y series

X, Y	Ab Initio <α> /au	Increment /au	Additive increment from Table 2. /au	Volume / Å3	Miller / Å3
H,H	183.82	0.00	0.00	618.29	22.15
OH, CN	227.98	44.16	23.11	698.05	24.64
NH2, CN	247.79	63.97	29.73	711.11	25.36
OH, CHO	228.07	44.24	22.96	694.77	24.71
NH2, CHO	246.26	62.44	29.58	708.53	25.43
OCH3, NO2	249.86	66.04	36.73	757.75	26.47
OCH3, CN	246.88	63.06	35.97	754.4	26.48
OCH3, CHO	247.03	63.20	35.82	752.9	26.55
NH2, NO2	256.50	72.68	30.49	714.32	25.35
OH, NO2	230.35	46.53	23.86	702.9	24.63

Once again, we focus on the push-pull contribution to the mean polarizability, defined as the difference between column 2 and column 3, i.e., the differences between the substituted and unsubstituted molecules. For clarity, these are recorded in Table 10, in order of increasing magnitude for the two series.

Table 10. Push-pull enhancements to the mean polarizability.

Stilbene series		Azoarene series
Groups X, Y	Enhancement / au	Groups	Enhancement / au
H,H	0	H,H	0
OH,CN	20.35	OH,CN	21.05
OH,CHO	22.87	OH,CHO	21.28
OCH3,CN	25.71	OH,NO2	22.66
OH,NO2	26.93	OCH3,CN	27.08
OCH3,CHO	28.47	OCH3, CHO	27.38
NH2,CN	31.91	OCH3, NO2	29.31
NH2,CHO	32.53	NH2,CHO	32.86
OCH3,NO2	33.21	NH2,CN	34.23
NH2,NO2	39.53	NH2,NO2	42.19

Table 10. Push-pull enhancements to the mean polarizability.

Stilbene series		Azoarene series
Groups X, Y	Enhancement / au	Groups	Enhancement / au
H,H	0	H,H	0
OH,CN	20.35	OH,CN	21.05
OH,CHO	22.87	OH,CHO	21.28
OCH3,CN	25.71	OH,NO2	22.66
OH,NO2	26.93	OCH3,CN	27.08
OCH3,CHO	28.47	OCH3, CHO	27.38
NH2,CN	31.91	OCH3, NO2	29.31
NH2,CHO	32.53	NH2,CHO	32.86
OCH3,NO2	33.21	NH2,CN	34.23
NH2,NO2	39.53	NH2,NO2	42.19

For both series, the smallest enhancement is due to the pair OH/ CN, and the largest enhancement due to the pair NH₂/ NO₂. The overall combinations vary between the two series, but the enhancements are consistent with the standard activating/ deactivating order mentioned above.

Finally we consider the likely reliability of various easily-computed indices such as the molecular volume, the Miller empirical volume polarizabilities and AM1 polarizabilities discussed above. Linear regressions were done for each of these quantities against the B3LYP mean polarizabilities <α>, and the regression coefficients r are given in Table 11.

Table 11. Linear regression coefficients r for the Stilbene/ azoarene series II and III.

Correlation of <α>B3LYP with	Stilbene	Azoarene
Molecular volume	0.80	0.77
<α>Miller	0.85	0.83
<α>AM1	0.85	0.88

Table 11. Linear regression coefficients r for the Stilbene/ azoarene series II and III.

Correlation of <α>B3LYP with	Stilbene	Azoarene
Molecular volume	0.80	0.77
<α>Miller	0.85	0.83
<α>AM1	0.85	0.88

The correlation coefficients are all well below 0.95, which value if often taken to justify a straight line relationship. It therefore seems that none of the three simpler procedures gives a reliable estimate of <α> for these two latter series of molecules.

Conclusions

General

• Ab Initio polarizability calculations at the B3LYP/6-311G(2d,1p)//B3LYP/6-311++G(2d,1p) level of theory are adequate for molecules of this complexity, and give an attractive saving in computer resource.
• Our Ab Initio calculations give further support to the well-reported ‘push-pull’ mechanism.
• The simple models considered do not give acceptable least squares correlations with the Ab Initio results for the larger molecules.

Monosubstituted benzenes

• Polarizability increments compared with benzene follow the standard organic chemistry ‘activating-deactivating’ sequence.
• There are good least squares correlations between the Ab Initio results and those given by cheaper procedures such as the calculated molecular volume, the Miller empirical polarizability and semiempirical models such as AM1.
• Semiempirical models grossly underestimate the normal component of the polarizability tensor.

Disubstituted benzenes (Series I)

• Polarizability increments are in accord with the standard organic chemistry ‘activating-deactivating’ sequence.
• Disubstitution produces a larger effect than we would expect on the basis of pure additivity, consistent with the push-pull mechanism.
• There are reasonable least squares correlations between the Ab Initio results and those given by the computationally cheaper procedures.

Series II and III

• Polarizability increments are in accord with the standard organic chemistry ‘activating-deactivating’ sequence.
• Inclusion of the extra -CH=CH- and -N=N- group enhances the increment, but there is little to choose between these two groups.
• Least squares analysis show that there are essentially no correlations between the Ab Initio results and those given by the computationally cheaper procedures.
