Improved Synthesis and Determination of the Biologically Active Diastereomer of YK11

Abstract

The palladium catalyzed carbonylation of 1 using the chiral ligand L1 afforded 2 in a highly diastereoselective manner. The stereochemistry of the major diastereomer 2a was determined by X-ray crystallographic analysis. AR luciferase reporter assay studies suggested that 2a was the active constituent of YK11 (2).

1. Introduction

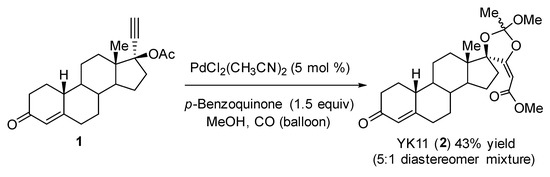

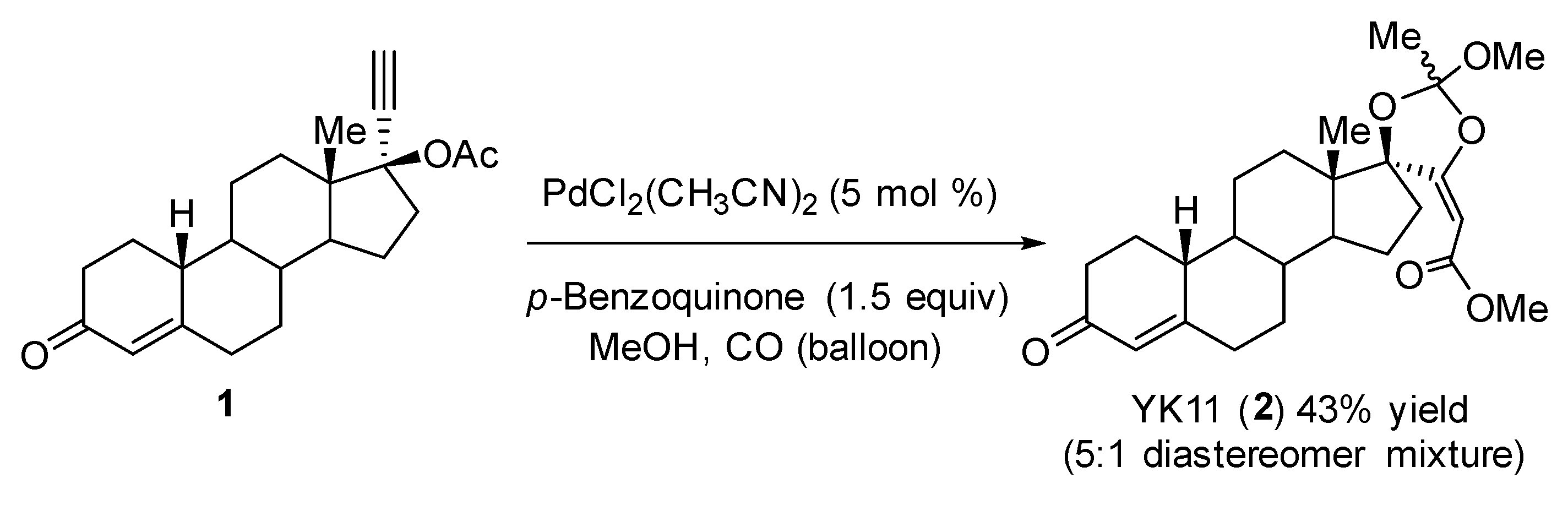

Selective androgen receptor modulators (SARMs) are a class of androgen receptor (AR) ligands that show tissue-selective activation of androgenic signaling [1]. SARMs possess the beneficial effect of androgens with few adverse side effects via androgen receptors [2]. The synthetic steroid (17α,20E)-17,20-[(1-methoxyethylidene) bis(oxy)]-3-oxo-19-norpregna-4,20-diene-21-carboxylic acid methyl ester (YK11) (2) is a type of SARM that partially activates ARs without the amino (NH₂)- and carboxyl- terminal (N/C) interactions [3]. In addition, 2 shows AR-mediated gene-selective transactivation in the AR-positive human breast cancer cell line MDA-MB 453 [3,4]. YK11 is a mixture of two diastereomers (5:1), and the stereochemistry of the orthoester moiety positioned at the D-ring has not been determined yet. Previously, we reported the synthesis of 2 and related steroids having spiro-orthoester structures [3,5]. PdCl₂(CH₃CN)₂ catalyzed carbonylation of 1 in the presence of p-benzoquinone in methanol afforded 2 as a 5:1 mixture of diastereomers in 43% yield (Scheme 1). We could not separate these diastereomers because they had the same Rf value in a particular solvent system. Recently, we reported the asymmetric cyclization carbonylation of propargyl acetate using a Pd(tfa)₂/sulfoxide-oxazoline (sox) catalyst, which improved the yield and enantioselectivity [6]. In addition, we reported that DMSO/MeOH solvent is effective for methanolysis of the acylpalladium species [7]. On the basis of these recent findings, we report here the improved synthesis of 2 and elucidation of the stereochemistry of the biologically active diastereomer of 2.

2. Results and Discussion

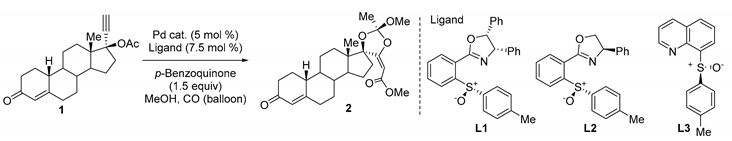

Pd(tfa)₂/L1 catalyzed carbonylation of 1 in the presence of p-benzoquinone in methanol afforded 2 as a 4:1 mixture of diastereomers in 63% yield (

Table 1. Palladium catalyzed cyclization carbonylation of 1.

Entry	Ligand	Temp.	Time	Yield (%) of 2	dr
1	L1	0	36	63	4:1
2	L2	0	108	Complexmixture	-
3	L3	25	36	25	4:1
4 a	L1	0	18	73	7:1
5 a	L1	−10	48	74	12:1

^a MeOH/DMSO = 10/1 was used as solvent.

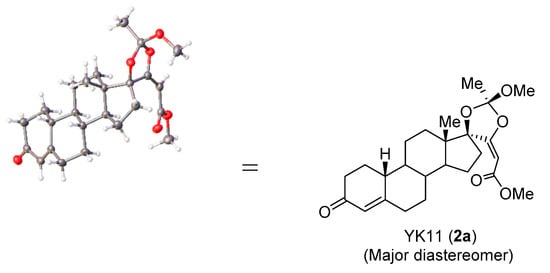

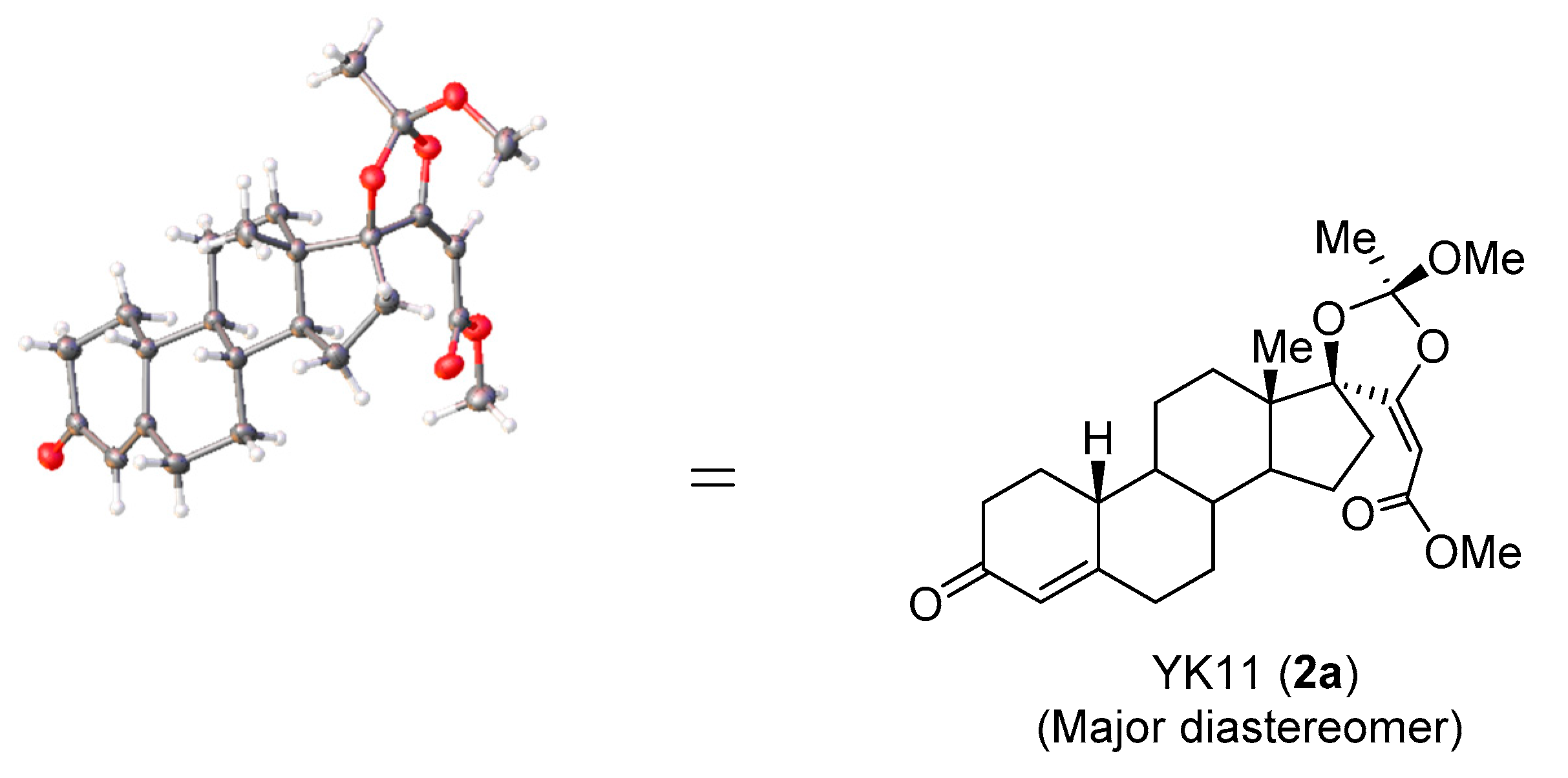

, entry 1). Pd(tfa)₂/L2 catalyst gave a complex mixture (Table 1, entry 2). Quinolone-sulfoxide L3 reduced the yield (Table 1, entry 3). The use of Pd(tfa)₂/L1 catalyst and DMSO/MeOH solvent increased the yield and diastereoselectivity (Table 1, entry 4). Lower temperature (−10 °C) improved the diastereoselectivity further and 2 was obtained in the 74% yield (12:1) (Table 1, entry 5). Separation using column chromatography and recrystallization gave the major diastereomer 2a in pure form. The structure of 2a was determined by X-ray crystallographic analysis [8] (Figure 1, Figure S1).

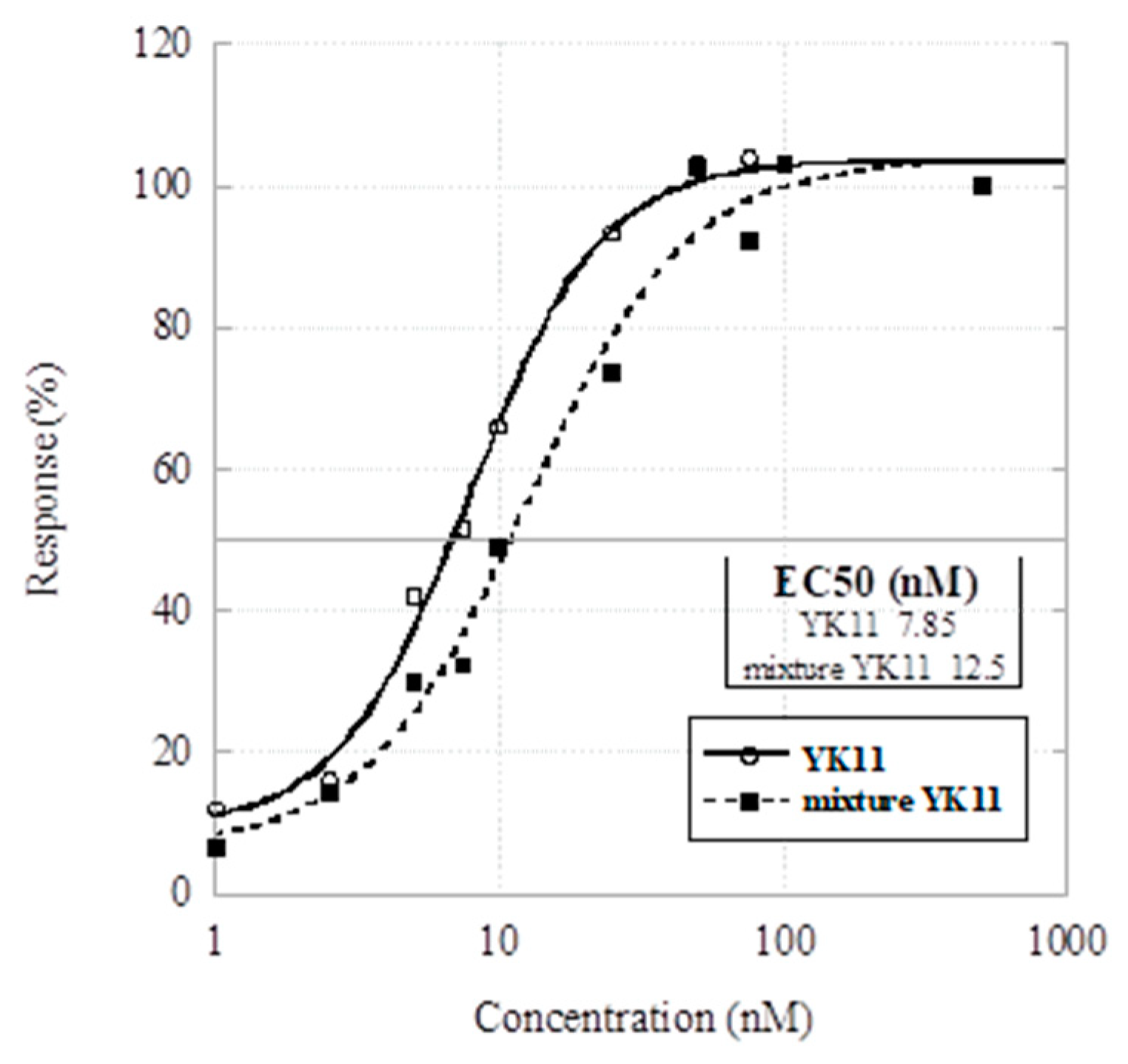

Next, we performed an ARE-luciferase reporter assay in HEK293 cells to compare the partial agonistic activity of major diastereomer 2a and the 5:1 mixture of diastereomers 2. HEK293 cells were transfected with an expression plasmid for AR (0.05 µg), ARE-driven luciferase reporter plasmid (0.1 µg), and pGL4.74 Renilla reporter plasmid (0.01 µg). The cells were treated with the major diastereomer YK11 (2a) or the 5:1 diastereomixture YK11 (2) (1, 2.5, 5, 7.5, 10, 25, 50, 75, 100, 500 nM) for 24 h, and the luciferase activity was measured. The results are shown as the Renilla-normalized luciferase activity and analyzed using KaleidaGraph (Synergy Software). The concentrations of the half maximal ARE activity of 2 and 2a were 12.5 and 7.85 nM, respectively (Figure 2). This result suggests that the major diastereomer 2a is the active constituent of YK11.

3. Materials and Methods

3.1. General Information

All melting points were determined on a microscopic melting point apparatus and are uncorrected. ¹H NMR and ¹³C NMR spectra were recorded at 400 MHz (¹H NMR) and 100 MHz (¹³C NMR) using CDCl₃ as the solvent and TMS as the internal standard. Coupling constants (J) are reported in Hertz (Hz), and spin multiplicities are represented by the following symbols: s (singlet), br-s (broad singlet), d (doublet), br-d (broad doublet), t (triplet), q (quartet), sext (sextet) and m (multiplet). High-resolution mass spectra were obtained using high-resolution EI (double focusing) mass spectrometers. Infrared spectra (IR) were recorded on a FT-IR spectrophotometer and are reported as wavelength numbers (cm⁻¹). Column conditions are reported in the experimental section below. All reagents were purchased from commercial sources and used without purification. All evaporations were performed under reduced pressure. Column chromatography was performed using silica gel (particle size 100–210 mm (regular), 40–50 mm (flash)).

3.2. Synthesis of L1–L3

L1–L3 were prepared from corresponding aryl bromide and sulfinate as previously described [6].

L1: Eluent: Hexane/AcOEt = 3/1; white solid; 30% yield; Mp 126–127 °C; [α${]}_{\mathrm{D}}^{25}$ = −220.9 (c 0.51 CHCl₃); spectral data were identical with those reported in the literature [6].

L2: Eluent: Hexane/AcOEt = 2/1; pale yellow oil; 48% yield; [α${]}_{\mathrm{D}}^{25}$ = −327.6 (c 0.53 CHCl₃); spectral data were identical with those reported in the literature [9].

L3: Eluent: Hexane/AcOEt = 2/1; pale yellow solid; 54% yield; Mp 117–119 °C; [α${]}_{\mathrm{D}}^{25}$ = −426.7 (c 0.52 CHCl₃); ¹H NMR (CDCl₃) δ 2.29 (3H, s), 7.15 (2H, d, J = 8.0 Hz), 7.43 (1H, dd, J = 8.4, 4.0 Hz), 7.73 (1H, dd, J = 8.4, 7.2 Hz), 7.81 (2H, d, J = 8.0 Hz), 7.88 (1H, dd, J = 8.0, 1.2 Hz), 8.15 (1H, dd, J = 8.4, 1.6 Hz), 8.43 (1H, dd, J = 7.2, 1.6 Hz), 8.90 (1H, dd, J = 4.0, 1.6 Hz); ¹³C{¹H} NMR (CDCl₃) δ 21.3, 122.0, 125.1, 125.6 (2C), 126.7, 128.3, 129.5 (2C), 130.3, 136.1, 141.1, 142.7, 143.7, 144.1, 150.1; IR (KBr): 3036, 1599, 1488, 1390, 1036, 821, 789 cm⁻¹; HRMS (EI) m/z: [M + ] calcd for C₁₆H₁₃NOS 267.0718; found: 267.0717.

3.3. Synthesis of YK11 (2a)

A 100 mL two-necked round-bottomed flask, containing a magnetic stirring bar, 1 (1.34 g, 3.9 mmol), p-benzoquinone (649 mg, 6.0 mmol) and MeOH/DMSO = 10/1 (45 mL) was fitted with a rubber septum and a three-way stopcock connected to a balloon filled with carbon monoxide. The apparatus was purged with carbon monoxide by pumping-filling via the three-way stopcock. A mixture of Pd(tfa)₂ (66.5 mg, 0.20 mmol) and L1 (131 mg, 0.30 mmol) in MeOH/DMSO = 10/1 (10 mL) was added dropwise to the stirred solution via a syringe at −10 °C. After stirring for 48 h at the same temperature, the mixture was diluted with CH₂Cl₂ (150 mL), washed with 5% aq. NaOH (100 mL), and dried over MgSO₄. The solution was concentrated under reduced pressure. The crude product was purified using column chromatography on silica-gel. The fraction was eluted with hexane/ethyl acetate = 6/1 afforded YK11 (2) (1.26 g, 74%) as a mixture of diastereomers (ratio = 12:1). Initially, we examined the recrystallization from hexane/ethyl acetate, and YK11 (2) (451 mg, 17:1) was obtained. Subsequently, the mixture (451 mg, 17:1) was separated through flash chromatography on silica-gel (100 g, hexane/ethyl acetate = 6/1). A total of 50 fractions were collected (F1–F20 216 mg, 10:1; F21–F30 149 mg, 52:1; F31–F50 48 mg, 100:1). Recrystallization (hexane/ethyl acetate) of F31–F50 yielded a single crystal of YK11 (2a). Colorless needles. Mp; 136 °C (Hexane); [α${]}_{\mathrm{D}}^{25}$ = −104.0 (c 0.33, CHCl₃); spectral data were identical with those reported in the literature [3].

4. Conclusions

The major diastereomer of YK11 (2) was prepared by palladium catalyzed diastereoselective cyclization carbonylation of 1. The structure of the major diastereomer 2a was determined by X-ray crystallographic analysis. ARE-luciferase reporter assay in HEK293 cells suggested that the active constituent of YK11 was 2a. Although YK11 is sold via the internet as an anabolic steroid, it is an experimental drug candidate and a non-approved substance for humans [10,11,12]. It should be noted that YK11 has not been studied in humans or even animals.
