Homopiperazine (Hexahydro-1,4-diazepine)

Abstract

The X-ray structure of the title compound has been determined for the first time. Data on its ¹H–¹³C-NMR coupling constants and ¹⁵N-NMR spectrum are also given.

1. Introduction

The fundamental heterocyclic compound hexahydro-1,4-diazepine or “homopiperazine” 1 was first reported in 1899 [1,2] and a convenient industrial preparation was described in 1961 [3]. At present, it is commercially available from several major suppliers and it has recently found various applications, including as a component of liquids for CO₂ capture [4] and as a component of various organic and organic/inorganic supramolecular ionic salts and transition metal complexes. In these latter applications, the materials are often characterised by X-ray diffraction and so there are a large number of X-ray structures involving a homopiperazinium dication in salts or mixed salts with, for example, carboxylic acids [5,6,7], potassium perchlorate [8], ammonium perchlorate [9], manganese sulfate oxalate [10], cobalt sulfate [11], zinc phosphate [12], arsenic oxide [13], tellurium phosphate [14], cadmium phosphate [15], cadmium chlorides [16,17], lead bromide [18], bismuth iodide [19], uranium fluoride [20] and uranium sulfate [21]. There are also a significant number of structures in which homopiperazine acts as a bidentate ligand on nickel [22,23], copper [24] and platinum [25,26,27,28]. However, in all of these, the structure is significantly distorted either by protonation or metal complexation, and it appears that the X-ray structure of homopiperazine on its own has not so far been determined, quite possibly because its low melting point of 42 °C [2] makes it difficult to obtain suitable crystals. We have now determined its structure and present here the result as well as several key NMR parameters.

2. Results

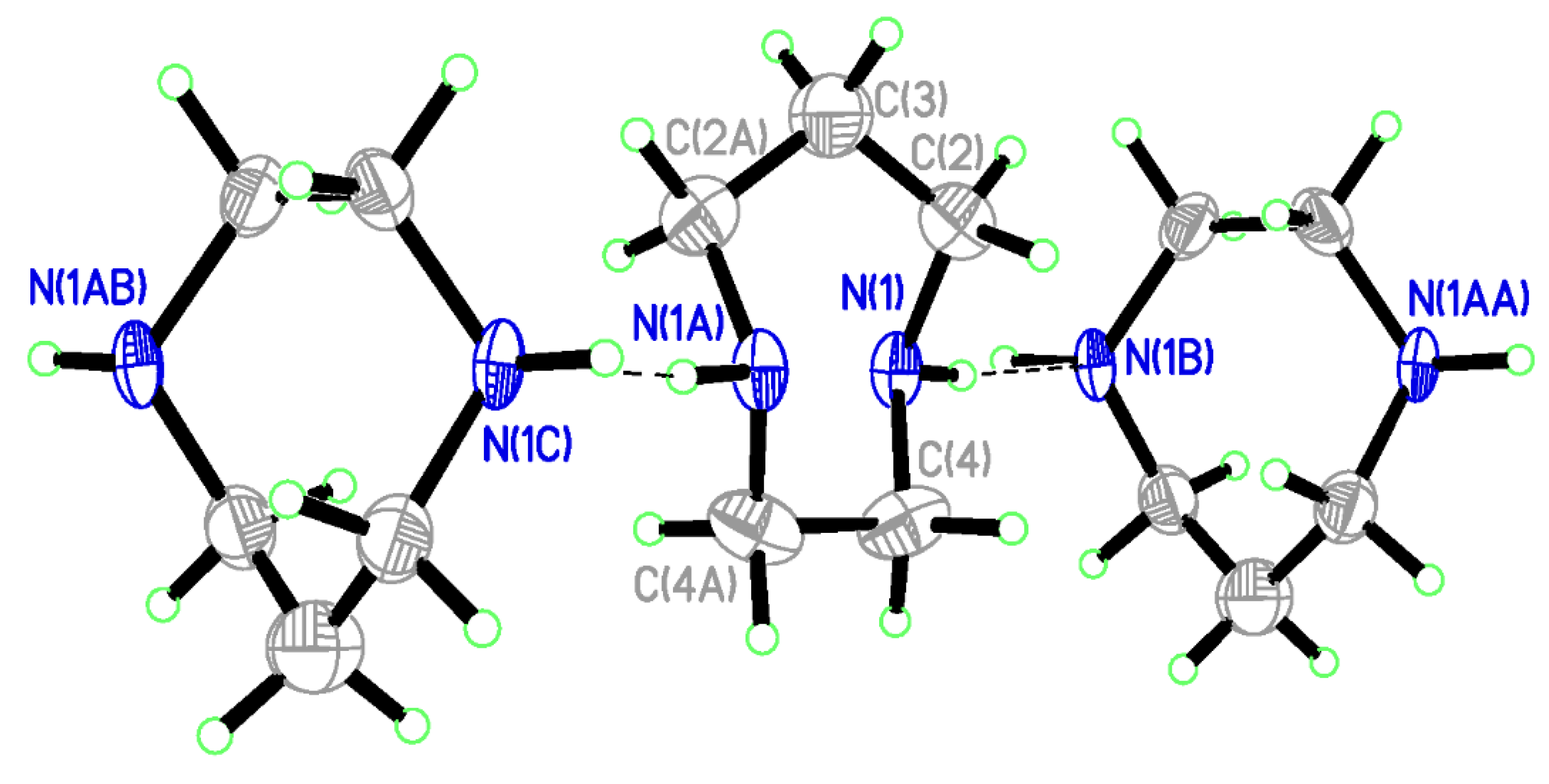

Crystals suitable for diffraction were obtained from the inner surface of a commercial bottle (Sigma Aldrich) which had been stored for >5 years, allowing slow sublimation. The resulting structure (Figure 1) shows how three adjacent molecules are aligned with the NH atoms of the central ring, viewed from above, hydrogen-bonding to the nitrogen lone pairs of the molecules on either side, which are viewed side-on. The bond lengths and angles in the symmetrical molecule are unremarkable, with the exception of the carbon–carbon bond of the N–CH₂–CH₂–N moiety, which is rather long at 1.603(10) Å. This may be compared with a mean value of 1.524 Å for sp³ CH₂–CH₂ in general [29] and is in stark contrast to the values of 1.5204(15) and 1.5190(15) Å observed in piperazine hydrate [30], the value of 1.513(2) Å in the monoprotonated homopiperazinium perchlorate [31] and 1.521(4) Å in an N,N’-dibenzylatedhomopiperazine [32]. The reason for the long bond in this case is unclear, although other examples of such long NCH₂–CH₂N bonds have been located [33].

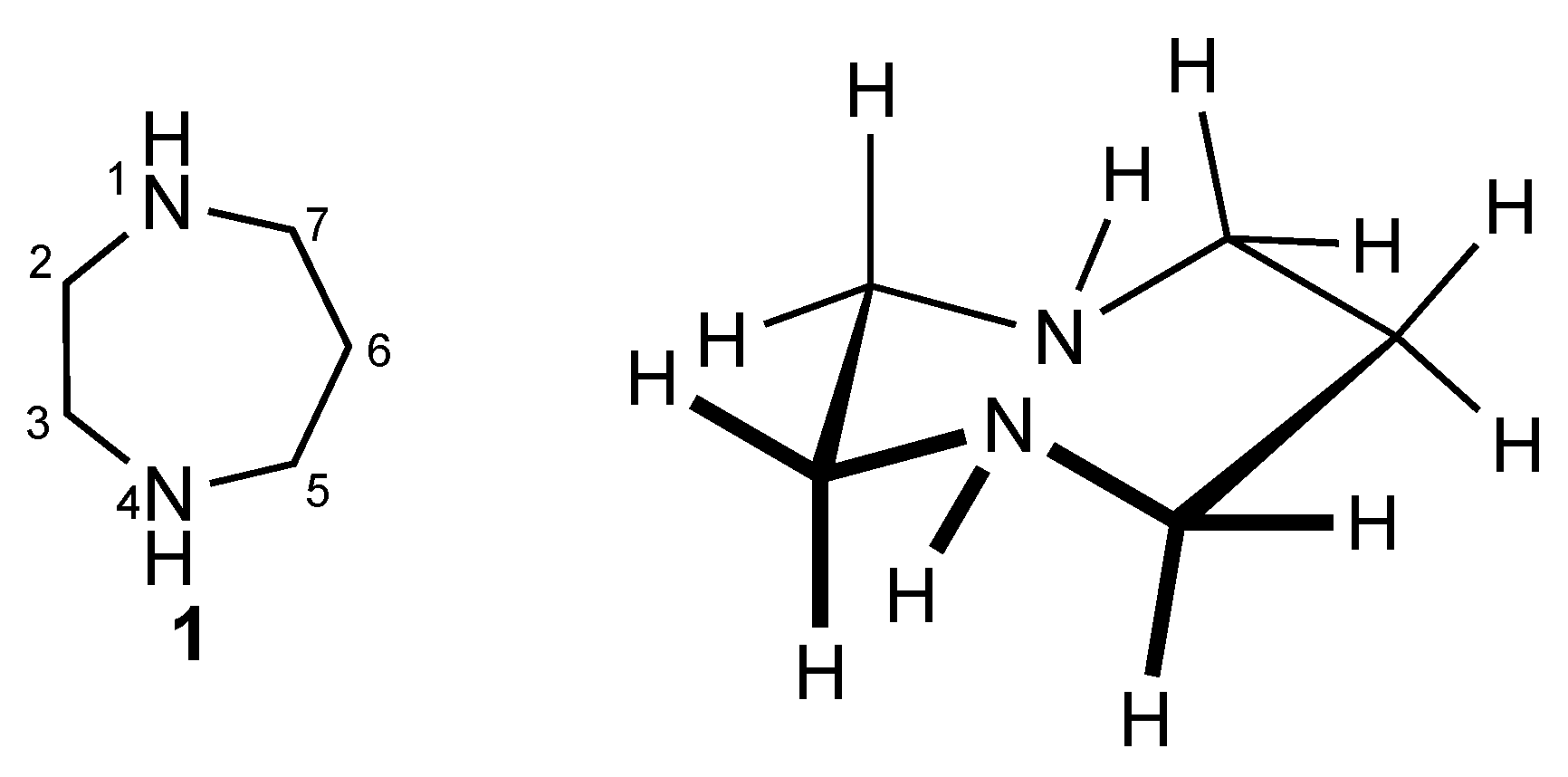

The conformation of 1 is shown in Figure 2 and the N–C–C–N torsion angle of 58.2(4)° confirms that the left-hand end of the molecule has an almost ideal chair-type conformation, which is only slightly distorted by the insertion of the extra atom at the right-hand end. The two nitrogen lone pairs are aligned in opposite directions, which facilitates the formation of a hydrogen-bonded network due to interaction with the NH of adjacent molecules, as shown in Figure 1. The hydrogen-bonding parameters (

Table 1. Hydrogen bonding parameters for 1 (Å, °).

D—H…A	D—H	H…A	D…A	D—H…A
N(1)–H(1)…N(1B)	0.977(7)	2.21(3)	3.189(4)	175(4)

The symmetry operator to generate N(1B) is Y + 1, −X + 1, −Z + 1.

) are well within the normal ranges. It should be noted that the present structure is quite different from previously reported structures of both metal complexes and protonated salts of 1 since, in the former case, coordination of the nitrogen lone pairs to the metal dominates, whereas, in the latter, protonation removes any opportunity for hydrogen bonding.

The ¹H and ¹³C NMR spectra for 1 are documented in D₂O in a recent publication [4] along with HSQC and HMBC spectra, allowing complete and unambiguous assignment. Our data in CDCl₃ were in good agreement with these values but, by recording the non-¹H-decoupled ¹³C spectrum, all three values of ¹J_C–H were readily determined as ¹J C(2)–H(2) 132.6 Hz, ¹J C(5)–H(5) 132.7 Hz, ¹J C(6)–H(6) 124.3 Hz, and, in addition, ²J C(6)–H(5/7) could be measured as 2.6 Hz. The remaining ²J_C–H values as well as longer-range couplings were not readily determined due to the complexity of the signals. The larger values of ¹J_C–H for CH₂N are in agreement with literature reports with values of 136.1 Hz for C-3 of a tetrahydroisoquinoline [34] and 132.0–139.0 Hz for C-4/5 of imidazolidines [35], while the value for C(6)–H(6) is in good agreement with 124.6 Hz for cyclohexane [36].

Finally, the ¹⁵N NMR signal observed at −344.6 ppm with respect to MeNO₂ is in good agreement with those for similar cyclic secondary amines such as piperidine (−342.3) and pyrrolidine (−342.6) [37].

In summary, we obtained the X-ray crystal structure of homopiperazine for the first time and found the molecule to exist in a pseudo-chair conformation, with each NH acting both as a hydrogen-bonding donor and acceptor, leading to a complex network structure overall. The values of the three one-bond CH coupling constants and the ¹⁵N chemical shift have been determined from its NMR spectra.

3. Experimental

The structure was determined on a Rigaku XtalLAB P200 diffractometer using graphite monochromated Mo Kα radiation λ = 0.71075 Å.

Crystal data for C₅H₁₂N₂, M = 100.16 g mol⁻¹, colourless prism, crystal dimensions 0.10 × 0.10 × 0.10 mm³, tetragonal, space group I–42d (No. 122), a = b = 7.208(2), c = 23.094(7) Å, α = β = γ = 90.00°, V = 1199.9(6) ų, Z = 8, D_calc = 1.109 g cm⁻³, T = 93 K, R1 = 0.0637, Rw2 = 0.1633 for 536 reflections with I > 2σ(I), and 37 variables, R_int 0.0374, goodness of fit on F² 1.137. Data have been deposited at the Cambridge Crystallographic Data Centre as CCDC 2049324. The data can be obtained free of charge from the Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk/getstructures (accessed on 30 March 2021). The structure was solved by direct methods and refined by full-matrix least-squares against F² (SHELXL Version 2018/3 [38]).

NMR spectra were recorded using a Bruker (Bruker, Billerica, MA, USA) AV instrument at 75.458 MHz (¹³C) and a Bruker AVIII-HD instrument at 50.69 MHz (¹⁵N) in CDCl₃ with chemical shifts given with respect to Me₄Si (¹³C) and MeNO₂ (¹⁵N) and coupling constants in Hz.

δ_C (non-decoupled) 33.3 (t of quintets, ¹J 124.3, ²J 2.6, C-6), 47.8 (t of m, ¹J 132.7, C-5,7), 51.5 (t of m, ¹J 132.6, C-2,3); δ_N –344.6.
