5-(4-Nitrophenyl)furan-2-carboxylic Acid

Abstract

The ever-evolving research in the field of antitubercular agents has led to the identification of several new potential drug classes. Among them, 5-phenyl-furan-2-carboxylic acids have emerged as innovative potential therapeutics, targeting iron acquisition in mycobacterial species. In our efforts to characterize the molecular interactions between these compounds and their protein target (MbtI from M. tuberculosis) by means of co-crystallization experiments, we unexpectedly obtained the structure of 5-(4-nitrophenyl)furan-2-carboxylic acid (1). Herein, we describe the preparation of the compound and its analysis by ¹H NMR, ¹³C NMR, HRMS, and SC-XRD.

1. Introduction

Tuberculosis (TB) is an infectious disease caused by Mycobacterium tuberculosis (Mtb), an airborne pathogen that primarily affects the lungs. In 2020, TB was the second leading cause of death from a single infectious agent, after COVID-19 [1]. The socio-economic repercussions of the pandemic dramatically impacted the diagnosis and treatment of TB, resulting in an increase of the number of deaths after over a decade [1]. This uncontrolled spread of the disease also facilitated the emergence and diffusion of new resistant mycobacterial strains [1]. Therefore, advances in the development of novel therapeutic options are still critical to face the impending threat of TB. In this context, an innovative approach would be to design anti-virulence strategies targeting specific molecular pathways required for the establishment of the infection, although otherwise dispensable for the survival of the pathogen. Over the last decades, a considerable number of compounds, either derived from natural sources or obtained by chemical synthesis, have been investigated as new, potential anti-TB candidates [2,3,4].

Our research group has focused its attention on targeting the siderophore-mediated acquisition of iron in Mtb [5]. In detail, we identified a new class of furan-based inhibitors of the salicylate synthase MbtI [6], a Mg²⁺-dependent enzyme that converts chorismate to salicylate, which then acts as the building block for the biosynthesis of all siderophores. [7,8].

The furan scaffold is particularly common in antitubercular drugs. In detail, several 2,5-substituted furans have been identified as inhibitors of a variety of mycobacterial enzymes, including N-acetyl glutamate synthase (ArgA) [9], GlcNAc-Ins deacetylase (MshB) [10], lysine-ɛ-aminotransferase (LAT) [11], protein tyrosine phosphatase A (MptpA) [12,13], and thioredoxin reductases (TrxR) [14]. In this context, 5-substituted-2-nitrofurans deserve a particular mention because they have been widely investigated, despite, in some cases, their molecular target remaining unknown [15,16,17]. Interestingly, some of them also showed promising activities on other bacterial species, including Neisseria gonorrhoeae, Streptococcus pyogenes, and Staphylococcus aureus [18], and protozoan parasites, like Plasmodium falciparum [19].

Over the years, we optimized the scaffold of our furan-based compounds, identifying promising candidates active on mycobacterial models [20,21,22,23]. A key part of our investigations was the structural study of protein-ligand complexes, which led to the definition of the main interactions established by our compounds in the active site of the enzyme. During one of our data acquisition sessions at the European Synchrotron Radiation Facility (ESRF) in Grenoble (France), we ran across an unexpected diffraction pattern, which was incompatible with that of a protein or a simple inorganic salt. The analysis of the structure later revealed the crystal to be the organic ligand, namely 5-(4-nitrophenyl)furan-2-carboxylic acid (1). Despite being accidental and unsought, the obtainment of this structure was deemed a valuable result, especially considering that 5-phenyl-furan-2-carboxylic acids are intrinsically impervious to crystallization. This feature, which is confirmed by the absence of reported crystal structures for these compounds, is probably due to their limited solubility in organic and aqueous solvents, which results in their rapid precipitation and prevents the organization of the molecules in an ordered fashion to form a crystal lattice. Our previous results suggested that this issue could be partially overcome by derivatizing the compounds to form methyl esters. However, this strategy prevented the study of the molecules in their original form, essentially depriving them of the characteristic acidic function, which imparts unique features in terms of available hydrogen-bonding sites. Therefore, this apparently trivial crystal structure proved to be very important for the study of the intermolecular forces and interactions of this class of compounds.

2. Results and Discussion

2.1. Chemistry

Compound 1 was prepared by an established procedure, involving a Suzuki coupling between methyl 5-bromofuran-2-carboxylate and (4-nitrophenyl)boronic acid, followed by a hydrolysis of the ester moiety in basic conditions (Scheme 1). The intermediate was characterized by ¹H NMR and ¹³C NMR, while for the final compound, the HRMS spectrum was also acquired. The analytical data were consistent with the literature.

2.2. Crystallization and Structure Determination

Compound 1 crystallized in the orthorhombic space group P2₁2₁2₁; the asymmetric unit contained two crystallographically independent molecules of 1, along with two waters, and an ammonium ion. The ORTEP [24] diagram indicating the arbitrary atom-numbering scheme used in the discussion is reported in Figure 1.

The two molecules are almost completely planar; the angle between the best mean planes calculated for the furan and the phenyl ring is 4.1(1)° for the main molecule, and 6.1(1)° for molecule A. The torsion angles C4-C5-C6-C7 and C8-C9-N1-O4 are 3.7(4)° and 13.5(3)°, respectively, while the corresponding angles in molecule A are 5.6(4)° and 9.6(3)°. The overlay of the two molecules produced an RMSD of 0.1018 and a maximum distance between two equivalent atoms of 0.22(3) Å. All bond lengths, valence angles, and torsional angles are within the expected limits, as shown by CSD Mogul [25]. In detail, bond length values indicate an electron delocalization extending over the entire molecule. Interestingly, while molecule A has a protonated carboxylic function, the main molecule features a carboxylate anion. The significance of this discrepancy and its effects on the molecular arrangement in space are discussed in the next paragraph.

The crystal packing is governed by a dense network of H-bonds that connect the two molecules, the waters, and the NH₄⁺ cation (Figure 2A). In detail, the acidic hydrogen of the carboxylic function of an A molecule bridges the O1 atom of a carboxylate; the two interacting molecules are inclined at 44.7(1)° with respect to each other, along the direction of the 2₁ helix. O1 also forms a H-bond with the O2W water, which, in turn, interacts with the other water molecule (O1W) and the NH₄⁺ ion. The latter establishes contacts with both the waters and the carbonylic oxygens O2 and O2A, which are also bridged by the O1W water. Minor C-H···O interactions contribute to the stabilization of the network. A complete account of the H-bonds is provided in

Table 1. H-bond geometry (D: Donor, A: Acceptor), as calculated by PARST [26].

H-Bond	D-H/Å	H∙∙∙A/Å	D∙∙∙A/Å	D-H∙∙∙A/°
O1W-H1W···O2 0	0.976(4)	1.788(4)	2.753(2)	169(4)
C11-H11···O1W 0	0.930(2)	2.731(2)	3.657(3)	174(1)
N2-H2A···O2W 0	0.88(3)	1.89(3)	2.773(3)	176(3)
N2-H2B···O1W 0	0.99(3)	1.89(3)	2.862(3)	166(3)
N2-H2C···O2A 0	0.94(4)	1.95(4)	2.859(3)	162(3)
C11A-H11A···O2W 0	0.930(2)	2.527(2)	3.304(3)	141(1)
C3-H3···O2W I	0.930(2)	2.459(2)	3.270(3)	146(1)
C4-H4···O5A I	0.930(2)	2.536(2)	3.357(3)	147(1)
O1A-H1A···O1 II	0.96(4)	1.55(4)	2.498(2)	171(3)
N2-H2D···O2 III	0.94(3)	1.83(3)	2.765(3)	168(3)
O1W-H2W···O2A IV	0.85(4)	2.03(4)	2.856(2)	165(4)
O2W-H3W···O1 V	0.87(4)	1.88(4)	2.742(2)	167(4)
O2W-H4W···O1W VI	0.98(4)	1.89(4)	2.833(3)	161(4)

Equivalent positions: ⁰ x,y,z; ^I x−1,y + 1,z; ^II x + ½,³/₂−y,−z; ^III x + ½,½−y,−z; ^IV x−½,½−y,−z; ^V x + 1,y−1,z; ^VI x + 1,y,z.

.

π-π Interactions between the aromatic portions of the compounds further contribute to the crystal packing (Figure 2B). The main molecule and molecule A are alternatingly stacked on planes inclined at 5.2(4)°; the centroid-centroid distances, calculated for the phenyl rings, are 3.88(1) Å and 3.60(1) Å. As shown in Figure 2C, the cell contains four pairs of molecules, which are repeated throughout the crystal; the empty spaces between them are occupied by the water molecules and by the NH₄⁺ ion. The numerous intermolecular interactions consolidate the packing and stabilize the molecules in the solid state (Figure 2C). We may speculate that the presence of an ionic environment rich in solvation waters facilitated the solubilization of the compound and promoted the formation of a tight interaction network, which ultimately allowed the ordered organization of the molecules to form a crystal.

The Hirshfeld surface (HS) of 1 was mapped over the normalized contact distance (d_norm), according to the following equation:

$$d_{norm}=\frac{d_i-r_i^{vdW}}{r_i^{vdW}}+\frac{d_e-r_e^{vdW}}{r_e^{vdW}}$$

• d_i: distance between the HS and the nearest nucleus inside the surface
• d_e: distance between the HS and the nearest nucleus outside the surface
• r^vdW: van der Waals radius of the atom.

HSs were generated for both the molecules in the asymmetric unit; despite their being non-identical, the same general concepts can be applied to both. The structural details of the HSs are shown in

Table 2. Details of the two HSs generated for 1 (HS-0: main molecule; HS-A: molecule A).

1	V (Å3)	A (Å2)	G	Ω
HS-0	233.21	241.21	0.760	0.314
HS-A	244.00	247.39	0.763	0.341

.

The d_norm property was visualized with a red-blue-white color scheme, based on the length of the intermolecular contacts with respect to the sum of the van der Waals radii (Figure 3A) [27]. The analysis of the surface revealed several intense red spots, corresponding to the strong, short-range H-bonds forming the network described above. The remaining, fainter red areas indicated the presence of minor C-H···O contacts. The shape index (SI, Figure 3B) property mapped over the HS evidenced a generally unperturbed structure, consistent with the planarity of the molecules. Moreover, the relevant stacking interactions were confirmed by the typical shape and color pattern on the aromatic portions of the SI. This observation was further supported by the curvedness plot (Figure 3C), which evidenced a large flat area extending over both the molecules.

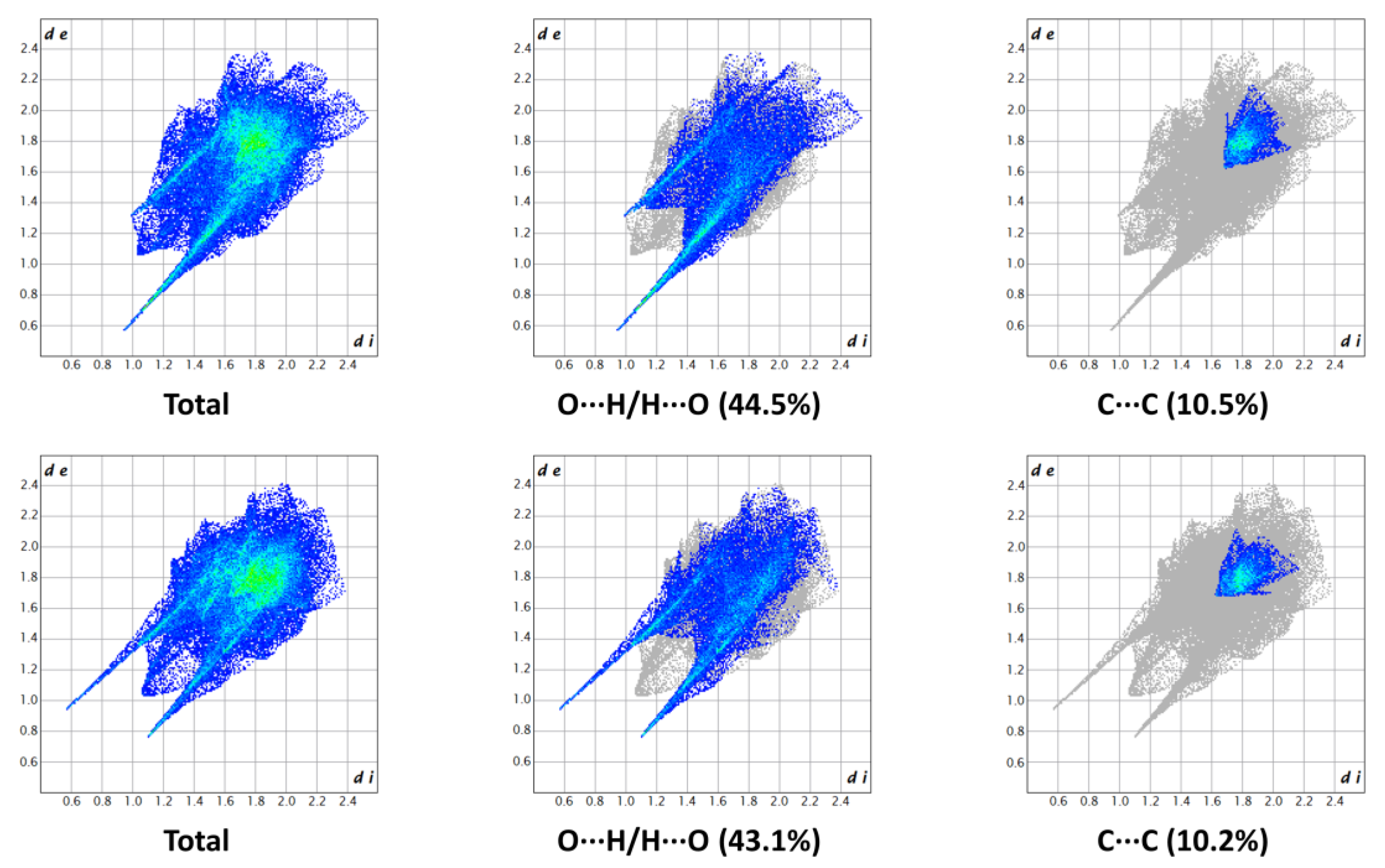

The two-dimensional (2D) fingerprints of the two HSs, providing a visual summary of the contribution of each contact type and the relative area of the surface corresponding to it, revealed the importance of the many short-range O···H/H···O contacts, represented by the long spikes protruding towards the lower left part of the graph. The presence of C···C contacts, indicating the π-π stacking of the aromatic rings, was confirmed by the characteristic arrow-shaped region at the center of the plot. The high density of green spots at 1.8–1.9 Å d_e/d_i confirmed the high contribution of these points on the HS. The remaining significant portions of the surface were attributed to unspecific van der Waals contacts (H···H and C···H/H···C). The main fingerprint plots related to the two HSs are reported in Figure 4. The enrichment ratios, calculated according to Jelsch et al. [28], showed that O···H/H···O and C···C contacts were enriched (E_xy > 1), further substantiating the previous observations.

3. Materials and Methods

3.1. Chemistry

All reagents and solvents were purchased from Sigma-Aldrich (St. Louis, MO, USA). Air-sensitive reactions were performed in an inert N₂ atmosphere. The course of the reactions was followed by thin-layer chromatography (TLC) using aluminum-backed silica gel 60 plates (0.2 mm; Merck, Darmstadt, Germany). Flash column chromatography was performed for the purification of the crude products, when necessary, using silica gel 60 (40–63 μm; Merck, Darmstadt, Germany) in the indicated solvent system. The melting points were determined in open capillary tubes, with a Stuart SMP30 Melting Point Apparatus (Cole-Parmer Stuart, Stone, UK). ¹H and ¹³C NMR experiments were performed on a Varian Oxford 300 MHz instrument (Varian, Palo Alto, CA, USA), operating at 300 MHz for ¹H and 75 MHz for ¹³C (T = 20 °C). Chemical shifts are expressed in ppm (δ), and J-couplings are given in Hertz. ¹H data are reported in the following order: ppm, multiplicity (s, singlet; d, doublet; t, triplet; q, quartet; m, multiplet), number of protons, and assignment. For the sake of clarity, the arbitrary atom numbering scheme indicated in Figure 1 for the main molecule was also used to define the signal attributions. The high-resolution mass spectrometry (HRMS) analysis was carried out on a Q-ToF Synapt G2-Si HDMS system (Waters, Milford, MA, USA). All relevant spectra are reported in the Supplementary Materials.

Methyl 5-(4-nitrophenyl)furan-2-carboxylate (2). Methyl 5-bromofuran-2-carboxylate (250 mg, 1.2 mmol), (4-nitrophenyl)boronic acid (267 mg, 1.6 mmol), and bis(triphenylphosphine)palladium (II) dichloride (42 mg, 5% mol) were dissolved in dry 1,4-dioxane (10 mL), under a N₂ atmosphere. A 2 M Na₂CO₃ solution (254 mg, 2.4 mmol, 1.2 mL) was then added, and the resulting mixture was stirred overnight at 90 °C. After completion, the solution was cooled to room temperature and filtered on a celite pad. The filtrate was diluted with water and extracted with ethyl acetate (3 × 4 mL). The organic layer was dried over anhydrous Na₂SO₄, filtered, and concentrated in vacuo. The crude product was purified by flash column chromatography (cyclohexane–EtOAc–DCM 8:1:1) to afford a yellow solid. Yield: 20%. TLC (cyclohexane–EtOAc 8:2): R_f = 0.30. Mp: 194 °C (dec.). ¹H NMR (300 MHz, CDCl₃) δ (ppm): 8.28 (d, J = 8.5 Hz, 2H, H_8,10), 7.93 (d, J = 8.5 Hz, 2H, H_7,11), 7.28 (d, J = 3.7 Hz, 1H, H₃), 6.95 (d, J = 3.7 Hz, 1H, H₄), 3.94 (s, 3H, OCH₃). ¹³C NMR (75 MHz, CDCl₃) δ (ppm): 159.06 (C₁), 154.94 (C₅), 147.70 (C₉), 145.44 (C₂), 135.23 (C₆), 125.46 (C_7,11), 124.57 (C_8,10), 120.12 (C₃), 110.36 (C₄), 52.42 (OCH₃).

5-(4-Nitrophenyl)furan-2-carboxylic acid (1). To a solution of methyl 5-(4-nitrophenyl)furan-2-carboxylate (2, 50 mg, 0.2 mmol) in a mixture of H₂O (2.6 mL) and MeOH (1.3 mL) was added NaOH (24 mg, 0.6 mmol). The reaction mixture was stirred at reflux for 3 h and partially concentered in vacuo to remove the solvent; then, 1 M HCl was added to adjust the pH to 3–4. The aqueous phase was extracted with EtOAc (3 × 5 mL), the combined organic phases were dried over anhydrous Na₂SO₄, filtered, and evaporated under reduced pressure to obtain the desired product as a yellow solid. No further purification was necessary. Yield: 80%. TLC (DCM–MeOH 8:2): R_f = 0.17. Mp: 256 °C (dec.). ¹H NMR (300 MHz, DMSO-d₆) δ (ppm): 13.35 (br s exch. D₂O, 1H, COOH), 8.31 (d, J = 9.0 Hz, 2H, H_8,10), 8.04 (d, J = 9.0 Hz, 2H, H_7,11), 7.44 (d, J = 3.7 Hz, 1H, H₃), 7.37 (d, J = 3.7 Hz, 1H, H₄). ¹³C NMR (75 MHz, CDCl₃) δ (ppm): 159.52 (C₁), 154.21 (C₅), 147.34 (C₉), 146.21 (C₂), 135.26 (C₆), 125.67 (C_7,11), 124.93 (C_8,10), 120.29 (C₃), 112.08 (C₄). HRMS (ESI/Q-ToF): calcd. for C₁₁H₆NO₅ 232.0246, found 232.0248 [M + H]⁺.

3.2. X-ray Diffraction

Compound 1 crystallized in a 96-well protein crystallization plate, set up using the sitting-drop vapor diffusion method, according to established protocols [29]. A nice rod formed after about 2 weeks at 4 °C in the following conditions: 1.26 M (NH₄)₂SO₄, 0.1 M NaOAc buffer pH 4.5, 0.2 M NaCl. The solution also contained the target protein MbtI, at a concentration of 23 mg/mL in 25 mM Hepes·NaOH pH 8.0, 150 mM NaCl, 1% glycerol. The crystal was collected at 4 °C and cryoprotected using parathion oil, before being frozen in liquid nitrogen. Diffraction data were acquired at the macromolecular crystallography beamline ID23-2 of the European Synchrotron Radiation Facility (ESRF) in Grenoble (France) [30]. ID23-2 features a focused microbeam (10 × 4 μm) at fixed energy (14.2 keV), an MD3-UP microdiffractometer (Arinax, Moirans, France), and a Dectris Pilatus 3 X 2M detector (Dectris AG, Baden, Switzerland). Data were collected at 100 K, using scan angles of 1° (delta_phi) up to a resolution of 0.75 Å. Data processing was performed with XDS [31], and the structure was solved based on the output file XDS_ASCII.HKL by direct methods using SIR-2019 [32]. Iterative cycles of full-matrix least-squares refinement on F₀² and ΔF synthesis were carried out by SHELXL-18/3 [33] on the WinGX v.2021.3 suite [24]. The structure was analyzed by PARST [26], Mogul [25], and Mercury 2022.2.0 [34]; the graphical representations were rendered with ORTEP-3 v.2020.1 and Mercury [34]. HS analysis was performed with CrystalExplorer21.5 [35]. CCDC entry 2218901 contains the supplementary crystallographic data for this paper. A summary of the data collection and refinement statistics is reported in

Table 3. Summary of the crystallographic data and refinement statistics for 1.

Parameter	Data
Identification code	1
Empirical formula	C22H21N3O12
Formula weight	519.42
Temperature	100(2) K
Crystal system	Orthorhombic
Space group	P212121
Unit cell dimensions	a = 7.34 Å	α = 90°
	b = 7.97 Å	β = 90°
	c = 39.21 Å	γ = 90°
Volume	2293.8 Å3
Z	4
Density (calculated)	1.504 Mg/m3
Absorption coefficient	0.125 mm−1
F(000)	1080
Crystal size	0.1 × 0.02 × 0.01 mm3
θ range for data collection	1.039 to 28.431°
Index ranges	−8 ≤ h ≤ 8, −10 ≤ k ≤ 10, −47 ≤ l ≤ 47
Reflections collected	29,316
Independent reflections	5065 [R(int) = 0.0553]
Refinement method	Full-matrix least-squares on F2
Data/restraints/parameters	5065/0/370
Goodness-of-fit on F2	1.039
Final R indices [I > 2σ(I)]	R1 = 0.0348, wR2 = 0.0836
R indices (all data)	R1 = 0.0407, wR2 = 0.0878
Largest diff. peak and hole	0.319 and −0.214 eÅ−3

; further details are reported in the Supplementary Materials.

4. Conclusions

During a data collection session at the European Synchrotron Radiation Facility (ESRF) in the framework of our studies on MbtI-ligand complexes, we unexpectedly obtained the structure of 5-(4-nitrophenyl)furan-2-carboxylic acid (1). This is one of the lead compounds in our series of furan-based inhibitors of MbtI. Considering the difficulty of growing high-quality crystals of these compounds, we welcomed the opportunity to study the structure of 1 by means of synchrotron diffraction data. Our analysis revealed an abundance of strong intermolecular contacts, a complex network of H-bonds and tight π-π stacking forces. The environment, rich in ions and water molecules, probably facilitated the interaction of the molecules and promoted their organization in the solid state. To complete the description of compound 1, its synthesis and analytical characterization by means of NMR and HRMS were also described.
