2-[2-(Diphenylphosphoryl)phenyl]-1H-perimidine

Abstract

In this paper, we report the crystal structure of 2-[2-(diphenylphosphoryl)phenyl]-1H-perimidine (L1) obtained from the ring closure reaction of 1,8-diaminonaphthalene and 2-(diphenylphosphino)benzaldehyde, followed by the dehydrogenation reaction with sodium metabisulfite (Na₂S₂O₅). L1 was characterised using ¹H, ¹³C & ³¹P NMR, FT-IR and X-ray single structure analyses.

1. Introduction

N-heterocyclic moieties with substantial biological properties are becoming diverse and popular with researchers. There are a number of N-heterocyclic compounds that are broadly dispersed in nature; possess physiological and pharmacological properties; and are constituents of numerous biologically important molecules, such as vitamins, nucleic acids, antibiotics and pharmaceuticals [1,2,3,4]. The nitrogen heterocycle is electron-rich; thus, it is able to accept or donate a proton, and it can easily establish diverse weak interactions. An example of such is the perimidine ligand, which has a rich chemistry due to the existence of a lone pair of nitrogen atoms capable of transferring their electron density to the naphthalene ring from the fused heterocyclic ring [5]. Perimidines are versatile ligand frameworks and are an attractive class of N-heterocycles that have different applications in medical sciences, industrial chemistry and life sciences [5]. The interest in perimidine ligands stems from their numerous biological activities as ligands [6,7,8,9,10] and when coordinated with different transition metals, such as ruthenium, cobalt, nickel, copper, zinc, vanadium and palladium [11,12,13,14,15]. Due to the excellent electronic features and diverse applications in different areas, we are interested in the synthesis of mixed-donor atom ligands of perimidine and phosphorus. Phosphorus is a good electron donor, and it is easy to optimise its electronic and steric properties. Compounds that contain soft (P) and hard (N) Lewis bases are able to stabilise different oxidation states of metals, therefore generating complexes with different reactivities, applications and spectroscopic properties [16]. This paper reports the single-crystal structural data of a mixed-donor ligand, 2-[2-(diphenylphosphoryl)phenyl]-1H-perimidine, and its other characterization data collected using various spectral techniques.

2. Results

2-[2-(diphenylphosphoryl)phenyl]-1H-perimidine (L1) was obtained in moderate yield by the ring closure reaction of 1,8-diaminonaphthalene and 2-(diphenylphosphino)benzaldehyde in the presence of sodium metabisulfite in a solution of ethanol and water. The sodium metabisulfite was used to perform an oxidative dehydrogenation reaction following the condensation reaction of 1,8-diaminonaphthalene and 2-(diphenylphosphino)benzaldehyde. The formation of the compound was revealed by the absence of a singlet peak resonating at around 5.5 ppm in the ¹H NMR spectrum of L1, which suggests that dehydrogenation occurred during the ring closure, therefore revealing a new C=N bond (Figure S1). The presence of a broad singlet peak at 9.39 ppm, which corresponds to one proton, assigned to the -NH group, clearly confirms the formation of a new bond, -NH-C. In the ¹³C NMR spectrum (Figure S2), the expected chemical shifts of L1 are observed, and the presence of a peak resonating at 154.14 ppm, which corresponds to the new bond between C=N and C-N, further confirms the formation of L1. In the FT-IR spectrum of L1 (Figure S4), the appearance of an absorption band at 1657 cm⁻¹ assigned to the C=N group clearly indicates the successful ring closure reaction of the aldehyde and the diamine. The peak at 1311 cm⁻¹ corresponds to the vibrational signals of the C-N single bond, which also confirms the presence of a new C-N single bond. The appearance of one stretching band at 3442 cm⁻¹ confirms the presence of a secondary N-H group, which clearly indicates the presence of a new C-NH bond in the compound.

Single X-ray analyses of L1 grown via the slow diffusion of methanol solvent in dichloromethane solution at room temperature were carried out. Figure 1 shows the molecular structure of L1, while

Table 1. Selected bond length (Å) and angles (°) of L1.

Atom	Length/Å	Atom	Angle/°
P1-O1	1.4974(10)	O1-P-C17	110.47(6)
P1-C17	1.8237(13)	O1-P-C23	109.76(6)
P1-C23	1.8008(13)	O1-P-C24	110.19(6)
P1-C24	1.8057(13)	C11-N1-C9	117.44(11)
N1-C11	1.2948(17)	C11-N2-C1	120.50(11)
N1-C9	1.3989(17)	N1-C11-N2	125.63(12)
N2-C11	1.3581(17)	N1-C11-C12	116.92(11)
N2-C1	1.3976(17)	N2-C11-C12	117.45(11)
C11-C12	1.4868(17)

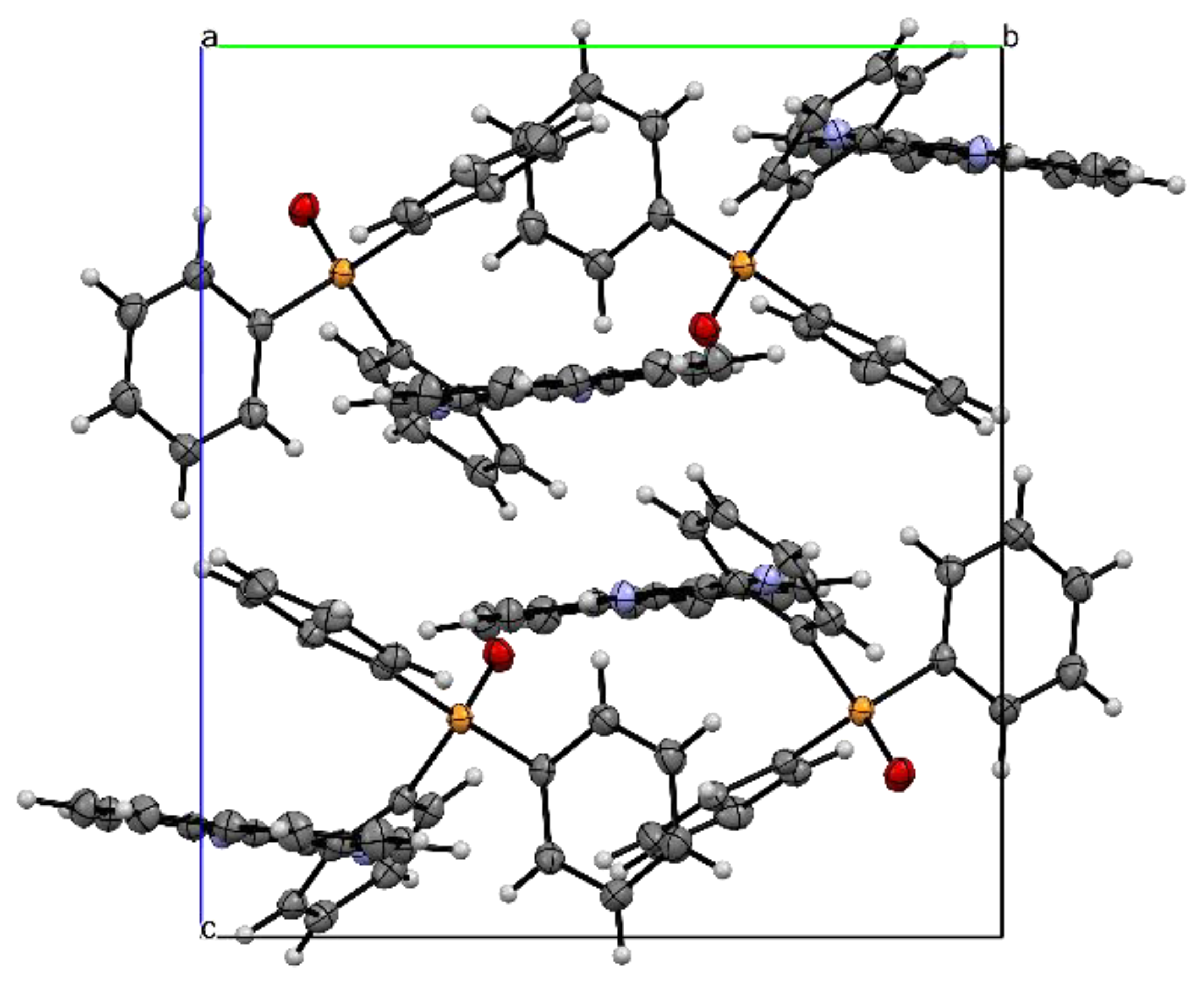

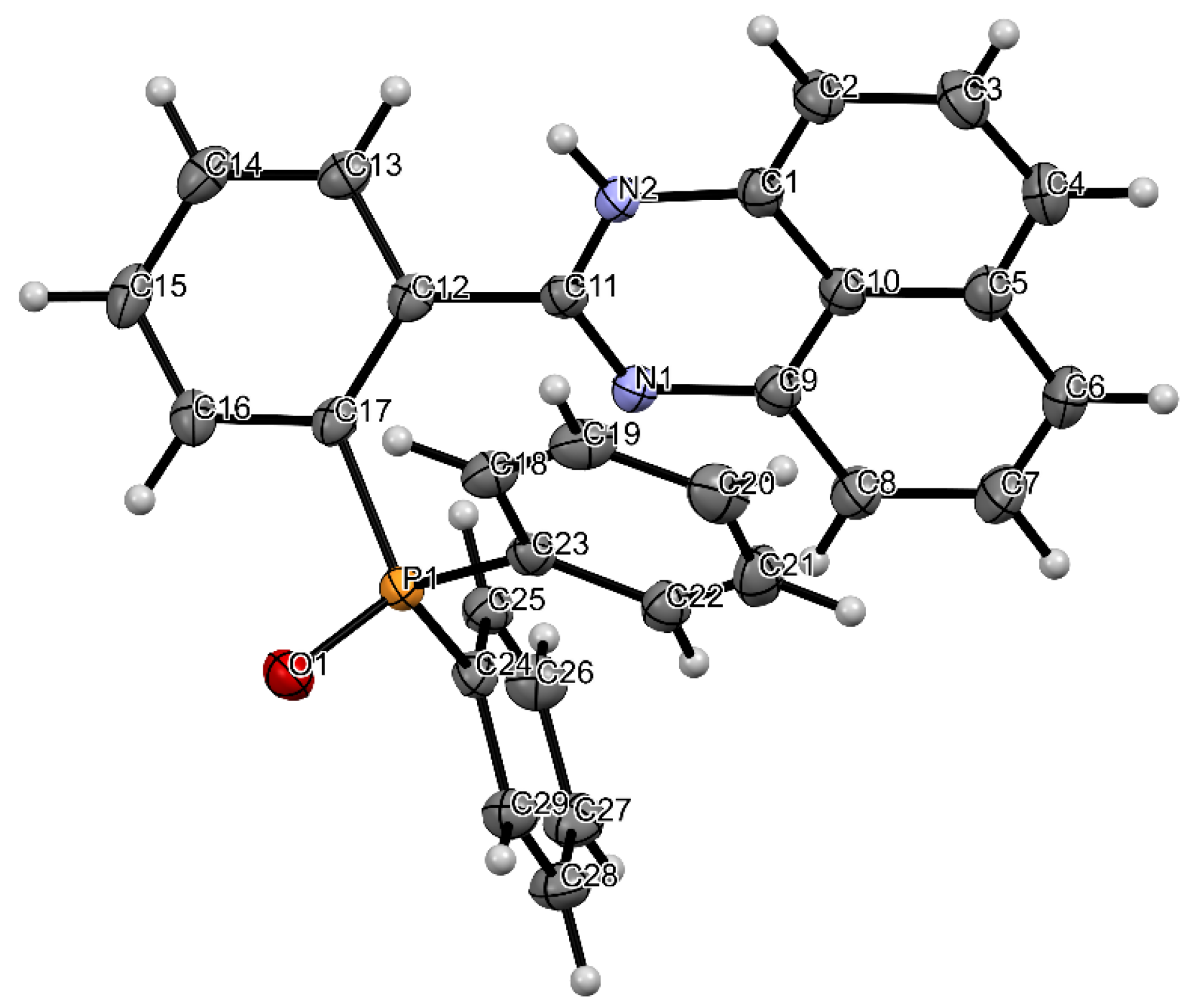

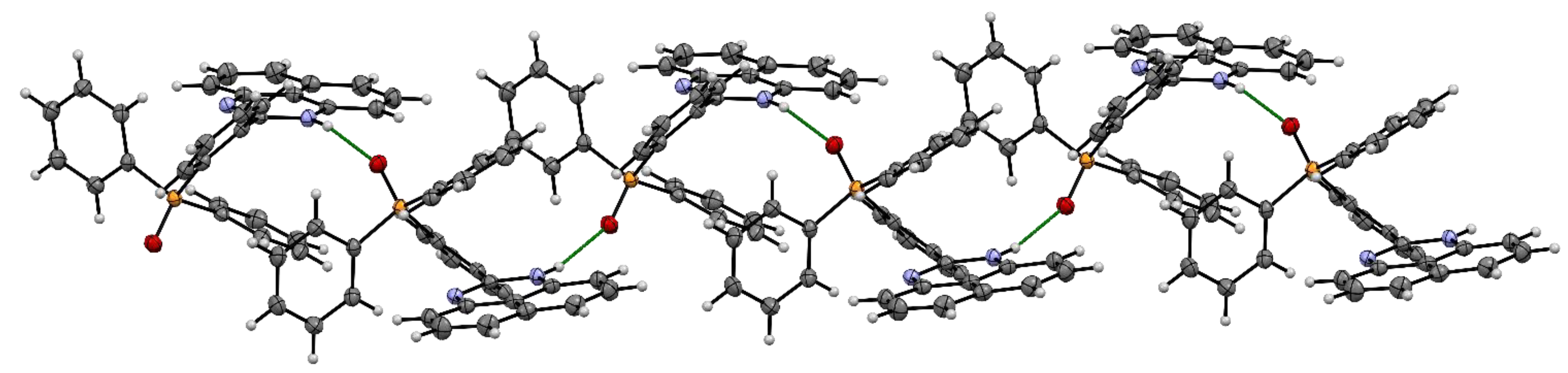

(bond length and angles) contains selected geometrical parameters of L1. The solid-state structure of L1 adopts a monoclinic crystal structure and a P2₁/n space group. In the structure of the title compound, the bond angles N1-C11-N2, N1-C11-C12 and N2-C11-C12 are 125.63(12), 116.92(11) and 117.45(11)°, respectively, indicative of the sp² hybridization state of the C(11) atom [17]. The torsional angle between the perimidine ring and the phenyl ring is 48.35°. The bond length of N2-C11 (1.3581(17) Å) and the bond length of N1-C11 (1.2948(17)) are both close to the average C-N bond length [13,18,19,20] reported. The packing structure of L1 (Figure 2) also indicates strong intermolecular hydrogen bonding between the N-H · · · · ·O_P bonds, which can be clearly seen in Figure 3.

3. Materials and Methods

Ethanol 99.5%, dichloromethane 99.8%, 1,8-diaminonaphthalene 99%, 2-(diphenylphosphino)benzaldehyde 97%, sodium metabisulfite 99% and anhydrous magnesium sulphate 97% were purchased from Sigma-Aldrich. All chemicals were of analytical-grade and were used as supplied. The NMR spectra were recorded on a Bruker Avance III 400 MHz NMR spectroscope with a 5 mm TBIZ probe at 30 °C. Chemical shifts are reported in parts per million (ppm) in relation to the solvent (CDCl₃) residual peak, 7.26 and 77.16 ppm for ¹H and ¹³C NMR, respectively. The coupling constants (J) were calculated in Hertz (Hz), and the splitting pattern was designated as s for singlet, d for doublet, t for triplet and m for multiplet. The infrared spectrum was recorded using a Bruker Alpha II FT-IR spectrometer, and the data are reported as percentage transmittance at the respective wavenumbers (cm⁻¹), between 4000 and 450 cm⁻¹.

3.1. Synthesis of 2-[2-(Diphenylphosphoryl)phenyl]-1H-perimidine (L1)

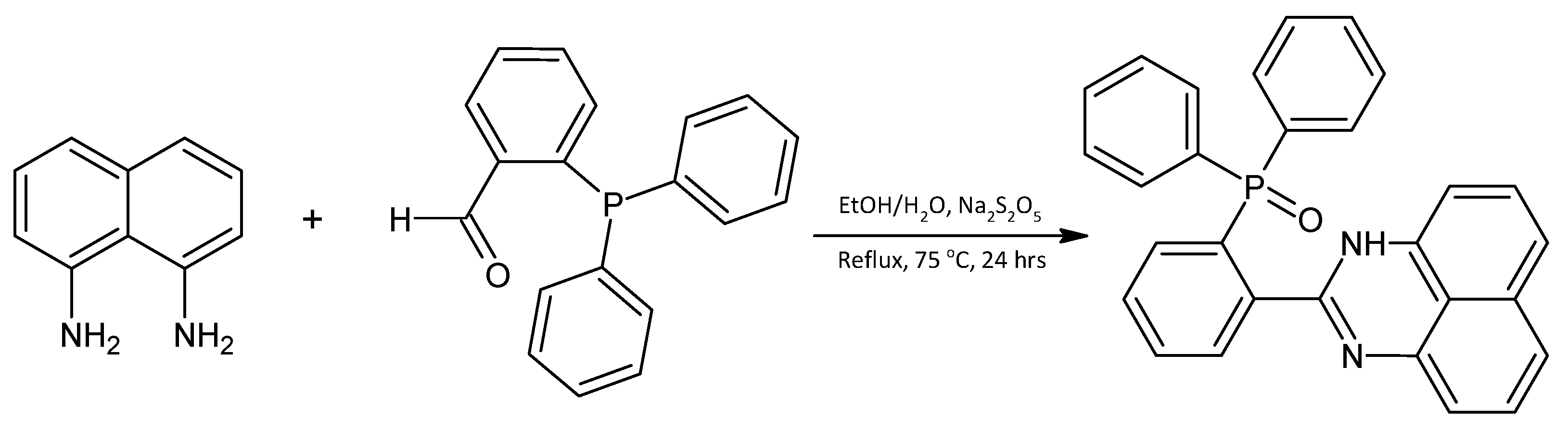

L1 was prepared in moderate yield (Scheme 1) by the ring closure reaction of 1,8-diaminonaphthalene and 2-(diphenylphosphino)benzaldehyde. A mixture of ethanol and water (v:v = 5:1) was added to 1,8-diaminonaphthalene (0.501 mmol, 79.4 mg), 2-(diphenylphosphino)benzaldehyde (0.498 mmol, 144.6 mg) and Na₂S₂O₅ (1.50 mmol, 285.17 mg) in a 100 mL round-bottomed flask. The reaction mixture was refluxed at 75 °C for 24 h and formed a precipitate. The resulting precipitate was filtered, washed with 10 mL of ethanol and 20 mL of water, then dissolved in dichloromethane and extracted with water. Magnesium sulphate was added to the solution and filtered. The solvent was removed under reduced pressure to form an orange solid. Yield: 95.2 mg (43.0%), ¹H NMR (400 MHz, CDCl₃): δ (ppm) 9.39 (s, 1H, NH), 8.64 (d, J = 4.88 Hz, 2H, Ar-H), 8.45 (d, J = 8.17 Hz, 2H, Ar-H), 7.89 (td, J = 7.61, 1.68 Hz, 2H, Ar-H), 7.46 (ddd, J = 12.35, 7.82, 6.20 Hz, 2H, Ar-H), 7.26 (d, J = 7.61 Hz, 2H, Ar-H), 7.09–7.16 (m, 6H, Ar-H), 6.92 (d, J = 7.33 Hz, 2H,), 6.37 (d, J = 7.04 Hz, 2H). ¹³C NMR (100 MHz, CDCl₃): δ (ppm) = 154.1, 134.9, 133.6 (d, J = 11.4 Hz), 133.1 (d, J = 2 Hz), 132.5 (d, J = 3 Hz, 2 × 4-CH of PPh), 132.0 (d, J = 8.8 Hz), 131.6 (d, J = 10 Hz, 4 × 2-CH of PPh), 131.2, 130.5 (d, J = 12 Hz), 130.2, 129.1, 128.7 (d, J = 12.4 Hz, 4 × 3-CH of PPh), 128.1, 121.4, 119.9. ³¹P NMR (162 MHz, CDCl₃): δ = 35.03 (s). FT-IR (cm⁻¹): 3442 (NH), 2995 (CH), 2912 (CH), 1657 (C=N), 1420 (C=C), 1311 (C-N), 1031 (C-H), 946 (C-H), 692 (C-H), 525 (C-H).

3.2. X-ray Crystallography

The X-ray crystallographic data of L1 were collected and evaluated on a Bruker APEX-II Duo [21] CCD area detector diffractometer with an Incoatec micro-source working at 30 W power. An Oxford Instruments Cryojet accessory was used to keep the crystal at 104.70 K during data collection. The data were collected with Cu(Kα), λ = 1.54178) at a crystal-to-detector distance of 50 mm. The data were reduced using the SAINT [22] program. The non-hydrogen atoms were initially refined isotropically, and then anisotropic refinement was carried out using a full-matrix least-squares method based on F². Olex2 [23] was used to solve the crystal structure, while the SHELXT [24] and SHELXL [25] programs were used for structural refinement using intrinsic phasing and least-squares minimisation. The crystallographic data were visualized using WinGX [26] and Mercury v.4.3 [27]. The crystallographic data and structure refinement parameters of L1 are given in

Table 2. Crystal data and structure refinement of L1.

Identification Code for C1	cu_SS_MG_Ligand1_0ma
Empirical formula	C29H21N2OP
Formula weight	444.45
Temperature (K)	104.70
Crystal system	monoclinic
Space group	P21/n
a (Å)	12.4152(3)
b/(Å)	12.6297(3)
c (Å)	14.7434(3)
α (°)	90
β (°)	107.8970(10)
γ (°)	90
Volume (Å3)	2199.90(9)
Z	4
ρcalc (g cm−3)	1.342
μ (mm−1)	1.300
F (000)	928.0
Crystal size (mm3)	0.245 × 0.085 × 0.055
Radiation source, λ (Å)	Cu(Kα), λ = 1.54178
2θ range for data collection (°)	8.168 to 135.448
Index ranges	−14 ≤ h ≤ 14, −15 ≤ k ≤ 15, −17 ≤ l ≤ 17
Reflections collected	59,040
Independent reflections	3985 [Rint = 0.0355, Rσ = 0.0123]
Data/restraints/parameters	3985/0/298
Goodness-of-fit on F2	1.073
Final R indexes [I ≥ 2σ (I)]	R1 = 0.0310, wR2 = 0.0825
Final R indexes (all data)	R1 = 0.0333, wR2 = 0.0846
Largest diff. peak/hole (e Å−3)	0.39/−0.35

.

4. Conclusions

2-[2-(Diphenylphosphoryl)phenyl]-1H-perimidine (L1) was synthesised from the ring closure reaction of 1,8-diaminonaphthalene and 2-(diphenylphosphino)benzaldehyde, followed by the dehydrogenation reaction with sodium metabisulfite. The purity of L1 was confirmed using ¹H, ¹³C and ³¹P NMR, FT-IR and LC-MS spectroscopic techniques and single X-ray crystallography. L1 crystallizes in the monoclinic crystal system and the P2₁/n space group, and it has strong intermolecular hydrogen bonding between the N-H · · · · ·O_P bonds in its packing structure.
