Comparative Laser Spectroscopy Diagnostics for Ancient Metallic Artefacts Exposed to Environmental Pollution
Abstract
:1. Introduction
2. Artworks and Diagnostic Methods

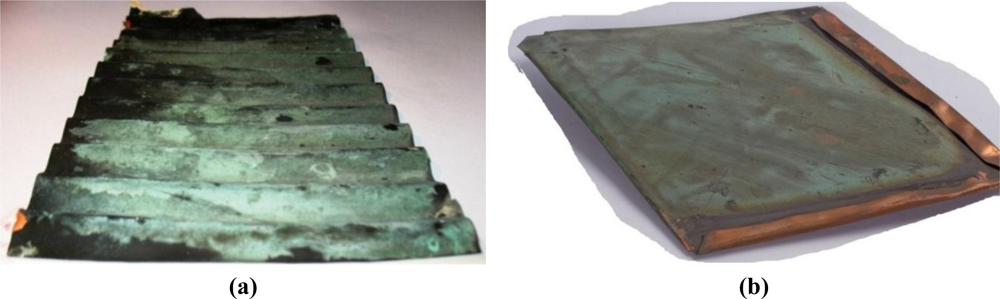

2.1. Historical Objects

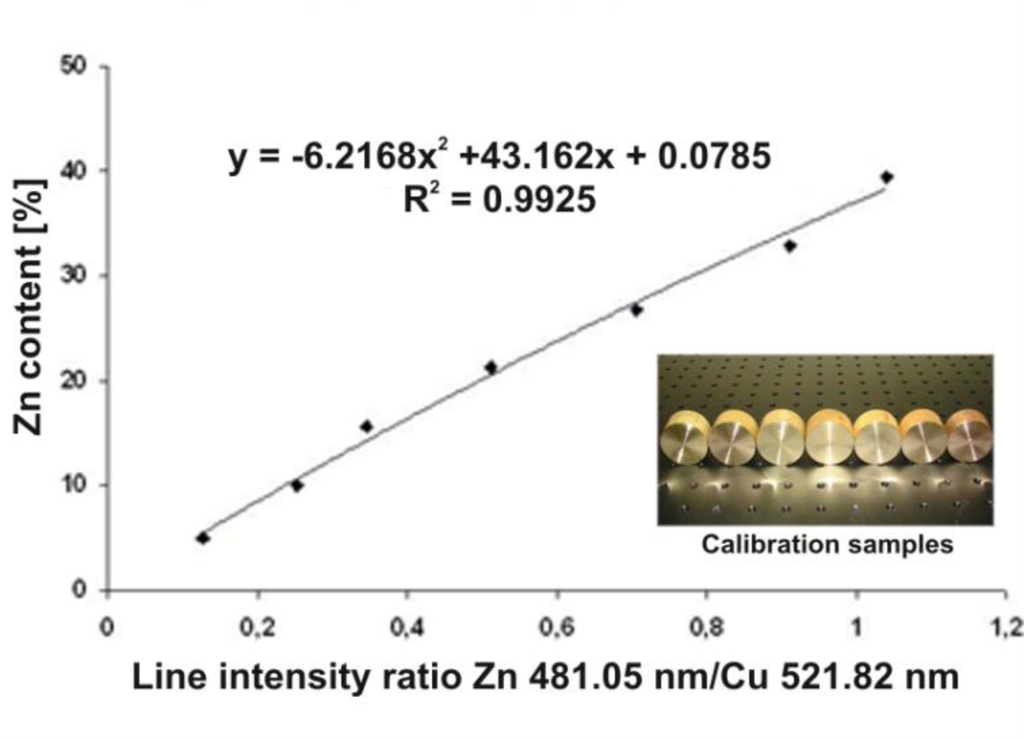

2.1. Experimental Procedures
- JEOL JSM-6380LA. The EDS, preliminary and qualitative only measurements were performed at 20 kV.
- HITACHI S-3500N. The investigations included observations in SE and BSE modes and point analyses of the chemical composition by EDS. The EDS measurements were performed at 15 kV and 30 kV.
3. Experimental Results and Discussion

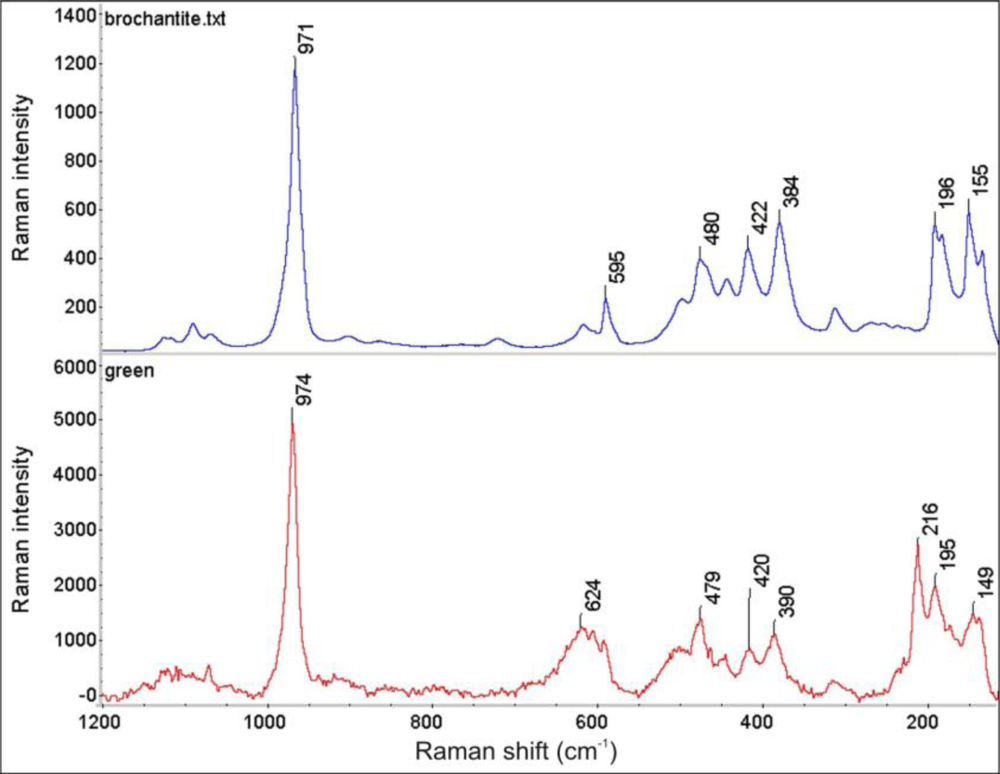

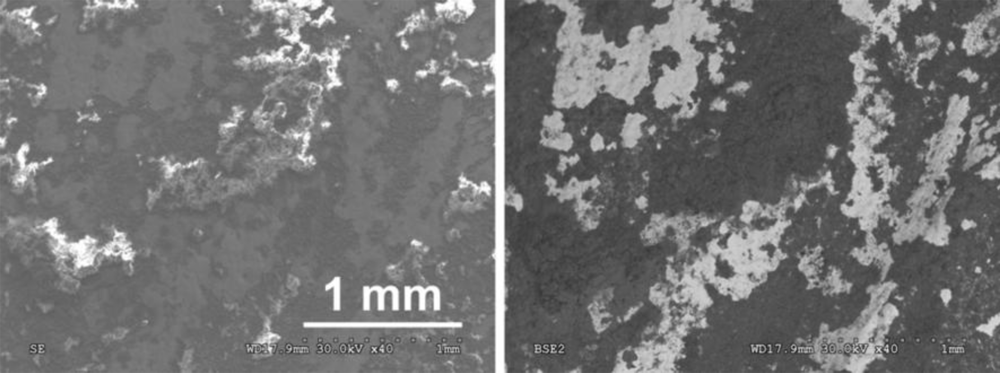

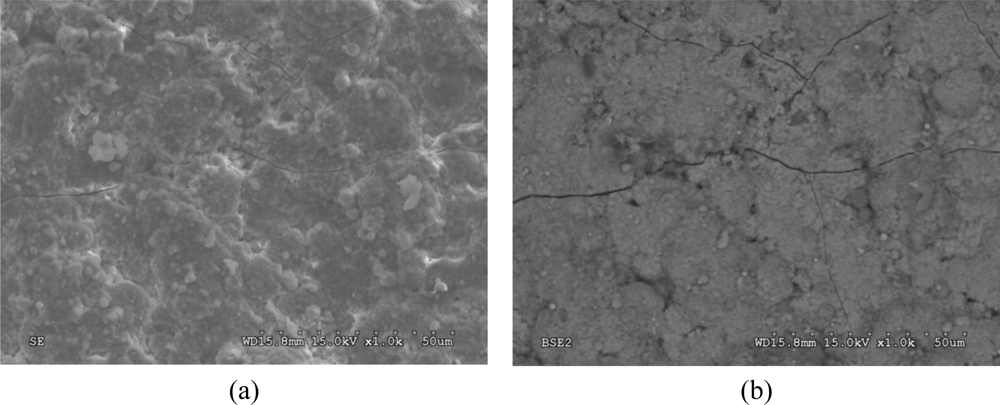

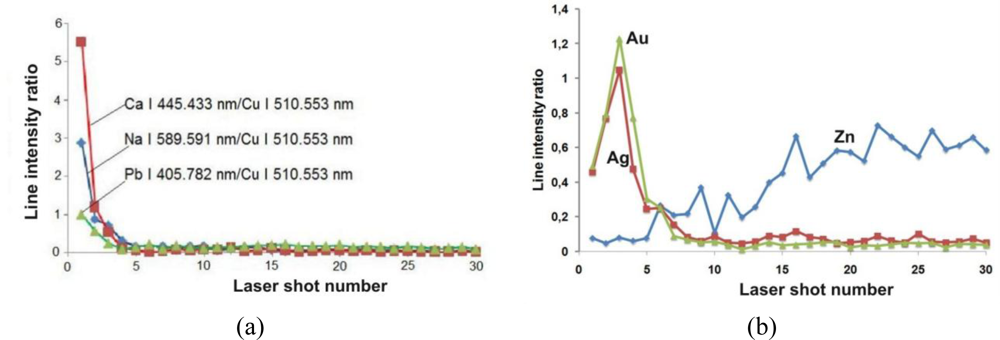

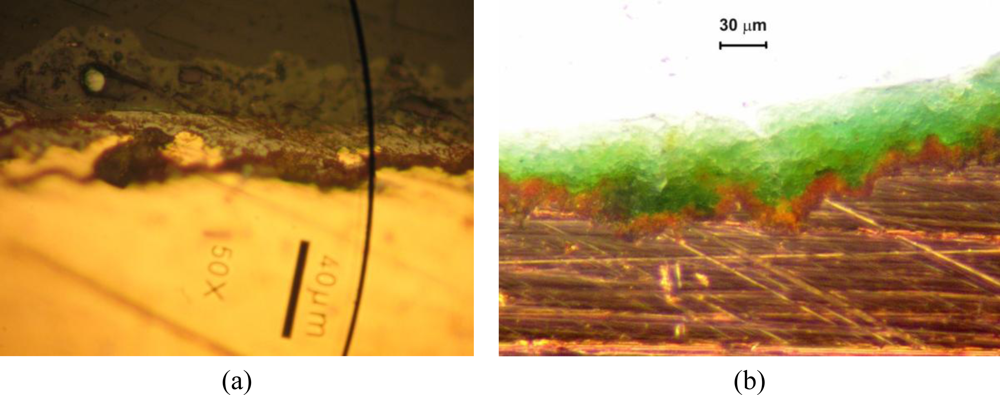

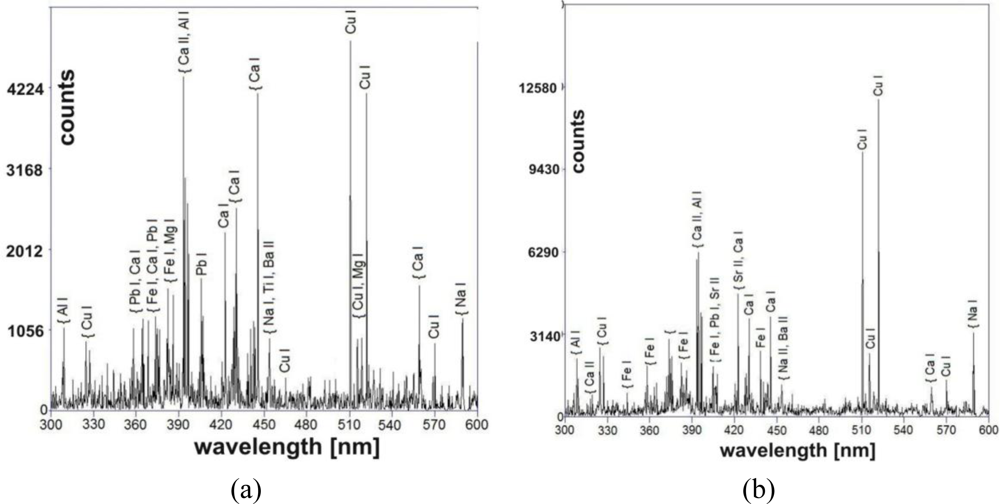

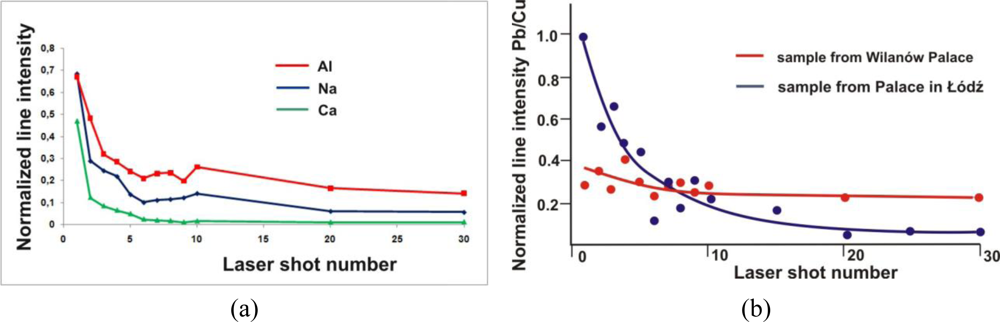

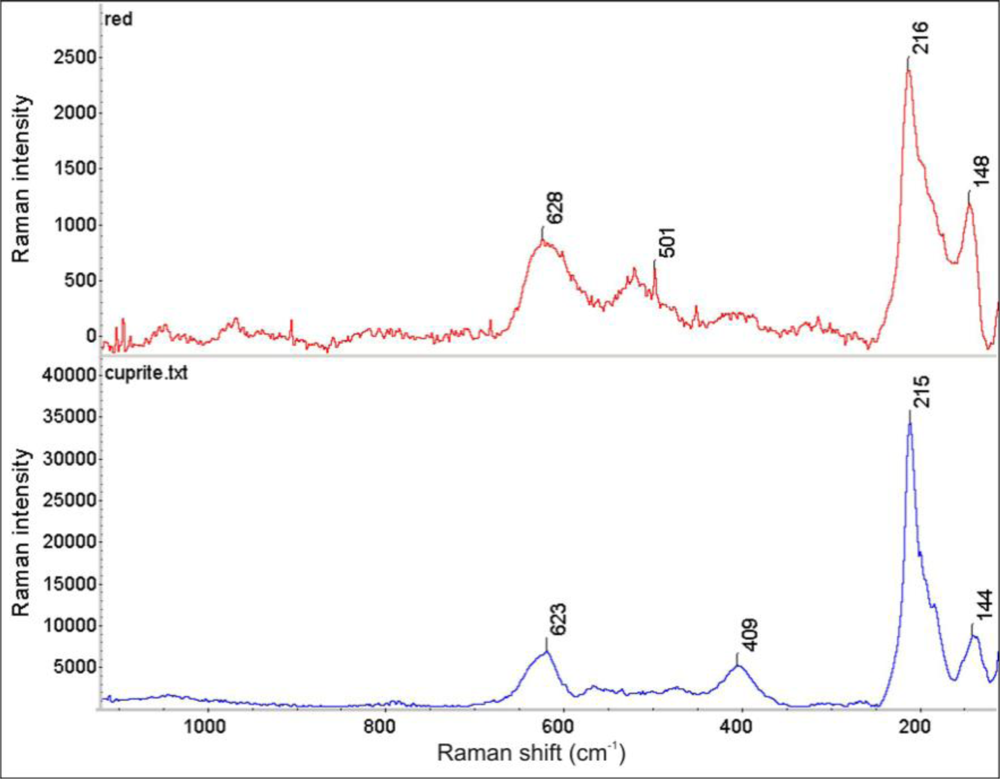

3.1. Corroded Copper Sheets

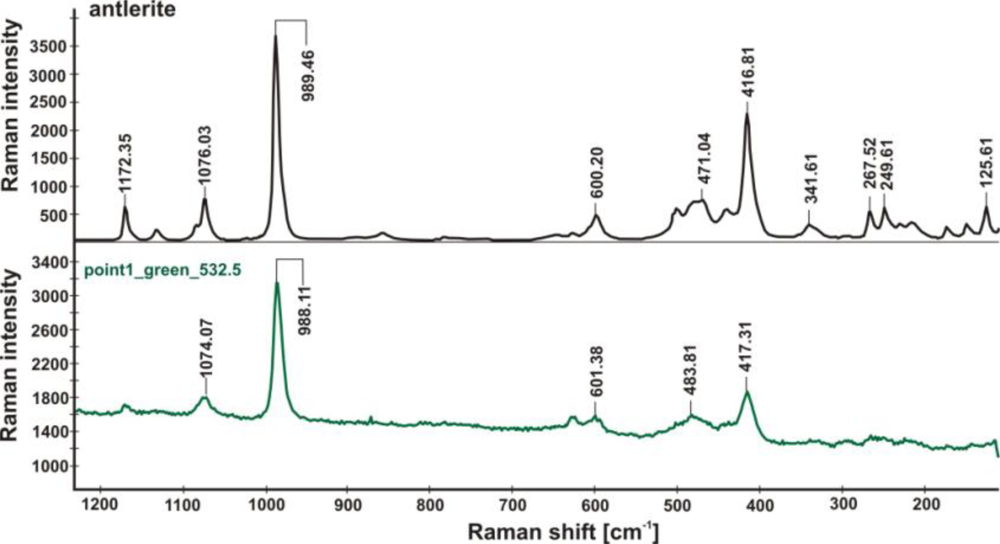

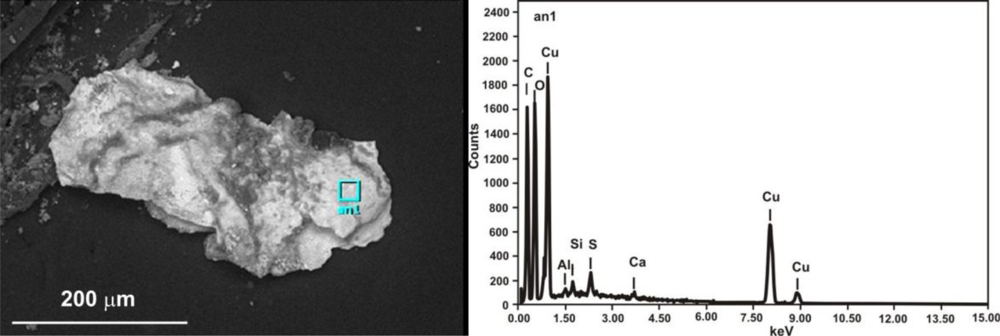

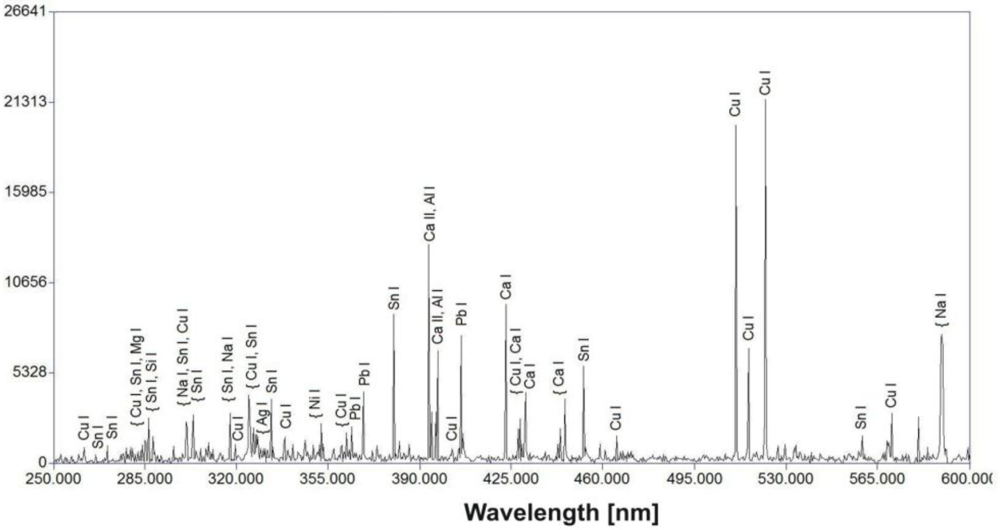

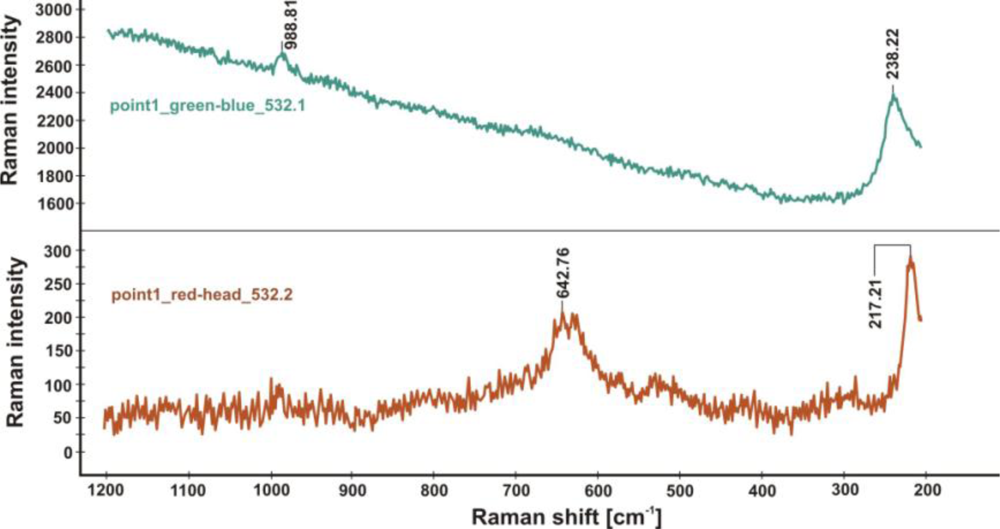

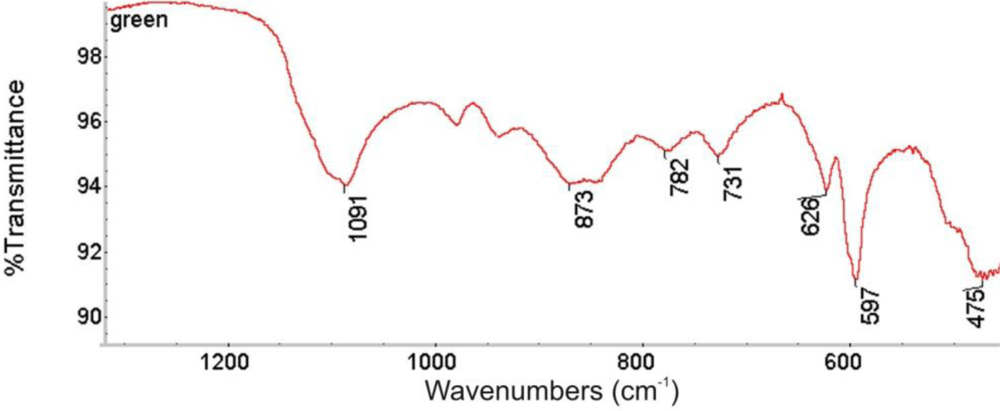

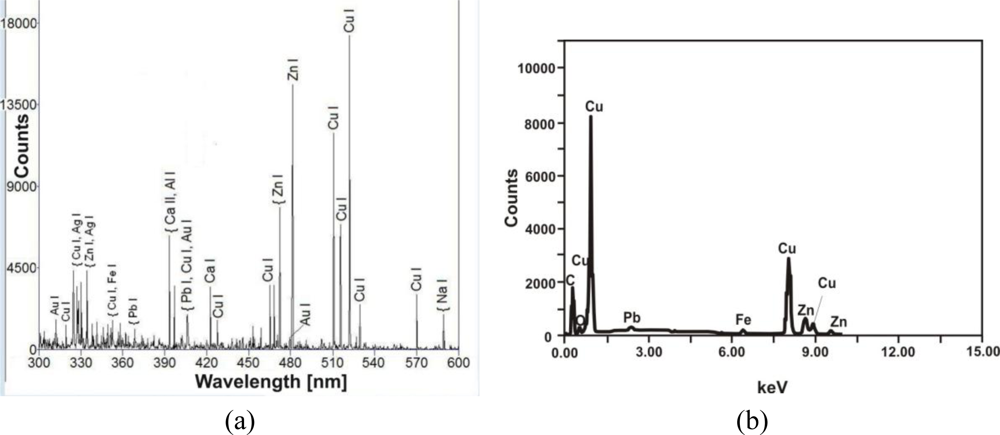

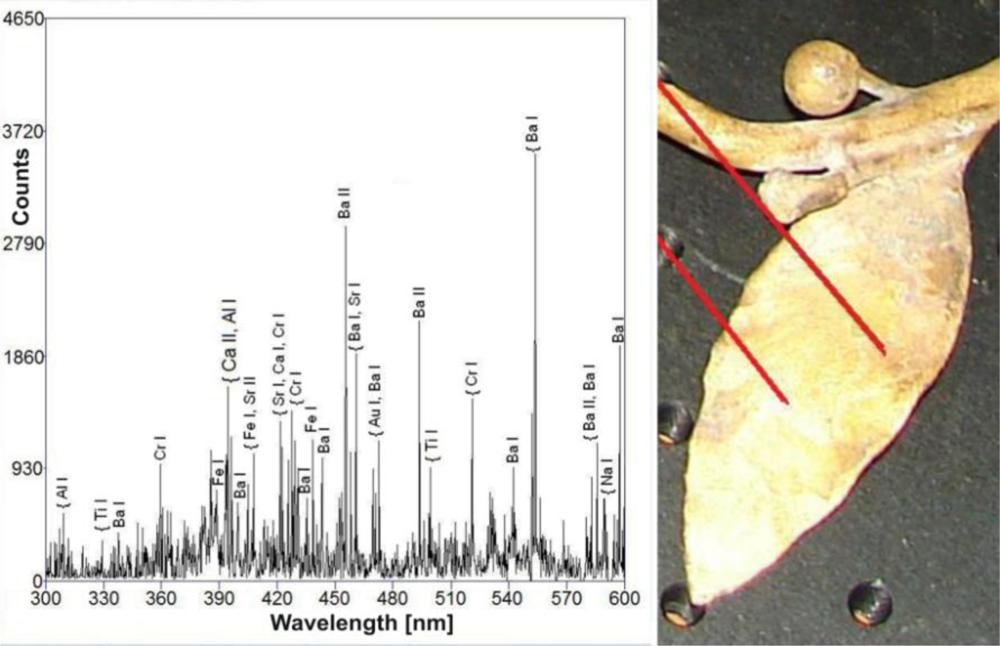

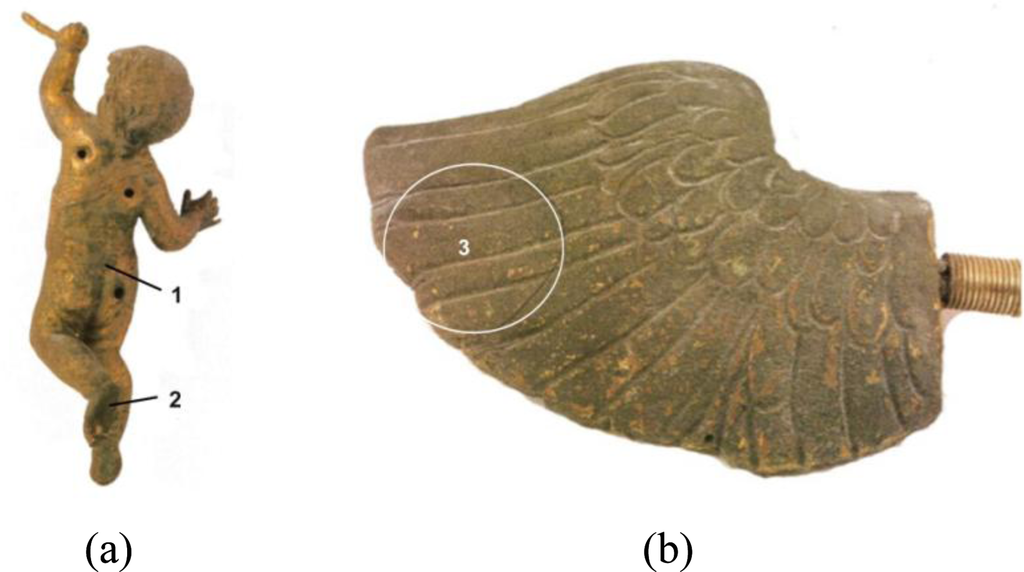

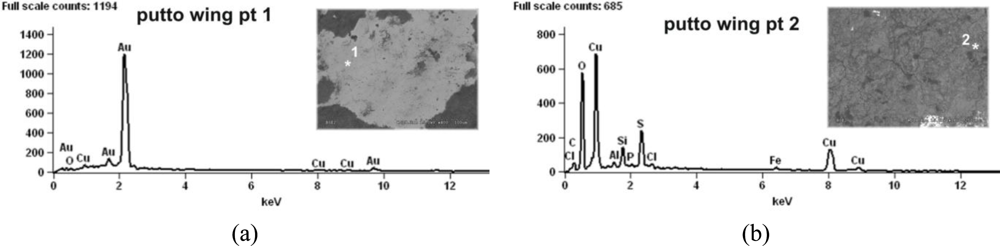

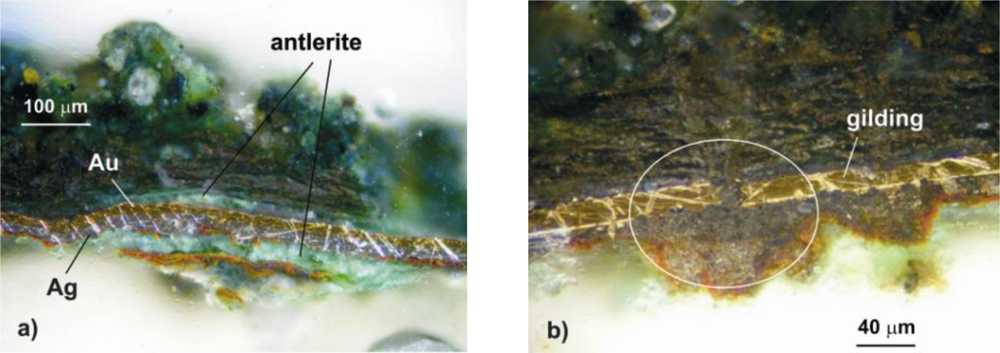

3.2. The Two Putti Figures
3.3. Archaeological Objects

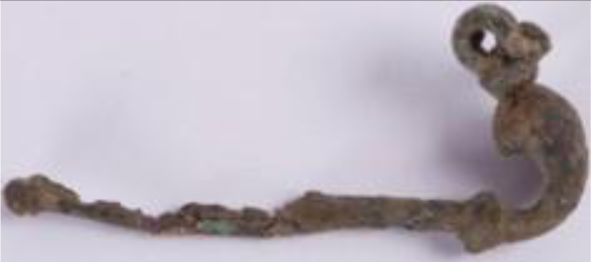

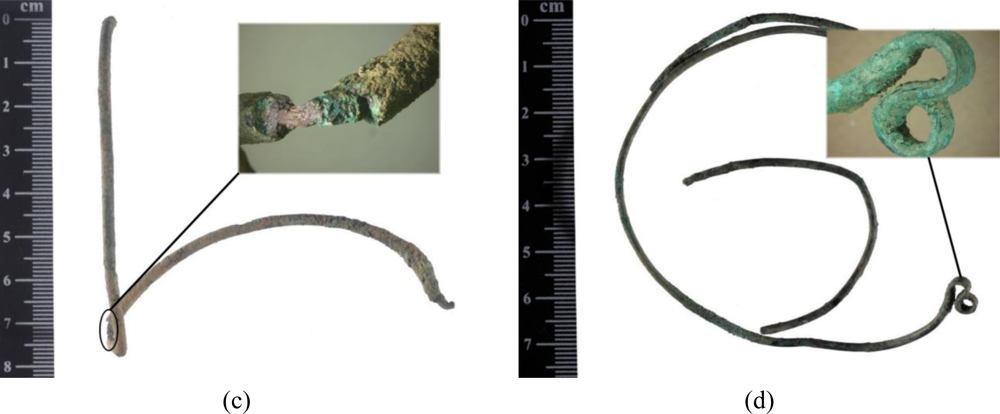

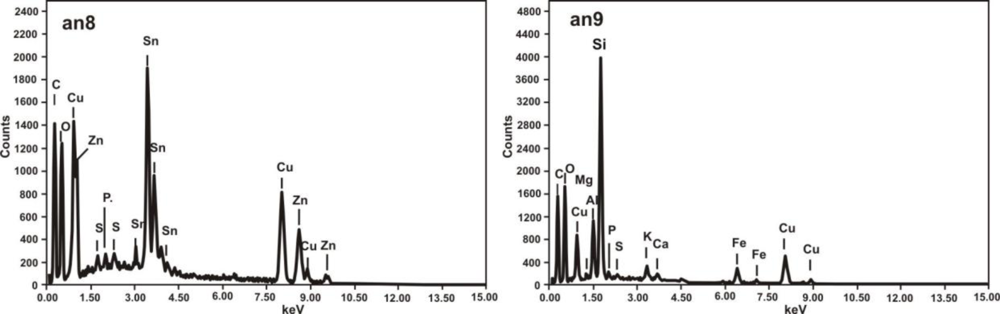

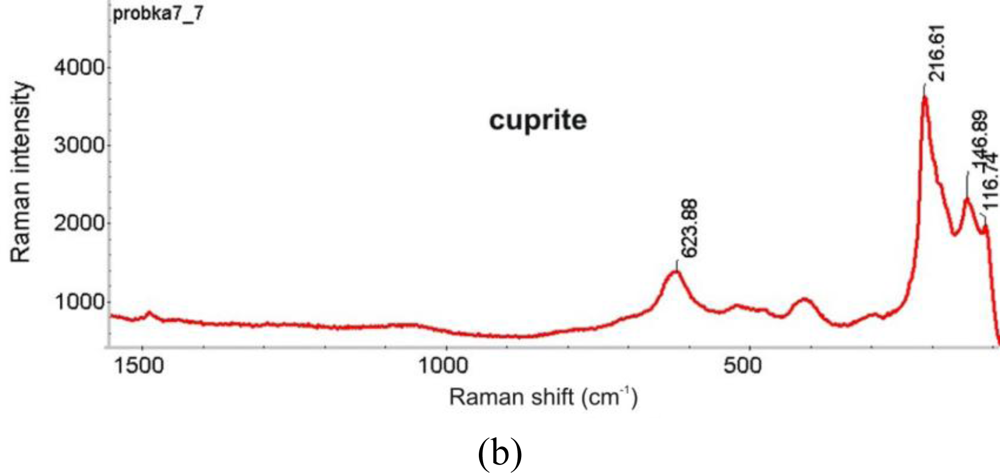

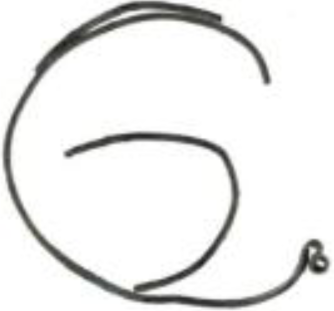

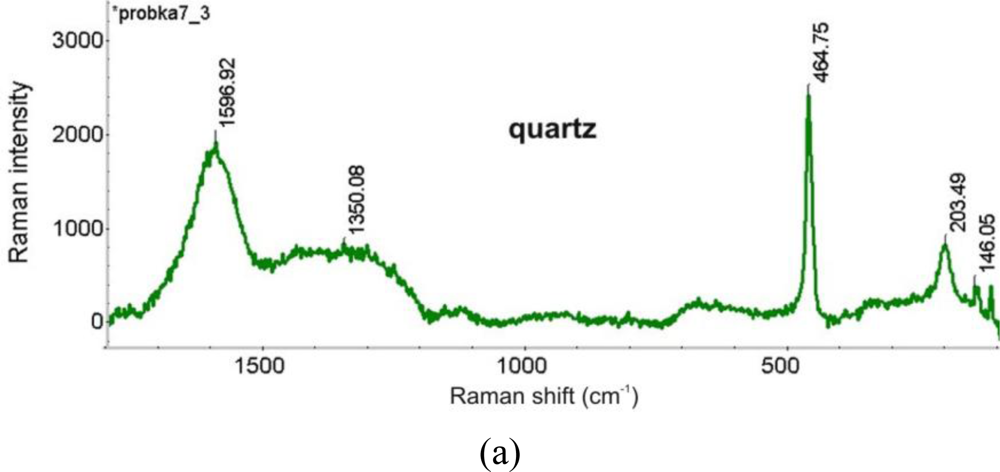

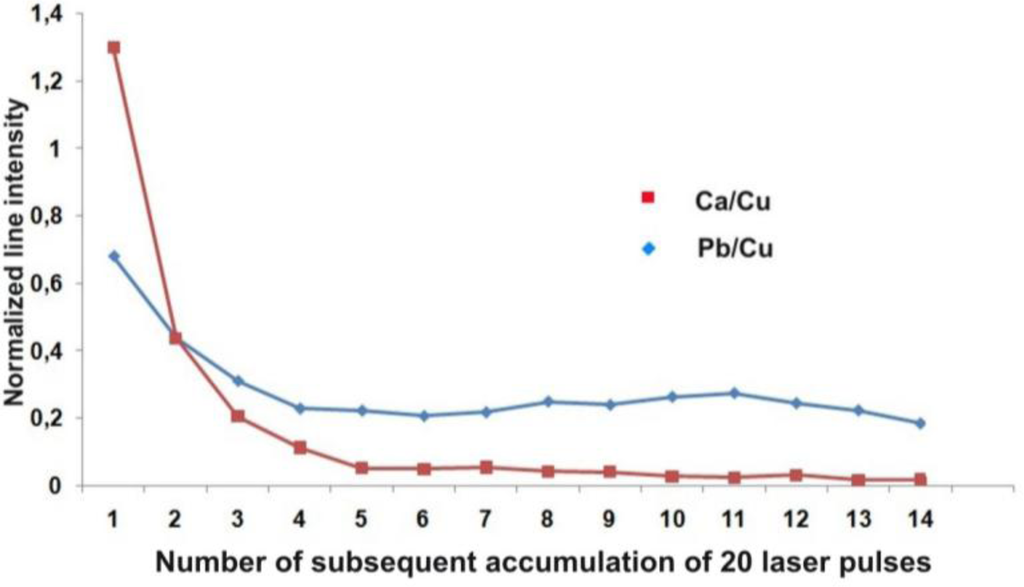

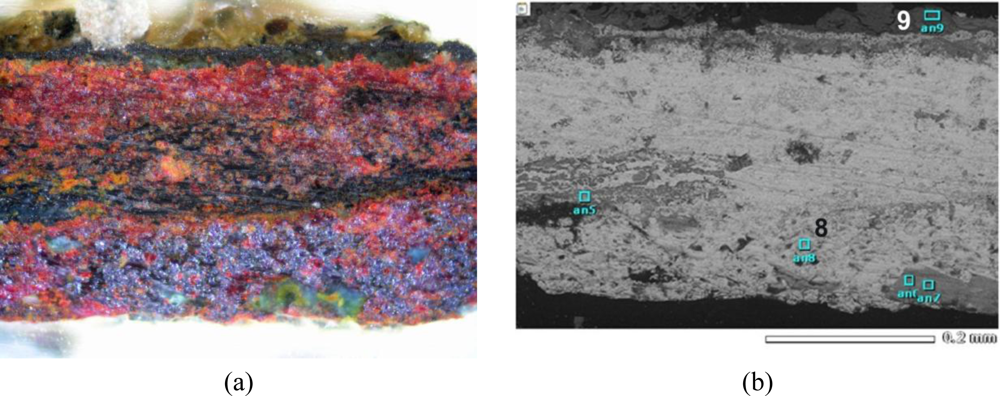

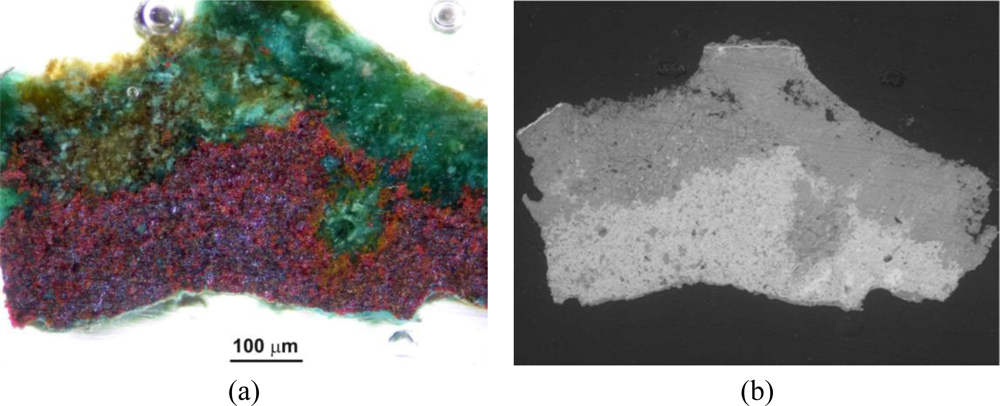

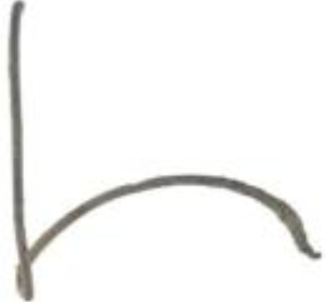

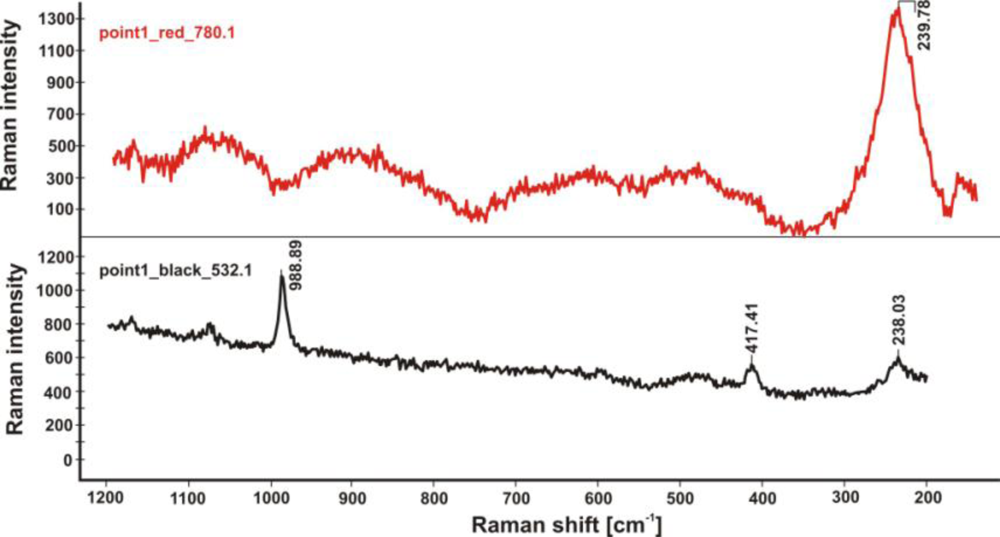

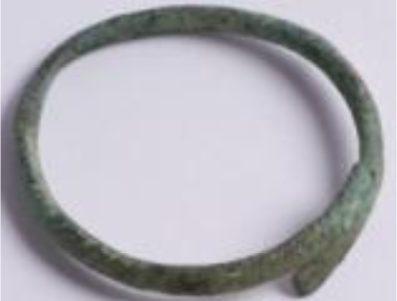

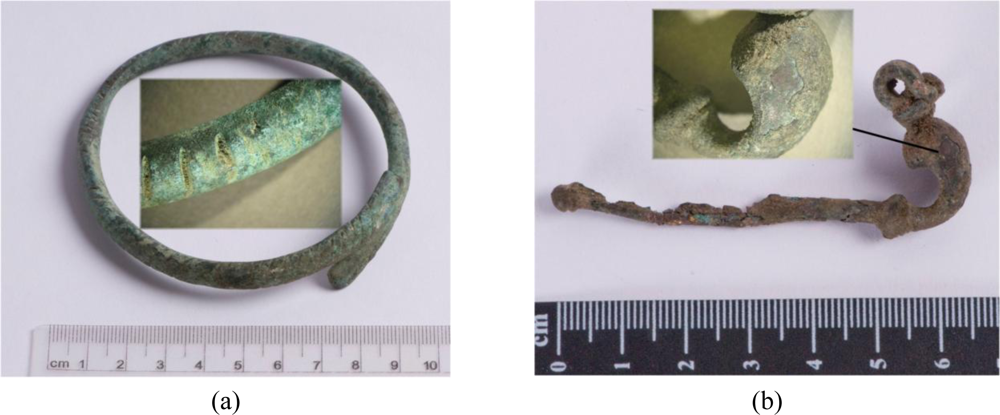

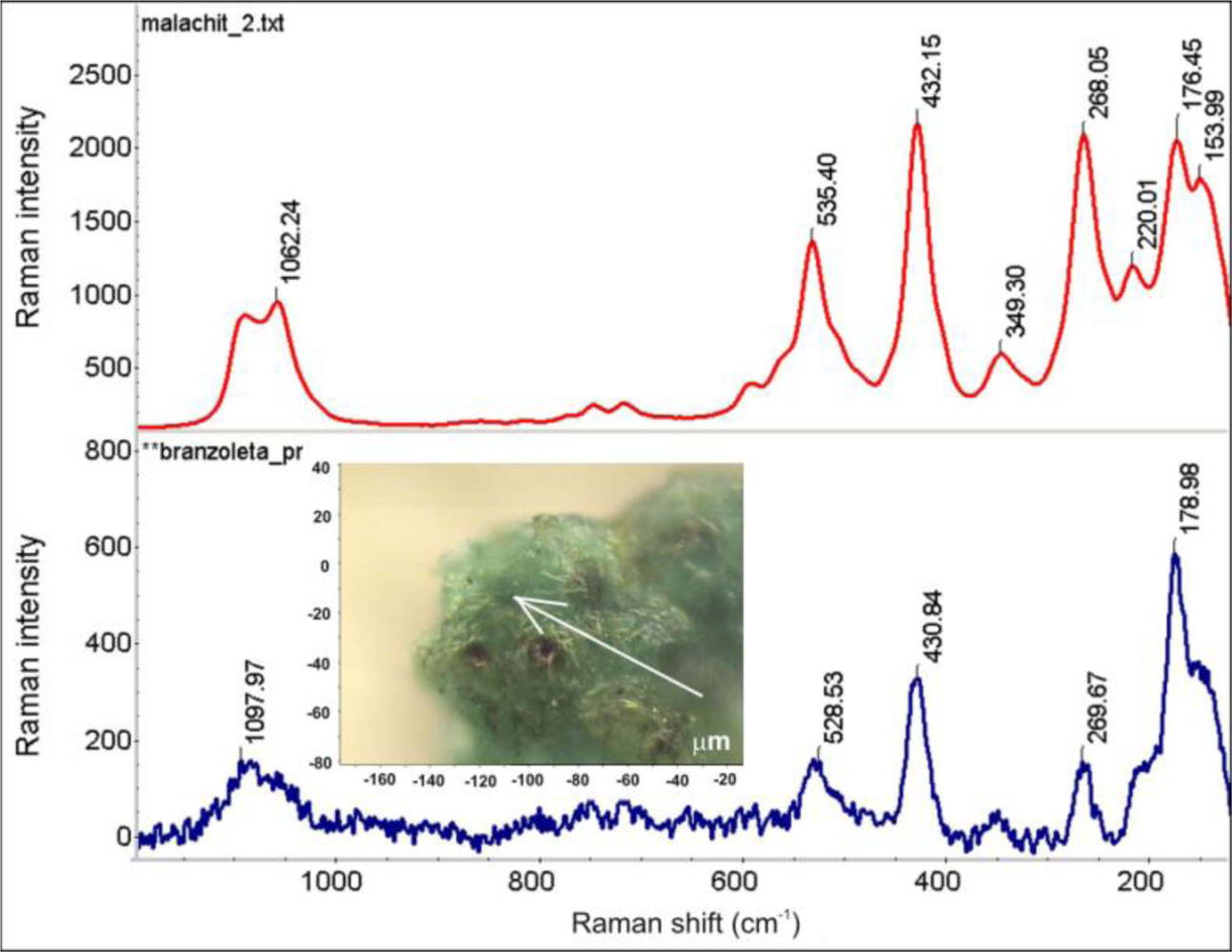

3.3.1. Bracelet and Fibula from Jasna Góra Monastery, Częstochowa

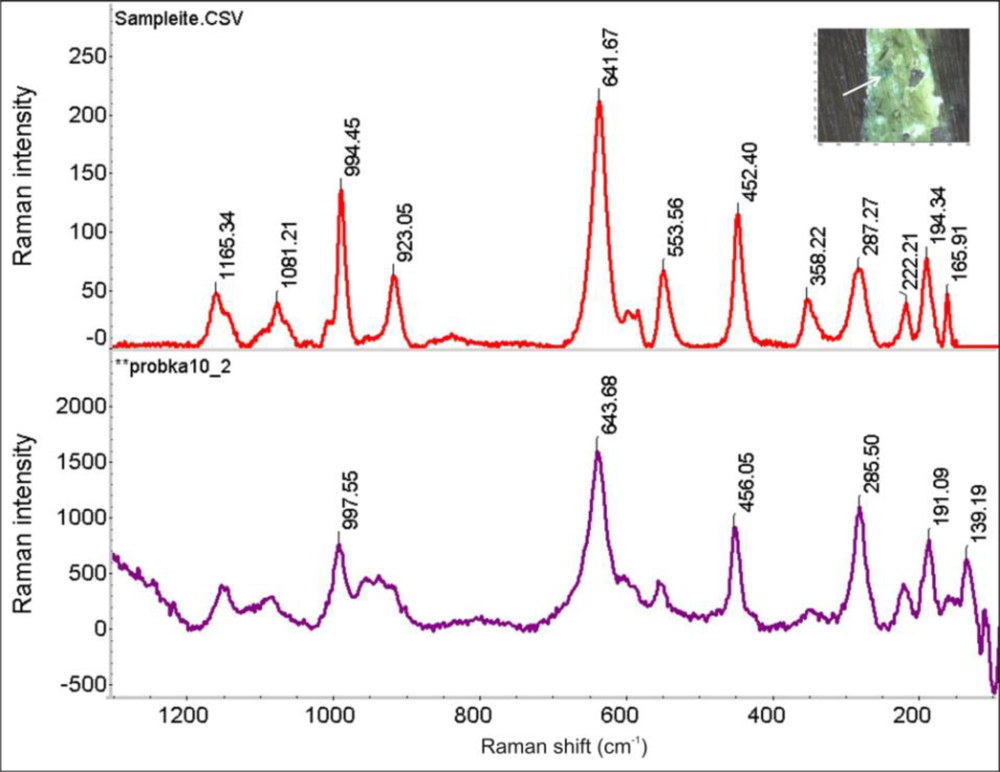

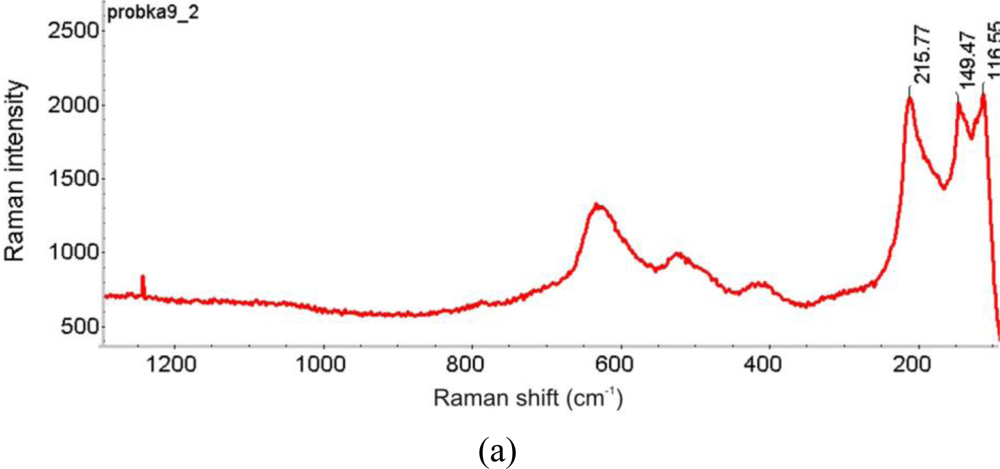

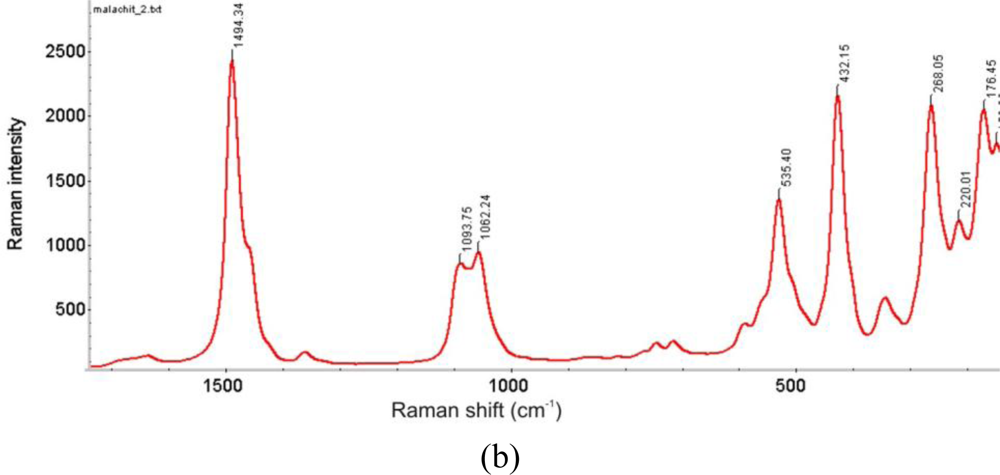

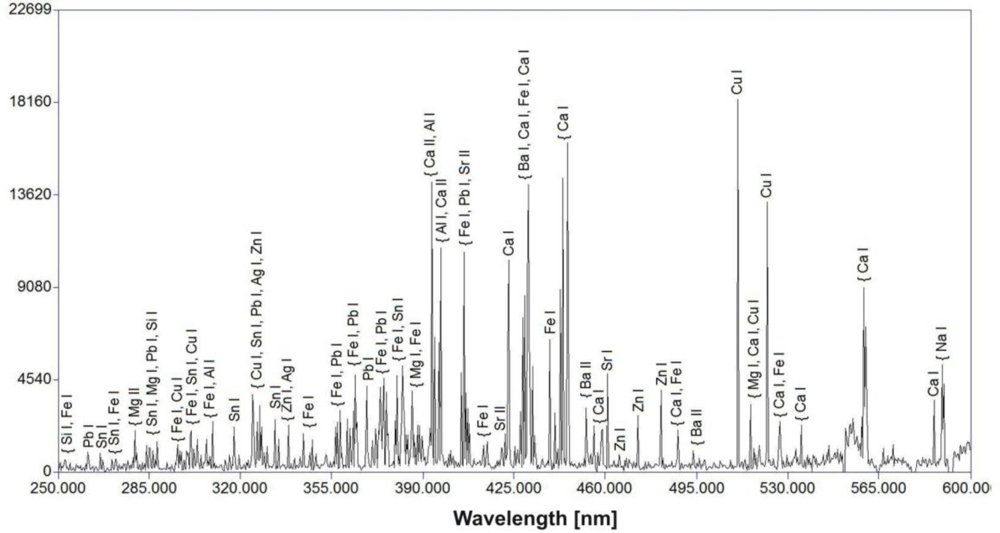

3.3.2. Bows from Wilanów Palace Museum in Warsaw
4. Conclusions
Acknowledgments
References
