Article

Novel Adhesion Technique Using Metallic or Non-Metallic Hydrous Oxide of Metal Complexes Involving Magnetic Compound Fluid Rubber under Electrolytic Polymerization and Magnetic Field for Producing Sensors

by
Kunio Shimada
1,*,
Hiroshige Kikura
2,
Hideharu Takahashi
2 and
Ryo Ikeda
2
1
Faculty of Symbiotic Systems Sciences, Fukushima University, 1 Kanayagawa, Fukushima 960-1296, Japan
2
Institute of Innovative Research, Tokyo Institute of Technology, 2-12-1 Ookayama, Meguro-ku, Tokyo 152-8550, Japan
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(3), 689; https://doi.org/10.3390/s19030689
Submission received: 17 January 2019 / Revised: 4 February 2019 / Accepted: 4 February 2019 / Published: 8 February 2019
(This article belongs to the Section Sensor Materials)
Browse Figures
Versions Notes

Abstract

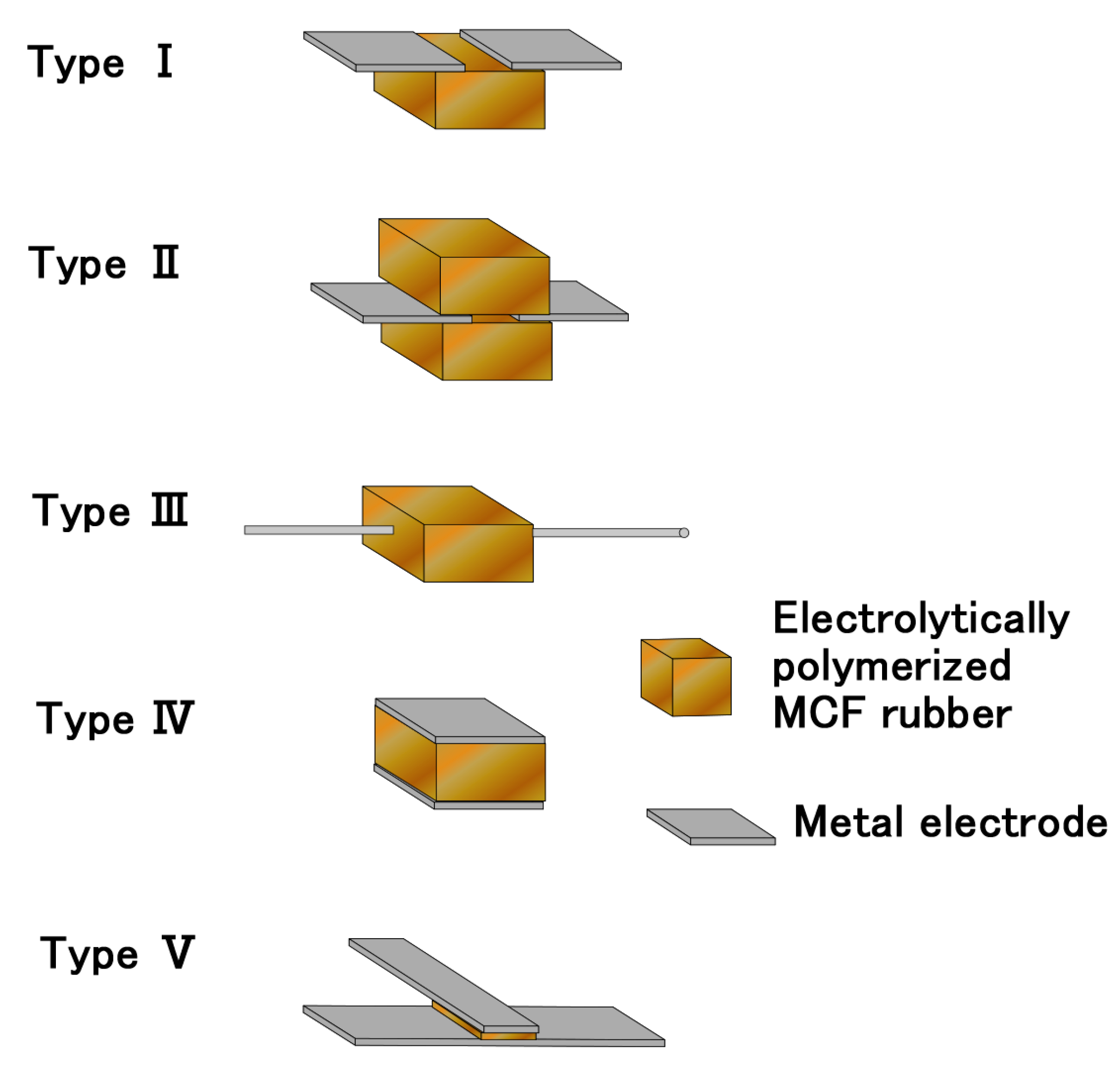

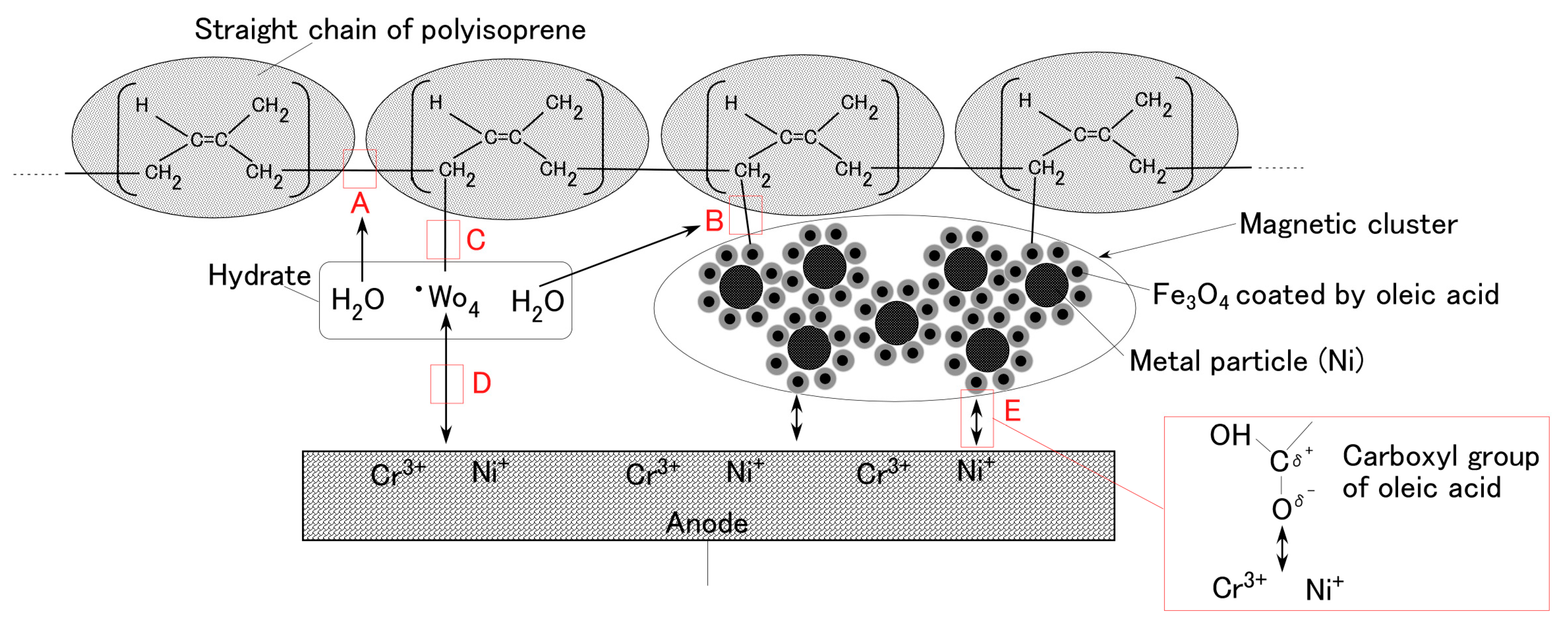

As per sequential studies on new types of soft rubber for the artificial skin of robots, smart sensors, etc., we have proposed and investigated hybrid skin (H-Skin) and haptic sensors by using magnetic compound fluid (MCF), compounding natural rubber latex (NR-latex), and applying electric and magnetic fields. Through electrolytic polymerization, the MCF rubber is solidified. The MCF rubber has hybrid sensing functions and photovoltaic effects, and electric charge as battery. In case of the production of soft rubber sensors, however, the problem of adhesion between metal electrodes and rubber is very important. In the present study, we propose a novel adhesive technique for bonding the metal electrodes and MCF rubber by using metallic or non-metallic hydrous oxide, which is a metal complex, via electrolytic polymerization. The anionic radical hydrate reacts with the isoprene molecules of NR-latex or chloroprene rubber latex (CR-latex) such that they are cross-linked and the MCF rubber with the hydrate is solidified, which can be represented via a chemical reaction equation. By means of this adhesive technique, we presented five cases of sensors fabricated using metal electrodes and rubbers. This technique is applicable for novel cohesion between rubber and metal.
Keywords: metallic hydrous oxide; non-metallic hydrous oxide; metal complex; natural rubber; chloroprene rubber; adhesion; electrolytic polymerization; magnetic cluster; magnetic field; magnetic compound fluid (MCF); sensing; artificial skin; robot metallic hydrous oxide; non-metallic hydrous oxide; metal complex; natural rubber; chloroprene rubber; adhesion; electrolytic polymerization; magnetic cluster; magnetic field; magnetic compound fluid (MCF); sensing; artificial skin; robot
