A New Method for the Measurement of the Diffusion Coefficient of Adsorbed Vapors in Thin Zeolite Films, Based on Magnetoelastic Sensors

Abstract

In the current work an experimental method is used in order to calculate the diffusivity $D$ (diffusion coefficient) of various vapors in thin zeolite films. The method is based on adsorption data from magnetoelastic sensors on top of which a zeolite layer was synthesized, and the diffusivity is extracted by fitting the data to Fick’s laws of diffusion. In particular, the method is demonstrated for two volatile organic compound (VOC) vapors on two different zeolites, the p-Xylene adsorption in Faujasite type zeolite with $D=1.89\times {10}^{-13} {\mathrm{m}}^2/\mathrm{s}$ at $120 °\mathrm{C}$ and the propene adsorption in Linde Type A type zeolite with $D=5.9\times {10}^{-14} {\mathrm{m}}^2/\mathrm{s}$ at $80 °\mathrm{C}$, two diffusion coefficients which are extracted experimentally for first time. Our results are within the order of magnitude of other VOC/zeolite values reported in literature.

1. Introduction

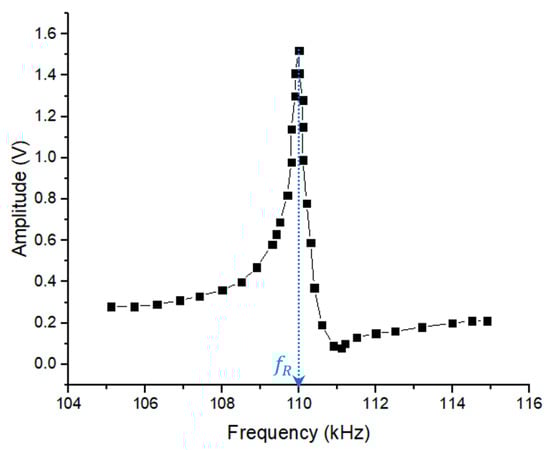

Magnetoelastic sensors are an excellent tool for adsorption studies in thin films as their signal is sensitive to mass loads [1,2,3,4,5,6]. As it is shown in Figure 1, the voltage signal of a thin magnetoelastic strip, when excited along its long axis, exhibits resonance at a specific resonance frequency $f_R$. In general, it can be proven that a rectangular thin ribbon with length $L$ of any material with density $\rho$, Young modulus $E$, and Poisson’s ratio $\nu$, resonates mechanically [7] at a frequency:

$$f_R=\frac{1}{2L}\sqrt{\frac{E}{\rho \left(1-{\nu }^2\right)}}$$

(1)

Typically, the magnetoelastic adsorption sensors are composed of two layers, one with the magnetoelastic material which acts as the sensing layer, and one with a chemically active material which selectively adsorbs the desired species. The adsorbed mass alters the density $\rho$ in Equation (1) (because in an adsorption process the sensor mass changes but its volume remains the same) and the resonance frequency shifts toward lower values, assuming that the adsorption does not affect $E$ (there are some exceptions with absorption-induced stresses that alter this assumption which are discussed later in the text). Thus, a proper calibration with known mass loads, can turn the resonating layers into microbalance sensors [1,2,3,4]. Our group has used successfully zeolite films as the chemically active layers, on top of magnetoelastic materials of type “Metglas”, in order to detect a number of different gasses and analytes [5,6].

On the other hand, volatile organic compounds (VOC) are considered hazardous in general and thus their detection and filtration are deemed necessary. Concerning the detection, a number of different detection techniques have been proposed in the past [6,8,9,10,11,12,13,14]. As for filtration, zeolites have played an active role towards this direction, due to their microporous structure, which allows for the trapping and the subsequent removal of VOC from certain atmospheres or other contaminated substances [15,16,17,18]. There are cases though, where removal of VOC by catalytic conversion has been successfully performed [19,20,21].

Of great importance in these applications, is the dynamics of the adsorption of VOC in the zeolite crystals which is basically the diffusion process. When it comes to diffusion, Fick’s two laws come to mind, which can be summarized in the following differential equation,

$$\frac{\partial c}{\partial t}=D\frac{{\partial }^{2}c}{\partial x^2}$$

(2)

which governs the diffusion process in one dimension. Here $c$ is the concentration of the adsorbed VOC molecules (mass per distance) and $D$ their diffusion coefficient in the zeolite film. A little discussion about the validity of the above equation should be given here. According to [22], Fick’s laws appear to be valid only for homogeneous systems which is not the case for zeolite crystals when viewed at atomic scale, but they can be considered practically homogeneous when a large space scale is considered. In our case, our zeolite films had thicknesses of the order of micron-meters and the diffusion took place over this distance so we can safely assume that we are on the large scale side. Additionally, our films were not single crystals but were composed of a large number of single crystals (see SEM micrographs in [23]) which means that every physical property of the film has the meaning of an averaged quantity over all possible directions, thus uniformity can be safely assumed. Under these considerations, we can accept Fick’s laws as valid laws to describe diffusion phenomena in our zeolite films.

Another point that needs to be considered is the fact that Equation (2) is valid for the case where only one species is diffusing through a solid material. When two or more species are present, the species do not act independently of each other but the diffusion of one affects the diffusion of the other species [24]. In such a case, the more general Maxwell–Stefan equations need to be used (see Equation (2) in [24]) and Equation (2) above is a special case of these equations when only one species is present. In our case, a binary mixture of gases was used with one being the VOC vapor. However, as the VOC are strongly adsorbed in the zeolite crystal and we are particularly interested on their diffusion dynamics, we can approximately use Equation (2) keeping in mind that the Maxwell–Stefan equations lead only to small corrections to the concentration profiles predicted by Equation (2).

The main purpose of the current work is to use our VOC sensing data which were recorded by magnetoelastic/zeolite strips, in order to extract the diffusion coefficient $D$ in Equation (2) of the VOC in the zeolite crystal. The usefulness of the current method is that (a) there are not so many available VOC-zeolite data for $D$, (b) when available, there is a noticeable deviation among different authors, and (c) there is a variety of measuring techniques, some of which are not so easy to use and not so direct to interpret.

Table 1. Different diffusion coefficients for gas/zeolite pairs reported in the literature.

VOC	Zeolite Type	$\mathit{D} \left({10}^{-12} {\mathbf{m}}^2/\mathbf{s}\right)$	Temperature (°C)	Reference
p-Xylene	ZSM-5	0.13	$300$	[25]
Benzene	ZSM-5	0.025	$65$	[26]
Benzene	ZSM-5	0.05	$142$	[27]
ethylbenzene	ZSM-5	0.049	$142$	[27]
i-Butane	ZSM-5	1	$60$	[28]
n-Butane	ZSM-5	0.8	$200$	[29]
n-Hexane	ZSM-5	0.46	$200$	[29]
2-Methylpentane	MFI	1	$130$	[30]
n-Hexane	MFI	45	$130$	[30]
methanol	NaX	10	$100$	[27]
Benzene	NaX	12	-	[27]
Benzene	NaX	12	$195$	[31]
propylene	NaY	1500	-	[32]
p-Xylene	NaY	0.18	$25$	[33]
Propene	5A	1.1–1.6	$200$	[29]
n-Butane	5A	0.5–0.7	$200$	[29]
n-Octane	USY	1100	$25$	[22]
n-Butane	Modernite	24,000	$60$	[28]
n-Hexane	Pt/HMOR	0.1	$250$	[34]

below gives a short review of diffusion coefficients $D$ found by different authors for a number of VOC-zeolite combinations.

2. Materials and Methods

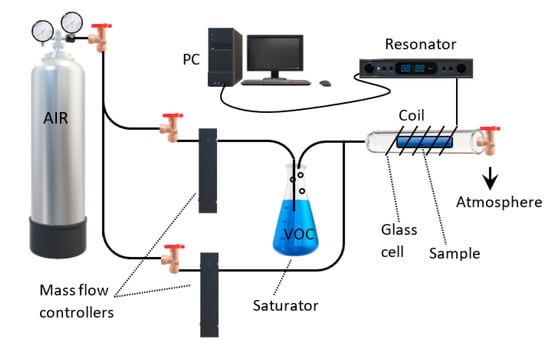

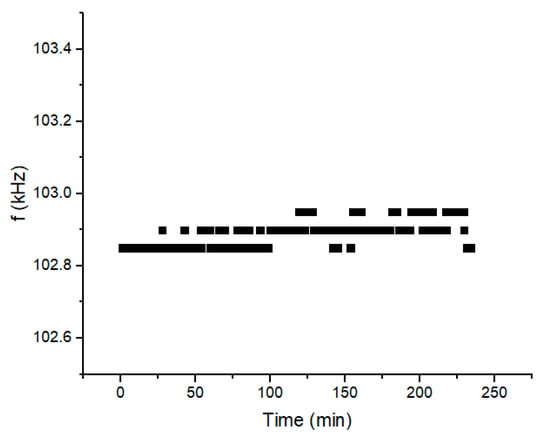

Figure 2 shows the experimental part that was used for the recording of the VOC adsorption data by magnetoelastic sensors. Our sensors were composed of two layers, one of which was of zeolite type, either Faujasite (FAU) or Linde Type A (LTA) (for more synthesis details and methods, please see [8]) of a few tens of microns thick, and another 30 µm thick layer composed of magnetoelastic material 2826 ΜΒA, which is an amorphous metal with average stoichiometry Fe₄₀Ni₃₈Mo₄B₁₈. The sensor thickness and width were $2$ and $0.4 \mathrm{cm}$ correspondingly. The sensor was placed inside the glass-cell shown in Figure 2 and an excitation coil and a detection coil were wound around the cell. These coils were driven and interrogated by a special resonator which basically resonates the sensor and records its natural frequency on a personal computer. Before allowing any VOC atmosphere in the glass cell, the sensor was left overnight under the flow of dry synthetic air (referred to simply as “air” from now on) at a temperature of $120$ or $80 °\mathrm{C}$ (depending on the VOC, see adsorption experiments below) in order to clear its pores of unwanted components such as humidity. Following this clean-up procedure, a number of resonance data were recorded for a total period of 4 h with the same dry air flow and temperature. The results are shown in Figure 3. This experiment proves, as expected, that under a stable atmosphere the resonance frequency $f$ of the laminate remains constant with a mean value of $102.88 \mathrm{kHz}$ and a fluctuation of about $\pm 0.05 \mathrm{kHz}$, thus providing us with an indication of the accuracy of the set-up. Going back to Figure 2, which was used for the VOC measurements, a saturator was used to create saturated VOC vapor when the VOC was in the liquid phase at normal conditions. As the figure shows, air was allowed to flow through the saturator which contained the liquid VOC. Parallel to that flow, was a dry flow of air and the two flows were mixed in a given ratio in order to create the desired VOC concentration inside the glass cell. The saturator was replaced by a VOC gas cylinder for certain VOC that exist in the gas phase at normal conditions. Two different VOC were tested in the current work by two different sensors: (a) p-Xylene with a sensor with a FAU zeolite, and (b) propene with a sensor with an LTA zeolite. These combinations were chosen because these zeolites show selectivity on these two particular VOC.

3. Results

3.1. Case (a) p-Xylene/FAU

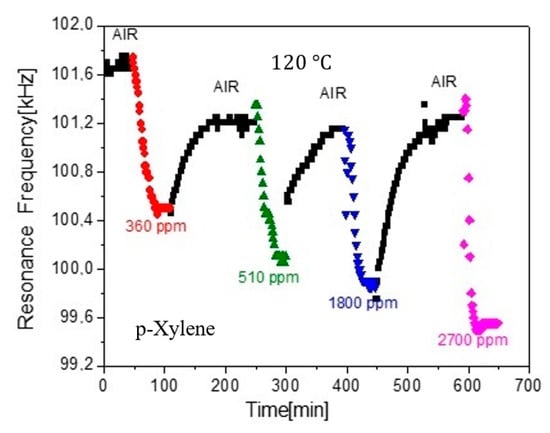

In this case, the VOC chosen was p-Xylene and the zeolite layer on the sensor was of FAU type and the adsorption measurements at $120 °\mathrm{C}$ were as shown in Figure 4. These measurements are not new, but they were first presented in one of the author’s PhD work [35]. In order to check the zeolite adsorption response, the sensor atmosphere was allowed to alternate between dry-air and VOC of various concentrations in ppm (parts per million with respect to clear air), and several resonance data were recorded in fixed time intervals. The plot shows the corresponding resonance frequencies $f$ versus time. As it was mentioned in the introduction, $f$ depends inversely on mass loads and so it drops when the VOC is introduced in the glass cell, after this was filled with clear air (since p-Xylene is heavier than air). It should be mentioned at this point, that at certain adsorption experiments, there was another important parameter, besides the mass load, that needed to be taken into consideration. This parameter was the development of internal adsorption-stresses on the zeolite film, which were capable of rising $f$ during adsorption, thus contradicting our initial assumptions of a decreasing frequency with mass load. However, in the data of Figure 4, such a behavior was not observed and so we were confident that the measured resonance frequency was entirely due to mass loads.

3.2. Case (b) Propene/LTA

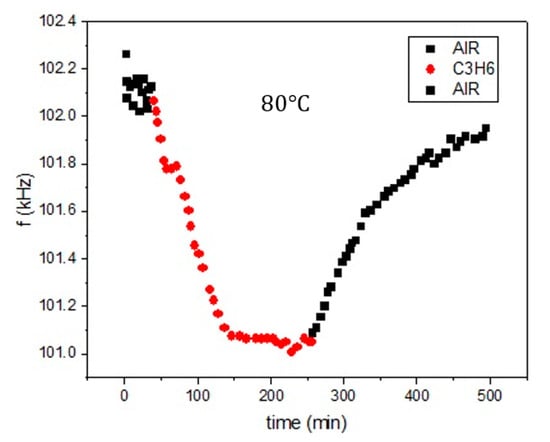

In this case, the VOC chosen was propene (${\mathrm{C}}_3{\mathrm{H}}_6$) and the zeolite layer on the sensor was of LTA type and the adsorption measurements at $80 °\mathrm{C}$ were as shown in Figure 5. As in Case a, these measurements are not new, but they were first presented in the PhD work [35]. Here the sensor atmosphere was subsequently cycled with equal time intervals of 100% air and 100% VOC. Here too, stress-related phenomena were not present in the measurements.

4. Discussion

As it was mentioned above, the main purpose of the current paper is to introduce a new method to extract the diffusion constant $D$ of various VOC in Zeolites, given plots like the ones shown in Figure 4 and Figure 5. Our proposed method, consists of the following steps:

• Assume the sensor geometry of Figure 6.
• Solve the differential Equation (2) by applying the appropriate boundary and initial conditions for the VOC concentration $c$.
• Extract an expression for the VOC adsorbed mass $\mathsf{\Delta }m\left(t\right)$ in the Zeolite film versus time. This expression includes the diffusion constant $D$ as a parameter.
• Substitute $\mathsf{\Delta }m\left(t\right)$ in Equation (1) to extract a corresponding expression of the sensor resonance frequency $f$ versus time.
• Fit the $f$ expression found in the previous step to the data of Figure 4 and Figure 5 with $D$ as the running parameter and get its optimum value for best fit.

The math details and calculations of the proposed method are explained in detail in the Appendix A, Appendix B, Appendix C. It will only be mentioned here that the fit was applied to only one of the multiple branches of the plots of Figure 4 and Figure 5 and, more specifically, to one of the diffusion-out branches, when the VOC flow at the sensor neighborhood is set to zero (leaving only a flow of synthetic air around the sensor which causes no adsorption according to Figure 2), as this process leads to an easy exponential solution of the differential Equation (2).

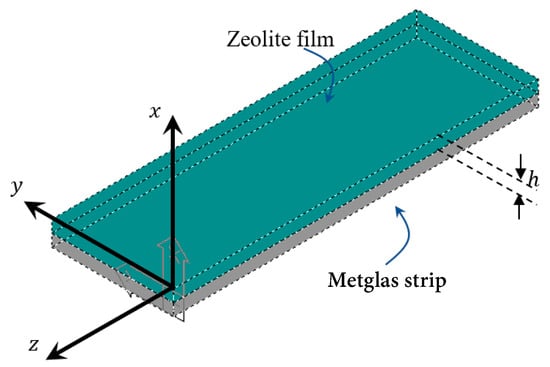

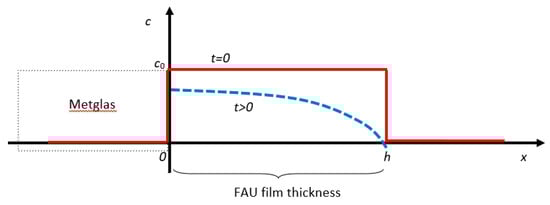

Additionally, the basic assumptions of the method need to be given here. As Figure 6 shows, our sensor consists of the zeolite adsorbing film on top of a Metglas strip. The film has the form of a thin slab so most of the gas escapes from the top surface and not sideways as the film thickness is about 30 μm, which is much smaller than the other two dimensions of 4 and 20 mm. Thus, the gas concentration in the film, will be considered to be constant over y and z (except only for a small fraction at the edges) and have a strong x profile along the film’s thickness. That makes the problem one-dimensional which simplifies the whole analysis.

The analysis in the Appendix B leads to the following Equation (A11) for the sensor resonance frequency $f$ versus time

$$f\approx f_0\left[1-\frac{4h{c}_0}{m{\pi }^2}\exp \left(-\frac{D{\pi }^2}{4h^2}t\right)\right]$$

(3)

where $f_0$ is the resonance frequency without mass load (basically with air flow as in Figure 2), $h$ is the zeolite film thickness, $c_0$ is the initial VOC concentration in units $\mathrm{g}/\mathsf{\mu }\mathrm{m}$ inside the film (from the previous diffusion-in process, where $c_0$ is assumed to be constant over the film thickness), and $m$ is the clear sensor mass without adsorption. Equation (3) is a simple exponential expression of the form $f=f_0\left(1-a{e}^{-bt}\right)$ with

$$a=\frac{4h{c}_0}{m{\pi }^2}$$

(4)

and

$$b=\frac{D{\pi }^2}{4h^2}$$

(5)

so it can easily be fit to get $a$ and $b$, in order to extract $D$ from the simple expression

$$D=\frac{4h^{2}b}{{\pi }^2}$$

(6)

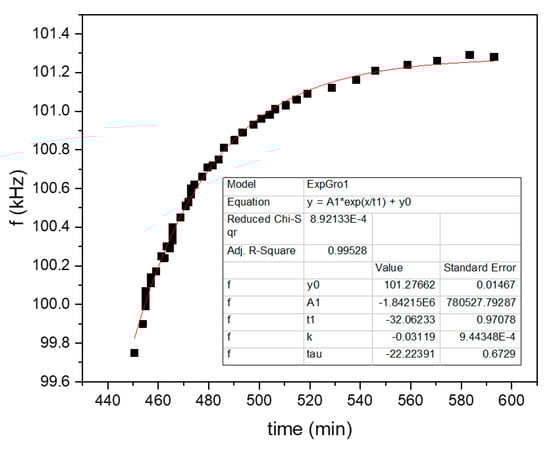

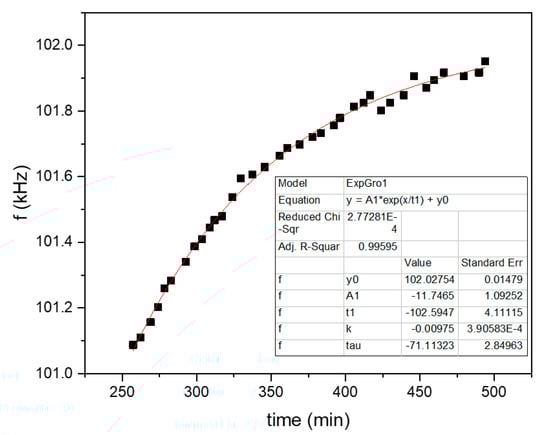

Shown in Figure 7 and Figure 8 are the fits of the plots of Figure 4 and Figure 5, correspondingly, of only the first diffuse-out branch (the second marked “AIR” branch in the plots). The corresponding fit parameters and diffusion coefficients are shown in

Table 2. Fit results of Figure 7 and Figure 8.

	$\mathit{h} \left(\mathsf{\mu }\mathbf{m}\right)$	$\mathit{b} \left(\mathbf{m}\mathbf{i}{\mathbf{n}}^{-1}\right)$	$\mathit{D} \left({\mathbf{m}}^2/\mathbf{s}\right)$	$\mathit{\theta } \left(°\mathbf{C}\right)$
FAU/p-Xylene	$30$	$0.0312$	$1.89\times {10}^{-13}$	$120$
LTA/propene	$30$	$0.00975$	$5.9\times {10}^{-14}$	$80$

.

Thus the mini review list of Table 1 in Section 1, can be enriched by adding two extra lines for the cases of p-Xylene in FAU type zeolite and propene in LTA type zeolite of the current work, with corresponding diffusion coefficients $D$ of $1.89\times {10}^{-13} {\mathrm{m}}^2/\mathrm{s}$ at $120 °\mathrm{C}$ and $5.9\times {10}^{-14} {\mathrm{m}}^2/\mathrm{s}$ at $80 °\mathrm{C}$, correspondingly. Both results are within the order of magnitude of the values presented in the table.

5. Conclusions

A new experimental technique was proposed which is able to determine the diffusion coefficient of a gas in a porous adsorbing medium such as a zeolite, but it can equally being applied to other porous materials. The technique is based on the use of resonance data from magnetoelastic sensors, enhanced by an exponential data fit model of Fickian type diffusion. The method is demonstrated for two different cases, the adsorption of p-Xylene vapor in a FAU zeolite and propene gas in an LTA zeolite and the corresponding diffusion coefficients $D$ of $1.89\times {10}^{-13} {\mathrm{m}}^2/\mathrm{s}$ at $120 °\mathrm{C}$ and

$5.9\times {10}^{-14} {\mathrm{m}}^2/\mathrm{s}$ at $80 °\mathrm{C}$, which are reported here for first time and are within the order of magnitude of results found for other pairs in the literature. The importance of the current work for future study is that more pairs of VOC/zeolite diffusion coefficients can be easily measured as there are not so many data available in the literature, thus enriching Table 1 and providing a good reference for research in the field.
