Sensitivity Enhancement of Curvature Fiber Sensor Based on Polymer-Coated Capillary Hollow-Core Fiber

by
Luis A. Herrera-Piad
1,
Iván Hernández-Romano
2,*,
Daniel A. May-Arrioja
3,
Vladimir P. Minkovich
4 and
Miguel Torres-Cisneros
1
1
Electronics Department, DICIS, Universidad de Guanajuato, Carretera Salamanca-Valle de Santiago km 3.5 + 1.8, Salamanca 36885, Mexico
2
CONACYT-Electronics Department, DICIS, Universidad de Guanajuato, Carretera Salamanca-Valle de Santiago km 3.5 + 1.8, Salamanca 36885, Mexico
3
Fiber and Integrated Optics Laboratory (FIOLab), Centro de Investigaciones en Óptica A.C., Aguascalientes 20200, Mexico
4
Centro de Investigaciones en Óptica A.C., Calle Lomas del Bosque 115, León 37150, Mexico
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(13), 3763; https://doi.org/10.3390/s20133763
Submission received: 9 June 2020 / Revised: 2 July 2020 / Accepted: 3 July 2020 / Published: 5 July 2020
(This article belongs to the Section Optical Sensors)

Abstract

:
In this paper, we propose and experimentally demonstrate a simple technique to enhance the curvature sensitivity of a bending fiber optic sensor based on anti-resonant reflecting optical waveguide (ARROW) guidance. The sensing structure is assembled by splicing a segment of capillary hollow-core fiber (CHCF) between two single-mode fibers (SMF), and the device is set on a steel sheet for measuring different curvatures. Without any surface treatment, the ARROW sensor exhibits a curvature sensitivity of 1.6 dB/m−1 in a curvature range from 0 to 2.14 m−1. By carefully coating half of the CHCF length with polydimethylsiloxane (PDMS), the curvature sensitivity of the ARROW sensor is enhanced to −5.62 dB/m−1, as well as an increment in the curvature range (from 0 to 2.68 m−1). Moreover, the covered device exhibits a low-temperature sensitivity (0.038 dB/°C), meaning that temperature fluctuations do not compromise the bending fiber optic sensor operation. The ARROW sensor fabricated with this technique has high sensitivity and a wide range for curvature measurements, with the advantage that the technique is cost-effective and easy to implement. All these features make this technique appealing for real sensing applications, such as structural health monitoring.

1. Introduction

Fiber optics sensors (FOS) are attractive to the scientific community and industry due to their intrinsic properties, such as small size, lightweight, corrosion resistance, immunity to electromagnetic interference, and high sensitivity. Several FOS have been assembled using specialty fibers such as photonic crystal fiber (PCF) [1,2], capillary hollow-core fiber (CHCF) [3], microfiber [4], D-shaped fiber [5], fiber Bragg grating (FBG) [6,7], long-period fiber grating (LPBG) [8], tilted fiber Bragg grating (TFBG) [9], and multicore optical fiber [10]. Recently, the fabrication of FOS using CHCF has been increased due to its easy fabrication and low-cost. Using this specialty fiber it has been possible to implement Mach-Zehnder [11], Fabry-Pérot [12,13], and Sagnac [14,15] interferometers for sensing applications, as well as sensors based on the multimode interference effect [16] and the anti-resonant reflecting optical waveguide (ARROW) guidance [17]. In the last few years, the use of CHCF to observe ARROW guidance has become an appealing technique to construct FOS, in this case, light is guided with relatively low loss by the anti-resonant FP resonator formed by the silica ring in the air. Therefore, the fabrication of ARROW devices is quite simple and requires only the splicing of a section of CHCF between two single-mode fibers (SMF). Since the ARROW guidance mechanism exhibits a transmission spectrum with periodic dips, we can use it as a sensor by following either wavelength shifts or intensity changes (based on the FOS design). Different parameters have been measured using ARROW sensors such as temperature [18], pressure [19,20], magnetic field [21,22,23], relative humidity [24], torsion [25], liquid level [26], displacement [27], and curvature [28] just to mention a few. In particular, measuring curvature is a crucial task that needs to be implemented in different areas such as robotic arms [29] and structural health monitoring [30], which includes the monitoring of bridges, buildings, airplanes, and other structures. In the above applications, fiber optic curvature sensors have been widely employed due to their easy integration, portability, and multiplexing capabilities. There has been a particular interest in curvature sensors based on monitoring intensity changes on observed dips in the transmitted spectral response, and ARROW devices based on CHCF exhibit that feature. For that reason, W. Ni et al. [31] demonstrated a fiber sensor capable of measuring temperature and curvature using a segment of single hole twin eccentric core fiber, exhibiting a curvature sensitivity of −1.54 dB/m−1 in a range from 0.94 to 2.1 m−1. R. Gao et al. [32] fabricated a directional curvature sensor by infiltrating two symmetric air holes in a hollow-core PCF. The curvature sensor was able to measure two appositive directions with sensitivities of 4.86 and 4.84 dB/m−1 in a curvature range from 0 to 0.88 m−1. S. Wang et al. [28] implemented a curvature sensor with high sensitivity (−15.33 dB/m−1) in the range from 3.63 to 4.69 m−1. A dual parameter FOS for curvature and temperature was proposed by H. Cheng et al. [33], demonstrating a curvature sensitivity of −4.28 dB/m−1 within a curvature range from 10.72 to 11.60 m−1. F. Zhao et al. [34] fabricated a curvature sensor for monitoring power grid wires, and its curvature sensitivity was 3.414 dB/m−1 in a range from 0 to 2.122 m−1. It is important to highlight that the curvature sensitivity and the curvature range are two essential parameters to consider when designing FOS for curvature applications. In many cases, as we noticed in the above FOS configurations, a tradeoff between them occurs, and depending on the application one of them is selected as an important element for sensing.
Here, we present a simple technique to enhance the sensitivity of a curvature sensor based on the ARROW structure. Our approach relies on the fact that by reducing the refractive index (RI) contrast between the core and cladding of a waveguide, the induced optical losses are increased when the waveguide is bent. The above is also true in the case of ARROW waveguides, such as the ones fabricated with CHCF, since the ring-cladding will experience some losses when it is bent. Therefore, when we cover the CHCF with polydimethylsiloxane (PDMS), this will significantly reduce the RI contrast between the silica and air, which should enhance the induced losses as a function of the applied curvature. It is important to highlight that after splicing the CHCF to the SMF, we do not need to perform any particular procedure rather than carefully covering a specific length of the CHCF. Our experimental results confirm that our ARROW sensor covered with PDMS exhibits an enhanced curvature sensitivity of −5.62 dB/m−1 within a sensing range from 0 to 2.68 m−1. The observed sensitivity corresponds to an enhancement of 3.5 times as compared to the sensitivity of the ARROW curvature sensor without PDMS. We should also mention that the temperature sensitivity of the ARROW sensor with PDMS is low (0.038 dB/°C), which demonstrates that the curvature measurements are not affected by temperature fluctuation.

2. Principle Operation, Fabrication Method, and Experimental Setup

2.1. Operation Principle

The ARROW mechanism that occurs in a CHCF is a well-known effect that has been used for sensing many physical parameters. ARROW devices are constructed, as we mentioned before, by splicing a segment of CHCF between two SMF. In this configuration, the lead-in fiber launches light in the central hollow region of the CHCF (air) and, as the RI of hollow-core is lower than that of the ring-cladding (silica) region, the core modes radiate light through the ring-cladding. The ring-cladding region can be thought of as an FP resonator where the wavelengths that are close to the resonant condition will go through the ring-cladding region and leak out from the CHCF. Such wavelengths are related to the periodic lossy dips observed in the transmitted spectra. On the other hand, the wavelengths that do not satisfy the resonant condition will be internally reflected, confined in the hollow-core, and these wavelengths will be guided through the hollow-core until they reach the lead-out fiber. These confined wavelengths are related to the periodic peaks observed in the transmission spectrum. The reflected intensity from the ring-cladding (FP) that is transmitted in the hollow core of the CHCF can be given as [26]
I r = | r 1 + r 2 e i δ 1 + r 1 r 2 e i δ E 0 | 2 ,
where r 1 and r 2 are the reflection coefficients of the interfaces between air-core/ring-cladding and ring-cladding/surrounding-medium. E 0 is the amplitude of the incident light. The reflected adjacent rays from the FP that come back to the air-core of the CHCF have a constant optical path difference, which is given by δ = ( 4 π / λ ) n d c o s ( θ 2 ) +   π , where λ , n , d , and θ 2 are the wavelength in free space, the RI of the ring-cladding, the thickness of the ring-cladding, and the refraction angle at the interface between air-core/ring-cladding. From Equation (1) it is easy to realize that the periodic dips depend on the RI and the thickness of the ring-cladding. On the other hand, the contrast of the lossy dips is related to the reflection coefficients r 1 and r 2 ; if these two coefficients are equal, the contrast of lossy dips will be high. This contrast value can be increased by using a longer segment of the CHCF because this increases the number of reflections of propagation light and produce stronger interference. One disadvantage of using a longer segment of CHCF is that the optical power suffers from higher losses. In the end, it is a tradeoff between the contrast of the lossy dips and signal attenuation, as many authors have been shown [24,34,35]. According to Equation (1), if r 2 decreases the contrast of the lossy dips will be reduced, which can be achieved by starting to cover the outer part of CHCF by a liquid or a polymer. This interesting feature has been used to develop liquid level sensors [26,36], in which the lossy dips disappear when the liquid completely covers the length of the CHCF. The vanishing of this interferometric signal shows that the presence of the material surrounding the CHCF inhibits the leakage of the resonant wavelengths. Therefore, proper selection of the CHCF dimensions provides a periodic spectrum which is adequate for sensing applications.
FOS are used as curvature sensors because when the fiber is bent, they experience induced stress that is directly proportional to the radius of curvature. Under a bending condition, the outer and inner region of the optical fiber (OF) will experience tensile and compressive stress, respectively. The induced stress will modify the OF refractive index (RI) distribution via stress-optic effects [37], and this can disturb the guiding properties of the fiber. For instance, bending will modify the shape of the guided mode that effectively moves toward the outer region of the OF, which will increase the losses of the guided mode [38,39,40]. Although such an effect is detrimental for telecom applications, some curvature sensors take advantage of this effect, and different curvature FOS have been demonstrated as we mentioned before [28,41,42,43]. In the case of ARROW devices based on CHCF, bending losses also occur, and light that travels in the hollow-core and the ring-cladding leaks out as radiative light, increasing the propagating losses. Therefore, bending losses cause intensity changes in the transmitted spectrum, allowing us to monitor curvature following intensity changes in any of the periodic lossy dips.
It is essential to highlight that, in the case of bending losses, the RI contrast between the OF core and cladding plays an important role. For instance, if the RI contrast between the OF core and cladding is low, the induced bending losses will be higher, and vice versa. Therefore, a simple way to increase the sensitivity of an ARROW curvature FOS is by reducing the RI contrast between the ring-cladding region of the CHCF and the air surrounding the CHCF. The RI contrast can be easily reduced by covering or embedding the CHCF in a polymer with a RI value closer to that of the silica. We use the well-known polydimethylsiloxane (PDMS) polymer to cover the CHCF section in order to enhance the sensitivity of an ARROW curvature FOS. Since the PDMS has a RI that is close to that of the silica, we need to optimize the CHCF length that can be covered with PDMS to keep the resonances in the transmitted spectrum. This optimization is crucial to obtain the highest sensitivity of the ARROW curvature sensor while preserving the sensor’s ability to monitor curvature and will be explained in detail in the following sections.

2.2. Fabrication Method

Figure 1a shows a picture of the cross-section of the CHCF taken by an optical microscope. The inner and outer diameters of the CHCF are 60 and 125 μm, respectively. This CHCF does not have acrylate protection and was fabricated in the Fiber Optic Fabrication Laboratory at Centro de Investigación en Óptica, Mexico. The SMF used in this experiment was a commercial SMF-28e+ (the cladding and core diameters are 125 and 8.2 µm, respectively) [44]. The sensor was constructed by splicing a 9 cm long segment of CHCF between two SMF, see Figure 1b. It should be mentioned that different lengths of CHCF were characterized since the length of the CHCF is related to the contrast of the lossy dips and also signal attenuation, as was mentioned in the last section. By using a 9 cm long segment of CHCF, we found the best contrast of the lossy dips and satisfactory optical signal power to detect power variation accurately. Due to their different geometry, splicing CHCF and SMF with a standard splicing program introduces high losses. We developed a particular program using a Fitel splicer (model s179) to optimize the splicing between CHCF and SMF and reduce the splicing losses. The program first performs an automatic cladding alignment before the splicing. The splicing parameters used in the program were 15 mA of arc power, 10 µm of gap (distance between end face of SMF and CHCF), and 300 ms of arc fusion time. After the fabrication of the sensing structure, the CHCF was cleaned by acetone with the help of some swabs. It is noteworthy that the structure does not need any further surface treatment before pouring the polymer.
The polymer PDMS was used to enhance the ARROW curvature sensor because it has several properties that are ideal in our application, such as a lower RI than the silica (~1.42 at 1550 nm), it can be easily bended after curing, and in general is not too expensive. In order to investigate the performance of the fabricated ARROW device as a curvature sensor, it was fixed on a steel sheet with the help of adhesive tape, as shown in Figure 1c. Considering that the RI difference between silica and PDMS is small, we need to identify the maximum CHCF length that can be covered with PDMS without observing detrimental effects on the ARROW spectral response, as it was mentioned in the last part. The PDMS (RI of 1.42 at 1550 nm) is prepared by pouring a 10:2 ratio of the silicone elastomer and curing agent and mixing them for a couple of minutes. This mixture is allowed to rest for 45 min, which is enough time for releasing air bubbles in the polymer. After covering the outer part of the CHCF with PDMS, the device was placed on a hot-plate and heated up at 80 °C for 10 min to cure the polymer. It must be pointed out that the thickness of the polymer layer was 2 mm, and the sensor was set in the middle of this polymer layer (this position inside the material is called the neutral axis). This axis does not suffer any elongation when the segment is bent [30]. We decided to put the sensor in this position to guaranty that it does experience any strain due to the polymer. The thickness of the PDMS film is ensured by assembling a 2 mm thick cavity on the region to be covered with PDMS. After pouring the PDMS, any small air bubble is removed during the single-step curing process, which provides a uniform and homogeneous PDMS film. At this point, the sensor is ready to measure its curvature sensitivity. In order to control the different CHCF lengths that are covered with PDMS, we used tape as guides to separate four sections in the CHCF, see lateral and top views in Figure 1c. The tape only indicates the sections, and it does not have contact with the CHCF. It is important to mention that the first section corresponds to one-quarter of the CHCF length; the second section is one half of the CHCF length, the third section is three-quarters of the CHCF length, and the fourth section is the entire CHCF length.
The output spectral response of the device, for different CHCF lengths covered with PDMS, was analyzed by using the setup shown in Figure 2a. In the setup, we use a superluminescent diode (SLD) as the broadband source (SLD-1550S-A40, Thorlabs, Newton, NJ, USA), which is centered at 1550 nm and with a measurable bandwidth of 100 nm. The optical signal transmitted through the ARROW curvature sensor is acquired by an OSA (MS9740A, Anritsu, Kanagawa, Japan) to study the effects of the PDMS applied to the CHCF. As shown in Figure 2b, the ARROW curvature sensor without PDMS exhibits a spectral response with periodic lossy dips as described by the ARROW guiding mechanism that was previously mentioned. It must be pointed out that a high fringe contrast better than 23 dB was obtained by the sensor without PDMS (blue line) and the fringe contrast generated by the first, second, third, and fourth sections covered with PDMS was 21, 12, 6, and 0 dB, respectively. As the CHCF was covered with longer sections of PDMS, the fringe contrast gradually decreases, as shown in Figure 2b. This experiment corroborates what was said in Section 2.1, covering longer sections of CHCF with PDMS (decreasing r 2 ) generates low fringe contrast of the lossy dips. Another interesting feature that is observed in all the transmission spectra is the small ripples that can be produced by two reasons. One is related to the slight variation of the thickness of the ring-cladding due to the manufacturing process or by a small deformation during the fabrication process of the sensor [28,35]. The other is related to the modal interference between the core mode and the cladding modes of the CHCF caused by a mismatch in the fusion splice between SMF and CHCF [28,36]. One way to determine how many modes propagates in the CHCF is by taking the Fast Fourier Transform (FFT) of the transmission spectra, see Figure 2c. It should be mentioned that at least nine modes besides the fundamental mode propagate in the CHCF. When the CHCF was covered entirely with PDMS, only the fundamental mode keeps propagating in the air-core of the CHCF and the other modes (seemingly cladding modes) disappear. The amplitude of cladding modes decreases as the CHCF was covered with longer sections of PDMS.
A test was carried out to evaluate the performance of this structure as a curvature sensor, since we were monitoring amplitude changes in the lossy dips and the contrast of the signal generated by the third and fourth sections was low, these sections were not characterized for curvature measurements.

2.3. Experimental Setup

The experimental arrangement shown in Figure 3 was used to study the performance of the ARROW sensor for measuring different curvatures. The ends of the steel sheet were set on two square grooves, and each square groove was attached to a rotatory system that was fixed to a post. We should highlight that the groove spacing was bigger than the steel sheet thickness, allowing free movement of the steel sheet. The previous approach guarantees that the sensor does not suffer any strain during the curvature experiment. For a more detailed explanation of the setup, see Ref. [41]. A metal screw with a pointed head was mounted in a translation stage and was used to push and curve the steel sheet at curvatures from 0 to 2.68 m−1. A SLD was used to launch light to the ARROW sensor through the lead-in SMF, and the output spectrum was acquired using an optical spectrum analyzer (OSA).

3. Results and Discussion

3.1. Curvature Measurements without PDMS

It is important to mention that we are interested in observing the net effects of incorporating the PDMS on the ARROW sensor and eliminate any other potential contribution that could enhance its sensitivity. Thus, the experiment started by first characterizing the device without the polymer, and the results are presented in this section. The transmitted spectral response of the ARROW sensor without PDMS at different curvatures are shown in Figure 4a, and the dip around 1600 nm was chosen to perform the measurements. As can be observed, the curvature changes produce a variation of the dip transmission intensity and a negligible wavelength shift. Therefore, monitoring of the dip transmission changes allows us to correlate such changes to the applied curvature, see Figure 4b. We should also notice that the transmitted intensity changes exhibit a linear response in the range from 0 to 2.14 m−1, as well as a curvature sensitivity of −1.6 dB/m−1, as shown in Figure 4b. It is worthwhile noting that the curvature sensitivity is lower than the sensitivities of almost all sensors mentioned in the introduction (without considering the range). Nevertheless, we should also emphasize that we neither modified the CHCF at all nor applied any special fabrication procedure to enhance the sensitivity. In fact, this is the main focus of our work, in which the curvature sensitivity can be increased to a competitive value by using the technique of covering a section of the CHCF; see the next section. Also shown in Figure 4b is the dip wavelength shift as a function of the applied curvature, exhibiting a sensitivity of 0.104 nm/m−1, which is low enough to interfere with intensity measurements.

3.2. Curvature Measurements with PDMS

The sensor from the last experiment was covered with PDMS, and its response at different curvatures was characterized. Adding the PDMS is the only modification that was made to this sensor, which guarantees that any changes in the performance of this device regarding curvature and temperature measurements are only due to the PDMS. Additionally, since we are not comparing two different devices, we also avoid typical fabrication errors such as different splicing points as well as different lengths of the CHCF during the sensor assembly. We performed curvature measurements in the ARROW devices with the first and second sections covered with PDMS (see Figure 1b). Here we report results only of the ARROW sensor with the second section covered with PDMS (see Figure 1b) since it exhibits the best performance in terms of high fringe contrast, high sensitivity, and wide range. This device was carefully characterized, and its output spectral response at different curvatures is shown in Figure 5a. We can observe that the sensor exhibits significant larger losses when the curvature is increased. In fact, the transmitted intensity changes as a function of the applied curvature improve its linear response over a wider range from 0 to 2.68 m−1, while significantly improving the curvature sensitivity to −5.62 dB/m−1, see Figure 5b. We should also note that the wavelength shift of the dip near 1600 nm is not significantly modified over the measured curvature range, exhibiting a sensitivity of 0.164 nm/m−1.
Based on the above results, we can observe that the curvature sensitivity of the sensor covered with PDMS (half-length of the CHCF) is 3.5 times higher than the sensitivity of the sensor without PDMS, which demonstrates the enhancement in the sensitivity with our proposed technique.
It is also worth noticing that the CHCF without PDMS exhibits a non-linear behavior, as shown in Figure 4b. Such non-linear response is related to changes in the transmitted spectrum as the CHCF is curved, which results from the multiple beam interference since bending losses are relatively small. On the other hand, when the CHCF is covered with PDMS, the mode confinement is reduced and bending losses are significantly higher. This allows bending losses to be the dominant factor over changes of the transmitted spectrum, and the whole intensity of the transmitted spectrum is reduced, providing a linear response over the entire curvature sensing range, see Figure 5b.

3.3. Temperature Sensitivity

A feature that is desirable for curvature sensors is an athermal response since temperature fluctuations are always present (in real applications), and they can produce measurement errors. The idea of covering a section of CHCF with polymer is to increase the curvature sensitivity of the sensor. However, it is well-known that PDMS polymer has a high thermo-optic coefficient (TOC), and this may cause that our sensors increase its response to temperature. In this section, we describe the experimental procedure to characterize the thermal response of both sensors, with and without PDMS, which allows us to compare their response to temperature variations. The ARROW sensor with and without PDMS was set on a hot plate to investigate their response to temperature changes from 30 to 110 °C in steps of 10 °C. The variations in the spectrum when the temperature was increased for the sensor without PDMS is shown in Figure 6a. We can observe that the dip experiences a wavelength shift to larger wavelengths. Figure 6b shows the temperature sensitivities for the wavelength shift and transmitted intensity changes, which are 15.5 pm/°C and 0.0061 dB/°C, respectively. The same experiment was repeated with the sensor covered with PDMS, exhibiting temperature sensitivities of 11.5 pm/°C (for wavelength shift) and 0.038 dB/°C (for transmitted intensity changes), see Figure 7. Comparing the temperature sensitivity for the transmitted intensity changes of both sensors as a function of temperature, the sensor covered with PDMS is more sensitive than the other, which means that the sensor with PDMS is more affected by temperature fluctuation. Nevertheless, the temperature sensitivity is two orders of magnitude lower than the curvature sensitivity, and it can be neglected during curvature measurements. Furthermore, a cross-sensitivity of 0.0068 m−1/°C was calculated, which corroborates negligible interference of temperature changes during curvature measurements.

3.4. Discussion

It has been shown that the technique presented in this work increase the curvature sensitivity by 3.5 times as compared to the original sensor. At this point, as shown in Table 1, it is convenient to compare this enhanced sensitivity with the sensitivities reported by other authors.
The sensitivities reported by sensors 3, 6, and 7 are lower than the sensitivity obtained by our sensor. The sensitivities reported by sensors 1, 2, 4, and 5 are higher than the sensitivity of our sensor, but their curvature range is lower than ours. We should highlight that the sensor 5 (based on ARROW effect) has a high sensitivity, but only measures large curvatures within a narrow curvature range. Based on these parameters, this sensor will not exhibit good performance for structural health monitoring applications where low curvatures are measured [30]. The sensor 3 shows a similar curvature range, but it requires further processing for the taper and has a lower sensitivity. Therefore, our ARROW sensor with PDMS is a good candidate for curvature sensing and has a potential application in structural health monitoring.
We would like to highlight that the CHCF was not modified, and we did not use any special fabrication process rather than coating a section of the CHCF with PDMS. The above simplifies the fabrication process as compared to some of the reported sensors from Table 1. Additionally, although the curvature sensor is embedded in a high TOC polymer, the curvature measurements are not significantly affected by temperature fluctuations. Based on the above results, we can foresee some areas of opportunity for improvement. For instance, since the RI of PDMS at 1550 nm is 1.42, we could further enhance the sensitivity by using a polymer with a higher RI. In this case, an upper limit for the RI will be dictated since we must have ARROW operation. We also believe that applying our technique to the ARROW sensors previously reported in Table 1 can significantly improve their sensitivity as well as their measurable range, according to our results.

4. Conclusions

In summary, a cost-effective and reproducible technique to enhance the curvature sensitivity of a curvature sensor based on ARROW guidance was presented and experimentally demonstrated. The fabrication process of the curvature sensor is relatively simple since we just have to splice a segment of CHCF between two SMF. The sensitivity of the curvature sensor is then enhanced by just covering a specific length of the CHCF with PDMS. This simple process eliminates the need for any special procedure or modification of the CHCF to enhance its sensitivity. The curvature sensitivity of the sensor was increased to −5.62 dB/m−1, within a sensing range from 0 to 2.68 m−1, by covering half of the CHCF with PDMS. Additionally, the PDMS covered sensor exhibited a low-temperature sensitivity of 0.038 dB/°C, showing that temperature changes due to the environment do not alter the curvature values obtained with the device.

Author Contributions

L.A.H.-P. worked in the laboratory with the experimental setup and collected the data. L.A.H.-P. and I.H.-R. wrote the paper. I.H.-R. conceived the article idea. D.A.M.-A., M.T.-C., and V.P.M. provided the capillary hollow-core fiber, contributed with the revision of the article, and validated the achieved results. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CONSEJO NACIONAL DE CIENCIA Y TECNOLOGÍA (CONACyT) from Mexico under the CIENCIA BÁSICA Projects No. CB2017-2018-A1-S-31806, CB2016-286368, and CB2016-286629.

Acknowledgments

L.A.H.-P. acknowledges his postdoctoral scholarship from CONACyT (CB2016-286629).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Zhao, L.; Liu, B.; Wu, Y.; Mao, Y.; Sun, T.; Zhao, D.; Liu, Y.; Liu, S. Photonic crystal all-fiber Mach-Zehnder interferometer sensor based on phase demodulation. Opt. Fiber Technol. 2019, 53, 102059. [Google Scholar] [CrossRef]
  2. Silva, S.; Roriz, P.; Frazão, O. Refractive index measurement of liquids based on microstructured optical fibers. Photon 2014, 1, 516–529. [Google Scholar] [CrossRef] [Green Version]
  3. Wu, Y.; Yang, Y.; Jin, W.; Shen, Y.; Jian, S. Compact Mach–Zehnder interferometer-based no-core fiber hollow-core fiber no-core fiber structure. Opt. Eng. 2017, 56, 030501. [Google Scholar] [CrossRef]
  4. Xu, Z.; Luo, Y.; Liu, D.; Shum, P.P.; Sun, Q. Sensitivity-controllable refractive index sensor based on reflective θ-shaped microfiber resonator cooperated with Vernier effect. Sci. Rep. 2017, 7, 9620. [Google Scholar] [CrossRef]
  5. Qazi, H.H.; Mohammad, A.B.; Ahmad, H.; Zulkifli, M.Z. D-shaped polarization maintaining fiber sensor for strain and temperature monitoring. Sensors 2016, 16, 1505. [Google Scholar] [CrossRef] [Green Version]
  6. Tong, R.J.; Zhao, Y.; Hu, H.F.; Qu, J.F. Large measurement range and high sensitivity temperature sensor with FBG cascaded Mach-Zehnder interferometer. Opt. Laser Technol. 2020, 125, 106034. [Google Scholar] [CrossRef]
  7. Osório, J.H.; Oliveira, O.; Aristilde, S.; Chesini, G.; Franco, M.A.R.; Nogueira, R.N.; Cordeiro, C.M.B. Bragg gratings in surface-core fibers: Refractive index and directional curvature sensing. Opt. Fiber Technol. 2017, 34, 86–90. [Google Scholar] [CrossRef]
  8. Ni, Y.Q.; Ding, S.; Han, B.; Wang, H. Layer-by-layer assembly of polyelectrolytes-wrapped multi-walled carbon nanotubes on long period fiber grating sensors. Sens. Actuators B Chem. 2019, 301, 127120. [Google Scholar] [CrossRef]
  9. Guo, T.; Liu, F.; Liang, X.; Qiu, X.; Huang, Y.; Xie, C.; Xu, P.; Mao, W.; Guan, B.O.; Albert, J. Highly sensitive detection of urinary protein variations using tilted fiber grating sensors with plasmonic nanocoatings. Biosens. Bioelectron. 2016, 78, 221–228. [Google Scholar] [CrossRef] [Green Version]
  10. Zhang, Y.; Zhang, W.; Zhang, Y.; Wang, S.; Yu, L.; Yan, Y. Simultaneous measurement of curvature and temperature based on LP 11 mode Bragg grating in seven-core fiber. Meas. Sci. Technol. 2017, 28, 055101. [Google Scholar] [CrossRef]
  11. Wu, Y.; Wang, S.; Meng, F.; Song, Y.; Zhu, L. Compact Mach–Zehnder interferometer based on processed hollow-core fiber for gas pressure sensing. J. Nanophotonics 2019, 13, 036013. [Google Scholar] [CrossRef]
  12. Domínguez-Flores, C.E.; Monzón-Hernández, D.; Moreno-Basulto, J.I.; Rodríguez-Quiroz, O.; Minkovich, V.P.; López-Cortés, D.; Hernández-Romano, I. Real-time temperature sensor based on in-fiber Fabry–Perot interferometer embedded in a resin. J. Lightw. Technol. 2019, 37, 1084–1090. [Google Scholar] [CrossRef]
  13. Lopez-Aldaba, A.; Rodrigues-Pinto, A.M.; Lopez-Amo, M.; Frazão, O.; Santos, J.L.; Baptista, J.M.; Baierl, H.; Auguste, J.L.; Jamier, R.; Roy, P. Refractive Index measurement of liquids based on microstructured optical fibers. Sensors 2015, 15, 8042–8053. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Reyes-Vera, E.; Monterio de Barros-Cordeiro, C.; Torres, P. Highly sensitive temperature sensor using a Sagnac loop interferometer based on a side-hole photonic crystal fiber filled with metal. Appl. Opt. 2017, 56, 156–162. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lee, B.H.; Kim, Y.H.; Park, K.S.; Eom, J.B.; Kim, M.J.; Rho, B.S.; Choi, H.Y. Interferometric fiber optic sensors. Sensors 2012, 12, 2467–2486. [Google Scholar] [CrossRef] [Green Version]
  16. Huang, Y.; Liu, S.; Zhang, L.; Wang, Y.; Wang, Y. Self-imaging effect in liquid-filled hollow-core capillary waveguide for sensing applications. Sensors 2020, 20, 135. [Google Scholar] [CrossRef] [Green Version]
  17. Rugeland, P.; Sterner, C.; Margulis, W. Visible light guidance in silica capillaries by anti-resonant reflection. Opt. Express 2013, 21, 29217–29222. [Google Scholar] [CrossRef]
  18. Liu, S.; Ji, Y.; Cui, L.; Sun, W.; Yang, J.; Li, H. Humidity-insensitive temperature sensor based on a quartz capillary anti-resonant reflection optical waveguide. Opt. Express 2017, 25, 18929–18939. [Google Scholar] [CrossRef]
  19. Hou, M.; Zhu, F.; Wang, Y.; Wang, Y.; Liao, C.; Liu, S.; Lu, P. Antiresonant reflecting guidance mechanism in hollow-core fiber for gas pressure sensing. Opt. Express 2016, 24, 27890–27898. [Google Scholar] [CrossRef] [Green Version]
  20. Yang, Y.B.; Wang, D.N.; Xu, B.; Wang, Z.K. Optical fiber tip interferometer gas pressure sensor based on anti-resonant reflecting guidance mechanism. Opt. Fiber Technol. 2018, 42, 11–17. [Google Scholar] [CrossRef]
  21. Gao, R.; Jiang, Y.; and Zhao, Y. Magnetic field sensor based on anti-resonant reflecting guidance in the magnetic gel-coated hollow core fiber. Opt. Lett. 2014, 39, 6293–6296. [Google Scholar] [CrossRef] [PubMed]
  22. Gao, R.; Lu, D.F.; Cheng, J.; Jiang, Y.; Jiang, L.; Ye, J.S.; Qi, Z.M. Magnetic fluid-infiltrated anti-resonant reflecting optical waveguide for magnetic field sensing based on leaky modes. J. Lightw. Technol. 2016, 34, 3490–3495. [Google Scholar] [CrossRef]
  23. Gao, R.; Lu, D.F.; Cheng, J.; Jiang, Y.; Qi, Z.M. Temperature-compensated fibre optic magnetic field sensor based on a self-referenced anti-resonant reflecting optical waveguide. Appl. Phys. Lett. 2017, 110, 131903. [Google Scholar] [CrossRef]
  24. Gao, R.; Lu, D.F.; Cheng, J.; Jiang, Y.; Jiang, L.; Qi, Z.M. Humidity sensor based on power leakage at resonance wavelengths of a hollow core fiber coated with reduced graphene oxide. Sens. Actuators B Chem. 2016, 222, 618–624. [Google Scholar] [CrossRef]
  25. Liu, D.; Kumar, R.; Wei, F.; Han, W.; Mallik, A.K.; Yuan, J.; Yu, C.; Kang, Z.; Li, F.; Liu, Z.; et al. Highly sensitive twist sensor based on partially silver coated hollow core fiber structure. J. Lightw. Technol. 2018, 36, 3672–3677. [Google Scholar] [CrossRef] [Green Version]
  26. Liu, D.; Ling, F.; Kumar, R.; Mallik, A.K.; Tian, K.; Shen, C.; Farrell, G.; Semenova, Y.; Wu, Q.; Wang, P. Sub-micrometer resolution liquid level sensor based on a hollow core fiber structure. Opt. Lett. 2019, 44, 2125–2128. [Google Scholar] [CrossRef]
  27. Gao, R.; Lu, D.F.; Cheng, J.; Jiang, Y.; Jiang, L.; Qi, Z.M. Optical displacement sensor in a capillary covered hollow core fiber based on anti-resonant reflecting guidance. IEEE J. Sel. Top. Quantum Electron. 2016, 23, 193–198. [Google Scholar] [CrossRef]
  28. Wang, S.; Wang, S.; Zhang, S.; Feng, M.; Wu, S.; Jin, R.B.; Zhang, L.; Lu, P. An inline fiber curvature sensor based on anti-resonant reflecting guidance in silica tube. Opt. Laser Technol. 2019, 111, 407–410. [Google Scholar] [CrossRef]
  29. Sareh, S.; Noh, Y.; Li, M.; Ranzani, T.; Liu, H.; Althoefer, K. Macrobend optical sensing for pose measurement in soft robot arms. Smart Mater. Struct. 2015, 24, 125024. [Google Scholar] [CrossRef]
  30. PNG, W.H.; Lin, H.S.; Pua, C.H.; Lim, J.H.; Lim, S.K.; Lee, Y.L.; Rahman, F.A. Feasibility use of in-line Mach–Zehnder interferometer optical fibre sensor in lightweight foamed concrete structural beam on curvature sensing and crack monitoring. Struct. Health Monit. 2018, 17, 1277–1288. [Google Scholar] [CrossRef]
  31. Ni, W.; Lu, P.; Zhang, J.; Yang, C.; Fu, X.; Sun, Y.; Liao, H.; Liu, D. Single hole twin eccentric core fiber sensor based on anti-resonant effect combined with inline Mach-Zehnder interferometer. Opt. Express 2017, 25, 12372–12380. [Google Scholar] [CrossRef] [PubMed]
  32. Gao, R.; Lu, D.; Cheng, J.; Qi, Z.M. Self-referenced anti-resonant reflecting guidance mechanism for directional bending sensing with low temperature and strain crosstalk. Opt. Express 2017, 25, 18081–18091. [Google Scholar] [CrossRef] [PubMed]
  33. Cheng, H.; Wu, S.; Wang, Q.; Wang, S.; Lu, P. In-Line Hybrid fiber sensor for curvature and temperature measurement. IEEE Photonics J. 2019, 11, 6803311. [Google Scholar] [CrossRef]
  34. Zhao, F.; Wang, J.; Xiao, Y.; Zhang, K.; Chen, R.; Liu, S. Curvature monitoring of power grid wires based on anti-resonant reflecting guidance in hollow core fibers. Optik 2020, 213, 164785. [Google Scholar] [CrossRef]
  35. Liu, D.; Wu, Q.; Mei, C.; Yuan, J.; Xin, X.; Mallik, A.K.; Wei, F.; Han, W.; Kumar, R.; Yu, C.; et al. Hollow core fiber based interferometer for high-temperature (1000 °C) measurement. J. Lightw. Technol. 2017, 36, 1583–1590. [Google Scholar] [CrossRef] [Green Version]
  36. Liu, S.; Tian, J.; Liu, N.; Xia, J.; Lu, P. Temperature insensitive liquid level sensor based on antiresonant reflecting guidance in silica tube. J. Lightw. Technol. 2016, 34, 5239–5243. [Google Scholar] [CrossRef]
  37. Zhu, F.; Zhang, Y.; Qu, Y.; Jiang, W.; Su, H.; Guo, Y.; Qi, K. Stress-insensitive vector curvature sensor based on a single fiber Bragg grating. Opt. Fiber Technol. 2020, 54, 102133. [Google Scholar] [CrossRef]
  38. Faustini, L.; Martini, G. Bend loss in single-mode fibers. J. Lightw. Technol. 1997, 15, 671–679. [Google Scholar] [CrossRef]
  39. Marcuse, D. Curvature loss formula for optical fibers. JOSA 1976, 66, 216–220. [Google Scholar] [CrossRef]
  40. Fini, J.M. Intuitive modeling of bend distortion in large-mode-area fibers. Opt. Lett. 2007, 32, 1632–1634. [Google Scholar] [CrossRef]
  41. Marrujo-García, S.; Hernández-Romano, I.; Torres-Cisneros, M.; May-Arrioja, D.A.; Minkovich, V.P.; Monzón-Hernandez, D. Temperature-independent curvature sensor based on in-fiber Mach-Zehnder interferometer using hollow-core fiber. J. Lightw. Technol. 2020, in press. [Google Scholar]
  42. Ni, K.; Li, T.; Hu, L.; Qian, W.; Zhang, Q.; Jin, S. Temperature-independent curvature sensor based on tapered photonic crystal fiber interferometer. Opt. Commun. 2012, 285, 5148–5150. [Google Scholar] [CrossRef]
  43. Zhao, Y.; Cai, L.; Li, X.G. In-fiber modal interferometer for simultaneous measurement of curvature and temperature based on hollow core fiber. Opt. Laser Technol. 2017, 92, 138–141. [Google Scholar] [CrossRef]
  44. Corning SMF-28 Optical Fiber. Available online: https://www.corning.com/media/worldwide/coc/documents/Fiber/SMF-28%20Ultra.pdf (accessed on 1 July 2020).
  45. Gong, Y.; Zhao, T.; Rao, Y.J.; Wu, Y. All-fiber curvature sensor based on multimode interference. IEEE Photonics Technol. Lett. 2011, 23, 679–681. [Google Scholar] [CrossRef]

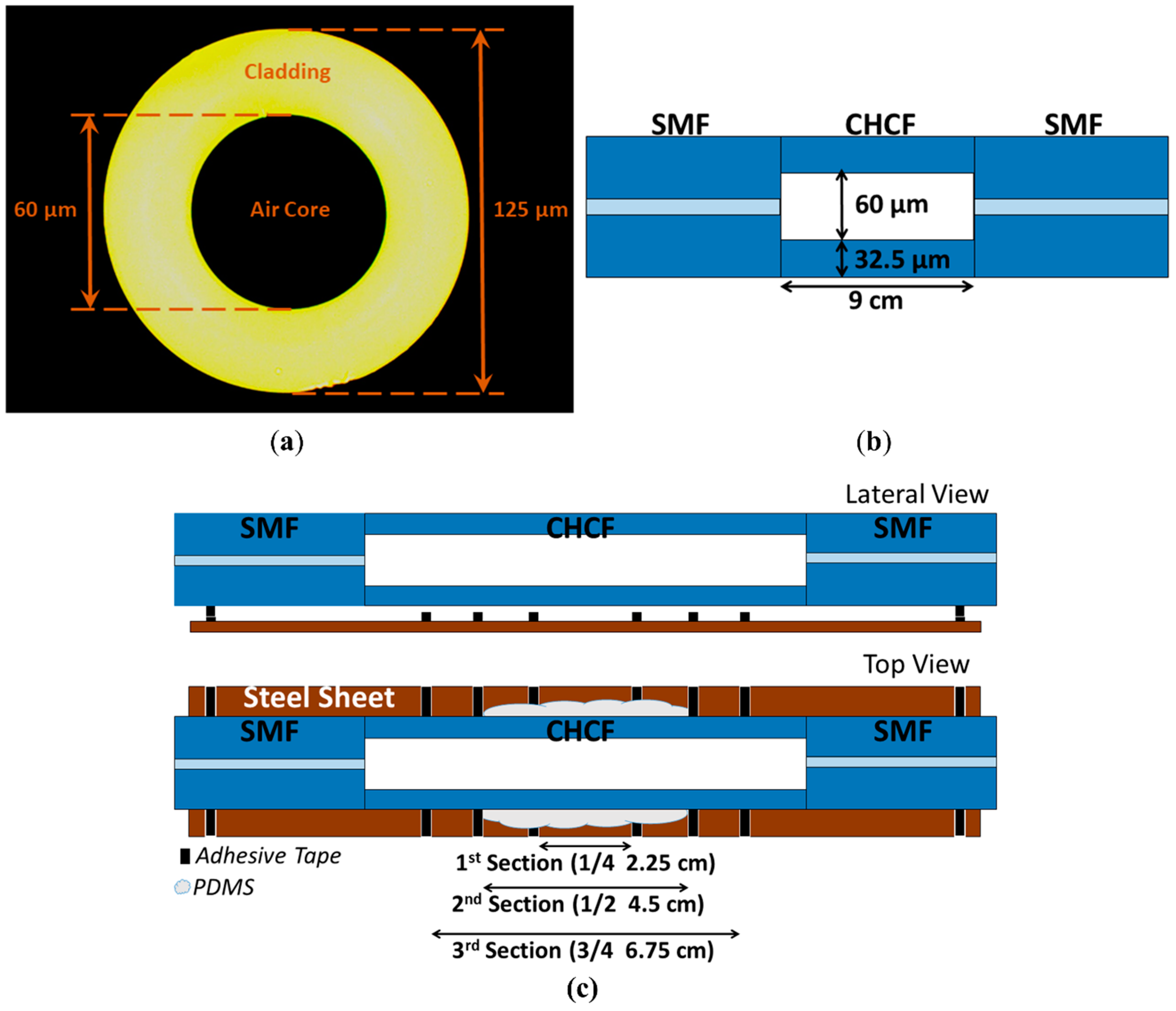

Figure 1. (a) Cross-section of the CHCF; (b) Sketch of the ARROW sensor structure; (c) Lateral view (without polymer), top view (second section covered with polymer).
Figure 1. (a) Cross-section of the CHCF; (b) Sketch of the ARROW sensor structure; (c) Lateral view (without polymer), top view (second section covered with polymer).
Sensors 20 03763 g001

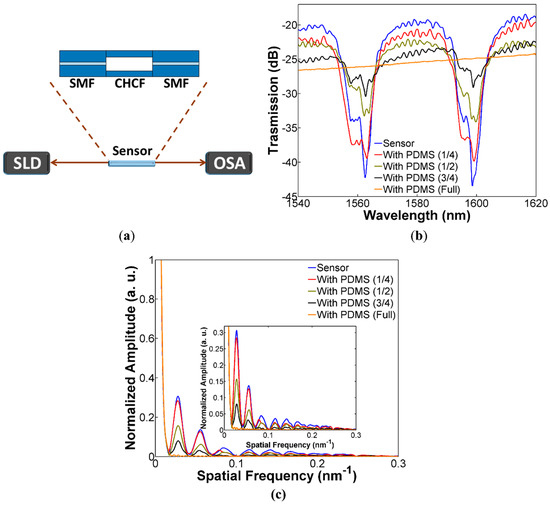

Figure 2. (a) Experimental setup for measuring the ARROW sensor spectral response; (b) Spectral response of the ARROW sensor, including the bare sensor (without PDMS) and different sections of CHCF covered with PDMS; (c) FFT of the transmission spectra.
Figure 2. (a) Experimental setup for measuring the ARROW sensor spectral response; (b) Spectral response of the ARROW sensor, including the bare sensor (without PDMS) and different sections of CHCF covered with PDMS; (c) FFT of the transmission spectra.
Sensors 20 03763 g002

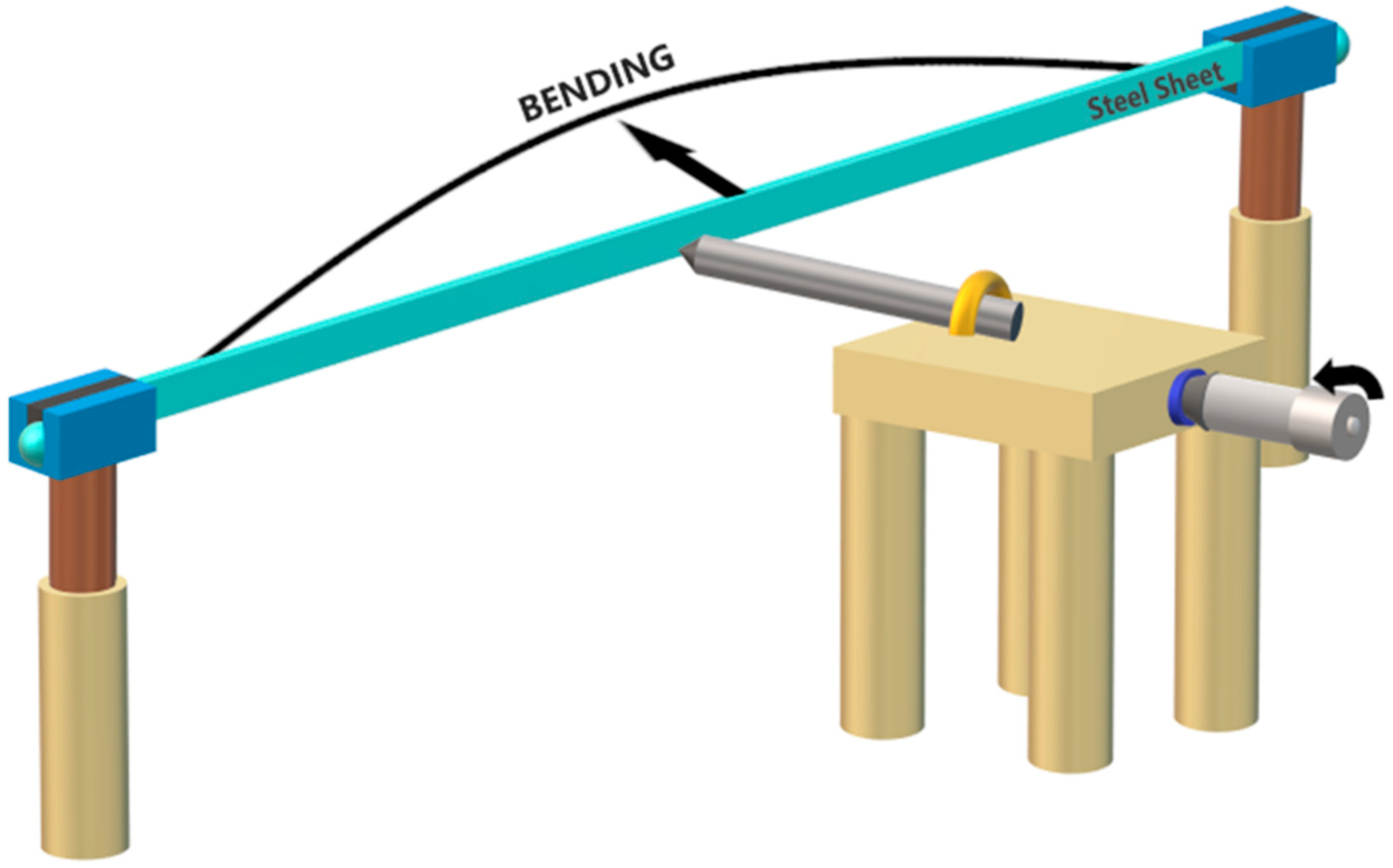

Figure 3. Schematic of the experimental setup for performing curvature measurements.
Figure 3. Schematic of the experimental setup for performing curvature measurements.
Sensors 20 03763 g003
Figure 4. ARROW sensor without PDMS (a) Spectral response of the sensor for curvatures from 0 to 2.68 m−1; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied curvature.
Figure 4. ARROW sensor without PDMS (a) Spectral response of the sensor for curvatures from 0 to 2.68 m−1; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied curvature.
Sensors 20 03763 g004

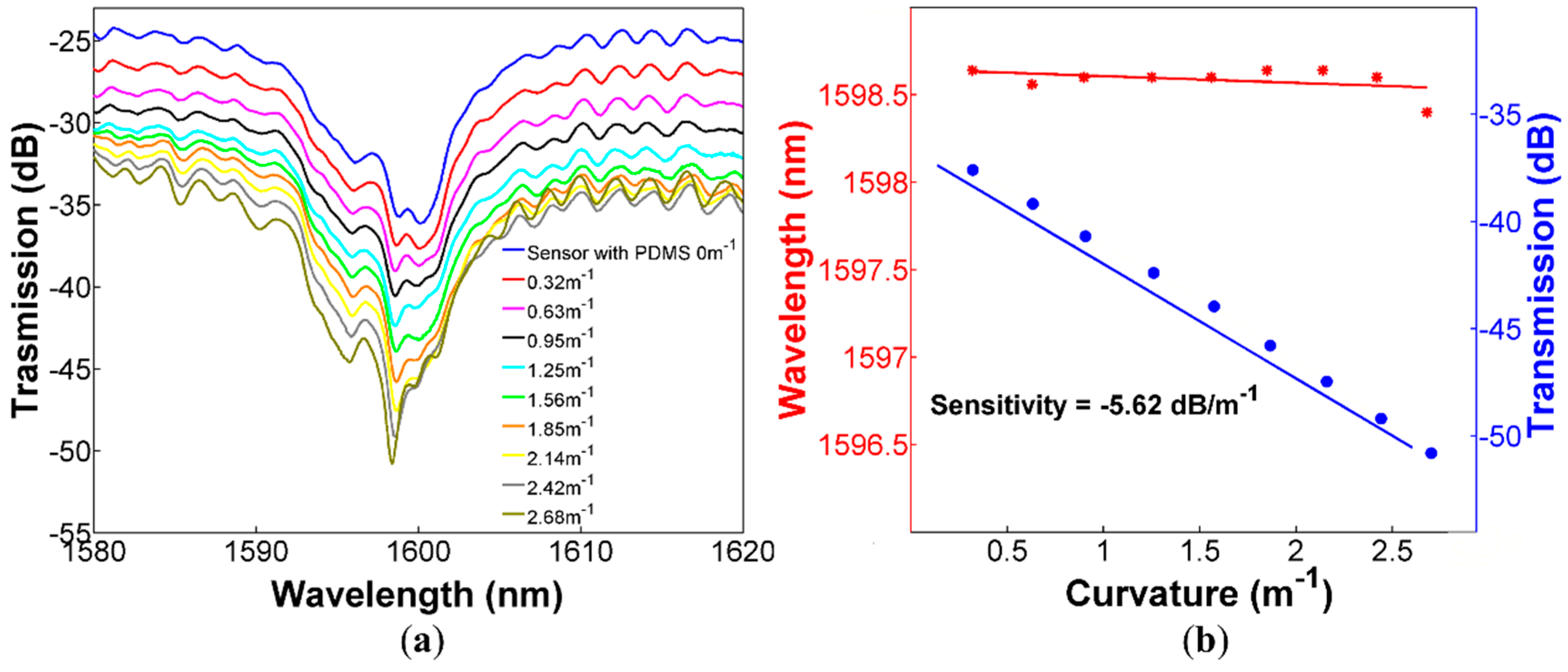

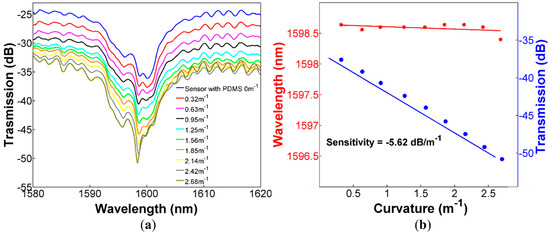

Figure 5. ARROW sensor covered with PDMS (a) Spectral response of the sensor for curvatures from 0 to 2.68 m−1; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied curvature.
Figure 5. ARROW sensor covered with PDMS (a) Spectral response of the sensor for curvatures from 0 to 2.68 m−1; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied curvature.
Sensors 20 03763 g005

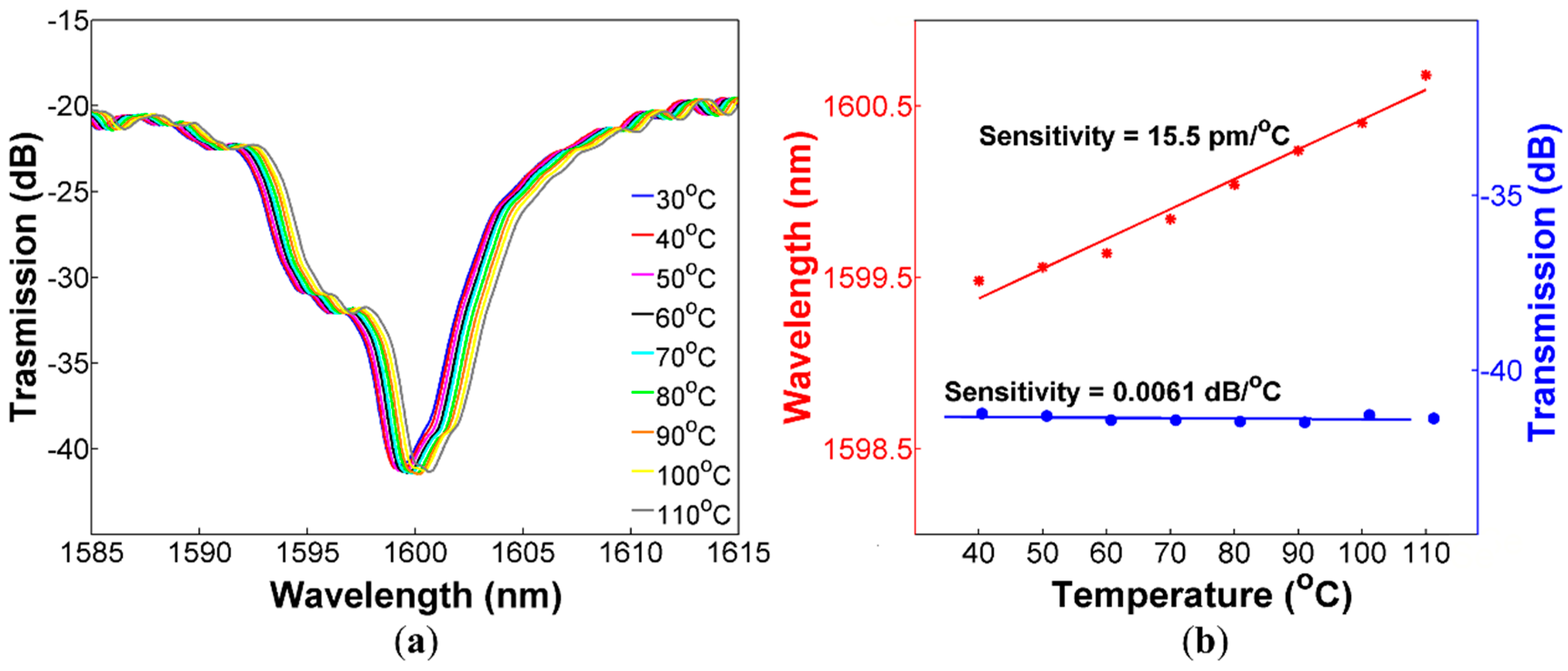

Figure 6. ARROW sensor without PDMS (a) Spectral response of the sensor for temperature from 30 to 110 °C; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied temperature.
Figure 6. ARROW sensor without PDMS (a) Spectral response of the sensor for temperature from 30 to 110 °C; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied temperature.
Sensors 20 03763 g006

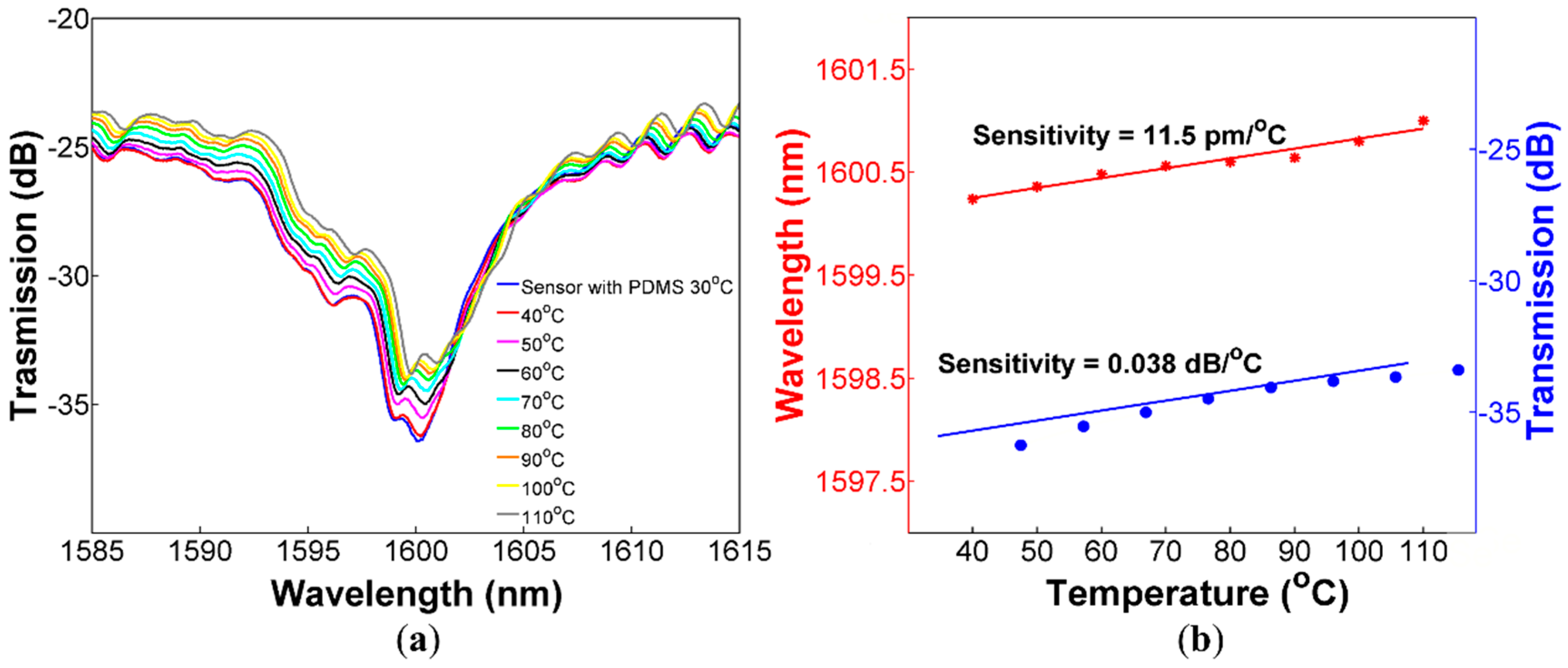

Figure 7. ARROW sensor covered with PDMS (a) Spectral response of the device for temperature from 30 to 110 °C; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied temperature.
Figure 7. ARROW sensor covered with PDMS (a) Spectral response of the device for temperature from 30 to 110 °C; (b) Dip wavelength shift and transmitted intensity changes as a function of the applied temperature.
Sensors 20 03763 g007
Table 1. Comparison of the parameters of our sensor with the reviewed literature.
Table 1. Comparison of the parameters of our sensor with the reviewed literature.
#StructureSensitivity (dB/m−1)Bending Range (m−1)Article
1SMF-MMF-SMF−130.37From 0.11 to 0.34
(0.23)
[45]
2Tapered PCF8.35From 0.87 to 1.34
(0.47)
[42]
3SMF-HCF-SMF using an abrupt taper5.05From 0.765 to 3.423
(2.65)
[43]
4Bragg grating in a seven-core fiber−7.27From 0 to 1
(1)
[10]
5SMF-HCF-SMF using ARROW−15.33From 3.63 to 4.69
(1.06)
[28]
6SMF-HCF-SMF using up-taper (ARROW)−4.28From 10.72 to 11.6
(0.88)
[33]
7SMF-HCF-SMF usingARROW−3.414From 0 to 2.122
(2.122)
[34]
8Our work (SMF-CHCF-SMF using ARROW)−5.62From 0 to 2.68
(2.68)
