1. Introduction
Automobiles continue to be a fundamental mean of transport worldwide. To give a figure, as reported by the AAA Foundation for Traffic Safety [
1], in the US in 2019 each driver spent, on the average, about one hour per day driving covering 31.5 miles, with an increase by 5% compared to 2014. Overall, in 2019 Americans spent 70 billion hours driving, a value about 8% higher than in 2014. Considering the number of hours spent driving, the car can be seen as an ambient living. Of course, the more time drivers are at the wheel, the more potential risks they can incur.
Indeed, according to the World Health Organisation (WHO), road accidents are one of the major causes of death worldwide and the leading cause of serious injury [
2]. The report shows that over 221 people die every day due to road crashes in the European Region, and thousands more are injured or disabled, with long-lasting effects.
Thus, driving safety is an important issue that is playing a very important impact in industrial and research applications, being an area that involves risks for the driver. Since some years ago, the automotive industry has started developing innovative systems called Advanced Driver Assistance Systems (ADAS) that contribute to minimise road accidents and to promote a more efficient transportation system. In general, ADAS detect various external factors such as road conditions, driver’s fatigue, the distance between cars, etc. Since human errors are among the main reasons for most road accidents [
3], ADAS use sensors, cameras and other technologies to identify driver errors or nearby obstacles, and, react as necessary. Therefore, these systems are designed to improve vehicle efficiency by improving driving behaviour. It is shown that ADAS systems minimise human errors, thus reducing road accidents [
4].

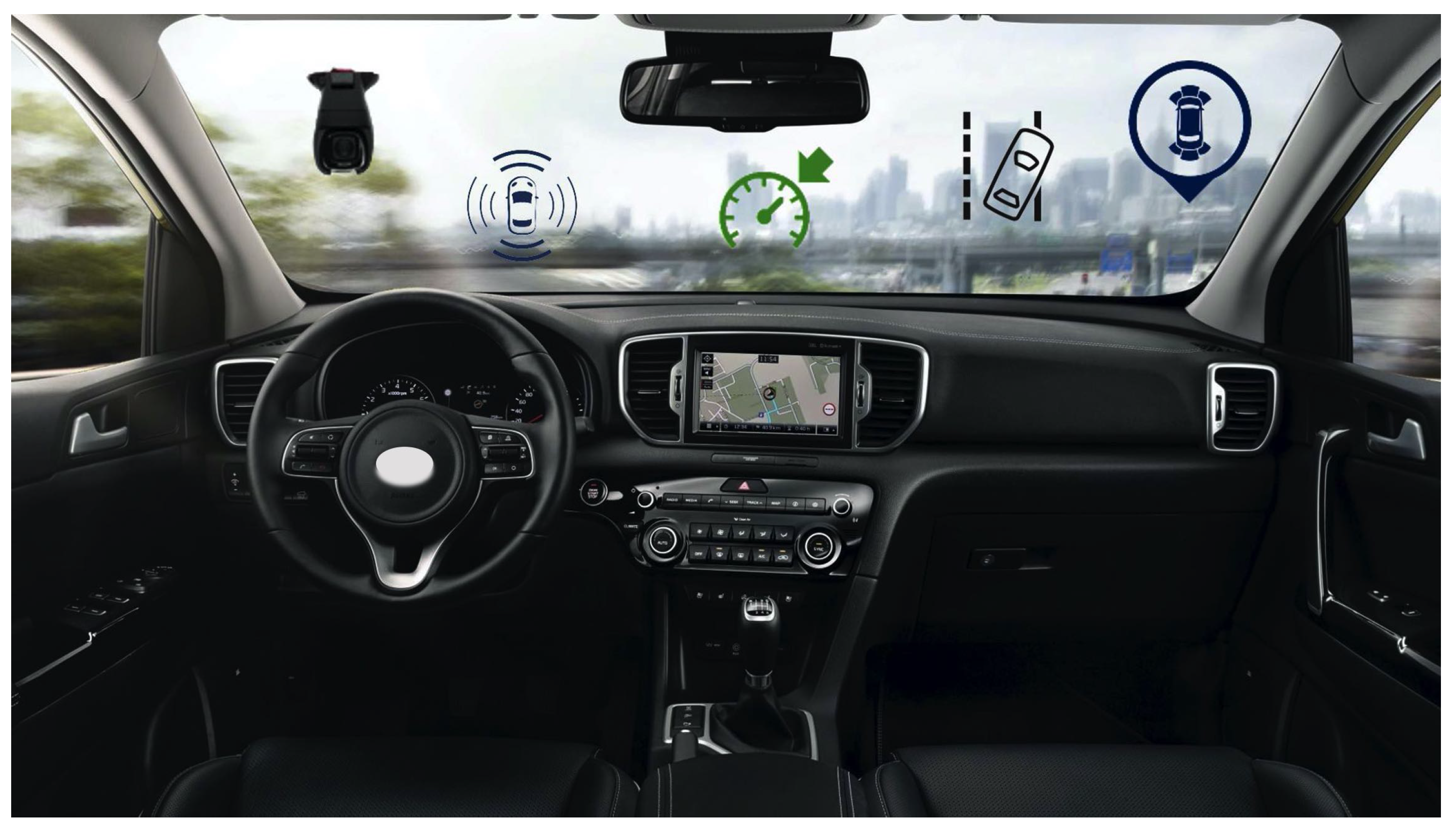

ADAS systems can operate passively by alerting the driver when a risk is identified or actively by reacting to avoid a possible accident [
5] as shown in
Figure 1.
According to the Society of Automotive Engineers (SAE), ADAS systems are classified into six levels based on the degree of automation. At level 0, only some information is provided to the driver, who has to interpret it by himself. At levels 1 and 2, the driver has to make most of the decisions by himself. In particular, at level 1 the system can control only one functionality, while at level 2 it can control more functionalities to help the driver. From level 3 to level 5, the control over the vehicle continues to increase, reaching level 5 where the vehicle is completely autonomous.
To allow the customisation of an ADAS to any driver, it is important to detect the main factors that may influence the driving style [
6]. In addition, among the various factors that can influence driving style, we can consider emotions (drowsiness, fatigue, road rage, etc.) and driver conditions [
7].
The development of emotion detection technologies during driving has been investigated in both academic and industrial contexts. In the industrial context, Volvo has developed Driver Alert Control [
8], alerting drivers presumed to be drowsy using a dashboard camera integrated with its Lane Departure Warning System (LDWS). Mercedes-Benz has developed and introduced a Driver Alert Control system [
9] that collects data from the driver’s driving style and continually verifies whether the collected information is related to steering movement and driving circumstances. Bosch has made available a driver drowsiness detection system [
10] making decisions based on vehicle speed, data generated by the steering wheel sensor, use of indicators and the driver assistance camera. Lexus has developed a Driver Monitoring System for LS 600h [
11]. This system makes use of a camera as well as several near-infrared LEDs to monitor the motion of the driver’s head. If it detects that the driver is not looking at the road, then the system emits a warning and briefly slows down the car. A Driver Attention Warning System has been introduced by Saab [
12] utilizing two miniature infra-red cameras, one installed at the base of the driver’s A-pillar and the other in the centre of the main fascia. When the system signals the onset of drowsiness, or detects that the driver is not looking at the road ahead, the software sends a series of warnings. The driver monitoring system, developed by Subaru [
13], uses an infra-red camera. If this camera detects that the driver’s eyes are not looking at the road for too long or observes signs of fatigue, a warning is emitted to restore the driver’s attention. These safety systems that detect drowsiness are not very common because they are only available in luxury vehicles. From an academic point of view some emotions such as drowsiness, fatigue, distraction, and road rage have been monitored. This monitoring is made in two ways (
Figure 2):
- 1
Contact method: this method extracts physiological characteristics such as breathing, electrocardiogram (ECG), electroencephalogram (EEG), electromyography (EMG), etc.
- 2
Contactless: this method analyses head movement, facial expressions and eye tracking.
The first method measures the driver’s biological signals. The main issue is that these devices are intrusive. However, some variables can be monitored by non-intrusive sensors, e.g., those detecting seat pressure [
14,
15]. Using these devices, body contact is obtained thanks to the driver’s position when driving. In this case, the quality of the measurements is not as good as that achieved by using clinical instruments. This causes a performance decrease. To identify fatigue, in [
16] an EEG is used to observe cardiac rhythms correlated with driver states (relaxed, alert or transitioning to drowsiness) whereas an ECG is used to examine R rhythm through a Support Vector Machine (SVM). In [
17], another contact method is proposed based on breathing, observing thoracic effort. The authors detect drowsiness in drivers by analysing the variability of the respiratory signal using a chest band under real driving conditions. The main objective of the simulator tests is to collect a database of biomedical signals and drivers’ driving performance parameters in both wakeful and drowsy conditions. To classify the driver’s state, the selected signals from the simulator test are used in real driving scenarios by equipping a vehicle with other sensors such as EEG or electrooculography (EOG). The aforementioned techniques work well, with an accuracy rate of over 90% as shown in [
18]. However, these methods have the disadvantage of being very intrusive, given the large number of sensors to be applied to the driver’s body.
The contactless method is based on facial feature extraction. It can use facial expression, head movement, eye closure, etc. In [
19], mouth and yawning behaviours are evaluated for drowsiness measurements. A modified Viola-Jones [
20] object-detection algorithm is used for face and mouth detection, avoiding the use of complex algorithms and classifiers to have a realistic implementation within an actual camera system in the car. In [
21], in order to detect the pattern of long duration eye-lid closures, a standard webcam is used. When the pattern detects potential drowsiness, then it alerts the driver by a voice message. A neural network-based eye blink detector is used to locate the positions of the pupils. Recently, to solve the problem of classification, deep learning (DL) approaches, specifically Convolutional Neural Network (CNN) methods, have become more popular. In [
22], an architecture using three networks is developed. The first network uses AlexNet with three fully connected layer and five CNN to detect the image feature. In the second network, to extract facial features, a 16-layered VGG-FaceNet is used. Finally, FlowImageNet is applied to obtain behaviour features. In [
23], an approach for real-time drowsiness detection based on a DL method is proposed. This approach is implemented on Android applications. Here, for data processing, a Multilayer Perceptron Classifier is used.The aim is to identify the facial reference point providing the data obtained to the trained model to detect the driver’s state, achieving an accuracy of more than 80%. In [
24], a contactless approach for real-time observation of driver drowsiness is presented. More specifically, several parameters related to driver physical measurements and driving behaviour in simulation are merged. To avoid large-scale disasters deriving from road accidents, a drowsiness prevention system is being developed in [
25]. The authors propose a machine learning approach to improve drowsiness prediction using face recognition, eye-lid blink recognition technology, and a carbon dioxide sensor chip. In [
26], the authors present a module to minimise accidents caused by driver fatigue. An algorithm is proposed to analyse both the driver’s face and eyes to measure PERCLOS (percentage of eye closure) [
27], a measure of drowsiness related to slow eye closure. In [
28], the driver’s smartphone is located on the windscreen of the car. Then the front camera constantly acquires the driver’s image and checks if the drivers’ eyes are closed or not using machine learning algorithms for facial expression classification. If the algorithm recognizes a possible drowsiness because the driver closes his eyes, then a timer is activated, and an alarm is generated after a certain time. This alarm is used to activate an external buzzer that is sent to the driver’s mobile phone via Bluetooth.
If drowsiness has been deeply analysed as we have previously described, this is not the case of facial expression detection with particular attention to emotions. For instance, in [
29] the influence of emotions on driving is examinated. The impact of driver emotional states is studied using a vehicle simulator considering varying road conditions, inducing several emotional states: neutral, happiness, fear, or anger. The authors state that considering emotions has an impact when building a generic driving behaviour model. For instance, they argue that anger negatively influences the level of personal safety inducing a reduction of the driving performance. In [
30] a non-intrusive real-time monitoring system is proposed, detecting the driver’s emotional states through facial expressions. A near infrared (NIR) camera is used to obtain the driver’s face. To obtain a set of facial landmarks, a face tracker is applied. Then, multi-class classifiers with SVM are trained with the extracted feature representations. In [
31], a fast algorithm for facial expressions recognition (FER) is proposed, based a hierarchical weighted random forest (WRF) classifier capable of operating in low specification devices. First of all, facial landmarks are detected. Then, considering the spatial position between the detected landmarks, geometric features are obtained. Finally, in order to distinguish facial expressions, a hierarchical WRF classifier is proposed. In [
32], a face detection model is employed to identify the driver’s face in various environmental conditions. Here, CNN are used. Two VGG16 networks are used. The first network analyses the recognized facial image and derives some appearance characteristics, while the second network identifies geometric attributes from facial landmarks. Next, these two sets of features are used together to identify emotions and, as a result, the driver is warned according to the obtained emotional state. To deal with road rage, in [
33] the authors propose a real-time detection of the driver’s road rage, mainly classifying the expression of anger in real time from a live video to send an alert. To capture the frontal face, a Haar cascade file is implemented. Then, to derive facial expressions, a SVM is applied based on the K-Fold cross-validation technique. In [
34], a method is proposed to capture driver aggressiveness. The proposed method considers the change of the driver’s facial emotions by exploiting an illuminator and NIR camera sensors positioned in the car. Then driver’s data are collected using a game simulator. Then, using CNN approach, a general-purpose cross-platform software library is used. First, face, left and right eye are extracted and then facial emotions are obtained. Finally, in order to classify the type of driving, a score is applied to facial emotions.
All previous approaches are input with near-frontal facial data. On the other hand, identifying road rage by using non-frontal facial expressions has not been widely studied yet. Moreover, all the systems described do not consider the influence of changing lighting conditions inside the cabin, which is a frequent event.

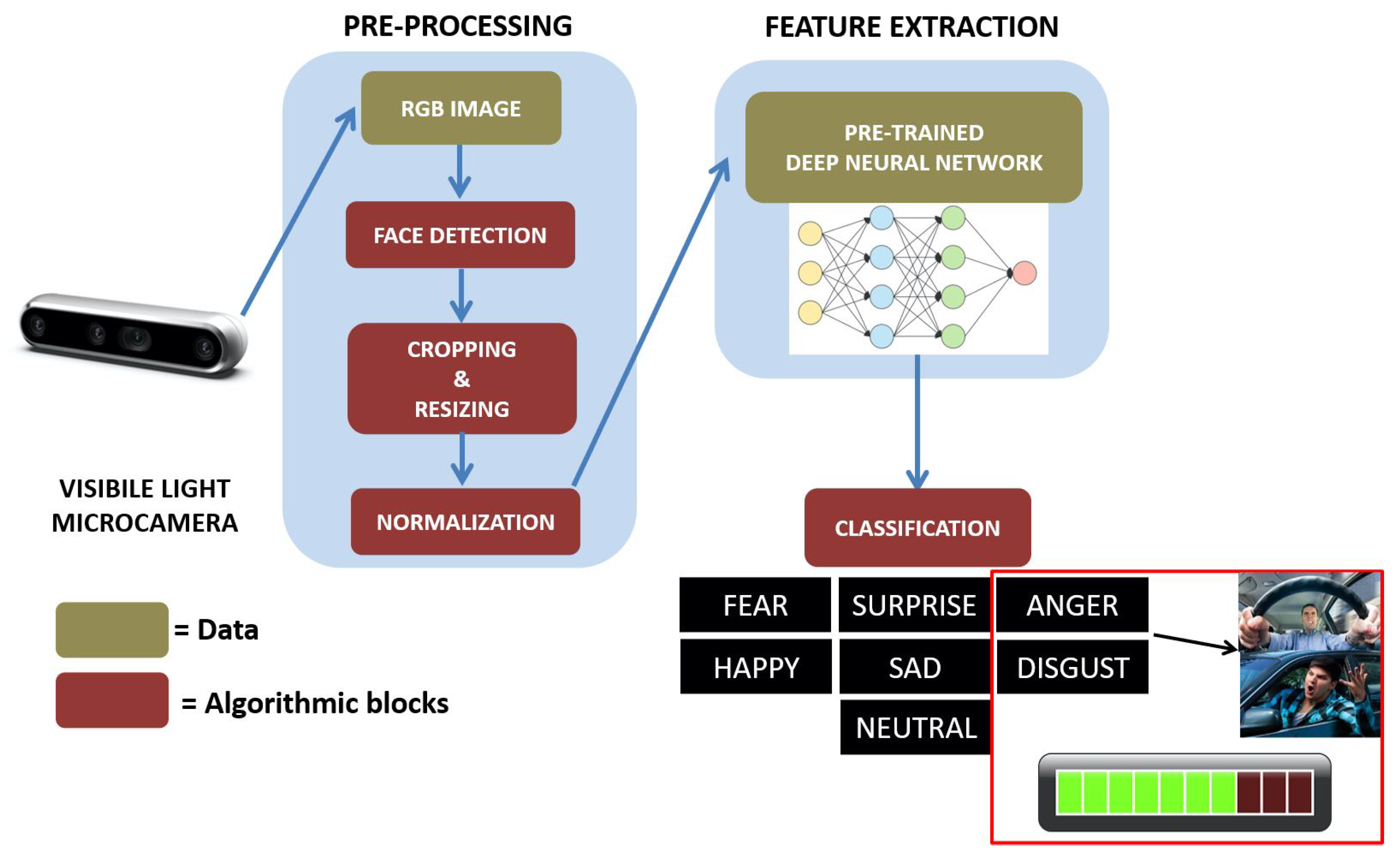

In this paper, an ADAS module able to automatically detect rage is proposed, alerting the driver when a predetermined level of road rage is reached. This system automatically detects drivers’ road rage level integrating a commercial and low-cost micro-camera, a face detection algorithmic step and a facial expression recognition module both based on DL algorithms that works in real time on embedded hardware platform not equipped with GPUs. Based on the classical facial expressions (“Anger”, “Disgust”, “Fear”, “Happy”, “Sad”, “Surprise”, “Neutral”), the proposed module considers two negative basic emotions, “Anger” and “Disgust”, as rage-related emotions. Finally, the decision regarding the detection of road rage is based on the temporal consistency of “Anger” and “Disgust” expressions evaluated within a sliding window. The choice to classify all facial expressions (even those not directly related to road rage) derives from the intention to provide intermediate logical blocks of the pipeline easily adaptable in the future to the detection of other driving behaviors (for example, sadness or enthusiasm, etc. ).
The remainder of this paper is structured as follows.
Section 2 explains our proposed ADAS module and gives an overview of its working methodology detailing the implemented algorithmic step. The experimental setup, the considered datasets and the results are presented in
Section 3. Finally,
Section 4 shows both our conclusions and discussions on some ideas for future work.
