1. Introduction
In rural/agricultural areas, livestock farming is a source of environmental concern [
1]. Among residents exposure to air pollution has raised health concerns, and exposure to odour has led to nuisance (odour annoyance; [
2,
3,
4]). This may in turn cause tension between residents and farmers [
2,
3]. Air polluting substances have previously been measured inside livestock stables in order to establish emission factors (e.g., [
5,
6]). However, measurements of air quality and odour in the surroundings of livestock farms are sparce. We found one study that performed low time resolution (two week period) PM
10 measurements at 61 residential sites in livestock-dense areas by collecting dust on filters [
7]. They found limited variation in PM
10 concentrations between residential locations, indicating small spatial variation. Besides air pollution, odour annoyance is often a problem in rural areas. It is still difficult to measure with low-cost, easy-to-use sensors, which is why the evaluation of citizens’ exposure to odour has increasingly been based on modelling approaches [
8]. There have been attempts to develop sensors that measure (combinations of) scented substances from livestock farming, and these sensors have been the subject of research for many years focussing on application inside livestock stables (e.g., [
9,
10]). However, this has not yet resulted in commercially available sensors, which makes the high temporal resolution measurement of odours at residential locations difficult.
In the Netherlands, air quality is assessed with the aid of models that are calibrated using measurements from the national air quality monitoring network [
11]. There are few measurement locations in rural areas. In 2018, inhabitants of the Municipality of Venray, situated in an area with intensive livestock farming operations in the southeast of the Netherlands, expressed the need for more measurements in their region since they experience odour annoyance due to livestock farming and worry about the air quality. They contacted the National Institute of Public Health and Environment (Dutch: Rijksinstituut voor Volksgezondheid en Milieu; RIVM), which is responsible for the national air quality monitoring network, for advice on how to monitor air quality in their living environment. Around the same time as the inhabitants of Venray contacted RIVM, the Limburg Agricultural and Horticultural Association (Dutch: ‘Limburgse Land- en Tuinbouwbond’; LLTB; the regional organisation representing the interests of farmers) asked RIVM to participate in a pilot study on the application of low-cost sensors. This pilot study was aimed at gaining greater insight into the contribution of local sources to air pollution levels. Under the applicable legal frameworks, the emissions from livestock stables (e.g., of PM and NH
3) must be calculated based on standardised emission factors [
12], but according to LLTB, farmers want to be held accountable for their actual, measurable emissions. Additionally, farmers want to know what other sources than farming contribute to air pollution, since they believe they are not the only polluters. A situation arose in which both farmers and local inhabitants wanted air quality measurements to be performed in their area. This offered a unique opportunity to perform a CS study in which stakeholders with different needs and interests participated, including the party that was viewed as the polluter by the residents.
In recent years, the number of environmental CS initiatives in which citizens use sensors to measure pollution levels in their environment has increased significantly [
13,
14,
15,
16]. Simultaneously, the market for measuring devices has developed significantly, and there are now multiple sensors available that are both affordable and easy to use. People have multiple reasons to measure pollution levels in their environment: they may be concerned about the impact of the environment on their health, distrust official governmental measurements, or are interested in the technical aspects of performing measurements [
15]. These incentives are in keeping with the characteristics of
citizen sensing, which falls under the broader umbrella of citizen science. Suman (2020; [
17]) defined citizen sensing as “a form of grassroots-driven monitoring initiatives aimed at tracking environmental factors (in alternative or in addition to official governmental monitoring), making use of Information and Communication Technology (ICT), in general, and, in particular, of sensors.”
For air quality specifically, there are several affordable sensors available, most of which measure PM using optical particle counters. PM stems from many sources, including livestock farming and wood burning, which tend to exist in rural areas. Examples of PM sensors are the SDS011 (Nova Fitness Co., Jinan, Shandong Province, China) and the SPS30 (Sensirion AG, Zurich, Switzerland). These devices are cheap (±€10–50), readily available and easy to use. However, they are known to overestimate concentrations under conditions of high relative humidity (RH) [
18,
19,
20], and their ability to detect larger particles (>2.5 µm) varies [
21]. Calibration algorithms can be used to compensate for these shortcomings, but can only do so in part [
20]. Other air pollutants that occur in rural areas are NO
2 and NH
3. NO
2 is a good indicator of road traffic as a source of air pollution and NH
3 of (livestock) farming. There are a few real-time electrochemical sensors on the market that can detect NO
2 concentrations (e.g., NO2-A43F, Alphasense, UK). However, this type of sensor exhibits cross sensitivity to other gases like ozone, and temperature and humidity [
18], making its application in a CS context challenging. An alternative to real-time NO
2 sensors is the well-known low-cost method that uses diffusion tubes (e.g., [
22]), whereby an average NO
2 concentration is generated for the period during which the tubes are exposed. The same holds for measuring NH
3; real-time sensors for ambient air are still in the development phase, but the use of Palmes tubes is a common method for gathering data for periodic average concentrations (e.g., [
20]).
There is no standard format for CS projects, and initiatives may therefore exist in many different forms [
14]. Here, we developed our own approach with the following objectives: (a) to address the concerns of both farmers and residents; (b) to actively involve both farmers and residents and facilitate a dialogue about possible solutions for improving the local air quality and reducing odour annoyance; (c) to rely on low-cost methods to enable multiple participants to be involved and perform measurements on their premises; and (d) to measure multiple components simultaneously in order to characterise air quality and odour annoyance in relation to different sources of air pollution.
The objective of this paper is (1) to present the results of the air quality measurements, (2) to communicate the lessons learned about the low-cost measurement methods and their applicability in this CS project, and (3) to share our observations about the insights gained by the dialogue between farmers and residents throughout the project.
3. Results and Discussion
3.1. Measured Air Quality and Odour Annoyance
3.1.1. PM Concentration
Yearly values of PM
2.5 and PM
10 at residential locations, averaged per area, were in the order of 10–12 µg/m
3 and 20–23 µg/m
3, respectively (
Figure 4). The figure shows that spatial differences were relatively small. They are in the same order of magnitude as the measurement uncertainty (quantified as the 95%CI of the yearly averaged concentration difference between two collocated sensors at 34 locations) of 4.4 µg/m
3 for PM
2.5 and 6.8 µg/m
3 for PM
10 (
Supplementary Information S2) and therefore not statistically significant. We measured a PM
10 concentration of 31 µg/m
3 at 35 m from the exhaust fan of the layer farm in Leunen (not shown). At all other farm locations (at distances larger than 100 m from exhaust locations), yearly average concentrations were not elevated compared to the concentrations at residential locations.
Using the higher temporal resolution results, the PM sensors prove their value in gaining more insight into the impact of local sources on concentrations, as compared to yearly average concentrations. Based on the hourly values, pollution roses and time series provided detailed insight into the variation in local concentrations as a result of livestock farm emissions. The sensors close to the chicken broiler farm and to the pig farm did not record any increased PM concentrations compared to the surrounding sensors. By contrast, the sensors close to the two layer stables measured elevated concentrations when the wind was coming from the direction of the exhaust fan or side outlet of the stable.
We present data from the PM
10 pollution roses (
Figure 5) and PM time series (
Figure 6) registered by sensors located in Leunen. Since the PM sensors at this farm were at the closest distance from the stable, the elevation in PM concentration was most pronounced. In the pollution roses, the two sensors close to the exhaust fan of the laying hen stable recorded elevated concentrations when the wind was coming from the direction of the exhaust fan (
Figure 5b). On the other hand, the sensors at the surrounding residential locations did not measure increased concentrations when the wind was coming from the direction of the stable: the pattern for all three resident locations was very similar (
Figure 5a). The time series in
Figure 6 cover a period of several days in which the wind was coming from the northeast, i.e., from the stable exhaust fan towards the sensors BB21 and BB23. Increased concentrations can be observed in these sensor readings for PM
10 and to a lesser extent for PM
2.5. PM emissions from stables are known to contain a relatively high concentration of particles larger than 2.5 µm [
6]. The diurnal pattern of the chicken activity is clearly visible: PM
10 concentrations were not elevated at night when the chickens were inactive but increased during the day when the chickens were active and resuspended particles. The elevation of the PM
10 concentration was highest closest to the exhaust fan (BB21 at 100 m) and dropped considerably at a distance from the source. At the residential location BB23 (at 250 m) we observed only a small increase compared to location BB21. The timeseries of PM
2.5 show elevated concentrations during the final days of the selected period. It can be seen that the sensors at all locations measure higher concentrations during these days. This indicates an increase in the regional background concentration rather than the impact of a local source. The difference in concentration between the individual locations during the days with increased PM
2.5 concentrations reflect the rather high between sampler uncertainty.
3.1.2. NO2 and NH3 Concentrations
The NO
2 concentration from October 2019 to November 2020 varied between 12–28 µg/m
3 (

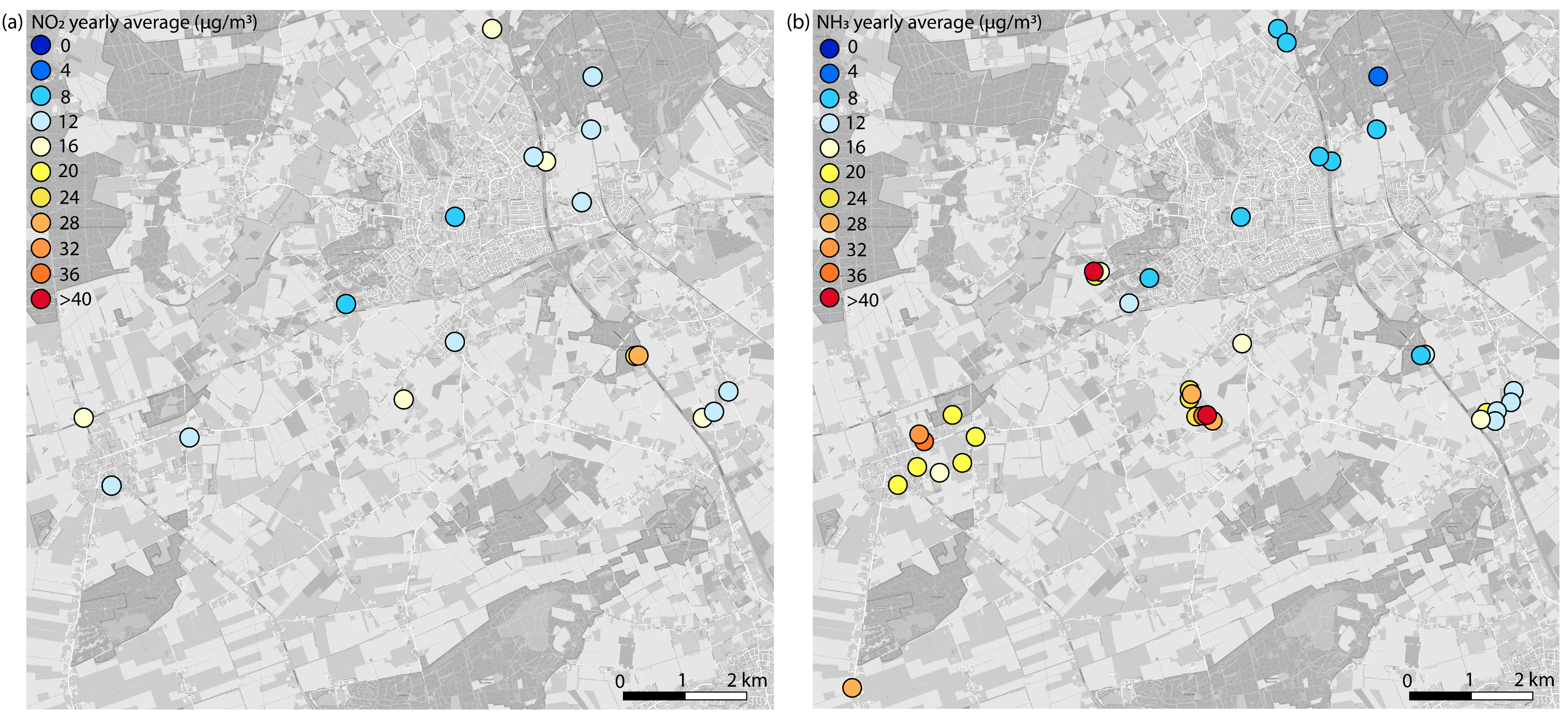

Figure 7). The highest concentrations were recorded near the highway and provincial roads. The concentrations of NO
2 recorded at locations near the highway in the more urban environment of Venray were lower than at the locations near the highway in the rural area to the south of the study area. This may be due to the shielding effect of a noise barrier (as reported in [
31,
32]). Concentrations were generally higher during the winter months (

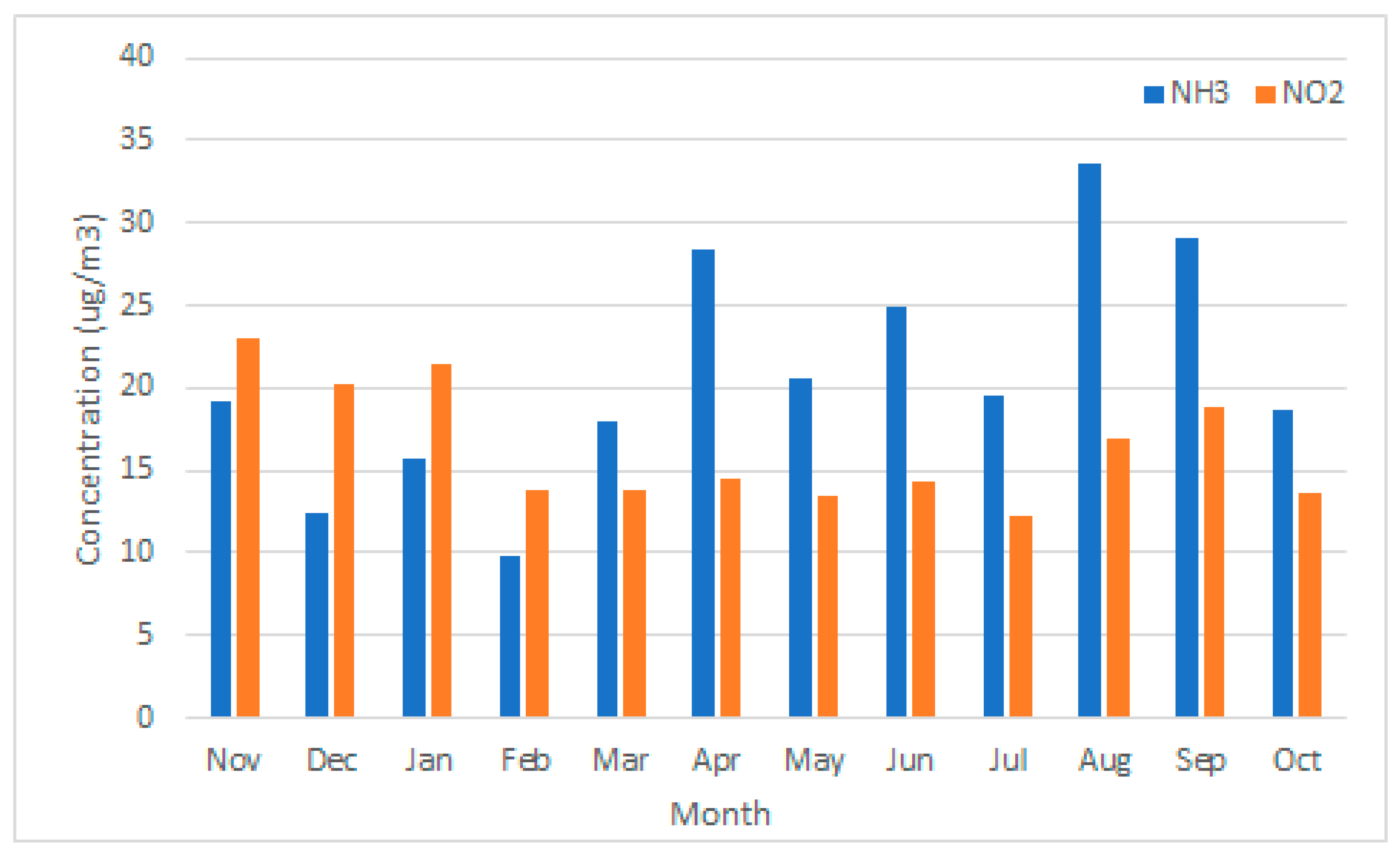

Figure 8), which can be explained by higher emissions (e.g., from heating) in combination with less dispersion due to more stable atmospheric conditions.
The NH
3 concentration from October 2019 to November 2020 varied between 7–58 µg/m
3 (
Figure 7). Two outlying measurements were removed (BB1-9 March and BB3-4 October; both deviated by more than 3sd; see methods). The concentrations recorded in nature reserves and rural areas with a high density of livestock farms differed greatly from each other. At the premises of the farmers, we measured the highest concentrations (up to 58 µg/m
3). The highway and other principal roads, as well as a sewage treatment plant in the north, proved to be a minor source of NH
3. The season clearly had an impact on monthly NH
3 concentrations, as is shown in
Figure 8. For example, fertiliser is distributed across fields from March to September, which were also the months in which the highest NH
3 concentrations were observed.
3.1.3. Odour Reports
During the six-month period in which the odour smartphone app was available, 292 reports were made. Only three participants were responsible for 80% of the reports. This bias in reporting and the fact that there was not enough data meant that it was not possible to study odour annoyance comprehensively. Still, we deduced some interesting local insights from the results.
Figure 9a is an example of a situation in one of the measurement areas in which nearly all reports were made when the wind came from a westerly direction. To the west of the reporting participant, there was an isolated livestock stable. In this case, the stable could be identified as a local odour source.
Figure 9b is an example of a situation in another measurement area in which the reports were made with multiple wind directions. This indicates multiple sources which complicated the identification of the source(s) that caused the odour annoyance.
3.2. Lessons Learned about the Low-Cost Methods for Characterising Local Air Quality and Their Applicability in a CS Setting
During the CS project we gained new insights into the different low-cost methods, and learned from the application in a CS project. This study showed that ensuring the proper operation of the PM sensors and obtaining data suitable for analysis required a significant amount of effort. During the one-year measuring period, about 20 sensors malfunctioned as a result of dust collection in the inlet or internal system. The participant who volunteered to deal with malfunctioning sensors spent considerable time on maintenance (both cleaning and replacing defective sensors and cleaning all inlet tubes halfway through the measurement period). Due to the high sensitivity of the PM sensors to humid conditions, we found that applying the on-the-fly generic calibration algorithm [
20] was not sufficient in our study area, in contrast to other regions in the Netherlands [
23]. It was necessary to apply an RH threshold value, after which the hours used in the data analysis were selected. We have not yet been able to find an explanation for this, and future research may clarify this problem. The project proved that the maintenance of the sensors can be done by non-experts. However, expert knowledge is necessary for data validation and calibration. The need for expert involvement was also demonstrated in the VAQUUMS project [
33], aimed at guidance with regard to the available sensors and their performance, deployments and interpretation. This expert involvement can be costly, and low-cost methods therefore sometimes turn out to be more expensive than expected. It is important to keep this in mind when starting a CS project.
We found that the SDS011 PM sensors were able to detect at least a portion of the particles larger than 2.5 µm (“coarse” PM). This can be deduced from the elevated levels in the PM
10 signal compared to the PM
2.5 signal registered by the sensors close to the layer stables. In this study, we used locations of the official monitoring network for the calibration of the PM sensor results [
20]. These locations were not as close to sources of coarse PM as the sensors near the stables and were therefore not exposed to the same concentrations of coarse particles. In practice, this means that the PM
10 values measured by the sensors are likely underestimated, despite the applied calibration algorithm. In a laboratory study the detection efficiency of particles larger than 2.5 µm for the SDS011 was found to be less than 20% [
21], supporting the underestimation of PM
10 values. Performing official PM
10 measurements in close proximity to coarse PM sources may enhance the calibration, but this needs further investigation. Although absolute PM
10 values are less accurate, our study showed that the SDS011 sensors are able to detect sources known to emit particles larger than 2.5 µm such as livestock stables, soil blown dust and construction works. This is not the case for multiple other types of sensors. In the field tests performed in the VAQUUMS project, the SDS011 sensor was among the only two types that sometimes detected particles larger than 2.5 µm [
34].
It was possible to identify the layer stables as local sources, since the high temporal resolution of the PM sensors enabled the analysis of variations in PM concentrations depending upon the wind direction. However, it was not possible to identify individual smaller sources like other livestock stables, residential wood burning or road traffic using the hourly values. Compared to the PM background levels, the contribution of these smaller local sources turned out to be too limited to be detected at the locations chosen by the participants using PM sensors. It is generally known that in the Netherlands, differences in PM mass concentrations within a region are relatively small compared to the regional background concentration, except at locations close to large industrial or agricultural sources (see

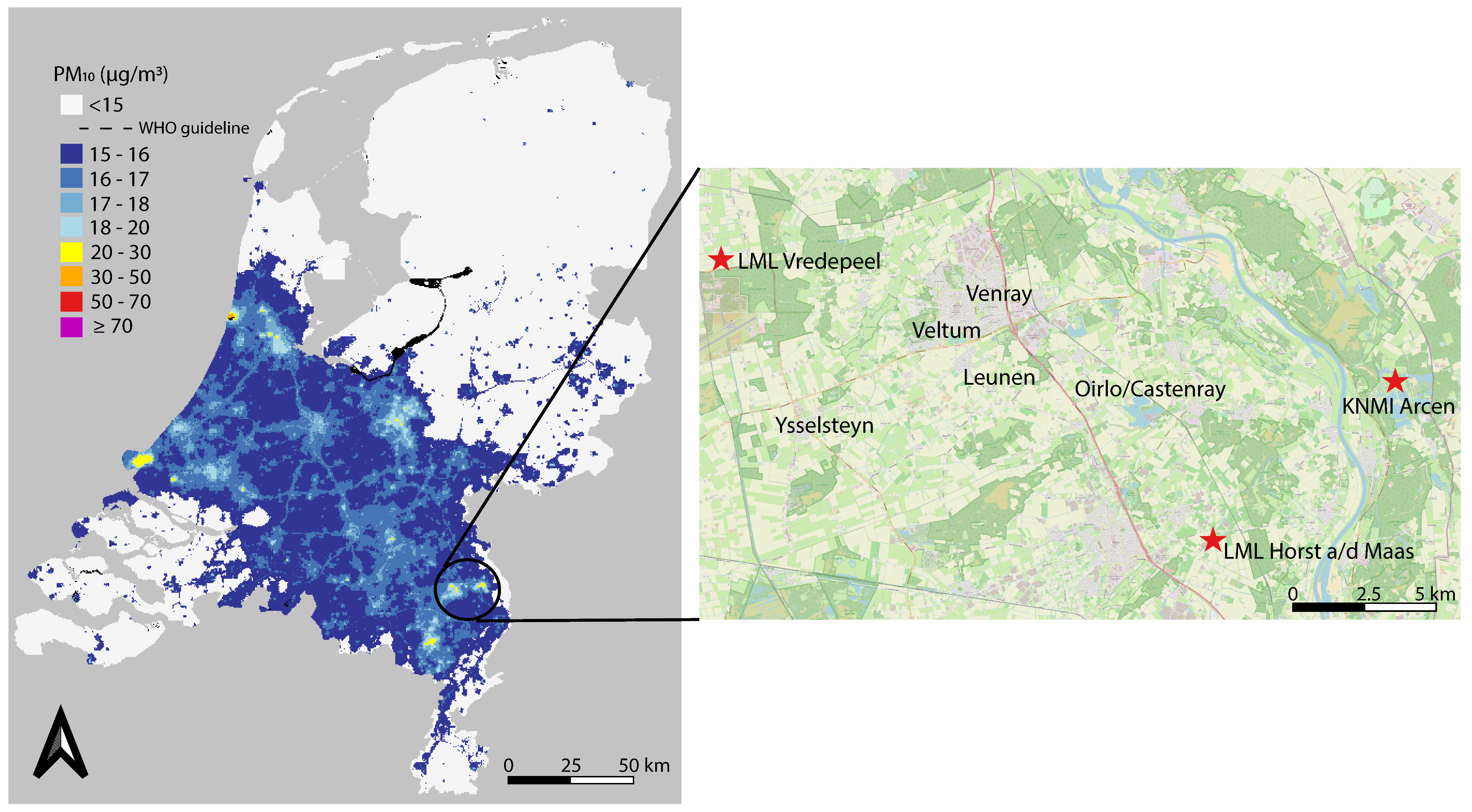

Figure 2). For example, Boogaard et al. [
35] found a small difference (ratio 1.2) between PM mass concentrations on moderately-busy streets and at urban background locations in the Netherlands, which was in line with the results of earlier studies (e.g., [
36,
37]). In this respect, the relatively large degree of uncertainty in absolute levels of individual sensors is a disadvantage.
We could not identify local NO2 or NH3 sources using the same methods as for PM. While the temporal resolution is an advantage of the PM sensors, it is one of the weaknesses when it comes to the Palmes tubes measurements of NO2 and NH3. Their low temporal resolution (once a month in this study) hampers identification of local, individual sources using the wind direction, since this varies over a one-month period. However, the measurements did make it possible to gain more insight into the contribution of road traffic and livestock stables since their emissions make a relatively larger contribution to the concentrations of NO2 and NH3, respectively, than to PM levels. Even though all low-cost methods have their own shortcomings, when combined they seem to provide a coherent picture of the overall air quality and sources in the municipality of Venray.
Regarding documenting odour annoyance, we found that the odour reporting smartphone app was not a suitable means for obtaining representative data on moments of odour annoyance during the measurement period. Too few participants consistently made reports throughout the project. Reasons for not using the app were both technical and behavioural in nature. Technical issues related to the app malfunctioning, especially in the initial phase. This prevented several participants from using the app at the beginning, and caused some of them to decide not to use it in later stages, even though most technical issues had been resolved. The more behavioural issue was that participants found it demanding to keep reporting odour annoyance for the duration of the project. They stated that they did not want to consciously spend time on odour annoyance, since that would only increase the stress and discomfort they experienced. Therefore, new methods for measuring or documenting odour annoyance should focus on minimising the effort required of the user.
3.3. Dialogue between Farmers and Residents
An important part of this project was the discussion of the measurement results with the participants, and the new insights this gave them. In order to make this discussion interactive and more insightful for the participants, we printed A0 maps of the villages and provided the participants with transparent A5 graphs (e.g., pollution roses in
Figure 5 and odour roses in
Figure 9). They could place the transparent graphs of their own sensor on the map and once all graphs were positioned, a conversation was held about the contribution of different sources and the influence of, for example, the wind direction. This was followed by a dialogue between the farmers and residents about possible ways to make the air cleaner.
We found that discussing the measurement results helped participants gain insight into the air quality and pollution sources. For example, although the PM levels measured exceeded the WHO guidelines, some participants did not expect these values to be well below the European legal limits of 20 µg/m
3 for PM
2.5 and 40 µg/m
3 for PM
10 [
38]. They assumed that values exceeding this threshold would be much more common than they actually are. Furthermore, participants discovered that PM generally varies more over time than in space and that the contribution to PM by local sources is relatively low, and higher by NO
2 and NH
3 (

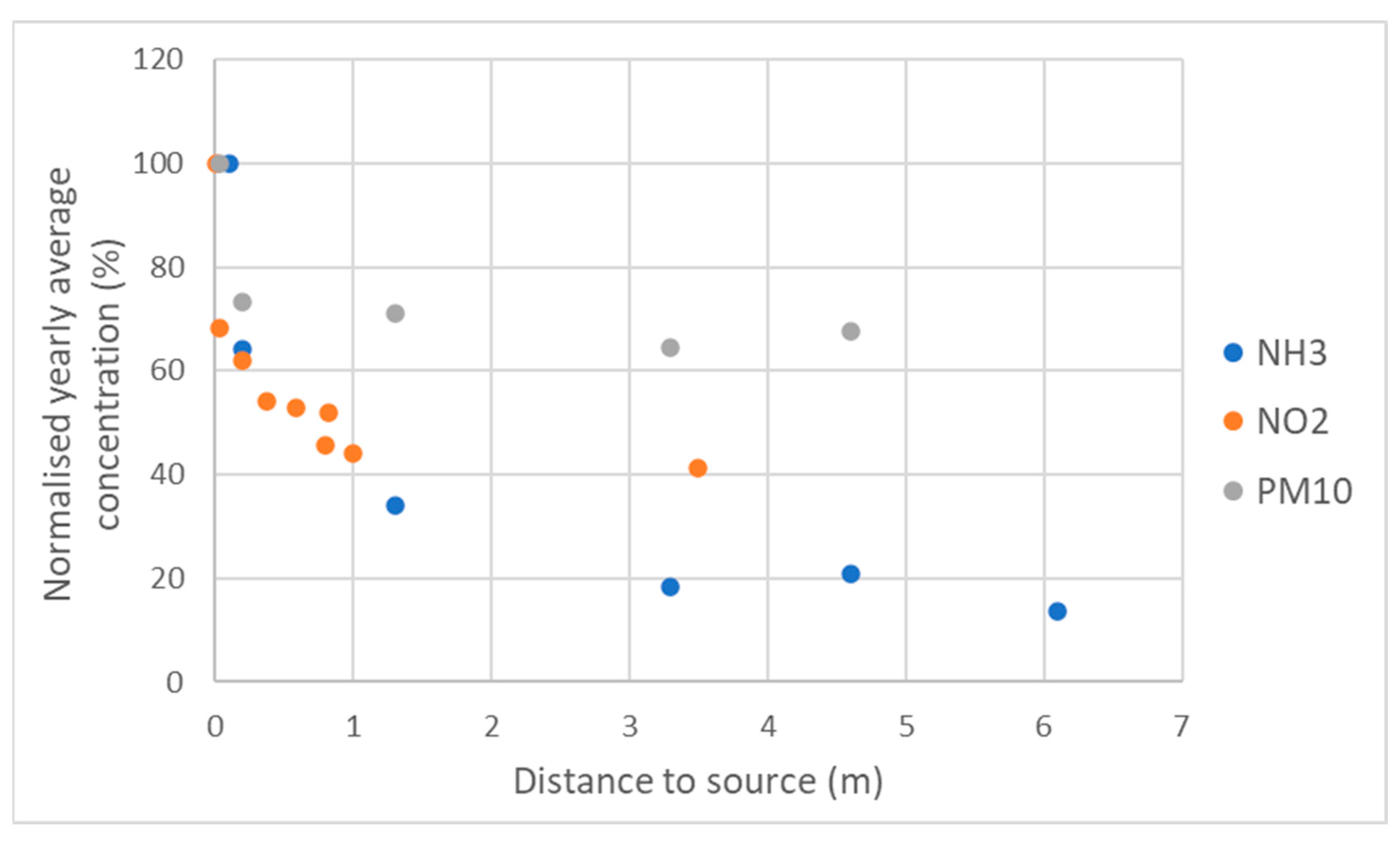

Figure 10). This insight was also useful in the dialogue about possible solutions. It made the participants realise that in order to decrease PM levels, measures need to be taken on a large scale, in contrast to decreasing NH
3 emissions, for which eliminating one local source can already lead to a large, local reduction in NH
3 concentrations. The discussion of the emissions of different substances by different sources was also useful for making participants realise they can also decrease their own emissions (e.g., by not burning wood).
We feel that the dialogue in this project about possible solutions went well. Participants expressed their different opinions and interests, but the neutral meeting facilitator helped prevent discussions from escalating when things became tense. However, outside the meetings, we observed more tensions between residents and farmers. An upcoming paper on mutual understanding and trust between farmers, local residents and the local government will further investigate how all of the involved parties felt about the dialogue.
During the dialogue, participants used their new insights about air quality in discussing possible ways to improve the air quality. For example, one participant mentioned that she was willing to decrease her domestic wood burning. However, when asked to indicate their preferences for different types of measures, participants generally preferred those that did not require them to take any direct action. For example, they preferred measures that would require governments to reduce the use of fossil fuels for energy generation to measures that would require them to reduce their own wood burning. Regarding livestock emissions, residents preferred a large-scale transition to the keeping of fewer animals, whereas farmers preferred the implementation of technical solutions in their stables. Eijrond et al. (2022; [
4]) found the same difference in preference in a recent study among farmers and residents in areas with high livestock density in the Netherlands.
During the dialogue, odour annoyance turned out to be the biggest issue for the residents, even though few reports were made during the project. This is in line with findings from Biesheuvel et al. (2019; [
2]) and Eijrond et al. (2022; [
4]). They point to a need for more stringent legislation and objective measurement methods. Residents favoured a reduction in livestock intensity to decrease odour annoyance. However, the farmers feared that this would not solve the problem, since the experience of odour is subjective. In this case, the lack of objective data probably hampered the dialogue. After the final session about possible solutions, this project ended.
At the start of the project, project partners agreed to focus on gaining insight into the local air quality and odour situation, and on having a dialogue involving the farmers and residents. We believe that the methods used in this study could be valuable in similar situations that include multiple (opposing) stakeholders with concerns or questions about air quality. Examples are people that burn wood for domestic heating and those that oppose domestic wood burning, livestock farmers and park rangers, and industrial plants and local residents. In particular the dialogue between stakeholders could foster the sharing of information and facilitate a discussion about possible solutions.
To enable a dialogue between participants based on informed opinions, three things were found to be important: (1) the education of the participants, (2) involvement of independent parties and (3) commitment of the participants.
3.3.1. Education of the Participants
In order to have a conversation about air quality, also based on the insights from the measurements, participants first need to be educated about air quality. They need to know about the drivers of air pollution levels, possible sources of air pollution, measures that impact the emissions from these sources (e.g., COVID-19 restrictions) and the impact of the weather on air quality. In this project, information about air quality was provided by RIVM in presentations (which included time for questions) and interactive sessions in which the participants were actively involved in discussing the results. The Samen Analyseren Tool developed by RIVM was intended to enable participants to analyse their own data, get acquainted with air quality data, and, if possible, formulate their own questions and answers in relation to air quality. However, the tool was used by just a few participants and most of the participants left data analysis and interpretation to the experts from RIVM. The majority of the participants were curious to learn from the experts, and actively participated in the meetings when the measurement results were discussed. In similar citizen sensing projects in which RIVM participated (e.g., the Amsterdam Smart Citizen Lab (ASCL), initiated by Waag Society in 2015), it was found that RIVM experts had intended to take on the role of observers but instead became motivators and trusted sources of information. This was attributed to the fact that a dialogue was established between the scientists and citizen scientists. During the ASCL project, the research team learned a lot about the participants’ needs and wishes, and the participants learned about the scientific process (e.g., gathering data, constructing a data infrastructure). This approach contributed to an increased level of mutual trust, as is stated in the lessons learned by Volten et al. (2018; [
15]).
3.3.2. Involvement of Independent Parties
Involving an independent party for the organisation of the project and facilitation of the meetings proved to be valuable, since opposing interests were at stake. RIVM and an independent professional facilitator were viewed as neutral by all of the other stakeholders involved in the project. In the end, participants mostly agreed with the conclusions drawn by RIVM. When asked to formulate conclusions based on the measurement results, farmers and residents sometimes framed their conclusions in a way that served their own interests. For example, farmers specifically focused on the considerable decrease in concentration with increasing distance from the stables, whereas residents concluded that the laying hen stables must be a significant source of pollution since they were the only stables visible in our measurements. The difference between the conclusions is likely due to the nature of citizen sensing projects, in which the participating parties tend to take more of an activist approach than in citizen science projects in general [
17,
39]. People actively try to bring about a change in policy through measurements, because of the often longstanding distrust of the parties that are held responsible for the problems associated with the aspect being measured [
17,
40]. The fact that both farmers and neighbours draw conclusions about the measurement results that serve their own interests is to be expected given that they both want different things policy-wise. As an independent party, RIVM focused on the scientific process of measuring and was not involved in any policy choices. This was emphasised several times during the process, and RIVM always carefully chose a position in this regard. This may have contributed to the neutral position the participants attributed to RIVM.
3.3.3. Commitment of the Participants
Also important for the dialogue was the commitment of the participants to the project. From the start of the project, participants were highly committed to performing measurements properly, and also felt responsible for the measurements taken at their premises or in their neighbourhood. They were intrinsically motivated, with a joint interest in obtaining local measurements (rather than models) to characterise their environment. To foster this commitment as much as possible, RIVM encouraged volunteers by making itself available for questions, giving guidance, and showing appreciation for the participants. Additionally, RIVM regularly sent emails to the participants with news, changes in the planning (e.g., due to COVID-19) and announcements. The attendance at the first two plenary meetings (in the second phase), where nearly all participants were present, showed that there was a high level of commitment. However, from the webinars (in the third phase) onwards, the attendance of the residents decreased, with only about 50 to 60 percent of them attending the webinars and meetings. All farmers did attend the meetings throughout the project: since they were just four, we arranged the meeting dates in consultation with them. The decreased attendance might have been partly due to the pandemic. The COVID-19 regulations meant that meetings had to be postponed: two consecutive physical meetings were held 1.5 years apart. We felt that regular physical meetings were important in order to maintain the level of commitment among the participants. People seem to be less willing to attend online meetings within the context of citizen science projects. For example, it has been reported that social factors, such as social bonds and in-person interaction, play a big role in citizen scientists’ motivation to participate [
41,
42,
43]. There is evidence to suggest that these motivating social factors are absent in online citizen science projects, and that people in general are less motivated by online-only interactions [
44].
4. Conclusions
In this study, using low-cost measurement methods, we found that (hourly) PM concentrations were only elevated in the immediate vicinity of layer farms, and not near other type of farms or at residential locations. The NO2 levels were higher near road traffic, and the NH3 levels were elevated near individual livestock farms and in areas with a high density of livestock. We conclude that low-cost measurement methods for PM, NO2 and NH3 can be used to characterise local air quality and local farmers and residents can be involved in such efforts. However, neutral guidance is necessary to interpret results from these low-cost measurements, especially concerning the uncertainties of sensors. This might make this method more expensive even though it uses low-cost methods. Furthermore, although participants felt that using the smartphone app for reporting odour annoyance required too much effort, odour annoyance proved to be the most significant concern to residents in this study. Therefore, future research should focus on quantifying odour annoyance with methods that minimise the effort required of the user.
Our CS approach can help the participants gain valuable insights about the local air quality. For example, the measurements showed that PM concentrations were elevated near layer farms, and information about the participants’ domestic wood burning habits was obtained from the dialogue. These insights can foster a dialogue between different stakeholders, including those who are considered polluters, about ways to improve air quality. Apart from performing measurements together and providing data in a transparent way, we found that education of participants, involvement of independent parties and commitment of the participants are key factors for a constructive dialogue.
Future citizen sensing projects that want to include all stakeholders, including opposing parties, can use our approach, benefit from our experiences and use the lessons learned in this study to improve the design of their sensing projects and maximalise the success rate of such projects.
