The Study of the Distribution of Electrical and Magnetic Properties over the Conductor Cross-Section Using Magnetoimpedance Tomography: Modeling and Experiment

Abstract

A description of the method of magnetoimpedance tomography is presented. This method is based on the analysis of the frequency dependences of the impedance obtained in magnetic fields of various strengths. It allows one to determine the distribution of electrical and magnetic properties over the cross-section of the conductor, as well as their dependence on the magnetic field. The article proposes a specific approach to the implementation of the magnetoimpedance tomography method based on computer modeling by the finite element method. The results of this method are presented for composite Cu₉₈Be₂/Fe₂₀Co₆Ni₇₄ wires of the “highly conductive core–magnetically soft coating” type and amorphous rapidly quenched Co₆₆Fe₄Nb_2.5Si_12.5B₁₅ wires.

1. Introduction

The dependence of the complex electrical resistance of a ferromagnetic conductor on an external magnetic field’s strength is called the magnetoimpedance effect (hereinafter—MI) [1]. MI offers wide opportunities for the development of compact devices for small magnetic field detection up to the level of biomagnetic fields [2,3]. If we confine ourselves to objects of cylindrical geometry, then MI is actively studied in amorphous cobalt-based wires obtained by rapid quenching from a melt [1,4], microwires in a glass shell [5], and composite wires consisting of a highly conductive core–magnetically soft coating [6,7], obtained by electrolytic deposition. The MI in these objects can reach hundreds of percentages, even in relatively weak magnetic fields, which allows them to be used in highly sensitive magnetic field sensors [8,9,10].

The MI can be clearly explained in terms of the classic electrodynamics skin effect. When an alternating current flows through the ferromagnetic conductor, the effective cross-section of it can be determined by the thickness of the skin layer, as follows [11]:

$$\delta =\sqrt{\frac{1}{\pi f\sigma {\mu }_0\mu }},$$

(1)

where f is the frequency of the alternating current (AC), µ₀ is the magnetic constant, µ is the effective transverse (relative to the direction of the AC) magnetic permeability, and σ is the specific conductivity. A change in the magnetic field leads to a change in the magnetic permeability. This, in turn, leads to a change in δ. The more δ differs from the radius of the cylindrical conductor, the more the impedance modulus differs from the DC resistance R_DC. If we neglect the contribution of the external part of the self-induction, then we can obtain the following expression by solving the Maxwell equations for the impedance of a homogeneous cylindrical conductor of radius r [11]:

$$\frac{\dot{Z}}{R_{\mathrm{DC}}}=\frac{1}{2}kr\frac{J_0\left(kr\right)}{J_1\left(kr\right)},$$

(2)

where R_DC is the resistance of the conductor to direct current, k = (1 + i)/δ; i is the imaginary unit; and J₀ and J₁ are the Bessel functions of the first kind of zero and first orders.

At the same time, both the amorphous and the composite wires are characterized by a non-uniform radial distribution of electromagnetic parameters. The magnetic structure of the amorphous, magnetically soft wire obtained by rapid quenching from melt [12] can be simplified by the core-shell model. According to this model, the wire has an axially magnetized core and a radially or circularly magnetized shell [13]. This distribution of the magnetic properties is determined by quenching stresses.

The composite wire of the highly conductive core–thin magnetically soft coating type contains at least two axial regions with different electrical conductivities and magnetic permeabilities. The size and composition of these areas are set during the manufacturing of the composite wire [14,15]. The solution of Maxwell’s equations does not lead to expressions as simple as Expression (2) due to the complex radial distribution of electromagnetic properties over the cross-section of amorphous and composite wires.

For the case of amorphous wires, in particular, the MI was described in the case of the presence of two regions—the central, axially magnetized (core), and the near-surface, circularly magnetized (shell) [16]. In addition, the influence of the domain wall between the core and shell was considered [17]. Moreover, a theoretical study of the influence of the radial distribution of magnetic anisotropy axes on the MI was carried out [18].

A rigorous theoretical description of the MI of the composite wires was discussed in [19,20]. In some cases, the calculation can be simplified. For example, the impedance can be represented as the sum of contributions from the weakly magnetic core and the coating of the composite wire if the coating is sufficiently thin, and its electrical conductivity is much less than the specific electrical conductivity of the core [21].

It is important to note that the thickness of the skin layer depends not only on the electromagnetic parameters of the conductor but also on the frequency of the alternating current. The expression (1) shows that the higher f, the smaller δ. In other words, as the AC frequency increases, the contribution to the impedance from the inner regions decreases, while the contribution from the surface regions, on the contrary, increases. Due to this, it is possible to restore the distribution of the electromagnetic parameters over the conductor cross-section using the dependences of the MI on the AC frequency. This method can be called magnetoimpedance tomography.

Magnetoimpedance tomography may be in demand for determining the optimal modes of operation of amorphous and composite wires. Thus, in the case of composite wire, according to some experimental and theoretical results, it is possible to control the optimum operating modes by varying the geometric dimensions of the core and coating and their electromagnetic properties, including the features of effective magnetic anisotropy [19,22,23]. The MI response of an amorphous wire can be changed by varying its composition [24,25,26] or by different heat treatments [27,28]. It is possible to purposefully adjust the characteristics of the MI-sensitive elements to specific tasks if the radial distributions of electromagnetic parameters are known. This can be achieved by the appropriate selection of manufacturing conditions and further heat treatment.

Note that attempts have already been made to restore the radial distribution of the magnetic permeability of amorphous microwires using Expression (2) [29]. However, the use of this method is valid only with serious reservations due to the inhomogeneous radial distribution of the electromagnetic properties. At the same time, the problem of magnetoimpedance tomography based on the expressions obtained in [16,17,18] and [19,20] seems to be difficult to solve.

Here, it may be useful to solve Maxwell’s equations with the help of computer modeling using the finite element method. This approach has proven itself well in solving problems related to MI [30,31]. It will be possible to find an approximation of the real distribution of magnetic permeability by modeling the frequency dependences of the impedance in cylindrical conductors at different radial distributions of magnetic permeability and specific conductivity and comparing the modeled dependences with the experimental ones. In future investigations, it will be possible to take into account that the cross-section of the wires, in reality, is not strictly circular, and also to study planar MI elements, such as amorphous ribbons and multilayer films, which, in particular, can be used in the tasks of a bio-detection [32,33].

This work presents the results of the computer simulation of the impedance response of the cylindrical conductor at different radial distributions of the magnetic permeability and specific conductivity. The simulation results are compared with the experimental dependences of the impedance on AC frequency obtained in the study of the composite wire CuBe/FeCoNi and rapidly quenched CoFeNbSiB amorphous wire in magnetic fields of different strengths. As a result of the comparison, the radial distributions of the specific conductivity and the magnetic permeability are determined, which is the basis of the magnetic impedance tomography method.

2. Materials and Methods

The following cylindrical conductors were investigated experimentally:

• The composite wires were obtained by the electrolytic deposition of Fe₂₀Co₆Ni₇₄ ferromagnetic alloy (coating) on Cu₉₈Be₂ wire (core). The thickness of the deposited layer was 1 µm with a total wire radius of 52.5 µm. The coating thickness was determined by both deposition time and scanning electron microscopy performed on Hitachi TM3000. Magnetoimpedance measurements were performed on the 30 mm-long samples. Here, it should be noted that the electrolytic technology for obtaining the magnetic layer causes the formation of circular magnetic anisotropy in the initial samples [18]. In this case, the specific parameters of the magnetic anisotropy of the samples can have a certain dispersion. Thus, the initial wires were subjected to thermomagnetic treatment for 1 h at a temperature of 600 K in the axial magnetic field with a strength of 12 kA/m to induce the axial magnetic anisotropy with the lowest possible dispersion.
• Amorphous Co₆₆Fe₄Nb_2.5Si_12.5B₁₅ wires with a radius of 90 µm were prepared by the in-rotating-water quenching technique [12]. The structural state of these wires was discussed by us earlier [28]. Moreover, the studies of other authors indicate the amorphous state of wires similar in composition and geometry [34].

The saturation magnetization, M_s, of the wires at room temperature was about 320 kA/m. Samples 100 mm long were used for the magnetoimpedance measurements. The length of the samples was chosen from the considerations of minimizing the effect of closure domains on the distribution of the magnetization over the cross-section. The samples were not heat-treated.

The experimental frequency dependences Z(f)/R_DC were obtained using an automated complex of magnetoimpedance spectroscopy, which was developed by the authors and described in the work [35]. The alternating current flowed through a section of the sample 24 mm long and was located in its middle. The effective value of the current strength was 1 mA, and the frequency varied in a range from 0.01 to 80 MHz. The external magnetic field, H, was oriented along the length of the sample. The maximum value of its strength, H_max, was 12 kA/m.

The MI ratio was calculated using the formula:

$$\mathsf{\Delta }Z/Z\left(H\right)=\frac{Z\left(H\right)-Z\left(H_{max}\right)}{Z\left(H_{max}\right)}·100\%,$$

(3)

where Z(H) and Z(H_max) are the wire impedance moduli measured in magnetic fields H and H_max, respectively.

The magnetic hysteresis loops were obtained by the induction method. The magnetic field varied with a frequency of 1 kHz and their amplitude was 2 kA/m.

The cross-sectional analysis of the elements by energy-dispersive X-ray spectroscopy (EDX) was performed using an EDX detector of the scanning electron TM3000 microscope (HITACHI Ltd., Tokyo, Japan).

2.1. Computer Simulation

The Z(f)/R_DC dependences were modeled by the finite element method using the Comsol Multiphysics software package (license No. 9602434) in the f range from 0.01 to 80 MHz. The wire model consisted of n coaxial cylindrical regions with outer boundaries of radii r_i (Figure 1).

• When modeling the composite wire, n was equal to 2. In this case, r₁ was equal to 51.5 µm, which corresponded to the core radius. The value of r₂ was equal to the wire radius, 52.5 µm. Thus, the electrodeposited coating was modeled by the area enclosed between r₁ and r₂. The electrical conductivity of the core, σ₁, varied from 15 to 20 MS/m with a step of 0.2 MS/m, and its magnetic permeability was taken as 1. The specific electrical conductivity of the coating, σ₂, varied in the range from 0.5 to 4 MS/m with a step of 0.2 MS/m, and the magnetic permeability of this region, µ₂, varied from 1 to 1500 with a step of 1. All these values varied independently. In this way, an array of the dependences of the reduced impedance on the frequency of the alternating current Z(f)/R_DC was obtained, corresponding to various combinations of values of σ₁, σ₂, and µ₂.
• When modeling amorphous CoFeNbSiB wire, the cases with n equal to 2 and 3 were considered (see

  Table 1. Modeling parameters.

  Number of Layers	n = 2	n = 3
  r1, μm	76	76
  r2, μm	90	87	88	89
  r3, μm		90
  Model designation	m76-90	m76-87-90	m76-87-90	m76-89-90

  ). The total radius of the amorphous wire model was r_n = 90 µm. The value of the r₁ varied from 70 to 85 m. For n = 3, three variants with r₂ equal to 87, 88, and 89 µm were considered. The electrical conductivity of all regions, σ, was taken equal to 0.87 MS/m. The magnetic permeability of each region µ_i, regardless of the permeabilities of other regions, varied from 1 to 15,000 with a step of 10 to 50. As a result, an array of the Z(f)/R_DC dependences corresponding to the various combinations of magnetic permeabilities µ_i was obtained.

The frequency dispersion of the magnetic permeability and electrical conductivity, as well as their complex and tensor character, was not taken into account. When constructing a finite element mesh, it was ensured that the size of its element did not exceed the thickness of the skin layer [30].

2.2. Implementation of the Method of the Magnetoimpedance Tomography

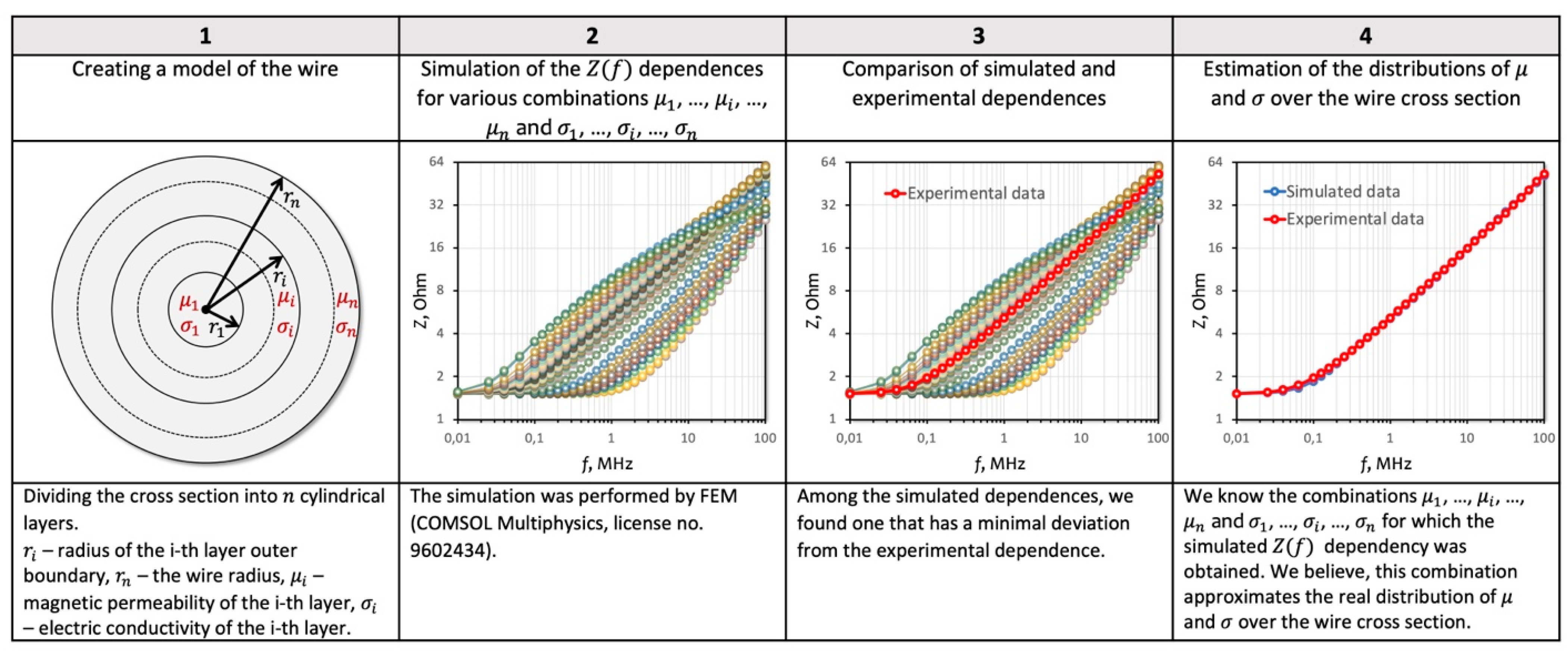

In the array of the simulated Z(f)/R_DC dependences, a dependence was found that had the smallest absolute deviation from the experimental dependence (Figure 1). As a result, a combination of the magnetic permeability and electrical conductivity of the wire model regions was obtained, which, presumably, is an approximation of the real radial distribution of these values.

3. Results and Discussion

3.1. Composite Wires

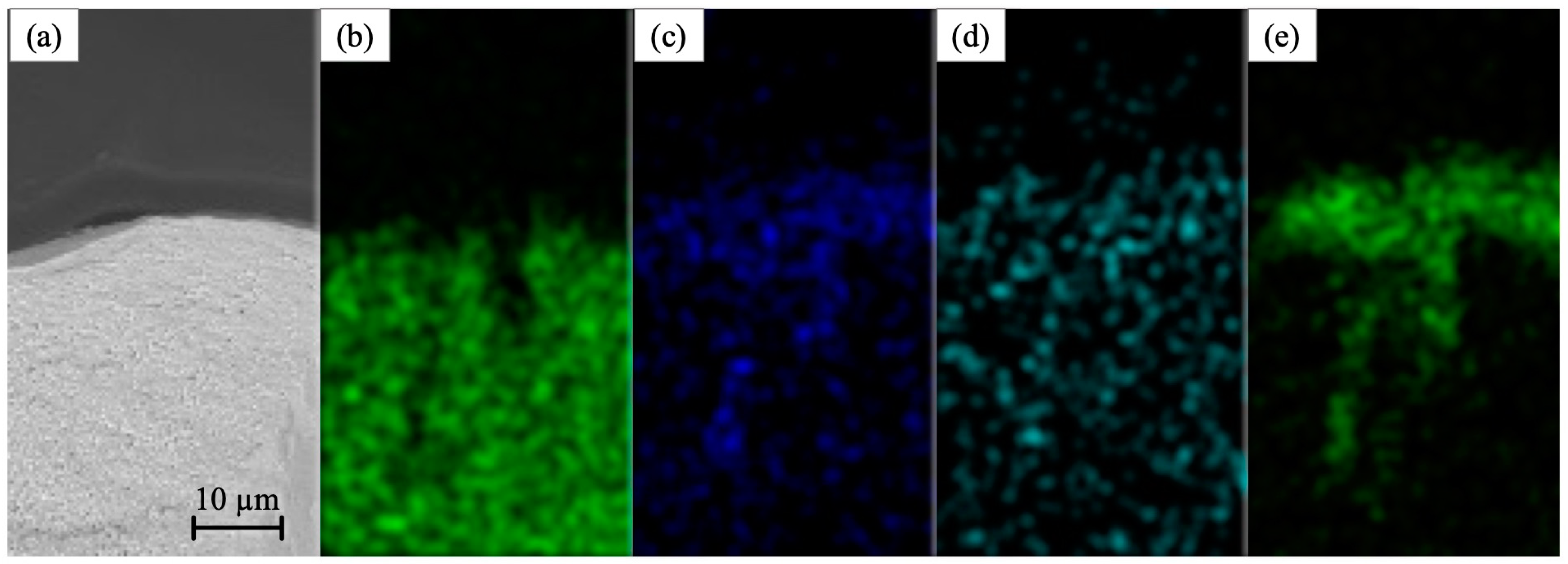

An X-ray fluorescence study showed that the core, as expected, mainly gives the characteristic radiation of Cu-K_α (Figure 2). The characteristic radiations of the coating material in descending order of intensity are Ni-K_α, Fe-K_α, and Co-K_α. These results are expected considering the composition of the Fe₂₀Co₆Ni₇₄ alloy used for the electrodeposition.

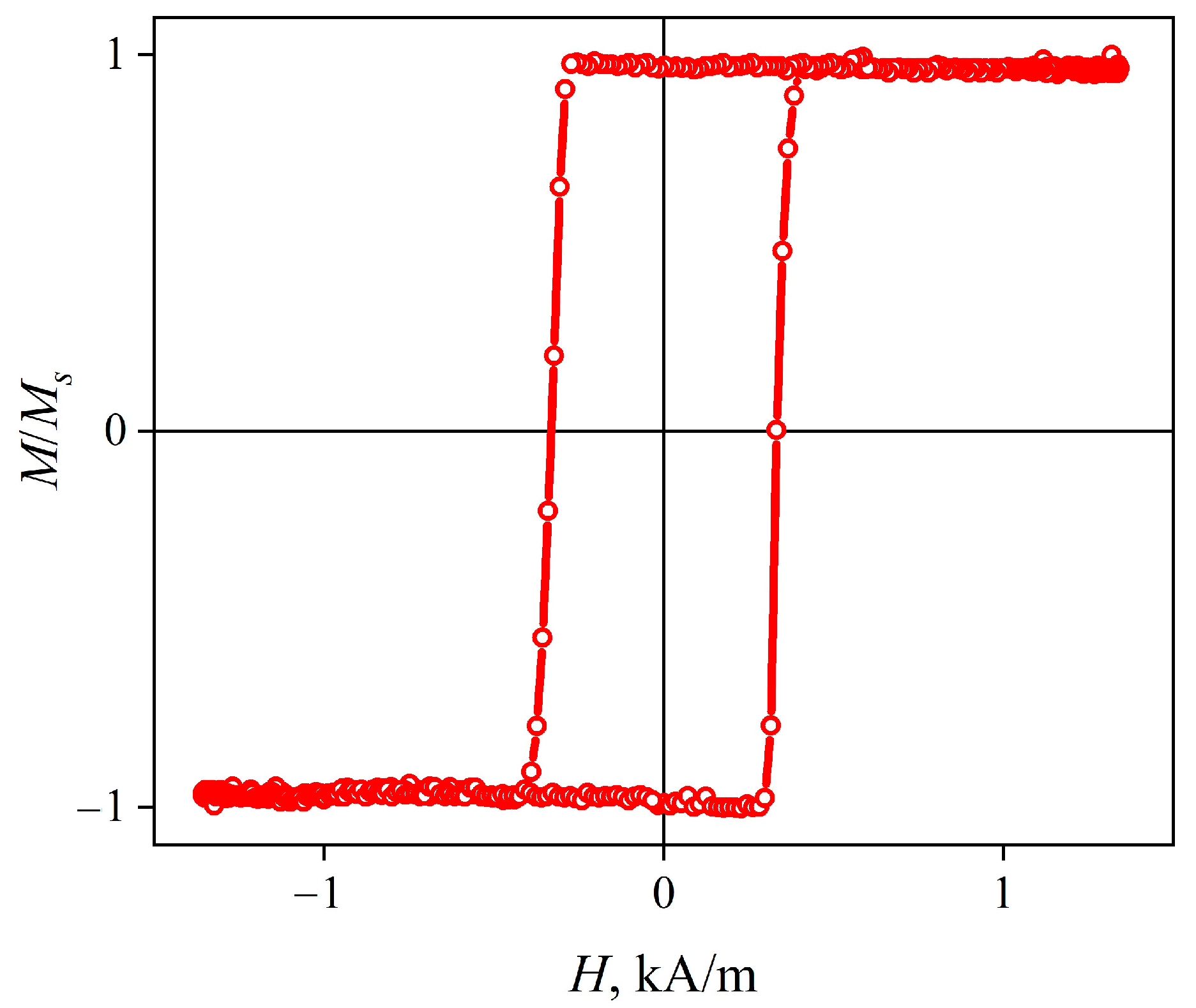

The longitudinal magnetic hysteresis loop of the CuBe/FeCoNi composite wire has convexity and squareness coefficients close to 1 (Figure 3). Such a loop indicates that axial magnetic anisotropy with a very small dispersion was formed during the annealing. The coercive field is approximately 0.32 kA/m.

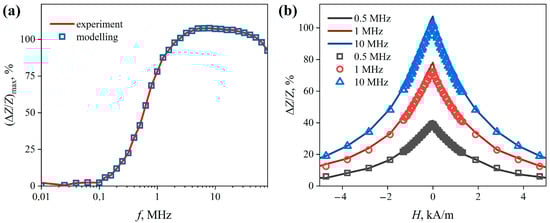

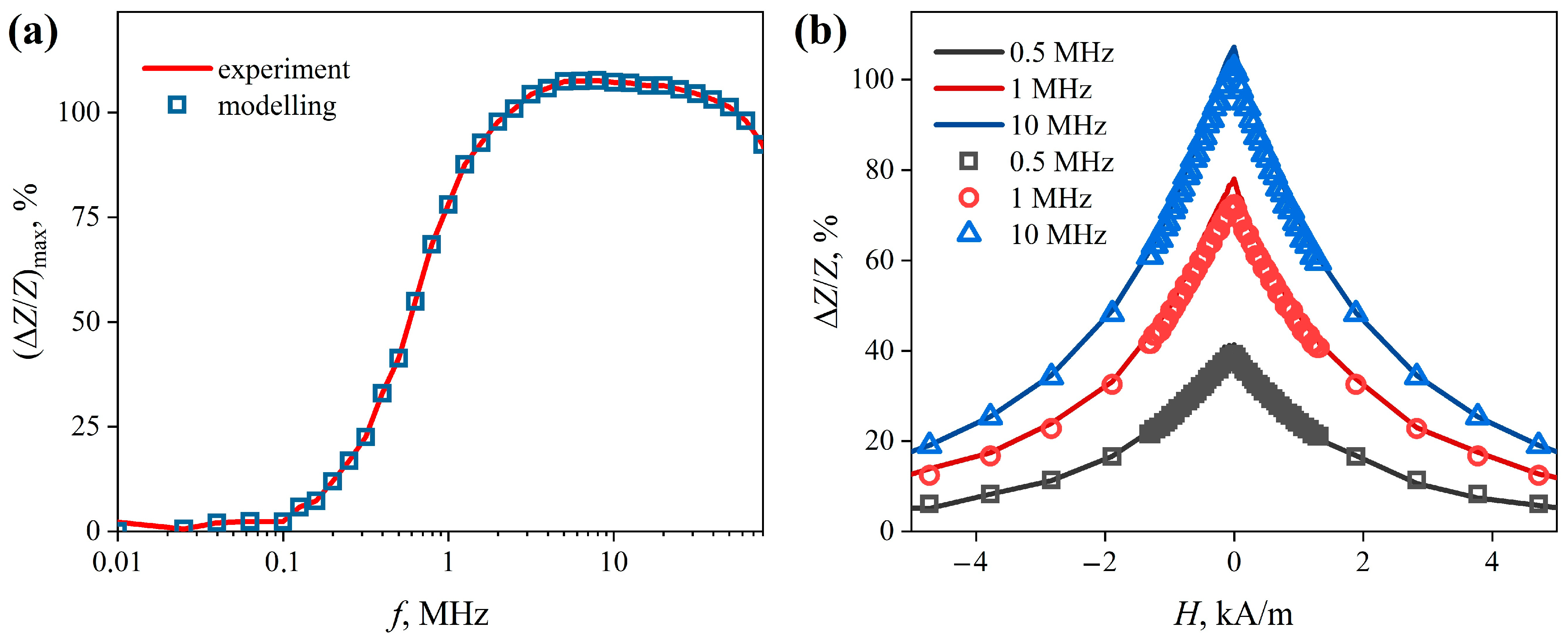

At AC frequencies up to 0.1 MHz, the magnetoimpedance effect is weakly expressed (Figure 4a). As can be seen from the figure, with a further increase in the frequency, the maximum MI value, (ΔZ/Z)_max, rapidly increases, reaching values of more than 100% near 4 MHz, and then demonstrates a tendency to decrease. Dependences of the MI on the strength of the external magnetic field, ΔZ/Z(H), at AC frequencies above 0.1 MHz, have the form of a “single peak” (Figure 4b) [36]. In other words, the maximum value of the magnetoimpedance effect (ΔZ/Z)_max is observed at H = 0 (Figure 4b, solid lines).

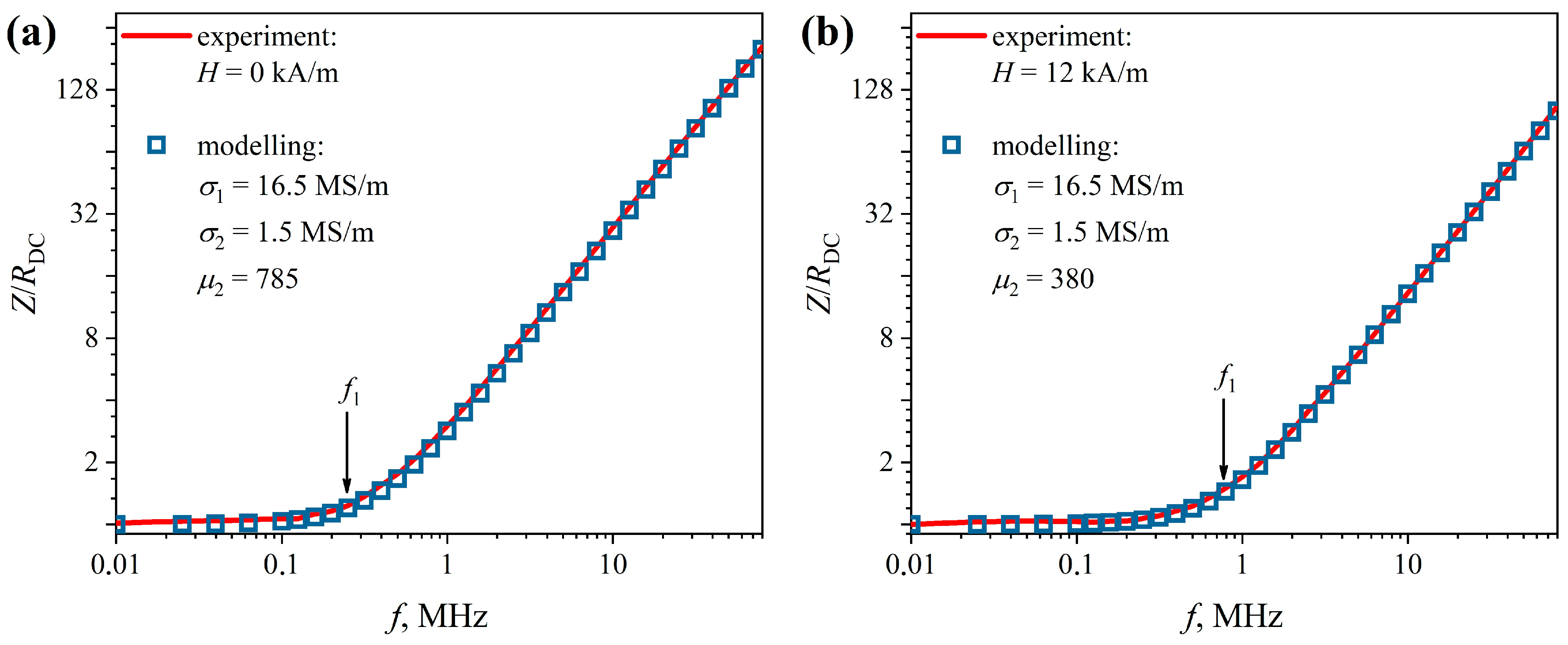

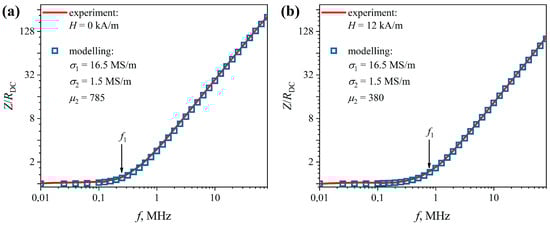

The experimental frequency dependences of the reduced impedance Z(f)/R_DC of the composite wire are shown in Figure 5 (solid lines). On a logarithmic scale, the dependence Z(f)/R_DC can be described by two linear segments—almost horizontal and increasing—for all studied external magnetic field strengths. The first section smoothly passes into the second one at a certain frequency of the alternating current, which we denote by f₁. For example, at H = 0 it is approximately 0.4 MHz. With an increase in the external magnetic field strength, f₁ increases, which is caused by a change in the magnetic permeability of the coating.

It is clear from Expressions (1) and (2) that the horizontal section of the Z(f)/R_DC dependence corresponds to the situation when the skin layer thickness δ is greater than the wire radius. Therefore, for f < f₁, the impedance modulus Z ≈ R_DC. For f > f₁, the skin layer thickness decreases with increasing frequency, leading to an increase in the impedance. It should be noted that near the frequency f₁, the current is mainly distributed along the core. However, the magnetic permeability of the coating strongly affects this distribution, which is reflected in the change in this characteristic frequency when the external magnetic field strength changes.

Then, using magnetoimpedance tomography (see Section 2.2), the distribution of electromagnetic parameters over the composite wire section can be determined. We determined that the specific conductivity of the core is σ₁ = 16.5 MS/m, and the conductivity of the coating is σ₂ = 1.5 MS/m. The first value of the conductivity is typical for CuBe alloys from which the core is made [37], and the second value falls within the range of conductivity values characteristic of permalloys. In this case, the calculation according to the formula

$$R_{\mathrm{DC}}=\frac{l}{\pi \left(r_1^2{\sigma }_1+\left(r_2^2-r_1^2\right){\sigma }_2\right)}$$

(4)

gives the value of the electrical resistance, which practically coincides with the experimentally measured one.

The magnetic permeability of the coating was different for each value of the external magnetic field strength H. For example, for H = 0, we obtained µ₂ = 785 (Figure 5a), and for H = 12 kA/m, we obtained µ₂ = 380 (Figure 5b). Note that the relative deviation of the simulated dependences Z(f)/R_DC from the experimental ones did not exceed 3% for the entire studied AC frequency and the magnetic field ranges.

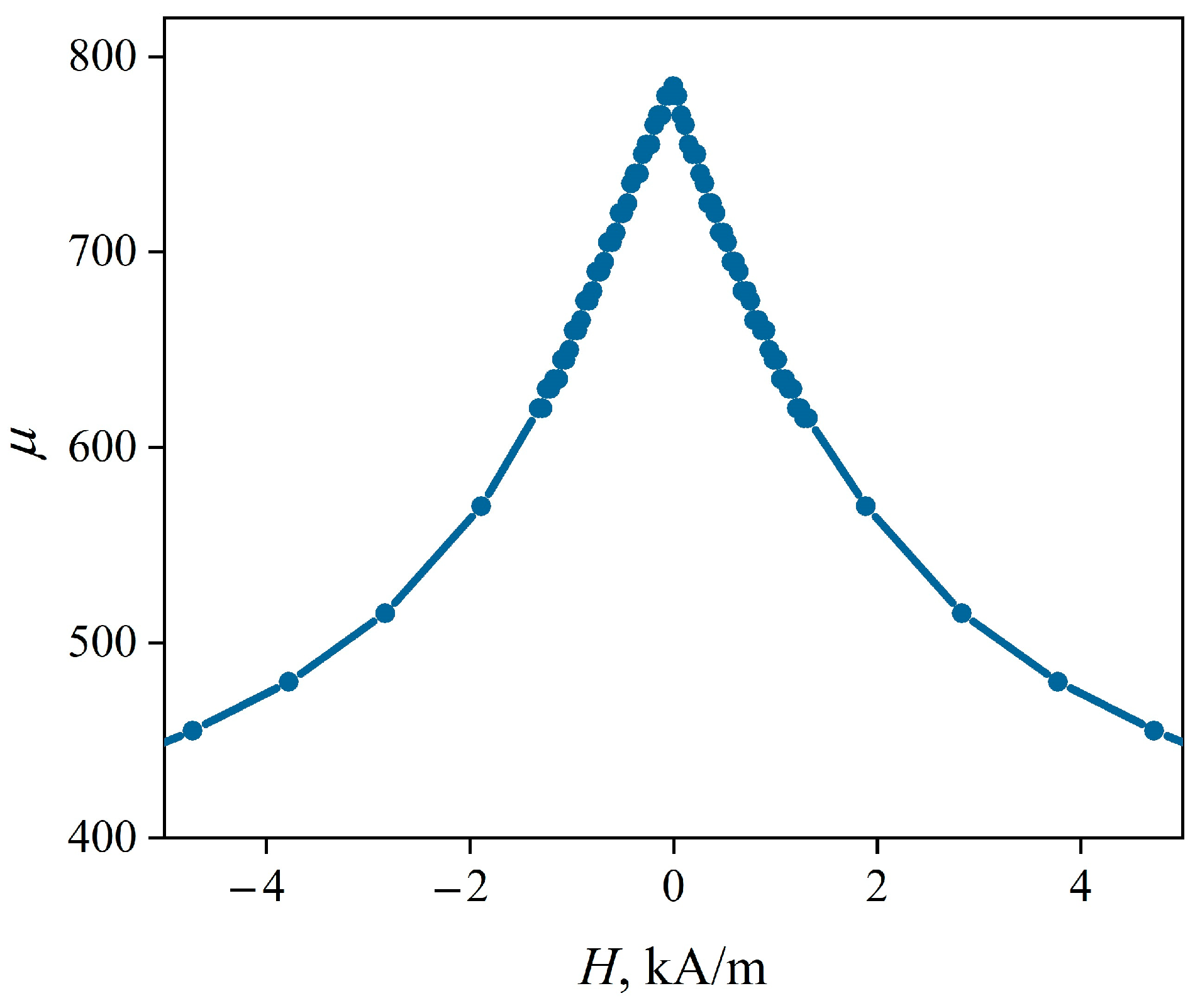

The field dependence of the magnetic permeability µ₂(H) reconstructed using magnetoimpedance tomography is shown in Figure 6. It can be seen that µ₂(H) reaches a maximum value of 785 in the zero external magnetic field, indicating a predominantly longitudinal orientation of the magnetic anisotropy axis. The same conclusion was obtained above from the analysis of the hysteresis loop (Figure 3).

Using the dependence µ₂(H), as well as the values of σ₁ and σ₂, obtained using the magnetoimpedance tomography, we reconstructed the magnetoimpedance dependences ΔZ/Z(H) (Figure 4b, empty markers). It is clearly seen that the simulated dependences practically coincide with the experimental ones. The frequency dependences of the maximum MI value are also in good agreement (Figure 4a, empty markers).

A more detailed study of the radial distribution of the electromagnetic parameters over the wire cross-section is possible with an increase in the number of layers n during simulation. In particular, this may be required in the study of the mutual diffusion of materials of the core and coating, as a result of which their electrical and magnetic properties change [38].

3.2. Amorphous CoFeNbSiB Wires

In the case of the amorphous wires, the boundaries of the regions are not known in advance, as in the case of the composite wires described above. This leads to the need to consider models with different values of r_i. On the other hand, it can be assumed that the electrical conductivity σ is the same at all points of the wire cross-section, which simplifies the task.

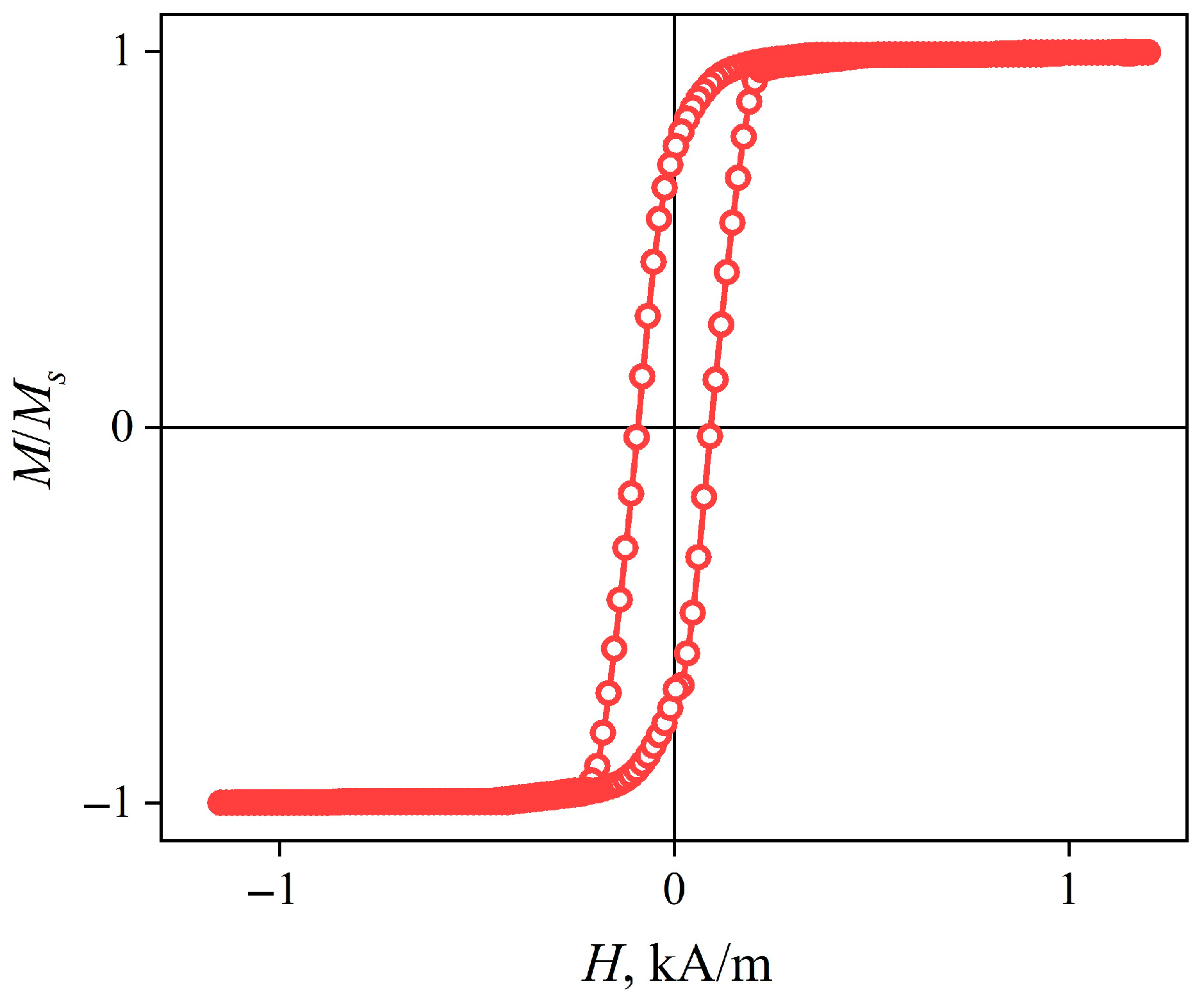

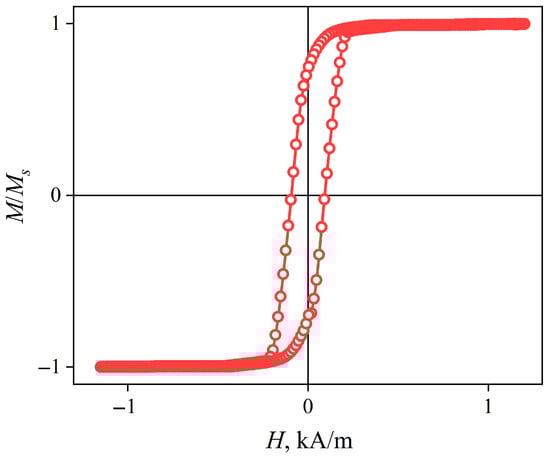

The hysteresis loop shows that the magnetic anisotropy of the wire is predominantly axial (Figure 7). More detailed information about the radial distribution of the magnetic anisotropy can be obtained from the dependences of the MI on the external magnetic field strength ΔZ/Z(H) (Figure 8).

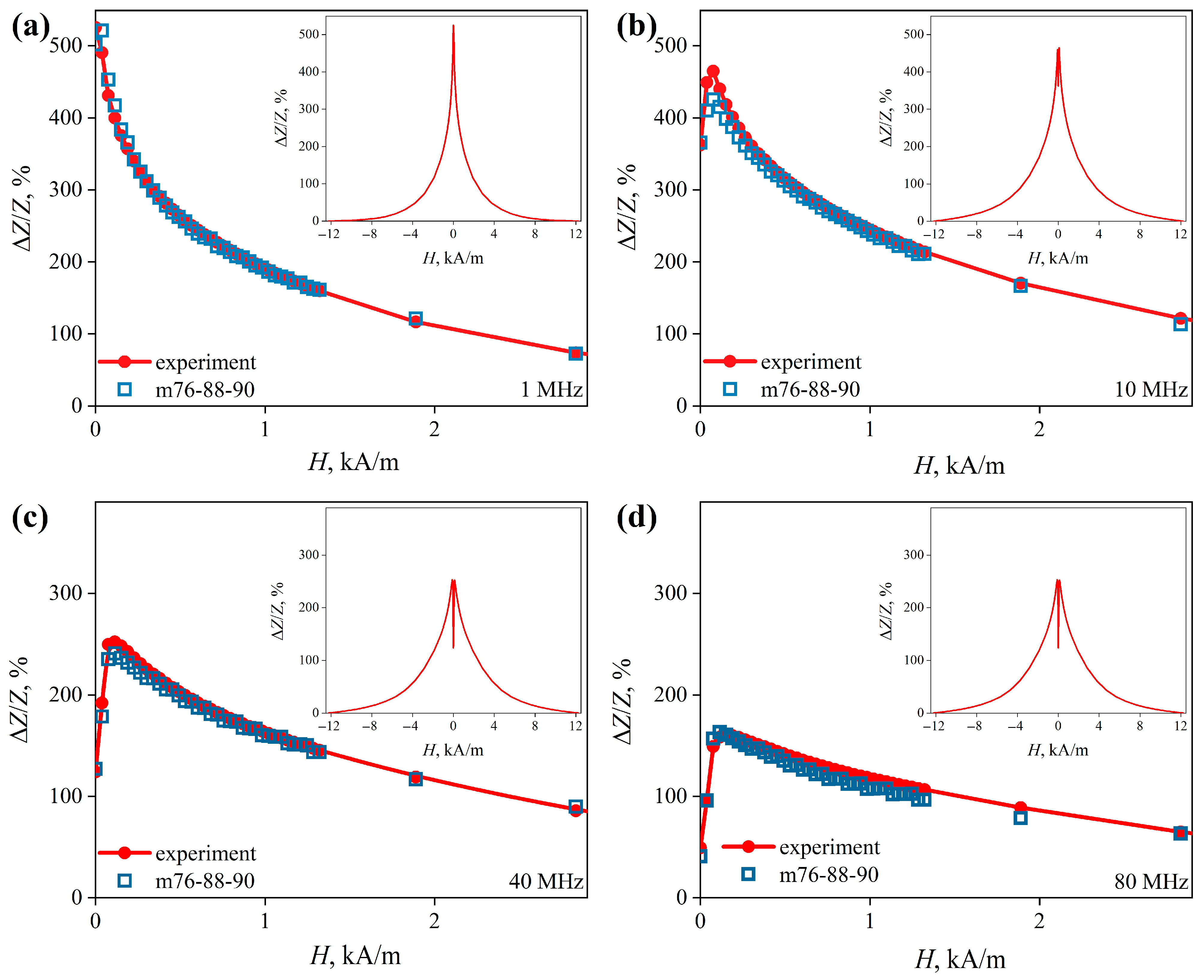

When f < 2.5 MHz, the ΔZ/Z(H) dependences have the form of a “single peak”, and at higher frequencies, they have the form of a “double peak” [35] (Figure 8a–d, insets). A change in the type of dependences with an increase in the frequency of the alternating current indicates the presence in the wire of at least two regions with different orientations of magnetic anisotropy axes. At low AC frequencies, the skin layer thickness is large, so the MI response is formed mainly due to the central region of the wire, which is predominantly axially magnetized, and we observe the “single peak” dependence. When the frequency increases, the thickness of the skin layer decreases, so the contribution of the central region of the wire also decreases, while the contribution of the outer region increases. Thus, the ΔZ/Z(H) dependences change to the “two peaks” form since the magnetic anisotropy of the outer region apparently has a significant circular component. For the same reason, the magnetic field intensity H_p, corresponding to the maximum in the ΔZ/Z(H) dependence, increases with the increase in the AC frequency. At the upper limit of the studied frequency range, H_p is about 0.15 kA/m.

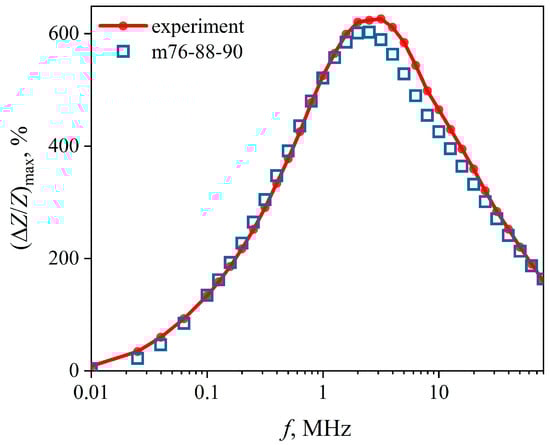

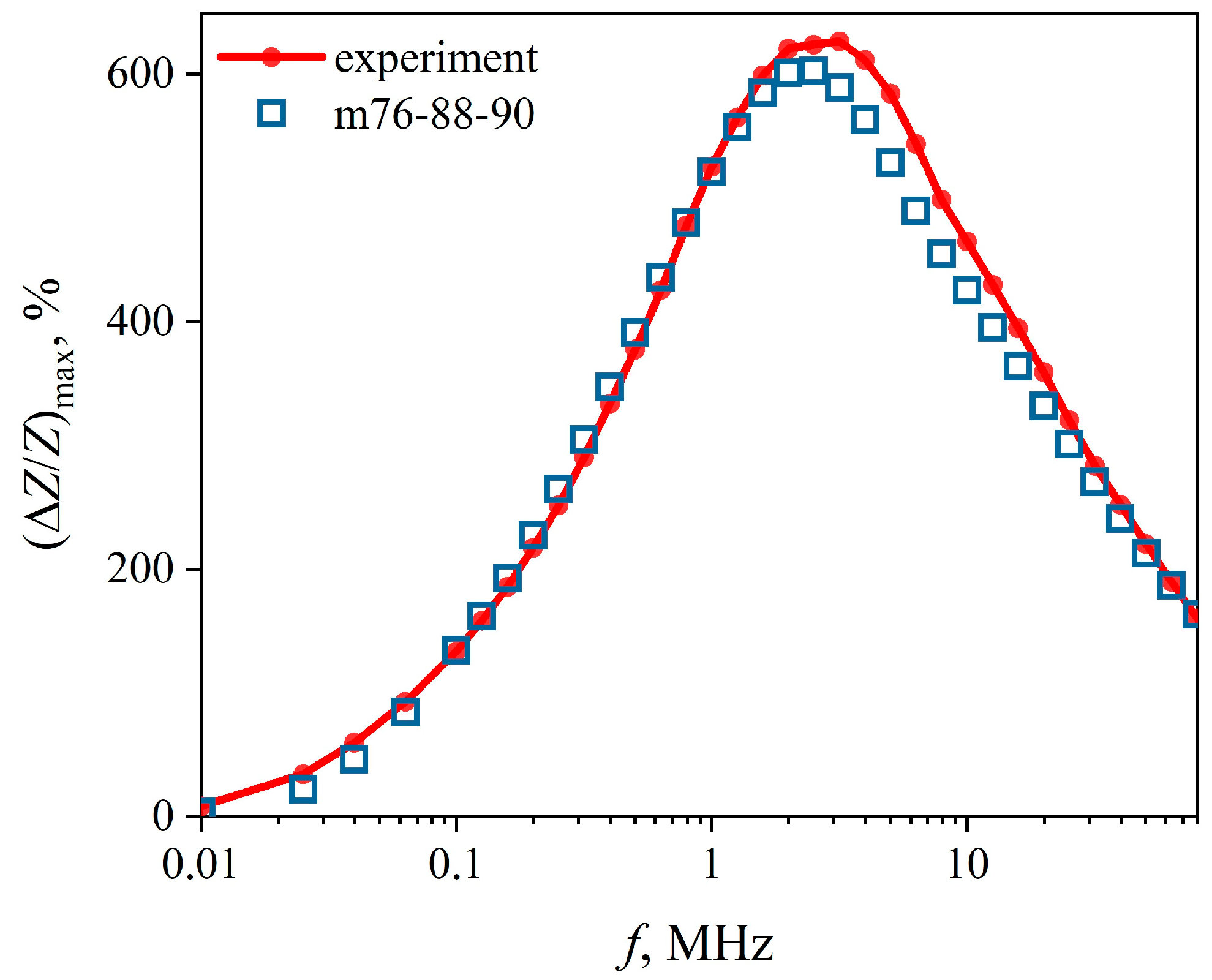

Note that the MI reaches a very high value close to 600% near the above-mentioned AC frequency of 2.5 MHz. (Figure 9).

It should be noted that the response of the “double peak” type is of interest for practical application, since in this case, in the field range from 0 to ± H_p, a very high sensitivity is achieved, exceeding that in the case of the MI response of the “single peak” type [39]. Therefore, MI elements with such a response are used for the tasks of detecting ultra-low magnetic fields in bioengineering and biomedical applications [40,41]. The improvement and/or formation of the “double peak” response in the case of amorphous wires is possible, for example, by annealing with an electric current [28,42].

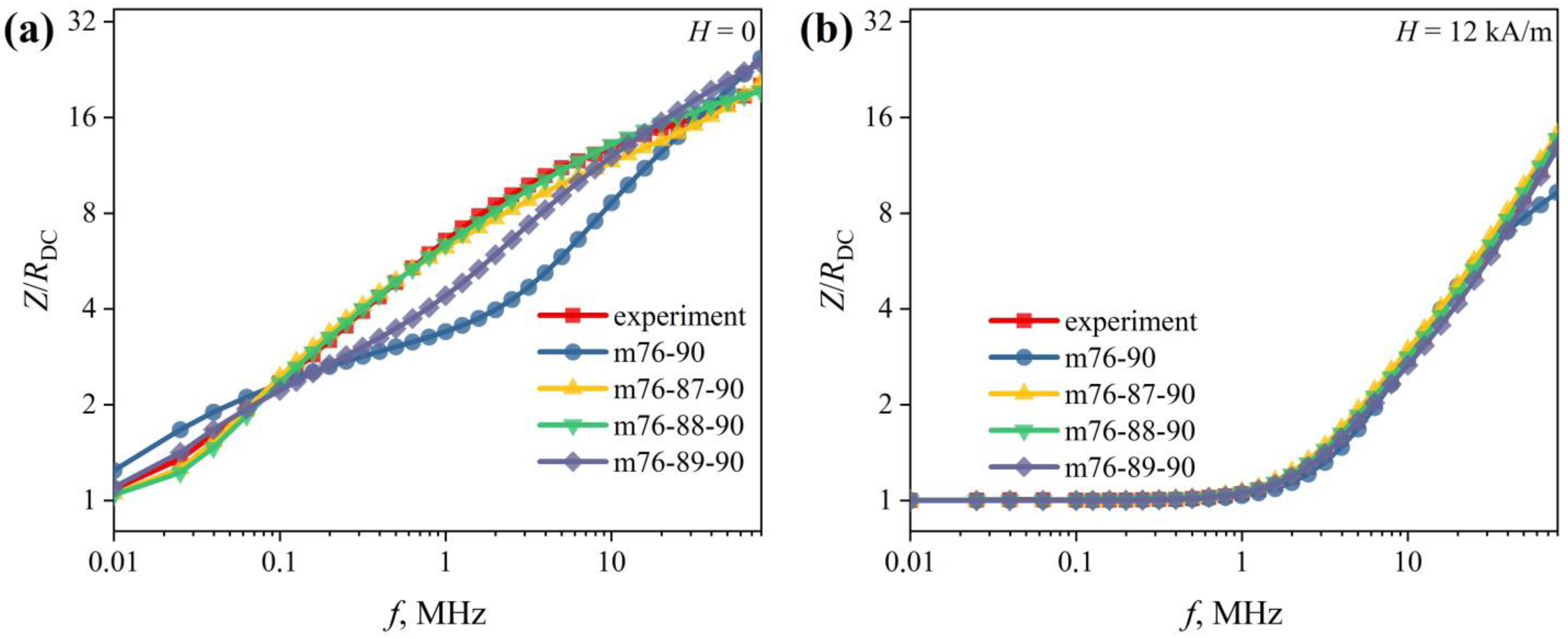

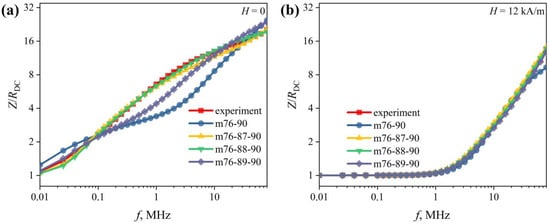

Next, a comparison between the experimental frequency dependences of the impedance Z(f)/R_DC and the simulation results was made (Figure 10). For n = 2, the best result was obtained using the m76-90 model (see Table 1). However, even this did not allow for achieving a satisfactory agreement between the calculated data and the experimental data. In the field H ≤ H_p, the absolute deviation of the modeled dependence from the experimental one exceeds 50% (Figure 10). At H > H_p, the deviation decreases, but still exceeds 20%. The reason for such a large deviation is probably that the simple two-layer model gives a too-rough approximation of the real radial distribution of the magnetic permeability in the wire.

Note that the radial distribution of the magnetic permeability near the wire surface can be significantly affected by roughness on its surface [43,44]. Based on this, we introduced a third layer into the model, and r₂ (the radius of the inner boundary of the third layer) varied from 87 to 89 µm (see Table 1). The introduction of the third layer noticeably brings the simulated and experimental dependences closer together (Figure 10). The m76-87-90 model gives the best result. However, at AC frequencies below 0.1 MHz and H ≤ H_p, the deviation of the simulated dependence from the experimental one reaches 10%. In all other cases, it does not exceed 5%. Interestingly, for H > H_p, all three-layer models give similar results. Perhaps this is due to the fact that as the wire approaches saturation, the radial distribution of the magnetic permeability becomes more uniform than in the fields H ≤ H_p.

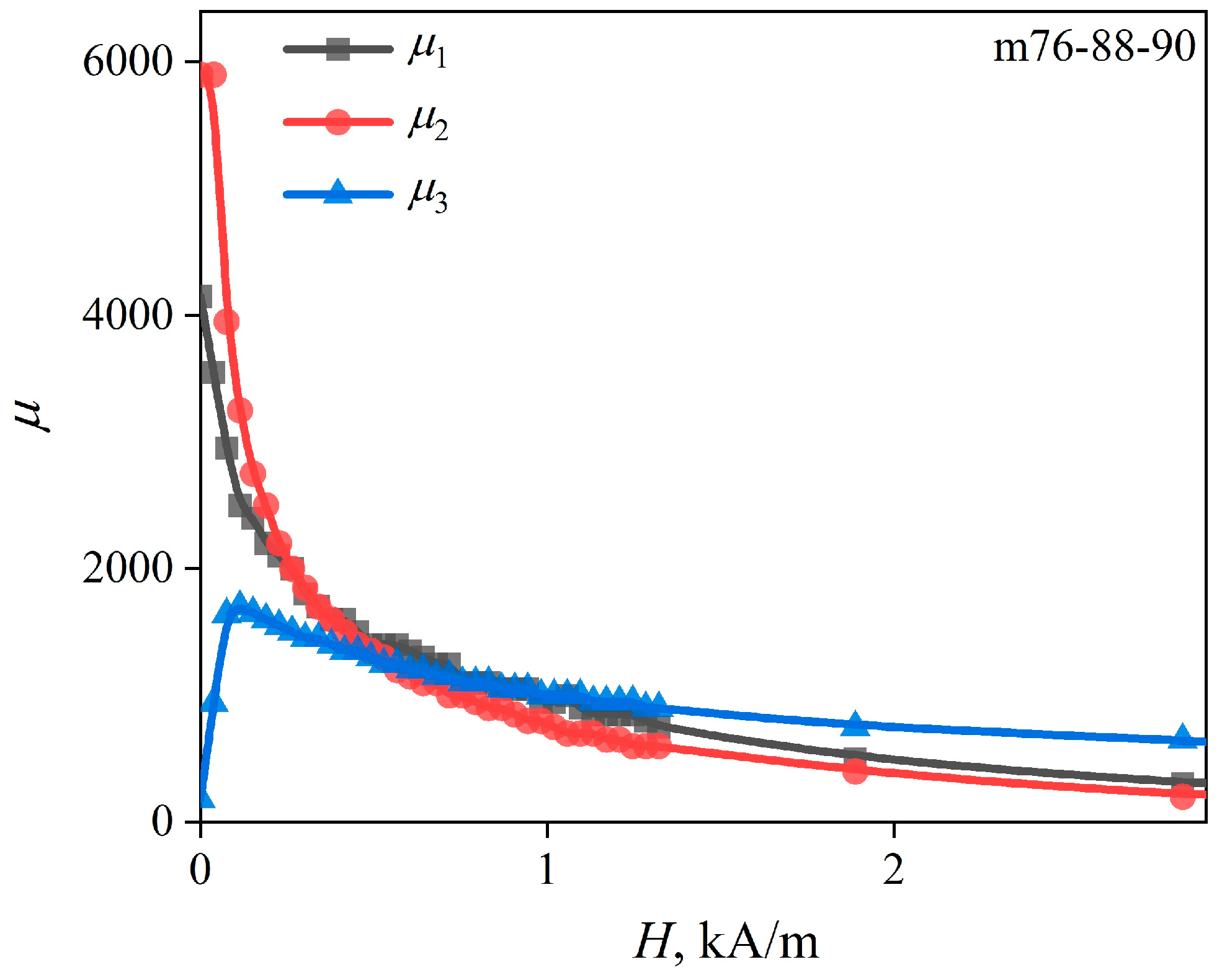

The dependences of the magnetic permeability of the wire regions (r₁, r₂, and r₃) on the external magnetic field strength µ_i(H) were reconstructed (Figure 11) after comparing Z(f)/R_DC dependences, calculated using the m76-87-90 model with the experimental ones measured in magnetic fields with strengths from 0 to H_max, as described in Section 2.2.

The magnetic permeability of the central layer µ₁ has a maximum in the zero external magnetic field, as well as the permeability µ₂. In this case, µ₂ is noticeably larger than µ₁. As H increases, the field dependences of the permeabilities converge.

The field dependence of the magnetic permeability of the outer layer µ₃(H) has a maximum field strength of 0.15 kA/m. Note that this field is close to the previously mentioned H_p field. In the zero field, the value of µ₃ is about unity, which indicates a predominantly circular anisotropy of the near-surface wire layer.

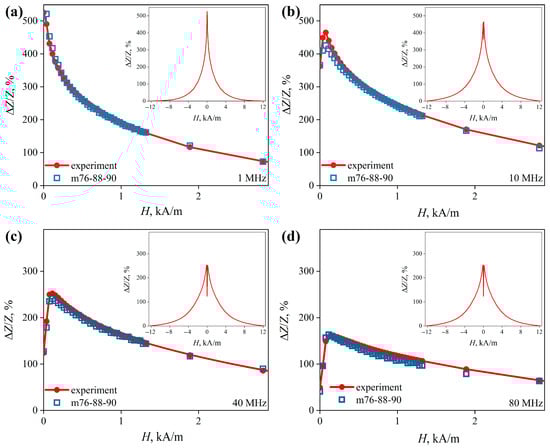

The ΔZ/Z(H) dependences were calculated (Figure 8, square markers) using the µ_i(H) dependences (Figure 11). We found that they are very close to the experimental ones. The same can be said about the frequency dependence of the maximum value of the MI (Figure 9).

The absence of the increasing section in the µ₁(H) and µ₂(H) dependences does not indicate a strictly axial anisotropy. To show this, let us turn to the expression for the magnetic permeability obtained from the model of the uniform rotation of the magnetization, as described, for example, in [35]:

$$\mu =1+\frac{2{\mu }_0{M}_s^2{\sin }^3\mathsf{\theta }}{2{\mu }_0{M}_{s}H+K\left(3\sin \left(2\mathsf{\phi }-\mathsf{\theta }\right)+\sin \left(3\mathsf{\theta }-2\mathsf{\phi }\right)\right)},$$

(5)

where φ is the angle between the anisotropy axis and the circular direction, and θ is the angle between the magnetization and the circular direction. In this case, H and θ are related by the expression µ₀M_sHcos θ = Ksin (2θ − 2φ).

An analysis of Expression (5) shows that there will be no increasing section on the dependence µ(H) at φ ≥ 54°. In other words, the increasing section may be absent even in the presence of a rather significant circular component in the anisotropy. Assuming that the anisotropy of the outer layer is predominantly circular, the formula φ = asin [(r₃/r₂)³ M_r/M_s] was used to estimate the average orientation of the anisotropy axes in the inner regions of the wire. We obtained approximately 50°, which is very close to the value of 54° mentioned above.

The greater the number of layers n in the wire model, the more detailed the radial distribution of magnetic permeability can be studied. In addition, the contributions of both the frequency dispersion of the magnetic permeability and the domain structure may be taken into account for further research.

The field of the application of the magnetoimpedance tomography method is not limited to MI materials of cylindrical geometry. Further development of the approach will allow the use of magnetoimpedance tomography for the other existing types (amorphous and nanocrystalline ribbons, thin films, and complex 3D magnetic structures) of MI materials [40,41,45,46].

4. Conclusions

The article presents a description of the specific implementation of the magnetoimpedance tomography method based on the use of a computer simulation by the finite element method. The application of the method is considered on the example of composite Cu₉₈Be₂/Fe₂₀Co₆Ni₇₄ wires of the “highly conductive core–soft magnetic coating” type and amorphous rapidly quenched Co₆₆Fe₄Nb_2.5Si_12.5B₁₅ wires. The computer model of the wire consisted of n coaxial cylindrical regions, each of which was assigned its own value of electrical conductivity and magnetic permeability. A frequency dependence of the impedance with the smallest deviation from the modeled dependences for various combinations of electrical conductivities and magnetic permeabilities of the wire’s regions was found. Thus, we drew conclusions about the real distribution of the electrical conductivity and magnetic permeability over the wire cross-section. Then, the magnetic field dependences of the magnetic permeability of the wire regions were obtained by performing these steps for the impedance experimental dependences obtained in various magnetic fields.

The electrical conductivity distribution over the cross-section of the CuBe/FeCoNi composite wire was obtained as well as the dependence of the magnetic permeability of its coating on the strength of the external magnetic field.

The radial distributions of the magnetic permeability at n equal to 2 and 3 and its dependence on the strength of the external magnetic field were determined for the amorphous CoFeNbSiB wire.

In all cases, the results of the magnetoimpedance tomography did not contradict the established ideas about the distribution of the electrical and magnetic properties over the cross-section of the composite and amorphous rapidly quenched wires. Furthermore, our results reveal these distributions in more detail.
