Effects of Apple Vinegar Addition on Aerobic Deterioration of Fermented High Moisture Maize Using Infrared Thermography as an Indicator
by
, , , , and
Aylin Agma Okur
1,*
,
Kerem Gozluklu
1
,
Ersen Okur
2,
Berrin Okuyucu
1,
Fisun Koc
1 and
Mehmet Levent Ozduven
1 1
Department of Animal Science, Agricultural Faculty, Tekirdag Namik Kemal University, Tekirdag 59030, Turkey
2
Department of Biosystem Engineering, Agricultural Faculty, Tekirdag Namik Kemal University, Tekirdag 59030, Turkey
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(3), 771; https://doi.org/10.3390/s22030771
Submission received: 15 December 2021
/
Revised: 14 January 2022
/
Accepted: 17 January 2022
/
Published: 20 January 2022
(This article belongs to the Special Issue Robotics and Sensors Technology in Agriculture)
Abstract
:This study was carried out to determine the effects of apple vinegar and sodium diacetate addition on the aerobic stability of fermented high moisture maize grain (HMM) silage after opening. In the study, the effect of three different levels (0%, 0.5% and 1%) of apple vinegar (AV) and sodium diacetate (SDA) supplementation to fermented HMM at two different storage conditions (27–29 °C, 48% Humidity; 35–37 °C, 26% Humidity) were investigated. The material of the study was fermented rolled maize grain with 62% moisture content stored for about 120 days. Silage samples were subjected to aerobic stability test with three replicates for each treatment group. Wendee and microbiological analyses were made at 0, 2, 4, 7, and 12 days. Meanwhile, samples were displayed in the T200 IR brand thermal camera. According to the thermogram results, 1% SDA addition positively affected HMM silages at the second and fourth days of aerobic stability at both storage conditions (p < 0.05). Aerobic stability and infrared thermography analysis indicated that 1% AV, 0.5%, and 1% SDA additions to HMM silages had promising effects. Due to our results, we concluded that thermal camera images might be used as an alternative quality indicator for silages in laboratory conditions.
1. Introduction
Conservation of forage and cereal grains as silage is a very important, common source of ruminant nutrition around the world [1,2]. The silage process might be divided in four stages: (1) The aerobic stage in the silo immediately after harvest, (2) the fermentation stage, (3) the stable storage stage in the silo, and (4) the feed-out stage when the silo face is opened and exposed to air. Producing high-quality silage, and also avoiding dry matter losses as much as possible, is a challenge, and quality problems can occur any time during the entire silage process [3].
High moisture maize grain (HMM) is an indispensable part of the total mixed ration (TMR), especially in dairy cattle diets; TMR might comprise 18–20% HMM [4]. However, the high moisture and starch contents of HMM poses a significant risk in terms of its susceptibility to aerobic degradation during the feeding period [5,6,7,8,9]. However, to reduce the labor in field conditions, ensilaged HMM is taken from the silo in the amount that would not meet the daily requirements of animals but instead meet the requirements for 5–7 days. In addition, sometimes the ensilaged HMM is transferred from one farm to another to meet their needs. These situations lead to undesirable consequences in terms of aerobic deterioration. The objective of the study was to improve the aerobic stability of HMM silage by using additives that might be easily prepared and applied. In addition, to reveal the appropriate usage dosages and effects of the additives against the mentioned challenges.
A wide variety of silage additives have been used to preserve silage for decades. Apple vinegar and sodium diacetate can be identified as chemical additive groups that contain acids and their salts. Previous researches have established that sodium diacetate as an effective silage additive [10]. Apple vinegar (AV) consists of mainly acetic acid and is used as a natural food preserver for its antibacterial and antioxidant activities that are attributed to its organic acid content [11]. Besides, AV might be produced easily at home or farm conditions as an advantage.
The primary cause of silage quality deterioration is respiration. Even if ensiled material is not exposed to oxygen during the production, fermentation, and stable periods, it is an unavoidable condition when the silo is opened, and conditions turned to the aerobic stage with air entering the silo [12,13,14]. During the decomposition process, the dry matter breaks down into H2O and CO2 with a release of heat [15]. Aerobic deterioration occurs by the activities of aerobic microorganisms (yeasts, moulds, etc.), such as using water-soluble carbohydrates and fermentation products, and concluded with dry matter loss, energy release, increase in pH value and heat, as well as a decrease in protein and cellulose digestibilities [12,16]. In addition, growing moulds may produce mycotoxins, which threaten the health of humans and animals [17,18].
Silage temperature is proof of good silage management and subsequent handling. If it exceeds 20 °C even in the summer conditions, it would indicate that silage is not consumable for dairy cattle. Gálik et al. [14] also stated that heat increase up to 30 °C in maize silage could cause nutrition losses (1.7% of dry matter per day) due to anaerobic fermentation in silage. As a result of that, it would be useful to monitor heat differences and detect abnormalities in early stages. Thermal camera imaging might be used to serve this purpose.
Infrared thermal camera imaging is an objective, non-invasive quality evaluation tool to assess inflammatory reactions, early-stage mastitis, detections of ovarium cycles, foot pathologies in ruminants, equines, poultry, grain quality, as well as deterioration of feed and silage [19,20,21,22,23].
This study aims to evaluate the effects of apple vinegar and sodium diacetate addition on aerobic stability of high moisture fermented grain maize silage and also to reveal the changes of silage quality at different storage conditions by using temperature data logger and thermal camera images.
2. Materials and Methods
2.1. Silage Material
High moisture (62%) maize grain crushed and fermented in a plastic sausage silo for approximately 120 days was used as the research material. At the end of the silage fermentation process, approximately 40 kg of silage sample was brought to the laboratory. Samples from freshly opened silage were taken and analyzed to evaluate the initial material. Meanwhile, the fermented high moisture maize samples were then divided into 12 treatment groups with 3 replicates in each. Treatment groups consist of two different supplements (apple vinegar and sodium diacetate) with three different levels (0%, 0.5% and 1%) and stored at two different storage conditions (a room and incubator). Each treatment group was weighed as 1000 gr and put in plastic bags. Then additives were sprayed on the silage material and mixed for homogeneity. In the control groups, 20 mL of purified water were added as an equivalent dose to the treatment groups. After supplementation of additives, silage samples were stored for 12 days to evaluate the aerobic stability changes in room (27–29 °C; 48% humidity) and incubator (35–37 °C; 26% humidity) conditions.
2.2. Laboratory Analysis
Dry matter (DM), pH, lactic acid (LA), water soluble carbohydrate (WSC), ammonia-nitrogen (NH3-N), lactic acid bacteria, yeast, and mould counts were determined at 0th, 2nd, 4th, 7th, and 12th days of storage to evaluate the aerobic stability of silage samples. Temperature changes in the storage ambient and inside the silage samples have been recorded by data logger devices (Hobo pendant, Bourne, MA, USA) every 30 min during the experiment period.
Chemical analyses were performed on triplicate samples. DM was determined by oven drying for 48 h at 60 °C. The pH in fresh material and silage samples was measured according to the British standard method [24]. The ammonia nitrogen (NH3-N) content of silages was determined, according to Jackson et al. [24]. The WSC content of silages was determined by spectrophotometer (Shimadzu UV-1201, Kyoto, Japan); after a reaction with the antron reagent [25]. Lactic acid (LA) was determined by the spectrophotometric method [26]. Microbiological evaluation included enumeration of lactobacilli on pour-plate Rogosa agar (Oxoid CM627, Oxoid, Basingstoke, UK). Yeast and moulds were determined by pour-plating in malt extract agar (Oxoid CM59) that had been acidified, after autoclaving, by the addition of 85% LA at a concentration of 0.5% vol/vol. Plates were incubated aerobically at 32 °C for 48–72 h.
2.3. Infrared Thermal Camera Imaging
Thermal camera imaging was recorded by using a Fluke Ti9 IR (IR Sensor Size: 160 × 120 Focal Plane Array, WA, USA) thermal camera from a 1-m distance with a surface size of 20 × 30 cm (with two replicates from each sample; n = 24). Thermography images were taken in laboratory conditions (ambient temperature: 22 °C) without direct sunlight and air velocity. The average, minimum, and maximum temperatures of the silage surface were calculated using SmartView® software program in which each pixel of the image was allocated to one temperature value.
2.4. Statistical Analysis
The research was conducted according to the 2 × 2 × 3 factorial trial design. To reveal the effects of treatment and temperature, the data were evaluated according to the variance analysis technique. If the difference between groups was found to be significant, Duncan’s range test was applied [27]. The applied mathematical model was as follows (Equation (1)):
Yijk = µ + Ai + Bj+ Ck + (AB)ij + (AC)ik + (BC)jk + (ABC)ijk + eijkl.
Yijk: Observation applying the ith supplement with jth inclusion level and stored at kth temperature’
µ: Overall average;
Ai: Effect of ith supplement;
Bj: Effect of jth inclusion level of supplement;
Ck: Effect of kth storage temperature;
(AB)ij: Interaction effect of ith supplement × jth inclusion level;
(AC)ik: Interaction effect of ith supplement × kth storage temperature;
(BC)jk: Interaction effect of jth inclusion level × kth storage temperature;
(ABC)ijk: Interaction effect of ith supplement × jth inclusion level × kth storage temperature;
eijkl: Error associated with each observation.
3. Results and Discussion
This section may be divided by subheadings. It should provide a concise and precise description of the experimental results, their interpretation, as well as the experimental conclusions that can be drawn.
In Table 1, the analysis results of the beginning material of fermented maize silage are given. Mould has not been detected in the initial materials. As a result of thermal camera footage carried out on day zero of aerobic stability, the average temperature of fermented maize silage was 30.62 °C, while the background temperature was 22 °C.
Demirel et al. [28] stated that there is an inverse relationship between the DM and pH levels of the raw material to be ensilaged. Their results showed that the pH value of corn silage (with 23.48% DM) harvested during the milking phase was 4.15. The pH value of HMM silage was found to be low in the intial material (such as 3.900). These results might be evaluated as a harmonious result with Demirel et al. [28].
3.1. 2nd Day of Aerobic Deterioration
Second-day aerobic stability results of HMM silages are presented in Table 2. In the LAB count results, the lowest value was observed in the groups that has 0.5% SDA added and were stored in the incubator, and the highest value was observed in the groups that had 1% AV added and were stored at room temperature. In addition, significant reductions in LAB numbers were observed in all silage samples stored in the incubator (35–37 °C, 26% humidity; p < 0.001). High temperatures with low humidity values might be responsible for the change in LAB counts. However, no yeast could be detected in groups with 0% and 1% AV and 1% SDA supplemented and stored in room conditions (p < 0.001). According to the mould count results, the highest value was found in a SDA control group stored in incubator conditions with 3.310 log10 cfu/g, while the lowest value was 2.220 log10 cfu/g in 0.5% vinegar added and stored under room conditions (p < 0.001).
3.2. 4th Day of Aerobic Deterioration
Aerobic stability analysis results of HMM silage on the fourth day of storage were given at Table 3. LAB counts were intended to be lower at SDA added groups and also lower at groups stored at 35–37 °C (p < 0.001). In addition, the highest LA level was observed at 0.5% SDA supplemented and stored at room conditions (27–29 °C; 48% Humidity; p < 0.05). In addition, the lowest yeast counts were observed at 0.5 and 1% SDA added and stored at high temperatures (p < 0.001). However, WSC levels were not affected by additive sources (p > 0.05). In order to avoid the deterioration of the ensilaged material, there must be LAB in the silage and also sufficient amount of WSC. Thus, LAB can produce LA required for silage fermentation by using WSC in the medium [29]. However, Alçiçek and Özkan [30] reported that LA content should not be higher than 2% for good silage quality.
Fermentation properties of silages are also effective on aerobic deterioration. Unused sugars and high levels of LA in the silage reduce aerobic stability. Some yeasts and moulds might cause CO2 production in silages by using the remaining sugars and LA as nutrients. As a result, an increase occurs in ambient pH and temperature [31]. The data obtained from the study support the previous research results [32,33,34].
3.3. 7th Day of Aerobic Deterioration
The effects of additives on HMM silage on the seventh day of aerobic stability are presented in Table 4. When pH, NH3-N, WSC analysis results, LAB, and yeast numbers are evaluated, it has seen that the highest values belong to the SDA control group under room conditions (27–29 °C; 48% Humidity; p < 0.001). However, the highest LA value (13.740 g/kg DM) was found in silages stored in the incubator with 0.5% SDA, while the lowest LA (1.147 g/kg) was observed in silages stored in room conditions with 1% AV addition (p < 0.001). The effects of the silage additive, addition level, storage temperature, their double and triple interactions on pH, NH3-N, LA, WSC, and LAB values were found to be statistically different (p < 0.001).
Pahlow et al. [17] reported that the number of yeast in high-moisture maize silages was 3–5 log10 cfu/g and that a high yeast count reduced aerobic stability, especially at high temperatures. Teller et al. [35] stated that physical damage to the grain might cause substrate formation for microorganisms and might cause the high yeast content in high-moisture maize silages. Considering the results of the research, the high yeast content in the control group, particularly at high temperatures supports previous studies on this subject. Besides, there was a decrease in the yeast and LAB numbers of silages stored in the incubator. In addition, mould counts were found to be zero in silages stored in incubator conditions for all additives, and additional levels (p < 0.001). In the study, silage samples stored at 35–37 °C had relatively low humidity (26%). That might have affected microbial growth negatively. However, a 1% SDA addition has been found effective in both room and incubator conditions on LAB and Yeast counts.
3.4. 12th Day of Aerobic Deterioration
The 12th day analysis results of aerobic stability are given in Table 5. According to the pH results, it was observed that the lowest values were found in silages stored at high temperatures and the effect of storage temperatures was statistically significant (p < 0.001). Similarly, a decrease was observed in NH3-N values under high temperature storage conditions (p < 0.01). However, the NH3-N value was found to be lower in the group containing 1% SDA and stored in room conditions (p < 0.01).
In addition, WSC contents were found to be lower in all groups stored at room conditions, too. However, one of the lowest values were detected at the 0.5%-AV added and incubator-stored group. McDonald [15] has stated that WSC are the most important energy source used by lactic acid bacteria. Some researchers observed an increase in the amount of WSC due to increasing SDA supplementation. Researchers attributed this increase to the antifungal properties of additives [36,37,38]. They prevent the growth of unwanted microorganisms and caused a reduction of DM and nutrition losses. In the study, all parameters (additives, addition ratios, and storage conditions) revealed significant effects on WSC (p < 0.001).
LA levels demonstrated an increase at higher storage temperatures except for 1.0% SDA-added groups. Besides, the highest value (11.407 g/kg) was determined in the 1% AV-added groups. Reeves et al. [39] reported that the amount of LA in dry matter of maize silage varied between 1.58% and 8.57%. In addition, Deswysen et al. [40] reported that the amount of lactic acid on dry matter in maize silage was 6.31%, while Phillip and Hidalgo [41] reported that it was 5%. In the present study, LA levels ranged between 0.881–1.469% on the second day, and 0.030–1.141% on the 12th day of aerobic stability (Table 2 and Table 5).
According to the results of the 12th day of aerobic stability, there was an increase in LAB counts of silage samples stored in the incubator compared to those in the chamber, but a decrease in yeast count was observed (except vinegar control and 0.5% SDA supplemented groups) (p < 0.001). In addition to these results, mould counts were found to be 0 in all treatment groups on the 12th day of aerobic stability.
3.5. Thermal Camera Imaging Results of Aerobic Stability
Temperature data obtained from dataloggers for 12 days were summarized in Figure 1, Figure 2, Figure 3 and Figure 4. The temperatures of sensor data and thermal camera images in the study showed compatible results with each other. The finding was parallel with two field studies [42,43].
Mean, maximum, minimum, and standard deviation values of temperature measurements of aerobic stability period were determined by thermal camera with the results presented in Table 6, Table 7, Table 8 and Table 9. Arithmetic means was subsequently created on the basis of all values. Data logger records at the time of thermograms taken were also given in the tables. Additionally, one of the thermograms captured from each treatment (n = 12; same samples during the experiment) are shown at Figure 5, Figure 6, Figure 7 and Figure 8. They might help to visualize the heat differences in the silage samples.
On the 2nd and 4th day of aerobic stability, the lowest temperature values were observed in the 1% SDA added HMM silages at both storage temperatures (Table 6 and Table 7). In the thermal camera measurements conducted on the 7th day of storage, the lowest temperature values were observed in the SDA control group kept under room conditions (Table 8). Thermograms of the 12th day of aerobic stability showed that the lowest values were found in the groups that had AV added and were kept under room conditions (Table 9). These results supported the importance of storage conditions and additives on quality properties of silages even after opening (p < 0.01).
Thermal camera imaging results of aerobic stability approved that the temperature of silage samples stored in 35–37 °C was higher compared to the stored at 27–29 °C. However, when the temperature differences between the silages and storage environment were considered, it is seen that the temperature differences increase in the room conditions (27–29 °C; 48% humidity), heat rises in the samples, and therefore deterioration occurs in stored silages. Similarly Kaya and Polat [44] reported that more than 2 °C of the temperature difference between the ambient and silage may indicate deterioration. Koc et al. [45] also indicated that heat differences are major signs of deterioration.
Heat differences in maize silages stored at 27–29 °C, started to increase at day 4. However, on day 7 differences had maximized and started to decline at day 12. Due to this increase on the seventh day, pH values, yeast, and mould counts were found higher for all treatments in room conditions. Similarly, Junga and Trávníček [13] have found a connection between infrared thermography images with chemical, and microbial analysis results in the field conditions. Samples from surfaces with a higher temperature have resulted with an increase in pH values, mould, and yeast counts. Santos et al. [18] indicated that feeding silages with high concentrations of yeasts from aerobic spoilage is often implicated as a cause of poor animal performance on dairy animals.
Borreani and Tabacco [46] evaluated the temperature at 11 locations on 54 silos and correlated the temperature with chemical composition and microbial count. They also concluded that temperature is linked to microbial activity and might be an important indicator of the early stages of aerobic degradation.
Addah et al. [21] used an infrared thermal imaging technique to assess that the heating of barley silages stored in large cylindrical bag silos could serve as a simple and rapid method of directly measuring and visualizing heat distribution over the feed-out face of silos in real-time.
Alsaaod et al. [23] reported that environmental factors such as airflow, environment temperature, humidity, sunlight, and motion could be affected by the thermograms. The preferred environment conditions appear to be in the neutral zone temperature, without direct sunlight and detectable airflow. In addition, infrared thermal imaging technique does not need light or shadow to capture the frame accurately [47].
Researchers suggested that infrared thermography might be used for quick temperature detection of silo surface, of silage layers, and also might be a practical method for assessing the aerobic stability of silages on field and laboratory conditions [13,21,43,48]. According to the results of study, thermal camera imaging technique might be used to detect temperature differences and to reveal deterioration in the silage.
4. Conclusions
Fermented high moisture maize grain (HMM) is an important part of the TMR for dairy cattle rations with 18–20% inclusion levels. However, low dry matter and high starch contents of HMM increase aerobic deterioration risks during the feeding period. The objective of the study was to improve and reveal aerobic stability duration after opening HMM silage by easily prepared and supplemented additives.
In the light of the study results, it was seen that the silage additives and their usage levels had a positive effect on dry matter, NH3-N, LA production, WSC amount, LAB, and yeast counts. In addition to these results, it was observed that the storage temperature also had a significant effect on pH, NH3-N, LA production, WSC, the numbers of LAB, and yeast. The additive usage (%) and their effects on aerobic stability parameters were not in line with the study. Differences in this regard may be due to the chemical, physical, and microbiological properties of the beginning material.
When the thermal camera images were evaluated, the temperature differences between the silage and storage environment might be able to become more visible. Due to the increase in temperature differences at room conditions on the fourth day of aerobic stability, deterioration was observed in HMM silage. The similarity and relation between chemical analysis and microbial composition results are also noteworthy. The results support that the infrared thermography method might be an effective tool in the early detection of silage deterioration in laboratory conditions, by determining temperature differences and heat spots in silage.
It was concluded that supplementing different doses of apple vinegar and sodium diacetate to HMM silages after silo opening improved aerobic stability. However, further studies were needed to determine effective dosages of apple vinegar on field conditions. and also requires support with in vivo studies for feed palatability.
Author Contributions
Conceptualization, F.K., M.L.O. and A.A.O.; Methodology, F.K., M.L.O. and A.A.O.; Software, A.A.O.; Validation, A.A.O., B.O. and E.O.; Formal Analysis, E.O., B.O., K.G., F.K. and A.A.O.; Investigation, A.A.O., K.G. and E.O.; Resources, F.K., M.L.O., B.O., E.O. and K.G.; Data Curation, A.A.O.; Writing—Original Draft Preparation, A.A.O.; Writing—Review & Editing, A.A.O. and F.K.; Visualization, A.A.O. and E.O.; Supervision, M.L.O. and F.K.; Project Administration, A.A.O. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data that support the findings of this study are available from the corresponding author, upon reasonable request.
Acknowledgments
The authors are grateful to the technical support of the Agricultural Faculty, Tekirdag Namik Kemal University, Turkey.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Carvalho, B.F.; Sales, G.F.C.; Schwan, R.F.; Ávila, C.L.S. Criteria for lactic acid bacteria screening to enhance silage quality. J. Appl. Microbiol. 2020, 130, 341–355. [Google Scholar] [CrossRef]
- Guan, H.; Shuai, Y.; Yan, Y.; Ran, Q.; Wang, X.; Li, D.; Cai, Y.; Zhang, X. Microbial community and fermentation dynamics of corn silage prepared with heat-resistant lactic acid bacteria in a hot environment. Microorganisms 2020, 8, 719. [Google Scholar] [CrossRef] [PubMed]
- Borreani, G.; Tabacco, E.; Schmidt, R.J.; Holmes, B.J.; Muck, R.E. Silage review: Factors affecting dry matter and quality losses in silages. J. Dairy Sci. 2018, 101, 3952–3979. [Google Scholar] [CrossRef] [Green Version]
- Aslım, A.; Okuyucu, B.; Koç, F. Effects of Propionic Acid Additive on the Aerobic Stability Characteristics of Total Mixed Ration. Turk. J. Agric.-Food Sci. Technol. 2021, 9, 210–216. [Google Scholar] [CrossRef]
- Wardynski, F.A.; Rust, S.R.; Yokoyama, M.T. Effect of microbial inoculation of high-moisture corn on fermentation characteristics, aerobic stability, and cattle performance. J. Anim. Sci. 1993, 71, 2246–2252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Dawson, T.E.; Rust, S.R.; Yokoyama, M.T. Improved fermentation and aerobic stability of ensiled, high moisture corn with the use of Propionibacterium acidipropionici. J. Dairy Sci. 1998, 81, 1015–1021. [Google Scholar] [CrossRef]
- Taylor, C.C.; Kung, L., Jr. The effect of Lactobacillus buchneri 40788 on the fermentation and aerobic stability of high moisture corn in laboratory silos. J. Dairy Sci. 2002, 85, 1526–1532. [Google Scholar] [CrossRef]
- Canibe, N.; Kristensen, N.B.; Jensen, B.B.; Vils, E. Impact of silage additives on aerobic stability and characteristics of high-moisture maize during exposure to air, and on fermented liquid feed. J. Appl. Microbiol. 2014, 116, 747–760. [Google Scholar] [CrossRef]
- Özelçam, H.; Daşıkan, H. Effect of carvacrol adding to corn silage on the aerobic stability. Ege Üniversitesi Ziraat Fakültesi Dergisi 2017, 54, 409–412. [Google Scholar] [CrossRef]
- Muck, R.E.; Nadeau, E.M.G.; McAllister, T.A.; Contreras-Govea, F.E.; Santos, M.C.; Kung, L., Jr. Silage review: Recent advances and future uses of silage additives. J. Dairy Sci. 2018, 101, 3980–4000. [Google Scholar] [CrossRef]
- Ousaaid, D.; Imtara, H.; Laaroussi, H.; Lyoussi, B.; Elarabi, I. An investigation of moroccan vinegars: Their physicochemical properties and antioxidant and antibacterial activities. J. Food Qual. 2021, 2021, 6618444. [Google Scholar] [CrossRef]
- Filya, I.; Sucu, E.; Karabulut, A. The effect of Propionibacterium acidipropionici, with or without Lactobacillus plantarum, on the fermentation and aerobic stability of wheat, sorghum and maize silages. J. Appl. Microbiol. 2004, 97, 818–826. [Google Scholar] [CrossRef]
- Junga, P.; Trávníček, P. Surface temperature of the exposed silo face as quick indicator of the decomposition process of maize silage. J. Cent. Eur. Agric. 2015, 16, 76–91. [Google Scholar] [CrossRef]
- Gálik, R.; Boďo, Š.; Staroňová, L. Using modern diagnostic methods for technological discipline assessment of maize silage. Acta Technol. Agric. 2 Nitra Slovaca Univ. Agric. Nitriae 2016, 19, 39–42. [Google Scholar] [CrossRef] [Green Version]
- McDonald, P.; Henderson, A.R.; Heron, S.J.E. The Biochemistry of Silage, 2nd ed.; Chalcombe Publications: Marlow, UK, 1991; p. 340. [Google Scholar]
- Muck, R.E.; Pitt, R.E.; Leibensperger, R.Y. A model of aerobic fungal growth in silage. 1. Microbial characteristics. Grass Forage Sci. 1991, 46, 283–299. [Google Scholar] [CrossRef]
- Pahlow, G.; Muck, R.E.; Driehuis, F.; Oude Elferink, S.J.W.H.; Spoelstra, S.F. Chapter 2: Microbiology of ensiling. In Silage Science and Technology; Buxton, D.R., Muck, R.E., Harrison, J.H., Eds.; American Society of Agronomy: Madison, WI, USA, 2003; Volume 42, pp. 31–93. [Google Scholar] [CrossRef]
- Santos, M.C.; Lock, A.L.; Mechor, G.D.; Kung, L., Jr. Effects of a spoilage yeast from silage on in vitro ruminal fermentation. J. Dairy Sci. 2014, 98, 2603–2610. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hovinen, M.; Siivonen, J.; Taponen, S.; Hänninen, L.; Pastell, M.; Aisla, A.-M.; Pyörälä, S. Detection of clinical mastitis with the help of a thermal camera. J. Dairy Sci. 2008, 91, 4592–4598. [Google Scholar] [CrossRef]
- Gowen, A.A.; Tiwari, B.K.; Cullen, P.J.; McDonnell, K.; O’Donnell, C.P. Applications of thermal imaging in food quality and safety assessment. Trends Food Sci. Technol. 2010, 21, 190–200. [Google Scholar] [CrossRef]
- Addah, W.; Baah, J.; Okine, E.K.; McAllister, T.A. Use of thermal imaging and the in situ technique to assess the impact of an inoculant with feruloyl esterase activity on the aerobic stability and digestibility of barley silage. Can. J. Anim. Sci. 2012, 92, 381–394. [Google Scholar] [CrossRef]
- Talukder, S.; Kerrisk, K.L.; Ingenhoff, L.; Garcia, S.C.; Celi, P. Can digital infrared thermography help with prediction of ovulation in a pasture-based dairy. In Conference Proceedings, Current Topics in Dairy Production; The University of Sydney: Kiam, Australia, 2013; pp. 1–4. Available online: https://www.researchgate.net/publication/280734946_Can_digital_infrared_thermography_help_with_prediction_of_ovulation_in_a_pasture-based_dairy_system (accessed on 18 August 2020).
- Alsaaod, M.; Schaefer, A.L.; Büscher, W.; Steiner, A. The role of infrared thermography as a non-invasive tool for the detection of lameness in cattle. Sensors 2015, 15, 14513–14525. [Google Scholar] [CrossRef] [Green Version]
- Jackson, E.; Farrington, D.S.; Henderson, K. The Analysis of Agricultural Materials: A Manual of the Analytical Methods Used by the Agricultural Development and Advisory Service (ADAS); Reference Book: 427; Analytical Chemists’ Publications: London, UK, 1986; p. 248. [Google Scholar]
- Thomas, T.A. An automated procedure for the determination of soluble carboydrates in herbage. J. Sci. Food Agric. 1977, 28, 639–642. [Google Scholar] [CrossRef]
- Koc, F.; Coskuntuna, L. The comparison of the two different methods on the determination of organic acids in silage fodders. J. Anim. Prod. 2003, 44, 37–46. Available online: https://dergipark.org.tr/en/pub/hayuretim/issue/7626/99907 (accessed on 18 April 2021).
- Statistica. Statistica for the Windows Operating System; Stat Soft, Inc.: Tulsa, OK, USA, 1999. [Google Scholar]
- Demirel, M.; Cengiz, F.; Çelik, S.; Erdoğan, S. A study on degradability in rumen and silage quality of mixture of corn and hungarian vetch grown in Van ecological conditions. Yuz. Yil Univ. J. Agric. Sci. 2001, 11, 69–78. Available online: https://dergipark.org.tr/en/pub/yyutbd/issue/22001/236224 (accessed on 13 December 2021).
- Filya, I. The effect of Lactobacillus buchneri and Lactobacillus plantarum on the fermentation, aerobic stability, and ruminal degradability of low dry matter corn and sorghum silages. J. Dairy Sci. 2003, 86, 3575–3581. [Google Scholar] [CrossRef] [Green Version]
- Alçiçek, A.; Özkan, K. Silo yemlerinde fiziksel ve kimyasal yöntemlerle silaj kalitesinin saptanması [Determination of silage quality in silo feeds by physical and chemical methods]. In Proceedings of the Türkiye, I. Silaj Kongresi, Bursa, Turkey, 16–19 September 1997; pp. 241–246. (In Turkish). [Google Scholar]
- Ashbell, G.; Pahlow, G.; Dinter, B.; Weinberg, Z.G. Dynamics of orange peel fermentation during ensilage. J. Appl. Bacteriol. 1987, 63, 275–279. [Google Scholar] [CrossRef]
- Uriarte-Archundia, M.E. A Study of the Chemical and Microbial Changes in Whole-Plant Corn Silage during Exposure to Air: Effects of Stage of Maturity, Packing Density, Sealing Technique, and a Biological Additive. Ph.D. Thesis, Kansas State University, Manhattan, KS, USA, 2001; p. 110. [Google Scholar]
- Koc, F.; Coskuntuna, L.; Ozduven, M.L.; Coskuntuna, A.; Samlı, H.E. The effects of temperature on the silage microbiology and aerobic stability of corn and vetch-grain silages. Acta Agric. Scand. Sect. A Anim. Sci. 2009, 59, 239–246. [Google Scholar] [CrossRef]
- Wilkinson, J.M.; Davies, D.R. The aerobic stability of silage: Key finding and recent developments. Grass Forage Sci. 2012, 68, 1–19. [Google Scholar] [CrossRef]
- Teller, R.S.; Schmidt, R.J.; Whitlow, L.W.; Kung, L., Jr. Effect of physical damage to ears of corn before harvest and treatment with various additives on the concentration of mycotoxins, silage fermentation, and aerobic stability of corn silage. J. Dairy Sci. 2012, 95, 1428–1436. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Nadeau, E.M.G.; Buxton, D.R.; Russell, J.R.; Allison, M.J.; Young, J.W. Enzyme, bacterial inoculant, and formic acid effects on silage composition of orchardgrass and alfalfa. J. Dairy Sci. 2000, 83, 1487–1502. [Google Scholar] [CrossRef]
- Da Silva, T.C.; Smith, M.L.; Barnard, A.M.; Kung, L., Jr. The effect of a chemical additive on the fermentation and aerobic stability of high-moisture corn. J. Dairy Sci. 2015, 98, 8904–8912. [Google Scholar] [CrossRef]
- Yuan, X.; Wen, A.; Desta, S.T.; Wang, J.; Shao, T. Effects of sodium diacetate on the fermentation profile, chemical composition and aerobic stability of alfalfa silage. Asian-Australas. J. Anim. Sci. 2017, 30, 804–810. [Google Scholar] [CrossRef] [Green Version]
- Reeves, J.B., III; Blosser, T.H.; Colenbrander, V.F. Near infrared reflectance spectroscopy for analyzing undried silage. J. Dairy Sci. 1989, 72, 79–88. [Google Scholar] [CrossRef]
- Deswysen, A.G.; Dutilleul, P.; Godfrin, J.P.; Ellis, W.C. Nycterohemeral eating and ruminating patterns in heifers fed grass or corn silage: Analysis by finite Fourier transform. J. Anim. Sci. 1993, 71, 2739–2747. [Google Scholar] [CrossRef]
- Phillip, L.E.; Hidalgo, V. Voluntary feed intake, acid-base balance and partitioning of urinary nitrogen in lambs fed corn silage with added sodium bicarbonate or sodium sesquicarbonate. J. Anim. Sci. 1989, 67, 2116–2122. [Google Scholar] [CrossRef] [Green Version]
- Erdoğan, A.; Koç, F. Evaluation of the changes in microbial composition in farm conditions during aerobic stability using thermal camera imaging technique. J. Anim. Prod. 2020, 61, 9–16. [Google Scholar] [CrossRef]
- Koc, F.; Ozduven, M.L.; Demirci, A.S.; Samli, H.E. Evaluation of the changes in microbial composition of corn silage under farm conditions during aerobic stability using thermal camera imaging technique. KSU J. Agric. Nat. 2018, 21, 167–174. [Google Scholar] [CrossRef]
- Kaya, Ö.; Polat, C. Determination of silage fermentation characteristics and feed value of some corn varieties cultivars as first and second crop in Tekirdag ecological conditions. J. Tekirdag Agric. Fac. 2010, 7, 129–136. [Google Scholar]
- Koc, F.; Agma Okur, A.; Okur, E. The effects of sodium diacetate and sodium benzoat addition on the aerobic stability characteristics of high moisture corn grain. Ege Üniversitesi Ziraat Fakültesi Dergisi 2020, 57, 289–301. [Google Scholar] [CrossRef]
- Borreani, G.; Tabacco, E. The relationship of silage temperature with the microbiological status of the face of corn silage bunkers. J. Dairy Sci. 2010, 93, 2620–2629. [Google Scholar] [CrossRef] [PubMed]
- Zaninelli, M.; Redaelli, V.; Tirloni, E.; Bernardi, C.; Dell’Orto, V.; Savoini, G. First results of a detection sensor for the monitoring of laying hens reared in a commercial organic egg production farm based on the use of infrared technology. Sensors 2016, 16, 1757. [Google Scholar] [CrossRef] [Green Version]
- Unal, O.; Koc, F.; Agma Okur, A.; Okur, E.; Ozduven, M.L. Using thermal imaging camera technique to evaluation of the aerobic stability of corn and wheat silage. Alınteri J. Agric. Sci. 2018, 33, 55–63. [Google Scholar] [CrossRef]

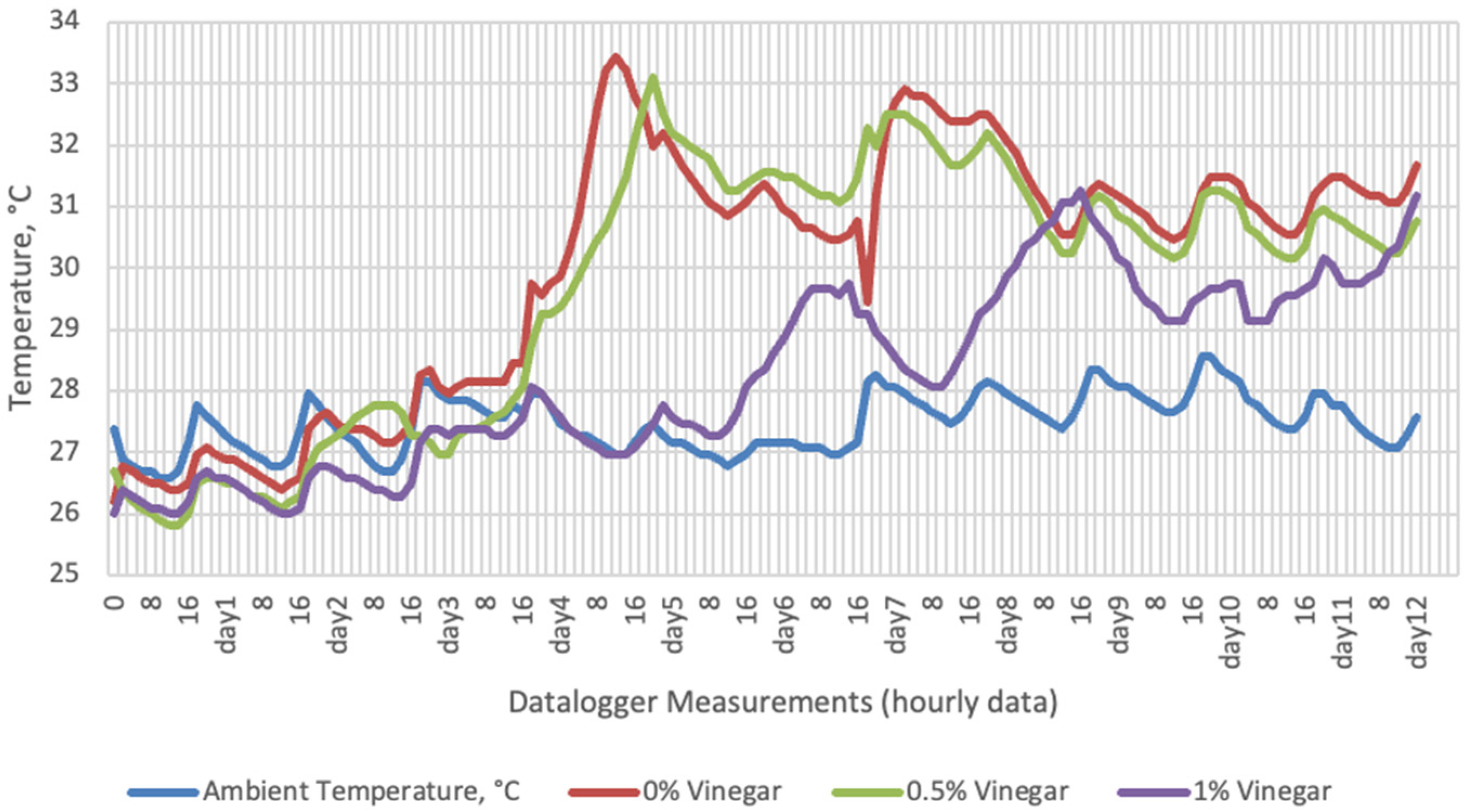

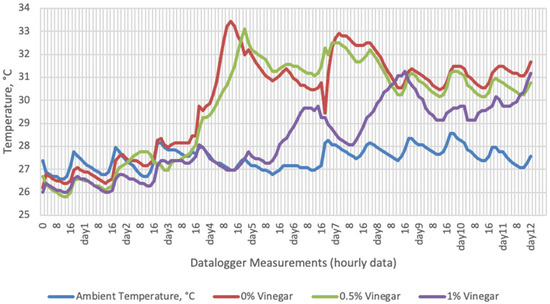

Figure 1.
Temperature changes of apple vinegar supplemented groups stored at room conditions for 12 days (Ambient temperatures of room conditions: 27–29 °C; 48% Humidity).
Figure 1.
Temperature changes of apple vinegar supplemented groups stored at room conditions for 12 days (Ambient temperatures of room conditions: 27–29 °C; 48% Humidity).

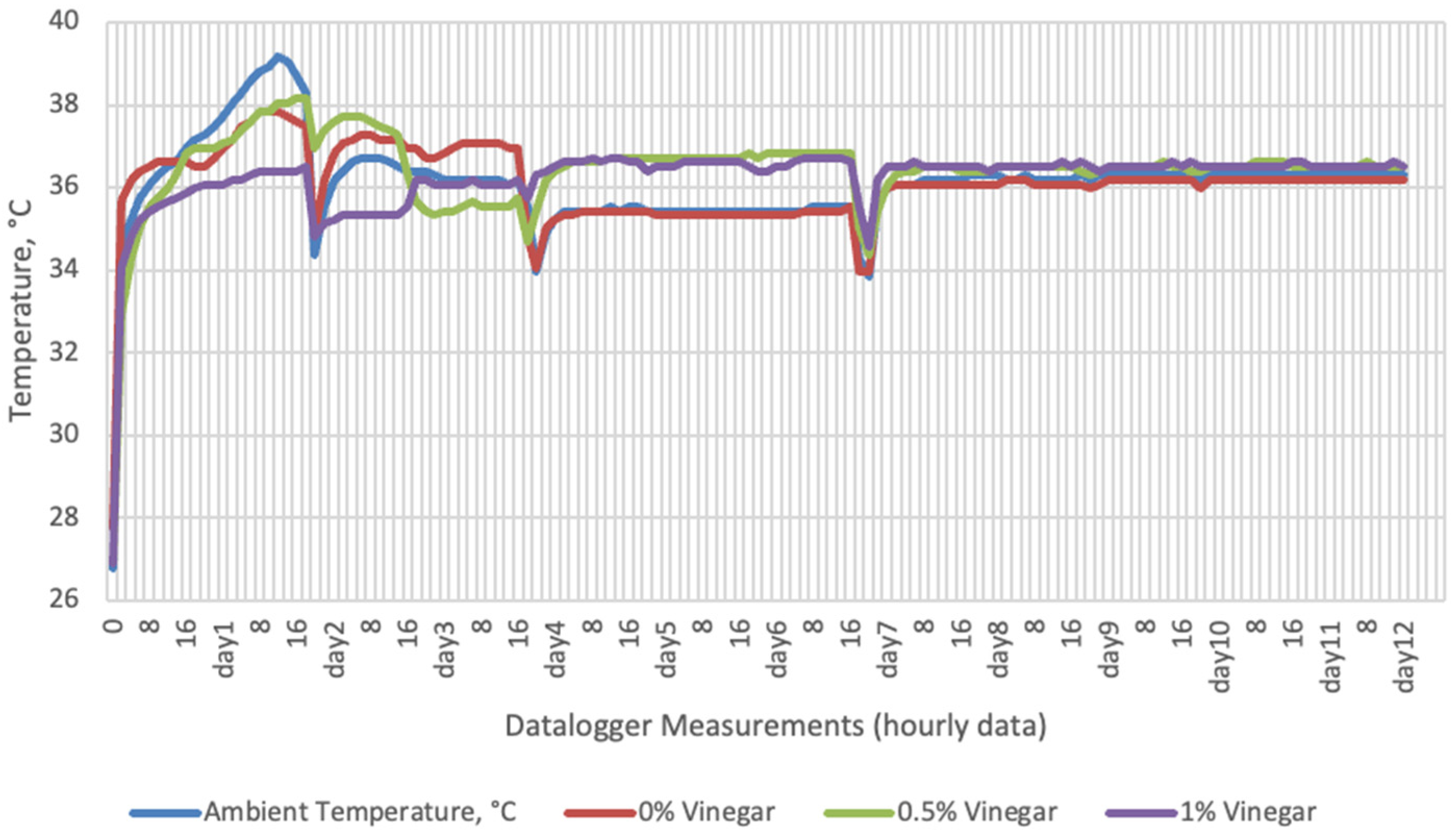

Figure 2.
Temperature changes of apple vinegar supplemented groups stored at incubator conditions for 12 days (Ambient temperatures of incubator conditions: 35–37 °C; 26% Humidity).
Figure 2.
Temperature changes of apple vinegar supplemented groups stored at incubator conditions for 12 days (Ambient temperatures of incubator conditions: 35–37 °C; 26% Humidity).

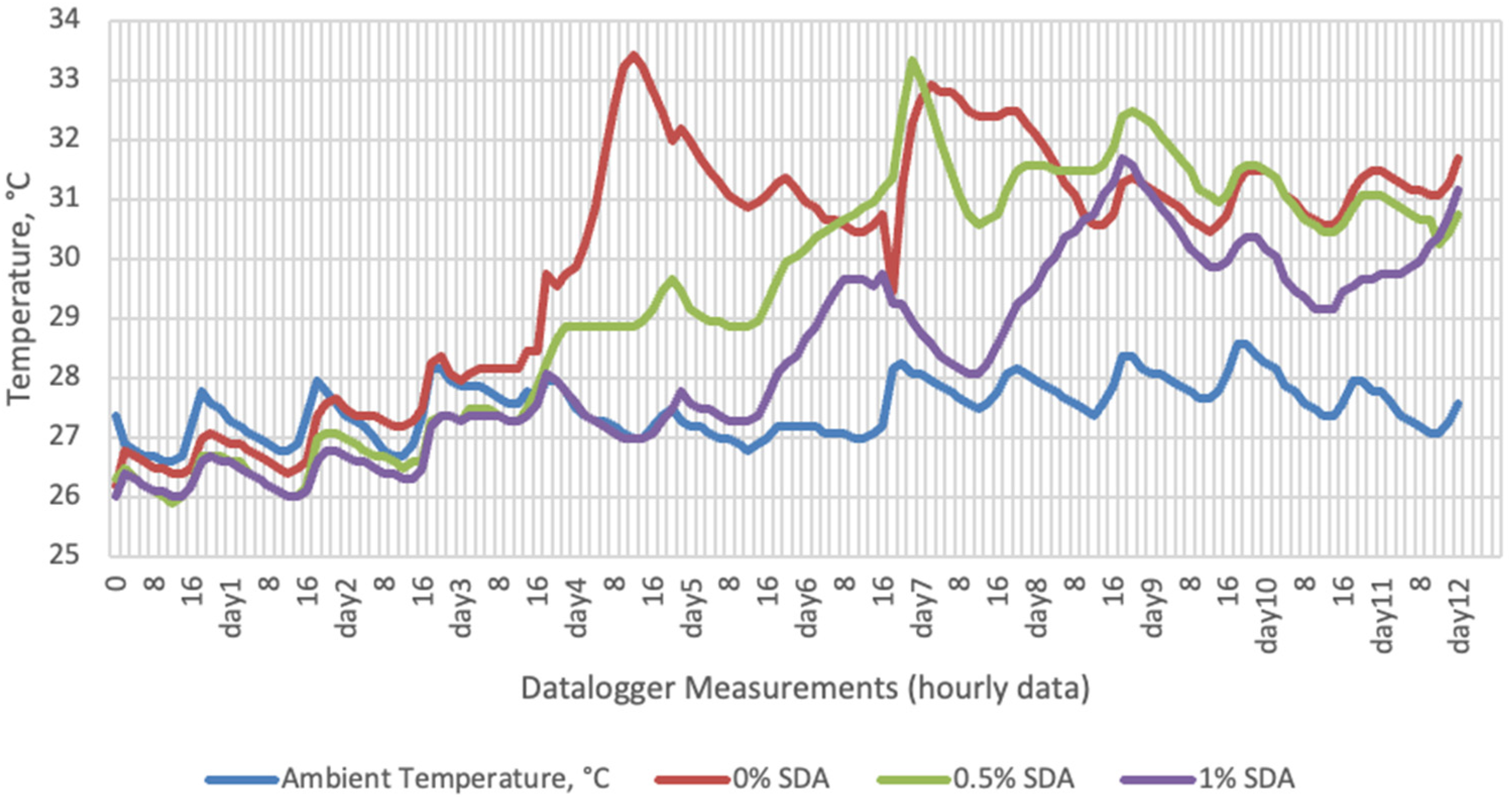

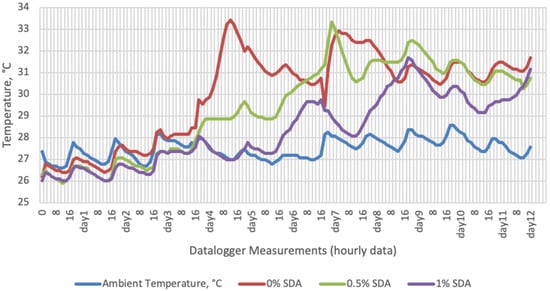

Figure 3.
Temperature changes of SDA-supplemented groups stored at room conditions for 12 days (Ambient temperatures of room conditions: 27–29 °C; 48% Humidity).
Figure 3.
Temperature changes of SDA-supplemented groups stored at room conditions for 12 days (Ambient temperatures of room conditions: 27–29 °C; 48% Humidity).

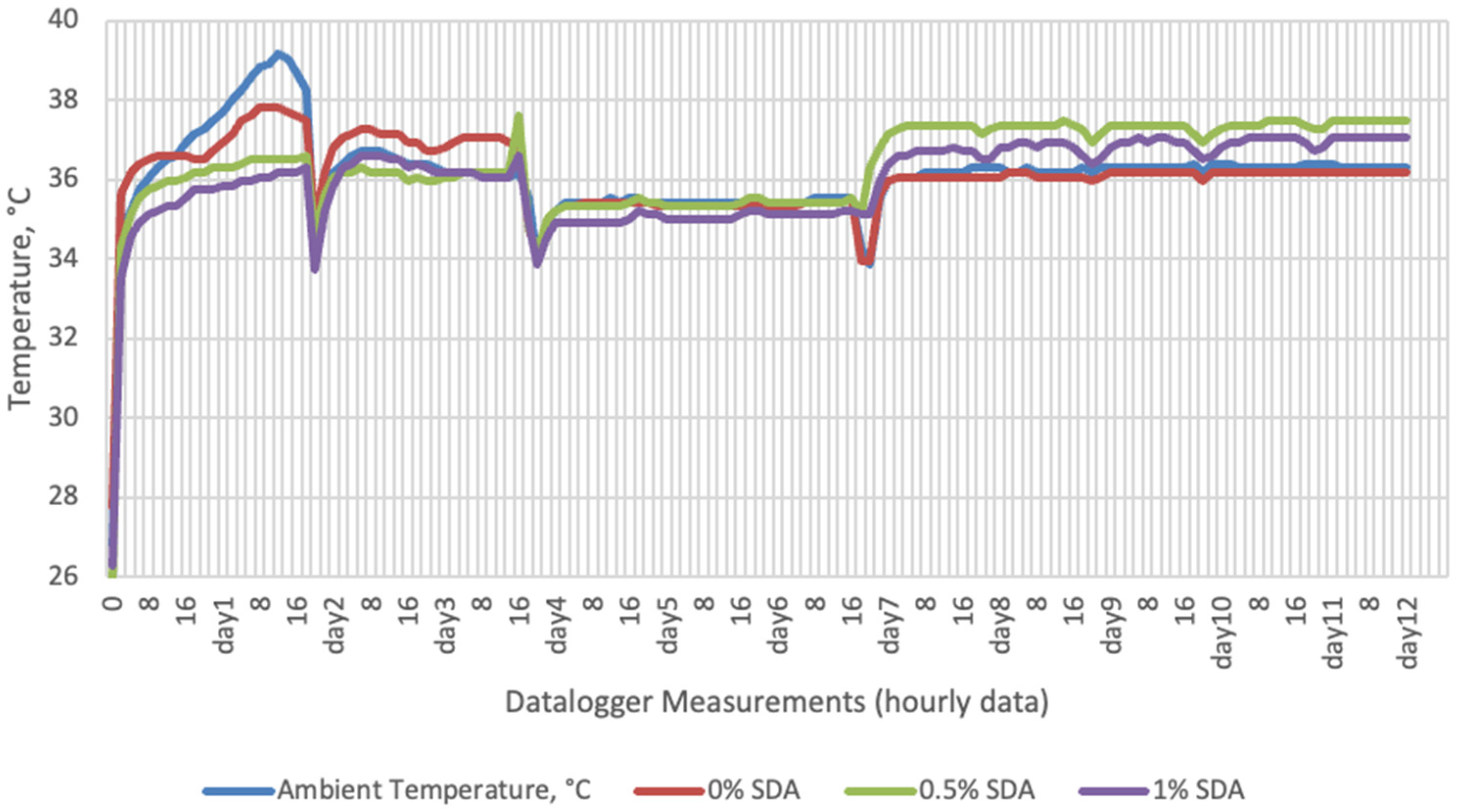

Figure 4.
Temperature changes of SDA supplemented groups stored at incubator conditions for 12 days (Ambient temperatures of incubator conditions: 35–37 °C; 26% Humidity).
Figure 4.
Temperature changes of SDA supplemented groups stored at incubator conditions for 12 days (Ambient temperatures of incubator conditions: 35–37 °C; 26% Humidity).

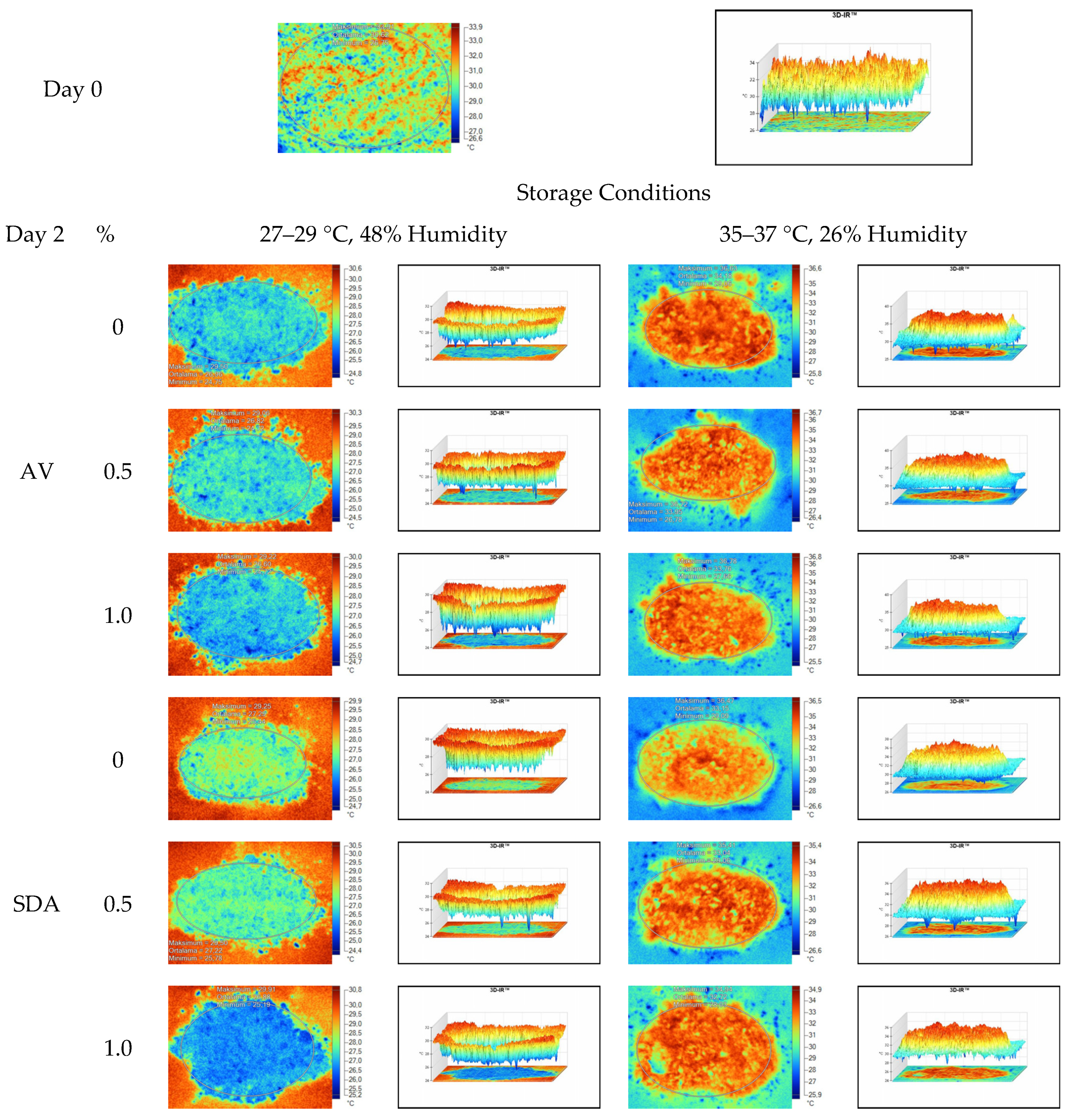

Figure 5.
Thermal camera imaging samples of aerobic stability on day 2 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).
Figure 5.
Thermal camera imaging samples of aerobic stability on day 2 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).

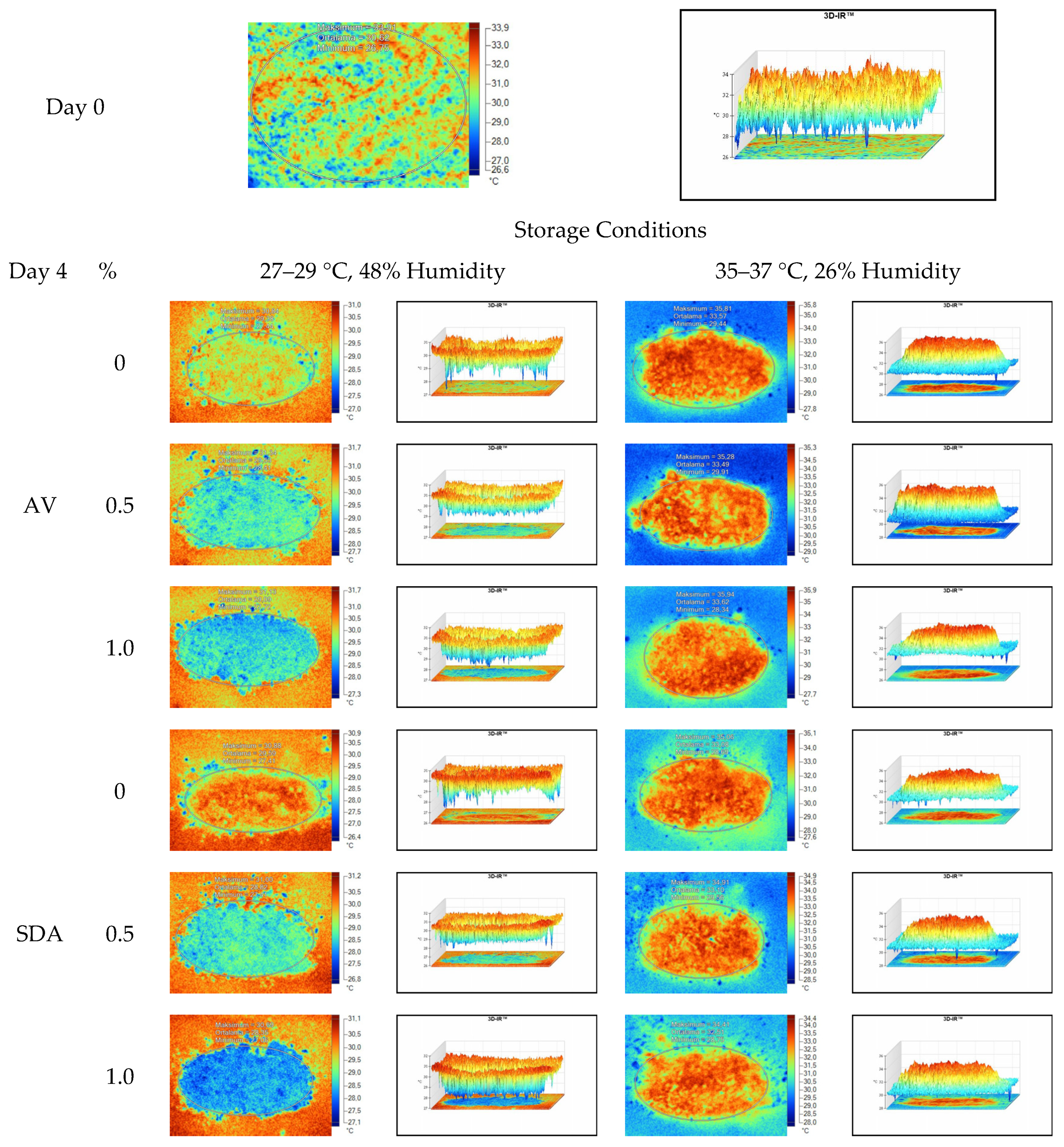

Figure 6.
Thermal camera imaging samples of aerobic stability on day 4 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).
Figure 6.
Thermal camera imaging samples of aerobic stability on day 4 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).

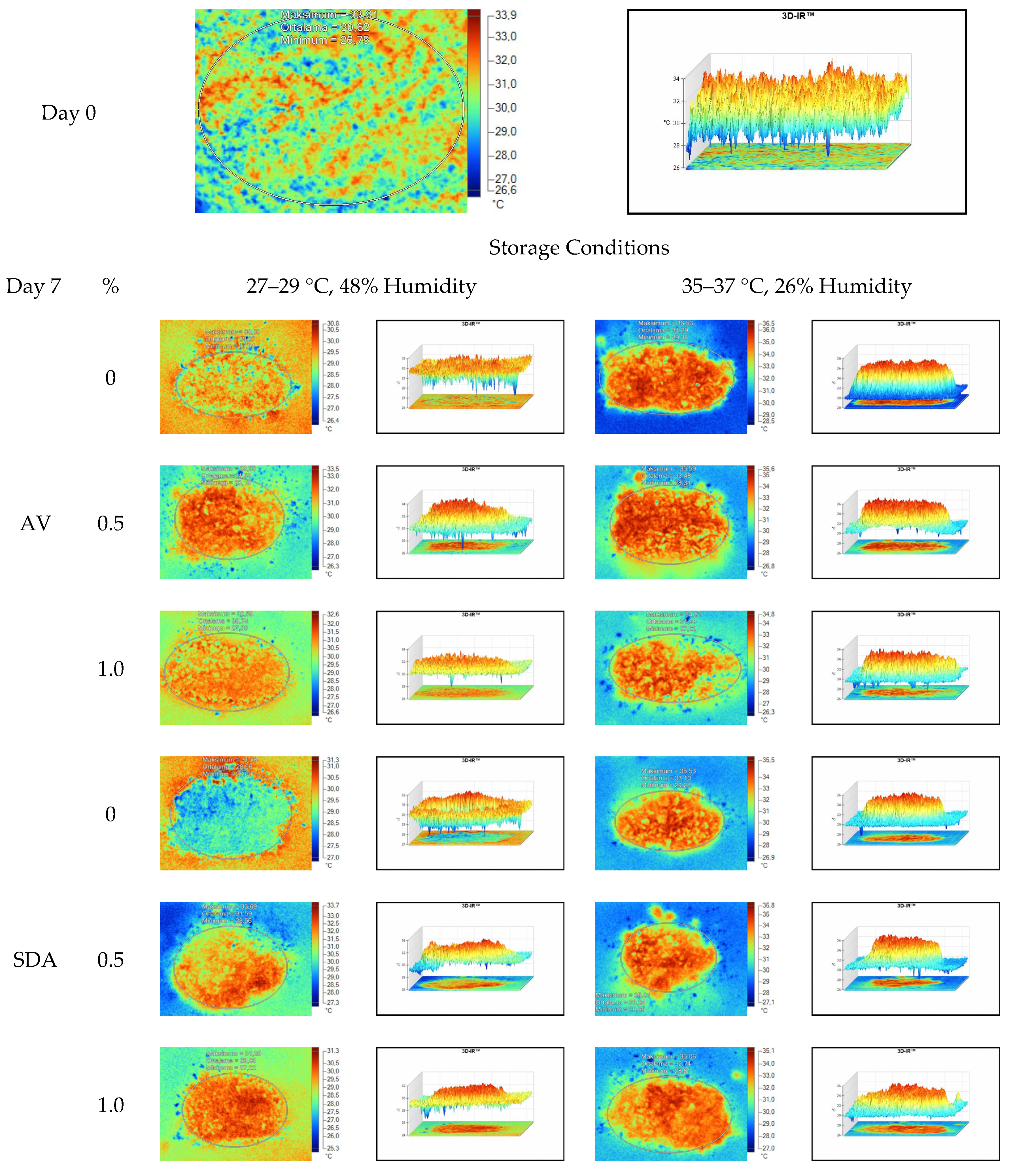

Figure 7.
Thermal camera imaging samples of aerobic stability on day 7 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).
Figure 7.
Thermal camera imaging samples of aerobic stability on day 7 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).

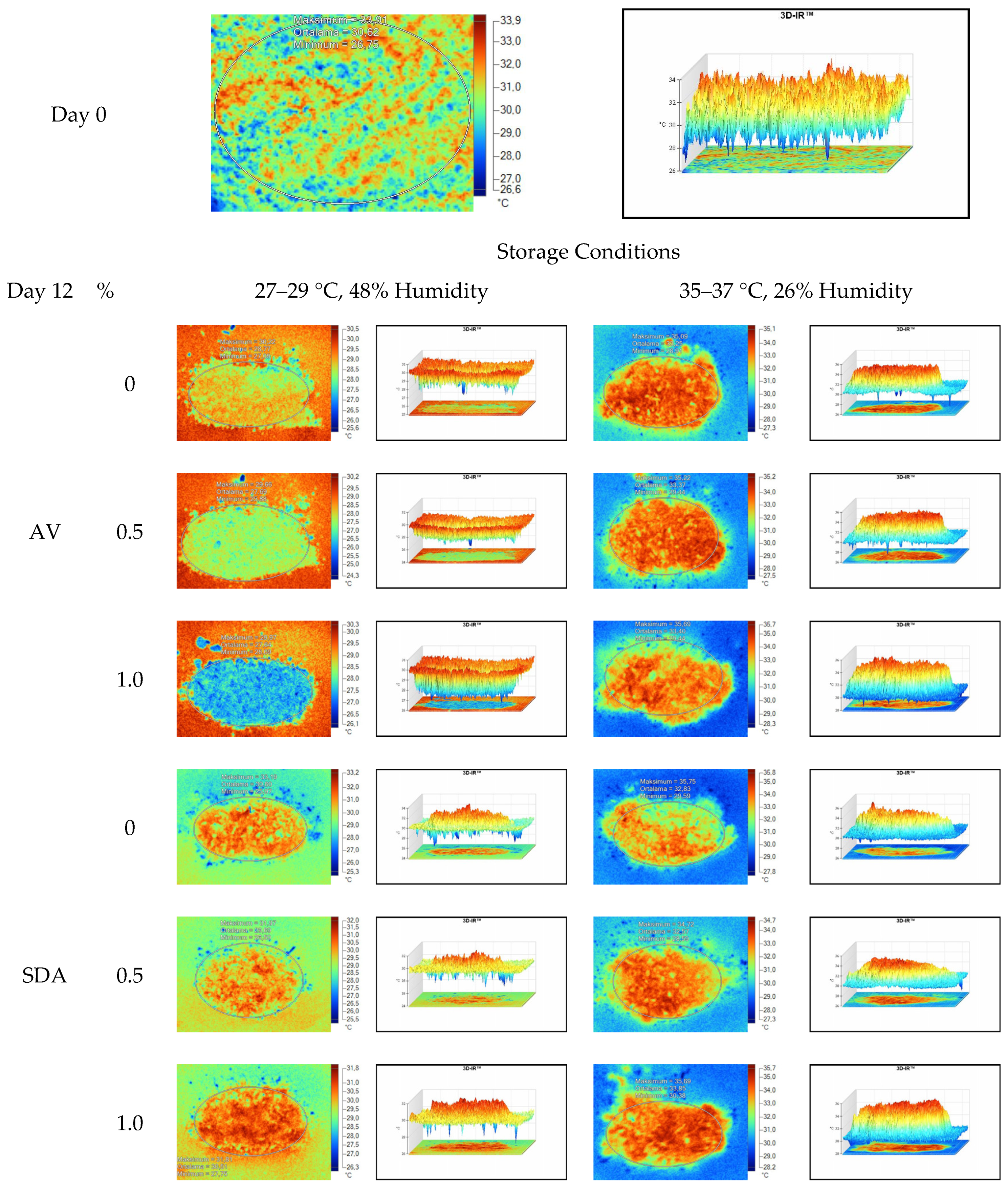

Figure 8.
Thermal camera imaging samples of aerobic stability on day 12 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).
Figure 8.
Thermal camera imaging samples of aerobic stability on day 12 (Ambient temperature = 22 °C; AV: Apple vinegar; SDA: Sodium diacetate).
Table 1.
Chemical and microbiological analysis results for the beginning material (day 0).
| Parameters * | Analysis Results |
|---|---|
| pH | 3.900 |
| DM, % FM | 62.021 |
| NH3-N g/kg DM | 1.289 |
| LA, g/kg DM | 9.200 |
| WSC, g/kg DM | 11.418 |
| LAB, cfu/g DM | 2.712 |
| Yeast, cfu/g DM | 2.723 |
| Mould, cfu/g DM | 0 |
* DM: Dry matter, FM: Fresh material, NH3-N: Ammonia-nitrogen, LA: Lactic acid, WSC: Water-soluble carbohydrate, LAB: Lactic acid bacteria, and cfu: Colony forming unit.
Table 2.
Effects of additives and storage conditions on the second day of aerobic stability of high moisture maize silage.
Table 2.
Effects of additives and storage conditions on the second day of aerobic stability of high moisture maize silage.
| Additive | Usage % | Storage Temperature * | pH | DM% | NH3-N g/kg DM | LA g/kg DM | WSC g/kg DM | LAB log10 cfu/g | Yeast log10 cfu/g | Mould log10 cfu/g |
|---|---|---|---|---|---|---|---|---|---|---|
| AV | 0 | 27–29 °C | 3.850 c | 59.550 b | 1.577 ab | 9.760 defg | 9.870 g | 4.303 bc | 0.000 g | 2.527 f |
| 35–37 °C | 3.900 c | 63.890 a | 1.380 cde | 13.600 ab | 19.857 b | 2.933 e | 4.517 e | 2.847 de | ||
| 0.5 | 27–29 °C | 3.900 c | 60.550 b | 1.263 e | 9.470 efg | 17.440 de | 4.533 ab | 4.660 d | 2.220 h | |
| 35–37 °C | 3.900 c | 60.310 b | 1.520 abc | 11.473 bcdef | 15.370 f | 3.180 e | 4.467 e | 3.093 b | ||
| 1.0 | 27–29 °C | 3.900 c | 61.233 b | 1.570 ab | 8.810 g | 19.613 bc | 4.610 a | 0.000 g | 2.363 g | |
| 35–37 °C | 3.900 c | 59.913 b | 1.613 ab | 11.790 bcde | 18.043 d | 4.053 cd | 4.250 f | 2.823 e | ||
| SDA | 0 | 27–29 °C | 3.850 c | 60.140 b | 1.330 de | 9.280 fg | 10.610 g | 4.407 ab | 4.830 c | 2.993 bcd |
| 35–37 °C | 3.900 c | 58.760 c | 1.687 a | 14.690 a | 17.530 d | 2.920 e | 4.780 c | 3.310 a | ||
| 0.5 | 27–29 °C | 4.007 b | 60.673 b | 1.470 bcd | 10.753 cdefg | 18.977 c | 4.460 ab | 4.777 c | 3.030 bc | |
| 35–37 °C | 4.010 b | 59.240 b | 1.447 bcd | 12.287 bc | 16.667 e | 2.227 f | 4.903 b | 2.890 cde | ||
| 1.0 | 27–29 °C | 4.007 b | 59.587 b | 1.390 cde | 12.047 bcd | 15.420 f | 3.933 d | 0.000 g | 3.000 bcd | |
| 35–37 °C | 4.200 a | 59.870 b | 1.540 abc | 9.560 efg | 20.750 a | 3.050 e | 5.070 a | 2.913 cde | ||
| SEM | 0.017 | 0.260 | 0.024 | 0.347 | 0.561 | 0.133 | 0.345 | 0.052 | ||
| p values | ||||||||||
| Additive | 0.000 | 0.003 | 0.749 | 0.157 | 0.801 | 0.000 | 0.000 | 0.000 | ||
| Usage | 0.000 | 0.568 | 0.036 | 0.062 | 0.000 | 0.000 | 0.000 | 0.001 | ||
| Temperature | 0.000 | 0.910 | 0.004 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | ||
| Additive × Usage | 0.000 | 0.125 | 0.041 | 0.762 | 0.000 | 0.000 | 0.000 | 0.073 | ||
| Additive × Temperature | 0.011 | 0.023 | 0.052 | 0.099 | 0.001 | 0.000 | 0.000 | 0.000 | ||
| Usage × Temperature | 0.012 | 0.032 | 0.890 | 0.001 | 0.000 | 0.000 | 0.000 | 0.037 | ||
| Additive × Usage × Temperature | 0.003 | 0.002 | 0.000 | 0.007 | 0.000 | 0.021 | 0.000 | 0.000 | ||
a–h: Values shown in different letters in the same column are statistically important (p < 0.05). * Room conditions: 27–29 °C, 48% Humidity. Incubator conditions: 35–37 °C, 26% Humidity. AV: Apple vinegar; SDA: Sodium diacetate; SEM: Standard error of means; DM: Dry matter; NH3-N: Ammonia-nitrogen, LA: Lactic acid; WSC: Water-soluble carbohydrate; and LAB: Lactic acid bacteria.
Table 3.
Effects of additives and storage conditions on the fourth day of aerobic stability of high moisture maize silage.
Table 3.
Effects of additives and storage conditions on the fourth day of aerobic stability of high moisture maize silage.
| Additive | Usage % | Storage Temperature * | pH | DM % | NH3-N g/kg DM | LA g/kg DM | WSC g/kg DM | LAB log10 cfu/g | Yeast log10 cfu/g | Mould log10 cfu/g |
|---|---|---|---|---|---|---|---|---|---|---|
| AV | 0 | 27–29 °C | 4.100 d | 63.457 e | 1.410 e | 9.867 d | 9.550 e | 4.400 c | 4.743 de | 2.850 a |
| 35–37 °C | 4.150 d | 61.183 f | 1.040 g | 11.737 c | 8.000 g | 3.793 d | 6.143 a | 0.000 c | ||
| 0.5 | 27–29 °C | 4.350 b | 63.080 de | 1.430 de | 6.800 i | 6.357 h | 5.313 a | 5.167 c | 2.350 b | |
| 35–37 °C | 4.200 c | 65.380 bc | 1.267 f | 9.250 e | 8.900 f | 4.800 b | 5.800 b | 0.000 c | ||
| 1.0 | 27–29 °C | 4.100 d | 63.383 de | 1.547 bc | 9.227 e | 18.767 a | 5.210 a | 5.157 c | 0.000 c | |
| 35–37 °C | 3.900 g | 65.457 bc | 1.580 b | 7.710 h | 12.300 c | 3.760 d | 3.950 f | 0.000 c | ||
| SDA | 0 | 27–29 °C | 4.650 a | 62.853 de | 1.357 e | 8.477 f | 4.807 i | 2.813 e | 3.047 g | 0.000 c |
| 35–37 °C | 4.100 d | 67.137 a | 1.387 e | 12.417 b | 14.060 b | 2.947 e | 4.700 de | 0.000 c | ||
| 0.5 | 27–29 °C | 3.950 f | 63.907 cd | 1.540 bc | 13.417 a | 14.197 b | 3.883 d | 4.987 cd | 0.000 c | |
| 35–37 °C | 4.000 f | 62.050 ef | 1.727 a | 8.687 f | 10.910 d | 2.607 ef | 2.700 h | 0.000 c | ||
| 1.0 | 27–29 °C | 4.100 d | 63.733 d | 1.240 f | 9.327 e | 8.897 f | 2.310 f | 4.530 e | 0.000 c | |
| 35–37 °C | 4.000 f | 66.463 ab | 1.490 cd | 8.037 g | 11.100 d | 2.680 e | 2.770 h | 0.000 c | ||
| SEM | 0.033 | 0.311 | 0.030 | 0.322 | 0.619 | 0.172 | 0.186 | 0.165 | ||
| p values | ||||||||||
| Additive | 1.000 | 0.025 | 0.000 | 0.000 | 0.884 | 0.000 | 0.000 | 0.000 | ||
| Usage | 0.000 | 0.005 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | ||
| Temperature | 0.000 | 0.000 | 0.683 | 0.018 | 0.000 | 0.000 | 0.000 | 0.000 | ||
| Additive × Usage | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | ||
| Additive × Temperature | 0.000 | 0.094 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | ||
| Usage × Temperature | 0.000 | 0.018 | 0.000 | 0.000 | 0.000 | 0.002 | 0.000 | 0.000 | ||
| Additive × Usage × Temperature | 0.000 | 0.000 | 0.029 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | ||
a–i: Values shown in different letters in the same column are statistically important (p < 0.05). * Room conditions: 27–29 °C, 48% Humidity. Incubator conditions: 35–37 °C, 26% Humidity. AV: Apple vinegar; SDA: Sodium diacetate; SEM: Standard error of means; DM: Dry matter; NH3-N: Ammonia-nitrogen, LA: Lactic acid; WSC: Water-soluble carbohydrate; and LAB: Lactic acid bacteria.
Table 4.
Effects of additives and storage conditions on the seventh day of aerobic stability of high moisture maize silage.
Table 4.
Effects of additives and storage conditions on the seventh day of aerobic stability of high moisture maize silage.
| Additive | Usage % | Storage Temperature * | pH | DM % | NH3-N g/kg DM | LA g/kg DM | WSC g/kg DM | LAB log10 cfu/g | Yeast log10 cfu/g | Mould log10 cfu/g |
|---|---|---|---|---|---|---|---|---|---|---|
| AV | 0 | 27–29 °C | 6.000 c | 72.757 a | 1.837 b | 1.720 g | 16.097 b | 5.560 ab | 5.140 c | 3.180 a |
| 35–37 °C | 3.900 g | 63.910 d | 1.607 d | 8.420 f | 9.107 e | 0.000 j | 3.780 de | 0.000 d | ||
| 0.5 | 27–29 °C | 6.500 ab | 63.203 d | 1.617 d | 1.680 g | 7.737 f | 2.980 h | 5.690 b | 2.280 b | |
| 35–37 °C | 3.900 g | 61.950 ef | 1.420 g | 9.097 e | 7.470 f | 3.337 g | 3.680 e | 0.000 d | ||
| 1.0 | 27–29 °C | 6.450 b | 65.393 c | 1.477 f | 1.147 h | 6.800 g | 5.500 b | 5.010 c | 2.660 ab | |
| 35–37 °C | 3.900 g | 63.140 de | 1.557 e | 8.480 f | 8.937 e | 4.193 d | 4.027 d | 0.000 d | ||
| SDA | 0 | 27–29 °C | 6.550 a | 65.670 bc | 1.897 a | 9.917 c | 18.207 a | 5.627 a | 6.160 a | 1.460 c |
| 35–37 °C | 3.950 fg | 66.810 b | 1.527 e | 9.337 d | 11.077 d | 2.770 i | 3.920 de | 0.000 d | ||
| 0.5 | 27–29 °C | 5.250 d | 61.683 f | 1.697 c | 8.380 f | 5.480 h | 4.930 c | 5.840 b | 2.440 ab | |
| 35–37 °C | 4.000 f | 62.223 ef | 1.540 e | 13.740 a | 12.800 c | 3.407 fg | 3.930 de | 0.000 d | ||
| 1.0 | 27–29 °C | 4.250 e | 59.837 g | 1.817 b | 10.267 b | 7.617 f | 3.927 e | 3.883 de | 2.480 ab | |
| 35–37 °C | 4.300 e | 66.463 bc | 1.527 e | 9.367 d | 8.737 e | 3.470 f | 4.023 d | 0.000 d | ||
| SEM | 0.186 | 0.553 | 0.025 | 0.640 | 0.628 | 0.256 | 0.150 | 0.221 | ||
| p values | ||||||||||
| Additive | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.212 | 0.050 | ||
| Usage | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.741 | ||
| Temperature | 0.000 | 0.007 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | ||
| Additive × Usage | 0.000 | 0.043 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.027 | ||
| Additive × Temperature | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.316 | 0.050 | ||
| Usage × Temperature | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.741 | ||
| Additive × Usage × Temperature | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.027 | ||
a–j: Values shown in different letters in the same column are statistically important (p < 0.05). * Room conditions: 27–29 °C, 48% Humidity. Incubator conditions: 35–37 °C, 26% Humidity. AV: Apple vinegar; SDA: Sodium diacetate; SEM: Standard error of means; DM: Dry matter; NH3-N: Ammonia-nitrogen, LA: Lactic acid; WSC: Water-soluble carbohydrate; and LAB: Lactic acid bacteria.
Table 5.
Effects of additives and storage conditions on the 12th day of aerobic stability of high moisture maize silage.
Table 5.
Effects of additives and storage conditions on the 12th day of aerobic stability of high moisture maize silage.
| Additive | Usage % | Storage Temperature * | pH | DM % | NH3-N g/kg DM | LA g/kg DM | WSC g/kg DM | LAB log10 cfu/g | Yeast log10 cfu/g | Mould log10 cfu/g |
|---|---|---|---|---|---|---|---|---|---|---|
| AV | 0 | 27–29 °C | 6.900 b | 71.577 a | 2.693 a | 0.757 e | 16.517 d | 0.000 i | 3.377 f | 0.000 |
| 35–37 °C | 3.950 d | 67.417 abc | 0.987 ef | 6.677 d | 55.230 b | 3.547 b | 5.670 b | 0.000 | ||
| 0.5 | 27–29 °C | 7.800 a | 57.083 d | 2.600 a | 0.370 e | 17.827 d | 2.613 f | 6.330 a | 0.000 | |
| 35–37 °C | 3.900 d | 66.283 bc | 1.323 d | 9.750 b | 9.100 e | 2.840 e | 4.280 cd | 0.000 | ||
| 1.0 | 27–29 °C | 7.450 ab | 60.637 d | 2.883 a | 0.303 e | 18.177 d | 2.483 f | 6.100 a | 0.000 | |
| 35–37 °C | 3.900 d | 69.970 ab | 1.237 de | 11.407 a | 67.757 a | 3.477 b | 4.390 cd | 0.000 | ||
| SDA | 0 | 27–29 °C | 6.950 b | 70.547 ab | 2.807 a | 1.060 e | 7.747 e | 2.103 h | 6.367 a | 0.000 |
| 35–37 °C | 3.900 d | 66.610 bc | 1.363 cd | 7.930 c | 46.140 c | 3.297 cd | 3.797 e | 0.000 | ||
| 0.5 | 27–29 °C | 7.200 ab | 67.990 abc | 2.250 b | 0.837 e | 15.760 d | 3.410 bc | 3.710 e | 0.000 | |
| 35–37 °C | 3.900 d | 66.907 bc | 1.433 cd | 6.520 d | 68.083 a | 4.550 a | 4.320 cd | 0.000 | ||
| 1.0 | 27–29 °C | 6.200 c | 65.157 c | 0.890 f | 9.020 b | 19.190 d | 2.273 g | 4.607 c | 0.000 | |
| 35–37 °C | 4.050 d | 65.157 c | 1.677 c | 6.840 d | 55.610 b | 3.240 d | 4.247 d | 0.000 | ||
| SEM | 0.278 | 0.732 | 0.124 | 0.679 | 3.800 | 0.180 | 0.174 | - | ||
| p values | ||||||||||
| Additive | 0.041 | 0.050 | 0.002 | 0.012 | 0.000 | 0.000 | 0.000 | - | ||
| Usage | 0.138 | 0.000 | 0.002 | 0.000 | 0.000 | 0.000 | 0.063 | - | ||
| Temperature | 0.000 | 0.051 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | - | ||
| Additive × Usage | 0.249 | 0.003 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | - | ||
| Additive × Temperature | 0.023 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.029 | - | ||
| Usage × Temperature | 0.065 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | - | ||
| Additive × Usage × Temperature | 0.085 | 0.017 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | - | ||
a–i: Values shown in different letters in the same column are statistically important (p < 0.05). * Room conditions: 27–29 °C, 48% Humidity. Incubator conditions: 35–37 °C, 26% Humidity. AV: Apple vinegar; SDA: Sodium diacetate; SEM: Standard error of means; DM: Dry matter; NH3-N: Ammonia-nitrogen, LA: Lactic acid; WSC: Water-soluble carbohydrate; and LAB: Lactic acid bacteria.
Table 6.
Thermal camera imaging results of aerobic stability on day 2 (Ambient temperature = 22 °C).
Table 6.
Thermal camera imaging results of aerobic stability on day 2 (Ambient temperature = 22 °C).
| Aerobic Stability | Additive | % | Storage Temperature * | Thermal Camera Imaging Measurements, °C | |||
|---|---|---|---|---|---|---|---|
| Mean | Min | Max | Std. Dev. | ||||
| Day 0 | - | - | - | 30.62 | 26.75 | 33.91 | 0.94 |
| Day 2 | AV | 0 | 27.370 °C | 27.280 de | 25.280 b | 29.845 d | 0.420 c |
| 36.187 °C | 33.945 ab | 28.345 a | 36.330 ab | 1.205 a | |||
| 0.5 | 27.370 °C | 26.945 de | 24.595 b | 29.515 d | 0.490 c | ||
| 36.187 °C | 34.360 a | 27.935 a | 36.925 a | 1.225 a | |||
| 1.0 | 27.370 °C | 26.865 de | 24.720 b | 29.640 d | 0.475 c | ||
| 36.187 °C | 33.740 ab | 28.220 a | 36.530 ab | 1.225 a | |||
| SDA | 0 | 27.370 °C | 27.435 d | 25.610 b | 29.375 d | 0.435 c | |
| 36.187 °C | 33.555 ab | 28.750 a | 36.595 ab | 1.225 a | |||
| 0.5 | 27.370 °C | 27.110 de | 25.530 b | 29.280 d | 0.450 c | ||
| 36.187 °C | 33.100 bc | 28.280 a | 35.580 bc | 1.070 ab | |||
| 1.0 | 27.370 °C | 26.430 e | 24.690 b | 29.330 d | 0.490 c | ||
| 36.187 °C | 32.420 c | 27.955 a | 34.985 c | 0.940 b | |||
| SEM | 0.689 | 0.358 | 0.705 | 0.075 | |||
| p values | |||||||
| Additive | 0.007 | 0.378 | 0.005 | 0.080 | |||
| Usage | 0.010 | 0.313 | 0.206 | 0.650 | |||
| Temperature | 0.000 | 0.000 | 0.000 | 0.000 | |||
| Additive × Usage | 0.188 | 0.594 | 0.172 | 0.263 | |||
| Additive × Temperature | 0.011 | 0.697 | 0.158 | 0.093 | |||
| Usage × Temperature | 0.694 | 0.896 | 0.340 | 0.140 | |||
| Additive × Usage × Temperature | 0.538 | 0.911 | 0.077 | 0.291 | |||
a–e: Values shown in different letters in the same column are statistically important (p < 0.05). * Storage temperatures were recorded by data logger on day 2, while thermal camera images were taken. AV: Apple vinegar; SDA: Sodium diacetate; Std. Dev.: Standard deviation; and SEM: Standard error of means.
Table 7.
Thermal camera imaging results of aerobic stability on day 4 (Ambient temperature = 22 °C).
Table 7.
Thermal camera imaging results of aerobic stability on day 4 (Ambient temperature = 22 °C).
| Aerobic Stability | Additive | % | Storage Temperature * | Thermal Camera Imaging Measurements, °C | |||
|---|---|---|---|---|---|---|---|
| Mean | Min | Max | Std. Dev. | ||||
| Day 0 | - | - | - | 30.62 | 26.75 | 33.91 | 0.94 |
| Day 4 | AV | 0 | 27.468 °C | 29.530 bc | 27.470 cd | 31.000 c | 0.365 d |
| 35.222 °C | 33.575 a | 29.345 a | 35.655 a | 1.115 a | |||
| 0.5 | 27.468 °C | 29.535 bc | 27.925 cd | 31.250 c | 0.380 d | ||
| 35.222 °C | 33.515 a | 29.565 a | 35.390 ab | 0.940 b | |||
| 1.0 | 27.468 °C | 29.090 cd | 27.265 cd | 30.955 c | 0.415 d | ||
| 35.222 °C | 33.055 a | 28.170 bc | 35.265 ab | 1.050 ab | |||
| SDA | 0 | 27.468 °C | 29.995 b | 27.375 cd | 31.300 c | 0.490 d | |
| 35.222 °C | 33.525 a | 28.955 ab | 35.450 ab | 0.965 b | |||
| 0.5 | 27.468 °C | 28.775 cd | 27.345 cd | 31.000 c | 0.475 d | ||
| 35.222 °C | 32.745 a | 29.185 a | 34.660 b | 0.785 c | |||
| 1.0 | 27.468 °C | 28.425 d | 27.060 d | 30.595 c | 0.420 d | ||
| 35.222 °C | 32.705 a | 29.110 a | 34.595 b | 0.700 c | |||
| SEM | 0.427 | 0.197 | 0.442 | 0.058 | |||
| p values | |||||||
| Additive | 0.042 | 0.479 | 0.078 | 0.018 | |||
| Usage | 0.003 | 0.030 | 0.086 | 0.026 | |||
| Temperature | 0.000 | 0.000 | 0.000 | 0.000 | |||
| Additive × Usage | 0.064 | 0.131 | 0.328 | 0.055 | |||
| Additive × Temperature | 0.826 | 0.302 | 0.218 | 0.000 | |||
| Usage × Temperature | 0.688 | 0.762 | 0.487 | 0.034 | |||
| Additive × Usage × Temperature | 0.565 | 0.224 | 0.967 | 0.702 | |||
a–d: Values shown in different letters in the same column are statistically important (p < 0.05). * Storage temperatures were recorded by data logger on day 4, while thermal camera images were taken. AV: Apple vinegar; SDA: Sodium diacetate; Std. Dev.: Standard deviation; and SEM: Standard error of means.
Table 8.
Thermal camera imaging results of aerobic stability on day 7 (Ambient temperature = 22 °C).
Table 8.
Thermal camera imaging results of aerobic stability on day 7 (Ambient temperature = 22 °C).
| Aerobic Stability | Additive | % | Storage Temperature * | Thermal Camera Imaging Measurements, °C | |||
|---|---|---|---|---|---|---|---|
| Mean | Min | Max | Std. Dev. | ||||
| Day 0 | - | - | - | 30.62 | 26.75 | 33.91 | 0.94 |
| Day 7 | AV | 0 | 28.060 °C | 30.665 def | 27.780 bc | 32.345 cde | 0.685 cde |
| 35.971 °C | 34.290 a | 29.565 a | 36.265 a | 1.155 ab | |||
| 0.5 | 28.060 °C | 31.535 cde | 27.875 bc | 33.580 bcd | 0.880 bcd | ||
| 35.971 °C | 33.800 a | 29.235 ab | 35.890 a | 1.050 ab | |||
| 1.0 | 28.060 °C | 30.520 def | 27.505 c | 32.515 cde | 0.565 de | ||
| 35.971 °C | 32.670 abc | 28.050 bc | 35.110 ab | 1.105 ab | |||
| SDA | 0 | 28.060 °C | 29.265 f | 27.250 c | 31.375 e | 0.535 e | |
| 35.971 °C | 32.895 abc | 29.080 ab | 35.015 ab | 0.970 abc | |||
| 0.5 | 28.060 °C | 31.925 bcd | 28.485 abc | 34.440 abc | 0.925 bc | ||
| 35.971 °C | 33.430 ab | 28.440 abc | 36.075 a | 1.295 a | |||
| 1.0 | 28.060 °C | 30.115 ef | 27.425 c | 32.205 de | 0.690 cde | ||
| 35.971 °C | 33.280 abc | 29.075 ab | 35.450 ab | 0.995 abc | |||
| SEM | 0.340 | 0.180 | 0.369 | 0.052 | |||
| p values | |||||||
| Additive | 0.178 | 0.867 | 0.622 | 0.933 | |||
| Usage | 0.032 | 0.262 | 0.033 | 0.023 | |||
| Temperature | 0.000 | 0.000 | 0.000 | 0.000 | |||
| Additive × Usage | 0.113 | 0.306 | 0.235 | 0.131 | |||
| Additive × Temperature | 0.887 | 0.867 | 0.895 | 0.844 | |||
| Usage × Temperature | 0.098 | 0.204 | 0.189 | 0.416 | |||
| Additive × Usage × Temperature | 0.499 | 0.160 | 0.767 | 0.344 | |||
a–f: Values shown in different letters in the same column are statistically important (p < 0.05). * Storage temperatures were recorded by data logger on day 7, while thermal camera images were taken. AV: Apple vinegar; SDA: Sodium diacetate; Std. Dev.: Standard deviation; and SEM: Standard error of means.
Table 9.
Thermal camera imaging results of aerobic stability on day 12 (Ambient temperature = 22 °C).
Table 9.
Thermal camera imaging results of aerobic stability on day 12 (Ambient temperature = 22 °C).
| Aerobic Stability | Additive | % | Storage Temperature * | Thermal Camera Imaging Measurements, °C | |||
|---|---|---|---|---|---|---|---|
| Mean | Min | Max | Std. Dev. | ||||
| Day 0 | - | - | - | 30.62 | 26.75 | 33.91 | 0.94 |
| Day 12 | AV | 0 | 27.567 °C | 28.770 c | 26.840 bc | 30.360 c | 0.415 d |
| 36.295 °C | 32.610 a | 28.875 a | 34.685 a | 0.815 abc | |||
| 0.5 | 27.567 °C | 27.645 c | 25.925 c | 29.720 c | 0.470 d | ||
| 36.295 °C | 33.310 a | 29.190 a | 35.250 a | 0.945 a | |||
| 1.0 | 27.567 °C | 27.710 c | 26.170 bc | 30.000 c | 0.455 d | ||
| 36.295 °C | 32.790 a | 28.955 a | 35.050 a | 0.855 abc | |||
| SDA | 0 | 27.567 °C | 30.010 b | 26.125 bc | 32.285 b | 0.840 abc | |
| 36.295 °C | 32.895 a | 29.185 a | 35.565 a | 0.925 a | |||
| 0.5 | 27.567 °C | 29.925 b | 26.905 bc | 32.080 b | 0.695 bc | ||
| 36.295 °C | 32.810 a | 28.920 a | 34.940 a | 0.890 ab | |||
| 1.0 | 27.567 °C | 30.260 b | 27.170 b | 32.045 b | 0.665 c | ||
| 36.295 °C | 33.325 a | 29.880 a | 35.315 a | 0.830 abc | |||
| SEM | 0.445 | 0.297 | 0.460 | 0.040 | |||
| p values | |||||||
| Additive | 0.000 | 0.086 | 0.000 | 0.001 | |||
| Usage | 0.844 | 0.394 | 0.705 | 0.458 | |||
| Temperature | 0.000 | 0.000 | 0.000 | 0.000 | |||
| Additive × Usage | 0.304 | 0.095 | 0.777 | 0.095 | |||
| Additive × Temperature | 0.001 | 0.805 | 0.001 | 0.002 | |||
| Usage × Temperature | 0.219 | 0.919 | 0.724 | 0.574 | |||
| Additive × Usage × Temperature | 0.246 | 0.105 | 0.345 | 0.898 | |||
a–d: Values shown in different letters in the same column are statistically important (p < 0.05). * Storage temperatures were recorded by data logger on day 12, while thermal camera images were taken. AV: Apple vinegar; SDA: Sodium diacetate; Std. Dev.: Standard deviation; and SEM: Standard error of means.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Agma Okur, A.; Gozluklu, K.; Okur, E.; Okuyucu, B.; Koc, F.; Ozduven, M.L. Effects of Apple Vinegar Addition on Aerobic Deterioration of Fermented High Moisture Maize Using Infrared Thermography as an Indicator. Sensors 2022, 22, 771. https://doi.org/10.3390/s22030771
AMA Style
Agma Okur A, Gozluklu K, Okur E, Okuyucu B, Koc F, Ozduven ML. Effects of Apple Vinegar Addition on Aerobic Deterioration of Fermented High Moisture Maize Using Infrared Thermography as an Indicator. Sensors. 2022; 22(3):771. https://doi.org/10.3390/s22030771
Chicago/Turabian StyleAgma Okur, Aylin, Kerem Gozluklu, Ersen Okur, Berrin Okuyucu, Fisun Koc, and Mehmet Levent Ozduven. 2022. "Effects of Apple Vinegar Addition on Aerobic Deterioration of Fermented High Moisture Maize Using Infrared Thermography as an Indicator" Sensors 22, no. 3: 771. https://doi.org/10.3390/s22030771
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
