Review

Reported Outcome Measures in Studies of Real-World Ambulation in People with a Lower Limb Amputation: A Scoping Review

1
Department of Mechanical, Electronic and Chemical Engineering, Faculty of Technology, Art and Design, Oslo Metropolitan University, P.O. Box 4, St. Olavs Plass, 0130 Oslo, Norway
2
Department of Occupational Therapy, Prosthetics and Orthotics, Faculty of Health Sciences, Oslo Metropolitan University, P.O. Box 4, St. Olavs Plass, 0130 Oslo, Norway
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(6), 2243; https://doi.org/10.3390/s22062243
Submission received: 15 February 2022 / Revised: 8 March 2022 / Accepted: 10 March 2022 / Published: 14 March 2022
(This article belongs to the Special Issue Sensors for Human Physical Behaviour Monitoring)

Abstract

:
Background: The rapidly increasing use of wearable technology to monitor free-living ambulatory behavior demands to address to what extent the chosen outcome measures are representative for real-world situations. This scoping review aims to provide an overview of the purpose of use of wearable activity monitors in people with a Lower Limb Amputation (LLA) in the real world, to identify the reported outcome measures, and to evaluate to what extent the reported outcome measures capture essential information from real-world ambulation of people with LLA. Methods: The literature search included a search in three databases (MEDLINE, CINAHL, and EMBASE) for articles published between January 1999 and January 2022, and a hand-search. Results and conclusions: 98 articles met the inclusion criteria. According to the included studies’ main objective, the articles were classified into observational (n = 46), interventional (n = 34), algorithm/method development (n = 12), and validity/feasibility studies (n = 6). Reported outcome measures were grouped into eight categories: step count (reported in 73% of the articles), intensity of activity/fitness (31%), type of activity/body posture (27%), commercial scores (15%), prosthetic use and fit (11%), gait quality (7%), GPS (5%), and accuracy (4%). We argue that researchers should be more careful with choosing reliable outcome measures, in particular, regarding the frequently used category step count. However, the contemporary technology is limited in providing a comprehensive picture of real-world ambulation. The novel knowledge from this review should encourage researchers and developers to engage in debating and defining the framework of ecological validity in rehabilitation sciences, and how this framework can be utilized in the development of wearable technologies and future studies of real-world ambulation in people with LLA.

1. Introduction

The use of wearable technology to monitor real-world ambulatory activity in people with a Lower Limb Amputation (LLA) has grown rapidly in the past decade. Activity monitors have the potential to provide objective information about peoples’ ambulatory behavior and participation in the community, an important domain of the International Classification of Functioning, Disability and Health [1]. Data from the Swedish Amputation and Prosthetic Registry show that 27–48% of the 5762 persons with LLA report to not walk outdoors one year post-amputation [2]. Community walking is essential to participate in work, leisure, social activities, and family roles, and the inability to ambulate outside of the home increases isolation and dependency [3]. Monitoring ambulatory behavior of people with LLA in a free-living setting gives valuable information that can be used to develop rehabilitation programs and prosthetic component prescription that are adjusted to the individual’s need.
Traditionally, the prosthetic user themselves informs the clinician about their ambulatory behavior and physical activity level. However, studies report that self-reported prosthetic use and activity level are both overestimated as well as underestimated by the user, indicating that a subjective assessment is unreliable [4]. Alternatively, standardized performance-based tests can be used to objectively assess a person’s physical functioning and to monitor changes over time. However, comprehensive testing is required to obtain a comprehensive picture of a person’s functioning, since single tests such as the 6 Meter Walk Test or the Timed Up and Go test measure different characteristics of functional capacity. Performing multiple tests can be an exhaustive and time-consuming process, yet the outcomes reflect only a snapshot of an individual’s functioning and can be highly influenced by the person’s conditions at that particular moment. Moreover, a clinical test environment can be considered as revealing optimal walking capability under idealistic conditions, which does not necessarily reflect real-world situations [5].
Prior studies in people with LLA found that in-laboratory activities look different from real-world behavior [6]. The real world is the context where ambulation takes place in a free-living, unsupervised, uncontrolled, and non-standardized manner [7]. The individual’s ambulatory behavior depends on the personal situation and contextual and environmental factors, such as terrain and seasonal conditions [8]. Consequently, experiments that do not contain typical characteristics of real-world ambulation are limited in the extent that findings can be generalized to real-life situations. Wearable technologies enable new opportunities for monitoring ambulatory patterns and temporospatial gait characteristics in a real-life setting. Understanding the relationship between in-clinic performance-based measures and real-world ambulatory performance can improve prosthetic recommendation, physical activity goal-setting and follow-up assessment. Hence, wearable technologies are a step forward in bridging the gap between in-laboratory and real-world measurements.
A preliminary search for existing literature reviews on the use of wearable technology in real-world ambulation was conducted in April 2021 in the following databases: Johanna Briggs Institute (JBI) Evidence Synthesis, Cochrane Database of Systematic Reviews, PubMed, MEDLINE, and CINAHL. Identified reviews have investigated the validity and reliability of wearable technologies [9,10], reported the efficacy of wearable activity monitoring on weight loss [11], and physical activity participation [12]. Other reviews evaluated the use of wearable technology to monitor physical activity in patients with Chronic Obstructive Pulmonary Disease (COPD) [13], stroke [14], and community-dwelling adults [15]. A scoping review of Wong et al. [16] mapped the evidence on physical activity level using wearable technology in people with LLA. Chadwell et al. [17] investigated the methodologies and technologies used to assess the use of upper- and lower-limb prostheses and discussed the barriers for use of wearable technology in low-resource settings. However, the latter review did not discuss the different outcome measures that are reported in studies using wearable technologies, and to what extent the outcome measures are representative for what they intend to measure. Hence, there is a knowledge gap that needs to be investigated.
Therefore, this article reviews the scientific literature on the application of wearable technologies to report on real-world ambulation and prosthetic use in people with LLA. For this purpose, we chose to use the scoping review methodology to map, structure, and analyze evidence in this area of research. The objectives of this review are (1) to investigate for what purposes wearable activity monitors are used in people with LLA, (2) to identify and structure the reported outcome measures, and (3) to evaluate to what extent the reported outcome measures capture essential information of real-world ambulation of people with LLA. To the best of our knowledge, this has not been conducted before, and this review will provide new knowledge to the rehabilitation sciences, that can be used as a guide for researchers and practitioners in research of real-world ambulation and the choice of relevant outcome measures for this population.

2. Materials and Methods

We utilized the JBI Manual for Evidence Synthesis provided by The Joanna Briggs Institute for developing the scoping review [18], and structured the content according the Preferred Reporting Items for Systematic Reviews and Meta-Analysis—Scoping Reviews (PRISMA-ScR) updated version 2021 [19]. An a priori protocol including the objectives, inclusion criteria and methods for this scoping review was registered on 18 May 2021 in the Open Science Framework (OSF) with registration number DOI 10.17605/OSF.IO/7PF2U. An updated version of the protocol was registered on 23 September 2021 [20].

2.1. Search Strategy

The search was conducted in the databases MEDLINE, EMBASE, and CINAHL on 19 May 2021. The initial search including MeSH terms and keywords was developed in MEDLINE through consultation with a certified research librarian at our university, and then modified for application in the EMBASE and CINAHL databases. The search was limited to include records from 1999 until the day of the search. The starting year was based on the first publication that provided a detailed description of a Step Activity Monitor (SAM), used for long-term, continuous recording of ambulatory activity in both normal and impaired gait [21]. We also reviewed the web pages of the wearable technology brands and hand-searched reference lists of included studies to identify additional relevant articles that may have been missed in the database searches. An update search was performed on 7 January 2022. The PRISMA flowchart (Figure 1) was updated with backward correction, according to the step-by-step description by Bramer and Brain [22]. The MEDLINE search is included in Appendix A.

2.2. Source of Evidence Screening and Selection

The reference manager software tool EndNote X9 (Clarivate, Philadelphia, PA, USA) was used to export records and to identify and remove duplicates. Remaining records were exported to the web-based analysis tool Rayyan (Rayyan Systems Inc., Cambridge, MA, USA), that allows for blinded screening by multiple reviewers [23]. The screening process involved two phases: (1) reviewing based on title and abstract and (2) full-text article reviewing. For the first phase, two reviewers independently assessed the inclusion eligibility and rated each record with either ‘include’, ‘exclude’, or ‘maybe’. Articles were included if the studies involved (1) at least one person with LLA using a prosthesis, (2) quantitative measurements using wearable technology in a real-world setting, e.g., outside the clinic or laboratory, and (3) participants who were free to decide their ambulatory behavior, without receiving supervision or other instructions. Studies including only persons with partial foot amputation were excluded. Additionally, studies in real-world setting where participants performed a testing protocol or received supervision or other instructions on how to behave, were excluded. Following phase 1, the two reviewers conducted debriefing meetings to discuss potential disagreements on the screening process, that were then solved by consensus. The second phase was performed by one reviewer who reviewed the full text of included articles from phase 1 for inclusion criteria. All included and excluded articles from phase 2 were subsequently discussed with the second reviewer to verify if the two reviewers agreed upon the decision of the first reviewer. Only peer-reviewed articles in the English language were included. Yet, since this is a scoping review, conference abstracts, clinical letters, and Ph.D. theses were included if they met the inclusion criteria. With duplicates existing of an original research article and a conference abstract, the original research article was prioritized, and the conference abstract excluded.

2.3. Data Extraction

The following data was extracted from each article: author(s), year of publication, country of publication, title, study design, objective(s), study population (number of participants, age, etiology, and level of amputation), control group if applicable, wearable technology used, placement of technology, environment and duration of real-world measurements, intervention if applicable, outcome measures reported for the used wearable technology, key findings, conclusion, and clinical relevance. The first reviewer initially extracted the data, and the second reviewer verified the data.

2.4. Analysis and Presentation of Results

The main objective of each study was used to synthesize categories of study design. The study design categories were used as the main structure of an overview table of all included studies. The following information from the extracted data was listed in Table 1: First author (year and country of publication), title, objective, study population (number of participants (number of females)), age, level and etiology of amputation, technology used (placement on body and duration of monitoring), reported outcome measures, and key findings. The study design categories were described with a detailed summary of the main objective from all articles. The publication year of included articles was summarized and presented in Figure 2. The analysis of reported outcome measures was performed by collecting all reported outcome measures related to the used wearable technology from each included article. The categorization of reported outcome measures was an iterative process of searching for patterns in the large number of outcome measures and discussions between the first and second reviewer.

3. Results

3.1. Search Results

The initial literature search resulted in 4006 records after removing duplicates. Then, 3198 records were excluded after screening the title and abstract, leaving 115 articles for full-text eligibility screening. Of these, 93 articles met the inclusion criteria, and in addition, 5 articles were identified through hand-searching, resulting in 98 articles included in this review. See details of the literature search and reasons for exclusion in the PRISMA flowchart in Figure 1.

3.2. Inclusion of Sources of Evidence

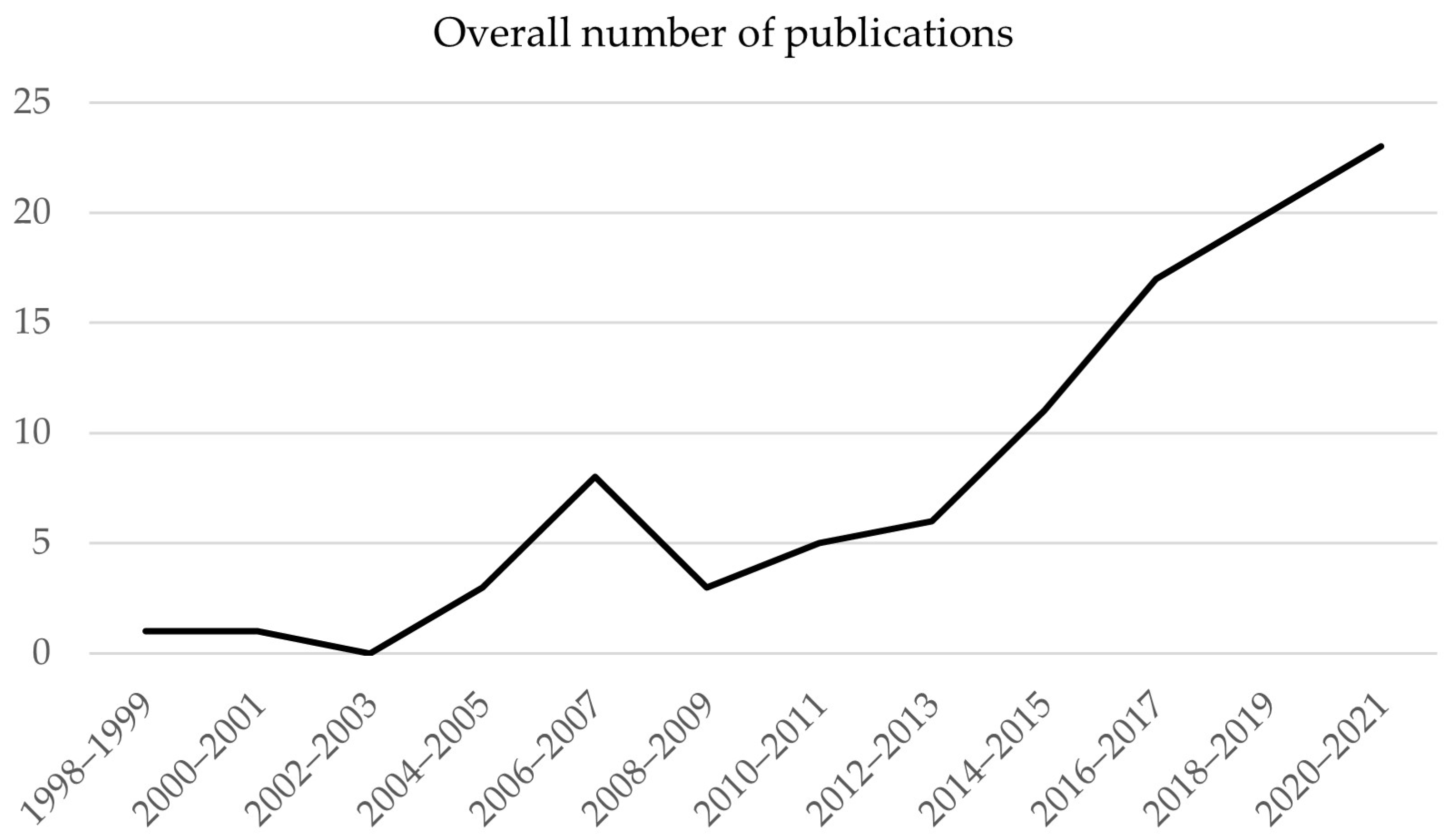

Most studies were performed in the US (n = 65), followed by United Kingdom (n = 7), The Netherlands (n = 6), Australia (n = 6), Canada (n = 4), Germany (n = 3), Norway (n = 2), Thailand (n = 2), Hong Kong (n = 1), Chile (n = 1), and Taiwan (n = 1). Almost half of the studies were published in the past four years (see Figure 2).
The most frequently used wearable technologies were the StepWatch (Modus Health, Edmonds, Santa Monica, CA, USA) [4,21,25,27,28,30,42,44,46,48,49,50,51,54,57,58,61,64,65,69,73,77,78,79,84,86,87,88,89,90,94,95,96,98,100,101,110,114,115,116], ActiGraph (ActiGraph, Pensacola, FL, USA) [29,31,32,39,41,43,45,47,53,70,75,80,81,82,83,92,105,109], FitBit (FitBit, San Francisco, CA, USA) [34,40,52,76,108,117], and activPAL (PAL Technologies, Glasgow, Scotland, UK) [26,36,37,68,91,103,104]. Nine studies used a custom sensor design [41,60,74,102,106,107,109,112,113], six studies used pedometers [56,59,71,72,99,113], and one monitored physical activity with a mobile phone [118]. Six studies added a Global Positioning System (GPS) device in addition to the activity monitors [54,103,105,110,114]. Other wearable technologies used in the included studies were TEMEC activity monitor (Temec Technologies BV, Heerlen, The Netherlands) [63,67], Dynaport ADL (McRoberts BV, The Hague, The Netherlands) [62,119], Power Walker (Yamax Health & Sports Inc., Shropshire, UK) [85], EmpowerGO (Hanger Inc., Austin, TX, USA) [24], Up move (Jawbone, San Francisco, CA, USA) [35], Activ 8 (VitaMove, Veldhoven, The Netherlands) [38], Uptimer (National Ageing Research Institute, Victoria, Australia) [66], AMP 331 (Dynastream Innovations, Cochrane, AB, Canada) [97], and the MiniMods Dynaport (McRoberts BV, The Hague, The Netherlands) [33]. Two studies used an accelerometer, but did not specify the manufacturer [55,93].
The articles were structured into four categories, based on the primary reason for using wearable technology: observational studies (n = 46), interventional studies (n = 34), algorithm/method development studies (n = 12), and validity/feasibility studies (n = 6). Of the 46 included observational studies, 13 studies aimed to describe characteristics of real-world behavior [21,26,33,40,60,63,66], real-world measurements in a specific population [44,50,62], or at a specific moment in time, such as post-rehabilitation [21,45,50], or during a mountaineering expedition [59]. Four studies observed changes in real-world behavior over time, including changes between before and during the COVID-19 pandemic [24,27], during in-patient and leave periods [36], and before and after prosthetic disuse [25]. One study investigated the effect of various prosthetic accommodation durations [35]. Additionally, 28 studies investigated the correlation between real-world measurements and other variables, such as performance-based measures [28,33,34,37,38,47,50,53,56,61], self-reported outcomes [4,26,33,35,42,49,61,67], K-level [45,48,58], measures of gait quality [64], fall and injury incidence [30], aerobic capacity [28], demographic factors [26,61], limb fluid volume [43], clinical scores [62], comorbidities [47], stride-to-stride fluctuations [53], step variability [56], and prosthetists’ perceptions of participants’ prosthetic use [41]. Eight studies performed comparisons between groups, based on the etiology of amputation [26], level of amputation [51], K-level [46,52,57], surgery treatments [55,66], and chronic physical condition [60]. Other studies compared participants with and without diabetes [29,47,65], and fallers with non-fallers [54]. Additionally, several studies compared participants with LLA with able-bodied controls [29,47,63,64,67,109].
Of the interventional studies, 28 studies compared prosthetic components, including feet [73,78,79,82,88,93,95,99], knee systems [80,85,87,89,92,96], ankle systems [68,70,90], ankle-knee systems [69], liners [71,72,101], suspension systems [86,94], pylons [100], socket [83,91], a prosthetic alignment adapter [76], and one study compared both pylons and knee systems [98]. The remaining 6 articles were lifestyle intervention studies, targeting physical activity [75,81], walking capacity [84], rehabilitation [74], mobility and aerobic exercise training [97], and physical activity and weight management [77]. Only one interventional study investigated the relationship between real-world measurements and other variables, i.e., performance-based measures, self-reported outcomes, metabolic cost [70]. The 12 studies classified as algorithm/method development studies, aimed to develop and/or implement algorithms/models to classify activities [102,103,104,111], monitor and categorize the load regime [102,111,112,113], to combine GPS information with ambulatory activity data [105,110], to quantify cadence variability [108], and to incorporate doffing and donning information [109]. Two other studies developed a sensor design for monitoring limb-socket displacements [106,107]. The majority of the six validity/feasibility studies investigated the accuracy or validity of commercial activity monitors [114,115,117,119] or mobile phones [118]. One study tested the feasibility of a computerized algorithm to rate participants’ K-level [116]. Table 1 gives an overview of each article included in the review, structured according to study design category.

3.3. Review Findings

3.3.1. Categories of Reported Outcome Measures

The reported outcome measures related to real-world ambulation were merged into eight categories: step count, fitness and intensity of activity, type of activity and body posture, commercial scores, prosthetic use and fit, gait quality, GPS, and accuracy.

Step Count

Seventy-two articles reported on step count. The majority reported the number of steps taken per day [4,24,25,26,27,28,29,30,31,32,36,37,39,40,42,44,46,47,49,50,51,53,55,56,58,59,61,62,64,65,68,69,70,71,72,73,75,77,78,79,81,82,84,86,89,90,91,93,95,96,97,98,99,101,105,110,114,117]. However, articles also reported the number of steps for other time units, such as per week [76,85,100], per weekend- and weekend-day [21,42,49,62,76,85,98,100], per month and season [58], or total steps during the observation period [21,35,52,54,57,59,94,102,112,113,115]. Step count was also reported in combination with other variables of walking activity, such as number of steps per intensity activity [49,90], per walking technique [59], per walking bout [24,105], per activity classification [102,112], or the maximal number of consecutive steps taken [33]. Some articles reported on step count related to location, such as number of steps taken at home and away from home [70,105,110], per community category [54,57], or the difference in steps between a day in-patient and a day out-patient [36]. Step counts were also reported to demonstrate a difference between participant groups [4,26,29,31,32,37,40,46,47,49,51,52,54,55,56,64,65,68,75,77,81,84,105,110], between different types of activity monitors [115], or between baseline and follow-up measurements [24,40,50,68,77,81,84,89,93,96,97].

Fitness and Intensity of Activity

Thirty articles reported outcome measures that were related to a person’s fitness level or the intensity of the measured activity. The majority of the studies measured the cadence in steps per minute, which is an indication of ambulatory intensity [120]. Sixteen articles reported the time, frequency, or number of steps in specific intensity intervals, based on the parameters cadence or acceleration [4,21,27,28,45,47,49,51,61,62,81,90,95,101,117,118]. The number of intensity intervals and cut-off values were diverse, although most studies used the intensity intervals for low, medium, and high intensity activity. Some studies additionally included the time or frequency spent sedentary, i.e., inactivity [21,28,45,47,81,101]. Four articles demonstrated cadence distribution, by visualizing cadence per walking bouts categorized according to duration and number of bouts [86], or by quantifying the cadence variability [34,69,108]. Five articles reported the most intensive walking activity, by reporting the maximum or peak values of cadence averaged for a certain time-frame, such as the average cadence of the most intensive 60 min, 30 min, or 1 min [28,51,61,108,114]. Parameters related to activity intensity and fitness other than cadence, were walking speed [70,105], heart rate [63,67], or the acceleration of body movements in m/s2 or g (=9.81 m/s2) units [62,63,67,119]. Two articles reported the cadence variability scale parameter, which was a calculation of the distribution spread of cadence variability over the duration of the observation period [34,108].

Type of Activity and Body Posture

Twenty-six articles reported outcome measures that were related to the type of activity or body posture. To what extent the activity was specified varied among studies. Ten articles reported only the amount of activity and/or inactivity in duration, percentage or number of bouts, without further specifying for the type of activity [38,60,61,77,83,92,93,95,98,113]. Articles that specified the type of activity, reported activities such as stepping, walking, sitting, lying, standing, or other activities [24,37,41,43,62,63,66,67,68,80,91,109,119]. Two articles included an additional specification by classifying walking activity into different categories, such as turns [102] or directional locomotion [112]. Three articles reported the number of sit-to-stand transitions [26,63,67].

Commercial Scores

Fifteen articles reported a commercial score, or a score based on a custom calculation. Three articles reported a commercial score of the K-level [87,88,114]. Three articles reported a commercial score that indicated level of physical activity, i.e., the physical activity index [62], modus index [69], ambulation energy index [69], peak performance index [69], and Fitbit activity score [117]. The latter article also reported the Fitbit Web derived miles walked, calories, and number of floors climbed. However, since the commercial score did not account for height, weight and age of the users, the authors also developed a custom model for calculation of calories and the activity score including these variables [117]. Six articles reported a custom calculated score. Two articles calculated the K-level, using the three variables potential to ambulate, cadence variability and energy expenditure [48,116]. In addition, Orendurff et al. [116] reported a clinically judged K-level by a prosthetist, who subjectively rated the three variables in figures from the StepWatch data. Three articles reported the distance walked, of which two calculated distances using the clinically assessed step length multiplied by daily step count [33,96]. Darter et al. [97] reported distance walked and walking speed, but did not further describe the calculation.

Prosthetic Use and Fit

Eleven articles reported outcome measures related to prosthetic use and prosthetic fit. Five articles reported results on the duration that the prosthesis was worn, although using diverse terms [26,27,39,41,101]. Three studies included counts of doffing the prosthesis [41,109], or the duration of the prosthesis doffed [83]. Outcome measures related to prosthetic fit aimed to monitor displacement of the socket to the limb after wearing the prosthesis, and were measured through sensor pressure change or sensor signal loss during the wearing period [106,107].

Gait Quality

Seven studies reported outcome measures that were related to gait quality. Davis-Wilson et al. [29] assessed cumulative loading during ambulation that was calculated by the formula: daily steps/2 × peak ground reaction force, the latter was measured with a force plate and normalized to body weight. Kim et al. [105] calculated stride length from the three-dimensional position of the foot using IMU data. Frossard et al. [112,113] reported in two articles temporospatial parameters, i.e., the duration of the gait cycle, swing and support phases, and kinetic parameters, i.e., the forces, moments and impulses along the anteroposterior, mediolateral, and long axis of the prosthesis to categorize ADL activities into different locomotory activities. Two articles developed an algorithm to indicate gait quality, i.e., Kaufman et al. [80] calculated so-called gait entropy, and Gaunaurd et al. [74] developed a Machine Learning Classifier that gave biofeedback related to balance, toe load and knee flexion. Kaluf et al. [69] reported stance/swing time, that was calculated with the ModusTrex software.

GPS

Six studies included GPS data in addition to ambulatory activity measurements, however only five reported GPS-related results. Jamieson et al. [103] used GPS to record elevation data in the Strava app (Strava Inc., San Francisco, CA, USA), to aid with labelling uphill and downhill movement, but did not report data directly related to GPS data. Kim et al. [70,105] used a GPS-enabled smartphone in two studies in which non-sedentary periods were identified from the raw data and combined with the location to determine where the activity occurred. Results of daily steps, cadence and walking speed were divided into measures at home and away from home. Godfrey et al. [114] used GPS data to confirm whether steps were taken in the home or in the community to calculate the Modified Clinical K-level. In two other studies from Hordacre et al. [54,57], a GPS travel recorder was combined with a StepWatch to specify community activity into seven categories: employment, residential, commercial, health services, recreational, social, and home.

Accuracy

Four articles reported outcome measures of accuracy that were directly related to the wearable technology used. Griffiths et al. [104] reported F-scores and confusion matrices for eight different models that classified the postures sitting, standing, stepping and lying. Accordingly, Jamieson implemented classifiers and a neural network for activity recognition using eight models and three levels of label resolution [103]. They reported classification accuracy, F1-scores, and confusion matrices for the two models with the highest accuracy and the accuracy of the models for each participant with LLA [103]. Redfield et al. reported on the agreement between activity classification using one or two accelerometers [111], and van Dam et al. [119] reported the test-retest reliability of activity monitor by identical assessments on two separate days.

3.3.2. Reported Outcome Measure in Categories Per Study Design

The most frequent reported outcome measure category was step count, followed by outcome measures related to fitness/intensity of activity (Table 2).

4. Discussion

The overall purpose of this scoping review was to survey the scientific literature to evaluate the use of wearable activity monitors in reporting real-world ambulation and prosthetic use in people with LLA. The results demonstrate that the number of studies using wearable technologies is rising, hence it is important to understand the opportunities and limitations in the use of these devices. By classifying the included articles according to their study design, we demonstrated that the number of algorithm/method development studies and validity/feasibility studies was relatively low, most likely because these studies are challenging to perform in the real world and hence are more often conducted in the laboratory [10]. The majority of the studies using wearable technologies in the real world were observational and interventional studies. This is not surprising, as wearable technologies enable monitoring a person’s natural behavior and allow for observation over time, or assessment to the effect of an intervention. Although there exists a large battery of performance-based tests that can detect changes in physical functions and capacity [121], real-world measurements have revealed that capacity is not necessarily the same as performance [34,37]. Studies have shown that half of older community dwelling adults classified by clinic-based tests as high functional capacity, exhibit low functional level behavior in the community [48]. The use of wearable technology in the real world extends the understanding of a person’s natural behavior by monitoring parameters that have not been feasible to perform in-laboratory.
This review identified multiple outcome measures that are available to monitor since the use of wearable technologies in the real world. The most frequent reported outcome measure was daily step count, which is an indication of the level of physical activity. Results of multiple studies have demonstrated that the majority of people with LLA do not meet the recommended level of physical activity [16]. Lower levels of physical activity in this population is associated with an increased risk of developing cardiovascular diseases [122], and lower perceived quality of life [123]. Monitoring physical activity may facilitate the development of personalized treatments that optimize the individual health status. Step count is also used to calculate cadence (steps min−1), a measure that is closely related to walking speed and hence, indicates the intensity of walking [124]. Walking intensity classified in intervals provides valuable information about the structure of daily walking activity. For instance, Kim et al. [105] showed that people with LLA and able-bodied control persons had a similar variance in walking intensity, but the LLA group had a more positively skewed distribution of intensity, indicating that both groups had similar ranges of intensity, but that the LLA group took more of their steps at lower cadence. The cadence variability, i.e., the ability to walk at multiple speeds, is considered an important determinant of functional mobility and hence community ambulation. Some studies used cadence to report the upper boundaries of physical activity [28,46,51,61,108,114]. Peak values of performed physical activity are an indication of a person’s fitness and ability to perform high-intensity physical activity. This is important, because previous research demonstrated that a larger amount of high intensity physical activity is associated to higher cardiorespiratory fitness [28]. Despite the scarce evidence on this topic, the results indicate that assessment of the most intensive physical activity performed in the real world can be a valuable measure to assess overall health status.
Other identified outcome measures in this review were related to prosthetic use and information about the environment in which the prosthesis is used. The amount and structure of prosthetic use is directly related to the amount of prosthetic ambulation, which again, is an indication of prosthetic fit and trust in the prosthesis. For instance, studies have shown that donning and doffing the prosthesis influences limb fluid volume, and temporarily doffing the socket is necessary to facilitate limb fluid volume recovery that is retained during subsequent activity [107,109]. However, Balkman et al. [41] argue that frequent donning and doffing of the prosthesis can be an indication of a poorly fitted prosthesis, that can cause skin problems on the stump. Monitoring when, how and how much a person uses the prosthesis can provide valuable information to clinicians about prosthetic fit and functioning. To investigate the amount and location of prosthetic use in the community, multiple studies have used GPS and found that ambulatory patterns outside the home are different from inside the home [70,105]. Ambulation away from home requires a higher level of functional mobility, because it generally covers larger distances, and is influenced by environmental factors such as obstacles, terrain, and variable weather conditions [54,57]. Jamieson et al. [103] used recordings from a chest-mounted camera in addition to GPS data to determine the type of terrain that participants walked over. They observed variation among the participants, i.e., some participants walked on certain terrains that other participants avoided or rarely walked over, such as sandy terrain [103]. Hence, assessment of the amount and patterns of community activity is important in prosthesis prescription and to examine the ability for participation in the society, which is an important determinant of quality of life [54].
By categorizing the identified outcome measures in this review, we were able to obtain a clear overview of which categories were reported in different study design. The results showed that of the eight categories, the category step count was the most frequent reported category, regardless of the study design. It is, however, arguable whether step count is an appropriate outcome measure for different research questions. To obtain a sufficient degree of construct validity in a study, it is important that the chosen outcome measures reasonably represent what it intends to measure. A surprising observation in this review is that 82% of the interventional studies report one or multiple outcome measures related to step count, however, the majority of the studies did not find a significant effect of the intervention on daily step count [70,71,72,73,76,78,82,85,86,90,91,93,95,96,98,99,100]. For instance, Klute et al. [116] measured improvements in kinematic and metabolic walking efficiency in laboratory tests using a microprocessor knee versus a hydraulic knee, but reported no change in real-world ambulatory patterns. Accordingly, Andrysek et al. [85] showed no difference in step count between an automatic stance-phase lock knee (ASPL) and a weight-activated braking knee, despite the lower energy expenditure measured for the ASPL knee. Moreover, participants in this study rated the ASPL knee higher in terms of knee stability and improved walking, which could be interpreted as encouraging factors for prosthetic use, but this did not result in increased step count. Segal et al. [90] demonstrated that participants wearing a torsion adapter tended to take more low- and medium-intensity steps, but fewer high-intensity steps compared to a rigid adapter. However, total daily step count was not different between the adapters, indicating that the structure of walking might change, but not the total amount of ambulation [90]. According to Wurdeman et al. [82], changing a prosthesis will change the biomechanics of the individual, such as the step length, but not the behavior and daily routines that mainly determine the number of steps walked. Yet, interventions targeting behavior change, such as physical activity level, have neither demonstrated significant increases in daily step count [75,77]. A few studies have shown small increases immediately after the intervention, but these effects disappeared on the long-term [81,84]. Imam et al. [84] demonstrated a long-term improvement in walking capacity, but the intervention did not result in participants increasing their physical activity level. Hence, it is suggested that it is the individual’s willingness to change or changes in daily routines that can lead to behavior change, rather than any enabling technology or intervention [101]. Likewise, observational studies that aim to gain understanding of mobility are sometimes limited in construct validity. Anderson et al. [31] found no difference in daily step count between fallers and non-fallers, indicating that number of steps is not necessarily a determinant for falls. The participants experienced falls mostly caused by intrinsic destabilization sources, inadequate weight shift patterns, and transfer-related functional activities, i.e., factors that are related to balance, and it would therefore be more likely to detect a between-group difference in parameters related to balance [31]. Overall, our findings demonstrate the often-used outcome measure step count has limited ability to detect changes in walking behavior, and this might have consequences on a study’s construct validity. Hence, researchers should consider whether they capture the relevant information when designing their studies. The challenge whether sampled information is representative of the investigated situation was earlier demonstrated in the representative design developed by Brunswik [125]. The representative design, which is a methodological approach to achieve generalizability of results, requires researchers to sample information that is representative of the ‘target ecology’, and to specify how those conditions are represented in the experiment. Building on this approach, we encourage researchers to define what they are interested in to measure in their experiments and reflect on whether the selected outcome measure might answer their research question. Additionally, we recommend researchers to elaborate more precisely on the limitations of the reported outcome measures to avoid misinterpretation of the results.
As discussed earlier, in-laboratory studies of the mobility of people with LLA are often limited in the extent that study findings can be generalized to real-world situations [5]. Measurements in the real world may overcome some of the limitations of in-laboratory testing, enhancing the ecological validity of the studies. According to the definition of Martin T. Orne, ecological validity refers to the generalization of experimental findings to the real world outside the laboratory [126]. Despite the increasing popularity of studying people with LLA outside the laboratory, ecological validity is a rarely discussed topic in the field of prosthetic mobility [127]. Among the included studies in this review, only four studies mentioned the term ecological validity, without specifying what the terms implies and how it is relevant with regards to the interpretation of their results [59,73,78,112]. This concern was earlier expressed by Holleman et al. [128] in the field of social sciences where there is an ongoing debate about the definition of ecological validity and how to enhance the understanding of human behavior in the real world. There seems to be no agreement upon a definition in the literature, nor any form of classification or quantitative approach to determine or evaluate a study’s ecological validity. Holleman et al. [128] describe that technological advances have further stimulated researchers to emphasize the importance of studying human behavior in the real world. However, they additionally argue that labeling an experiment as ‘ecological valid’ because it is conducted in a ‘real-world’ environment can lead to misleading and potentially counterproductive conclusions [128]. Therefore, they highlight the importance of developing and criticizing the contemporary framework of ecological validity. The contemporary framework for evaluation of ecological validity includes the dimensions stimuli, tasks, behaviors, and research context that can be evaluated on a continuum of artificiality versus naturality and simplicity versus complexity. Whereas the in-clinic environment is characterized by its artificiality and simplicity, the real world is at the other extreme and is characterized by its naturality and complexity. With respect to the included studies in this review that monitor prosthetic ambulation in the real world, the environment is in principle higher in ecological validity compared to laboratory studies. Namely, the study subjects perform their normal behavior, without receiving instructions and without any other demand characteristics that can influence their behavior. However, based on the results of this review, we believe that the contemporary wearable technologies are limited in the ability to capture the essential information of real-world ambulation. This review demonstrated a poor diversity of reporting outcome measures, in particular studies using commercial devices rather than custom-developed devices were limited to reporting step count or the intensity of activity. Therefore, we wish to introduce some suggestions to the future development of wearable technologies. First, we observed that few studies included essential determinants of community ambulation, such as parameters related to prosthetic fit or gait quality (11% and 7% of the included articles, respectively). Research has demonstrated that gait symmetry and step length, i.e., indications of gait quality, are associated with performance-based measures [129], and that walking capacity is associated with walking performance in the community [28,61]. Hence, gait quality might also be associated with the amount and structure of community ambulation. Therefore, technological development and advancement of wearable sensors should include outcome measures of gait quality of prosthetic ambulation. Second, we observed that parameters related to balance, which is an important determinant of prosthetic mobility [130], are not yet included in the features of the contemporary wearable technology, though several studies have demonstrated that balance confidence is associated with the level of community activity and participation [42,49]. Hence, future research should investigate the potentials of including parameters related to balance in advancement of wearable technologies. Last, mobility involves dimensions that are challenging to quantify, such as pain, fear, motivation, confidence, or other psychosocial aspects [3,32]. Enhancing the understanding of the complexity of prosthetic mobility in daily life may facilitate further development of wearable technologies for the purpose of monitoring ambulatory behavior in this population. As such, we recommend future researchers to utilize studies that investigate prosthetic mobility in daily life using a holistic approach, such as performed by e.g., Hafner et al. [8], Batten et al. [3], and Miller et al. [32]. On the other hand, we recognize that the complexity of real-world ambulation and diversity in human behavior might go beyond the potentials of technology. Yet, technological advancements that aims to integrate more variables that are important determinants of prosthetic mobility can enhance the opportunities to capture essential information of real-world ambulation.

Limitations

First, our review was limited to English publications only, and may have excluded important studies published in other languages. Second, the classification of articles based on study design was performed by the two reviewers and judged according to the aim of the study. Many studies had multiple study objectives that could be considered under different study designs, such as interventional studies that in addition had objectives that were essentially observational, or algorithm/development studies that also included a form of accuracy assessment. However, we believe the classification of study designs used in the present review, is appropriate for describing the main objective of each study. Third, the synthesis of outcome measures categories was a subjective evaluation by the reviewers. The large variety in outcome measures and related units may have caused somewhat overlap between categories. For instance, cadence was considered as an indication of walking intensity, although it is in essence based on the number of steps. However, we believed that the category step count was more related to the level of physical activity, while the intensity of activity is more related to the structure of walking throughout the day. Last, our concern regarding the extent that reported outcome measures can answer the study’s research question was based on an overall evaluation of all studies included in this review. To judge each individual study goes beyond the scope of a scoping review [128]. Yet, we believe that our evaluation was sufficient to emphasize the need to report outcome measures that capture the essential information of real-world ambulation of people with LLA.

5. Conclusions

To the best of our knowledge, this is the first review that presents the reported outcome measures in studies of real-world ambulation in people with LLA. We identified that the most frequent used outcome measure was related to step count, regardless of study design. We have expressed our concerns that step count might not be a reliable outcome measure to detect change of an intervention, as step count is highly dependent on a person’s daily routine. Other important outcome measures were less reported, such as outcome measures related to the type of activity, or the intensity of activity. Only few studies reported outcome measures related to gait quality or prosthetic fit. In future research, we encourage researchers to reflect on whether the selected outcome measures are representative of the investigated situation, and to elaborate on the limitations of the reported outcome measures. Additionally, we argue that the contemporary technology is limited in providing a comprehensive picture of real-world ambulation. In future development of wearable technologies, we encourage researchers to integrate variables that are important determinants of prosthetic mobility. Furthermore, as the use of wearable technology in the real world is expected to further increase, we encourage researchers in the rehabilitation sciences to engage in the debate and development of the definition and framework of ecological validity.

Author Contributions

Conceptualization, M.M. and T.G.; methodology, M.M. and T.G.; software, M.M. and T.G.; formal analysis, M.M. and T.G.; investigation, M.M. and T.G.; resources, M.M. and T.G.; data curation, M.M. and T.G.; writing—original draft preparation, M.M. and T.G.; writing—review and editing, M.M. and T.G.; visualization, M.M. and T.G.; supervision, T.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by The Research Council of Norway (Norges Forskningsråd), with grant number 200543.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

The authors thank Kari Kalland (Head Librarian, Oslo Metropolitan University) for providing assistance in the systematic literature search.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

MEDLINE Search
1Artificial Limbs/or exp Amputation/
2(amput * or prosthe * or prothes * or “artificial limb *”).ti,ab.
3(limb adj3 (remov* or loss)).ti,ab.
41 or 2 or 3
5gait/or gait analysis/
6Walking/
7(gait or step or steps or stepping or cadence or walk or walking or ambulat * or activit * or mobility or performance).ti,ab.
85 or 6 or 7
9Monitoring, Ambulatory/
10(monitor * or track * or quantif * or assess * or measur * or count or counting or stepwatch or fitbit or acceleromet* or pedomet * or sensor or actigraph or IMU * or “inertial sensor” or “inertial measurement unit*”).ti,ab.
119 or 10
12lower extremity/or ankle/or knee/or leg/or thigh/
13(“lower limb *” or “lower extremit *” or transfem * or trans-fem * or transtibial or trans-tibial or “above knee” or “below knee”).ti,ab.
1412 or 13
154 and 8 and 11 and 14
16limit 15 to yr = “1999-Current”
