Communication

A Nitro Functionalized MOF with Multi-Enzyme Mimetic Activities for the Colorimetric Sensing of Glucose at Neutral pH

by
Ya Wang
1,
Yuanhua Wei
1,
Siqi Li
1,2 and
Guang Hu
1,*
1
Chongqing Key Laboratory of Medicinal Chemistry and Molecular Pharmacology, Chongqing University of Technology, Chongqing 400050, China
2
Chongqing Institute of Innovation and Entrepreneurship for Precision Medicine, Chongqing 400050, China
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(14), 6277; https://doi.org/10.3390/s23146277
Submission received: 12 June 2023 / Revised: 30 June 2023 / Accepted: 5 July 2023 / Published: 10 July 2023
(This article belongs to the Special Issue Colorimetric Sensors: Methods and Applications)
Browse Figures
Versions Notes

Abstract

:
Benefiting from the advantages like large surface area, flexible constitution, and diverse structure, metal-organic frameworks (MOFs) have been one of the most ideal candidates for nanozymes. In this study, a nitro-functionalized MOF, namely NO2-MIL-53(Cu), was synthesized. Multi-enzyme mimetic activities were discovered on this MOF, including peroxidase-like, oxidase-like, and laccase-like activity. Compared to the non-functional counterpart (MIL-53(Cu)), NO2-MIL-53(Cu) displayed superior enzyme mimetic activities, indicating a positive role of the nitro group in the MOF. Subsequently, the effects of reaction conditions on enzyme mimetic activities were investigated. Remarkably, NO2-MIL-53(Cu) exhibited excellent peroxidase-like activity even at neutral pH. Based on this finding, a simple colorimetric sensing platform was developed for the detection of H2O2 and glucose, respectively. The detection liner range for H2O2 is 1–800 μM with a detection limit of 0.69 μM. The detection liner range for glucose is linear range 0.5–300 μM with a detection limit of 2.6 μM. Therefore, this work not only provides an applicable colorimetric platform for glucose detection in a physiological environment, but also offers guidance for the rational design of efficient nanozymes with multi-enzyme mimetic activities.

1. Introduction

Nanozymes are a class of synthetic nanomaterials that exhibit enzyme-like catalytic activity. Compared with natural enzymes, nanozymes offer numerous advantages, including diverse structures, facile synthesis, high stability, and easy regulation and storage [1,2]. These characteristics have led to their widespread use in various fields, such as disease diagnosis, biosensing, environmental remediation, and so on [3,4,5]. Previous research has demonstrated that various nanomaterials can mimic different natural enzymes, including peroxidase [1,2,3], oxidase [4,5,6], superoxide dismutase [7], catalase, laccase, and others [8,9,10]. However, most of these studies have focused on the activity of single enzymes [6,7]. Recently, there has been a growing interest in multi-enzyme nanozymes, which can exhibit multi-enzyme mimetic activities alone or in combination, leading to synergistic effects, cascade reactions, and environmental response selectivity [8], as well as even broader application prospects. Despite the potential benefits, the development of highly efficient nanozymes with multiple activities is still in demand due to the limited number of nanozymes with well-defined structures, and multi-enzyme mimetic activities [9,10,11,12].
Metal-organic frameworks (MOFs) are porous crystalline materials composed of metal junctions and organic linkers [2]. Due to their large surface area, flexible constitution, and diverse structure, MOFs have emerged as ideal candidates for nanozymes [13,14]. Furthermore, the highly tunable and ordered structure of MOFs makes them attractive microreactors for dual-enzyme or multi-enzyme tandem-catalyzed reactions [15]. These characteristics suggest a great potential to construct nanozymes with multi-enzyme mimetic activities, which warrants further investigation.
Glucose, which is the crucial substance that produces energy in organisms, is very important for keeping the body functioning in good order [16,17]. Therefore, measuring blood glucose levels is essential for maintaining physiological health and treating diseases. Although there has been well-established research on glucose sensors, colorimetric techniques have gained high attention because of the development of the miniaturization concept, like paper—based analytical devices and image capture instruments [18]. Among the various colorimetric sensing modes, glucose oxidase (GOx)—based enzyme-catalyzed oxidation has proved to be a simple and reliable method for glucose detection. During the detection, glucose is hydrolyzed into gluconic acid, and H2O2 by GOx, and the in situ generated H2O2 is then catalyzed by peroxidase to oxidize the substrate for a visible color change. However, limited by the low catalytic efficiency, many previously reported peroxidase-like nanozyme to suffer from a low sensitivity for glucose detection. On the other hand, the instability of H2O2 and the difficulty of substrate oxidization under neutral pH have significantly hampered the development of this cascade reaction [19,20,21]. That means, most previous reports conducted the GOx incubation under neutral pH, and then, they had to adjust the pH into acid for peroxidase incubation. To overcome these shortcomings, it is still in demand to fabricate a novel peroxidase-like nanozyme with high catalytic efficiency under neutral pH, thus, constructing a simple and sensitive colorimetric platform for glucose detection.
In this work, we synthesized NO2-MIL-53(Cu) via a simple hydrothermal method. The regular complex structure centered on Cu allowed this material to mimic the activity of multiple enzymes, including peroxidase-like, oxidase-like, and laccase-like activity (as shown in Figure 1. To figure out the role of the functional group, MIL-53(Cu) was synthesized as a counterpart, and the activities were compared between NO2-MIL-53(Cu) and MIL-53(Cu). Then, the effects of different reaction conditions on enzyme mimetic activities were explored. Based on the excellent peroxidase-like activity of NO2-MIL-53(Cu) at neutral pH, a colorimetric sensing platform to detect H2O2 and glucose under a physiological environment was constructed.

2. Materials and Methods

All the reagents were of analytical grade and used as received without further purification. Copper (II) acetate monohydrate (Cu(CH3COO)2·H2O), nitroterephthalic acid (NO2-BDC), terephthalic acid (H2BDC), N,N-dimethylformamide(DMF), 2-(N-Morpholino)ethanesulfonic acid(MES), glucose and urea (CH4N2O) were purchased from Aladdin Co., Ltd. (Shanghai, China). Glucose oxidase (GOx) was provided by Sigma-Aldrich (Shanghai, China). o-phenylenediamine (OPD), 2,4-dichlorophenol (2,4-DP), and 4-aminoantipyrine (4-AP) were obtained from Macklin (Shanghai, China). Methanol was supplied by CHUANDONG Chemical (Chongqing, China). Milli-Q ultra-pure water with a resistivity of above 18.25 MΩ cm was used throughout the experiments.
The detection limits are calculated as LOD = 3σ/S, where σ was the standard deviation from 20 blank probe sample measurements, and s was the slope of the calibration plot from UV absorbance of solutions with different concentrations of targets (H2O2 or glucose).

2.1. Synthesis and Characterization of NO2-MIL-53(Cu)

The synthesis of NO2-MIL-53(Cu) was carried out using a modified version of a previously reported method [22]. A total of 0.6334 g of NO2-BDC and 0.7986 g of Cu(CH3COO)2·H2O were dissolved in 30 mL of H2O and stirred vigorously for 30 min. A total of 0.3903 g of urea was added to the mixed solution and stirred for another 30 min. The mixture was then transferred to a hydrothermal reactor with 50 mL of Teflon and subjected to solvothermal treatment at 150 °C for 5 h. After cooling to room temperature, the resulting precipitate was separated by using a 0.22 μm filter membrane and washed thoroughly with deionized water. Then, the collected product was washed with DMF and methanol several times. Finally, the obtained solid was dried at 60 °C for further characterization and application.
MIL-53(Cu) was synthesized by using 0.4984 g of H2BDC while keeping other steps unchanged.
The morphology and size of NO2-MIL-53(Cu) and MIL-53(Cu) were characterized by scanning electron microscopy (SEM, Gemini 300, Zeiss, Oberkochen, Germany). X-ray diffraction (XRD) patterns of the materials were measured with a scanning speed of 5°/min. Fourier transform infrared (FT-IR) spectra were acquired by PerkinElmer. Ultraviolet-visible (UV-vis) spectra were examined by a UV-2450 spectrophotometer (Unico, Shanghai, China).

2.2. Peroxidase-like Catalytic Feature Evaluation of NO2-MIL-53(Cu)

The peroxidase-like activity of NO2-MIL-53(Cu) nanozyme was measured by catalyzing the chromogenic substrate OPD with the presence of H2O2 at 37 °C. In detail, 100 μL NO2-MIL-53(Cu) suspension (0.2 mg mL−1), 30 μL H2O2 (10 mmol L−1), and 30 μL OPD (10 mmol L−1) solution were added in 840 μL Tris-HCl solution (0.01 M, pH 7.4), and incubated at 37 °C for 30 min. The final solution was analyzed via UV-vis spectrometer at 420 nm.

2.3. Colorimetric Detection of H2O2 and Glucose

For detection of H2O2, a series of H2O2 solutions with different concentrations over the range 0–1.4 mM were added to 100 μL of 200 mg/L NO2-MIL-53(Cu) suspension, and 30 μL OPD (10 mmol L−1) solution in Tris-HCl solution (0.01 M, pH 7.4). After incubation at 37 °C for 30 min, different UV absorption at 420 nm was recorded.
Glucose detection was as follows: firstly, 5 μL of Gox (1 mg/mL) and 20 μL of glucose solution with different concentrations were added to 115 µL of Tris-HCl buffer (0.01 M, pH 7.4), followed by incubation for 30 min at 37 °C. Subsequently, 100 μL NO2-MIL-53(Cu) suspension (0.2 mg/mL), OPD (10 mmol L−1), and Tris-HCl buffer (0.01 M, pH 7.4) were consecutively added to obtain a total volume of 1000 µL. The resulting mixture was incubated for another 30 min at 37 °C, and then measured by UV-vis spectrometer.

2.4. Oxidase-like Catalytic Feature Evaluation of NO2-MIL-53(Cu)

To explore the oxidase-mimicking behavior, 200 μL of NO2-MIL-53(Cu) suspension (0.2 mg mL−1) was added to an OPD solution (1 mM) in 0.01 M Tris-HCl buffer (pH 7.4) with a total volume 1 mL. The solution was also incubated at 37 °C for 30 min and finally monitored via UV-vis spectrometer.

2.5. Laccase-like Catalytic Feature Evaluation of NO2-MIL-53(Cu)

The laccase catalytic activity of NO2-MIL-53(Cu) nanozyme was measured through the chromogenic reaction of phenolic compounds with 4-AP. First, 4-AP (1 mg/mL, 100 µL) and 2,4-DP (1 mg/mL, 100 µL) solutions were mixed with MES buffer (30 mM, pH 6.8, 700 µL), followed by the addition of 100 µL NO2-MIL-53(Cu) suspension (1 mg/mL). After 1 h of reaction at 30 °C, the mixture was centrifuged for 3 min at 7000 rpm. Finally, the absorbance of the supernatant was recorded at 510 nm.

3. Results and Discussion

3.1. Synthesis and Characterization of NO2-MIL-53(Cu)

Previous research has demonstrated that the enzyme mimetic activity of nanozymes can be influenced by their functional groups [23]. In order to obtain nanozymes with superior activity, a nitro-functionalized MOF was synthesized according to the previous method with some modifications. As shown in Figure 2, the resulting NO2-MIL-53(Cu) exhibited a leaf-like structure with plan view sizes ranging from 2 to 4 μm (Figure 2a). In contrast, MIL-53(Cu), which was synthesized using the same method, displayed a stick-shaped structure with plan view sizes ranging from 0.2 to 1.5 μm (Figure 2b). The difference in morphology may be attributed to the addition of urea, a weak base used during the preparation process to deprotonate the groups in the organic linker and facilitate the coordination between metal ions and the organic linker. The protonation differences between BDC and NO2-BDC likely altered the kinetics of MOF formation [24,25].
Figure 3a shows the XRD patterns of NO2-MIL-53(Cu) and MIL-53(Cu). Both MOFs exhibited characteristic peaks similar to the MIL-53 simulation pattern, confirming their good crystalline structure [26,27]. The FT-IR spectra of NO2-MIL-53(Cu) and MIL-53(Cu) are shown in Figure 3b. Peaks near 1629 cm−1 and 1387 cm−1 represented the symmetric and asymmetric C=O stretching of COO-, respectively, indicating successful coordination between the BDC and the Cu ion [28]. Compared to MIL-53(Cu), NO2-MIL-53(Cu) displayed additional peaks in the region of 1510–1615 cm−1 and 1320–1390 cm−1, which corresponded to the antisymmetric stretching vibration of the nitro group. These characterizations provided further evidence of the successful synthesis of MIL-53(Cu) and NO2-MIL-53(Cu).

3.2. Multi-Enzyme Mimetic Activity of NO2-MIL-53(Cu)

To evaluate the multi-enzyme mimetic activity of NO2-MIL-53(Cu), various incubation systems were employed. The peroxidase-like activity of NO2-MIL-53(Cu) was assessed by oxidizing OPD in the presence of hydrogen peroxide in Tris-HCl (0.01 M) buffer. Figure 4a illustrates that strong absorbance and color changes (from colorless to yellow) were observed after NO2-MIL-53(Cu) was incubated with OPD/H2O2 for 30 min. In contrast, nearly negligible absorbance and color change were observed in the reaction systems of NO2-MIL-53(Cu)/OPD, NO2-MIL-53(Cu)/H2O2 or OPD/H2O2, indicating the excellent peroxidase-like activity of NO2-MIL-53(Cu). It should be noted that a small adsorption peak was also observed when NO2-MIL-53(Cu) reacted with OPD in the absence of H2O2, suggesting the oxidase-like activity of NO2-MIL-53(Cu). To confirm this oxidase-like activity, we re-tested the absorbance after incubating NO2-MIL-53(Cu) with OPD under a different reaction condition, in which the concentrations of catalyst and OPD increased into 40 mg/L and 1 mM, respectively (Figure 4b). These changes in concentration would promote the oxidase-like activity of NO2-MIL-53(Cu) via offered more active sites to initiate the redox reaction between oxygen and OPD. As expected, the solution presented a clear OPD oxidation peak at 420 nm, accompanied by a distinguishable color change from colorless to yellow. No peak was observed in the solution of NO2-MIL-53(Cu) and OPD alone, confirming the oxidase-like activity of NO2-MIL-53(Cu). Laccases were a family of copper-containing oxidases. To test the feasibility of NO2-MIL-53(Cu) as a laccase mimic, we incubated 2,4-dichlorophenol (2,4-DP) and 4-aminoantipyrine (4-AP) with NO2-MIL-53(Cu). As shown in Figure 4c, an absorption peak at 510 nm was observed after incubation, which can be attributed to the oxidation product of 2,4-DP. No absorption was observed with each compound alone. Similar results were observed in the image, in which only the solution with NO2-MIL-53(Cu) turned pink. The above results distinctly indicated that the prepared NO2-MIL-53(Cu) had laccase-like activity.
To uncover the role of the nitro group in the organic linker, MIL-53(Cu) was used as a non-functional counterpart to NO2-MIL-53(Cu). As shown in Figure S1, all of the incubation systems containing NO2-MIL-53(Cu) catalyzed substrates to produce high characteristic peaks, accompanied by obvious color change. In contrast, the systems containing MIL-53(Cu) only produced weak characteristic peaks and color changes. These results indicated that NO2-MIL-53(Cu) exhibited overwhelming enzyme mimetic activities, and the nitro group appears to play a positive role in the multi-enzyme mimetic catalysis. In previous reports by Wei et al., the nitro group was proposed as an electron-absorbing group that made the metal nodes in MOFs more electron-deficient, thereby promoting electron transfer between substrates and active sites [23]. This explanation could also be used to account for the improved activity of NO2-MIL-53(Cu).

3.3. Optimization of the Peroxidase-like Activity for NO2-MIL-53(Cu)

As it is known, the peroxidase-like activity of nanozyme is always dependent on reaction conditions. Therefore, the effects of typical conditions for NO2-MIL-53(Cu) were investigated. For solution pH, the peroxidase-like activity increased before pH 7.4 and decreased when pH exceeded 7.4 (as shown in Figure 5a), suggesting that the optimal pH for this reaction was around 7.4, which was consistent with the physiological environment. This applicability was further confirmed by testing different substrates. As shown in Figure S2, when we replaced OPD with other typical enzyme-linked chromogenic substrates, such as 3,3′,5,5′-tetramethylbenzidine (TMB), and 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulfonic acid (ABTS), NO2-MIL-53(Cu) was able to catalyze the oxidation of different substrates under neutral conditions, demonstrating the wide applicability of peroxidase-like NO2-MIL-53(Cu).
To study the effect of catalyst concentrations, seven concentrations, including 5, 10, 15, 20, 25, 30, and 35 mg/L of NO2-MIL-53(Cu), were selected. As shown in Figure 5b, a growth trend was observed as the catalyst concentration increased, but the trend slowed down when the catalyst concentration exceeded 20 mg/L.
We also explored the effects of OPD concentrations and reaction time, as shown in Figure 5c,d, respectively. When the OPD concentration increased to 0.3 mM, further increases in reaction concentration had little effect. A similar phenomenon was observed when the reaction time reached 30 min.
The stability of the peroxidase-like activity for NO2-MIL-53(Cu) was evaluated by storing NO2-MIL-53(Cu) in aqueous solution at 2–8 °C. Its peroxidase-like activity was measured for seven consecutive days. As shown in Figure S3, it was found that the activity of NO2-MIL-53(Cu) remained above 90% on the seventh day, indicating good stability.

3.4. Optimization of the Oxidase-like Activity and Laccase-like Activity for NO2-MIL-53(Cu)

Factors affecting the oxidase-like activity of NO2-MIL-53(Cu) were also investigated, including pH (ranging from 4 to 9), catalyst concentration (0, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mg/L) and reaction time (5, 10, 15, 20, 25, 30, 35, 40, 45, 50 min). As shown in Figure S4a, NO2-MIL-53(Cu) exhibited high catalytic efficiency at pH values ranging from 7 to 8.5. With respect to reaction time, the absorbance of oxidized OPD increased with increasing reaction time and reached an appropriate UV measure range at 30 min (as shown in Figure S4b). Regarding the effect of catalyst concentration, the background absorbance from the catalyst should be taken into account. As shown in Figure S4c, the oxidase-like activity of NO2-MIL-53(Cu) reached stable when the catalyst concentration was up to 40 mg/L, since the differential value of absorbance tended to be constant at this concentration.
In addition, we studied the effect of pH on the laccase-like activity of NO2-MIL-53(Cu). As shown in Figure S4d, NO2-MIL-53(Cu) exhibited the highest catalytic activity at pH 6.8, which was similar to natural laccase.
Nanomaterials with oxidase-like activity have been widely used for biosensors (such as the detection of metal ions and reducing substances), antibacterial and environmental protection [29,30,31]. As a green catalyst, nanomaterials with laccase-like activity have broad application prospects in environmental pollutant removal and environmental remediation [32,33]. In addition, laccase can also be used in biosensors (especially the detection of epinephrine), the food industry, and the paper industry [34,35,36]. Benefit from the synergistic effect of nanomaterials with multi-enzyme activity; they are also widely used in disease treatments. For example, Fe3O4/Ag/Bi2MoO6 nanoparticles with multiple-enzyme mimic activities are designed for multimodal imaging-guided chemical/photodynamic/photothermal therapy of tumors [37]. All of these examples have promised the great potential of NO2-MIL-53(Cu) in various fields.

3.5. Colorimetric Detection of H2O2 and Glucose

Based on the peroxidase-like activity of the NO2-MIL-53(Cu), we established a NO2-MIL-53(Cu)/OPD sensing system for colorimetric detection of H2O2. As shown in Figure 6, the color of the reaction solution gradually turned yellow upon the addition of H2O2 to MIL-53(Cu)/OPD. It was shown that the absorption intensity at 420 nm of the oxidized OPD increased sharply with increasing concentration of H2O2. A good linear relationship was found between the absorbance and H2O2 concentrations ranging from 1 to 800 μM (R2 = 0.9964). The limit of detection(LOD) for H2O2 was calculated as 0.69 μM (S/N = 3).
As well known, glucose can be hydrolyzed by glucose oxidase(GOx) to produce H2O2 [38]. Therefore, a colorimetric platform can be achieved for glucose detection via the cascading reactions of NO2-MIL-53(Cu) and GOx. As shown in Figure S5, even in the incubation system of OPD/NO2-MIL-53(Cu), there was a weak absorption around 420 nm due to the inherent oxidase-like activity of NO2-MIL-53(Cu). This result is consistent with Figure 4a. When GOx or glucose was added separately, little change in this peak was observed. For the system containing GOx and glucose together, a significant increase in this peak can be observed. These results confirm that H2O2 is only produced when GOx is co-incubated with glucose, which in turn causes a peroxidase-like catalytic reaction.
Based on this, the absorbance at 420 nm increased with increasing glucose concentration (as shown in Figure 7a). Additionally, the inset image showed that the yellow color of the reaction system became darker with increasing glucose concentration. Figure 7b showed a good linear relationship between the glucose concentrations and the absorbance in the range of 0.5 μM to 300 μM (R2 = 0.9928), with a LOD of 2.6 μM (S/N = 3). This result is sufficient for the routine health screening of glucose in body fluids. Compared with previous reports, the performance of NO2-MIL-53(Cu) is also considerable (Table S1).
In order to evaluate the feasibility of the established platform for glucose detection, the effects of other sugars (sucrose, maltose, lactose, etc.) and common biochemical species in body fluids (amino acids, metal ions, ascorbic acid, etc.) were studied on the detection system. As shown in Figure S6, only the addition of the glucose triggered a significant chromogenic reaction, while the effect of other targets was negligible. These results demonstrated that the method has good selectivity for the detection of glucose.

4. Conclusions

In conclusion, we synthesized a nitro-functionalized MOF using hydrothermal methods. The synthesized NO2-MIL-53(Cu) demonstrated peroxidase-like, oxidase-like, and laccase-like catalytic activity. The effects of reaction conditions were discussed, and it was found that NO2-MIL-53(Cu) exhibited excellent peroxidase-like activity under neutral conditions. Based on this, a colorimetric sensing platform for hydrogen peroxide and glucose was constructed. Wide linear ranges could be achieved for H2O2 (1–800 μM) and glucose (0.5–300 μM), accompanied by low LODs of 0.69 μM for H2O2 and 2.6 μM for glucose, respectively. The platform exhibited good selectivity and promising potential feasibility for glucose detection in physiological environments. This work not only offered a more applicable colorimetric platform for glucose detection, but also provided guidelines for the rational design of nanozymes, especially for the materials with multi-enzyme mimetic activities.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s23146277/s1, Figure S1: UV-vis spectra and corresponding images of incubation systems with MIL-53(Cu) and NO2-MIL-53(Cu); Figure S2: UV-vis spectra and corresponding images of incubation systems in the presence of H2O2 with different enzyme-linked chromogenic substrates (a) TMB, (b) ABTS, (c) OPD; Figure S3: Peroxidase-like activity of NO2-MIL-53(Cu) during seven-day storing; Figure S4: Effects of (a) pH, (b) reaction time, (c) catalyst concentration on the oxidase-like activity of NO2-MIL-53(Cu). And (d) Effects of pH to the laccase-like activity of NO2-MIL-53(Cu); Figure S5: UV-vis spectra of different incubation systems in glucose detection; Figure S6: Effects of various common species towards glucose detection; Table S1: Comparison of various MOFs-based colorimetric detection platform for glucose detection. From refs. [39,40,41,42,43,44,45].

Author Contributions

Conceptualization, S.L.; methodology, S.L. and Y.W. (Ya Wang); validation, Y.W. (Ya Wang); investigation, Y.W. (Ya Wang) and Y.W. (Yuanhua Wei); data curation, Y.W. (Ya Wang); writing—original draft preparation, Y.W. (Ya Wang) and Y.W. (Yuanhua Wei); writing—review and editing, S.L. and G.H.; supervision, G.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Scientific Research Foundation of Chongqing University of Technology (2020ZDZ019).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ashrafi, A.M.; Bytesnikova, Z.; Barek, J.; Richtera, L.; Adam, V. A critical comparison of natural enzymes and nanozymes in biosensing and bioassays. Biosens. Bioelectron. 2021, 192, 113494. [Google Scholar] [CrossRef] [PubMed]
  2. Li, S.; Liu, X.; Chai, H.; Huang, Y. Recent advances in the construction and analytical applications of metal-organic frameworks-based nanozymes. TrAC Trend. Anal. Chem. 2018, 105, 391–403. [Google Scholar] [CrossRef]
  3. Huang, Y.; Ren, J.; Qu, X. Nanozymes: Classification, catalytic Mechanisms, activity regulation, and applications. Chem. Rev. 2019, 119, 4357–4412. [Google Scholar] [CrossRef]
  4. Gao, L.; Zhuang, J.; Nie, L.; Zhang, J.; Zhang, Y.; Gu, N.; Wang, T.; Feng, J.; Yang, D.; Perrett, S.; et al. Intrinsic peroxidase-like activity of ferromagnetic nanoparticles. Nat. Nanotechnol. 2007, 2, 577–583. [Google Scholar] [CrossRef]
  5. Xie, J.; Zhang, X.; Wang, H.; Zheng, H.; Huang, Y. Analytical and environmental applications of nanoparticles as enzyme mimetics. TrAC Trend. Anal. Chem. 2012, 39, 114–129. [Google Scholar] [CrossRef]
  6. Li, L.; Liu, X.; Zhu, R.; Wang, B.; Yang, J.; Xu, F.; Ramaswamy, S.; Zhang, X. Fe3+-doped aminated lignin as peroxidase-mimicking nanozymes for rapid and durable colorimetric detection of H2O2. ACS Sustain. Chem. Eng. 2021, 9, 12833–12843. [Google Scholar] [CrossRef]
  7. Zhu, Q.; Yang, J.; Peng, Z.; He, Z.; Chen, W.; Tang, H.; Li, Y. Selective detection of glutathione by flower-like NiV2O6 with only peroxidase-like activity at neutral pH. Talanta 2021, 234, 122645. [Google Scholar] [CrossRef]
  8. Sheng, J.; Wu, Y.; Ding, H.; Feng, K.; Shen, Y.; Zhang, Y.; Gu, N. Multienzyme-like nanozymes: Regulation, rational design, and application. Adv. Mater. 2023, e2211210. [Google Scholar] [CrossRef]
  9. Singh, N.; Geethika, M.; Eswarappa, S.M.; Mugesh, G. Manganese-based nanozymes: Multienzyme redox activity and effect on the nitric oxide produced by endothelial nitric oxide synthase. Chem. Eur. J. 2018, 24, 8393–8403. [Google Scholar] [CrossRef]
  10. Lu, M.; Wang, C.; Ding, Y.; Peng, M.; Zhang, W.; Li, K.; Wei, W.; Lin, Y. Fe-N/C single-atom catalysts exhibiting multienzyme activity and ROS scavenging ability in cells. Chem. Commun. 2019, 55, 14534–14537. [Google Scholar] [CrossRef]
  11. Liu, X.; Yan, L.; Ren, H.; Cai, Y.; Liu, C.; Zeng, L.; Guo, J.; Liu, A. Facile synthesis of magnetic hierarchical flower-like Co3O4 spheres: Mechanism, excellent tetra-enzyme mimics and their colorimetric biosensing applications. Biosens. Bioelectron. 2020, 165, 112342. [Google Scholar] [CrossRef] [PubMed]
  12. Li, H.; Wang, T.; Wang, Y.; Wang, S.; Su, P.; Yang, Y. Intrinsic triple-enzyme mimetic activity of V6O13 nanotextiles: Mechanism investigation and colorimetric and fluorescent detections. Ind. Eng. Chem. Res. 2018, 57, 2416–2425. [Google Scholar] [CrossRef]
  13. Adeel, M.; Asif, K.; Rahman, M.M.; Daniele, S.; Canzonieri, V.; Rizzolio, F. Glucose detection devices and methods based on metal-organic frameworks and related materials. Adv. Funct. Mater. 2021, 31, 2106023. [Google Scholar] [CrossRef]
  14. Sun, Y.; Li, Y.; Wang, N.; Xu, Q.Q.; Xu, L.; Lin, M. Copper-based metal-organic framework for non-enzymatic electrochemical detection of glucose. Electroanalysis 2018, 30, 474–478. [Google Scholar] [CrossRef] [Green Version]
  15. Cao, X.; Guo, Y.; Zhao, M.; Li, J.; Wang, C.; Xia, J.; Zou, T.; Wang, Z. An efficient multi-enzyme cascade platform based on mesoporous metal-organic frameworks for the detection of organophosphorus and glucose. Food. Chem. 2022, 381, 132282. [Google Scholar] [CrossRef]
  16. Mergenthaler, P.; Lindauer, U.; Dienel, G.A.; Meisel, A. Sugar for the brain: The role of glucose in physiological and pathological brain function. Trend. Neurosci. 2013, 36, 587–597. [Google Scholar] [CrossRef] [Green Version]
  17. Association, A.D. Diagnosis and Classification of Diabetes Mellitus. Diabetes Care 2009, 32 (Suppl. S1), S62–S67. [Google Scholar] [CrossRef] [Green Version]
  18. Fernandes, G.M.; Silva, W.R.; Barreto, D.N.; Lamarca, R.S.; Gomes, P.C.F.L.; Petruci, J.F.S.; Batista, A.D. Novel approaches for colorimetric measurements in analytical chemistry—A review. Anal. Chem. Acta 2020, 1135, 187–203. [Google Scholar] [CrossRef]
  19. Lin, L.; Song, X.; Chen, Y.; Rong, M.; Zhao, T.; Wang, Y.; Jiang, Y.; Chen, X. Intrinsic peroxidase-like catalytic activity of nitrogen-doped graphene quantum dots and their application in the colorimetric detection of H2O2 and glucose. Anal. Chem. Acta 2015, 869, 89–95. [Google Scholar] [CrossRef]
  20. Liu, X.; Mei, X.; Yang, J.; Li, Y. Hydrogel-involved colorimetric platforms based on layered double oxide nanozymes for point-of-care detection of liver-related biomarkers. ACS Appl. Mater. Interfaces 2022, 14, 6985–6993. [Google Scholar] [CrossRef]
  21. Lin, L.; Li, H.; Gu, H.; Sun, Z.; Huang, J.; Qian, Z.; Li, H.; Liu, J.; Xi, H.; Wu, P.; et al. Asymmetrically coordinated single-atom iron nanozymes with Fe-N1C2 structure: A peroxidase mimetic for melatonin detection. Nano Res. 2022, 16, 4751–4757. [Google Scholar] [CrossRef]
  22. Li, Z.; Zhan, D.; Saeed, A.; Zhao, N.; Wang, J.; Xu, W.; Liu, J. Fluoride sensing performance of fluorescent NH2-MIL-53(Al): 2D nanosheets vs. 3D bulk. Dalton Trans. 2021, 50, 8540–8548. [Google Scholar] [CrossRef]
  23. Wu, J.; Wang, Z.; Jin, X.; Zhang, S.; Li, T.; Zhang, Y.; Xing, H.; Yu, Y.; Zhang, H.; Gao, X.; et al. Hammett relationship in oxidase-mimicking metal-organic frameworks revealed through a protein-engineering-inspired strategy. Adv. Mater. 2021, 33, e2005024. [Google Scholar] [CrossRef] [PubMed]
  24. Sánchez-Sánchez, M.; Getachew, N.; Díaz, K.; Díaz-García, M.; Chebude, Y.; Díaz, I. Synthesis of metal-organic frameworks in water at room temperature: Salts as linker sources. Green Chem. 2015, 17, 1500–1509. [Google Scholar] [CrossRef]
  25. Lu, T.; Zhang, L.; Sun, M.; Deng, D.; Su, Y.; Lv, Y. Amino-functionalized metal-organic frameworks nanoplates-based energy transfer probe for highly selective fluorescence detection of free chlorine. Anal. Chem. 2016, 88, 3413–3420. [Google Scholar] [CrossRef] [PubMed]
  26. Anbia, M.; Sheykhi, S. Preparation of multi-walled carbon nanotube incorporated MIL-53-Cu composite metal-organic framework with enhanced methane sorption. J. Ind. Eng. Chem. 2013, 19, 1583–1586. [Google Scholar] [CrossRef]
  27. Ren, Y.; Shi, M.; Zhang, W.; Dionysiou, D.D.; Lu, J.; Shan, C.; Zhang, Y.; Lv, L.; Pan, B. Enhancing the fenton-like catalytic activity of nFe2O3 by MIL-53(Cu) support: A mechanistic investigation. Environ. Sci. Technol. 2020, 54, 5258–5267. [Google Scholar] [CrossRef]
  28. Zhou, H.; Zhang, L.; Wang, G.; Zhang, Y.; Wang, X.; Li, M.; Fan, F.; Li, Y.; Wang, T.; Zhang, X.; et al. Fabrication of 2D metal-organic framework nanosheets with highly colloidal stability and high yield through coordination modulation. ACS Appl. Mater. Interfaces 2021, 13, 39755–39762. [Google Scholar] [CrossRef]
  29. Zhao, Y.; Wang, Y.; Mathur, A.; Wang, Y.; Maheshwari, V.; Su, H.; Liu, J. Fluoride-capped nanoceria as a highly efficient oxidase-mimicking nanozyme: Inhibiting product adsorption and increasing oxygen vacancies. Nanoscale 2019, 11, 17841–17850. [Google Scholar] [CrossRef]
  30. Cai, T.; Fang, G.; Tian, X.; Yin, J.-J.; Chen, C.; Ge, C. Optimization ofantibacterial efficacy of noble-metal-basedcore-shell nanostructures and effect of natural organic matter. ACS Nano 2019, 13, 12694–12702. [Google Scholar] [CrossRef]
  31. Li, S.; Hou, Y.; Chen, Q.; Zhang, X.; Cao, H.; Huang, Y. Promoting active sites in MOF-derived homobimetallic hollow nanocages as a high-performance multifunctiona nanozyme catalyst for biosensing and organic pollutant degradation. ACS Appl. Mater. Interfaces 2020, 12, 2581–2590. [Google Scholar] [CrossRef]
  32. Wang, Z.; Ren, D.; Zhao, Y.; Huang, C.; Zhang, S.; Zhang, X.; Kang, C.; Deng, Z.; Guo, H. Remediation and improvement of 2,4-dichlorophenol contaminated soil by biochar-immobilized laccase. Environ. Technol. 2021, 42, 1679–1692. [Google Scholar] [CrossRef] [PubMed]
  33. Wong, J.K.H.; Tan, H.K.; Lau, S.Y.; Yap, P.-S.; Danquah, M.K. Potential and challenges of enzyme incorporated nanotechnology in dye wastewater treatment: A review. J. Environ. Chem. Eng. 2019, 7, 103261. [Google Scholar] [CrossRef]
  34. Ma, H.; Zheng, N.; Chen, Y.; Jiang, L. Laccase-like catalytic activity of Cu-tannic acid nanohybrids and their application for epinephrine detection. Colloid Surf. A 2021, 613, 126105. [Google Scholar] [CrossRef]
  35. Mayolo-Deloisa, K.; Gonzalez-Gonzalez, M.; Rito-Palomares, M. Laccases in food industry: Bioprocessing, potential industrial and biotechnological applications. Front. Bioeng. Biotechnol. 2020, 8, 222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Singh, G.; Arya, S.K. Utility of laccase in pulp and paper industry: A progressive step towards the green technology. Int. J. Biol. Macromol. 2019, 134, 1070–1084. [Google Scholar] [CrossRef] [PubMed]
  37. Cao, C.; Zou, H.; Yang, N.; Li, H.; Cai, Y.; Song, X.; Shao, J.; Chen, P.; Mou, X.; Wang, W.; et al. Fe3O4/Ag/Bi2MoO6 photoactivatable nanozyme for self-replenishing and sustainable cascaded nanocatalytic cancer therapy. Adv. Mater. 2021, 33, 2106996. [Google Scholar] [CrossRef]
  38. Wei, H.; Wang, E. Fe3O4 magnetic nanoparticles as peroxidase mimetics and their applications in H2O2 and glucose detection. Anal. Chem. 2008, 80, 2250–2254. [Google Scholar] [CrossRef]
  39. Zhao, Z.; Pang, J.; Liu, W.; Lin, T.; Ye, F.; Zhao, S. A bifunctional metal organic framework of type Fe(III)-BTC for cascade (enzymatic and enzyme-mimicking) colorimetric determination of glucose. Microchim. Acta 2019, 186, 295. [Google Scholar] [CrossRef]
  40. Liu, F.; He, J.; Zeng, M.; Hao, J.; Guo, Q.; Song, Y.; Wang, L. Cu-hemin metal-organic frameworks with peroxidase-like activity as peroxidase mimics for colorimetric sensing of glucose. J. Nanopart. Res. 2016, 18, 106. [Google Scholar] [CrossRef]
  41. Hou, C.; Wang, Y.; Ding, Q.; Jiang, L.; Li, M.; Zhu, W.; Pan, D.; Zhu, H.; Liu, M. Facile synthesis of enzyme-embedded magnetic metal-organic frameworks as a reusable mimic multi-enzyme system: Mimetic peroxidase properties and colorimetric sensor. Nanoscale 2015, 7, 18770–18779. [Google Scholar] [CrossRef] [Green Version]
  42. Aghayan, M.; Mahmoudi, A.; Nazari, K.; Dehghanpour, S.; Sohrabi, S.; Sazegar, M.R.; Mohammadian-Tabrizi, N. Fe(III) porphyrin metal-organic framework as an artificial enzyme mimics and its application in biosensing of glucose and H2O2. J. Porous Mater. 2019, 26, 1507–1521. [Google Scholar] [CrossRef]
  43. Cheng, X.; Zheng, Z.; Zhou, X.; Kuang, Q. Metal-organic framework as a compartmentalized integrated nanozyme reactor to enable high-performance cascade reactions for glucose detection. ACS Sustain. Chem. Eng. 2020, 8, 17783–17790. [Google Scholar] [CrossRef]
  44. Li, J.; Zhao, J.; Li, S.; Chen, Y.; Lv, W.; Zhang, J.; Zhang, L.; Zhang, Z.; Lu, X. Synergistic effect enhances the peroxidase-like activity in platinum nanoparticle-supported metal-organic framework hybrid nanozymes for ultrasensitive detection of glucose. Nano Res. 2021, 14, 4689–4695. [Google Scholar] [CrossRef]
  45. Ortiz-Gómez, I.; Salinas-Castillo, A.; García, A.G.; Álvarez-Bermejo, J.A.; de Orbe-Payá, I.; Rodríguez-Diéguez, A.; Capitán-Vallvey, L.F. Microfluidic paper-based device for colorimetric determination of glucose based on a metal-organic framework acting as peroxidase mimetic. Microchim. Acta 2018, 185, 47. [Google Scholar] [CrossRef] [PubMed]
Sensors 23 06277 g001 550

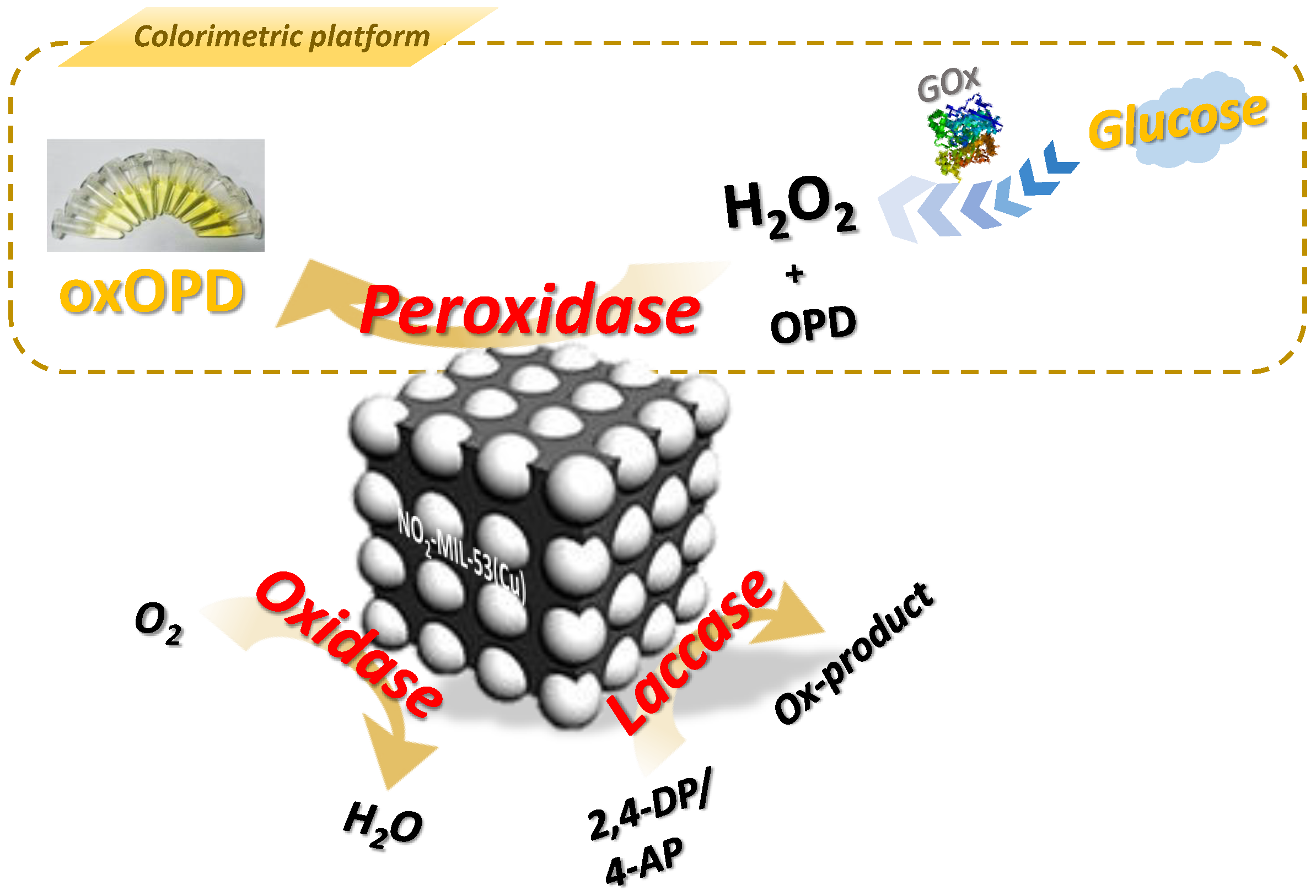

Figure 1. Triple-enzyme mimetic activities of NO2-MIL-53(Cu) and corresponding colorimetric platform for glucose detection via cascade reaction of GOx and its peroxidase-like activity.
Figure 1. Triple-enzyme mimetic activities of NO2-MIL-53(Cu) and corresponding colorimetric platform for glucose detection via cascade reaction of GOx and its peroxidase-like activity.
Sensors 23 06277 g001
Sensors 23 06277 g002 550
Figure 2. SEM images of (a) NO2-MIL-53(Cu), (b) MIL-53(Cu).
Figure 2. SEM images of (a) NO2-MIL-53(Cu), (b) MIL-53(Cu).
Sensors 23 06277 g002
Sensors 23 06277 g003 550

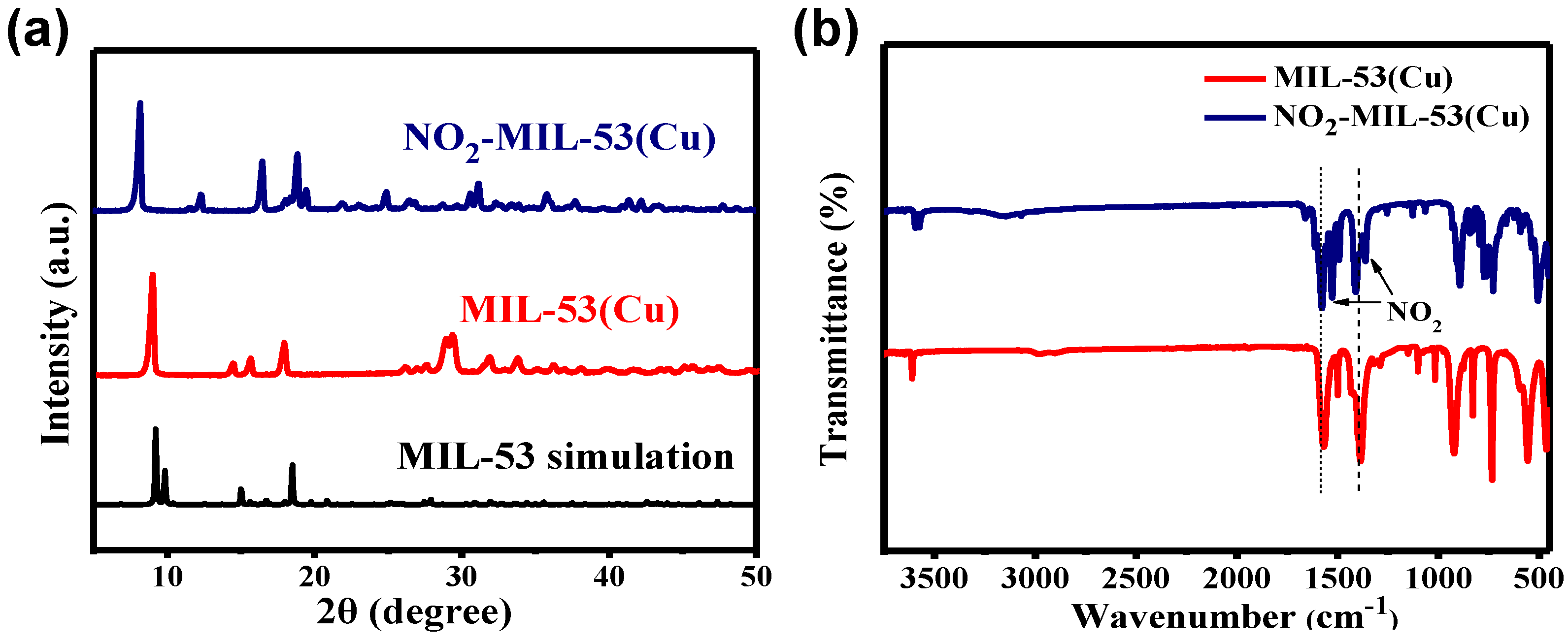

Figure 3. XRD patterns (a) and FT-IR (b) of NO2-MIL-53(Cu) and MIL-53(Cu).
