Performance Analysis of IRS-Assisted THz Communication Systems over α-μ Fading Channels with Pointing Errors

Abstract

In this paper, we analyze the performance of an intelligent reflecting surface (IRS)-aided terahertz (THz) wireless communication system with pointing errors. Specifically, we derive closed-form analytical expressions for the upper bounded ergodic capacity and approximate expression of the outage probability. We adopt an $\alpha$-$\mu$ fading channel model for our analysis that is experimentally demonstrated to be a good fit for THz small-scale fading statistics, especially in indoor communication scenarios. In the proposed analysis, the statistical distribution of the $\alpha$-$\mu$ fading channel is used to derive analytical expressions for the ergodic capacity and outage probability. Our proposed analysis considers not only the IRS reflected channels, but also the direct channel between the communication nodes. The results of the derived analytical expressions are validated through Monte Carlo simulations. Through simulations, it has been noticed that pointing errors degrade the performance of the IRS-assisted THz wireless communication system which can be compensated by deploying an IRS having a large number of reflecting elements.

1. Introduction

It is expected that 6G networks will achieve exceptionally higher performance in terms of data rate, latency, connectivity, reliability and security compared to presently available 5G networks [1]. For this purpose, several enabling technologies have been identified in the recent literature for 6G systems. One such promising technology is the intelligent reflecting surface (IRS), which can enable a smart and programmable wireless propagation environment [2]. In general, an IRS is made up of a 2D metasurface which consists of a large number of passive reflective elements. These elements induce a phase shift on the incident signal and reflect it accordingly, i.e., either to improve the signal strength of users or null out specific users [3].

Numerous studies have statistically characterized various performance metrics in THz wireless communication systems. As the THz wireless link depends heavily on the line-of-sight (LoS) component of the received signal, the channel modeling was mostly dominated by large-scale fading phenomena such as deterministic path loss and shadowing [4]. However, recent measurement campaigns have also observed small-scale fading phenomenon in THz links due to the presence of non-line-of-sight (NLoS) links.

The majority of the existing work on the performance analysis of IRS-assisted single-input single-output (SISO) links have modeled small-scale fading statistics using Rayleigh [5], Rician [6] and Nakagami-m [7] distributions. For THz communications, it has recently been demonstrated through measurements in different scenarios that the $\alpha$-$\mu$ fading model yields a good fit to THz small-scale fading statistics, which is justified by the Kolmogorov–Smirnov test [4]. In addition to the $\alpha$-$\mu$ fading model, the fluctuating two-ray (FTR) model has also been shown to accurately model the small-scale fading statistics of THz links. However, for the modeling of indoor THz communication scenarios, the $\alpha$-$\mu$ fading model has been shown to be more precise [4]. Furthermore, unlike FTR model distribution, the $\alpha$-$\mu$ fading distribution is analytically tractable. There are few studies [8,9] which have carried out a performance analysis of a THz communication system over $\alpha$-$\mu$ fading channels. Moreover, the work on the performance characterization of IRS-assisted THz wireless links over $\alpha$-$\mu$ fading channels is far more scarce. For instance, in [10], the authors derive expressions for the outage probability, ergodic capacity and average bit-error-rate (BER) for the IRS-assisted THz system. The performance analysis carried out in [10] considers IRS-assisted links where the direct link is absent.

In this paper, we present a performance analysis of an IRS-assisted THz wireless communication system over $\alpha$-$\mu$ fading channels. Unlike [10], we consider both IRS-assisted and direct links in our analysis and derive closed-form upper bounded ergodic capacity and outage probability expressions. It is important to mention that by considering the direct path, obtaining the exact analysis becomes a non-trivial task due to the coupling between the channels of direct and IRS-assisted links. The expression derived for the outage probability is expressed in terms of Fox’s H-function. The proposed ergodic capacity expression provides a tight upper bound with moderate and large numbers of IRS reflective elements.

2. System and Channel Models

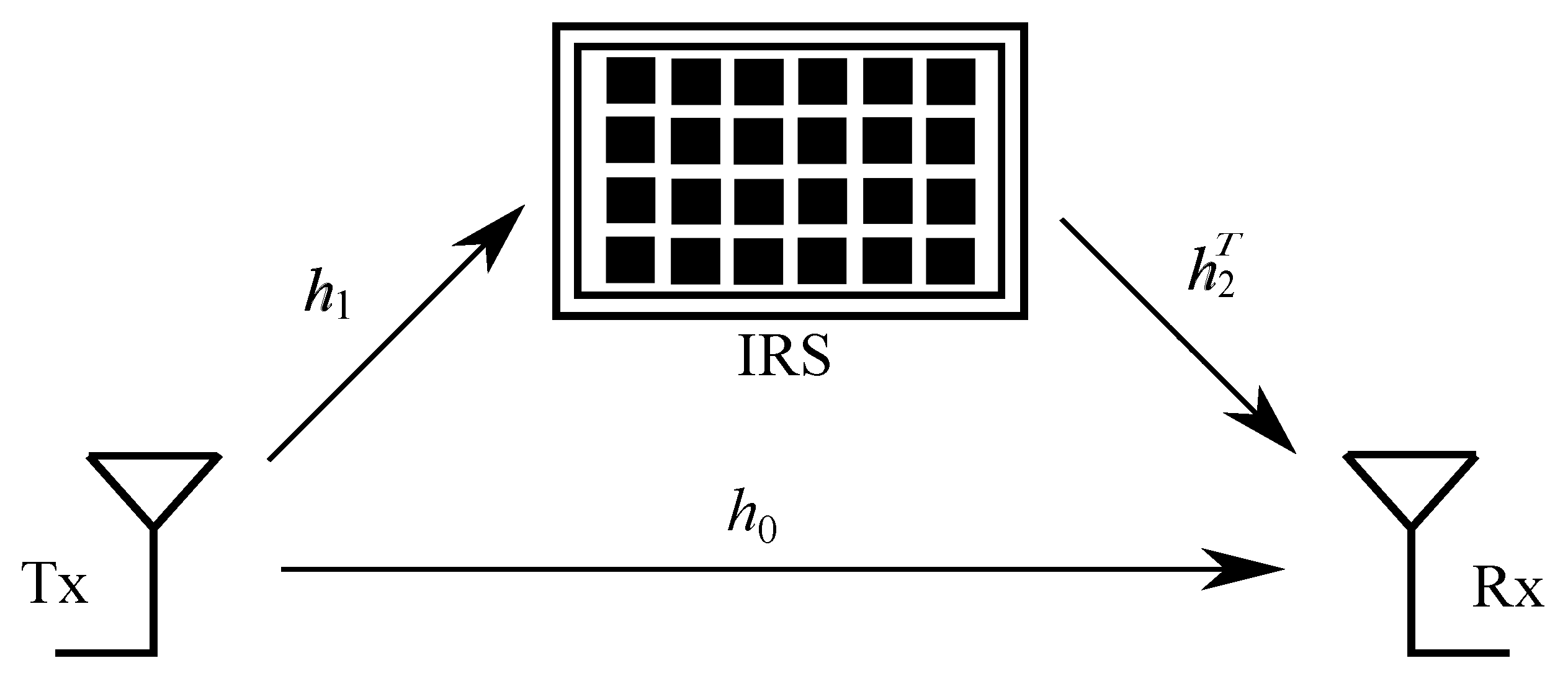

Consider an IRS-aided wireless communication system consisting of a transmitter (Tx), receiver (Rx) and IRS, as shown in Figure 1. It is assumed that the Tx and Rx are equipped with a single antenna each. The total number of reflecting elements in the IRS is represented by N. Let $d_i$, i∈$\left\{0,1,2\right\}$ represent the distances of the Tx–Rx, Tx–IRS and IRS–Rx links, respectively. The Rx receives the signals from the Tx–Rx and Tx–IRS–Rx links, and therefore the received signal at the Rx can be written as

$$\begin{array}{c}\hfill r_1=\sqrt{P}{H}_1{H}_2\left({\mathit{h}}_2^T\mathbf{\Phi }{\mathit{h}}_1\right)s+\sqrt{P}{H}_0{h}_{0}s+n,\end{array}$$

(1)

The received signal at the Rx in case of pointing errors can be written as

$$\begin{array}{c}\hfill r_2=\sqrt{P}{H}_1{H}_2\left({\mathit{h}}_{p2}^T\Theta {\mathit{h}}_{p1}\right)s+\sqrt{P}{H}_0{h}_{p0}s+n,\end{array}$$

(2)

where P denotes the total transmit power at the Tx, s represents the transmitted signal with unit energy and n is a zero mean additive white Gaussian noise (AWGN) at the Rx with the power spectral density denoted by $N_0$ (Watts/Hz). The deterministic path gain coefficient $H_i$ captures the effect of the distance, antenna gains, carrier frequency and molecular absorption coefficient for the ith link. Meanwhile, the variables $h_{pi}$ and $h_i$ model the small-scale fading for the ith link with and without pointing error, respectively, according to the $\alpha$-$\mu$ fading distribution. It may be noted that ${\mathit{h}}_{pj}$ and ${\mathit{h}}_j$, where j∈$\left\{1,2\right\}$, are $N\times 1$ channel vectors with and without pointing errors, respectively. For example, ${\mathit{h}}_1$ and ${\mathit{h}}_2$ denote the channels of the Tx–IRS and IRS–Rx links, respectively, without pointing errors. The phase-shift matrix of size $N\times N$ is given by $\mathbf{\Phi }\triangleq diag\left\{\mathit{\varphi }\right\}$ with $\mathit{\varphi }={\left[e^{j{\varphi }_1},e^{j{\varphi }_2},\dots ,e^{j{\varphi }_N}\right]}^T$, where ${\varphi }_n\in [0,2\pi )$ represents the phase of the nth element in the IRS.

The phase shifts at the IRS are controlled by the Tx through a wired/wireless link between the Tx and IRS microcontroller. There are few studies that exploit dual-polarized IRS design [11,12]; however, in this work we assume a single-polarized IRS. Furthermore, assuming perfect channel state information (CSI) at the Tx and considering the optimal phase-shift matrix $\mathbf{\Phi }$ [6], the maximum SNR of the system can be expressed as

$$\begin{array}{cc}\hfill {\gamma }_{max}& =\frac{P|H_1{|}^2{\left|H_2\right|}^2}{N_0}{\left(\sum _{n=1}^N|h_{2,n}\left|\right|h_{1,n}|+|H\left|\right|h_0|\right)}^2\hfill \\ \hfill & =\stackrel{0}{\gamma }{\left(\sum _{n=1}^N|h_{2,n}\left|\right|h_{1,n}|+H|h_0|\right)}^2,\hfill \end{array}$$

(3)

where $\stackrel{0}{\gamma }=\frac{P|H_1{|}^2{\left|H_2\right|}^2}{N_0}$ is the SNR and $H=\frac{|H_0|}{|H_1\left|\right|H_2|}$.

2.1. Deterministic Path Loss Model

The path gain coefficients for the Tx–Rx, Tx–IRS and IRS–Rx links can be written as [8,13]

$$\begin{array}{c}\hfill H_0=\frac{c\sqrt{G_t{G}_r}}{4\pi f{d}_0}exp\left(-0.5k\left(f,T,\psi ,p\right)d_0\right),\end{array}$$

(4)

$$\begin{array}{c}\hfill H_1=\frac{c\sqrt{G_t{N}^2}}{4\pi f{d}_1}exp\left(-0.5k\left(f,T,\psi ,p\right)d_1\right),\end{array}$$

(5)

$$\begin{array}{c}\hfill H_2=\frac{c\sqrt{N^2{G}_r}}{4\pi f{d}_2}exp\left(-0.5k\left(f,T,\psi ,p\right)d_2\right),\end{array}$$

(6)

where c denotes the velocity of light and f is the carrier frequency. $G_t$ and $G_r$ represent the antenna gains at the Tx and Rx, respectively. The term $k\left(f,T,\psi ,p\right)$ is known as the molecular absorption coefficient, which depends on frequency f, temperature T, relative humidity $\psi$ and atmospheric pressure p. This term can be expressed as [8]

$$\begin{array}{cc}\hfill k\left(f,T,\psi ,p\right)& =\frac{q_1\nu \left(q_2\nu +q_3\right)}{{\left(q_4\nu +q_5\right)}^2+{\left(\frac{f}{100c}-p_1\right)}^2}\hfill \\ \hfill & +\frac{q_6\nu \left(q_7\nu +q_8\right)}{{\left(q_9\nu +q_{10}\right)}^2+{\left(\frac{f}{100c}-p_2\right)}^2}\hfill \\ \hfill & +c_1{f}^3+c_2{f}^2+c_{3}f+c_4,\hfill \end{array}$$

(7)

where $\nu =\frac{p_w\left(T,p\right)}{p}$ and $p_w\left(T,p\right)$ denotes the saturated water vapour partial pressure and can be evaluated based on Buck’s equation [8,13]. The model presented in (7) was shown to have great accuracy for up to one kilometer (Km) links in standard atmospheric conditions, i.e., $T=296$ ${\mathrm{K}}^{\circ }$, $p=\mathrm{101,325}$ Pa and $\psi =0.5$ [13]. The rest of the values in (7) can be found in ([8], Table 2). Then, $p_w\left(T,p\right)$ can be evaluated as [13]

$$\begin{array}{c}\hfill p_w\left(T,p\right)=w_1\left(w_2+w_{3}p\right)exp\left(\frac{w_4\left(T-w_5\right)}{T-w_6}\right),\end{array}$$

(8)

where $w_1=6.1121$, $w_2=1.0007$, $w_3=3.46\times {10}^{-8}$ 1/Pa, $w_4=17.502$ ${\mathrm{K}}^{\circ }$, $w_5=273.15$ ${\mathrm{K}}^{\circ }$ and $w_6=32.18$ ${\mathrm{K}}^{\circ }$.

2.2. Fading Channel Model

Let $h_i$ model the $\alpha$-$\mu$ distributed independent but not necessarily identically distributed (i.n.i.d) flat-fading for the ith links. Then, the PDF of $h_i$ is given as [14]

$$\begin{array}{c}\hfill f_{h_i}\left(h_i\right)=\frac{{\alpha }_i{\mu }_i^{{\mu }_i}{h}_i^{{\alpha }_i{\mu }_i-1}}{{\widehat{h_i}}^{{\alpha }_i{\mu }_i}\Gamma \left({\mu }_i\right)}exp\left(-{\mu }_i\frac{h_i^{{\alpha }_i}}{{\widehat{h_i}}^{{\alpha }_i}}\right),h_i\ge 0\end{array}$$

(9)

where $\Gamma \left(·\right)$ is the Gamma function [15] and $\widehat{h_i}=\sqrt[{\alpha }_i]{E\left\{h_i^{{\alpha }_i}\right\}}$ is the ${\alpha }_i$-root mean value. It may be noted that ${\widehat{h_i}}^{{\alpha }_i}={\mu }_i{\left(\frac{{\Omega }_i}{{\xi }_i}\right)}^{\frac{{\alpha }_i}{2}}$ ensures $E\left\{\right|h_i{|}^2\}={\Omega }_i$, wherein ${\xi }_i=\frac{\Gamma \left({\mu }_i+\frac{2}{{\alpha }_i}\right)}{\Gamma \left({\mu }_i\right)}$. Furthermore, $|h_i{|}^{{\alpha }_i}\sim \mathcal{G}\left({\mu }_i,\frac{{\widehat{h_i}}^{{\alpha }_i}}{{\mu }_i}\right)$ is a Gamma distributed random variable, $E\left\{\right|h_i\left|\right\}=\frac{\Gamma \left({\mu }_i+\frac{1}{{\alpha }_i}\right)}{\Gamma \left({\mu }_i\right)}\sqrt{\frac{{\Omega }_i}{{\xi }_i}}$ and VAR$\left\{\right|h_i\left|\right\}={\Omega }_i\left\{1-\frac{1}{{\xi }_i}{\left(\frac{\Gamma \left({\mu }_i+\frac{1}{{\alpha }_i}\right)}{\Gamma \left({\mu }_i\right)}\right)}^2\right\}$.

The CDF of $h_i$ [14], Equation (8) can be written using the identity [15] Equation (8.356.3) as

$$\begin{array}{c}\hfill F_{h_i}\left(h_i\right)=1-\frac{1}{\Gamma \left({\mu }_i\right)}\Gamma \left({\mu }_i,\frac{{\mu }_i}{{\widehat{h_i}}^{{\alpha }_i}}{h}_i^{{\alpha }_i}\right),\end{array}$$

(10)

where $\Gamma \left(·,·\right)$ is the upper incomplete gamma function [15], Equation (8.350.2).

Let $y_i={\left|h_i\right|}^2$ represent the gain of the fading channel for the ith link, then the PDF of $y_i$ can be written as

$$\begin{array}{c}\hfill f_{y_i}\left(y_i\right)=\frac{{\alpha }_i{\left(\frac{{\xi }_i}{{\Omega }_i}\right)}^{\frac{{\alpha }_i{\mu }_i}{2}}}{2\Gamma \left({\mu }_i\right)}{y}_i^{\frac{{\alpha }_i{\mu }_i}{2}-1}exp\left(-{\left(\frac{{\xi }_i{y}_i}{{\Omega }_i}\right)}^{\frac{{\alpha }_i}{2}}\right).y_i\ge 0\end{array}$$

(11)

The PDF of the fading variable $h_{pi}$ caused by pointing errors at the three links can be written as [8] Equation (4)

$$\begin{array}{c}\hfill f_{h_{pi}}\left(x\right)=\frac{{\varphi }_i}{S_i^{{\varphi }_i}}{x}^{{\varphi }_i-1},0\le x\le S_i,\end{array}$$

(12)

where $S_i={\left|erf\left(\xi \right)\right|}^2$ represents the fraction of the collected power when Tx–Rx antennas are fully aligned. We have $\xi$ = $\sqrt{\frac{\pi }{2}}\times \frac{r_1}{w_{d1}}$, where $r_1$ is the radius of the effective area of the Rx antenna reception and $w_{d1}$ is the radius of the transmission beam footprint at a distance $d_1$. Moreover, ${\varphi }_i=\frac{w_{eq}^2}{4{\sigma }_s^2}$ is a squared ratio of the equivalent beam radius at the Rx and the variance of pointing error displacement at the Rx, where $w_{eq}^2$ = $\frac{\sqrt{\pi }{w}_{d1}^{2}erf\left(\xi \right)}{2\xi exp\left(-{\xi }^2\right)}$ is the doubled jitter standard deviation [16]. The parameter values in (12) are set according to [10].

Let $|h_{pi}|$ = $|h_p{h}_i|$ model the combined effect of short-term and pointing error fading at the corresponding links, then its PDF can be written as [8] Equation (6)

$$\begin{array}{c}\hfill f_{|h_{pi}|}\left(x\right)=\frac{{\varphi }_i{\left({\mu }_i\right)}^{\frac{{\varphi }_i}{{\alpha }_i}}{x}^{{\varphi }_i-1}}{{\left(S_i\widehat{h_i}\right)}^{{\varphi }_i}\Gamma \left({\mu }_i\right)}\Gamma \left({\mu }_i-\frac{{\varphi }_i}{{\alpha }_i},\frac{{\mu }_i{x}^{{\alpha }_i}}{{\left(S_i\widehat{h_i}\right)}^{{\alpha }_i}}\right),\end{array}$$

(13)

where $\Gamma \left(·,·\right)$ is the upper incomplete gamma function [15], Equation (8.350.2) and $E\left\{|h_{pi}|\right\}$ = $\frac{{\varphi }_i}{1+{\varphi }_i}\times \frac{S_i\widehat{h_i}}{{\mu }_i^{\frac{1}{{\alpha }_i}}}\times \frac{\Gamma \left({\mu }_i+\frac{1}{{\alpha }_i}\right)}{\Gamma \left({\mu }_i\right)}$. The CDF of $|h_{pi}|$ can be written as [16] Equation (6)

$$\begin{array}{cc}\hfill F_{|h_{pi}|}\left(x\right)& =1-\frac{{\varphi }_i{x}^{{\varphi }_i}}{{\alpha }_i{\left(S_i\widehat{h_i}\right)}^{{\varphi }_i}}\sum _{k=0}^{{\mu }_i-1}\frac{{\left({\mu }_i\right)}^{\frac{{\varphi }_i}{{\alpha }_i}}}{k!}\Gamma \left(k-\frac{{\varphi }_i}{{\alpha }_i},\frac{{\mu }_i{x}^{{\alpha }_i}}{{\left(S_i\widehat{h_i}\right)}^{{\alpha }_i}}\right).\hfill \end{array}$$

(14)

Similarly, the PDF of $|h_{pi}{|}^2$ can be expressed as

$$\begin{array}{c}\hfill f_{|h_{pi}{|}^2}\left(y\right)=\frac{{\varphi }_i{\left({\mu }_i\right)}^{\frac{{\varphi }_i}{{\alpha }_i}}{y}^{\frac{{\varphi }_i}{2}-1}}{2{\left(S_i\widehat{h_i}\right)}^{{\varphi }_i}\Gamma \left({\mu }_i\right)}\Gamma \left({\mu }_i-\frac{{\varphi }_i}{{\alpha }_i},\frac{{\mu }_i{y}^{\frac{{\alpha }_i}{2}}}{{\left(S_i\widehat{h_i}\right)}^{{\alpha }_i}}\right),\end{array}$$

(15)

with $E\left\{|h_{pi}{|}^2\right\}$ = ${\xi }_i\left(\frac{{\varphi }_i}{2+{\varphi }_i}\right){\left(\frac{S_i\widehat{h_i}}{{\mu }_i^{\frac{1}{{\alpha }_i}}}\right)}^2$.

Using these preliminary results, the performance analysis of the studied system is presented in the following section.

3. Performance Analysis

The performance analysis of the proposed IRS-based THz system is presented in this section. In particular, closed-form expressions for the upper bounded ergodic capacity and approximated outage probability are derived in this section.

We assume that perfect channel state information (CSI) is available and therefore use the optimal phase-shift matrix $\mathbf{\Phi }$ [6]. The maximum SNR of the system without pointing errors can be written using (1) as

$$\begin{array}{cc}\hfill {\gamma }_{max1}& =\frac{P|H_1{|}^2{\left|H_2\right|}^2}{N_0}{\left(\sum _{n=1}^N|h_{2,n}\left|\right|h_{1,n}|+\frac{|H_0|}{|H_1\left|\right|H_2|}\left|h_0\right|\right)}^2\hfill \\ \hfill & =\stackrel{0}{\gamma }{\left(\sum _{n=1}^N|h_{2,n}\left|\right|h_{1,n}|+H|h_0|\right)}^2,\hfill \end{array}$$

(16)

Similarly, the maximum SNR of the system considering pointing errors can be written using (2) as

$$\begin{array}{c}\hfill {\gamma }_{max2}=\stackrel{0}{\gamma }{\left(\sum _{i=1}^N|h_{p2,i}\left|\right|h_{p1,i}|+H|h_{p0}|\right)}^2,\end{array}$$

(17)

where H = $\frac{|H_0|}{|H_1\left|\right|H_2|}$ and $\stackrel{0}{\gamma }$ = $\frac{P|H_1{|}^2{\left|H_2\right|}^2}{N_0}$ is the SNR.

3.1. Capacity Analysis without Pointing Errors

A general equation for the ergodic capacity of a fading channel can be written as

$$\begin{array}{c}\hfill \overline{C}=E\left\{lo{g}_2\left(1+{\gamma }_r\right)\right\},\end{array}$$

(18)

where ${\gamma }_r$ is the received instantaneous SNR, which is given by ${\gamma }_r={\gamma }_{max1}$ in the case where there are no pointing errors. Since the PDFs of (16) and (17) are intractable, we focus on the upper bound of (18) using the well-known Jensen’s inequality, such that

$$\begin{array}{cc}\hfill & {\overline{C}}_1^{UB}=lo{g}_2\left\{1+E\left({\gamma }_{max1}\right)\right\}.\hfill \end{array}$$

(19)

Lemma 1.

Let the random variables $Z_{2,n}$, $Z_{1,n}$ and $Z_0$ denote α-μ distributed variables according to (9), related to the upper bound of the capacity ${\overline{C}}_1$ through

${\overline{C}}_1$ = $lo{g}_2\left(1+\stackrel{0}{\gamma }E{\left\{{\sum }_{n=1}^N|Z_{2,n}\left|\right|Z_{1,n}|+H|Z_0|\right\}}^2\right)$, then ${\overline{C}}_1$ can be evaluated as

$$\begin{array}{cc}\hfill {\overline{C}}_1& =lo{g}_2[1+\stackrel{0}{\gamma }\{N{\Omega }_2{\Omega }_1+N\left(N-1\right){\left(\frac{\Gamma \left({\mu }_2+\frac{1}{{\alpha }_2}\right)}{\Gamma \left({\mu }_2\right)}\right)}^2\hfill \\ \hfill & \times {\left(\frac{\Gamma \left({\mu }_1+\frac{1}{{\alpha }_1}\right)}{\Gamma \left({\mu }_1\right)}\right)}^2\frac{{\Omega }_2{\Omega }_1}{{\xi }_2{\xi }_1}+H^2{\Omega }_0+2NH\hfill \\ \hfill & \times \frac{\Gamma \left({\mu }_2+\frac{1}{{\alpha }_2}\right)\Gamma \left({\mu }_1+\frac{1}{{\alpha }_1}\right)\Gamma \left({\mu }_0+\frac{1}{{\alpha }_0}\right)}{\Gamma \left({\mu }_2\right)\Gamma \left({\mu }_1\right)\Gamma \left({\mu }_0\right)}\sqrt{\frac{{\Omega }_2{\Omega }_1{\Omega }_0}{{\xi }_2{\xi }_1{\xi }_0}}\left\}\right].\hfill \end{array}$$

(20)

The derived expression provides a tight upper bound on the ergodic capacity for sufficiently large values of N. This is due to the fact that ${\overline{C}}_1$ is dominated by the term $N^2\stackrel{0}{\gamma }{\left(\frac{\Gamma \left({\mu }_2+\frac{1}{{\alpha }_2}\right)}{\Gamma \left({\mu }_2\right)}\right)}^2{\left(\frac{\Gamma \left({\mu }_1+\frac{1}{{\alpha }_1}\right)}{\Gamma \left({\mu }_1\right)}\right)}^2\frac{{\Omega }_2{\Omega }_1}{{\xi }_2{\xi }_1}$ providing an SNR gain proportional to $N^2$. This fact clearly indicates that the IRS not only yields beamforming gain but also the inherent aperture gain.

Proof.

Please see Appendix A. □

3.2. Outage Analysis without Pointing Errors

The outage probability is defined as the probability of the received instantaneous SNR falling below the predefined threshold SNR, ${\gamma }_{th}$. Mathematically, it can be expressed as

$$\begin{array}{cc}\hfill P_{out}& :=P_r\left[{\gamma }_r<{\gamma }_{th}\right]\hfill \\ \hfill & =F_{{\gamma }_r}\left(\gamma \right){|}_{\gamma ={\gamma }_{th}},\hfill \end{array}$$

(21)

where $F_{{\gamma }_r}\left(·\right)$ is the CDF of ${\gamma }_r$.

Lemma 2.

Let the random variables considered in Lemma 1 now be related to the outage probability $P_1$ through $P_1$ = $P_r\left[{\sum }_{n=1}^N|Z_{2,n}\left|\right|Z_{1,n}|+H|Z_0|<\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}\right]$, then $P_1$ can be calculated as

$$\begin{array}{cc}\hfill P_1& =\frac{1}{2}+\frac{1}{2}erf\left(\frac{\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}-N\mu }{\sqrt{2N{\sigma }^2}}\right)\hfill \\ \hfill & -\frac{exp\left(-\frac{{\left(N\mu -\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}\right)}^2}{2N{\sigma }^2}\right)}{2\sqrt{\pi }\Gamma \left({\mu }_0\right)}\sum _{k=0}^{\infty }\frac{{\left(\sqrt{\frac{2}{N{\sigma }^2}}\left(\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}-N\mu \right)\right)}^k}{k!}\hfill \\ \hfill & \times H_{2,2}^{2,1}\left[{\mu }_0{\left(\frac{\sqrt{2N{\sigma }^2}}{H\widehat{h_0}}\right)}^{{\alpha }_0}|\begin{array}{c}\left(\frac{1}{2}\left(1-k\right),\frac{{\alpha }_0}{2}\right),\left(1,1\right)\\ \left({\mu }_0,1\right),\left(0,1\right)\end{array}\right].\hfill \end{array}$$

(22)

It is important to mention here that first 15 terms are sufficient for the convergence of summation inside the proposed expression.

Proof.

Please see Appendix B. □

3.3. Capacity Analysis with Pointing Errors

Taking advantage of the same concept as followed in Section 3.1, an upper bound of the capacity can be obtained using (17) as

$$\begin{array}{cc}\hfill {\overline{C}}_2^{UB}& =lo{g}_2\left(1+E\left\{{\gamma }_{max2}\right\}\right).\hfill \end{array}$$

(23)

Lemma 3.

Let $X_{p2,i}$, $X_{p1,i}$ and $X_{p0}$ be the random variables, distributed according to (13), related to the upper bound of capacity ${\overline{C}}_2$ through ${\overline{C}}_2$ = $lo{g}_2(1+\stackrel{0}{\gamma }E\{{\sum }_{i=1}^N|X_{p2,i}\left|\right|X_{p1,i}|$$+H|X_{p0}{\left|\right\}}^2)$, then ${\overline{C}}_2$ can be evaluated as

$$\begin{array}{cc}\hfill & {\overline{C}}_2=\hfill \\ \hfill & lo{g}_2[1+\stackrel{0}{\gamma }\{N{\xi }_2{\xi }_1\left(\frac{{\varphi }_2}{2+{\varphi }_2}\right)\left(\frac{{\varphi }_1}{2+{\varphi }_1}\right){\left(\frac{S_2\widehat{h_2}}{{\mu }_2^{\frac{1}{{\alpha }_2}}}\right)}^2{\left(\frac{S_1\widehat{h_1}}{{\mu }_1^{\frac{1}{{\alpha }_1}}}\right)}^2\hfill \\ \hfill & +N\left(N-1\right){\left(\frac{{\varphi }_2}{1+{\varphi }_2}\times \frac{S_2\widehat{h_2}}{{\mu }_2^{\frac{1}{{\alpha }_2}}}\times \frac{\Gamma \left({\mu }_2+\frac{1}{{\alpha }_2}\right)}{\Gamma \left({\mu }_2\right)}\right)}^2\hfill \\ \hfill & \times {\left(\frac{{\varphi }_1}{1+{\varphi }_1}\times \frac{S_1\widehat{h_1}}{{\mu }_1^{\frac{1}{{\alpha }_1}}}\times \frac{\Gamma \left({\mu }_1+\frac{1}{{\alpha }_1}\right)}{\Gamma \left({\mu }_1\right)}\right)}^2+H^2{\xi }_0\left(\frac{{\varphi }_0}{2+{\varphi }_0}\right){\left(\frac{S_0\widehat{h_0}}{{\mu }_0^{\frac{1}{{\alpha }_0}}}\right)}^2\hfill \\ \hfill & +2NH\left(\frac{{\varphi }_2}{1+{\varphi }_2}\right)\left(\frac{{\varphi }_1}{1+{\varphi }_1}\right)\left(\frac{{\varphi }_0}{1+{\varphi }_0}\right)\left(\frac{S_2\widehat{h_2}}{{\mu }_2^{\frac{1}{{\alpha }_2}}}\right)\left(\frac{S_1\widehat{h_1}}{{\mu }_1^{\frac{1}{{\alpha }_1}}}\right)\hfill \\ \hfill & \times \left(\frac{S_0\widehat{h_0}}{{\mu }_0^{\frac{1}{{\alpha }_0}}}\right)\frac{\Gamma \left({\mu }_2+\frac{1}{{\alpha }_2}\right)\Gamma \left({\mu }_1+\frac{1}{{\alpha }_1}\right)\Gamma \left({\mu }_0+\frac{1}{{\alpha }_0}\right)}{\Gamma \left({\mu }_2\right)\Gamma \left({\mu }_1\right)\Gamma \left({\mu }_0\right)}\left\}\right].\hfill \end{array}$$

(24)

Proof.

Please see Appendix C. □

3.4. Outage Analysis with Pointing Errors

The probability of an outage can also be written by using the same concept as explained in Section 3.2.

Lemma 4.

Let the random variables considered in Lemma 3 now be related to the outage probability $P_2$ through $P_2$ = $P_r\left[{\sum }_{i=1}^N|X_{2,i}\left|\right|X_{1,i}|+H|X_0|<\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}\right]$, then $P_2$ can be calculated as

$$\begin{array}{cc}\hfill P_2& =\frac{1}{2}+\frac{1}{2}erf\left(\frac{\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}-N\mu }{\sqrt{2N{\sigma }^2}}\right)-\frac{exp\left(-\frac{{\left(N\mu -\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}\right)}^2}{2N{\sigma }^2}\right)}{\sqrt{2\pi N{\sigma }^2}}\hfill \\ \hfill & \times \frac{{\varphi }_0{\left(2N{\sigma }^2\right)}^{\frac{{\varphi }_0+1}{2}}}{2{\alpha }_0{\left(S_0\widehat{h_0}H\right)}^{{\varphi }_0}}\sum _{k=0}^{{\mu }_0-1}\frac{{\left({\mu }_0\right)}^{\frac{{\varphi }_0}{{\alpha }_0}}}{k!}\hfill \\ \hfill & \times \sum _{n=0}^{\infty }\frac{{\left(\sqrt{\frac{2}{N{\sigma }^2}}\left(\sqrt{\frac{{\gamma }_{th}}{\stackrel{0}{\gamma }}}-N\mu \right)\right)}^n}{n!}\hfill \\ \hfill & \times H_{2,2}^{2,1}\left[{\mu }_0{\left(\frac{\sqrt{2N{\sigma }^2}}{S_0\widehat{h_0}H}\right)}^{{\alpha }_0}|\begin{array}{c}\left(\frac{1}{2}\left(1-{\varphi }_0-n\right),\frac{{\alpha }_0}{2}\right),\left(1,1\right)\\ \left(k-\frac{{\varphi }_0}{{\alpha }_0},1\right),\left(0,1\right)\end{array}\right].\hfill \end{array}$$

(25)

It is important to mention here that only the first 15 terms are sufficient for the convergence of summation inside the proposed expression.

Proof.

Please see Appendix D. □

4. Results and Discussion

The derived analytical expressions for the ergodic capacity and outage probability in Section 3 are validated in this section through numerical Monte Carlo simulations. The $\alpha$-$\mu$ fading channel parameters for the IRS links are ${\alpha }_1={\alpha }_2=2$, ${\mu }_1={\mu }_2=5.76$ and ${\Omega }_1={\Omega }_2=1$, which according to the experiments carried out in [4] corresponds to a LoS scenario. Moreover, for the direct link, we use ${\alpha }_0=0.5$, ${\mu }_0=0.5$ and ${\Omega }_0=1$. The distance between the Tx–Rx link is computed as $d_0$ = $\sqrt{d_1^2+d_2^2-2d_1{d}_{2}cos\left(\theta \right)}$ with $\theta ={60}^0$, where $d_1$ and $d_2$ are the distances of the Tx–IRS and IRS–Rx links, respectively. Here, we assume that $d_1=d_2=d$ and $G_t=G_r=25$ dB. The bandwidth, B, of THz signal and carrier frequency, f, are set to 10 GHz and 275 GHz, respectively. The SNR is given by $\frac{P_t}{B{N}_0}$, where $N_0=-173$ dBm/Hz. The results plotted in this section are averaged over 10,000 independent channel realizations.

4.1. Without Pointing Error

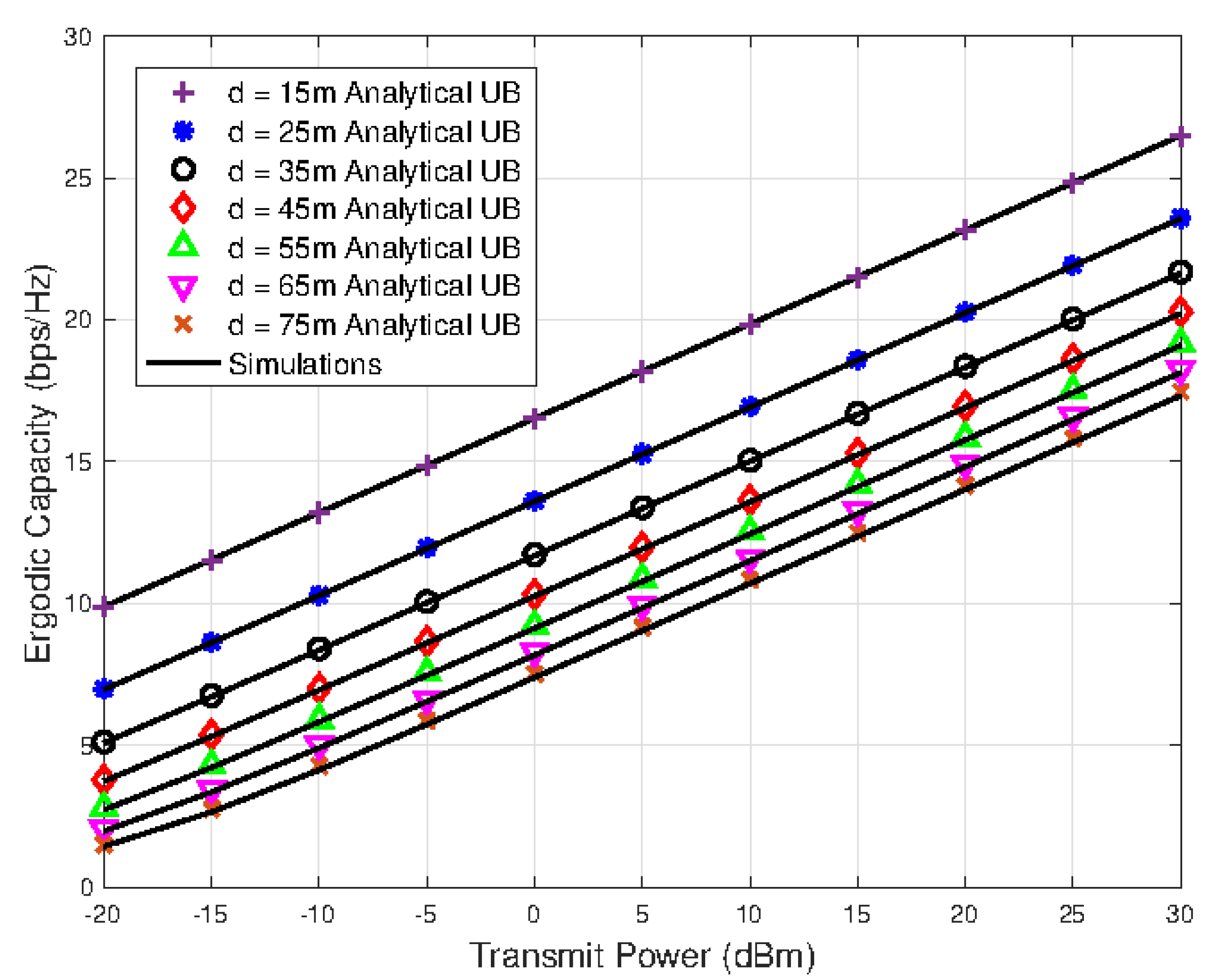

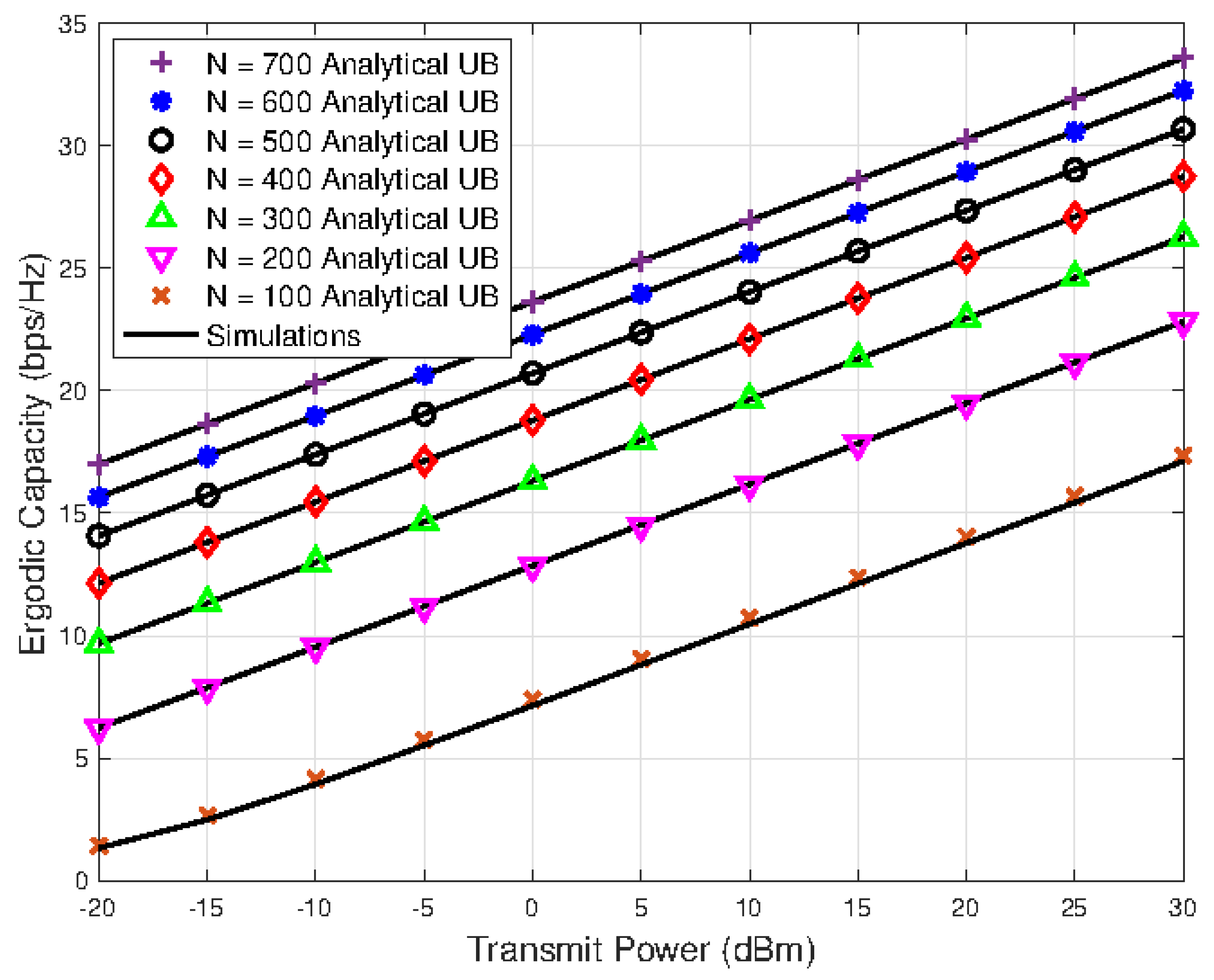

Figure 2 shows the ergodic capacity results against different transmit power, P, and distance, d, values for the fixed number of IRS elements i.e., $N=128$. It can be seen that the ergodic capacity results are superior for the scenarios having smaller link distances. In Figure 3, the ergodic capacity of the system is evaluated for various levels of the transmit power and different values of IRS reflecting elements N. As the value of N increases, the ergodic capacity also increases; however, it can be seen that the performance gap slowly shrinks for higher values of N. The tightness of the derived upper bounded ergodic capacity analytical expression is also evident from the results plotted in Figure 2 and Figure 3.

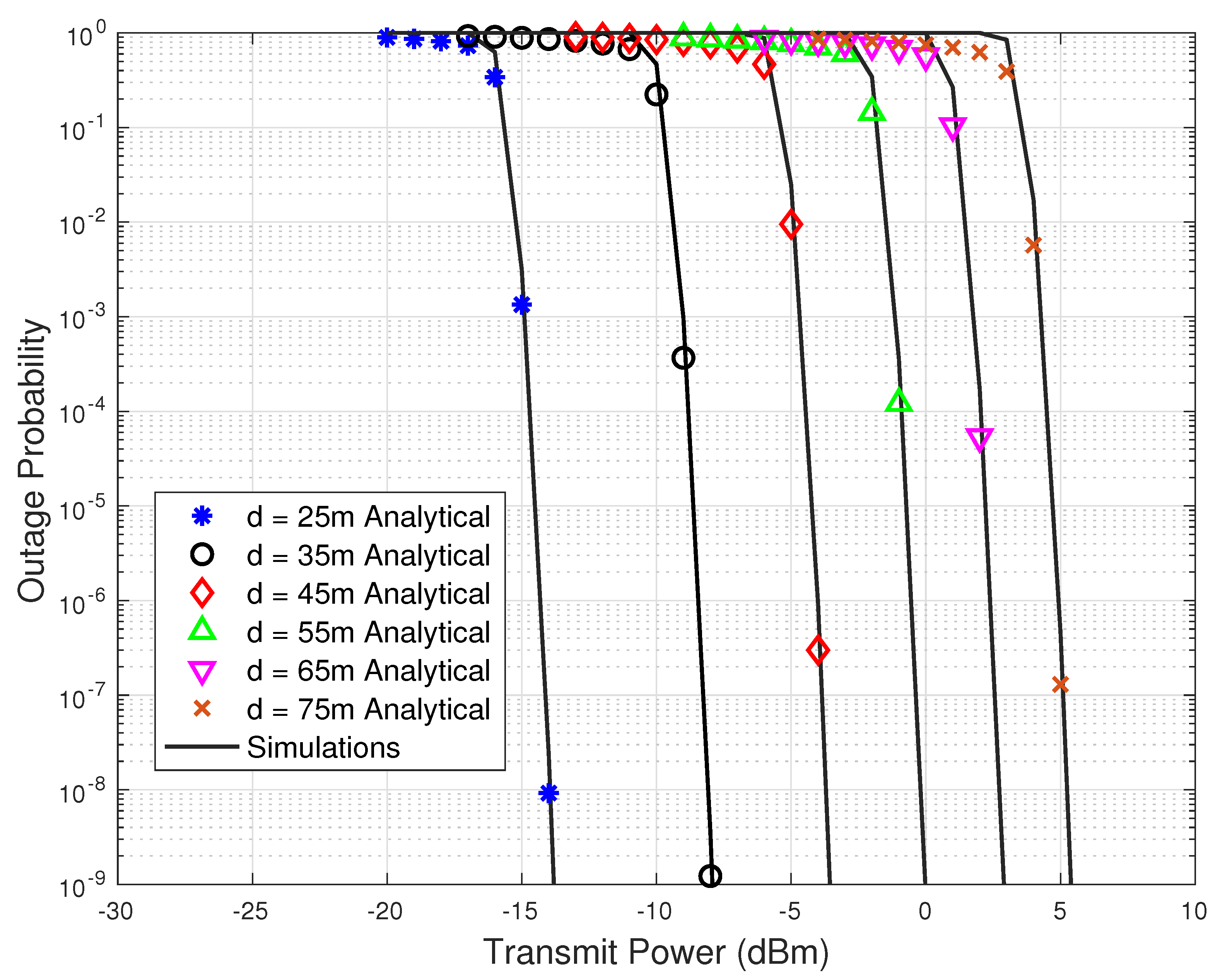

Figure 4 and Figure 5 show the outage probability versus transmit power results for different values of link distances, d, and number of IRS reflecting elements, N, respectively. In Figure 4, the total number of reflecting elements in the IRS are set to $N=70$. From Figure 4, it is evident that the outage performance improves significantly as the link distance decreases. From the network design perspective, to reduce the total transmission power of the network, the link distances should be kept small in THz systems. Similarly, from Figure 5, a gain of about 25 dBm in the transmit power is observed when the number of reflecting elements is increased from $N=40$ to $N=100$.

4.2. With Pointing Error

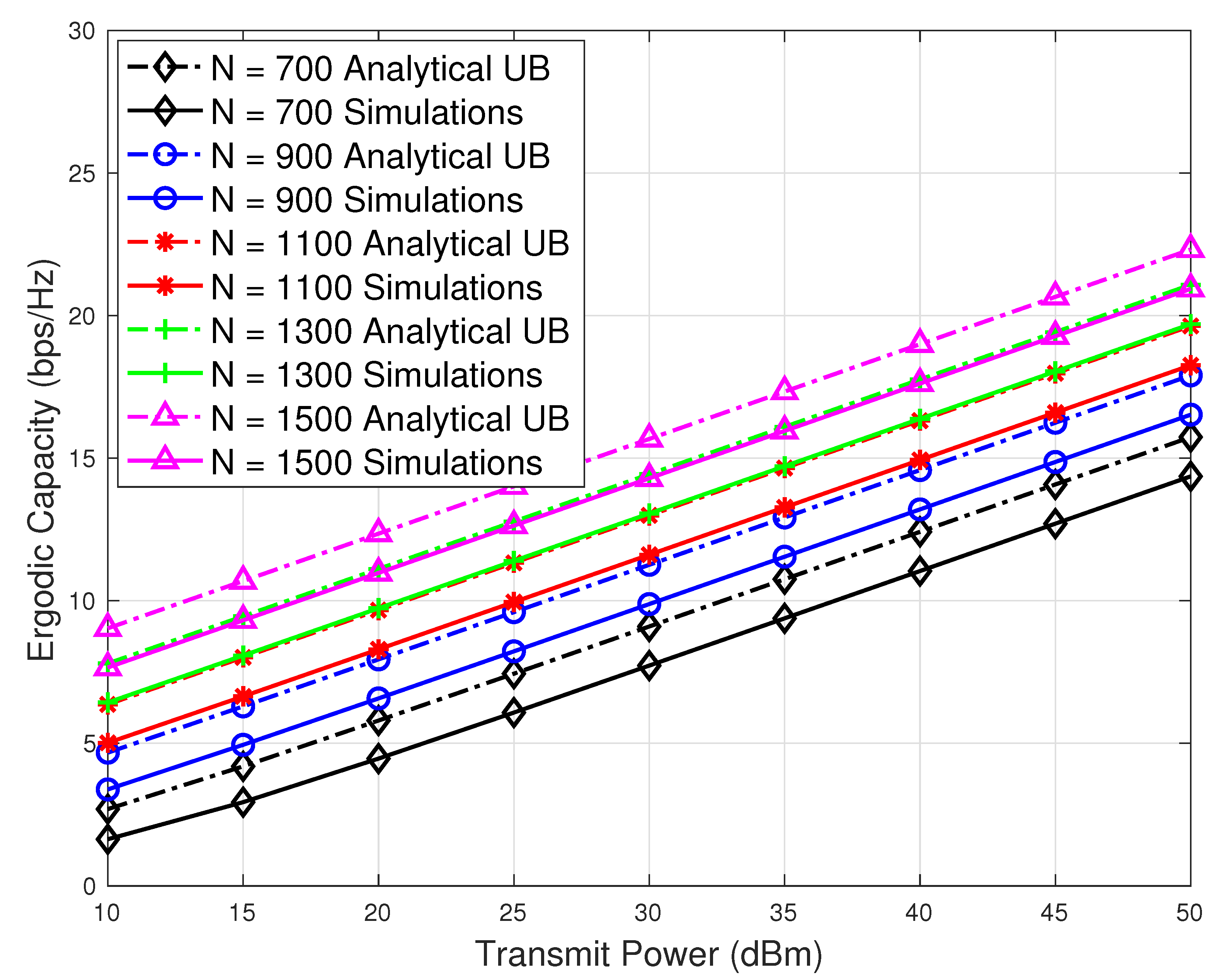

As mentioned earlier for the system with pointing error, the number of reflecting elements should be considerably large. Therefore, we plotted the results for the large values of reflecting elements N. In Figure 6, we plot the ergodic capacity results against various transmission power and N values. Here, we also include the effects of pointing errors on the ergodic capacity. It can be seen that ergodic capacity decreases significantly in the presence of pointing error compared to the case when pointing errors are not present. Therefore, the increase in the number of reflecting elements does not show remarkable performance improvement, as shown in Figure 3 (without pointing errors). From Figure 6, it is evident that our analytical upper bound expressions on ergodic capacity become tight as the value of N increases.

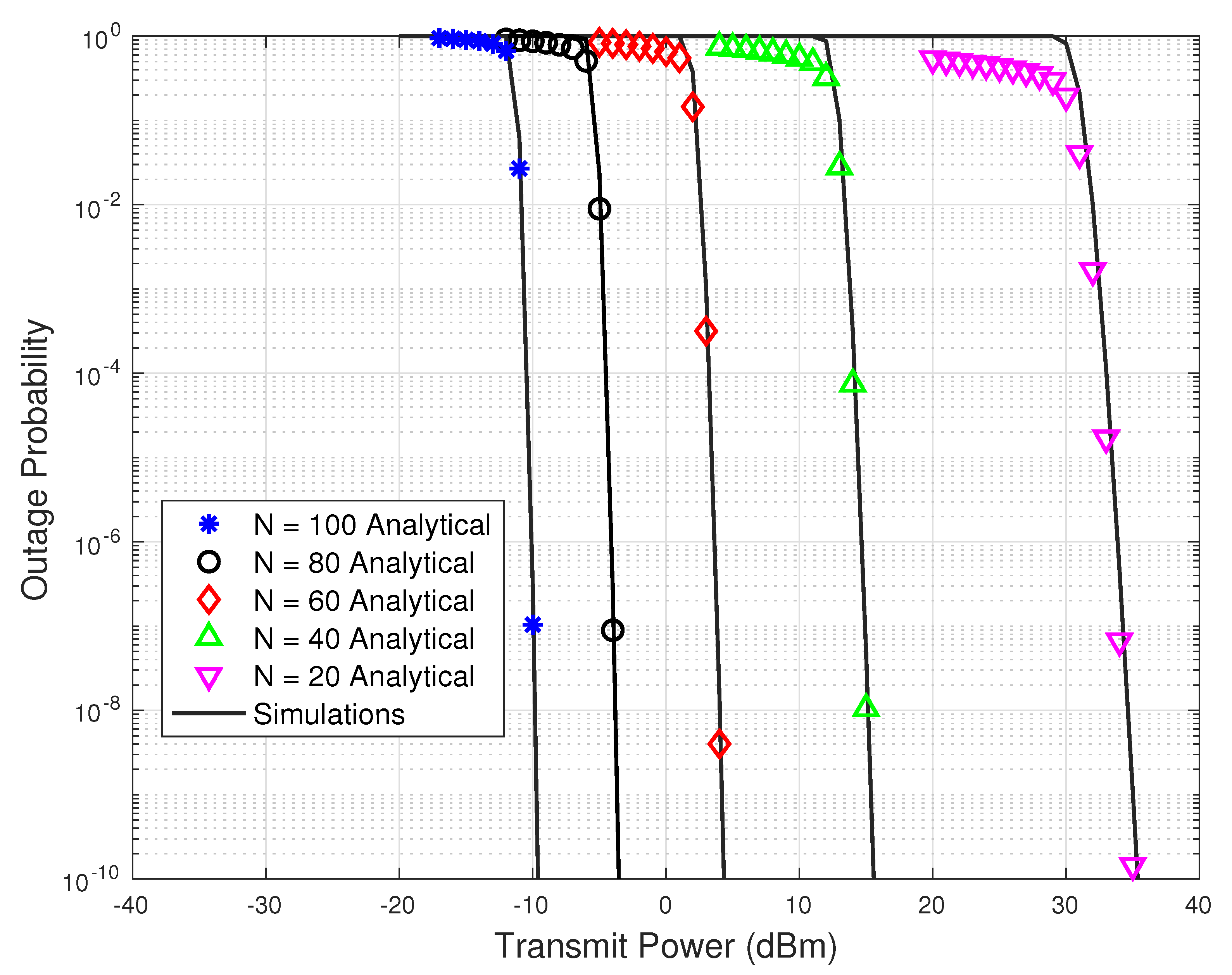

For the same values of N as in Figure 6, in Figure 7, we plot the outage probability against different transmission power values in the presence of pointing error. It has been observed that a large number of reflecting elements are required to achieve an outage probability that is comparable with the outage probability without pointing error. While comparing Figure 5 and Figure 7, it can be seen that to achieve a comparable performance, the number of reflecting elements in the case of pointing error should be almost 10 times more than the case without pointing errors. Moreover, the analytical results plotted in Figure 7 match well with the simulation-based numerical results.

5. Conclusions

The performance of the IRS-assisted THz wireless communication system has been analyzed in terms of ergodic capacity and outage probability. By using the statistical distribution of the $\alpha$-$\mu$ fading channel, the upper bound on the ergodic capacity and the approximation of the outage probability are derived. These analytical closed-form expressions are validated by a rigorous set of numerical simulations. It has been observed that to improve the coverage in THz systems, an IRS with massive reflecting elements should be deployed. Moreover, it has been observed that increasing the number of reflecting elements in the IRS results not only in coverage enhancement but also improves the power consumption. It is important to mention here that pointing errors have a detrimental effect on the performance of the THz communication system. For example, it has been noticed that to achieve a comparable performance, the number of reflecting elements in the presence of pointing errors should be almost 10 times more than the case without pointing errors.
