Utilizing Low-Cost Sensors to Monitor Indoor Air Quality in Mongolian Gers

Abstract

Air quality has important climate and health effects. There is a need, therefore, to monitor air quality both indoors and outdoors. Methods of measuring air quality should be cost-effective if they are to be used widely, and one such method is low-cost sensors (LCS). This study reports on the use of LCSs in Ulaanbataar, Mongolia to measure PM_2.5 concentrations inside yurts or “gers”. Some of these gers were part of a non-government agency (NGO) initiative to improve insulating properties of these housing structures. The goal of the NGO was to decrease particulate emissions inside the gers; a secondary result was to lower the use of coal and other biomass material. LCSs were installed in gers heated primarily by coal, and interior air quality was measured. Gers that were modified by increasing their insulating capacities showed a 17.5% reduction in PM_2.5 concentrations, but this is still higher than recommended by health organizations. Gers that were insulated and used a combination of both coal and electricity showed a 19.1% reduction in PM_2.5 concentrations. Insulated gers that used electricity for both heating and cooking showed a 48% reduction in PM_2.5 but still had higher concentrations of PM_2.5 that were 6.4 times higher than recommended by the World Health Organization (WHO). Nighttime and daytime trends followed similar patterns and trends in PM_2.5 concentrations with slight variations. It was found that at nighttime the outside PM_2.5 concentrations were generally higher than the inside concentrations of the gers in this study, meaning that PM_2.5 would flow into the ger whenever the doors were opened, causing spikes in PM_2.5 concentrations.

1. Introduction

The decline of the Earth’s air quality has reached a critical level globally, necessitating the implementation of monitoring and mitigation strategies. Air pollutants have a detrimental impact on the health of humans and are currently the fourth leading cause of premature death globally [1]. Particulate matter (PM), specifically PM_2.5 and PM₁₀ with diameters of 2.5 µm and 10 µm, respectively, are commonly monitored sizes of PM. Exposure to PM has been associated with various health conditions, including asthma, cancer, heart disease, type-II diabetes, as well as respiratory and neurodevelopmental disorders [1,2,3]. In Ulaanbaatar, Mongolia, exposure to PM_2.5 alone has been identified as the cause of 1400 deaths annually [4]. Lower-income and developing countries, such as Mongolia, are beginning to recognize the adverse impact of air pollution on their population and many are now adopting air quality monitoring practices similar to those used in higher-income countries.

According to the Mongolian Statistical Information Service, as of 2020, approximately 60% of the population in Ulaanbaatar, the capital of Mongolia, reside in areas known as “ger areas”. These areas are characterized by the use of coal and wood as primary energy sources. A ger, also known as a yurt, is a traditional round Mongolian hut that can be easily moved to accommodate a nomadic lifestyle. It is noteworthy that 95% of households in these ger areas rely on coal and biomass, such as wood, for cooking and heating. On average, each household burns about 5 tons of coal and approximately 3 m³ of wood per year [5,6].

Ulaanbaatar experiences extreme cold temperatures, the coldest month being January with an average low of −22 °C, making it one of the coldest capital cities in the world. This leads to a significant increase in the burning of coal and biomass during winter months. It is important to note that coal combustion has been identified as a major contributor to particle production, which in turn has adverse effects on health [7,8]. Despite the presence of stacks or chimneys on some coal-burning stoves in these gers, the emissions from coal combustion remain close to the residents’ dwellings, resulting in elevated levels of pollutants in the immediate vicinity [9].

Efforts have been made to improve the ventilation and energy efficiency of these stoves [10,11]. These measures, however, have not resulted in significant improvements in indoor air quality [12]. Further studies have been conducted to explore alternative approaches for reducing coal combustion, including the implementation of better insulation techniques for the gers [13,14,15]. In the past, PM_2.5 levels in Mongolia have been extremely high, exceeding World Health Organization (WHO) standards by 6.8 times based on 24-h averages [16]. At the central government monitoring site at the United States Embassy, over the 8 months of this study, PM_2.5 measurements averaged 153 µg/m³, while certain ger neighborhoods experienced levels as high as 229 µg/m³ [17].

To address this issue, the Mongolian government implemented a law on 15 May 2019, prohibiting the use of coal for household consumption. Instead, a program promoting the use of coal briquettes as an alternative fuel source was launched. These efforts produced up to a 50% reduction in outdoor PM levels during the winter months of 2020 in ger neighborhoods, as reported by the National Agency for Meteorology and Environmental Monitoring (NAMEM). Continuous monitoring of indoor PM production, however, and increased assessment frequency are essential.

Monitoring indoor air quality requires a larger number of sensors than outdoor air quality monitoring, which is expensive. To overcome this challenge, low-cost sensors (LCSs) have been developed and utilized, as described in previous studies [18,19,20,21]. It is crucial to calibrate these sensors properly, particularly at higher PM concentrations, to account for a phenomenon called “coincidence”. Coincidence occurs when the detection of particles is affected by one particle shadowing another, resulting in the second particle scattering no light. Given that most LCSs rely on optical detection, it is vital to mitigate the impact of coincidence.

In our study, we calibrated these LCSs against an optical particle sizer (OPS) with a wide dynamic range, specifically the TSI Model 3300. To minimize the effect of coincidence, the OPS was coupled with a 10:1 diluter. These calibrated LCSs were deployed to measure particulate matter and monitor indoor air quality in rural areas of Mongolia as part of a non-governmental agency (NGO), Deseret International Charities, which sponsored a program to engineer an improved insulation method for gers. Their expectation was that improving the efficiency of the gers would result in lower consumption of coal and biomass resulting in decreased PM emissions and consequently improved outdoor and indoor air quality. The improved insulation method entailed wrapping the circumference and roof of the ger with a radiant barrier coupled with an air gap between the existing layers of felt that are typically used as insulation. A network of 50 LCSs was installed in gers that were heated by coal and electric heat, and air quality was measured before and after the gers were insulated using the engineered solution provided by the NGO.

2. Method

2.1. Description and Manufacturing of LCSs

There are a variety of LCSs commercially available for a relatively low cost, but a suite of custom air quality sensors was created and used in this study [22,23]. This allowed researchers to have access to the raw data measured by the particulate sensing module in the custom-designed LCS, and additionally none of the commercially available LCSs provided cellular connectivity, which was required for usage in Mongolia. This study’s LCS contains a PM sensor (Sensirion SPS₃₀), a CO₂, temperature and relative humidity sensor (Sensirion SCD₃₀), a real-time clock used for timestamps (RTC), an SD card module, and a cellular-enabled microprocessor (Particle Boron 3G/2G). The Sensirion SCD₃₀ uses a non-dispersive infrared sensor for CO₂ measurements. The particulate matter sensor counts raw measurements of PM_2.5 by light scattering and calculates the mass of the particles using the refractive index and density of the particle.

As there is no humidity trap on the LCS, a mathematical correction is made to correct for particle size. Though data are uploaded in real-time, all data are logged onto the SD card incorporated with the LCS as a back-up in the event that the sensor loses connectivity with the Internet. The Particle Boron microprocessor coordinates the execution of the sensing modules and data logging. Each LCS is also equipped with a cellular radio that allows for the transmission of data to an online database where the data are stored (InfluxDB) and displayed (Grafana) for analysis. The LCS components are mounted on a printed circuit board (PCB) and encased in a 3D printed box. The total cost of this LCS is approximately USD 200.

2.2. Deployment of LCSs

In September 2019, fifty air quality sensors were deployed in gers in Ulaanbaatar. These sensors operated until the end of April 2020. Gers are round, with one doorway, and have a base area of about 11 m². For this study only data collected from indoor sensors were used. The indoor sensors were placed on one of the center support beams of the ger. Because of a combination of hardware failure, lack of compliance from participants, and difficulty in data retrieval, data were recovered from only 28 sensors. To test the efficacy of new, energy-efficient gers, LCSs were deployed in a variety of conditions: 1 LCS in a modified energy-efficient ger with a coal stove as its source of heat, 3 LCSs in different modified energy-efficient gers with only electric heaters as a source of heat, 19 LCSs in modified energy-efficient gers where both coal stoves and electric heaters were used, and 5 LCSs in traditional, unmodified gers with only coal stoves as a heating source. This last set of gers was used as a control group [24]. The locations of these gers can be seen in Figure 1.

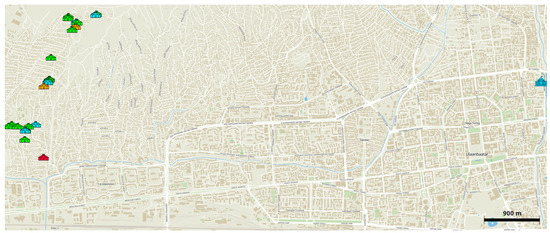

2.3. Monitoring of the LCSs

There was a two-pronged approach to LCS maintenance: cloud-based and in-person maintenance. The software solutions include the Particle Cloud Console 2.0, which informed about whether devices were connected to the Internet and uploading data, and the firmware of the sensor, which would notify when the SD card of a sensor was unplugged or not collecting data. In cases of not receiving information from an LCS for an extended period, an affiliate in Ulaanbaatar would visit the site to troubleshoot and repair or replace the sensor.

2.4. Data Collection

Data were collected every minute from all the sensors. Every five minutes, data were uploaded to the Internet through the cellular network. If a sensor was not connected to the Internet, it would delay sending data until a connection was established. The backlogged data would then be uploaded. Data were stored in an InfluxDB database located on the campus of Brigham Young University in Provo, Utah, USA. Beyond the measurements of the sensors, metadata were recorded and uploaded, including cell signal strength, software version, and uptime of the sensor.

2.5. Calibration and Data Correction of LCSs

2.5.1. Need for Calibration

LCSs are sensitive and can be affected by changes in relative humidity, temperature, sensor aging, and changes in the composition of particulate matter [25,26,27]. LCSs can also suffer from a deviation of linearity at higher PM concentrations depending on their detection method. For example, if an optical sizing method is being used, some particles may be shadowed by other particles and the total PM count will be biased low in its reported concentration. These conditions can be corrected for by calibrating the LCSs against reference PM monitors, through modelling, or collocating monitors. We have calibrated our Sensirion LCSs against an optical particle sizer (TSI Optical Particle Sizer model 3300) with a 1:10 diluter (TSI Particle Diluter Model 3332). The error in the TSI OPS is 5% at 0.5 µm, inherent with the error in the flowrate through the instrument. When compared with other LCSs, the Sensirion was one of the more stable LCSs over time and in many environments [28]. The Sensirion LCS can work in 0–95% humidity and in the temperature range of −10 °C to 60 °C without correction. The age limit of the sensor is recommended to be 8 years by the manufacturer; however, aging can happen over time. Corrections for aging were made in second-order polynomial regression as this affects larger concentrations more than smaller concentrations of PM_2.5. Our LCSs were calibrated after 6 months of use to minimize the effects of aging.

2.5.2. Calibration of the LCSs

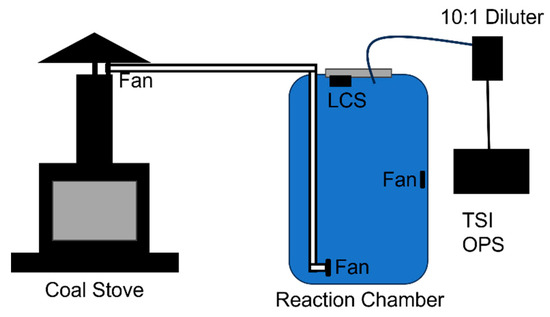

The experimental setup for calibration can be seen in Figure 2. Calibration of an LCS was carried out by attaching the LCS to the roof of our atmospheric chamber, made from a 55 gallon drum, and having the TSI OPS draw air from the top of the atmospheric chamber through the diluter. The chamber was cleaned out with the use of T8 UV lights and zero air for several hours before calibration in order to photolyze, dilute, and remove leftover PM_2.5. The diluter was used to minimize the effects of coincidence with the TSI OPS, which already had a higher tolerance range than the LCS. A cast iron stove (Regency Fireplace Products), similar in design to what is used in Mongolian gers, was used to simulate the conditions in the gers. Anthracite coal, like that burned in Mongolia, was burned in the stove, and smoke from the stove was directed into the environmental chamber. Calibration of the LCS was carried out using smoke from a source like that present in Mongolia. An extractor fan (Antrader) was used to pull smoke from directly above the chimney of the coal-burning stove through a 1″ diameter PVC tube into the bottom of the reaction chamber. Another 1″ diameter fan was mounted at the exit of the PVC pipe that rested on the bottom of the chamber, and a final 1″ diameter fan was mounted 33″ up the wall of the chamber opposite to the exit of the pipe. These two fans were used to ensure mixing of the gases in the barrel.

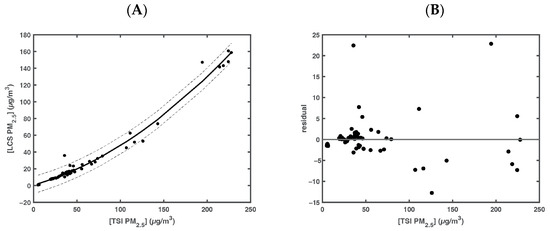

Data from the LCS in the barrel were plotted against the data from the TSI OPS for the same period. This yielded a second-order polynomial transfer function seen in Figure 3. The transfer function was seen to affect larger values of concentrations of PM_2.5 more than smaller ones. This is due to the increased effect of coincidence in the detection of PM_2.5 at these higher concentrations. This second-order polynomial regression yielded a line formula that was used to correct the LCS data collected in Mongolia.

Table 1. Visualization of raw sensor data breakdown.

Ger Type	Number of Sensors	Number of Averaged Data Points
Unmodified	6	187,456
Coal-only modified	1	448,233
Hybrid modified	20	110,139
Electric only	3	583,460

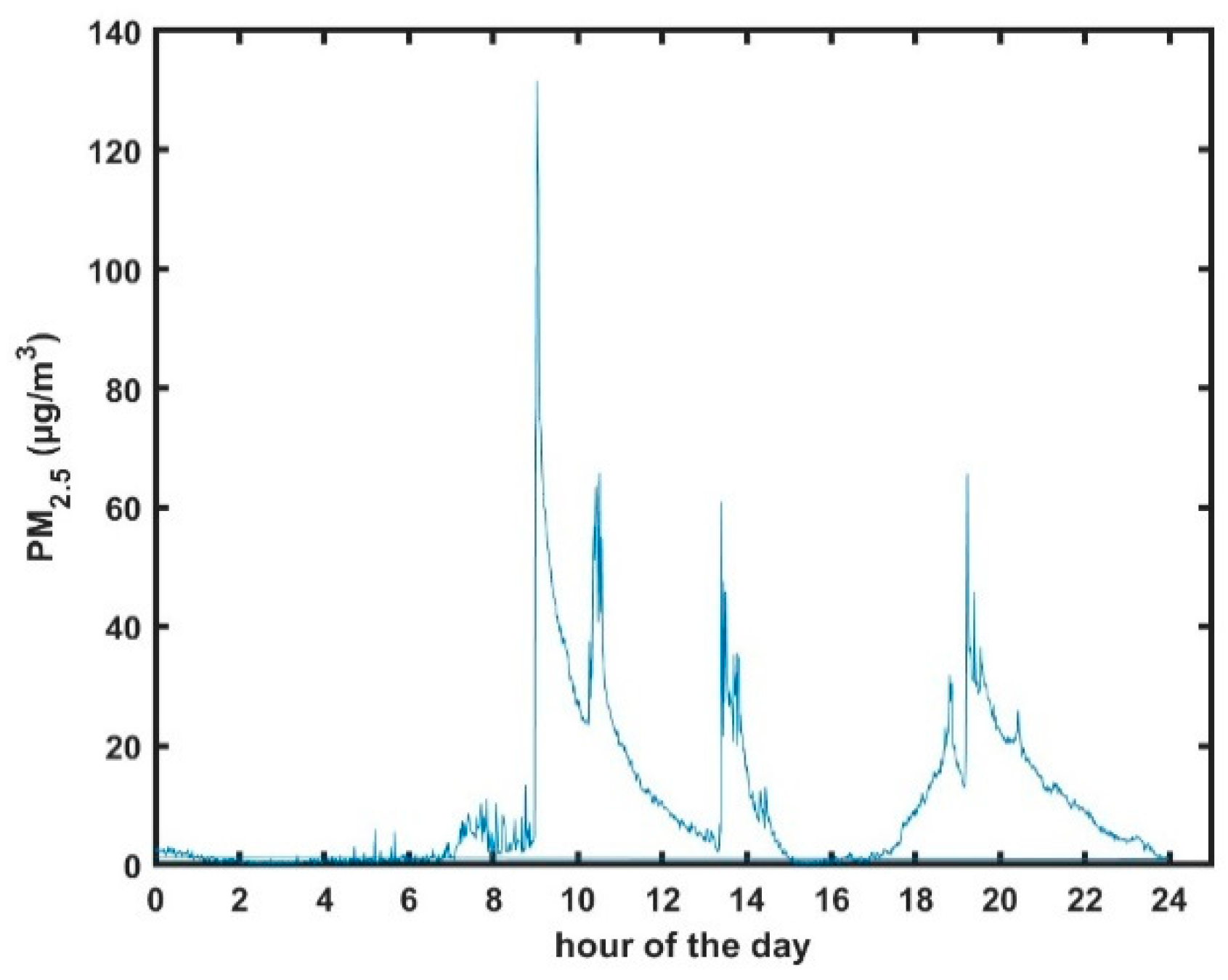

shows a summary of the number of data points and sensors from each class of ger in this study. Data from each of the four classes of gers, unmodified, modified coal-burning, modified hybrid of coal and electric, and modified electric only, were baseline corrected, where necessary, and averaged to produce a single dataset for each of the conditions. Standard deviations and confidence intervals were then calculated from these averaged datasets. A Grubb’s Test, at 95%, was carried out on all sensors to exclude outliers. Datasets were adjusted accordingly before continuing. Daytime and nighttime collected data were separated for analysis. Daytime hours were defined as 5 am–8 pm (local time) and were analyzed separately from the nighttime collected data to deconvolve the influence of cooking activities from heating. Daytime hours were defined based on an evaluation of the diurnal pattern of cooking, as observed in Figure 4. Figure 4 shows typical PM_2.5 concentrations of <5 µg m⁻³ between the hours of 12:00 pm and 5 am in an unmodified ger. Typically, beginning at about 5 am, the PM_2.5 concentrations begin to rise as meal preparation begins. Three peaks are usually observed between the hours of 5 am and 8 pm associated with meal preparation throughout the day. PM_2.5 concentrations typically begin to decrease after the final meal preparation in the evening and slowly decay to baseline conditions as the evening progresses.

3. Results and Discussion

3.1. Averaged Data

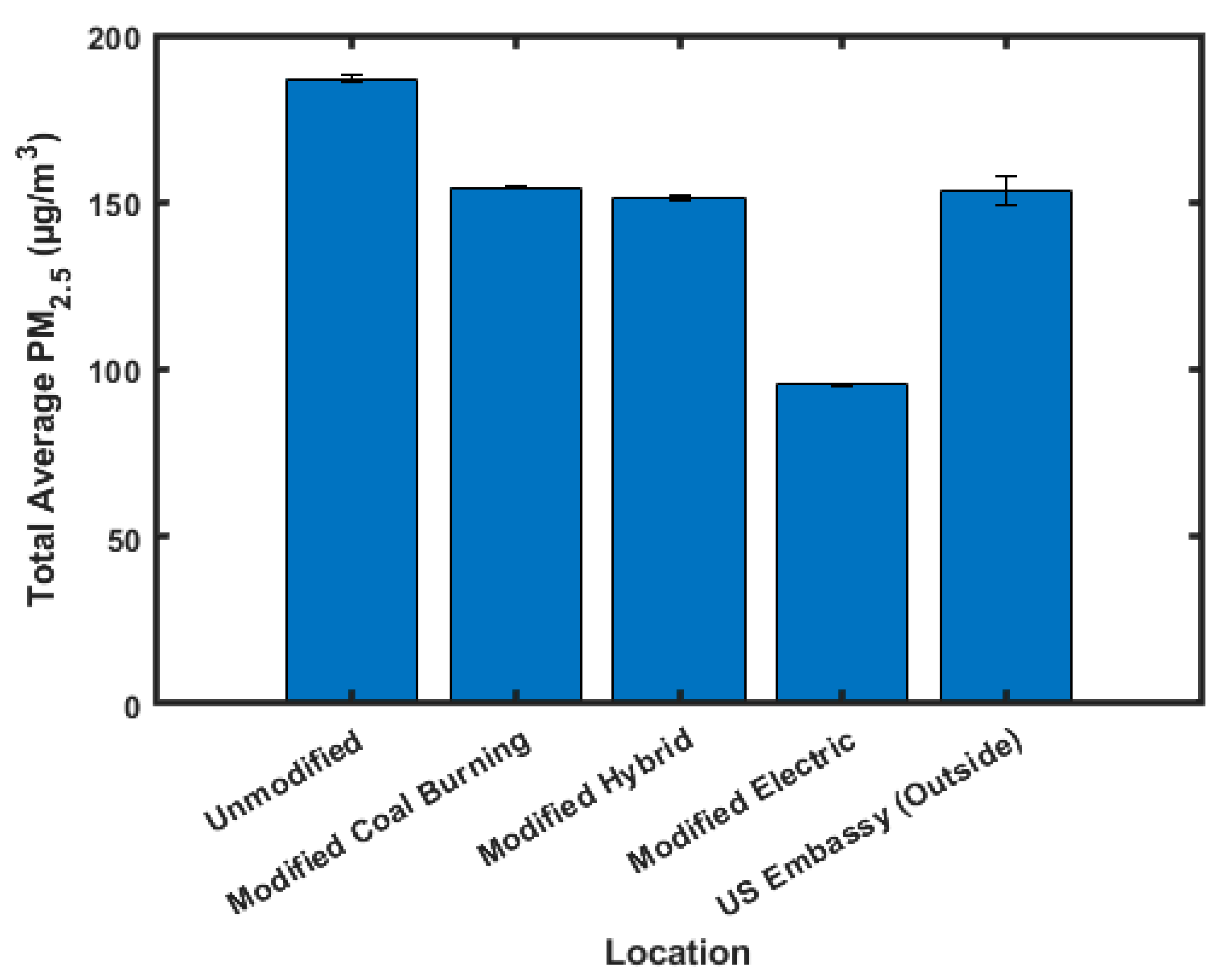

Figure 5 shows the average PM_2.5 values for each class of ger for the duration of the study. A pattern is observed that shows that, as the use of coal decreases, the PM_2.5 concentration decreases. The highest concentration of PM_2.5 is found in the unmodified, 187.0 ± 1.0 µg/m³, and modified but coal-burning, 154.3 ± 0.5 µg/m³, gers. It is expected that the modified gers will burn less coal as the added insulation traps more heat; however, by increasing the insulating value of the structure, it also traps PM_2.5 in the ger by impeding the venting of smoke. Despite the possible ventilation inhibition caused by the added insulation, it does appear to be favorable to insulate the gers as the total PM_2.5 concentrations drop by 32.7 µg/m³ or 17.5%. The third highest PM_2.5 concentration, 151.4 ± 0.8 µg/m³, is found in the modified hybrid ger. PM_2.5 dropped on average by 35.6 µg/m³ or 19.1% relative to the unmodified ger. The addition of electric heating to the ger lowered the PM_2.5 produced from the burning of coal. The increased insulation helped to preserve the heat in the structure and reduce the amount of PM_2.5 being produced by the ger and released into the environment due to decreased heating needs. The lowest PM_2.5 concentration was found in the modified electric ger, at 95.5 ± 0.5 µg/m³. This is expected as there is little to no coal burning in these gers, eliminating this major source of PM_2.5. PM_2.5 dropped on average by 91.5 µg/m³ or 48.9% relative to the unmodified ger. It should be noted that in the modified electric ger, the average total PM_2.5 limits are still 6.4 times higher than the WHO standards of 15 µg/m³ [29]. This is consistent with the findings of other studies [16]. Outside air quality data came from sensors outside the U.S. Embassy in Ulaanbaatar. The outside PM_2.5 concentrations for the period of this study averaged 153.5 ± 4.6 µg/m³, which is 10.2 times the WHO standards. Outside air quality data were used to show that air inside the gers is cleaner than air outside the gers. This justifies the conclusion that spikes in PM_2.5 concentrations are seen when entrances to the gers are opened, as PM_2.5 diffuses from high concentrations outside the gers to low concentrations inside the gers.

3.2. Daily and Nightly Averaged Data

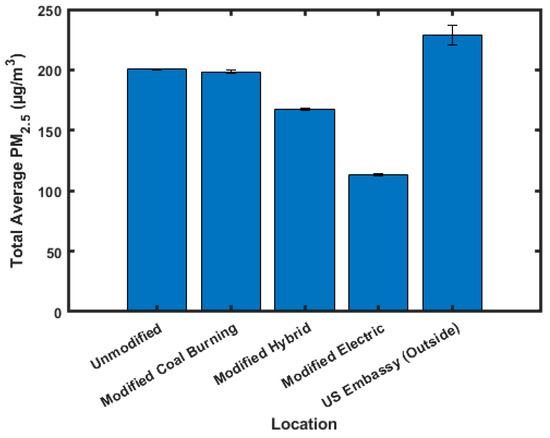

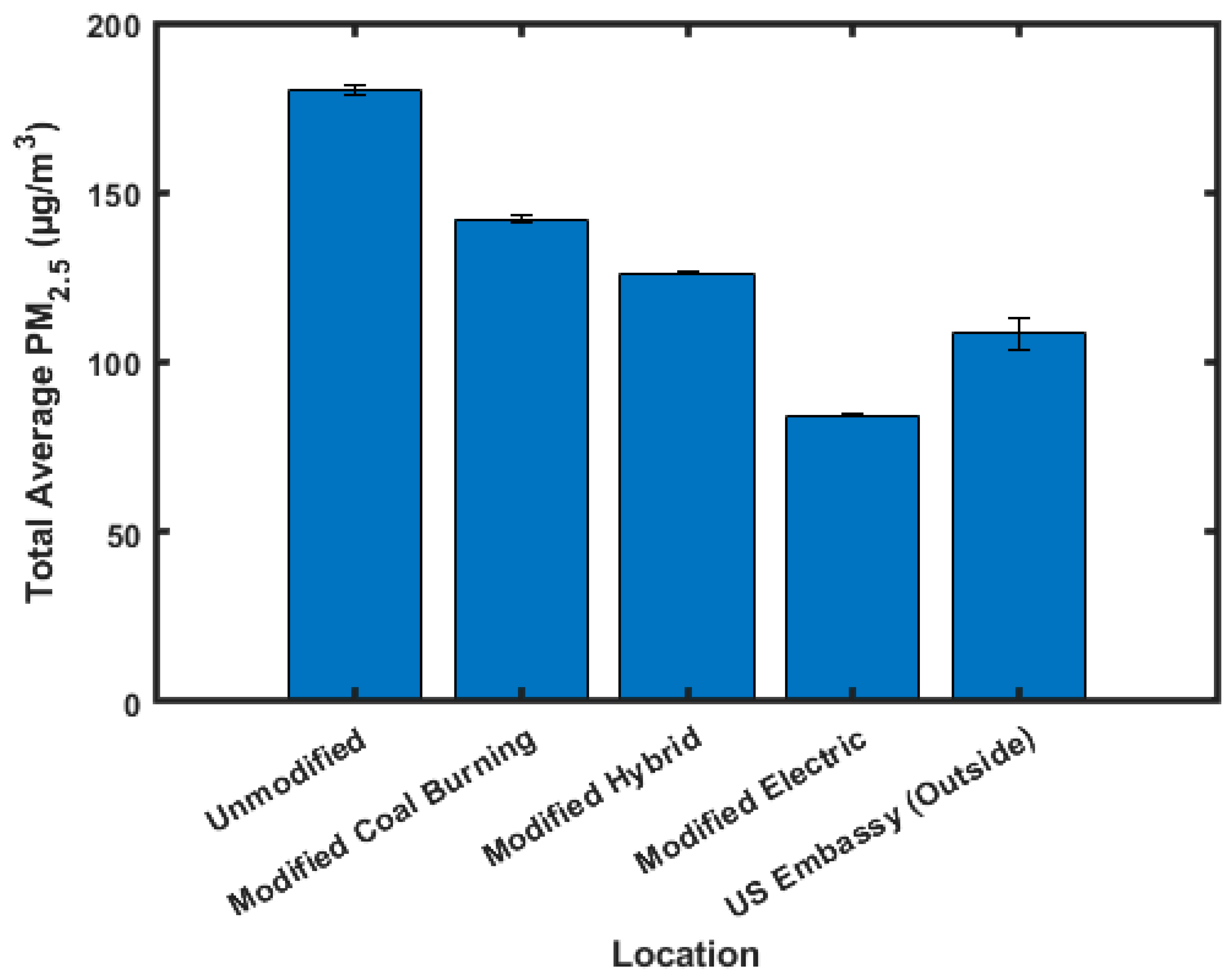

Figure 6 shows the averaged daytime, 5 am–8 pm, PM_2.5 values, and Figure 7 shows the averaged nighttime, 8 pm–5 am, PM_2.5 values. These times were chosen to include cooking-related PM_2.5 spikes included in the daytime data, and so that nighttime data are primarily influenced from heating.

Daytime values show the highest PM_2.5 concentration in the unmodified (180.3 ± 1.3 µg/m³) ger, followed by the modified hybrid (142.0 ± 1.1 µg/m³), modified coal-burning (126.2 ± 0.5 µg/m³), and modified electric (84.4 ± 0.6 µg/m³) gers. The nighttime data show a slightly different pattern compared to the daytime and averaged data, with the highest PM_2.5 concentration being in the modified coal-burning (200.5 ± 0.7 µg/m³) ger, followed by the unmodified (198.3 ± 1.3 µg/m³), modified hybrid (167.5 ± 1.0 µg/m³), and modified electric (113.4 ± 1.0 µg/m³) gers. It should be noted that there was only one LCS located in a modified coal-burning ger, and that the high nighttime concentration measured could be caused by either the increased insulation in this ger trapping PM_2.5 or an artifact of the proximity of other gers that were burning coal that could contribute to its higher PM_2.5 concentrations. The daytime outside PM_2.5 concentrations, 108.4 ± 4.8 µg/m³, are lower than all indoor average values besides modified electric gers. The nighttime outside PM_2.5 concentrations, 229.0 ± 7.9 µg/m³, are higher than all indoor averages except for modified coal-burning gers. This means that when the doors are opened to these gers, a rush of PM_2.5 is introduced into the gers increasing the indoor PM_2.5 concentration. This bias may be magnified in the modified gers as the insulation will trap more of the PM_2.5.

4. Conclusions

Efforts are underway to improve air quality in third-world countries like Mongolia, particularly by addressing the issue of pollution caused by coal burning. The approach implemented in this study was to insulate gers in an attempt to reduce coal consumption and subsequently lower indoor air PM_2.5 concentrations. The hypothesis tested was that by increasing the insulating value of gers, less coal would be burned resulting in lower indoor PM_2.5 concentrations. This study found that overall PM_2.5 concentrations were 17.5% lower in gers that were insulated. We do acknowledge that whenever the doors to the gers were opened, it is possible that PM_2.5 from surrounding gers and the outside environment came into the modified gers and that this may bias the data. This seemed more evident at nighttime when there was more activity in the gers. The reduction in ventilation caused by the insulation appears to trap PM_2.5 in the ger for longer periods before the PM_2.5 can vent out of the ger. Despite the effect of increasing insulation reducing ventilation of PM_2.5, it is recommended that gers be insulated to reduce coal consumption and to decrease PM_2.5 exposure. We also hypothesize that if neighboring gers were also insulated, the total PM_2.5 concentrations in the outdoor air may be lowered and that this would also have the effect of increasing indoor air quality. This study shows that the most effective approach for lowering indoor PM_2.5 concentrations is to use electricity for both cooking and heating in gers. The data show that gers that used electricity had the lowest PM_2.5 concentrations. PM_2.5 dropped on average by 48.9%. For example, the hybrid coal and electric approach showed an increase in air quality compared to the coal-burning-only gers, but it was not as effective at lowering PM_2.5 concentrations as a fully electrified ger. It is important to note that the fully electrified ger still did not obtain the PM_2.5 standard set by the NAAQS. This may be because gers surrounding the fully electric gers continued to burn coal, and these emissions likely leaked into the electrified-only gers. While it is recognized that access to electricity is not always feasible in Mongolia, it is recommended that electricity be used to lower indoor PM_2.5 concentrations where possible.
