Robust Pixel Design Methodologies for a Vertical Avalanche Photodiode (VAPD)-Based CMOS Image Sensor
Abstract
:1. Introduction
2. Robust Pixel Design of “Guard-Ring-Free” VAPD-CIS

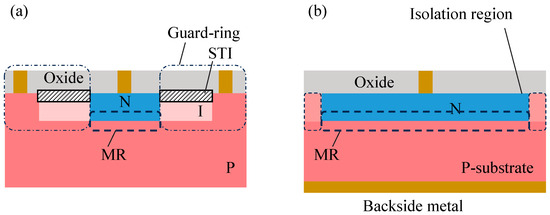

2.1. Device Architecture of a VAPD Pixel Compared to a Conventional SPAD Pixel

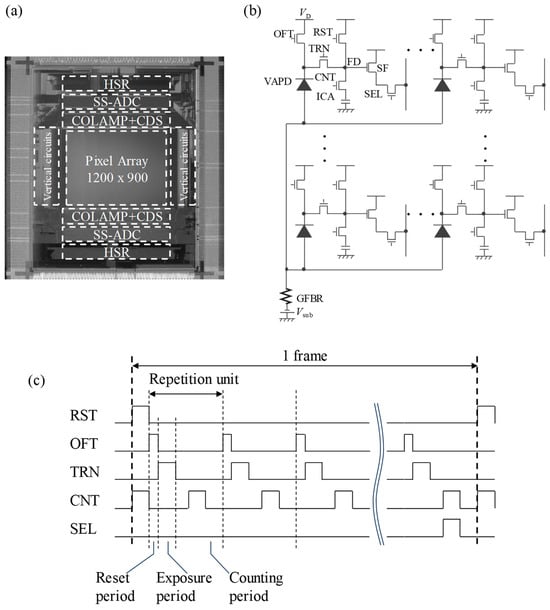

2.2. Specifications and Chip Designs for VAPD-CISs

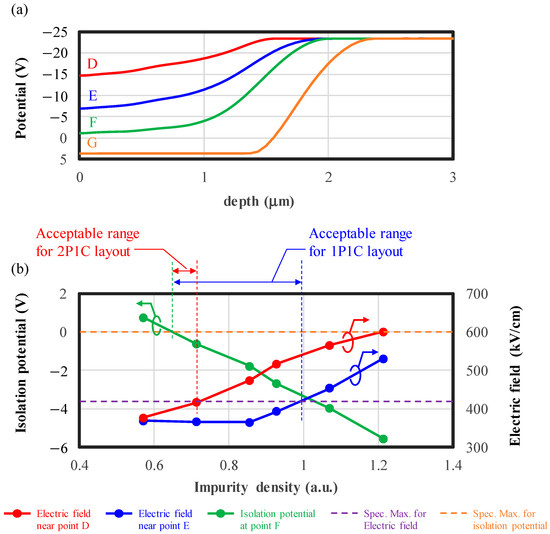

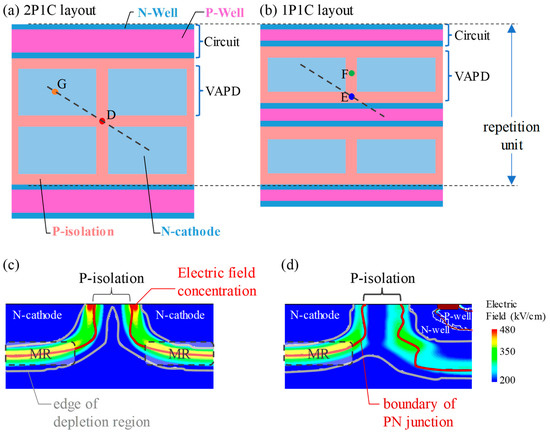

2.3. Potential and Layout Designs for Electric Field Relaxation and Pixel Isolation
3. Verification of the Robustness of VAPD-CIS

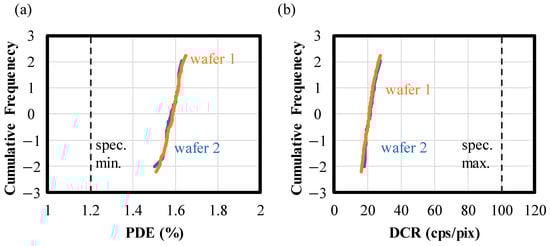

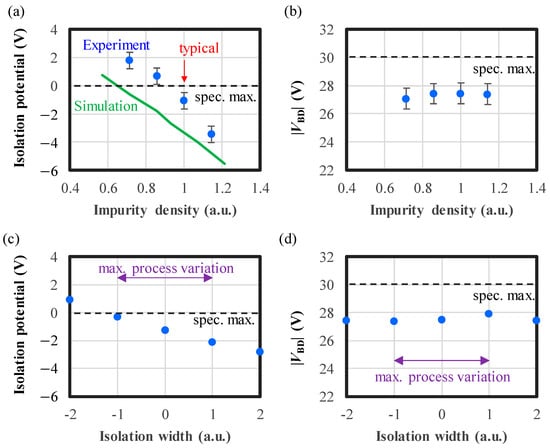

3.1. Verification of Potential Design against Process Variation

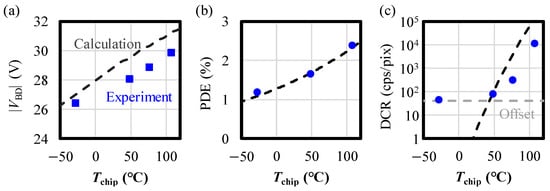

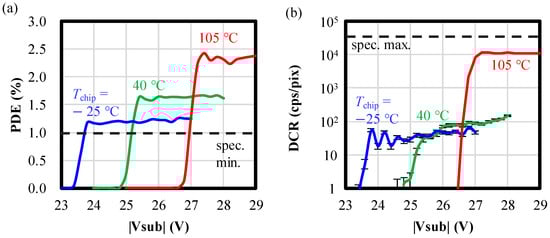

3.2. Characteristics of Robustness to Applied Voltage and Temperature
4. Robust Operation of VAPD-CIS in High-Temperature and Intense-Light-Exposure Conditions

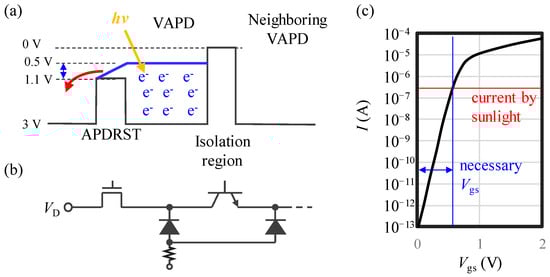

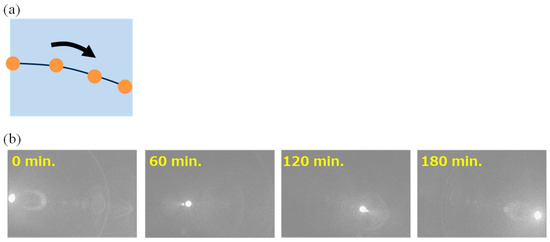

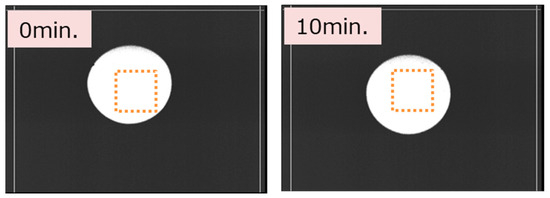

4.1. Stable Operation during Direct Imaging of the Sun (DIS)

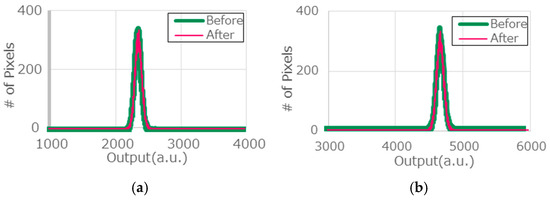

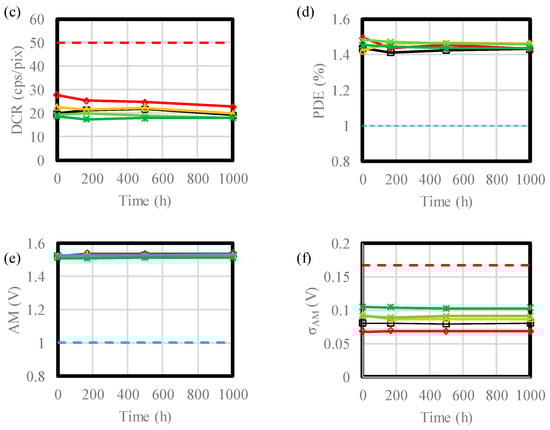

4.2. Stable Operation with No Degradation during High-Temperature/Intensity-Light-Illumination Operation Tests (HTs/ILOTs)
5. Discussion

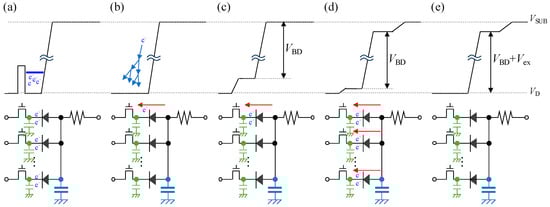

5.1. Mechanism of Voltage Stabilizing by GFBR for Robust Operation

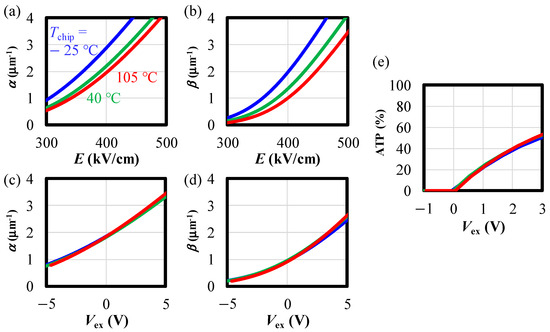

5.2. Temperature-Independent ATP: The Stabilizing Effect of GFBR
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
List of Selected Acronyms
AM | (voltage) Amplitude of Multiplication |
ATP | Avalanche Triggering Probability |
DIS | Direct Imaging of the Sun |
GFBR | Global Feedback Resistor |
HT/ILOT | High-Temperature/Intensity-Light-illumination Operation Test |
MR | (avalanche) Multiplication Region |
OFT | Overflow Transistor |
SRS-TOF | Subrange Synthesis Time-of-Flight |
VAPD | Vertical Avalanche Photodiode |
Appendix A
Appendix A.1. Calculation Formulas for Main Characteristics
References
- Morimoto, K.; Ardelean, A.; Wu, M.-L.; Ulku, A.C.; Antolovic, I.M.; Bruschini, C.; Charbon, E. Megapixel time-gated SPAD image sensor for 2D and 3D imaging applications. Optica 2020, 7, 346–354. [Google Scholar] [CrossRef]
- Morimoto, K.; Iwata, J.; Shinohara, M.; Sekine, H.; Abdelghafar, A.; Tsuchiya, H.; Kuroda, Y.; Tojima, K.; Endo, W.; Maehashi, Y.; et al. 3.2 Megapixel 3D-Stacked Charge Focusing SPAD for Low-Light Imaging and Depth Sensing. In Proceedings of the 2021 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 11–16 December 2021; pp. 20.2.1–20.2.4. [Google Scholar] [CrossRef]
- Okino, T.; Yamada, S.; Sakata, Y.; Kasuga, S.; Takemoto, M.; Nose, Y.; Koshida, H.; Tamaru, M.; Sugiura, Y.; Saito, S.; et al. A 1200 × 900 6 μm 450 fps Geiger-Mode Vertical Avalanche Photodiodes CMOS Image Sensor for a 250 m Time-of-Flight Ranging System Using Direct-Indirect-Mixed Frame Synthesis with Configurable-Depth-Resolution Down to 10 cm. In Proceedings of the IEEE International Solid-State Circuits Conference (ISSCC) Digest of Technical Papers, San Francisco, CA, USA, 17 February 2020; pp. 96–98. [Google Scholar] [CrossRef]
- Henderson, R.K.; Johnston, N.; Hutchings, S.W.; Gyongy, I.; Abbas, T.A.; Dutton, N.; Tyler, M.; Chan, S.; Leach, J. A 256 × 256 40 nm/90 nm CMOS 3D-Stacked 120 dB- dynamic-range reconfigurable time-resolved SPAD imager. In Proceedings of the IEEE International Solid-State Circuits Conference (ISSCC) Digest of Technical Papers, San Francisco, CA, USA, 18 February 2019; pp. 106–108. [Google Scholar]
- Takatsuka, T.; Ogi, J.; Ikeda, Y.; Hizu, K.; Inaoka, Y.; Sakama, S.; Watanabe, I.; Ishikawa, T.; Shimada, S.; Suzuki, J.; et al. A 3.36 µm-pitch SPAD photon-counting image sensor using clustered multi-cycle clocked recharging technique with intermediate most-significant-bit readout. In Proceedings of the 2023 IEEE Symposium on VLSI Technology and Circuits (VLSI Technology and Circuits), Kyoto, Japan, 11–16 June 2023; pp. 1–2. [Google Scholar] [CrossRef]
- Dutton, N.A.; Gyongy, I.; Parmesan, L.; Gnecchi, S.; Calder, N.; Rae, B.R.; Pellegrini, S.; Grant, L.A.; Henderson, R.K. A SPAD-Based QVGA Image Sensor for Single-Photon Counting and Quanta Imaging. IEEE Trans. Electron Devices 2016, 63, 189–196. [Google Scholar] [CrossRef]
- Yamada, S.; Ishii, M.; Kasuga, S.; Takemoto, M.; Kitajima, H.; Okino, T.; Sakata, Y.; Usuda, M.; Nose, Y.; Koshida, H.; et al. A Nearly Interference-Free and Depth-Resolution-Configurable Time-of-Flight System Based on a Mega-Pixel Vertical Avalanche Photodiodes CMOS Image Sensor. IEEE Open J. Circuits Syst. 2022, 3, 324–335. [Google Scholar] [CrossRef]
- Zhang, C.; Zhang, N.; Ma, Z.; Wang, L.; Qin, Y.; Jia, J.; Zang, K. A 240 × 160 3D-Stacked SPAD dToF Image Sensor with Rolling Shutter and In-Pixel Histogram for Mobile Devices. IEEE Open J. Solid-State Circuits Soc. 2022, 2, 3–11. [Google Scholar] [CrossRef]
- Portaluppi, D.; Conca, E.; Villa, F.; Zappa, F. Time-gated SPAD camera with reconfigurable macropixels for LIDAR applications. In Proceedings of the SPIE 11051, 32nd International Congress on High-Speed Imaging and Photonics, Enschede, The Netherlands, 8–12 October 2018; p. 110510J. [Google Scholar] [CrossRef]
- Perenzoni, M.; Massari, N.; Perenzoni, D.; Gasparini, L.; Stoppa, D. 160 × 120 Pixel Analog-Counting Single-Photon Imager With Time-Gating and Self-Referenced Column-Parallel A/D Conversion for Fluorescence Lifetime Imaging. IEEE J. Solid-State Circuits 2016, 51, 155–167. [Google Scholar]
- Marisaldi, M.; Maccagnani, P.; Moscatelli, F.; Labanti, C.; Fuschino, F.; Prest, M.; Berra, A.; Bolognini, D.; Ghioni, M.; Rech, I.; et al. Single Photon Avalanche Diodes for Space Applications. In Proceedings of the 2011 IEEE Nuclear Science Symposium Conference Record, Valencia, Spain, 23–29 October 2011; pp. 129–134. [Google Scholar] [CrossRef]
- Michálek, V.; Procházka, I.; Blažej, J. Twenty Years of Rad-Hard K14 SPAD in Space Projects. Sensors 2015, 15, 18178–18196. [Google Scholar] [CrossRef]
- Manuzzato, E.; Tontini, A.; Seljak, A.; Perenzoni, M. A 64 × 64-Pixel Flash LiDAR SPAD Imager with Distributed Pixel-to-Pixel Correlation for Background Rejection, Tunable Automatic Pixel Sensitivity and First-Last Event Detection Strategies for Space Applications. In Proceedings of the 2022 IEEE International Solid-State Circuits Conference (ISSCC), San Francisco, CA, USA, 20–26 February 2022; pp. 96–98. [Google Scholar] [CrossRef]
- Ito, K.; Otake, Y.; Kitano, Y.; Matsumoto, A.; Yamamoto, J.; Ogasahara, T.; Hiyama, H.; Naito, R.; Takeuchi, K.; Tada, T.; et al. A Back Illuminated 10 μm SPAD Pixel Array Comprising Full Trench Isolation and Cu-Cu Bonding with Over 14% PDE at 940 nm. In Proceedings of the 2020 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 12–18 December 2020; pp. 16.6.1–16.6.4. [Google Scholar] [CrossRef]
- Ota, Y.; Morimoto, K.; Sasago, T.; Shinohara, M.; Kuroda, Y.; Endo, W.; Maehashi, Y.; Maekawa, S.; Tsuchiya, H.; Abdelahafar, A.; et al. A 0.37 W 143 dB-Dynamic-Range 1Mpixel Backside-Illuminated Charge-Focusing SPAD Image Sensor with Pixel-Wise Exposure Control and Adaptive Clocked Recharging. In Proceedings of the 2022 IEEE International Solid-State Circuits Conference (ISSCC), San Francisco, CA, USA, 20–26 February 2022; pp. 94–96. [Google Scholar] [CrossRef]
- Morimoto, K.; Charbon, E. A Scaling Law for SPAD Pixel Miniaturization. Sensors 2021, 21, 3447. [Google Scholar] [CrossRef] [PubMed]
- Inoue, A. Stochastic Quenching Mechanisms and a Scaling Law for Single Photon Avalanche Diodes. IEEE Trans. Electron Devices 2024, 71, 904–910. [Google Scholar] [CrossRef]
- Morimoto, K.; Charbon, E. High fill-factor miniaturized SPAD arrays with a guard-ring-sharing technique. Opt. Express 2020, 28, 13068–13080. [Google Scholar] [CrossRef] [PubMed]
- Inoue, A.; Okino, T.; Koyama, S.; Hirose, Y. Modeling and analysis of capacitive relaxation quenching in a single photon avalanche diode (SPAD) applied to a CMOS image sensor. Sensors 2020, 20, 3007. [Google Scholar] [CrossRef]
- Charbon, E. Single-photon imaging in complementary metal oxide semiconductor processes. Philos. Trans. A Math. Phys. Eng. Sci. 2014, 372, 20130100. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
- Kataoka, J.; Sato, R.; Ikagawa, T.; Kotoku, J.; Kuramoto, Y.; Tsubuku, Y.; Saito, T.; Yatsu, Y.; Kawai, N.; Ishikawa, Y.; et al. An active gain-control system for Avalanche photo-diodes under moderate temperature variations. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2006, 564, 300–307. [Google Scholar] [CrossRef]
- S15415-02, High-Speed, Compact Si APD that Does Not Require Temperature Adjustment, Hamamatsu Photonics. Available online: https://www.hamamatsu.com/eu/en/product/optical-sensors/apd/si-apd/S15415-02.html (accessed on 9 August 2024).
- Pellegrini, S.; Rae, B. Fully industrialised single photon avalanche diodes. In Proceedings of the SPIE 10212, Advanced Photon Counting Techniques XI, Anaheim, CA, USA, 9–13 April 2017; p. 102120D. [Google Scholar] [CrossRef]
- Jackson, C.; O’neill, K.; Wall, L.A.; McGarvey, B. High-volume silicon photomultiplier production, performance, and reliability. Opt. Eng. 2014, 53, 081909. [Google Scholar] [CrossRef]
- Itzler, M. InP-based SPADs for Automotive Lidar. In Proceedings of the 2020 International SPAD Sensor Workshop (ISSW), Virtual, 8–10 June 2020. [Google Scholar]
- Gnani, E.; Reggiani, S.; Rudan, M.; Baccarani, G. Extraction method for the impact-ionization multiplication factor in silicon at large operating temperatures. In Proceedings of the 32nd European Solid-State Device Research Conference (ESSDERC), Florence, Italy, 24–26 September 2002; pp. 227–230. [Google Scholar]
- Martin, A.G. Self-consistent optical parameters of intrinsic silicon at 300 K including temperature coefficients. Sol. Energy Mater. Sol. Cells 2008, 92, 1305–1310. [Google Scholar]
- Gueymard, C.A. Parameterized Transmittance Model for Direct Beam and Circumsolar Spectral Irradiance. Sol. Energy 2001, 71, 325–346. [Google Scholar] [CrossRef]
- AEC-Q100-REV-J Failure Mechanism Based Stress Test Qualification for Integrated Circuits in Automotive Applications, Automotive Electronics Council. 2023. Available online: http://www.aecouncil.com/Documents/AEC_Q100_Rev_J_Base_Document.pdf (accessed on 9 August 2024).
- Inoue, A.; Hirose, Y. Non-linear carrier dynamics in a single photon avalanche diode: Stability, bifurcation and quenching condition. IEEE Trans. Electron Devices 2021, 68, 6222–6227. [Google Scholar] [CrossRef]
- Sze, S.M.; Gibbons, G. Avalanche breakdown voltages of abrupt and linearly graded pn junctions in Ge, Si, GaAs, and GaP. Appl. Phys. Lett. 1966, 8, 111–113. [Google Scholar] [CrossRef]
- Oldham, W.G.; Samuelson, R.R.; Antognetti, P. Triggering phenomena in avalanche diodes. IEEE Trans. Electron Devices 1972, 19, 1056–1060. [Google Scholar] [CrossRef]
- Muller, R.S.; Kamins, T.I. Device Electronics for Integrated Circuits, 3rd ed.; Wiley: Hoboken, NJ, USA, 2003. [Google Scholar]
Items | Specifications | Typical Experimental Results |
---|---|---|
CMOS technology | 65 nm 1P4M1MIM | |
Pixel pitch | 6 μm | |
Array size | 1200 × 900 | |
Frame rate | 30 fps | |
Fill factor | 30.6% (including circuit area) 57.3% (excluding circuit area) | |
|VBD| | <32 V | 29.8 V @−25 °C 27.5 V @RT |

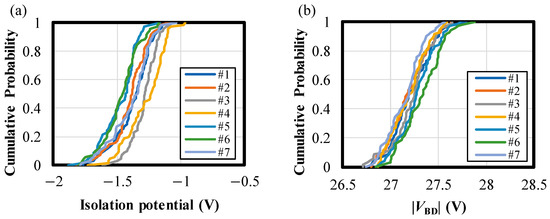

Isolation potential | <0 V | −1.3 V @RT |
PDE @940 nm | >1% >1.2%@RT | 1.2% @−25 °C 1.6% @RT |
DCR | <100 cps/pix @RT <54,000 cps/pix @105 °C | 21 cps/pix @RT 10,000 cps/pix @105 °C |
Voltage swings | >1 V | 1.5 V |

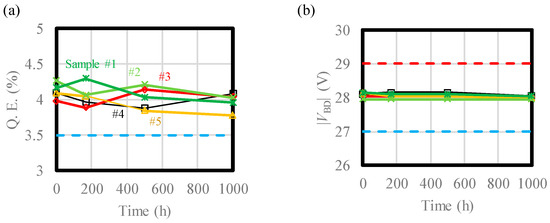

Item | Before | After | Variation | Test Spec. |
---|---|---|---|---|
Q.E. (%) | 4.38% | 4.20% | −4.0% | 3.5% max. |
|VBD| (V) | 28.15 V | 28.15 V | 0% | 27 V~29 V |
DCR (cps) | 21.5 cps | 20.4 cps | −5.0% | 50 cps max. |
PDE (%) | 1.46% | 1.46% | 0% | 1% min. |
AM (V) | 1.50 V | 1.50 V | 0% | 1 V min. |
σAM (V) | 0.083 V | 0.084 V | 1.4% | 0.17 V max. |
Temperature | 125 °C |
Illumination power | 827 μW/cm2 |
Wavelength | 940 nm |
Exposure Time | 1000 h. |
Optical Filters Condition | w. BPF and Lens |
Driving mode | Time-of-Flight (45,000 exposures/s) |
Read-out speed | 450 fps |
