Fit Entropy-Based Dynamic Communication Resource Slicing-Optimization Method in Smart Distribution Grids on the Medium–Low-Voltage Side
Abstract
:1. Introduction
2. System Model

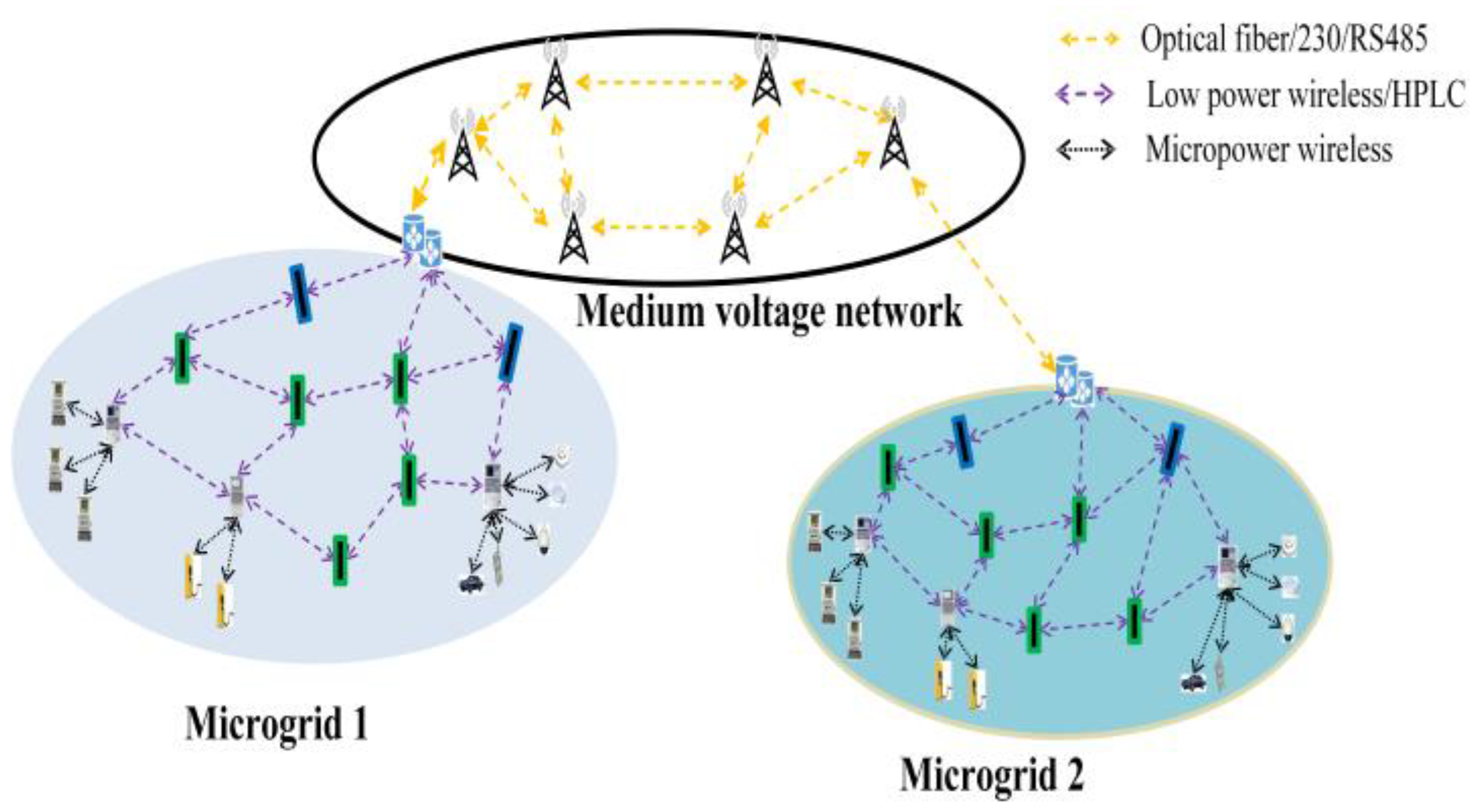

2.1. Communication Network Architecture for Smart Distribution Grids on the Medium–Low-Voltage Side
2.2. Service and Resource Matching Process
2.3. Definition of Fit Entropy
2.4. Business Utility Definition
3. Optimization of the Matching between the Service Domain, Logical Domain and Physical Domain Based on Utility
3.1. Problem Formulation
3.2. The Matching Mechanism between the Service Domain, Logic Domain, and Physical Domain

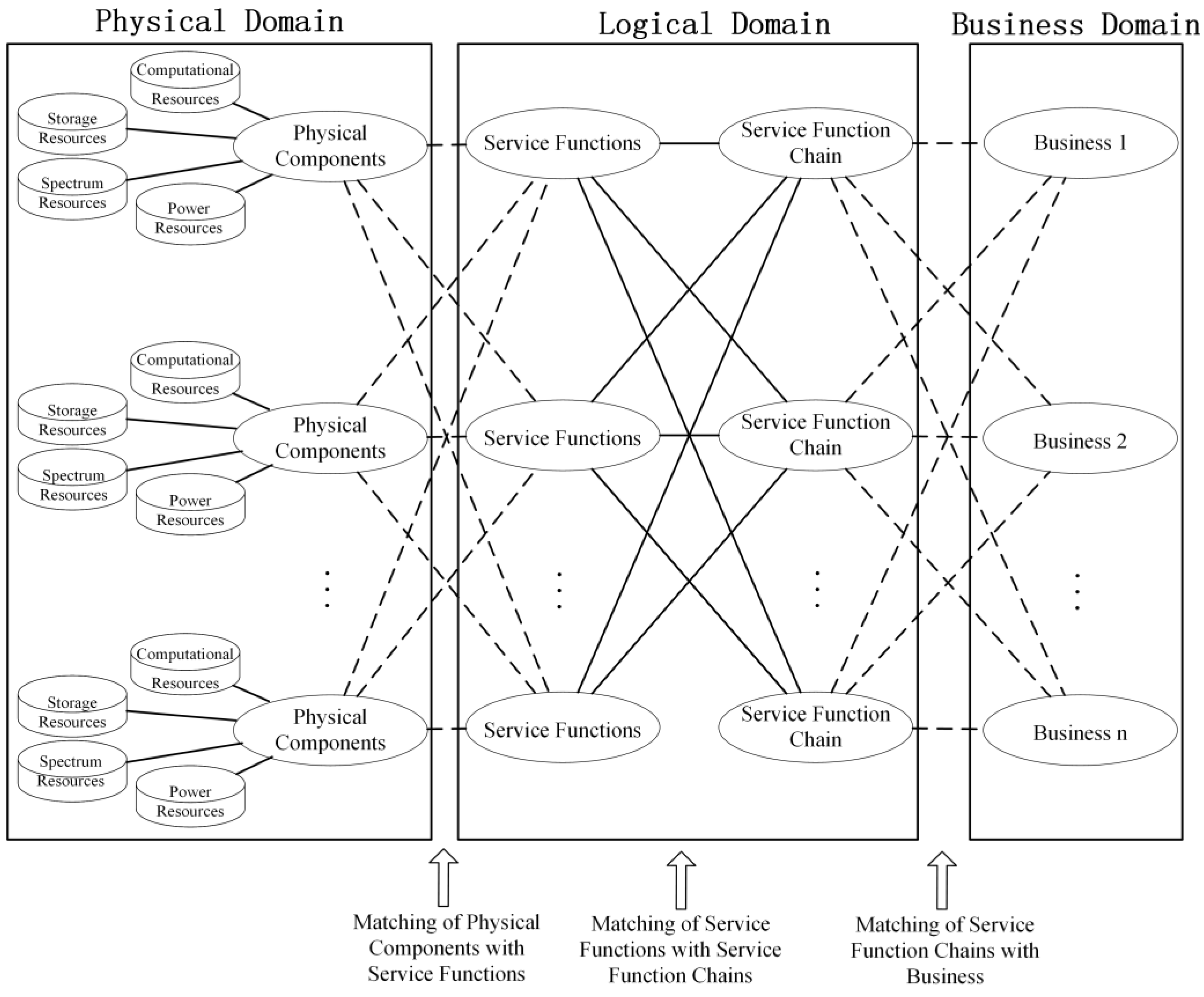

3.2.1. Description of the Three-Domain Model Based on Hypergraphs
3.2.2. Building Service Function Chains
Algorithm 1: SFC Construction Algorithm Based on Improved Lexicographic Order | |
1: | Initialize the business request and its service functionality dependencies |
2: | for each service request do |
3: | Randomly select a construction plan for encoding |
4: | Obtain all construction sets SFCG of SFC according to the lexicographic order. |
5: | do |
6: | does not satisfy the dependency relationship |
7: | |
8: | end if |
9: | end for |
10: | end for |
3.2.3. The Two-Stage Matching of the Service Domain, Logic Domain, and Physical Domain
3.2.4. The Integrated Matching of the Service Domain, Logic Domain, and Physical Domain
Algorithm 2: Optimization Matching Algorithm for Business-SFC-Physical Component Based on Utility | |
1: | Initialize the business requirements and their corresponding service function chain groups with service levels. |
2: | Generate preference lists for each business and service function chain. |
3: | |
4: | |
5: | |
6: | The requester sends matching requests to all service function chains in the list that meet its requirements |
7: | SFCs that meet the requirements |
8: | Compute the matching probability to optimize utility |
9: | end for |
10: | end for |
11: | if the total resources of the available physical component set > resources required by the SFC |
12: | Match Successful |
13: | else if the available physical component resources are insufficient |
14: | Delete the currently matched service function chain and re-execute step 6. |
15: | end if |
16: | end while |
3.2.5. The Complexity Analysis of the Algorithms

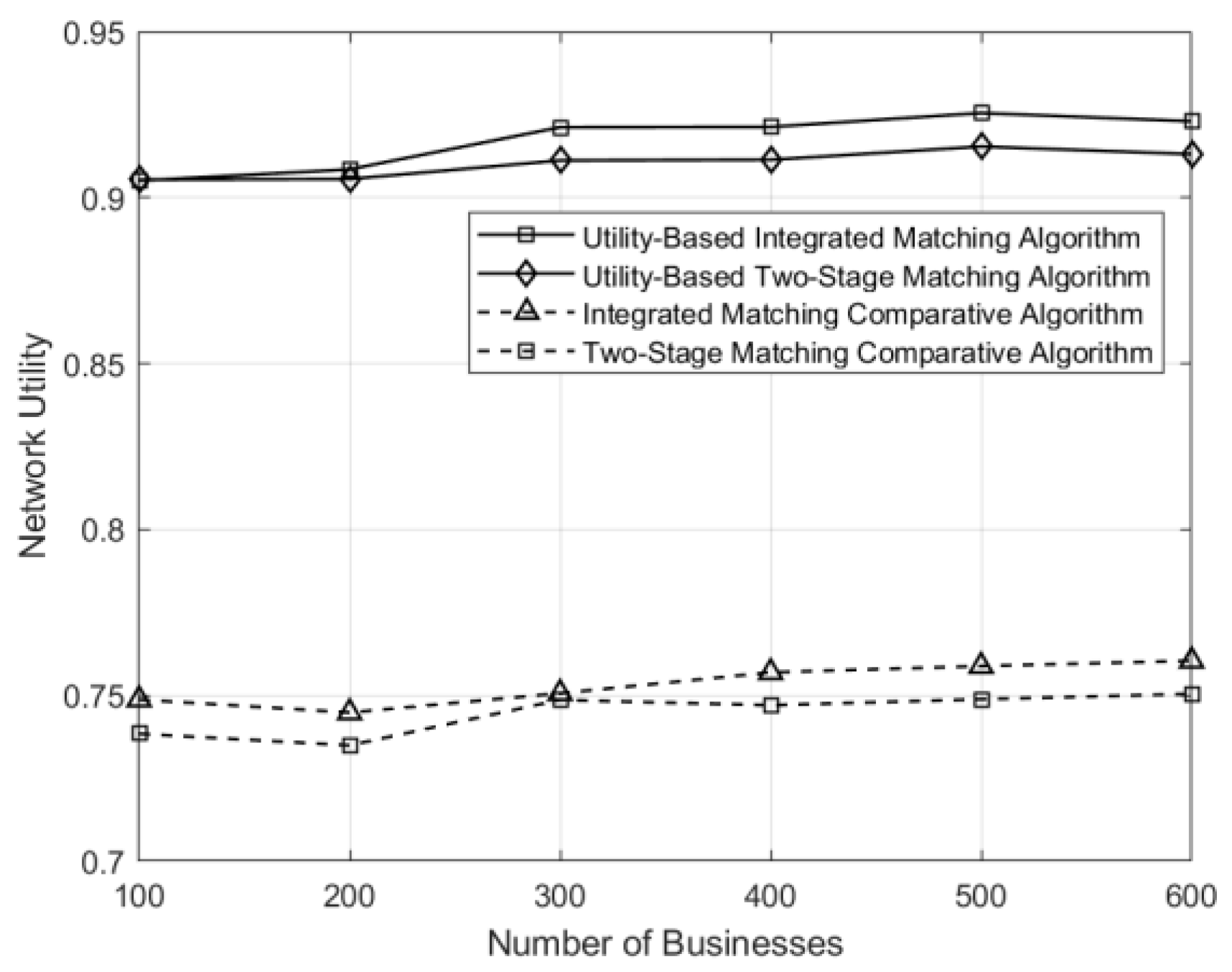

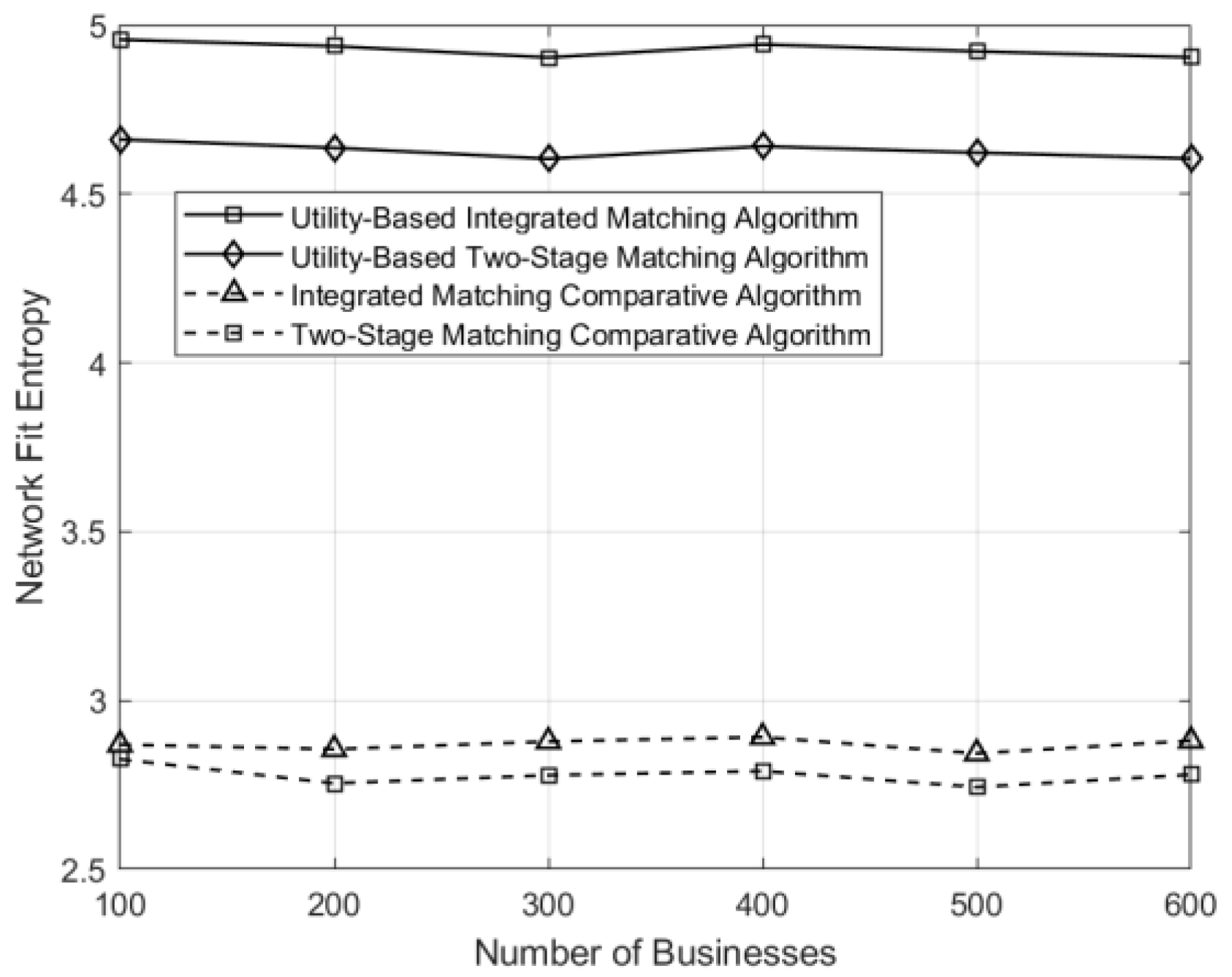

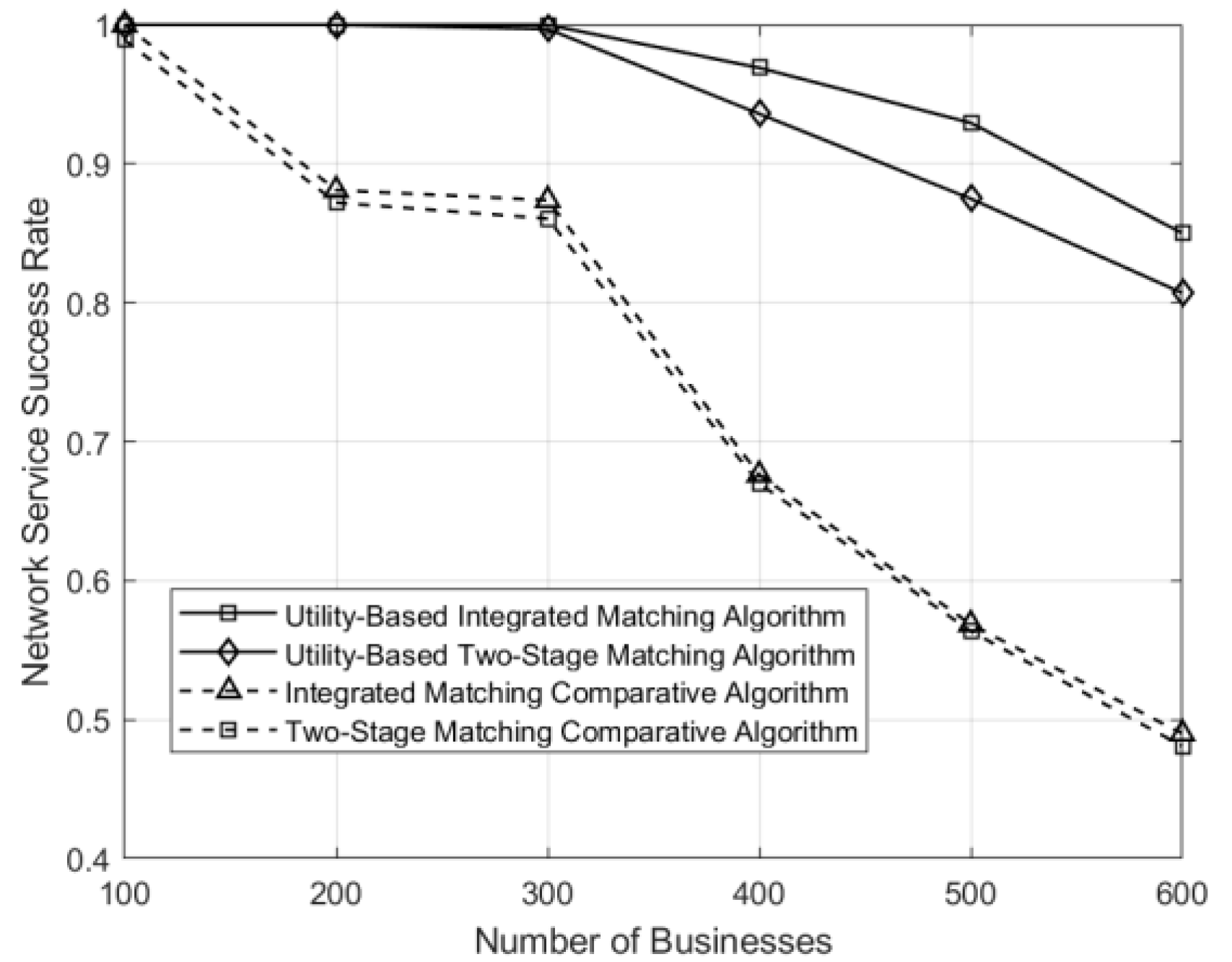

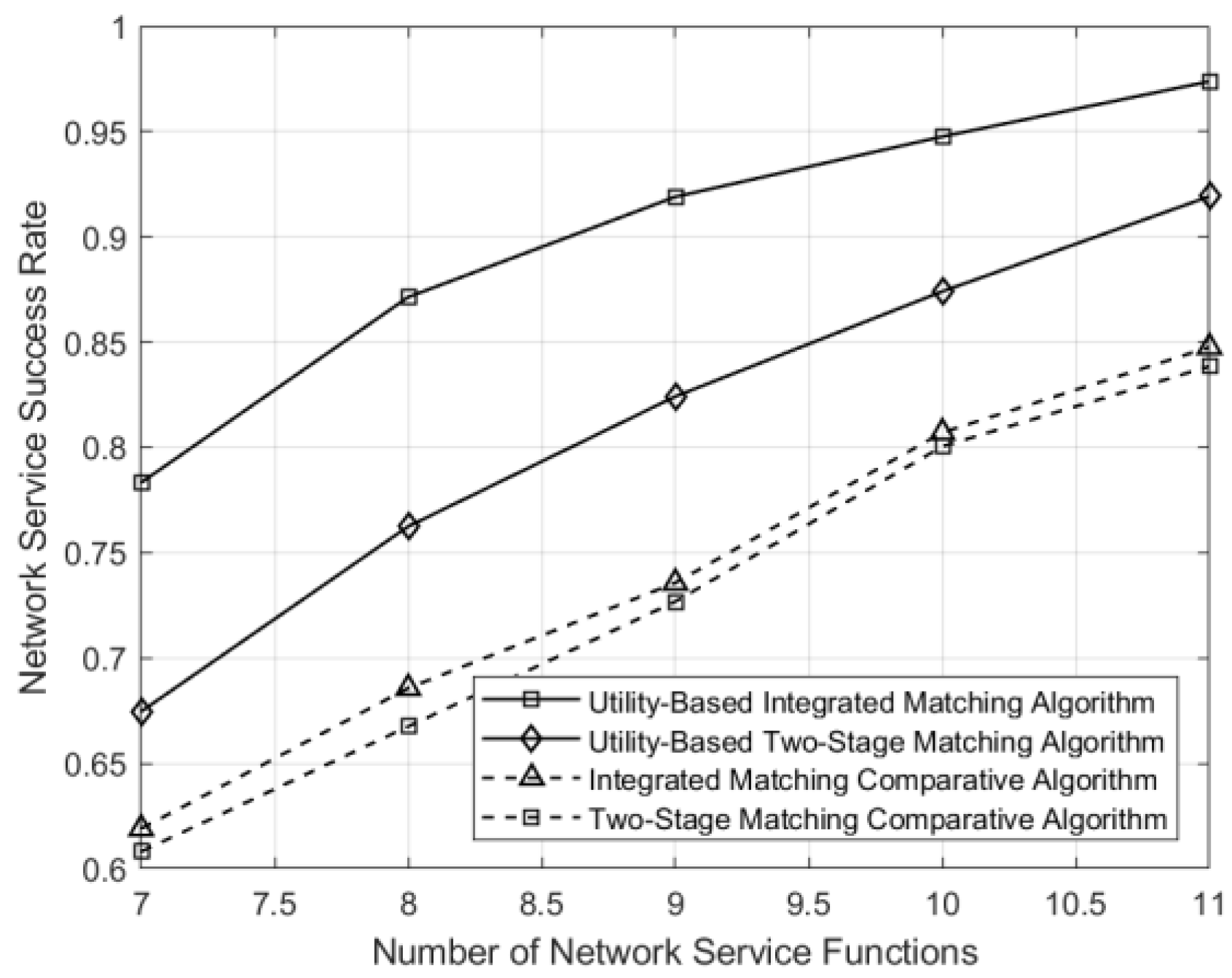

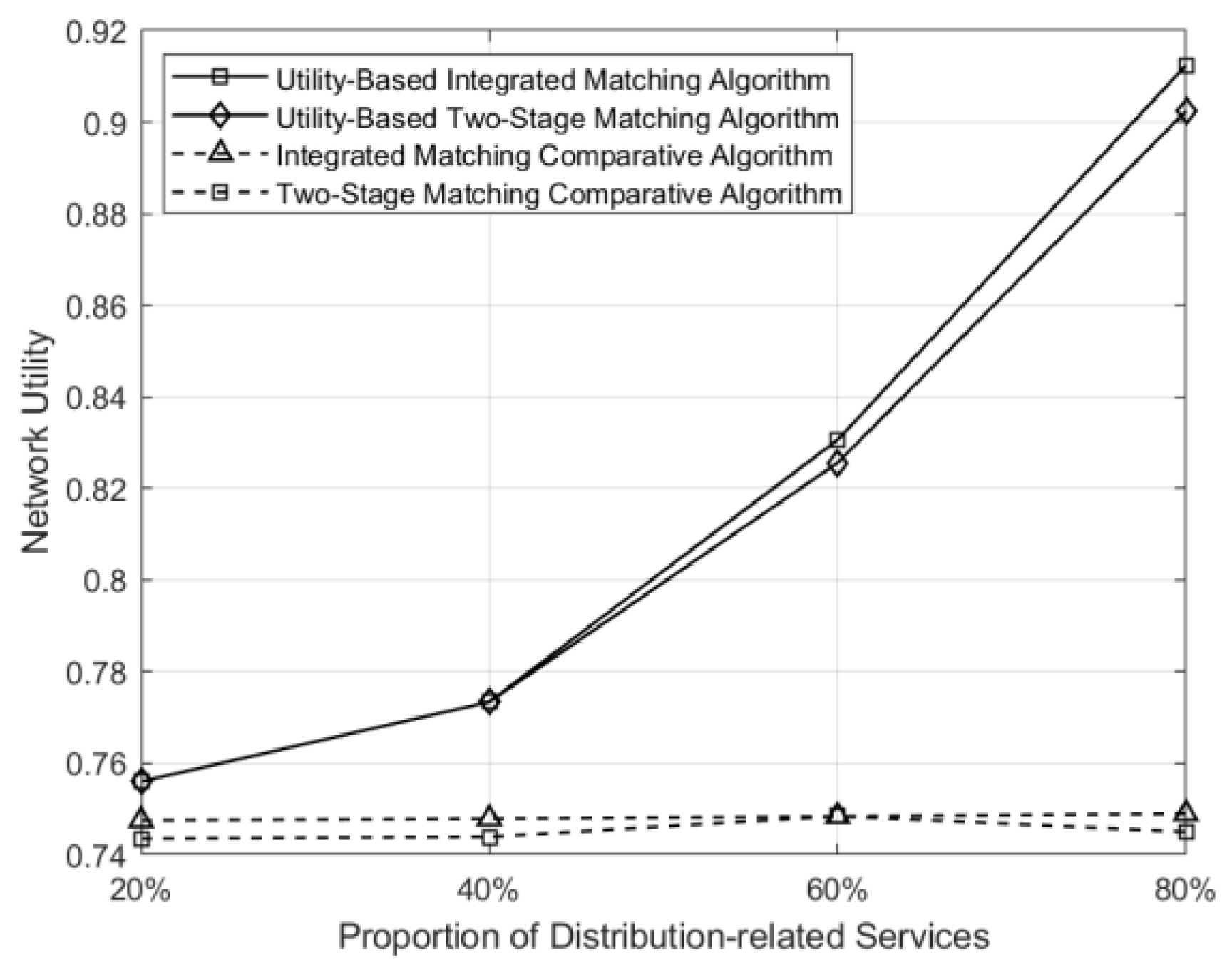

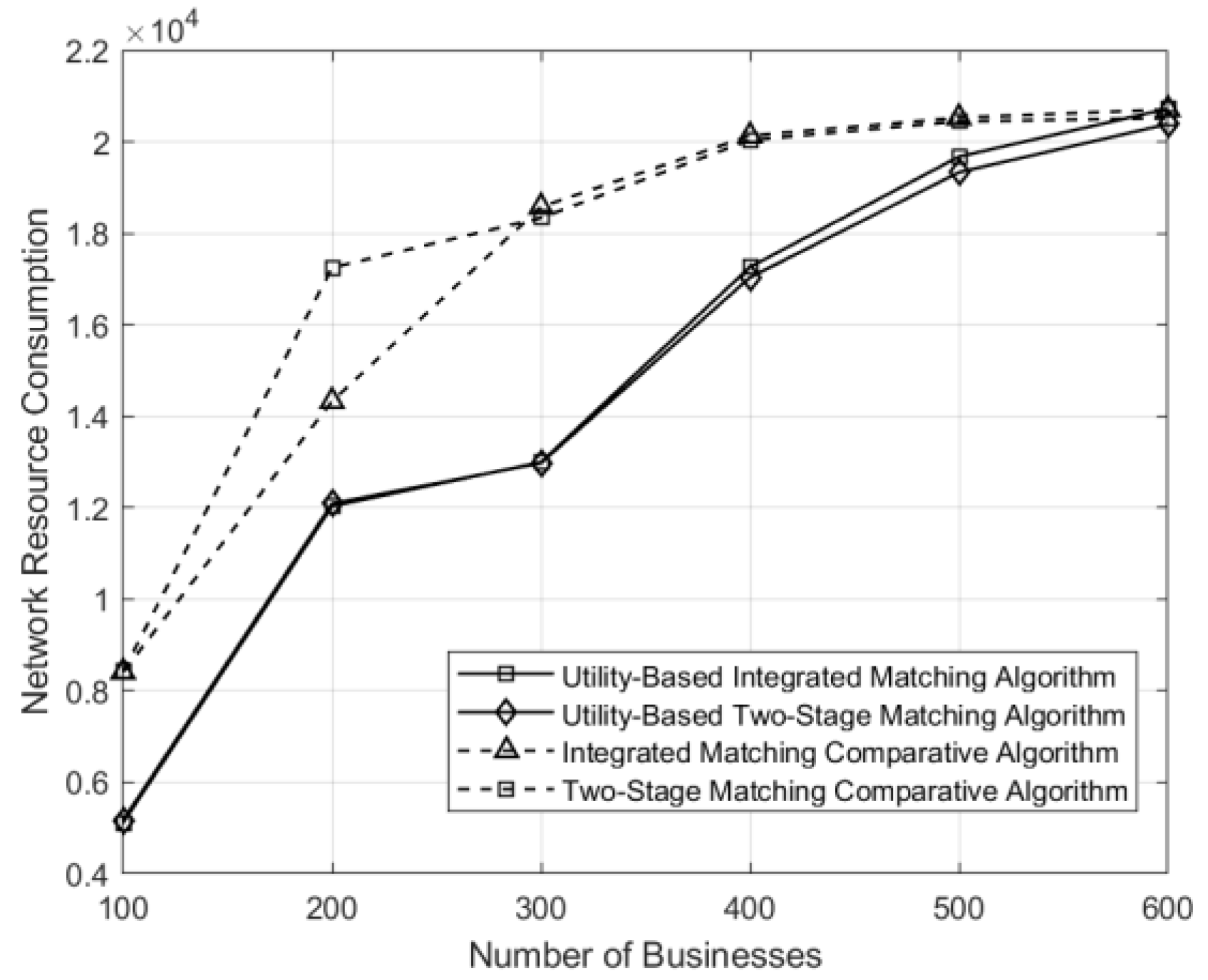

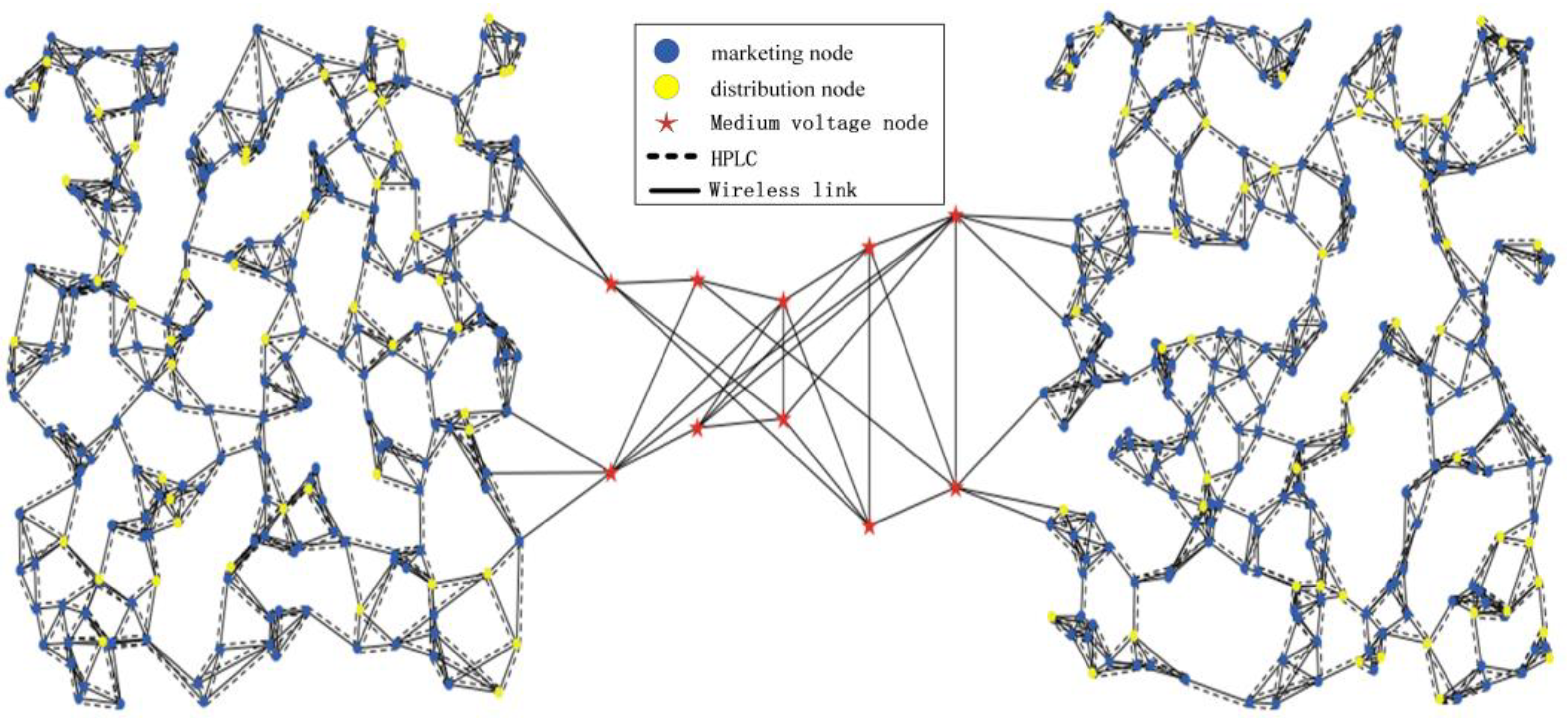

4. Simulation
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
