A Quantitative Comparison of ³¹P Magnetic Resonance Spectroscopy RF Coil Sensitivity and SNR between 7T and 10.5T Human MRI Scanners Using a Loop-Dipole ³¹P-¹H Probe

Abstract

In vivo phosphorus-31 (³¹P) magnetic resonance spectroscopy (MRS) imaging (MRSI) is an important non-invasive imaging tool for studying cerebral energy metabolism, intracellular nicotinamide adenine dinucleotide (NAD) and redox ratio, and mitochondrial function. However, it is challenging to achieve high signal-to-noise ratio (SNR) ³¹P MRS/MRSI results owing to low phosphorus metabolites concentration and low phosphorous gyromagnetic ratio ($\gamma$). Many works have demonstrated that ultrahigh field (UHF) could significantly improve the ³¹P-MRS SNR. However, there is a lack of studies of the ³¹P MRSI SNR in the 10.5 Tesla (T) human scanner. In this study, we designed and constructed a novel ³¹P-¹H dual-frequency loop-dipole probe that can operate at both 7T and 10.5T for a quantitative comparison of ³¹P MRSI SNR between the two magnetic fields, taking into account the RF coil B₁ fields (RF coil receive and transmit fields) and relaxation times. We found that the SNR of the ³¹P MRS signal is 1.5 times higher at 10.5T as compared to 7T, and the power dependence of SNR on magnetic field strength (B₀) is 1.9.

1. Introduction

In vivo phosphorus-31 (³¹P) magnetic resonance spectroscopy (MRS) imaging (MRSI) detects various phosphorus metabolites involving adenosine triphosphate (ATP) energy and phospholipid metabolisms, as well as the nicotinamide adenine dinucleotide (NAD) and NAD redox ratio in human brain [1,2,3,4,5]. The abnormality observed in the ³¹P MRS studies reflects brain pathology and diseases, such as ischemia, seizure, epilepsy and Alzheimer’s disease [6,7,8,9]. However, it is still challenging to achieve high spatiotemporal resolution for investigating regional phosphorus metabolic content and abnormality owing to the very low cerebral concentration of phosphorus metabolites and the low ³¹P gyromagnetic ratio ($\gamma$), and thus, low sensitivity or signal-to-noise ratio (SNR), as compared to proton (¹H). Previous studies have shown that increasing magnetic field strength (B₀) for 7T and above can largely improve the ³¹P MRS SNR and spectral resolution [10,11,12,13,14,15,16]. The 10.5T whole-body imaging system is among the highest magnetic field strength MRI scanners for human whole-body imaging in the world. A number of in vivo proton (¹H)-based MRI studies at 10.5T have demonstrated significantly improved human brain and body imaging results compared to 7T [17,18,19]. However, the field-dependent ³¹P MRS/MRI SNR improvement from 7T to 10.5T remains unknown, and there is a lack of experimental studies that quantitatively compare the ³¹P SNR improvement between 10.5T and 7T human MRI scanner, as differences in radio-frequency (RF) coil designs for both magnetic fields could affect the comparisons and outcomes [20]. In addition, there is a lack of field-dependent X-nuclear (e.g., ³¹P, ¹⁷O and ²H) MRS SNR quantification studies that quantitatively consider the RF coil sensitivity profiles. Traditional studies for field-dependent SNR quantification of X-nuclei SNR involving small RF coil sizes or small animals [10,11,21,22] have only considered the RF coil quality factor (Q factor) in loaded conditions. For larger RF coil sizes or higher operating frequencies such as ³¹P at 10.5T (operating frequency = 180.5 MHz), the RF coil Q factor may not be sufficient to account for the factor on SNR, and the RF coil sensitivity profile needs to be considered [23,24,25].

The combination of dipole and monopole with a loop resonator has become a popular choice of dual- or even triple-frequency tuned RF coils used in X-nuclear and proton imaging in ultrahigh field MRI [26,27,28]. In an overlapped dipole and loop design, the magnetic fluxes generated by the dipole coil and loop coil are orthogonal, resulting in intrinsic decoupling between the two coils [27]. In addition, the Poynting vector of the radiative dipole is pointed toward the phantom and allows a strong far-field regime or deeper penetration of B₁ fields (transmit and receive magnetic fields) in imaging phantom at ultrahigh field, while the near-field regime is dominant and the B₁ penetration is shallower for the loop resonator [29]. Thus, the dipole coil is typically placed on the outer layer and the loop coil is placed on the inner layer of the multi-layer RF coil designs to optimize the performance for both coil types in multi-frequency MRI/MRS applications.

In this work, we designed and applied the same ³¹P-¹H dual-frequency loop-dipole RF coil consisting of a ³¹P surface loop coil for ³¹P MRSI and a ¹H dipole coil for ¹H-based structural imaging and B₀ shimming at both 7T and 10.5T. The coil shows stable match and tuning for both ³¹P and ¹H channels and good decoupling between the ¹H and ³¹P channels at both 7T and 10.5T human scanners. It is used to perform ³¹P MRSI at both fields to quantitatively compare the SNR difference between the two fields in consideration of the multiple factors of B₀, RF coil B₁ fields, the longitudinal relaxation time (T₁) and ³¹P spectral linewidth at half peak height (∆v).

2. Materials and Methods

2.1. RF Coil Construction

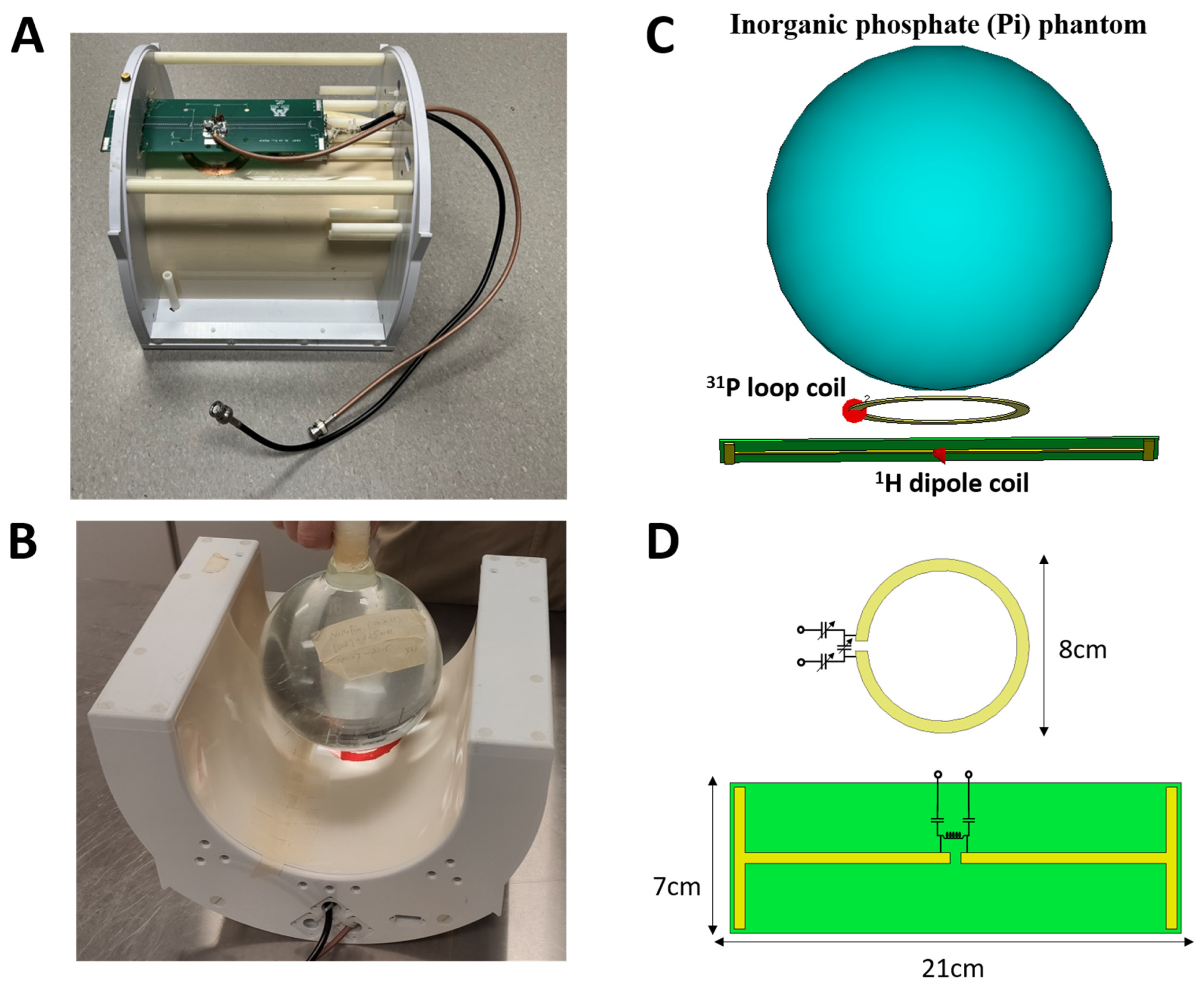

The ³¹P MRSI experiments were performed using an inorganic phosphate (Pi) water phantom on both 7T and 10.5T magnetic field strength human scanners (SIEMENS, Munich, Germany), and a ³¹P-¹H dual-frequency loop-dipole probe was used as a RF coil, as shown in Figure 1. The dipole and loop coils are mounted on a low dielectric loss polycarbonate RF coil former. The same coil former setup (Figure 1A,B) is used for ¹H imaging, B₀ shimming and ³¹P MRSI at both magnetic fields. We designed and constructed the ³¹P-¹H dual-frequency loop-dipole probe with passive decoupling, which could be operated at both 7T and 10.5T operation frequencies. The dipole and loop coil dimensions and the match/tuning networks are shown in Figure 1C,D. The ¹H dipole coil is milled on a PCB board (21 cm length). The match/tuning circuit for the dipole coil consists of a shunt inductor and two in-series capacitors, as shown in Figure 1D. Two match/tuning circuits with different inductor and capacitor values were used for the matching and tuning of the dipole coil at 297 MHz (7T) and 447 MHz (10.5T) ¹H operation frequencies, respectively. The ³¹P loop coil is built using a 1.4 mil thickness copper foil shielding tape, forming an 8 cm outer diameter circle. The L-type match/tuning network consisting of three trimmer capacitors is used for the ³¹P loop coil. This match/tuning network allows for the adjustment of the tuning frequency of the ³¹P loop coil from 120.3 MHz (7T) to 180.5 MHz (10.5T). The ¹H dipole coil is located 2.5 cm away from the ³¹P loop coil plane. This 2.5 cm gap between the dipole and loop coil allows for sufficient decoupling between the two coils at both ³¹P and ¹H operating frequencies. A closer distance between the loop and dipole coil can result in more coupling between the two coils. The RF coil Q factor was measured using −7 dB from the 0 dB baseline of the S₁₁ (scattering parameter) plot, as demonstrated in Figure 2C,D, based on the Q factor calculation method described in the literature [30].

2.2. ³¹P MRSI Experiment

Figure 1C shows the setup of the loop-dipole coil loaded with the Pi phantom. The Pi phantom contains 100 mM NaH₂PO₄ and 0.05 mM Gadolinium (Gd for shortening the Pi T₁ value) and has a total volume of 2 L. The loading effect of the Pi phantom is similar to a human head. B₀ shimming was performed over an 8 cm cube volume at the bottom of the phantom near the RF coil plane. Three-dimensional (3D) ³¹P chemical shift images (CSI) [31] with different RF excitation pulse voltages (square pulse shape) were acquired with a field of view (FOV) of 15 $\times$ 15 $\times$ 15 cm and matrix size of 9 $\times$ 9 $\times$ 7, covering the entire phantom. At both magnetic fields, we used the same CSI acquisition parameters: repetition time (TR) = 1500 ms (fully relaxed condition), echo time (TE) = 0.5 ms, excitation hard pulse length = 500 μs and spectral width = 5000 Hz. With the Gd solved in the phantom, the T₁ of Pi is approximately 300 ms at 7T and 220 ms at 10.5T; thus, a 1500 ms TR is sufficient to achieve full relaxation conditions at both fields. For data post processing, the Pi FID (Free Inductive Decay) data from each CSI voxel was converted to a spectrum using FFT, with a 10 Hz exponential apodization and zero filling with 5000 points. For the spectrum conversion, a 0-degree first-order phase shift is used, and an optimal zero-order phase shift is used to maximize the real part of the Pi spectral peak height. After applying both first-order and zero-order phase corrections, the peak height of the real part of the Pi spectrum is used as the measured Pi signal.

2.3. SNR Quantification

For 3D Fourier-series Window (FSW) CSI [31,32], the measured ³¹P MRS signal (Pi spectral peak) in a given voxel [33] is as follows:

$$\mathrm{S}=M_0·B_1^{-}·\mathrm{s}\mathrm{i}\mathrm{n}\left(\alpha \right),$$

(1)

where S is the measured signal of ³¹P MRS, $M_0$ is the equilibrium magnetization along the z-axis, with its magnitude depending on the magnetic field strength [34]. $B_1^{-}$ is the RF coil receive field. The RF pulse flip angle $\alpha$ is given by

$$\alpha =\gamma ·\tau ·{|B}_1^{+}|·V,$$

(2)

where $B_1^{+}$ is the RF coil transmit field normalized by excitation pulse voltage, in units of T/volt, $\gamma$ is the gyromagnetic ratio, τ is the time duration of RF excitation pulse and V is the RF excitation pulse voltage.

The 90-degree flip angle ³¹P signal ($S_{90°}$) and the corresponding $B_1^{+}$ fields are quantified for all ³¹P 3D CSI voxels. For each CSI voxel, the measured ³¹P spectral peak heights with different RF excitation voltages were fitted to a sine function, where the excitation voltages are used as the dependent variable and the spectral peak heights are used as the independent variable. The spectral peak heights determined by the regression of the sine wave function at the flip angle of 90° represent the ultimate (or largest) ³¹P signal ($S_{90°}$) that could be achieved in a particular voxel. At $S_{90°}$, $\mathrm{s}\mathrm{i}\mathrm{n}\left(\alpha \right)$ equals to one, and the corresponding RF excitation voltage is proportional to $1/B_1^{+}$, and can determine the $B_1^{+}$ value according to Equation (2). The quantification of $S_{90°}$ and $B_1^{+}$ fields is described in detail in the literature [35]. We selected 10 voxels from similar locations near the center of the coil’s sensitive region to calculate the mean ³¹P signal ($S_{90°}$) for 7T and 10.5T, respectivly. To quantify the spectral noise level, we acquired the ³¹P CSI with 0-volt RF pulse voltage. The standard deviation from the inner band of the noise spectra was calculated to obtain the spectral noise (${\sigma }_{noise}$) for both 7T and 10.5T.

Under fully relaxed acquisition conditions with a 90-degree flip angle ($\alpha$ = 90°), and by dividing the ³¹P signal (Equation (1)) with spectral noise level (${\sigma }_{noise}$), the ³¹P SNR can be calculated [10,11] and be described by

$${\mathrm{S}\mathrm{N}\mathrm{R}\propto B}_0^{\beta }·\sqrt{Q_{loaded}}·\sqrt{{\displaystyle \frac{1}{T_1·∆v}}} ,$$

(3)

where $B_0^{\beta }$ is the magnetic field-dependent term with a power factor of $\beta$, $Q_{loaded}$ is the RF coil quality factor in the loaded condition. The SNR ratio between 10.5T and 7T is

$${\displaystyle \frac{{SNR}_{ 31P 10.5T}}{{SNR}_{ 31P 7T}}}={(10.5/7)}^{\mathsf{\beta }}·\sqrt{{\displaystyle \frac{Q_{loaded 10.5T }}{Q_{loaded 7T}}}}·\sqrt{{\displaystyle \frac{T_{1 7T }{· ∆v}_{ 7T}}{{T_{1 10.5T} · ∆v}_{ 10.5T}}}} .$$

(4)

The $Q_{loaded}$ can be related to the RF coil sensitivity by

$$\sqrt{Q_{loaded}}=B_1^{-}·\sqrt{\omega } ,$$

(5)

where $\omega$ is the Larmor frequency. A modified SNR equation is

$$\mathrm{S}\mathrm{N}\mathrm{R}\propto B_0^{\beta }·B_1^{-}·\sqrt{\omega }·\sqrt{{\displaystyle \frac{1}{T_1∆v}}} .$$

(6)

Due to the principle of reciprocity and weak RF wave behavior at a low RF coil operating frequency [24,32], the $B_1^{-}$ field in T/volt at a relatively lower frequency (180.5 MHz or below) for a single-channel surface loop is approximately equal to $B_1^{+}$ field. Thus, Equation (6) becomes

$${\mathrm{S}\mathrm{N}\mathrm{R}\propto B}_0^{\beta }·B_1^{+}·\sqrt{\omega }·\sqrt{{\displaystyle \frac{1}{T_1∆v}}} .$$

(7)

The SNR ratio between 10.5T and 7T ³¹P MRSI is as follows:

$${\displaystyle \frac{{SNR }_{31P 10.5T}}{{SNR}_{ 31P 7T}}}={(10.5/7)}^{\mathsf{\beta }+1/2}·{\displaystyle \frac{ {B_1^{+}}_{31P 10.5T}}{{B_1^{+}}_{31P 7T} }}·\sqrt{{\displaystyle \frac{T_{1 7T}{ · ∆v}_{ 7T}}{{T_{1 10.5T }· ∆v}_{ 10.5T}}}} .$$

(8)

3. Results

3.1. RF Coil Performance

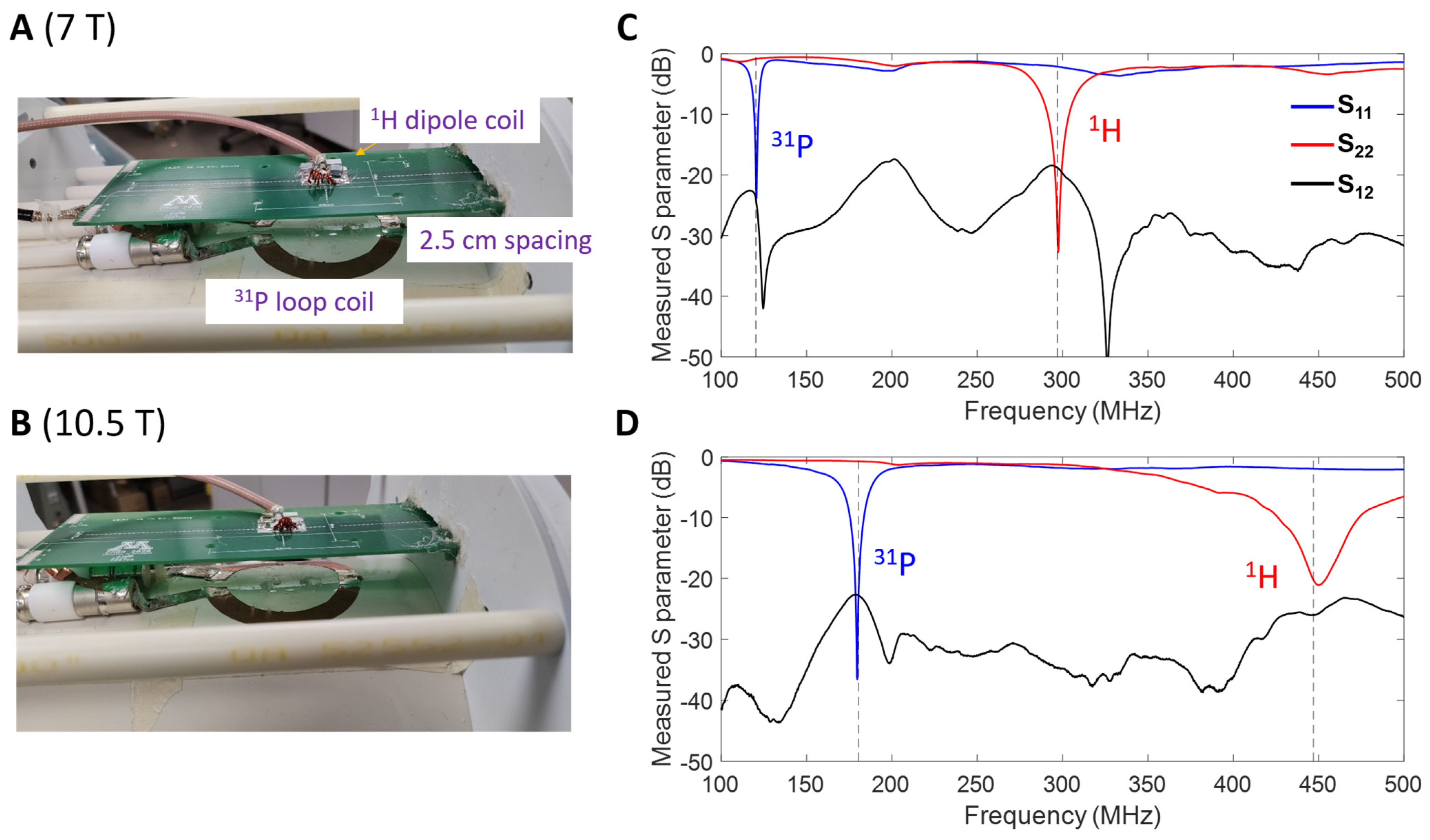

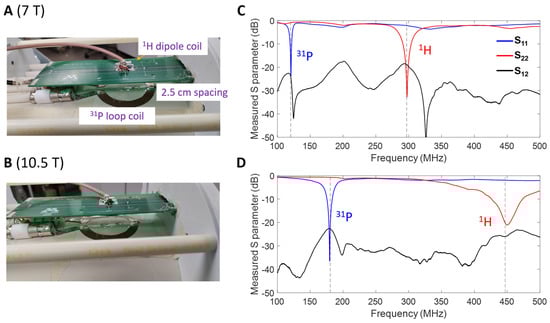

The ³¹P loop coil and ¹H dipole coil under similar conditions or setups are used for the ³¹P MRSI and ¹H MRI studies at 7T (Figure 2A) and 10.5T (Figure 2B). As shown in Figure 2C,D, the ³¹P loop coil and ¹H dipole coil were tuned and matched to S₁₁ (reflection coefficient) of less than −20 dB for ³¹P and ¹H, respectively, at both 7T and 10.5T operating frequencies in the loaded conditions. As our study mainly focuses on ³¹P SNR quantification, coil coupling at ³¹P operating frequencies is more important than coil coupling at the ¹H operating frequencies at both magnetic fields. The S₁₂ (coupling coefficient) between the ³¹P loop and ¹H dipole coils was less than −20 dB at the ³¹P operating frequencies and close to −20 dB at the ¹H operating frequencies, indicating excellent decoupling between the ³¹P and ¹H coils and providing reliable imaging performance for the ³¹P CSI acquisition at both magnetic fields.

3.2. ¹H Imaging and ³¹P MRSI Results

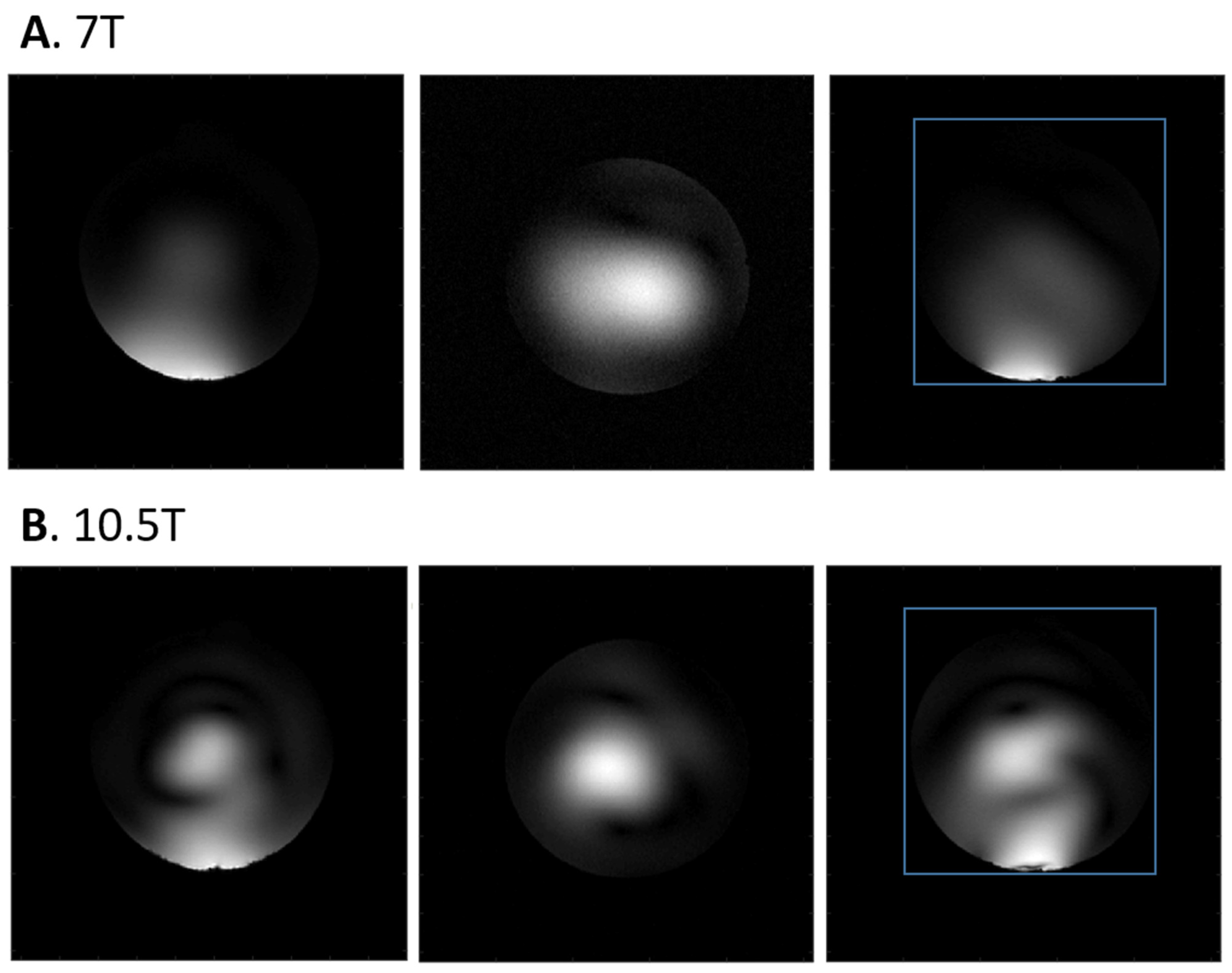

Figure 3 demonstrates the ¹H-based MRI localizer at both 7T and 10.5T. Sagittal, coronal and axial orientation images are shown in Figure 3A and Figure 3B for 7T and 10.5T, respectively. Stronger RF wave behaviors can be observed in the sagittal and axial orientations of the ¹H localizer images at 10.5T compared to 7T.

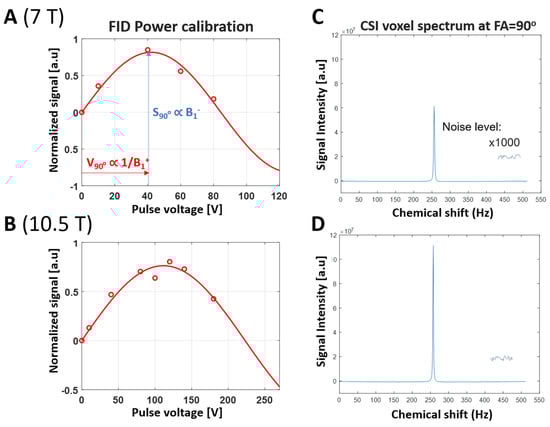

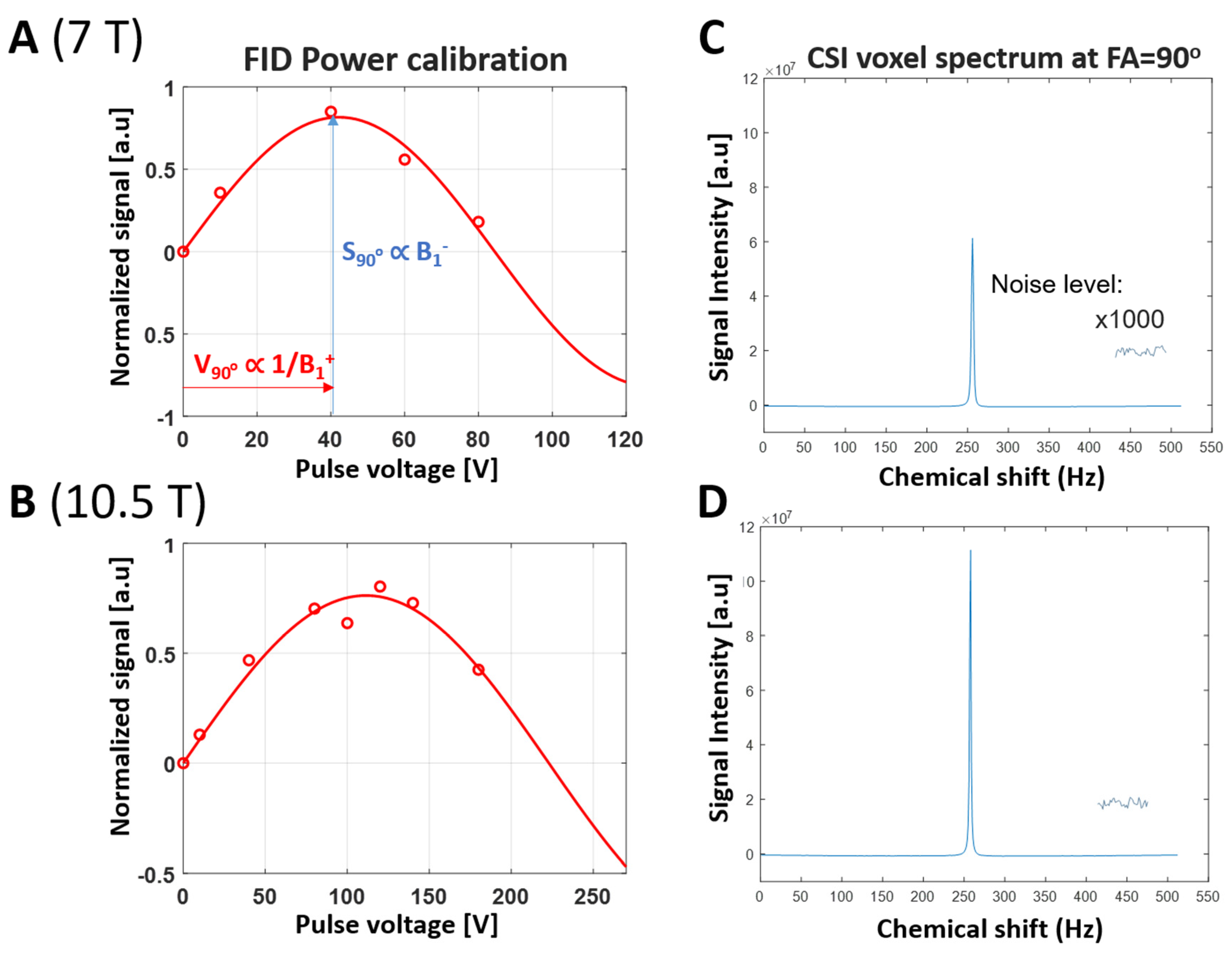

We determined the $B_1^{+}$ values for all CSI voxels based on the fitted voltage map for 90-degree flip angles for all CSI voxels. This is achieved by applying the “sine” function fitting for all 3D ³¹P CSI voxels to determine the 3D distribution of $S_{90°}$ and corresponding 90-degree flip angle voltage values for both 7T and 10.5T. The fitting method is also described in detail in Section 2.3. Figure 4 illustrates the quantification method using sine function fitting to determine $S_{90°}$ and the corresponding 90-degree excitation voltage for a representative CSI voxel at 7T (Figure 4A) and 10.5T (Figure 4B). Figure 4C,D show the ³¹P spectra of two representative CSI voxels near the 90-degree nominal FA, and thus with the highest intensity for 7T and 10.5T, respectively. Figure 4C,D also show the spectral noise level zoomed in 1000 times, indicating similar noise levels for both 7T and 10.5T, and thus, a higher SNR at 10.5T. Figure 5A,B show the SNR maps ($S_{90°}$ divided by spectral noise level) for 7T and 10.5T, respectively. It shows significant improvement in the SNR maps at 10.5T compared to 7T. On the other hand, the $B_1^{+}$ maps at 10.5T (Figure 5D) show a significant decrease compared to the $B_1^{+}$ maps at 7T (Figure 5C). The decrease in $B_1^{+}$ at 10.5T is also reflected by the reduction in loaded RF coil Q factor ($Q_{loaded}$) at 10.5T compared to 7T. In addition, a slightly higher noise level (${\sigma }_{noise}$) is observed in 10.5T compared to 7T, due to increased sample and RF coil loss at higher magnetic fields. The $Q_{loaded}$ and ${\sigma }_{noise}$ values for both magnetic fields are reported in

Table 1. Comparison of 10.5T and 7T ³¹P RF coil and MRS imaging parameters and their ratios.

B0	T1 (ms) (with Gd)	∆v (Hz)	Qloaded	SNR (10 Voxels Average)	${\mathit{B}}_1^{+}$ (10 Voxels Average)	${\mathit{\sigma }}_{\mathit{n}\mathit{o}\mathit{i}\mathit{s}\mathit{e}}$
10.5T	220	27.6	40.9	5.57 ± 0.89 × 103	10.9 × 10−3	1.9 × 104
7T	300	29.0	75.3	3.82 ± 0.69 × 103	24.4 × 10−3	1.4 × 104
ratio	0.73	0.95	0.543	1.48 ± 0.24	0.45	1.35

.

3.3. SNR Quantification and Comparison between 7T and 10.5T

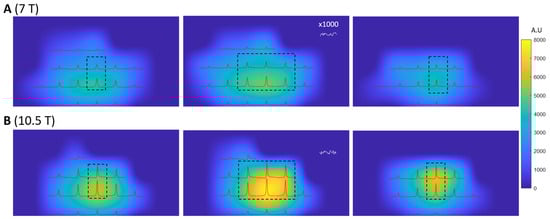

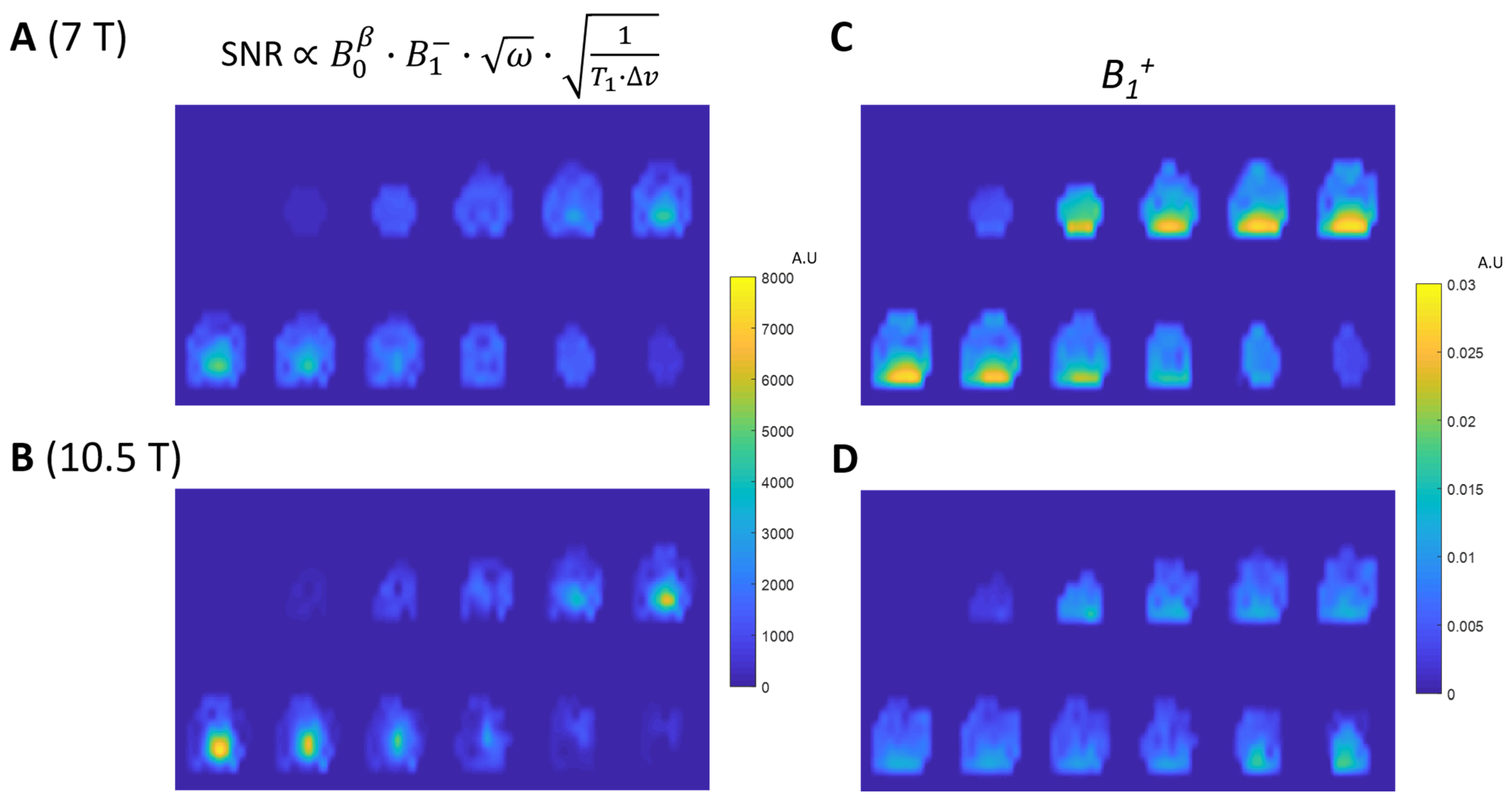

Figure 6 shows the ³¹P SNR maps of three transversal slices at both field strengths. These SNR maps are overlaid with the 3D-CSI ³¹P spectra acquired using the excitation voltage corresponding to the nominal 90-degree flip angle for the global FID signals. Ten voxels (within the dash-line black box in Figure 6) are selected to calculate the average ³¹P SNR for 7T and 10.5T. The spectral noise from a CSI voxel in the peripheral region for 7T and 10.5T is zoomed in 100 times, showing similar noise levels between the two magnetic fields. Table 1 summarizes the parameters of T₁, loaded RF coil Q factor ($Q_{loaded}$), average SNR, average $B_1^{+}$, average spectrum linewidth (∆v) for the selected 10 voxels shown in Figure 6, and noise level (${\sigma }_{noise}$) acquired and quantified at 0-volt RF excitation pulse voltage at 10.5T and 7T, respectively. The ratio of the SNRs measured at 10.5T to 7T is 1.48 ± 0.2. However, the average $B_1^{+}$ and $Q_{loaded}$ are lower at 10.5T compared to 7T. Substituting the ratio of average SNR, T₁, linewidth (Δv) and average $B_1^{+}$ into Equation (8), we obtain $1.48={\left({\displaystyle \frac{10.5}{7}}\right)}^{\beta }\times \sqrt{{\displaystyle \frac{1}{0.73\times 0.95}}}\times 0.45\times \sqrt{1.5}$. This yields a magnetic field-dependent power factor ($\beta$) of 1.9. However, if use traditional SNR quantification according to Equation (4), we obtain $1.48={\left({\displaystyle \frac{10.5}{7}}\right)}^{\beta }\times \sqrt{{\displaystyle \frac{1}{0.73\times 0.95}}}\times \sqrt{0.54}$. This yields a magnetic field-dependent power factor ($\beta$) of 1.3.

4. Discussion

We used a novel ³¹P-¹H dual-frequency loop-dipole RF coil for ³¹P CSI imaging, which also supports ¹H-based structural imaging and B₀ shimming, and demonstrated excellent ³¹P MRSI performance at both 7T and 10.5T human scanners. The dipole–loop coil exhibits excellent decoupling between the ³¹P and ¹H channels and allows for tuning adjustments between 7T and 10.5T for both ³¹P and ¹H operating frequencies. Using the same imaging setup at both fields, we conducted a quantitative comparison of the coil Q factor, RF coil B₁ fields and ³¹P SNR between 7T and 10.5T. We observed a ³¹P MRSI SNR ratio of 1.48 between 10.5T and 7T human scanners (with a B₀ ratio of 1.5), indicating an approximately linear relationship with B_0, consistent with previous reports [10,11].

Additionally, we considered the RF coil sensitivity profile in the proposed ³¹P MRSI SNR quantification method. As the magnetic field strength increases, the imaging frequency also rises, leading to a stronger RF wave effect [36] and a decrease in RF coil sensitivity [24,37]. The spectral linewidth effect, T₁, spectral noise and RF coil sensitivity differences at both 7T and 10.5T were used to derive the power factor ($\beta$) of the magnetic field-dependent term ($B_0^{\beta }$). Under fully relaxed conditions (TR = 1.5 s) for both 7T and 10.5T measurements, and using 90-degree flip angle voltage for excitation, we simplified the SNR calculation equations and derived β = 1.9 from Equation (8) using the parameters listed in Table 1, which is close to the theoretical value of β = ${\displaystyle \frac{7}{4}}$ based on the reports in the literature [38,39,40] for low operating frequency where the coil loss is dominated. For higher frequency, as a RF coil that can perform close to the optimum for each magnetic field strength, the ultimate possible value of intrinsic SNR is dominated by sample loss and the optimal electromagnetic field distribution inside the sample, and even higher SNRs (β > ${\displaystyle \frac{7}{4}}$) are achievable [41,42,43]. The magnetic field-dependent power factor based on Equation (8) is higher than the result obtained from Equation (4), which provides β = 1.3, and also higher than previously reported values in [10], where a smaller RF coil (coil diameter = 5 cm) was used, and β was found to be 1.4 in the human brain at 4T and 7T; similarly, another study reported β values of 1.4–1.5 for small coil and small animal [11]. These previous studies did not account for RF coil sensitivity in SNR quantification, although the RF coil $Q_{loaded}$ was considered. The $Q_{loaded }$ exhibits similar frequency-dependent behavior as the RF coil sensitivity and decreases with increasing field strength due to the rise in the RF coil operating frequency [23,40]. However, $Q_{loaded }$ is only indirectly related to RF coil sensitivity, and Equation (4) may have underestimated the RF coil sensitivity’s influence on the measured ³¹P signal, especially for larger loop coil and higher RF coil operating frequency for human imaging. In addition, it is challenging to obtain accurate $Q_{loaded }$ value, as $Q_{loaded }$ is usually measured on the benchtop with a network analyzer rather than in the scanner. The $Q_{loaded }$ measurement accuracy can be significantly affected by the RF coil’s tuning and matching capabilities, as well as by the proper shielding of electromagnetic fields from the surroundings [30].

A limitation of this study is that we did not use cable traps or baluns for the ³¹P-¹H dual-frequency loop-dipole coil for the 7T and 10.5T imaging studies. We are concerned that the cable traps or baluns tuned to ³¹P and ¹H frequencies for 7T imaging will not be applicable for the ³¹P and ¹H imaging at 10.5T, and could also affect the imaging performance at 10.5T. Thus, we did not use any cable traps or balun for the RF coil when comparing the imaging performance between the two magnetic field strengths. However, magnetic cable traps were used for the coil matchings and tunings in loaded condition on the bench.

5. Conclusions

We conducted the first study using a 10.5T human scanner to report an approximately 1.5-fold gain in ³¹P MRS/MRSI SNR compared to a 7T human scanner. Additionally, we also investigated and demonstrated a magnetic field-dependent power factor of 1.9 for ³¹P MRSI SNR through a quantitative comparison of ³¹P MRSI results between 7T and 10.5T human scanners using a ¹H/³¹P dipole–loop RF coil. Considering the 1.5 times SNR gain and the anticipated improvement in spectral resolution at 10.5T, we expect significant improvements for in vivo ³¹P MRSI for human brain application at 10.5T. The findings from our work with the dual-tuned ³¹P-¹H dipole–loop will aid in the design of future dipole–loop array coils for human ³¹P MRSI in the 10.5T human scanner. This is particularly promising for challenging applications such as measuring the brain ATP and creatine kinase fluxes and separating and quantifying the reduced and oxidized NAD signals in vivo.
