Study of Global Navigation Satellite System Receivers’ Accuracy for Unmanned Vehicles
Abstract
:1. Introduction

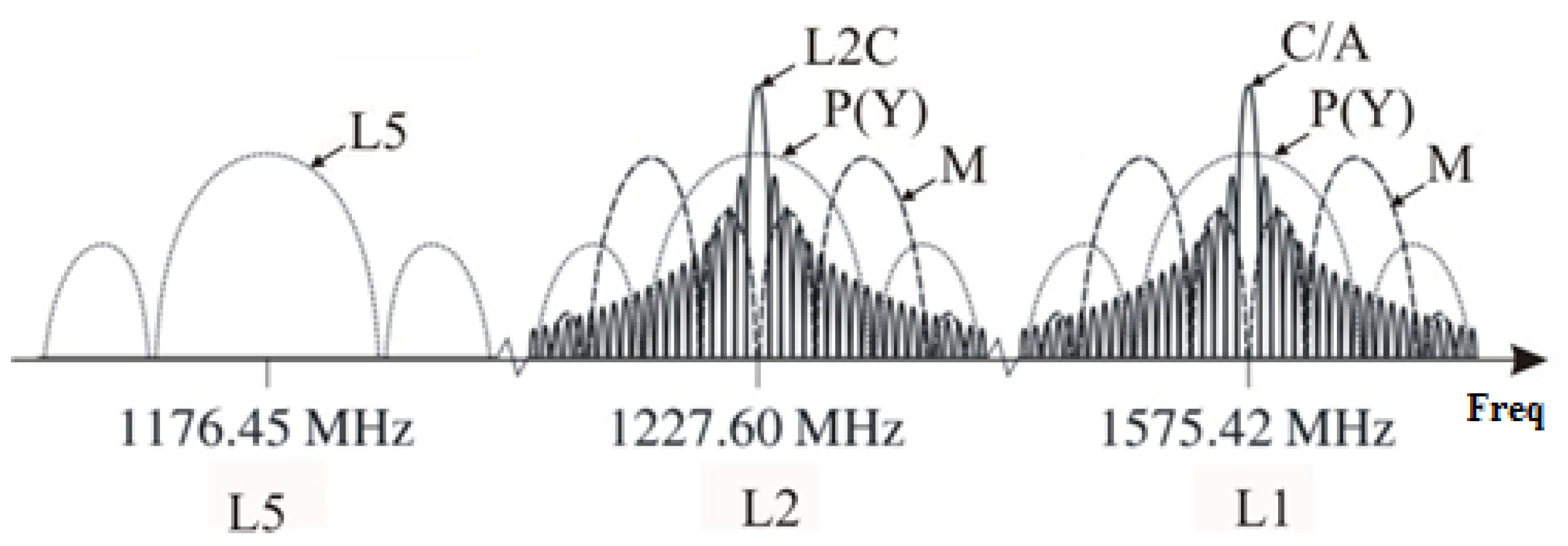

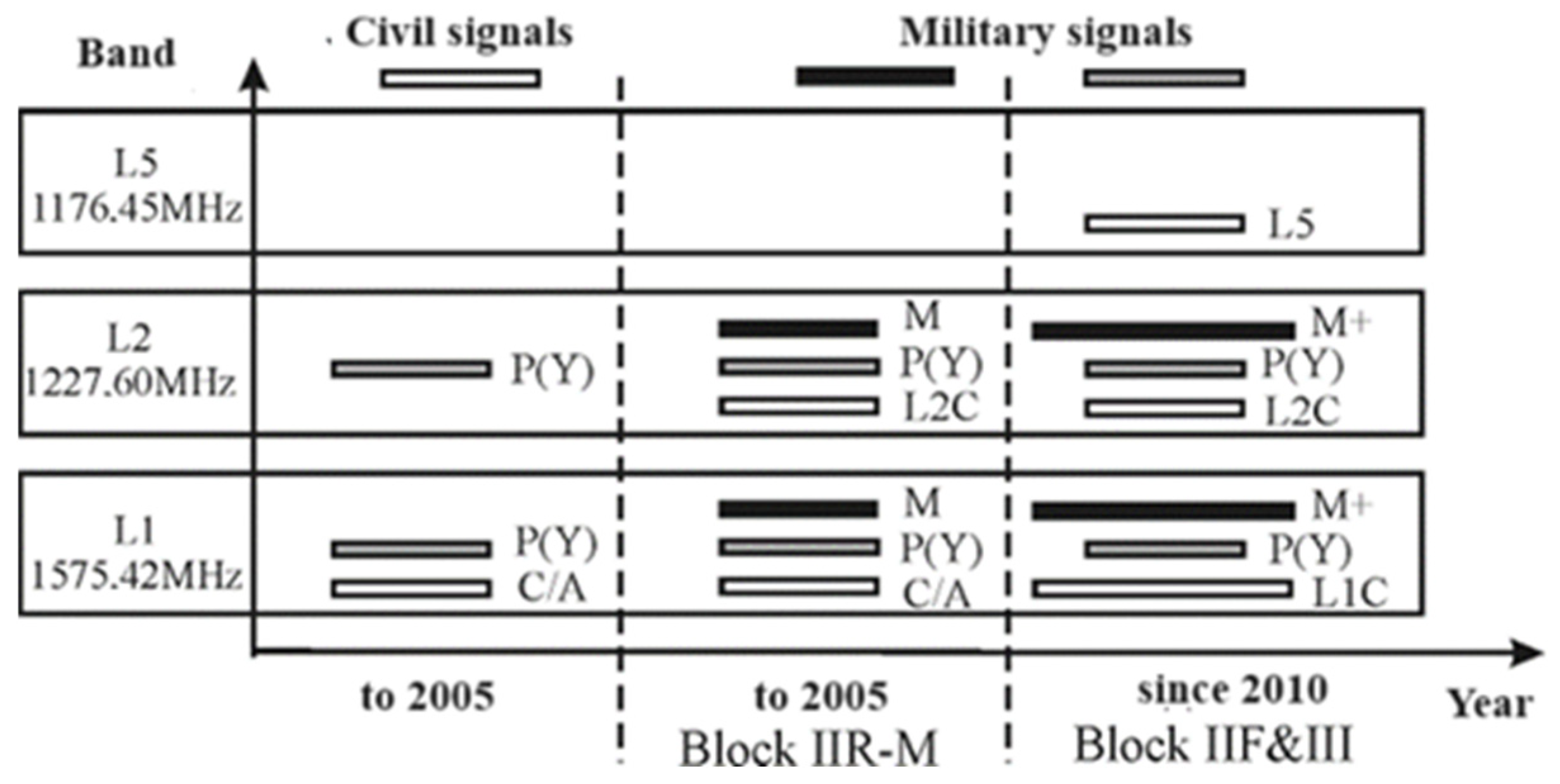

- Reception of satellite signals from a single GNSS system.
- Reception of satellite signals from multiple GNSS systems.
- Analysis of DOP parameters of L1 and L1/L5 GNSS receivers.
- Analysis of DOP parameters of each GNSS receiver with active patch and passive helical antennas.
- Comparison of DOP parameters for GNSS receivers from one manufacturer, but from a different production generation, to evaluate the number of tracking satellites during the time.
2. Materials and Methods

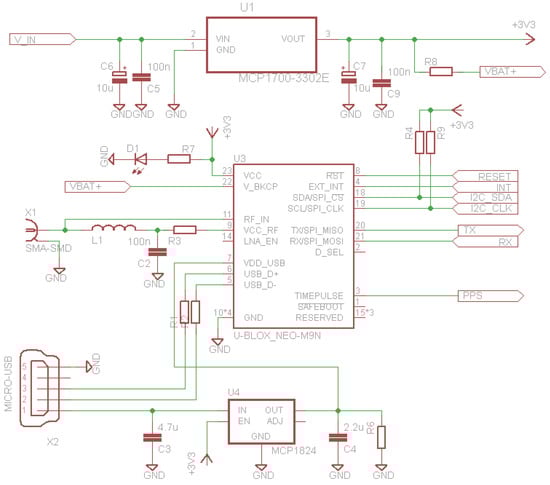

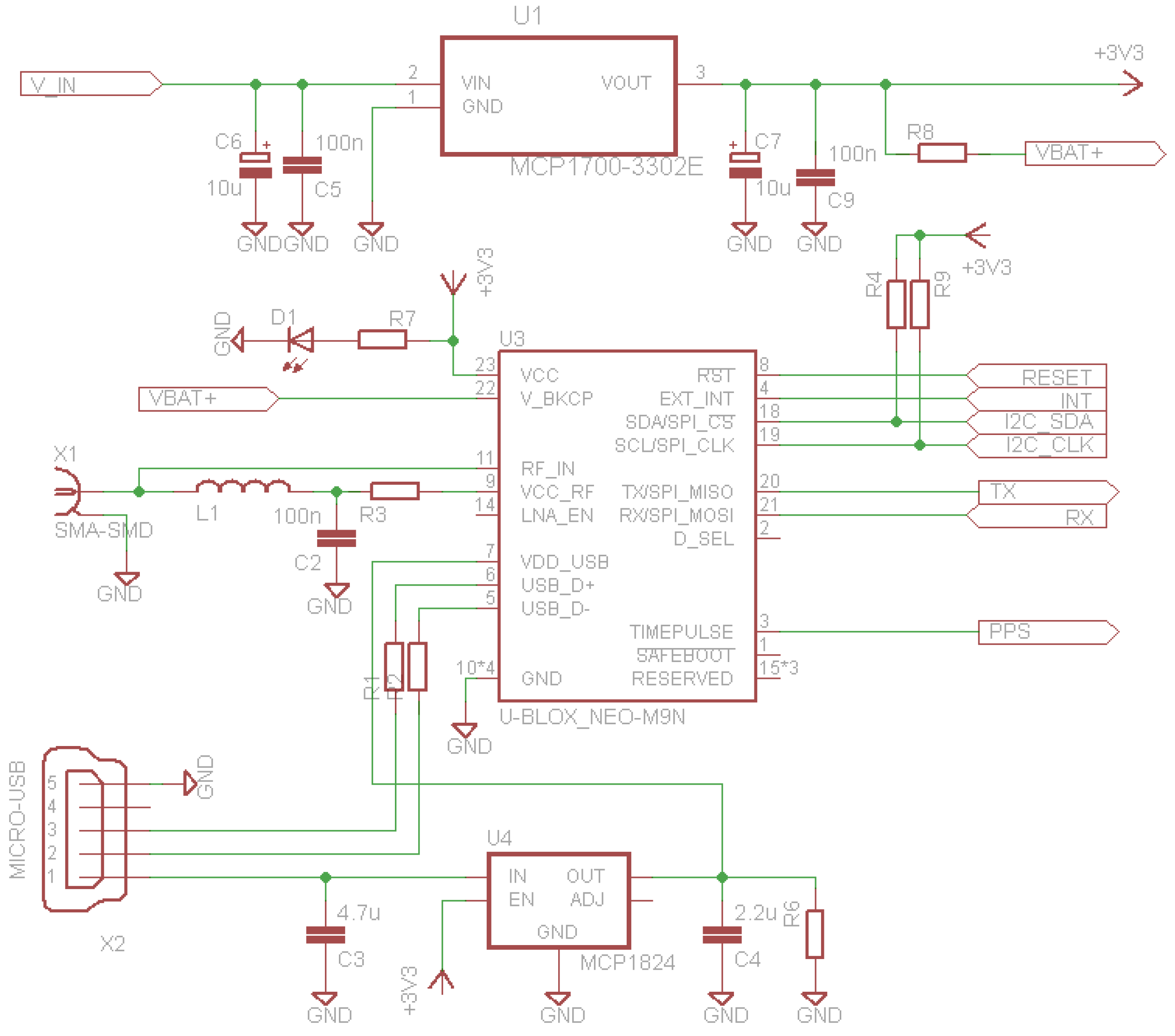

2.1. System Design

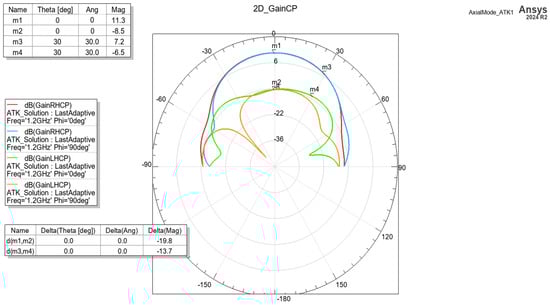

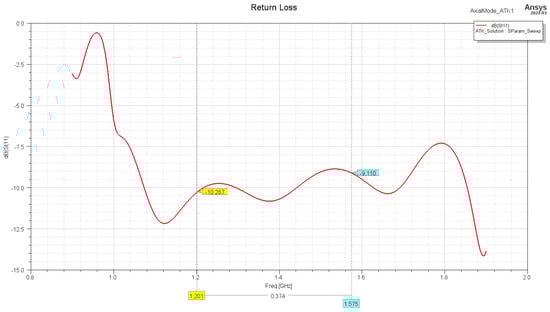

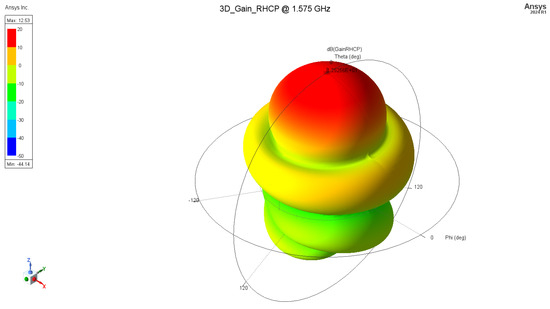

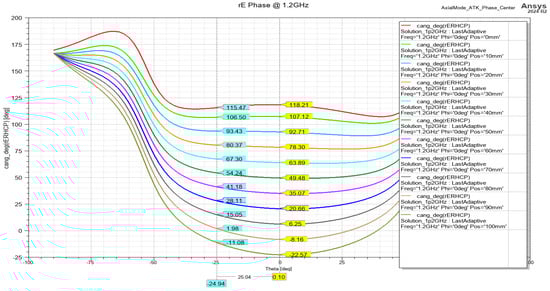

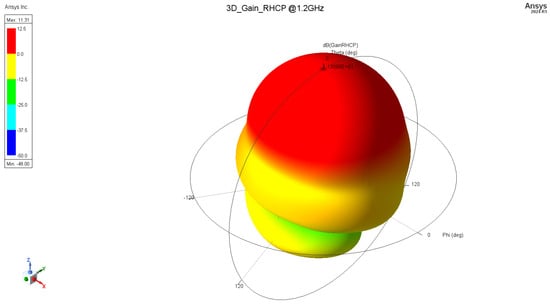

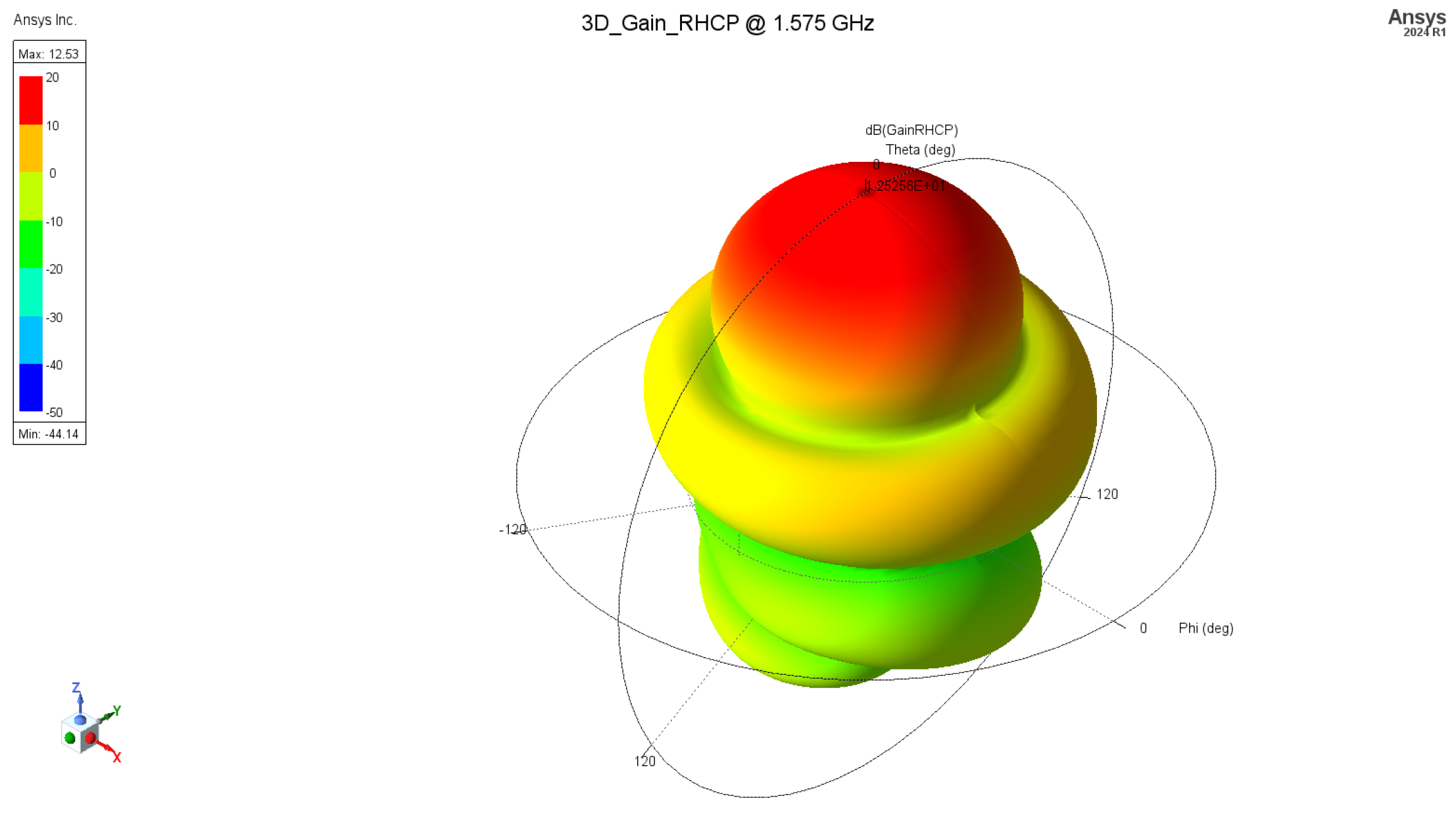

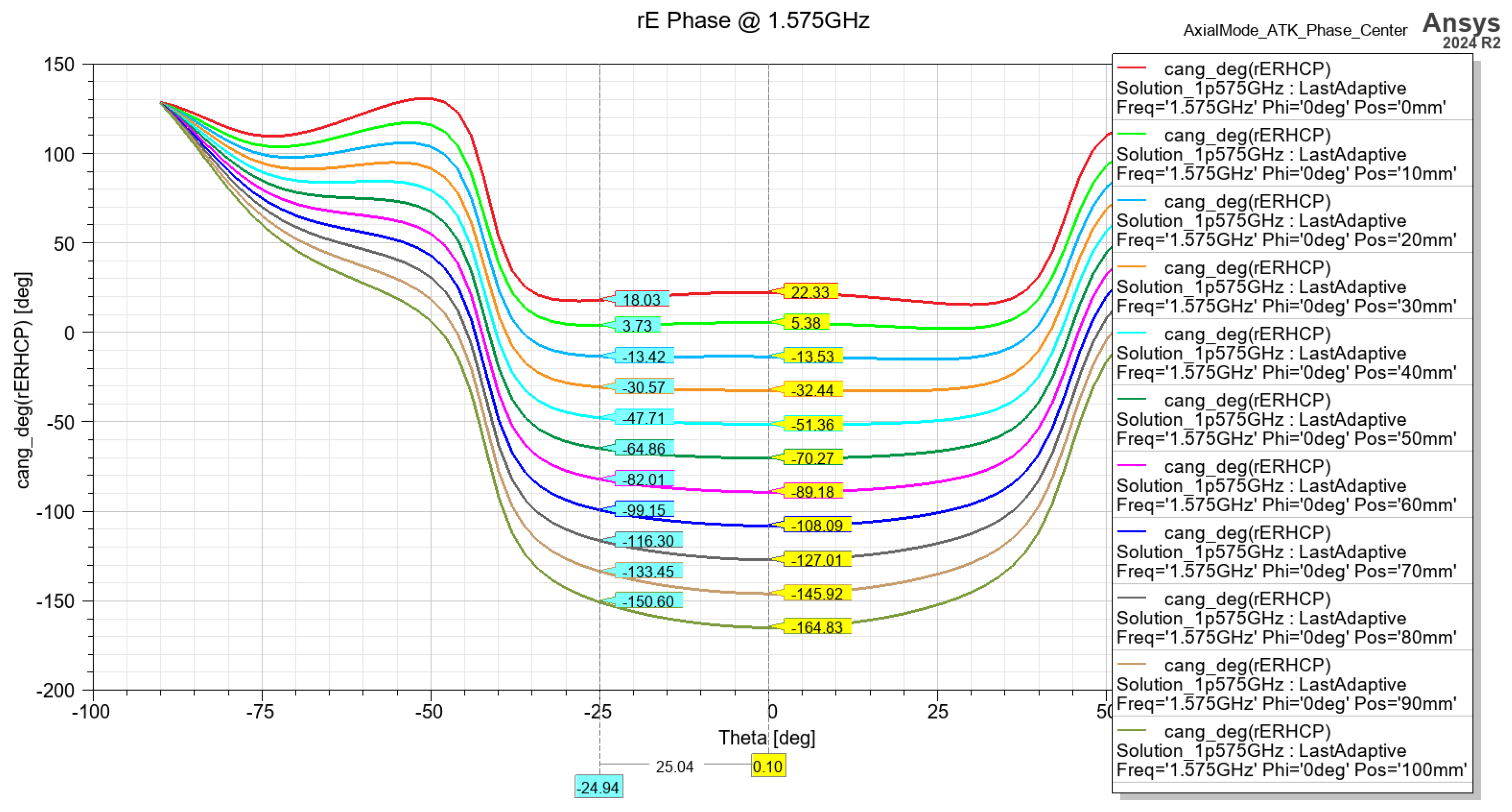

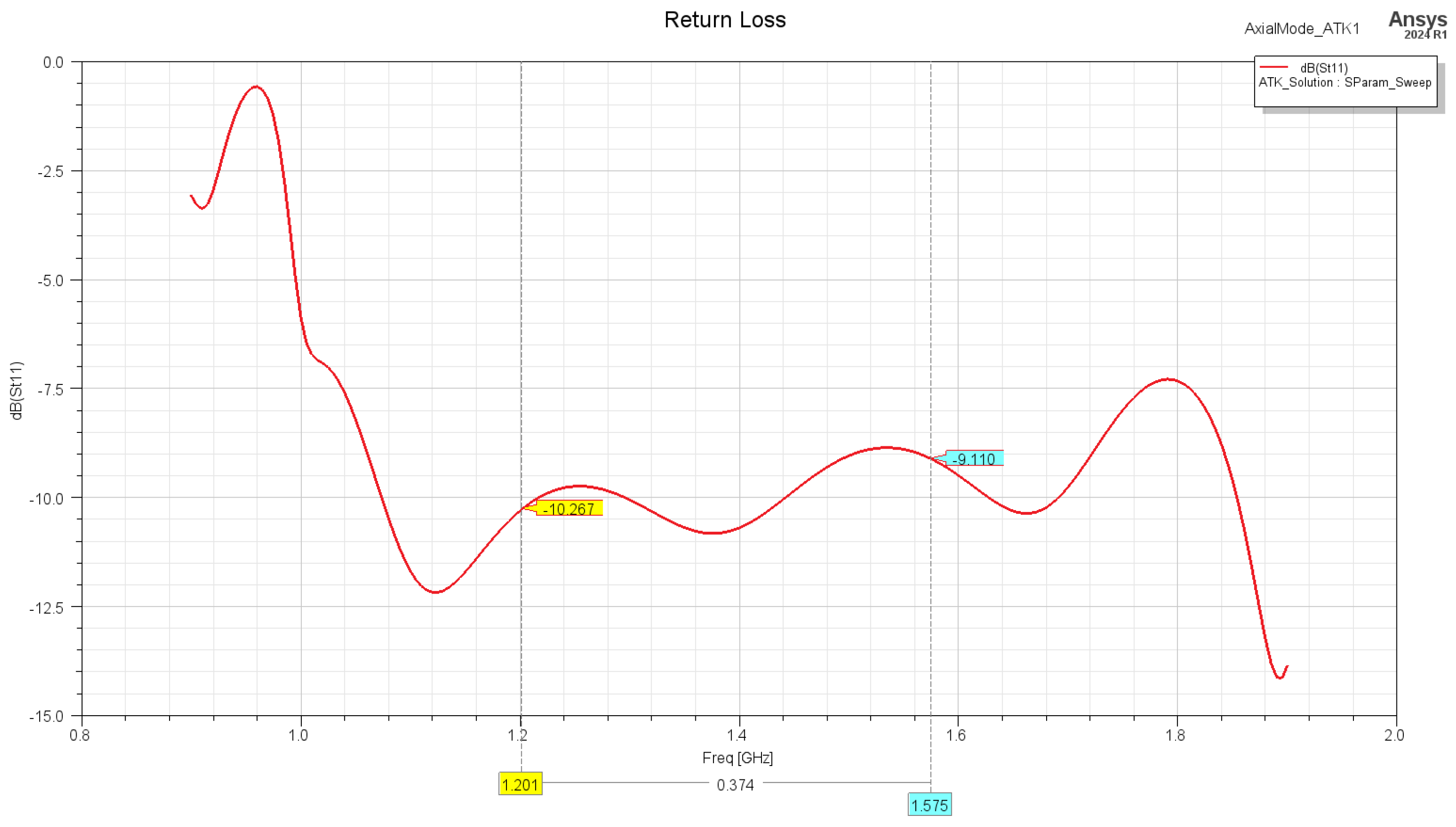

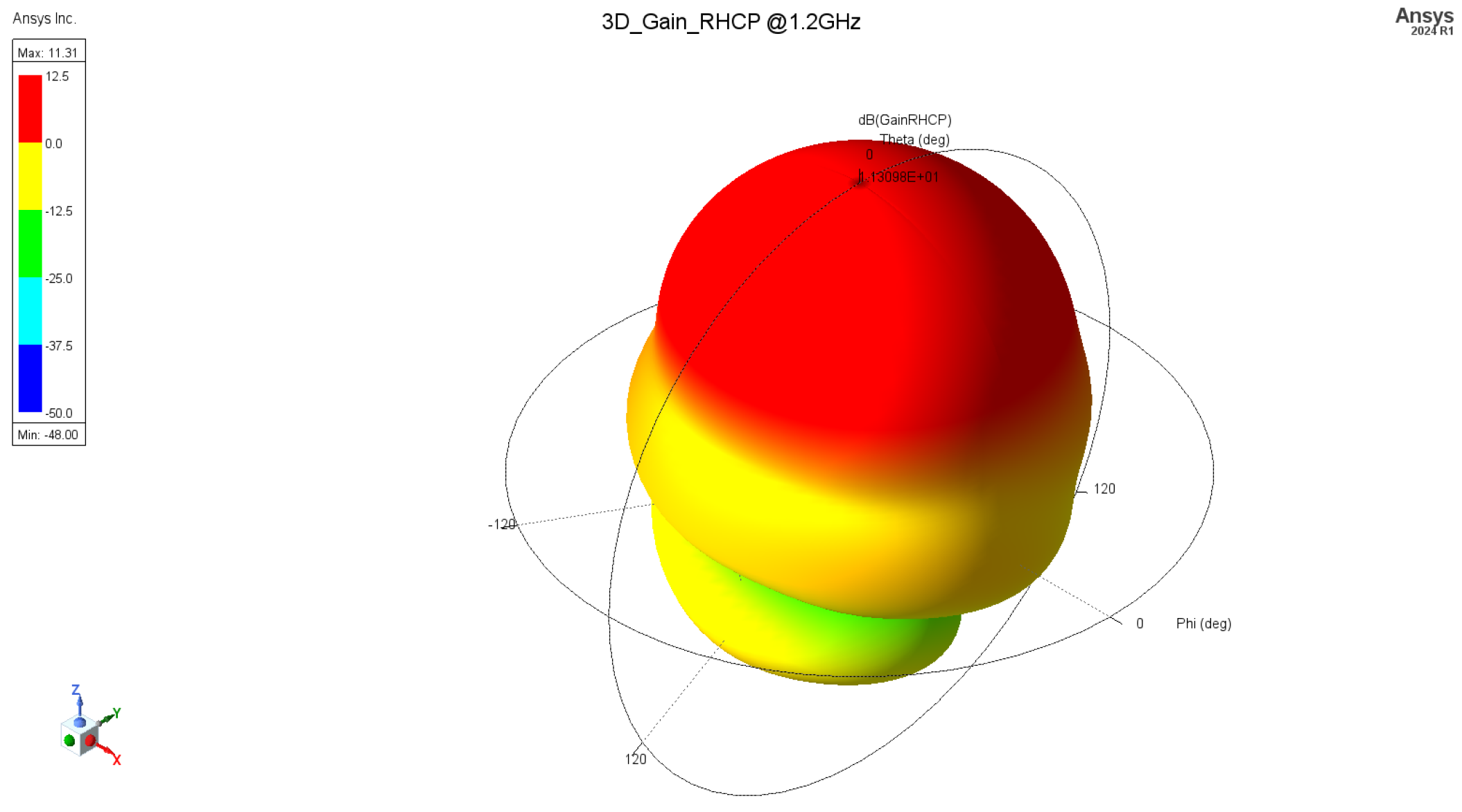

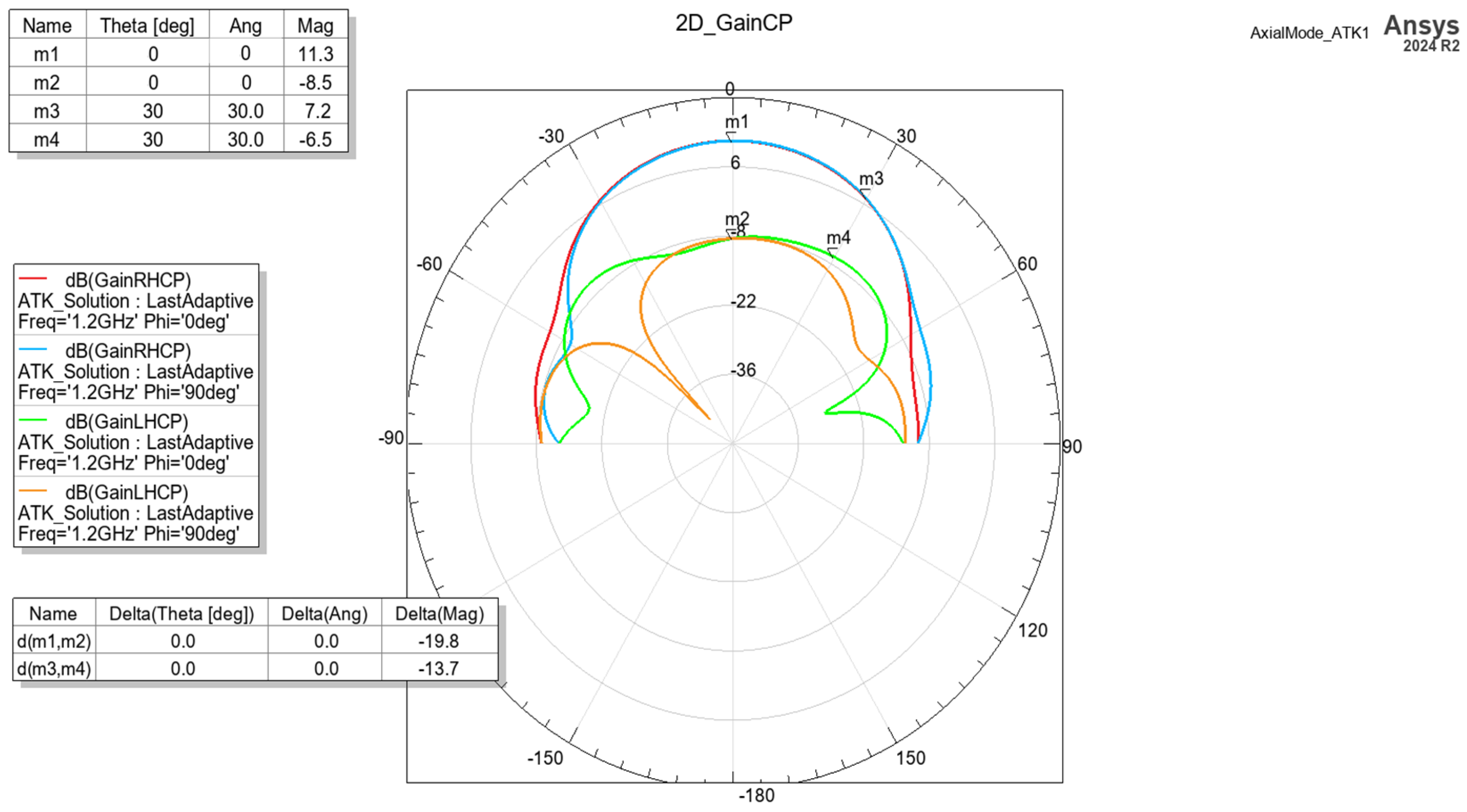

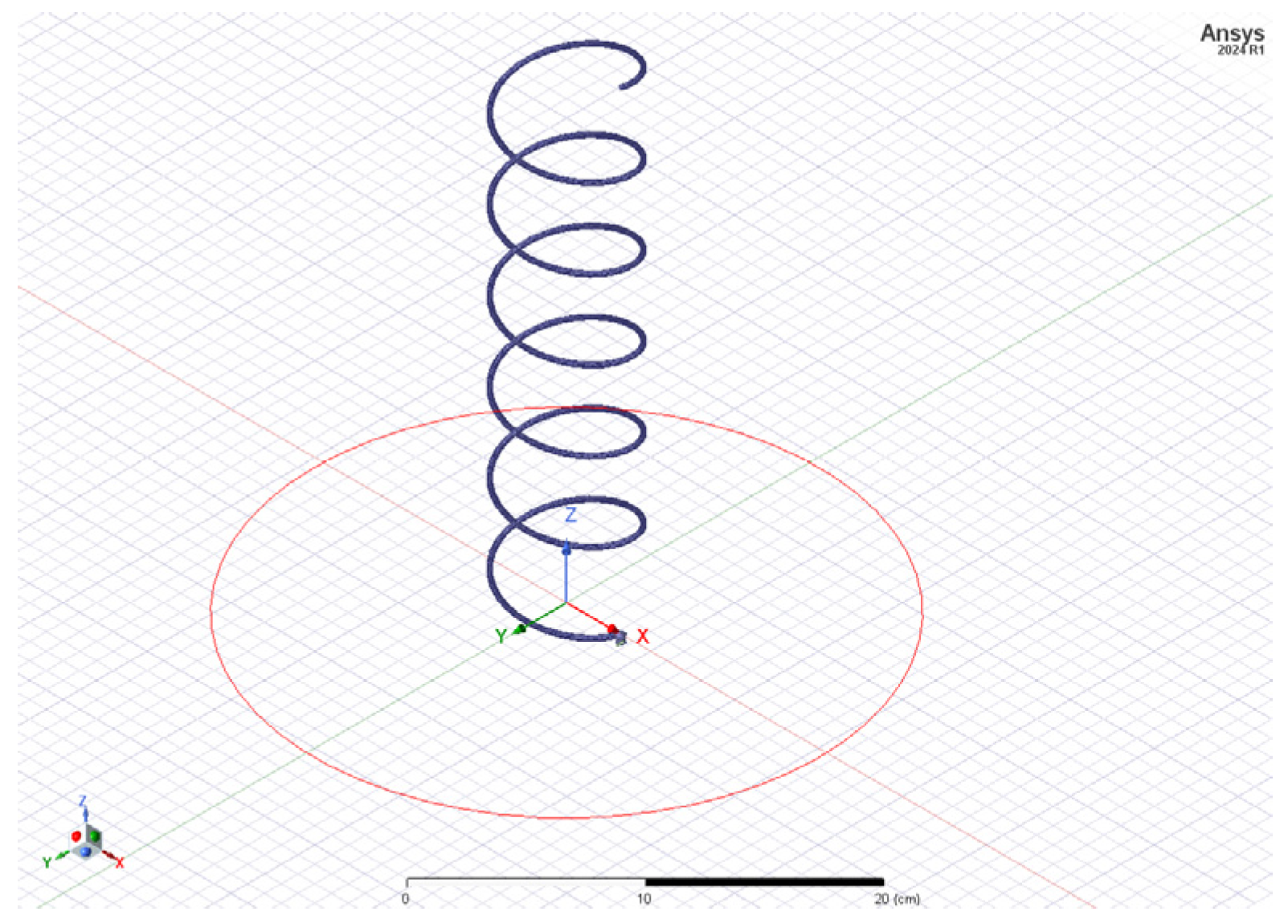

2.2. Helix Antenna Design

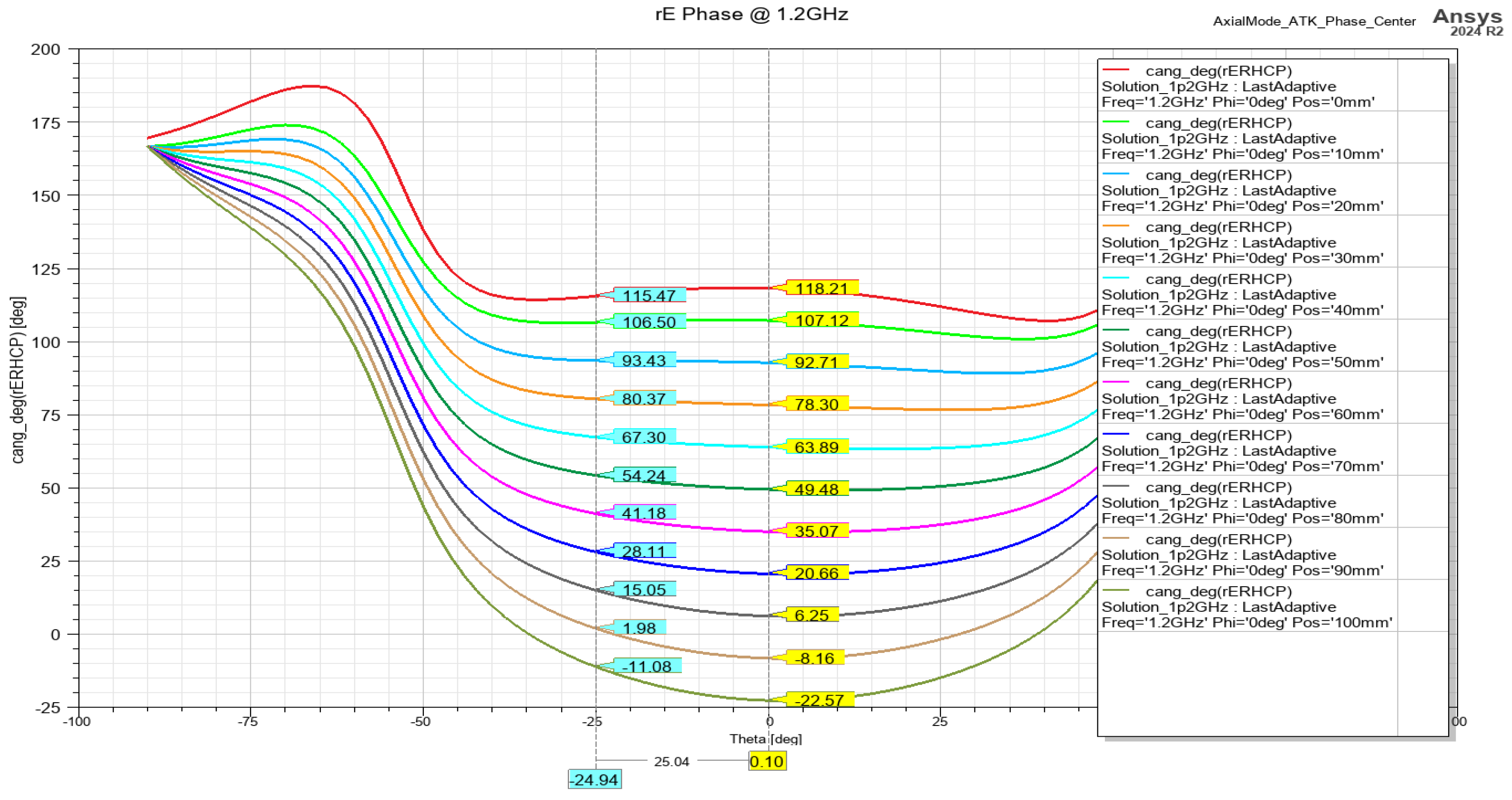

3. Results

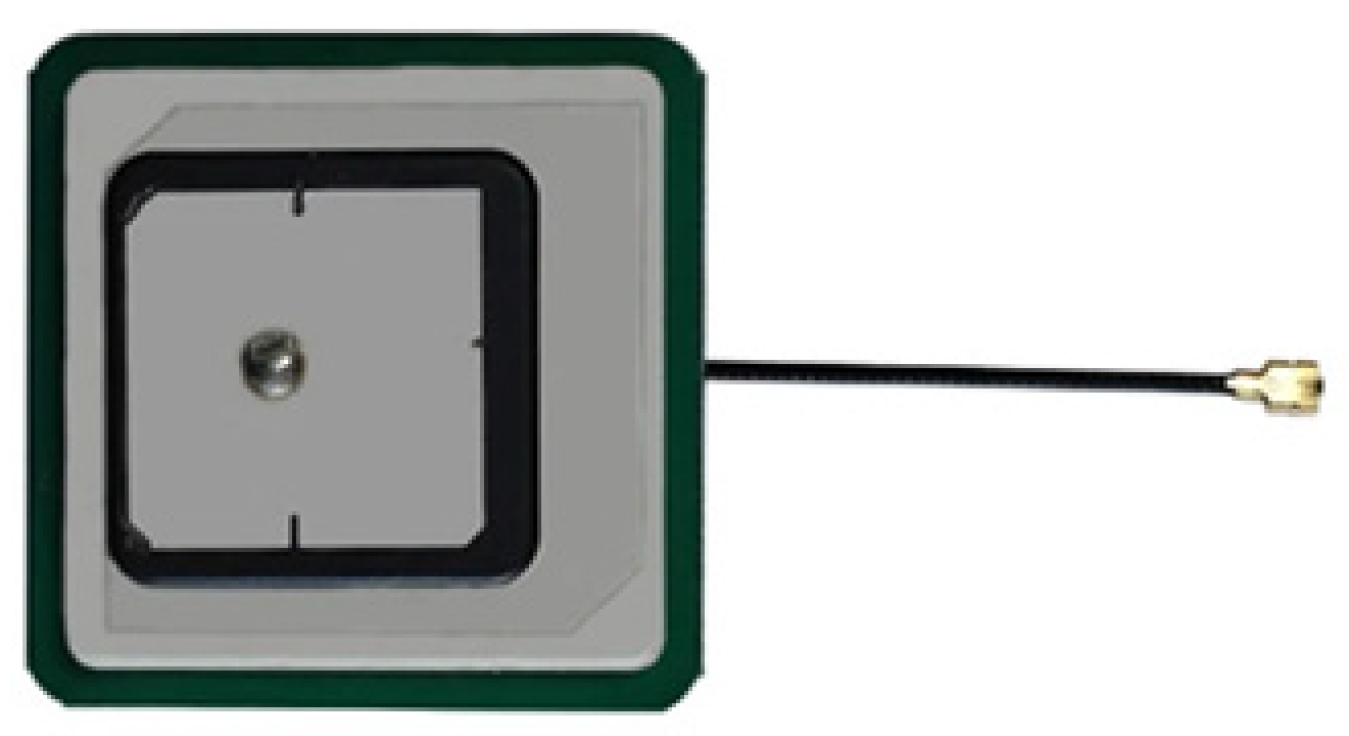

- Ceramic size: upper patch—20 × 20 mm, bottom patch—35 × 35 mm.
- Frequencies: GPS (L1/L5), Galileo (E1), GLONASS (L1), Beidou (B1).
- Gain: L1: 5 ± 1 dBi, L5: 3 ± 1 dBi.
- Bandwidth: min 10 MHz.
- Voltage Standing Wave Ratio (VSWR): ≤2.0.
- Low-noise amplifier (LNA): Gain (L1: 32 ± 3 dB, L5: 28 ± 3 dB); Noise Figure NF < 1.0 dB; VSWR < 2.0.
- NEO-F10T (from U-blox AG company)—L1/L5 bands GNSS receiver.
- ME32GR01 (from MinewSemi Co., Ltd.)—L1/L5 bands GNSS receiver.
- ATGM332D (from Zhongkewei Group)—L1 band GNSS receiver.
4. Discussion

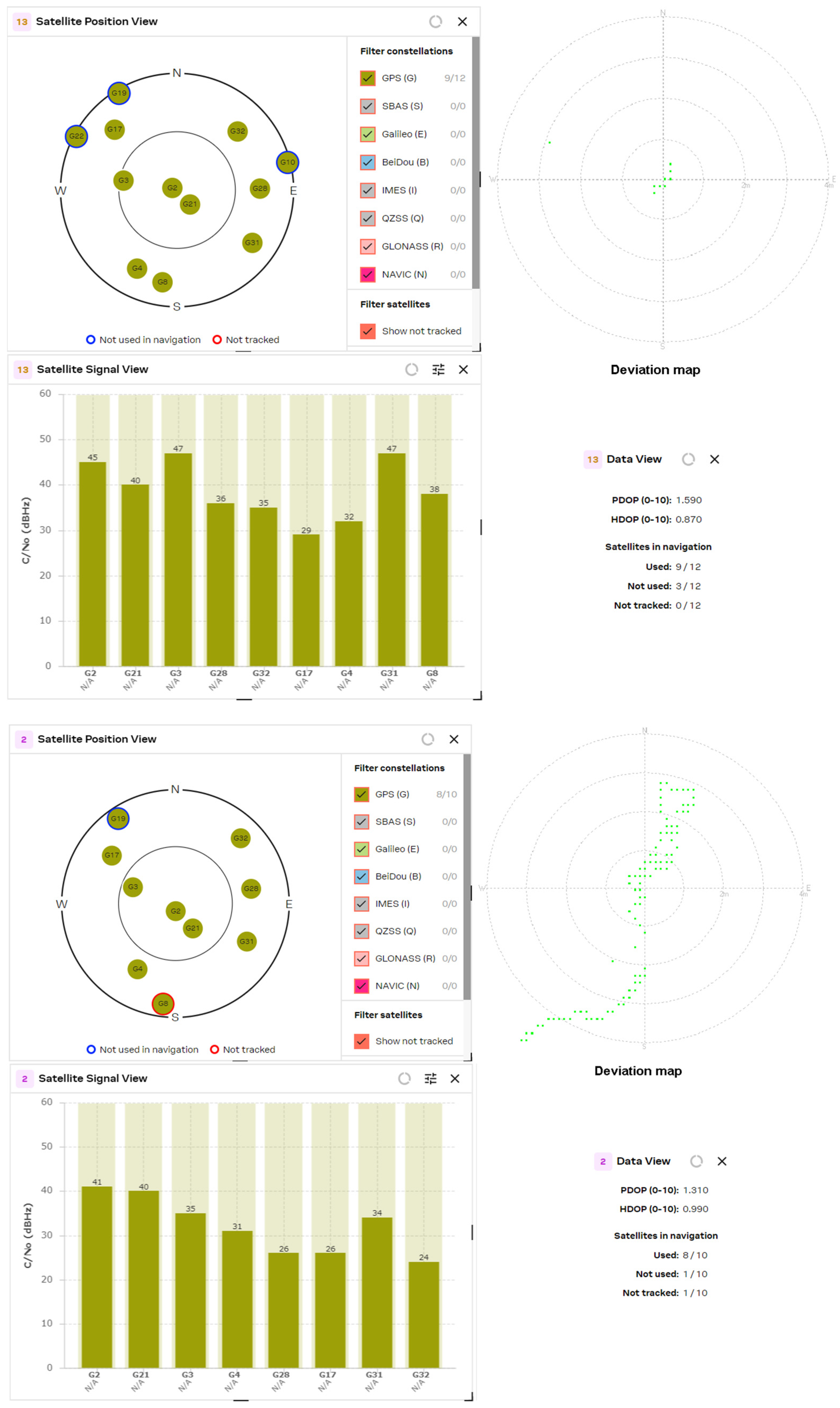

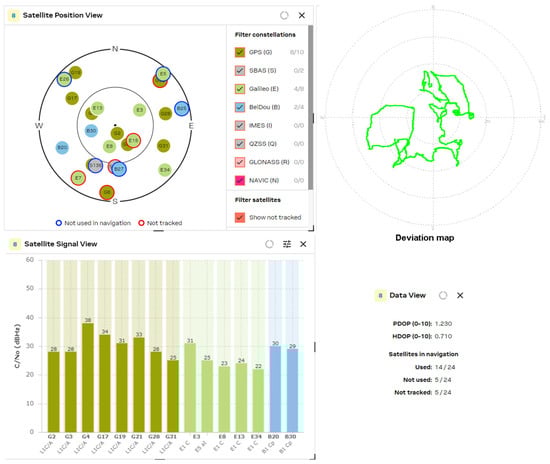

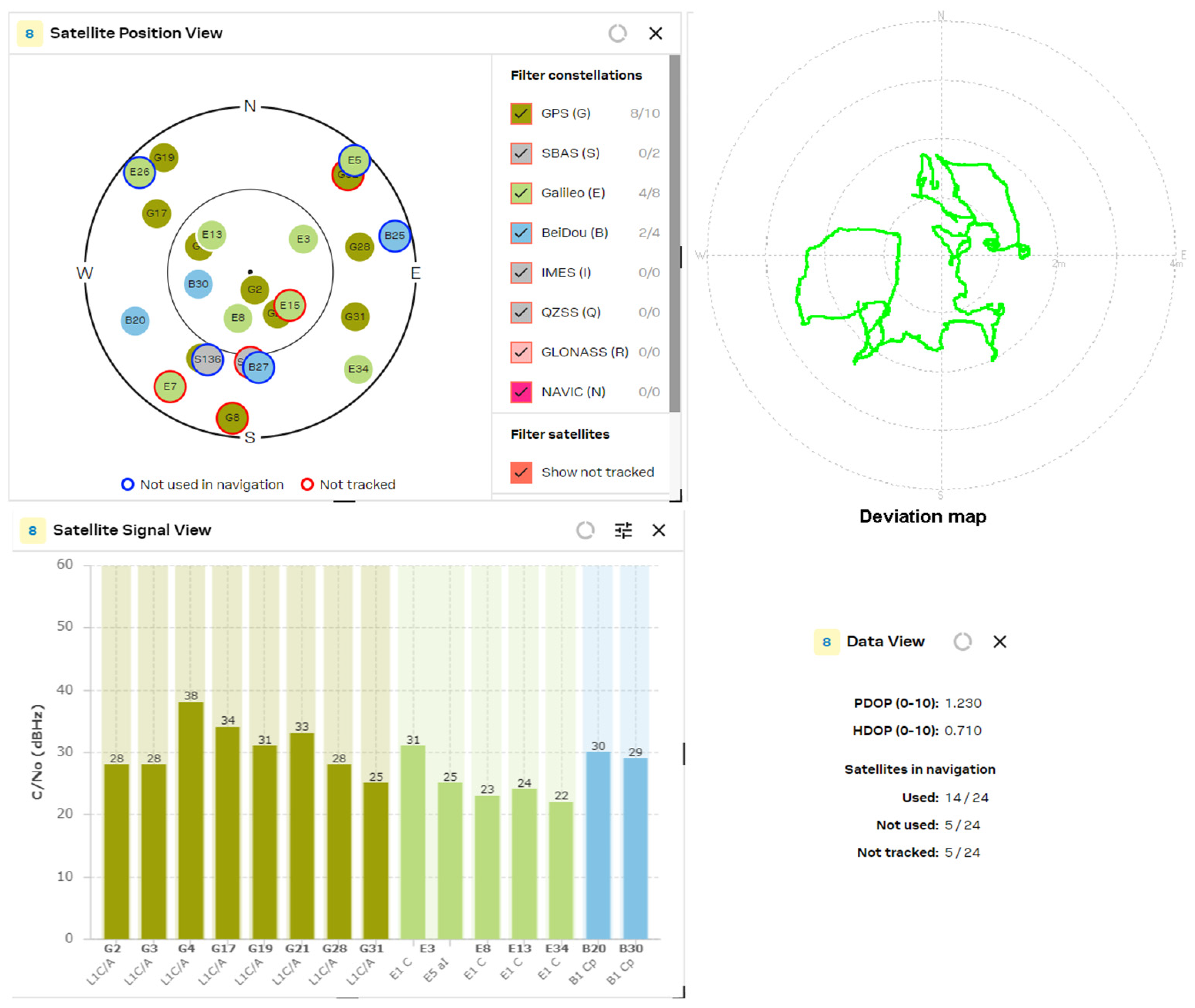

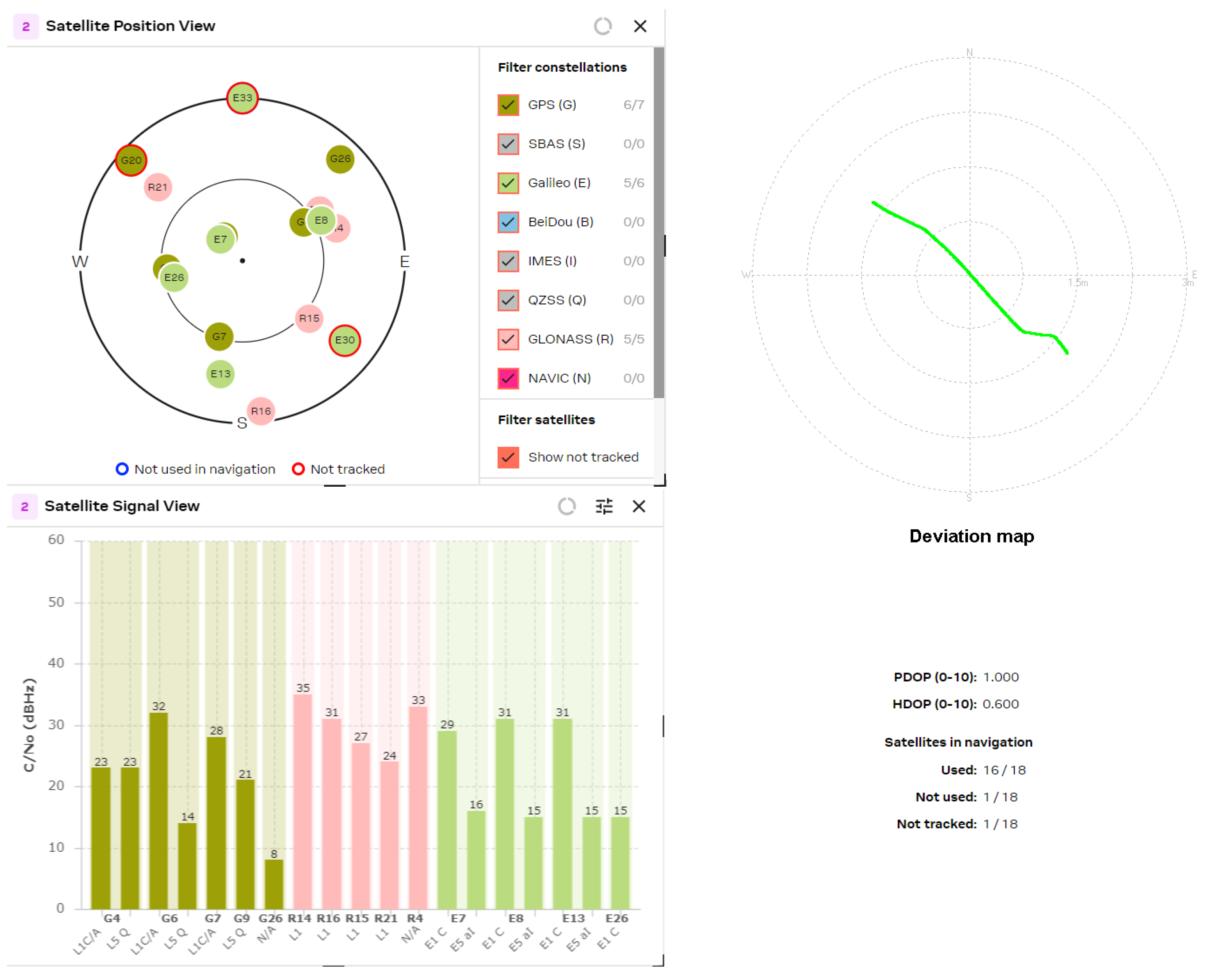

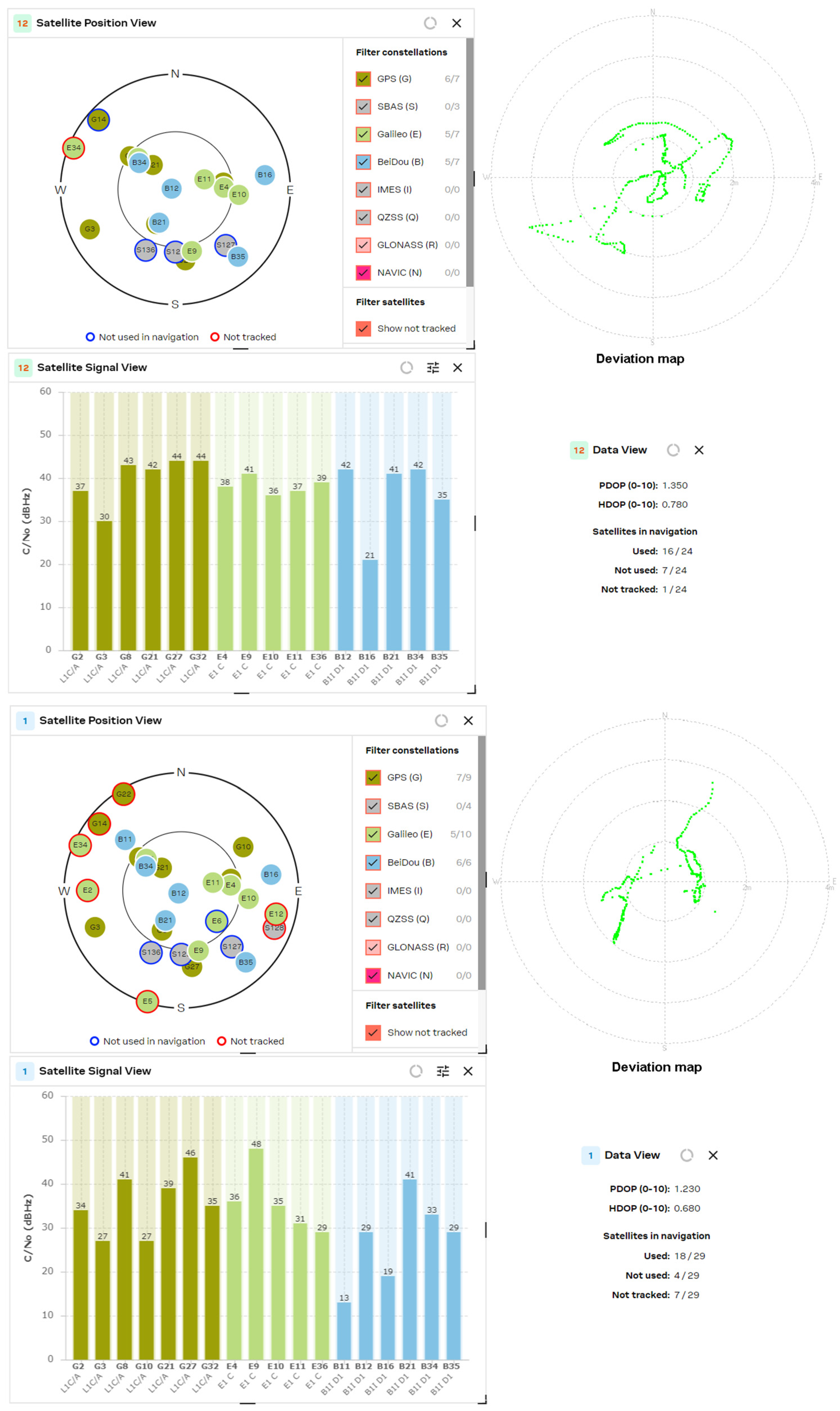

- NEO-F10T (from U-blox AG company)—determination of PDOP and HDOP coefficients. Best results obtained: PDOP = 1.0; HDOP = 0.7.

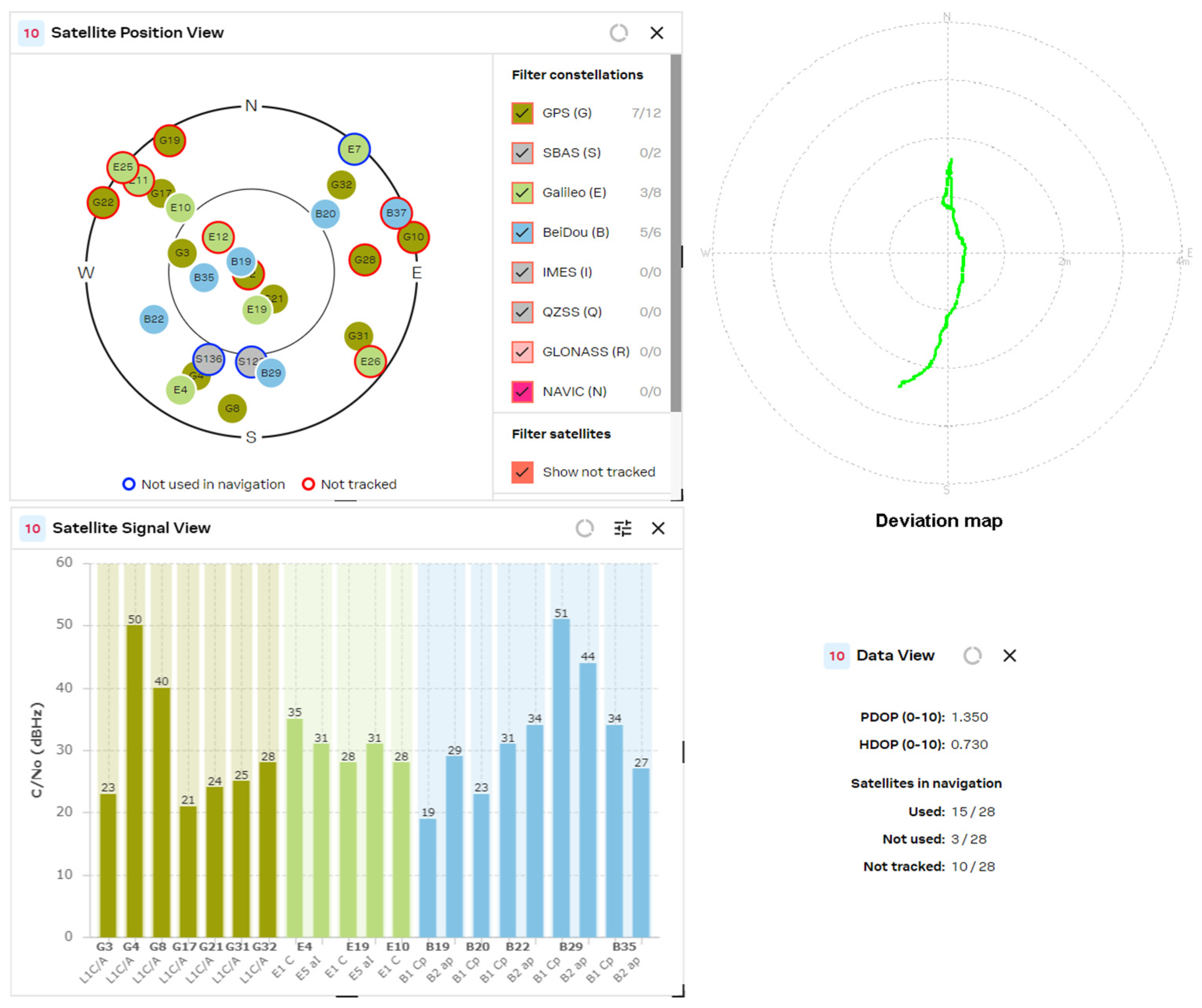

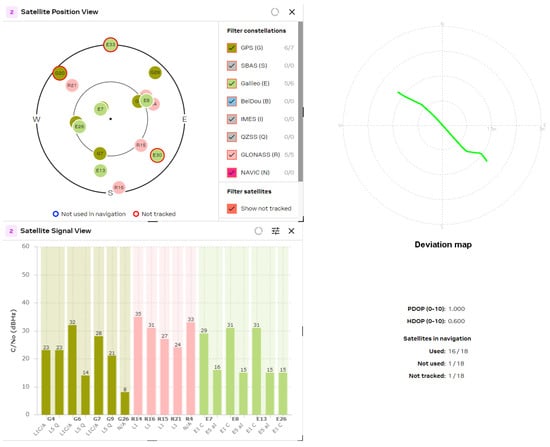

- ME32GR01 (from MinewSemi Co., Ltd.)—determination of PDOP and HDOP coefficients. Best results obtained: PDOP = 1.0; HDOP = 0.6.

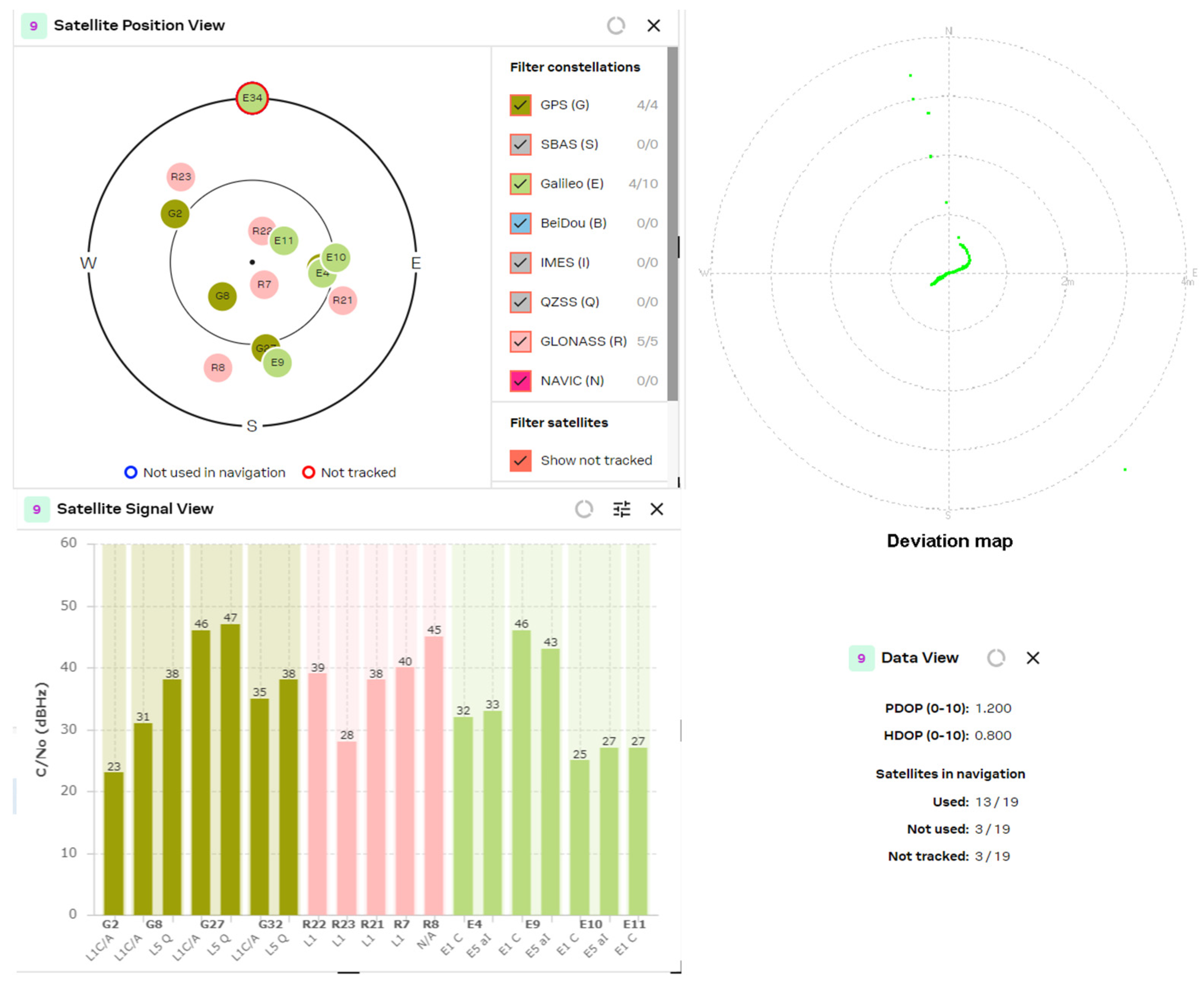

- ATGM332D (from Zhongkewei Group)—determination of PDOP and HDOP coefficients. Best results obtained: PDOP = 1.6; HDOP = 1.4.

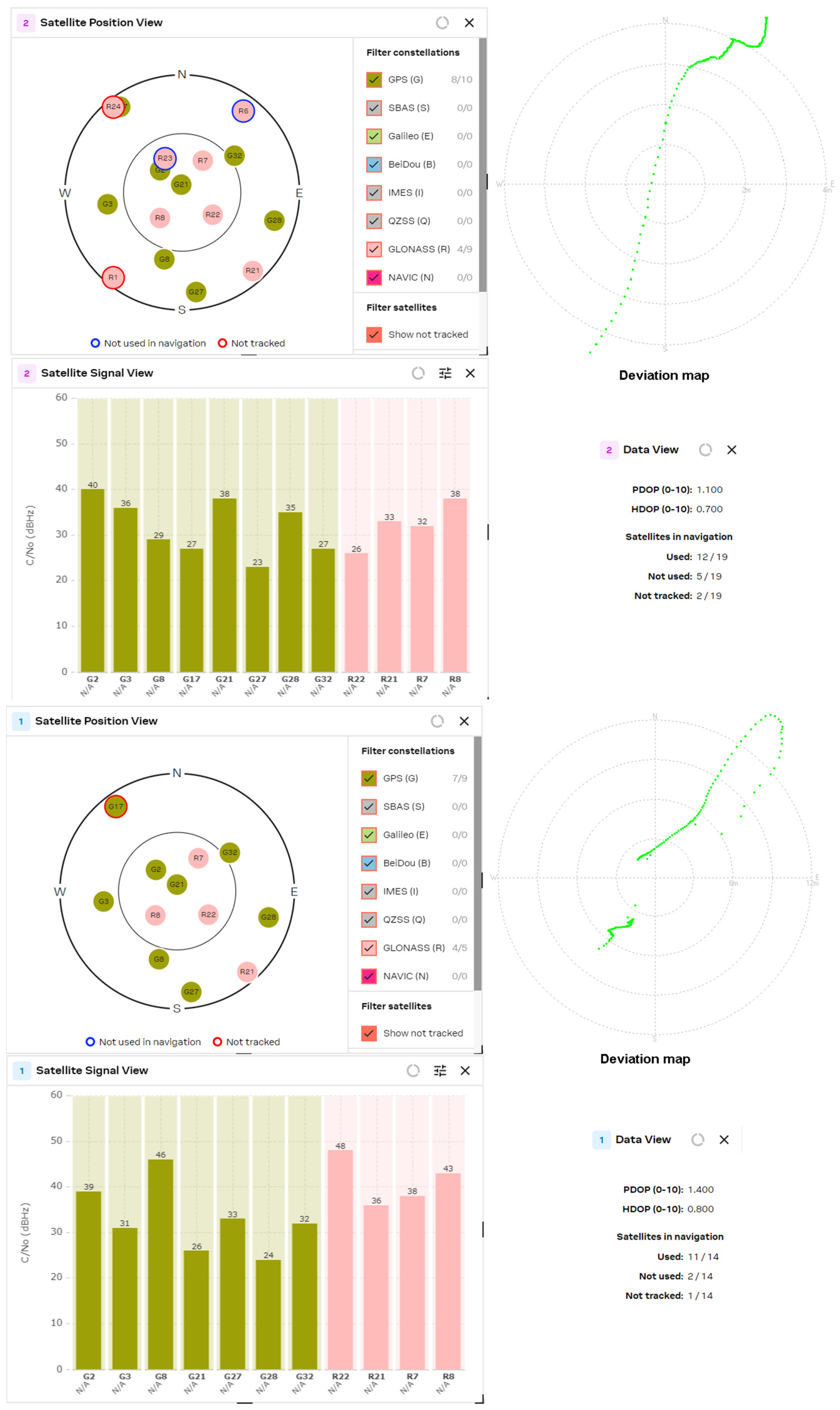

- The number of processing satellites is approximately equal for GNSS modules with active patch and passive helix antenna. The wider radiation pattern of the patch antenna is compensated for by the higher gain of the helix antenna. In the multi-constellation cases, where the number of tracked satellites exceeded 16, it is well observed that lots of satellites are not used in navigation or are not tracked.

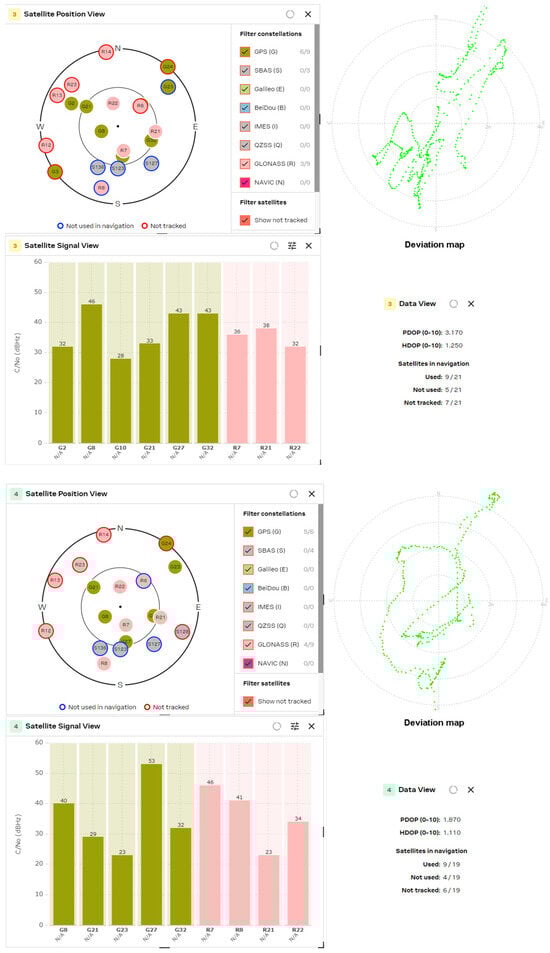

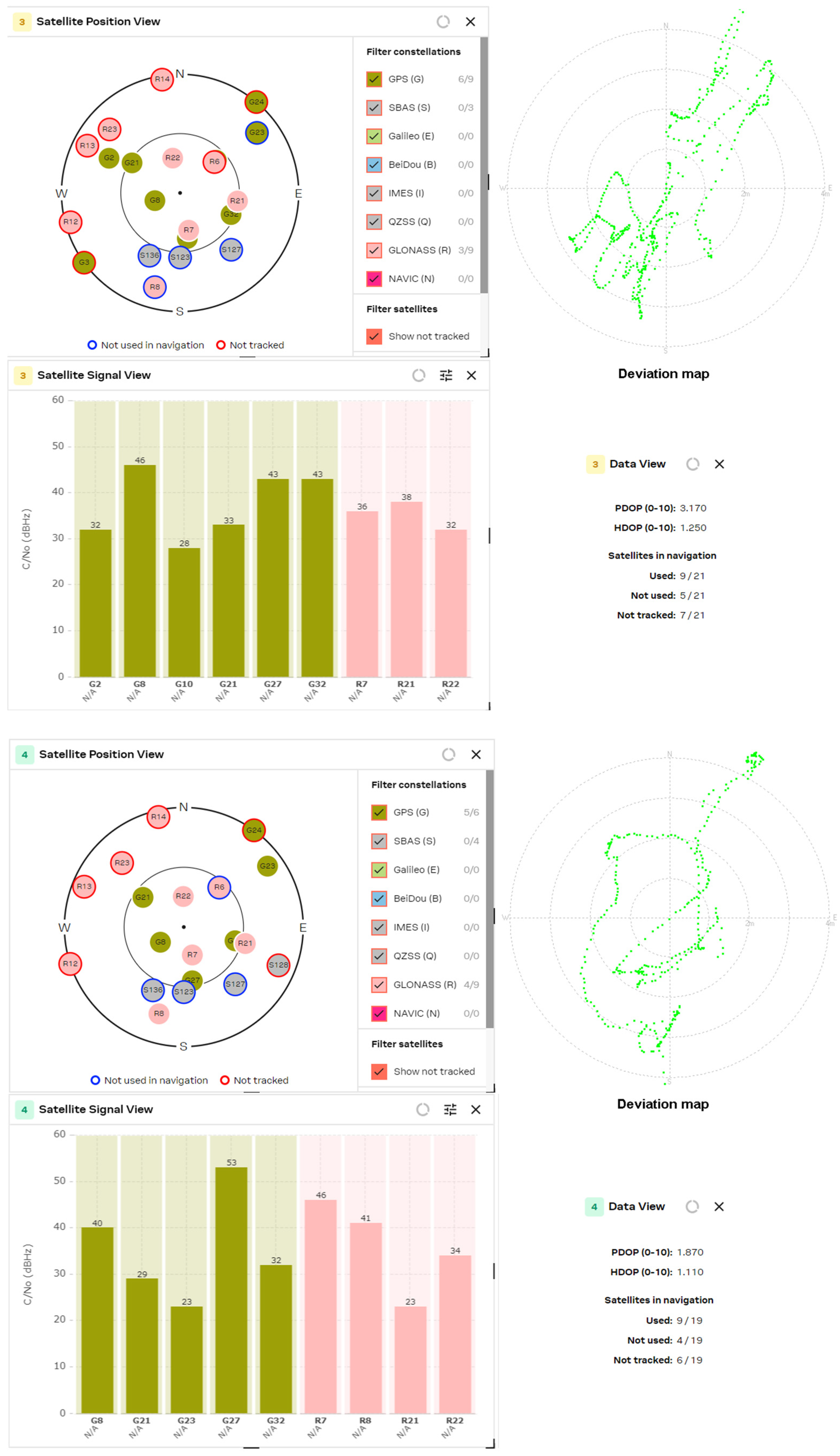

- If the GNSS receiver used only one constellation (for example, MS32SN1), then the number of processed satellite signals did not exceed 10. This significantly increases the HDOP values to [0.9, 1.0] and PDOP values to [1.3, 1.4]. The same situation appears if the GNSS receiver uses only a fraction of the received signals to calculate the position, as in the case of the MAX M8Q module and multi-constellation reception of GPS and GLONASS signals.
- The comparison of the results from the MAX M8Q and MAX M10S receivers shows significant improvement in the number of used constellations from 2 to 4 and the number of the processed satellite signals from 8 ÷ 10 to 16 ÷ 20, which reduced the HDOP value down to 0.6.
5. Conclusions
Author Contributions
Funding
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
BDS | BeiDou Navigation Satellite System |
BPSK | Binary Phased Shift Keying |
C/A | Coarse/Acquisition |
C/No | Carrier-to-Noise |
CMOS | Complementary Metal-Oxide-Semiconductor |
cps | chips per second |
CPU | Central Processing Unit |
DOP | Dilution of precision |
HDOP | Horizontal Dilution of Precision |
GNSS | Global Navigation Satellite System |
GPS | Global Positioning System |
IMU | Inertial Measurement Unit |
LNA | Low-noise amplifier |
LDO | Low drop-out |
MBOC | Multiplexed Binary Offset Carrier |
NF | Noise Figure |
PDOP | Position Dilution of Precision |
PPP | Precise point positioning |
PRN | Pseudo-Random Noise |
RHCP | Right-Hand Circular Polarization |
SPS | Standard Positioning Service |
VSWR | Voltage Standing Wave Ratio |
XPD | Cross-Polar Discrimination |
