Optimizing Dielectric Rod Antenna Performance with Spoof Surface Plasmon Polariton-Based Feeding Method

by
Rishitej Chaparala
1,
Shaik Imamvali
1,
Sreenivasulu Tupakula
1,*,
Mohammad Aljaidi
2,
Shonak Bansal
3,
Krishna Prakash
4 and
Ali Fayez Alkoradees
5,*
1
Department of Electronics and Communication Engineering, SRM University-AP, Guntur 522240, India
2
Department of Computer Science, Faculty of Information Technology, Zarqa University, Zarqa 13110, Jordan
3
Department of Electronics and Communication Engineering, Chandigarh University, Gharuan, Mohali 140413, India
4
Department of Electronics and Communication Engineering, NRI Institute of Technology, Eluru 521212, India
5
Unit of Scientific Research, Applied College, Qassim University, Buraydah 51425, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Sensors 2024, 24(23), 7543; https://doi.org/10.3390/s24237543
Submission received: 25 August 2024 / Revised: 7 November 2024 / Accepted: 22 November 2024 / Published: 26 November 2024
(This article belongs to the Special Issue Wearable Antennas and Sensors for Microwave Applications)
Browse Figures
Versions Notes

Abstract

:
This study investigates the use of spoof surface plasmon polaritons (SSPPs) as an effective feeding mechanism for antennas functioning within the extremely high-frequency (EHF) range. A novel method is proposed for feeding a dielectric rod antenna with SSPPs, featuring a simple design made from FR-4 material with a relative permittivity of 4.3. In contrast to traditional tapered dielectric rod antennas and their feeding configurations, this design shows promise for achieving a gain of up to 16.85 dBi with an antenna length of 7.6 λ0. By carefully optimizing the design, impedance matching and directional radiation characteristics were obtained at 7.3 GHz. Simulations were conducted using CST Microwave Studio to validate and evaluate the design’s performance. The enhanced gain, improved impedance bandwidth, and use of cost-effective materials such as FR-4 present a compelling case for adopting this design in future wireless communication technologies. Additionally, the remote sensing properties of the feeder can be utilized for concealed object detection, material characterization, and the analysis of the spectral properties of materials.

1. Introduction

Surface plasmon polaritons (SPPs) are electromagnetic waves that travel along the interface between a metal and a dielectric material at optical frequencies, enabling precise light manipulation at the nanometer scale. This capability offers significant advantages for nano-optical devices and sensitive optical measurements. Extensive research on nano-optical devices and optical waveguides [1,2,3,4] has revealed applications in super-resolution imaging, on-chip optical integrated circuits, biophotonics, microscopy, data storage, photovoltaics, graphene-based devices, photolithography, molecular sensors, photo catalysis, thin-film solar cells, and resonant waveguide gratings [5,6,7,8,9,10,11,12,13]. An intense and adjustable field interaction and amplification associated with transverse surface plasmon resonance (SPR) and cavity plasmon resonance (CPR) modes are noted [14]. A sensitive multichannel plasmonic sensor designed for refractive index and temperature sensing, operating across the visible to near-infrared spectrum [15], was studied. Researchers have investigated the application of SPPs at lower frequencies to support the development of integrated circuits and devices functioning in the microwave and terahertz ranges. Metals behave as perfect conductors at these frequency levels, preventing the support of SPPs. To overcome this limitation, plasmonic metamaterials [16,17,18,19] have been proposed to facilitate the realization of SPPs at reduced frequencies. The metallic surface was structured to enhance the interaction between the electric field and the metal. Because of their intrinsic three-dimensional geometries, these structures encounter considerable challenges in practical applications. Among the various SSPP structures, the ultrathin corrugated metallic strip featuring single and double periodic grooves is particularly noteworthy because of its simple planar design [20,21]. The independent operation of microwave SSPP devices poses challenges because of signal feeding and extraction inefficiencies, underscoring the importance of integrating them with conventional microwave circuits mainly made up of transmission lines. The efficient conversion of guided waves into SSPPs is essential. Various studies, such as those in references [22,23,24], have explored the conversion from transmission lines to plasmonic devices. Reference [22] employs corrugated grooves to create a conversion mechanism to facilitate conversion between CPW and SSPP components. Expanding on this concept, Ref. [23] modifies the conversion approach by placing grooves that extend outward from the inner conductor of the CPW instead of incorporating them internally. Both studies utilize the exponentially tapered Vivaldi slot line to facilitate the conversion process. Alternatively, Ref. [23] investigates a method that confines the SSPP wave between two oppositely oriented corrugated metallic strips, with electromagnetic energy coupled through a microstrip terminated by a circular metal plate. Regardless of these developments, existing SSPP devices still have limitations. In references [22,23], it was found that the Vivaldi slot remains essential, but its design parameters introduce added complexity. In [24], it was found that the requirement for a lower microstrip layer for coupling electromagnetic energy, along with an air hole at the input of the upper slot line, adds complexity to the design and makes it unsuitable for microwave-integrated circuits. In reference [25], the idea of spoof SPPs on ultrathin and flexible corrugated metallic strips was proposed and advanced to replicate SPPs within the microwave frequency range. The design approaches for both passive and active components converting to SSPP systems are described. These SSPPs provide advantages such as lightweight construction, flexibility, a low profile, and smooth integration with traditional microwave circuits. Various microwave systems that employ SSPPs are emphasized. Pendry et al. investigated the exceptional potential for engineering surface plasmons across a wide frequency spectrum. They showcased the capacity to manipulate and guide radiation at surfaces, enabling control over electromagnetic interactions over an extensive range of wavelengths. Utilizing surfaces and metals with high conductivity, they manipulated the dimensions and spacing of the holes to engineer specific surface plasmons. While they successfully produced surface plasmons, they were unable to generate SSPPs [26].
Another examination conducted by Hibbins et al. [17] investigated the pronounced concentration of the electric field at the boundary and examined the curvature of the light line, referred to as the dispersion curve. However, they did not observe the transmission of SSPP across the interfaces. Rusina et al. [27] developed grooved structures that facilitate SSPPs with defined width and depth, incorporated within a dielectric medium. Refined parameters of the structure enable the effective directing and trapping of light within THz fields. Gao Xu et al. [21] developed a thin dual-band plasmonic waveguide capable of supporting two specifically engineered SSPPs. Traditional techniques for feeding microstrip lines face difficulties like radiation losses, crosstalk, and mutual coupling. These issues can compromise signal integrity and restrict the overall performance of microwave systems. SSPP technology addresses this issue by enabling strong confinement achieved through wave manipulation on a sub-wavelength scale. Feeding based on SSPP technology presents numerous benefits: it features a reduced size compared to the microstrip designs, improves gain due to effective field confinement, and is easier and more economical to produce. SSPPs, which are engineered plasmonic metamaterials, replicate surface plasmon polariton (SPP) transmission in the microwave and terahertz frequency ranges by utilizing periodic subwavelength grooves or holes. Wenjuan et al. [28] suggested a transition structure that incorporates gradient-corrugated grooves with a base ground layer to modify microstrip lines to SSPP mode. This approach, known as “spoofing”, employs periodically arranged uniform-width stubs to create SSPP devices that imitate surface waves in the microwave and terahertz (THz) frequencies. Research [22,29,30] has demonstrated that a unit cell graph reveals a linear correlation between frequency and the propagation constant, together with amplified dispersion, as the groove height grows. Chaparala et al. successfully employed the SSPP structure by adjusting the groove width from 1 mm to 2 mm [31] while maintaining constant dimensions for the other aspects of the SSPP waveguide [28]. The expansion in groove width acted as an efficient feeding mechanism, resulting in a gain enhancement of about 0.83 dBi relative to the 1 mm design [31]. The waveguide was made of an FR4 dielectric substrate that measured 1.6 mm in thickness, along with a copper layer that was 0.035 mm thick. The FR4 used in the design had a dielectric constant of 4.3. These models can also be used in remote sensing applications.
With the advancement of wireless devices increasingly broadening their frequency range, the importance of antenna bandwidth has grown significantly. This trend has sparked a heightened interest in ultra-wideband (UWB) antennas, which provide a broad impedance bandwidth. Various UWB antennas are frequently utilized, such as log-periodic antennas, bow-tie antennas, spiral antennas, tapered dielectric rod antennas, and conventional transverse electric and magnetic (TEM) horn antennas. Of these, planar tapered dielectric rod antennas [32,33,34,35,36,37,38,39,40] are highly regarded for their potential to produce higher gain and increased power radiation when compared to other antennas of similar length. These antennas have excellent impedance matching, accommodate multiple elements, and minimize losses. This study introduces a patch-fed dielectric rod antenna inspired by research from Ghattas et al. This configuration shows enhanced gain capabilities compared to traditional tapered dielectric rod antennas. A variety of feeding techniques have been investigated for dielectric rod antennas in different applications. These methods encompass a patch-fed dielectric rod antenna designed for dual-band usage [32], a dielectric rod antenna connected to a rectangular waveguide for photo mixer-based terahertz sources [35], the optimal feeding of dielectric rod antenna arrays utilizing photonic crystal waveguides [34], and the excitation of both planar horn antennas and patch antennas using an SSPP waveguide [36,37,38,39].
Using the microstrip patch feeding method can lead to increased losses, potentially impacting the gain of the rod antenna and limiting its effectiveness for high-frequency applications. To mitigate this problem, we proposed the SSPP feeding technique, which facilitates high-frequency surface plasmon wave propagation through the use of periodic grooves at the metal–dielectric interface. This method allows for the transformation of quasi-transverse electric and magnetic waves from the microstrip line feeding into SSPP waves within the microwave frequency range. This study aims to introduce an innovative antenna-feeding structure by replacing the patch-fed antenna excitation with an SSPP-feeding element. Other structures, like a quarter-wavelength impedance transformation microstrip line or a microstrip coplanar waveguide (CPW), may also be employed. However, these methods are ineffective in lowering the rod antenna’s operating frequency from the millimeter waveband. The distinct advantage of SSPP feeding is its capacity to facilitate this frequency shift, proving to be more effective in modifying the operational bandwidth of dielectric rod antennas. The goal is to attain higher gain and enhanced impedance matching than those reported in prior studies [36,37,38,39,40,41,42].

2. Feeder Geometrical Properties

This paper presents the SSPP waveguide structure and demonstrates its application as a feeding mechanism for the dielectric rod antenna. Figure 1 displays the fabricated SSPP waveguide structure, while Figure 2 presents the S-parameters, featuring both simulated and measured characteristics of the SSPP waveguide. The designed waveguide features gradient grooves with heights varying from h1 to h7 (0.5–3.5 mm) and dimensions of 91.2 × 14 × 1.67 mm3, with a groove height (h) of 4 mm, a pitch (p) of 5 mm, a groove width (a) of 4 mm, a gap (p-a) of 1 mm, and a width (W) of 3 mm. This arrangement enables the conversion of guided waves into SSPPs. In the simulated S-parameter characteristics shown in Figure 2, the reflection coefficient S11 is depicted by a black line, remaining below −10 dB across the frequency range of 1–10 GHz. This result indicates a strong level of optical confinement and impedance matching within the SSPP waveguide structure. The next section provides a detailed analysis of the patch-fed dielectric rod antenna.
The transmission coefficient |S21| of the simulated and measured characteristics can be observed at the resonating frequencies of 9.5 GHz and 10 GHz. The simulated and measured responses differ a bit due to fabrication tolerances, dimensional inaccuracies, and material properties, and surface roughness can affect the measured results compared to the simulated model. Additionally, connector losses, cable reflections, and calibration inaccuracies may introduce noise or cause shifts in the measured data that are not accounted for in simulations.

3. Numerical Simulation and Optimization

Figure 3 shows a schematic of the patch-fed rod antenna featuring a designated rod length. The design comprises a dielectric rod antenna and patch section made of FR4 material, which has a thickness of 1 mm and a relative permittivity of 4.3. The antenna is energized through a rectangular patch that measures 3 × 3 mm. L1, L2, and L3 correspond to the lengths of the dielectric rod antenna along the z-axis, while D1 and D2 refer to the measurements along the x-axis. To improve the gain, the upper and lower sections of the dielectric rod were tapered along the y-axis with lengths D3 and D4, where D3 is 0.08 λ0 and D4 is 0.28 λ0. This tapered section improves the gain of the antenna. The dimensions of the solid uniform sections of the dielectric rod antenna are provided in Table 1 and Table 2. The dimensions of each element were optimized to guarantee distinct incremental variations along the length of the central rod L2, spanning from 2λ0 to 7λ0. The objective of this process is to improve gain through optimization. The dimensions are fine-tuned to ensure that the rod antenna, powered by the patch, achieves its maximum gain. The antenna’s performance was carefully analyzed through simulations conducted within the frequency range of 56 to 65 GHz. Comprehensive simulations within the 56–65 GHz range confirmed impedance matching and maximized gain at 59.3 GHz. Figure 4 shows the comparison of the reflection coefficient between the single patch and the dielectric rod. Figure 5 highlights the gain of the patch-fed dielectric rod antenna, which is 8.13 dBi at 59.3 GHz.
The integration of the SSPP waveguide enabled the dielectric rod antenna to function effectively within the low-frequency band. Outstanding outcomes were obtained by combining the SSPP waveguide with a millimeter-wave band dielectric rod antenna operating in the 1–10 GHz range. The simulation results were recorded at a frequency of 7.1 GHz, maintaining the same dimensions as previously outlined.
In this configuration, the patch section was eliminated, allowing direct feeding of the rod antenna from the designed SSPP waveguide. Figure 6 depicts the link between the SSPP waveguide and antenna section. Feeding occurred through a single port located at the end of the SSPP feeding structure. The opposite end of the SSPP feeder was linked to the load comprising the rod antenna, as shown in Figure 6. Furthermore, Figure 7a,b show the distributed E field and H field radiation patterns of the SSPP-based feed for the dielectric rod antenna, simulated at a frequency of 7.1 GHz. The feeder generates confined electromagnetic waves capable of exciting a dielectric rod antenna. These waves travel along the x-axis, while the field is concentrated along the z-axis. The rod radiation is evident in Figure 7a,b. Figure 7b illustrates that the SSPP supports a magnetic field which is more effective in exciting the rod antenna compared to the electric field distribution.

4. Experimental Characterization and Results

Figure 8 illustrates the fabricated sample displaying both the front and back sides of the proposed antenna. The fabricated samples were made with a PCB machine.
CST Microwave Studio was employed for simulation, while measurements were conducted using the Agilent N5247A vector analyzer (A.09.90.02), Keysight Technologies, Santa Rosa, CA, USA. Figure 9a,b illustrate the experimental setup for the proposed configuration. Figure 9a presents the initial reflection coefficient (S11) measurement of the SSPP-fed dielectric rod antenna, while Figure 9b shows the antenna installed in the anechoic chamber. Figure 10 shows that the simulation indicated a gain of 16.4 dBi at 7.1 GHz, whereas the actual measurements revealed a gain of 16.85 dB at 7.3 GHz, highlighting a significant peak at this frequency. The reference antenna gain (GREF) was assessed using an Amkom horn antenna (AMKOM Design Group Inc., Escondido, CA, USA), which operates from 1 to 18 GHz. The calibration of the vector network analyzer was conducted with a 3.5 SMA calibration kit, maintaining a 1.5 m distance between the AUT and the reference antenna. Figure 11a,b show the practical radiation patterns and the reflection coefficient at 7.3 GHz, and these results are compared with the CST Microwave Studio simulations. The E and H plane characteristics in Figure 11a indicate a main beam angle of approximately 30 degrees, which is consistent with the simulated patterns, confirming the effectiveness of the feeding technique in achieving high gain. Figure 12 displays the simulated and measured S11 of the design. Adjustments to the SSPP feeding structure involved changing the light line width from 2 mm to 3 mm, enhancing impedance matching. Although a slight frequency deviation was noted, the simulated (7.1 GHz) and measured (7.3 GHz) reflection coefficients were generally in agreement. Variations in the S parameters stemmed from differences in the loading effects between the simulated and measured setups, with measurement accuracy being influenced by the vector network analyzer’s precision. Both simulated and measured reflection coefficients remained below −10 dB within the 5 to 8 GHz bandwidth range. Figure 13 compares the patch-fed and SSPP-fed rod antenna configurations, showing a significant reduction in operating frequency from the range of 56–65 GHz to the range of 1–10 GHz. The decrease in the operating frequency of the dielectric rod antenna when using SSPP-based feeding is attributed to the unique properties of SSPPs. SSPPs emulate high-frequency surface waves, typically found in the optical or millimeter-wave range, allowing their propagation at lower microwave frequencies. This characteristic accounts for the antenna’s shift to lower operating frequencies with SSPP feeding. Figure 14 depicts S11 parameters for SSPP configurations, demonstrating that the SSPP-fed rod offers a broader impedance matching bandwidth than the SSPP alone, which acts only as a feeder. The curve representing the SSPP fed with the rod demonstrates a broader bandwidth for impedance matching compared to the curve without the rod. The difference in S11 for the SSPP without the rod is due to the SSPP acting solely as a feeder element. In this case, the electromagnetic waves propagate through the SSPP without a connected radiating component at the load section, resulting in an open circuit at the load, which produces a narrow S11 pattern. However, when the SSPP is connected to the dielectric rod antenna at the output load section, the load is effectively closed-circuited, leading to a broader S11 characteristic. Figure 15 shows the frequency-dependent gain curve for the SSPP-fed dielectric rod antenna, indicating a linear relationship with frequency. In Figure 16, the Voltage Standing Wave Ratio (VSWR) decreases to approximately 1.31 at 7.2 GHz, close to the theoretical value of 1.39. Table 3 summarizes improvements in the proposed configuration relative to other studies focusing on various feeding mechanisms across different frequencies, all aiming to enhance gain and impedance matching. The current SSPP configuration effectively confines electromagnetic waves, achieving optimal gain and decent impedance matching, as reflected in the results.
Other feeding methods, such as coaxial line and planar feeds, have notable limitations. Coaxial line feeds complicate modeling due to required substrate perforations, while planar feeds are better suited for arrays with significant interactions between elements and feed lines. Additionally, co-planar waveguide (CPW) feeding faces challenges due to a limited understanding of its practical applications within the microwave design community.
The advantages of the proposed design over the existing literature are as follows:
  • Simplified structure: The proposed structure offers a more straightforward design compared to a 1/4 impedance transformation microstrip line or a microstrip CPW structure [30,34,35,36,37,38,39,40,41,42,43,44].
  • Lower operating frequency: Due to the implementation of SSPP feeding, the dielectric rod antenna, which originally operated in the millimeter waveband, has been adapted to function within a lower frequency range of 1–10 GHz.
  • Enhanced gain: The proposed structure demonstrates improved gain over existing designs [30,34,35,36,37,38,39,40,41].
  • Improved impedance match: The reflection coefficient (S11) of the proposed design shows enhanced matching compared to the existing design [34,35,36,37,38,39,40,41].
  • Cost-effectiveness: It offers cost advantages in production, maintenance, and implementation, potentially leading to significant savings.
The limitations of the proposed design compared to the existing literature are as follows:
  • Feeder length: The rod antenna’s feeder in the proposed design made of SSPPs has a larger length compared to the antenna itself.
  • Complex field interaction: Differentiating between specific and nonspecific field interactions along the SSPP’s surface is challenging.

5. Conclusions

This study details the design, development, and analysis of an SSPP-fed dielectric rod antenna optimized for gain and impedance matching. The proposed structure allows for a smooth transition between conventional waveguides and plasmonic waveguides. Simulations reveal outstanding optical confinement of the waveguide across the millimeter-wave to microwave frequency range. This technology can serve as a remote sensor for low-frequency applications, enabling the detection of dielectric constants in various materials, the characterization of substances, the identification of gaseous mixtures, and food quality assessments, among other applications. This waveguide structure is effectively utilized to feed the dielectric rod antenna, which not only provides superior impedance matching compared to existing designs but also shows potential for integrating plasmonic waveguide circuits. As a result, researchers may explore the integration of multiple plasmonic devices for diverse applications following the techniques presented here.

6. Patents

Patent filed: 202341033912. Published on 23 July 2023.

Author Contributions

Conceptualization, R.C.; methodology, R.C.; software, R.C.; validation, S.I., S.T. and K.P.; formal analysis, M.A. and S.B.; investigation, A.F.A.; resources, R.C.; data curation, M.A. and S.B.; writing—original draft preparation, R.C.; writing—review and editing, S.I., S.T., K.P., M.A., S.B. and A.F.A.; visualization, M.A. and S.B.; supervision, S.T.; project administration, M.A.; funding acquisition, A.F.A. All authors have read and agreed to the published version of the manuscript.

Funding

The Researchers would like to thank the Deanship of Graduate Studies and Scientific Research at Qassim University for financial support (QU-APC-2024-9/1).

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

We express our sincere gratitude to the management of SRM University AP, India, for their generous support in providing the necessary research facilities and computational resources.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zayats, A.V.; Smolyaninov, I.I.; Maradudin, A.A. Nano-optics of surface plasmon polaritons. Phys. Rep. 2005, 408, 131–314. [Google Scholar] [CrossRef]
  2. Okamoto, K. Fundamentals of Optical Waveguides; Elsevier: Amsterdam, The Netherlands, 2021. [Google Scholar]
  3. Pitarke, J.M.; Silkin, V.M.; Chulkov, E.V.; Echenique, P.M. Theory of surface plasmons and surface-plasmon polaritons. Rep. Prog. Phys. 2007, 70, 1–87. [Google Scholar] [CrossRef]
  4. Maier, S.A. Plasmonics: Fundamentals and Applications, 1st ed.; Springer: New York, NY, USA, 2007; Volume 1. [Google Scholar]
  5. Liu, H.; Wang, B.; Ke, L.; Deng, J.; Chum, C.C.; Teo, S.L.; Shen, L.; Maier, S.A.; Teng, J. High aspect sub diffraction-limit photolithography via a silver superlens. Nano Lett. 2012, 12, 1549–1554. [Google Scholar] [CrossRef]
  6. Wang, B.; Zhang, X.; Yuan, X.; Teng, J. Optical coupling of surface plasmons between grapheme sheets. Appl. Phys Lett. 2012, 100, 131111. [Google Scholar] [CrossRef]
  7. Atwater, H.; Polman, A.; Kosten, E.; Callahan, D.; Spinelli, P.; Eisler, C.; Escarra, M.; Warmann, E.; Flowers, C. Nanophotonic design principles for ultrahigh efficiency photovoltaics. AIP Conf. Proc. 2013, 1519, 17–21. [Google Scholar]
  8. Schmidt, M.A.; Lei, D.Y.; Wondraczek, L.; Nazabal, V.; Maier, S.A. Hybrid nanoparticle–microcavity-based plasmonic nanosensor with improved detection resolution and extended remote-sensing ability. Nat. Commun. 2012, 3, 1108. [Google Scholar] [CrossRef]
  9. Zhang, S.; Xiong, Y.; Bartal, G.; Yin, X.; Zhang, X. Magnetized plasma for reconfigurable sub diffraction imaging. Phys. Rev. Lett. 2011, 106, 243901. [Google Scholar] [CrossRef]
  10. Anker, J.N.; Hall, W.P.; Lyandres, O.; Shah, N.C.; Zhao, J.; Van Duyne, R.P. Biosensing with plasmonic nanosensors. Nat. Mater. 2008, 7, 442–453. [Google Scholar] [CrossRef]
  11. Quaranta, G.; Basset, G.; Martin, O.J.F.; Gallinet, B. Recent advances in resonant waveguide gratings. Laser Photonics Rev. 2018, 12, 1800017. [Google Scholar] [CrossRef]
  12. Bansal, S. Long-wave bilayer graphene/HgCdTe based GBp type-II superlattice unipolar barrier infrared detector. Results Opt. 2023, 12, 100425. [Google Scholar] [CrossRef]
  13. Bansal, S.; Rajpoot, A.K.; Chamundeswari, G.; Prakash, K.; Kumar, P.R.; Rashed, A.N.Z.; Soliman, M.S.; Islam, M.T. Pt/ZnO and Pt/few-layer graphene/ZnO Schottky devices with Al ohmic contacts using Atlas simulation and machine learning. J. Sci. Adv. Mater. Devices 2024, 9, 100798. [Google Scholar] [CrossRef]
  14. Chau, Y.F.C.; Chao, C.T.C.; Huang, H.J.; Wang, Y.C.; Chiang, H.P.; Idris, M.N.S.I.M.; Masri, Z.; Lim, C.M. Strong and tunable plasmonic field coupling and enhancement generating from the protruded metal nanorods and dielectric cores. Results Phys. 2019, 13, 102290. [Google Scholar] [CrossRef]
  15. Chou Chao, C.T.; Chou Chau, Y.F. Highly sensitive multichannel fano resonance-based plasmonic sensor for refractive index and temperature sensing application. Photonics 2023, 10, 82. [Google Scholar] [CrossRef]
  16. Smith, D.R.; Pendry, J.B.; Wiltshire, M.C. Metamaterials and negative refractive index. Science 2004, 305, 788–792. [Google Scholar] [CrossRef]
  17. Hibbins, A.P.; Evans, B.R.; Sambles, J.R. Experimental Verification of Designer Surface Plasmons. Science 2005, 308, 670–672. [Google Scholar] [CrossRef]
  18. Yao, K.; Liu, Y. Plasmonic metamaterials. Nanotechnol. Rev. 2014, 3, 177–210. [Google Scholar] [CrossRef]
  19. Garcia-Vidal, F.J.; Martín-Moreno, L.; Pendry, J.B. Surfaces with holes in them: New plasmonic metamaterials. J. Opt. A Pure Appl. Opt. 2005, 7, S97–S101. [Google Scholar] [CrossRef]
  20. Shen, X.; Cui, T.J.; Cano, D.M.; Garcia-Vidal, F.J. Conformal surface plasmons propagating on ultrathin and flexible films. Proc. Natl. Acad. Sci. USA 2013, 110, 40–45. [Google Scholar] [CrossRef]
  21. Gao, X.; Shi, J.H.; Shen, X.; Ma, H.F.; Jiang, W.X.; Li, L.; Cui, T.J. Ultrathin dual-band surface plasmonic polariton waveguide and frequency splitter in microwave frequencies. Appl. Phys. Lett. 2013, 102, 151912. [Google Scholar] [CrossRef]
  22. Ma, H.F.; Shen, X.; Cheng, Q.; Jiang, W.X.; Cui, T.J. Broadband and high-efficiency conversion from guided waves to spoof surface plasmon polaritons. Laser Photon-Rev. 2014, 8, 146–151. [Google Scholar] [CrossRef]
  23. Pan, B.C.; Liao, Z.; Zhao, J.; Cui, T.J. Controlling rejections of spoof surface plasmon polaritons using metamaterial particles. Opt. Express 2014, 22, 13940. [Google Scholar] [CrossRef] [PubMed]
  24. Gao, X.; Zhou, L.; Liao, Z.; Ma, H.F.; Cui, T.J. An ultra-wideband surface plasmonic filter in microwave frequency. Appl. Phys. Lett. 2014, 104, 191603. [Google Scholar] [CrossRef]
  25. Cheng, Z.W.; Wang, M.; You, Z.H.; Ma, H.F.; Cui, T.J. Spoof surface plasmonics: Principle, design, and applications. J. Phys. Condens. Matter 2022, 34, 263002. [Google Scholar] [CrossRef]
  26. Pendry, J.B.; Martín-Moreno, L.; Garcia-Vidal, F.J. Mimicking Surface Plasmons with Structured Surfaces. Science 2004, 305, 847–848. [Google Scholar] [CrossRef]
  27. Rusina, A.; Durach, M.; Stockman, M.I. Theory of spoof plasmons in real metals. Appl. Phys. A 2010, 100, 375–378. [Google Scholar] [CrossRef]
  28. Zhang, W.; Zhu, G.; Sun, L.; Lin, F. Trapping of surface Plasmon wave through gradient corrugated strip with underlayer ground and manipulating its propagation. Appl. Phys. Lett. 2015, 106, 021104. [Google Scholar] [CrossRef]
  29. Tang, W.; Wang, J.; Yan, X.; Liu, J.; Gao, X.; Zhang, L.; Cui, T.J. Broadband and high-efficiency excitation of spoof surface Plasmon polaritons through rectangular waveguide. Front. Phys. 2020, 8, 582692. [Google Scholar] [CrossRef]
  30. Jaiswal, R.K.; Pandit, N.; Pathak, N.P. Spoof surface plasmon polaritons based reconfigurable band-pass filter. IEEE Photon-Technol. Lett. 2018, 31, 218–221. [Google Scholar] [CrossRef]
  31. Chaparala, R.; Tupakula, S. Metal-insulator-metal structured surface Plasmon polaritons waveguide with improved gain. In Proceedings of the Conference on Lasers and Electro-Optics/Pacific Rim 2022, Sapporo, Japan, 31 August–5 September 2022; Optica Publishing Group: Washington, DC, USA, 2022. [Google Scholar] [CrossRef]
  32. Ghattas, N.; Ghuniem, A.M.; Abuelenin, S.M. Optimization of dielectric rod antenna in millimeter waveband for wireless communications. arXiv 2018, arXiv:1805.05475. [Google Scholar]
  33. Reese, R.; Tesmer, H.; Polat, E.; Jost, M.; Nickel, M.; Jakoby, R.; Maune, H. Fully dielectric rod antenna arrays with high permittivity materials. In Proceedings of the 12th German Microwave Conference (GeMiC), Stuttgart, Germany, 25–27 March 2019; IEEE: Piscataway, NJ, USA, 2019. [Google Scholar] [CrossRef]
  34. Withayachumnankul, W.; Yamada, R.; Fujita, M.; Nagatsuma, T. Evolution of rod antennas for integrated terahertz photonics. In Proceedings of the 43rd International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), Nagoya, Japan, 9–14 September 2018; IEEE: Piscataway, NJ, USA, 2018. [Google Scholar] [CrossRef]
  35. Kazemi, R.; Fathy, A.E.; Sadeghzadeh, R.A. Dielectric rod antenna array with substrate integrated waveguide planar feed network for wideband applications. IEEE Trans. Antennas Propag. 2012, 60, 1312–1319. [Google Scholar] [CrossRef]
  36. Bansal, S.; Chauhan, R.; Kumar, P. A Cuckoo Search based WDM Channel Allocation Algorithm. Int. J. Comput. Appl. 2014, 96, 6–12. [Google Scholar] [CrossRef]
  37. Bansal, S.; Kumar, S.; Bhalla, P. A Novel Approach to WDM Channel Allocation: Big Bang–Big Crunch Optimization. In Proceedings of the Zonal Seminar on Emerging Trends in Embedded System Technologies (ETECH) Organized by The Institution of Electronics and Telecommunication Engineers (IETE), Chandigarh, India, 23–24 August 2013; pp. 80–81. [Google Scholar]
  38. Wen, L.; Hu, W.; Pang, B.; Luo, Q.; Gao, S. Spoof Surface Plasmon Polariton-Based Antenna and Array by Exciting Both Even- and Odd-Mode Resonances. IEEE Trans. Antennas Propag. 2023, 72, 1593–1602. [Google Scholar] [CrossRef]
  39. Jaiswal, R.K.; Pandit, N.; Pathak, N.P. Design, analysis, and characterization of designer surface plasmon polariton-based dual-band antenna. Plasmonics 2018, 13, 1209–1218. [Google Scholar] [CrossRef]
  40. Gupta, A.; Kumar, V.; Bansal, S.; Alsharif, M.H.; Jahid, A.; Cho, H.-S. A Miniaturized Tri-Band Implantable Antenna for ISM/WMTS/Lower UWB/Wi-Fi Frequencies. Sensors 2023, 23, 6989. [Google Scholar] [CrossRef]
  41. Cao, D.; Li, Y.; Wang, J.; Ge, L. A millimeter-wave spoof surface plasmon polaritons fed dual- polarized microstrip patch antenna array. IEEE Trans. Antennas Propag. 2023, 71, 2363–2374. [Google Scholar] [CrossRef]
  42. Zhang, X.-F.; Fan, J.; Chen, J.-X. High gain and high-efficiency millimeter-wave antenna based on spoof surface plasmon polaritons. IEEE Trans. Antennas Propag. 2018, 67, 687–691. [Google Scholar] [CrossRef]
  43. Han, Y.; Gong, S.; Wang, J.; Li, Y.; Fan, Y.; Zhang, J.; Qu, S. Shared-aperture antennas based on even- and odd-mode spoof surface plasmon polaritons. IEEE Trans. Antennas Propag. 2019, 68, 3254–3258. [Google Scholar] [CrossRef]
  44. Gupta, A.; Kumari, M.; Sharma, M.; Alsharif, M.H.; Uthansakul, P.; Uthansakul, M.; Bansal, S. 8-port MIMO antenna at 27 GHz for n261 band and exploring for body centric communication. PLoS ONE 2024, 19, e0305524. [Google Scholar] [CrossRef]
Sensors 24 07543 g001

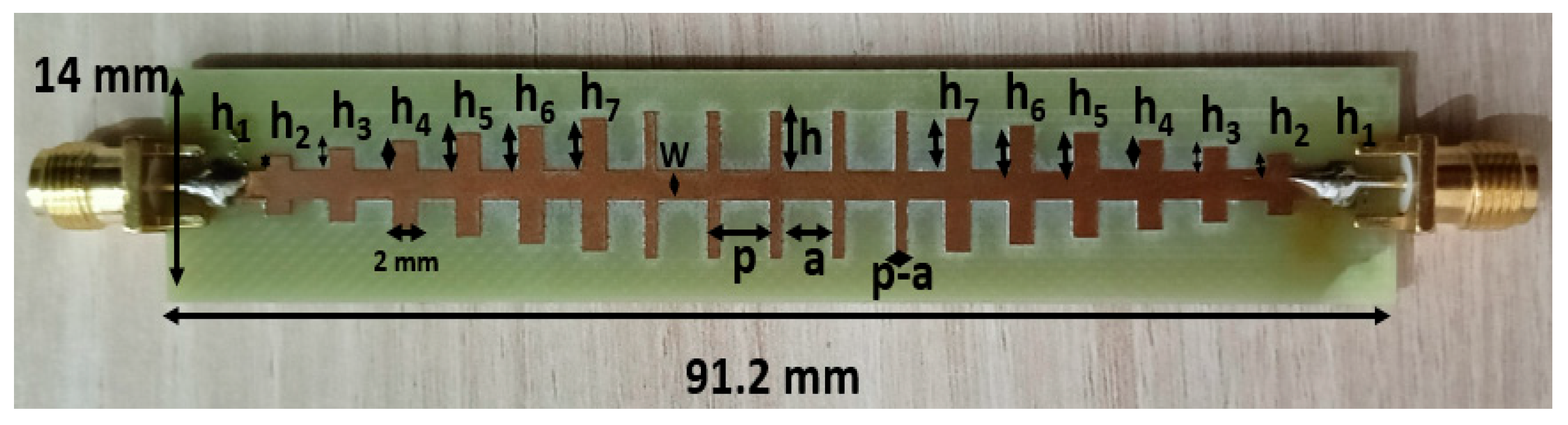

Figure 1. A fabricated device of a spoof surface plasmon polariton waveguide (h1 = 0.5 mm; h2 = 1 mm; h3 = 1.5 mm; h4 = 2 mm; h5 = 2.5 mm; h6 = 3 mm; h7 = 3.5 mm; p = 5 mm; a = 4 mm; p-a = 1 mm; W = 3 mm; h = 4 mm; SL = 14 mm; SW = 91.2 mm; and ST = 1.67 mm).
Figure 1. A fabricated device of a spoof surface plasmon polariton waveguide (h1 = 0.5 mm; h2 = 1 mm; h3 = 1.5 mm; h4 = 2 mm; h5 = 2.5 mm; h6 = 3 mm; h7 = 3.5 mm; p = 5 mm; a = 4 mm; p-a = 1 mm; W = 3 mm; h = 4 mm; SL = 14 mm; SW = 91.2 mm; and ST = 1.67 mm).
Sensors 24 07543 g001
Sensors 24 07543 g002
Figure 2. Simulated and measured characteristics of SSPP waveguide structure with measurement setup of SSPP waveguide.
Figure 2. Simulated and measured characteristics of SSPP waveguide structure with measurement setup of SSPP waveguide.
Sensors 24 07543 g002
Sensors 24 07543 g003

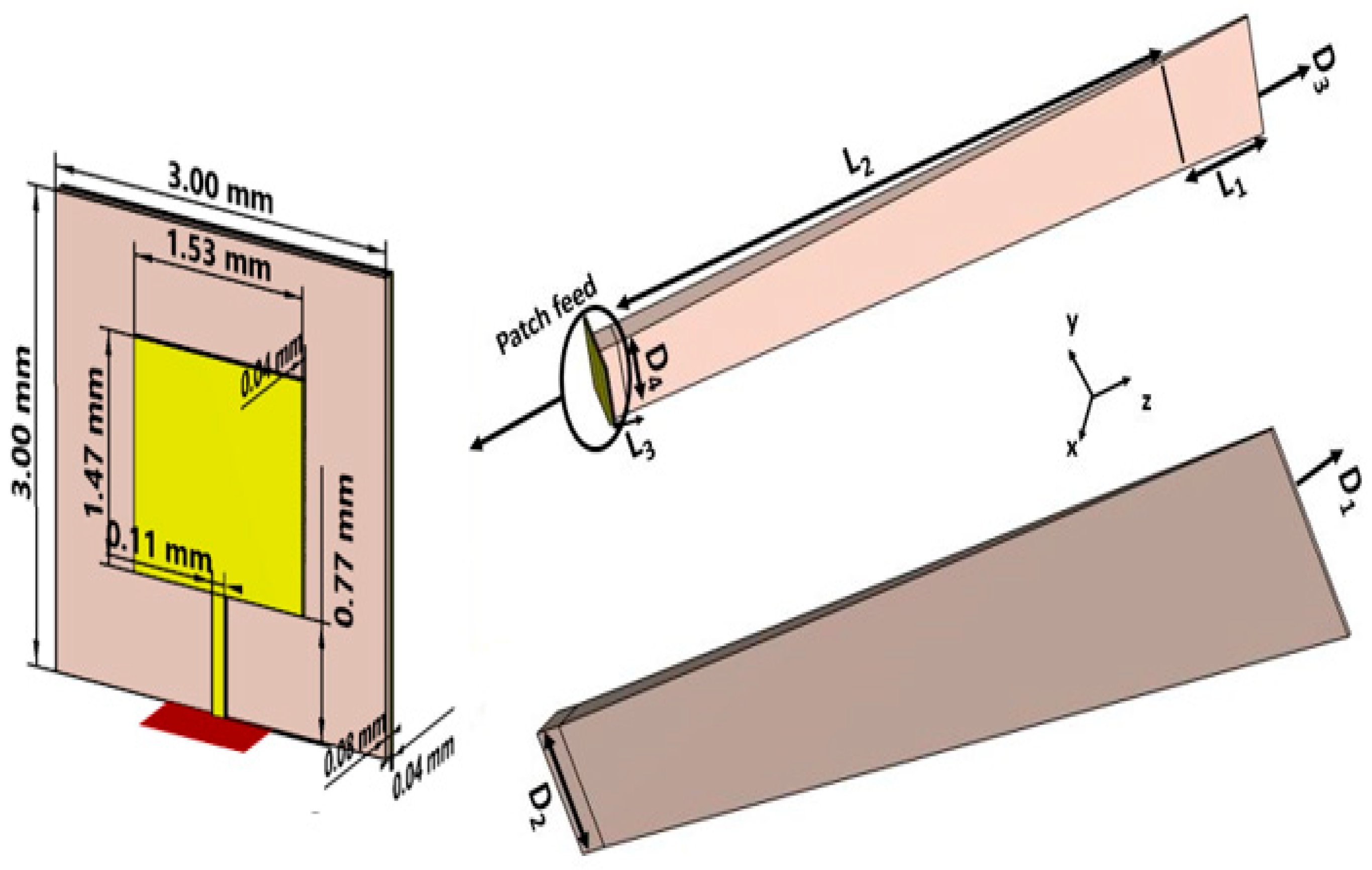

Figure 3. A simulated design of a patch-fed dielectric rod antenna representing the total rod length and diameter of tapering sections.
Figure 3. A simulated design of a patch-fed dielectric rod antenna representing the total rod length and diameter of tapering sections.
Sensors 24 07543 g003
Sensors 24 07543 g004

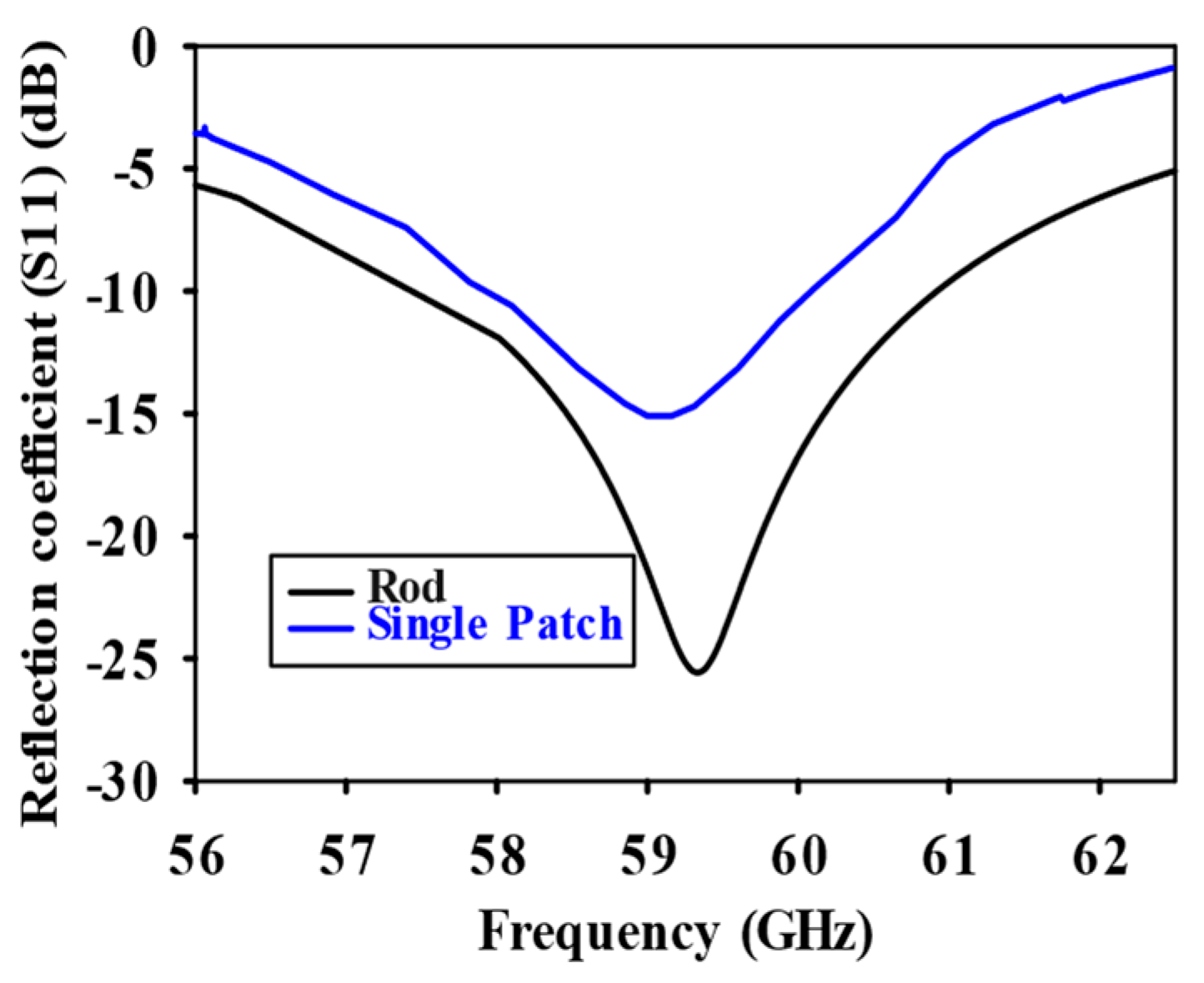

Figure 4. Reflection coefficient (S11) comparison for single patch and dielectric rod without SSPP feeding technique.
Figure 4. Reflection coefficient (S11) comparison for single patch and dielectric rod without SSPP feeding technique.
Sensors 24 07543 g004
Sensors 24 07543 g005

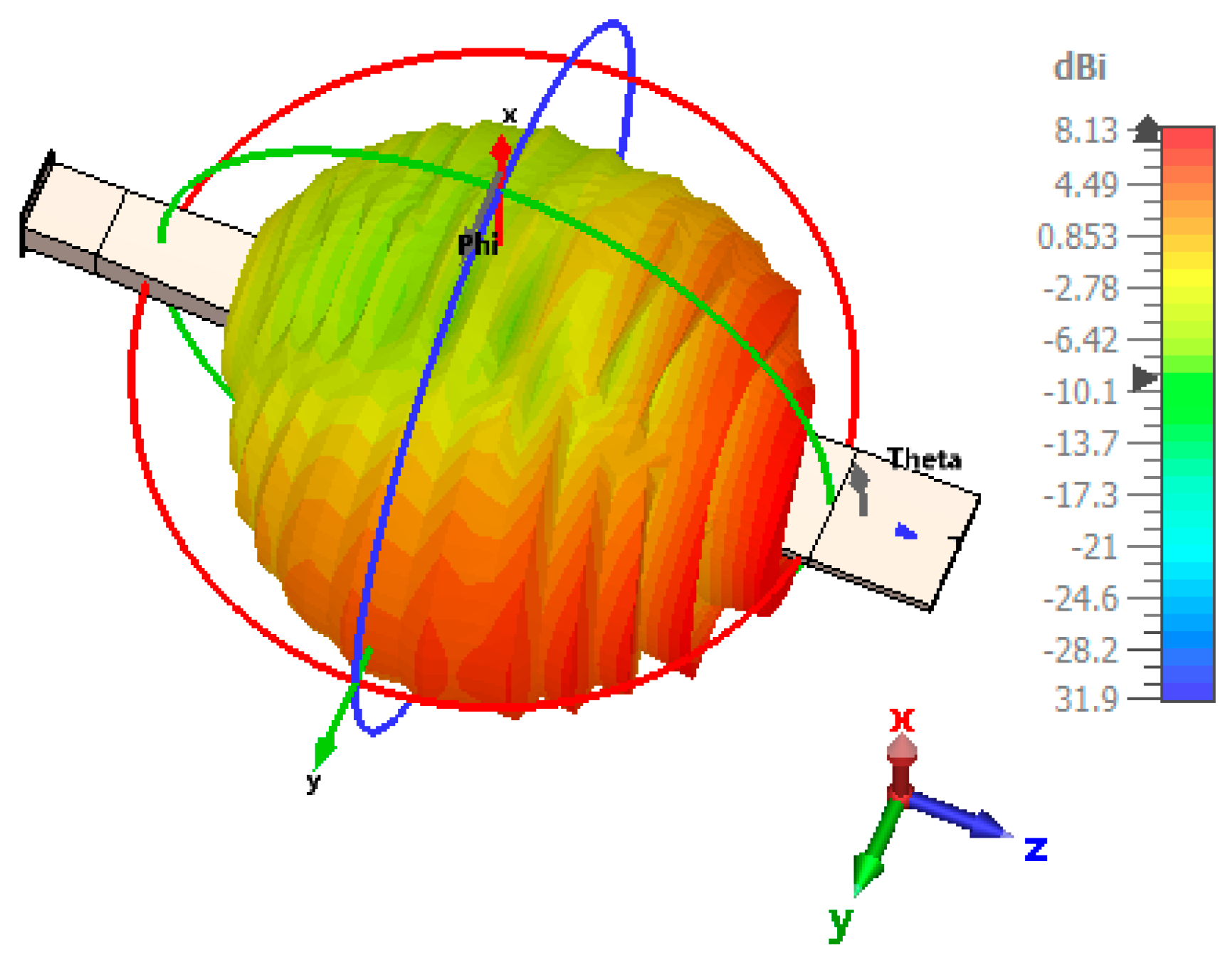

Figure 5. The gain of the patch-fed dielectric rod antenna at 59.3 GHz.
Figure 5. The gain of the patch-fed dielectric rod antenna at 59.3 GHz.
Sensors 24 07543 g005
Sensors 24 07543 g006

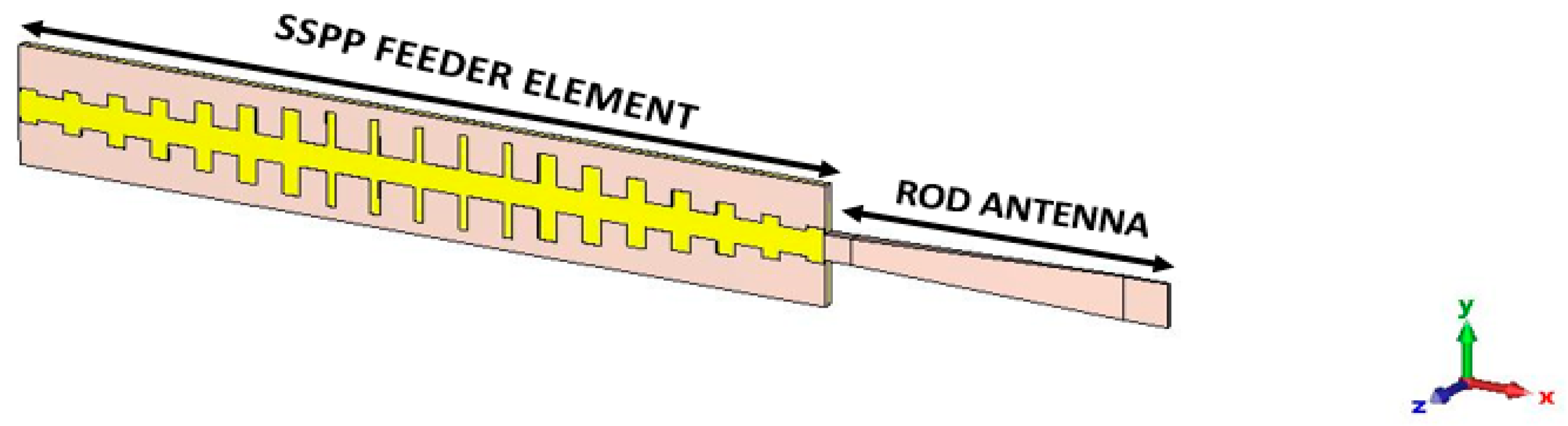

Figure 6. The novel feeding structure of the dielectric rod antenna with SSPP waveguide feeding.
Figure 6. The novel feeding structure of the dielectric rod antenna with SSPP waveguide feeding.
Sensors 24 07543 g006
Sensors 24 07543 g007
Figure 7. Distributed (a) E field and (b) H field radiation for designed SSPP-based dielectric rod antenna at 7.1 GHz.
Figure 7. Distributed (a) E field and (b) H field radiation for designed SSPP-based dielectric rod antenna at 7.1 GHz.
Sensors 24 07543 g007
Sensors 24 07543 g008
Figure 8. (a) Front and (b) back views of fabrication samples of the SSPP-fed dielectric rod antenna.
Figure 8. (a) Front and (b) back views of fabrication samples of the SSPP-fed dielectric rod antenna.
Sensors 24 07543 g008
Sensors 24 07543 g009
Figure 9. SSPP rod antenna. (a) Measurement of S-parameters with VNA. (b) Testing of SSPP rod antenna in anechoic chamber.
Figure 9. SSPP rod antenna. (a) Measurement of S-parameters with VNA. (b) Testing of SSPP rod antenna in anechoic chamber.
Sensors 24 07543 g009
Sensors 24 07543 g010

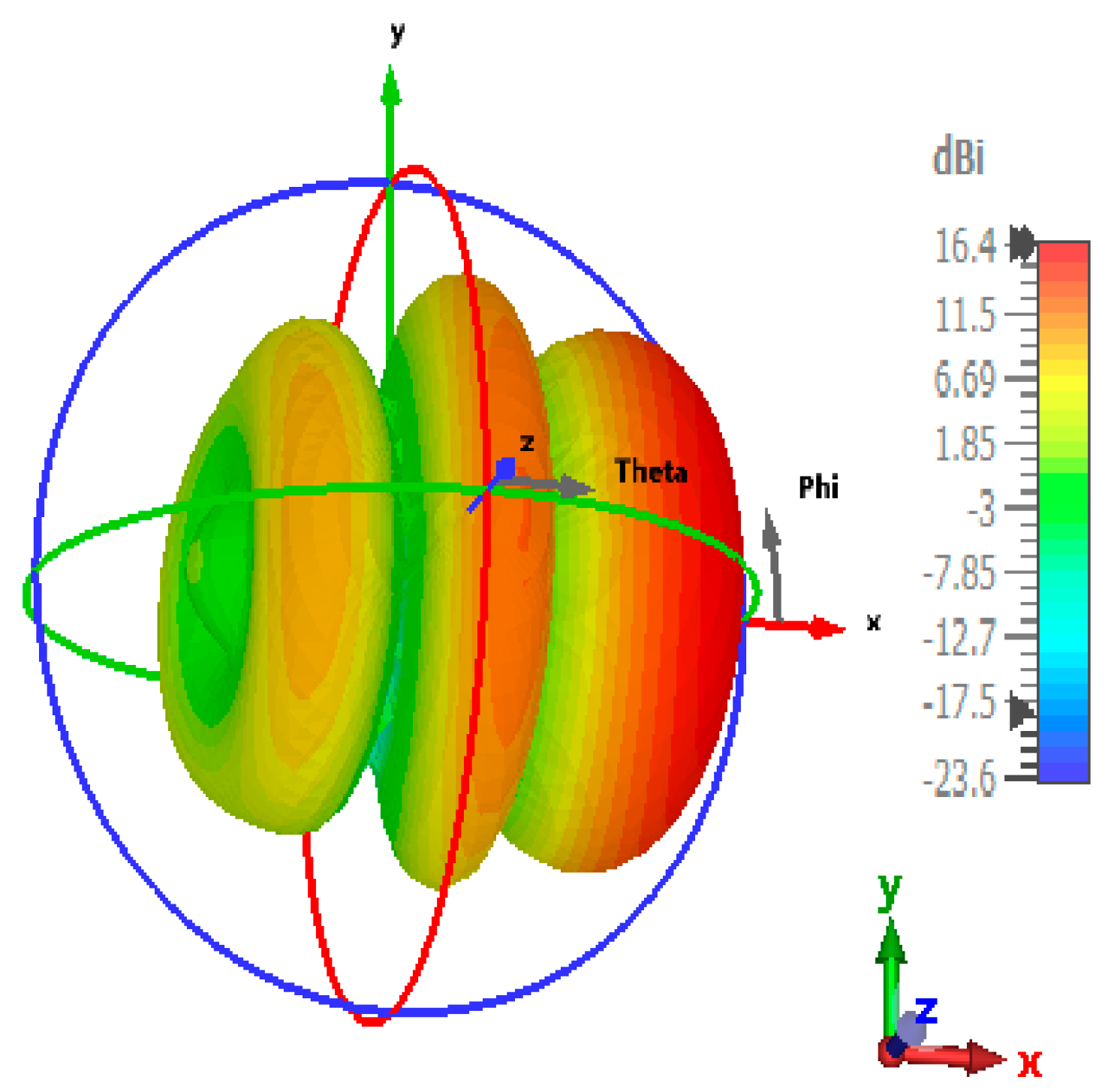

Figure 10. Gain of SSPP-fed dielectric rod antenna at 7.1 GHz.
Figure 10. Gain of SSPP-fed dielectric rod antenna at 7.1 GHz.
Sensors 24 07543 g010
Sensors 24 07543 g011

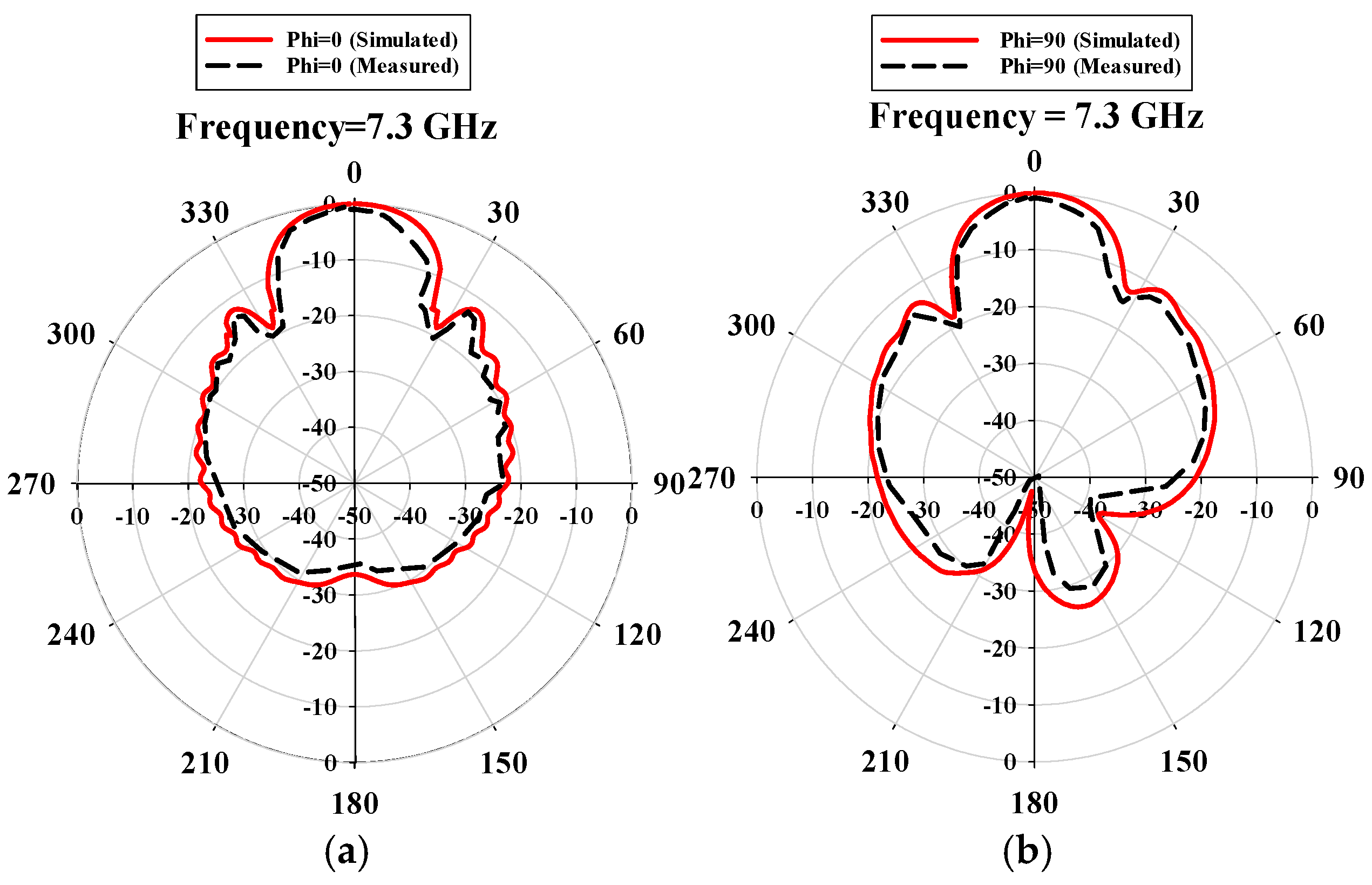

Figure 11. (a,b) represent the E and H plane patterns of the dielectric rod antenna with the SSPP feeding technique.
Figure 11. (a,b) represent the E and H plane patterns of the dielectric rod antenna with the SSPP feeding technique.
Sensors 24 07543 g011
Sensors 24 07543 g012
Figure 12. Reflection coefficient (S11) comparison for dielectric rod with SSPP feeding technique.
Figure 12. Reflection coefficient (S11) comparison for dielectric rod with SSPP feeding technique.
Sensors 24 07543 g012
Sensors 24 07543 g013
Figure 13. A comparison of significant results for the rod antenna (a) without SSPPs and (b) with SSPPs.
Figure 13. A comparison of significant results for the rod antenna (a) without SSPPs and (b) with SSPPs.
Sensors 24 07543 g013
Sensors 24 07543 g014
Figure 14. Comparison of impedance bandwidth curves of SSPPs (a) with rod and (b) without rod.
Figure 14. Comparison of impedance bandwidth curves of SSPPs (a) with rod and (b) without rod.
Sensors 24 07543 g014
Sensors 24 07543 g015

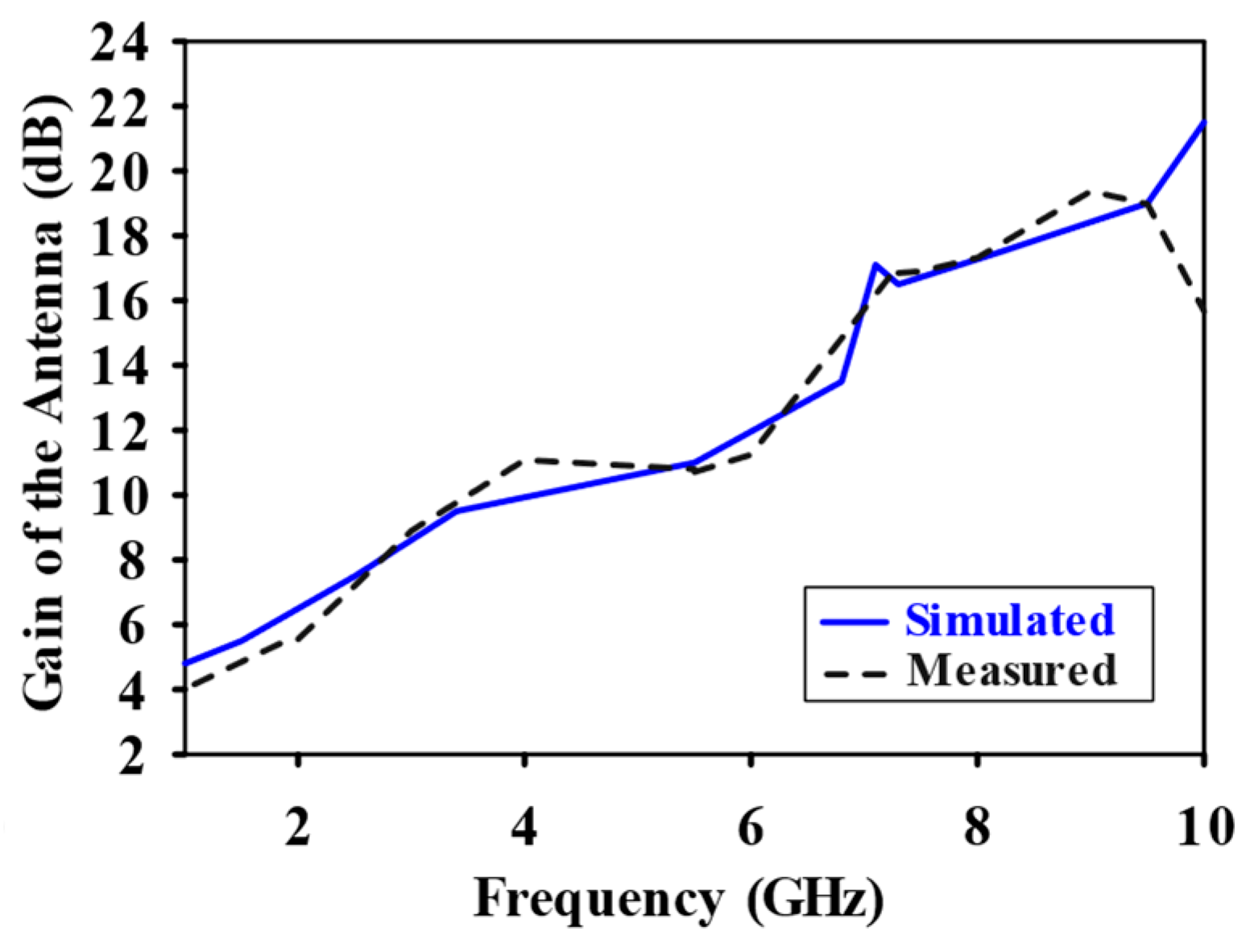

Figure 15. Gain vs. frequency plot for designed SSPP-based dielectric rod antenna for both simulated and measured data.
Figure 15. Gain vs. frequency plot for designed SSPP-based dielectric rod antenna for both simulated and measured data.
Sensors 24 07543 g015
Sensors 24 07543 g016
Figure 16. Simulated VSWR result of proposed configuration.
Figure 16. Simulated VSWR result of proposed configuration.
Sensors 24 07543 g016
Table 1. Optimized measurements of the antenna.
Table 1. Optimized measurements of the antenna.
L1L2L3D1D2
λ06 λ00.6 λ00.2 λ00.6 λ0
Table 2. Tapered rod section.
Table 2. Tapered rod section.
D3D4
0.08 λ00.2 λ0
Table 3. Comparison of proposed work with existing methods.
Table 3. Comparison of proposed work with existing methods.
Ref.Feeding Source(f0) GHzGain (dBi)S11 (dB)Antenna Length (mm)Bandwidth (%)
[36]SSPP--−29 dBλ0/214.8
[37]SSPP4.5 GHz8.43 dBi−25 dB5 λ06.5–10.4 GHz
(46)
[38]SSPP30 GHz6.8 dBi−18 dB6.08 × 4.51 mm4.2–6.5 GHz
(43)
[39]SSPP26.18 GHz6.1 dBi−28.8 dB8.3 × 2 mm27.9–30.5 GHz
(8.82)
[40]SSPP27.2 GHz15 dBi−36 dBλ0 + 127.5–32 GHz
(55)
[41]SSPP11.5 GHz6.8 dBi−25 dB6 λ07.5–9.3 GHz
(21.35)
[This work]SSPP7.2 GHz16.4 dBi−36.3 dB7.6 λ05.4–8.2 GHz
(39)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chaparala, R.; Imamvali, S.; Tupakula, S.; Aljaidi, M.; Bansal, S.; Prakash, K.; Alkoradees, A.F. Optimizing Dielectric Rod Antenna Performance with Spoof Surface Plasmon Polariton-Based Feeding Method. Sensors 2024, 24, 7543. https://doi.org/10.3390/s24237543

AMA Style

Chaparala R, Imamvali S, Tupakula S, Aljaidi M, Bansal S, Prakash K, Alkoradees AF. Optimizing Dielectric Rod Antenna Performance with Spoof Surface Plasmon Polariton-Based Feeding Method. Sensors. 2024; 24(23):7543. https://doi.org/10.3390/s24237543

Chicago/Turabian Style

Chaparala, Rishitej, Shaik Imamvali, Sreenivasulu Tupakula, Mohammad Aljaidi, Shonak Bansal, Krishna Prakash, and Ali Fayez Alkoradees. 2024. "Optimizing Dielectric Rod Antenna Performance with Spoof Surface Plasmon Polariton-Based Feeding Method" Sensors 24, no. 23: 7543. https://doi.org/10.3390/s24237543

APA Style

Chaparala, R., Imamvali, S., Tupakula, S., Aljaidi, M., Bansal, S., Prakash, K., & Alkoradees, A. F. (2024). Optimizing Dielectric Rod Antenna Performance with Spoof Surface Plasmon Polariton-Based Feeding Method. Sensors, 24(23), 7543. https://doi.org/10.3390/s24237543

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
