1. Introduction
Three-dimensional (3D) surface measurement has become a central component of anthropometric surveys (Bartol et al., 2021 [
1]; Bonin et al., 2022 [
2]; Gordon et al., 2013 [
3]; Gordon et al., 2014 [
4]; Goto et al., 2019 [
5]; Lu and Wang, 2008 [
6]; Park et al., 2014 [
7], Robinette et al., 2002 [
8], Tsoli et al., 2014 [
9]). Modern surface scanning equipment can accurately capture the shape of the surface of the body in a fraction of a second. However, the practical aspects of conducting 3D scanning surveys have changed little in the past 25 years. In particular, participants are required to change into close-fitting garb that minimizes the clothing effects on the subsequent scan. This clothing ensemble must be provided, along with suitable privacy for changing. The consequence is that several seconds of scanning can require 10 min or more of preparation for each participant and considerable resources.
Recently, studies on fitting virtual avatars, such as statistical human models, to clothed body scans have attempted to capture body shapes under clothing (Guan et al., 2010 [
10]; Hasler et al., 2009 [
11]; Hu et al., 2021 [
12]; Pishchulin et al., 2017 [
13]; Yang et al., 2016 [
14]; Lu et al., 2021 [
15]). Bălan and Black (2008) [
16] presented a model-based body shape estimate system that finds a maximal silhouette-consistent shape to estimate body shape from a number of 2D images. Hasler et al. (2009) [
11] developed a technique using a statistical body shape model and an iterative closest point (ICP)-based Laplacian mesh deformation approach to predict the body shape of dressed humans. Guan et al. (2010) [
10] presented a method focusing on two-dimensional models for modeling clothing deformations on the body. Zhang et al. (2017) [
17] estimated the inner body shape in various postures while recovering surface details. These studies commonly require high computational resources to solve expensive optimization problems in order to estimate body shapes. Also, they focused on estimating visually realistic 3D body shapes rather than measuring body dimensions; thus, the results were not validated against actual dimension measurements. Hu et al. (2021) [
12] proposed a method that applied machine learning to predict undressed body shapes from dressed human scans by generating a dataset of synthetically combined dressed human and undressed ground truth body shapes.
In a previous study, the study team introduced an efficient underlying body shape estimation method called the Inscribed Fitting (IF) method (Park et al., 2016 [
18]), based on a rapid model-based fitting technique (Park et al., 2014 [
7]). This IF method uses an iterative process to estimate the body shape from clothed scan data, based on the observation that the correct body shape is well estimated by the largest body shape that does not protrude through the clothing. The fitting is performed by maximizing a goodness-of-fit metric through the choice of shape factor scores, where the shape factors are the principal components of the body shape model. The model output includes a set of predicted anthropometric dimensions and anatomical body landmark data, as well as a realistic body shape.
The main objective of the current study was to develop a portable model-based anthropometry system to obtain body dimensions of individuals by capturing 3D body shapes of clothed individuals using low-cost depth sensors. Three low-cost depth sensors (Microsoft Kinect V2) were utilized to capture the 3D body shape in a fraction of a second. The system consists of two parts: (1) a data collection component to operate the sensors and process gathered depth images over a network, and (2) an anthropometry component to fit a statistical body shape model to the scans and estimate the most likely body shape along with a set of body dimensions and landmark locations.
A total of 144 adults were recruited to quantify the measurement accuracy of the current system against a whole-body laser scanning system. The quantitative accuracy of the system was evaluated using data from two levels of clothing. The quality of the inscribed fits was evaluated through quantitative comparison to minimally clad laser scans from the population as well as by comparing the predicted standard anthropometric dimensions with manual measurements.
2. Materials and Methods
2.1. Model-Based Anthropometry System
The system hardware system consists of three Microsoft Kinect V2 sensors aimed at the front, back, and side of the participant. The high bandwidth of the sensor necessitates a dedicated computer for each sensor.

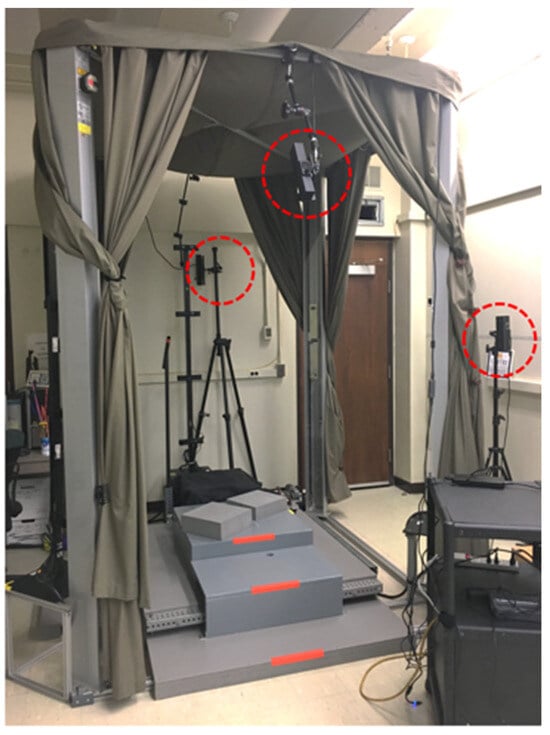

Figure 1 shows the sensors positioned for the current study. The Kinect sensors were installed on the structure of a whole-body laser scanner (VITUS XXL) to enable near-simultaneous imaging of the participant by both systems. Kinect sensors placed on the front and rear sides are used for overall geometry capture, and sensors placed on the side are used for alignment of the captured geometry data.
Data collection software consists of a server program and a client program. The server program sends a signal to clients and gathers the scan data over a network while synchronizing the frames from each sensor. The client program utilizes the Kinect API to capture the depth and color data and combine them when a capture signal is received from the server. The client reduces the noise level by analyzing multiple depth images obtained over 150 ms (Park et al., 2014 [
7]) and compresses the combined depth+color data to facilitate smooth streaming over the wireless network. The server program aligns the captured scans using the iterative closest point technique and stores the transformation information to merge the scans from the sensors. The height of the floor in the measurement coordinate system is stored in this step.
The scanning posture was standardized according to the MCANSUR report (US Marine Corps Anthropometric Survey, Gordon et al., 2013 [
3]) as follows:
- -
The participant stands on the scanner platform with his or her feet on “footprints” painted on the platform. The footprints are positioned 30 cm apart.
- -
The participant stands erect with the weight distributed equally on both feet.
- -
The arms are straight and held away (30°) from the body with fists clenched.
- -
The participant looks straight ahead.
- -
The participant breathes normally and stands relaxed without flexing his or her muscles.

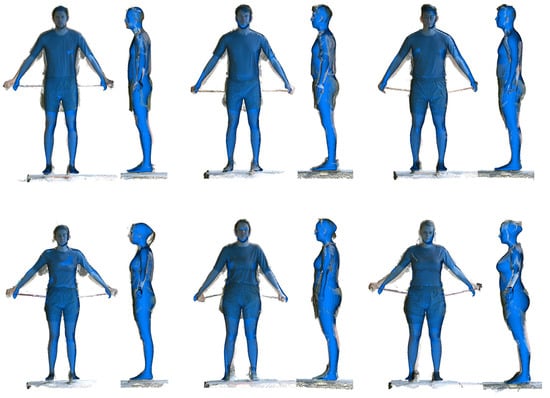

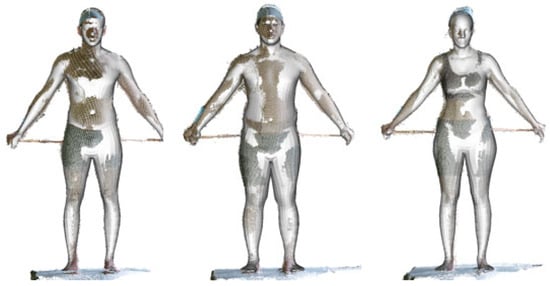

Figure 2 shows examples of the processed Kinect scans in this standardized standing posture.
2.2. Statistical Body Shape Model
This study used separate male and female statistical body shape models (SBSMs) that were based on 1224 male and 591 female scans from the MCANSUR survey. These standing scans were homologized using a template fitting method (Park and Reed, 2015 [
19]) to standardize the mesh structure across the scans. The SBSMs were built by conducting a principal component analysis of the standardized scan vertex coordinates along with 74 body landmarks, 19 joint locations, and 136 manual anthropometric measurements (Park and Reed, 2015 [
19]). A total of 60 principal components were retained for each model to represent 99.7% of the variance in the body shape, landmark locations, and anthropometric dimensions.
2.3. Enhancement of Inscribed Fitting (IF) Method
The IF method was developed to estimate the body shape underlying clothing (Park et al., 2016 [
18]). The method is based on a rapid model-based fitting method (Park et al., 2014 [
7]) that finds a set of body shape factors (principal component scores, PCs) that generates the closest shape to the target shape in a statistical body shape space. Briefly, the IF method finds the most feasible body shape from a clothed scan by assuming that the correct body shape is the largest body shape that does not protrude through the clothing. This largest body shape is found by adjusting the PCs iteratively to push the initially fitted model’s vertices to lie just inside the target surface.
In the current study, the IF method was enhanced to deal with noisy point cloud data (PCD) obtained from consumer-grade depth cameras (
Figure 3). First, the strategy of the previous IF method to determine the outside vertices was modified due to the absence of the surface normal information in the target PCD. Second, to address noise in the data, we improved the method to find inscribing vectors that move outside vertices to the target surface.

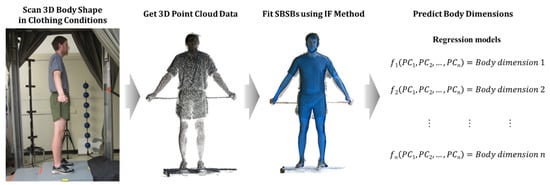

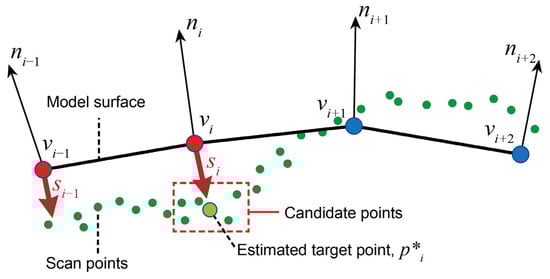

Figure 3 shows the improved method to find the inscribing vectors when the target scan is PCD. Let
vi be the
ith vertex of the body shape model and
ni be the normal vector of
vi. To find an inscribing direction for
vi. we first find the closest point
pi among the target points. Since it is possible that
pi is affected by noise and not on the actual target surface, we use an average of ten candidate points that are close to
pi as a modified target point,
p*
i. We determine whether the vertex
vi is outside the target surface (red vertices in
Figure 4) by computing the inner product between
ni and
si, a vector from vi to
p*
i. The
s vectors that have inner product values less than zero are chosen as the inscribing vectors.
We also improved the fitting algorithm by allowing input of anthropometric constraints, which can improve the validity of estimated body shapes in case of clothed scans. For example, when information such as the individual’s weight and stature is available, we limit the fitting method to find the most feasible body shape in the PC space while keeping the entered stature and weight of the body shape. Regression models were built to associate anthropometric variables with the PC scores, and these regression models were applied at every fitting iteration to adjust the PC scores to meet the targeted anthropometric constraints. If the constraint is before the PC-fitting in each iteration, it can be considered a soft constraint since the PC-fitting can adjust the input constraints. In the current study, we applied a stature constraint only for the clothed (PT) scans.
The final step is to estimate the standardized body dimensions from the PC scores of a fitted avatar. Although a majority of scan-derived anthropometry systems directly measure body dimensions from the mesh of a scan surface, e.g., measuring the geodesic distance between two body landmarks, we rather estimate body dimensions from the PC scores statistically. The main benefit of this approach is that we can estimate dimensions that can be measured from different postures (e.g., seated) using the model. A total of 136 body dimensions available in the MCANSUR dataset were included along with the vertex coordinates in the PCA, so a certain set of PC scores generates the corresponding body dimensions as well as the 3D body shape surface. In this manner, we can obtain the statistically most feasible body dimensions from the PC scores for the underlying body shape the method estimates from a clothed/minimally clad scan.
2.4. Data Collection and Processing
The study protocol was approved by an institutional review board for human-subject research at the University of Michigan (HUM00152937). Volunteers participated in one test session in which body measurements were completed after written informed consent was obtained. We recruited 144 participants (72 women and 72 men) who were approximately representative of the U.S. Marine Corps (USMC) population (Gordon et al., 2013 [
3]) with respect to distributions of stature and body mass index. All were between 18 and 35 years of age. The 5th to 95th percentile range in the USMC sample for men’s and women’s stature, 1734 to 1873 mm and 1524 to 1734 mm, respectively, were divided into three stature groups within gender. Within each stature group, the inner 5th to 95th percentile of men’s and women’s BMI, 21.2 to 31.5 kg/m
2 and 20.2 to 28.1 kg/m
2, respectively, were divided into higher and lower BMI groups (
Table 1).
Table 2 lists the manual anthropometric dimensions obtained in this study while the participants were dressed in minimal clothing, which included bike shorts sized larger than normal to minimize flesh deformation and a sports bra for women. The measurements were intended to be equivalent to those used in the USMC survey (Gordon et al., 2013 [
3]). Along with the manual anthropometry, all the participants were scanned in the test posture across the two levels of clothing listed in
Table 3.
2.5. Statistical Analysis
The goal of the statistical analysis was to validate the method by comparing manually measured anthropometric dimensions with the dimensions predicted from the body scans. The design of the experiment enabled several different evaluations to be performed. The effects of the scan quality were assessed by comparing predictions for both laser scans and Kinect scans for participants in scan wear, which minimized clothing effects. The predictions from Kinect scans in multiple ensembles provided estimates of the effects of clothing on prediction accuracy and precision.

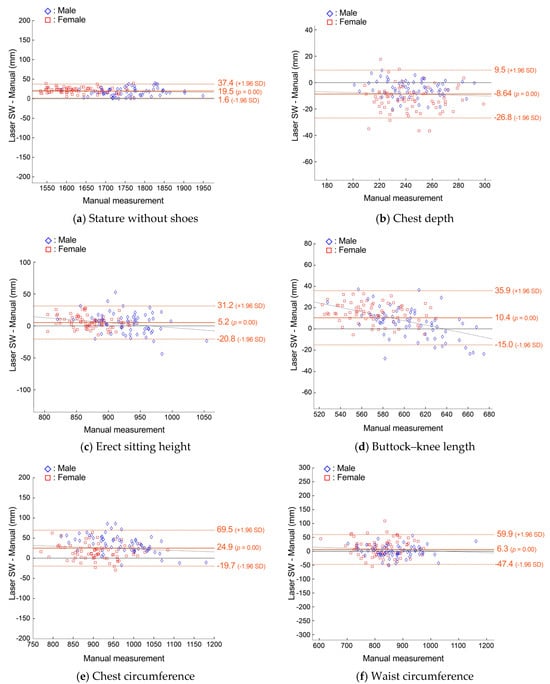

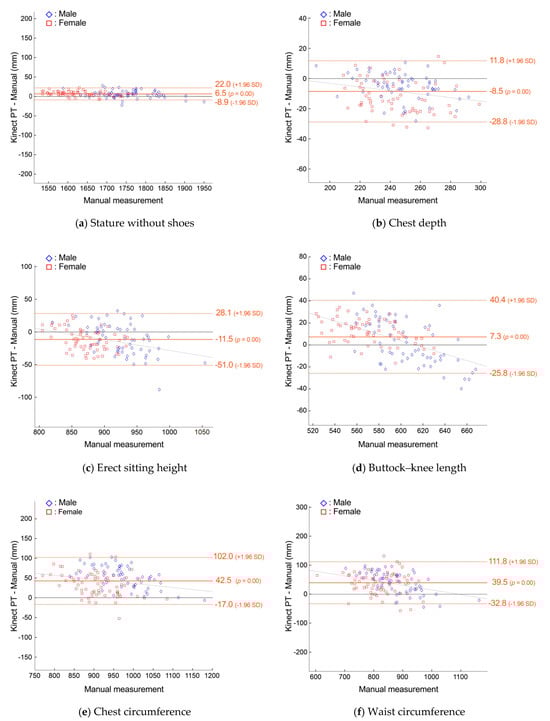

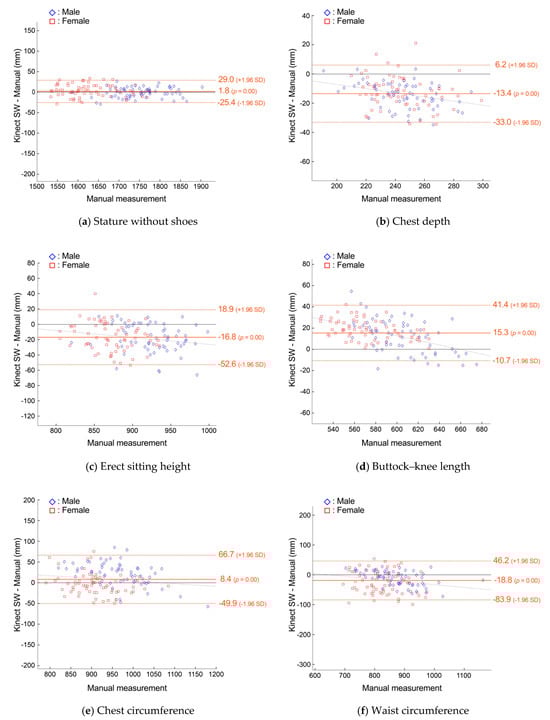

Agreements between the manual measurement and the model-based measurements were assessed using Bland–Altman (B–A) analyses (Bland and Altman, 2007 [
20]). B–A plots are often used to compare a new measurement method against a reference method. The difference between the manual (reference) measurement and model-based measurement is plotted as a function of the reference values. The mean (fixed) bias of the model-based measurement was plotted along with the 95% upper and lower limits of agreement (LoA), representing the range of discrepancy within which 95% of new measurements would be expected to lie under the assumption of normality.
4. Discussion
This study developed and evaluated a model-based anthropometric measurement system using multiple low-resolution cameras and statistical human body shape models (SBSMs). The system estimates realistic underlying body shapes from clothed scans by using the Inscribed Fitting (IF) method. The method was improved in this study to deal with incomplete and noisy point cloud scans obtained from low-cost time-of-flight depth sensors. The new method is designed to be fast, both due to the measurement technology and the fact that the participant does not have to change clothing, and the sensors themselves are low-cost and highly portable when compared to typical scanning systems.
The predicted body dimensions obtained using the new system were compared with actual measurements obtained through the manual method, revealing an overall mean estimation error of 3.3% from SW scans and 3.5% from PT scans. This analysis indicates that the system is somewhat robust to scan quality and light clothing. That is, the distribution of prediction errors is not dramatically affected by using Kinect scans or scanning the participants in clothing. These two findings suggest that the advantages of the system in terms of portability, cost, and measurement speed (no need to change clothing or take a large number of manual measurements) may make it a good choice for certain anthropometric applications. In particular, the system may be most applicable to situations in which a large number of measurements are needed in a short period of time (for example, quantifying the distributions of body dimensions in a difficult-to-measure population) or for applications in which the high accuracy and precision of anthropometry survey grade manual measurements are not as easy to obtain, such as clothing and equipment field evaluations. We note that one of the advantages of the system is that it predicts seated body dimensions without seated body scan data.
This indicates that the prediction performance from clothed scans is comparable with those from minimally clad scans. Bland–Altman analysis indicated minimal bias across predictions except for hip breadth. We note that bias can be readily removed by incorporating either a constant offset or a regression model into the prediction.
Stature was used as a soft constraint in the predictions for the clothed scans (PT) because this information is generally available in the military application domains on which the research was focused. Predictions without this constraint would be likely to be less accurate, especially for the clothed scans, as shown in

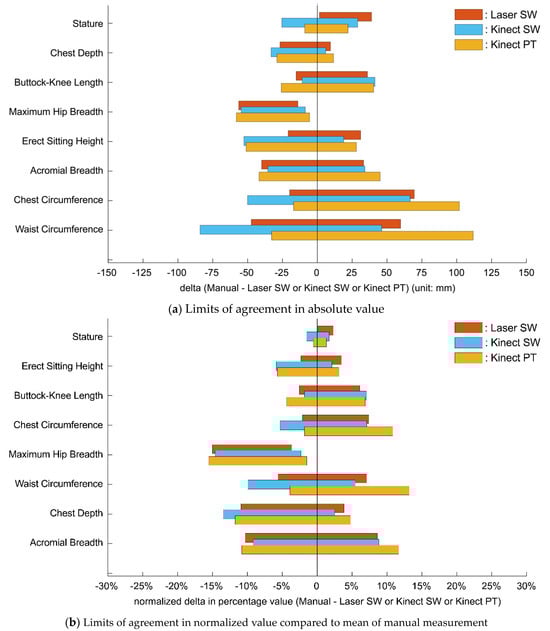

Figure 10. High variability around the chest thickness and waist measurement compared to the manual measurements were reported; these may be caused by the influence of clothing, but can also occur due to inconsistency in measuring circumferences for the chest and waist between the training and test datasets, which were measured by different people at different times. Since these dimensions show great variability depending on the measurement locations and methods, errors are also included in the statistical model using these dimensions. The method can make predictions without any constraining manual variables and can handle any number of input variables that are available. In general, adding more data for the body dimension prediction from the participant is useful, but the benefit of incorporating more values than sex, stature, body weight (or BMI), and erect sitting height is minimal.
The major limitation of the IF method is that it is sensitive to the clothing type since it estimates the body shape fully based on the clothing surface. If the clothing and the equipment surfaces provide less information about the body shape (e.g., astronaut in a space suit), the estimation accuracy is likely to be lower. Also, as with all whole-body scanning methods, this system cannot provide accurate estimates of body dimensions for which minimal data is available in the scan. In particular, obtaining accurate head, hands, and feet dimensions would require scan data focused on those regions. For these variables, the system outputs are plausible but tend toward the mean, reflecting the relatively weak correlations between these dimensions and overall body size. However, although the errors tend to be larger than allowable errors presented in other reports, such as ANSUR or ISO-20685-1 [
21], this is a reasonable trade-off in some practical applications for the speed and efficiency gains from measuring clothed individuals. We note that few manual measurement programs, particularly those related to clothing, approach the allowable error values, which are based on highly trained individuals making time-consuming measurements on minimally clad individuals.
These results are also limited by the relatively lean study population, which was chosen to be approximately representative of the military population the model was trained on. Although the system can function for any population, the results will be most accurate when the study population is similar to the training data with respect to size and shape. Future work will include adding more clothed and minimally clad scan data of a wide range of individuals and training the system using machine-learning techniques, not only to improve the prediction accuracy but also to automatically characterize clothing ensembles and enhance torso-related body dimensions (e.g., chest circumference, waist circumference) for improved accuracy.
