Portable Measurement System for the Characterization of Capacitive Field-Effect Sensors

by
Tobias Karschuck
1,2,
Stefan Schmidt
1,3,
Stefan Achtsnicht
1,
Joey Ser
1,
Ismail Bouarich
1,
Georges Aboutass
1,
Arshak Poghossian
4,
Patrick H. Wagner
2 and
Michael J. Schöning
1,5,*
1
Institute of Nano- and Biotechnologies, FH Aachen, 52428 Jülich, Germany
2
Laboratory for Soft Matter and Biophysics, KU Leuven, 3001 Leuven, Belgium
3
Institute of Pharmaceutical Chemistry, Phillipps University of Marburg, 35037 Marburg, Germany
4
MicroNanoBio, 40479 Düsseldorf, Germany
5
Institute of Biological Information Processing (IBI-3), Forschungszentrum Jülich GmbH, 52425 Jülich, Germany
*
Author to whom correspondence should be addressed.
Sensors 2025, 25(9), 2681; https://doi.org/10.3390/s25092681
Submission received: 2 April 2025 / Revised: 18 April 2025 / Accepted: 18 April 2025 / Published: 24 April 2025
(This article belongs to the Special Issue Sensors from Miniaturization of Analytical Instruments (2nd Edition))
Browse Figures
Versions Notes

Abstract

:
A user-friendly, portable, low-cost readout system for the on-site or point-of-care characterization of chemo- and biosensors based on an electrolyte–insulator–semiconductor capacitor (EISCAP) has been developed using a thumb-drive-sized commercial impedance analyzer. The system is controlled by a custom Python script and allows to characterize EISCAP sensors with different methods (impedance spectra, capacitance-voltage, and constant-capacitance modes), which are selected in a user interface. The performance of the portable readout system was evaluated by pH measurements and the detection of the antibiotic penicillin, hereby using EISCAPs consisting of Al/p-Si/SiO2/Ta2O5 structures and compared to the results obtained with a stationary commercial impedance analyzer. Both the portable and the commercial systems provide very similar results with almost perfectly overlapping recorded EISCAP signals. The new portable system can accelerate the transition of EISCAP sensors from research laboratories to commercial end-user devices.

1. Introduction

Semiconductor field-effect devices (FEDs) based on electrolyte–insulator–semiconductor (EIS) systems (e.g., ion-sensitive field-effect transistor (ISFET), silicon nanowire transistor, extended-gate FET) are widely recognized as an encouraging and generic device concept in the chemo- and biosensing field [1,2,3,4]. Owing to their device architecture and operating mechanism, solution-gated FEDs are, in principle, able to detect any charge alteration caused by biochemical reactions or biomolecular interactions at or near the gate surface. Recently developed device designs such as dielectrically-modulated nanogap FEDs are also able to detect neutral species [5,6]. FEDs offer remarkable benefits, such as miniature size, rapid response time, and their ability for label-free, real-time, and multiplexed detection of different analytes.
A field-effect EIS capacitor (EISCAP) is commonly accepted as the simplest FED and represents a chemically/biologically sensitive capacitor [7]. The operating principle of an EISCAP is based on altering the semiconductor space-charge (depletion) capacitance induced by the biochemical interactions at the gate surface. Thanks to the straightforward layout and the uncomplicated, cost-effective manufacturing, EISCAPs are applied widely for characterizing novel biochemically sensitive materials as well as for chemo- and biosensing applications. For example, EISCAPs functionalized with appropriate sensitive materials or receptors were employed for measuring pH [8,9,10] and ion concentrations [11,12], for detecting metabolites [13,14,15,16], antibiotics (e.g., ampicillin [17], penicillin [18,19,20]), small molecules and protein biomarkers [21,22,23,24,25,26], DNA-hybridization [27,28], charged nanoparticles/viruses [29,30,31,32,33] as well as for designing biomolecular logic gates, which mimic electronic logic gates [34]. Emerging application fields of EISCAP-based chemo- and biosensors reach from biotechnology, environmental monitoring, point-of-care, and personalized medicine up to food and drug safety purposes [7]. However, a reliable, accurate, miniaturized electronic readout system for such sensors is one of the main demands in this field.
The sensitive parameters of EISCAPs are usually characterized in the capacitance-voltage (C−V) and/or constant-capacitance (ConCap) measurement modes [7,35,36]. Additionally, gate-leakage current and impedance characteristics are often measured to prove the correct functioning of the EISCAP sensor and to determine the preferred frequency range for C−V and ConCap measurements. Typically, EISCAP sensors are electrochemically characterized by expensive and bulky stationary impedance analyzers, which are accurate and well-suited for solving scientific problems in laboratory settings. However, because they are not portable, their application potential is limited. Portable and easy-to-use readout systems to characterize EISCAP-based chemo- and biosensors can play a substantial role in their future commercialization. While many examples of self-made (see, e.g., [37,38,39,40,41,42,43]) or commercial [44,45,46,47] portable detection systems have been reported for ISFET-based chemo- and biosensors, there are only a few publications on easy-to-use, stand-alone portable systems for characterizing EISCAP sensors. For example, a homemade lab-type impedance analyzer for EISCAPs was reported in [48] as a user-friendly device, allowing to operate EISCAP sensors for on-site pH measurements in cell-culture media. However, due to limitations regarding the AC (alternating current) frequency range (125–100 kHz), a narrow capacitance measuring range (2–60 nF), and the lack of a light-excluding box to ensure reproducible EISCAP measurements outside a Faraday cage, this portable device has not found wide application. Veeramani et al. reported on a portable readout system based on an unconventional frequency-mode measurement by putting the EISCAP in an oscillator loop, whose frequency is modulated by pH changes of the solution [49,50]. Drawbacks of this portable system include the use of an unstable “liquid-free”, pseudo-reference electrode and a complex calibration procedure.
Recently, portable impedance analyzers have become readily available at low cost, mainly driven by the popularity of impedimetric biosensors (see, e.g., [51,52,53,54,55,56]). Using a market-ready solution from an original equipment manufacturer (OEM) may offer advantages such as production scalability, easy supply with components, warranty, and support during certification procedures. While the impedance spectra and C−V curves can generally be recorded by many portable commercial impedance analyzers, time-resolved ConCap mode readout of the EISCAP signal is typically not a standard feature. To commercialize EISCAP-type chemo- and biosensors for on-site and point-of-care applications, the readout hardware must be readily available, portable, inexpensive, allow for facile data exchange (e.g., USB interfaces), and user-friendly software is needed. To allow non-specialized staff to operate EISCAP biosensors, the measurement routines (impedance spectra, C−V- and ConCap mode) should be selectable in a user interface and run automatically once a measurement is started.
In this work, we present an easy-to-use portable PC-controlled readout system based on the commercial potentiostat “Sensit Smart” from a leading developer (PalmSens, Houten, The Netherlands) [57]. Combined with a base station and a custom-made measuring cell that hosts the EISCAP chip, this system meets all requirements. The “Sensit Smart” was selected because it is one of the smallest and most affordable potentiostats offered by an OEM. The performance of the developed portable system, controlled by a custom Python script, is evaluated on two test cases: pH measurements and the detection of penicillin. All data are benchmarked with respect to a stationary, state-of-the-art impedance analyzer, “IM6ex” (Zahner-Elektrik, Kronach, Germany). To the best of our knowledge, this is the first attempt to use a commercially available USB-drive-sized impedance analyzer in a portable measurement system for characterizing EISCAP biosensors.

2. Concept of the Portable Measurement System for EISCAP Sensors

The developed portable measurement system consists of the “Sensit Smart”, an adapter base station that includes the assembled printed circuit board (PCB), the measurement cell with the installed EISCAP chip, a reference electrode (RE), and a light-excluding cover (see Figure 1). In the following sections, we will describe all components of the system as well as a custom-developed Python script used to control the “Sensit Smart”. For stand-alone operation, the portable measurement system is operated by the Python script running on a laptop, which is connected to the “Sensit Smart” via a USB interface.

2.1. Preparation and Functioning Principle of EISCAPs

Figure 1b illustrates a schematic structure of the pH-sensitive Al/p-Si/SiO2/Ta2O5 EISCAP sensor used in this study. The preparation of these sensors was described previously [19,32]. In summary, a commercially available p-Si wafer covered with a 30 nm SiO2 layer (Siegert Wafer, Aachen, Germany) was used to deposit a 60 nm Ta2O5 pH-sensitive layer by electron-beam evaporation of tantalum and subsequent oxidation in oxygen atmosphere at 520 °C for 60 min. After etching the backside of the wafer with hydrofluoric acid, a 300 nm Al layer was added by electron-beam evaporation as a contact layer to the p-Si.
The wafer was diced into 10 mm by 10 mm sensor chips, which were cleaned in acetone, isopropanol, ethanol, and distilled water for 3 min in an ultrasonic bath. Finally, the EISCAP chips were mounted in measurement cells and sealed with an O-ring to protect the Al contact and p-Si sidewalls from the solution.
The operating principle of a pH-sensitive EISCAP is based on the detection of charge changes on the gate-insulator (here, Ta2O5) surface induced via the protonation or deprotonation of surface groups [7,59,60]. This pH-dependent alteration of the surface charge will modulate the width of the space-charge region in the semiconductor and, thereby, the capacitance of the EISCAP. The variation of the capacitance of the EISCAP in response to pH results in a shift of the C–V curve along the voltage axis. For a p-type EISCAP studied in this work, a pH increase will shift the C–V curve toward more positive gate voltages, while a pH decrease will shift the C–V curves toward less positive (or more negative) gate voltages (see Figure 1c). The direction and amplitude of potential shifts can be determined directly by the time-resolved ConCap-mode response (Figure 1d). In the ConCap-mode measurement, the total capacitance of the EISCAP at the selected working point is kept constant by controlling the applied gate voltage in a negative feedback loop. Usually, the working point for the ConCap-mode measurement is selected within the quasi-linear part of the depletion region of the C–V curve (often at 60% of the maximum capacitance in the accumulation region of the C−V curve [9]). An advantage of the ConCap method is the possibility of recording the EISCAP signal in real-time.

2.2. Hardware Components

The “Sensit Smart” from PalmSens is a thumb-drive-sized impedance analyzer with dimensions of 43 × 25 × 11 mm3 (excluding the USB connector), which weighs only 10 g and can be controlled by a smartphone. The operation temperature range for the “Sensit Smart” is 0 °C to 40 °C. It is widely used in portable electrochemical sensor systems for the detection of various targets, including SARS-CoV-2 [61,62,63,64], luteinizing hormone [65] and the antibiotic amoxicillin [66]. Using a “Sensit Smart”-based portable system offers impedance measurements with an applied gate voltage range of −2 V to +1.2 V, an additional AC voltage of 1–250 mV, and a frequency range from 16 mHz to 200 kHz. The “Sensit Smart” fulfills the requirements for the electrochemical characterization of EISCAPs.
For a stand-alone portable setup, we designed an adapter base station that accommodates the measurement cell with an installed EISCAP chip and the RE. The base station has been designed to fulfill the following requirements: (1) nondestructive sensor installation and removal; (2) direct easy connection to the “Sensit Smart”; and (3) light exclusion (it is known that characteristics of FEDs may be influenced by ambient light [67,68]). Shielding of the EISCAP sensor from external light was accomplished with a light-excluding cover, which is secured in place with two thumbscrews. This also achieves the necessary mounting pressure for the spring-loaded contact pin, which is used to electrically connect to the EISCAPs’ backside. The RE is secured in place with a cylinder, which protrudes from the cover lid by using a standard 14/15 taper joint. A 2 mm banana plug in the base station enables the electrical connection of the RE, which closes the circuit. Making use of “Sensit Smart’s” push-in connection, a printed circuit board (PCB) with a thickness of 0.6 mm was designed to act as an electrical interface to the sensor and RE. The PCB connects the RE with the short-circuited reference- and counter-electrode terminals of the “Sensit Smart”, while the sensor is connected to the working electrode terminal.

2.3. Software Adaptation

As discussed in the Introduction section, the developed portable measurement system for EISCAP sensors should be able to work in various operation modes and generate corresponding plots, including impedance spectra, C−V, and ConCap curves. While the impedance spectra and C−V curves can be recorded by the “Sensit Smart” impedance analyzer, the dynamic ConCap mode readout of the EISCAP signal is not a standard feature. The portable device was powered and controlled by a laptop running a custom Python script (Python V. 3.11), which relies on PalmSens’ MethodSCRIPT (V. 1.3) for communication with the “Sensit Smart” [69]. The main programming challenges for the portable characterization of EISCAP sensors with the “Sensit Smart” are the implementation of impedance spectra, C−V and ConCap measurement modes in a custom graphical user interface.
The main functions are displayed as a block diagram in Figure 2. The measurement routine from PalmSens for recording impedance spectra, using Python to send a MethodSCRIPT to the “Sensit Smart” and receive measurement data, was expanded to include the C−V and ConCap modes, respectively [70]. For C−V measurements, the MethodSCRIPT file was modified by the Python script to vary the gate voltage between –2 V and +1.2 V in adjustable increments with a set measurement frequency. The working-point capacitance Cwp can be selected either automatically by the script, at 60% of the maximum capacitance in the accumulation region of the C−V curve, or set manually in the graphical user interface. The corresponding working-point potential Vwp is automatically evaluated by the script by a linear fit between the two closest measured capacitances of the C−V curve to accurately determine Vwp.
NumPy (V 1.24) was used for handling the measurement data [71]. We programmed the ConCap measurement as a new method for the “Sensit Smart” to characterize EISCAPs in a time-resolved manner. In ConCap mode, the simple-PID library (V 2.0) [72] was used to implement a feedback loop to control the required gate voltage and keep the selected working-point capacitance constant. An easy to navigate graphical user interface (GUI) for measurement-mode selection was built using CustomTkinter (V 5.2) [73]. Screenshots of the GUI can be found in the Supplementary Materials. Figures of the completed measurements were generated with matplotlib (V 3.7) [74] and can be viewed directly from the graphical user interface.

3. Results and Discussion

3.1. Comparative Study of EISCAPs in Impedance Spectroscopy, C−V, and ConCap Modes: Portable “Sensit Smart” vs. Stationary “IM6ex”

The performance of the developed portable measuring system based on the “Sensit Smart” was exemplarily evaluated by performing pH measurements and detecting the antibiotic penicillin. The “Sensit Smart” measurements were compared with results obtained by the state-of-the-art stationary impedance analyzer “IM6ex”. Therefore, the EISCAPs installed within the measurement cell were characterized in impedance spectroscopy, C−V, and ConCap modes. For the comparative study of EISCAPs between “Sensit Smart” and “IM6ex”, the measurement cell was placed in a dark Faraday cage.

3.1.1. Measuring Conditions

Impedance spectra of the EISCAP pH sensors were recorded in Titrisol buffer solution (Merck, Darmstadt, Germany) of pH 7 at an applied gate voltage of −2 V (accumulation region) and in a frequency range varying between 20 Hz and 5 kHz. For C–V-mode measurements, a sweeping gate voltage between −2 V and +1 V with 100 mV steps and a superimposed AC voltage (for the capacitance measurement) with an amplitude of 20 mV and a frequency of 120 Hz were applied between the RE (Ag/AgCl double-junction reference electrode, Metrohm, Filderstadt, Germany) and the backside Al contact. The working point (i.e., the constant capacitance) for the ConCap-mode measurements was chosen from the recorded C–V curves. The C–V and ConCap plots were recorded in Titrisol buffers of pH 5–pH 9 (Merck, Darmstadt, Germany). Before the buffer exchange, the surface of the EISCAP chip was rinsed three times with the measurement buffer. The contact area of the EISCAP surface with the solution was 52 mm2. Before starting experiments, the EISCAPs were conditioned overnight in pH 7 buffer solution. Measurements were performed at room temperature in a buffer volume of 1 mL. All potential values are mentioned with respect to the Ag/AgCl electrode. Other experimental details are given in corresponding sections.

3.1.2. Characterization of EISCAP pH Sensors by Means of Impedance Spectroscopy, C−V, and ConCap Modes

Impedance spectra of the same EISCAP pH sensor were recorded in the accumulation region at −2 V by means of both the “Sensit Smart” and the “IM6ex”. As can be seen in Figure 3, both impedance plots are nearly identical. As expected, the measured impedance at low frequencies (f < 200 Hz) is dominated by the sensors’ capacitive reactance. With increasing frequency, the capacitive effect decreases as can also be seen by the decreasing phase angle, and a resistive plateau region became visible at frequencies from 1 kHz to 5 kHz. The impedance value in the plateau range, ca. 14 kΩ, can mainly be assigned to the resistance of the RE. The slight divergence between the phase plots recorded by the two devices at frequencies above 1 kHz can be attributed to the different cables used for the connection to the EISCAP chip. From the impedance spectra, a frequency of 120 Hz was selected for further characterization of EISCAPs in C−V and ConCap modes.
The high-frequency C–V plots measured with both the portable “Sensit Smart” and the stationary “IM6ex” are depicted in Figure 3c, where the characteristic regions of accumulation (−2 V to –1 V), depletion (–1 V to 0.5 V) and inversion (0.5 V to 1 V) can be distinguished. The recorded C−V curves of both devices are perfectly overlapping in the accumulation and depletion region. In the inversion region, starting at 0.5 V, the measured capacitances begin to diverge slightly by up to 2 nF. However, since EISCAPs typically operate in the depletion region, this small divergence in the inversion region has a negligible impact on the overall sensor performance.

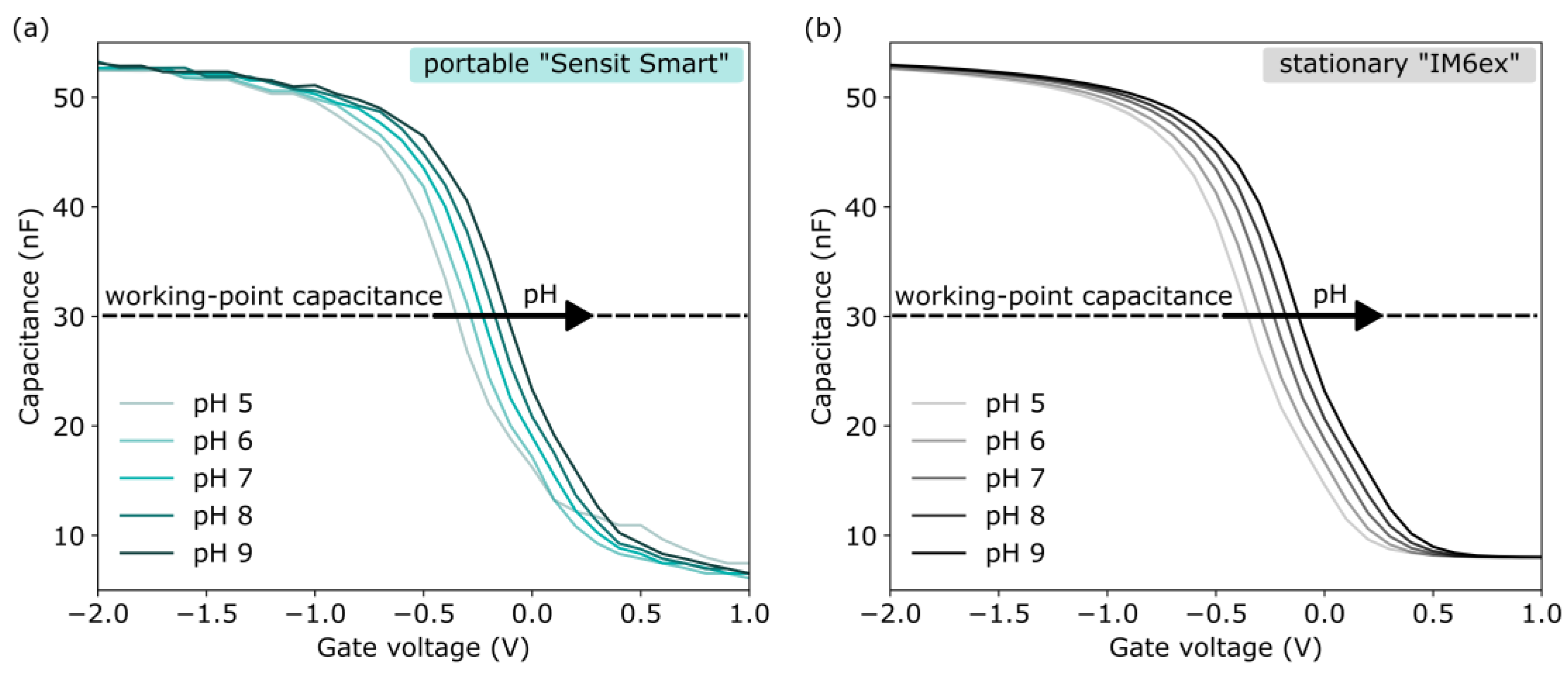

After ensuring the correct operation, the EISCAPs were characterized in terms of pH sensitivity in Titrisol buffers with different pH values from pH 5 to pH 9. An exemplary set of the C–V plots of the EISCAP measured at different pH values, using both the portable device and the stationary “IM6ex”, is presented in Figure 4. As expected, with the increasing pH value of the buffer, the C–V plots are shifted along the voltage axis in the direction of less negative (or more positive) gate voltages, which corresponds to a more negatively charged gate surface. Shifts of the entire C−V curves along the voltage axis are clearly visible in the depletion region; the origin of these potential shifts has been discussed in Section 2.1. The EISCAPs’ pH-sensitivity values, evaluated from the depletion regions of the pH-dependent C−V plots in Figure 4, were practically identical with 59 ± 3 mV/pH (sensitivity ± standard error of the fit) for the “IM6ex” and 59 ± 2 mV/pH for the portable system. The working-point capacitance for the ConCap-mode measurements was selected in the depletion region at the inflection point of the C−V curve, as indicated by the dashed line at 30 nF.

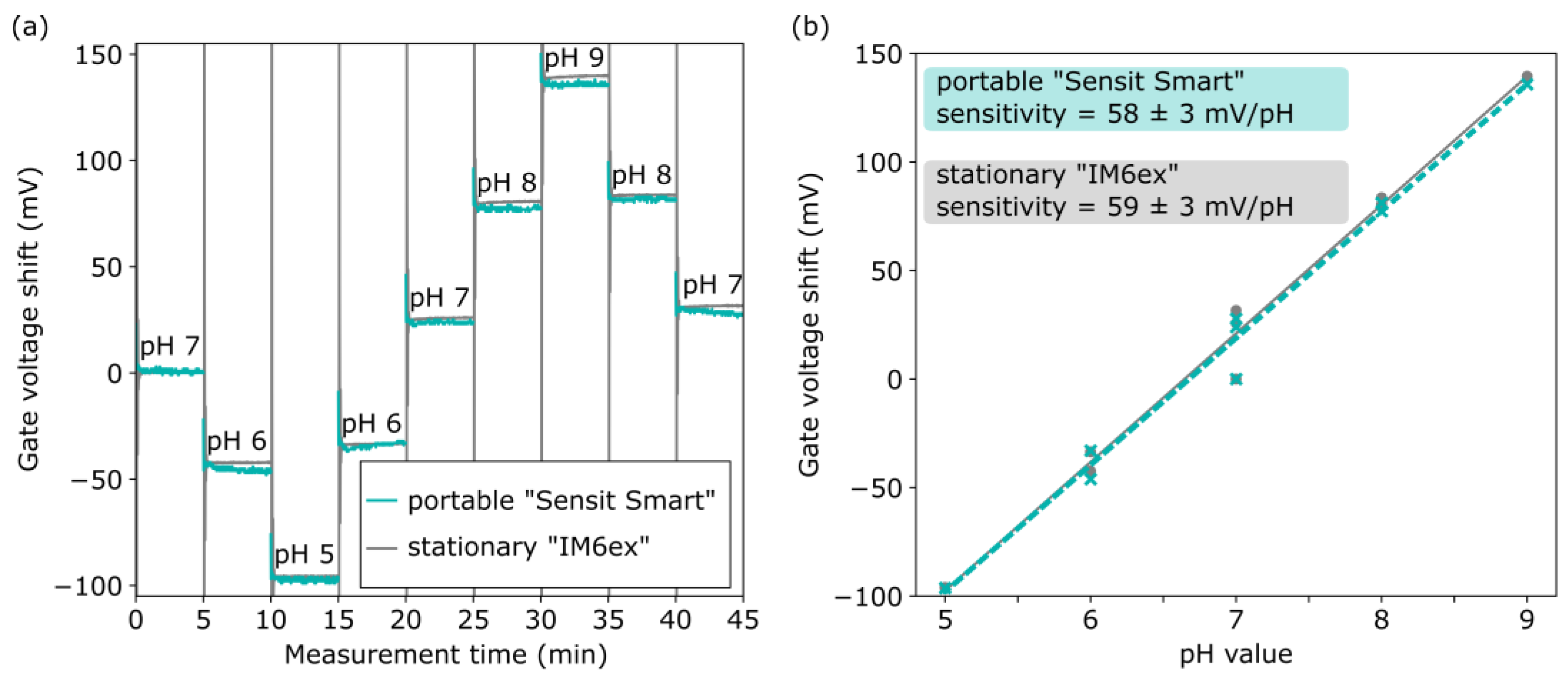

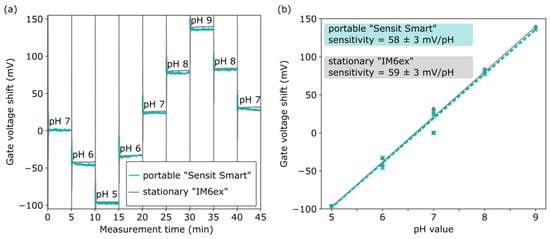

The ConCap responses of the pH-sensitive EISCAPs were recorded for pH values 7→6→5→6→7→8→9→8→7 using the portable measurement system and the stationary “IM6ex”. For a direct comparison of the results of these experiments, Figure 5a illustrates exemplary ConCap plots after offset correction (i.e., the sensor signals for the starting value at pH 7 were set to 0 mV) of the measured EISCAP signals. No datapoints were collected during the buffer exchange.
As can be seen, the ConCap plots, recorded with both systems, are almost perfectly overlapping. The pH-dependent signal shifts in the ConCap mode measurements are comparable to the shifts evaluated from the C−V plots. In both ConCap plots, certain drift and hysteresis phenomena are visible, independent of the used measurement device, and, therefore, most likely, may be attributed to the Ta2O5-gate EISCAP sensor. The calibration curves of the EISCAPs evaluated from the respective ConCap responses are provided in Figure 5b. The pH sensitivity of the EISCAP, calculated from the corresponding calibration curve, was in good agreement, namely, 59 ± 3 mV/pH and 58 ± 3 mV/pH by using the stationary “IM6ex” and the portable “Sensit Smart”, respectively. These results are consistent with the pH-sensitivity values reported for Ta2O5-gate field-effect sensors [9,10,75,76]. The near-perfect consistency in ConCap signal reproducibility after offset correction underlines the efficacy of the portable “Sensit Smart” in field-effect sensor applications.

3.1.3. EISCAP-Based Penicillin Biosensor

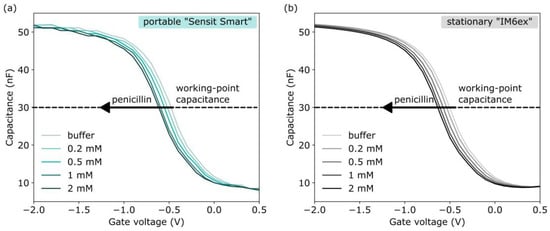

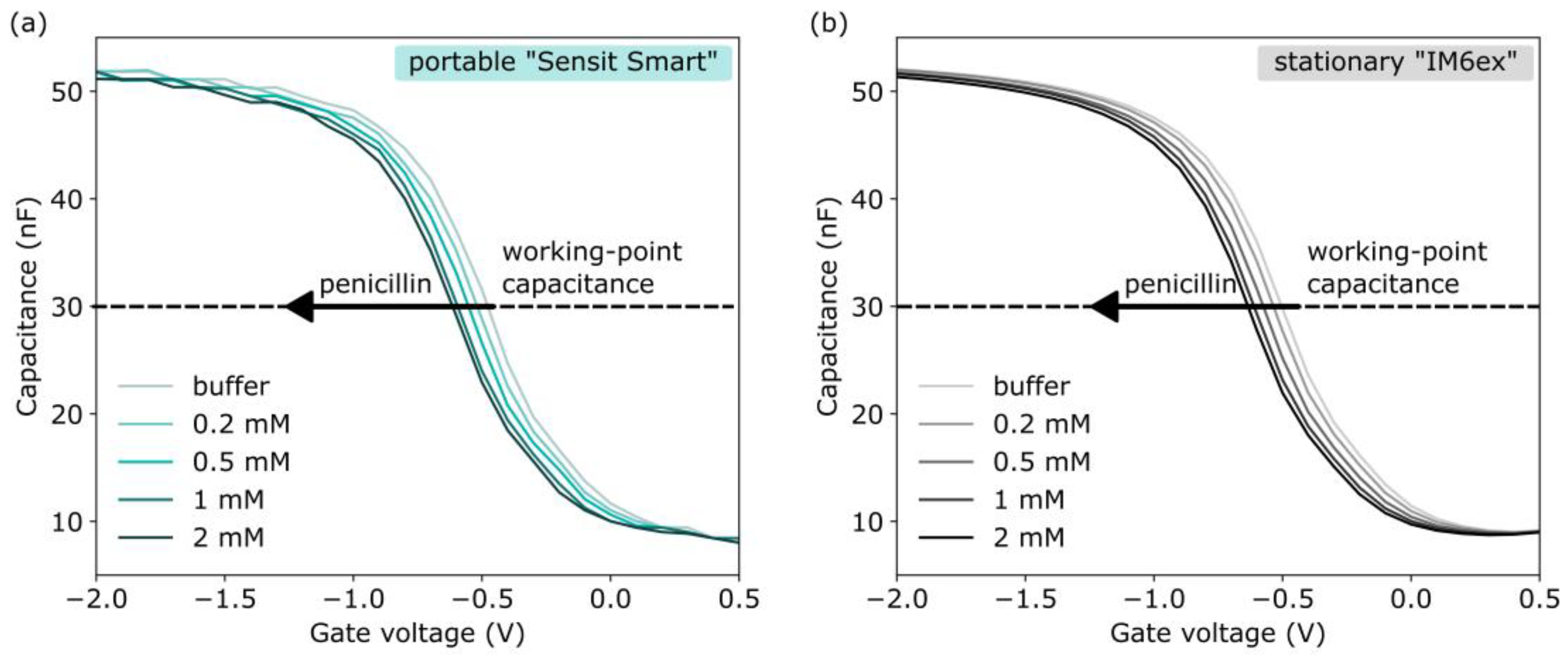

In a further experiment, the performance of the portable “Sensit Smart” and the “IM6ex” impedance analyzer were compared by characterizing enzyme-modified EISCAP biosensors using penicillinase/penicillin as a model enzyme/substrate system. The EISCAP-based penicillin biosensor was created by adsorptive immobilization of the enzyme penicillinase (from Bacillus cereus, Merck, Darmstadt, Germany) on the Ta2O5-gate surface according to the procedure described in [20]. Briefly, 50 µL of 1 × PBS (phosphate-buffered saline, pH 7.4) containing dissolved penicillinase with an activity of 30 U was drop-coated atop the Ta2O5 layer of each individual EISCAP (overall, three EISCAP penicillin biosensors were prepared and tested) and incubated for 2 h at room temperature. After immobilization, the EISCAP surface was washed with measurement buffer (0.33 mM PBS, pH 7.4) to remove unbound penicillinase molecules and dried at room temperature.
The working principle of the penicillin-sensitive EISCAP biosensor is based on the detection of local changes of the H+-ion concentration near the gate surface, which is caused by the enzymatic hydrolysis of penicillin by penicillinase according to the following reaction:
penicillin   → penicillinase penicilloic   acid +   H   +
The resulting penicillin-concentration-dependent pH decrease is detected by the underlying pH-sensitive EISCAP in the same way as described in Section 2.1 and Section 3.1.2. The EISCAP penicillin biosensors were characterized in C−V- and ConCap mode by starting with a baseline measurement in a 0.33 mM PBS buffer (pH 7.4, without penicillin), followed by measurements in the same buffer containing 0.2 mM, 0.5 mM, 1 mM, and 2 mM penicillin, respectively. Prior to starting the measurement, the sensors were rinsed three times with the measurement buffer. The high-frequency C–V curves of the EISCAP penicillin biosensor, recorded with the “Sensit Smart” and “IM6ex”, in penicillin solutions of different concentrations are shown in Figure 6. As expected, with increasing penicillin concentration from 0.2 mM to 2 mM, the C–V plots shift along the voltage axis in the direction, which corresponds to a pH decrease and a more protonated surface. From the C−V plots, the working-point capacitance for the ConCap measurements was set to 30 nF.

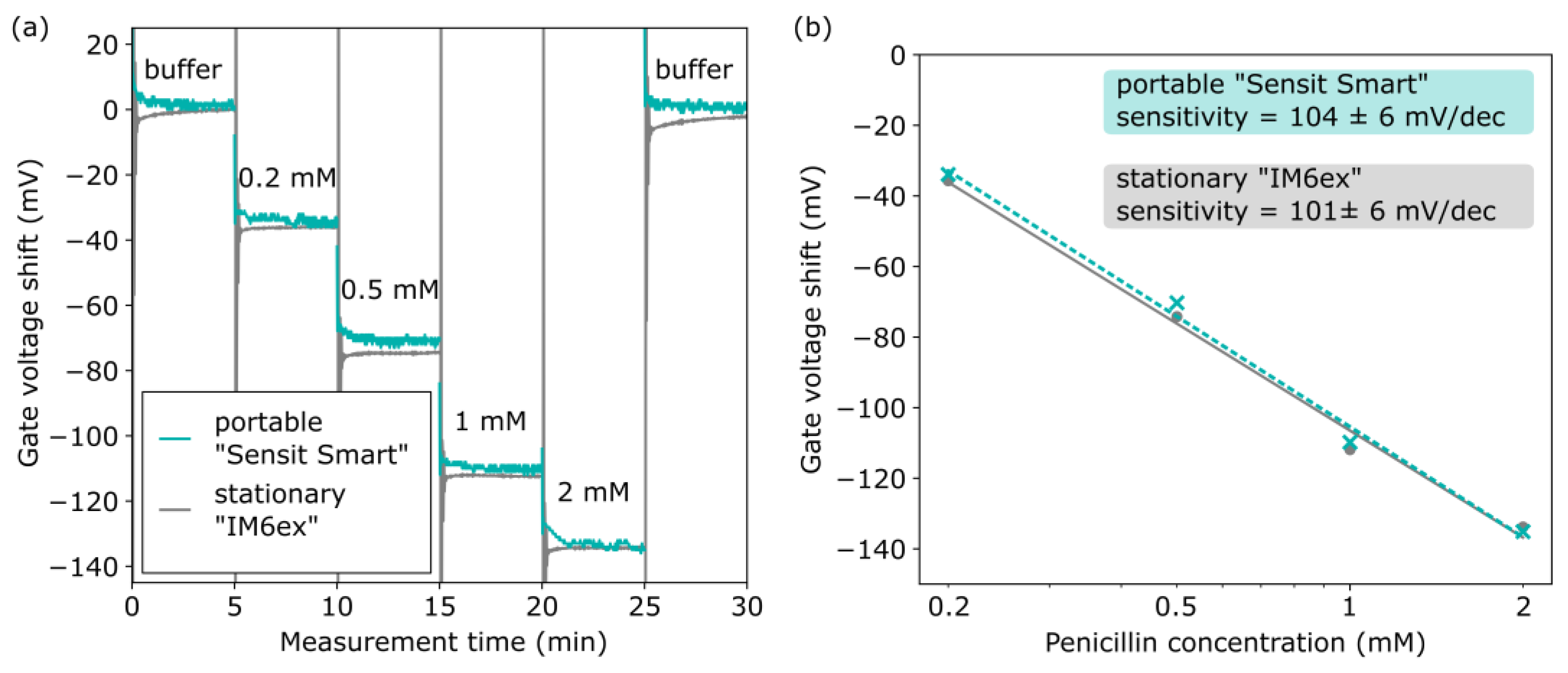

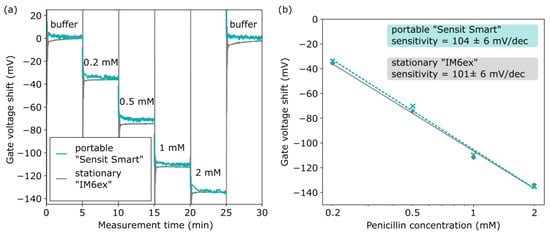

Figure 7 provides a comparison of the offset-corrected ConCap responses of the same EISCAP penicillin biosensor, measured with the portable “Sensit Smart” system and with the stationary “IM6ex” instrument for penicillin concentrations from 0.2 mM to 2 mM. For offset correction, the signals were first normalized in the penicillin-free buffer. As can be seen, the ConCap signals recorded with both measurement devices are almost identical. The penicillin sensitivities evaluated from the respective calibration curves in Figure 7b were 104 ± 6 mV/dec (sensitivity ± standard error of the fit) for the portable “Sensit Smart” system and 101 ± 6 mV/dec for the stationary “IM6ex”. The pH- and penicillin sensitivity values for three characterized EISCAP sensors display good reproducibility, as summarized in Table 1. The average penicillin sensitivity of the three sensors was evaluated at 102 ± 2 mV/dec (sensitivity ± standard deviation, n = 3) for the “Sensit Smart” and 98 ± 3 mV/dec for the “IM6ex”. The obtained average penicillin sensitivities are in the range of reported values for different types of enzyme-based FEDs [18,19,20,77,78].

3.2. pH Characterization of EISCAP with Portable Measurement System Outside of a Faraday Cage

To show that the developed portable stand-alone measurement system (depicted in Figure 1a) is suitable for on-site applications, the subsequent experiments, see Figure 8, were performed outside of a Faraday cage in a laboratory environment under daylight.

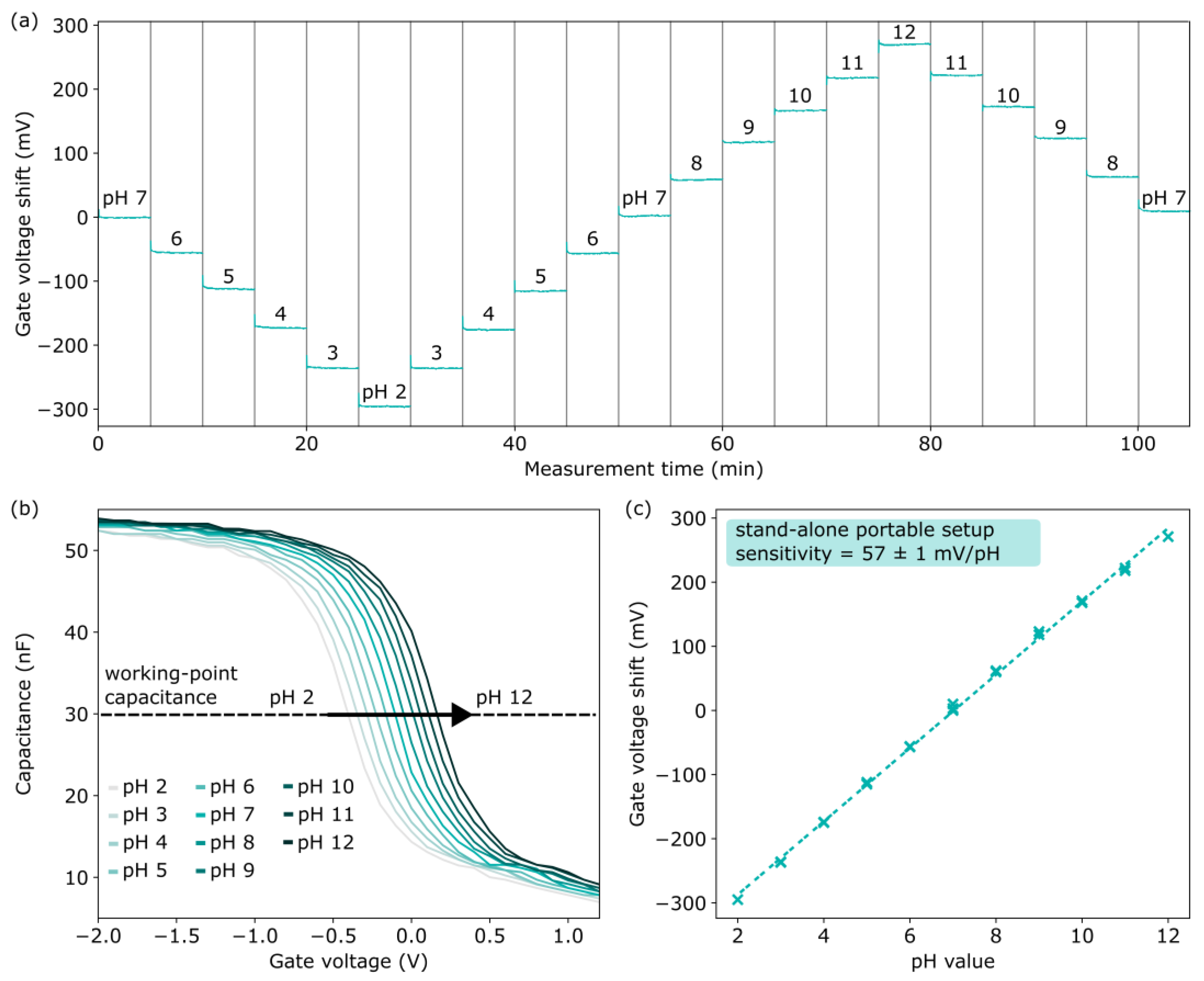

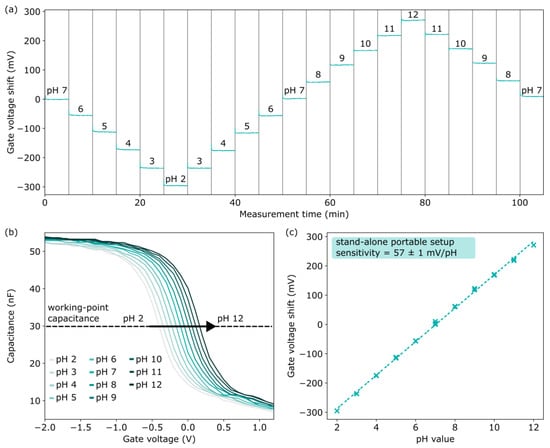

Therefore, the pH-sensitive Ta2O5-gate EISCAP was characterized in a wide pH range from pH 2 to pH 12, with the chip installed in the measurement cell, which was mounted on the base station and enclosed by the light-excluding cover. The recorded sets of C−V plots and offset-corrected ConCap signals are illustrated in Figure 8a,b. These curves are very similar to those that had been measured before in the Faraday cage (see Figure 4 and Figure 5), verifying the effectiveness of the portable measurement system with its cover serving as a light-excluding box. Comparing C−V curves of this sensor for repeated measurements at pH 7 displayed a good reproducibility of the measured capacitance, with a standard deviation up to 0.53 nF. The Ta2O5-gate EISCAP possessed a nearly-Nernstian ConCap pH sensitivity of 57 ± 1 mV/pH (sensitivity ± standard error of the fit) over a wide pH range of pH 2–pH 12 (see Figure 8c).

4. Conclusions and Outlook

Portable, inexpensive, and easy-to-use readout systems for characterization of EISCAPs are expected to play a key role in commercializing EISCAP-based chemo- and biosensors for on-site and point-of-care applications in the future. In this study, we developed an easy-to-use portable, PC-controlled readout system consisting of a USB-drive sized, commercially available, and affordable “Sensit Smart” impedance analyzer (PalmSens, Houten, The Netherlands), an adapter base station, and a measurement cell with the mounted EISCAP chip, RE and a light-excluding cover plate. The system is controlled by a custom Python script, enabling the routine characterization of EISCAP sensors in different modes (impedance spectra, C−V, and ConCap), which are selectable in a user-friendly interface and run automatically once a measurement is started. The performance of the developed portable system was exemplarily evaluated for the detection of pH and the antibiotic penicillin, using EISCAPs consisting of an Al/p-Si/SiO2/Ta2O5 structure, and compared with the results obtained with a commercial stationary impedance analyzer “IM6ex” (Zahner-Elektrik, Kronach, Germany).
Impedance spectra and capacitance-voltage plots of the pH-sensitive EISCAPs measured with both systems at pH 7 were found to be almost perfectly overlapping. Close to Nernstian pH sensitivities of 58 ± 3 mV/pH (sensitivity ± standard error of the fit) and 59 ± 3 mV/pH were retrieved from the constant-capacitance plots of an EISCAP using the portable device and, respectively, the stationary impedance analyzer. These pH sensitivities are perfectly in line with the sensitivity of other Ta2O5-gate field-effect pH sensors.
To prove the performance of the portable system for the characterization of EISCAP biosensors, the enzyme penicillinase was successfully immobilized onto the Ta2O5 gate surface. The high average penicillin sensitivity of 102 ± 2 mV/dec (sensitivity ± standard deviation, n = 3) in the penicillin concentration range between 0.2 mM and 2 mM, as determined with the portable “Sensit Smart”, is comparable with the sensitivity of 98 ± 3 mV/dec obtained with the stationary “IM6ex” using the same EISCAP biosensors.
Additional experiments, which were performed outside of a Faraday cage (under daylight conditions) in a wide pH range of pH 2–pH 12, have verified the effectiveness of using a measurement cell in a base station with a cover serving as light-excluding box, hence demonstrating the suitability of the developed portable measurement system for on-site or in-field applications. Even in such a wide pH range, the studied Ta2O5-gate EISCAP displayed a nearly linear calibration curve and a high sensitivity of 57 ± 1 mV/pH (sensitivity ± standard error of the fit).
In the future, the developed portable system might be extended for the label-free detection of biomolecules and nanoparticles/viruses by their intrinsic charge. Moreover, the measurement cell will be constructed to provide a characterization of EISCAPs with different chip sizes. Although a laptop was used to power and control the portable system in the presented experiments, the setup can be easily adapted for applications using smartphones or tablets. We believe that the developed portable system can help accelerate the transition of EISCAP sensors from research laboratories to be applicable as commercial end-user devices.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s25092681/s1. Figure S1. Startup window; Figure S2. Setup window; Figure S3. Leakage current window; Figure S4. Capacitance-Voltage (C–V) window; Figure S5. Impedance spectrum window; Figure S6. Constant-Capacitance (ConCap) window.

Author Contributions

Conceptualization, T.K., S.S. and S.A.; software, T.K. and S.A.; validation, T.K., S.S., S.A., J.S., I.B., G.A., A.P., P.H.W. and M.J.S.; investigation, T.K., S.S., S.A., J.S., I.B. and G.A.; resources, M.J.S.; writing—original draft preparation, T.K., S.S., S.A., A.P. and M.J.S.; writing—review and editing, T.K., A.P., P.H.W. and M.J.S.; supervision, P.H.W. and M.J.S.; funding acquisition, M.J.S. All authors have read and agreed to the published version of the manuscript.

Funding

Part of this work was supported by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation, grant 445454801).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study is available on request from the corresponding author.

Acknowledgments

The authors would like to thank H. Iken for sensor fabrication and S. Beging for valuable discussions.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Poghossian, A.; Schöning, M.J. Recent progress in silicon-based biologically sensitive field-effect devices. Curr. Opin. Electrochem. 2021, 29, 100811. [Google Scholar] [CrossRef]
  2. Cao, S.; Sun, P.; Xiao, G.; Tang, Q.; Sun, X.; Zhao, H.; Zhao, S.; Lu, H.; Yue, Z. ISFET-based sensors for (bio)chemical applications: A review. Electrochem. Sci. Adv. 2023, 3, e2100207. [Google Scholar] [CrossRef]
  3. Sarcina, L.; Macchia, E.; Tricase, A.; Scandurra, C.; Imbriano, A.; Torricelli, F.; Cioffi, N.; Torsi, L.; Bollella, P. Enzyme based field effect transistor: State-of-the-art and future perspectives. Electrochem. Sci. Adv. 2023, 3, e2100216. [Google Scholar] [CrossRef]
  4. Zou, J.; Bai, H.; Zhang, L.; Shen, Y.; Yang, C.; Zhuang, W.; Hu, J.; Yao, Y.; Hu, W.W. Ion-sensitive field effect transistor biosensors for biomarker detection: Current progress and challenges. J. Mater. Chem. B 2024, 12, 8523–8542. [Google Scholar] [CrossRef]
  5. Chowdhury, D.; De, B.P.; Appasani, B.; Singh, N.K.; Kar, R.; Mandal, D.; Bizon, N.; Thounthong, P. A novel dielectric modulated gate-stack double-gate metal-oxide-semiconductor field-effect transistor-based sensor for detecting biomolecules. Sensors 2023, 23, 2953. [Google Scholar] [CrossRef] [PubMed]
  6. Singh, D.; Patil, G.C. Dielectric-modulated bulk-planar junctionless field-effect transistor for biosensing applications. IEEE Trans. Electron Devices 2021, 68, 3545–3551. [Google Scholar] [CrossRef]
  7. Poghossian, A.; Schöning, M.J. Capacitive field-effect EIS chemical sensors and biosensors: A status report. Sensors 2020, 20, 5639. [Google Scholar] [CrossRef] [PubMed]
  8. Molinnus, D.; Iken, H.; Johnen, A.L.; Richstein, B.; Hellmich, L.; Poghossian, A.; Knoch, J.; Schöning, M.J. Miniaturized pH-sensitive field-effect capacitors with ultrathin Ta2O5 films prepared by atomic layer deposition. Phys. Status Solidi (A) 2022, 219, 2100660. [Google Scholar] [CrossRef]
  9. Karschuck, T.; Schmidt, S.; Achtsnicht, S.; Poghossian, A.; Wagner, P.H.; Schöning, M.J. Multiplexing system for automated characterization of a capacitive field-effect sensor array. Phys. Status Solidi (A) 2023, 220, 2300265. [Google Scholar] [CrossRef]
  10. Chen, M.; Jin, Y.; Qu, X.; Jin, Q.; Zhao, J. Electrochemical impedance spectroscopy study of Ta2O5 based EIOS pH sensors in acid environment. Sens. Actuators B Chem. 2014, 192, 399–405. [Google Scholar] [CrossRef]
  11. Chermiti, J.; Ben Ali, M.; Jaffrezic-Renault, N. Numerical modelling of electrical behaviour of semiconductor-based micro-sensors for copper ions detection. Sens. Lett. 2011, 9, 2339–2342. [Google Scholar] [CrossRef]
  12. Cho, H.; Kim, K.; Meyyappan, M.; Baek, C.-K. LaF3 electrolyte-insulator-semiconductor sensor for detecting fluoride ions. Sens. Actuators B Chem. 2019, 279, 183–188. [Google Scholar] [CrossRef]
  13. Lin, Y.-H.; Wang, S.-H.; Wu, M.-H.; Pan, T.-M.; Lai, C.-S.; Luo, J.-D.; Chiou, C.-C. Integrating solid-state sensor and microfluidic devices for glucose, urea and creatinine detection based on enzyme-carrying alginate microbeads. Biosens. Bioelectron. 2013, 43, 328–335. [Google Scholar] [CrossRef] [PubMed]
  14. Lin, C.F.; Kao, C.H.; Lin, C.Y.; Chen, K.L.; Lin, Y.H. NH3 plasma-treated magnesium doped zinc oxide in biomedical sensors with electrolyte-insulator-semiconductor (EIS) structure for urea and glucose applications. Nanomaterials 2020, 10, 583. [Google Scholar] [CrossRef] [PubMed]
  15. Welden, M.; Poghossian, A.; Vahidpour, F.; Wendlandt, T.; Keusgen, M.; Wege, C.; Schöning, M.J. Towards multi-analyte detection with field-effect capacitors modified with tobacco mosaic virus bioparticles as enzyme nanocarriers. Biosensors 2022, 12, 43. [Google Scholar] [CrossRef]
  16. Welden, M.; Severins, R.; Poghossian, A.; Wege, C.; Bongaerts, J.; Siegert, P.; Keusgen, M.; Schöning, M.J. Detection of acetoin and diacetyl by a tobacco mosaic virus-assisted field-effect biosensor. Chemosensors 2022, 10, 218. [Google Scholar] [CrossRef]
  17. Poghossian, A.; Thust, M.; Schöning, M.J.; Müller-Veggian, M.; Kordos, P.; Lüth, H. Cross-sensitivity of a capacitive penicillin sensor combined with a diffusion barrier. Sens. Actuators B Chem. 2000, 68, 260–265. [Google Scholar] [CrossRef]
  18. Poghossian, A.; Jablonski, M.; Koch, C.; Bronder, T.S.; Rolka, D.; Wege, C.; Schöning, M.J. Field-effect biosensor using virus particles as scaffolds for enzyme immobilization. Biosens. Bioelectron. 2018, 110, 168–174. [Google Scholar] [CrossRef]
  19. Welden, M.; Poghossian, A.; Vahidpour, F.; Wendlandt, T.; Keusgen, M.; Wege, C.; Schöning, M.J. Capacitive field-effect biosensor modified with a stacked bilayer of weak polyelectrolyte and plant virus particles as enzyme nanocarriers. Bioelectrochemistry 2023, 151, 108397. [Google Scholar] [CrossRef]
  20. Karschuck, T.; Poghossian, A.; Ser, J.; Tsokolakyan, A.; Achtsnicht, S.; Wagner, P.; Schöning, M.J. Capacitive model of enzyme-modified field-effect biosensors: Impact of enzyme coverage. Sens. Actuators B Chem. 2024, 408, 135530. [Google Scholar] [CrossRef]
  21. Andrianova, M.S.; Kuznetsov, E.V.; Grudtsov, V.P.; Kuznetsov, A.E. CMOS-compatible biosensor for l-carnitine detection. Biosens. Bioelectron. 2018, 119, 48–54. [Google Scholar] [CrossRef] [PubMed]
  22. Pan, T.-M.; Lin, T.-W.; Chen, C.-Y. Label-free detection of rheumatoid factor using YbYxOy electrolyte-insulator-semiconductor devices. Anal. Chim. Acta 2015, 891, 304–311. [Google Scholar] [CrossRef] [PubMed]
  23. Hlukhova, H.; Menger, M.; Offenhäusser, A.; Vitusevich, S. Highly sensitive aptamer-based method for the detection of cardiac biomolecules on silicon dioxide surfaces. MRS Adv. 2018, 3, 1535–1541. [Google Scholar] [CrossRef]
  24. Bahri, M.; Baraket, A.; Zine, N.; Ben Ali, M.; Bausells, J.; Errachid, A. Capacitance electrochemical biosensor based on silicon nitride transducer for TNF-α cytokine detection in artificial human saliva: Heart failure (HF). Talanta 2020, 209, 120501. [Google Scholar] [CrossRef]
  25. Kumar, N.; Kumar, S.; Kumar, J.; Panda, S. Investigation of mechanisms involved in the enhanced label free detection of prostate cancer biomarkers using field effect devices. J. Electrochem. Soc. 2017, 164, B409–B416. [Google Scholar] [CrossRef]
  26. Chand, R.; Han, D.; Neethirajan, S.; Kim, Y.-S. Detection of protein kinase using an aptamer on a microchip integrated electrolyte-insulator-semiconductor sensor. Sens. Actuators B Chem. 2017, 248, 973–979. [Google Scholar] [CrossRef]
  27. Pan, T.-M.; Chang, K.-Y.; Lin, C.-W.; Tsai, S.-W.; Wu, M.-H. Label-free detection of DNA using high-κ Lu2Ti2O7 electrolyte-insulator-semiconductors. J. Mater. Chem. 2012, 22, 1358–1363. [Google Scholar] [CrossRef]
  28. Bronder, T.S.; Jessing, M.P.; Poghossian, A.; Keusgen, M.; Schöning, M.J. Detection of PCR-amplified tuberculosis DNA fragments with polyelectrolyte-modified field-effect sensors. Anal. Chem. 2018, 90, 7747–7753. [Google Scholar] [CrossRef]
  29. Poghossian, A.; Bäcker, M.; Mayer, D.; Schöning, M.J. Gating capacitive field-effect sensors by the charge of nanoparticle/molecule hybrids. Nanoscale 2015, 7, 1023–1031. [Google Scholar] [CrossRef]
  30. Poghossian, A.; Karschuck, T.; Wagner, P.H.; Schöning, M.J. Field-effect capacitors decorated with ligand-stabilized gold nanoparticles: Modeling and experiments. Biosensors 2022, 12, 334. [Google Scholar] [CrossRef]
  31. Karschuck, T.; Kaulen, C.; Poghossian, A.; Wagner, P.H.; Schöning, M.J. Gold nanoparticle-modified capacitive field-effect sensors: Studying the surface density of nanoparticles and coupling of charged polyelectrolyte macromolecules. Electrochem. Sci. Adv. 2022, 2, e2100179. [Google Scholar] [CrossRef]
  32. Jablonski, M.; Poghossian, A.; Severins, R.; Keusgen, M.; Wege, C.; Schöning, M.J. Capacitive field-effect biosensor studying adsorption of tobacco mosaic virus particles. Micromachines 2021, 12, 57. [Google Scholar] [CrossRef] [PubMed]
  33. Jablonski, M.; Poghossian, A.; Keusgen, M.; Wege, C.; Schöning, M.J. Detection of plant virus particles with a capacitive field-effect sensor. Anal. Bioanal. Chem. 2021, 413, 5669–5678. [Google Scholar] [CrossRef]
  34. Poghossian, A.; Malzahn, K.; Abouzar, M.H.; Mehndiratta, P.; Katz, E.; Schöning, M.J. Integration of biomolecular logic gates with field-effect transducers. Electrochim. Acta 2011, 56, 9661–9665. [Google Scholar] [CrossRef]
  35. Klein, M. Characterization of ion-sensitive layer systems with a C(V) measurement method operating at constant capacitance. Sens. Actuators B Chem. 1990, 1, 354–356. [Google Scholar] [CrossRef]
  36. Fabry, P.; Laurent-Yvonnou, L. The C-V method for characterizing ISFET or EOS devices with ion-sensitive membranes. J. Electroanal. Chem. Interfacial Electrochem. 1990, 286, 23–40. [Google Scholar] [CrossRef]
  37. Wang, Y.; Liu, T.; Yang, M.; Wu, C.; Zhang, W.; Chu, Z.; Jin, W. A handheld testing device for the fast and ultrasensitive recognition of cardiac troponin I via an ion-sensitive field-effect transistor. Biosens. Bioelectron. 2021, 193, 113554. [Google Scholar] [CrossRef]
  38. Rani, D.; Singh, Y.; Salker, M.; Vu, X.T.; Ingebrandt, S.; Pachauri, V. Point-of-care-ready nanoscale ISFET arrays for sub-picomolar detection of cytokines in cell cultures. Anal. Bioanal. Chem. 2020, 412, 6777–6788. [Google Scholar] [CrossRef]
  39. Nguyen, T.C.; Schwartz, M.; Vu, X.T.; Blinn, J.; Ingebrandt, S. Handheld readout system for field-effect transistor biosensor arrays for label-free detection of biomolecules. Phys. Status Solidi (A) 2015, 212, 1313–1319. [Google Scholar] [CrossRef]
  40. Kaisti, M.; Boeva, Z.; Koskinen, J.; Nieminen, S.; Bobacka, J.; Levon, K. Hand-held transistor based electrical and multiplexed chemical sensing system. ACS Sens. 2016, 1, 1423–1431. [Google Scholar] [CrossRef]
  41. Zhao, S.; Shi, C.; Hu, H.; Li, Z.; Xiao, G.; Yang, Q.; Sun, P.; Cheng, L.; Niu, W.; Bi, J.; et al. ISFET and dex-AgNPs based portable sensor for reusable and real-time determinations of concanavalin a and glucose on smartphone. Biosens. Bioelectron. 2020, 151, 111962. [Google Scholar] [CrossRef] [PubMed]
  42. Jogezai, N.; Shabbir, M.I. A hand-held device for rapid single tube detection of hepatitis-C virus. Anal. Methods 2018, 10, 4233–4241. [Google Scholar] [CrossRef]
  43. Chen, J.-C.; Chou, J.-C.; Sun, T.-P.; Hsiung, S.-K. Portable urea biosensor based on the extended-gate field effect transistor. Sens. Actuators B Chem. 2003, 91, 180–186. [Google Scholar] [CrossRef]
  44. Sentron. pH ISFET Probe—The Sentron Wireless ConeFET Probe with App. Available online: https://www.sentron.nl/product/conefet-ph-probe/ (accessed on 20 June 2024).
  45. Microsens. pH-ISFET Sensor. Available online: http://microsens.ch/products/ISFET.htm (accessed on 20 June 2024).
  46. Endress+Hauser. Digital Non-Glass pH Sensor Memosens CPS77E. Available online: https://www.endress.com/field-instruments-overview/liquid-analysis-product-overview/digital-pH-sensor-Memosens-CPS77E (accessed on 20 June 2024).
  47. DeltaTrak. Pocket ISFET pH Meter. Available online: https://deltatrak.com/product/pocket-isfet-ph-meter/ (accessed on 20 June 2024).
  48. Wagner, T.; Maris, R.; Ackermann, H.; Otto, R.; Beging, S.; Poghossian, A.; Schöning, M.J. Handheld measurement device for field-effect sensor structures: Practical evaluation and limitations. Sens. Actuators B Chem. 2007, 127, 217–223. [Google Scholar] [CrossRef]
  49. Veeramani, M.S.; Shyam, P.; Ratchagar, N.P.; Chadha, A.; Bhattacharya, E.; Pavan, S. A miniaturized pH sensor with an embedded counter electrode and a readout circuit. IEEE Sens. J. 2013, 13, 1941–1948. [Google Scholar] [CrossRef]
  50. Veeramani, M.S.; Shyam, K.P.; Ratchagar, N.P.; Chadha, A.; Bhattacharya, E. Miniaturised silicon biosensors for the detection of triglyceride in blood serum. Anal. Methods 2014, 6, 1728–1735. [Google Scholar] [CrossRef]
  51. Randviir, E.P.; Banks, C.E. A review of electrochemical impedance spectroscopy for bioanalytical sensors. Anal. Methods: Adv. Methods Appl. 2022, 14, 4602–4624. [Google Scholar] [CrossRef]
  52. Magar, H.S.; Hassan, R.Y.A.; Mulchandani, A. Electrochemical impedance spectroscopy (EIS): Principles, construction, and biosensing applications. Sensors 2021, 21, 6578. [Google Scholar] [CrossRef]
  53. Furst, A.L.; Francis, M.B. Impedance-based detection of bacteria. Chem. Rev. 2019, 119, 700–726. [Google Scholar] [CrossRef]
  54. Bahadır, E.B.; Sezgintürk, M.K. A review on impedimetric biosensors. Artif. Cells Nanomed. Biotechnol. 2016, 44, 248–262. [Google Scholar] [CrossRef]
  55. Lisdat, F.; Schäfer, D. The use of electrochemical impedance spectroscopy for biosensing. Anal. Bioanal. Chem. 2008, 391, 1555–1567. [Google Scholar] [CrossRef] [PubMed]
  56. Abdullah, S.; Tonello, S.; Borghetti, M.; Sardini, E.; Serpelloni, M. Potentiostats for protein biosensing: Design considerations and analysis on measurement characteristics. J. Sens. 2019, 2019, 6729329. [Google Scholar] [CrossRef]
  57. PalmSens. Sensit Smart—PalmSens. Available online: https://www.palmsens.com/product/sensit-smart/ (accessed on 20 June 2024).
  58. PalmSens. Image Sensit Smart. Available online: https://www.palmsens.com/app/uploads/2019/11/SensitSmart-wires_900px-600x400.jpg (accessed on 6 November 2024).
  59. Yates, D.E.; Levine, S.; Healy, T.W. Site-binding model of the electrical double layer at the oxide/water interface. J. Chem. Soc. Faraday Trans. 1 Phys. Chem. Condens. Phases 1974, 70, 1807. [Google Scholar] [CrossRef]
  60. van Hal, R.; Eijkel, J.; Bergveld, P. A novel description of ISFET sensitivity with the buffer capacity and double-layer capacitance as key parameters. Sens. Actuators B: Chem. 1995, 24, 201–205. [Google Scholar] [CrossRef]
  61. Zhao, H.; Liu, F.; Xie, W.; Zhou, T.-C.; OuYang, J.; Jin, L.; Li, H.; Zhao, C.-Y.; Zhang, L.; Wei, J.; et al. Ultrasensitive supersandwich-type electrochemical sensor for SARS-CoV-2 from the infected COVID-19 patients using a smartphone. Sens. Actuators B Chem. 2021, 327, 128899. [Google Scholar] [CrossRef]
  62. Zakashansky, J.A.; Imamura, A.H.; Salgado, D.F.; Romero Mercieca, H.C.; Aguas, R.F.L.; Lao, A.M.; Pariser, J.; Arroyo-Currás, N.; Khine, M. Detection of the SARS-CoV-2 spike protein in saliva with Shrinky-Dink electrodes. Anal. Methods Adv. Methods Appl. 2021, 13, 874–883. [Google Scholar] [CrossRef]
  63. Perdomo, S.A.; Ortega, V.; Jaramillo-Botero, A.; Mancilla, N.; Mosquera-DeLaCruz, J.H.; Valencia, D.P.; Quimbaya, M.; Contreras, J.D.; Velez, G.E.; Loaiza, O.A.; et al. Sensars: A low-cost portable electrochemical system for ultra-sensitive, near real-time, diagnostics of SARS-CoV-2 infections. IEEE Trans. Instrum. Meas. 2021, 70, 4007710. [Google Scholar] [CrossRef] [PubMed]
  64. Lomae, A.; Preechakasedkit, P.; Hanpanich, O.; Ozer, T.; Henry, C.S.; Maruyama, A.; Pasomsub, E.; Phuphuakrat, A.; Rengpipat, S.; Vilaivan, T.; et al. Label free electrochemical DNA biosensor for COVID-19 diagnosis. Talanta 2023, 253, 123992. [Google Scholar] [CrossRef]
  65. Kumar, P.; Anitha, A.; Das, A.; Deepalakshmi, G.; Suman, P. Point-of-care impedimetric aptasensor to detect the luteinizing hormone. Microchim. Acta 2024, 191, 115. [Google Scholar] [CrossRef]
  66. Sanli, S. Single-drop electrochemical immunosensor with 3d-printed magnetic attachment for onsite smartphone detection of amoxicillin in raw milk. Food Chem. 2024, 437, 137823. [Google Scholar] [CrossRef]
  67. Tarantov, Y.; Kartashev, A.S.; Kruchinin, A.A.; Bobrov, P.V.; Vlasov, Y.; Afanas’ev, V.V. Optical and thermal sensitivity of pH-ISFET with Ta2O5 membrane. Sens. Actuators A Phys. 1991, 28, 197–202. [Google Scholar] [CrossRef]
  68. Lue, C.-E.; Yu, T.-C.; Yang, C.-M.; Pijanowska, D.G.; Lai, C.-S. Optimization of urea-EnFET based on Ta2O5 layer with post annealing. Sensors 2011, 11, 4562–4571. [Google Scholar] [CrossRef] [PubMed]
  69. PalmSens. Methodscript. Available online: https://www.palmsens.com/methodscript/ (accessed on 6 November 2024).
  70. PalmSens. Methodscript Example Impedance Spectrum. Available online: https://github.com/PalmSens/MethodSCRIPT_Examples (accessed on 6 November 2024).
  71. NumPy. Numpy. Available online: https://numpy.org/ (accessed on 6 November 2024).
  72. Lundberg, M. Simple-Pid. Available online: https://github.com/m-lundberg/simple-pid (accessed on 6 November 2024).
  73. Schimansky, T. CustomTkinter. Available online: https://customtkinter.tomschimansky.com/ (accessed on 6 November 2024).
  74. Matplotlib. Matplotlib. Available online: https://matplotlib.org/ (accessed on 6 November 2024).
  75. Lee, T.N.; Chen, H.J.H.; Huang, Y.-C.; Hsieh, K.-C. Electrolyte-insulator-semiconductor pH sensors with arrayed patterns manufactured by nano imprint technology. J. Electrochem. Soc. 2018, 165, B767–B772. [Google Scholar] [CrossRef]
  76. Poghossian, A.; Lüth, H.; Schultze, J.; Schöning, M.J. (Bio-)chemical and physical microsensor arrays using an identical transducer principle. Electrochim. Acta 2001, 47, 243–249. [Google Scholar] [CrossRef]
  77. Lee, S.-R.; Rahman, M.M.; Sawada, K.; Ishida, M. Fabrication of a highly sensitive penicillin sensor based on charge transfer techniques. Biosens. Bioelectron. 2009, 24, 1877–1882. [Google Scholar] [CrossRef]
  78. Poghossian, A.; Schultze, J.W.; Schöning, M.J. Multi-parameter detection of (bio-)chemical and physical quantities using an identical transducer principle. Sens. Actuators B Chem. 2003, 91, 83–91. [Google Scholar] [CrossRef]
Sensors 25 02681 g001

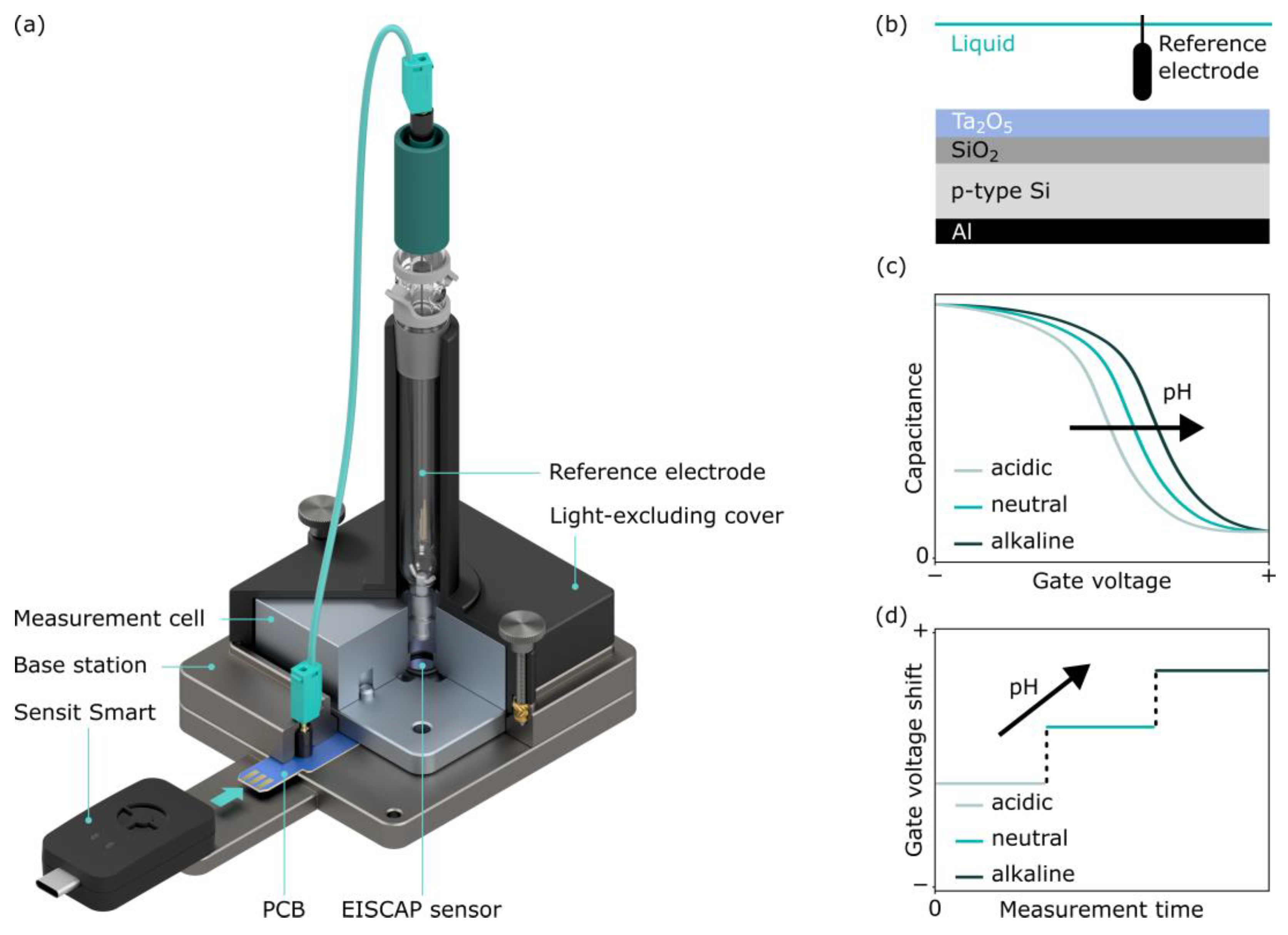

Figure 1. A render of the developed portable measurement system consisting of the commercial “Sensit Smart” (modified from [58]), an adapter base station, a measurement cell with the installed EISCAP chip, a reference electrode, and a light-excluding cover (a). Schematic structure of the pH-sensitive Al/p-Si/SiO2/Ta2O5 EISCAP sensor (b), typical shape of the pH-dependent responses in high-frequency C−V (c) and ConCap mode (d).
Figure 1. A render of the developed portable measurement system consisting of the commercial “Sensit Smart” (modified from [58]), an adapter base station, a measurement cell with the installed EISCAP chip, a reference electrode, and a light-excluding cover (a). Schematic structure of the pH-sensitive Al/p-Si/SiO2/Ta2O5 EISCAP sensor (b), typical shape of the pH-dependent responses in high-frequency C−V (c) and ConCap mode (d).
Sensors 25 02681 g001
Sensors 25 02681 g002

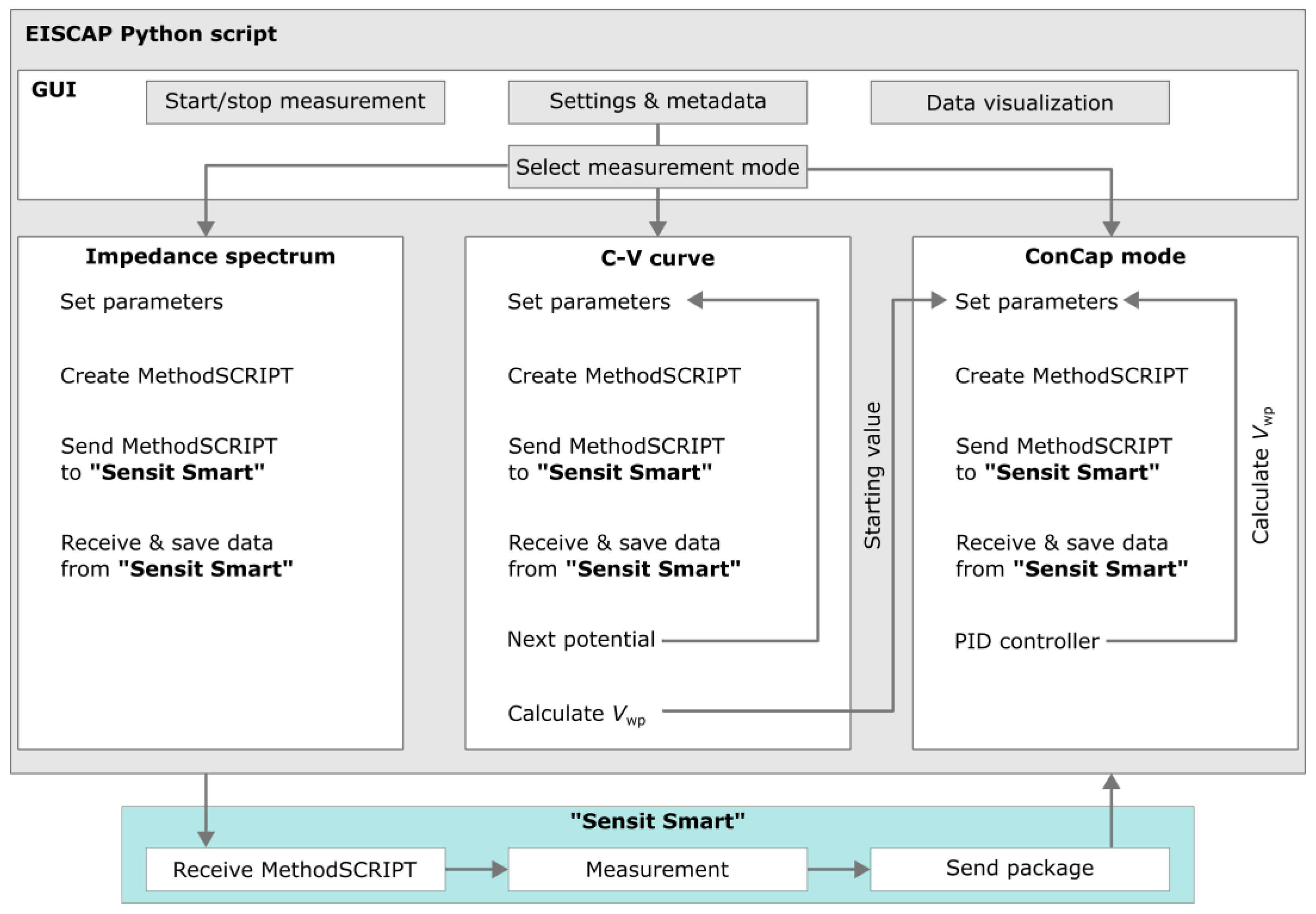

Figure 2. Block diagram of the EISCAP Python script with the measurement modes for impedance spectra, C−V curves, and ConCap characterizations using the “Sensit Smart”. PID (proportional-integral-derivative), Vwp: working-point potential.
Figure 2. Block diagram of the EISCAP Python script with the measurement modes for impedance spectra, C−V curves, and ConCap characterizations using the “Sensit Smart”. PID (proportional-integral-derivative), Vwp: working-point potential.
Sensors 25 02681 g002
Sensors 25 02681 g003

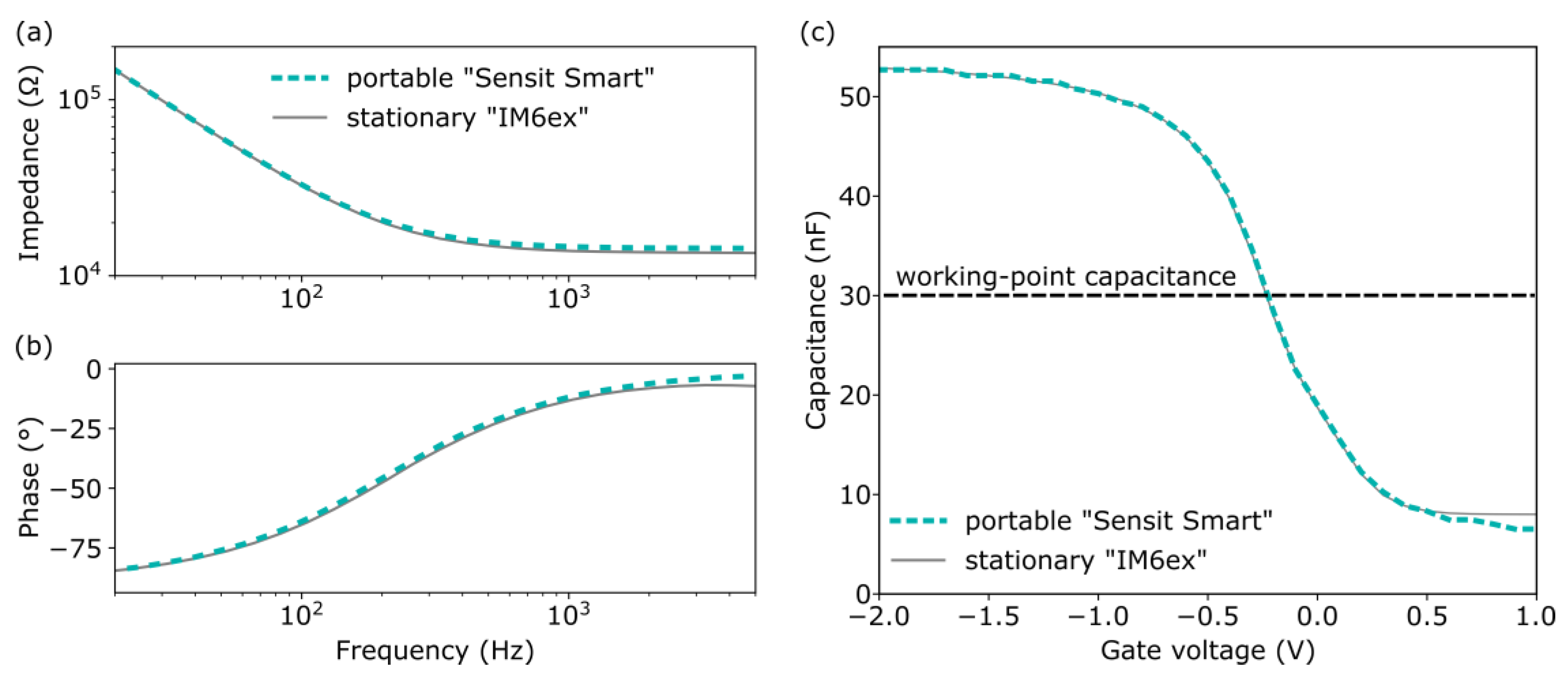

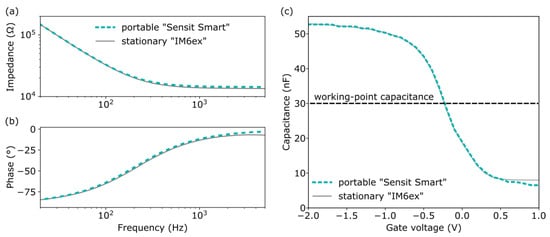

Figure 3. Comparison of impedance spectra (a), phase angles (b) of the EISCAP sensor in the accumulation region at a gate voltage of –2 V, and C–V curves (c) collected in Titrisol pH 7 buffer using the portable “Sensit Smart” and the stationary “IM6ex”.
Figure 3. Comparison of impedance spectra (a), phase angles (b) of the EISCAP sensor in the accumulation region at a gate voltage of –2 V, and C–V curves (c) collected in Titrisol pH 7 buffer using the portable “Sensit Smart” and the stationary “IM6ex”.
Sensors 25 02681 g003
Sensors 25 02681 g004
Figure 4. Set of C−V plots for an exemplary EISCAP pH sensor collected in Titrisol buffers from pH 5 to pH 9 using the portable “Sensit Smart” (a) and the stationary “IM6ex” (b).
Figure 4. Set of C−V plots for an exemplary EISCAP pH sensor collected in Titrisol buffers from pH 5 to pH 9 using the portable “Sensit Smart” (a) and the stationary “IM6ex” (b).
Sensors 25 02681 g004
Sensors 25 02681 g005
Figure 5. (a) ConCap responses of the pH-sensitive EISCAP recorded for pH values 7→6→5→6→7→8→9→8→7 using the portable “Sensit Smart” and the stationary “IM6ex”, (b) calibration plots of the EISCAP evaluated from the respective ConCap responses.
Figure 5. (a) ConCap responses of the pH-sensitive EISCAP recorded for pH values 7→6→5→6→7→8→9→8→7 using the portable “Sensit Smart” and the stationary “IM6ex”, (b) calibration plots of the EISCAP evaluated from the respective ConCap responses.
Sensors 25 02681 g005
Sensors 25 02681 g006
Figure 6. Set of C−V plots for the same EISCAP penicillin biosensor recorded in buffer and penicillin solutions with different concentrations from 0.2 mM to 2 mM using the portable “Sensit Smart” (a) and the stationary “IM6ex” (b).
Figure 6. Set of C−V plots for the same EISCAP penicillin biosensor recorded in buffer and penicillin solutions with different concentrations from 0.2 mM to 2 mM using the portable “Sensit Smart” (a) and the stationary “IM6ex” (b).
Sensors 25 02681 g006
Sensors 25 02681 g007
Figure 7. (a) ConCap responses of the same EISCAP penicillin biosensor measured in buffer and penicillin solutions with different concentrations from 0.2 mM to 2 mM using the portable “Sensit Smart” and the stationary device “IM6ex”; (b) calibration plots of the penicillin biosensor evaluated from the respective ConCap responses.
Figure 7. (a) ConCap responses of the same EISCAP penicillin biosensor measured in buffer and penicillin solutions with different concentrations from 0.2 mM to 2 mM using the portable “Sensit Smart” and the stationary device “IM6ex”; (b) calibration plots of the penicillin biosensor evaluated from the respective ConCap responses.
Sensors 25 02681 g007
Sensors 25 02681 g008
Figure 8. Exemplary ConCap response (a) and set of C−V plots (b) of a pH-sensitive EISCAP measured with the “Sensit Smart”-based portable measurement system in buffer solution with different pH values ranging from pH 2 to pH 12 outside of a Faraday cage; (c) calibration plot of the pH EISCAP evaluated from the ConCap measurement.
Figure 8. Exemplary ConCap response (a) and set of C−V plots (b) of a pH-sensitive EISCAP measured with the “Sensit Smart”-based portable measurement system in buffer solution with different pH values ranging from pH 2 to pH 12 outside of a Faraday cage; (c) calibration plot of the pH EISCAP evaluated from the ConCap measurement.
Sensors 25 02681 g008
Table 1. Comparison of penicillin sensitivity for EISCAPs characterized by the portable device “Sensit Smart” and stationary impedance analyzer “IM6ex”. The sensitivity of individual sensors is given with the corresponding standard error of the fit. The average sensitivity of the three sensors is listed with its standard deviation.
Table 1. Comparison of penicillin sensitivity for EISCAPs characterized by the portable device “Sensit Smart” and stationary impedance analyzer “IM6ex”. The sensitivity of individual sensors is given with the corresponding standard error of the fit. The average sensitivity of the three sensors is listed with its standard deviation.
SensorPenicillin Sensitivity
Portable “Sensit Smart”		Penicillin Sensitivity
Stationary “IM6ex”
1104 ± 6 mV/dec101 ± 6 mV/dec
2101 ± 10 mV/dec95 ± 9 mV/dec
3101 ± 8 mV/dec99 ± 8 mV/dec
Average102 ± 2 mV/dec98 ± 3 mV/dec
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Karschuck, T.; Schmidt, S.; Achtsnicht, S.; Ser, J.; Bouarich, I.; Aboutass, G.; Poghossian, A.; Wagner, P.H.; Schöning, M.J. Portable Measurement System for the Characterization of Capacitive Field-Effect Sensors. Sensors 2025, 25, 2681. https://doi.org/10.3390/s25092681

AMA Style

Karschuck T, Schmidt S, Achtsnicht S, Ser J, Bouarich I, Aboutass G, Poghossian A, Wagner PH, Schöning MJ. Portable Measurement System for the Characterization of Capacitive Field-Effect Sensors. Sensors. 2025; 25(9):2681. https://doi.org/10.3390/s25092681

Chicago/Turabian Style

Karschuck, Tobias, Stefan Schmidt, Stefan Achtsnicht, Joey Ser, Ismail Bouarich, Georges Aboutass, Arshak Poghossian, Patrick H. Wagner, and Michael J. Schöning. 2025. "Portable Measurement System for the Characterization of Capacitive Field-Effect Sensors" Sensors 25, no. 9: 2681. https://doi.org/10.3390/s25092681

APA Style

Karschuck, T., Schmidt, S., Achtsnicht, S., Ser, J., Bouarich, I., Aboutass, G., Poghossian, A., Wagner, P. H., & Schöning, M. J. (2025). Portable Measurement System for the Characterization of Capacitive Field-Effect Sensors. Sensors, 25(9), 2681. https://doi.org/10.3390/s25092681

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
