Review

Small-Molecule Fluorescent Probe for Detection of Sulfite

by
Ting Li
,
Xuyang Chen
,
Kai Wang
* and
Zhigang Hu
*
Medical Laboratory of Wuxi Children’s Hospital, The Affiliated Wuxi People’s Hospital of Nanjing Medical University, Qingyang Road 299, Wuxi 214023, China
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2022, 15(11), 1326; https://doi.org/10.3390/ph15111326
Submission received: 28 September 2022 / Revised: 21 October 2022 / Accepted: 22 October 2022 / Published: 26 October 2022
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
Sulfite is widely used as an antioxidant additive and preservative in food and beverages. Abnormal levels of sulfite in the body is related to a variety of diseases. There are strict rules for sulfite intake. Therefore, to monitor the sulfite level in physiological and pathological events, there is in urgent need to develop a rapid, accurate, sensitive, and non-invasive approach, which can also be of great significance for the improvement of the corresponding clinical diagnosis. With the development of fluorescent probes, many advantages of fluorescent probes for sulfite detection, such as real time imaging, simple operation, economy, fast response, non-invasive, and so on, have been gradually highlighted. In this review, we enumerated almost all the sulfite fluorescent probes over nearly a decade and summarized their respective characteristics, in order to provide a unified platform for their standardized evaluation. Meanwhile, we tried to systematically review the research progress of sulfite small-molecule fluorescent probes. Logically, we focused on the structures, reaction mechanisms, and applications of sulfite fluorescent probes. We hope that this review will be helpful for the investigators who are interested in sulfite-associated biological procedures.

1. Introduction

SO2 is one of the main pollutants in the environment, and SO2 derivatives are a collective term for SO2 in its state of existence in living organisms, mainly in the form of sulfite (SO32−) and bisulfite (HSO3−) in a neutral environment [1,2]. Sulfites are widely used as an antioxidant additive and preservative in food and beverages [3,4,5,6]. On the other hand, in living organisms, sulfur-containing amino acids are metabolized to produce endogenous sulfites [7]. Abnormal endogenous or exogenous sulfite levels have been reported to be associated with certain diseases, such as asthma, dyspnea, chest tightness, respiratory arrest, anaphylaxis, diarrhea, hypotension, migraine, stroke, brain cancer, lung cancer, and liver cancer [8,9,10]. According to the Joint FAO/WHO Expert Committee on Food, the daily intake of sulfites is limited to 0.7 mg/kg body weight [11,12]. The U.S. Food and Drug Administration (FDA) has stipulated that the level of sulfites in food and beverages should not exceed 125 μM [13]. The Chinese Hygienic Standard for the Use of Food Additives stipulates that in terms of SO2 content, cookies, sugar, vermicelli, and canned foods shall not exceed 0.05 g/kg and other varieties shall not exceed 0.1 g/kg [14].
In recent years, numerous scholars have become interested in the effects of sulfites on living organisms. A study by Dalaman [15] et al. found that SO2 significantly prevented the prolongation of QT interval and action potential duration in rats after isoproterenol induction. SO2 derivatives inhibit the proliferation of human skin stratum corneum-forming cells by inhibiting the ERKI/2 and P38 pathways through activation of the NF–κB pathway [16]. Macrophage-derived SO2 is an important regulator of macrophage activation, and it acts as an endogenous “switch” in the control of macrophage activation [17,18]. Therefore, it is necessary to develop easy-to-operate, efficient, and inexpensive methods for the detection of sulfites. There are many methods for the detection of sulfites, such as chromatography, electrochemistry, capillary electrophoresis, flow injection analysis, and chemiluminescence [19]. However, these methods usually require complex procedures, and expensive instrumentation, and do not accurately assess sulfite fluctuations in biological systems. In contrast, fluorescence spectroscopy has the advantages of fast response, high sensitivity, simple operation, low cost, and in situ bioimaging within living cells for the detection of sulfites.
In the last decade, fluorescent probes have been used for the detection of various anions [20], such as ClO−, Cl−, NO2−, F−, CN−, S2−, Br−, etc [21,22,23,24,25,26,27]. In 2010, Choi et al. reported the first fluorescent probe for sulfite [28]. This research has attracted the attention of more and more researchers, and the construction of sulfite fluorescent probes is gradually becoming a popular research direction. Up to the present position, the number of research papers per year has increased dramatically, but there are few comprehensive reviews on small-molecule fluorescent probes for sulfite monitoring and applications. In this paper, we summarize the research progress of small-molecule fluorescent probes on sulfite in the last decade. In addition, this paper classifies sulfite fluorescent probes, including reaction mechanisms and constituent materials. We hope that this review will be useful for researchers who are interested in sulfite-related biological processes.
The design principle of sulfite fluorescent probes is related to their nucleophilic nature, where sulfite can undergo nucleophilic addition reactions with aldehyde groups or the deprotection of levulinic acid changes the probe structure causing changes in fluorescence spectra. A typical sulfite fluorescent probe consists of the three following main components: a fluorescent group, a recognition group, and a linker. Several important fluorophore of sulfite fluorescent probes are listed in this paper, including benzothiazole, coumarin, hemicyanine, quinoline, naphthalimide, benzimidazole, imidazole, triphenylamine, thiophene, pyrene, julolidine, Ir(Ⅲ) complex, naphthalimide, rhodamine, flavor, which are further subdivided according to the mechanisms.
At present, the response types of these fluorescent probes are mainly classified into “turn-on” and “ratiometric” strategies. With sulfite, the main mode of the turn-on strategies is the switching on and enhancement of the fluorescence signal. In recent years, more and more fluorescent probes are of the ratiometric strategies, because compared to single-emission turn-on probes, ratiometric probes can achieve precise detection by the ratio of the two emitted signals, effectively mitigating conditions, concentrations, and instrumentation using self-calibration. The ratiometric probes can achieve accurate detection by the ratio of the two emitted signals and effectively mitigate the interference of conditions, concentrations, and instruments by self-calibration [29,30].

2. Small-Molecule Sulfite Fluorescent Probe

2.1. Based on Benzothiazole Fluorophore

Benzothiazole prolongs cellular conjugation π, increases cellular water solubility, and contributes to the selective aggregation of probes in cellular mitochondria. Benzothiazole functionalization greatly improves the analytical performance by increasing the quantum yield, emission band red shift, and introducing a second emission band [31]. We classified benzothiazole fluorophore into the following categories based on the mechanism including intramolecular charge transfer (ICT), excited state intramolecular proton transfer (ESIPT), and fluorescence resonance energy transfer (FRET).

2.1.1. ICT Mechanisms

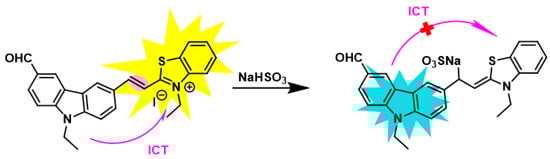

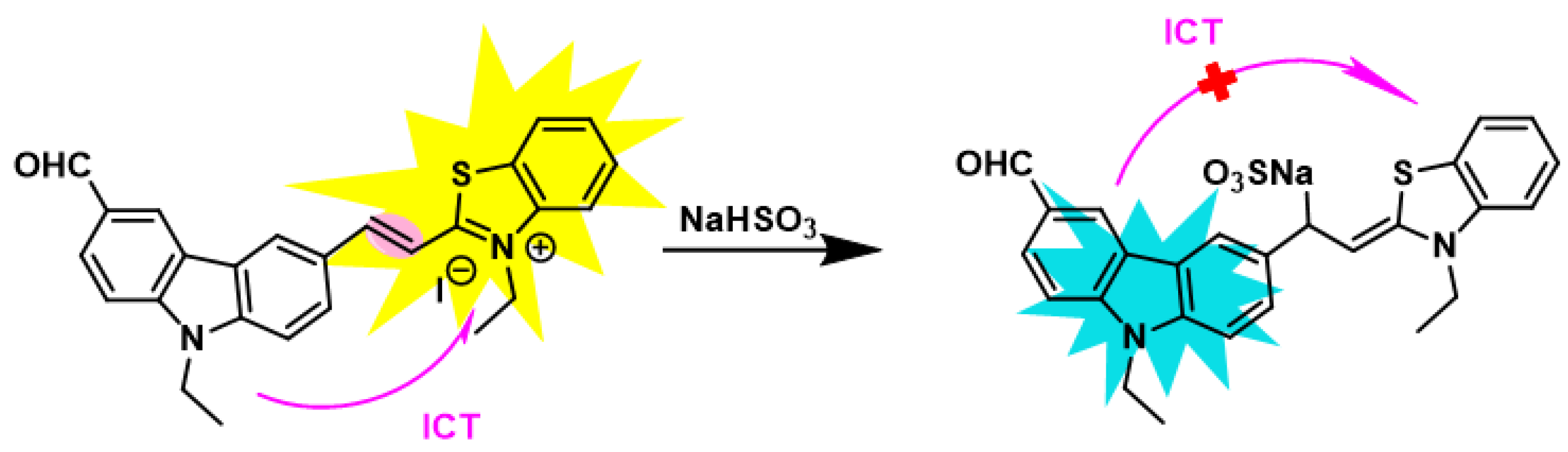

ICT is the most common mechanism in fluorescent probes. The ICT mechanism refers to the process by which, in the excited state, the molecule will produce an electron transfer, resulting in the separation of the positive and negative charges. Generally, probes containing the ICT mechanism contain a push–pull system, i.e., “D−π–A” structure: where D (Donor) represents the electron donor and A (Acceptor) represents the electron acceptor, the electron transfer channel is provided by the π bond, and the final conjugated system is formed, and the electron donor or electron acceptor is the recognition group or part of the recognition group. When the probe reacts with the specific substrate, the electron donor or electron acceptor of the recognition group will change, resulting in a push-pull system and the π electron structure in the system is rearranged, resulting in the red shift or blue shift phenomenon of the fluorescence spectrum. We have developed probes 1–5 based on ICT mechanisms, of which probe 1 was the turn-on type and probes 2–5 were the ratiometric type. Probe 2 was reversible, probe 3 was mitochondrial-targetable, and probe 5 detects both F− and SO32− (Scheme 1).

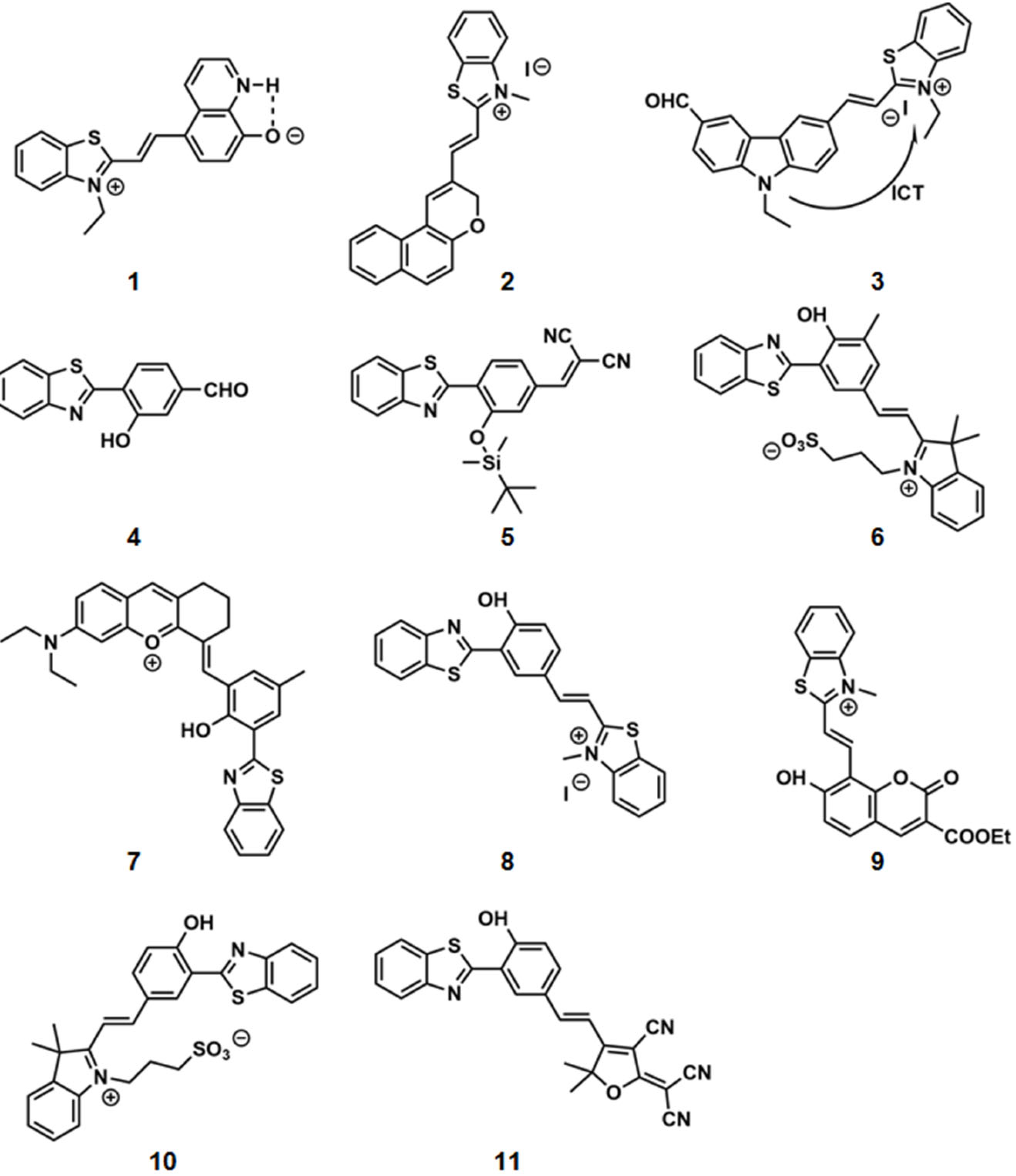

Probes 1–3 are capable of visualizing the detection of HSO3− and SO32−. The addition of HSO3−/SO32− activates the Michael receptor of probe 1 [32], disrupting the π-electron conjugation system and changing the solution color from purplish red to colorless. Meanwhile, probe 1 was successfully applied to detect SO32−/HSO3− in real samples and HeLa cells. In contrast to probe 1, probe 2 can reversibly monitor intracellular SO32−/HSO3− [33]. Probe 2 itself showed near-infrared fluorescence emission at 630 nm, and the addition of SO32−/HSO3− caused a gradual decrease in fluorescence intensity at 630 nm, but a significant enhancement of fluorescence at 630 nm was observed after the addition of H2O2, which was effective in restoring the system. To promote the application, the authors successfully used to monitor the redox process in cells and zebrafish. Compared with probe 2, probe 3 [34] has a lower detection limit and enables the detection of SO2 derivatives in various environments. Moreover, a comparative analysis of snow water and industrial wastewater revealed severe SO2 contamination, and probe 3 has monitored the uptake, transport, and intracellular processes of exogenous HSO3− within the HeLa cell successfully.
The large Stokes shift can well separate the excitation and emission light and improve the sensitivity of fluorescence detection while reducing interference. Probe 4 [35] showed a large Stokes shift before and after the addition of SO32−, based on the large Stokes shift after excitation of the fluorophore of benzothiazole derivatives due to the ESIPT process. Previous studies—because the introduction of the sensing group into the hydroxyl group—inhibited the ESIPT, so that the Stokes shift was reduced, so probe 4 added an aldehyde group as the reactive site for SO32−, so the measurement process before and after the addition of SO32− had a large Stokes displacement. Importantly, the probe has good selectivity for SO32− and biothiols.
Qi [36] et al. developed a ratiometric fluorescent probe 5 capable of detecting both F− and SO32−. Probe 5 has the two following sensing groups: the tert-butyldimethylsilyl ether moiety of F− and the carbon–carbon double bond of SO32−. Emission titration experiments performed found that the addition of F− enhanced the fluorescence intensity ratio of the probe by 291-fold, while the addition of SO32− enhanced the fluorescence intensity ratio of the probe by 9445-fold. The authors suggest that the fluorescence is blue shifted by the weakening of ICT through Michael addition reaction between SO32− and carbon–carbon double bond. However, the proposed mechanism lacks a theoretical basis. Thus, Jia [37] and her team in a study published in 2021 revealed the detection mechanism of probe 5 for F− and SO32− by density general function theory and time-varying density general function theory calculations, and the fluorescence red shift of the probe after the addition of F− was caused by ESIPT, while the fluorescence blue shift of the probe after the addition of SO32− was caused by ICT.

2.1.2. ESIPT Mechanisms

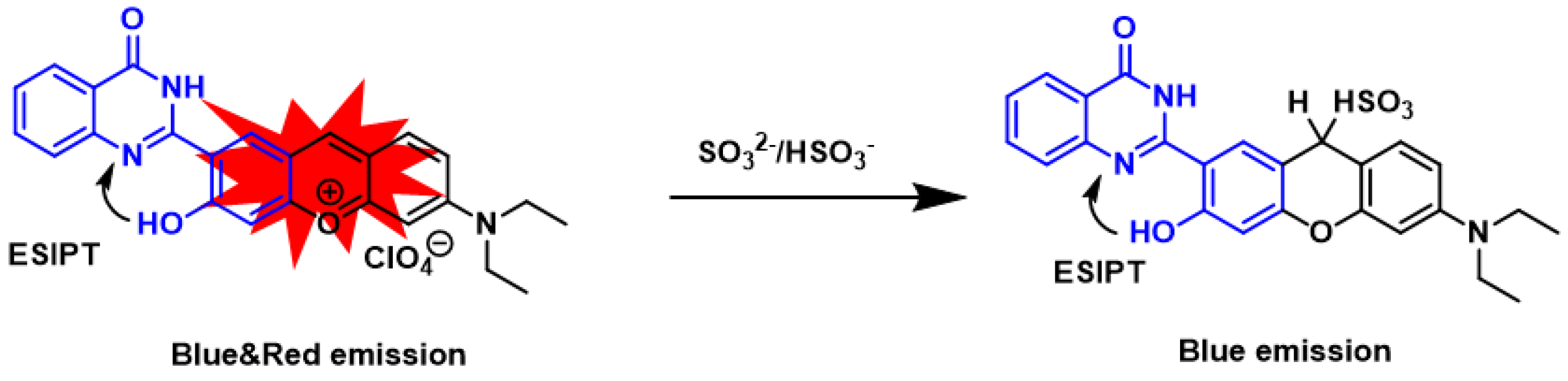

Excited state intramolecular proton transfer is the process of transferring intramolecular protons between a donor and an acceptor after the probe is excited. Molecules containing the ESIPT mechanism in general usually have amino and hydroxyl groups as proton donors, which are linked to neighboring proton acceptors (mostly S, N, and O atoms) through hydrogen bonds (Scheme 2). After the proton transfer, a more stable molecule is formed and the molecular structure is usually changed from enol to ketone, and the fluorescence spectrum is changed accordingly. Generally, for substances that can undergo intramolecular proton transfer, there is often a significant Stokes shift in the fluorescence emission peak of the substance, which effectively reduces background interference.
Benzothiazole and its derivatives are the best-known ESIPT dyes, and the relative intensity variations of their photovariant isomers are often cleverly applied in the construction of scaled fluorescent probes. The emission of benzothiazole is usually confined to the blue and green regions and rarely exceeds 600 nm, and a straightforward way to obtain red shifted emission is to extend the p-conjugation of the ESIPT fluorophore. Zhang [38] et al. constructed probe 6 by combining benzothiazole with indole via C=C. This design extended the p-conjugated structure of benzothiazole and showed a larger red shift in both absorption and emission spectra compared with benzothiazole alone. After the addition of HSO3−, a rapid and significant change in the fluorescence spectrum was observed. Importantly, probe 6 can detect HSO3− in food and HeLa cells. Probe 7 [39] has a similar structure and sensing mechanism to probe 6, a conjugate of benzothiazole and semicarbazide. Probe 7 is more suitable for sensing intracellular SO32− and successfully detected SO32− in MCF-7 cells.
In 2021, Zhu’s [40] group constructed a benzothiazole-based probe 8. The experimental results show that probe 8 has high application in HeLa cells and mice because it can detect endogenous SO2. Moreover, it provides a reliable non-invasive method for visualizing SO2 in mouse models during oxidative stress. More noteworthy is that probe 8 responds instantaneously (10 s) to sulfite.

2.1.3. FRET Mechanisms

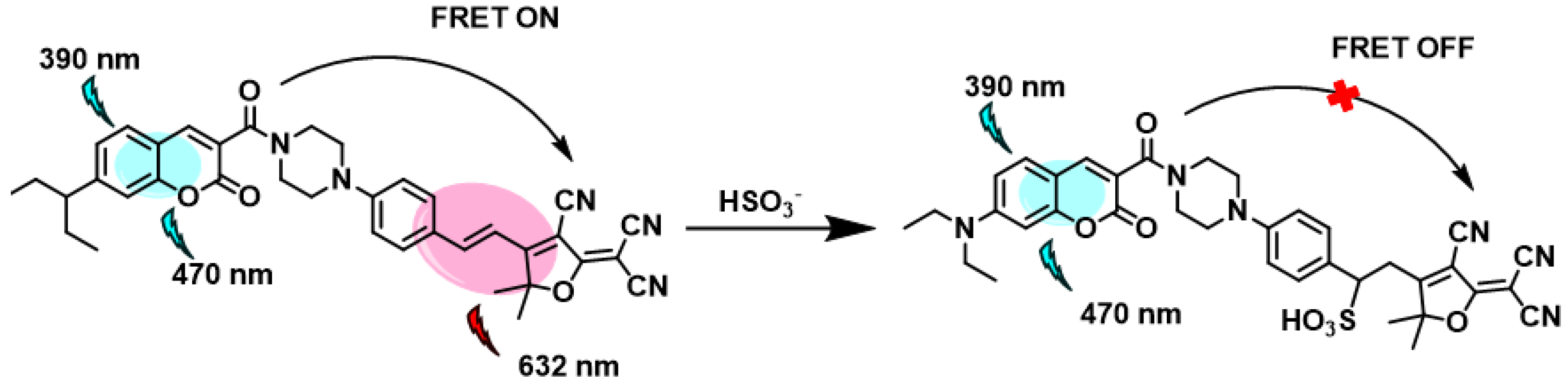

Fluorescent probes based on fluorescence resonance energy transfer generally contain two fluorescent groups (energy donor D and energy acceptor A, respectively). If D is used to excite the whole system, the transfer process of energy from D to A will occur, and finally, the fluorescence of A will be presented. The following several elements must be present in a probe with a FRET mechanism: (1) The fluorophore as the energy donor, whose fluorescence emission is generally at a short wavelength, and the absorption spectrum of the fluorophore as the acceptor must overlap the emission spectrum of the donor fluorophore so that the acceptor fluorophore can absorb the energy of the energy donor at the emission wavelength. (2) The collision diameter between the energy donor and the energy acceptor must be much smaller than the distance between the donor and the acceptor. (3) The arrangement of the energy donor and the energy acceptor must be appropriate (Scheme 3).
A ratiometric fluorescent probe 9–11 was developed based on benzothiazole fluorophore and FRET mechanisms and was able to detect the amount of HSO3− in MCF-7 cells. In 2014, probe 9 [41] was designed using benzothiazole and coumarin as fluorophores and was able to detect HSO3− concentrations between 0.934 and 100.0 mM. The experimental results revealed that the ratio of fluorescence intensity when the probe reacted with HSO3− increased continuously with increasing pH in the range of pH 5–8, which is due to the hydrolysis of coumarin under alkaline conditions. To overcome this obstacle, in 2016, Zhang [31] et al. designed probe 10 based on benzothiazole and anthocyanine dyes as fluorophores, which can react with HSO3− in PBS solvent, but the response of probe 10 to HSO3− takes 15 min, LOD = 340 nM. Wang’s [42] group optimized and introduced TCF with strong electron-absorbing properties to combine with benzothiazole, which can detect HSO3− in the range of 5–40 μM, and the response time of probe 11 with HSO3− is only 3 min with LOD = 101 nM (Scheme 4).

2.2. Based on Coumarin Fluorophore

Coumarin was selected as a fluorophore due to its large Stokes shift, good solubility, high quantum yield, and excellent push–pull electron system. In the literature of the last 10 years summarized by me, the study of coumarin as a probe for fluorophores was mainly focused on 5 years ago. We classified coumarin fluorophore into the following categories based on the mechanism including intramolecular charge transfer (ICT), photon-induced electron transfer (PET), and fluorescence resonance energy transfer (FRET).

2.2.1. ICT Mechanisms

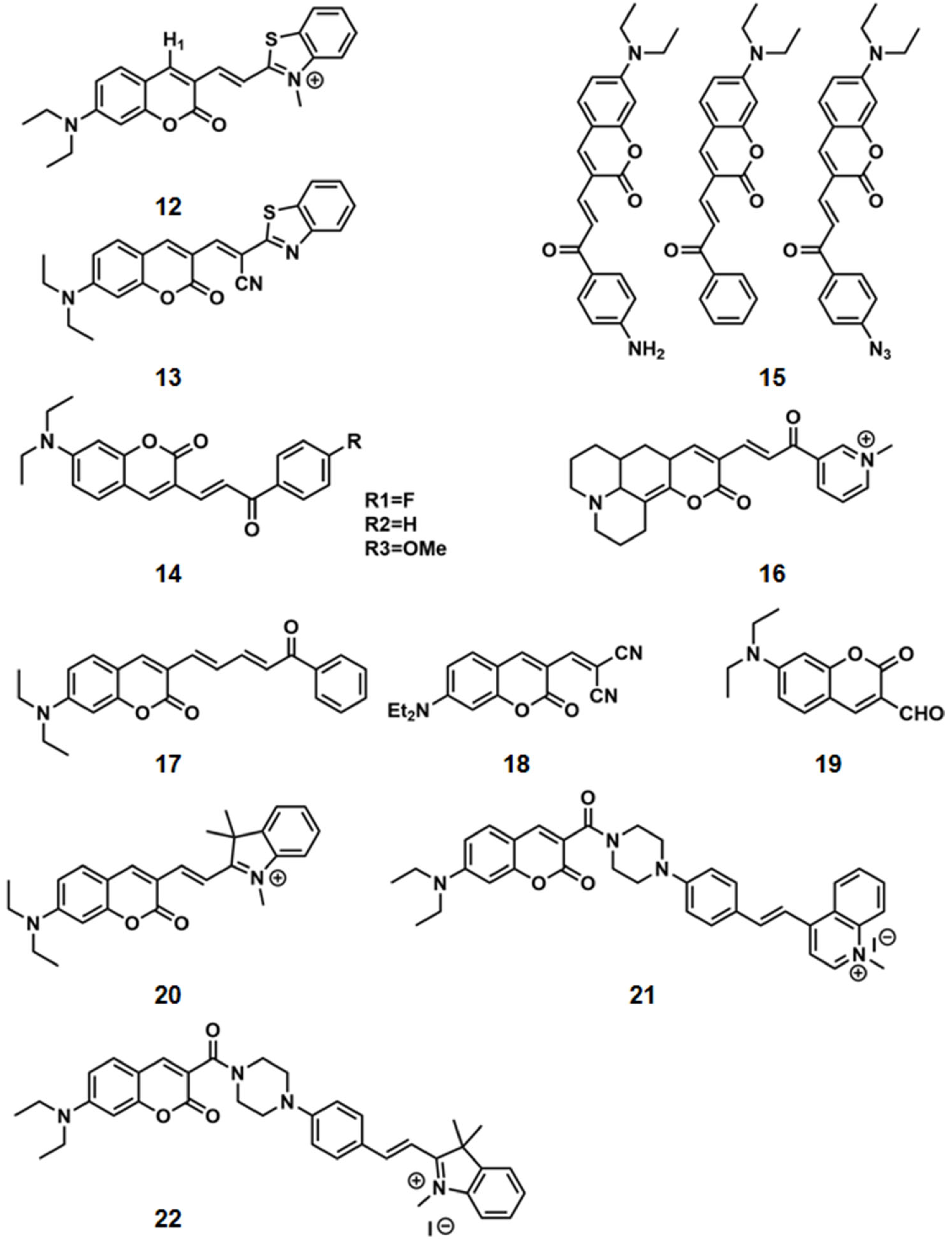

Based on ICT mechanisms, probes 12–22 were developed. Among them, probes 13, 16, and 19 are turn-on probes, and probes 12, 14–15, 17–18, and 20–22 are ratiometric. Probes 20–22 can localize to mitochondria, and probes 15–16 are mainly dedicated to distinguishing sulfites from sulfides.
In 2013, Sun [43] et al. designed probe 12 based on the addition-rearrangement cascade reaction, which reacted with sulfite and increased the emission ratio by about 1110-fold, but the probe could not react with HSO3− in one step, the reaction time required 5 min, and the detection limit was 380 nM. Due to the slow response time, the maximum emission wavelength of the probe gradually changes, which is not suitable for real time detection of sulfite content in cells. So in 2015, Wang’s [44] team made an improvement and designed probe 13, which incorporates an electron-withdrawing group (-CN) to accelerate the reaction with SO2 derivatives by activating carbon–carbon double bonds, so that the reaction is completed within 1 min.
The hydrophobic and alkaline microenvironment provided by the cationic surfactant micelles made the reaction of the probes with sulfite possible in an aqueous solution, thanks to the inspiration of Adamo and his colleagues’ research. Therefore, Tian and his team [45] designed and synthesized three kinds of probes 14 (as show in Scheme 5) and used CTAB micelles to assist the reaction of the probes with sulfite.
Comparative experiments conducted found that the probe did not respond to sulfite after 20 h in the absence of CTAB and that the probe had poor selectivity (mainly HS− and GSH had some effect on the detection) and a long reaction time. To solve the drawback of poor selectivity, next Tian and his team [46,47] designed probe 15 to distinguish sulfite from sulfide. Probe 15 covalently binds para-azidobenzenyl ketone to coumarin via a carbon–carbon double bond, distinguishing sulfite from sulfide by the different reaction sites (sulfite reacts with carbon–carbon double bond, sulfide reacts with azide group). Based on probe 14, probe 16 adds m-pyridine and pyridine units to replace benzene, which enhances the electron-absorbing properties and can be distinguished by the spectral changes at different detection intervals for sulfites and sulfides; it also provides good water solubility, and compared with the previous two probes that require the assistance of CTAB micelles, probe 16 can complete the reaction under PBS solvent. To solve the drawback of long reaction time, Sun [48] et al. introduced an additional carbon–carbon double bond to construct probe 17 based on probe 14, which extended the π-conjugation relationship, reacted with SO32−, significantly promoted the nucleophilic incorporation rate, shortened the probe conjugation structure, and advanced the response time to 30 min (Figure 1).
Probe 18 [49] and probe 19 [50] are both reactive probes. Probe 18 uses Michael addition to dicyano-vinyl group, which has high selectivity for sulfite and active sulfur. The reaction is completed within the 30 s. The detection mechanism of probe 19 is a special nucleophilic addition reaction with aldehydes. The optimum pH of this probe for detecting HSO3− is 5, which is not suitable for physiological environments. The detection limits of these two probes are too high, which limits their application.
Probes 20–22 are all mitochondrial-targetable. In 2015, Xu [51] et al. designed a probe with a detection limit of 90 nM and a response time of 3 min. This is the first probe that uses coumarin as a fluorophore and is localized to mitochondrial organelles. The probe not only showed a blue shift of 170 nm in the emission spectrum, but also two emission bands with good resolution after the addition of sulfite, which facilitated the fluorescence resolution (Figure 2). Yan’s team designed probes 21 and 22 in 2019 and 2020, respectively [52,53]. Both probes are near-infrared emission-mitochondria-targeted fluorescent probes based on FRET and ICT platforms. Probe 21 has a large Stokes shift, high photostability, chemical stability, and thermal cycling ability, and enables realizing the differentiation of endogenous L02 cells and cancer cells. Probe 22, based on probe 21, was used for exogenous detection of HeLa cells and endogenous detection of HepG2 and L02 cells, and the study yielded the result that the endogenous HSO3−/SO32− ratio detection can be successfully used to distinguish normal human cells and cancer cells. These mitochondria-targeting fluorescent probes have also made continuous breakthroughs in the detection limit.

2.2.2. PET Mechanisms

Photoelectron transfer refers to a class of fluorescent probes in which the recognition group and the fluorescent group are the electron donor and the electron acceptor, respectively, and the process of electron movement from the donor to the acceptor occurs, and this process usually causes the loss of fluorescence. When the recognition group is not bound to the target molecule, the electrons of the fluorescent group will leap to higher energy orbitals after being excited by light, making the electrons of the recognition group rapidly replenish the orbitals of the fluorescent group, while the electrons of its fluorescent group disappear from fluorescence because they cannot return to their original orbitals. When the recognition group binds to the target molecule, the PET process cannot be completed due to the decrease in electron-donating capacity, and the electrons on the fluorescent group can return to their original orbit, and fluorescence is restored (Scheme 6).

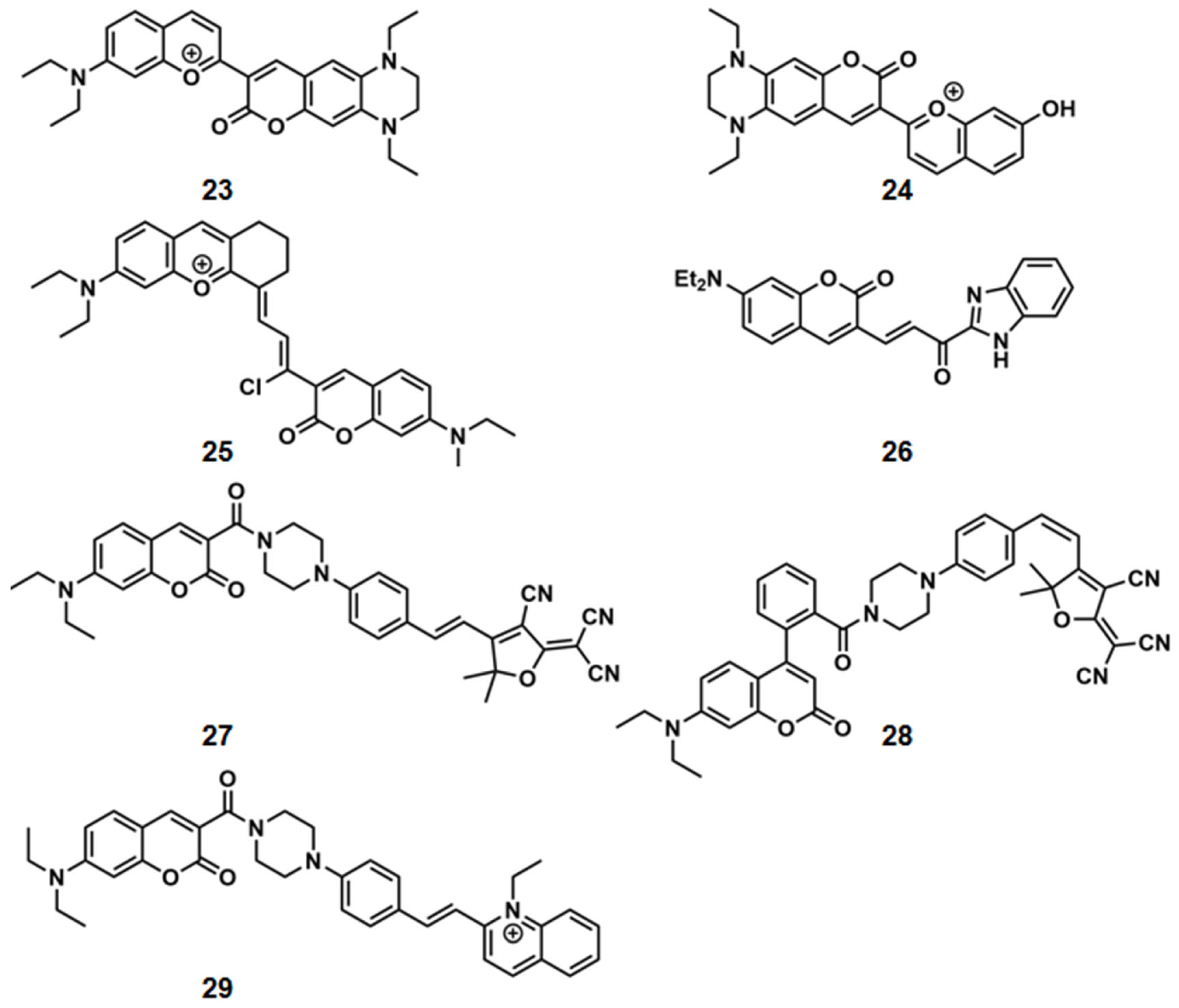

Probes 23–25 developed based on coumarin-benzopyridine fluorophore and PET mechanisms have the following advantages: good water solubility and mitochondrial-targeting, and all three probes are turn-on type fluorescent probes. Probes 23 and 24 have very similar structures, differing in that these two probes have different groups at the carbon 7 position. The hydroxyl-containing probe 23 [54] has a longer emission wavelength and shows strong fluorescence emission at 600 nm when reacting with HSO3−/SO32−. The experimental results indicate that probe 24 is more suitable for the detection of HSO3−/SO32− in some water and food samples. Compared to probe 24, probe 23 [55] can detect HSO3−/SO32− inside and outside the cell because probe 23 has a lower detection limit. It is worth mentioning that the probe responds instantaneously to fluorescence, and the fluorescence signal starts immediately after the addition of 0.4 equiv. of HSO3− and can be stabilized within 15 s. On the contrary, the reaction time of probe 25 [56] with HSO3− was 30 s and the detection limit was 42 nM, which was a mediocre performance compared to the other two probes.

2.2.3. FRET Mechanisms

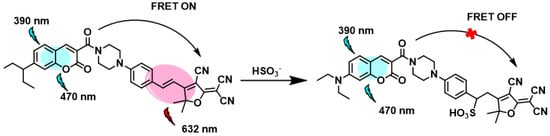

Ratiometric fluorescent probes 26–29 were designed based on FRET mechanisms. For biological applications, all of these probes can be used for intracellular imaging, and probe 28 can also be used for intra-mouse imaging. In terms of response time, probes 28 and 29 reacted with the SO2 derivatives for only a few periods. However, probes 26 and 27 required 1 h.
In 2015, Dai’s [57] group constructed the first two-photon ratiometric fluorescent probe 26 with a LOD of 53 nM in PBS buffer solution for single-photon excitation and 110 nm in PBS buffer solution for two-photon excitation.
In 2016, Zhao’s [58] group reported probe 27, which has the potential to be used for differentiation of hepatocellular carcinoma cells and normal cells, incubated HepG2 cells and L02 cells with the probe, respectively, and found that only HepG2 showed significant changes in fluorescence after incubation with the probe. However, the response time of this probe to detect HSO3− takes 1 h, limiting its application. To address this problem, Yang’s [59] group constructed probe 28, the first donor structure to construct benzoic acid as a FRET fluorescent probe. The probe can reach stability with SO32−/HSO3− reaction within 3 min and has a Stokes shift of 239 nm. Importantly, probe 28 can detect SO2 derivatives in mice (Figure 3).
Recently, Ye’s [60] group investigated the metabolism of Cys to SO32−/HSO3− in mitochondria, and probe 29 is expected to be an effective tool for this purpose. Probe 29 detects SO32−/HSO3− by dual-channel imaging in MCF-7 cells. Besides, LOD = 26.3 nM, which is lower than all the probes mentioned above (Scheme 7).

2.3. Based on Hemicyanine Fluorophore

Hemicyanine stems are a series of anionic probes containing anthocyanin dyes due to their long emission wavelength, potential over-fluorescence, specific binding sites, and good water solubility [61]. Hemicyanine fluorophores can capture nucleophilic reagents via 1,2—addition or 1,4—addition [62,63]. We classified hemicyanine fluorophore into the following categories based on the mechanism including intramolecular charge transfer (ICT), and fluorescence resonance energy transfer (FRET).

2.3.1. ICT Mechanisms

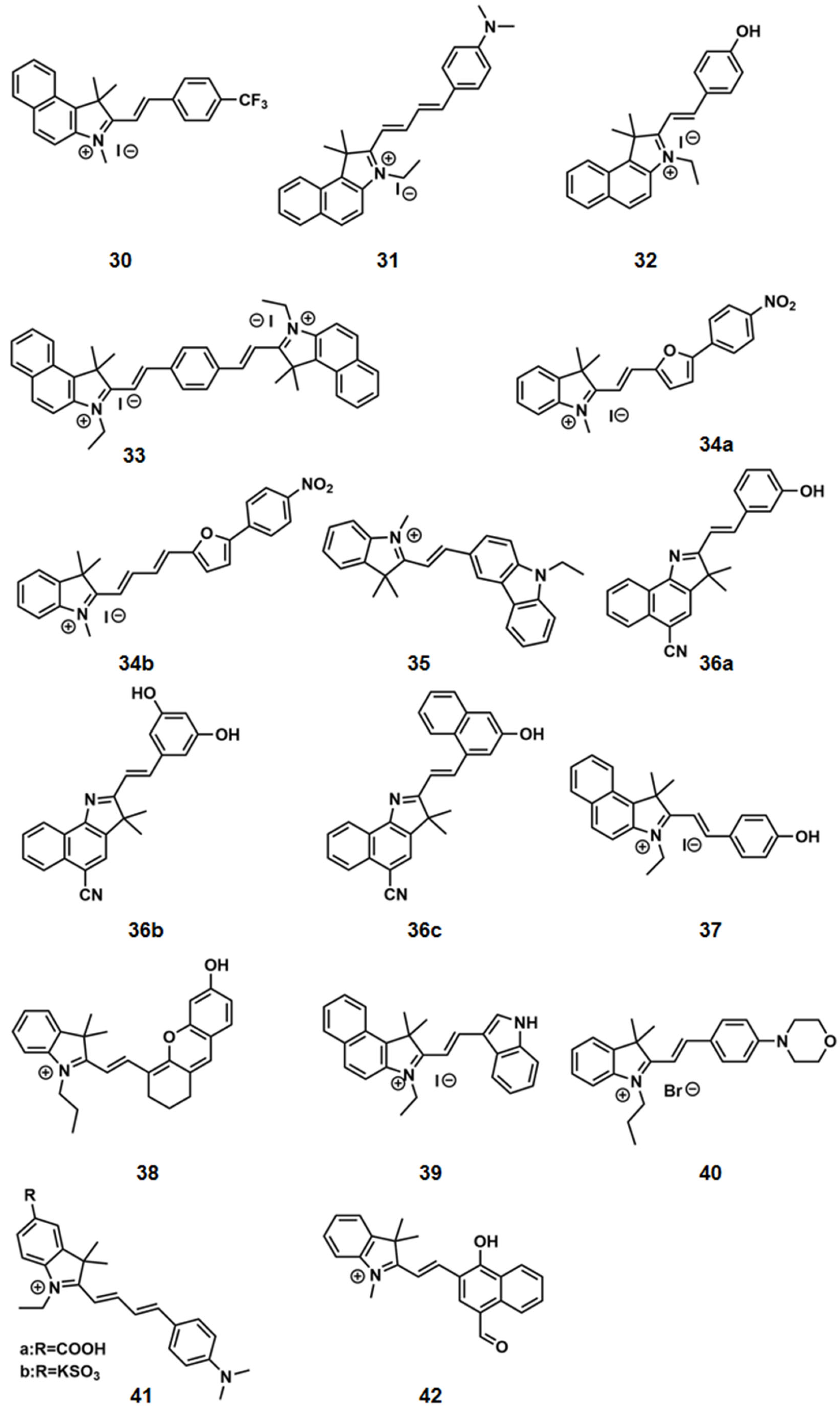

Based on ICT mechanisms, probes 30–42 were exploited. In general, probes 31, 32, 38, 40, 42 were turn-on type, probes 30, 33–37, 39, 41 are ratiometric type.
In 2014, Sun [61] et al. developed probe 30 based on hemicyanine dye, which can detect HSO3− in a 100% aqueous medium with a fast response time (within 90 s), and two well-separated emission peaks (Δλ = 106 nm) can be obtained before and after the addition of HSO3−, and they prepared a simple and rapid test paper for the detection of HSO3 −.
In 2016, Samanta [64] et al. developed a multifunctional fluorescent probe 31 with highly sensitive dual recognition sensing of SO32− and SO42−/HSO4−. The sensing mechanism of probe 31 for the anion SO32− is essentially due to the breakage of the conjugate extension limiting the ICT, which in turn leads to the fluorescence on response. In contrast, the presence of SO42−/HSO4− introduces the aggregation-induced emission (AIE) phenomenon to the system, which results in a turn-on fluorescence response. However, the detection limit of this probe was high (LOD = 106 nM). To further optimize it, in 2017, Yu [65] et al. developed a fluorescent probe capable of detecting SO32−/HSO3− and HSO4− simultaneously using different emission channels. The detection limit of this probe was as low as 2.82 nM.
Because the positive charge of the anthocyanine derivatives can be localized to mitochondria, probes 33–36 had mitochondrial targeting. As shown by Scheme 8, probe 33 [66] was a symmetrical semicarbazide structure that allows the probe to undergo two nucleophilic addition reactions with HSO3−, thus enabling the detection of large concentrations of HSO3−/SO32− and is the probe with the fastest response time (<30 s). In 2017, Yang [67] et al. developed two ratiometric probes 34a and 34b based on the electron-poor double bond structure. They studied the spectral properties of both probes and found that 34a has an emission at 568 nm, while 34b has an emission at 644 nm. This result leads to the conclusion that the emission spectra appear red shifted with the extension of the double bond. Additionally, the probe was used for fluorescence ratio imaging of endogenous HSO3− in BT-474 cells to detect endogenous sodium bisulfite. Probe 35 [68] allows for real-time monitoring of SO32−/HSO3−. In 2021, Lin [69] et al., based on the semicarbazide backbone, developed three probes 36a, 36b, and 36c (see figure Scheme 8). 36a is a ratiometric probe with LOD = 0.27 mM and a response time of 50 min, and 36b is a turn-on probe with LOD = 38.41 nM and a response time of 20 min, and the localization experiment found that the probe not only can localize to mitochondria but also have co-localization ability to Golgi apparatus, endoplasmic reticulum and other cell organelles.
In 2019, Qin’s group [70] developed a ratiometric fluorescent probe 37 that reacted with 500 μM SO32− and the color of the solution changed significantly from pink to colorless, probe 37 has the advantages of low LOD, high sensitivity, and high selectivity in HepG2 cells, and detects SO32−/HSO3− reaction very quickly (within 60 s). In contrast to probe 37, probe 38 [71] applied HSO3− fluorescence imaging in live mice, which was the first time used for imaging BALB/c mice to detect SO32−/HSO3− in live mice.
In 2020, the Wang’group [72] and Zhou’group [73] designed probes 39 and 40, respectively, for bisulfite detection. Probe 39 is a ratiometric fluorescent probe that eliminates background interference and has a detection limit of 80 nM. The probe reacts rapidly with bisulfite and reaches stability within 2 min. In contrast to probe 39, the turn-on probe 40 was able to monitor bisulfite in real time (reaction completed within 30 s), and, the probe was imaged in vivo in live mice, and the results suggest that the probe can be used for the detection of bisulfite in serum of live mice. Meanwhile, in the study of Pan et al. [74], probes 41a and 41b with the molecular structure as shown in the Scheme 8 were designed. Both probes have a large Stokes shift (250 nm), and it was shown that 41a containing carboxyl group responded more significantly to the fluorescence intensity change of HSO3− in pure water than 41b containing sulfoxide group, and 41a has lower cytotoxicity and better biocompatibility compared to 41b for the detection of HSO3− in living cells, in addition to better response characteristics. However, when performing the optimization of the assay conditions, it was found that the assay was affected by the pH environment. To solve this problem, Shi [75] et al. designed to probe 42 with good acid and alkaline resistance within pH 3–11.

2.3.2. FRET Mechanisms

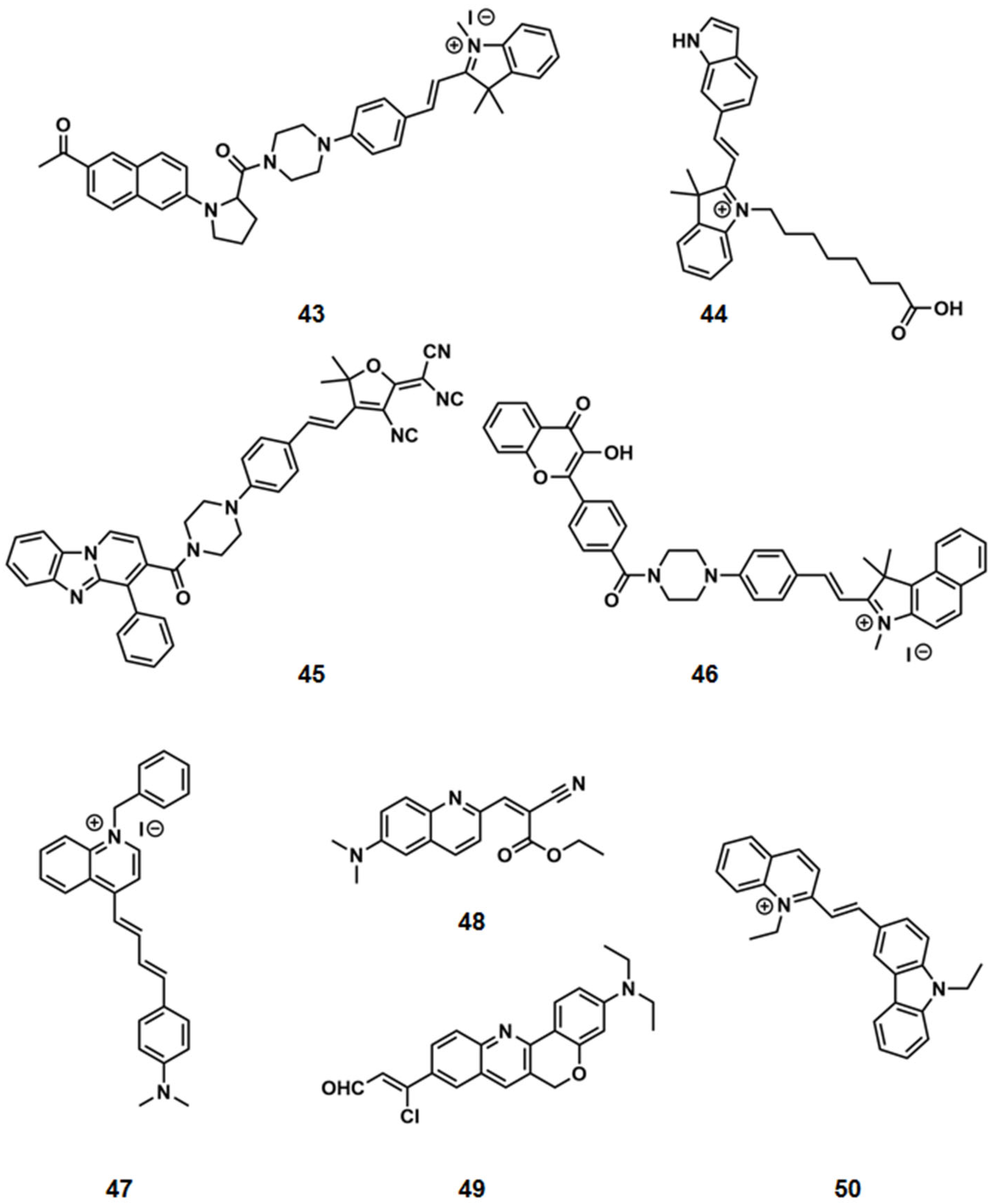

Probes 43–46 were developed based on FRET mechanisms, where 43 is the turn-on type and 44–46 is the ratiometric type. The detection limit of probe 44 is 0.78 nM, the response time of probe 45 is 2 min, probe 46 has lipid droplet targeting, and probe 43 is a two-photon fluorescent probe.
In 2016, Zhu [76] et al. first reported a two-photon fluorescent probe 43 for imaging SO2 derivatives in biological tissues. The authors chose the acetyl fraction as the two-photon donor and the semicarbazone derivative as the quencher and recognition unit. Nuclear magnetic resonance spectroscopy and mass spectrometry demonstrated that the probe reacts with HSO3− to disrupt the conjugate structure and the HOMO-LUMO energy gap of the semicarbazide derivative energy receptor increases, inhibiting the FRET process. Notably, probe 43 was successfully applied with the detection of HSO3−/SO32− imaging in HepG2 cells and rat liver tissue sections.
In 2018, Zhang’s [77] group constructed probe 44, which detects exogenous SO32− in HeLa cells, and successfully detected cysteine metabolism in BRL cells. However, incubation of the probe with cells requires 4 h, limiting its application. Probe 45 [78] can detect HSO3−/SO32− “naked eye” with large Stokes shift (260 nm). However, the experimental results found that GSH, Hcy, and Cys can affect the detection.
Lipid droplets are dynamic subcellular structures of lipid metabolism, and lipid droplet abnormalities are associated with a variety of diseases such as obesity, fatty liver, and cardiovascular disease. Recently, Lin’s [79] group constructed probe 46, which favors lipid droplets, the first probe constructed in concert with the FRET and ICT fluorescence platforms. Importantly, probe 46 successfully detected exogenous SO2 derivatives of HeLa cells and endogenous SO2 derivatives of HepG2 and L02, which are important for monitoring exogenous and endogenous HSO3−/SO32− and even diagnosing cancer cells.

2.4. Based on Quinoline Fluorophore

Tryptamine quinoline, as a typical ICT dye, has a large Stokes shift. Turn-on fluorescent probes 47–50 were designed based on quinoline and its derivatives, with probe 47 had mitochondrial-targeting and probe 49 had two-photon properties.
The mitochondria-targeted fluorescent probe 47 [80] has fluorescence emission in the near-infrared and is stable in the pH 3–10 range in response to SO32−/HSO3−; however, the probe takes up to 2 h to enter the cell when detecting SO32−/HSO3− in HepG2 cells and zebrafish (Figure 4). It is known that background interference increases with longer detection cycles. In 2018, Xu’s group [81] designed probe 48 for this problem based on quinoline derivatives, which have an ester head and a dimethylamine tail in the structure of probe 48, both of which have good cell permeability. Confocal fluorescence imaging performed to detect SO32− within HeLa cells showed that the probe was able to enter the cells within 2 min, largely shortening the detection time and reducing background interference. In addition, the authors also verified the low toxicity of probe 48 in HeLa, HEK293T, A549, and L02 cells of each cell.
In 2019, Zhang [82] et al. designed probe 49 to reveal the two-photon nature of tryptamine quinoline derivatives for the first time, and secondly, probe 49 introduces β-chlorovinyl aldehyde as a reaction site with the introduction of halogen, which retains the reaction properties of the aldehyde group with SO2 derivatives while introducing halogen for higher selectivity for thiol species. Compared with single photons, the two-photon penetration depth is stronger penetration, so the probe reacts with SO2 derivatives extremely fast (<5 s). To demonstrate the utility of the probe, the authors successfully used it for two-photon imaging of SO2 derivatives in live zebrafish.
In 2019, Zhou [83] et al. developed probe 50 using the mechanism of nucleophilic addition reaction of HSO3− with α,β—unsaturated C=C. Probe 50 is a responsive fluorescent probe with a long emission wavelength of 598 nm and also has the advantages of fast response time, low detection limit, high sensitivity, and high selectivity (Scheme 9).

2.5. Based on Naphthalimide Fluorophore

2.5.1. ICT Mechanisms

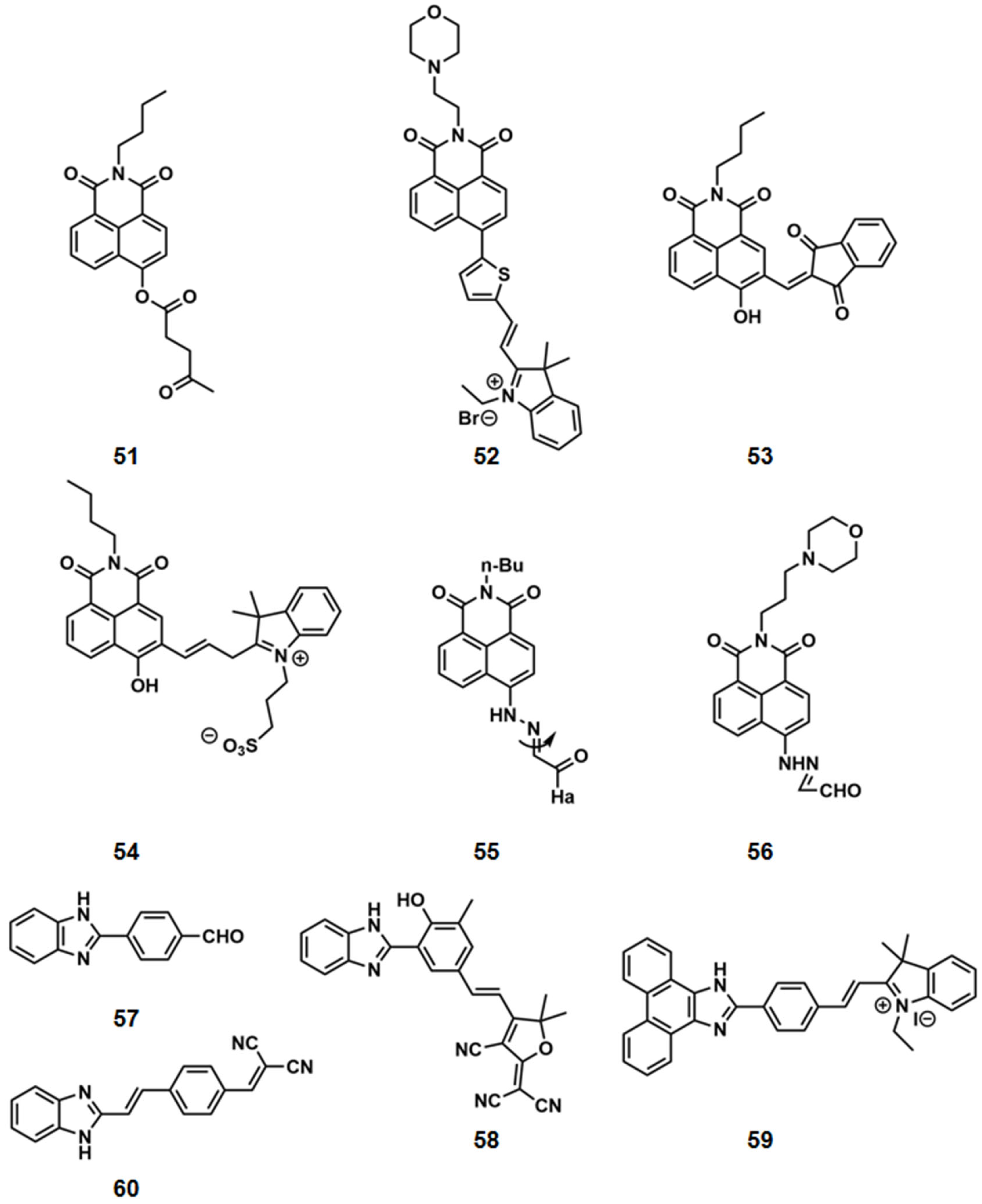

Probes 51–54 were designed based on naphthalimide and its derivatives, where 52 is the turn-on type and 51 and 53–54 are the ratiometric types.
Hou’s group [84] and Zhang’s group [85] developed probes 51 using 4-hydroxynaphthalimide and levulinic acid in 2013 and 2014, respectively, and Hou investigated the sensing properties, selectivity, sensitivity, pH, and utility of the probes for HSO3− in HEPES-buffered. Furthermore, Zhang et.al studied the spectral response, response time, sensitivity, selectivity, and utility of the probe for HSO3− in ethanol and water (3:7). All proved that probe 51 is a good tool for the detection of HSO3−.
Abnormal SO2 levels further impair local immune function by affecting the amount and activity of lysosomal enzymes in macrophages, so it is important to monitor acidic lysosomal SO2 levels in biological systems. In 2017, Li’s group [86] proposed a fluorescent probe 52 with lysosomal targeting consisting of a morpholine unit, a semicyanine, and a naphthalimide fluorophore, and the probe 52 exhibits intense fluorescence emission at 524 nm only in the presence of both SO2 and H+. This is an AND-logic-based design concept. Besides, probe 52 has the advantages of high selectivity, fast response, and very low detection limit.
Reactive oxygen is a single-electron reduction product of molecular oxygen, and the dose, type, location, and duration of reactive oxygen species differ in the effects they cause on cells. HSO3− is crucial as an antioxidant in regulating the balance of redox status in cells. Therefore, the monitoring of HSO3−/ROS (reactive oxygen) is of great interest. In 2021, probes 53 and 54 were proposed based on naphthalimide, respectively. Probe 53 designed by Wang [87] et al. is a reversible fluorescent probe that can be used to evaluate the redox state of HSO3−/H2O2 modulation in vitro and in vivo. Probe 53 itself can produce strong fluorescence emission at 580 nm, and after the C=C nucleophilic addition reaction with HSO3−, the fluorescence at 580 nm gradually decreases, and the strong fluorescence is emitted at 510 nm. Furthermore, the nucleophilic addition product can be oxidized by H2O2 to form the original C=C of the probe, and the fluorescence at 580 nm is re-enhanced. Moreover, HSO3−/H2O2 imaging was successfully performed in adult zebrafish and nude mice. Unlike probe 53, probe 54 was proposed to identify HSO3− and ClO− by Wu [88] et al. Using different emission channels, probe 54 caused strong fluorescence emission at 515 nm when interacting with ClO− and at 548 nm when interacting with HSO3−. In addition, the selectivity experiments showed that the probe has high selectivity and strong anti-interference ability. Notably, the authors successfully detected HSO3− and ClO− in plasma using probe 54 and performed intracellular imaging. The probe was also able to recognize endogenous ClO− in vitro, thus distinguishing tumor cells and normal tissue cells.

2.5.2. ESIPT Mechanisms

The C=N isomerization could be inhibited by an intramolecular N–H...N–C hydrogen bond, the formation of hydrogen bonds can limit intramolecular rotation and rigidify the molecular structure, thus helping to minimize the nonradiative energy loss of the exciton and maximize the probability of its radiative leap (open emission). This interaction has been successfully applied to the design of AIE and ESIPT fluorescent materials. Turn-on fluorescent probes 55, 56 were designed based on ESIPT mechanisms.
In 2012, Sun’s [89] group reported for the first time the naphthalimide derivative probe 55 for the detection of HSO3− content in white sugar, and the reaction products of probe 55 with HSO3− were determined. Fluorescence titration and absorption titration experiments showed that probe 55 has good response properties. Recently, Huo [90] et al. constructed a probe 56 with the same structure, and probe 56 could detect SO32− in HeLa cells and mice while being able to localize to the lysosome with a response time of the 30 s (Figure 5).

2.6. Based on Benzimidazole Fluorophore

Probes 57–60 were designed based on benzimidazole and its derivatives, of which 60 were turn-on type and 57–59 were ratiometric type.
Back in 2011, probe 57 [91] was designed based on the selective reaction of SO32− with aldehydes. The reaction of probe 57 with SO32− can be stabilized within 5 min, and the detection range for SO32− is 2−200 μmol/L. Earlier developed probes had many shortcomings, and Wang et al. studied the sensing response of the probe to bisulfite in an ethanol and acetate buffer solution at pH 4.6 (20 mmol/L), thus limiting the detection of probe 57 in a physiological environment. Thus, after continuous progress, Niu [92] et al. designed probe 58 for DMF/PBS at pH = 7.4, and probe 58 emits at 664 nm, which is due to its molecular structure of 2-(2-hydroxy-phenyl)-benzoimidazole(HBN)-CHO and TCF (2-dicyanmethylene-3-cyano-4,5,5-trimethyl-2,5dihydrofuran) combined by unsaturated C=C bonds, which can red shift emission, and importantly, probe 58 successfully detected BEL-7402 intracellular and exogenous SO2 derivatives.
In 2019, Kavitha’s group [93] designed a probe 59 using phenanthrene imidazole as a fluorescent group with the advantages of high selectivity and fast response. The authors concluded by fluorescence, 1H NMR, and ESI-mass spectrometry studies that the mechanism of interaction of probe 59 with SO32− is based on the nucleophilic addition of carbon-carbon double bonds, blocking the π-conjugation. Moreover, the probe successfully monitored SO32− in real samples and HeLa cells.
The dicyanovinyl group is a group with strong electron-absorbing properties, which can reduce the electron density of the carbon–carbon double bond and therefore is easy to undergo nucleophilic addition reactions. Probe 60 [94] was developed based on the dicyanovinyl group and the maleimide moiety to separate bisulfite and thiol amino acids. The study examined the absorption spectra and fluorescence emission spectra of the probe with sodium bisulfite and thiol amino acids, and both observed changes in the spectra, but differed in the time at which the changes occurred; these changes were observed approximately 30 min after the addition of thiol amino acids, whereas in the case of sodium bisulfite, the changes were observed immediately. More importantly, probe 60 measures the level of HSO3− in HeLa cells (Scheme 10).

2.7. Based on Imidazole Fluorophore

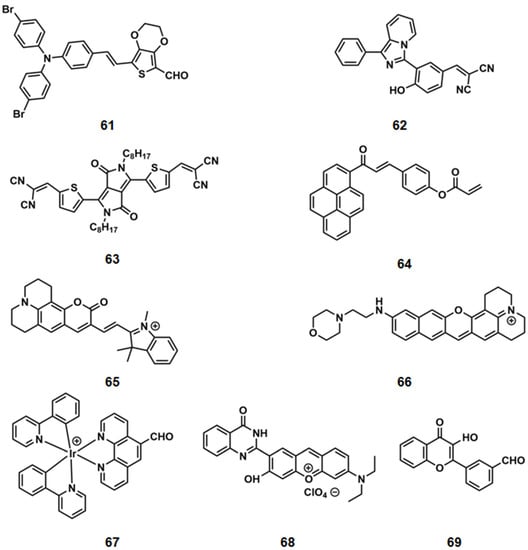

The imidazopyridine derivatives have good photophysical properties, large Stokes shift, good photostability, and high fluorescence quantum yields. In 2019, Chen [95] et al. synthesized turn-on probes 61 using imidazopyridine derivatives as fluorescent agents and malononitrile moieties as SO32− reactive sites, probe 61 has the advantages of large Stokes shift, high sensitivity degree, and high selectivity, and successfully determined SO32− in MCF-7 cells and zebrafish (Figure 6).

2.8. Based on Triphenylamine Fluorophore

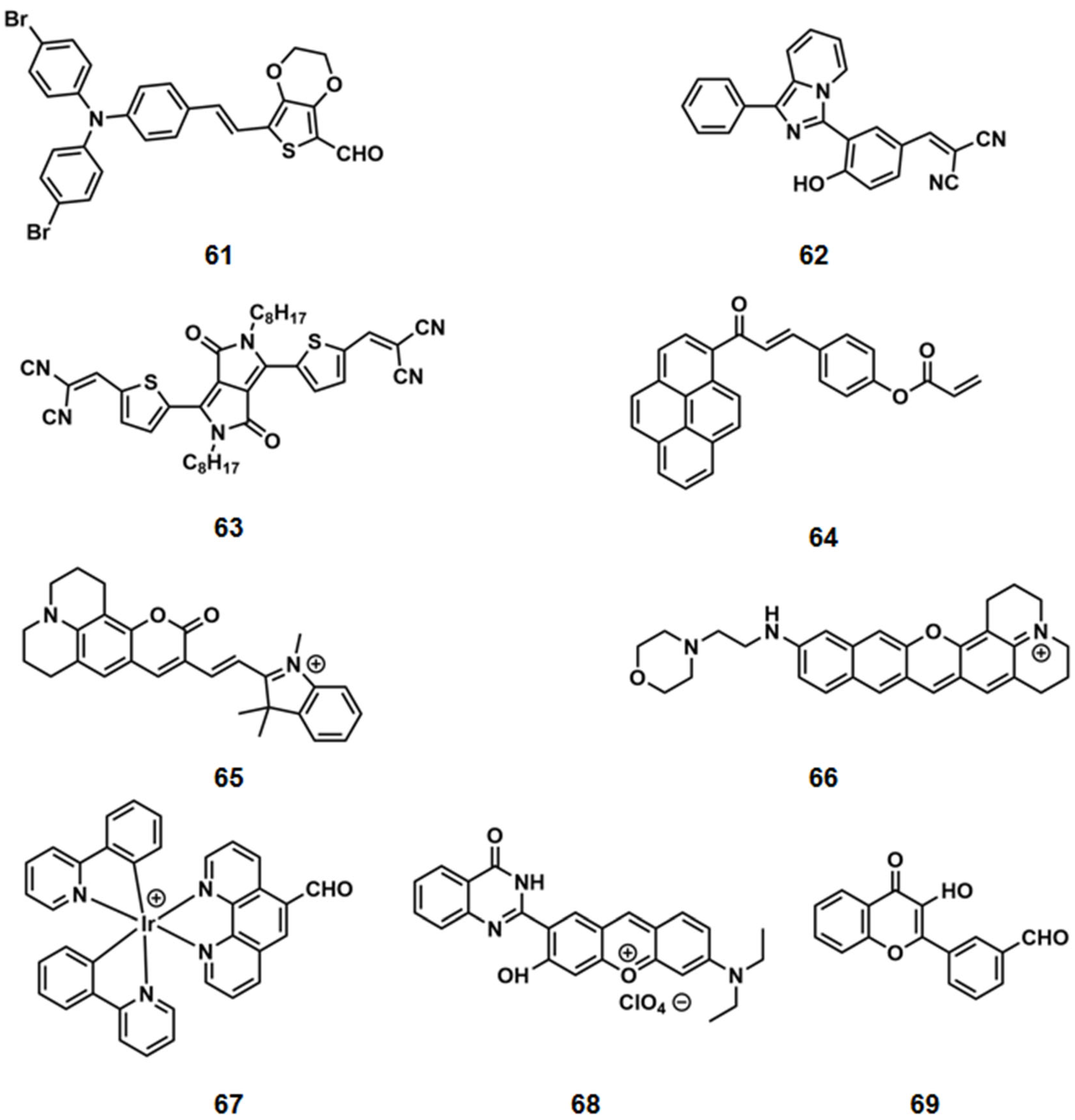

The ratiometric fluorescent probe 62 [96], a dual-channel chemosensor with both fluorescence and colorimetric response, is designed with an electron-rich triphenylamine-thiophene as the fluorophore and electron-donating group and an aldehyde group as the electron acceptor. With the increase of HSO3− concentration, the maximum emission wavelength of probe 62 was shifted from 560 nm to 440 nm, and at the same time, the color changed from yellow to colorless. It is worth mentioning that the experimental results demonstrate that the addition reaction of an aldehyde with HSO3− is reversible.

2.9. Based on Thiophene Fluorophore

Thiophenes are ideal building blocks for the synthesis of conjugated π-systems [97]. In 2021, Wang [98] et al. synthesized probes 63 with thienyl-substituted diketopyrrolopyrrole. They investigated HSO3− detection and imaging by probe 63 in normal hepatocytes and hepatocellular carcinoma cells, and found that there is a difference in endogenous HSO3− production by HepG2 and L02 cells, and the concentration of endogenous HSO3− in HepG2 cells is much higher than that in L02 cells, which is important for the diagnosis of hepatocellular carcinoma.

2.10. Based on Pyrene Fluorophore

Pyrene and its derivatives are important compounds with a huge conjugation system and stable photophysical properties [99,100]. Therefore, they are often used as fluorophores to design fluorescent probes for the recognition of anions, cations, and neutral small molecules.
In 2021, Chao’s [101] group constructed a probe 64 based on pyrene derivatives. The results of mass spectrometry and infrared spectroscopy experiments showed that the reaction mechanism of probe 64 with SO32− was the nucleophilic attack of unsaturated carbon–carbon double bonds in the α,β−keto structure by SO32−. More notably, endogenous SO32− could be detected in HepG2 cells.

2.11. Based on Julolidine Fluorophore

In 2018, Yao’s [102] group designed a ratiometric fluorescent probe 65 that successfully detected SO32− within HepG2 and L929 cells and was able to localize to mitochondria. The experimental results show that probe 65 detects SO32− in a two-step reaction, first adding in the C=N bond to shorten the conjugate structure of the probe, and then an intramolecular rearrangement occurs to further shorten the conjugate structure, resulting in a significant blue shift in the absorption and emission spectra. In 2019, Tamima’s [103] group designed a ratiometric fluorescent probe 66 that successfully detected SO2 derivatives in HeLa cells and was able to localize them to lysosomes. Probe 66 is based on the linear shape of the benzopyran dye system, which is a π-extended pyrroline system. Probe 66 has the following advantages: emission in the near-infrared wavelength range, the ability of the morpholine group in the structure to act as a partial quencher of PET, two-photon excitation, fully spectrally separated scale imaging, high sensitivity, and selectivity.

2.12. Based on Ir(III) Complex Fluorophore

Due to the high photoluminescence efficiency, long lifetime, and significant Stokes, bis-cyclometalated Ir(III) complex are increasingly used for the detection of analytes. In 2018, Gao’s group [104] constructed the turn-on fluorescent probe 67. Probe 67 has the typical characteristics of Ir(III) complexes, and upon interaction with HSO3−, the probe absorbs at 377, 408, and 466 nm. Meanwhile, probe 67 can selectively detect HSO3−, and the experimental results found that HSO3− is mainly present as SO32− when the pH is close to neutral, but SO32− does not respond to the probe.

2.13. Based on Rhodamine Fluorophore

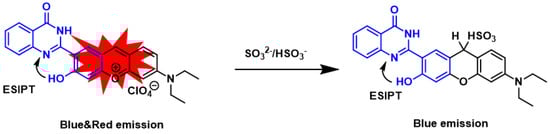

In 2019, Liu’s [105] group reported a rhodamine probe 68 based on the Michael addition reaction. Probe 68 enables the detection of SO32− levels in HepG2 cells. The probe itself had two emission peaks at 450 nm and 566 nm, respectively, and the fluorescence intensity at 566 nm gradually decreased with the addition of SO32− and remained unchanged at 450 nm. The response time of this probe to sulfite is completed within the 30 s, which is better than some of the fluorescent probes reported so far.

2.14. Based on Flavor Fluorophore

In 2015, Xu [106] et al. constructed a probe 69 capable of detecting HSO3− and Al3+ simultaneously, enabling the simultaneous detection of negative ions and cations by a single probe. However, the results of competitive and selective experiments show that Fe3+, Cu2+, and Mn2+ have some influence on the detection and poor selectivity. This design concept has great significance, but it needs continuous improvement (Scheme 11).

3. Conclusions and Prospect

People are increasingly concerned about diet and health, and sulfite, as a common food antioxidant additive and preservative, can also be produced endogenously and is closely related to peoples’ daily life, so it is necessary to develop a simple, efficient, and inexpensive testing instrument. In the past decade, sulfite fluorescent probes have developed rapidly. This paper reviews the research progress of sulfite small-molecule fluorescent probes in the last decade.
We found that the probes constructed based on the ICT mechanism are the most basic and extensive. Researchers are continuously studying the composition of fluorescent groups with recognition groups and linkage bonds. For the first 5 years, mostly single-emission turn-on fluorescent probes were also used only to detect sulfite components in real samples (e.g., water, sugar, wine). In the latter 5 years, ratiometric fluorescent probes have been continuously developed for their advantages. More and more excellent fluorophores were also explored and gradually applied to image endogenous sulfites in cells, tissues, zebrafish, and mouse models. In addition, fluorescent probes with organelle (e.g., mitochondria, lysosomes, lipid droplets) targeting, two-photon, and reversible cycling have been introduced. Importantly, the response time of fluorescent probes for sulfite reactions is getting shorter, the detection limits are getting lower, and the water solubility is getting better. More notably, in the past two years, scholars were keen to develop red or near-infrared ratiometric fluorescent probes with excellent analytical properties such as low background interference, low biological damage, and deep tissue penetration, which are more suitable for in vivo imaging. However, a sulfite fluorescent probe that combines all the advantages is still being explored. Therefore, there are still the following challenges and difficulties in design and application: (1) When imaging sulfites in cells or tissues, the probe incubation time is slightly longer (>30 min), which is not conducive to application for real time monitoring in vivo. (2) The components in serum are complex and low, and the probes summarized do not currently detect sulfite concentrations in serum.
Combining the above advantages and disadvantages of sulfite small-molecule fluorescent probes, we believe that there is still much room for progress and development in this field. Future goals can be devoted to the construction of optical imaging of sulfite in vivo with low detection limits, high selectivity, no damage, stability in physiological environments, reversible cycling, and can be monitored in real time and used for sulfite.

Author Contributions

T.L.: conceptualization, investigation, writing—original draft, validation, visualization. X.C.: investigation, validation. K.W.: writing—review and editing. Z.H.: project administration, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

General Program of Jiangsu Health Commission (H2019069). This work is supported by the Major Projects of Precision Medicine of Wuxi Health Committee, China (No. J202001), the Top Talents Project of Wuxi Taihu Lake Talent Plan.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Ghanbari, G.M.; Heibati, B.; Naddafi, K.; Kloog, I.; Oliveri, C.G.; Polosa, R.; Ferrante, M. Evaluation of Chronic Obstructive Pulmonary Disease (COPD) Attributed to Atmospheric O3, NO2, and SO2 Using Air Q Model (2011–2012 Year). Environ. Res. 2016, 144, 99–105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wang, X.; Tang, H.; Huang, X. Water-Soluble Fluorescent Probes for Bisulfite and Viscosity Imaging in Living Cells: Pyrene Vs. Anthracene. Spectrochim. Acta A 2021, 260, 119902. [Google Scholar] [CrossRef] [PubMed]
  3. Vincent, A.S.; Lim, B.G.; Tan, J.; Whiteman, M.; Cheung, N.S.; Halliwell, B.; Wong, K.P. Sulfite-Mediated Oxidative Stress in Kidney Cells. Kidney Int. 2004, 65, 393–402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Yang, X.; Cui, Y.; Li, Y.; Zheng, L.; Xie, L.; Ning, R.; Liu, Z.; Lu, J.; Zhang, G.; Liu, C.; et al. A New Diketopyrrolopyrrole-Based Probe for Sensitive and Selective Detection of Sulfite in Aqueous Solution. Spectrochim. Acta A 2015, 137, 1055–1060. [Google Scholar] [CrossRef] [PubMed]
  5. Tavallali, H.; Deilamy-Rad, G.; Parhami, A.; Lohrasbi, S. A Novel and Simple Fluorescent and Colorimetric Primary Chemosensor Based On Congo-Red for Sulfite and Resultant Complex as Secondary Fluorescent Chemosensor Towards Carbonate Ions: Fluorescent Probe Mimicking INHIBIT Logic Gate. Talanta 2016, 149, 168–177. [Google Scholar] [CrossRef]
  6. Lien, K.; Hsieh, D.P.H.; Huang, H.; Wu, C.; Ni, S.; Ling, M. Food Safety Risk Assessment for Estimating Dietary Intake of Sulfites in the Taiwanese Population. Toxicol. Rep. 2016, 3, 544–551. [Google Scholar] [CrossRef] [Green Version]
  7. Bauchart-Thevret, C.; Stoll, B.; Burrin, D.G. Intestinal Metabolism of Sulfur Amino Acids. Nutr. Res. Rev. 2009, 22, 175–187. [Google Scholar] [CrossRef] [Green Version]
  8. Yang, X.; Feng, P.; Ma, L.; Kang, T.; Hu, S.; Hai, A.; Ke, B.; Liu, J.; Li, M. Biological Applications of a Turn-On Bioluminescent Probe for Monitoring Sulfite Oxidase Deficiency in vivo. Eur. J. Med. Chem. 2020, 200, 112476. [Google Scholar] [CrossRef]
  9. Ghorai, A.; Mondal, J.; Chandra, R.; Patra, G.K. A Reversible Fluorescent-Colorimetric Imino-Pyridyl Bis-Schiff Base Sensor for Expeditious Detection of Al3+ and HSO3− in Aqueous Media. Dalton T. 2015, 44, 13261–13271. [Google Scholar] [CrossRef]
  10. Deng, Z.; Li, F.; Zhao, G.; Yang, W.; Hu, Y. A Mitochondrion-Targeted Dual-Site Fluorescent Probe for the Discriminative Detection of SO32- and HSO3− in Living HepG-2 Cells. RSC Adv. 2020, 10, 26349–26357. [Google Scholar] [CrossRef]
  11. Xu, J.; Yuan, H.; Zeng, L.; Bao, G. Recent Progress in Michael Addition-Based Fluorescent Probes for Sulfur Dioxide and its Derivatives. Chin. Chem. Lett. 2018, 29, 1456–1464. [Google Scholar] [CrossRef]
  12. Li, K.; Li, L.; Zhou, Q.; Yu, K.; Kim, J.S.; Yu, X. Reaction-Based Fluorescent Probes for SO2 Derivatives and their Biological Applications. Coordin. Chem. Rev. 2019, 388, 310–333. [Google Scholar] [CrossRef]
  13. Kalimuthu, P.; Tkac, J.; Kappler, U.; Davis, J.J.; Bernhardt, P.V. Highly Sensitive and Stable ElectroChemical Sulfite Biosensor Incorporating a Bacterial Sulfite Dehydrogenase. Anal. Chem. 2010, 82, 7374–7379. [Google Scholar] [CrossRef]
  14. Wang, R.; Wang, R.; Ju, D.; Lu, W.; Jiang, C.; Shan, X.; Chen, Q.; Sun, G. “ON–OFF–ON” Fluorescent Probes Based On Nitrogen-Doped Carbon Dots for Hypochlorite and Bisulfite Detection in Living Cells. Anal. 2018, 143, 5834–5840. [Google Scholar] [CrossRef]
  15. Dalaman, U.; Özdoğan, H.; Sircan, A.K.; Şengül, S.A.; Yaraş, N. Sulfur Dioxide Derivative Prevents the Prolongation of Action Potential During the Isoproterenol-Induced Hypertrophy of Rat Cardiomyocytes. Anacad. Bras. Cienc. 2021, 93, e20201664. [Google Scholar] [CrossRef]
  16. Liang, J.; Liu, L.; Kang, X.; Hu, F.; Mao, L. Mechanism Underlying the Effect of SO2-Induced Oxidation on Human Skin Keratinocytes. Medicine 2020, 99, e23152. [Google Scholar] [CrossRef]
  17. Zhu, Z.; Zhang, L.; Chen, Q.; Li, K.; Yu, X.; Tang, C.; Kong, W.; Jin, H.; Du, J.; Huang, Y. Macrophage-Derived Sulfur Dioxide is a Novel Inflammation Regulator. Biochem. Bioph. Res. Co. 2020, 524, 916–922. [Google Scholar] [CrossRef]
  18. Tan, L.; Lin, W.; Zhu, S.; Yuan, L.; Zheng, K. A Coumarin-Quinolinium-Based Fluorescent Probe for Ratiometric Sensing of Sulfite in Living Cells. Org. Biomol. Chem. 2014, 12, 4637. [Google Scholar] [CrossRef]
  19. Li, Q.; Nie, J.; Shan, Y.; Li, Y.; Du, J.; Zhu, L.; Yang, Q.; Bai, F. Water-Soluble Fluorescent Probe for Simultaneous Detection of Cyanide, Hypochlorite and Bisulfite at Different Emission Wavelengths. Anal. Bioanal. Chem. 2020, 591, 113539. [Google Scholar] [CrossRef]
  20. Yang, B.; Xu, J.; Zhu, H.L. Recent Progress in the Small-Molecule Fluorescent Probes for the Detection of Sulfur Dioxide Derivatives (HSO3-/SO32-). Free Radical Bio. Med. 2019, 145, 42–60. [Google Scholar] [CrossRef]
  21. Shangguan, M.; Jiang, X.; Lu, Z.; Zou, W.; Chen, Y.; Xu, P.; Pan, Y.; Hou, L. A Coumarin-Based Fluorescent Probe for Hypochlorite Ion Detection in Environmental Water Samples and Living Cells. Talanta 2019, 202, 303–307. [Google Scholar] [CrossRef] [PubMed]
  22. Ma, C.; Zhang, F.; Wang, Y.; Zhu, X.; Liu, X.; Zhao, C.; Zhang, H. Synthesis and Application of Ratio Fluorescence Probe for Chloride. Anal. Bioanal. Chem. 2018, 410, 6507–6516. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, Z.; Shi, W.; Yang, C.; Xu, J.; Liu, H.; Xu, J.; Zhu, B. A Colorimetric Fluorescent Probe for Rapid and Specific Detection of Nitrite. Luminescence 2019, 35, 299–304. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, Y.; Zhang, L. Designed Multifunctional Ratiometric Fluorescent Probe for Directly Detecting Fluoride Ion/Dichromate and Indirectly Monitoring Urea. J. Hazard. Mater. 2021, 418, 126271. [Google Scholar] [CrossRef] [PubMed]
  25. Hou, L.; Li, F.; Guo, J.; Zhang, X.; Kong, X.; Cui, X.T.; Dong, C.; Wang, Y.; Shuang, S. A Colorimetric and Ratiometric Fluorescent Probe for Cyanide Sensing in Aqueous Media and Live Cells. J. Mater. Chem. B 2019, 7, 4620–4629. [Google Scholar] [CrossRef] [PubMed]
  26. Cheng, S.; Sun, R.; Wu, Z.; Mei, H.; Yang, H.; Kong, Q.; Xu, K. A Novel Reversible Fluorescent Probe for Cu2+ and S2- ions and Imaging in Living Cells. Methods Appl. Fluores. 2022, 10, 035009. [Google Scholar] [CrossRef]
  27. Kim, J.; Lee, S.; Han, M.S. pH-Guided Fluorescent Sensing Probe for the Discriminative Detection of Cl− and Br− in Human Serum. Anal. Chim. Acta 2022, 1210, 339879. [Google Scholar] [CrossRef]
  28. Choi, M.G.; Hwang, J.; Eor, S.; Chang, S. Chromogenic and Fluorogenic Signaling of Sulfite by Selective Deprotection of Resorufin Levulinate. Org. Lett. 2010, 12, 5624–5627. [Google Scholar] [CrossRef]
  29. Zha, Y.; Xin, R.; Zhang, M.; Cui, X.; Li, N. Stimuli-Responsive Azobenzene-Quantum Dots for Multi-Sensing of Dithionite, Hypochlorite, and Azoreductase. Microchim. Acta 2020, 187, 481. [Google Scholar] [CrossRef]
  30. Wang, J.; Hao, Y.; Wang, H.; Yang, S.; Tian, H.; Sun, B.; Liu, Y. Rapidly Responsive and Highly Selective Fluorescent Probe for Bisulfite Detection in Food. J. Agr. Food Chem. 2017, 65, 2883–2887. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Guan, L.; Yu, H.; Yan, Y.; Du, L.; Liu, Y.; Sun, M.; Huang, D.; Wang, S. Reversible Fluorescent Probe for Selective Detection and Cell Imaging of Oxidative Stress Indicator Bisulfite. Anal. Chem. 2016, 88, 4426–4431. [Google Scholar] [CrossRef]
  32. Li, H. Rapidly Responsive and Highly Selective Fluorescent Probe for Sulfite Detection in Real Samples and Living Cells. Anal. Chim. Acta 2015, 897, 102–108. [Google Scholar] [CrossRef]
  33. Zhang, W.; Liu, T.; Huo, F.; Ning, P.; Meng, X.; Yin, C. Reversible Ratiometric Fluorescent Probe for Sensing Bisulfate/H2O2 and its Application in Zebrafish. Anal. Chem. 2017, 89, 8079–8083. [Google Scholar] [CrossRef]
  34. Ye, Z.; Duan, C.; Sheng, R.; Xu, J.; Wang, H.; Zeng, L. A Novel Colorimetric and Ratiometric Fluorescent Probe for Visualizing SO2 Derivatives in Environment and Living Cells. Talanta 2018, 176, 389–396. [Google Scholar] [CrossRef]
  35. Liu, X.; Yang, Q.; Chen, W.; Mo, L.; Chen, S.; Kang, J.; Song, X. A Ratiometric Fluorescent Probe for Rapid, Sensitive and Selective Detection of Sulfur Dioxide with Large Stokes Shifts by Single Wavelength Excitation. Org. Biomol. Chem. 2015, 13, 8663–8668. [Google Scholar] [CrossRef] [Green Version]
  36. Qi, F.; Zhang, F.; Mo, L.; Ren, X.; Wang, Y.; Li, X.; Liu, X.; Zhang, Y.; Yang, Z.; Song, X. A benzothiazole-Based Bifunctional Fluorescent Probe for the Ratiometric Detection of Fluoride and Sulphite in Real Samples. Spectrochim. Acta A 2019, 219, 547–551. [Google Scholar] [CrossRef]
  37. Jia, X.; Yang, Y.; Zhai, H.; Zhang, Q.; He, Y.; Liu, Y.; Liu, Y. The Mechanisms of a Bifunctional Fluorescent Probe for Detecting Fluoride and Sulfite Based On Excited-State Intramolecular Proton Transfer and Intramolecular Charge Transfer. Struct. Dynam. 2021, 8, 34103. [Google Scholar] [CrossRef]
  38. Zhang, H.; Huang, Z.; Feng, G. Colorimetric and Ratiometric Fluorescent Detection of Bisulfite by a New benzothiazole-Hemicyanine Hybrid. Anal. Chim. Acta 2016, 920, 72–79. [Google Scholar] [CrossRef]
  39. Zhang, J.; Peng, A.; Lv, Y.; Zhang, Y.; Wang, X.; Zhang, G.; Tian, Z. A Colorimetric Fluorescent Probe for SO2 Derivatives-Bisulfite and Sulfite at Nanomolar Level. J. Fluoresc. 2017, 27, 1767–1775. [Google Scholar] [CrossRef]
  40. Ren, H.; Huo, F.; Wu, X.; Liu, X.; Yin, C. An ESIPT-Induced NIR Fluorescent Probe to Visualize Mitochondrial Sulfur Dioxide During Oxidative Stress in vivo. Chem. Commun. 2021, 57, 655–658. [Google Scholar] [CrossRef]
  41. Peng, M.; Yang, X.; Yin, B.; Guo, Y.; Suzenet, F.; En, D.; Li, J.; Li, C.; Duan, Y. A Hybrid Coumarin-Thiazole Fluorescent Sensor for Selective Detection of Bisulfite Anions in Vivo and in Real Samples. Chem. Asian J. 2014, 9, 1817–1822. [Google Scholar] [CrossRef] [PubMed]
  42. Sun, Y.; Chen, Z.; Chen, F.; Liu, H.; He, H.; Zhang, X.; Wang, S. An benzothiazole-Based Near-Infrared Fluorescent Probe for Colorimetric and Ratiometric Detection of Bisulfite and its Application in Living Cells. J. Fluoresc. 2017, 27, 1405–1411. [Google Scholar] [CrossRef] [PubMed]
  43. Sun, Y.; Liu, J.; Zhang, J.; Yang, T.; Guo, W. Fluorescent Probe for Biological Gas SO2 Derivatives Bisulfite and Sulfite. Chem. Commun. 2013, 49, 2637. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, J.; Long, L.; Xiao, X. A Fast-Responsive Fluorescent Probe for Sulfite and its Bioimaging. Luminescence 2016, 31, 775–781. [Google Scholar] [CrossRef] [PubMed]
  45. Tian, H.; Qian, J.; Sun, Q.; Bai, H.; Zhang, W. Colorimetric and Ratiometric Fluorescent Detection of Sulfite in Water Via Cationic Surfactant-Promoted Addition of Sulfite to α,β-Unsaturated Ketone. Anal. Chim. Acta 2013, 788, 165–170. [Google Scholar] [CrossRef] [PubMed]
  46. Tian, H.; Qian, J.; Sun, Q.; Jiang, C.; Zhang, R.; Zhang, W. A Coumarin-Based Fluorescent Probe for Differential Identification of Sulfide and Sulfite in CTAB Micelle Solution. Analyst 2014, 139, 3373. [Google Scholar] [CrossRef]
  47. Pei, X.; Tian, H.; Zhang, W.; Brouwer, A.M.; Qian, J. Colorimetric and Fluorescent Determination of Sulfide and Sulfite with Kinetic Discrimination. Analyst 2014, 139, 5290–5296. [Google Scholar] [CrossRef] [Green Version]
  48. Sun, Q.; Zhang, W.; Qian, J. A Ratiometric Fluorescence Probe for Selective Detection of Sulfite and its Application in Realistic Samples. Talanta 2017, 162, 107–113. [Google Scholar] [CrossRef]
  49. Wu, M.; He, T.; Li, K.; Wu, M.; Huang, Z.; Yu, X. A Real-Time Colorimetric and Ratiometric Fluorescent Probe for Sulfite. Analyst 2013, 138, 3018. [Google Scholar] [CrossRef]
  50. Cheng, X.; Jia, H.; Feng, J.; Qin, J.; Li, Z. “Reactive” Probe for Hydrogen Sulfite: “Turn-On” Fluorescent Sensing and Bioimaging Application. J. Mater. Chem. B 2013, 1, 4110. [Google Scholar] [CrossRef]
  51. Xu, W.; Teoh, C.L.; Peng, J.; Su, D.; Yuan, L.; Chang, Y. A Mitochondria-Targeted Ratiometric Fluorescent Probe to Monitor Endogenously Generated Sulfur Dioxide Derivatives in Living Cells. Biomaterials 2015, 56, 1–9. [Google Scholar] [CrossRef]
  52. Yan, Y.; He, X.; Miao, J.; Zhao, B. A Near-Infrared and Mitochondria-Targeted Fluorescence Probe for Ratiometric Monitoring of Sulfur Dioxide Derivatives in Living Cells. J. Mater. Chem. B Mater. Biol. Med. 2019, 7, 6585–6591. [Google Scholar] [CrossRef]
  53. Yan, Y.H.; Wu, Q.R.; Che, Q.L.; Ding, M.M.; Xu, M.; Miao, J.Y.; Zhao, B.X.; Lin, Z.M. A Mitochondria-Targeted Fluorescent Probe for the Detection of Endogenous SO2 Derivatives in Living Cells. Analyst 2020, 145, 2937–2944. [Google Scholar] [CrossRef]
  54. Zhong, K.; Yao, Y.; Sun, X.; Wang, Y.; Tang, L.; Li, X.; Zhang, J.; Yan, X.; Li, J. Mitochondria-Targeted Fluorescent Turn-On Probe for Rapid Detection of Bisulfite/Sulfite in Water and Food Samples. J. Agr. Food Chem. 2022, 70, 5159–5165. [Google Scholar] [CrossRef]
  55. Chen, W.; Fang, Q.; Yang, D.; Zhang, H.; Song, X.; Foley, J. Selective, Highly Sensitive Fluorescent Probe for the Detection of Sulfur Dioxide Derivatives in Aqueous and Biological Environments. Anal. Chem. 2015, 87, 609–616. [Google Scholar] [CrossRef]
  56. Zhang, Y.; Zhang, X.; Yang, X.F.; Zhang, J. A Colorimetric and Fluorogenic Probe for Bisulfite Using Benzopyrylium as the Recognition Unit. Luminescence 2017, 32, 1233–1239. [Google Scholar] [CrossRef]
  57. Dai, X.; Zhang, T.; Du, Z.; Cao, X.; Chen, M.; Hu, S.; Miao, J.; Zhao, B. An Effective Colorimetric and Ratiometric Fluorescent Probe for Bisulfite in Aqueous Solution. Anal. Chim. Acta 2015, 888, 138–145. [Google Scholar] [CrossRef]
  58. Wu, W.; Wang, Z.; Dai, X.; Miao, J.; Zhao, B. An Effective Colorimetric and Ratiometric Fluorescent Probe Based FRET with a Large Stokes Shift for Bisulfite. Sci. Rep. 2016, 6, 25315. [Google Scholar] [CrossRef] [Green Version]
  59. Shen, W.; Xu, H.; Feng, J.; Sun, W.; Hu, G.; Hu, Y.; Yang, W. A Ratiometric and Colorimetric Fluorescent Probe Designed Based On FRET for Detecting SO32-/HSO3− in Living Cells and Mice. Spectrochim. Acta A 2021, 263, 120183. [Google Scholar] [CrossRef]
  60. Han, X.; Zhai, Z.; Yang, X.; Zhang, D.; Tang, J.; Zhu, J.; Zhu, X.; Ye, Y. A FRET-Based Ratiometric Fluorescent Probe to Detect Cysteine Metabolism in Mitochondria. Org. Biomol. Chem. 2020, 18, 1487–1492. [Google Scholar] [CrossRef]
  61. Sun, Y.; Zhao, D.; Fan, S.; Duan, L.; Li, R. Ratiometric Fluorescent Probe for Rapid Detection of Bisulfite through 1,4-Addition Reaction in Aqueous Solution. J. Agr. Food Chem. 2014, 62, 3405–3409. [Google Scholar] [CrossRef] [PubMed]
  62. Chen, Y.; Zhu, C.; Yang, Z.; Chen, J.; He, Y.; Jiao, Y.; He, W.; Qiu, L.; Cen, J.; Guo, Z. A Ratiometric Fluorescent Probe for Rapid Detection of Hydrogen Sulfide in Mitochondria. Angew. Chem. Int. Edit. 2013, 52, 1688–1691. [Google Scholar] [CrossRef] [PubMed]
  63. Li, D.P.; Wang, Z.Y.; Cao, X.J.; Cui, J.; Wang, X.; Cui, H.Z.; Miao, J.Y.; Zhao, B.X. A Mitochondria-Targeted Fluorescent Probe for Ratiometric Detection of Endogenous Sulfur Dioxide Derivatives in Cancer Cells. Chem. Commun. 2016, 52, 2760–2763. [Google Scholar] [CrossRef] [PubMed]
  64. Samanta, S.; Dey, P.; Ramesh, A.; Das, G. A Solo Fluorogenic Probe for the Real-Time Sensing of SO32- and SO42-/HSO4− in Aqueous Medium and Live Cells by Distinct Turn-On Emission Signals. Chem. Commun. 2016, 52, 10381–10384. [Google Scholar] [CrossRef] [PubMed]
  65. Yu, T.; Yin, G.; Niu, T.; Yin, P.; Li, H.; Zhang, Y.; Chen, H.; Zeng, Y.; Yao, S. A Novel Colorimetric and Fluorescent Probe for Simultaneous Detection of SO32-/HSO3− and HSO4− by Different Emission Channels and its Bioimaging in Living Cells. Talanta 2018, 176, 1–7. [Google Scholar] [CrossRef]
  66. Zheng, X.; Li, H.; Feng, W.; Xia, H.; Song, Q. Two-Step Sensing, Colorimetric and Ratiometric Fluorescent Probe for Rapid Detection of Bisulfite in Aqueous Solutions and in Living Cells. ACS Omega 2018, 3, 11831–11837. [Google Scholar] [CrossRef]
  67. Yang, Y.; Zhou, T.; Bai, B.; Yin, C.; Xu, W.; Li, W. Design of Mitochondria-Targeted Colorimetric and Ratiometric Fluorescent Probes for Rapid Detection of SO2 Derivatives in Living Cells. Spectrochim. Acta A 2018, 196, 215–221. [Google Scholar] [CrossRef]
  68. Shi, J.; Shu, W.; Tian, Y.; Wu, Y.; Jing, J.; Zhang, R.; Zhang, X. A Real-Time Ratiometric Fluorescent Probe for Imaging of SO2 Derivatives in Mitochondria of Living Cells. RSC Adv. 2019, 9, 22348–22354. [Google Scholar] [CrossRef] [Green Version]
  69. Lin, X.; Liu, W.; Xu, S.; Li, Z.; Zhang, H.; Yu, M. Imaging of Intracellular Bisulfate Based On Sensitive Ratiometric Fluorescent Probes. Spectrochim. Acta A 2022, 265, 120335. [Google Scholar] [CrossRef]
  70. Qin, Y.; Jiang, X.; Que, Y.; Gu, J.; Wu, T.; Aihemaiti, A.; Shi, K.; Kang, W.; Hu, B.; Lan, J.; et al. A Ratiometric and Colorimetric Hemicyanine Fluorescent Probe for Detection of SO2 Derivatives and its Applications in Bioimaging. Molecules 2019, 24, 4011. [Google Scholar] [CrossRef]
  71. Li, D.; Tian, X.; Li, Z.; Zhang, J.; Yang, X. Preparation of a Near-Infrared Fluorescent Probe Based on IR-780 for Highly Selective and Sensitive Detection of Bisulfite-Sulfite in Food, Living Cells, and Mice. J. Agr. Food Chem. 2019, 67, 3062–3067. [Google Scholar] [CrossRef]
  72. Wang, L.; Yang, W.; Song, Y.; Gu, Y.; Hu, Y. A Double-Indole Structure Fluorescent Probe for Monitoring Sulfur Dioxide Derivatives with Distinct Ratiometric Fluorescence Signals in Mammalian Cells. Spectrochim. Acta A 2020, 225, 117495. [Google Scholar] [CrossRef]
  73. Zhou, R.; Cui, G.; Hu, Y.; Qi, Q.; Huang, W.; Yang, L. An Effective Biocompatible Fluorescent Probe for Bisulfite Detection in Aqueous Solution, Living Cells, and Mice. RSC Adv. 2020, 10, 25352–25357. [Google Scholar] [CrossRef]
  74. Pan, X.; Cheng, S.; Zhang, C.; Qi, X. Two Highly Sensitive Fluorescent Probes Based On Cinnamaldehyde with Large Stokes Shift for Sensing of HSO3− in Pure Water and Living Cells. Anal. Bioanal. Chem. 2020, 412, 6959–6968. [Google Scholar] [CrossRef]
  75. Shi, Q.; Shen, L.; Xu, H.; Wang, Z.; Yang, X.; Huang, Y.; Redshaw, C.; Zhang, Q. A 1-Hydroxy-2,4-Diformylnaphthalene-Based Fluorescent Probe and its Detection of Sulfites/Bisulfite. Molecules 2021, 26, 3064. [Google Scholar] [CrossRef]
  76. Zhu, X.; Zhu, L.; Liu, H.; Hu, X.; Peng, R.; Zhang, J.; Zhang, X.; Tan, W. A Two-Photon Fluorescent Turn-On Probe for Imaging of SO2 Derivatives in Living Cells and Tissues. Anal. Chim. Acta 2016, 937, 136–142. [Google Scholar] [CrossRef]
  77. Xu, B.; Zhou, H.; Mei, Q.; Tang, W.; Sun, Y.; Gao, M.; Zhang, C.; Deng, S.; Zhang, Y. Real-Time Visualization of Cysteine Metabolism in Living Cells with Ratiometric Fluorescence Probes. Anal. Chem. 2018, 90, 2686–2691. [Google Scholar] [CrossRef]
  78. Zhang, G.; Ji, R.; Kong, X.; Ning, F.; Liu, A.; Cui, J.; Ge, Y. A FRET Based Ratiometric Fluorescent Probe for Detection of Sulfite in Food. RSC Adv. 2019, 9, 1147–1150. [Google Scholar] [CrossRef] [Green Version]
  79. Yan, Y.; Cui, X.; Li, Z.; Ding, M.; Che, Q.; Miao, J.; Zhao, B.; Lin, Z. A Synergetic FRET/ICT Platform-Based Fluorescence Probe for Ratiometric Imaging of Bisulfite in Lipid Droplets. Anal. Chim. Acta 2020, 1137, 47–55. [Google Scholar] [CrossRef]
  80. Zeng, R.F.; Lan, J.S.; Wu, T.; Liu, L.; Liu, Y.; Ho, R.; Ding, Y.; Zhang, T. A Novel Mitochondria-Targetted Near-Infrared Fluorescent Probe for Selective and Colorimetric Detection of Sulfite and its Application in Vitro and Vivo. Food Chem. 2020, 318, 126358. [Google Scholar] [CrossRef]
  81. Xu, J.; Zheng, D.J.; Su, M.M.; Chen, Y.C.; Jiao, Q.C.; Yang, Y.S.; Zhu, H.L. A Rapid Cell-Permeating Turn-On Probe for Sensitive and Selective Detection of Sulfite in Living Cells. Org. Biomol. Chem. 2018, 16, 8318–8324. [Google Scholar] [CrossRef] [PubMed]
  82. Cai, F.; Hou, B.; Zhang, S.; Chen, H.; Ji, S.; Shen, X.C.; Liang, H. A Chromenoquinoline-Based Two-Photon Fluorescent Probe for the Highly Specific and Fast Visualization of Sulfur Dioxide Derivatives in Living Cells and Zebrafish. J. Mater. Chem. B 2019, 7, 2493–2498. [Google Scholar] [CrossRef] [PubMed]
  83. Zhou, F.; Sultanbawa, Y.; Feng, H.; Wang, Y.; Meng, Q.; Wang, Y.; Zhang, Z.; Zhang, R. A New Red-Emitting Fluorescence Probe for Rapid and Effective Visualization of Bisulfite in Food Samples and Live Animals. J. Agr. Food Chem. 2019, 67, 4375–4383. [Google Scholar] [CrossRef] [PubMed]
  84. Hou, P.; Chen, S.; Voitchovsky, K.; Song, X. A Colorimetric and Ratiometric Fluorescent Probe for Sulfite Based on an Intramolecular Cleavage Mechanism. Luminescence 2014, 29, 749–753. [Google Scholar] [CrossRef] [PubMed]
  85. Liu, C.; Wu, H.; Yang, W.; Zhang, X. A Simple Levulinate-Based Ratiometric Fluorescent Probe for Sulfite with a Large Emission Shift. Anal. Sci. 2014, 30, 589–593. [Google Scholar] [CrossRef] [Green Version]
  86. Li, J.; Sun, Y.; Wang, C.; Guo, Z.; Shen, Y.; Zhu, W. AND-Logic Based Fluorescent Probe for Selective Detection of Lysosomal Bisulfite in Living Cells. Anal. Chem. 2019, 91, 11946–11951. [Google Scholar] [CrossRef]
  87. Wang, Y.; Zhou, F.; Meng, Q.; Zhang, S.; Jia, H.; Wang, C.; Zhang, R.; Zhang, Z. A Novel Fluorescence Probe for the Reversible Detection of Bisulfite and Hydrogen Peroxide Pair in vitro and in vivo. Chem. Asian J. 2021, 16, 3419–3426. [Google Scholar] [CrossRef]
  88. Wu, L.; Qi, S.; Liu, Y.; Wang, X.; Zhu, L.; Yang, Q.; Du, J.; Xu, H.; Li, Y. A Novel Ratiometric Fluorescent Probe for Differential Detection of HSO3− and ClO− and Application in Cell Imaging and Tumor Recognition. Anal. Bioanal. Chem. 2021, 413, 1137–1148. [Google Scholar] [CrossRef]
  89. Sun, Y.; Wang, P.; Liu, J.; Zhang, J.; Guo, W. A Fluorescent Turn-On Probe for Bisulfite Based On Hydrogen Bond-Inhibited C = N Isomerization Mechanism. Analyst 2012, 137, 3430. [Google Scholar] [CrossRef]
  90. Huo, F.; Wu, Q.; Yin, C.; Zhang, W.; Zhang, Y. A High Efficient and Lysosome Targeted “Off-On” Probe for Sulfite Based On Nucleophilic Addition and ESIPT. Spectrochim. Acta A 2019, 214, 429–435. [Google Scholar] [CrossRef]
  91. Wang, G.; Qi, H.; Yang, X. A Ratiometric Fluorescent Probe for Bisulphite Anion, Employing Intramolecular Charge Transfer. Luminescence 2013, 28, 97–101. [Google Scholar] [CrossRef]
  92. Niu, T.; Yu, T.; Yin, G.; Chen, H.; Yin, P.; Li, H. A Novel Colorimetric and Ratiometric Fluorescent Probe for Sensing SO2 Derivatives and their Bio-Imaging in Living Cells. Analyst 2019, 144, 1546–1554. [Google Scholar] [CrossRef]
  93. Venkatachalam, K.; Asaithambi, G.; Rajasekaran, D.; Periasamy, V. A Novel Ratiometric Fluorescent Probe for “Naked-Eye” Detection of Sulfite Ion: Applications in Detection of Biological SO32- Ions in Food and Live Cells. Spectrochim. Acta A 2020, 228, 117788. [Google Scholar] [CrossRef]
  94. Kolińska, J.; Grzelakowska, A. Novel Styrylbenzimidazolium-Based Fluorescent Probe for Reactive Sulfur Species: Selectively Distinguishing Between Bisulfite and Thiol Amino Acids. Spectrochim. Acta A 2021, 262, 120151. [Google Scholar] [CrossRef]
  95. Chen, S.; Hou, P.; Sun, J.; Wang, H.; Liu, L. Imidazo[1,5-α]Pyridine-Based Fluorescent Probe with a Large Stokes Shift for Specific Recognition of Sulfite. Spectrochim. Acta A 2020, 225, 117508. [Google Scholar] [CrossRef]
  96. Cheng, X.; He, P.; Zhong, Z.; Liang, G. Reaction-Based Probe for Hydrogen Sulfite: Dual-Channel and Good Ratiometric Response. Luminescence 2016, 31, 1372–1378. [Google Scholar] [CrossRef]
  97. Mishra, A.; Ma, C.; Bäuerle, P. Functional Oligothiophenes: Molecular Design for Multidimensional Nanoarchitectures and their Applications. Chem. Rev. 2009, 109, 1141–1276. [Google Scholar] [CrossRef]
  98. Wang, J.; Xu, W.; Wang, Y.; Hua, J. Diketopyrrolopyrrole-Based Fluorescent Probe for Endogenous Bisulfite Detection and Bisulfite Triggered Phototoxicity Specific in Liver Cancer Cells. Spectrochim. Acta A 2021, 262, 120098. [Google Scholar] [CrossRef]
  99. Aparin, I.O.; Proskurin, G.V.; Golovin, A.V.; Ustinov, A.V.; Formanovsky, A.A.; Zatsepin, T.S.; Korshun, V.A. Fine Tuning of Pyrene Excimer Fluorescence in Molecular Beacons by Alteration of the Monomer Structure. J. Org. Chem. 2017, 82, 10015–10024. [Google Scholar] [CrossRef]
  100. Matías, N.; Möller, A.D. Diffusion of Nitric Oxide and Oxygen in Lipoproteins and Membranes Studied by Pyrene Fluorescence Quenching. Free Radic. Bio. Med. 2018, 4, 553. [Google Scholar]
  101. Chao, J.; Zhao, J.; Zhang, Y.; Huo, F.; Yin, C.; Li, M.; Duan, Y. High-Specific Fluorescence Probe for SO32- Detection and Bioimaging. J. Fluoresc 2021, 31, 363–371. [Google Scholar] [CrossRef]
  102. Yao, Y.; Sun, Q.; Chen, Z.; Huang, R.; Zhang, W.; Qian, J. A Mitochondria-Targeted Near Infrared Ratiometric Fluorescent Probe for the Detection of Sulfite in Aqueous and in Living Cells. Talanta 2018, 189, 429–436. [Google Scholar] [CrossRef]
  103. Tamima, U.; Santra, M.; Song, C.W.; Reo, Y.J.; Ahn, K.H. A Benzopyronin-Based Two-Photon Fluorescent Probe for Ratiometric Imaging of Lysosomal Bisulfite with Complete Spectral Separation. Anal. Chem. 2019, 91, 10779–10785. [Google Scholar] [CrossRef]
  104. Gao, H.; Qi, H.; Peng, Y.; Qi, H.; Zhang, C. Rapid “Turn-On” Photo Luminescence Detection of Bisulfite in Wines and Living Cells with a Formyl Bearing Bis-Cyclometalated Ir(Ⅲ) Complex. Analyst 2018, 143, 3670–3676. [Google Scholar] [CrossRef]
  105. Liu, Y.; Ren, T.B.; Cheng, D.; Hou, J.; Su, D.; Yuan, L. An ESIPT-Based Ratiometric Fluorescent Probe for Highly Sensitive and Rapid Detection of Sulfite in Living Cells. ChemistryOpen 2019, 8, 1251–1257. [Google Scholar] [CrossRef] [Green Version]
  106. Xu, S.; Tang, R.; Wang, Z.; Zhou, Y.; Yan, R. A Novel Flavone-Based Fluorescent Probe for Relay Recognition of HSO3− and Al3+. Spectrochim. Acta A 2015, 149, 208–215. [Google Scholar] [CrossRef]
Pharmaceuticals 15 01326 sch001 550
Scheme 1. Schematic diagram of ICT.
Scheme 1. Schematic diagram of ICT.
Pharmaceuticals 15 01326 sch001
Pharmaceuticals 15 01326 sch002 550
Scheme 2. Mechanism diagram of ESIPT.
Scheme 2. Mechanism diagram of ESIPT.
Pharmaceuticals 15 01326 sch002
Pharmaceuticals 15 01326 sch003 550
Scheme 3. Schematic diagram of principle FRET.
Scheme 3. Schematic diagram of principle FRET.
Pharmaceuticals 15 01326 sch003
Pharmaceuticals 15 01326 sch004 550
Scheme 4. The structures of sulfite fluorescent probes 1–11.
Scheme 4. The structures of sulfite fluorescent probes 1–11.
Pharmaceuticals 15 01326 sch004
Pharmaceuticals 15 01326 sch005 550
Scheme 5. The fabric of sulfite fluorescent probes 12–22.
Scheme 5. The fabric of sulfite fluorescent probes 12–22.
Pharmaceuticals 15 01326 sch005
Pharmaceuticals 15 01326 g001 550
Figure 1. Fluorescence imaging of HeLa cells. Hela Cells incubated with 10 μM probe 17 for 30 min (a1–e1) and pretreated with 0.5 mM Na2SO3 for 30 min followed by incubation with 10 μM probe 11 for another 30 min (a2–e2). (a1–2) merged of (b1–2–e1–2); (b1–2) blue channel; (c1–2) green channel; (d1–2) red channel; (e1–2) bright field; blue channel exited with a 404 nm laser; green and red channels excited with a 488 nm laser.
Figure 1. Fluorescence imaging of HeLa cells. Hela Cells incubated with 10 μM probe 17 for 30 min (a1–e1) and pretreated with 0.5 mM Na2SO3 for 30 min followed by incubation with 10 μM probe 11 for another 30 min (a2–e2). (a1–2) merged of (b1–2–e1–2); (b1–2) blue channel; (c1–2) green channel; (d1–2) red channel; (e1–2) bright field; blue channel exited with a 404 nm laser; green and red channels excited with a 488 nm laser.
Pharmaceuticals 15 01326 g001
Pharmaceuticals 15 01326 g002 550

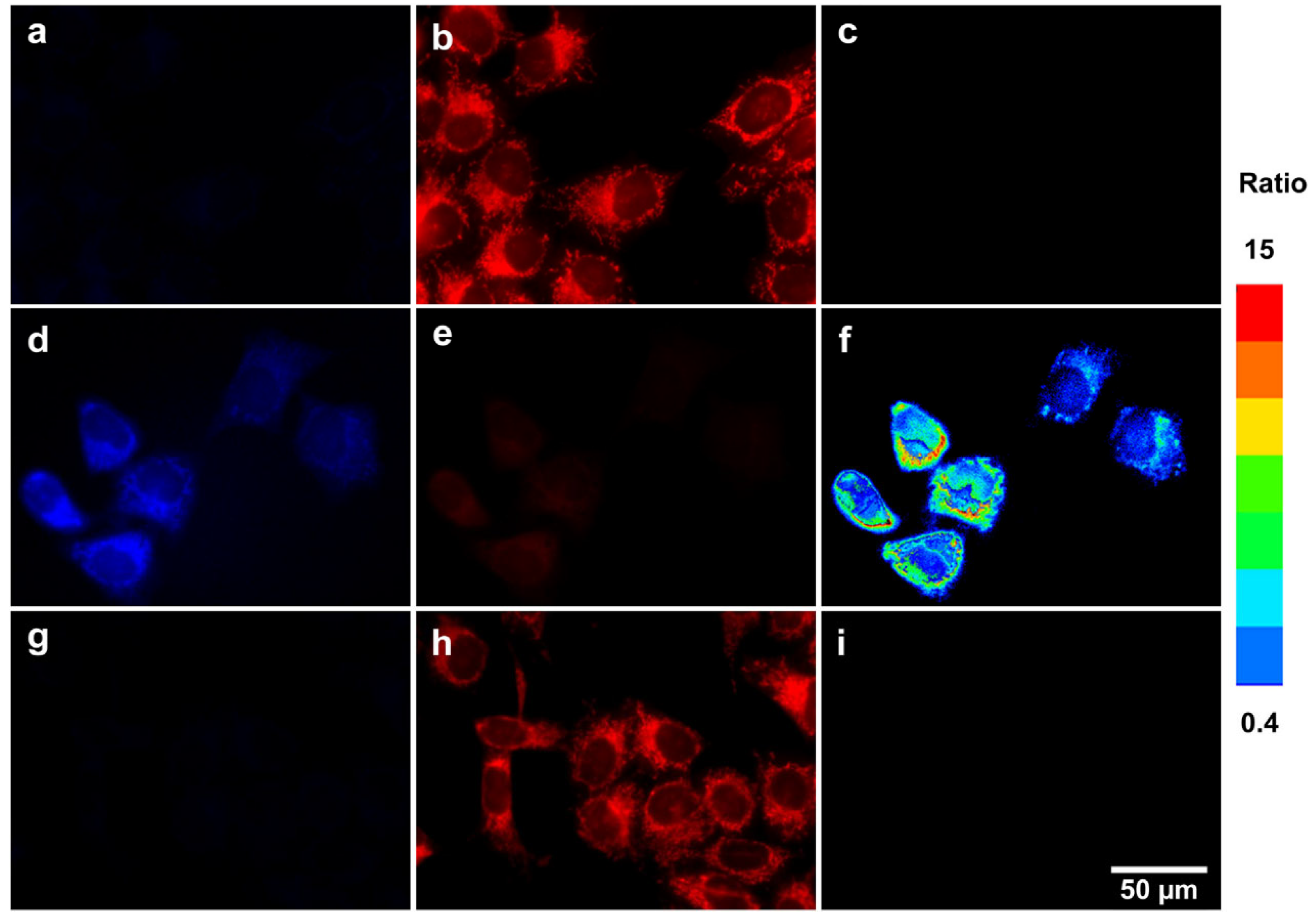

Figure 2. Fluorescence images of HeLa cells from the blue channel (scan range of 450–530 nm) and red channel (scan range of 600–700 nm) excited at 405 nm. (a,b) Fluorescence image of HeLa cells at the blue channel (a) and red channel (b) after incubation with probe 20 (2 mM) for 30 min; (c) Fluorescence ratio (Fblue/Fred) images of a and b. (d,e) Fluorescence image of HeLa cells treated with probe 20 (2 mM) for 30 min, and then further incubated with SO2 donor (100 mM) for another 30 min; (f) Fluorescence ratio (Fblue/Fred) images (d,e); (g,h) Fluorescence image of HeLa cells treated with NEM (2 mM) and probe 20 (2 mM) for 30 min, and then incubated with synthetic SO2 donor (100 mM) for another 30 min. Cells were observed at the blue channel (g) and red channel (h); (i) Fluorescence ratio (Fblue/Fred) images of g and h. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article).
Figure 2. Fluorescence images of HeLa cells from the blue channel (scan range of 450–530 nm) and red channel (scan range of 600–700 nm) excited at 405 nm. (a,b) Fluorescence image of HeLa cells at the blue channel (a) and red channel (b) after incubation with probe 20 (2 mM) for 30 min; (c) Fluorescence ratio (Fblue/Fred) images of a and b. (d,e) Fluorescence image of HeLa cells treated with probe 20 (2 mM) for 30 min, and then further incubated with SO2 donor (100 mM) for another 30 min; (f) Fluorescence ratio (Fblue/Fred) images (d,e); (g,h) Fluorescence image of HeLa cells treated with NEM (2 mM) and probe 20 (2 mM) for 30 min, and then incubated with synthetic SO2 donor (100 mM) for another 30 min. Cells were observed at the blue channel (g) and red channel (h); (i) Fluorescence ratio (Fblue/Fred) images of g and h. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article).
Pharmaceuticals 15 01326 g002
Pharmaceuticals 15 01326 sch006 550
Scheme 6. Schematic diagram of mechanism PET.
Scheme 6. Schematic diagram of mechanism PET.
Pharmaceuticals 15 01326 sch006
Pharmaceuticals 15 01326 g003 550

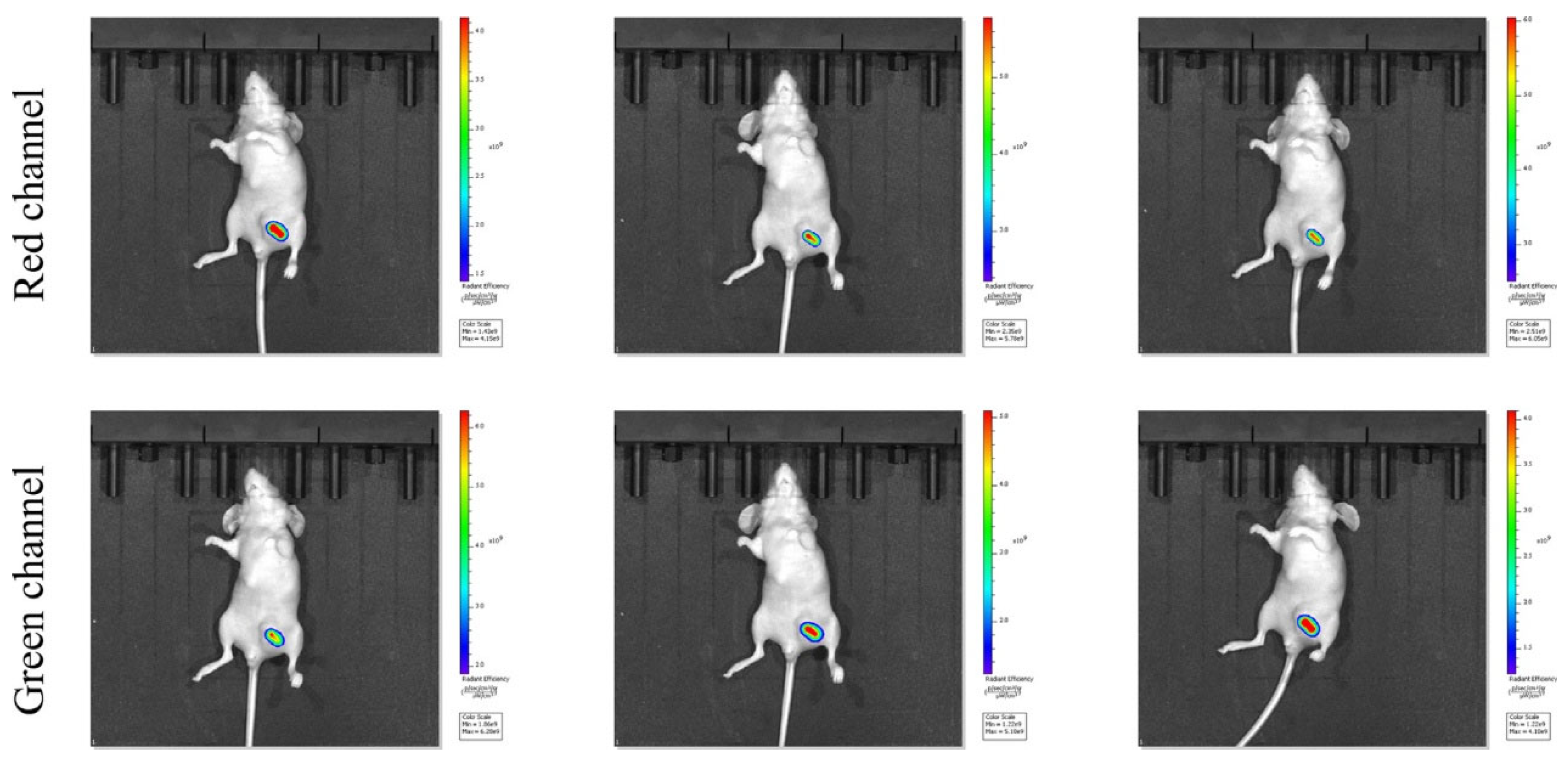

Figure 3. In vivo fluorescence imaging of probe 28 (10 μM) with Na2SO3 (100 μM) in HepG2 tumor-bearing nude mice at 0, 5, and 15 min. Reproduced with permission from Ref. [59]. Copyright (2021) Elsevier.
Figure 3. In vivo fluorescence imaging of probe 28 (10 μM) with Na2SO3 (100 μM) in HepG2 tumor-bearing nude mice at 0, 5, and 15 min. Reproduced with permission from Ref. [59]. Copyright (2021) Elsevier.
Pharmaceuticals 15 01326 g003
Pharmaceuticals 15 01326 sch007 550
Scheme 7. The framework of sulfite fluorescent probes 23–29.
Scheme 7. The framework of sulfite fluorescent probes 23–29.
Pharmaceuticals 15 01326 sch007
Pharmaceuticals 15 01326 sch008 550
Scheme 8. The formation of sulfite fluorescent probes 30–42.
Scheme 8. The formation of sulfite fluorescent probes 30–42.
Pharmaceuticals 15 01326 sch008
Pharmaceuticals 15 01326 g004 550

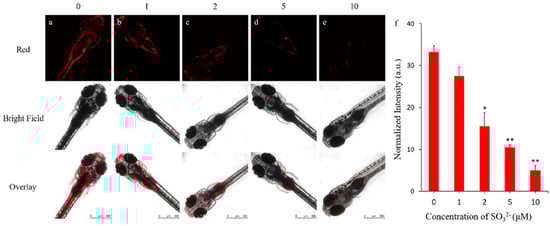

Figure 4. Imaging of SO32− in zebrafish by probe 47. The zebrafish were stained with (a) 2 μM probe 47 for 30 min; (b) 1 μM SO32− for 30 min, 2 μM probe 47 for 30 min; (c) 2 μM SO32− for 30 min, 2 μM probe 47 for 30 min; (d) 5 μM SO32− for 30 min, 2 μM probe 47 for 30 min; (e) 10 μM SO32− for 30 min, 2 μM probe 47 for 30 min. (f) Different normalized intensities toward different concentrations of SO32−, respectively. Red channel: λex = 552 nm λem = 600–660 nm. Values are the means ± SD for each group of three experiments; * p < 0.05, ** p < 0.01. Reproduced with permission from Ref. [80]. Copyright (2020) Elsevier.
Figure 4. Imaging of SO32− in zebrafish by probe 47. The zebrafish were stained with (a) 2 μM probe 47 for 30 min; (b) 1 μM SO32− for 30 min, 2 μM probe 47 for 30 min; (c) 2 μM SO32− for 30 min, 2 μM probe 47 for 30 min; (d) 5 μM SO32− for 30 min, 2 μM probe 47 for 30 min; (e) 10 μM SO32− for 30 min, 2 μM probe 47 for 30 min. (f) Different normalized intensities toward different concentrations of SO32−, respectively. Red channel: λex = 552 nm λem = 600–660 nm. Values are the means ± SD for each group of three experiments; * p < 0.05, ** p < 0.01. Reproduced with permission from Ref. [80]. Copyright (2020) Elsevier.
Pharmaceuticals 15 01326 g004
Pharmaceuticals 15 01326 sch009 550
Scheme 9. Illustrations of sulfite fluorescent probes 43–50.
Scheme 9. Illustrations of sulfite fluorescent probes 43–50.
Pharmaceuticals 15 01326 sch009
Pharmaceuticals 15 01326 g005 550

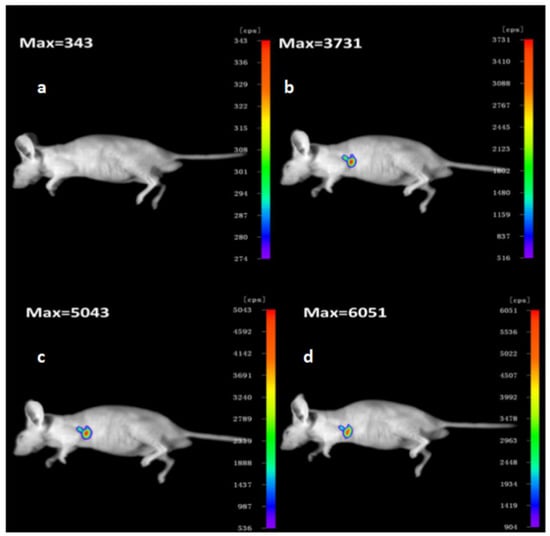

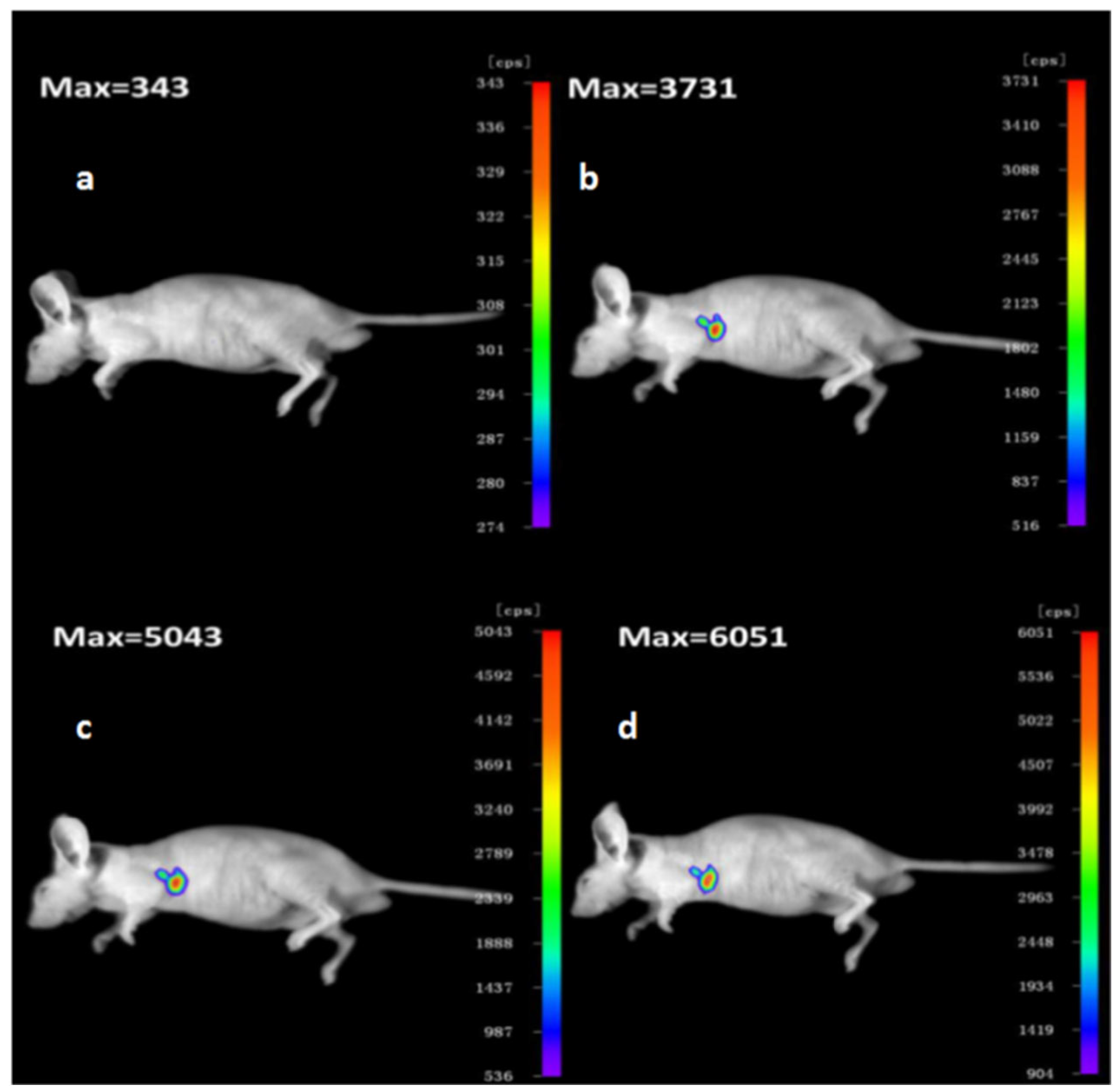

Figure 5. (a) mice were incubated with probe 56 (10 μM) for 30 min; (b) mice were incubated with probe 56 (10 μM) for 30 min and Na2SO3 (50 μM) 5 min; (c) mice were incubated with probe 56 (10 μM) for 30 min and Na2SO3 (50 μM) 10min; (d) mice were incubated with probe 56 (10 μM) for 30 min and Na2SO3 (50 μM) 25 min. Reproduced with permission from Ref. [90]. Copyright (2019) Elsevier.
Figure 5. (a) mice were incubated with probe 56 (10 μM) for 30 min; (b) mice were incubated with probe 56 (10 μM) for 30 min and Na2SO3 (50 μM) 5 min; (c) mice were incubated with probe 56 (10 μM) for 30 min and Na2SO3 (50 μM) 10min; (d) mice were incubated with probe 56 (10 μM) for 30 min and Na2SO3 (50 μM) 25 min. Reproduced with permission from Ref. [90]. Copyright (2019) Elsevier.
Pharmaceuticals 15 01326 g005
Pharmaceuticals 15 01326 sch010 550
Scheme 10. Illustrations of sulfite fluorescent sensing 51–60.
Scheme 10. Illustrations of sulfite fluorescent sensing 51–60.
Pharmaceuticals 15 01326 sch010
Pharmaceuticals 15 01326 g006 550

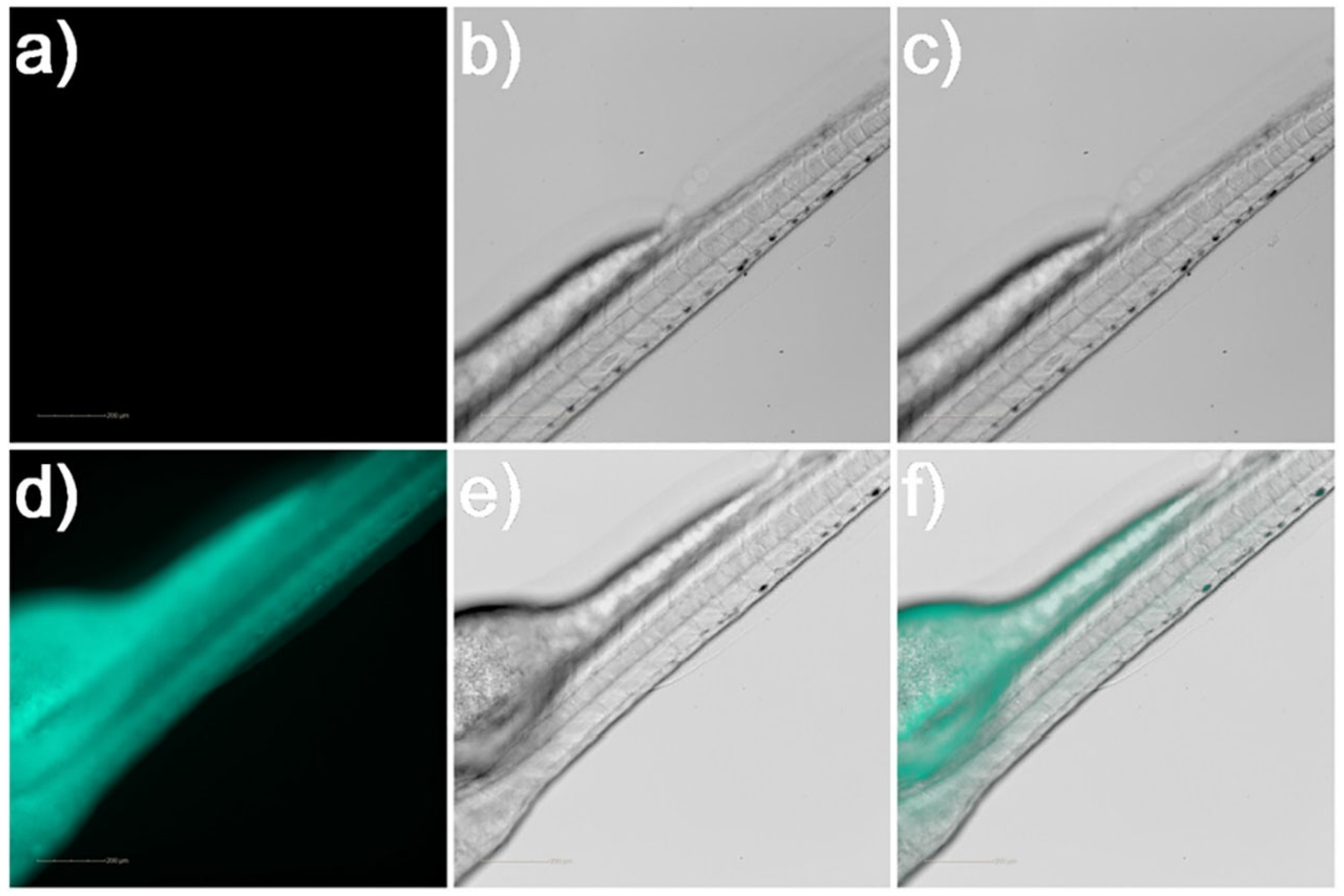

Figure 6. Fluorescence (a,d), Bright field (b,e) and merged (c,f) images of zebrafish. Top row (a–c): only seeded with probe 61 for 30 min. Bottom row, (d–f): pre-trained with SO32− for 30 min and then seeded with probe 61 for 30 min.
Figure 6. Fluorescence (a,d), Bright field (b,e) and merged (c,f) images of zebrafish. Top row (a–c): only seeded with probe 61 for 30 min. Bottom row, (d–f): pre-trained with SO32− for 30 min and then seeded with probe 61 for 30 min.
Pharmaceuticals 15 01326 g006
Pharmaceuticals 15 01326 sch011 550
Scheme 11. Typical structure diagram of sulfite fluorescent probes 61–69.
Scheme 11. Typical structure diagram of sulfite fluorescent probes 61–69.
Pharmaceuticals 15 01326 sch011
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, T.; Chen, X.; Wang, K.; Hu, Z. Small-Molecule Fluorescent Probe for Detection of Sulfite. Pharmaceuticals 2022, 15, 1326. https://doi.org/10.3390/ph15111326

AMA Style

Li T, Chen X, Wang K, Hu Z. Small-Molecule Fluorescent Probe for Detection of Sulfite. Pharmaceuticals. 2022; 15(11):1326. https://doi.org/10.3390/ph15111326

Chicago/Turabian Style

Li, Ting, Xuyang Chen, Kai Wang, and Zhigang Hu. 2022. "Small-Molecule Fluorescent Probe for Detection of Sulfite" Pharmaceuticals 15, no. 11: 1326. https://doi.org/10.3390/ph15111326

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
