Review

The Potential Application of Natural Photosensitizers Used in Antimicrobial Photodynamic Therapy against Oral Infections

by
Shima Afrasiabi
1,
Alireza Partoazar
2,
Nasim Chiniforush
1,* and
Ramin Goudarzi
3,*
1
Laser Research Center of Dentistry, Dentistry Research Institute, Tehran University of Medical Sciences, Tehran 1441987566, Iran
2
Experimental Medicine Research Center, Tehran University of Medical Sciences, Tehran 1441987566, Iran
3
Division of Research and Development, Pharmin USA, LLC, San Jose, CA 95128, USA
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2022, 15(6), 767; https://doi.org/10.3390/ph15060767
Submission received: 27 April 2022 / Revised: 14 June 2022 / Accepted: 16 June 2022 / Published: 20 June 2022
(This article belongs to the Special Issue Photodynamic Therapy 2022)
Browse Figure
Versions Notes

Abstract

:
Oral health problems and the emergence of antimicrobial resistance among pathogenic bacterial strains have become major global challenges and are essential elements that negatively affect general well-being. Antimicrobial photodynamic therapy (APDT) is based on a light source and oxygen that activates a nontoxic photosensitizer, resulting in microbial destruction. Synthetic and natural products can be used to help the APDT against oral microorganisms. The undesirable consequences of conventional photosensitizers, including toxicity, and cost encourage researchers to explore new promising photosensitizers based on natural compounds such as curcumin, chlorella, chlorophyllin, phycocyanin, 5-aminolevulinic acid, and riboflavin. In this review, we summarize in vitro studies describing the potential use of APDT therapy conjugated with some natural products against selected microorganisms that are considered to be responsible for oral infections.

1. Introduction

Oral diseases such as caries, and endodontic–periodontal diseases are prevalent worldwide. The heavy burden of oral infectious diseases on health-related quality of life creates a strong ongoing need for developing more effective therapies with fewer complications [1]. Antibiotics are generally applied in the treatment of oral infectious diseases [1]. Several studies reported irrational antibiotic prescriptions with no scientific reasoning in dental ailments [2,3,4]. There was increasing concern about incorrect and inappropriate use of antibiotics due to bacterial drug resistance [1]. An important risk of the systemic use of antibiotics is superinfection, which makes it impossible to eradicate the pathogen [5]. Systemic use of antibiotics also causes side effects including increased sensitivity, gastrointestinal intolerance, and the development of bacterial resistance, as Rams et al. showed 71.7% resistance to at least one antimicrobial agent in a group of 120 peri-implantitis subjects [6]. Furthermore, systemic use of antibacterial is limited due to the lack of access to periodontal organisms in periodontal pockets [7].
Advanced understandings of the pathological consequences of oral infectious diseases have raised the demand for the design of antibacterial therapeutic strategies [1]. Antimicrobial photodynamic therapy (APDT) was described as a promising antibacterial therapeutic option to overcome the aforementioned drawbacks. APDT is a minimally invasive antimicrobial approach that has been proposed as adjunctive therapy for the treatment of local infections that are resistant to antibiotics [8]. APDT is a procedure that activates photosensitizers in the presence of oxygen to produce free radicals and reactive oxygen species (ROS) that are capable of causing cell death [9,10]. Compared with other conventional antimicrobials, APDT has several strengths, including that APDT is a multitarget process, in which the spread of microbial resistance will be very rare. APDT demonstrated a rapid lethal effect. It is a successful treatment that kills effectively a variety of microorganisms. In addition, it is known as a cost-effective and safe method [11]. Despite the advantages associated with APDT, there are some limitations to using them, including that oral bacteria in biofilms are less affected by APDT than bacteria in the planktonic stage [12]. Furthermore, the lack of selectivity to microorganisms can be also regarded as a limitation of APDT applications [11]. APDT has been reported in dental diseases against periodontal bacteria, and caries-related bacterial strains [13,14,15].
Photosensitizers have a key role in the APDT process as absorbers of light energy [16]. Several factors are taken into consideration when choosing photosensitizers. Photosensitizers should be chemically pure, produced under good production conditions with quality control and low production costs, and lead to better storage stability. These photosensitizers must have a maximum absorption peak in the red spectrum up to the near-infrared range of 650–800 nm because the absorption of single photons with wavelength above 800 nm does not produce enough amount of energy values to stimulate oxygen. Photosensitizers should have significant ease of quantum operation that results in good ROS production after irradiation. They should be non-toxic and rapidly removed from normal tissues to minimize side effects [17].
Natural products are beneficial due to their unique structural, chemical, antimicrobial, and anti-inflammatory properties [18]. In this review, essential functions, and advantages of natural photosensitizer-based APDT against oral infectious are first discussed. Then, a special focus on APDT in combination with nanoparticles (NPs) using natural photosensitizers is presented.

2. Mechanism of Action of APDT

APDT consists of three main components: a specified wavelength light source, a photosensitizer, and oxygen. In the APDT process, when the photosensitizer components are exposed to a specific wavelength of light, the photosensitizer can lose energy, thereby returning to the ground singlet state, or it can be converted to a long-lived triplet state by intersystem crossing. From this state, it can back to the ground state either via phosphorescence emission, or by two mechanisms generating ROS, as follows: The photosensitizer can interact with oxygen to produce hydrogen peroxide (H2O2), superoxide anion radical (O2), and hydroxyl radicals (•OH) (type 1) or interact with oxygen, forming singlet oxygen (1O2) (type 2) (Figure 1). The products produced in these reactions can cause significant damage to microorganisms and irreversibly alter their metabolic activity, resulting in the death of target cells [16].

3. Application of Natural Photosensitizers in Dental Caries

Dental caries is a multifactorial, non-transmissible, and biofilm-mediated disease occurred by phasic de/and remineralization process of susceptible dental hard tissues [19]. The main factors contributing to the pathogenesis are the acidic stage of Lactobacilli and Streptococcus mutans produce acid through the metabolism of a wide variety of carbohydrates, especially sucrose, and hence causes an acidic pH and enamel demineralization [20]. The treatment of deep carious lesions approximating the vital pulps is challenging. Complete removal of deep caries put the pulp at risk of exposure. Partial removal of dental caries has been advocated for avoiding pulp exposure, as carious dentin is left in proximity to the pulp led to a risk reduction for pulpal exposure [21]. The application of APDT as a complementary step of partial removal of dental caries appears as a favorable therapeutic candidate to stimulate dental practitioners in adopting minimal intervention procedures instead of old-fashioned restorative methods [22]. A photosensitizer penetrates a target cell without causing any adverse effects itself, which is very helpful [23].
Curcumin extracted from Curcuma longa is widely used in food and cosmetic industries and as a spice and coloring agent. It has characteristics such as anti-inflammatory, antitumoral, antioxidant, antibacterial, and chemotherapeutic effects, which make it valuable for photobiological application. It can also be used in APDT as a photosensitizer. It has the capacity to produce ROS and free radicals resulting in phototoxicity procedures. Due to its hydrophobic behavior, the same changes in its structure including the production of nanocurcumin make it more applicable than its previous structure. It has a peak absorption in the blue range of electromagnetic wavelengths [24,25,26]. Méndez et al. studied the effects of curcumin on total Streptococci, S. mutans, and total Lactobacilli biofilms, and reported that 600 μmol/L curcumin plus 75 J/cm2 light-emitting diodes (LED) reduced significantly the vitality of intact biofilms. In contrast, the results showed that curcumin alone exhibited no change in the vitality of intact biofilms [22]. Likewise, the author reported that curcumin with 2 or 5 min LED irradiation times reduced the vitality of 5-day grown biofilms [27]. Lee et al. suggested that curcumin in combination with Curcuma xanthorrhiza (a plant-derived, natural product) can induce a photodynamic reaction under irradiation by 405 nm LED at an energy density of 25.3 J/cm2 and effectively inhibit planktonic S. mutans cells [28]. Several studies showed no cytotoxicity to fibroblast cells, with curcumin as the photosensitizer [29,30,31].
Chlorella is a green natural microalga. It contains proteins, vitamins, and minerals, and is used as a dietary compound. It has antimicrobial, anticancer, anti-inflammatory, and antioxidant wound-healing characteristics. It can be activated by red wavelength [32,33]. Hwang et al. investigated APDT with Chlorella or Curcuma extracts against S. mutans biofilm upon exposure to LED light at 17.7 J (405 nm, 59 mW × 300 s). Chlorella and Curcuma treatment groups exhibited a 40% and 50% reduction in the live/dead bacteria ratio, respectively, when compared with that in the control group [33].
Chlorophyll, a green pigment that is found in green plants, can be activated by the range of 410–800 nm wavelengths. The high potency of ROS production and structure modification by replanting metal ion complex make it suitable as a photosensitizer in APDT procedures [34,35]. Phycocyanin is a bluish pigment used in the food industry as a coloring agent. This compound is extracted from spirulina with antioxidant, immunomodulation, and antimicrobial effects, which makes it a potential photosensitizer in APDT procedures. The peak absorption of this complex is in the red range of wavelengths. When this compound is activated by an appropriate wavelength, it can produce singlet oxygen. Water solubility and non-toxicity nature are two main advantages of this photosensitizer [14,36,37,38]. Our group also reported the APDT effects of 2.4 × 10−3 mol/L chlorophyllin–phycocyanin mixture (PhotoActive+) with a 3 min exposure to diode laser (635 nm, 104 J/cm2) potently reduced the gtfB gene expression of S. mutans, with rates of 3.5-fold. In addition, PhotoActive+–APDT displayed a significant decrease in GtfB protein production of S. mutans, by 54% [13]. In addition, according to a previous study, PhotoActive+ did not show any cytotoxic effect on human gingival fibroblast [39].
Chlorine e6 (Ce6), which is a derivative of chlorophyll, is mainly used for medical purposes and can be activated by 400–660 nm, but the red one is more acceptable, with an enhanced lifetime in a triplet state and low toxicity. The main mechanism of APDT with this photosensitizer is type II reaction by producing singlet oxygen [40]. Nie et al. showed Ce6 under 200 μM, followed by 660 nm red LED at an energy density of 15 J/cm2, resulted in a 5-log reduction in biofilm viability and a 30-fold reduction in biofilm lactic acid production of S. mutans. Nevertheless, this study stated that low levels of dark toxicity could be observed when the Ce6 concentration exceeded 50 μM [40].

4. Application of Natural Photosensitizers in Endodontic Root Canal Infections

Endodontic diseases are biofilm-associated infections [41]. Enterococcus faecalis is one of the most important species isolated from root canals with persistent endodontic infection, which are often difficult to eradicate due to its inherent antimicrobial resistance, biofilm formation, and the ability of dentinal tubule invasion [42]. Microbial biofilms in endodontics are more resistant to disinfecting medicaments used in root canal treatment. The complexity of the root canal system and the multispecies biofilm communities increase the difficulty in an effective eradication of the microbial biofilm [43]. It is believed that if microorganisms are present in the root canal, they may persist, resulting in treatment failure [44]. Hence, endodontic research has focused on developing procedures that can significantly reduce residual bacteria. APDT can be considered a complementary method to act as a support to root canal disinfection [45].
The recent evidence in this regard has been shown by Rocha et al.; after incubation of E. faecalis in artificial bone cavities for biofilm formation, APDT was conducted using the photosensitizer curcumin and LED (450 nm, 67 mW/cm2, and 20.1 J/cm2). Then, microbiological samples from the bone cavities were taken. The results showed curcumin at concentrations of 1.5 g/L significantly reduced the E. faecalis growth rate by 1.92 log10 colony-forming unit (CFU)/mL in comparison to the control group. In addition, fluorescence spectroscopy images revealed a greater reduction in biofilm in the curcumin–APDT group [46].
In another in vitro study, Diogo et al. examined the antimicrobial activity of the Zn(II) Ce6 methyl ester (Zn(II)e6Me), a chlorophyll-derived photosensitizer against mono and mixed biofilms of E. faecalis with Candida albicans from infected human dentin discs and root blocks. Bacteria were exposed to red light (627 nm, 75 mW, 3150 J/cm2) for 90 s. It was demonstrated that chlorophyll derivative treatment of dentin discs and root block lead to 59.1% and 79.7% biofilm reductions, respectively [47]. A recent investigation revealed that phycocyanin alone and phycocyanin–APDT decreased the viability of E. faecalis by 38.1%, and 89.45%, respectively. In addition, phycocyanin-APDT could significantly reduce the fsrB expression, by 10.8-fold [48]. Furthermore, an in vitro study found that APDT using 500 μg/mL of Chlorella plus 660 nm diode laser at an energy density of 23.43 J/cm2 is effective against E. faecalis biofilms [49].

5. Application of Natural Photosensitizers in Periodontitis

Periodontitis is the most common bacterial infectious disease that has attracted a great deal of public health attention. This disease leads to progressive damage such as gingival atrophy, alveolar bone resorption, and eventually tooth loss, with progressive degeneration of periodontal-supporting tissues [50]. Periodontitis is also associated with the occurrence of many systemic diseases. Therefore, it is necessary to find effective and safe methods in the treatment of this disease [51]. Porphyromonas gingivalis and Aggregatibacter actinomycetemcomitans are the most common bacteria causing periodontitis. Periodontitis is a potential risk factor for peri-implantitis [52,53]. The effect of many systemic antimicrobials is limited because most antibiotics used in clinical context cannot able to suppress P. gingivalis and A. actinomycetemcomitans indefinitely. Moreover, systemic treatment may reduce total bacterial count but are unable to eradicate the target organisms located deep in the biofilm [53,54]. In addition, the acceptable efficacy of antimicrobials can only maintain over a short time, and antibiotic-resistant strains can occur during antimicrobial treatment. The bacteria produce a biofilm, a membrane-like structure composed of microbial cells and an extracellular polymer matrix surrounded by exopolysaccharides [54]. The biofilm structure acts as a physical barrier and leads to increased resistance to antimicrobial agents compared with planktonic species [55].
Non-surgical mechanical debridement is still an optional treatment in patients with periodontitis, although in cases where there is severe periodontitis surgical intervention and the use of systemic antibiotics are usually indicated [56]. The use of effective adjunctive therapies such as APDT could be considered to improve the outcomes of non-surgical periodontal treatment [57]. In one study, blue LED irradiation (450–470 nm, output power density 1.2 W/cm2) at 6, 12, and 18 J/cm2 alone reduced the number of CFU/mL of both P. gingivalis and A. actinomycetemcomitans, but this reduction did not reach statistical significance. APDT at a concentration level of 20 μmol/L curcumin with blue LED at 18 J/cm2 reduced bacterial counts of P. gingivalis and A. actinomycetemcomitans by 0.43 and 1.51 log10 CFU/mL, respectively [58]. Likewise, Zakeri et al. found that curcumin (60 μM, incubation for 5 min) reduced the survival rate of P. gingivalis by about 50% [59]. Saitawee et al. reported that APDT with the Curcuma longa inhibits the growth of A. actinomycetemcomitans when stimulated with 420–480 nm LED at an energy density of 16.8 J/cm2 [60].
The in vitro experiments of one study demonstrated that acid-etched (SLA) titanium discs contaminated with A. actinomycetemcomitans biofilm treated with phycocyanin mediated APDT is able to significantly reduce A. actinomycetemcomitans biofilm by 40.07%. This study compared 635 nm diode laser, and phycocyanin alone, and observed that the efficacy of APDT was superior to both of the mentioned modalities (40.07% in comparison to 15.38 and 27.54%, respectively) [14].
Al-Ahmad et al. investigated APDT using a Guatteria blepharophylla visible light and water infiltrated infrared A (wIRA) in combination with Ce6 against Eikenella corrodens, Actinomyces odontolyticus, Fusobacterium nucleatum, Parvimonas micra, Slackia exigua, Atopobium rimae, A. actinomycetemcomitans, and P. gingivalis in planktonic phase and within subgingival oral biofilms communities. The authors reported that Ce6 with 5 min of exposure to 200 mW/cm2 light + wIRA showed an APDT effect. According to the live/dead staining results, a significant reduction (33.45%) of treated bacterial cells within subgingival biofilm was observed [61].

6. Application of Natural Photosensitizers in Orthodontic System

Orthodontic therapy involves the movement of teeth and jaw bones in order to align them and produce harmony among them. The duration of treatment may be long according to the seriousness of the occlusal malalignment. Oral biofilm formation is one of the most common risks of orthodontic treatment due to the difficulty in completely eliminating biofilms through brushing. In addition to a variety of periodontal and surgical applications, APDT can be widely used to treat orthodontic infections that are caused by a profuse bacterial buildup [62].
Riboflavin or vitamin B2 is a yellowish pigment that can be used as a photosensitizer. Due to its capability of singlet oxygen and hydrogen peroxide and derivatives generation upon irradiation by UV or blue wavelengths. It is a non-toxic compound and has a role in providing cellular metabolism [63,64]. In a previous in vitro study, Kamran et al. showed that riboflavin–APDT significantly reduced the amounts of Streptococcus sanguinis and S. mutans around the orthodontic brackets [62]. Algerban et al. demonstrated that the metabolic activity of S. mutans significantly decreased with the addition of a high amount of either rose bengal or riboflavin, with a light source for illumination (375 nm, 3 mW/cm2). The metabolic activity of 0.1% rose bengal or riboflavin after APDT reduced to a certain extent on the 30th day, and 0.5% of either rose bengal–APDT or riboflavin–APDT showed relatively reduced viability of S. mutans well under 35% [65].

7. Application of Natural Photosensitizers in Oral Candidiasis

C. albicans is the most commonly encountered oral manifestation, especially in HIV patients [66]. This is due to its adherence abilities and form of biofilms on the oral tissues and denture surfaces [67]. Biofilm-associated Candida infections show high resistance to antifungal treatment and host defense mechanisms. Hence, alternative strategies such as APDT against the emergence of drug-resistant C. albicans are being considered [66].
Mittal et al. indicated that the use of different laser wavelengths (He–Ne: 633 nm, and Nd-YAG: 532 nm) with output power 17, and 27 mW/cm2 in combination with Beta vulgaris as a natural photosensitizer are significantly effective on the viability of C. albicans [68]. Ma et al. studied the effects of curcumin on C. albicans biofilms, performed experimental studies on the standard strain and two clinical isolates from HIV and oral lichen planus, and reported that 6 min of exposure to 7.92 J/cm2 LED with the 60 μM curcumin reduced C. albicans biofilms. Furthermore, expression of efg1, ume6, hgc1, and ece1 genes expression of C. albicans was decreased after curcumin–APDT [66].
5-aminolevulinic acid (ALA), the natural precursor of protoporphyrin IX (PpIX), presents several advantages, including high matrix penetration, high degree of photostability, lower toxicity, and water solubility, and can be rapidly cleared from the target cells [69,70]. In a study by Shi et al., photoinactivation of 15 mM ALA mediated APDT and inhibited the growth of C. albicans biofilms up to 74.45% by increasing the uptake of the protoporphyrin IX in the biofilms. Moreover, ALA–APDT under a 635 nm red light source at an energy density of 300 J/cm2 showed potent inhibition of the metabolic activity of C. albicans [71]. In addition, the photoactivation of PpIX to combat Actinomyces israelii, and F. nucleatum was investigated, and PpIX had a substantial ability to inactivate these microorganisms [72].
Aloe-emodin is a natural compound isolated from Aloe vera and Rheum palmatum. Ma et al. evaluated the potential application of the aloe-emodin for drug-resistant C. albicans strains and found aloe-emodin in a concentration of 10 μM plus 400–780 nm LED at an energy density of 4.8 J/cm2 to be an effective photosensitizer in APDT [73].

8. Application of Natural Photosensitizers in NP-Based APDT

NPs are known as the main products of nanotechnologies, with diameters of 100 nm or less [74]. NPs possess unique properties, compared with their bulk material, that can overcome the drawbacks of photosensitizers, including low water solubility, uncontrollable photosensitizer release, poor target selectivity, and low extinction coefficient, which has limited their clinical application [1].
Sun et al. investigated the antimicrobial and antibiofilm activities of NPs containing Ce6, coumarin 6 (C6), and Fe3O4 NPs via APDT against a panel of periodontitis pathogens including S. sanguinis, P. gingivalis, and F. nucleatum. The Fe3O4 silane@Ce6/C6-mediated APDT had a much greater reduction in biofilms than the untreated bacteria. For each species, Fe3O4-silane@Ce6/C6 NPs without light irradiation had similar metabolic activity to the untreated bacteria. The authors showed that Fe3O4-silane@Ce6/C6 NPs with red-light irradiation (630 nm) exhibited significantly lower metabolic activity than NPs without irradiation. In fact, 1O2 generated by Fe3O4- silane@Ce6/C6 NPs with 630 nm light could penetrate into dental plaque and play a great role in the antimicrobial effect against periodontal pathogens. In addition, the L929 mouse fibroblast cells were more than 80% viable with a concentration of 10 μM of Fe3O4- silane@Ce6/C6 NPs [75].
Graphene quantum dots (GQDs), which are carbon-based of nanometer size, owing to their excellent water solubility, photostability, non-toxicity, biocompatibility, etc., thus making them beneficial for a wide variety of applications in nanomedicine [76]. Mushtaq et al. reported that curcumin loading on GQDs is expected to resolve the poor water solubility issue of curcumin but also enhance ROS production, as the photosensitizer activity of curcumin and GQDs will be combined. Therefore, the loading of curcumin on GQDs can potentially enhance its antimicrobial effects when irradiated with light of a specific wavelength. The results of this study showed that, at a light exposure of 30 J/cm2, curcumin-GQDs mediated APDT caused 3.82 log10 CFU/mL reduction in C. albicans, while GQD–APDT and curcumin–APDT resulted in 1.07 and 1.34 log10 CFU/mL reductions in C. albicans, respectively. The improved antimicrobial activity of curcumin-GQDs is believed to contribute to the generation of ROS, causing damage to bacterial cell death. Nanoscale photosensitizer delivery system can modify the poor solubility of curcumin in addition to increasing targeted delivery of curcumin and, subsequently, resulting in increased bioavailability of curcumin [77].
Propolis is also a natural product that has gained attention in the scientific community due to its antibacterial, antiviral, and anti-inflammatory activities [78]. In a previous study, the authors used propolis NP (PNP) to investigate the individual and synergistic effects of PhotoActive+ as a natural photosensitizer in combination with PNP plus diode laser with the energy density of 103.12 J/cm2 in the APDT process against S. mutans. The PhotoActive+–PNP–APDT significantly suppressed the S. mutans biofilm formation by 58%. The expression of gtfB, gtfC, and ftf genes showed a significant reduction after APDT in the presence of PhotoActive+ and PNP of about twofold; compared with PhotoActive+–APDT, this difference was significant. It could be concluded that the PNP could significantly enhance the APDT outcomes against S. mutans. These findings might provide an opportunity for the efficient treatment of localized microbial infections [39]. Zhang et al. combined Ce6 with upconversion NPs (UCNPs) NaYF4: Yb, Er via the amphiphilic silane method. Enhanced bacteriological outcomes were found on Prevotella. intermedia, F. nucleatum, and P. gingivalis and the corresponding biofilms after 980 nm near-infrared light irradiation. The energy transfer triggering due to the existence of Ce6 in the UCNPs is very important for high-efficient APDT [79]. Another example of new drug delivery systems is the use of liposome-based carriers due to the encapsulation ability of both hydrophilic and lipophilic drugs and enhancing the drug action in vivo [80]. Yang et al. suggested cationic liposomes embedded with cetyltrimethylammonium bromide (CTAB) with strong antimicrobial activity, in which Ce6 was encapsulated as a photosensitizer to administer APDT against C. albicans. Ce6-loaded CTAB–liposomal compounds showed greater APDT efficacy against C. albicans. Encapsulation of photosensitizers in liposomes can retain the photosensitizer in its monomeric form, thereby ensuring high yields of 1O2 under light irradiation [81].

9. Advantages and Limitations

A variety of conventional photosensitizers with lasers of various wavelengths have been used in clinical trials, including toluidine blue, indocyanine green, and methylene blue. Although these photosensitizers have shown promising results in clinical studies, there are limitations to using them [82,83,84]. Natural photosensitizers have been applied directly in APDT without the different synthetic strategies to produce synthetic photosensitizers, which enables the development of new APDT techniques at a lower cost. Many natural photosensitizers are obtained from edible plants and do not require hazardous materials for building up synthetic photosensitizers. Natural photosensitizers are environmentally friendly. The low solubility of natural photosensitizers, low triplet quantum yield upon irradiation, and poor absorption, distribution, metabolism, and excretion properties are major problems limiting the widespread use of natural photosensitizers in APDT [16]. The poor solubility of photosensitizers causes bioavailability problems, susceptibility to hydrolytic degradation, and aggregation before interaction with the target site. This aggregation causes fluorescence quenching and low generation of ROS, resulting in a low APDT efficiency [85]. However, there are not many studies on the use of natural photosensitizers in clinical practice, and studies in this field should be continued.

10. Conclusions and Perspectives

In this paper, we focused on the preliminary in vitro studies concerning the efficiency of antimicrobial photoinactivation based on natural photosensitizers against some microorganisms responsible for oral diseases. This review stated several natural products that were found to have demonstrated effective antibacterial photodynamic actions. The known structures of natural photosensitizer molecules open up wide opportunities for their directed modification in order to obtain highly stable derivatives with enhanced photophysical features and increased hydrophilicity, as well as to create conjugates with other molecules that need to be addressed in future studies. These preliminary studies motivate researchers to continue the research of infection control with natural photosensitizers activated by APDT.

Author Contributions

S.A. contributed to study design and data gathering, wrote the manuscript, and drew the figure; A.P. contributed to reviewing and editing the final manuscript; N.C. contributed to study design and editing of the final manuscript; R.G. contributed to project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qi, M.; Chi, M.; Sun, X.; Xie, X.; Weir, M.D.; Oates, T.W.; Zhou, Y.; Wang, L.; Bai, Y.; Xu, H. Novel nanomaterial-based antibacterial photodynamic therapies to combat oral bacterial biofilms and infectious diseases. Int. J. Nanomed. 2019, 14, 6937–6956. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wasan, H.; Gupta, P.; Mathur, A.; Mutneja, E.; Mathur, V.P.; Gupta, Y.K. Influence of qualification and practice settings of dental practitioners on antimicrobial prescribing in Delhi and National Capital Region, India. J. Nat. Sci. Biol. Med. 2017, 8, 229–234. [Google Scholar] [PubMed] [Green Version]
  3. Löffler, C.; Böhmer, F. The effect of interventions aiming to optimise the prescription of antibiotics in dental care—A systematic review. PLoS ONE 2017, 12, e0188061. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Segura-Egea, J.J.; Martín-González, J.; del Carmen Jiménez-Sánchez, M.; Crespo-Gallardo, I.; Saúco-Márquez, J.J.; Velasco-Ortega, E. Worldwide pattern of antibiotic prescription in endodontic infections. Int. Dent. J. 2017, 67, 197–205. [Google Scholar] [CrossRef] [Green Version]
  5. Verdugo, F. Risk of Superinfection in Peri-implantitis After Systemic Broad Spectrum Antibiotics. Int. J. Periodontics Rest. 2018, 38, 443–450. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Rams, T.E.; Degener, J.E.; van Winkelhoff, A.J. Antibiotic resistance in human peri-implantitis microbiota. Clin. Oral Implant. Res. 2014, 25, 82–90. [Google Scholar] [CrossRef] [Green Version]
  7. Dodwad, V.; Vaish, S.; Mahajan, A.; Chhokra, M. Local drug delivery in periodontics: A strategic intervention. Int. J. Pharm Pharm Sci. 2012, 4, 30–34. [Google Scholar]
  8. Lee, Y.-H.; Park, H.-W.; Lee, J.-H.; Seo, H.-W.; Lee, S.-Y. The photodynamic therapy on Streptococcus mutans biofilms using erythrosine and dental halogen curing unit. Int. J. Oral Sci. 2012, 4, 196–201. [Google Scholar] [CrossRef] [Green Version]
  9. Palacios, Y.B.; Durantini, J.E.; Heredia, D.A.; Martínez, S.R.; González de la Torre, L.; Durantini, A.M. Tuning the Polarity of Fullerene C60 Derivatives for Enhanced Photodynamic Inactivation. Photochem. Photobiol. 2021, 97, 1431–1444. [Google Scholar] [CrossRef]
  10. Afrasiabi, S.; Pourhajibagher, M.; Bahador, A. The photomodulation activity of metformin against oral microbiome. J. Lasers Med. Sci. 2019, 10, 241–250. [Google Scholar] [CrossRef]
  11. Cabral, J.; Ag, R. Blue light disinfection in hospital infection control: Advantages, drawbacks, and pitfalls. Antibiotics 2019, 8, 58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Fontana, C.; Abernethy, A.; Som, S.; Ruggiero, K.; Doucette, S.; Marcantonio, R.; Boussios, C.; Kent, R.; Goodson, J.; Tanner, A.; et al. The antibacterial effect of photodynamic therapy in dental plaque-derived biofilms. J. Periodontal Res. 2009, 44, 751–759. [Google Scholar] [CrossRef] [PubMed]
  13. Afrasiabi, S.; Pourhajibagher, M.; Chiniforush, N.; Aminian, M.; Rasi Varaei, S.S.; Bahador, A. Effects of sub-lethal dose of antimicrobial photodynamic therapy on major virulence traits of Streptococcus mutans. Photodiagn. Photodyn. Ther. 2020, 32, 102044. [Google Scholar] [CrossRef] [PubMed]
  14. Etemadi, A.; Eftekhari Bayati, S.; Pourhajibagher, M.; Chiniforush, N. In vitro effect of antimicrobial photodynamic therapy with phycocyanin on Aggregatibacter actinomycetemcomitans biofilm on SLA titanium discs. Photodiagn. Photodyn. Ther. 2020, 32, 102062. [Google Scholar] [CrossRef]
  15. Afrasiabi, S.; Chiniforush, N.; Barikani, H.R.; Partoazar, A.; Goudarzi, R. Nanostructures as Targeted Therapeutics for Combating Oral Bacterial Diseases. Biomedicines 2021, 9, 1435. [Google Scholar] [CrossRef]
  16. Polat, E.; Kang, K. Natural Photosensitizers in Antimicrobial Photodynamic Therapy. Biomedicines 2021, 9, 584. [Google Scholar] [CrossRef]
  17. Abrahamse, H.; Hamblin, M.R. New photosensitizers for photodynamic therapy. Biochem. J. 2016, 473, 347–364. [Google Scholar] [CrossRef] [Green Version]
  18. Yang, L.; Wang, Z. Natural Products, Alone or in Combination with F.DA-Approved Drugs, to Treat COVID-19 and Lung Cancer. Biomedicines 2021, 9, 689. [Google Scholar] [CrossRef]
  19. Pitts, N.B.; Zero, D.T.; Marsh, P.D.; Ekstrand, K.; Weintraub, J.A.; Ramos-Gomez, F.; Tagami, J.; Twetman, S.; Tsakos, G.; Ismail, A. Dental caries. Nat. Rev. Dis. Primers 2017, 3, 17030. [Google Scholar] [CrossRef] [Green Version]
  20. Xue, X.; Sztajer, H.; Buddruhs, N.; Petersen, J.; Rohde, M.; Talay, S.R.; Wagner-Döbler, I. Lack of the delta subunit of RNA polymerase increases virulence related traits of Streptococcus mutans. PLoS ONE 2011, 6, e20075. [Google Scholar] [CrossRef]
  21. Schwendicke, F.; Leal, S.; Schlattmann, P.; Paris, S.; Ribeiro, A.P.D.; Marques, M.G.; Hilgert, L.A. Selective carious tissue removal using subjective criteria or polymer bur: Study protocol for a randomised controlled trial (SelecCT). BMJ Open 2018, 8, e022952. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Méndez, D.A.C.; Gutierres, E.; Dionisio, E.J.; Buzalaf, M.A.R.; Oliveira, R.C.; Machado, M.A.A.M.; Cruvinel, T. Curcumin-mediated antimicrobial photodynamic therapy reduces the viability and vitality of infected dentin caries microcosms. Photodiagn. Photodyn. Ther. 2018, 24, 102–108. [Google Scholar] [CrossRef] [PubMed]
  23. Suvorov, N.; Pogorilyy, V.; Diachkova, E.; Vasil’ev, Y.; Mironov, A.; Grin, M. Derivatives of natural chlorophylls as agents for antimicrobial photodynamic therapy. Int. J. Mol. Sci. 2021, 22, 6392. [Google Scholar] [CrossRef] [PubMed]
  24. Kazantzis, K.; Koutsonikoli, K.; Mavroidi, B.; Zachariadis, M.; Alexiou, P.; Pelecanou, M.; Politopoulos, K.; Alexandratou, E.; Sagnou, M. Curcumin derivatives as photosensitizers in photodynamic therapy: Photophysical properties and in vitro studies with prostate cancer cells. Photochem. Photobiol. Sci. 2020, 19, 193–206. [Google Scholar] [CrossRef] [PubMed]
  25. Ailioaie, L.M.; Ailioaie, C.; Litscher, G. Latest innovations and nanotechnologies with curcumin as a nature-inspired photosensitizer applied in the photodynamic therapy of cancer. Pharmaceutics 2021, 13, 1562. [Google Scholar] [CrossRef]
  26. Etemadi, A.; Hamidain, M.; Parker, S.; Chiniforush, N. Blue Light Photodynamic Therapy With Curcumin and Riboflavin in the Management of Periodontitis: A Systematic Review. J. Lasers Med. Sci. 2021, 12, e15. [Google Scholar] [CrossRef]
  27. Méndez, D.A.C.; Gutierrez, E.; Lamarque, G.C.C.; Rizzato, V.L.; Buzalaf, M.A.R.; Machado, M.A.A.M.; Cruvinel, T. The effectiveness of curcumin-mediated antimicrobial photodynamic therapy depends on pre-irradiation and biofilm growth times. Photodiagn. Photodyn. Ther. 2019, 27, 474–480. [Google Scholar] [CrossRef]
  28. Lee, H.-J.; Kang, S.-M.; Jeong, S.-H.; Chung, K.-H.; Kim, B.-I. Antibacterial photodynamic therapy with curcumin and Curcuma xanthorrhiza extract against Streptococcus mutans. Photodiagn. Photodyn. Ther. 2017, 20, 116–119. [Google Scholar] [CrossRef]
  29. Mandrol, P.S.; Bhat, K.; Prabhakar, A.R. An in vitro evaluation of cytotoxicity of curcumin against human dental pulp fibroblasts. J. Indian Soc. Pedod. Prev. Dent. 2016, 34, 269–272. [Google Scholar] [CrossRef]
  30. Mandroli, P.S.; Prabhakar, A.; Bhat, K.; Krishnamurthy, S.; Bogar, C. An in vitro evaluation of cytotoxicity of curcumin against human periodontal ligament fibroblasts. AYU 2019, 40, 192–195. [Google Scholar] [CrossRef]
  31. Gomes-Filho, J.E.; Sivieri-Araujo, G.; Sipert, C.R.; da Silva Santos, L.M.; de Azevedo Queiroz, Í.O.; Martins, C.M.; Carmo Maia, N.K.; AngeloCintra, L.T.; Dezan-Junior, E.; SalvadorBagnato, V.; et al. Evaluation of photodynamic therapy on fibroblast viability and cytokine production. Photodiagn. Photodyn. Ther. 2016, 13, 97–100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Al-Akhras, M.-A.H.; Aljarrah, K.; Makhadmeh, G.N.; Shorman, A. Introducing the effect of Chinese chlorella as a photosensitizing drug at different temperatures. J. Mol. Pharm. Org. Process Res. 2013, 1, e109. [Google Scholar] [CrossRef] [Green Version]
  33. Hwang, H.-R.; Lee, E.-S.; Kang, S.-M.; Chung, K.-H.; Kim, B.-I. Effect of antimicrobial photodynamic therapy with Chlorella and Curcuma extract on Streptococcus mutans biofilms. Photodiagn. Photodyn. Ther. 2021, 35, 102411. [Google Scholar] [CrossRef] [PubMed]
  34. Oktavia, L.; Mulyani, I.; Suendo, V. Investigation of Chlorophyl-a Derived Compounds as Photosensitizer for Photodynamic Inactivation. Bull. Chem. React. Eng. Catal. 2021, 16, 161–169. [Google Scholar] [CrossRef]
  35. Gao, Y.-H.; Zhu, X.-X.; Zhu, W.; Wu, D.; Chen, D.-Y.; Yan, Y.-J.; Wu, X.-F.; O’Shea, D.; Chen, Z. Synthesis and evaluation of novel chlorophyll a derivatives as potent photosensitizers for photodynamic therapy. Eur. J. Med. Chem. 2020, 187, 111959. [Google Scholar] [CrossRef]
  36. Luksiene, Z.; Paskeviciute, E. Novel approach to decontaminate food-packaging from pathogens in non-thermal and not chemical way: Chlorophyllin-based photosensitization. J. Food Eng. 2011, 106, 152–158. [Google Scholar] [CrossRef]
  37. Bharathiraja, S.; Seo, H.; Manivasagan, P.; Santha Moorthy, M.; Park, S.; Oh, J. In vitro photodynamic effect of phycocyanin against breast cancer cells. Molecules 2016, 21, 1470. [Google Scholar] [CrossRef]
  38. Chiniforush, N.; Pourhajibagher, M.; Parker, S.; Benedicenti, S.; Bahador, A.; Sălăgean, T.; Bordea, I.R. The effect of antimicrobial photodynamic therapy using chlorophyllin–Phycocyanin mixture on Enterococcus faecalis: The influence of different light sources. Appl. Sci. 2020, 10, 4290. [Google Scholar] [CrossRef]
  39. Afrasiabi, S.; Pourhajibagher, M.; Chiniforush, N.; Bahador, A. Propolis nanoparticle enhances the potency of antimicrobial photodynamic therapy against Streptococcus mutans in a synergistic manner. Sci. Rep. 2020, 10, 15560. [Google Scholar] [CrossRef]
  40. Nie, M.; Deng, D.M.; Wu, Y.; de Oliveira, K.T.; Bagnato, V.S.; Crielaard, W.; de Souza Rastelli, A.N. Photodynamic inactivation mediated by methylene blue or chlorin e6 against Streptococcus mutans biofilm. Photodiagn. Photodyn. Ther. 2020, 31, 101817. [Google Scholar] [CrossRef]
  41. Elshinawy, M.I.; Al-Madboly, L.A.; Ghoneim, W.M.; El-Deeb, N.M. Synergistic effect of newly introduced root canal medicaments; ozonated olive oil and chitosan nanoparticles, against persistent endodontic pathogens. Front Microbiol. 2018, 9, 1371. [Google Scholar] [CrossRef] [Green Version]
  42. Parolia, A.; Kumar, H.; Ramamurthy, S.; Madheswaran, T.; Davamani, F.; Pichika, M.R.; Mak, K.K.; Fawzy, A.; Daood, U.; Pau, A. Effect of Propolis Nanoparticles against Enterococcus faecalis Biofilm in the Root Canal. Molecules 2021, 26, 715. [Google Scholar] [CrossRef] [PubMed]
  43. Neelakantan, P.; Romero, M.; Vera, J.; Daood, U.; Khan, A.U.; Yan, A.; Cheung, G.S.P. Biofilms in endodontics—Current status and future directions. Int. J. Mol. Sci. 2017, 18, 1748. [Google Scholar] [CrossRef] [PubMed]
  44. Alves, F.R.; Andrade-Junior, C.V.; Marceliano-Alves, M.F.; Pérez, A.R.; Rôças, I.N.; Versiani, M.A.; Sousa-Neto, M.D.; Provenzano, J.C.; Siqueira, J.F., Jr. Adjunctive steps for disinfection of the mandibular molar root canal system: A correlative bacteriologic, micro–computed tomography, and cryopulverization approach. J. Endod. 2016, 42, 1667–1672. [Google Scholar] [CrossRef] [PubMed]
  45. Stájer, A.; Kajári, S.; Gajdács, M.; Musah-Eroje, A.; Baráth, Z. Utility of photodynamic therapy in dentistry: Current concepts. Dent. J. 2020, 8, 43. [Google Scholar] [CrossRef] [PubMed]
  46. Rocha, M.P.; Santos, M.S.; Rodrigues, P.L.F.; Araújo, T.S.D.; de Oliveira, J.M.; Rosa, L.P.; Bagnato, V.S.; da Silva, F.C. Photodynamic therapry with curcumin in the reduction of enterococcus faecalis biofilm in bone cavity: rMicrobiological and spectral fluorescense analysis. Photodiagn. Photodyn. Ther. 2021, 33, 102084. [Google Scholar] [CrossRef]
  47. Diogo, P.; Mota, M.; Fernandes, C.; Sequeira, D.; Palma, P.; Caramelo, F.; Neves, M.G.P.M.S.; Faustino, M.A.F.; Gonçalves, T.; Santos, J.M. Is the chlorophyll derivative Zn (II) e6Me a good photosensitizer to be used in root canal disinfection? Photodiagn. Photodyn. Ther. 2018, 22, 205–211. [Google Scholar] [CrossRef]
  48. Pourhajibagher, M.; Chiniforush, N.; Bahador, A. Antimicrobial action of photoactivated C-Phycocyanin against Enterococcus faecalis biofilms: Attenuation of quorum-sensing system. Photodiagn. Photodyn. Ther. 2019, 28, 286–291. [Google Scholar] [CrossRef]
  49. Pourhajibagher, M.; Miri-Moosavi, R.S.; Chiniforush, N.; Safaraei, Y.; Arian-Kia, S.; Lalegani, M.R.; Bazarjani, F.; Bahador, A. Anti-biofilm activity of Chlorella-mediated light activated disinfection: Ex vivo inhibition of intracanal mature Enterococcus faecalis biofilms via application of natural product. Photodiagn. Photodyn. Ther. 2020, 31, 101853. [Google Scholar] [CrossRef]
  50. Kinane, D.F.; Stathopoulou, P.G.; Papapanou, P.N. Periodontal diseases. Nat. Rev. Dis. Primers. 2017, 3, 17038. [Google Scholar] [CrossRef]
  51. Ohyama, H.; Nakasho, K.; Yamanegi, K.; Noiri, Y.; Kuhara, A.; Kato-Kogoe, N.; Yamada, N.; Hata, M.; Nishimura, F.; Ebisu, S. An unusual autopsy case of pyogenic liver abscess caused by periodontal bacteria. Jpn. J. Infect. Dis. 2009, 62, 381–383. [Google Scholar]
  52. Stacchi, C.; Berton, F.; Perinetti, G.; Frassetto, A.; Lombardi, T.; Khoury, A.; Andolsek, F.; Lenarda, R.D. Risk factors for peri-implantitis: Effect of history of periodontal disease and smoking habits. A systematic review and meta-analysis. J. Oral Maxillofac. Res. 2016, 7, e3. [Google Scholar] [CrossRef] [PubMed]
  53. Liang, G.; Shi, H.; Qi, Y.; Li, J.; Jing, A.; Liu, Q.; Feng, W.; Li, G.; Gao, S. Specific Anti-biofilm Activity of Carbon Quantum Dots by Destroying P. gingivalis Biofilm Related Genes. Int. J. Nanomed. 2020, 15, 5473. [Google Scholar] [CrossRef]
  54. Takashima, E.; Konishi, K. Characterization of a quinol peroxidase mutant in Aggregatibacter actinomycetemcomitans. FEMS Microbiol. Lett. 2008, 286, 66–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Misba, L.; Kulshrestha, S.; Khan, A.U. Antibiofilm action of a toluidine blue O-silver nanoparticle conjugate on Streptococcus mutans: A mechanism of type I photodynamic therapy. Biofouling 2016, 32, 313–328. [Google Scholar] [CrossRef]
  56. Souza, E.Q.M.; da Rocha, T.E.; Toro, L.F.; Guiati, I.Z.; Ervolino, E.; Garcia, V.G.; Wainwright, M.; Theodoro, L.M. Antimicrobial photodynamic therapy compared to systemic antibiotic therapy in non-surgical treatment of periodontitis: Systematic review and meta-analysis. Photodiagn. Photodyn. Ther. 2020, 31, 101808. [Google Scholar] [CrossRef] [PubMed]
  57. Bashir, N.Z.; Singh, H.-A.; Virdee, S.S. Indocyanine green–mediated antimicrobial photodynamic therapy as an adjunct to periodontal therapy: A systematic review and meta-analysis. Clin. Oral Investig. 2021, 25, 5699–5710. [Google Scholar] [CrossRef]
  58. Pan, H.; Wang, D.; Zhang, F. In vitro antimicrobial effect of curcumin-based photodynamic therapy on Porphyromonas gingivalis and Aggregatibacter actinomycetemcomitans. Photodiagn. Photodyn. Ther. 2020, 32, 102055. [Google Scholar] [CrossRef]
  59. Mahdi, Z.; Habiboallh, G.; Mahbobeh, N.N.; Mina, Z.J.; Majid, Z.; Nooshin, A. Lethal effect of blue light-activated hydrogen peroxide, curcumin and erythrosine as potential oral photosensitizers on the viability of Porphyromonas gingivalis and Fusobacterium nucleatum. Laser Ther. 2015, 24, 103–111. [Google Scholar] [CrossRef] [Green Version]
  60. Saitawee, D.; Teerakapong, A.; Morales, N.P.; Jitprasertwong, P.; Hormdee, D. Photodynamic therapy of Curcuma longa extract stimulated with blue light against Aggregatibacter actinomycetemcomitans. Photodiagn. Photodyn. Ther. 2018, 22, 101–105. [Google Scholar] [CrossRef]
  61. Al-Ahmad, A.; Walankiewicz, A.; Hellwig, E.; Follo, M.; Tennert, C.; Wittmer, A.; Karygianni, L. Photoinactivation using visible light plus water-filtered infrared-A (vis+ wIRA) and chlorine e6 (Ce6) eradicates planktonic periodontal pathogens and subgingival biofilms. Front Microbiol. 2016, 7, 1900. [Google Scholar] [CrossRef] [Green Version]
  62. Kamran, M.A.; Qasim, M.; Udeabor, S.E.; Hameed, M.S.; Mannakandath, M.L.; Alshahrani, I. Impact of riboflavin mediated photodynamic disinfection around fixed orthodontic system infected with oral bacteria. Photodiagn. Photodyn. Ther. 2021, 34, 102232. [Google Scholar] [CrossRef] [PubMed]
  63. Choe, E.; Huang, R.; Min, D.B. Chemical reactions and stability of riboflavin in foods. J. Food Sci. 2005, 70, R28–R36. [Google Scholar] [CrossRef]
  64. Moradi, M.; Fazlyab, M.; Pourhajibagher, M.; Chiniforush, N. Antimicrobial action of photodynamic therapy on Enterococcus faecalis biofilm using curing light, curcumin and riboflavin. Aust. Endod. J. 2021. [Google Scholar] [CrossRef] [PubMed]
  65. Alqerban, A. Effectiveness of riboflavin and rose Bengal photosensitizer modified adhesive resin for orthodontic bonding. Pharmaceuticals 2021, 14, 48. [Google Scholar] [CrossRef]
  66. Ma, J.; Shi, H.; Sun, H.; Li, J.; Bai, Y. Antifungal effect of photodynamic therapy mediated by curcumin on Candida albicans biofilms in vitro. Photodiagn. Photodyn. Ther. 2019, 27, 280–287. [Google Scholar] [CrossRef]
  67. Niculescu, A.-G.; Grumezescu, A.M. Natural Compounds for Preventing Ear, Nose, and Throat-Related Oral Infections. Plants 2021, 10, 1847. [Google Scholar] [CrossRef] [PubMed]
  68. Mittal, S.; Roy, S.; Srivastava, J. Fungicidal response of a novel natural photosensitizer (Beta vulgaris) on Candida albicans with low-power laser radiation. Laser Phys. 2013, 23, 055606. [Google Scholar] [CrossRef]
  69. Zhang, Q.Z.; Zhao, K.Q.; Wu, Y.; Li, X.H.; Yang, C.; Guo, L.M.; Liu, C.H.; Qu, D.; Zheng, C.Q. 5-aminolevulinic acid-mediated photodynamic therapy and its strain-dependent combined effect with antibiotics on Staphylococcus aureus biofilm. PLoS ONE 2017, 12, e0174627. [Google Scholar] [CrossRef]
  70. Huang, J.; Guo, M.; Wu, M.; Shen, S.; Shi, L.; Cao, Z.; Wang, X.; Wang, H. Effectiveness of a single treatment of photodynamic therapy using topical administration of 5-aminolevulinic acid on methicillin-resistant Staphylococcus aureus-infected wounds of diabetic mice. Photodiagn. Photodyn. Ther. 2020, 30, 101748. [Google Scholar] [CrossRef] [PubMed]
  71. Shi, H.; Li, J.; Zhang, H.; Zhang, J.; Sun, H. Effect of 5-aminolevulinic acid photodynamic therapy on Candida albicans biofilms: An in vitro study. Photodiagn. Photodyn. Ther. 2016, 15, 40–45. [Google Scholar] [CrossRef] [PubMed]
  72. Kang, S.-M.; Jung, H.-I.; Kim, B.-I. Susceptibility of oral bacteria to antibacterial photodynamic therapy. J. Oral Microbiol. 2019, 11, 1644111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Ma, W.; Liu, C.; Li, J.; Hao, M.; Ji, Y.; Zeng, X. The effects of aloe emodin-mediated antimicrobial photodynamic therapy on drug-sensitive and resistant Candida albicans. Photochem. Photobiol. Sci. 2020, 19, 485–494. [Google Scholar] [CrossRef]
  74. Ghaffari, H.; Tavakoli, A.; Moradi, A.; Tabarraei, A.; Bokharaei-Salim, F.; Zahmatkeshan, M.; Farahmand, M.; Javanmard, D.; Kiani, S.J.; Esghaei, M.; et al. Inhibition of H1N1 influenza virus infection by zinc oxide nanoparticles: Another emerging application of nanomedicine. J. Biomed. Sci. 2019, 26, 70. [Google Scholar] [CrossRef]
  75. Sun, X.; Wang, L.; Lynch, C.D.; Sun, X.; Li, X.; Qi, M.; Ma, C.; Li, C.; Dong, B.; Zhou, Y.; et al. Nanoparticles having amphiphilic silane containing Chlorin e6 with strong anti-biofilm activity against periodontitis-related pathogens. J. Dent. 2019, 81, 70–84. [Google Scholar] [CrossRef]
  76. Mansuriya, B.D.; Altintas, Z. Applications of graphene quantum dots in biomedical sensors. Sensors 2020, 20, 1072. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Mushtaq, S.; Yasin, T.; Saleem, M.; Dai, T.; Yameen, M.A. Potentiation of Antimicrobial Photodynamic Therapy by Curcumin-loaded Graphene Quantum Dots. Photochem. Photobiol. 2022, 98, 202–210. [Google Scholar] [CrossRef]
  78. Kazemi, F.; Divsalar, A.; Saboury, A.A.; Seyedarabi, A. Propolis nanoparticles prevent structural changes in human hemoglobin during glycation and fructation. Colloids Surf. B Biointerfaces 2019, 177, 188–195. [Google Scholar] [CrossRef]
  79. Zhang, T.; Ying, D.; Qi, M.; Li, X.; Fu, L.; Sun, X.; Wang, L.; Zhou, Y. Anti-biofilm property of bioactive upconversion nanocomposites containing chlorin e6 against periodontal pathogens. Molecules 2019, 24, 2692. [Google Scholar] [CrossRef] [Green Version]
  80. Goudarzi, R.; Eskandary Nasab, M.; Mirzaee Saffari, P.; Zamanian, G.; Park, C.D.; Partoazar, A. Evaluation of ROCEN on burn wound healing and thermal pain: Transforming growth factor-β1 activation. Int. J. Low Extrem Wounds 2021, 20, 337–346. [Google Scholar] [CrossRef]
  81. Yang, Y.-T.; Chien, H.-F.; Chang, P.-H.; Chen, Y.-C.; Jay, M.; Tsai, T.; Chen, C.-T. Photodynamic inactivation of chlorin e6-loaded CTAB-liposomes against Candida albicans. Lasers Surg. Med. 2013, 45, 175–185. [Google Scholar] [CrossRef]
  82. Bassir, S.H.; Moslemi, N.; Jamali, R.; Mashmouly, S.; Fekrazad, R.; Chiniforush, N.; Shamshiri, A.R.; Nowzari, H. Photoactivated disinfection using light-emitting diode as an adjunct in the management of chronic periodontitis: A pilot double-blind split-mouth randomized clinical trial. J. Clin. Periodontol. 2013, 40, 65–72. [Google Scholar] [CrossRef] [PubMed]
  83. Monzavi, A.; Chinipardaz, Z.; Mousavi, M.; Fekrazad, R.; Moslemi, N.; Azaripour, A.; Bagherpasand, O.; Chiniforush, N. Antimicrobial photodynamic therapy using diode laser activated indocyanine green as an adjunct in the treatment of chronic periodontitis: A randomized clinical trial. Photodiagn. Photodyn. Ther. 2016, 14, 93–97. [Google Scholar] [CrossRef] [PubMed]
  84. Derikvand, N.; Ghasemi, S.S.; Safiaghdam, H.; Piriaei, H.; Chiniforush, N. Antimicrobial Photodynamic Therapy with Diode laser and Methylene blue as an adjunct to scaling and root planning: A clinical trial. Photodiagn. Photodyn. Ther. 2020, 31, 101818. [Google Scholar] [CrossRef]
  85. Meerovich, G.A.; Akhlyustina, E.V.; Tiganova, I.G.; Makarova, E.A.; Tolordava, E.R.; Zhizhimova, Y.S.; Philipova, N.I.; Romanishkin, I.D.; Lukyanets, E.A.; Romanova, Y.M.; et al. Photodynamic inactivation of Pseudomonas aeruginosa bacterial biofilms using photosensitizers based on octacationic derivatives of phthalocyanines and bacteriochlorins. J. Phys. Conf. Ser. 2020, 1439, 012036. [Google Scholar] [CrossRef]
Pharmaceuticals 15 00767 g001 550

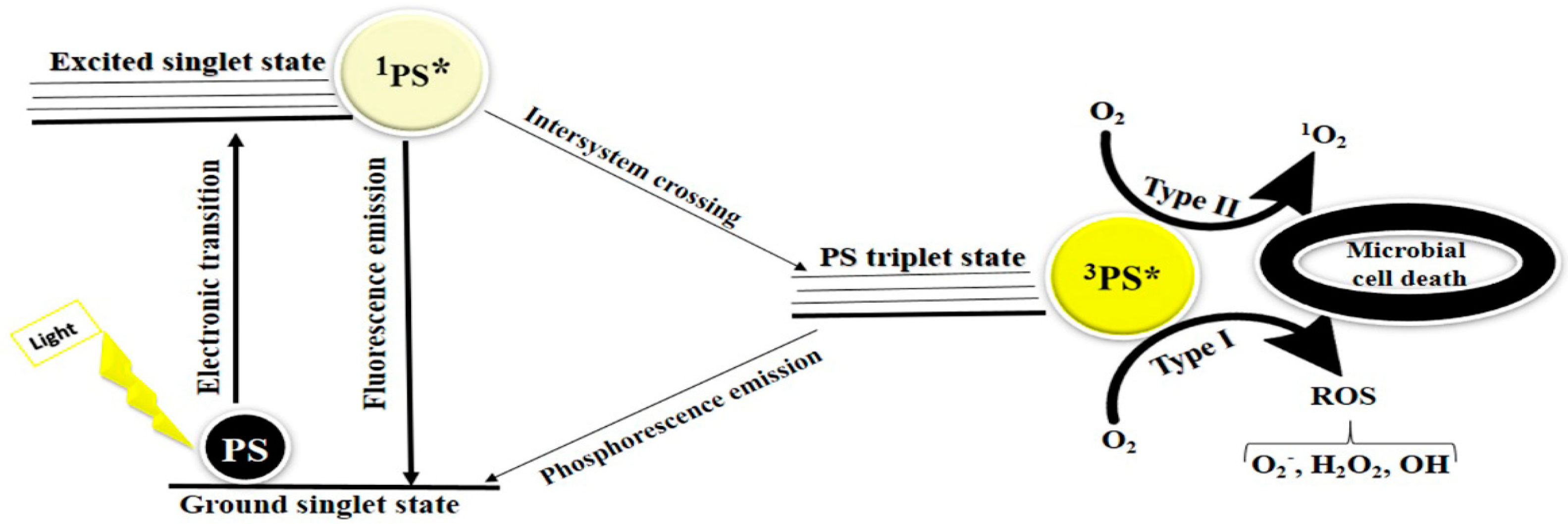

Figure 1. Mechanism of APDT. After absorption of single photon, the photosensitizer transfers from its ground singlet state to an excited singlet state. Next, the photosensitizer can lose energy, thereby returning to ground state, or it can turn to an excited triplet state. The long−lived triplet state can react with oxygen in two ways, as follows: In type I reactions, the charge is transferred to form ROS. In type II reactions, energy is transferred directly to the ground state molecular oxygen (3O2), leading to the appearance of singlet oxygen (1O2). 1PS*; photosensitizers in its singlet excited state, 3PS*; photosensitizers in its triplet excited state.
Figure 1. Mechanism of APDT. After absorption of single photon, the photosensitizer transfers from its ground singlet state to an excited singlet state. Next, the photosensitizer can lose energy, thereby returning to ground state, or it can turn to an excited triplet state. The long−lived triplet state can react with oxygen in two ways, as follows: In type I reactions, the charge is transferred to form ROS. In type II reactions, energy is transferred directly to the ground state molecular oxygen (3O2), leading to the appearance of singlet oxygen (1O2). 1PS*; photosensitizers in its singlet excited state, 3PS*; photosensitizers in its triplet excited state.
Pharmaceuticals 15 00767 g001
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Afrasiabi, S.; Partoazar, A.; Chiniforush, N.; Goudarzi, R. The Potential Application of Natural Photosensitizers Used in Antimicrobial Photodynamic Therapy against Oral Infections. Pharmaceuticals 2022, 15, 767. https://doi.org/10.3390/ph15060767

AMA Style

Afrasiabi S, Partoazar A, Chiniforush N, Goudarzi R. The Potential Application of Natural Photosensitizers Used in Antimicrobial Photodynamic Therapy against Oral Infections. Pharmaceuticals. 2022; 15(6):767. https://doi.org/10.3390/ph15060767

Chicago/Turabian Style

Afrasiabi, Shima, Alireza Partoazar, Nasim Chiniforush, and Ramin Goudarzi. 2022. "The Potential Application of Natural Photosensitizers Used in Antimicrobial Photodynamic Therapy against Oral Infections" Pharmaceuticals 15, no. 6: 767. https://doi.org/10.3390/ph15060767

APA Style

Afrasiabi, S., Partoazar, A., Chiniforush, N., & Goudarzi, R. (2022). The Potential Application of Natural Photosensitizers Used in Antimicrobial Photodynamic Therapy against Oral Infections. Pharmaceuticals, 15(6), 767. https://doi.org/10.3390/ph15060767

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
