Combining the In Silico and In Vitro Assays to Identify Strobilanthes cusia Kuntze Bioactives against Penicillin-Resistant Streptococcus pneumoniae

by
Xiaoyu Han
1,
Lu Jin
1,
Zhimin Zhao
1,
Xinjun Xu
1,
Shiyi Liu
2,
Yuquan Huang
3,
Xiaoli Liu
4,
Yuehong Xu
1,
Depo Yang
1,*,
Wei Huang
2,* and
Li Wang
4,5,*
1
School of Pharmaceutical Sciences, Sun Yat-sen University, Guangzhou 510006, China
2
Bacteriology & Antibacterial Resistance Surveillance Laboratory, Shenzhen Institute of Respiratory Diseases, Shenzhen People’s Hospital (The Second Clinical Medical College, Jinan University; The First Affiliated Hospital, Southern University of Science and Technology), Shenzhen 518001, China
3
China Resources Sanjiu Medical & Pharmaceutical Co., Ltd., Shenzhen 518110, China
4
Shenzhen Branch, Guangdong Laboratory of Lingnan Modern Agriculture, Key Laboratory of Synthetic Biology, Ministry of Agriculture and Rural Affairs, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen 518000, China
5
Kunpeng Institute of Modern Agriculture at Foshan, Foshan 528225, China
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2023, 16(1), 105; https://doi.org/10.3390/ph16010105
Submission received: 21 December 2022 / Revised: 4 January 2023 / Accepted: 5 January 2023 / Published: 10 January 2023
(This article belongs to the Special Issue Antibiodegenerative and Antimicrobial Effects of Natural Products)
Browse Figures
Versions Notes

Abstract

:
Leaves of Strobilanthes cusia Kuntze (S. cusia) are a widely used alexipharmic Traditional Chinese Medicine (TCM) in southern China for the prevention of cold and respiratory tract infectious diseases. One of the most common bacterial pathogens in the respiratory tract is the gram-positive bacterium Streptococcus pneumoniae. The antibiotic resistance of colonized S. pneumoniae makes it a more serious threat to public health. In this study, the leaves of S. cusia were found to perform antibacterial effects on the penicillin-resistant S. pneumoniae (PRSP). Confocal assay and Transmission Electron Microscopy (TEM) monitored the diminished cell wall integrity and capsule thickness of the PRSP with treatment. The following comparative proteomics analysis revealed that the glycometabolism-related pathways were enriched for the differentially expressed proteins between the samples with treatment and the control. To further delve into the specific single effective compound, the bio-active contents of leaves of S. cusia were analyzed by UPLC-UV-ESI-Q-TOF/MS, and 23 compounds were isolated for anti-PRSP screening. Among them, Tryptanthrin demonstrated the most promising effect, and it possibly inhibited the N-glycan degradation proteins, as suggested by reverse docking analysis in silico and further experimental verification by the surface plasmon resonance assay (SPR). Our study provided a research foundation for applications of the leaves of S. cusia as a TCM, and supplied a bio-active compound Tryptanthrin as a candidate drug skeleton for infectious diseases caused by the PRSP.

Graphical Abstract

1. Introduction

A leading cause of lower respiratory tract infection (LRTI) is the gram-positive bacterium Streptococcus pneumoniae [1], which is a common colonizer of the human nasopharynx [2]. According to a systematic analysis, 1.2 in 2.4 million deaths among global LRTI patients were attributed to S. pneumoniae in 2016 [3]. Especially among children under 5 years old, S. pneumoniae was recognized as the most fatal pathogen in 33 bacterial genera or species based on globally collected data in 2019 [4]. Both the morbidity and mortality of S. pneumoniae also made it a major risk of preceding viral infections, especially with influenza A virus [5]. In 2017, the World Health Organization published a priority pathogen list for new antimicrobial drugs, and penicillin-resistant Streptococcus pneumoniae (PRSP) was ranked 10th on the threat list. The ongoing COVID-19 pandemic has caused more than 6.2 million deaths worldwide (World Health Organization, 2022), with numbers still increasing. Its disease symptoms with a massive inflammatory immune response in the lower respiratory tract were similar to influenza, and prophylactic use of antibiotics had increased in those infected patients, which might lead to higher risk of antibiotic resistance of the colonized S. pneumoniae [6]. Therefore, a predisposition for PRSP infections is considered much more likely under the current global situation.
Traditional Chinese Medicine (TCM) has a very long history of clinical application. Tissues of Strobilanthes cusia Kuntze (S. cusia) have been widely used in TCM. Its root and rhizome, known as the “Southern Banlangen”, are widely used for the treatment of many epidemic diseases, such as SARS and H1N1 [7,8]. Its stem and leaf are the materials of Indigo Naturalis, known as the “Qing Dai”, one of the most commonly used alexipharmic prescriptions for respiratory tract infection in southern China [8,9]. The leaves of S. cusia mainly contain alkaloids, terpenoids, steroids, phenylethanol, and some other compounds, which have various pharmacological activities, such as antibacterial, antiviral, anti-inflammatory, etc. [8,10]. Previous studies focusing on the antimicrobial and antifungal activity of S. cusia found that the extract of Indigo Naturalis inhibited Staphylococcus aureus, Staphylococcus epidermis, Aspergillus fumigates, Candida albicans, and Methicillin-resistant S. aureus (MRSA) [11]; extract of roots of S. cusia inhibited Escherichia coli, Staphylococcus aureus, and Bacillus subtilis [12]; furthermore, the bio-active compounds of S. cusia such as Tryptanthrin were proven to inhibit Trichophyton rubrum, Bacillus subtilis, Bacillus polymyxa [13], Helicobacter pylori, and Toxoplasma gondii; another effective compound, N′-β-D-Glucopyranosylindirubin, inhibited Staphylococcus aureus [8,14]. However, the effects of S. cusia against S. pneumoniae have not been investigated yet, let alone the PRSP, and the mechanism of antibacterial effect of S. cusia remains unclear. Although Tryptanthrin was recognized as one of the main active compounds of S. cusia, its potential target against bacteria still awaits further exploration.
Since TCM is considered as a mixture of multiple chemical compounds and often targets multiple proteins and pathways, its mechanism is difficult to be explained by the modern medicine system. With the development of omics research, like genomics, proteomics and metabolomics, ways of combining bioinformatics analysis and medicinal experiments have become more and more popular and feasible to explore the obscure mechanism of TCM [15]. For example, the antimicrobial activity of epigallocatechin gallate from green tea against Streptococcus suis was analyzed by the synthesis of proteomics and TEM observation to infer a possible mechanism about cell wall and membrane damage [16]. In other research, the antibacterial mechanism of anthocyanins (isolated from Aronia melanocarpa) against Escherichia coli was also investigated by the combination of proteomics and TEM observation to discover that oxidative damage to the cells occurred after treatment [17]. A few studies employed in silico target fishing combined with experimental verification by the surface plasmon resonance assay (SPR) in order to find potential targets of a known antibacterial chemical or to screen out potential novel drugs for a known antibacterial target [18].
In our study, the ethanol extract of leaves from S. cusia (ES) were found to perform antibacterial effect on the penicillin-resistant S. pneumoniae (PRSP). The antibacterial mechanism of ES against PRSP were analyzed by the comparative proteomics combined with TEM and Confocal assay. To figure out the main effective chemical compound of ES, we screened anti-PRSP effect for both of the main chemical contents analyzed by UPLC-UV-ESI-Q-TOF/MS and the isolated single compounds, then selected Tryptanthrin for further exploration. Given that reverse docking is one of the in silico strategies employed in target fishing as a receptor-based high throughput screening [19], we evaluated the possible binding mode of Tryptanthrin within a database of known structural proteins of S. pneumoniae by reverse docking, and screened out proteins with strong binding affinity as potential targets of Tryptanthrin, which was further assessed by the SPR assay. In short, we unveiled a possible mechanism of how the ES inhibited PRSP’s growth and provided an integrated method to explore its bio-active chemical and its potentially targeted proteins of the bacteria.

2. Results

2.1. Antibacterial Activity of ES In Vitro

2.1.1. Antibacterial Effect against Standard Strains

The minimal inhibitory concentration (MIC) value of ES against S. aureus ATCC 29213 and S. pneumoniae ATCC 49619 was 100 μg/mL and 200 μg/mL, respectively (Table 1). Other strains were non-susceptible (MIC > 800 μg/mL) to the treatment.

2.1.2. Antibacterial Activity against Multidrug-Resistant Clinical Isolates

To further detect antibacterial effects of ES on drug-resistant strains, we tested clinical isolates PRSP and MRSA. Surprisingly, the PRSP were relatively susceptible to the treatment as the MICs were 200 μg/mL for strain F3368, F3401, F3755, and F3983. The MRSA isolates were non-susceptible, as the MICs > 800 μg/mL to the treatment for strain 48900, 49008, 48973, 49025, 48966, and 48706 (Table 2).

2.2. ES Inhibits the Growth of PRSP F3983

2.2.1. The Growth Curves of F3983 Treated by ES

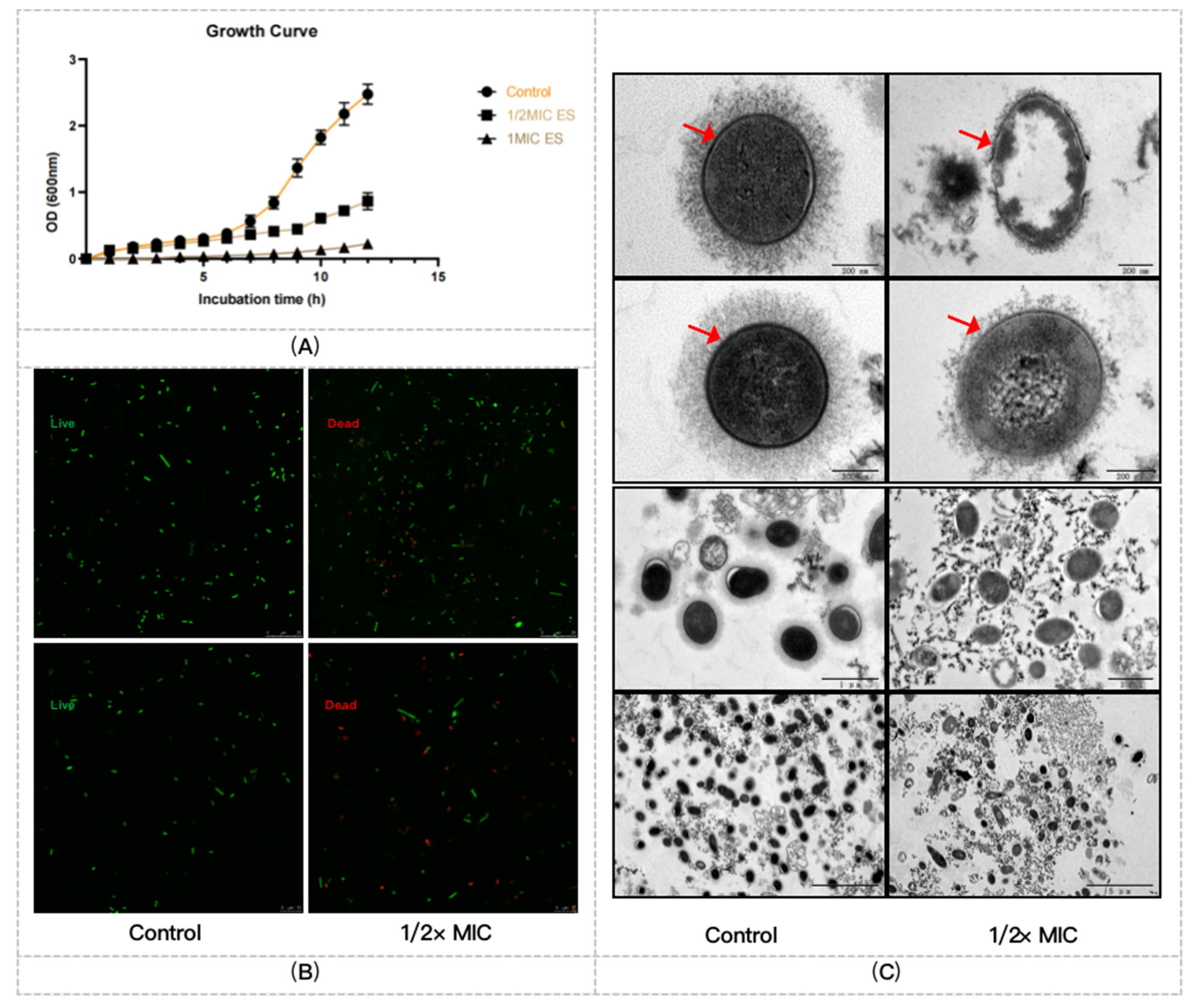

As shown in Figure 1A, 12 h incubation with ES at 1/2× MIC and 1× MIC, growth of PRSP F3983 was significantly inhibited compared with the control group.

2.2.2. ES Effects on Membrane Integrity, Cell Wall, and Capsule Formation of F3983

We found that the ES disrupted the integrity of the cell wall and membrane of PRSP at 1/2× MIC, as the red color fluorescent staining cells (Figure 1B). We also observed changes at a qualitative level, in the presence, morphology, and/or thickness of pneumococcal capsule of PRSP F3983 using transmission electron microscopy. Treated PRSP F3983 cells clearly possessed a smaller amount of capsule and damaged cell wall when compared with untreated cells (Figure 1C).

2.3. Proteomics Analysis of PRSP F3983 Treated by ES

2.3.1. Differentially Expressed Proteins (DEPs)

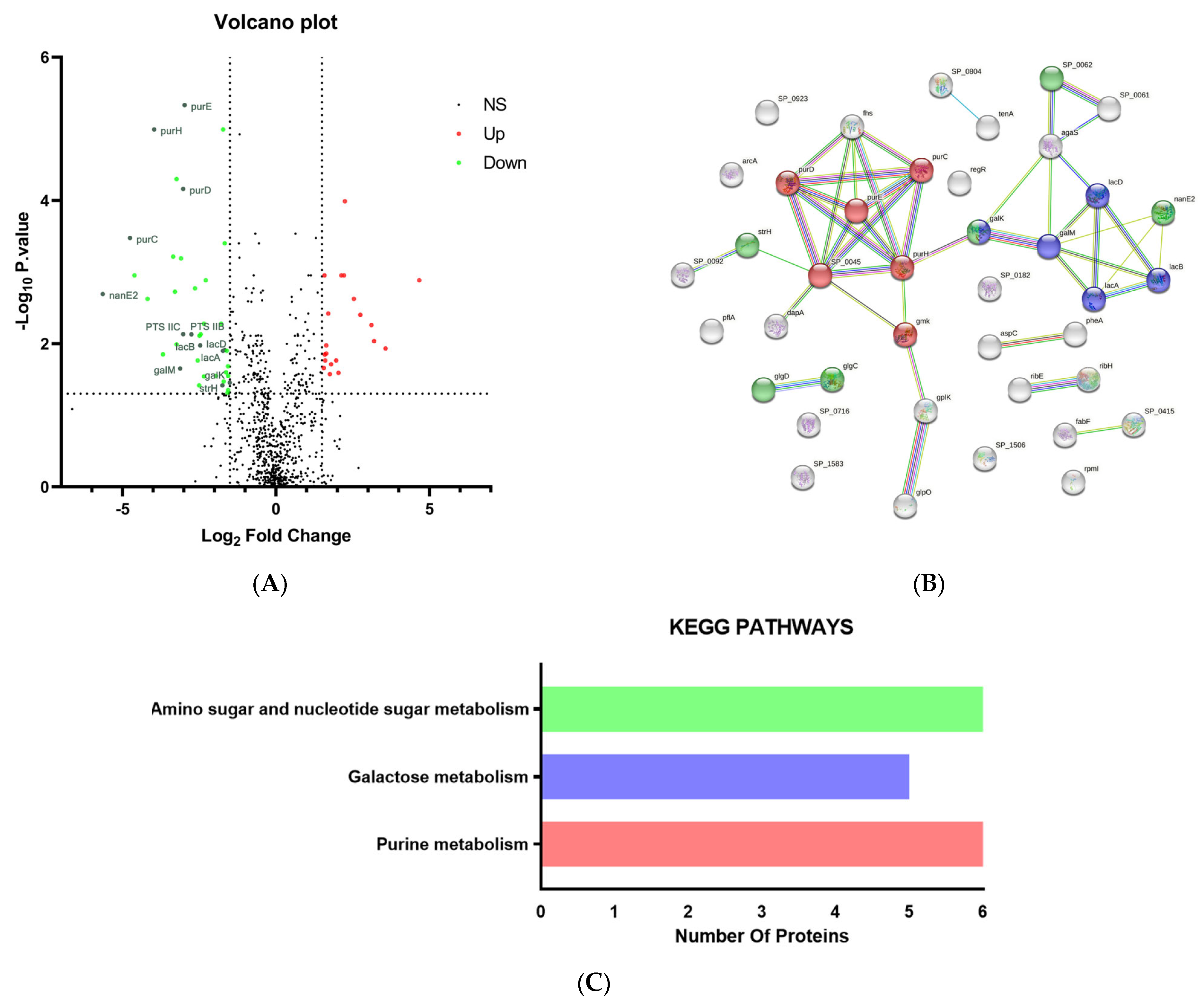

Sixty proteins exhibited significantly different expression (p < 0.05), containing 20 up-regulated proteins and 40 down-regulated proteins (Figure 2A). Detailed information of DEPs is listed in Table S1. The up-regulated proteins were not enriched on any KEGG pathway. Some of the down-regulated proteins were enriched on glycometabolism or purine metabolism-related pathways, which were partially marked on the volcano plot as the strH, PTS IIB (SP_0061), PTS IIC (SP_0062), galK, galM, LacA, LacB, LacD, nanE2, PurC, PurD, PurE, PurH. The 20 up-regulated proteins belonged to a large variety of protein families, and possessed diverse functions, such as drug resistance (ABC transport), bacterial metabolism (Methionine aminopeptidase, L-lactate dehydrogenase, Glutamate dehydrogenase), and DNA reparation (DNA topoisomerase 1). Unlike the 40 down-regulated proteins, the following enrichment analysis did not highlight any related signaling pathway (logP > 0.05). Therefore, we focused on the down-regulated proteins for further analysis.

2.3.2. Protein–Protein Interactions (PPI) Analysis for Down-Regulated DEPs

The PPI network of down-regulated treatment/control group contained in total 40 nodes and 44 edges, and the average node degree was 2.2 (Figure 2B). The expected number of edges was 16, much lower than the actual quantity of 44, which means that there are more interactions among proteins than a random set of proteins with similar size. Thus, we obtained a PPI enrichment p-value of 9.33 × 10−9.

2.3.3. Kyoto Encyclopedia of Genes and Genomes (KEGG) Pathway Analysis of the Down-Regulated DEPs

The enrichment and signaling pathway analysis revealed the down-regulated DEPs belonged to three metabolic pathways (Figure 2C), including purine metabolism, galactose metabolism, amino sugar, and nucleotide sugar metabolism. These pathways were related to carbohydrate metabolism and amino acid metabolism. The proteomics results, together with the evidence shown by TEM Topography figures, suggested that ES mainly affected the cell wall, capsule, and glycan biosynthesis in the PRSP F3983.

2.4. Chemical Contents of S. cusia Leaves and Antibacterial Effects on the PRSP F3983

2.4.1. Chemical Contents of S. cusia Leaves

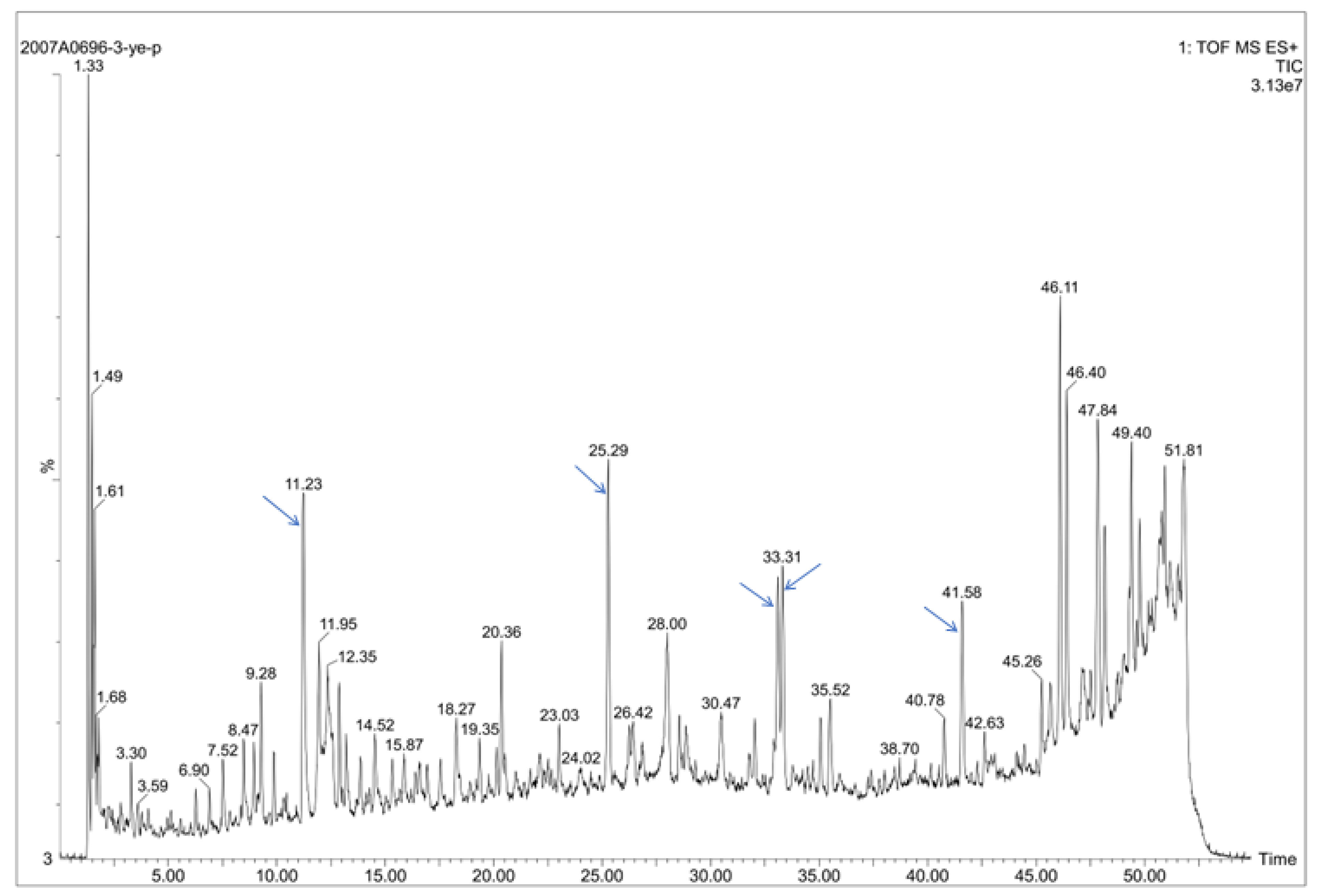

The chemical compounds of S. cusia leaves were extracted by 95% methanol and analyzed by UPLC-UV-ESI-Q-TOF/MS. Overall, 74 compounds are defined in Table S2. Five main peaks at 11.23 min, 25.29 min, 33.10 min, 33.33 min, and 41.58 min were analyzed by MS/MS fragments according to previous studies (Figure 3, Table S2), and defined as the caffeoyl quinic acid (CQA) [20,21], Hispiduloside [22], Tryptanthrin [23,24], Hispidulin [22] and Indirubin [25,26], respectively. Among them, the Tryptanthrin (peak at 33.1 min) showed the highest effective inhibition on the PRSP F3983 with MIC 25 µg/mL (Table 3). It was also reported as a bio-active chemical from plants with antiviral and antibacterial effects [27,28].

2.4.2. MIC Tests for the Isolated 23 Chemical Compounds on the PRSP F3983

Overall, 23 compounds were isolated and identified by the NMR from the leaves of S. cusia. The isolated weight and structure of those compounds and their MICs on the PRSP F3983 are shown in Table S3. Among them, Tryptanthrin showed the most promising effect.

2.5. Anti-PRSP Effects of Tryptanthrin and Its Potential Targets

2.5.1. Antibacterial Activity of Tryptanthrin

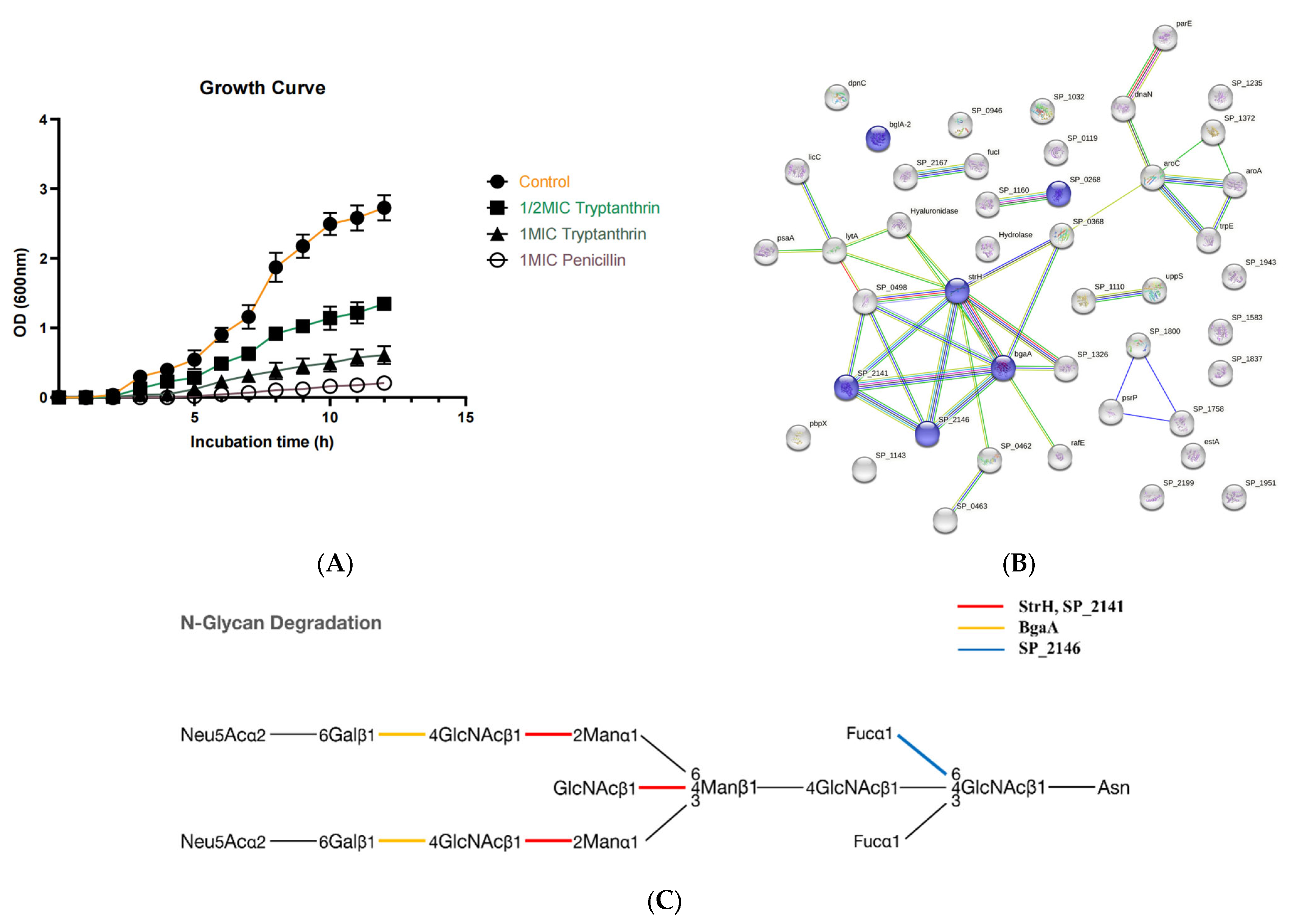

The growth of PRSP F3983 was significantly inhibited by 12 h incubation with Tryptanthrin at 12.5 µg/mL and 25 µg/mL, compared with the control group. Penicillin at 2 µg/mL served as positive control (Figure 4A).

2.5.2. Target Screening In Silico: Reverse Docking for Tryptanthrin with Known Structure Proteins of S. pneumoniae

To identify the potential targets of Tryptanthrin, a reverse docking-based target prediction process was employed. In our study, 623 target proteins from database of S. pneumoniae with their selected active pockets were analyzed (Table S4). We visualized the docking results in a probability distribution plot. Tryptanthrin had an average score of 8.000 (absolute value) with a standard deviation (SD) value of 1.534 (Table S5). We selected the top 43 candidate proteins with docking scores for Tryptanthrin. This cutoff value corresponds to the absolute average score + 0.5 SD, which referred to a protocol of reverse docking study [29]. Among them, BgaA (a beta-galactosidase), StrH (an exo-beta-D-N-acetylglucosaminidase), SP_2141 (a beta-Hexosaminidase), and SP_2146 (an alpha-fucosidase) were selected out because of their sequence similarity, which belongs to the Glycoside hydrolase superfamily (Figure 4B). Additionally, the KEGG enrichment analysis revealed that these proteins were enriched in the N-glycan degradation pathway, sharing similar substances which were GlcNAc linked polysaccharide (Figure 4C). Thus, we picked these four potential targets for further experimental verification.

2.6. Visualization of Tryptanthrin with Its Potential Targets by Discovery Studio

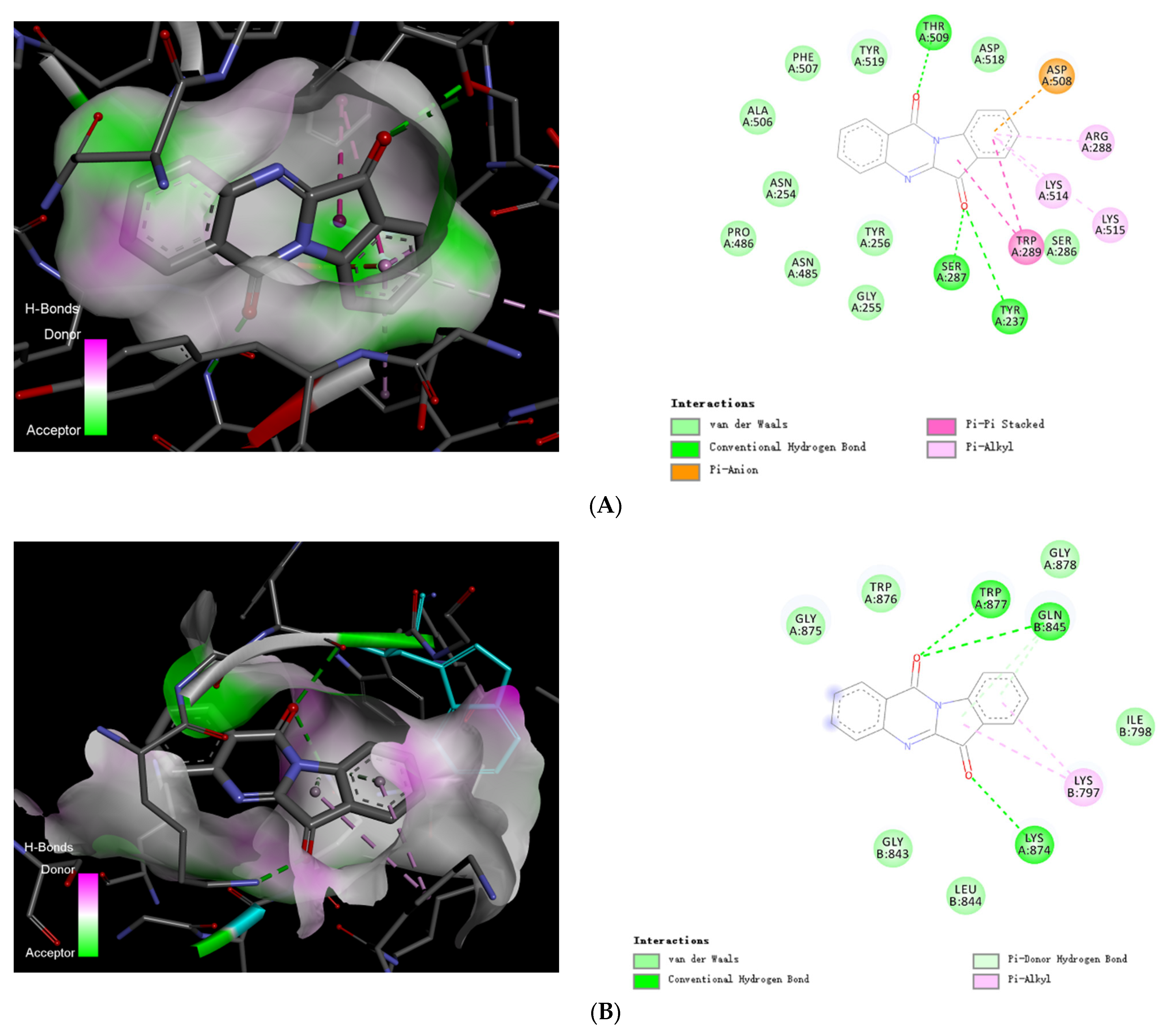

The binding energies of Tryptanthrin to the four selected proteins BgaA, StrH, SP_2141, and SP_2146 were −9.5 kcal/mol, −9.2 kcal/mol, −8.9 kcal/mol, and −9.5 kcal/mol, respectively. Tryptanthrin intercalated into the binding pockets of each four proteins by mainly forming hydrogen bonds or aromatic stacking interactions (Figure 5).
In both cases of the BgaA and StrH, three conventional hydrogen bonds formed with ketone groups of Tryptanthrin (Indolo(2,1-b)quinazoline-6,12-dione), and hydrophobic interactions formed with indole ring. Tryptanthrin was completely trapped with BgaA by strong hydrogen bonding generated by THR509, SER287, and TYR237, with distances between 3.07 and 3.31 Å as well as Pi-Pi stack interaction with TYP289 with distances between 4.96 and 5.35 Å, and Pi-Alkyl interaction with LYS 514, LYS515, and ARG288 with distances between 4.65 and 5.34 Å, and a Pi-Charge with ASP508 with a distance of 3.20 Å (Figure 5A). It demonstrated that Tryptanthrin was connected with StrH’s active sites at TRP877, GLN845, LYS874 with strong hydrogen bonds with distances varying from 3.06 to 3.32 Å, and Pi-Alkyl interaction with LYS797 with distances between 4.76 and 5.35 Å (Figure 5B). For the protein SP_2141, Tryptanthrin showed possible interactions with its active sites, including hydrogen bonds of the ketone group on the indole ring with the GLY139, ALA140, and aromatic interactions of both the indole ring and quinazoline ring with the VAL592 (Figure 5C), indicating that the drug was possibly sandwiched between the active residues in the binding pocket. The quinazoline ring of Tryptanthrin actively formed a hydrogen bond with TRY123, as well as a Pi-Charge interaction with ASP171, and there was a Pi-Alkyl interaction with ALA173 next to it (Figure 5D).

2.7. Interaction of Tryptanthrin with Three Potential Targets on the N-Glycan Pathway of PRSP by Surface Plasmon Resonance (SPR) Assay

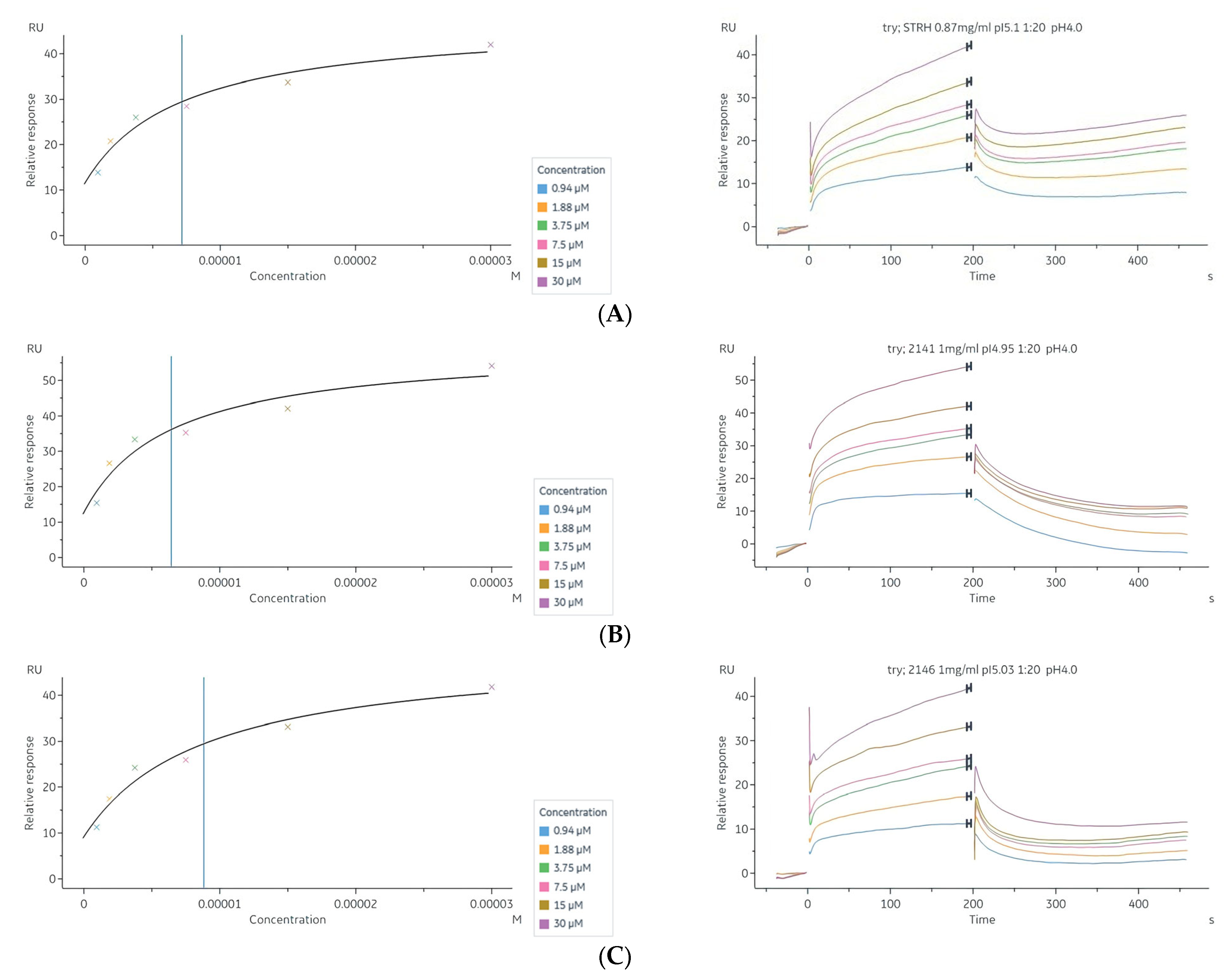

To test whether the Tryptanthrin could be trapped by those glycoside hydrolase proteins detected in the reverse docking modelling, we carried out SPR assay and observed that Tryptanthrin could directly bind to the StrH, SP_2141, and SP_2146 proteins fixed on the surface of the sensor chip following a concentration-dependent manner (Figure 6, Table S6). The sequence of candidate proteins was fetched from the whole genome sequence (Bioproject number PRJNA898832) and expressed in Escherichia coli (E. coli) with further purification (Table S7). We determined the KDs (Steady state affinity) of Tryptanthrin binding to the StrH, SP_2141, and SP_2146, which was 7.16 μM (Figure 6A), 6.43 μM (Figure 6B), and 8.82 μM (Figure 6C), respectively. These results approved that the Tryptanthrin could bind with StrH, SP_2141, and SP_2146 automatically. For the BgaA, we failed in expressing it in E. coli and did not get the purified protein for SPR assay.

3. Discussion

According to the results of MIC selection on six common bacterial strains and ten drug-resistant clinical isolates, the leaves of S. cusia were proved to inhibit growth of PRSP (Figure 1A). Through the TEM photograph, the cell wall and capsule synthesis of PRSP were apparently inhibited by the treatment of 1/2× MIC ES (Figure 1C). The cell wall of S. pneumoniae plays a key role in cell growth and division, as well as shape maintenance. Its component peptidoglycan is cross-linked by the amidated glutamate residues in the stem peptide, and the glycan strands carry covalently attached wall teichoic acid and capsular polysaccharide [30]. Obviously, the cell wall and capsule formation of S. pneumonia rely on glycometabolism activities. The glycan pathways in S. pneumoniae have been investigated in a few studies [31,32]. A map of the cell wall and capsule biosynthesis pathways for the pneumococcal galactose, mannose, and GlcNAc catabolism was provided, and the central carbon metabolism of S. pneumoniae has also been studied by isotopologue profiling, which proved the biosynthesis of amino acids and a group of nucleobases or a particular nucleobase besides carbon sources were needed for capsular polysaccharide synthesis [33,34,35]. On the basis of the previous study, we deduced that ES might attenuate the expression of carbon metabolism-related proteins of PRSP.
From the results of proteomics analysis, the down-regulated proteins were enriched in three KEGG pathways, including amino sugar and nucleotide sugar metabolism, purine metabolism, and galactose metabolism (Figure 2C), which just matched the existing knowledge we found and conformed to our speculation. Combined with the morphological observation by TEM, we proposed that proteins with down-regulated expression in PRSP when treated with 1/2× MIC ES were on the glycan pathways for its cell wall and capsule synthesis. As the mapped mechanisms of the pneumococcal capsule biosynthesis shown in previous research [36], the purine metabolism work as the down-stream pathway of monosaccharide absorption, which implied that the transportation and biological utilization of sugar sources for PRSP growth [37]. As phosphorylated metabolites such as UDP-glucose and UDP-galactose are especially important as precursor molecules for capsule production [36], the down-regulated amino sugar and nucleotide sugar metabolism could be responsible for the reduction of treated PRSP’s growth and peptidoglycan synthesis. Previous research reported that the enzymes lacA, lacB, lacD, etc., were expressed on the galactose metabolism pathway [38,39], and galactose can be further metabolized in the Leloir pathway (galM, galK, etc.) [34,40]. Therefore, the down-regulated lacA, B, D, and galM, galK that we observed from the volcano plot (Figure 2A) could be explained as the reason for reduced peptidoglycan biosynthesis, which was caused by an insufficient galactose metabolism. The results of proteomics gave us a clue that some chemicals in the ES could lead to the deficiency of PRSP’s glycan metabolism, but the specific chemicals and the targeted proteins of PRSP await further exploration.
Among the identified chemical compounds of the leaves of S. cusia (Figure 3, Table S3), Tryptanthrin was shown to be the most effective anti-PRSP effect (MIC 25 µg/mL). Thus, it may play the predominant role of PRSP inhibition. According to previous studies of some alkaloids and flavonoids we found in the leaves of S. cusia, they performed antimicrobial effects on several strains. The Chlorogenic acid (3-CQA) was tested for antibacterial potential against Gram-positive (S. aureus, S. pneumoniae, Bacillus subtilis) and Gram-negative bacteria (E. coli, Shigella dysenteriae, Salmonella Typhimurium). The obtained MIC values ranged from 20 to 80 μg/mL [41]; 5-CQA has bactericidal effects against P. aeruginosa, K. pneumoniae, Enterococcus faecium, Proteus vulgaris, and Candida albicans. The obtained MIC values were in the range 1–10 mg/mL [42]. Hispidulin, purified from Tamarix ramosissima bark extract, showed antibacterial activity against B. subtilis with MIC values of 50 μg/mL and S. aureus with MIC values of 100 μg/mL [43]; Tryptanthrin isolated from the Couroupita guianensis showed promising antibacterial activity for MRSA with MIC of 62.5 μg/mL [27]. In our study, Tryptanthrin was found performing a relatively more effective antimicrobial activity against PRSP compared with other bio-active alkaloids and flavonoids identified from the leaves of S. cusia. To figure out its possible protein targets of PRSP and whether they are related to the deficiency of PRSP’s glycan metabolism, we performed high throughput reverse docking for the Tryptanthrin, which allowed us to discover new targets for a natural product and unveil the molecular mechanism of it [44]. The in silico calculation returned massive possibilities of potential targets of Tryptanthrin (Table S5). As we expectated, the selected candidate targets were enriched on the N-glycan degradation pathway: the BgaA, StrH, SP_2141, and SP_2146 (Figure 4B,C), as glycoside hydrolases. These super-families belong to the carbohydrate-active enzymes (CAZymes) of S. pneumoniae, which contain a catalytic domain to break glycosidic bonds [45].
The N-glycan glycoside hydrolases of S. pneumoniae are enzymes that work together to degrade complex N-linked glycans [46,47]. They have been proposed to act as nutrient acquisition and to efficiently process the complex N-glycans of its host [48,49,50]. The β-galactosidase, BgaA, is the largest cell surface attached proteins of S. pneumoniae for releasing galactose from complex carbohydrates [51]. StrH is an exo-β-d-N-acetylglucosaminidase able to release terminal N-acetylglucosamine (GlcNAc) residues [52]. The SP_2141 displays both N-acetylgalactosaminidase and N-acetylglucosaminidase activity [53]. The SP_2146 is cell wall-associated and responsible for the fucosylated glycan degradation to release free fucose, which is considered a previous step to release some other monosaccharides that could be imported into S. pneumoniae as nutrition [54].
As introduced above, all of the BgaA, StrH, SP_2141, and SP_2146 of PRSP have been shown to deglycosylate N-linked glycoproteins and contribute to the ability of S. pneumoniae to grow on N-glycans, thus providing evidence for their role in nutrient acquisition [46,55,56]. Consistent with its ability to degrade glycans, the S. pneumoniae genome also encodes some carbohydrate transport systems [56], like the phosphoenolpyruvate, sugar phosphotransferase system (PTS) class. That also explained the down-regulated expression of PTS IIB and PTS IIC with ES treatment (Figure 2A), which was possibly attributed to the blocked up-stream proteins (N-glycan glycoside hydrolases) of PRSP. Combining the evidence of potential targets detected by docking Tryptanthrin, the mechanism of glycan synthesis deficiency of PRSP could be hypothesized as follows (Figure 7): Tryptanthrin inhibited the cell wall associated proteins BgaA and StrH, as well as SP_2141 and SP_2146 of PRSP, which caused the N-glycan-like carbohydrates in the broth to not be degraded and transported in to PRSP for monosaccharides assumption, with consequences of lacking raw materials for peptidoglycan biosynthesis and cell growth.
In conclusion, we found that the ethanol extract of S. cusia leaves, as well as its active compound Tryptanthrin, could inhibit PRSP’s growth. Tryptanthrin possibly targeted N-glycan degradation-related proteins and led to deficiency of cell wall and capsule biosynthesis of PRSP. We assumed that the down-regulated purine metabolism, galactose metabolism, phosphotransferase system (PTS), amino sugar, and nucleotide sugar metabolism were possibly affected by the inhibition of up-stream targets we found from reverse docking of Tryptanthrin, including the N-glycan degradation proteins BgaA (4cu6), StrH (4azi), SP_2141 (5a6a), and SP_2146 (6org). Given that during both colonization and invasive disease, PRSP ferments host-derived carbohydrates as its primary means of generating energy [2], our findings also indicated that ES inhibited part of nutrient acquisition function of PRSP by blocking its N-glycan degradation enzymes, which therefore diminished available monosaccharide for its own growth, especially for the cell wall and capsule synthesis. Our study not only provided the framework for future exploration to assess the mechanism of S. cusia leaves on clinical prophylaxis of PRSP caused infection, but also set up an example to delve into the pharmacological mechanism of TCM from both the crude extract and the single compound.

4. Materials and Methods

4.1. Preparation of Ethanol Extract of S. cusia Leaves

4.1.1. Samples Collection

Total S. cusia samples were farmed in PingYuan County, MeiZhou City, GuangDong Province, China, and were identified by one of the authors, DY. A voucher specimen (accession number: 201904-SC-1) was deposited at the School of Pharmaceutical Sciences, Sun Yat-sen University. Their leaves were collected, air-dried, and powdered.

4.1.2. Sample Preparation

Air-dried sample powder (200 g, passed through an 850 μm mesh sieve) was soaked overnight and then ultrasonically extracted with 1 L 95% ethanol for 2 h. After filtration, the extraction was concentrated by rotary evaporation.

4.2. UPLC-UV-ESI-Q-TOF/MS Analysis of S. cusia Leaves

Samples of S. cusia leaves were ultrasonically extracted with 95% methanol and filtered through a 0.22 µm membrane filters prior to UPLC analysis. Methanol and formic acid (HPLC grade) were purchased from Thermo Fisher Scientific (Waltham, MA, USA). Ultrapure water was purified using a Milli-Q system (Millipore; Boston, MA, USA). Other reagents were of analytical grade. The UPLC-ESI-Q-TOF/MS system comprises a Waters ACQUITY UPLCTM I-Class (Waters Corp., Milford, MA, USA) and a Xevo G2-XS Q-TOF-MS. A Waters ACQUITY UPLC HSS TS column (150 mm × 3.0 mm, 1.8 µm) from Waters was used. The mobile phase consisted of (A) MeOH; (B) Water containing 0.1% formic acid. Gradient elution for UPLC-Q-TOF/MS profiling was performed as follows: (0 min, 10% A; 0~35 min, 10~65% A; 35~50 min, 65~90% A; 50~51 min, 90~10% A; 51~55 min, 10% A) with a flow rate at 0.4 mL/min on 30 °C. 2 µL sample solution was injected. The detection wavelength was set at 254 nm. UPLC-Q-TOF/MS analysis was performed to identify the marker and unknown compounds in positive mode.

4.3. Preparation of Isolated Compounds from S. cusia Leaves

Extraction and Isolation: The air-dried sample leaves (14.0 kg) were powdered and extracted with 95% EtOH (3 × 150 L, 7 d each). The extract (1.9 kg) was obtained by filtering the supernatant, removing the solvents, and partitioning into butanol and EtOAc to afford fractions B (198 g) and E (1607 g). Fraction E was separated by Macroporous resin D101 using gradient elution with H2O/MeOH (80:20 to 0:100) to afford two fractions (E.1−E.2). Fraction E.1 (225 g) was divided into 5 parts (fractions E.1.1−E.1.5) by silica gel chromatography using gradient elution with petroleum ether/EtOAc (90:10 to 0:100). The five parts of E.1 were utilized to isolate 23 biochemical compounds, which were identified by Nuclear Magnetic Resonance Spectroscopy (NMR) and listed as 1–23 with bolded characters. E.1.1 was purified on a Sephadex LH-20 column and HPLC with H2O/CH3CN (25:75) to afford 1 (10 mg). E.1.2 was separated using a reversed-phase column using gradient elution with H2O/MeOH (70:30 to 0:100) to obtain three fractions (E.1.2.1−E.1.2.3). E.1.2.1 was further purified by HPLC with H2O/CH3CN (25:75) to afford 2 (182 mg) and 3 (10 mg); E.1.2.2 was purified on a Sephadex LH-20 column to afford 4 (2 mg); then the rest from last step was further purified by HPLC with H2O/CH3CN (40:60) to afford 5 (2 mg), 6 (2 mg), 7 (16 mg). E.1.2.3 purified on a Sephadex LH-20 column and HPLC with H2O/MeOH (40:60) to afford 8 (1 mg) and 9 (3 mg). E.1.3 was separated using a reversed-phase column using gradient elution with H2O/MeOH (70:30 to 0:100) to obtain two fractions (E.1.3.1−E.1.3.2). E.1.3.1 was purified on a Sephadex LH-20 column to afford 10 (12 mg) and two fractions (E.1.3.1.1−E.1.3.1.2). E.1.3.1.1 was purified by silica gel chromatography using gradient elution with petroleum ether/EtOAc (90:10 to 0:100) and HPLC with H2O/CH3CN (40:60) to afford 11 (8 mg) and 12 (26 mg). E.1.3.1.2 was purified on a Sephadex LH-20 column and HPLC with H2O/MeOH (35:65) to afford 13 (26 mg) and 14 (27 mg). E.1.3.2 was purified on a Sephadex LH-20 column to afford 15 (10 mg); the rest from last step were further purified by HPLC with H2O/CH3CN (60:40) to afford 16 (7 mg), 17 (4 mg), and 18 (19 mg). E.1.4 was separated by a reversed-phase column using gradient elution with H2O/MeOH (70:30 to 0:100) to obtain two fractions (E.1.4.1−E.1.4.2). E.1.4.1 was purified by HPLC with H2O/MeOH (40:60) to afford 19 (2 mg); E.1.4.2 was purified by HPLC with H2O/MeOH (40:60) to afford 20 (8 mg) and 21 (3 mg). E.1.5 was purified by silica gel chromatography using gradient elution with petroleum ether/MeOH (100:10 to 0:100) and HPLC with H2O/CH3CN (40:60) to afford 22 (21 mg). E.2 was purified by silica gel chromatography using gradient elution with petroleum ether/EtOAc (100:10 to 0:100) and further purified on a Sephadex LH-20 column to afford 23 (5 mg). A scheme of the whole process was drawn in Table S8.

4.4. Bacterial Strains and Growth Conditions

Acinetobacter baumannii ATCC19606, Pseudomonas aeruginosa ATCC27853, Klebsiella Pneumoniae ATCC13883, Enterococcus faecalis ATCC29212, Staphylococcus aureus ATCC29213, Methicillin-resistant Staphylococcus aureus (MRSA), Streptococcus pneumoniae ATCC49619, PRSP were from Bacteriology & Antibacterial Resistance Surveillance Laboratory, Shenzhen Institute of Respiratory Diseases, Shenzhen People’s Hospital.
For the A. baumannii ATCC19606, P. aeruginosa ATCC27853, and K. Pneumoniae ATCC13883, a single bacterial colony was grown in 3 mL LB broth in the tube. For the E. faecalis ATCC29212, S. aureus ATCC29213, and MRSA, a single bacterial colony was grown in 3 mL MH broth in the tube. For the S. pneumoniae ATCC49619 and PRSP, a single bacterial colony was grown in 3 mL CAMHB broth (Mueller Hinton II Broth, cation-adjusted for calcium and magnesium ions) with 4% horse sterile and defibrinated blood in the tube. All tubes were shaken at 230 rpm at 37 °C.

4.5. Minimal Inhibitory Concentration (MIC) Assay

Chemical Reference Substances (CRSs) of caffeoyl quinic acid, Hispiduloside, Tryptanthrin, Hispidulin, and Indirubin were bought from Shanghai Macklin, Shanghai, China. MICs were determined by using the standard microdilution method referred to the procedures outlined by the Clinical and Laboratory Standards Institute [57]. Briefly, bacteria were grown to the logarithmic phase with a cell density of approximately 5 × 105 colony-forming units (CFUs)/mL. A two-fold serial dilution of the antimicrobial agent was prepared in a 100 μL volume in a 96-well plate, then 100 μL of the bacterial suspension was added to each well. Final concentrations of ES, CRSs, and isolated compounds were designed from 800 μg/mL to 6.25 μg/mL, along with appropriate controls. All plates were incubated at 37 °C for 24 h. MIC was determined as the lowest concentration of the antibacterial agent that completely inhibited visible bacterial growth. All MICs were determined in three independent experiments, each in duplicate.

4.6. Whole Genome Sequencing of PRSP (Strain F3983)

4.6.1. Library Preparation and Sequencing

The genomic DNA extraction from bacterial cells was obtained by A TIANamp Bacteria DNA kit (TIANGEN, Beijing, China). DNA quality was tested by an Agilent 2100 Bioanalyzer (Agilent Technologies; Palo Alto, CA, USA) and a Qubit 4.0 Fluorometer (Thermo Fisher Scientific; Waltham, MA, USA). Library preparation was performed by the NEB Next Ultra DNA Library Prep Kit for Illumina. Samples were sequenced on a MiSeq Sequencer (Illumina; San Diego, CA, USA) using MiSeq Reagent Kits v3 (2 × 300 bp; Illumina).

4.6.2. Bioinformatic Procedures

Each library generated approximately 1 G of reads. Sequences were assembled and aligned using ABySS [58] and BWA [59] for short-read alignment. Alignments were sorted and indexed using Samtools [60]. The genome and annotation file (gff3) of S. pneumoniae (GCF_900618125.1_NCTC11032) downloaded from NCBI were used as reference. We annotated the genome sequences with Prokka [61]. Sequencing data are available on the SRA repository under the Bioproject number PRJNA898832.

4.7. Growth Curves of the PRSP F3983

A single bacterial colony of PRSP F3983 was grown in 3 mL CAMHB broth with 4% horse sterile and defibrinated blood in the tube. Samples were treated with two different concentrations of ES and Tryptanthrin (1/2× MIC or 1× MIC); 1× MIC Penincilin was added as positive control. The growth curves at 37 °C were recorded by measuring the absorbance at a wavelength of 600 nm every 60 min.

4.8. Transmission Electron Microscopy (TEM)

A pneumococcal capsule was observed using transmission electron microscopy (TEM). Cultures added 1/2× MIC concentration (100 µg/mL) of ES to incubate together served as a sample, cultures added 95% Ethanol served as a control. Briefly, overnight cultures in CAMHB broth with 4% horse sterile and defibrinated blood of PRSP F3983 were harvested by centrifugation at 5000× g for 10 min. The bacterial cells were washed twice and resuspended in PBS, and fixed with the fixing solution 1, 2% paraformaldehyde and 2.5% glutaraldehyde in 0.1 M cacodylate buffer (pH 7) containing 0.075% ruthenium red, for 20 min on ice. The samples were washed with cacodylate buffer containing 0.075% ruthenium red as the washing solution. The samples were fixed again with the fixing solution 1 for 3 h, washed, and then post-fixed with the fixing solution 2, 1% osmium tetroxide in cacodylate buffer containing 0.075% ruthenium red, for 1 h at room temperature [62]. After dehydration in an ascendant series of ethanol, the samples were transferred to propylene oxide and sequentially infiltrated in EMbed 812 resin (EMS; Herrliberg, Switzerland). We used the sequence propylene oxide-resin 2:1, 1:1, and 1:2 throughout 24 h. Afterwards, samples were transferred to oxide-resin for 24 h and pure resin for another 24 h. Blocks formed in resin were polymerized for 48 h at 65 °C. Finally, samples were trimmed and sectioned in an Ultracut Reicher ultramicrotome to obtain ultrathin (40–60 nm width) samples by a diamond knife. The sections were observed and photographed in a Jeol Jem 1400 Transmission Electron Microscope.

4.9. Bacterial Viability Assay (Confocal)

A LIVE/DEAD BacLight bacterial viability kit was used to evaluate the effects of ES on bacterial viability. 1/2× MIC concentration (100 µg/mL) of ES was added into tube to incubate with cultures as a sample, cultures added 95% Ethanol served as a control. A single bacterial colony of PRSP F3983 was grown in 6 mL CAMHB broth with 4% horse sterile and defibrinated blood in the tube for 12 h at 37 °C. The culture was harvested by centrifugation (12,000× g for 5 min) when the optical density at the absorbance wavelength of 600 nm (OD600) is 0.6–0.8. The cells of PRSP F3983 were collected and washed three times and resuspended in 0.01 M sterile saline at OD600 = 0.1. A final volume of 3 µL of SYTO9 (1.67 mM, 2 µL) and PI (5 mM, 1 µL) were added in each 1 mL sample and incubated at room temperature in the dark for 15 min. A confocal laser scanning microscope (Leica TCS SP8) was used to obtain fluorescent images of the stained bacteria.

4.10. Proteomics Analysis

4.10.1. Sample Preparation

Briefly, samples of bacteria were centrifuged and collected. 100 μL Radio Immunoprecipitation Assay (RIPA) Lysis Buffer (P0013B, Beyotime Biotechnology) was added in for protein extraction. The total protein content was quantified by the BCA protein assay kit (Beyotime Biotechnology; Shanghai, China). The supernatant was prepared with ice-cold acetone (1:4, v/v) at 4 °C overnight, then centrifuged and washed. It was dried and resuspended in 50 μL UA buffer (8 M Urea, 0.1 M Tris/HCl, pH 8.5). 2 μL of Dithiothreitol (DTT, finally concentration 2 mM) was added, then incubated for 1.5 h at 30 °C. Later on, 13 μL of 50 mM iodoacetamide (IAA) was added and diluted to 600 μL with 50 mM NH4HCO3, which was then kept in the dark for 40 min. Finally, trypsin solution (0.25 μg/μL, Promega, Madison, WI, USA) was added into the samples at 37 °C for 12 h with a mass ratio of 1:60 (trypsin: protein) for further digestion.

4.10.2. Nano-LC–MS/MS Analysis by Q-Exactive plus Orbitrap

Two groups of Peptide mixtures (sample and control, three replicates) were tested by Easy nano-LC 1200 system (Thermo Scientific, San Jose, CA, USA) using a reverse-phase column (ReproSil-Pur C18-AQ (75 μm × 3 cm, 2 μm)) with a 120-min gradient at a flow rate of 200 nL/min. MS profiling spectra were obtained on a Q-Exactive Plus mass spectrometer (Thermo Scientific, San Jose, CA, USA). The mobile phases A and B were 0.1% formic acid in LC/MS-grade water and 0.1% formic acid in 80% acetonitrile, respectively. The peptides were separated with a linear gradient 3–32% B in 95 min, 32%–100% B in 10 min, and 100% B in 15 min. Full scans were acquired over a mass range of 355–1700 at the resolution of 70,000. The MS/MS scans were acquired at a resolution of 35,000.

4.10.3. Protein Identification and Data Analysis

The collected raw data (submitted on the https://www.iprox.cn/ with the project ID: PXD038886, accessed on 18 December 2022) were processed using the Proteome Discoverer software (Thermo Fisher Scientific). Proteome of S. pneumoniae serotype 4 (strain ATCC BAA-334/TIGR4) was downloaded from the UniProt database (16 April 2021). The proteins were selected with high FDR confidence and if their unique peptides were tested more than four. Those were considered to be differently expressed if their log2 (Fold change) > 1.5 in the treatment group compared with the control group and the adjusted p-value was <0.05. The DEPs were analyzed using the GO annotation and KEGG enrichment analysis. The online web platform of STRING (https://string-db.org/, accessed on 25 April 2021) was used to analysis the protein–protein interaction network of DEPs [63,64,65,66].

4.11. Targets Screening for Tryptanthrin by High-Throughput Reverse Docking

4.11.1. Preparation of Tryptanthrin and Protein Structure

Ligands files were downloaded from ZINC database (www.zinc15.docking.org, accessed on 20 November 2021) and used the MGLTools (https://ccsb.scripps.edu/mgltools/, accessed on 3 December 2021) to transfer to pdbqt format. A 3D structure of proteins *pdb files of S. pneumoniae was downloaded from the Research Collaboratory for Structural Bioinformatics Protein Data Bank (rcsbPDB—https://www.rcsb.org/, accessed on 30 December 2021) and transferred to pdbqt format by Raccoon (https://autodock.scripps.edu/resources/raccoon/, accessed on 8 December 2021). The protein data set was built according to the following advanced search parameter: (1) Experimental Method: X-ray. (2) Molecule: Protein. (3) Organism: S. pneumoniae (TIGR4, R6, D39). (4) X-ray Resolution: 0–3.5 Å (30 November 2021).
Crystal structures of the target proteins removed water molecules, ions, and original ligands, fixed using PBDFixer (https://github.com/pandegroup/pdbfixer, accessed on 10 December 2021), and hydrogen was added using PYMOL (http://www.pymol.org, accessed on 12 December 2021). The potential binding pockets of each protein were predicted by Fpocket (http://fpocket.sourceforge.net/, accessed on 15 December 2021).

4.11.2. Reverse Docking Using AutoDock Vina

The reverse docking procedure was performed as follows: (1) Using a Python script, we generated an input file for docking with 8737 pockets from 623 target proteins in our database; (2) To provide enough space for free movements of the ligand, the grid box was constructed to cover the active sites as defined using AutoDock Vina [67]. The grid points for pockets were set to 60 × 60 × 60, at a grid center of (x, y, z) regarding to a certain pocket. (3) Docking calculation was generated with the software free energy binding own scoring function. The binding affinity of the ligand was expressed in kcal/mol, and results were sorted by docking scores and arranged into a matrix form.

4.12. Protein Expression and Purification

4.12.1. Cloning

Gene fragments encoding StrH, SP_2141, and SP_2146 were amplified by PCR from PRSP F3983 genomic DNA (PRJNA898832). Specific primers were designed by SnapGene (https://www.snapgene.com, accessed on 12 March 2022) and were used to introduce BamHI/EcoRI restriction sites (see Table S7 for primer sequences). The StrH was cloned into the pMAL-c5X vector with a maltose-binding protein (MBP) tag, while SP_2141 and SP_2146 were cloned into pET-28a (+) vector with an N-terminal 6 × His tag, respectively. Bidirectional DNA sequencing was used to verify the fidelity of each construct.

4.12.2. Protein Extraction

All recombinant expression vectors were transformed into E. coli BL21 Star (DE3) cells (Invitrogen). Fusion proteins were produced using LB medium supplemented with Ampicillin (50 µg/mL) for the StrH or with kanamycin (50 µg/mL) for the SP_2141 and SP_2146. Briefly, bacteria with the appropriate expression plasmid were grown at 37 °C until the OD600 reached 0.6–0.8. Gene expression was then induced by adding isopropyl-b-D-1-thiogalacto pyranoside (IPTG) to a final concentration of 0.5 mM, and then incubated overnight at 16 °C with shaking. Cells were harvested by centrifugation and disrupted by Phenylmethanesulfonyl fluoride (PMSF) lysis buffer (1 × PBS, 1 mM PMSF). Proteins were purified by Ni2+ immobilized metal affinity chromatography, followed by size exclusion chromatography using a Sephacryl S-200 column (GE Health care, Chicago, IL, USA) and analyzed by 10% SDS-PAGE. Protein concentration was determined and stored at −80 °C in PBS.

4.13. Surface Plasmon Resonance (SPR) Assay to Evaluate the Protein Binding Affinity

The Biacore 8K and sensor chip CM5 were provided by the School of Pharmaceutical Sciences, Sun Yat-sen University. The determination temperature was set at 25 °C. 1 × PBS buffer was used as the running buffer to activate the chip surface. The proteins StrH, SP_2141, SP_2146 from PRSP F3983 strain dissolved in 1 × PBS were added into 10 mM sodium acetate solution with pH 4.0 for protein conjugation. The 1.05 × PBS-P+ (with 0.05% P20) buffer containing 8% DMSO was prepared as a small molecule sample running buffer. Solvent-corrected fluids of 7.5% and 8.8% DMSO were formulated. Tryptanthrin solution was diluted down 2 times at 6 concentration gradients with 8% DMSO running buffer (30 µM, 15 µM, 7.5 µM, 3.75 µM, 1.88 µM, 0.94 µM). The protein binding time was 60 s, and the analyte flow rate was 30 µL/min.

4.14. Molecular Docking and Visualization

The atom type and partial charge of ligand and protein was assigned with Autodock tools [68] and was exported to *pdbqt format file for molecular docking. Autodock Vina was used to predict the potential binding pose of Tryptanthrin towards the selected proteins. The potential binding pose of selected receptors was visualized by Discovery Studio (http://www.discoverystudio.net, accessed on 22 August 2022).

4.15. Statistical Analysis

All the quantitative analyses (MICs, growth curves, and proteomics) were performed from three independent biological replicates, and the results were summarized as the mean ± standard deviation (n = 3). Data of proteomics were analyzed by one-way analysis of variance (ANOVA) and Duncan multiple range tests. The difference was considered significant at p < 0.05.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ph16010105/s1; Table S1: Proteome_data sheet; Table S2: UPLC-UV-ESI-Q-TOF/MS analysis of S. cusia leaves; Table S3: NMR of 23 isolated compounds and their MICs against PRSP [69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91]; Table S4: Reverse-docking_active-pockets; Table S5: Reverse-docking_results_Tryptanthrin; Table S6: LMW-Kinetics-affinity_Tryptanthrin; Table S7: Primers and sequences of bgaA, StrH, SP_2141 and SP_2146 of F3983; Table S8: A scheme of Preparation of Isolated Compounds from S. cusia leaves

Author Contributions

X.H. conceptualized the project and conducted the experiments. X.X. and Y.H. provided the plant materials. X.H. and S.L. performed screening of extracts. X.X. performed chemical isolation. X.H. and X.L. performed the biological experiments and W.H. conceived and supervised the study. X.H. and L.J. performed the reverse docking analysis and in silico modeling. X.H. drafted the manuscript. L.J., Z.Z., X.X., Y.X., W.H. and L.W. contributed to discussing the results and critical review of the manuscript. L.W., W.H. and D.Y. reviewed and edited the manuscript, provided supervision and project administration, and acquired funding. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Agricultural Science and Technology Innovation and Promotion in Guangdong (No. 2023KJ142), the Provincial Key R&D Program of Guangdong (No. 2020B020221002), the National Key Research and Development Program of China (Grant No. 2020YFA0907900), the National Natural Science Foundation of China (Grant No. 32070242), the National Nature Science Foundation of China (No. 82173859, China), the Shenzhen Key Laboratory of Prevention and Treatment of Severe Infections (ZDSYS20200811142804014, China).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

PRSP, Penicillin-resistant Streptococcus pneumoniae; LRTI, Lower respiratory tract infection; TCM, Traditional Chinese medicine; ES, Ethanol extract of leaves from the Strobilanthes cusia Kuntze; MIC, Minimal inhibitory concentration; HPLC, High Performance Liquid Chromatography; MRSA, Methicillin-resistant Staphylococcus aureus; OD, Optical density; TEM, Transmission electron microscopy; KEGG, Kyoto Encyclopedia of Genes and Genomes; PPI, Protein-protein interactions; DEP, Differentially expressed proteins; PTS, phosphotransferase system; NMR, Nuclear Magnetic Resonance Spectroscopy; SPR, Surface plasmon resonance; PBS, phosphate buffered saline; DTT, Dithiothreitol; IAA, Iodoacetamide; BCA, Bicinchoninic acid; DMSO, dimethyl sulfoxide; IPTG, Isopropyl-b-D-1-thiogalacto pyranoside; PMSF, Phenylmethanesulfonyl fluoride; MBP, Maltose-binding protein; RIPA, Radio Immunoprecipitation Assay; CRS, Chemical Reference Substances.

References

  1. Cámara, M.; Boulnois, G.J.; Andrew, P.W.; Mitchell, T.J. A neuraminidase from Streptococcus pneumoniae has the features of a surface protein. Infect. Immun. 1994, 62, 3688–3695. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Fleming, E.; Camilli, A. ManLMN is a glucose transporter and central metabolic regulator in Streptococcus pneumoniae. Mol. Microbiol. 2016, 102, 467–487. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Troeger, C.; Blacker, B.F.; Khalil, I.A.; Rao, P.C.; Cao, S.; Zimsen, S.R.M.; Albertson, S.B.; Deshpande, A.; Farag, T.; Abebe, Z.; et al. Estimates of the global, regional, and national morbidity, mortality, and aetiologies of lower respiratory infections in 195 countries, 1990–2016: A systematic analysis for the Global Burden of Disease Study 2016. Lancet Infect. Dis. 2018, 18, 1191–1210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Ikuta, K.S.; Swetschinski, L.R.; Aguilar, G.R.; Sharara, F.; Mestrovic, T.; Gray, A.P.; Weaver, N.D.; Wool, E.E.; Han, C.; Hayoon, A.G.; et al. Global mortality associated with 33 bacterial pathogens in 2019: A systematic analysis for the Global Burden of Disease Study 2019. Lancet 2022, 400, 2221–2248. [Google Scholar] [CrossRef] [PubMed]
  5. Troeger, C.E.; Blacker, B.F.; Khalil, I.A.; Zimsen, S.R.M.; Albertson, S.B.; Abate, D.; Abdela, J.; Adhikari, T.B.; Aghayan, S.A.; Agrawal, S.; et al. Mortality, morbidity, and hospitalisations due to influenza lower respiratory tract infections, 2017: An analysis for the Global Burden of Disease Study 2017. Lancet Respir. Med. 2019, 7, 69–89. [Google Scholar] [CrossRef] [Green Version]
  6. Sender, V.; Hentrich, K.; Henriques-Normark, B. Virus-Induced Changes of the Respiratory Tract Environment Promote Secondary Infections with Streptococcus pneumoniae. Front. Cell Infect. Microbiol. 2021, 11, 643326. [Google Scholar] [CrossRef]
  7. Ko, H.C.; Wei, B.L.; Chiou, W.F. The effect of medicinal plants used in Chinese folk medicine on RANTES secretion by virus-infected human epithelial cells. J. Ethnopharmacol. 2006, 107, 205–210. [Google Scholar] [CrossRef]
  8. Yu, H.; Li, T.; Ran, Q.; Huang, Q.W.; Wang, J. Strobilanthes cusia (Nees) Kuntze, a multifunctional traditional Chinese medicinal plant, and its herbal medicines: A comprehensive review. J. Ethnopharmacol. 2021, 265, 113325. [Google Scholar] [CrossRef]
  9. Sun, Q.; Leng, J.; Tang, L.; Wang, L.; Fu, C. A Comprehensive Review of the Chemistry, Pharmacokinetics, Pharmacology, Clinical Applications, Adverse Events, and Quality Control of Indigo Naturalis. Front. Pharmacol. 2021, 12, 664022. [Google Scholar] [CrossRef]
  10. Tsai, Y.C.; Lee, C.-L.; Yen, H.-R.; Chang, Y.-S.; Lin, Y.-P.; Huang, S.-H.; Lin, C.-W. Antiviral Action of Tryptanthrin Isolated from Strobilanthes cusia Leaf against Human Coronavirus NL63. Biomolecules 2020, 10, 336. [Google Scholar] [CrossRef]
  11. Chiang, Y.R.; Li, A.; Leu, Y.L.; Fang, J.Y.; Lin, Y.K. An In Vitro Study of the Antimicrobial Effects of Indigo Naturalis Prepared from Strobilanthes formosanus Moore. Molecules 2013, 18, 14381–14396. [Google Scholar] [CrossRef] [Green Version]
  12. Wei, Y.Y.; Chen, X.W.; Zhou, W.P.; Liao, L. Effects of Baphicacanthus cusia (Nees) Bremek extract on the antibacterial activity of lincomycin in vitro. J. Anhui Agric. Sci. 2010, 38, 2927–2928. [Google Scholar]
  13. Honda, G.; Tabata, M.; Tsuda, M. The antimicrobial specificity of tryptanthrin. Planta Med. 1979, 37, 172–174. [Google Scholar] [CrossRef]
  14. Gu, W.; Zhang, Y.; Hao, X.-J.; Yang, F.-M.; Sun, Q.-Y.; Morris-Natschke, S.L.; Lee, K.-H.; Wang, Y.-H.; Long, C.-L. Indole alkaloid glycosides from the aerial parts of Strobilanthes cusia. J. Nat. Prod. 2014, 77, 2590–2594. [Google Scholar] [CrossRef]
  15. Wang, T.; Liu, J.; Luo, X.; Hu, L.; Lu, H. Functional metabolomics innovates therapeutic discovery of traditional Chinese medicine derived functional compounds. Pharmacol. Ther. 2021, 224, 107824. [Google Scholar] [CrossRef]
  16. Gao, T.; Ye, F.; Tan, Y.; Peng, M.; Yuan, F.; Liu, Z.; Zhou, D.; Yang, K.; Liu, W.; Guo, R.; et al. Metabolomics and proteomics analyses revealed mechanistic insights on the antimicrobial activity of epigallocatechin gallate against Streptococcus suis. Front. Cell Infect. Microbiol. 2022, 12, 973282. [Google Scholar] [CrossRef]
  17. Deng, H.; Kong, Y.; Zhu, J.; Jiao, X.; Tong, Y.; Wan, M.; Zhao, Y.; Lin, S.; Ma, Y.; Meng, X. Proteomic analyses revealed the antibacterial mechanism of Aronia melanocarpa isolated anthocyanins against Escherichia coli O157: H7. Curr. Res. Food Sci. 2022, 5, 1559–1569. [Google Scholar] [CrossRef]
  18. Lv, N.; Kong, Q.; Zhang, H.; Li, J. Discovery of novel Staphylococcus aureus penicillin binding protein 2a inhibitors by multistep virtual screening and biological evaluation. Bioorg. Med. Chem. Lett. 2021, 41, 128001. [Google Scholar] [CrossRef]
  19. Galati, S.; Di Stefano, M.; Martinelli, E.; Poli, G.; Tuccinardi, T. Recent Advances in In Silico Target Fishing. Molecules 2021, 26, 5124. [Google Scholar] [CrossRef]
  20. Kuhnert, N.; Yassin, G.H.; Jaiswal, R.; Matei, M.F.; Grün, C.H. Differentiation of prototropic ions in regioisomeric caffeoyl quinic acids by electrospray ion mobility mass spectrometry. Rapid Commun. Mass Spectrom. 2015, 29, 675–680. [Google Scholar] [CrossRef]
  21. Liu, L.; Zhu, L.; Gong, K.; Zhi, X.; Guan, Y.; Cai, W. Identification of the Constituents of Percutaneous Absorption from Duhaldea nervosa Based on UHPLC-Q-Exactive Orbitrap MS and Microdialysis Technique. Int. J. Anal. Chem. 2019, 2019, 8328942. [Google Scholar] [CrossRef] [PubMed]
  22. Garayev, E.; Di Giorgio, C.; Herbette, G.; Mabrouki, F.; Chiffolleau, P.; Roux, D.; Sallanon, H.; Ollivier, E.; Elias, R.; Baghdikian, B. Bioassay-guided isolation and UHPLC-DAD-ESI-MS/MS quantification of potential anti-inflammatory phenolic compounds from flowers of Inula montana L. J. Ethnopharmacol. 2018, 226, 176–184. [Google Scholar] [CrossRef] [PubMed]
  23. Molino, R.; Junio, H.A. Profiling the Philippine Blue: Liquid chromatography/mass spectrometry-based metabolomics study on Philippine Indigofera. Rapid Commun. Mass Spectrom. 2021, 35, e9037. [Google Scholar] [CrossRef] [PubMed]
  24. Oberthur, C.; Jaggi, R.; Hamburger, M. HPLC based activity profiling for 5-lipoxygenase inhibitory activity in Isatis tinctoria leaf extracts. Fitoterapia 2005, 76, 324–332. [Google Scholar] [CrossRef] [PubMed]
  25. Hu, J.; Chang, H.; Wang, L.; Wu, S.; Shao, B.; Zhou, J.; Zhao, Y. Detection, Occurrence and Fate of Indirubin in Municipal Sewage Treatment Plants. Environ. Sci. Technol. 2008, 42, 8339–8344. [Google Scholar] [CrossRef]
  26. Liau, B.C.; Jong, T.-T.; Lee, M.-R.; Chen, S.-S. LC-APCI-MS method for detection and analysis of tryptanthrin, indigo, and indirubin in daqingye and banlangen. J. Pharm. Biomed. Anal. 2007, 43, 346–351. [Google Scholar] [CrossRef]
  27. Costa, D.C.M.; de Azevedo, M.M.B.; e Silva, D.O.; Romanos, M.T.V.; Souto-Padrón, T.C.B.S.; Alviano, C.S.; Alviano, D.S. In vitro anti-MRSA activity of Couroupita guianensis extract and its component Tryptanthrin. Nat. Prod. Res. 2017, 31, 2077–2080. [Google Scholar] [CrossRef]
  28. Kaur, R.; Manjal, S.K.; Rawal, R.K.; Kumar, K. Recent synthetic and medicinal perspectives of tryptanthrin. Bioorg. Med. Chem. 2017, 25, 4533–4552. [Google Scholar] [CrossRef]
  29. Ruiz-Moreno, A.J.; Domling, A.; Velasco-Velazquez, M.A. Reverse Docking for the Identification of Molecular Targets of Anticancer Compounds. Methods Mol. Biol. 2021, 2174, 31–43. [Google Scholar]
  30. Vollmer, W.; Massidda, O.; Tomasz, A. The Cell Wall of Streptococcus pneumoniae. Microbiol. Spectr. 2019, 7, GPP3-0018-2018. [Google Scholar] [CrossRef]
  31. Paixao, L.; Oliveira, J.; Veríssimo, A.; Vinga, S.; Ventura, M.R.; Kjos, M.; Veening, J.-W.; Fernandes, V.E.; Andrew, P.W.; Yesilkaya, H.; et al. Host glycan sugar-specific pathways in Streptococcus pneumoniae: Galactose as a key sugar in colonisation and infection [corrected]. PLoS ONE 2015, 10, e0121042. [Google Scholar] [CrossRef] [Green Version]
  32. Hobbs, J.K.; Pluvinage, B.; Boraston, A.B. Glycan-metabolizing enzymes in microbe-host interactions: The Streptococcus pneumoniae paradigm. FEBS Lett. 2018, 592, 3865–3897. [Google Scholar] [CrossRef]
  33. Paixao, L.; Caldas, J.; Kloosterman, T.G.; Kuipers, O.P.; Vinga, S.; Neves, A.R. Transcriptional and metabolic effects of glucose on Streptococcus pneumoniae sugar metabolism. Front. Microbiol. 2015, 6, 1041. [Google Scholar] [CrossRef]
  34. Hartel, T.; Eylert, E.; Schulz, C.; Petruschka, L.; Gierok, P.; Grubmüller, S.; Lalk, M.; Eisenreich, W.; Hammerschmidt, S. Characterization of central carbon metabolism of Streptococcus pneumoniae by isotopologue profiling. J. Biol. Chem. 2012, 287, 4260–4274. [Google Scholar] [CrossRef] [Green Version]
  35. Carvalho, S.M.; Kuipers, O.P.; Neves, A.R. Environmental and nutritional factors that affect growth and metabolism of the pneumococcal serotype 2 strain D39 and its nonencapsulated derivative strain R6. PLoS ONE 2013, 8, e58492. [Google Scholar] [CrossRef] [Green Version]
  36. Troxler, L.J.; Werren, J.P.; Schaffner, T.O.; Mostacci, N.; Vermathen, P.; Vermathen, M.; Wüthrich, D.; Simillion, C.; Brugger, S.D.; Bruggmann, R.; et al. Carbon source regulates polysaccharide capsule biosynthesis in Streptococcus pneumoniae. J. Biol. Chem. 2019, 294, 17224–17238. [Google Scholar] [CrossRef] [Green Version]
  37. Panjaitan, N.S.D.; Hong, Y.-T.; Chien, C.-C.; Yang, H.-C.; You, R.-I.; Soo, P.-C. The PTS Components in Klebsiella pneumoniae Affect Bacterial Capsular Polysaccharide Production and Macrophage Phagocytosis Resistance. Microorganisms. 2021, 9, 335. [Google Scholar] [CrossRef]
  38. Afzal, M.; Shafeeq, S.; Kuipers, O.P. LacR is a repressor of lacABCD and LacT is an activator of lacTFEG, constituting the lac gene cluster in Streptococcus pneumoniae. Appl. Environ. Microbiol. 2014, 80, 5349–5358. [Google Scholar] [CrossRef] [Green Version]
  39. Bidossi, A.; Mulas, L.; Decorosi, F.; Colomba, L.; Ricci, S.; Pozzi, G.; Deutscher, J.; Viti, C.; Oggioni, M.R. A functional genomics approach to establish the complement of carbohydrate transporters in Streptococcus pneumoniae. PLoS ONE 2012, 7, e33320. [Google Scholar] [CrossRef] [Green Version]
  40. Carvalho, S.M.; Kloosterman, T.G.; Kuipers, O.P.; Neves, A.R. CcpA ensures optimal metabolic fitness of Streptococcus pneumoniae. PLoS ONE 2011, 6, e26707. [Google Scholar] [CrossRef] [Green Version]
  41. Lou, Z.; Wang, H.; Zhu, S.; Ma, C.; Wang, Z. Antibacterial activity and mechanism of action of chlorogenic acid. J. Food Sci. 2011, 76, M398–M403. [Google Scholar] [CrossRef] [PubMed]
  42. Bajko, E.; Kalinowska, M.; Borowski, P.; Siergiejczyk, L.; Lewandowski, W. 5-O-Caffeoylquinic acid: A spectroscopic study and biological screening for antimicrobial activity. LWT Food Sci. Technol. 2016, 65, 471–479. [Google Scholar] [CrossRef]
  43. Ren, X.; Bao, Y.; Zhu, Y.; Liu, S.; Peng, Z.; Zhang, Y.; Zhou, G. Isorhamnetin, Hispidulin, and Cirsimaritin Identified in Tamarix ramosissima Barks from Southern Xinjiang and Their Antioxidant and Antimicrobial Activities. Molecules 2019, 24, 390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Lee, A.; Lee, K.; Kim, D. Using reverse docking for target identification and its applications for drug discovery. Expert. Opin. Drug Discov. 2016, 11, 707–715. [Google Scholar] [CrossRef] [PubMed]
  45. Cantarel, B.L.; Coutinho, P.M.; Rancurel, C.; Bernard, T.; Lombard, V.; Henrissat, B. The Carbohydrate-Active EnZymes database (CAZy): An expert resource for Glycogenomics. Nucleic Acids Res. 2009, 37, D233–D238. [Google Scholar] [CrossRef]
  46. Burnaugh, A.M.; Frantz, L.J.; King, S.J. Growth of Streptococcus pneumoniae on human glycoconjugates is dependent upon the sequential activity of bacterial exoglycosidases. J. Bacteriol. 2008, 190, 221–230. [Google Scholar] [CrossRef] [Green Version]
  47. Gregg, K.J.; Zandberg, W.F.; Hehemann, J.-H.; Whitworth, G.E.; Deng, L.; Vocadlo, D.J.; Boraston, A.B. Analysis of a new family of widely distributed metal-independent alpha-mannosidases provides unique insight into the processing of N-linked glycans. J. Biol. Chem. 2011, 286, 15586–15596. [Google Scholar] [CrossRef] [Green Version]
  48. Dalia, A.B.; Standish, A.J.; Weiser, J.N. Three surface exoglycosidases from Streptococcus pneumoniae, NanA, BgaA, and StrH, promote resistance to opsonophagocytic killing by human neutrophils. Infect. Immun. 2010, 78, 2108–2116. [Google Scholar] [CrossRef] [Green Version]
  49. King, S.J. Pneumococcal modification of host sugars a major contributor to colonization of the airway? Mol. Oral Microbiol. 2010, 25, 15–24. [Google Scholar] [CrossRef]
  50. King, S.J.; Hippe, K.R.; Weiser, J.N. Deglycosylation of human glycoconjugates by the sequential activities of exoglycosidases expressed by Streptococcus pneumoniae. Mol. Microbiol. 2006, 59, 961–974. [Google Scholar] [CrossRef]
  51. Singh, A.K.; Pluvinage, B.; Higgins, A.M.; Dalia, B.A.; Woodiga, A.S. Unravelling the multiple functions of the architecturally intricate Streptococcus pneumoniae beta-galactosidase, BgaA. PLoS Pathog. 2014, 10, e1004364. [Google Scholar] [CrossRef]
  52. Harty, D.W.; Chen, Y.; Simpson, C.L.; Berg, T.; Cook, S.L.; Mayo, J.A.; Hunter, N.; Jacques, N.A. Characterisation of a novel homodimeric N-acetyl-beta-D-glucosaminidase from Streptococcus gordonii. Biochem. Biophys. Res. Commun. 2004, 319, 439–447. [Google Scholar] [CrossRef]
  53. Robb, M.; Robb, C.S.; Higgins, M.A.; Hobbs, J.K.; Paton, J.C.; Boraston, A.B. A Second beta-Hexosaminidase Encoded in the Streptococcus pneumoniae Genome Provides an Expanded Biochemical Ability to Degrade Host Glycans. J. Biol. Chem. 2015, 290, 30888–30900. [Google Scholar] [CrossRef] [Green Version]
  54. Hobbs, J.K.; Pluvinage, B.; Robb, M.; Smith, S.P.; Boraston, A.B. Two complementary alpha-fucosidases from Streptococcus pneumoniae promote complete degradation of host-derived carbohydrate antigens. J. Biol. Chem. 2019, 294, 12670–12682. [Google Scholar] [CrossRef]
  55. Robb, M.; Hobbs, J.K.; Woodiga, S.A.; Shapiro-Ward, S.; Suits, M.D.; McGregor, N.; Brumer, H.; Yesilkaya, H.; King, S.J.; Boraston, A.B. Molecular Characterization of N-glycan Degradation and Transport in Streptococcus pneumoniae and Its Contribution to Virulence. PLoS Pathog. 2017, 13, e1006090. [Google Scholar] [CrossRef] [Green Version]
  56. Janesch, P.; Rouha, H.; Badarau, A.; Stulik, L.; Mirkina, I.; Caccamo, M.; Havlicek, K.; Maierhofer, B.; Weber, S.; Groß, K.; et al. Assessing the function of pneumococcal neuraminidases NanA, NanB and NanC in in vitro and in vivo lung infection models using monoclonal antibodies. Virulence 2018, 9, 1521–1538. [Google Scholar] [CrossRef] [Green Version]
  57. Leber, A.L. Broth microdilution test. In Clinical Microbiology Procedures Handbook; American Society for Microbiology: Washington, DC, USA; Wiley: New York, NY, USA, 2016; pp. 5.2.1.1–5.2.2.10. [Google Scholar]
  58. Simpson, J.T.; Wong, K.; Jackman, S.D.; Schein, J.E.; Jones, S.J.; Birol, I. ABySS: A parallel assembler for short read sequence data. Genome Res. 2009, 19, 1117–1123. [Google Scholar] [CrossRef] [Green Version]
  59. Jung, Y.; Han, D. BWA-MEME: BWA-MEM emulated with a machine learning approach. Bioinformatics 2022, 38, 2404–2413. [Google Scholar] [CrossRef]
  60. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [Green Version]
  61. Seemann, T. Prokka: Rapid prokaryotic genome annotation. Bioinformatics 2014, 30, 2068–2069. [Google Scholar] [CrossRef] [Green Version]
  62. Hammerschmidt, S.; Rohde, M. Electron Microscopy to Study the Fine Structure of the Pneumococcal Cell. Methods Mol. Biol. 2019, 1968, 13–33. [Google Scholar]
  63. Szklarczyk, D.; Gable, A.L.; Nastou, K.C.; Lyon, D.; Kirsch, R.; Pyysalo, S.; Doncheva, N.T.; Legeay, M.; Fang, T.; Bork, P.; et al. The STRING database in 2021: Customizable protein-protein networks, and functional characterization of user-uploaded gene/measurement sets. Nucleic Acids Res. 2021, 49, D605–D612. [Google Scholar] [CrossRef] [PubMed]
  64. Franceschini, A.; Lin, J.; Von Mering, C.; Jensen, L.J. SVD-phy: Improved prediction of protein functional associations through singular value decomposition of phylogenetic profiles. Bioinformatics 2016, 32, 1085–1087. [Google Scholar] [CrossRef] [PubMed]
  65. von Mering, C.; Huynen, M.; Jaeggi, D.; Schmidt, S.; Bork, P.; Snel, B. STRING: A database of predicted functional associations between proteins. Nucleic Acids Res. 2003, 31, 258–261. [Google Scholar] [CrossRef] [PubMed]
  66. Von Mering, C.; Jensen, L.J.; Snel, B.; Hooper, S.D.; Krupp, M.; Foglierini, M.; Jouffre, N.; Huynen, M.A.; Bork, P. STRING: Known and predicted protein-protein associations, integrated and transferred across organisms. Nucleic Acids Res. 2005, 33, D433–D437. [Google Scholar] [CrossRef]
  67. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [Green Version]
  68. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. AutoDock4 and AutoDockTools4: Automated docking with selective receptor flexibility. J. Comput. Chem. 2009, 30, 2785–2791. [Google Scholar] [CrossRef] [Green Version]
  69. Jao, C.; Lin, W.; Wu, Y.; Wu, P. Isolation, structure elucidation, and synthesis of cytotoxic tryptanthrin analogues from Phaius mishmensis. J. Nat. Prod. 2008, 71, 1275–1279. [Google Scholar] [CrossRef]
  70. Barnes, J.P.; Putnam, A.R.; Burke, B.A.; Aasen, A.J. Isolation and characterization of allelochemicals in rye herbage. Phytochemistry 1987, 26, 1385–1390. [Google Scholar] [CrossRef]
  71. D’Abrosca, B.; Dellagreca, M.; Fiorentino, A.; Monaco, P.; Oriano, P.; Temussi, F. Structure elucidation and phytotoxicity of C13 nor-isoprenoids from Cestrum parqui. Phytochemistry 2004, 65, 497–505. [Google Scholar] [CrossRef]
  72. Abdolali, A.; Jvad, M. Unexpected approach to the synthesis of 2-phenyl quinoxalines and pyrido[2,3-b]pyrazines via a regioselective reaction. Helv. Chim. Acta 2013, 96, 124–129. [Google Scholar]
  73. Koálová, D.; Hrochová, V.; Suchý, V.; Buděšínský, M.; Ubik, K. Two pyrrole acids from Berberis koreana. Phytochemistry 1992, 31, 3669–3670. [Google Scholar] [CrossRef]
  74. Katade, S.R.; Pawar, P.V.; Tungikar, V.B.; Tambe, A.; Kalal, K.; Wakharkar, R.; Deshpande, N. Larvicidal activity of bis (2-ethylhexyl) benzene-1,2-dicarboxylate from Sterculia guttata seeds against two mosquito species. Chem. Biodivers. 2006, 3, 49–53. [Google Scholar] [CrossRef]
  75. Zhang, W.; Lou, H.; Li, G.; Wu, H. A new triterpenoid from Entodon okamurae broth. J. Asian Nat. Prod. Res. 2003, 5, 189–195. [Google Scholar] [CrossRef]
  76. Wu, P.; Hsu, Y.; Jao, C. Indole alkaloids from Cephalanceropsis gracilis. J. Nat. Prod. 2006, 69, 1467–1470. [Google Scholar] [CrossRef]
  77. DellaGreca, M.; Di Marino, C.; Zarrelli, A.; D’Abrosca, B. Isolation and phytotoxicity of apocarotenoids from Chenopodium album. J. Nat. Prod. 2004, 67, 1492–1495. [Google Scholar] [CrossRef]
  78. Gutierrez-Lugo, M.; Woldemichael, G.M.; Singh, M.P.; Suarez, P.; Maiese, W.; Montenegro, G.; Timmermann, B. Isolation of three new naturally occurring compounds from the culture of Micromonospora sp. P1068. Nat. Prod. Res. 2005, 19, 645–652. [Google Scholar] [CrossRef]
  79. Duan, H.; Takaishi, Y.; Momota, H.; Ohmoto, Y.; Taki, T. Immunosuppressive constituents from Saussurea medusa. Phytochemistry 2002, 59, 85–90. [Google Scholar] [CrossRef]
  80. Jones, L.; Bartholomew, B.; Latif, Z.; Sarker, S.; Nash, R. Constituents of Cassia laevigata. Fitoterapia 2000, 71, 580–583. [Google Scholar] [CrossRef]
  81. Liu, Y.H.; Qing, G.W.; Ding, S.P.; Wu, X.Y. Studies on chemical constituents in root of Isatis indigotica. Chin. Tradit. Herb. Drugs 2002, 33, 97–99. [Google Scholar]
  82. Yang, Q.; Ye, G. A new c-glucoside from Commelina communis. Chem. Nat. Compd. 2009, 45, 59–60. [Google Scholar] [CrossRef]
  83. Marques, M.R.; Stüker, C.; Kichik, N.; Tarragó, T.; Giralt, E.; Morel, A.; Dalcol, I. Flavonoids with prolyl oligopeptidase inhibitory activity isolated from Scutellaria racemosa Pers. Fitoterapia 2010, 81, 552–556. [Google Scholar] [CrossRef] [PubMed]
  84. Francisco, A.M.; David, M.; Alberto, O.; Chinchilla, D.; Simonet, A.M.; Molinillo, J.M.G. Isolation and synthesis of allelochemicals from gramineae: Benzoxazinones and related compounds. J. Agric. Food Chem. 2006, 54, 991–1000. [Google Scholar]
  85. Xie, H.; Liang, Y.; Xue, J. Secondary metabolites of the phytopathogen Peronophythora litchii. Nat. Prod. Commun. 2010, 5, 245–248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Yang, H.; Hou, A.; Mei, S.; Mei, S.-X.; Sun, H.-D.; Che, C.-T. Constituents of Clerodendrum bungei. J. Asian Nat. Prod. Res. 2002, 4, 165–169. [Google Scholar] [CrossRef]
  87. Hacıbekiroğlu, I.; Kolak, U. Antioxidant and anticholinesterase constituents from the petroleum ether and chloroform extracts of Iris suaveolens. Phytother. Res. 2011, 25, 522–529. [Google Scholar] [CrossRef]
  88. Chen, Y.; Fan, C.L.; Wang, Y.; Zhang, X.Q.; Huang, X.J.; Ye, W.C. Chemical constituents from roots of Isatis indigotica. Zhongguo Zhong Yao Za Zhi 2018, 43, 2091–2096. [Google Scholar]
  89. Yang, S.Y.; Li, Z.L.; Zhao, Y.M.; Zuo, Q.Y.; Lv, X.H.; Wang, X.J.; Qian, S.H. Chemical constituents from flowers of Abelmoschus manihot. Chin. Tradit. Herb. Drugs. 2017, 48, 2827–2842. [Google Scholar]
  90. Liu, Y.; Ou, Y.F.; Yao, X.S. Chemical constituents in the leaves of Baphicacanthus cusia (Nees) Bremek. Chin. J. Med. Chem. 2009, 19, 273–275. [Google Scholar]
  91. Xie, P.; Zhang, Y.; Wang, X.; Wei, J.; Kang, W. Antithrombotic effect and mechanism of Rubus spp. Blackberry. Food Funct. 2017, 8, 2000–2012. [Google Scholar] [CrossRef]
Pharmaceuticals 16 00105 g001 550
Figure 1. Antibacterial effects of ES on the PRSP F3983. (A) Growth curve of PRSP F3983 treated by ES at 1/2× MIC and 1× MIC. (B) Representative confocal laser scanning microscopy (CLSM) images of F3983 treated with ES 8 h at 1/2× MIC value comparing with control. The viable bacterial cells were stained green by SYTO9, and the dead cells were stained red by PI. Scales on the images are 25 µm (top two images) and 10 µm (bottom two images) as marked on. (C) Transmission electron microscopy images of F3983 incubated with the ES at 1/2× MIC value for 8 h compared with control. Red arrowheads point to bacteria with reduced capsule polysaccharides and damaged cell walls. Scales on the images are 200 nm (top four images), 1 µm (medium lower two images), and 5 µm (bottom two images) as marked on.
Figure 1. Antibacterial effects of ES on the PRSP F3983. (A) Growth curve of PRSP F3983 treated by ES at 1/2× MIC and 1× MIC. (B) Representative confocal laser scanning microscopy (CLSM) images of F3983 treated with ES 8 h at 1/2× MIC value comparing with control. The viable bacterial cells were stained green by SYTO9, and the dead cells were stained red by PI. Scales on the images are 25 µm (top two images) and 10 µm (bottom two images) as marked on. (C) Transmission electron microscopy images of F3983 incubated with the ES at 1/2× MIC value for 8 h compared with control. Red arrowheads point to bacteria with reduced capsule polysaccharides and damaged cell walls. Scales on the images are 200 nm (top four images), 1 µm (medium lower two images), and 5 µm (bottom two images) as marked on.
Pharmaceuticals 16 00105 g001
Pharmaceuticals 16 00105 g002 550
Figure 2. Proteomics analysis of PRSP F3983 treated by ES compared with control. (A) Volcano plot of the differently expressed proteins (DEPs) between control and treatment samples. (B) Network map of interactions among the down-regulated DEPs. The strength of interaction is represented by the line thickness, and thicker lines represent interactions with higher confidence. Each network node represents a protein; each edge denotes protein–protein associations and disconnected nodes are hidden in the network. The green, blue, and red circle colors represent proteins enriched in amino sugar and nucleotide sugar metabolism, galactose metabolism, and purine metabolism, respectively. (C) The enriched KEGG pathway of the down-regulated DEPs. The number of proteins included in the corresponding pathway is denoted with horizontal bars.
Figure 2. Proteomics analysis of PRSP F3983 treated by ES compared with control. (A) Volcano plot of the differently expressed proteins (DEPs) between control and treatment samples. (B) Network map of interactions among the down-regulated DEPs. The strength of interaction is represented by the line thickness, and thicker lines represent interactions with higher confidence. Each network node represents a protein; each edge denotes protein–protein associations and disconnected nodes are hidden in the network. The green, blue, and red circle colors represent proteins enriched in amino sugar and nucleotide sugar metabolism, galactose metabolism, and purine metabolism, respectively. (C) The enriched KEGG pathway of the down-regulated DEPs. The number of proteins included in the corresponding pathway is denoted with horizontal bars.
Pharmaceuticals 16 00105 g002
Pharmaceuticals 16 00105 g003 550
Figure 3. UPLC-UV-ESI-Q-TOF of S. cusia leaves. Blue arrows from left to right point out five main peaks at 11.23 min, 25.29 min, 33.10 min, 33.33 min, and 41.58 min, which represent CQA (includes 3-CQA, 4-CQA, 5-CQA), Hispiduloside, Tryptanthrin, Hispidulin, and Indirubin, respectively.
Figure 3. UPLC-UV-ESI-Q-TOF of S. cusia leaves. Blue arrows from left to right point out five main peaks at 11.23 min, 25.29 min, 33.10 min, 33.33 min, and 41.58 min, which represent CQA (includes 3-CQA, 4-CQA, 5-CQA), Hispiduloside, Tryptanthrin, Hispidulin, and Indirubin, respectively.
Pharmaceuticals 16 00105 g003
Pharmaceuticals 16 00105 g004 550
Figure 4. Antibacterial activity of Tryptanthrin isolated from S. cusia leaves. (A) Growth curve of F3983 treated by Tryptanthrin at 1/2× and 1× MIC. (B) A protein–protein interactions (PPI) network map of the selected targets. Proteins, which belong to the Glycoside hydrolase superfamily, are denoted as purple circles. (C) A KEGG pathway enrichment analysis for the selected targets. The red lines represent the enzymes strH and SP_2141, which release the GlcNAc; the yellow line implies the enzyme bgaA, which releases the galactose; the blue line designates the enzyme SP_2146, which releases the fucose.
Figure 4. Antibacterial activity of Tryptanthrin isolated from S. cusia leaves. (A) Growth curve of F3983 treated by Tryptanthrin at 1/2× and 1× MIC. (B) A protein–protein interactions (PPI) network map of the selected targets. Proteins, which belong to the Glycoside hydrolase superfamily, are denoted as purple circles. (C) A KEGG pathway enrichment analysis for the selected targets. The red lines represent the enzymes strH and SP_2141, which release the GlcNAc; the yellow line implies the enzyme bgaA, which releases the galactose; the blue line designates the enzyme SP_2146, which releases the fucose.
Pharmaceuticals 16 00105 g004
Pharmaceuticals 16 00105 g005a 550Pharmaceuticals 16 00105 g005b 550
Figure 5. Docking conformations of Tryptanthrin with BgaA, StrH, SP_2141, and SP_2146. Diagrams representing 3D and 2D protein–ligand interactions of Tryptanthrin with the active site of BgaA (PDB code 4cu6) (A), StrH (PDB code 4azi) (B), SP_2141 (PDB code 5a6a) (C), and SP_2146 (PDB code 6org) (D).
Figure 5. Docking conformations of Tryptanthrin with BgaA, StrH, SP_2141, and SP_2146. Diagrams representing 3D and 2D protein–ligand interactions of Tryptanthrin with the active site of BgaA (PDB code 4cu6) (A), StrH (PDB code 4azi) (B), SP_2141 (PDB code 5a6a) (C), and SP_2146 (PDB code 6org) (D).
Pharmaceuticals 16 00105 g005aPharmaceuticals 16 00105 g005b
Pharmaceuticals 16 00105 g006 550
Figure 6. Surface plasmon resonance (SPR) analysis of the interaction between Tryptanthrin and three potential targets. (A) StrH KD = 7.16 × 10−6. (B) SP_2141 KD = 6.43 × 10−6. (C) SP_2146 KD = 8.82 × 10−6. The KD values were determined from the ratio between the kinetic rate constants (ka kd−1).
Figure 6. Surface plasmon resonance (SPR) analysis of the interaction between Tryptanthrin and three potential targets. (A) StrH KD = 7.16 × 10−6. (B) SP_2141 KD = 6.43 × 10−6. (C) SP_2146 KD = 8.82 × 10−6. The KD values were determined from the ratio between the kinetic rate constants (ka kd−1).
Pharmaceuticals 16 00105 g006
Pharmaceuticals 16 00105 g007 550
Figure 7. Schematic diagram of the inhibition of glycan biosynthesis by Tryptanthrin. Figure was illustrated by Figdraw (https://www.figdraw.com/, accessed on 5 November 2022). Above the membrane line, the bgaA, strH, SP_2141, and SP_2146 exhibited their function of hydrolyzation on the N-glycan degradation pathway. Below the membrane line, the monosaccharides were transported through PTS proteins into intracellular cells for peptidoglycan biosynthesis. The down-stream proteins related to carbon metabolism and cell wall or polysaccharide capsule biosynthesis were named as galK, galM, LacA, LacB, LacD, nanE, PurC, PurD, PurE, and PurH, which were also marked as down-regulated proteins in the volcano plot of proteomics analysis.
Figure 7. Schematic diagram of the inhibition of glycan biosynthesis by Tryptanthrin. Figure was illustrated by Figdraw (https://www.figdraw.com/, accessed on 5 November 2022). Above the membrane line, the bgaA, strH, SP_2141, and SP_2146 exhibited their function of hydrolyzation on the N-glycan degradation pathway. Below the membrane line, the monosaccharides were transported through PTS proteins into intracellular cells for peptidoglycan biosynthesis. The down-stream proteins related to carbon metabolism and cell wall or polysaccharide capsule biosynthesis were named as galK, galM, LacA, LacB, LacD, nanE, PurC, PurD, PurE, and PurH, which were also marked as down-regulated proteins in the volcano plot of proteomics analysis.
Pharmaceuticals 16 00105 g007
Table
Table 1. Determination of MICs against Gram-positive and Gram-negative reference strains.
Table 1. Determination of MICs against Gram-positive and Gram-negative reference strains.
MICs (µg/mL) of ES
Bacteria
/Strain		Gram-positive bacteriaGram-negative bacteria
Staphylococcus
aureus
ATCC29213		Streptococcus pneumoniae
ATCC49619		Pseudomonas
aeruginosa
ATCC27853		Klebsiella
pneumoniae
ATCC13883		Acinetobacter
baumannii
ATCC19606		Enterococcus
faecalis
ATCC29212
MIC100200>800>800>800>800
Table
Table 2. Antibacterial effect of ES on drug-resistant clinical isolates.
Table 2. Antibacterial effect of ES on drug-resistant clinical isolates.
MICs (µg/mL) of ES
BacteriaPenicillin-resistant Streptococcus pneumonia
(PRSP)		Methicillin-resistant Staphylococcus aureus
(MRSA)
StrainF3368F3401F3755F3983489004900848973490254896648706
MIC200200200200>800>800>800>800>800>800
Table
Table 3. Anti-PRSP effect of seven Chemical Reference Substances (CRSs).
Table 3. Anti-PRSP effect of seven Chemical Reference Substances (CRSs).
MICs (µg/mL) of Seven CRSs
3-CQA4-CQA5-CQAHispidulosideTryptanthrinHispidulinIndirubin
20020020020025100>800
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Han, X.; Jin, L.; Zhao, Z.; Xu, X.; Liu, S.; Huang, Y.; Liu, X.; Xu, Y.; Yang, D.; Huang, W.; et al. Combining the In Silico and In Vitro Assays to Identify Strobilanthes cusia Kuntze Bioactives against Penicillin-Resistant Streptococcus pneumoniae. Pharmaceuticals 2023, 16, 105. https://doi.org/10.3390/ph16010105

AMA Style

Han X, Jin L, Zhao Z, Xu X, Liu S, Huang Y, Liu X, Xu Y, Yang D, Huang W, et al. Combining the In Silico and In Vitro Assays to Identify Strobilanthes cusia Kuntze Bioactives against Penicillin-Resistant Streptococcus pneumoniae. Pharmaceuticals. 2023; 16(1):105. https://doi.org/10.3390/ph16010105

Chicago/Turabian Style

Han, Xiaoyu, Lu Jin, Zhimin Zhao, Xinjun Xu, Shiyi Liu, Yuquan Huang, Xiaoli Liu, Yuehong Xu, Depo Yang, Wei Huang, and et al. 2023. "Combining the In Silico and In Vitro Assays to Identify Strobilanthes cusia Kuntze Bioactives against Penicillin-Resistant Streptococcus pneumoniae" Pharmaceuticals 16, no. 1: 105. https://doi.org/10.3390/ph16010105

APA Style

Han, X., Jin, L., Zhao, Z., Xu, X., Liu, S., Huang, Y., Liu, X., Xu, Y., Yang, D., Huang, W., & Wang, L. (2023). Combining the In Silico and In Vitro Assays to Identify Strobilanthes cusia Kuntze Bioactives against Penicillin-Resistant Streptococcus pneumoniae. Pharmaceuticals, 16(1), 105. https://doi.org/10.3390/ph16010105

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
