Synthesis, Biological Evaluation and Molecular Modeling of Substituted Indeno[1,2-b]indoles as Inhibitors of Human Protein Kinase CK2

Abstract

Due to their system of annulated 6-5-5-6-membered rings, indenoindoles have sparked great interest for the design of ATP-competitive inhibitors of human CK2. In the present study, we prepared twenty-one indeno[1,2-b]indole derivatives, all of which were tested in vitro on human CK2. The indenoindolones 5a and 5b inhibited human CK2 with an IC₅₀ of 0.17 and 0.61 µM, respectively. The indeno[1,2-b]indoloquinone 7a also showed inhibitory activity on CK2 at a submicromolar range (IC₅₀ = 0.43 µM). Additionally, a large number of indenoindole derivatives was evaluated for their cytotoxic activities against the cell lines 3T3, WI-38, HEK293T and MEF.

1. Introduction

Protein kinase CK2 is a ubiquitous serine/threonine kinase found in all eukaryotic cells. Known since 1954 [1], CK2 is a newly validated therapeutic target (e.g., pancreatic adenocarcinoma, breast and prostate carcinoma, hematopoietic tumors) [2,3,4,5], is ideally suited for drug design [6,7], and will be a major target for inhibition for the next decades [8]. Actually, numerous ATP-competitive inhibitors have been identified [9,10,11], which consist of small and planar heterocyclic scaffolds, able to fit into the nucleotide-binding pocket of CK2α and to displace the ATP. Among these inhibitors, are (i) polyhalogenated benzimidazole and benzotriazole derivatives, (ii) flavonoids, ellagic acid and coumarins, (iii) anthraquinone, xanthenone and fluorenone, (iv) pyrazolo-triazine derivatives, (v) carboxyl acid derivatives and, (vi) benzofuran derivatives (Figure 1).

Recently, some new CK2 inhibitors were designed using tricyclic and tetracyclic scaffolds [12,13]. Benzo[g]pyridoindole (BgPI) and indeno[1,2-b]indole scaffolds have sparked great interest for the design of ATP-competitive inhibitors of CK2 (Figure 2). For example, 5-isopropyl-5H-indeno[1,2-b]indole-6,9,10-trione 7h inhibits CK2 with an IC₅₀ value of 5.05 µM [14]. Furthermore, this N-isopropyl derivative 7h inhibited the growth of a series of different tumor cell lines (5637, SISO, KYSE-70, MCF-7, LCLC, A427) [14]. Indenoindoles represent a wide class of synthetic compounds through the system of annulated 6-5-5-6-membered rings. They are of great interest due to their potential for wide biological applications, especially for drug development in oncology (e.g., DNA and topoisomerase-II, CK2) [15,16].

Structure-Activity Relationship (SAR) studies were ongoing to evaluate the influence of the nature and position of substituents on the four rings A-D. The first modifications on the C-ring showed that introduction of a non-bulky group (e.g., ethyl, isopropyl) had a favorable inhibitory effect on human CK2 [17]. Thus, we continued to explore further structural modifications on the D-ring of the indeno[1,2-b]indole scaffold, as described in this study (Figure 2).

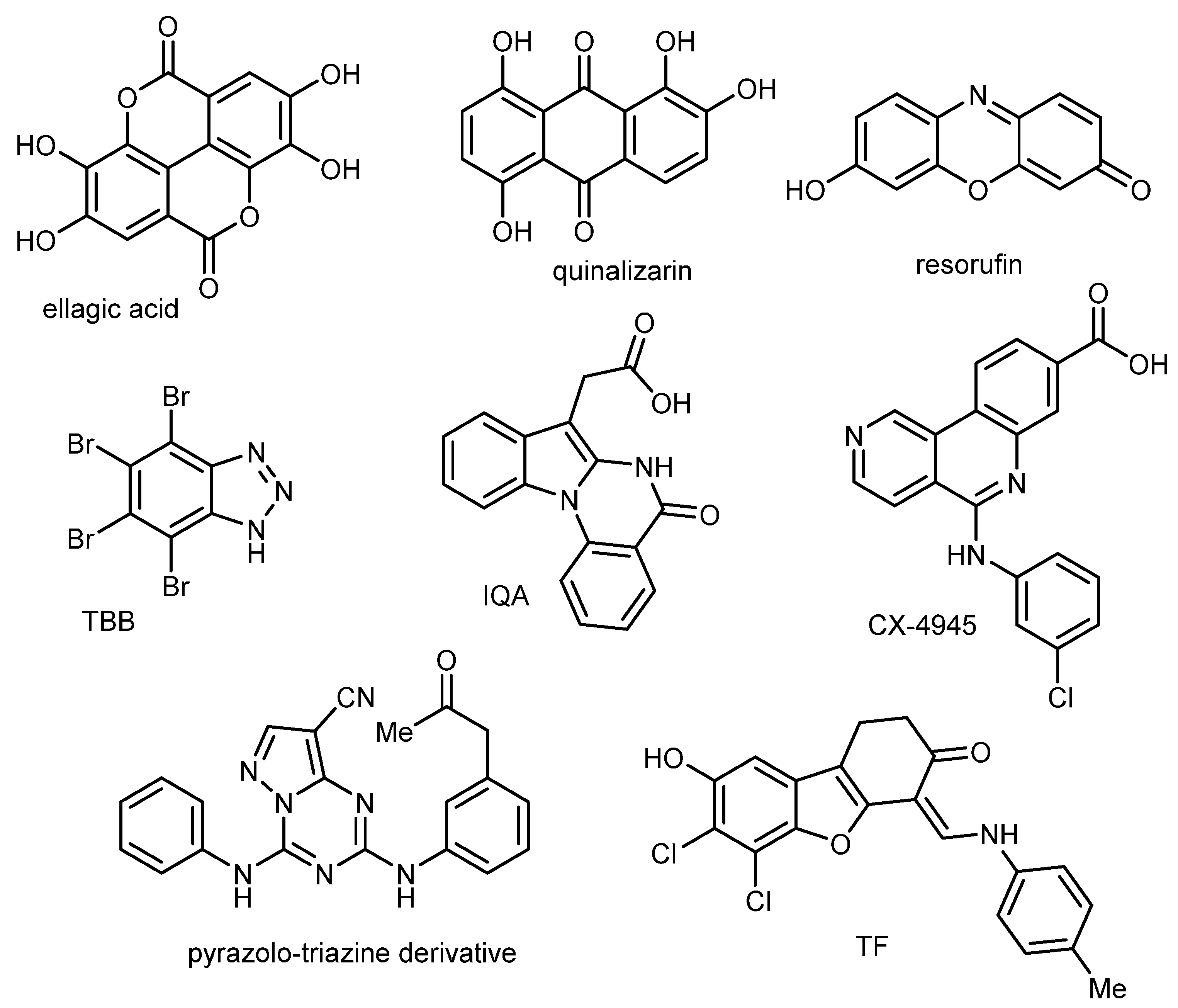

Figure 1. Examples of known CK2 inhibitors.

Figure 1. Examples of known CK2 inhibitors.

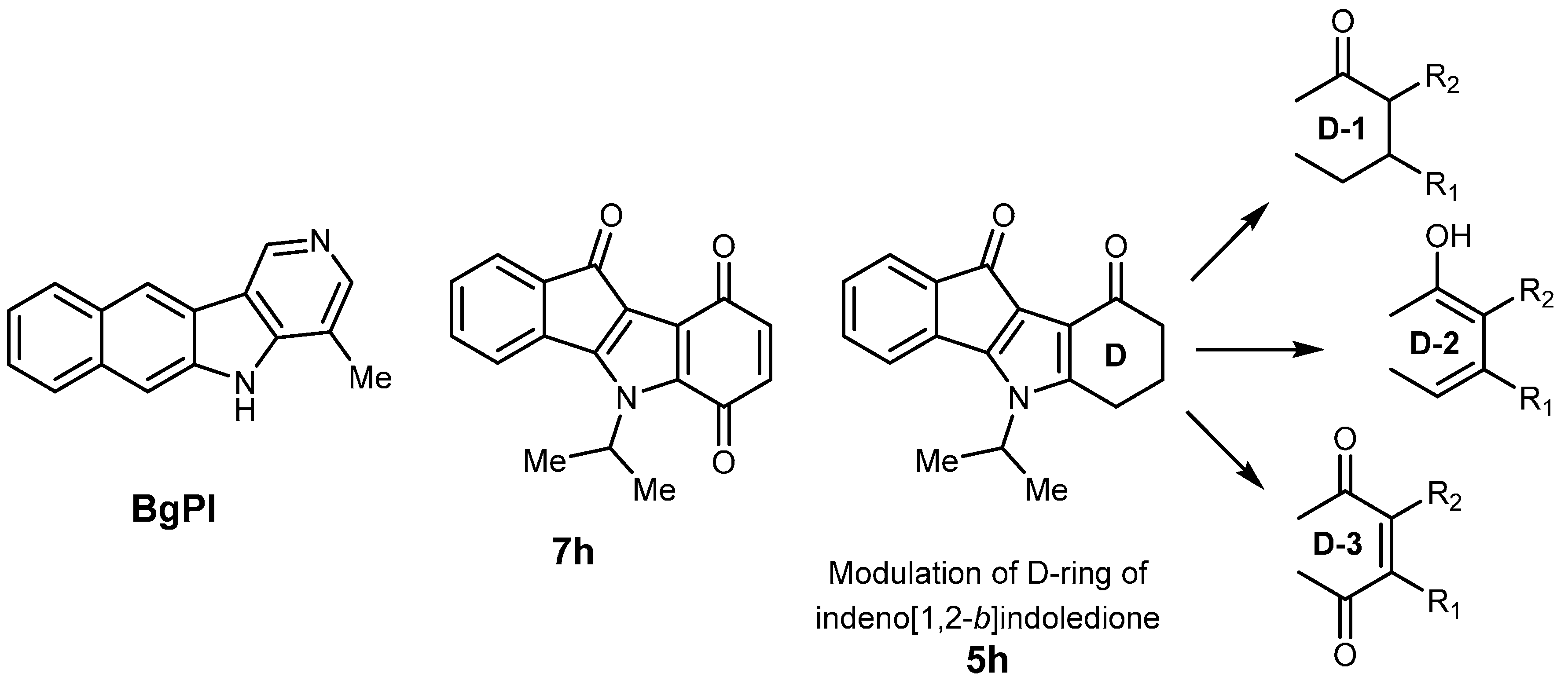

Figure 2. Scaffolds for designing CK2 inhibitors and D-ring modulation on indeno[1,2-b]indoledione.

Figure 2. Scaffolds for designing CK2 inhibitors and D-ring modulation on indeno[1,2-b]indoledione.

2. Results and Discussion

Substituted cyclohexane-1,3-diones 1 were mainly commercially available except for 4-methylcyclohexane-1,3-dione 1f and 4-isopropylcyclohexane-1,3-dione 1g, which were synthetized in good yields by a regioselective and consecutive Michael-Claisen process starting from substituted acetone and α,β-unsaturated esters in the presence of sodium hydride at 0 °C [18]. Enaminones 2a–g were prepared in good yields by nucleophilic addition of isopropylamine on substituted cyclohexane-1,3-diones 1a–g followed by dehydration in toluene at reflux with a Dean-Stark water trap for 6 h (Scheme 1). Condensation of ninhydrin 3 with 3-isopropylamino-cyclohexane-2-enones 2a–g at room temperature gave dihydroxyindeno[1,2-b]indoles 4a–g (Scheme 1) in good to quantitative yields [19]. For example, dihydroxyindeno[1,2-b]indole 4a (R₁ = CH₃, R₂ = H) was isolated as a yellow powder in a 95% yield. In the case of compound 4d (R₁ = 4-fluorophenyl, R₂ = H), two products were isolated during the work-up. The main product was identified as dihydroxyindeno[1,2-b]indole 4d. The by-product was isolated after the first time round and found to be an ammonium salt of 2-[4-(4-fluorophenyl)-2,6-dioxo-cyclohexyl]-2-hydroxy-indane-1,3-dione 4d’ (Figure 3). Because formation of 4d’ was unexpected, its structure was consolidated by single-crystal X-ray diffraction analysis (Figure 4). This crystallographic study confirmed the structure in the solid state as anticipated on the basis of IR and NMR data.

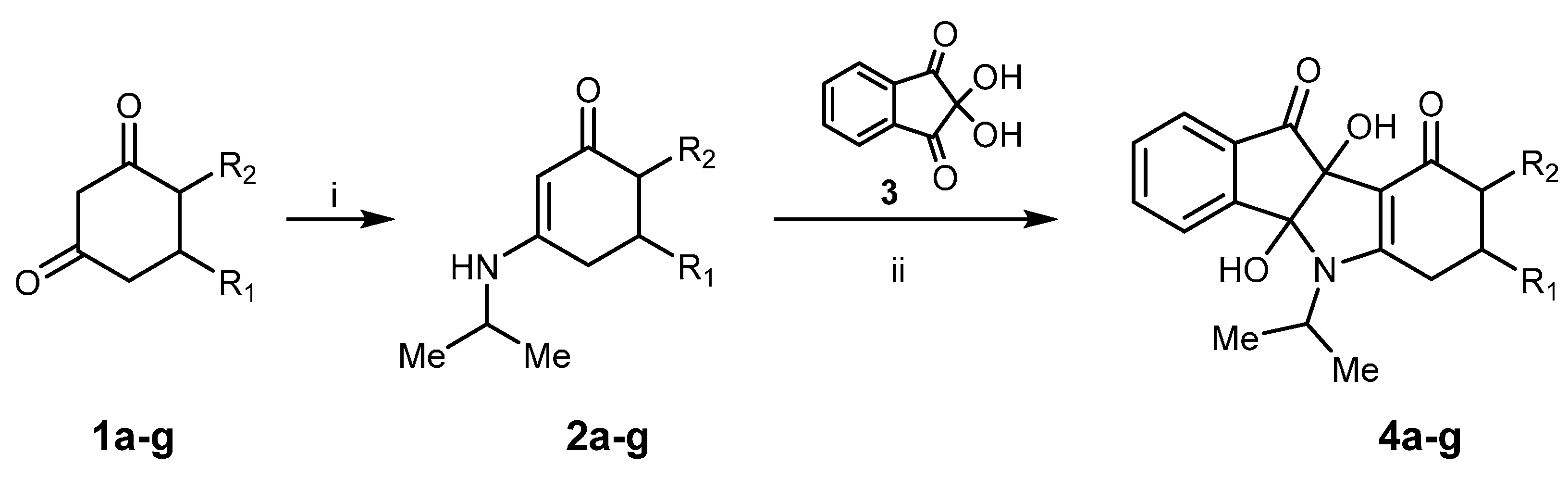

Scheme 1. Synthesis of dihydroxyindeno[1,2-b]indole derivatives 4a–g.

Scheme 1. Synthesis of dihydroxyindeno[1,2-b]indole derivatives 4a–g.

Reagents and conditions: (i). i-PrNH₂ (1 eq.), toluene, reflux, 6 h, 74%–100%. (ii). MeOH, room temp., 22 h, 46%–100%.

The key bond lengths and angles of the 2-hydroxyindane-1,3-dione moiety of 4d’ are very similar to those given in the literature for similarly substituted 2-hydroxyindane-1,3-dione derivatives [20]. The hydroxyindane-1,3-dione system (C13-C14-C15-C16-C17-C18-C19-C20-C21) of compound 4d’ is nearly planar with a mean out-of-plane deviation of 0.076 Å with the largest deviation of 0.173(2) Å for atom C13. In this compound, the cyclohexane moiety (C7-C8-C9-C10-C11-C12) is almost planar with a maximum deviation from planarity of 0.278(2) Å found for C7. 4d’ contains a cation and an anion in the solid state. The cation is formed by the ammonium function on the isopropylamine molecule. The anion is formed after hydrolysis of the intermediate imine; according to the C-O and C-C bond lengths (ranging from 1.252(3) to 1.255(3) Å, and from 1.399(3) to 1.408(3) Å, respectively) the negative charge is delocalized over C10 and the two adjacent carbonyl functions. In the crystal, the molecules are linked together by intermolecular N—H···O hydrogen bonding between the carbonyl groups of the cyclohexane-dione system and the ammonium group of the isopropylamine. An intramolecular O—H···O hydrogen bond between the hydroxyl group and the carbonyl oxygen of the cyclohexane-dione was also noticed in the solid-state conformation.

To optimize the reaction conditions, 4d was only isolated from the mother liquor and used without further purification for the next step.

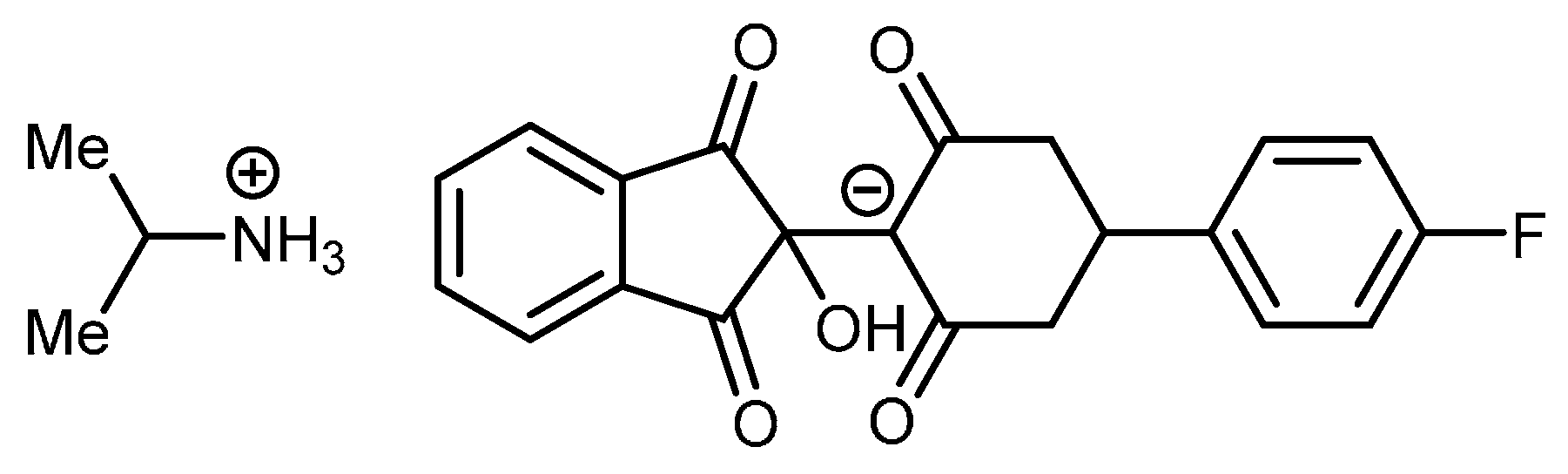

Figure 3. Structure of the ammonium salt 4d’.

Figure 3. Structure of the ammonium salt 4d’.

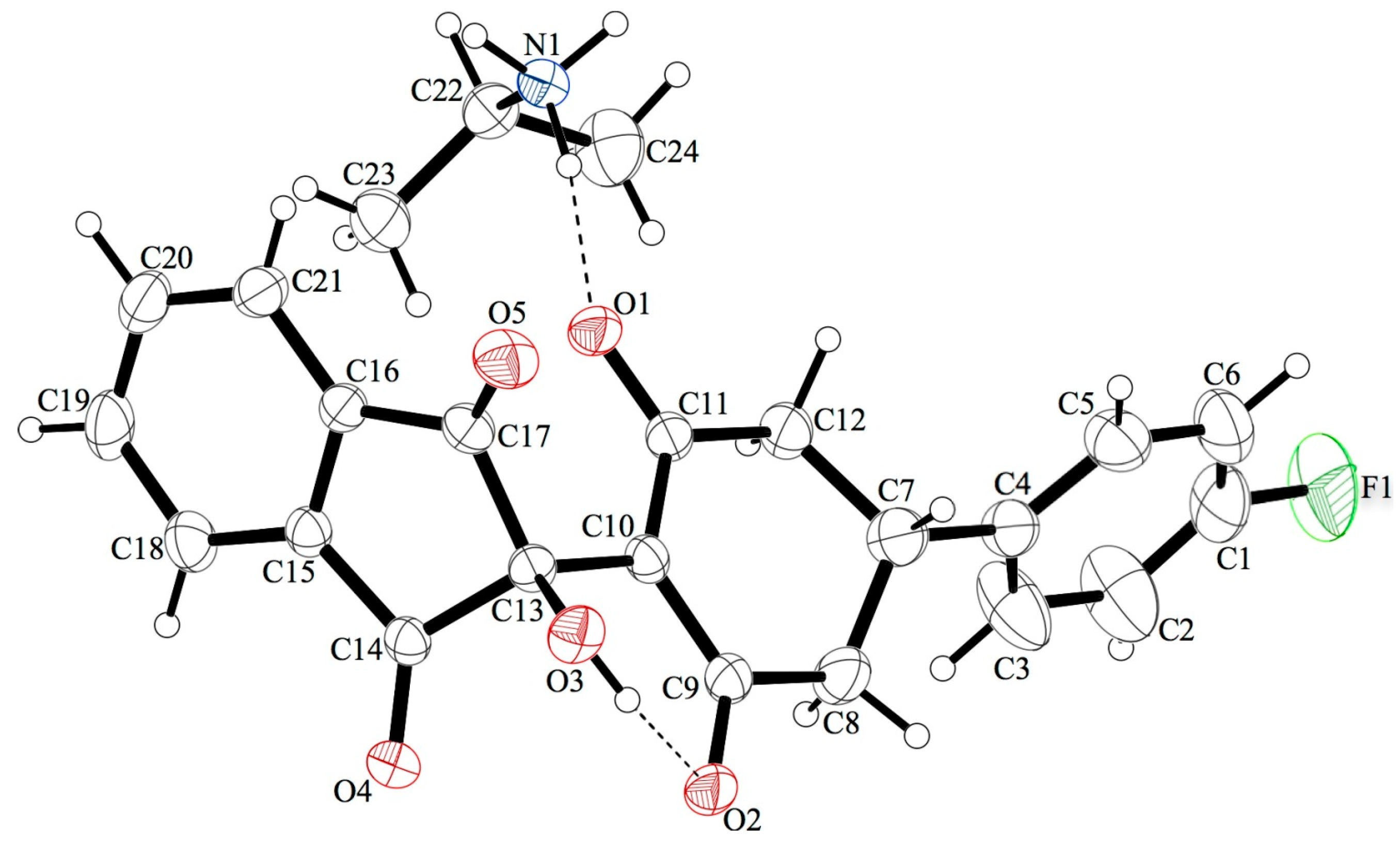

Figure 4. Crystal structure of 4d’ with our numbering scheme; displacement ellipsoids are drawn at the 30% probability level. Drawing was performed using the OLEX2 graphical interface [21].

Figure 4. Crystal structure of 4d’ with our numbering scheme; displacement ellipsoids are drawn at the 30% probability level. Drawing was performed using the OLEX2 graphical interface [21].

Dihydroxyindeno[1,2-b]indole derivatives 4a–g were then converted in good yield (75% to quantitative) into 5,6,7,8-tetrahydro-indeno[1,2-b]indole-9,10-diones 5a–g (Scheme 2) by means of N,N,N′,N′-tetraisopropylthionylamide (TIPTA) or N,N,N′,N′-tetraethylthionylamide (TETA) [19]. For example, the title compound 5a was synthesized in a quantitative yield using TIPTA as reagent. 9-Hydroxy-5H-indeno[1,2-b]indol-10-ones 6a–g were then prepared by oxidation of 5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-diones 5a–g with Pd/C 10% at reflux in diphenyl ether. Subsequent oxidation with molecular dioxygen in the presence of salcomine, also known as ethylenebis(salicylimine) cobalt(II) salt, at room temperature afforded finally 5H-indeno[1,2-b]indole-6,9,10-triones 7a–g. Yields were generally good, except for the paraquinone derivative 7g (R₁ = H, R₂ = i-C₃H₇) (yield = 14%). Structural proofs for compounds 5a–g, 6a–g and 7a–g were obtained from spectroscopic data (¹H-NMR, ¹³C-NMR, IR, HRMS). However, owing to poor nuclear relaxation, several carbons were not assigned in the ¹³C-NMR spectra of 7b and 7e,g. Nevertheless, a previous work [22] performed to study ¹H and ¹³C-NMR assignments of indeno[1,2-b]indole-10-one derivatives allowed us to achieve a complete spectral assignment for this scaffold.

In summary, three sub-series of compounds, namely D-ring mono-keto derivatives 5a–g, D-ring hydroxyl derivatives 6a–g and D-ring paraquinone derivatives 7a–g were synthesized, purified and characterized by spectral techniques.

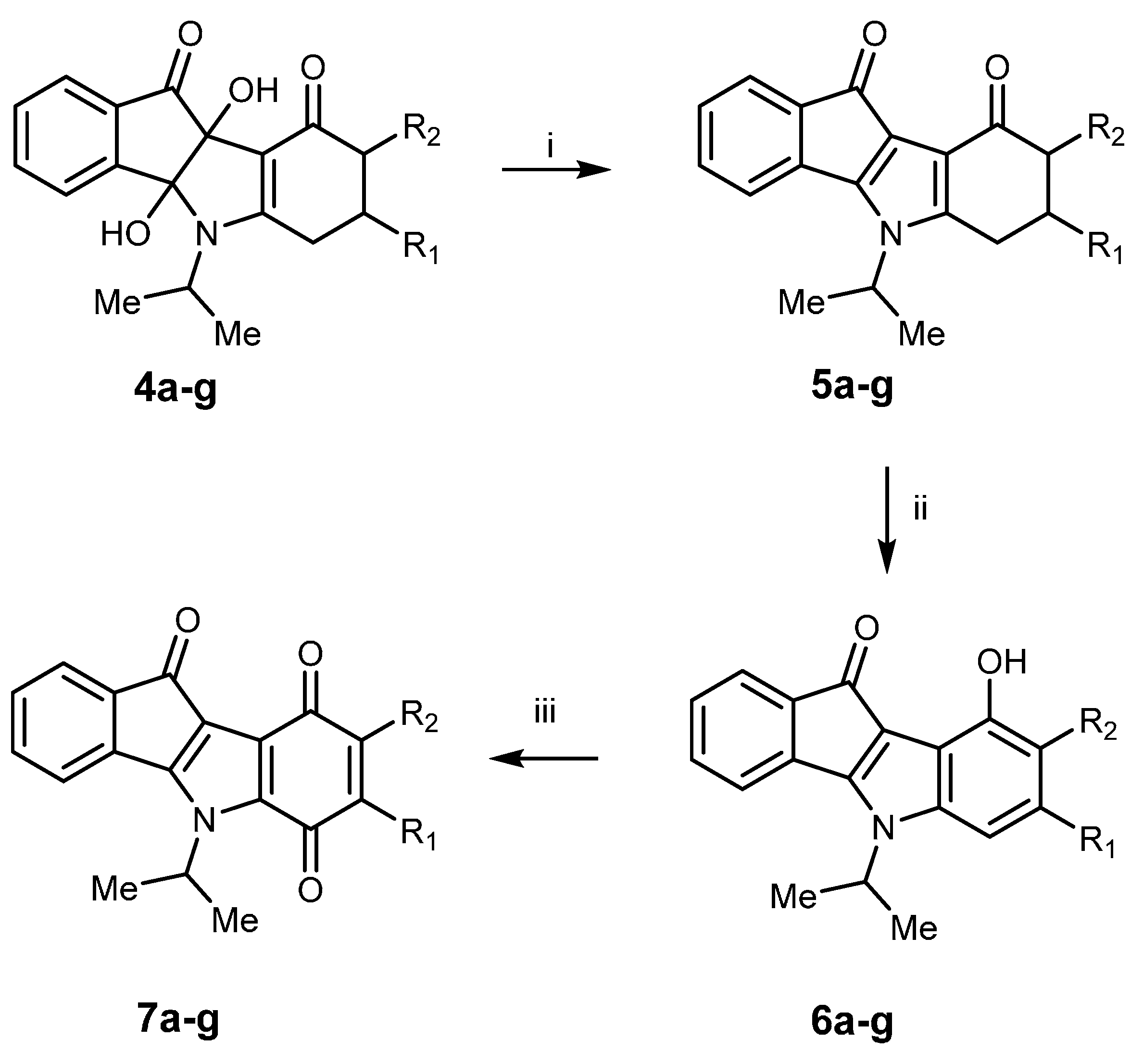

Scheme 2. Synthesis of indeno[1,2-b]indole derivatives 5a–g, 6a–g and 7a–g.

Scheme 2. Synthesis of indeno[1,2-b]indole derivatives 5a–g, 6a–g and 7a–g.

Reagents and conditions: (i). TIPTA or TETA (1.5 eq.), DMF, AcOH, room temp., 23 h, 75%–100%. (ii). Pd/C, diphenyl ether, reflux, 3 h, 20%–89%. (iii). salcomine (1.8 eq.), DMF, O₂, room temp., 27 h, 14%–95%.

For testing the inhibitors, the recently established capillary electrophoresis CK2 activity assay was used [23]. Eleven compounds exhibited percent inhibition higher than 50% at 10 µM; corresponding IC₅₀ values were calculated from the resulting dose-response curves. In the first sub-series, three compounds 5a (R₁ = CH₃, R₂ = H), 5b (R₁ = i-C₃H₇, R₂ = H) and 5f (R₁ = H, R₂ = CH₃) showed a percent inhibition superior to 50%. Compound 5a has an IC₅₀ value of 0.17 µM, lower than that obtained with emodin (IC₅₀ value of 0.58 µM). Still, ellagic acid and TBB remain better CK2 inhibitors than compound 5a. After the aromatization of the D-ring, a second sub-series of compounds was studied. Compounds 6a and 6b, analogues of 5a and 5b, respectively, are active against CK2 with IC₅₀ values of 1.27 and 1.45 µM, respectively. Compounds 6d and 6e, possessing 4-fluorophenyl or 2′-furanyl groups at position 7, displayed IC₅₀ values in the micromolar range (2.77 and 3.63 µM, respectively). In the last sub-series of D-ring paraquinone derivatives 7a–g, compounds with substituents CH₃ and 2′-furanyl on position 7, are linked to CK2 inhibition, with IC₅₀ values of 0.43 and 1.65 µM, respectively. Among the six regioisomers of 5a,b, 6a,b and 7a,b (R₂ = CH₃, i-C₃H₇), only compound 7f (R₂ = CH₃) shows a weak inhibitory activity against CK2 (IC₅₀ = 4.90 µM).

After taking into account the results in our pharmacomodulation works, the introduction of a CH₃ group at position 7 (D-ring) allowed us to identify compounds 5a, 6a, and 7a as potent CK2 inhibitors. Furthermore, a second substituent, the i-C₃H₇ group at position 7, showed a favorable effect on CK2 inhibition (e.g., compounds 5b and 6b).

The assumption that indeno[1,2-b]indoles as small and planar molecules exhibit their inhibitory effect towards CK2 by interacting with the ATP binding pocket had already been verified in a previous investigation [13]. In order to validate the ATP competitive mode of inhibition for the CK2 inhibitors described here, the IC₅₀ values of the two most potent inhibitors, 5a and 7a (Figure 5), were determined at six different ATP concentrations ranging from 6 to 600 µM. IC₅₀ values recorded for the two inhibitors at different ATP concentrations (0.044, 0.097, 0.17, 0.44, 0.76 and 1.17 µM for 5a and 0.13, 0.34, 0.43, 1.27, 3.32 and 5.16 µM for 7a) were observed to linearly increase with the concentration of ATP, thus indicating the ATP competitive mode of CK2 inhibition.

Table 1. Synthesized indeno[1,2-b]indole derivatives and inhibition of human CK2 holoenzyme.

Compound	R1	R2	Inhibition (%) 1)	IC50 ± SD (µM)
5a	CH3	H	94	0.17 ± 0.03
5b	i-C3H7	H	94	0.61 ± 0.03
5c	C6H5	H	7	n.d. 2)
5d	4-F-C6H4	H	12	n.d.
5e	2′-furanyl	H	35	n.d.
5f	H	CH3	52	9.18 ± 0.92
5g	H	i-C3H7	21	n.d.
6a	CH3	H	64	1.27 ± 0.27
6b	i-C3H7	H	60	1.45 ± 0.32
6c	C6H5	H	42	n.d.
6d	4-F-C6H4	H	59	2.77 ± 0.35
6e	2′-furanyl	H	65	3.63 ± 0.34
6f	H	CH3	45	n.d.
6g	H	i-C3H7	35	n.d.
7a	CH3	H	87	0.43 ± 0.12
7b	i-C3H7	H	60	4.76 ± 0.29
7c	C6H5	H	41	n.d.
7d	4-F-C6H4	H	42	n.d.
7e	2′-furanyl	H	82	1.65 ± 0.14
7f	H	CH3	72	4.90 ± 0.54
7g	H	i-C3H7	45	n.d.
ellagic acid	-	-	95	0.040 ± 0.007
emodin	-	-	99	0.58 ± 0.05
TBB	-	-	99	0.060 ± 0.005

¹⁾ Average percent inhibition at 10 µM. ²⁾ n.d.: not determined.

Table 1. Synthesized indeno[1,2-b]indole derivatives and inhibition of human CK2 holoenzyme.

Compound	R1	R2	Inhibition (%) 1)	IC50 ± SD (µM)
5a	CH3	H	94	0.17 ± 0.03
5b	i-C3H7	H	94	0.61 ± 0.03
5c	C6H5	H	7	n.d. 2)
5d	4-F-C6H4	H	12	n.d.
5e	2′-furanyl	H	35	n.d.
5f	H	CH3	52	9.18 ± 0.92
5g	H	i-C3H7	21	n.d.
6a	CH3	H	64	1.27 ± 0.27
6b	i-C3H7	H	60	1.45 ± 0.32
6c	C6H5	H	42	n.d.
6d	4-F-C6H4	H	59	2.77 ± 0.35
6e	2′-furanyl	H	65	3.63 ± 0.34
6f	H	CH3	45	n.d.
6g	H	i-C3H7	35	n.d.
7a	CH3	H	87	0.43 ± 0.12
7b	i-C3H7	H	60	4.76 ± 0.29
7c	C6H5	H	41	n.d.
7d	4-F-C6H4	H	42	n.d.
7e	2′-furanyl	H	82	1.65 ± 0.14
7f	H	CH3	72	4.90 ± 0.54
7g	H	i-C3H7	45	n.d.
ellagic acid	-	-	95	0.040 ± 0.007
emodin	-	-	99	0.58 ± 0.05
TBB	-	-	99	0.060 ± 0.005

¹⁾ Average percent inhibition at 10 µM. ²⁾ n.d.: not determined.

The obtained IC₅₀ value at the highest ATP concentration of 600 µM was 27-fold higher for 5a and 40-fold higher for 7a when compared to the IC₅₀ values obtained at the lowest ATP concentration of 6 µM. The IC₅₀ values obtained at the different ATP concentrations were further used to determine the K_i values of 5a and 7a. For this purpose, reaction rates at different inhibitor concentrations were plotted in a Lineweaver-Burk diagram against the varying ATP concentration, resulting in $-1/K_m^{app}$ as given by the intercepts with the abscissa in both graphs. For determining the K_i values, $K_m^{app}$ were plotted against the different inhibitor concentrations as shown for 7a in Figure 6. The K_i value with negative sign was obtained by the intercept with the abscissa and was found to be 144 ± 22 nM with a regression coefficient of R² = 0.9941. For 5a, IC₅₀ values obtained with the highest ATP concentrations at 300 and 600 µM appeared to be not in the linear range in the plot, what precluded the determination of the corresponding K_i value. These IC₅₀ values were therefore excluded for this compound. Although the resulting plot exhibited a poor regression coefficient of R² = 0.8253, the K_i value for 5a could be obtained by this plot and was found to be 27 ± 12 nM.

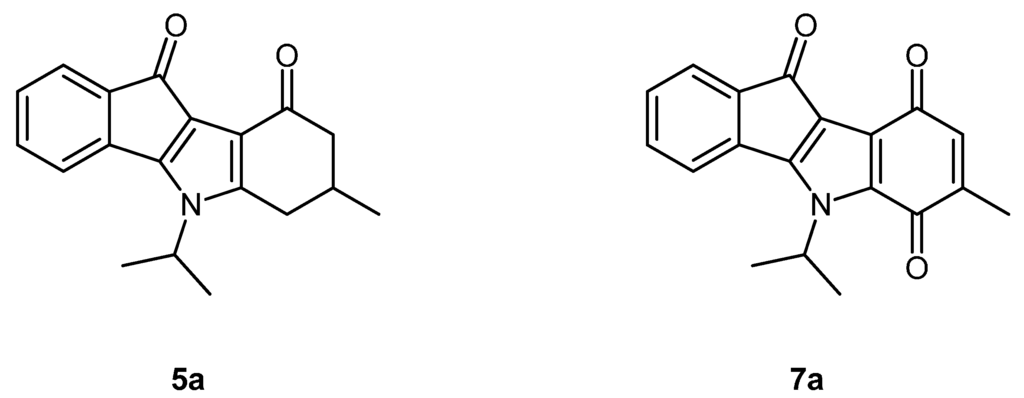

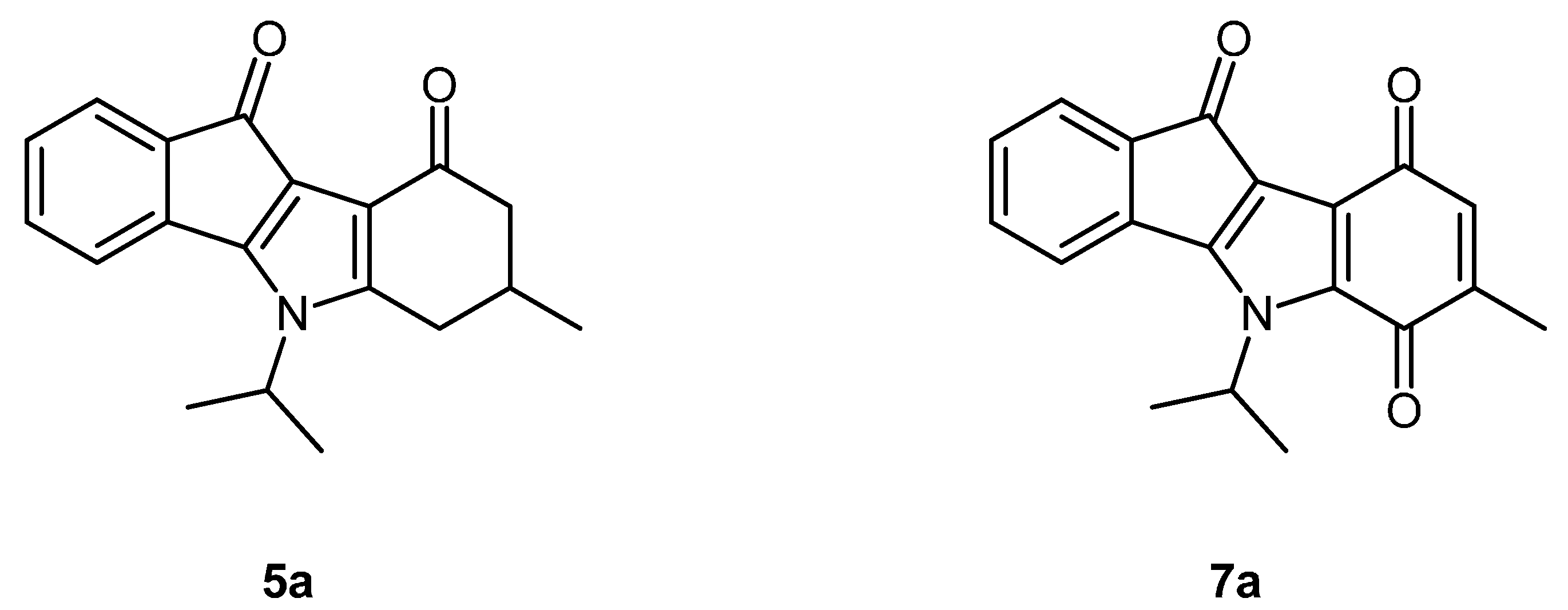

Figure 5. The two most potent CK2 inhibitors 5a and 7a of the novel indeno[1,2-b]indole derivatives.

Figure 5. The two most potent CK2 inhibitors 5a and 7a of the novel indeno[1,2-b]indole derivatives.

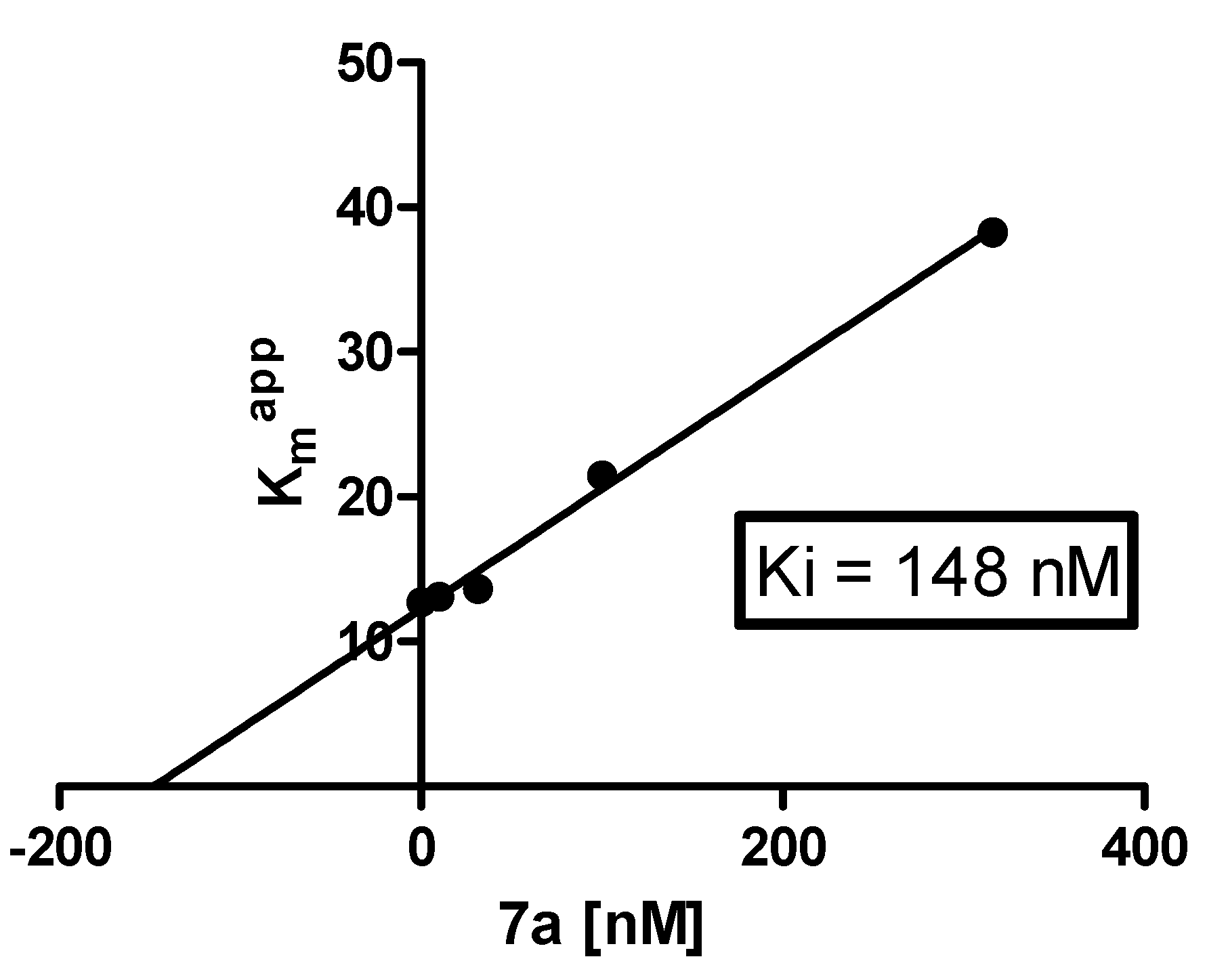

Figure 6. Determination of the inhibition constants for the indeno[1,2-b]indoloquinone 7a. $K_m^{app}$were plotted against the corresponding inhibitor concentrations.

Figure 6. Determination of the inhibition constants for the indeno[1,2-b]indoloquinone 7a. $K_m^{app}$were plotted against the corresponding inhibitor concentrations.

Four cell lines of various origins were used to evaluate the cytotoxicity of our target compounds 5–7. The selected cell lines were (i) NIH-3T3, a cell line originally established from the primary mouse embryonic fibroblast cells, (ii) MEF, primary mouse embryonic fibroblasts (used at their early passages) prepared as previously described [24], (iii) WI-38, a human diploid cell line derived from normal embryonic lung tissue, and (iv) HEK293T, a transformed variant of the human embryonic kidney cell line HEK293. After 96 h, cytotoxicity was evaluated using the WST-1 assay. For each compound tested, the EC₅₀ (effective concentration of drug needed to inhibit cell growth/viability by 50%) was generated from the dose-response curves for each cell line. Seventeen compounds were evaluated on the cell lines and then compared to TBB used as a standard. Among the three best CK2 inhibitors (5a, 5b, 7a), compounds 5a and 5b displayed no marked cytotoxic activity, except for compound 5b on the MEF cell line (EC₅₀ = 4.4 µM). After 96 h their EC₅₀ values were superior to 10 µM, similar to TBB. No data were obtained with compound 7a due to the lack of solubility. Four compounds, belonging to the sub-series of D-ring paraquinone derivatives (7c, 7d, 7f, 7g), displayed cytotoxic activity (0.4 < EC₅₀ µM < 8.8), especially on HEK293T.

Table 2. EC₅₀ values of selected compounds 5–7 and TBB against four cell lines.

Compound	EC50 in µM ± SD
	Normal cell lines 1)
	NIH-3T3	WI-38	HEK293T	MEF
5a	> 10	> 10	> 10	> 10
5b	> 10	> 10	> 10	4.4 ± 0.3
5c	> 10	> 10	> 10	> 10
5f	> 10	> 10	> 10	> 10
5g	> 10	> 10	> 10	> 10
6a	> 10	> 10	> 10	> 10
6b	> 10	> 10	> 10	> 10
6c	> 10	> 10	> 10	> 10
6d	> 10	> 10	> 10	> 10
6e	> 10	> 10	> 10	> 10
6f	> 10	> 10	> 10	> 10
7a	not soluble	not soluble	not soluble	not soluble
7b	> 10	> 10	> 10	> 10
7c	> 10	> 10	1.6 ± 0.2	> 10
7d	> 10	> 10	4.9 ± 2.4	8.5 ± 0.4
7f	> 10	> 10	4.4 ± 2.2	> 10
7g	1.5 ± 0.8	2.5 ± 0.4	0.40 ± 0.02	> 10
ellagic acid	> 10	> 10	> 10	> 10
emodin	> 10	> 10	> 10	> 10
TBB	> 10	> 10	> 10	> 10

¹⁾ Cells were cultured in presence of various concentrations of the respective conjugate. After 96 h, cytotoxicity was evaluated using the WST-1 assay; see Experimental Section 3.3.4.

Table 2. EC₅₀ values of selected compounds 5–7 and TBB against four cell lines.

Compound	EC50 in µM ± SD
	Normal cell lines 1)
	NIH-3T3	WI-38	HEK293T	MEF
5a	> 10	> 10	> 10	> 10
5b	> 10	> 10	> 10	4.4 ± 0.3
5c	> 10	> 10	> 10	> 10
5f	> 10	> 10	> 10	> 10
5g	> 10	> 10	> 10	> 10
6a	> 10	> 10	> 10	> 10
6b	> 10	> 10	> 10	> 10
6c	> 10	> 10	> 10	> 10
6d	> 10	> 10	> 10	> 10
6e	> 10	> 10	> 10	> 10
6f	> 10	> 10	> 10	> 10
7a	not soluble	not soluble	not soluble	not soluble
7b	> 10	> 10	> 10	> 10
7c	> 10	> 10	1.6 ± 0.2	> 10
7d	> 10	> 10	4.9 ± 2.4	8.5 ± 0.4
7f	> 10	> 10	4.4 ± 2.2	> 10
7g	1.5 ± 0.8	2.5 ± 0.4	0.40 ± 0.02	> 10
ellagic acid	> 10	> 10	> 10	> 10
emodin	> 10	> 10	> 10	> 10
TBB	> 10	> 10	> 10	> 10

¹⁾ Cells were cultured in presence of various concentrations of the respective conjugate. After 96 h, cytotoxicity was evaluated using the WST-1 assay; see Experimental Section 3.3.4.

In order to understand observed differences in the inhibitory activity of compounds 5a, 7a, 5h (R₁ = R₂ = H) [13] and 7h (R₁ = R₂ = H) [14] (Table S1 in the supplementary data), the compounds were structurally aligned with the program vROCS [24] onto an inhibitor with pyridocarbazolone scaffold co-crystallized with CK2 (PDB code: 3OWJ [12]). Subsequently, the compounds were energy minimized in the presence of the enzyme with the program Moloc [26], keeping all protein atoms fixed. For this the co-crystallized water molecule 429 was removed, as it clashed with the ligands (distance ≤ 2.2 Å); in contrast, water molecule 382 was kept as its distance to the ligands was ~ 4 Å. In addition, the minimization was performed with all binding site residues within 5 Å of the ligands (L45-R47, S51, V53, V66, K68, I95, F113-V116, H160-N161, M163, and I174-W176) allowed to move, in order to investigate if the ligand binding would cause conformational changes within the binding site. The resulting protein structures showed only minor differences (Figure S1 in the supplementary data) that are within the experimental uncertainty of the structure determination (root mean-square deviation of the heavy atoms of the binding pocket < 0.4 Å); these differences are mainly caused by optimized intramolecular hydrogen-bonding of the CK2 residues. Thus, we focused on the binding modes of 5a, 7a, 5h and 7h obtained with fixed protein atoms for a better comparison to the crystal structure. The obtained binding modes of 5a, 7a, 5h and 7h agree very well with the one of the co-crystallized inhibitor (Figure S2 in the supplementary data). These binding modes provide explanations as to the observed differences in the inhibitory activity (Figure 7): (I) A carbonyl oxygen at position 6 points towards the negatively charged side chain of Asp175 resulting in the vicinity of two hydrogen bond acceptor groups. This unfavorable interaction increases the IC₅₀ value of 7h [14] by a factor of 15 compared to 5h [13]. (II) Methyl substitution in position 7, first, decreases the polarity of the carbonyl group and, second, partially shields the group from solvation in the unbound state, making desolvation effects upon binding less costly. This results in an increase in inhibitory activity for 7-methyl derivatives of the paraquinone series as observed for 7h compared to its methylated analogue 7a (IC₅₀ values 5.55 and 0.43 µM, respectively). (III) The methyl group also makes contacts with the C_α atom of Gly46 (Figure 7). A complete burial of a methyl group can increase a binding constant by up to 10-fold [27]_. Here, the methyl group becomes only partially buried, which can explain the only two-fold increase of the inhibitory activity of 5a compared to 5h.

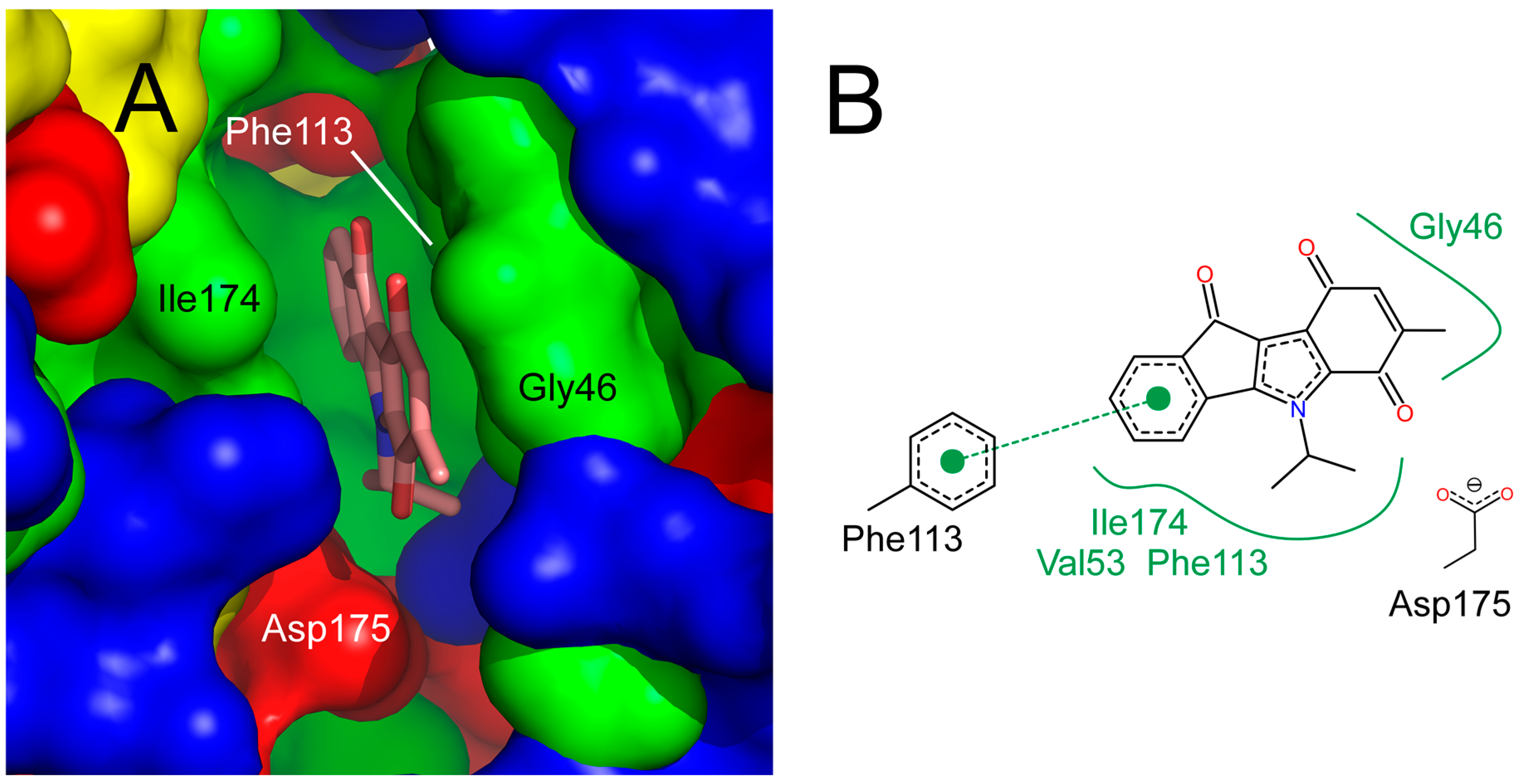

Figure 7. (A) Predicted binding mode of 7a in the binding pocket of CK2. Green: hydrophobic surface patches, yellow: hydrophilic surface patches, blue (red): positively (negatively) polarized surface patches. Val53 and Ile174 shown in panel B are hidden behind Gly46. (B) Schematic view of the interactions between 7a and neighboring amino acids (modified from a PoseView drawing [28]).

Figure 7. (A) Predicted binding mode of 7a in the binding pocket of CK2. Green: hydrophobic surface patches, yellow: hydrophilic surface patches, blue (red): positively (negatively) polarized surface patches. Val53 and Ile174 shown in panel B are hidden behind Gly46. (B) Schematic view of the interactions between 7a and neighboring amino acids (modified from a PoseView drawing [28]).

3. Experimental Section

3.1. General

Melting points were measured in capillary tubes using a BUCHI 510 apparatus and were uncorrected. IR spectra were recorded on a Perkin Elmer 1310 spectrometer and a Spectrum One spectrometer using KBr pellets (ν cm⁻¹). ¹H-NMR and ¹³C-NMR spectra (broadband decoupling and DEPT-135) were recorded on a Brucker Avance 400 (400 MHz for ¹H and 100 MHz for ¹³C) or a Brucker Avance 500 spectrometer (500 MHz for ¹H and 125 MHz for ¹³C) using CDCl₃ or DMSO-d6 as solvents. NMR analysis of compounds 4–7 was performed with the same experiments described in [22]. Chemical shifts (δ) are referred to that of the solvent. Low resolution mass spectra were recorded on an Agilent 1290 Infinity system equipped with an Agilent 1260 DAD detector and an Agilent 6120 Quadrupole mass detector with an ESI source in positive mode. HRMS spectra were performed on a Q-Tof Micro Water with an ESI source in positive mode. Flash chromatography was performed on 230-400-mesh silica.

3.2. Synthesis

3.2.1. General Procedure: Synthesis of Enaminones 2a–g

Isopropylamine and the corresponding substituted cyclohexane-1,3-dione were dissolved in toluene in equimolar amounts. The reaction mixture was refluxed with a Dean-Stark trap until separation of H₂O ceased (ca. 6 h). Solvent was removed in vacuo and the residual solid or viscous oil was treated with ethyl acetate to give after filtration and drying the product as a powder.

5-Methyl-3-isopropylaminocyclohex-2-enone (2a). Pale yellow powder; 75% yield; mp 106.7 °C; IR (KBr ν cm⁻¹) 3250 (N-H), 1552 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 6.82 (d, 1H, J = 6.04, N-H), 4.78 (s, 1H, H-2), 3.46 (m, 1H, NCHMe₂), 2.28 (m, 1H, H-6), 2.03–2.11 (m, 3H, H-4 and H-6), 1.82 (m, 1H, H-5), 1.10 (d, J = 4.3, 6H, NCHMe₂), 0.95 (d, 3H, J = 5.79, CH₃-5); ¹³C-NMR (DMSO-d₆, δ ppm) 194.1 (C-1), 162.4 (C-3), 94.2 (C-2), 44.7 (C-6), 43.0 (C-5), 36.6 (C-4), 28.7 (NCHMe₂), 21.6 (CH₃), 21.5 (CH₃), 20.8 (CH₃); MS- ESI (m/z) 168.2 [M+H]⁺.

5-Isopropyl-3-isopropylaminocyclohex-2-enone (2b). Pale yellow powder; 74% yield; mp 125.2 °C; IR (KBr, ν cm⁻¹) 3259 (N-H) ,1538 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 6.86 (d, 1H, J = 6.5, N-H), 4.78 (s, 1H, H-2), 3.46 (m, 1H, NCHMe₂), 2.30 (d, 1H, J = 13.8, H-6), 2.08 (m, 2H, H-4 and H-6), 1,87 (dd, 1H, J = 12.3 and 15.6, H-4), 1.65 (m, 1H, CHMe₂-5 or H-5), 1.49 (m, 1H, H-5 or CHMe₂-5), 1.11 (d, 3H, J = 6.2 NCHMe₂), 1.09 (d, J = 6.3, 3H, NCHMe₂), 0.87 (d, J = 6.5, 6H, CHMe₂-5); ¹³C-NMR (DMSO-d₆, δ ppm) 195.1 (C-1), 163.7 (C-3), 95.7 (C-2), 43.9 (NCHMe₂), 40.9 (C-6), 40.9 (C-5), 33.2 (C-4), 32.1 (CHMe₂), 22.5 (CH₃), 22.3 (CH₃), 20.3 (2 CH₃); MS-ESI (m/z) 391.5 [2 M+H]+, 196.3 [M+H]⁺.

3-Isopropylamino-5-phenylcyclohex-2-enone (2c). Pale yellow powder; quantitative yield; mp 145 °C; IR (KBr, ν cm⁻¹) 3225 (N-H), 1537 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.28–7.40 (m, 5H, Ar-H), 7.02 (d, 1H, J = 6.8, N-H), 4.98 (s, 1H, H-2), 3.60 (m, 1H, NCHMe₂), 3.28 (m, 1H, H-5), 2.69 (m, 1H, H-6), 2,52 (m, 2H, H- 4), 2.31 (dd, 1H, J = 3.5 and 15.9, H-6 ), 1.21 (d, 3H, J = 6.5, CH₃ ), 1.19 (d, 3H, J = 6.3, CH₃ ); ¹³C-NMR (DMSO-d₆, δ ppm) 194.2 (C-1), 163.1 (C-3), 144.9 (C-1′), 129.2 (C-2′ and C-6′), 127.6 (C-3′ and C-5′), 126.1 (C-4′), 95.2 (C-2), 44.6 (C-6), 44.0 (NCHMe₂), 40.2 (C-5), 36,7 (C-4), 22.5 (CH₃), 22,3 (CH₃); MS-ESI (m/z) 481.3 [2 M+Na]+, 230.1 [M+H]⁺.

5-(4-Fluorophenyl)-3-isopropylaminocyclohex-2-enone (2d). Pale yellow powder; quantitative yield; mp 155 °C; IR (KBr, ν cm⁻¹) 3674 (N-H), 1562 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.32 (m, 2H, Ar-H), 7.13–7.06 (m, 3H, Ar-H and N-H), 4.77 (s,1H, H-2 ), 3.30–3.15 (m, 2H, NCHMe₂ and H-5), 2.32–2.39 (dd, 2H, J = 11.6 and 15.8, H- 4 and H-6 ), 2.17–2.22 (dd, 2H, J = 4.3 and 15.8, H-4 and H-6), 1.17 (d, 6H, J = 6.3, 2 CH₃ ); ¹³C-NMR (DMSO-d₆, δ ppm) 190.9 (C-1), 161.2 (d, ¹J_C-F = 241, C-4′), 142.1 (d, ⁴J_C-F = 2.2, C-1′), 142.1 (C-3), 129.2 (d, ³J_C-F = 7.3, C-2′ and C-6′), 115.4 (d, ²J_C-F = 21.3, C-3′ and C-5′), 101.4 (C-2), 43.43 (C-4 and C-6), 43.1 (NCHMe₂), 40.1 (C-5), 22.0 (2 CH₃); MS-ESI (m/z) 270.1 [M+Na]⁺, 248.1 [M+H]⁺.

5-Furan-2-yl-3-isopropylaminocyclohex-2-enone (2e). Pale yellow powder; 99% yield; mp 120 °C; IR (KBr, ν cm⁻¹) 3258 (N-H), 1537 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.55 (d, 1H, J = 1.76, H-5′), 7.00 (d, 1H, J = 7.0, N-H), 6.37 (dd, 1H, J = 2.0 and 3.3, H-4′), 6.11 (d, 1H, J = 3.3, H-3′), 4.85 (s, 1H, H-2 ), 3.5 (m, 1H, H-5), 3.31 (m, 1H, NCHMe₂), 2.65 (dd, 1H, J = 4.0 and 15.9, H-4 or H-6), 2.51 (m, 1H, H- 4 or H 6), 2.40 (dd, 1H, J = 4.5 and 16.1, H-4 or H-6), 2.30 (dd, 1H, J = 10.3 and 16.1, H-4 or H-6), 1.12 (d, 3H, J = 6.3, CH₃ ), 1.10 (d, 3H, J = 6.3, CH₃); ¹³C-NMR (DMSO-d₆, δ ppm) 193.0 (C-1), 162.1 (C-3), 157.6 (C-2′) 142.1 (C-5′), 110.9 (C-3′ or C-4′), 104.9 (C-4′ or C-3′), 95.1 (C-2), 43.8 (CHMe₂), 41.3 (C-4 or C-6), 33.8 (C-6 or C-4), 33.3 (C-5), 22.2 (CH₃), 22.3 (CH₃); MS-ESI (m/z) 461.3 [2 M+Na]+, 220.1 [M+H]⁺.

3-Isopropylamino-6-methyl-cyclohex-2-enone (2f). Pale yellow powder; 82% yield; mp 106.5 °C; IR (KBr ν cm⁻¹) 3261 (N-H), 1540 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 6.76 (d, 1H, J = 6.4, N-H ), 4.76 (s, 1H, H-2), 3.46 (m, 1H, NCHMe₂), 2.26–2.39 (m, 2H, H-4 and H-6), 2.07 (m, 1H, H-4), 1.2 (m, 1H, H-5), 1.49 (m, 1H, H-5), 1.10 (d, 3H, J = 6.4, NCHMe₂), 1.09 (d, 3H, J = 6.4, NCHMe₂), 0.98 (d, 3H, J = 6.95, CH₃-6); ¹³C-NMR (DMSO-d₆, δ ppm) 196.5 (C-1), 162.5 (C-3), 94.0 (C-2), 43.0 (NCHMe₂), 38.8 (C-6), 29.6 (C-5), 21.65 (NCHMe₂), 21.7 (NCHMe₂), 16.0 (CH₃-6); MS-ESI (m/z) 168.2 [M+H]⁺.

3-Isopropylamino-6-isopropylcyclohex-2-enone (2g). Pale yellow powder; 78% yield; mp 121 °C; IR (KBr, ν cm⁻¹) 3268 (N-H), 1572 (C=O); RMN ¹H (DMSO-d_6, δ ppm, J Hz) 6.74 (d, 1H, J = 6.7, N-H), 4.78 (s, 1H, H-2), 3.44 (m, 1H, NCHMe₂), 2.4–2.2 (m, 3H, CHMe₂ and H-6 and H-4), 1.75–1.86 (m, 2H, H-5 and H-4), 1.57 (m, 1H, H-5), 1.10 (d, 3H, J = 4.7, NCH(Me)₂), 1.07 (d, 3H, J = 4.7, NCHMe₂), 0.87 (d, 3H, J = 7.1, CHMe₂-6), 0.70 (d, 3H, J = 6.8, CHMe₂-6); ¹³C-NMR (DMSO-d₆, δ ppm) 195.33 (C-1), 162.25 (C-3), 95.06 (C-2), 49.92 (NCHMe₂), 42.96 (C-6), 27.98 (C-4), 25.70 (CHMe₂-6), 21.65 (CH₃), 21.53 (CH₃), 21.31 (C-5), 20.54 (CH₃), 18.03 (CH₃); MS-ESI (m/z) 196.2 [M+H]⁺.

3.2.2. General Procedure: Synthesis of Substituted 4b,9b-Dihydroxy-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-9,10-diones 4a–g

Equimolar amounts of the corresponding enaminone 2a–g and ninhydrin 3 were dissolved in methanol and stirred at room temperature for 22 h. Solvent was removed in vacuo and the residual solid or viscous oil was treated with diethyl ether to give the product as a powder after filtration and drying. A further amount was recovered from the mother liquor.

4b,9b-Dihydroxy-5-isopropyl-7-methyl-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-9,10-dione (4a). Yellow powder; 95% yield; mp 198.9 °C; IR (KBr ν cm⁻¹) 3320 (OH), 3189 (OH), 1742 (C=O); ¹H-NMR (CHCl_3, δ ppm, J Hz) 7.83 and 7.80 (m, 2H, H-1 and H-4), 7.71 and 7.69 (m, 1H, H-3), 7.51 and 7.49 (m, 1H, H-2), 5.28 (br s, 2H, 2 OH), 4.63 (m, 1H, NCHMe₂), 2.78 (dd, 1H, J = 4.1 and 16.5, H-6), 2.57 (dd, 1H, J = 3.3 and 17, H-6), 2.33 (m, 1H, H-7), 2.29 (m, 1H, H-6), 2.27 (m, 1H, H-8), 2.04 (m, 3H, H-6 and H-7 and H-8), 1.93 (m, 1H, H-8), 1.57 (d, 1H, J = 7, NCHMe₂), 1.53 (d, 1H, J = 7.1, NCHMe₂), 1.35 (d, 3H, J = 7.3, NCHMe₂), 1.32 (d, 3H, J = 7.2, NCHMe₂), 1.03 (d, J = 6.2, 3H, CH₃), 1.00 (d, J = 6.5, 3H, CH₃); ¹³C-NMR (CHCl₃, δ ppm) 197.7 and 197.1 (C-10), 191.7 and 191.3 (C-9), 165.9 and 165.7 (C-5a), 148.5 and 148.0 (C-4a), 135.7 (C-3), 135.4 and 135.3 (C-10a), 130.4 and 130.4 (C-2), 124.9 and 124.7 (C-1 or C-4), 124.1 and 123.7 (C-1 or C-4), 105.6 and 105.4 (C-9a), 96.3 and 96.0 (C-4b), 82.7 and 82.3 (C-9b), 46.4 and 46.1 (CHMe₂), 44.6 and 45.1 (C-8), 33.2 and 33.1 (C-6), 30.2 and 29.8 (C-7), 23.6 and 23.3 (CH₃), 22.8 and 22.7 (CH₃), 21.4 and 21.1 (CH₃); MS-ESI (m/z) 677.3 [2 M+Na]+, 350.1 [M+Na]⁺, 328.2 [M+H]⁺.

4b,9b-Dihydroxy-5,7-diisopropyl-4b,5,6,7,8,9b-hexahydroindeno[1,2,b]indole-9,10-dione (4b). Yellow powder; quantitative yield; mp 200.8 °C; IR (KBr, ν cm⁻¹) 3252 (OH), 3180 (OH), 1728 (C=O); for complete NMR data see [22]; MS-ESI (m/z) 733.7 [2 M+Na]+, 378.4 [M+Na]⁺, 356.3 [M+H]⁺.

4b,9b-Dihydroxy-5-isopropyl-7-phenyl-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-9,10-dione (4c). Yellow powder; quantitative yield; mp 181.1 °C; IR (KBr, ν cm⁻¹) 1719 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.99 (m, 1H, Ar-H), 7.83 (m, 1H, Ar-H), 7.75 (m, 1H, Ar-H), 7.63 (m, 1H, Ar-H), 7.39–7.2 (m, 5H, Ar-H), 6.88 and 6.78 (2 s, 1H, OH), 5.81 and 5.72 (2 s, 1H, OH), 4.64 (m, 1H, NCHMe₂), 3.22 and 3.13 (2 m, 1H, H-7), 2.92 (m, 1H, H-6 or H-8), 2.80 (m, 1H, H-8 or H-6), 2.47 (m, 1H, H-6 or H-8), 2.21 (m, 1H, H-8 or H-6), 1.50 and 1.43 (2 d, J = 6.8, 3H, CH₃), 1.28 and 1.26 (2 d, 3H, J = 7.3 and 8.3, CH₃); ¹³C-NMR (DMSO-d₆, δ ppm) 198.7 and 198.1 (C-10), 188.7 and 188.2 (C-9), 164.7 (C-5a), 149.4 and 148.7 (C-4a), 144.6 and 144.5 (C-1′), 136.5 and 136.4 (C-3), 135.9 and 135.7 (C-10a), 131.2 and 131.1 (C-2), 129.3 (C-3′ and C-5′), 128.0 and 128.0 (C-2′and C-6′), 127.5 and 127.5 (C-4′), 125.7 and 125.3 (C-4), 124.3 and 124.0 (C-1), 105.8 (C-9a), 97.1 and 96.9 (C-4b), 84.0 and 83.7 (C-9b), 46.0 and 45.8 (NCHMe₂), 45.5 and 45.1 (C-8), 41.3 and 40.5 (C-7), 32.3 and 31.6 (C-6), 23.8 and 23.3 (CH₃), 23.5 and 23.4 (CH₃); MS-ESI (m/z) 801.4 [2 M+Na]+, 412.1 [M+Na]⁺, 390.2 [M+H]⁺.

4b,9b-Dihydroxy-7-(4-Fluoro-phenyl)-5-isopropyl-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-9,10-dione (4d). Yellow powder; 75% yield; mp 161.1 °C; IR (KBr, ν cm⁻¹) 3150 (OH), 3186 (OH), 1741 (C=O); for complete NMR data see [22]; MS-ESI (m/z) 408.2 [M+H]⁺; HRMS-ESI (m/z) [M+H]⁺ calcd for C₂₄H₂₃FNO₄ 408.1606, found 408.1587.

Isopropylammonium 4-(4-fluorophenyl)-1-(2-hydroxy-1,3-dioxo-2,3-dihydro-1H-inden-2-yl)-2,6-dioxocyclohexan-1-ide (4d’). Pale yellow powder; 10% yield; mp 161.1 °C; IR (KBr ν cm⁻¹) 3150 (OH), 1741 (C=O), 1706 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.87 (m, 2H, 2 H-Phe), 7.82 (m, 2H, 2 H-Phe), 7.66 (br s, 2H, OH), 7.35 (m, 2H, 2 H-Phe), 7.10 (m, 2H, 2 H-Ar), 3.23 (m, 1H, NCHMe₂), 3.22 (m; 1H, CH-Ar), 2.38 (dd, 2H, J = 11.9 and 16.1, CH₂), 2.13 (dd, 2H, J = 4.3 and 16.1, CH₂), 1.15 (d, 6H, J = 6.4, 2 CH₃); ¹³C-NMR (DMSO-d₆, δ ppm) 202.4 (2 C=O), 190.1 (2 C=O), 160.6 (d, ⁴J_C-F = 240.2, C-4′), 141.0 (d, J = 2.2, C-1′), 140.0 (C-OH), 134.8 (C-2 and C-3), 128.6 (d, ³J_C-F = 8.0, C-2′ and C-6′), 122.4 (C-1 and C-4), 114.8 (d, ²J_C-F = 20.8, C-3′ and C-5′), 105.1 (Cq), 80.0 (C-OH), 42.9 (2 CH₂ and CHPhe), 38.7 (NCHMe₂), 20.2 (NCHMe₂); MS-ESI (m/z) 755.2 [2 M+Na]+, 367.1 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₁H₁₅NFNaO₅ 389.0792, found 389.0796.

7-Furan-2-yl-4b,9b-dihydroxy-5-isopropyl-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-9,10-dione (4e). Yellow powder; quantitative yield; mp 135 °C; IR (KBr, ν cm⁻¹) 3159 (OH), 3150 (OH), 1719 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.99 (m, 1H, H-1), 7.82 (m, 1H, H-4), 7.74 (m, 1H, H-3), 7.65–7.5 (m, 2H, Ar-H and H-5′), 6.90 and 6.81 (2 s, 1H, OH), 6.40 and 6.32 (2 dd, 1H, J = 1.8, and 3, H-4′), 6.23 and 6.08 (2 d, 1H, J = 3.2, H-3′), 5.79 and 5.70 (2 s, 1H OH), 4.65 (m, 1H, NCHMe₂), 3.43 and 3.33 (2 m, 1H, H-7), 3.09 (dd, 1H, J = 4.3 and 16.9, H-6), 2.68 (m, 1H, H-8), 2.47–2.27 (m, 2H, H-6 and H-8), 1.52 and 1.47 (2 d, 3H, J = 7, CH₃), 1.32 and 1.30 (2 d, 3H, J = 4 and 4.3, CH₃); ¹³C-NMR (DMSO-d₆, δ ppm) 198.1 and 197.7 (C-10), 187.3 and 186.9 (C-9), 163.5 and 163.2 (C-5a), 156.9 (C-2′), 148.8 and 148.3 (C-4a), 142.1 and 142.1 (C-5′), 136.1 and 136.0 (C-3), 135.5 and 135.3 (C-10a), 130.8 and 130.7 (C-2), 125.0 and 125.2 (C-1), 123.9 and 123.6 (C-4), 110.9 and 110.8 (C-3′ or C-4′), 105.5 and 105.2 (C-4′ or C-3′), 96.5 and 96.4 (C-4b), 83.5 and 83.3 (C-9b), 45.6 and 45.4 (NCHMe₂), 42.1 and 41.5 (C-8), 34.0 and 33.4 (C-7), 29.4 and 29.2 (C-6), 23.3 and 23.1 (CH₃), 23.0 and 23.0 (CH₃); MS-ESI (m/z) 781.3 [2 M+Na]⁺, 402.1 [M+Na]⁺, 380.2 [M+H]⁺.

4b,9b-Dihydroxy-5-isopropyl-8-methyl-4b,5,6,7,8,9b-hexahydro-indeno[1,2-b]indole-9,10-dione (4f). Yellow pale powder; 46% yield; mp 198.9 °C; IR (KBr ν cm⁻¹) 3190 (OH), 3160 (OH), 1725 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.94 and 7.92 ( 2 d, 1H, J = 7.8, H-1), 7.78 (m, 1H, H-4), 7.70 and 7.67 (2 d, 1H, J = 7.5, H-3), 7.57 (m, 1H, H-2), 6.71 (s, 1H, OH minor - 45%), 6.64 (s, 1H, OH major - 55%), 5.60 (s, 1H, OH major), 5.59 (s, 1H, OH minor), 4.56 (m, 1H, CHMe₂), 2.76 (m, 1H, H-8 major), 2.66 (m, 1H, H-6 or H-7 minor), 2.58 (m, 1H, H-8 minor), 2.44 (m, 1H, H-6 or H-7 major), 2.1 (m, 1H, H-6 or H-7 minor), 2.04 (m, 1H, H-6 or H-7 major), 1.92 (m, 1H, H-6 or H-7 major), 1.57 (m, 1H, H-7 major), 1.45 (d, 3H, J = 7.0, CH₃ major), 1.42 (d, 3H, J = 7.0, CH₃ minor), 1.41 (m, 1H, H-7 minor), 1.24 (d, 3H, J = 7.0, CH₃ major), 1.21 (d, 3H, J = 7.2, CH₃ minor), 0.97 (d, 3H, J = 6.8, CH₃ major), 0.93 (d, 3H, J = 6.9, CH₃ minor); ¹³C-NMR (DMSO-d₆, δ ppm) 197.1 and 196.6 (C-10), 190.7 and 190.4 (C-9), 163.4 and 163.3 (C-5a), 147.7 and 147.3 (C-4a), 134.7 and 134.7 (C-3), 134.2 and 134.0 (C-10a), 129.5 and 129.4 (C-2), 124.0 and 123.6 (C-4), 122.6 and 122.3 (C-1), 103.8 and 103.5 (C-9a), 95.1 and 95.0 (C-4b), 82.5 and 82.4 (C-9b), 44.2 and 44.0 (CHMe₂), 39.6 and 39.1 (C-8), 30.2 and 29.7 (C-6), 23.7 and 23.4 (C-7), 22.7 and 22.5 (CH₃), 22.3 and 22.2 (CH₃), 15.7 and 15.4 (CH₃-8); MS-ESI⁺ (m/z) 677.3 [2 M+Na]+, 350.2 [M+Na]⁺, 328.2 [M+H]⁺.

4b,9b-Dihydroxy-5,8-diisopropyl-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-9,10-dione (4g). Yellow powder; 55% yield; mp 220 °C; IR (KBr, ν cm⁻¹) 3675 (OH), 3158 (OH), 1719 (C=O); ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.93 (m, 1H, H-1), 7.80 (m, 1H, H-4), 7.70 (m, 1H, H-3), 7.58 (m, 1H, H-2), 6.75 (2 s, 1H, OH), 5.64 (br s, 1H, OH), 4.55 (m, 1H, NCHMe₂), 2.84 (m, 1H, H-8), 2.80 (m, 1H, H-8), 2.60 (m, 2H, H-6 and H-8), 2.37 (m, 1H, CHMe₂-8), 2.17 (m, 1H, CHMe₂-8), 1.82 (m, 2H, H-7 and H-6), 1.64 (m, 1H, H-7), 1.51 (m, 1H, H-7), 1.45 (d, 3H, J = 7.0, CH₃), 1.41 (d, 3H, J = 7.0, CH₃), 1.23 (d, 3H, J = 7.0, CH₃), 1.20 (d, 3H, J = 7.0, CH₃), 0.86 (d, 3H, J =7.0, CH₃), 0.80 (d, 3H, J = 7.0, CH₃), 0.74 (d, 3H, J = 6.8, CH₃), 0.64 (d, 3H, J = 6.8, CH₃); ¹³C-NMR (DMSO-d₆, δ ppm) 197.9 and 197.3 (C-10), 191.0 and 189.7 (C-9), 163.8 and 163.6 (C-5a), 148.4 and 147.9 (C-4a), 135.4 and 135.3 (C-3), 134.9 and 134.6 (C-10a), 130.1 and 130.0 (C-2), 124.6 and 124.3 (C-1), 123.2 and 123.0 (C-4), 105.3 and 105.0 (C-9a), 95.8 and 95.6 (C-4b), 83.3 and 82.9 (C-9b), 50.5 and 49.9 (NCHMe₂), 44.8 and 44.6 (C-8), 25.9 and 25.2 (CHMe₂-8), 23.8 and 23.1 (C-7), 22.7 and 22.4 (CH₃), 22.2 and 22.1 (CH₃), 21.9 and 21.8 (C-6), 20.6 and 20.5 (CH₃), 18.4 and 18.0 (CH₃); MS-ESI (m/z) 356.2 [M+H]⁺.

3.2.3. Synthesis of N,N,N′,N′-Tetraisopropylthionylamide (TIPTA) and N,N,N′,N′-Tetraethylthionylamide (TETA)

Diisopropylamine (161.01 mmol) was introduced into 150 mL of distilled diethyl ether at −40 °C. A thionyl chloride solution (4.25 mL) in diethyl ether (10 mL) was introduced dropwise during one hour with release of a white smoke. Temperature increased to −20 °C at the end of the addition. The viscous mixture was stirred for 3 h with the temperature reaching 0 °C. The mixture was then filtered under vacuum to remove the diisopropylammonium chloride precipitate and washed with diethyl ether. The filtrate was concentrated and evaporated to dryness to afford a white precipitate of TIPTA (85% yield; mp 57.1–58.2 °C).

N,N,N′,N′-tetraethylthionylamide (TETA) was prepared by the same method unless diisopropylamine was replaced by diethylamine (93% yield).

3.2.4. General Procedure: Synthesis of Substituted 5,6,7,8-Tetrahydroindeno[1,2-b]indole-9,10-diones 5a–g

The corresponding dihydroxy derivative 4a–g was dissolved in 25 mL DMF and 5 mL acetic acid. After addition of TIPTA or TETA (1.5 eq.) the mixture was stirred for 23 h at room temperature and then the mixture was poured into ice water (200 mL). After 1.50 h the precipitate 5a–g was recovered by filtration.

5-Isopropyl-7-methyl-5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-dione (5a). Orange powder; quantitative yield; mp 205.9 °C; IR (KBr, ν cm⁻¹) 1710 (C=O), 1667 (C=O); ¹H-NMR (CHCl_3, δ ppm, J Hz) 7.74 (d, 1H, J = 7.1, H-1), 7.23 (m, 1H, H-3), 7,11 (m, 2H, H-2 and H-4), 4.62 (sept, 1H, J = 7.1, NCH(Me)₂), 2.92 (dd, 1H, J = 4.3 and 16.2, H-6), 2.54 (dd, 1H, J = 3.6 and 16.2, H-8), 2.50 (m, 1H, H-6), 2.39 (m, 1H, H-7), 2.20 (dd, 1H, J = 11.8 and 16.2, H-8), 1.65 (d, 3H, J = 7.3, NCH(Me)₂), 1.64 (d, 3H, J = 7.0, NCH(Me)₂), 1.17 (d, 3H, J = 6.5, CH₃); ¹³C-NMR (CHCl₃, δ ppm) 191.9 (C-9), 184.2 (C-10), 151.8 (C-4b), 148.7 (C-5a), 138.9 (C-10a), 135.4 (C-4a), 132.2 (C-3), 128.1 (C-2), 123,8 (C-1), 118.8 (C-4), 120.8 (C-9b), 117.4 (C-9a), 49.4 (N-CH(Me)₂), 46.1 (C-8), 31.7 (C-6), 31.1 (C-7), 22.0 (CH₃), 21.9 (CH₃), 21.3 (CH₃-7); MS-ESI (m/z) 609.3 [2 M+Na]+, 316.1 [M+Na]⁺, 294.1 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₁₉H₁₉NO₂Na 316.1308, found 316.1312.

5,7-Diisopropyl-5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-dione (5b). Orange powder; quantitative yield; mp 191 °C; IR (KBr, ν cm⁻¹) 1710 (C=O), 1667 (C=O); for complete NMR data see [22]; MS-ESI (m/z) 665.8 [2 M+Na]+, 344.4 [M+Na]⁺, 322.4 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₁H₂₃NO₂Na 344.1621, found 344.1616.

5-Isopropyl-7-phenyl-5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-dione (5c). Orange powder; 76% yield; mp 278 °C; IR (KBr, ν cm⁻¹) 1703 (C=O), 1651 (C=O); ¹H-NMR (CDCl₃, δ ppm, J Hz) 7.40 (d, 1H, J = 6.8, H-1), 7.31 (m, 2H, Ar-H), 7.12 (m, 4H, Ar-H), 7.07 (m, 2H, Ar-H), 4.56 (sept, J = 6.7, 1H, NCHMe₂), 3.46 (m, 1H, H-7), 3.08 (dd, 1H, J = 4.8 and 16.4, H-6), 2.93 (dd, 1H, J = 11.1 and 16.4, H-8), 2.69 (m, 2H, H-8 and H-6), 1.59 (d, 3H, J = 6.8, CH₃), 1.58 (d, 3H, J = 7.0, CH₃); ¹³C-NMR (CDCl₃, δ ppm) 191.1 (C-9), 184.4 (C-10), 152.2 (C-4b), 148.3 (C-5a), 142.9 (C-1′), 139.0 (C-4a), 135.5 (C-10a), 132.4 (C-3), 129.0 (C-3′ and C-5′), 128.4 (C-2), 127.4 (C-4′), 127.0 (C-2′ and C-6′), 124.0 (C-1), 121.0 (C-9b), 119.0 (C-4), 117.6 (C-9a), 49.3 (N-CHMe₂), 44.9 (C-8), 41.9 (C-7), 31.8 (C-6), 22.2 (CH₃), 22.0 (CH₃); MS-ESI (m/z) 733.3 [2 M+Na]+, 378.1 [M+Na]⁺, 356.2 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₄H₂₁NNaO₂ 378.1465, found 378.1461.

7-(4-Fluorophenyl)-5-isopropyl-5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-dione (5d). Orange powder; 78% yield; mp 264 °C; IR (KBr, ν cm⁻¹) 1701 (C=O), 1670 (C=O); for complete NMR data see [22]; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₄H₂₀FNNaO₂ 396.1370, found 396.1362.

7-Furan-2-yl-5-isopropyl-5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-dione (5e). Orange powder; 78% yield; mp 233.1 °C; IR (KBr, ν cm⁻¹) 1705 (C=O), 1661 (C=O); ¹H-NMR (CDCl₃, δ ppm, J Hz) 7.38 (d, 1H, J = 7.0, H-1), 7.17 (m, 2H, 2 H-Ar), 7.05 (2H, H-Ar and H-5′), 6.31 (m, 1H, H-3′), 6.02 (d, J = 2.9, 1H, H-4′), 4.55 (m, 1H, NCHMe₂), 3.54 (m, 1H, H-7), 3.17 (dd, 1H, J = 4.6 and 16.4, H-6 or H-8), 2.96 (dd, 1H, J = 9.7 and 16.3, H-8 or H-6), 2.77 (dd, 1H, J = 5.4 and 17.9, H-6 or H-8), 2.36 (dd, 1H, J = 10.9 and 16.4, H-6 or H-8), 1.57 (d, 3H, J = 6.8, CH₃), 1.56 (d, 3H, J = 6.8, CH₃); ¹³C-NMR (CDCl₃, δ ppm) 190.2 (C-9), 184,2 (C-10), 155.7 (C-2′), 152.1 (C-4b), 147.2 (C-5a), 141.6 (C-5′), 138.9 (C-10a), 135.3 (C-4a), 132.2 (C-3), 128.3 (C-2), 124.0 (C-1), 118.8 (C-4), , 117.5 (C-9), 110.3 (C-3′ or C-4′), 105.2 (C-4′ or C-3′), 41.9 (C-8), 49.6 (NCHMe₂), 34.9 (C-7), 28.6 (C-6), 22.05 (CH₃), 21.9 (CH₃); MS-ESI (m/z) 713.3 [2 M+Na]+, 368.1 [M+Na]⁺, 346.1 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₂H₁₉NNaO₃ 368.1257, found 368.1258.

5-Isopropyl-8-methyl-5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-dione (5f). Orange powder; quantitative yield; mp 200 °C; ¹H-NMR (DMSO-d_6, δ ppm, J Hz) 7.37–7.33 (m, 2H, Ar-H), 7.30 (d, 1H, J = 7.0, Ar-H), 7.17 (m, 1H, Ar-H), 4.72 (m, 1H, NCHMe₂), 2.99 (m, 1H, H-6 or H-7), 2.91 (m, 1H, H-6 or H-7), 2.41 (m, 1H, H-8), 2.14 (m, 1H, H-6 or H-7), 1.88 (m, 1H, H-6 or H-7), 1.55 (d, 3H, J = 6.8, NCHMe₂), 1.54 (d, 3H, J = 6.8, NCHMe₂), 1.07 (d, 3H, J = 6.9, CH₃); ¹³C-NMR (DMSO-d₆, δ ppm) 193.6 (C-9), 183.3 (C-10), 151.2 (C-4b), 150.02 (C-5a), 138.0 (C-4a), 134.65 (C-10a), 132.8 (C-3), 128.2 (C-2), 122.9 (C-1), 120.4 (C-9b), 119.4 (C-4), 116.0 (C-9a), 46.1 (N-CH(Me)₂), 40.6 (C-8), 30.3 (C-6), 22.2 (C-7), 21.4 (CH₃), 21.2 (CH₃), 14.8 (CH₃-8); MS-ESI (m/z) 609.3 [2 M+Na]+ 316.2 [M+Na]⁺, 294.2 [M+H]⁺; HRMS-ESI (m/z) [M+H]⁺ calcd for C₁₉H₁₉ NO₂Na 316.1308, found 316.1315.

5,8-Diisopropyl-5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-dione (5g). Orange powder; 75% yield; mp 215 °C; IR (KBr, ν cm⁻¹) 1738 (C=O), 1712 (C=O); ¹H-NMR (CDCl_3, δ ppm, J Hz) 7.45 (m, 1H, Ar-H), 7.23 (m, 1H, Ar-H), 7.12–7.06 (m, 2H, Ar-H), 4.59 (m, 1H, NCHMe₂), 2.94 (m, 1H, H-6 or H-7), 2.78 (m, 1H, H-6 or H-7), 2.47 (m, 1H, H-8), 2.17 (m, 2H, H-6 and H-7), 2.01 (m, 1H, H-6 or H-7), 1.63 (d, 3H, J = 7.0, NCHMe₂), 1.62 (d, 3H, J = 7.0, NCHMe₂), 0.98 (d, 3H, J = 6.9, CHMe₂-8), 0.90 (d, 3H, J = 6.8, CHMe₂-8); ¹³C-NMR (CDCl_3,, δ ppm) 193.6 (C-9), 184.2 (C-10), 151.6 (C-4b), 148.1 (C-5a), 139.0 (C-4a), 135.4 (C-10a), 132.0 (C-3), 128.0 (C-2), 123.7 (C-1), 121.0 (C-9b), 118.6 (C-4), 118.6 (C-9a), 52.3 (N-CHMe₂), 49.2 (C-8), 25.81 (CHMe₂-8), 23.7 (C-6 or C-7), 22.9 (C-7 or C-6), 22.0 (CH₃), 21.9 (CH₃), 21.6 (CH₃), 20.8 (CH₃); MS-ESI (m/z) 665.4 [2 M+Na]+, 322.2 [M+H]⁺; HRMS-ESI (m/z) [M+H]⁺ calcd for C₂₁H₂₄NO₂ 322.1802, found 322.1810.

3.2.5. General Procedure: Synthesis of Substituted 9-Hydroxy-5H-indeno[1,2-b]indol-10-ones 6a–g

The corresponding mono-keto derivative 5a–g (4 mmol) was introduced into 15 mL diphenyl ether then Pd/C (150% m/m) was added. The reaction mixture was refluxed for 3 h. After cooling, methanol (50 mL) was added. The mixture was then filtrated on Celite and the solution concentrated. The obtained dark red oil was purified by column chromatography on silica gel (cyclohexane then ethyl acetate/cyclohexane: 1/2).

9-Hydroxy-5-isopropyl-7-methyl-5H-indeno[1,2-b]indol-10-one (6a). Dark red powder; 70% yield; IR (KBr, ν cm⁻¹) 3181 (OH), 1701 (C=O); ¹H-NMR (CDCl₃, δ ppm, J Hz) 7.35 (d, 1H, J = 6.9, H-1), 7.22 (t, J = 7.5, 1H, H-3), 7.16 (d, J = 7.2, 1H, H-4), 7.11 (t, J = 7.3, 1H, H-2), 6.72 (s, 1H, H-6), 6.58 (s, 1H, OH), 6.49 (s, 1H, H-8), 4.81 (sept, J = 6.9, 1H, NCHMe₂), 2.39 (s, 3H, CH₃-7), 1.70 (d, 6H, J= 7.0, NCHMe₂); ¹³C-NMR (CDCl₃, δ ppm) 186.1 (C-10), 155.3 (C-4b), 149.7 (C-9), 142.9 (C-5a), 140.6 (C-10a), 136.5 (C-4a), 135.7 (C-7), 132.2 (C-3), 129.1 (C-2), 123.3 (C-1), 119.8 (C-4), 111.4 (C-9a), 109.2 (C-8), 104.9 (C-6), 49.5 (NCHMe₂), 22.2 (CH₃), 21.8 (2 CH₃); MS-ESI (m/z) 605.3 [2 M+Na]+, 314.1 [M+Na]⁺, 292.1 [M+H]⁺; HRMS-ESI (m/z) calcd for C₁₉H₁₇NNaO₂ 314.1151, found 314.1153.

9-Hydroxy-5,7-diisopropyl-5H-indeno[1,2-b]indol-10-one (6b). Dark red powder; 89% yield; mp 188.1 °C; IR (KBr, ν cm⁻¹) 3411 (OH), 1653 (C=O); for complete NMR data see [22]; MS-ESI (m/z) 661.7 [2 M+Na]+, 342.4 [M+Na]⁺, 320.4 [M+H]⁺; HRMS-ESI (m/z) [M+H]⁺ calcd for C₂₁H₂₂NO₂ 320.1645, found 320.1649.

9-Hydroxy-5-isopropyl-7-phenyl-5H-indeno[1,2-b]indol-10-one (6c). Dark red powder; 56% yield; mp 198 °C; IR (KBr, ν cm⁻¹) 3396 (OH), 2924 (CH), 1659 (C=O); ¹H-NMR (CDCl₃, δ ppm, J Hz) 7.61 (m, 2H, Ar-H), 7.47–7.41 (m, 3H, Ar-H), 7.35 (m, 1H, Ar-H), 7.29–7.22 (m, 2H, Ar-H), 7.17 (m, 1H, Ar-H), 7.19 (s, 1H, H-6), 6.93 (s, 1H, H-8), 6.73 (s, 1H, OH), 4.90 (sept, J = 7, 1H, NCHMe₂), 1.76 (d, 6H, J = 7.0, 2 CH₃); ¹³C-NMR (CDCl₃, δ ppm) 186.0 (C-10), 156.0 (C-4b), 150.1 (C-9), 143.10 (C-5a), 141.8 (C-10a), 140.7 (C-4a), 139.3 (C-1′), 136.4 (C-7), 132.4 (C-3), 129.4 (C-2), 128.8 (C-3′ and C-5′), 127.3 (C-2′ and C-6′), 127.2 (C-4′), 123.6 (C-1), 120.1 (C-4), 115.7 (9b), 112.8 (C-9a), 107.6 (C-8), 103.7 (C-6), 49.8 (NCHMe₂), 21.9 (2 CH₃); MS-ESI (m/z) 730.3 [2 M+Na]+, 376.2 [M+Na]⁺, 354.1 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₄H₁₉NNaO₂ 376.1308, found 376.1300.

7-(4-Fluorophenyl)-9-hydroxy-5-isopropyl-5H-indeno[1,2-b]indol-10-one (6d). Dark red powder; 52% yield; mp 208.1 °C; IR (KBr, ν cm⁻¹) 3391 (OH), 1659 (C=O); for complete NMR data see [22]; 394 [M+Na]⁺, 372 [M+H]⁺; HRMS-ESI (m/z) [M+H]⁺ calcd for C₂₄H₁₉FNO₂ 372.1394, found 372.1377.

7-Furan-2-yl-9-hydroxy-5-isopropyl-5H-indeno[1,2-b]indol-10-one (6e). Dark red powder; 50% yield; mp 191 °C; IR (KBr, ν cm⁻¹) 3391 (OH), 1672 (C=O); ¹H-NMR (CDCl_3, δ ppm, J Hz) 7.43 (s, 1H, OH), 7.37 (d, 1H, J=7.1, H-1), 7.25–7.18 (m, 3H, 2 Ar-H and H-5′), 7.13 (t, J = 7.3, 1H, Ar-H), 6.94 (s, 1H, H-6), 6.67 (s, 1H, H-8), 6.59 (d, 1H, J = 3.4, H-3′), 6.45 (m, 1H, H-4′), 4.86 (sept, J = 7.0, 1H, NCHMe₂), 1.72 (d, 6H, J = 7.0, CH₃); ¹³C-NMR (CDCl₃, δ ppm) 185.9 (C-10), 155.9 (C-4b), 154.2 (C-2′), 150.0 (C-9), 142.9 (C-5a), 141.7 (C-5′), 140.5 (C-10a), 136.3 (C-7), 132.3 (C-3), 129.3 (C-2), 128.4 (C-4a), 123.5 (C-1), 120.1 (C-4), 116.0 (C-9b), 113.0 (C-8), 104.9 (C-4′), 104.1 (C-3′), 100.3 (C-6), 49.6 (NCHMe₂), 21.9 (2 CH₃); MS-ESI (m/z) 709.3 [2 M+Na]⁺, 366.2 [M+Na]⁺, 344.2 [M+H]⁺; [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₂H₁₇NNaO₃ 366.1094, found 366.1101.

9-Hydroxy-5,8-diisopropyl-5H-indeno[1,2-b]indol-10-one (6g). Dark red powder; 20% yield; mp 235 °C; IR (KBr, ν cm⁻¹) 3422 (OH), 1665 (C=O); ¹H-NMR (CDCl₃ + TFA_, δ ppm, J Hz) 7.32 (d, 1H, J = 7.2, Ar-H), 7.23 (m, 1H, Ar-H), 7.16 (m, 2H, Ar-H), 7.05 (m, 1H, Ar-H), 4.81 (m, 1H, NCHMe₂), 3.35 (m, 1H, CHMe₂-8), 1.71 (d, 6H, J = 7, 2 CH₃), 1.26 (d, 6H, J = 6.9, 2 CH₃); ¹³C-NMR (CDCl₃ + TFA_,δ ppm) 187.63 (C-10), 158.38 (C-4b), 146.14 (C-5a), 141.24 (C-4a), 140.75 (C-10a), 135.45 (C-9), 132.93 (C-3), 130.36 (C-2), 129.47 (C-8), 124.30 (C-1), 123.49 (C-7 or C-6), 123.38 (C-6 or C-7), 120.85 (C-4), 114.68 (C-9a or C-9b), 113.81 (C-9b or C-9a), 50.41 (NCHMe₂), 26.42 (CHMe₂-8), 22.73 (2 CH₃), 21.60 (2 CH₃); MS-ESI (m/z) 661 [2 M+Na]⁺, 342 [M+Na]⁺, 320 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₁H₂₁NNaO₂ 342.1465, found 342.1460.

3.2.6. General Procedure: Synthesis of Substituted 5H-Indeno[1,2-b]indole-6,9,10-triones 7a–g

The corresponding 9-hydroxyindeno[1,2-b]indolone 6a–g and salcomine (1.8 eq.) were introduced into 5 mL DMF under oxygen and the solution was stirred at room temperature for 27 h. The reaction mixture was then poured into ice water to afford the crude product as a red powder after filtration. The filtrate was extracted with diethyl ether and combined with the precipitate. The crude product 7a–g was finally purified by column chromatography on silica (ethyl acetate/cyclohexane: 1/2).

5-Isopropyl-7-methyl-5H-indeno[1,2-b]indole-6,9,10-trione (7a). Red powder; 67% yield; mp 235 °C; IR (KBr, ν cm⁻¹) 1721 (C=O), 1660 (C=O), 1647 (C=O); ¹H-NMR (CDCl_3, δ ppm, J Hz) 7.62 (d, 1H, J = 7.2, H-1), 7.43 (dt, J = 0.9 and 7.5 1H, H-4), 7.42 (m, 1H, H-3), 6.50 (q, J = 1.5, 1H, H-8), 5.83 (br s, 1H, NCHMe₂), 2.10 (d, 3H, J = 1.5, CH₃-7), 1.69 (d, 6H, J = 7.1, NCHMe₂); ¹³C RMN (CDCl_3,, δ ppm) 183.6 (C-10), 181.8 (C-9), 178.6 (C-6), 154.8 (C-4b), 146.7 (C-5a), 140.2 (C-4a), 134.4 (C-10a), 134.1 (C-9b), 133.3 (C-4), 132.7 (C-8), 130.0 (C-2), 124.7 (C-1), 123.3 (C-9a), 121.6 (C-7), 121.2 (C-3), 50.6 (NCHMe₂), 21.1 (2CH₃), 16.4 (CH₃); MS-ESI (m/z) 633.2 [2 M+Na]⁺, 328.1 [M+Na]⁺, 306.1 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₁₉H₁₅NNaO₃ 328.0944, found 328.0945.

5,7-Diisopropyl-5H-indeno[1,2-b]indole-6,9,10-trione (7b). Red powder; 74% yield; mp 230.4 °C; IR (KBr, ν cm⁻¹) 1716 (C=O), 1656 (C=O), 1641 (C=O); for complete NMR data see [22]; MS-ESI (m/z) 689.7 [2 M+Na]⁺, 356.3 [M+Na]⁺, 334.4 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₁H₁₉ NNaO₃ 356.1257, found 356.1254.

5-Isopropyl-7-phenyl-5H-indeno[1,2-b]indole-6,9,10-trione (7c). Red powder; yield 44%; mp 230.4 °C; IR (KBr, ν cm⁻¹) 1715 (C=O), 1658 (C=O), 1591 (C=O); ¹H-NMR (CDCl_3, δ ppm, J Hz) 7.65 (m, 1H, H-1), 7.50–7.45 (m, 7H, Ar-H), 7.35 (m, 1H, Ar-H), 6.75 (s, 1H, H-8), 5.86 (br s, 1H, NCHMe₂), 1.72 (d, 6H, J = 7.0, 2CH₃); ¹³C-NMR (CDCl_3,, δ ppm) 183.8 (C-10), 181.9 (C-9), 177.9 (C-6), 155.5 (C-4b), 147.6 (C-5a), 140.4 (C-4a), 134.6 (C-10a), 134,4 (C-9b), 133.9 (C-1′), 133.6 (C-8), 133.2 (C-4), 130.3 (C-2), 130.1 (C-4′), 129.9 (C-3′ et C-5′), 128.7 (C-2′ et C-6′), 125.0 (C-1), 121.9 (C-3, C-9a and C-7), 51.0 (NCHMe₂), 21.3 (2 CH₃); MS-ESI (m/z) 757.3 [2 M+Na]⁺, 390.2 [M+Na]⁺, 368.1 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₄H₁₇NNaO₃ 390.1101, found 390.1094.

7-(4-Fluorophenyl)-5-isopropyl-5H-indeno[1,2-b]indole-6,9,10-trione (7d). Red powder; 58% yield; mp 258.1 °C; IR (KBr, ν cm⁻¹) 1716 (C=O), 1650 (C=O), 1599 (C=O); for complete NMR data see [22]; MS-ESI (m/z) 793.3 [2 M+Na]⁺, 408.1 [M+Na]⁺, 386.2 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₄H₁₆FNNaO₃ 408.1006, found 408.1003.

7-Furan-2-yl-5-isopropyl-5H-indeno[1,2-b]indole-6,9,10-trione (7e). Red orange powder; 58% yield; mp 216.1 °C; IR (KBr, ν cm⁻¹) 1713 (C=O), 1655 (C=O), 1586 (C=O); ¹H-NMR (CDCl_3, δ ppm, J Hz) 7.62 (d, 1H, J = 7.2, H-Ar), 7.55 (d, 1H, J = 1.7, H-5′), 7.50 (d, 1H, J = 3.4, H-3′), 7.43 (m, 2H, H-Ar), 7.30 (m, 1H, H-Ar), 6.98 (s, 1H, H-8), 6.57 (dd, 1H, J = 1.8 and 3.5, H-4′), 5.85 (br s, 1H, NCHMe₂), 1.72 (d, 6H, J = 7.1, 2 CH₃); ¹³C-NMR (CDCl₃, δ ppm) 183.4 (C-10), 181.4 (C-9), 176.2 (C-6), 155.0 (C-4b), 147.1 (C-5a), 145.0 (C-5′), 140.1 (C-4a), 134.7 (C-10a), 134.2 (C-2′), 133.9 (C-9b), 133.3 (C-4), 129.9 (C-2), 126.1 (C-8), 124.6 (C-1), 123.5 (C-9a), 121.7 (C-3 and C-7), 117.9 (C-4′ or C-3′), 113.2 (C-3′ or C-4′), 50.4 (NCHMe₂), 21.0 (2 CH₃); MS-ESI (m/z) 737.2 [2 M+Na]⁺, 380.1 [M+Na]⁺, 358.1 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₂H₁₅NNaO₄ 380.0893, found 380.0891.

5-Isopropyl-8-methyl-5H-indeno[1,2-b]indole-6,9,10-trione (7f). Red powder; 95% yield; IR (KBr, ν cm⁻¹) 1717 (C=O), 1642 (C=O), 1656 (C=O); ¹H-NMR (CDCl₃ + TFA_, δ ppm, J Hz) 7.55 (d, 1H, J = 7.1, Ar-H), 7.47–7.40 (m, 2H, 2 Ar-H), 7.30 (m, 1H, Ar-H), 6.51 (s, 1H, H-7), 5.71 (m, 1H, NCHMe₂), 2.1 (s, 3H, CH₃-8), 1.68 (d, 6H, J = 7.0, NCHMe₂); ¹³C-NMR (CDCl₃ + TFA, δ ppm) 185.8 (C-10), 182.4 (C-9), 179.0 (C-6), 155.8 (C-4b), 145.6 (C-5a), 139.6 (C-4a), 134.3 (C-7), 134.1 (C-4), 133.9 (C-9b), 130.4 (C-2), 125.1 (C-1), 122.1 (C-3), 121.6 (C-9a), 50.8 (NCHMe₂), 20.8 (2CH₃), 15.2 (CH₃); MS-ESI (m/z) 633.3 [2 M+Na]⁺, 328.1 [M+Na]⁺, 306.2 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₁H₁₉NNaO₃ 328.0944, found 328.0955.

5,8-Diisopropyl-5H-indeno[1,2-b]indole-6,9,10-trione (7g). Red powder; 14% yield; mp 226 °C; IR (KBr, ν cm⁻¹) 1710 (C=O), 1643 (C=O), 1604 (C=O); ¹H-NMR (CDCl_3, δ ppm, J Hz) 7.47 (d, 1H, J = 7.0, H-1), 7.30–7.24 (m, 2H, Ar-H), 7.15 (m, 1H, Ar-H), 6.22 (s, 1H, H-7), 5.64 (br s, 1H, NCHMe₂), 2.99 (sept, 1H, J = 6.7, CHMe₂-8), 1.53 (d, 6H, J = 7.0, 2 CH₃), 1.01 (d, 6H, J = 6.8, 2 CH₃); ¹³C-NMR (CDCl₃, δ ppm) 183.6 (C-10), 181.3 (C-9), 179.0 (C-6), 154.5 (C-4b), 154.1 (C-5a), 139.9 (C-4a), 134.1 (C-10a), 133.5 (C-9b), 133.2 (C-4), 131.7 (C-7), 129.8 (C-2), 124.5 (C-1), 123.5 (C-9a), 121.3 (C-3), 50.1 (NCHMe₂), 26.5 (CHMe₂-8), 21.7 (2 CH₃), 20.9 (2 CH₃); MS-ESI (m/z) 689.3 [2 M+Na]⁺, 356.2 [M+Na]⁺, 334.2 [M+H]⁺; HRMS-ESI (m/z) [M+Na]⁺ calcd for C₂₁H₁₉NNaO₃ 356.1257, found 356.1253.

3.3. Biological Activities

3.3.1. Preparation of Recombinant Human CK2 Holoenzyme

The preparation of the human recombinant CK2 holoenzyme was performed according to a protocol described previously [29]. For the expression of the α-subunit (CSNK2A1) and β-subunit (CSNK2B) of the human protein kinase CK2 a pT7-7 expression system in Escherichia coli BL21(DE3) was used. Newly transformed starter cultures were grown overnight at 37 °C in LB-medium to the stationary phase. New medium was inoculated with the separate starter cultures for both subunits and cultivated until an OD₅₀₀ of 0.6 was reached. Expression was induced by addition of IPTG (1 mM final concentration) and carried out at 30 °C for 5–6 h for CSNK2A1 and at 37 °C for 3 h for CSNK2B. Cells were harvested by centrifugation (6000× g for 10 minutes at 4 °C) and disrupted by sonication (three times 30 seconds on ice). Preparations were then centrifuged to remove the cells debris and the bacterial extracts for both subunits were combined and purified by a three-column procedure. Fractions exhibiting CK2 activity were combined and analyzed by SDS-PAGE and Western Blot.

3.3.2. Capillary Electrophoresis Based Assay for the Testing of Inhibitors of the Human CK2

Testing of the inhibitors of the human CK2 was performed by the recently established capillary electrophoresis based CK2 activity assay of Gratz et al. [23]. Therefore, 2 µL of the dissolved inhibitors (stock solution in DMSO) were mixed with 78 µL of CK2 supplemented kinase buffer which was composed of 1 µg CK2 holoenzyme, 50 mM Tris/HCl (pH 7.5), 100 mM NaCl, 10 mM MgCl₂ and 1 mM DTT. The reaction was initiated by the addition of 120 µL assay buffer, which was composed of 25 mM Tris/HCl (pH 8.5), 150 mM NaCl, 5 mM MgCl₂, 1 mM DTT, 100 µM ATP and 0.19 mM of the substrate peptide RRRDDDSDDD. The reaction was carried out for 15 minutes at 37 °C and stopped by the addition of 4 µL EDTA (0.5 M). Subsequently the reaction mixture was analyzed by a PA800 capillary electrophoresis from Beckman Coulter (Krefeld, Germany). Acetic acid (2 M, adjusted with conc. HCl to a pH of 2.0) was used as the electrolyte for electrophoretic separation. The separated substrate and product peptide were detected at 214 nm using a DAD-detector. Pure solvent was used as negative control (0% inhibition), assays devoid of CK2 were used as positive control (100% inhibition). For primary testing an inhibitor concentration of 10 µM was used. Compounds that revealed at least 50% inhibition at 10 µM were used for IC₅₀ determinations. For the determination of IC₅₀, inhibition was determined using nine inhibitor concentrations ranging from 0.001 µM to 100 µM. IC₅₀ were calculated from the resulting dose-response curves.

3.3.3. Mode of Inhibition and Determination of K_i

The CE based CK2 activity assay as described was used to investigate whether 5a and 7a inhibit CK2 by an ATP competitive mode. For this purpose, enzymatic reactions and IC₅₀ determinations were performed as described in Section 3.3.2., but varying compositions of the assay buffer with respect to the ATP concentration were used. IC₅₀ values were measured at six different final ATP concentrations ranging from 6 to 600 µM. The obtained IC₅₀ values were subsequently used to determine the K_i values of 5a and 7a. For this purpose, reaction velocities at different inhibitor concentrations were plotted in a Lineweaver-Burk diagram against the varied ATP concentrations and the corresponding $-1/K_m^{app}$ were obtained by the intercepts with the abscissa. Finally the $K_m^{app}$ values as obtained were plotted against the different inhibitor concentrations. By this method, the K_i values with a negative sign were given by the intercepts of the linear slope with the abscissa.

3.3.4. Cytotoxicity Assay on Cell Lines

All cells were grown in DMEM medium supplemented with 10% fetal calf serum, glutamine (2 mM), penicillin (100 U/mL), and streptomycin (50 μg/mL) at 37 °C under a humidified 5% CO₂ atmosphere (Gibco). The assays were performed in sterile 96-wells microtiter plates (Falcon). Cells were plated at 500 (NIH-3T3), 750 (WI-38) or 1000 (MEF; HEK293T) cells/100 µL/well. Drug solutions (10 μL per well) of appropriate concentration (prepared by dilution in the culture medium from 2 mM stock acetonitrile solution) were added 24 h after cell seeding. For ellagic acid and emodin, DMSO was used to prepare the stock solution. After 96 h, the cytotoxicity is evaluated using the Cell Proliferation Reagent WST-1 following the procedure described by the manufacturer (Roche Applied Science). The drugs were assayed at 10, 5, 1, 0.2 and 0.04 µM in triplicate. The vehicle was used as control. The experiments were repeated three times.

For each compound tested, the EC₅₀ (concentration of drug needed to inhibit cell growth/viability by 50%) was generated from the dose-response curves for each cell line.

3.4. Crystallography

The structure of compound 4d’ has been established by X-ray crystallography (Figure 4). Yellow single crystal (0.76 × 0.13 × 0.09 mm³) of 4d’ was obtained after 10 days at 17 °C by slow evaporation from a methanol/chloroform (80/20) solution. It crystallized in the monoclinic space group P21/c, a = 13.103(2) Å, b = 10.0799(11) Å, c = 16.411(2) Å, α = 90°, β = 95.439(13)°, γ = 90°, V = 2157.8(5) ų, Z = 4, δ(calcd) = 1.310 Mg.m⁻³, FW = 425.44 for C₂₄H₂₄FNO₅, F(000) = 896, final R indexes were R₁ = 0.0519 (I > 2σ(I)) and wR₂ = 0.1437 (all data). Crystallographic data were acquired on a Bruker-Nonius Kappa CCD. Full crystallographic results have been deposited at the Cambridge Crystallographic Data Centre (CCDC-977015), UK, as supplementary Material [30]. The data were corrected for Lorentz and polarization effects and for empirical absorption correction [31]. The structure was solved by direct methods with ShelxS 2013 [31] and refined using ShelxL 2013 programs [32], both pieces of software were found within the OLEX2 package [21].

3.5. Molecular Modeling

All four inhibitors 5a, 7a, 5h [13], and 7h [14] were structurally aligned using the program vROCS [25]. For this a pharmacophore match based on shape and H-bond donor and acceptor groups with the co-crystallized inhibitor (from PDB code: 3OWJ) was performed. Subsequently, the inhibitors were energy minimized in the binding region of CK2 (from PDB code: 3OWJ) using the program Moloc [26].

4. Conclusions

A library of twenty-one new indeno[1,2-b]indole derivatives was synthesized and evaluated as inhibitors of human protein kinase CK2. This preliminary SAR study confirmed that compounds with substituents at position 5 (C-ring) and position 7 (D-ring) of the indeno[1,2-b]indole scaffold showed CK2 inhibitory activity at micromolar and submicromolar range of concentrations (e.g., compounds 5a, 5b and 7a have IC₅₀ values of 0.17, 0.61 and 0.43 µM, respectively). In comparison with three standards, we showed that compound 5b and 7a are as active as emodin but less potent than ellagic acid and TBB. However compound 5a is a better CK2 inhibitor than emodin (0.17 versus 0.58 µM). Furthermore, the low cytotoxicity of compound 5a against four cell lines encourages us to continue our medicinal chemistry investigations. For example 5,6,7,8-tetrahydroindeno[1,2-b]indole-9,10-diones 5, 9-hydroxy-5H-indeno[1,2-b]indol-10-ones 6 and 5H-indeno[1,2-b]indole-6,9,10-triones 7 were included in building a 3D-QSAR model. The third generation of indeno[1,2-b]indoles as CK2 inhibitors are actually synthesized and evaluated.
