Design, Synthesis, and Biological Evaluations of Novel Azothiazoles Based on Thioamide

by
Abdelwahed R. Sayed
1,2,*,
Hany Elsawy
1,3,
Saad Shaaban
1,4,
Sobhi M. Gomha
5,6 and
Yasair S. Al-Faiyz
1
1
Department of Chemistry, Faculty of Science, King Faisal University, P.O. Box 380, Hofuf 31982, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Beni-Suef University, Beni-Suef 62514, Egypt
3
Department of Chemistry, Faculty of Science, Tanta University, Tanta 31111, Egypt
4
Organic Chemistry Division, Chemistry Department, Faculty of Science, Mansoura University, Mansoura 35516, Egypt
5
Department of Chemistry, Faculty of Science, Cairo University, Giza 12613, Egypt
6
Department of Chemistry, Faculty of Science, Islamic University in Almadinah Almonawara, Almadinah Almonawara 42351, Saudi Arabia
*
Author to whom correspondence should be addressed.
Curr. Issues Mol. Biol. 2022, 44(7), 2956-2966; https://doi.org/10.3390/cimb44070204
Submission received: 28 May 2022 / Revised: 22 June 2022 / Accepted: 27 June 2022 / Published: 1 July 2022
(This article belongs to the Collection Application of Natural and Pseudo Natural Products in Drug Discovery and Development)
Browse Figures
Versions Notes

Abstract

:
Herein we studied the preparation of different thiazoles via the reaction of 2-(3,4-dimethoxybenzylidene)hydrazine-1-carbothioamide (1) with hydrazonoyl halides under base-catalyzed conditions. The reactions proceed through nucleophilic substitution attack at the halogen atom of the hydrazonoyl halides by the thiol nucleophile to form an S-alkylated intermediate. The latter intermediate undergoes cyclization by the loss of water to afford the final products. The structures of the azo compounds were confirmed by FTIR, MS, NMR, and elemental analyses. Indeed, the newly synthesized azo compounds were estimated for their potential anticancer activities by an MTT assay against different human cancer cells, such as lung adenocarcinoma (A549) and colorectal adenocarcinoma (DLD-1). The caspase-3 levels were also estimated using Western blotting and the dual staining technique to evaluate the potency of the titled compounds to promote apoptosis.

1. Introduction

Azo dyes have attracted much attention owing to their outstanding biological and physicochemical properties and diverse applications in different aspects of life, such as analytical chemistry, pharmaceutics, cosmetics, painting, and the dyeing industry [1,2,3]. Furthermore, they are easily accessible, relatively stable, and manifest various pharmacological applications (e.g., anticancer, antimicrobial, and antiviral activities) [3,4,5]. Indeed, they are also used in targeted therapy as prodrugs and drug delivery in the case of colitis [6]. Despite being toxic to the environment and humans, many efforts are oriented to modify their structures and improve their biological profiles [7,8,9,10,11].
On the other hand, thiazoles are prepared from the reaction hydrazones with different hydrazonoyl halides [12,13]. They were intensively investigated for their anticancer activities and DNA-binding abilities [14,15]. Moreover, bisthiazoles were prepared from the reaction of bishydrazones with different types of haloketone and were also studied as bioactive skeletons [16]. The goal of this work was to develop novel azothiazoles from the reaction of different hydrazonoyl halides with 2-(3,4-dimethoxybenzylidene)hydrazine-1-carbothioamide (1). The final prepared compounds were elucidated by FTIR, MS, NMR, and elemental analyses. Their potential anticancer activities were estimated by MTT assays and their potency to promote apoptosis was estimated with caspase-3 assays.

2. Materials and Methods

2.1. Synthesis

2.1.1. General Information

The materials were obtained from Fluka and Aldrich. All materials were used without further purification. We checked the melting points by using a Gallen Kamp thermoelectric temperature device. The 1H and 13C NMR spectra were verified in deuterated-dimethyl-sulfoxide with tetramethyl-silane as an internal average via a spectrometer (Varian Gemini 300 MHz). Infrared spectra were investigated via potassium bromide wafer on Pye Unicam, and a Fourier transform infrared spectrophotometer. Elemental microanalyses were done in the micro-analytical laboratory at the University of Cairo, Giza, Egypt.

2.1.2. General Procedure for the Synthesis of Azothiazole Derivatives (8–13) and (17–19)

Treatment of 2-(3,4-dihydroxybenzylidene)hydrazine-1-carbothioamide 1 (10 mmol) with other hydrazonoyl chloride 2–7 (10 mmol) or bishydrazonyl halides 14–16 (5 mmol) was in the presence of an equivalent molar ratio of a basic catalyst such as triethylamine in 15 mL of dioxane. The reaction mixtures were heated under reflux for 6 h, and the solvent was distilled off under reduced pressure. The solid was crystallized from an appropriate solvent and dried at 75 °C for 48 h.

2-(2-(3,4-Dimethoxybenzylidene)hydrazinyl)-5-methyl-4-(phenyldiazenyl)thiazole 8

Red orange solid (74%); mp. 128–130 °C; IR (KBr): v 3188 (NH), 1595 (C=N) cm−1. 1H NMR (DMSO-d6): 2. 61 (s, 3H, CH3), 3.81 (s, 3H, CH3), 3.84 (s, 3H, CH3), 7.15–7.77 (m, 8H, ArH), 8.59 (s, 1H, N=CH) and 10.81 (s, 1H, NH) ppm. MS m/z (%): 381 (M+, 26). Anal. Calcd. for C19H19N5O2S (381.13): C, 59.83; H, 5.02; N, 18.36; Found C, 59.71; H, 5.23; N, 18.44%.

2-(2-(3,4-Dimethoxybenzylidene)hydrazinyl)-5-methyl-4-(p-tolyldiazenyl)thiazole 9

Red orange solid (84%); mp. 140–141 °C; IR (KBr): v 3196 (NH), 1609 (C=N) cm−1. 1H NMR (DMSO-d6): 2. 31 (s, 3H, CH3), 2. 59 (s, 3H, CH3), 3.81 (s, 3H, CH3), 3.83 (s, 3H, CH3), 7.08–7.69 (m, 7H, ArH), 8.91 (s, 1H, N=CH) and 10.74 (s, 1H, NH) ppm. MS m/z (%): 395 (M+, 21). Anal. Calcd. for C20H21N5O2S (395.48): C, 60.74; H, 5.35; N, 17.71; Found C, 60.70; H, 5.64; N, 17.42%.

4-((2-(2-(3,4-Dimethoxybenzylidene)hydrazinyl)-5-methylthiazol-4-yl)diazenyl)benzenesulfonic acid 10

Red orange solid (77%); mp. 225–227 °C; IR (KBr): v 3299 (NH), 1601 (C=N) cm−1. 1H NMR (DMSO-d6): 2. 59 (s, 3H, CH3), 3.81 (s, 3H, CH3), 3.83 (s, 3H, CH3), 6.96–7.58 (m, 7H, ArH), 8.41 (s, 1H, N=CH), 8.92 (s, 1H, SO3H) and 10.67 (s, 1H, NH) ppm. 13C NMR (DMSO-d6): at 16.47, 55.53, 55.67, 110.04, 113.11, 123.26, 126.43, 126.76, 138.34, 142.28, 143.39, 148.95, 152.05, 160.29 and 171.45 ppm. MS m/z (%): 461 (M+, 42). Anal. Calcd. for C19H19N5O5S2 (461.08): C, 49.45; H, 4.15; N, 15.18; Found C, 49.32; H, 4.11; N, 15.29%.

1-(4-((2-(2-(3,4-Dimethoxybenzylidene)hydrazinyl)-5-methylthiazol-4-yl)diazenyl)phenyl)ethan-1-one 11

Red brown solid (79%); mp. 240–242 °C, IR (KBr): v 3322 (NH), 1684 (C=O), 1601 (C=N) cm−1. 1H NMR (DMSO-d6): 2.73 (s, 3H, CH3), 3.06 (s, 3H, CH3), 3.81 (s, 3H, CH3), 3.84 (s, 3H, CH3), 7.31–7.92 (m, 7H, ArH), 8.61 (s, 1H, N=CH) and 10.73 (s, 1H, NH) ppm. MS m/z (%): 423 (M+, 22). Anal. Calcd. for C21H21N5O3S (423.14): C, 59.56; H, 5.00; N, 16.54; Found C, 59.71; H, 5.12; N, 16.41%.

3-((2-(2-(3,4-Dimethoxybenzylidene)hydrazinyl)-5-methylthiazol-4-yl)diazenyl)phenol 12

Deep red solid (88%); mp. 200–201 °C, IR (KBr): v 3349 (OH), 3262 (NH), 1591 (C=N) cm−1. 1H NMR (DMSO-d6): 2. 56 (s, 3H, CH3), 3. 81 (s, 3H, CH3), 3.84 (s, 3H, CH3), 6.72–7.97 (m, 7H, ArH), 8.17 (s, 1H, N=CH), 9.65 (s, 1H, OH), and 11.33 (s, 1H, NH) ppm. 13C NMR (DMSO-d6): at 26.46; 55.47; 55.62; 108.41; 111.16; 115.75; 116.05; 120.18; 122.15; 129.88; 132.06; 133.67; 146.33; 149.10; 150.54; 155.85 and 177.45 ppm. MS m/z (%): 397 (M+, 33). Anal. Calcd. for C19H19N5O3S (397.12): C, 57.42; H, 4.82; N, 17.62; Found C, 57.31; H, 4.70; N, 17.81%.

2-(2-(3,4-Dimethoxybenzylidene)hydrazinyl)-5-methyl-4-((2-nitrophenyl)diazenyl)thiazole 13

Deep red solid (68%); mp. 220–222 °C, IR (KBr): v 3299 (NH), 1605 (C=N) cm−1. 1H NMR (DMSO-d6): 2. 59 (s, 3H, CH3), 3. 81 (s, 3H, CH3), 3.84 (s, 3H, CH3), 7.11–7.87 (m, 7H, ArH), 8.65 (s, 1H, N=CH) and 10.99 (s, 1H, NH) ppm. MS m/z (%): 426 (M+, 23). Anal. Calcd. for C19H18N6O4S (426.45): C, 53.51; H, 4.25; N, 19.71; Found C, C, 53.33; H, 4.25; N, 19.94%.

4,4′-((Sulfonylbis(4,1-phenylene))bis(diazene-2,1-diyl))bis(2-(2-(3,4-dimethoxybenzylidene)hydrazinyl)-5-methylthiazole) 17

Red solid (81%); mp. 235–236 °C, IR (KBr): v 3368 (NH), 1593 (C=N) cm−1. 1H NMR (DMSO-d6): 2. 59 (s, 6H, 2CH3), 3. 81 (s, 6H, 2CH3), 3. 83 (s, 6H, 2CH3), 7.11–7.88 (m, 14H, ArH), 8.59 (s, 2H, N=CH) and 9.73 (s, 2H, NH) ppm. 13C NMR (DMSO-d6): at 25.57, 55.52, 55.67, 109.98, 111.64, 123.38, 128.17, 128.93, 129.32, 133.82, 135.14, 140.74, 147.98, 148.95, 152.09, 160.48 and 177.69. MS m/z (%): 824 (M+, 17). Anal. Calcd. for C38H36N10O6S3 (824.20): C, 55.33; H, 4.40; N, 16.98; Found C, 55.27; H, 4.51; N, 16.79%.

1,4-Bis((2-(2-(3,4-dimethoxybenzylidene)hydrazinyl)-5-methylthiazol-4-yl)diazenyl)benzene 18

Deep red solid (79%); mp. > 300 °C, IR (KBr): v 3252 (NH), 1601 (C=N) cm−1. 1H NMR (DMSO-d6): 2. 61 (s, 6H, 2CH3), 3.81 (s, 6H, 2CH3), 3.85 (s, 6H, 2CH3), 7.12–7.86 (m, 10H, ArH), 8.61 (s, 2H, N=CH) and 10.71 (s, 2H, NH) ppm. MS m/z (%): 684 (M+, 28). Anal. Calcd. for C32H32N10O4S2 (684.20): C, 56.13; H, 4.71; N, 20.45; Found C, 56.21; H, 4.56; N, 20.59%.

1,3-Bis((2-(2-(3,4-dimethoxybenzylidene)hydrazinyl)-5-methylthiazol-4-yl)diazenyl)benzene 19

Deep red solid (80%); mp. > 300 °C, IR (KBr): v 3196 (NH), 1593 (C=N) cm−1. 1H NMR (DMSO-d6): 2.62 (s, 6H, 2CH3), 3.82 (s, 6H, 2CH3), 3.85 (s, 6H, 2CH3), 7.01–7.48 (m, 10H, ArH), 8.59 (s, 2H, N=CH) and 10.71 (s, 2H, NH) ppm. MS m/z (%): 684 (M+, 34). Anal. Calcd. for C32H32N10O4S2 (684.20): C, 56.13; H, 4.71; N, 20.45; Found C, 56.29; H, 4.95; N, 20.24%.

2.2. Biological Evaluations

2.2.1. Cell Culture and MTT Assay

The colon cancer cell lines (DLD-1) and non-small lung cancer cell lines (A549) were plated separately using 96-well plates with a concentration of 1 × 104 cells/well in DMEM media with 1× Antibiotic Antimycotic Solution and 10% fetal bovine serum (Himedia, Mumbai, India) in a CO2 incubator at 37 °C with 5% CO2. First, the cells were washed with 200 μL of 1× PBS, and then the cells were treated with Samples 1–11 (10–100 µM/mL) with various test concentrations of a compound in serum-free media and incubated for 24 h. The medium was aspirated from cells at the end of the treatment period. Next, 0.5 mg/mL MTT prepared in 1× PBS was added and incubated at 37 °C for 4 h using a CO2 incubator. After incubation, the medium containing MTT was discarded from the cells and washed using 200 μL of PBS. The formed crystals were dissolved with 100 μL of DMSO and thoroughly mixed. The development of color intensity was evaluated at 570 nm. The formazan dye turns to purple-blue color. The absorbance was measured at 570 nm using a microplate reader.

2.2.2. Immunoblotting

After treatment with different samples on the DLD-1 and A549 cell lines for 24 h, cells were harvested using trypsin and washed twice with ice-cold PBS. For immunoblotting analysis, cells were lysed in RIPA buffer (Sana crus, Biotech, Dallas, TX, USA) for 14 min on ice, and then centrifuged at 8000× g for 15 min at 4 °C. Supernatants were collected and estimated using a Bradford assay. A total of 250 μg protein was denatured at 92 °C for 7 min. Equal amounts of protein were then separated on SDS-PAGE gels and transferred to PVDF membranes. Membranes were blocked with 5% nonfat milk at room temperature for 30 h and incubated with primary antibodies (Caspase-3 (1:2000), Cell Signaling Technology (CST; Beverly, MA, USA) overnight at 4 °C, and then with a horseradish peroxidase-conjugated secondary antibody at room temperature for 1 h. Protein bands were visualized by enhanced chemiluminescence (Licor analyzer). B-actin was used as an internal control.

2.2.3. DUAL Stanning

Dual AO/EB fluorescent staining: After 12 h the treated cells were obtained in 12-well plates, human colon cancer cells and lung cancer cells (DLD-1 and A549), respectively, at the logarithmic growth phase, and cells were washed using ice-cold PBS. Dual fluorescent staining solution (1 μL) containing 100 μg/mL AO and 100 μg/mL EB (AO/EB, Sigma, St. Louis, MO, USA) was added to each suspension, and excess stains were removed. The morphology of apoptotic cells was examined, and 100 cells were counted within 20 min using a fluorescent microscope (Leica, Italy). The dual acridine orange/ethidium bromide (AO/EB) staining method was repeated three times at least. The fluorescence was recorded by Image J software, and values are expressed as fold changes.
Statistics: All statistical analyses were performed using the GraphPad 14.0 software for Windows. A p-value of <0.05 was considered statistically significant.

3. Results

3.1. Chemistry

Recently, we reported several hydrazonoyl halides and their utility in synthesizing several heterocyclics [17,18,19,20,21,22,23,24]. Herein we focused on developing novel mono and bisazothiazoles. The reaction of 2-(3,4-dihydroxybenzylidene)hydrazine-1-carbothioamide (1) with α-haloketohydrazonoyl halides 2–7 in a suitable solvent in the presence of base catalyst under heating afforded the corresponding azothiazoles 8–13 (Scheme 1). The explanation of the reaction can be through a nucleophilic substitution reaction that starts with the halogen atom from hydrazonoyl halides being replaced by the thiol nucleophile of 2-(3,4-dimethoxybenzylidene)hydrazine-1-carbothioamide to form an S-alkylated intermediate. This intermediate could undergo cyclization carried out via nucleophilic addition followed by the loss of water, which would afford the final products. All reactions are given in every example, one product, as observed by TLC. Interestingly, all compounds were prepared in good yields (up to 88%). The final products of the isolated thiazoles 8–13 were elucidated using elemental analysis and different spectral technics. For instance, the IR spectrum of the synthesized thiazoles 8–13 displayed an absorption peak near 3188–3299 cm−1 for the NH.
Furthermore, we found in the final products 8–13 disappearance of C=O, which is present in the starting compounds 2–7. All thiazoles 8–13 showed the expected molecular ion peaks at the correct m/z values. Additionally, 1H NMR spectra of 8–13 showed all protons as expected from the proposed structure, as shown in Scheme 1. The 13C NMR for the final products could not be obtained due to poor solubility of most of the compounds, except for compounds 10 and 12 (see experimental part).
The bisazothiazoles were also prepared from the reaction of 2-(4,5-dimethoxy-2-nitrobenzylidene)hydrazine-1-carbothioamide (1) with bishydrazonoyl chloride 14–16 in Et3N/dioxane (Scheme 2). The reactions proceeded through nucleophilic substitution reaction that starts with the halogen atom from bishydrazonoyl halides being replaced by the thiol nucleophile of 2-(3,4-dimethoxybenzylidene)hydrazine-1-carbothioamide (1) to form an S-alkylated intermediate. This intermediate could undergo cyclization carried out via nucleophilic addition followed by the loss of water, which would afford the final products 17–19, as described in Scheme 2. The novel bisazothiazoles were characterized according by different spectral analysis. For example, the IR spectrum of the synthesized thiazoles 17–19 displayed an absorption peak near 3196–3368 cm−1 for the NH. Furthermore, we found in the final products 17–19 the disappearance of C=O, which is present in the start compounds 2–6. All thiazoles 17–19 have shown the expected molecular ion peaks at the foreseeable m/z values. Additionally, in the 1H NMR spectra of 17–19 are shown all the protons that were tailored with the proposed structure as shown in Scheme 2. 13CNMR for the final products could not appear due to poor solubility, except for compound 17 (see experimental part).

3.2. Biology

3.2.1. Cytotoxicity

The azo group is a common functionality in many interesting organic compounds with different applications (e.g., painting, ink, staining of biological systems, and LCD) and potential medicinal activities (e.g., antitumor and antimicrobial) [25,26,27,28]. Furthermore, the anticancer activities of the azo compounds have been reported in numerous reports due to their potency to intercalate with RNA and/or DNA, as well as the inhibition of various proteins [3,4,5,11]. In this regard, the antitumor activities of the novel azo compounds were assessed against the lung A549 and colorectal DLD-1 adenocarcinomas via an MTT assay, and the IC50 values are shown in Table 1.
In general, most of the azo compounds showed superior cytotoxicity to the DLD-1 compared to the A549. In the case of DLD-1, azo agents 8 and 11 were the most cytotoxic, with IC50s of 26 ± 2.7 and 21 ± 1.6 µM, respectively, whereas compounds 12 and 13 showed moderate anticancer activity, with IC50s of 32 ± 2.9 and 35 ± 4.21 µM, respectively. In the case of A549 cells, azo compound 12 was the most cytotoxic, with an IC50 of 23 ± 2.9 µM. Furthermore, compounds 8, 11, and 13 were the least active, with IC50s of 42 ± 3.7, 40 ± 3.83, and 32 ± 4.1 µM, respectively. Collectively, the most cytotoxic compounds were further selected for further biological investigations.

3.2.2. Caspase Activity

Caspases are among the proteases involved in apoptosis induction [28]. In particular, caspase-3 is an effector caspase enrolled in the apoptosis execution final stage [4,29]. Accordingly, caspase-3 activation is routinely estimated by medicinal chemists to evaluate the apoptosis as an indication [30,31]. Therefore, the caspase-3 levels were assessed in A549 and DLD-1 cells employing Western blotting, as presented in Figure 1.
In the case of DLD-1 cells, azo compound 11 was the most active and upregulated caspase-3 expression by 4-fold compared to the negative (untreated) control. Furthermore, compound 13 could also activate caspase-3 expression up to 3-fold compared to the negative control.
In the case of A549 cells, azo compound 13 upregulated caspase-3 expression by 3.5-fold compared to the untreated control, whereas azo compound 12 was only able to activate caspase-3 expression up to 2.5-fold compared to the negative control.
To conclude, our experiments showed that the caspase-3 levels were activated in DLD-1 and A549 cells, which might promote apoptosis and lead to cell death.

3.2.3. Dual AO/EB Fluorescent Staining

It is worth noting that various cell morphology alterations accompany apoptosis. Such hallmarks include the formation of cytoplasmic blebs, chromatin condensation, and fragmentation of the nucleus [32,33,34]. Additionally, the shape of the cell turns to be irregular and associated with the formation of apoptotic bodies of DNA fragments as well as the size of the nucleus [32,35,36,37,38,39,40,41]. The novel azo dyes’ anticancer properties and apoptosis induction were further evaluated using a dual staining technique via the fluorescent homidium bromide and acridine orange dyes. It is worth noting that the dual AO/EB fluorescent staining technique revealed the differences between necrotic and apoptotic cells. In this regard, it is obvious that the novel azoic dyes promote different cell morphology alterations, as shown in Figure 2 and Figure 3.

4. Conclusions

This article described the design, synthesis, and biological studies of a novel series of azothiazoles based on hydrazonoyl halides. The explanation of the reaction can be through a nucleophilic substitution reaction that starts with the halogen atom from hydrazonoyl halides being replaced by the thiol nucleophile of 2-(3,4-dimethoxybenzylidene)hydrazine-1-carbothioamide (1) to form an S-alkylated intermediate. This intermediate could undergo cyclization carried out via nucleophilic addition followed by the loss of water, which would afford a novel series of azothiazoles. These reactions are provided the desired products in excellent yields. FTIR, MS, and NMR spectra elucidated structures of the final products. The new series of benzothiazoles were investigated for their potential anticancer activities and evaluated the potency of the titled compounds to promote apoptosis.

Author Contributions

A.R.S., H.E., S.S., S.M.G. and Y.S.A.-F.: supervision, investigation, methodology, resources, formal analysis, data curation, funding acquisition, writing—original draft, and writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported through the Annual Funding track by the Deanship of Scientific Research, Vice Presidency for Graduate Studies and Scientific Research, King Faisal University, Saudi Arabia (Project No. GRANT680).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw/processed data generated in this work are available upon request from the corresponding author.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Chankhanittha, T.; Somaudon, V.; Watcharakitti, J.; Piyavarakorn, V.; Nanan, S. Performance of solvothermally grown Bi2MoO6 photocatalyst toward degradation of organic azo dyes and fluoroquinolone antibiotics. Mater. Lett. 2020, 258, 126764. [Google Scholar] [CrossRef]
  2. Gaffer, H.E. Antimicrobial sulphonamide azo dyes. Color. Technol. 2019, 135, 484–500. [Google Scholar] [CrossRef]
  3. Ghasemi, Z.; Azizi, S.; Salehi, R.; Kafil, H.S. Synthesis of azo dyes possessing N-heterocycles and evaluation of their anticancer and antibacterial properties. Monatsh. Chem. 2018, 149, 149–157. [Google Scholar] [CrossRef]
  4. Afifi, T.H.; Okasha, R.M.; Ahmed, H.E.; Ilaš, J.; Saleh, T.; Abd-El-Aziz, A.S. Structure-activity relationships and molecular docking studies of chromene and chromene based azo chromophores: A novel series of potent antimicrobial and anticancer agents. EXCLI J. 2017, 16, 868–902. [Google Scholar] [CrossRef] [PubMed]
  5. Gaffer, H.E.; Elgohary, M.R.; Etman, H.A.; Shaaban, S. Antibacterial evaluation of cotton fabrics by using novel sulfonamide reactive dyes. Pigm. Resin Technol. 2017, 46, 210–217. [Google Scholar] [CrossRef]
  6. Krehl, S.; Loewinger, M.; Florian, S.; Kipp, A.P.; Banning, A.; Wessjohann, L.A.; Brauer, M.N.; Iori, R.; Esworthy, R.S.; Chu, F.F.; et al. Glutathione peroxidase-2 and selenium decreased inflammation and tumors in a mouse model of inflammation-associated carcinogenesis whereas sulforaphane effects differed with selenium supply. J. Carcinog. 2012, 33, 620–628. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Gilfillan, L.; Artschwager, R.; Harkiss, A.H.; Liskamp, R.M.; Sutherland, A. Synthesis of pyrazole containing alpha-amino acids via a highly regioselective condensation/aza-Michael reaction of β-aryl α,β-unsaturated ketones. Org. Biomol. Chem. 2015, 13, 4514–4523. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Kantar, C.; Akal, H.; Kaya, B.; Islamoğlu, F.; Türk, M.; Şaşmaz, S. Novel phthalocyanines containing resorcinol azo dyes; synthesis, determination of pKa values, antioxidant, antibacterial and anticancer activity. J. Organomet. Chem. 2015, 783, 28–39. [Google Scholar] [CrossRef]
  9. Cai, R.; Wang, D.; Chen, Y.; Yan, W.; Geise, N.R.; Sharma, S.; Li, H.; Petersen, J.L.; Li, M.; Shi, X. Facile synthesis of fluorescent active triazapentalenes through gold-catalyzed triazole-alkyne cyclization. Chem. Commun. 2014, 50, 7303–7305. [Google Scholar] [CrossRef]
  10. Hamidian, H.; Tagizadeh, R.; Fozooni, S.; Abbasalipour, V.; Taheri, A.; Namjou, M. Synthesis of novel azo compounds containing 5(4H)-oxazolone ring as potent tyrosinase inhibitors. Bioorganic Med. Chem. 2013, 21, 2088–2092. [Google Scholar] [CrossRef]
  11. Benkhaya, S.; M’rabet, S.; El Harfi, A. Classifications, properties, recent synthesis and applications of azo dyes. Heliyon 2020, 6, e03271. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Raslan, M.A. Efficient synthesis of some new 1,3,4-Thiadiazole and thiazole derivatives via thiosemicarbazone derivatives. Heterocycles 2020, 100, 809–822. [Google Scholar] [CrossRef]
  13. Sayed, A.R.; Ahmed, M.S.M.; Gomha, S.M. Efficient Methods for the Synthesis of Novel Arylazothiazoles Based on Acetylferrocene or Adamantane. Curr. Org. Synth. 2020, 17, 282–287. [Google Scholar] [CrossRef] [PubMed]
  14. Farghaly, T.A.; Abo Alnaja, A.M.; El-Ghamry, H.A.; Shaaban, M.R. Synthesis and DNA binding of novel bioactive thiazole derivatives pendent to N-phenylmorpholine moiety. Bioorg. Chem. 2020, 102, 104103. [Google Scholar] [CrossRef] [PubMed]
  15. Abdel Latif, N.A.; Abbas, E.M.H.; Farghaly, T.A.; Awad, H.M. Synthesis, Characterization, and Anticancer Screening of Some New Bithiazole Derivatives. Russ. J. Org. Chem. 2020, 56, 1096–1107. [Google Scholar] [CrossRef]
  16. Zaki, Y.H.; Abdelhamid, A.O.; Sayed, A.R.; Mohamed, H.S. Synthesis of 1,3,4-Thiadiazole Derivatives Using Hydrazonoyl Bromide: Molecular Docking and Computational Studies. Polycycl. Aromat. Compd. 2022. [Google Scholar] [CrossRef]
  17. Al-Shihry, S.S.; Sayed, A.R.; Abd El-Lateef, H.M. Design and assessment of a novel poly(urethane-semicarbazides) containing thiadiazoles on the backbone of the polymers as inhibitors for steel pipelines corrosion in CO2-saturated oilfield water. J. Mol. Struct. 2020, 1201, 127223. [Google Scholar] [CrossRef]
  18. Sayed, A.R.; Al-Faiyz, Y.S. convenient methods for the synthesis of novel thiadiazoles and polythiadiazoles. Heterocycles 2020, 100, 955–963. [Google Scholar] [CrossRef]
  19. Abeer, M.E.; Maher, A.E.; Eslam, B.E. Eco-friendly sequential one-pot synthesis, molecular docking, and anticancer evaluation of arylidene-hydrazinyl-thiazole derivatives as CDK2 inhibitors. Bioorg. Chem. 2021, 108, 104615. [Google Scholar] [CrossRef]
  20. Abd El-Lateef, H.M.; Sayed, A.R.; Shalabi, K. Synthesis and theoretical studies of novel conjugated polyazomethines and their application as efficient inhibitors for C1018 steel pickling corrosion behavior. Surf. Interfaces 2021, 23, 101037. [Google Scholar] [CrossRef]
  21. Ali, S.H.; Sayed, A.R. Review of the synthesis and biological activity of thiazoles. Synth. Commun. 2021, 51, 670–700. [Google Scholar] [CrossRef]
  22. Abd El-Lateef, H.M.; Sayed, A.R.; Shalabi, K. Studying the effect of two isomer forms thiazole and thiadiazine on the inhibition of acidic chloride-induced steel corrosion: Empirical and Computer simulation explorations. J. Mol. Liq. 2022, 356, 119044. [Google Scholar] [CrossRef]
  23. Bakir, E.M.; Sayed, A.R.; Abd El-Lateef, H.M. Colorimetric detection of Hg2+ ion using fluorescein/thiourea sensor as a receptor in aqueous medium. J. Photochem. Photobiol. A Chem. 2022, 422, 113569. [Google Scholar] [CrossRef]
  24. Sayed, A.R.; Al-Faiyz, Y.S.; Elsawy, H.; Shaaban, S.; Mohamed, M.A. Synthesis and Biochemical Studies of Novel Mon-Azothiazoles and Bis-Azothiazoles Based on 2-(4-(Dimethylamino)Benzylidene)Hydrazine-1-Carbothioamide. Polycycl. Aromat. Compd. 2022. [Google Scholar] [CrossRef]
  25. Samarghandi, M.R.; Zarrabi, M.; Sepehr, M.N.; Amrane, A.; Safari, G.H.; Bashiri, S. Application of acidic treated pumice as an adsorbent for the removal of azo dye from aqueous solutions: Kinetic, equilibrium and thermodynamic studies. Iran. J. Environ. Health Sci. Eng. 2012, 9, 9. [Google Scholar] [CrossRef] [Green Version]
  26. Pinheiro, H.M.; Touraud, E.; Thomas, O. Aromatic amines from azo dye reduction: Status review with emphasis on direct UV spectrophotometric detection in textile industry wastewaters. Dyes Pigment. 2004, 61, 121–139. [Google Scholar] [CrossRef]
  27. Chung, K.T.; Cerniglia, C.E. Mutagenicity of azo dyes: Structure-activity relationships. Mutat. Res. Genet. Toxicol. 1992, 277, 201–220. [Google Scholar] [CrossRef]
  28. Harrington-Brock, K.; Parker, L.; Doerr, C.; Cimino, M.C.; Moore, M.M. Analysis of the genotoxicity of anthraquinone dyes in the mouse lymphoma assay. Mutagenesis 1991, 6, 35–46. [Google Scholar] [CrossRef]
  29. Shaaban, S.; Negm, A.; Ashmawy, A.M.; Ahmed, D.M.; Wessjohann, L.A. Combinatorial synthesis, in silico, molecular and biochemical studies of tetrazole-derived organic selenides with increased selectivity against hepatocellular carcinoma. Eur. J. Med. Chem. 2016, 122, 55–71. [Google Scholar] [CrossRef]
  30. Nury, T.; Zarrouk, A.; Vejux, A.; Doria, M.; Riedinger, J.M.; Delage-Mourroux, R.; Lizard, G. Induction of oxiapoptophagy, a mixed mode of cell death associated with oxidative stress, apoptosis and autophagy, on 7-ketocholesterol-treated 158N murine oligodendrocytes: Impairment by α-tocopherol. Biochem. Biophys. Res. Commun. 2014, 446, 714–719. [Google Scholar] [CrossRef]
  31. Kassab, K. Evaluating the antitumor activity of combined photochemotherapy mediated by a meso-substituted tetracationic porphyrin and adriamycin. Acta Biochim. Biophys. Sin. 2009, 41, 892–899. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Zarrouk, A.; Vejux, A.; Nury, T.; El Hajj, H.I.; Haddad, M.; Cherkaoui-Malki, M.; Riedinger, J.M.; Hammami, M.; Lizard, G. Induction of mitochondrial changes associated with oxidative stress on very long chain fatty acids (C22:0, C24:0, or C26:0)-treated human neuronal cells (SK-NB-E). Oxid. Med. Cell. Longev. 2012, 2012, 623257. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Vigilanza, P.; Aquilano, K.; Rotilio, G.; Ciriolo, M.R. Transient cytoskeletal alterations after SOD1 depletion in neuroblastoma cells. Cell. Mol. Life Sci. 2008, 65, 991–1004. [Google Scholar] [CrossRef] [PubMed]
  34. Aydin, H.H.; Celik, H.A.; Deveci, R.; Terzioglu, E.; Karacali, S.; Mete, N.; Akarca, U.; Batur, Y. Characterization of the cellular response during apoptosis induction in cadmium-treated Hep G2 human hepatoma cells. Biol. Trace Elem. Res. 2003, 95, 139–153. [Google Scholar] [CrossRef]
  35. Abd El-Lateef, H.M.; Shaaban, S.; Shalabi, K.; Khalaf, M.M. Novel organoselenium-based N-mealanilic acids as efficacious corrosion inhibitors for 6061 aluminum alloy in molar HCl: In-silico modeling, electrochemical, and surface morphology studies. J. Taiwan Inst. Chem. Eng. 2022, 133, 104258. [Google Scholar] [CrossRef]
  36. Li, B.; Li, W.; Tian, Y.; Guo, S.; Qian, L.; Xu, D.; Cao, N. Selenium-Alleviated Hepatocyte Necrosis and DNA Damage in Cyclophosphamide-Treated Geese by Mitigating Oxidative Stress. Biol. Trace Elem. Res. 2020, 193, 508–516. [Google Scholar] [CrossRef]
  37. Elmore, S. Apoptosis: A review of programmed cell death. Toxicol. Pathol. 2007, 35, 495–516. [Google Scholar] [CrossRef]
  38. Wang, X.; Zhong, X.; Li, J.; Liu, Z.; Cheng, L. Inorganic nanomaterials with rapid clearance for biomedical applications. Chem. Soc. Rev. 2021, 50, 8669–8742. [Google Scholar] [CrossRef]
  39. Miao, Z.; Chen, S.; Xu, C.-Y.; Ma, Y.; Qian, H.; Xu, Y.; Chen, H.; Wang, X.; He, G.; Lu, Y.; et al. PEGylated rhenium nanoclusters: A degradable metal photothermal nanoagent for cancer therapy. Chem. Sci. 2019, 10, 5435–5443. [Google Scholar] [CrossRef] [Green Version]
  40. Wang, X.; Yue, Q.; Xu, H.; Zhong, X.; Sun, L.; Li, G.; Gong, Y.; Yang, N.; Wang, Z.; Liu, Z.; et al. Liquid exfoliation of TiN nanodots as novel sonosensitizers for photothermal-enhanced sonodynamic therapy against cancer. Nano Today 2021, 39, 101170. [Google Scholar] [CrossRef]
  41. Zhong, X.; Wang, X.; Li, J.; Hu, J.; Cheng, L.; Yang, X. ROS-based dynamic therapy synergy with modulating tumor cell-microenvironment mediated by inorganic nanomedicine. Coord. Chem. Rev. 2021, 437, 213828. [Google Scholar] [CrossRef]
Cimb 44 00204 sch001 550

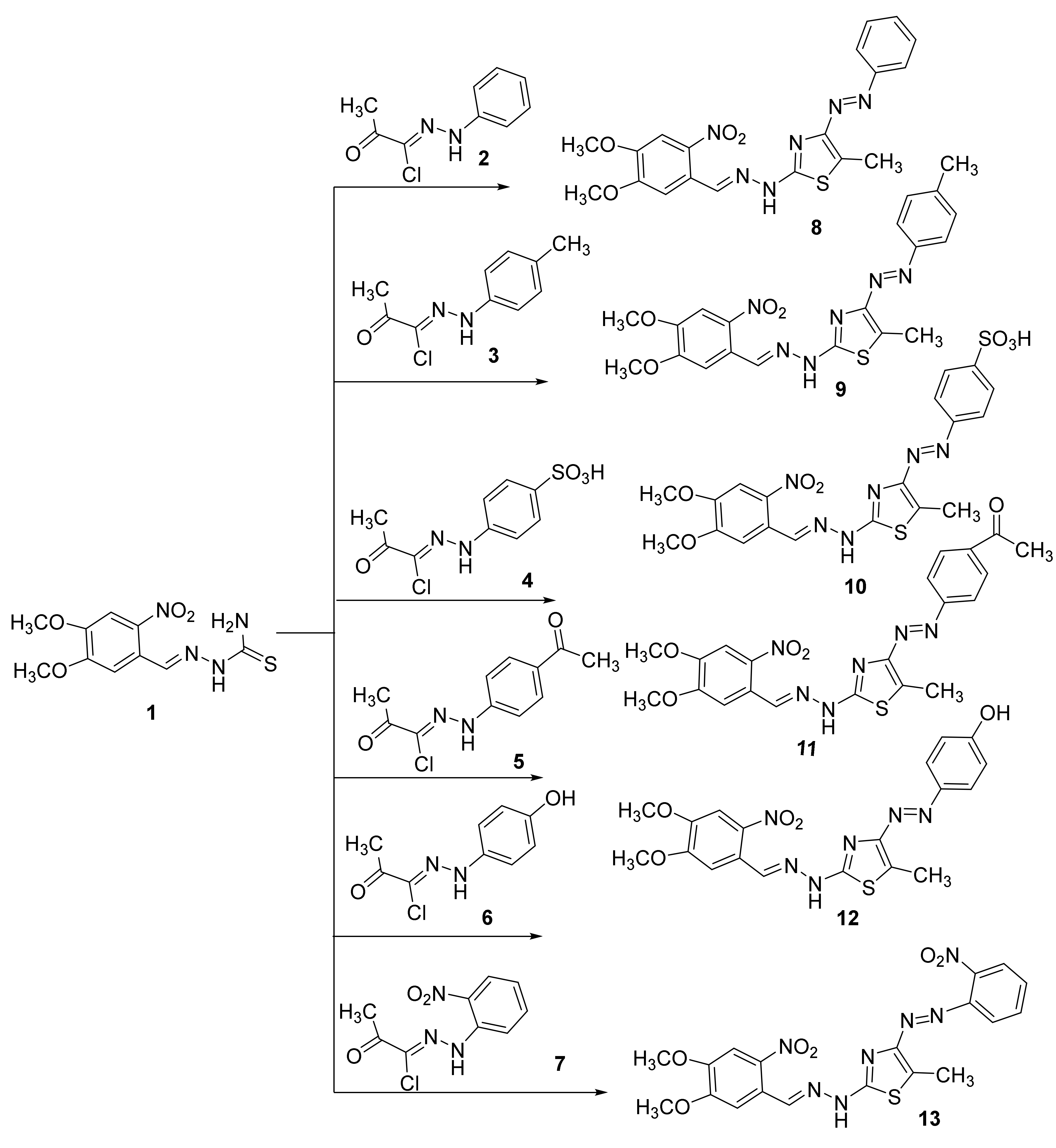

Scheme 1. Synthesis of monoazothiazoles 8–13.
Scheme 1. Synthesis of monoazothiazoles 8–13.
Cimb 44 00204 sch001
Cimb 44 00204 sch002 550

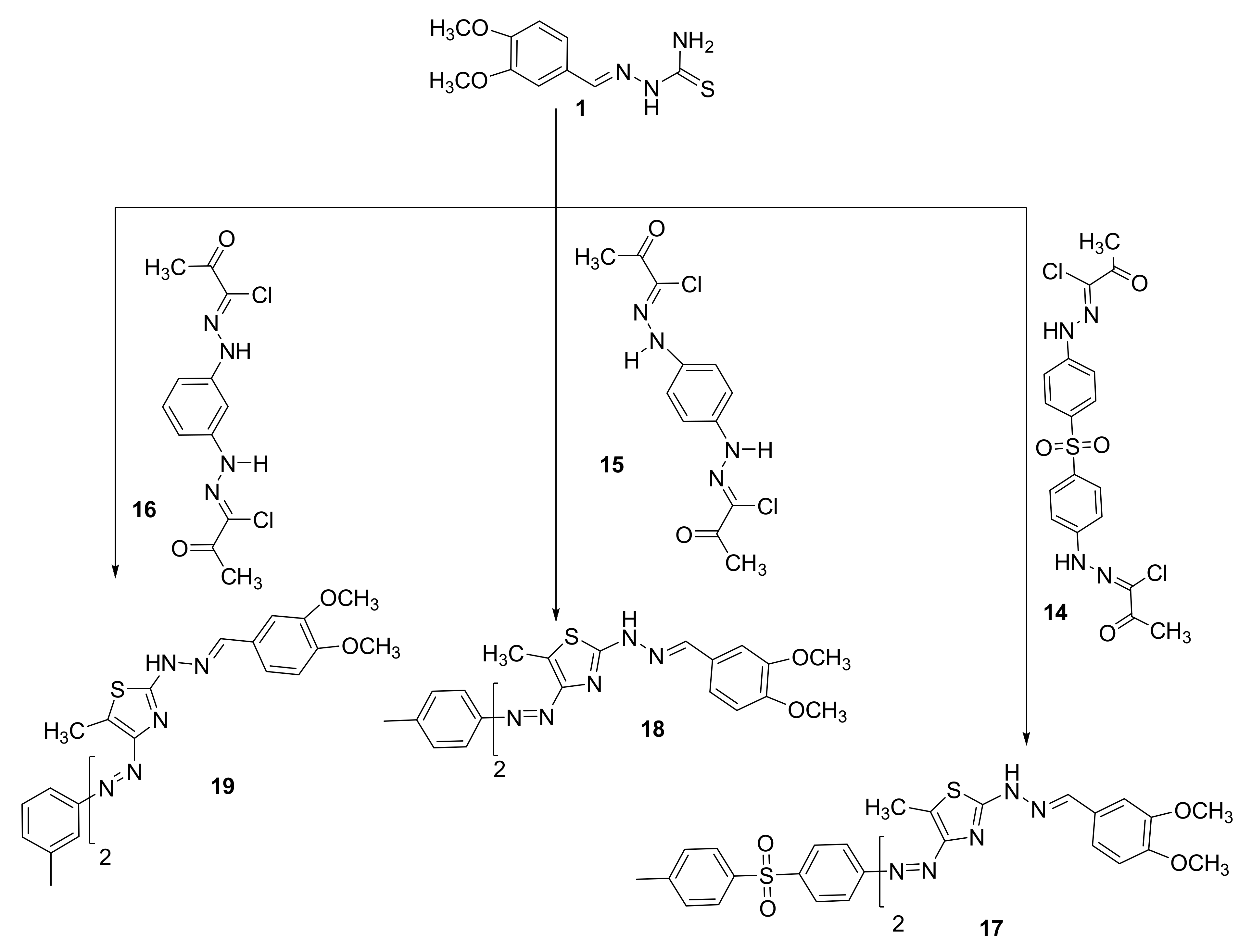

Scheme 2. Synthesis of bisazothiazoles 17–19.
Scheme 2. Synthesis of bisazothiazoles 17–19.
Cimb 44 00204 sch002
Cimb 44 00204 g001a 550Cimb 44 00204 g001b 550

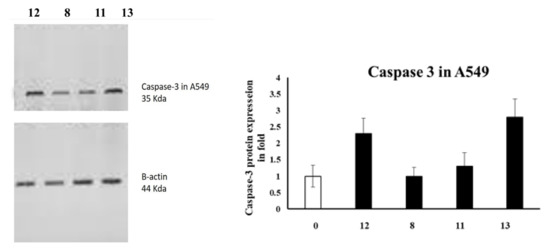

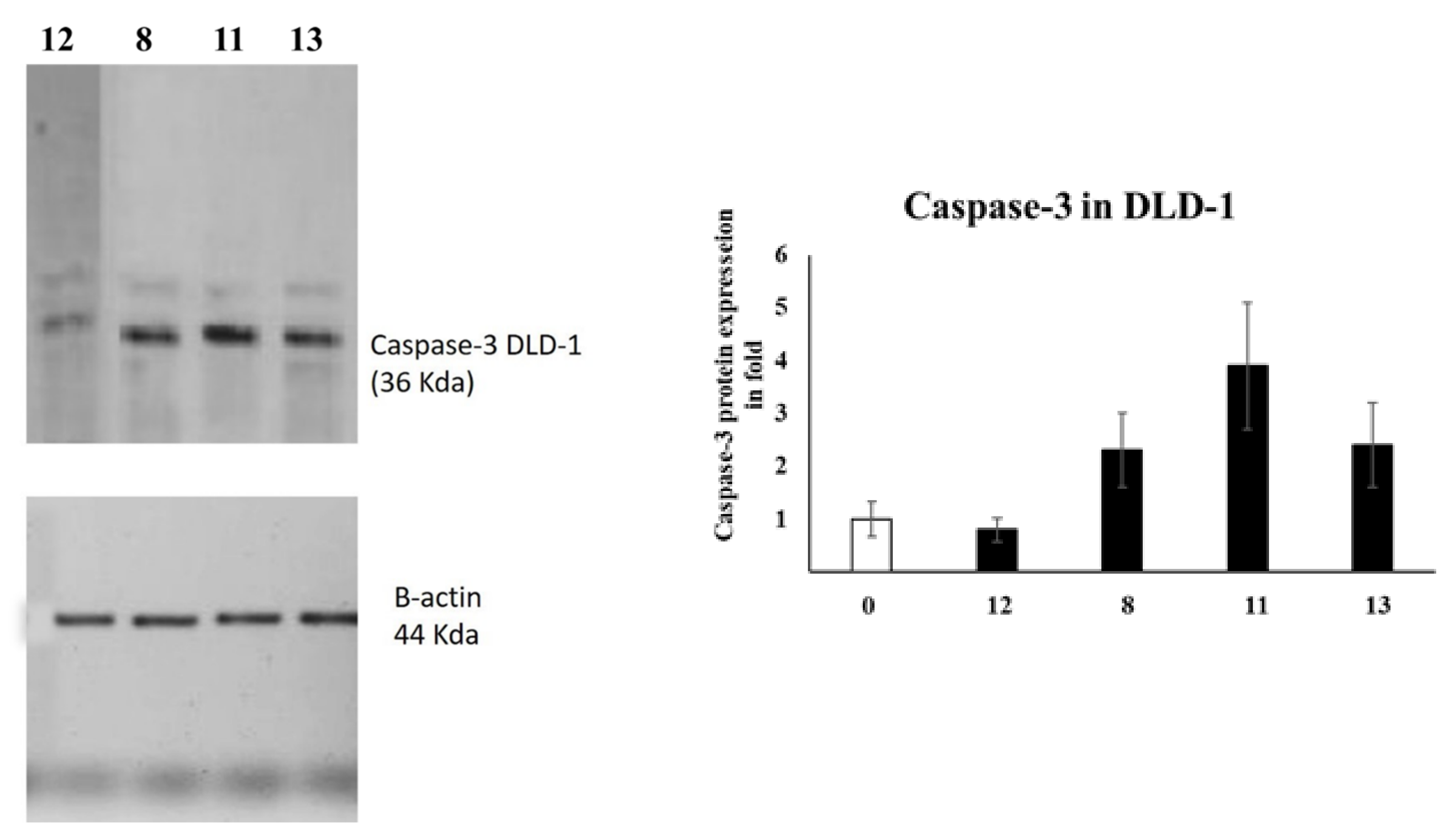

Figure 1. The levels of Caspase-3 in A5941 and DLD-1 cells of various groups were examined by Western blotting.
Figure 1. The levels of Caspase-3 in A5941 and DLD-1 cells of various groups were examined by Western blotting.
Cimb 44 00204 g001aCimb 44 00204 g001b
Cimb 44 00204 g002 550

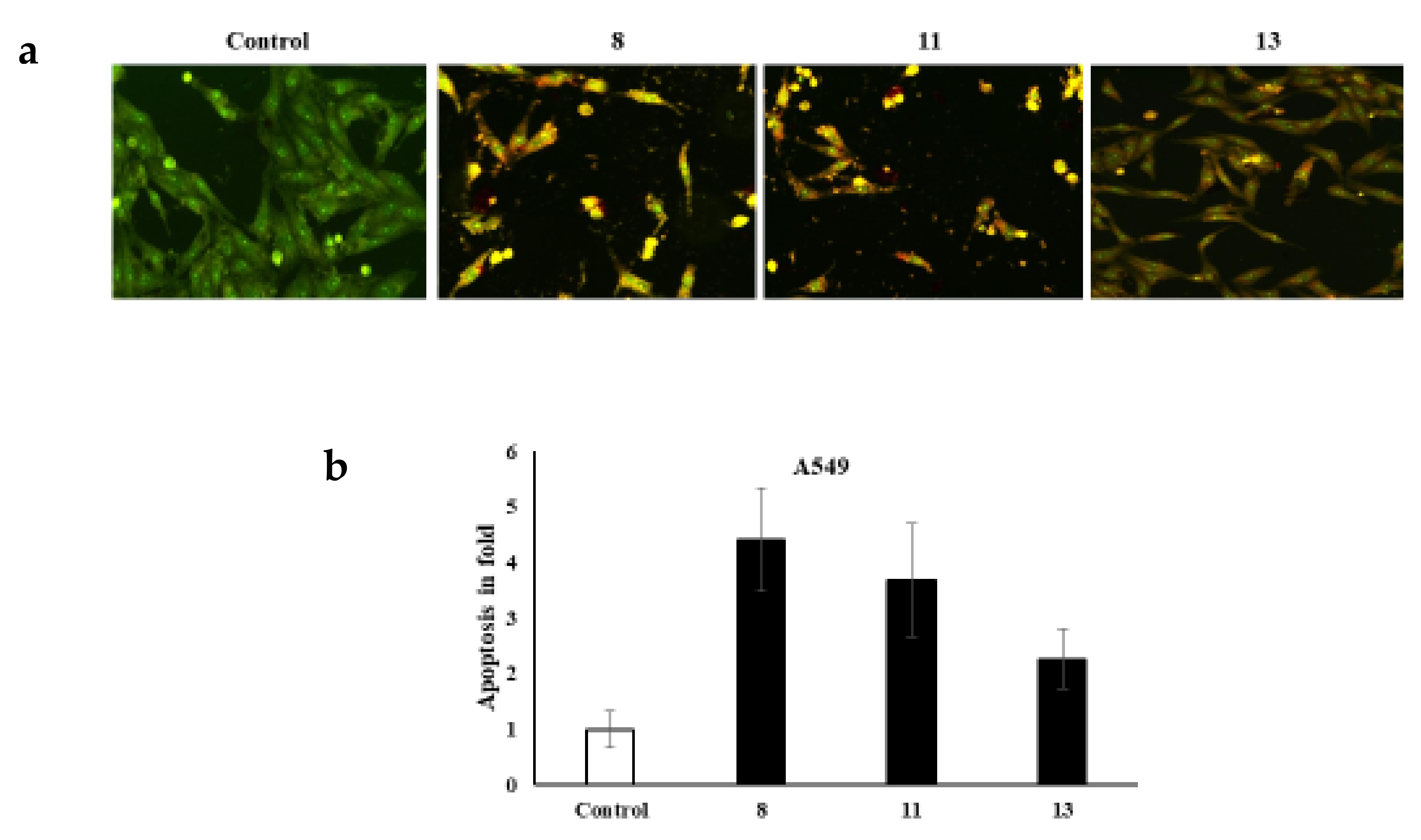

Figure 2. (a) dual staining of A549 cells via the fluorescent homidium bromide and acridine orange dyes; (b) apoptosis in fold.
Figure 2. (a) dual staining of A549 cells via the fluorescent homidium bromide and acridine orange dyes; (b) apoptosis in fold.
Cimb 44 00204 g002
Cimb 44 00204 g003 550

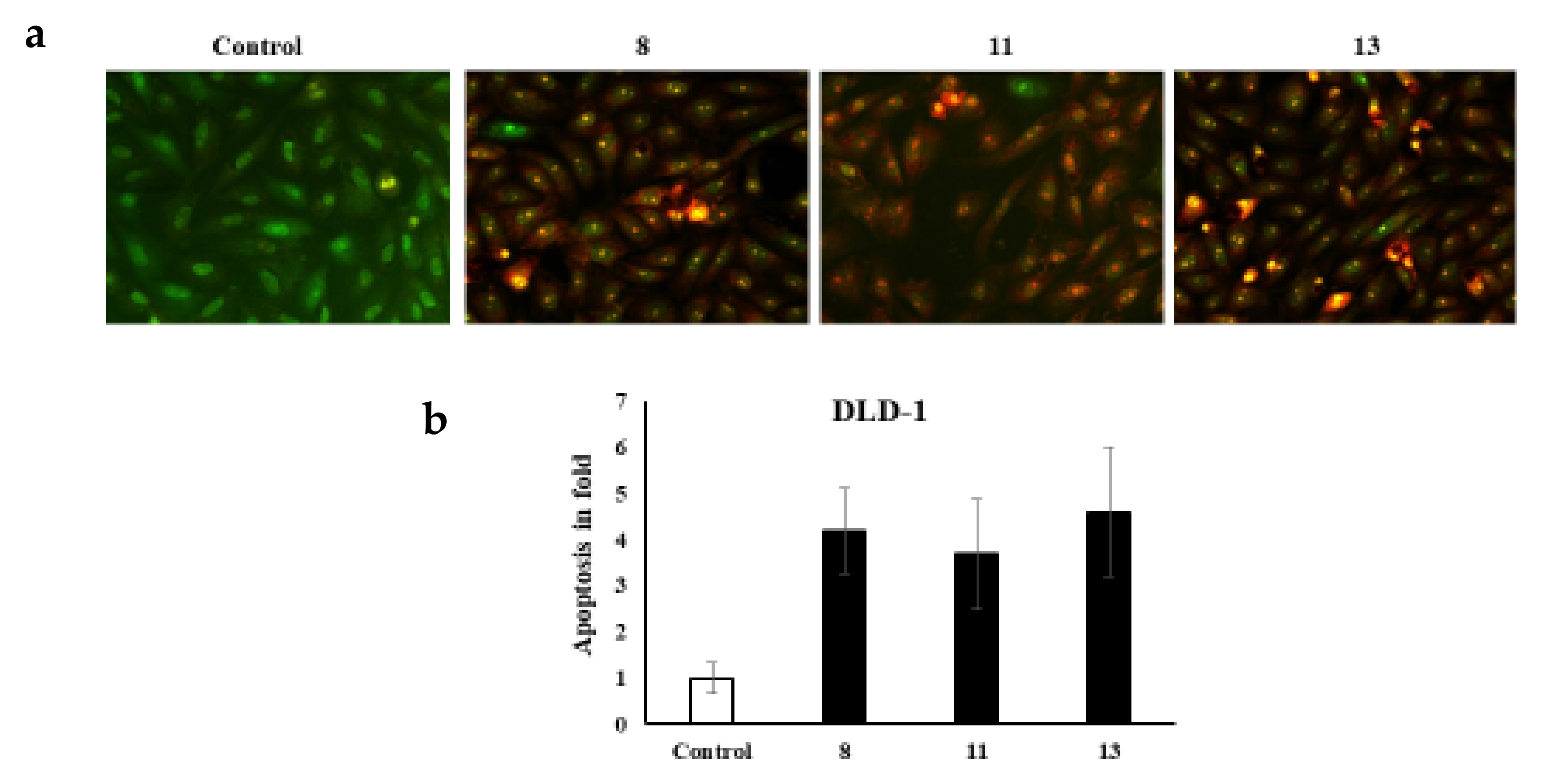

Figure 3. (a) dual staining of DLD-1cells via the fluorescent homidium bromide and acridine orange dyes; (b) apoptosis in fold.
Figure 3. (a) dual staining of DLD-1cells via the fluorescent homidium bromide and acridine orange dyes; (b) apoptosis in fold.
Cimb 44 00204 g003
Table
Table 1. Effect of the synthesized compounds on the viability of human colorectal adenocarcinoma (DLD-1) and human adenocarcinoma(A549) cells.
Table 1. Effect of the synthesized compounds on the viability of human colorectal adenocarcinoma (DLD-1) and human adenocarcinoma(A549) cells.
CompoundsIC50 (µM) a
A549DLD-1
Cisplatin6 ± 1.27.3 ± 2.6
842 ± 3.726 ± 2.7
9- b- b
10- b- b
1140 ± 3.8321 ± 1.6
1223 ± 2.932 ± 2.9
1332 ± 4.135 ± 4.21
17- b- b
18- b43
19- b- b
a Cytotoxicity was measured after forty-eight hours treatment of DLD-1 and A549 cells with serial concentrations of the newly synthesized compounds using an MTT assay. b No proliferation inhibition (IC50 ≥ 50) was observed at the tested concentration range.
